Manual of Cradle
CRD9823-RU
Data Collector Cradle
Specifications Manual
Opticon
CRD9823-RU
Specifications Manual
2
All information subject to change without notice.
Document History
Model Number: CRD9823 RU Specification Number:
Edition: 1 Original Spec Number:
Date: 2014-01-03
Copyright 2014 Opticon. All rights reserved.
This manual may not, in whole or in part, be copied, photocopied, reproduced, translated or converted to any electronic or
machine readable form without prior written consent of Opticon.
Limited Warranty and Disclaimers
PLEASE READ THIS MANUAL CAREFULLY BEFORE INSTALLING OR USING THE PRODUCT.
Serial Number
A serial number appears on all Opticon products. This official registration number is directly related to the device
purchased. Do not remove the serial number from your Opticon device. Removing the serial number voids the warranty.
Warranty
Unless otherwise agreed in a written contract, all Opticon products are warranted against defects in materials and
workmanship for two years after purchase. Opticon will repair or, at its option, replace products that are defective in
materials or workmanship with proper use during the warranty period. Opticon is not liable for damages caused by
modifications made by a customer. In such cases, standard repair charges will apply. If a product is returned under
warranty and no defect is found, standard repair charges will apply. Opticon assumes no liability for any direct, indirect,
consequential or incidental damages arising out of use or inability to use both the hardware and software, even if Opticon
has been informed about the possibility of such damages.
Packaging
The packing materials are recyclable. We recommend that you save all packing material to use should you need to
transport your scanner or send it for service. Damage caused by improper packaging during shipment is not covered by
the warranty.
Trademarks
Trademarks used are the property of their respective owners.
Opticon Inc. and Opticon Sensors Europe B.V. are wholly owned subsidiaries of OPTOELECTRONICS Co., Ltd., 5-3,
Tsukagoshi 5-chome, Warabi-shi, Saitama, Japan 335-0002. TEL +81-(0) 48-446-1183; FAX +81-(0) 48-446-1180
SUPPORT
USA Europe
Phone: 800-636-0090
Email: support@opticonusa.com Email: support@opticon.com
Web: www.opticonusa.com Web: www.opticon.com
Opticon
CRD9823-RU
Specifications Manual
3
Contents
1. Abstract ................................................................................................................................. 5
2. Overview ............................................................................................................................... 5
3. Physical Features ................................................................................................................. 5
3.1. Dimensions ................................................................................................................... 5
3.2. Weight ........................................................................................................................... 5
4. Environmental Specifications .............................................................................................. 5
4.1. Operating Temperature and Humidity ............................................................................ 5
4.2. Storage Temperature and Humidity ............................................................................... 5
5. Electrical Specifications ....................................................................................................... 6
5.1. Absolute Maximum Ratings ........................................................................................... 6
5.2. Recommended Operating Conditions ............................................................................ 6
6. Interface Specifications ........................................................................................................ 7
6.1. External Interface Connector and Pin Assignment ......................................................... 7
6.1.1. DC Power Supply Connector (EIAJ Type 3) ............................................................................ 7
6.1.2. Connector for USB on PC Side (USB Type B) ......................................................................... 7
6.1.3. Connector for RS-232C on PC Side (Ten-electrode modular jack) ......................................... 7
6.2. Communications Interface ............................................................................................. 8
6.2.1. Baudrate Configuration using DIP switches ............................................................................. 8
6.2.2. Baud Rate Configured Using Software .................................................................................... 9
7. Cables and Connectors ...................................................................................................... 10
7.1. RS232-C Cable ........................................................................................................... 10
7.2. USB A-B Cable ............................................................................................................ 10
8. Labels .................................................................................................................................. 11
8.1. Product label ............................................................................................................... 11
8.2. Interface Label ............................................................................................................. 11
9. Packaging Specifications ................................................................................................... 12
9.1. Individual Packaging .................................................................................................... 12
9.2. Collective Packaging ................................................................................................... 13
10. Regulatory Compliance ...................................................................................................... 14
10.1. EMC ............................................................................................................................ 14
10.2. RoHS .......................................................................................................................... 14
11. Safety recommendations ................................................................................................... 15
12. Mechanical Drawings ......................................................................................................... 16
Opticon
CRD9823-RU
Specifications Manual
4
Table of Figures
Figure 1: DIP switch settings ..................................................................................................... 8
Figure 2: Signal timing when software is configured .................................................................. 9
Figure 3: RS-232C cable ......................................................................................................... 10
Figure 4: USB cable ................................................................................................................ 10
Figure 5: Product label on the bottom of the cradle ................................................................. 11
Figure 6: Label on the back side of the cradle .......................................................................... 11
Figure 7: Individual packaging specification ............................................................................ 12
Figure 8: Collective packaging specification ............................................................................ 13
Figure 9: Mechanical drawing ................................................................................................. 16
Opticon
CRD9823-RU
Specifications Manual
5
1. Abstract
This manual provides specifications for the CRD9823-RU cradle designed for the Opticon OPL
(OPL97XX and OPL98XX) series data collectors. The CRD9823-RU cradle supports USB and
RS232 interfaces and can also used to charge the OPL.
2. Overview
The CRD9823-RU cradle can be used to charge the OPL series data collectors. Additionally, it
provides a way for data communication between the OPL data collector and a host computer.
The Opticon OPL data collectors all have an IrDA communication interface and this cradle acts
as a bridge between the USB/RS232 interface available on every computer and the IrDA
interface in the OPL data collector.
The CRD9823-RU communicates with the OPL data collectors via infrared data
communication (IrDA1.2, low-power) and can communicate with a host computer via either
USB (USB 2.0, CDC class virtual comm. port) or RS232C.
The CRD9823-RU has three status LED’s, a red LED that indicates that the power is switched
on, a green LED that blinks when the cradle receives data via IrDA and a yellow LED that
blinks when data is received via USB or RS232.
The baud rate for RS232 & IrDA can be configured via special software on the host computer
but it can also be configured via a block of switches that are accessible via the bottom of the
cradle. Supported baud rates are 1200, 2400, 4800, and 9600 bps, 19.2kbps, 38.4kbps,
57.6kbps and 115.2 kbps.
3. Physical Features
3.1. Dimensions
W 98.5 x D 71.5 x H 67.0 mm
3.2. Weight
80 g
4. Environmental Specifications
4.1. Operating Temperature and Humidity
Temperature: 0 to 40° C (32 to 104° F)
Humidity: 30 to 80%
4.2. Storage Temperature and Humidity
Temperature: -20 to 60° C (-4 to 140° F)
Humidity: 30 to 90%
Opticon
CRD9823-RU
Specifications Manual
6
5. Electrical Specifications
Only use dedicated Opticon approved AC adapters with this cradle. The output of such a AC
adapter should be 6V/2A. It is not possible to power the cradle via USB.
5.1. Absolute Maximum Ratings
Parameter Value Unit
Power supply voltage (VCC to GND) -0.3 to 6.5 V
Input voltage (D+, D-) -0.5 to 0.5 V
Input voltage (RS-232C IN) ±30 V
Input voltage (RS-232C OUT) ±15 V
5.2. Recommended Operating Conditions
Item Symbol Conditions Min Typ Max Unit
Power supply voltage VDD DC power supply 5.5 6.0 6.5 V
Opticon
CRD9823-RU
Specifications Manual
7
6. Interface Specifications
6.1. External Interface Connector and Pin Assignment
6.1.1. DC Power Supply Connector (EIAJ Type 3)
Pin Signal Name Notes
Inward +6 V Power supply +6 V
Outward GND Ground
6.1.2. Connector for USB on PC Side (USB Type B)
Pin Signal Name I/O Notes
1 VBUS P USB bus power supply
2 D- I/O Data -
3 D+ I/O Data +
4 GND P Ground
6.1.3. Connector for RS-232C on PC Side (Ten-electrode modular jack)
Pin Signal Name I/O Notes
1 GND P Ground
2 CTS I For baud rate software control
3 TXD O Transmit data to PC
4 RXD I Receive data from PC
5 NC - Not connected
6 GND P Ground
7 NC - Not connected
8 DSR I For baud rate software control
9 NC - Not connected
10 GND P Ground
Opticon
CRD9823-RU
Specifications Manual
8

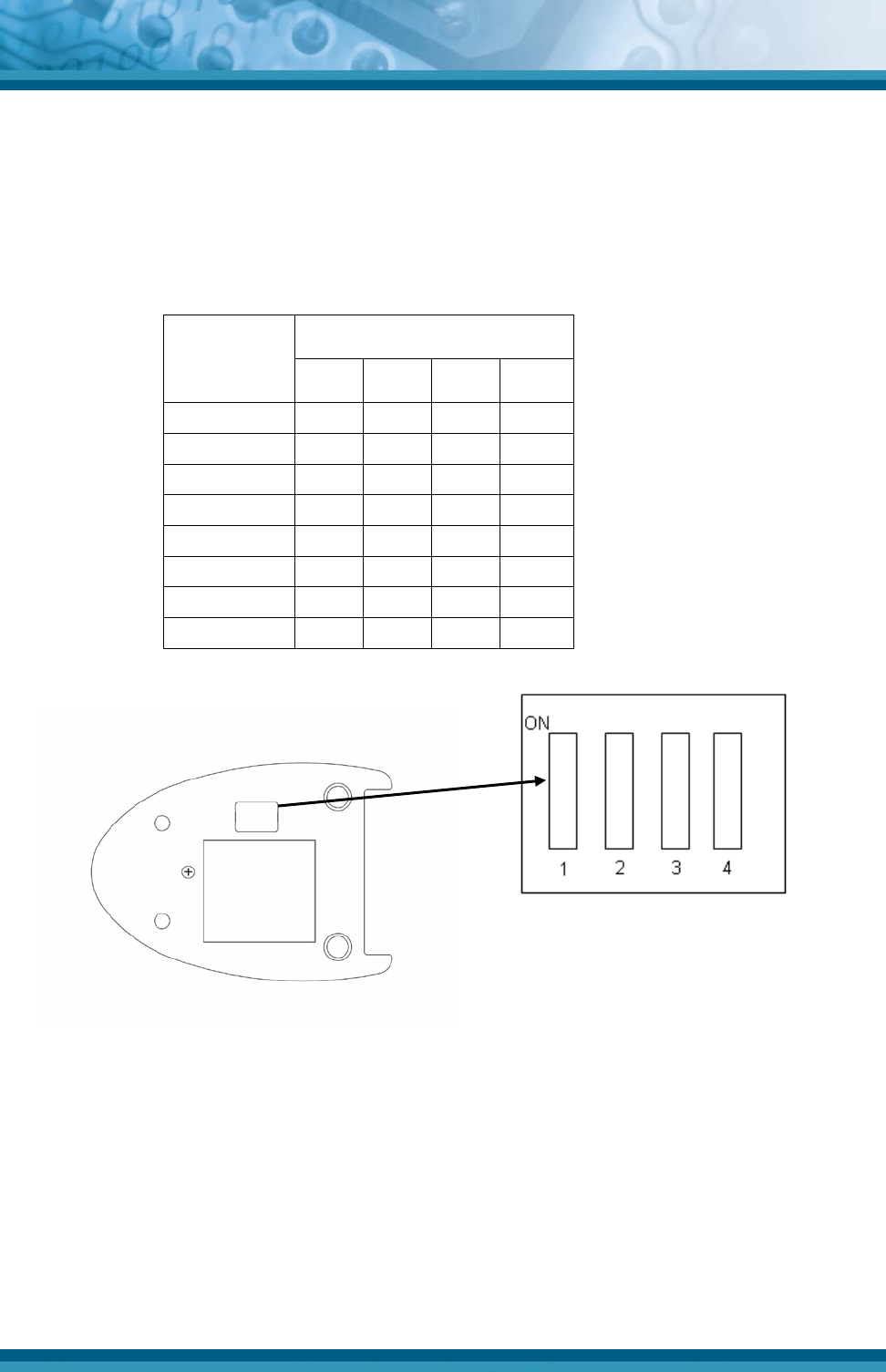

6.2. Communications Interface
The baud rate can be configured via DIP switches on the bottom of the cradle. The baud
rate can also be configured by using special software on the host.
6.2.1. Baud rate Configuration using DIP switches
To disable software configuration, set SW4 to OFF.
Baud rate can be configured using SW1–SW3 as listed in the table below.
Baud rate
DIP Switch
SW1 SW2 SW3 SW4
115.2 kbps ON ON ON OFF
57.6 kbps OFF ON ON OFF
38.4 kbps ON OFF ON OFF
19.2 kbps OFF OFF ON OFF
9600 bps ON ON OFF OFF
4800 bps OFF ON OFF OFF
2400 bps ON OFF OFF OFF
1200 bps OFF OFF OFF OFF
Figure 1: DIP switch settings
Remove the cover and change the settings. Put the cover back on when finished.
Opticon
CRD9823-RU
Specifications Manual
9

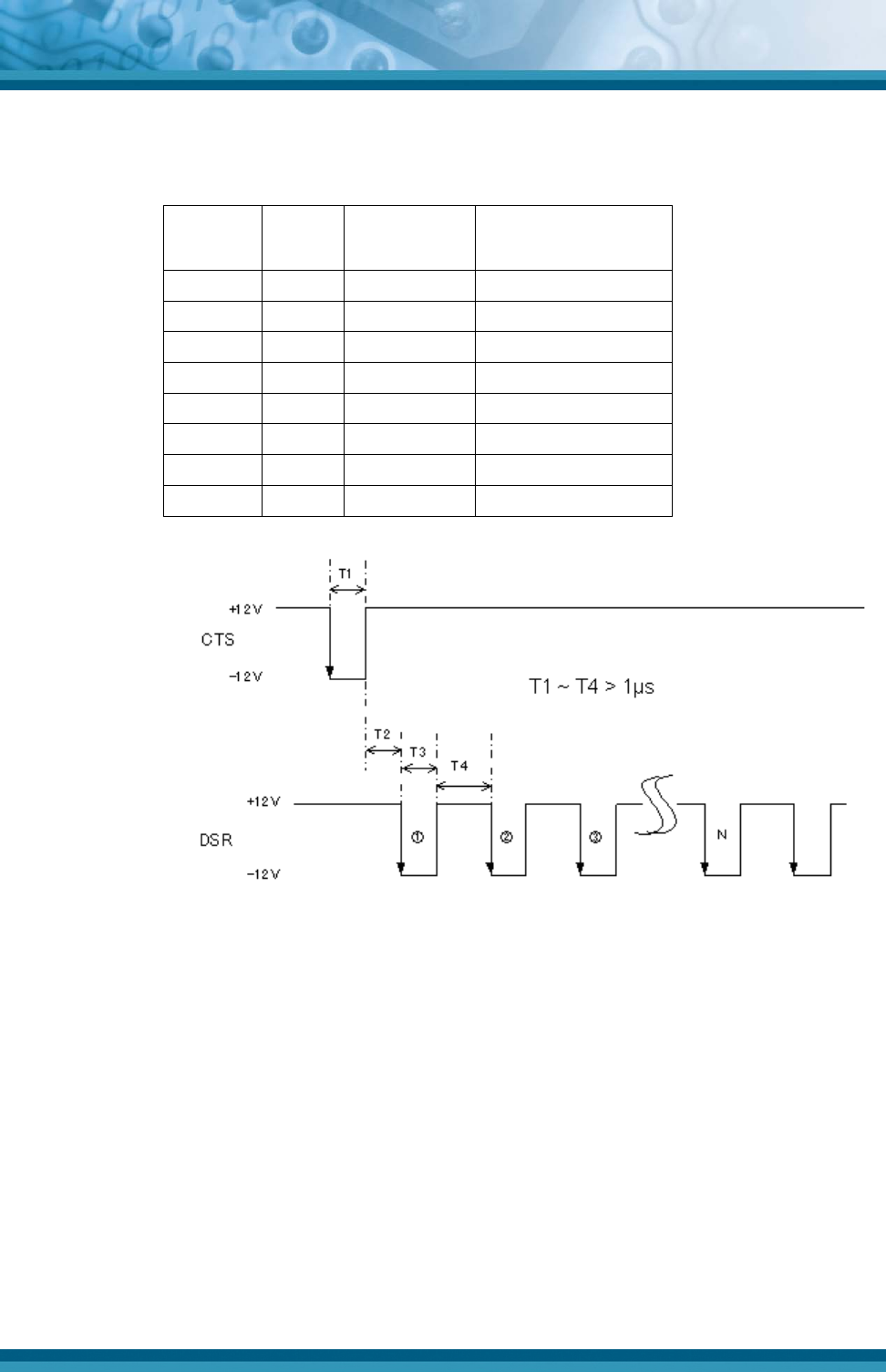

6.2.2. Baud Rate Configured Using Software
To allow configuration using software on the host computer, set SW4 to ON. The
other DIP switches are not used when SW4 is ON.
CTS
Line DSR
Line Baud Rate Remarks
Edge 0 pulse 115.2 kbps Reset Pulse Count
1 pulse 57.6 kbps
2 pulse 38.4 kbps
3 pulse 19.2 kbps
4 pulse 9600 bps
5 pulse 4800 bps
6 pulse 2400 bps
7 pulse 1200 bps
Figure 2: Signal timing when software is configured
Opticon
CRD9823-RU
Specifications Manual
10

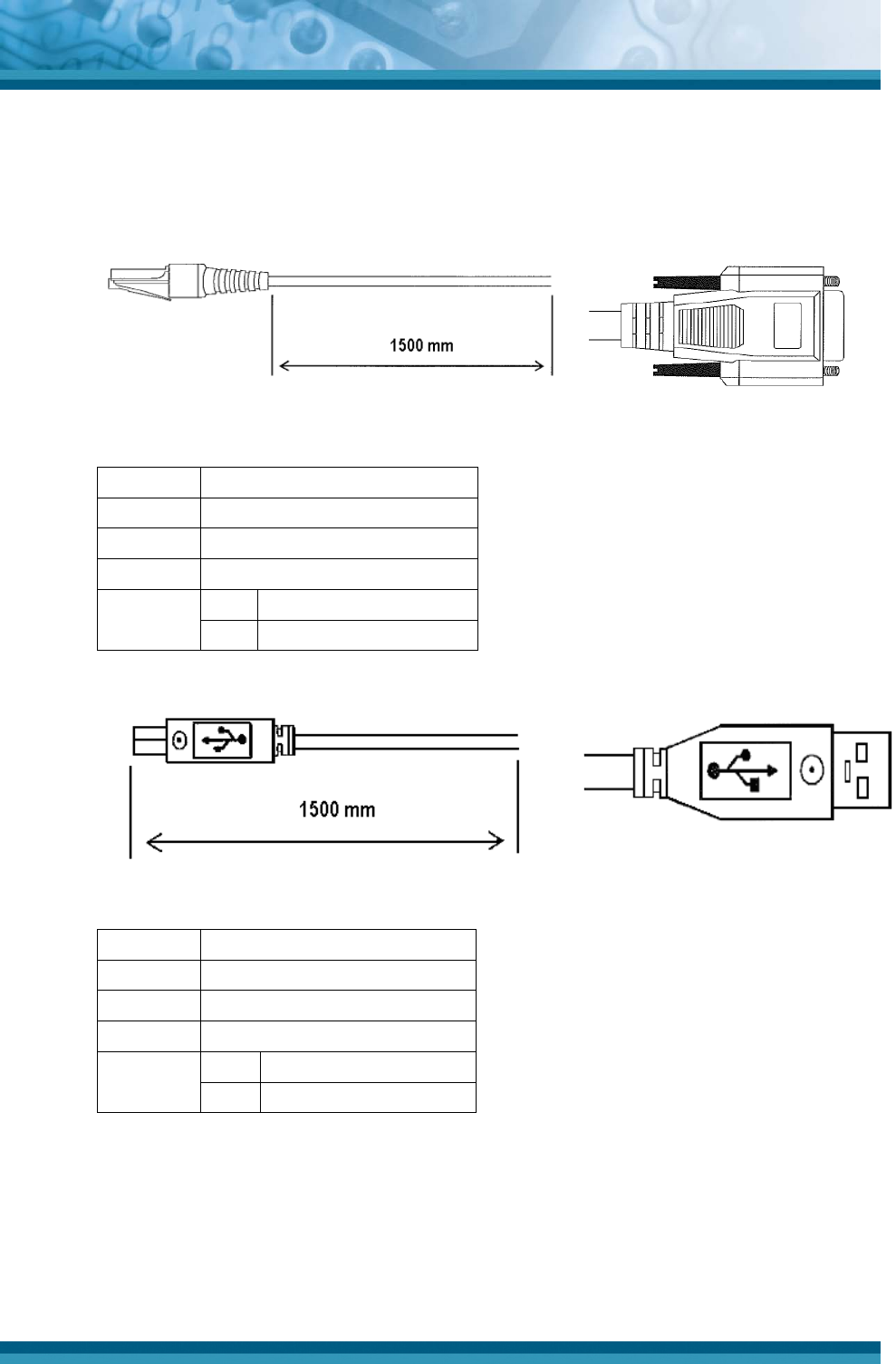

7. Cables and Connectors
7.1. RS232-C Cable
Figure 3: RS-232C cable
Type: Straight
Diameter: φ3.8 ±0.15 mm
Length: 1500 ±100, -0 mm
Cores: 8 insulated wires, 1 conductive wire
Connectors Left RJ50 (10-pin modular jack)
Right DB9, female
7.2. USB A-B Cable
Figure 4: USB cable
Type: Straight
Diameter: Φ4.7 ±0.15 mm
Length: 1500 ±50 mm
Cores: 4 insulated wires, 1 conductive wire
Connectors Left USB-B type
Right USB-A type
Opticon
CRD9823-RU
Specifications Manual
11

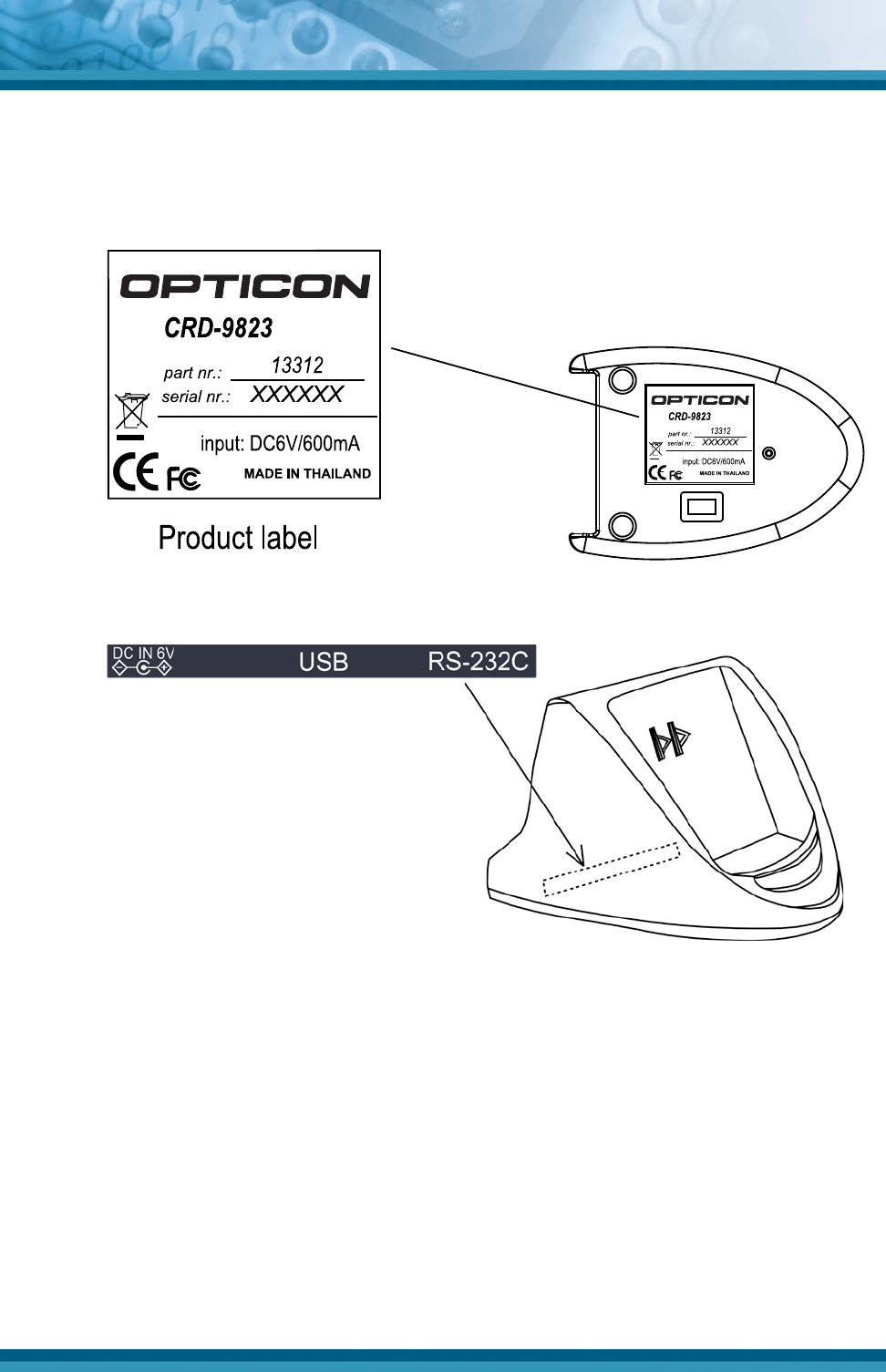

8. Labels
The serial number shown below is affixed to the specified location on the cradle.
8.1. Product label
Figure 5: Product label on the bottom of the cradle
8.2. Interface Label
Figure 6: Label on the back side of the cradle
Opticon
CRD9823-RU
Specifications Manual
12
9. Packaging Specifications
9.1. Individual Packaging
Put the cradle in a protective foam bag and place it in an individual packing box.
Figure 7: Individual packaging specification
Opticon
CRD9823-RU
Specifications Manual
13

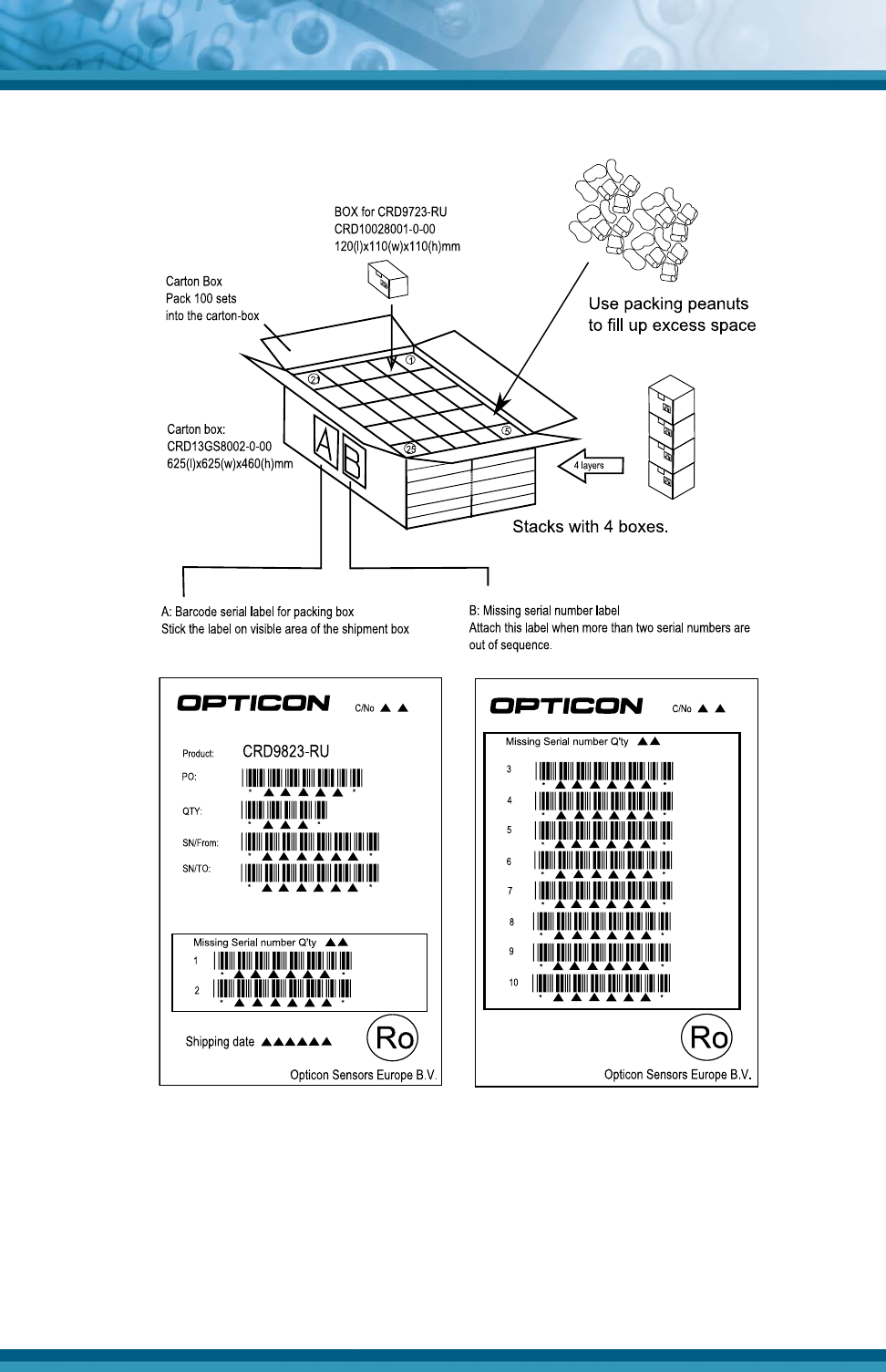

9.2. Collective Packaging
Figure 8: Collective packaging specification
Note: The “RO” mark labeled on the package tray or package box guarantees that the
applicable product has passed our test of RoHS restrictions compliance (the restriction of
the use of certain hazardous substances in electrical and electronic equipment, 2002/95
EC). However, this document does not have any legal weight in the European Union.
Opticon
CRD9823-RU
Specifications Manual
14
10. Regulatory Compliance
10.1. EMC
EN55022
EN55024
FCC Part 15 Subpart B Class B: This device complies with part 15 of the FCC Rules.
Operation is subject to the following two conditions: (1) this device may not cause
harmful interference, and (2) this device must accept any interference received, including
interference that may cause undesired operation.
10.2. RoHS
RoHS: The restriction of the use of certain hazardous substances in electrical and
electronic equipment, 2002/95 EC.
Opticon
CRD9823-RU
Specifications Manual
15
11. Safety recommendations
Handle this product carefully. Do not subject it to any of the following.
Shock
• Do not throw or drop the cradle.
• Do not place heavy objects on the cables.
Temperature Conditions
• Do not use the cradle at temperatures outside the specified operating temperature
range.
• Do not subject the cradle to temperatures outside the specified storage temperature
range.
• Do not forcibly bend the cables, especially at low temperatures.
Foreign Materials
• Do not immerse the cradle in liquids.
• Do not subject the cradle to chemicals.
Other
• Do not disassemble this product.
• This cradle may degrade the reception of nearby radio/television sets.
• The cradle may be damaged by high voltage spikes such as caused by lightning.
• The cradle may not operate properly when placed very close to a cellular phone.
Opticon
CRD9823-RU
Specifications Manual
16
12. Mechanical Drawings
Dimensions: W 98.5 x D 71.5 x H 67.0 mm
Figure 9: Mechanical drawing
No. Name
1 DC jack DC jack for the dedicated AC adapter
2 USB connector USB communication connector to the host computer
3 RS-232C connector RS-232C communication connector to the host computer
4 Power LED (Red) Red LED lights when the power is on
5 IrDA reception LED (Green) Green LED blinks when receiving data via IrDA
6 IrDA transmission LED (Yellow) Yellow LED blinks when transmitting data via IrDA
7 IrDA communication window IrDA communication window
8 Charging terminal (+) Charging Terminal (+) to the OPL-97xx
9 Charging terminal (-) Charging Terminal (-) to the OPL-97xx
10 DIP switch To configure the baud rate.
11 Product label
