Orbit Irrigation Product HT8ZB001 Outlet Hose Faucet Timer User Manual

Orbit Irrigation Product Inc. Outlet Hose Faucet Timer Users Manual

Users Manual

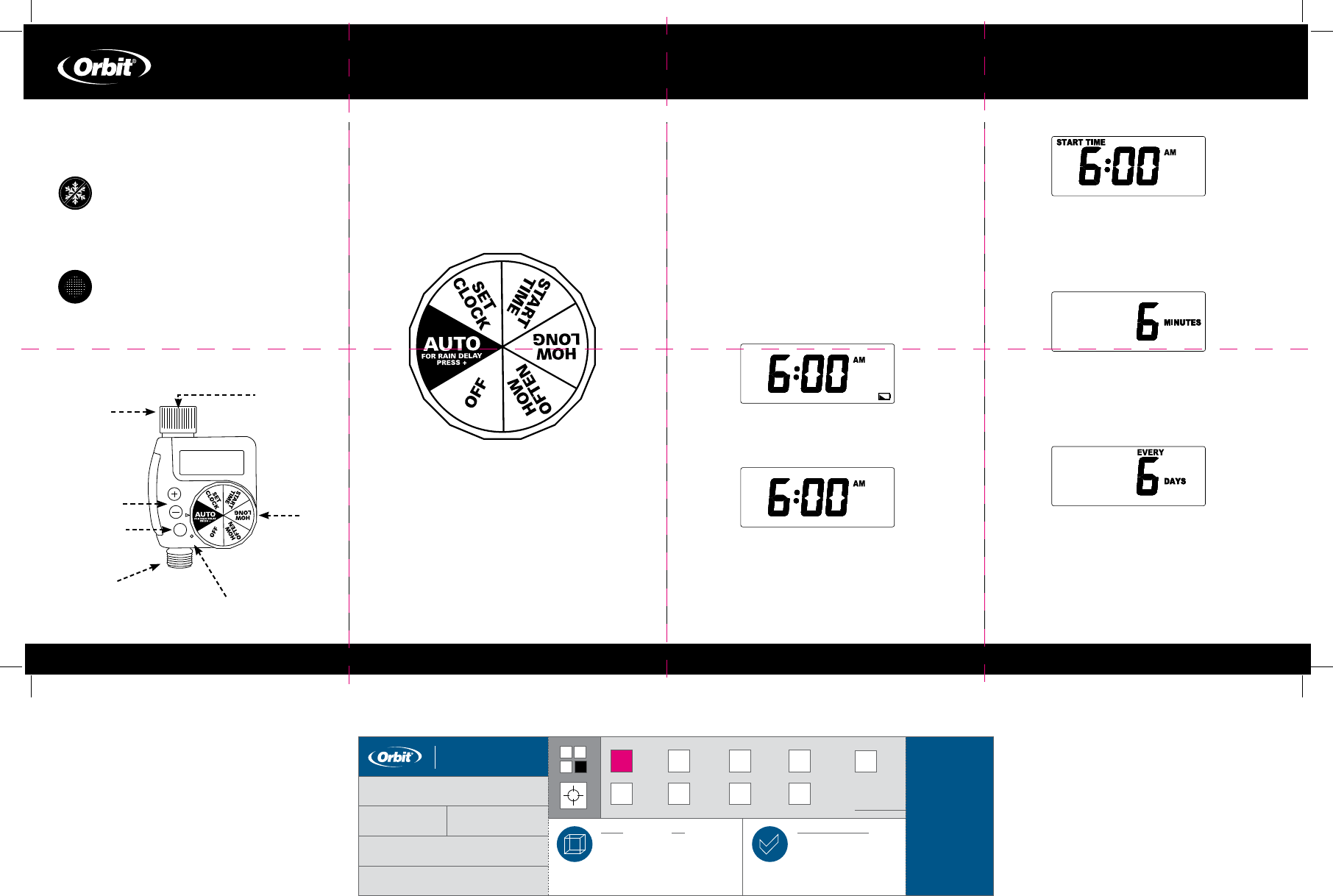

START TIME
1. Turn dial to START TIME.
2. Using the +/- buttons, set your start time,
including AM and PM.
3. Turn dial to save changes
HOW LONG
1. Turn dial to HOW LONG.
2. Using the +/- buttons, select watering
duration from 1 to 240 minutes
3. Turn dial to save changes.
HOW OFTEN
1. Turn dial to HOW OFTEN.
2. Using the +/- buttons, set your watering
frequency. You can choose to water every 6
hours, 12 hours, or from 1 to 7 days.
NOTE: 1 is every day, 2 is every other day, etc.
3. Turn dial to save changes.
DIAL—Rotate the dial to customize your
watering schedule
RESET—Press to clear all programming
MANUAL/CLEAR—Press to water manually or to
clear programming within a specific program
+/- BUTTONS—Use these buttons to adjust time
and system setup
1 OUTLET HOSE FAUCET TIMER
IMPORTANT PLEASE READ!
TIMER FEATURES
AUTO—Timer waters according to your
customized schedule
SET CLOCK—Set the time of day
START TIME—Select what time you would like
watering to start
HOW LONG—Determine how long to water
HOW OFTEN—Choose how often you will water
OFF—Turn off all watering
WHEN EXPECTING FREEZING
TEMPERATURES, TIMERS SHOULD BE
REMOVED FROM THE HOSE FAUCET AND
STORED INDOORS TO AVOID POTENTIAL
FREEZE DAMAGE.
FILTER TRAPS DIRT PARTICLES, PROLONGING
LIFE OF TIMER. CLEAN FILTER REGULARLY
AND REPLACE IF WORN.
QUICK START
INSTALLING THE BATTERIES
1. Remove the tray on the back of the timer by
sliding or pulling it out.
2. Insert two AA (1.5V) alkaline batteries
(not included) and replace the tray.
NOTE: Firmly replace the battery tray to insure water resistance
and increase battery life. You will know the battery tray is fully
inserted if it does not pull out easily.
Used up or dead batteries must be removed from the timer and
disposed of properly. Batteries should be removed from the
timer at the end of the watering season and replaced with new
ones at the beginning of the next watering season. Replace
batteries when low battery icon appears on display.
PROGRAMMING THE TIMER
SET CLOCK
1. Turn dial to SET CLOCK.
2. Using the +/- buttons, set the time of day,
including AM and PM.
3. Turn dial to save changes.
AM
AM
MINUTES
DAYS
6:00
RESET
MANUAL
HOSE TAP
CONNECTION
+/-
BUTTONS
MANUAL/
CLEAR
FILTER
DIAL
RESET
OUTLET
AM
DATE: 11/05/2013
DESIGNER: SH MARKETING: AY
ARTWORK №: 27087-24 rA
SOFTWARE: Adobe Indesign CS6
Printers are responsible
for meeting print
production requirements.
Any changes must be
approved by Orbit®.
Printed piece must meet
designated specifications
on this form.
© 2013 Orbit Inc.
This work is the property
of Orbit®, and cannot be
used, reproduced or
distributed in any way
without their express
permission.
Dieline
PMS
0000
Fold
PMS
0000
Product
Coverage
PMS
0000
Dims./
Callout
PMS
0000
∙
∙
∙
∙
L:
W:
H:
000.000"
Orbit®
1.801.299.5555
orbitonline.com KGlue
Folded
W:
H:
Flat Additional Information
3.0"
3.0"
12.0"
6.0"
PRINTERS ARE
REQUIRED TO MATCH
ALL SPECIFIED
PMS COLORS.
PN 27087-24 rA
Congratulations! Your timer is now programmed.
Turn your dial to AUTO to allow your timer to
water according to programmed time, station,
duration, and frequency.

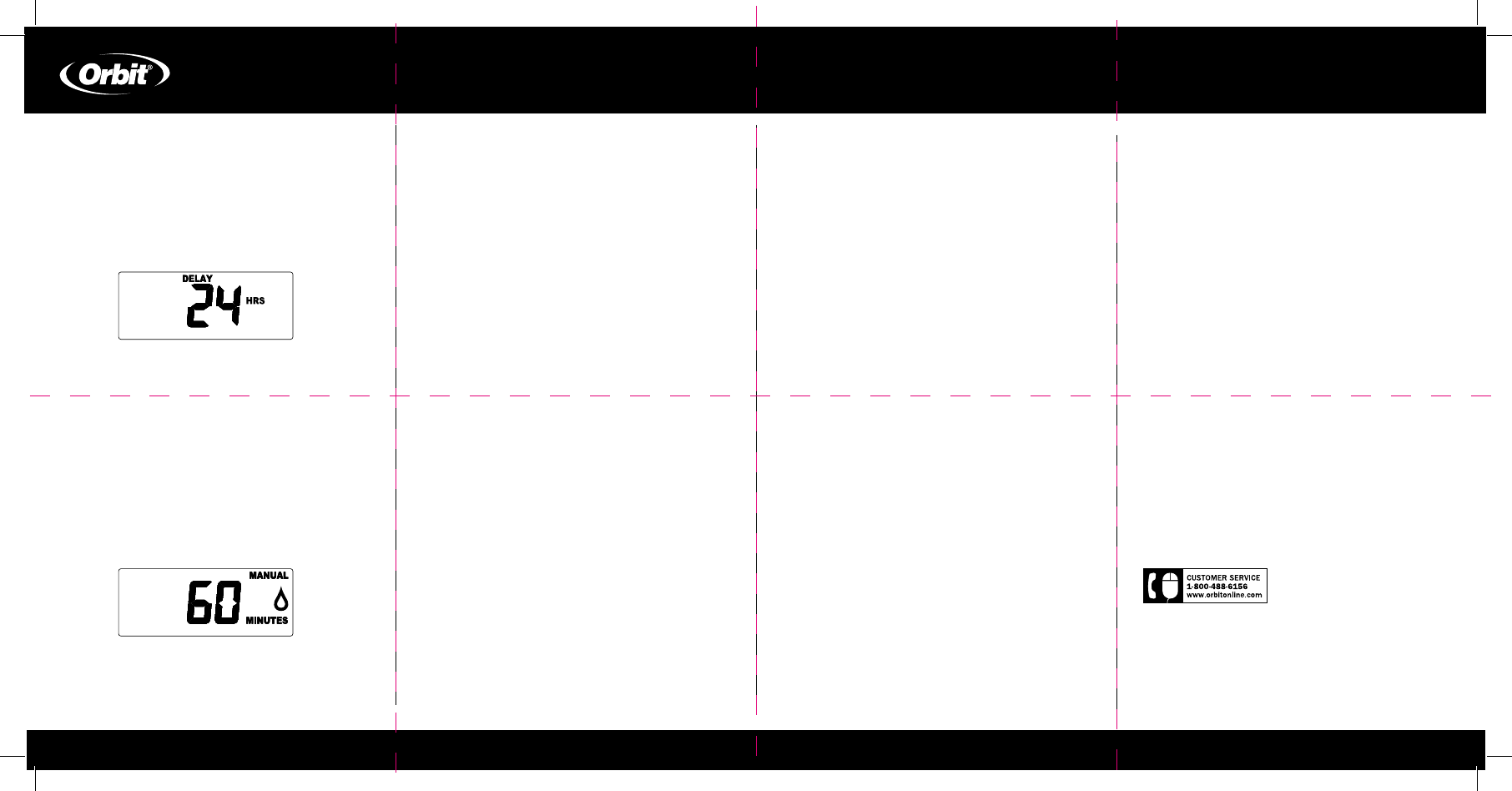

ADDITIONAL FEATURES
RAIN DELAY
Rain delay allows you to postpone watering for
a set period of time. To access the rain delay,
follow the steps below.
1. With the dial on AUTO, press the + button to
select a delay of 24 hrs, 48 hrs, or 72 hrs.
2. Screen will flash between clock and hours
remaining before programmed cycle resumes.
3. To remove rain delay, turn dial to OFF
and then back to AUTO.
MANUAL/HAND WATERING
This feature allows you to water without
interrupting your set schedule. To access this
feature, follow the steps below.
HRS
1. With the dial on AUTO, press the
MANUAL button.
2. Use the + and – buttons to select watering
time, from 1 to 240 minutes.
NOTE: There may be a slight delay between the time
the manual button is pressed and when watering begins.
To stop manual watering, turn the dial to OFF.
Turn the dial back to AUTO to resume your
programmed watering schedule.
TROUBLESHOOTING
WATER DOES NOT COME ON AT DESIRED TIME.
CHECK IF:
• Clock is set to correct time,
including AM and PM.
• Start time is set to desired time,
including AM and PM.
• Rain Delay is on.
TIMER DOES NOT WATER.
CHECK IF:
• Timer is set to AUTO.
• Hose faucet is on.
• Batteries are low.
• Clock is set to correct time,
including AM and PM.
• Rain Delay is on.
WATER WON’T TURN OFF.
CHECK IF:
• HOW LONG is set to desired time.
WORKING WATER PRESSURE
Minimum: 25 psi
Maximum: 100 psi
WORKING TEMPERATURE
Maximum: Do not exceed 120°F
Minimum: Keep from freezing
WARNINGS
For outdoor use with cold water only.
FCC STATEMENT
The U.S. Federal Communications Commission (in 47
cfr 15.105) has specified that the following notices be
brought to the attention of users of this product.
This device complies with part 15 of the FCC rules.
Operation is subject to the following two conditions:
(1) This device may not cause harmful interference,
and (2) this device must accept any interference
received, including interference that may cause
undesired operation.
Pursuant to Part 15.21 of the FCC Rules, any changes or
modifications to this equipment not expressly approved
by Orbit may cause harmful
interference and void the FCC authorization to operate
this equipment.
NOTE:This equipment has been tested and found to
comply with the limits for a Class B digital device,
pursuant to Part 15 of the FCC Rules. These limits
are designed to provide reasonable protection against
harmful interference in a residential installation. This
equipment generates, uses, and can radiate radio
frequency energy and, if not installed and used in
accordance with the instructions, may cause harmful
interference to radio communications. However, there
is no guarantee that interference will not occur in a
particular installation. If this equipment does cause
harmful interference to radio or television reception,
MANUAL
MINUTES
which can be determined by turning the equipment off
and on, the user is encouraged to try to correct the
interference by one or more of the following measures:
• Reorient or relocate the receiving antenna.
• Increase the separation between the
equipment and receiver.
• Connect the equipment into an outlet on a
circuit different from that to which the receiver
is connected.
• Consult the dealer or an experienced radio/TV
technician for help.
Changes or modifications not expressly approved by the
party responsible for compliance could void the user’s
authority to operate the equipment.
© 2013 Orbit Irrigation Products, Inc.
All rights reserved. All trade names are
registered trademarks of respective
manufacturers listed.
Orbit
®
Irrigation Products, Inc.
North Salt Lake, UT 84054
