Contents

Users Manual 04080-50 rB_21

HRC 400 WIFI
Smart Irrigation Controller
Contents in the Box
Wifi Sprinkler Controller
Screwdriver
Installation Hardware
Keys
Quick Start Guide
A
A
D
B
B
D
E
C
C
E
HRC 400 WIFI
Smart Irrigation Controller
Controller Installation
Select a location
Choose a location near power and
away from direct sunlight, if possible.
Make sure to leave room for the
controller door to open completely.
This location should also have a good
Wifi signal. You can check this using
a smart phone. (Find a location that
has a minimum of two bars)
Note: If replacing a controller, it is
helpful to take a photo of the wires
before you remove them from the
old controller.
Mount the controller
Install a screw (included) into the
wall. Use the expanding anchors
(included) for plaster, masonry
or drywall installations. Hang the
controller on the installed screw
using the keyhole slot. Level the
controller and use the second screw
in one of the pre-formed mounting
holes to secure the controller.
Quick Start Guide
Quick Start Guide
Keyhole
Pre-formed
Mounting Holes
No. 8 Screw
Wall
1/8" (3mm)
Minimum Signal
Prepare wire Strip
1/2" (13 mm) of insulation from each wire.
Connect wires
Attach one wire from each valve to a
“Common” (COM) wire and the other
wires to a numbered terminal (only one
wire per terminal).
Small Hole–for running 5 or 7
strand wire straight into the box
1/2", 3/4" and 1" (13 mm, 20 mm and 25 mm)
knock-outs for larger systems with more
wire bundles
Knock-out for hard-
wired installations
Bottom View
SENSOR COM PUMP
2 3 4 5 6
Strip Wire
Push In
Loosen Screw
Tighten Screw
Note: We recommend you
consult an electrician for
hardwired installations.
Connect Valve Wires
Printers are responsible
for meeting print
production requirements.
Any changes must be
approved by Orbit®.
Printed piece must meet
designated specifications
on this form.
© 2014 Orbit Inc.
This work is the property
of Orbit®, and cannot
be used, reproduced or
distributed in any way
without their express
permission.
Dieline
PMS
2955
Fold
PMS
0000
Product
Coverage
PMS
0000
Dims./
Callout
PMS
0000
∙
∙
∙
∙
Orbit®
1.801.299.5555
orbitonline.com Glue
Folded Flat Additional Information
PRINTERS ARE
REQUIRED TO MATCH
ALL SPECIFIED
PMS COLORS.
DATE: 10/08/2017
DESIGNER: KM MARKETING: MS
SOFTWARE: Adobe Indesign CC
ARTWORK №: 04080-50 rB L:
W:
H:
000.000" W:
H:6.0"
6.0"
24.0"
6.0"
Install the B-hyve™ Pro app on
your smart device
You will need a smart device to connect
the controller to Wifi. After the
controller is paired, you can also use a
computer to adjust your controller.
Note: There is a wizard in the app to
guide you through initial set-up of your
sprinkler controller. In addition, there
are help icons throughout the app with
more information and useful tips.

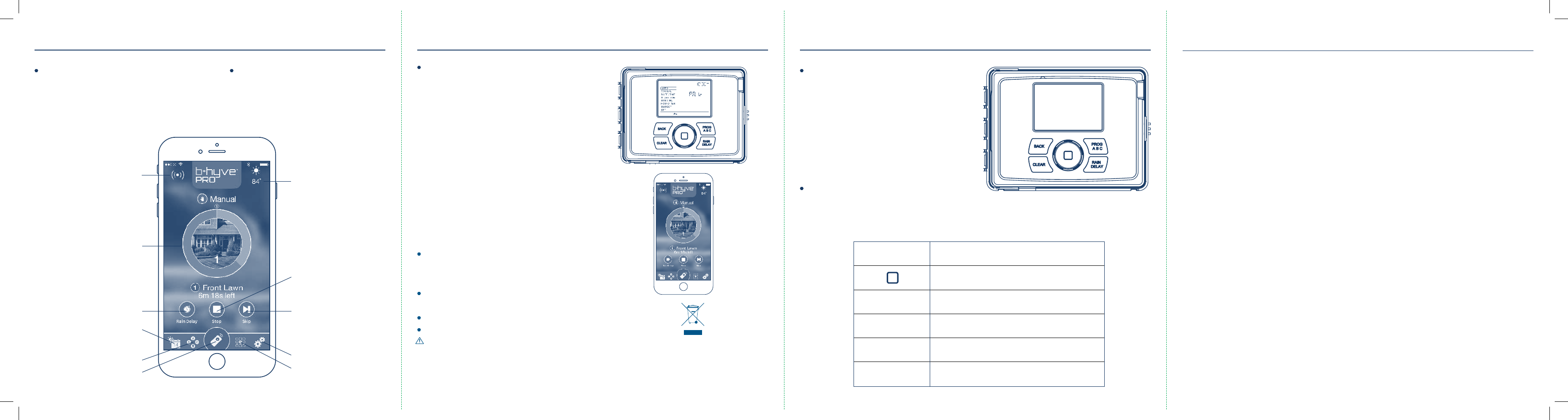

The B-hyve™ Pro App
Timer Connected Symbol
Rain Delay
Calendar
Programs
Remote Control
or Home Button
Zone List
Settings
Next Zone
Stop Watering
Running Status/Messaging
Weather/Temp. FOR OPTIMUM CONTROLLER
PERFORMANCE, CONNECT TO
WIFI TO RECEIVE THE LATEST
CONTROLLER UPDATES.
Controller Installation–Pairing to Controller
Plug in your HRC 400 controller
Once your HRC 400 controller is plugged
into the power source, it will automatically
look to pair with your smart device.
On your controller screen the “pair” icon
will begin to blink. This indicates that your
controller is ready to pair with a smart
device. Open the B-hyve™ Pro app on your
smart device, and follow the step-by-step
pairing process in the app.
Simple Controls
Programing the controller
You can set your controller up with the app.
You can also make manual adjustments at
the controller. Controller changes will be
reflected in the app, and app changes will be
reflected at the controller.
It allows the gardener who left their phone
inside to run a manual cycle, or adjust
programming as needed and keep dirty
hands away from the phone.
Note: The app has help screens and
video to assist you with Wifi connections,
programming, smart watering and other
general questions you may have.
Buttons Function
Scroll up or down, left or right and
push to make a selection
CLEAR To clear a setting
PROG ABC To move to different programs: A, B, and C
BACK To go back a step
RAIN DELAY To pause operation for 1 to 32 days
due to rain or other factors
Specifications
This device complies with Part 15 of the FCC Rules and Industry
Canada license exempt RSS standards. Operation is subject
to the following two conditions: (1) This device may not cause
harmful interference, and (2) this device must accept any
interference received, including interference that may cause
undesired operation.
FCC Warning: Any changes or modifications not expressly
approved by the party responsible for compliance could void the
user’s authority to operate this equipment.
Note: This equipment has been tested and found to comply
with the limits for a Class B digital device, pursuant to Part
15 of the FCC Rules. These limits are designed to provide
reasonable protection against harmful interference in a
residential installation. This equipment generates, uses, and
can radiate radio frequency energy and, if not installed and
used in accordance with the instructions, may cause harmful
interference to radio communications. However, there is no
guarantee that interference will not occur in a particular
installation. If this equipment does cause harmful interference
to radio or television reception, which can be determined by
turning the equipment off and on, the user is encouraged to try
to correct the interference by one of the following measures:
• Reorient or relocate the receiving antenna.
• Increase the separation between the equipment and the receiver.
• Connect the equipment into an outlet on a circuit different from that to
which the receiver is connected.
• Consult the dealer or an experienced radio/TV technician for help
This device meets the FCC and IC requirements for RF
exposure in public or controlled environments. The end user
is advised to maintain a distance of 20 cm from the controller
and any personnel to ensure compliance with RF exposure
regulations.
This Class B digital apparatus complies with Canadian ICES-003
Rated input:
Australia—240V AC 50/60Hz 0.15A | Europe—230V AC 50/60Hz
0.15A | USA—120V AC 60Hz 0.15A
Max load:
AUS & EU—24V AC 1 Amp 50/60 Cycle | USA—24V AC 750 mA
60Hz
Temperature Operating Range:
Operating: 32-158° F (0-70° C) | Storage & transport: 32-176° F
(0-80° C)
Humidity Operating Range:
Operating: 0–80% | Storage & transport: 0–90%
Altitude:
6,500' (2,000 meters) IPX5 Rating | Installation Class II |
Over Voltage Category II
Cet appareil est conforme à la section 15 de la Règlementation de la
FCC et la norme RSS d’Industry Canada. Son fonctionnement est
soumis aux deux conditions suivantes : (1) cet appareil ne doit pas
causer d’interférences nuisibles, et (2) cet appareil doit tolérer toutes les
interférences, dont les interférences pouvant causer un fonctionnement
non désiré. Cet appareil numérique de classe B est conforme à la norme
canadienne ICES-003.
Remarque: cet appareil été testé et déclaré conforme aux limites
d’exposition pour les appareils numériques de classe B, selon la section
15 de la Règlementation de la FCC. Ces limites sont conçus pour fournir
une protection raisonnable contre les interférences nuisibles dans une
installation résidentielle. Cet appareil produit, utilise et peut émettre
de l’énergie radio fréquence et, si elle n’est pas installée et utilisée
conformément aux instructions, peut causer des interférences nuisibles
aux communications radio. Cependant, il n’est pas garantie que des
interférences ne se produisent pas dans une installation
particulière. Si cet appareil cause des interférences gênantes à la
réception d’un signal radio ou de télévision, ce qui peut être déterminé
en allumant et en éteignant l’appareil, l’utilisateur peut corriger les
interférences en suivants une des mesures suivantes :
• Réorientez ou repositionnez l’antenne de réception.
• Augmentez la distance entre l’appareil et le récepteur.
• Branchez l’appareil dans une prise sur un circuit différent du circuit sur
lequel le récepteur est branché.
• Consulter le revendeur ou un technicien radio/TV expérimenté pour
obtenir de l’aide.
Cet appareil est conforme aux exigences de la FCC et de l’IC
concernant l’exposition aux ondes dans un environnement public ou
contrôlé. Il est conseillé à l’utilisateur final de maintenir une distance de
20 cm du contrôleur pour assurer la conformité aux réglementations
d’exposition RF. Information de conformité pour le Canada
Help
If the app and the website don’t have what you’re looking for,
please call our technical support line before returning this
sprinkler controller to the store.
(888) Hydro-Rain
www.hydrorain.com | bhyve.hydrorain.com
Battery Specifications
Timer requires a CR2032 Lithium battery (included)
To remove, lift battery cover with a screwdriver and remove battery with fingers.
Insert the new battery at an angle and press to click the battery into place.
The plus (+) sign on the battery must face upwards.
WARNING: Risk of Fire, Explosion, and Electric Shock. Replace battery with
Hitachi Maxell Ltd, Type CR2032 only. Use of a different battery has the potential
for a risk of fire, explosion, and electric shock.
WARNING: Battery must be removed from the timer before it is scrapped.
WARNING: The timer must be disconnected from the supply mains when removing the battery.
BATTERY WARNING: Chemical Burn Hazard. Keep batteries away from children.
This product contains a lithium coin cell battery. If a new or used button/coin cell battery is swallowed or enters the body, it can cause
severe internal burns and can lead to death in as little as two hours. Always completely secure the battery compartment. If the battery
compartment does not close securely, stop using the product, remove the battery, and keep it away from children. If you think the
battery might have been swallowed or placed inside any part of the body, seek immediate medical attention. The battery should be
disposed of properly and kept away from children. Even used batteries may cause injury. 04080-50 rB
