Orpak Systems Ltd. uDataPass Users Manual

Users Manual

P/N 817407450
Revision A
FuelOmat Gold
µDataPass Installation Manual
FCC Compliance Statement
The FCC Wants You to Know:
This equipment has been tested and found to comply with the limits for a Class A & B
digital device, pursuant to Part 15 of the FCC rules. These limits are designed to provide
reasonable protection against harmful interference in a residential installation. This
equipment generates uses and can radiate radio frequency energy and, if not installed
and used in accordance with the instructions, may cause harmful interference to radio
communications. However, there is no guarantee that interference will not occur in a
particular installation. If this equipment does cause harmful interference to radio or
television reception, which can be determined by turning the equipment off and on, the
user is encouraged to try to correct the interference by one or more of the following
measures :
a) Reorient or relocate the receiving antenna.
b) Increase the separation between the equipment and receiver.
c) Connect the equipment to an outlet on a circuit different from that to which the
receiver is connected.
d) Consult the dealer or an experienced radio/TV technician.
Warning
Changes or modifications to this unit not expressly approved by the party responsible for
compliance could void the user’s authority to operate the equipment.
This device complies with FCC Rules Part 15 and with Industry Canada licence-exempt
RSS standard(s). Operation is subject to two conditions:
(1) This device may not cause harmful interference, and (2) this device must accept any
interference that may be received or that may cause undesired operation.
Le present appareil est conforme aux CNR d'Industrie Canada applicables aux appareils
radio exempts de licence. L'exploitation est autorisee aux deux conditions suivantes :(1)
l'appareil ne doit pas produire de brouillage, et (2) l'utilisateur de l'appareil doit
accepter tout brouillage radioelectrique subi, meme si le brouillage est susceptible d'en
compromettre le fonctionnement.
LISTED
XXXX
Conforms to UL Std. 60950-1;
Certified to CAN/CSA Std. C22.2 No.
60950-1
µDP Installation Manual III
TABLE OF CONTENTS
Paragraph
Page
1. SCOPE ....................................................................................................... 4
2. GENERAL DESCRIPTION ......................................................................... 4
3. AVAILABLE CONFIGURATIONS .............................................................. 4
4. SPECIFICATIONS ..................................................................................... 5
5. µDATAPASS PINOUT ............................................................................... 6
6. INSTALLATION PROCEDURE .................................................................. 6
4 µDP Installation Manual
1. SCOPE
This document describes the the mechanical installation of Orpak's µDataPass, part of the
FuelOmat Gold Wireless Vehicle Identification System.
2. GENERAL DESCRIPTION
The µDataPass (see Figure 1) unit collects accurate data from the vehicle on-board
computer bus (OBDII) and transmits it to Orpak's Wireless Gateway Terminals (WGT)
while refueling, or whenever the vehicle passes next to the WGT installed at the fleet
facilities.
µDP implements OBDII-CAN, KLINE and M-OBD while reading vehicle bus
µDP implements IEEE802.15.4 for transmitting vehicle data to WGT
Wireless IEEE802.15.4 uses the ISM 2.4GHz global license free band
The unit is powered by vehicle battery.

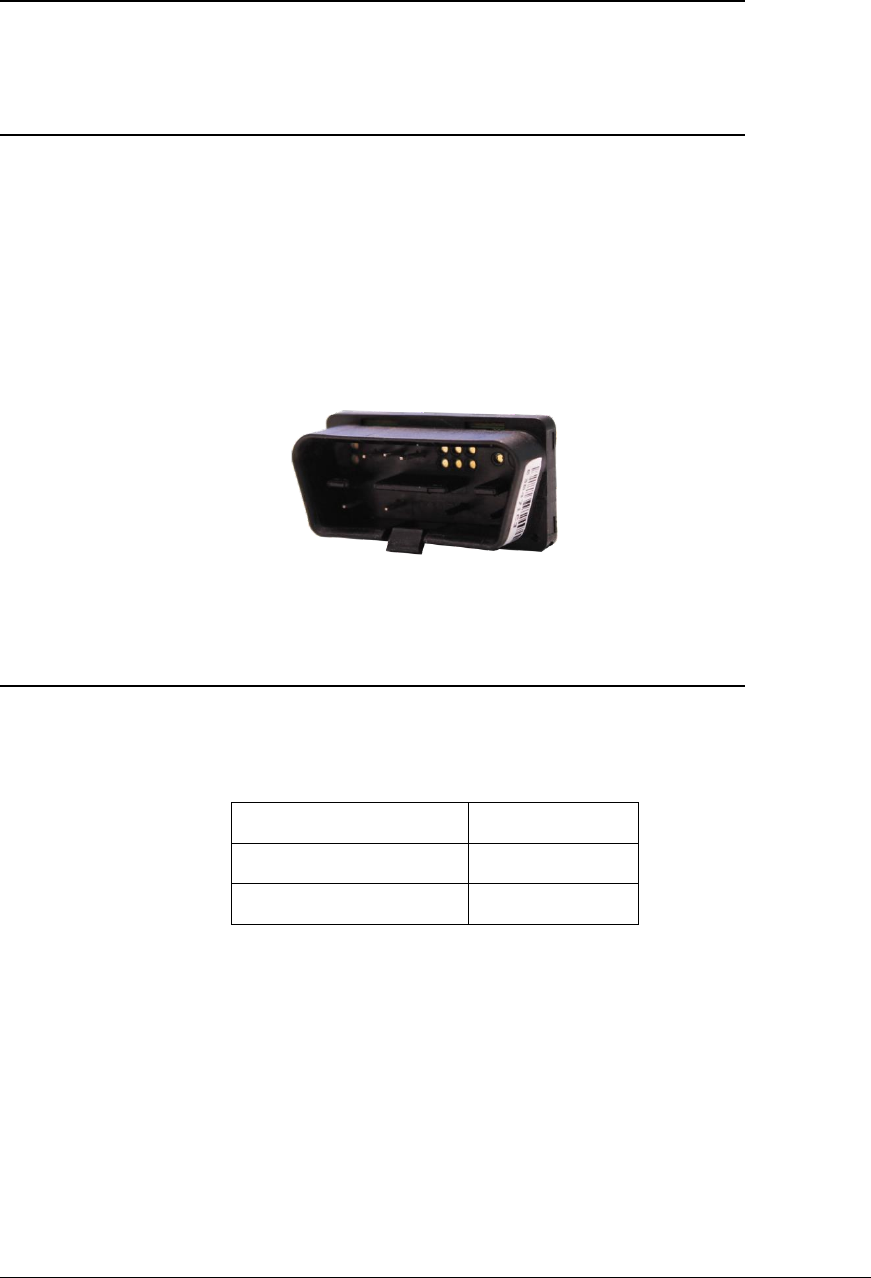

Figure 1 – µDP, General View
3. AVAILABLE CONFIGURATIONS
(See Table 1)
Table 1. Available Configurations
Unit
µDataPass
µDataPass Plus
µDP Installation Manual 5
4. SPECIFICATIONS
(See Table 2)
Table 2. μDataPass Specifications
Parameter
Value
Physical
Height
22.1 mm
Width
41.3 mm
Depth
16.8 mm
Weight
8g
Connectors
OBDII compatible (male)
Electrical
Supply voltage
Normal operation: 12VDC (Nominal)
Minimum: 9 VDC
Maximum: 16 VDC
Current consumption
(typical)
Sleep mode: 4mA
Active mode: 55mA
Environmental
Conditions
Temperature Range
Operating: -40 to +70 ºC
Storage: -40 to +85 ºC
Communication
Wireless Interfaces
Single IEEE802.15.4 wireless channel
Operating Frequency:
ISM 2.405 to 2.480 GHz
(Global license free band)
Implements proprietary Mesh network
IEEE802.15.4 Modem
DSSS/FA – Direct Sequence
Spread Spectrum with
Frequency Agility
Supported network topologies:
Propriety Mesh network
Channel capacity: 16 frequency
channels / 5MHz channel
spacing
Transmit power output: 2mW
(3dbm)
Receive sensitivity: -101dbm
Wireless Antenna
Built in PCB Antenna
Wired Interfaces
OBDII – J2284/ISO15765 (CAN BUS)
Data rate: 250Kbps / 500Kbps
OBDII – ISO14230/ISO9141 (KLINE)
Data rate: 10400bps
6 DP Replacement Technical Bulletin
5. µDATAPASS PINOUT
Table 3 details the µDataPass connector pinout
Table 3. µDataPass Pinout
Pin #
Pin Name
Description
16
VIN+
Supplied voltage (+)
4
VIN-
Supplied voltage (-)
7
K-line (ISO)
Utilized for K- line protocol
6
CAN H
For Can Bus protocol, connect to
'CAN H' in the vehicle bus
14
CAN L
For Can Bus protocol, connect to
'CAN L' in the vehicle bus
6. INSTALLATION PROCEDURE
µDataPass installation is a very simple process. However, since µDataPass is a very small
device, it is recommended to fasten the unit to the vehicle using a nylon thread or a
similar fastener to prevent loss if removed from the OBD II connector during vehicle
servicing.
Proceed as follows:

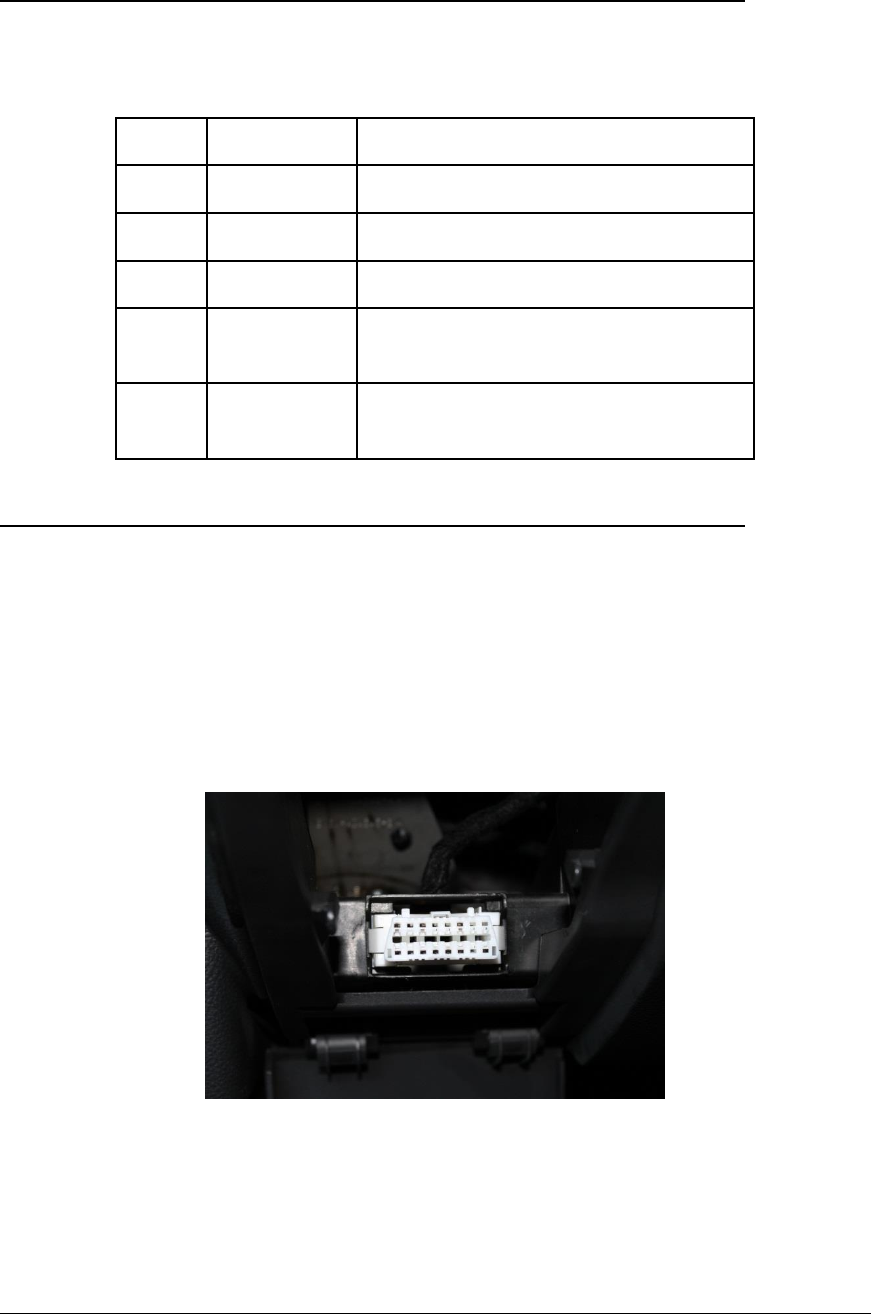

1. Locate the standard On Board Diagnostics OBD-II connector (see Figure 2).
This connector is normally located under the dash on the left side of the
steering column. Remove the panel that covers the Diagnostics connector
Figure 2. Diagnostics Connector
2. Gently plug the µDataPass into the Diagnostics connector being careful not to
bend the µDataPass pins (see Figure 3)
µDP Installation Manual 7

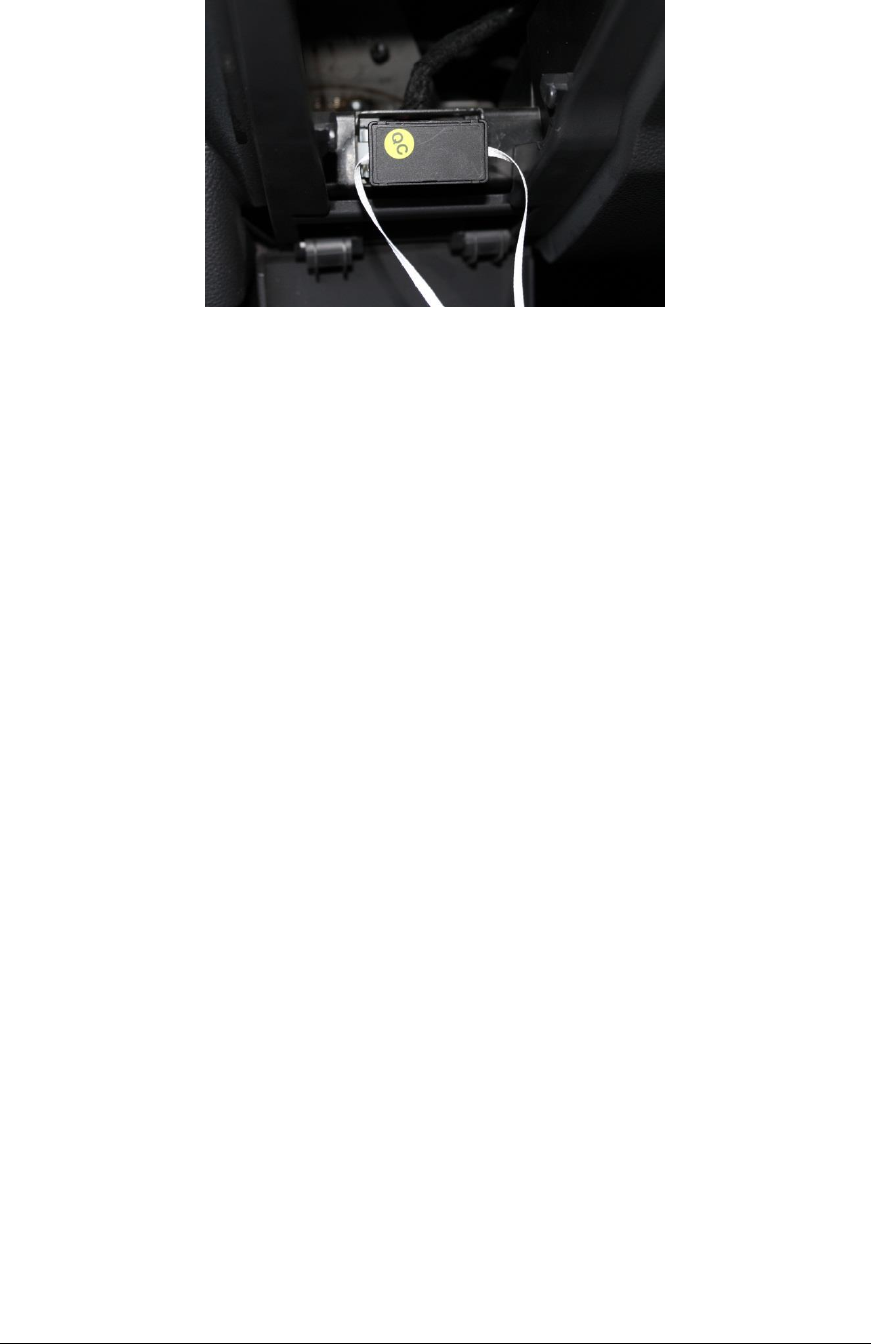

Figure 3. Plugging the μDataPass
3. Reassemble the panel that covers the Diagnostics connector.
