Orvito OVSP21220WI Smart Switch Panel User Manual

Orvito, Inc. Smart Switch Panel

user manual

1Installation GuideSmart Switch Panelwww.orvito.comOV-SP2-12-20-WI

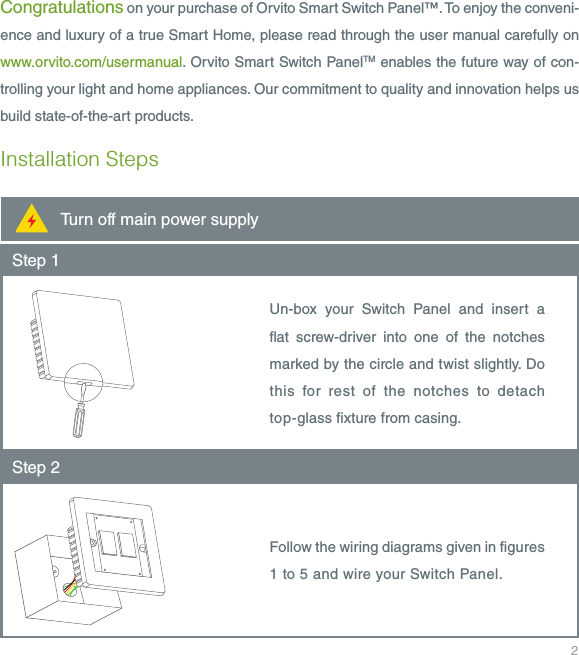

2Congratulations on your purchase of Orvito Smart Switch Panel™. To enjoy the conveni-ence and luxury of a true Smart Home, please read through the user manual carefully on www.orvito.com/usermanual. Orvito Smart Switch PanelTM enables the future way of con-trolling your light and home appliances. Our commitment to quality and innovation helps us build state-of-the-art products. Installation StepsStep 1Un-box your Switch Panel and insert a at screw-driver into one of the notches marked by the circle and twist slightly. Do this for rest of the notches to detach top-glass xture from casing.Step 2Follow the wiring diagrams given in gures 1 to 5 and wire your Switch Panel.Turn off main power supply

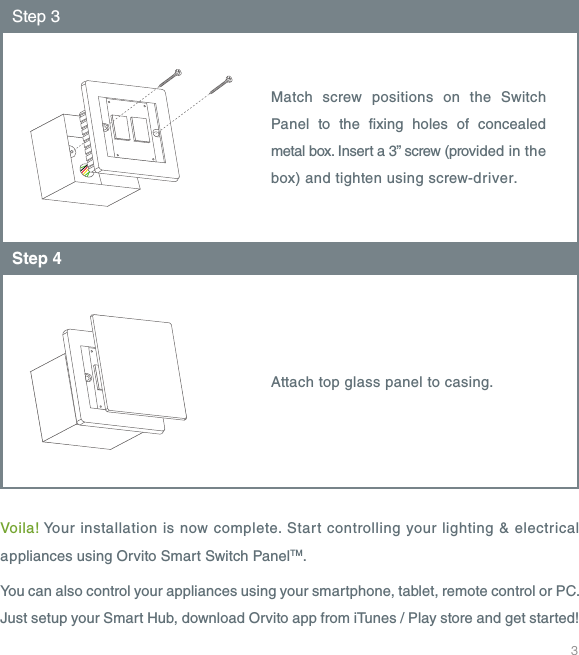

3Voila! Your installation is now complete. Start controlling your lighting & electrical appliances using Orvito Smart Switch PanelTM.You can also control your appliances using your smartphone, tablet, remote control or PC. Just setup your Smart Hub, download Orvito app from iTunes / Play store and get started!Match screw positions on the Switch Panel to the xing holes of concealed metal box. Insert a 3” screw (provided in the box) and tighten using screw-driver.Step 3Attach top glass panel to casing.Step 4

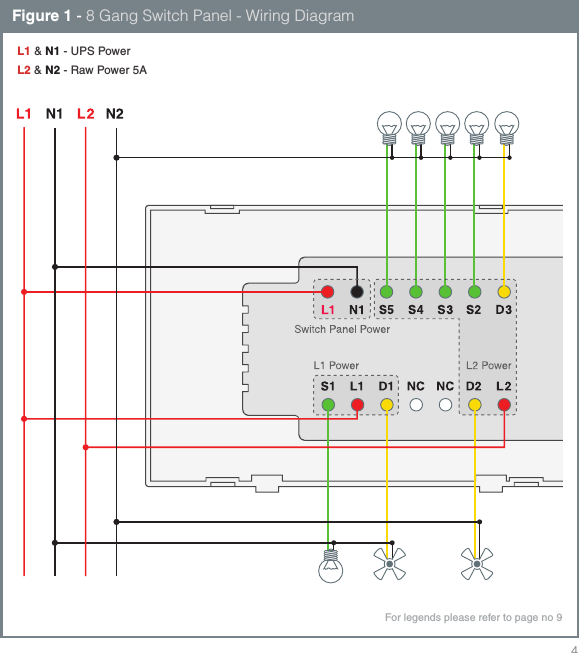

4Figure 1 - 8 Gang Switch Panel - Wiring DiagramFor legends please refer to page no 9L1 & N1 - UPS PowerL2 & N2 - Raw Power 5A

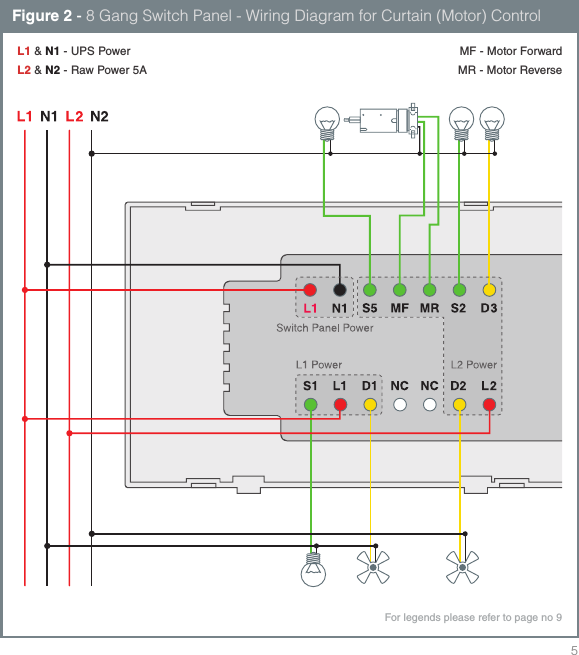

5Figure 2 - 8 Gang Switch Panel - Wiring Diagram for Curtain (Motor) ControlMF - Motor Forward MR - Motor Reverse For legends please refer to page no 9L1 & N1 - UPS PowerL2 & N2 - Raw Power 5A

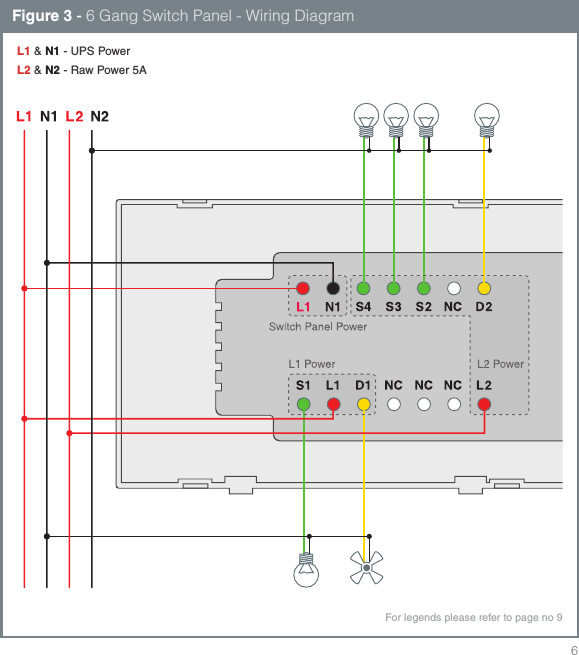

6Figure 3 - 6 Gang Switch Panel - Wiring DiagramFor legends please refer to page no 9L1 & N1 - UPS PowerL2 & N2 - Raw Power 5A
7Figure 4 - 4 Gang Switch Panel - Wiring DiagramL1 & N1 - UPS PowerL2 & N2 - Raw Power 16AFor legends please refer to page no 9

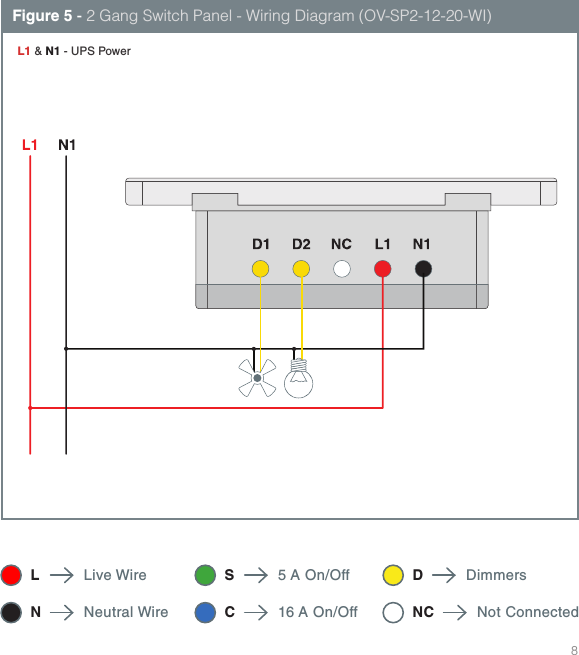

8Live WireLNeutral WireNDimmersD 5 A On/OffS16 A On/OffCNot ConnectedNCFigure 5 - 2 Gang Switch Panel - Wiring Diagram (OV-SP2-12-20-WI)L1 & N1 - UPS Power

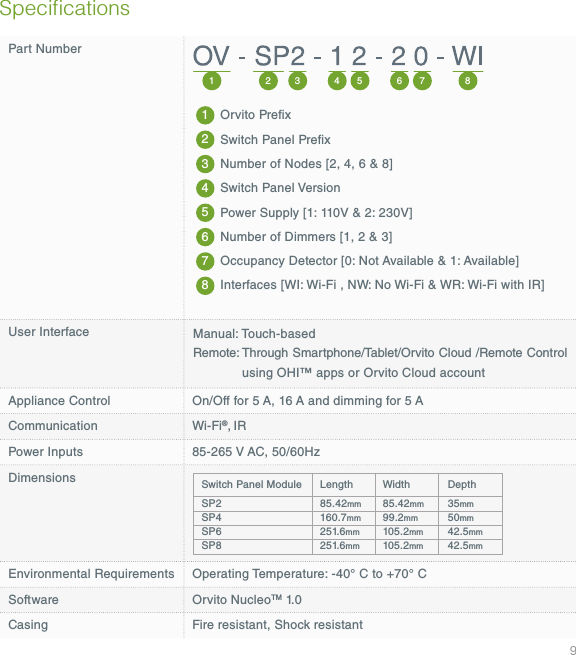

9SpecificationsPart NumberUser InterfaceAppliance Control On/Off for 5 A, 16 A and dimming for 5 ACommunication Wi-Fi®, IRPower Inputs 85-265 V AC, 50/60HzDimensionsEnvironmental Requirements Operating Temperature: -40° C to +70° CSoftware Orvito NucleoTM 1. 0Casing Fire resistant, Shock resistantManual: Touch-basedRemote: Through Smartphone/Tablet/Orvito Cloud /Remote Control using OHI™ apps or Orvito Cloud account1 43 5 6 7 8214253678Orvito PrexSwitch Panel PrexNumber of Nodes [2, 4, 6 & 8]Switch Panel VersionPower Supply [1: 110V & 2: 230V]Number of Dimmers [1, 2 & 3]Occupancy Detector [0: Not Available & 1: Available]Interfaces [WI: Wi-Fi , NW: No Wi-Fi & WR: Wi-Fi with IR]SP2Switch Panel Module85.42mmLength85.42mm Width35mm DepthSP4 160.7mm 99.2mm 50mm SP6 251.6mm 105.2mm 42.5mm SP8 251.6mm 105.2mm 42.5mm

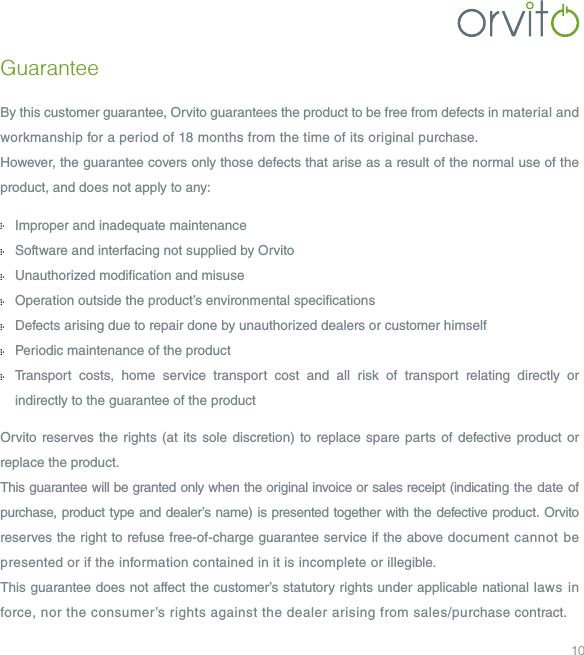

10GuaranteeBy this customer guarantee, Orvito guarantees the product to be free from defects in material and workmanship for a period of 18 months from the time of its original purchase.However, the guarantee covers only those defects that arise as a result of the normal use of the product, and does not apply to any: Improper and inadequate maintenance Software and interfacing not supplied by Orvito Unauthorized modication and misuse Operation outside the product’s environmental specications Defects arising due to repair done by unauthorized dealers or customer himself Periodic maintenance of the product Transport costs, home service transport cost and all risk of transport relating directly or indirectly to the guarantee of the product Orvito reserves the rights (at its sole discretion) to replace spare parts of defective product or replace the product. This guarantee will be granted only when the original invoice or sales receipt (indicating the date of purchase, product type and dealer’s name) is presented together with the defective product. Orvito reserves the right to refuse free-of-charge guarantee service if the above document cannot be presented or if the information contained in it is incomplete or illegible.This guarantee does not affect the customer’s statutory rights under applicable national laws in force, nor the consumer’s rights against the dealer arising from sales/purchase contract.
11
12Orvito, Inc.303 Wyman Street, Suite 300Waltham, MA 02451 USA.For more information visit orvito.com/Orvito /company/orvito-inc-/OrvitoNewsFollow UsPlease recycle Orvito’s 100% recyclable packaging box.SSP - IG - 0114

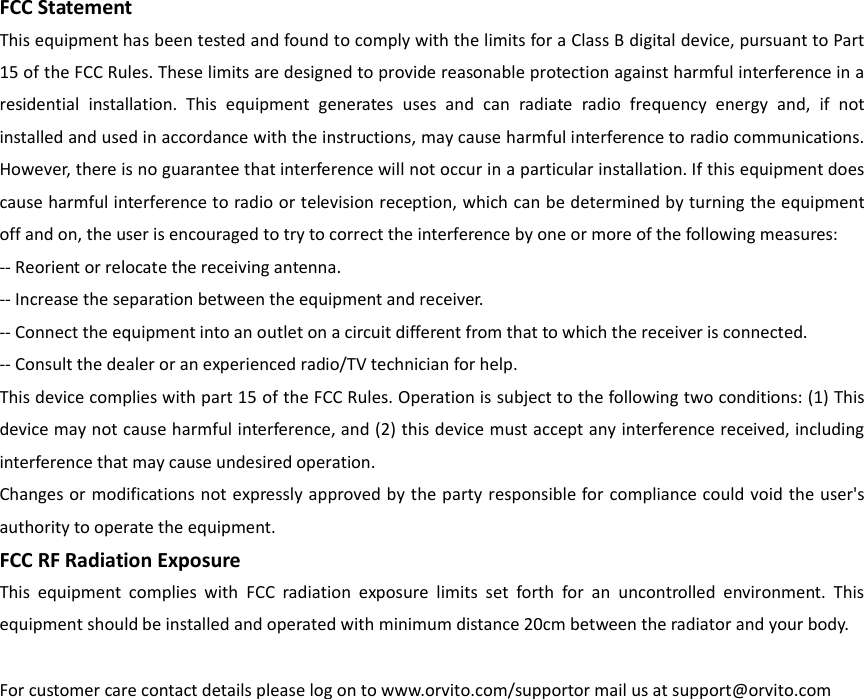

FCC StatementThis equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:-- Reorient or relocate the receiving antenna. -- Increase the separation between the equipment and receiver. -- Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. -- Consult the dealer or an experienced radio/TV technician for help.This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.Changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment.FCC RF Radiation ExposureThis equipment complies with FCC radiation exposure limits set forth for an uncontrolled environment. This equipment should be installed and operated with minimum distance 20cm between the radiator and your body.For customer care contact details please log on to www.orvito.com/supportor mail us at support@orvito.com
