user manual
1
Installation Guide
Smart Switch Panel
www.orvito.com
OV-SP2-12-20-WI
2
Congratulations on your purchase of Orvito Smart Switch Panel™. To enjoy the conveni-
ence and luxury of a true Smart Home, please read through the user manual carefully on
www.orvito.com/usermanual. Orvito Smart Switch PanelTM enables the future way of con-
trolling your light and home appliances. Our commitment to quality and innovation helps us
build state-of-the-art products.
Installation Steps

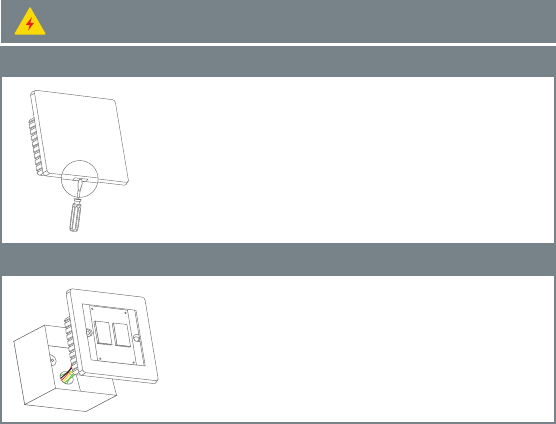

Step 1
Un-box your Switch Panel and insert a
at screw-driver into one of the notches
marked by the circle and twist slightly. Do
this for rest of the notches to detach
top-glass xture from casing.
Step 2
Follow the wiring diagrams given in gures
1 to 5 and wire your Switch Panel.
Turn off main power supply
3
Voila! Your installation is now complete. Start controlling your lighting & electrical
appliances using Orvito Smart Switch PanelTM.
You can also control your appliances using your smartphone, tablet, remote control or PC.
Just setup your Smart Hub, download Orvito app from iTunes / Play store and get started!

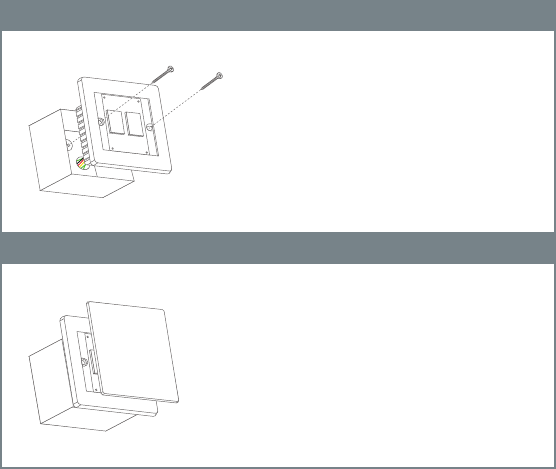

Match screw positions on the Switch
Panel to the xing holes of concealed
metal box. Insert a 3” screw (provided in the
box) and tighten using screw-driver.
Step 3
Attach top glass panel to casing.
Step 4
4

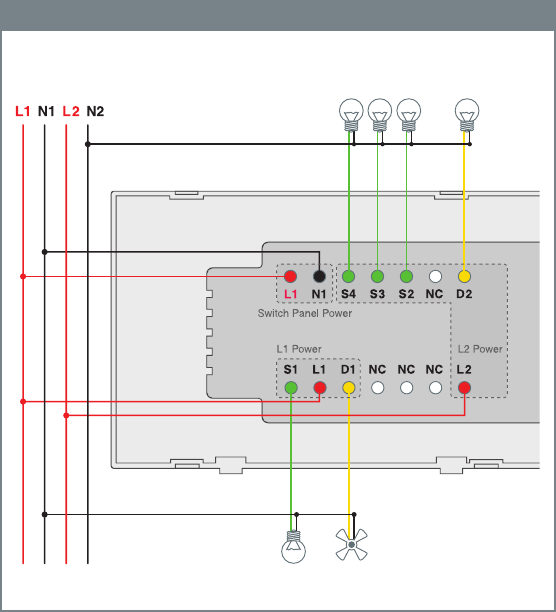

Figure 1 - 8 Gang Switch Panel - Wiring Diagram
For legends please refer to page no 9
L1 & N1 - UPS Power
L2 & N2 - Raw Power 5A
5

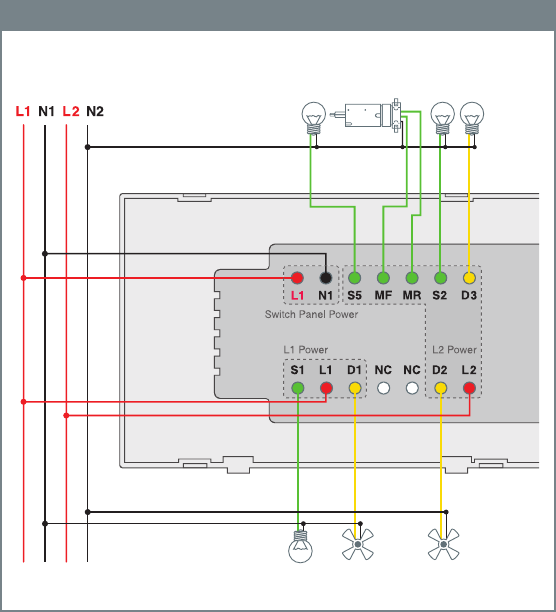

Figure 2 - 8 Gang Switch Panel - Wiring Diagram for Curtain (Motor) Control
MF - Motor Forward
MR - Motor Reverse
For legends please refer to page no 9
L1 & N1 - UPS Power
L2 & N2 - Raw Power 5A
6

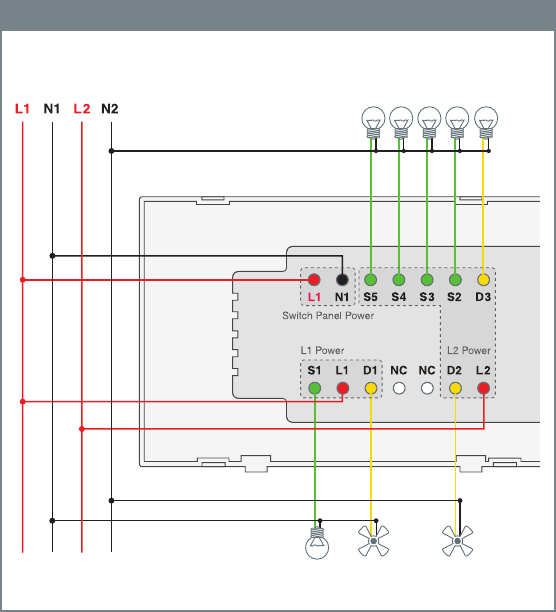

Figure 3 - 6 Gang Switch Panel - Wiring Diagram
For legends please refer to page no 9
L1 & N1 - UPS Power
L2 & N2 - Raw Power 5A
7

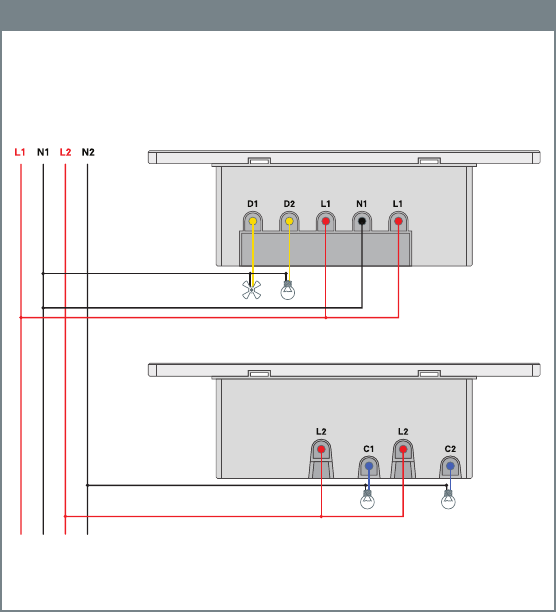

Figure 4 - 4 Gang Switch Panel - Wiring Diagram
L1 & N1 - UPS Power
L2 & N2 - Raw Power 16A
For legends please refer to page no 9
8

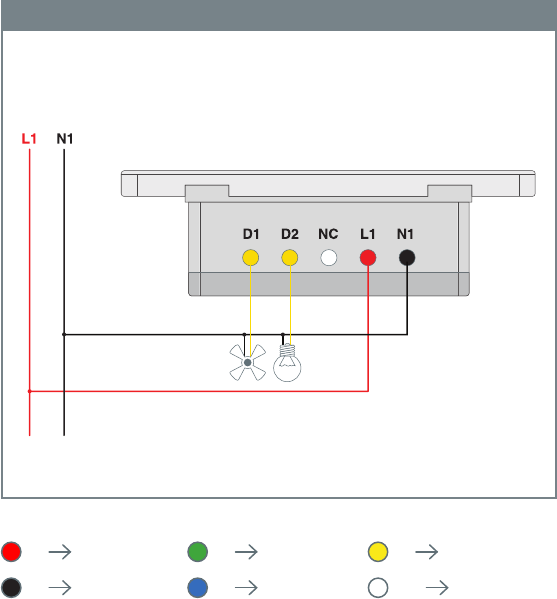

Live WireL
Neutral WireN
DimmersD 5 A On/OffS
16 A On/OffCNot ConnectedNC
Figure 5 - 2 Gang Switch Panel - Wiring Diagram (OV-SP2-12-20-WI)
L1 & N1 - UPS Power
9
Specifications
Part Number
User Interface
Appliance Control On/Off for 5 A, 16 A and dimming for 5 A
Communication Wi-Fi®, IR
Power Inputs 85-265 V AC, 50/60Hz
Dimensions
Environmental Requirements Operating Temperature: -40° C to +70° C
Software Orvito NucleoTM 1. 0
Casing Fire resistant, Shock resistant
Manual: Touch-based
Remote: Through Smartphone/Tablet/Orvito Cloud /Remote Control
using OHI™ apps or Orvito Cloud account
1 43 5 6 7 82
1
4
2
5
3
6
7
8
Orvito Prex
Switch Panel Prex
Number of Nodes [2, 4, 6 & 8]
Switch Panel Version
Power Supply [1: 110V & 2: 230V]
Number of Dimmers [1, 2 & 3]
Occupancy Detector [0: Not Available & 1: Available]
Interfaces [WI: Wi-Fi , NW: No Wi-Fi & WR: Wi-Fi with IR]
SP2
Switch Panel Module
85.42mm
Length
85.42mm
Width
35mm
Depth
SP4 160.7mm 99.2mm 50mm
SP6 251.6mm 105.2mm 42.5mm
SP8 251.6mm 105.2mm 42.5mm
10
Guarantee
By this customer guarantee, Orvito guarantees the product to be free from defects in material and
workmanship for a period of 18 months from the time of its original purchase.
However, the guarantee covers only those defects that arise as a result of the normal use of the
product, and does not apply to any:
Improper and inadequate maintenance
Software and interfacing not supplied by Orvito
Unauthorized modication and misuse
Operation outside the product’s environmental specications
Defects arising due to repair done by unauthorized dealers or customer himself
Periodic maintenance of the product
Transport costs, home service transport cost and all risk of transport relating directly or
indirectly to the guarantee of the product
Orvito reserves the rights (at its sole discretion) to replace spare parts of defective product or
replace the product.
This guarantee will be granted only when the original invoice or sales receipt (indicating the date of
purchase, product type and dealer’s name) is presented together with the defective product. Orvito
reserves the right to refuse free-of-charge guarantee service if the above document cannot be
presented or if the information contained in it is incomplete or illegible.
This guarantee does not affect the customer’s statutory rights under applicable national laws in
force, nor the consumer’s rights against the dealer arising from sales/purchase contract.
11
12
Orvito, Inc.
303 Wyman Street, Suite 300
Waltham, MA 02451 USA.
For more information visit orvito.com
/Orvito /company/orvito-inc-/OrvitoNewsFollow Us
Please recycle Orvito’s 100% recyclable packaging box.
SSP - IG - 0114
FCC Statement
This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part
15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a
residential installation. This equipment generates uses and can radiate radio frequency energy and, if not
installed and used in accordance with the instructions, may cause harmful interference to radio communications.
However, there is no guarantee that interference will not occur in a particular installation. If this equipment does
cause harmful interference to radio or television reception, which can be determined by turning the equipment
off and on, the user is encouraged to try to correct the interference by one or more of the following measures:
-- Reorient or relocate the receiving antenna.
-- Increase the separation between the equipment and receiver.
-- Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.
-- Consult the dealer or an experienced radio/TV technician for help.
This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This
device may not cause harmful interference, and (2) this device must accept any interference received, including
interference that may cause undesired operation.
Changes or modifications not expressly approved by the party responsible for compliance could void the user's
authority to operate the equipment.
FCC RF Radiation Exposure
This equipment complies with FCC radiation exposure limits set forth for an uncontrolled environment. This
equipment should be installed and operated with minimum distance 20cm between the radiator and your body.
For customer care contact details please log on to www.orvito.com/supportor mail us at support@orvito.com
