Oticon Radio Model - Quick Installation Guide
Radio Model Name: mini BTE-EB
The mini BTE-EB radio model is a low power, inductive radio transceiver working at 3.84 MHz consisting of an RF Engine Block (incl. DSP, radio & memory),
antenna coil and a flex PCB motherboard (incl. small passive components). It is intended to be installed as a module into Oticon wireless hearing aid devices only.
The module also has all voltage regulators
included inside the engine block and a
phone detection switch & push button on
the motherboard.
The module requires a battery, one or two
microphones and a speaker to be attached and
must be mounted in an external plastic shell.
It is only possible for authorized personnel
to program the module through a programming
I/O-connector.

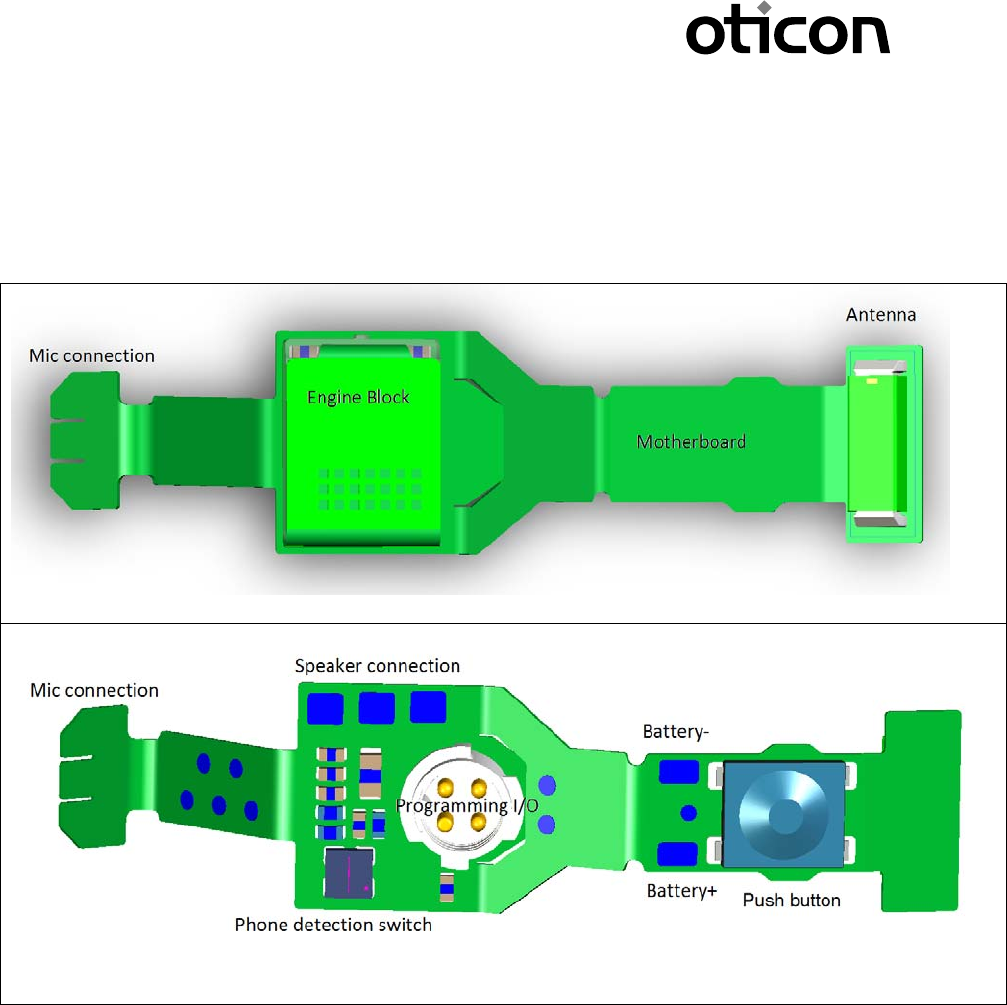

The module is depicted to the right:
mini BTE-EB Radio Model (seen from the top side)
mini BTE-EB Radio Model (seen from the bottom)
PEOPLE FIRST
OticonA/S Kongebakken9 DK‐2765Smørum www.oticon.com
Main+4539177100 Fax+4539277900 DenmarkCVR‐no.42334219 2
Oticon Radio Model - Quick Installation Guide
Radio Model Name: mini BTE-EB

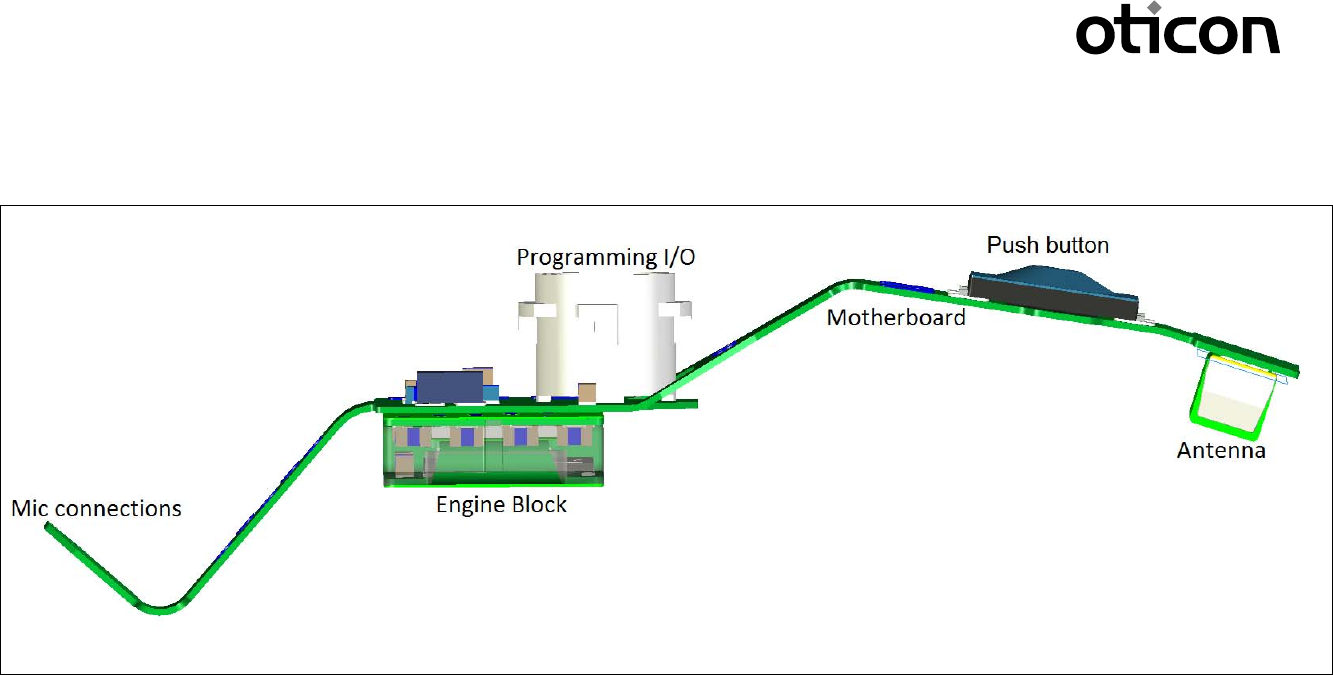

Mini BTE-EB Radio Model (seen from the side)
FCC ID: U28EBBTE01 IC: 1350B-EBBTE01
NOTICE:
This device complies with Part 15 of the FCC Rules and with RSS-210 of Industry Canada.
Operation is subject to the following two conditions:
(1) This device may not cause harmful interference, and
(2) This device must accept any interference received, including interference that may cause undesired operation.
