Users Manual
![](/img.php?id=2154225&img=bg1.png)

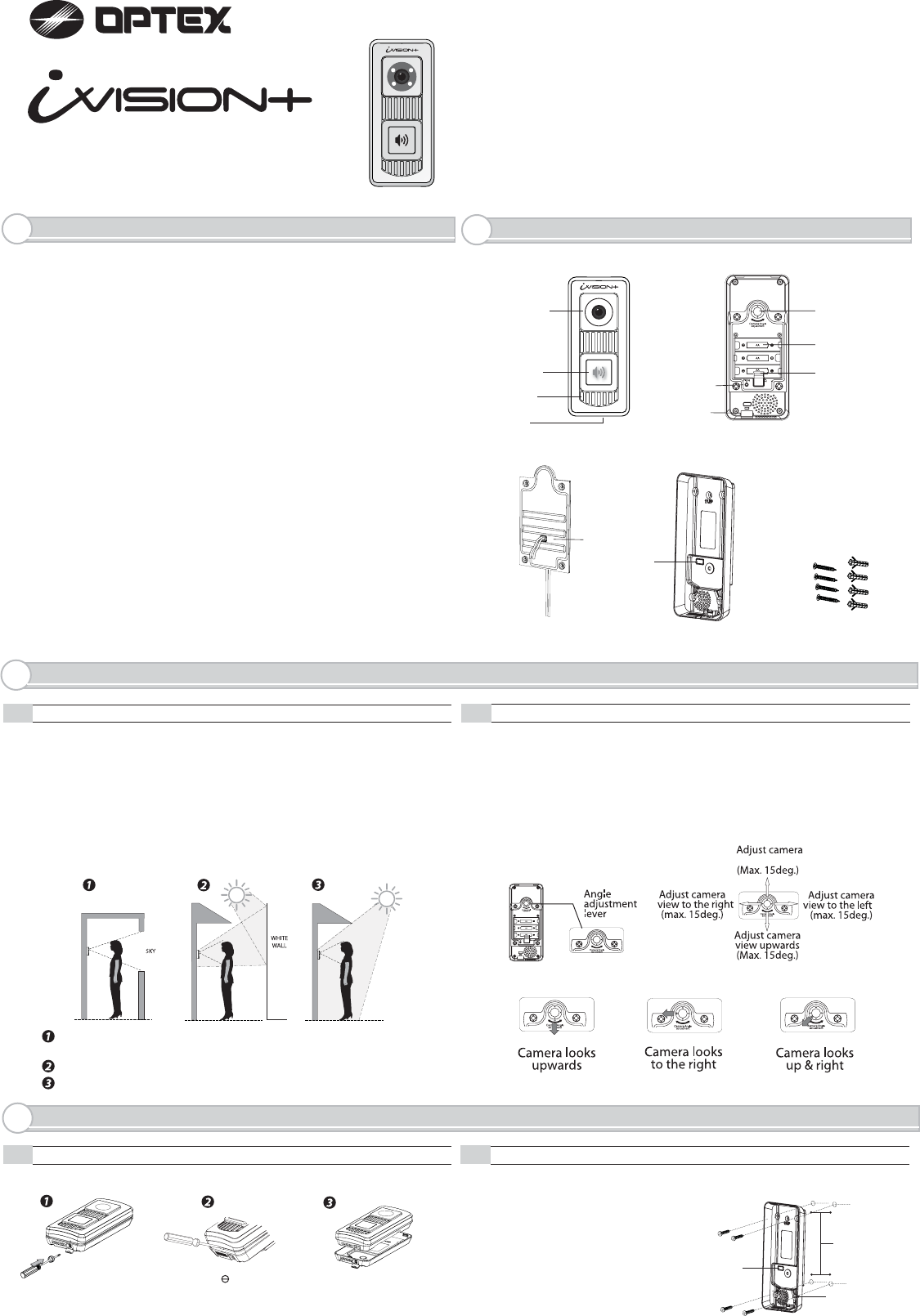

Wireless Video Intercom
IVP-DU (Door Camera Unit)
Installation Instructions
The performance of the system may be affected when mounting the unit in the
following environments.
- Places that are constantly experiencing vibrations or shocks.
- Near a source of hydrosulfuric fumes, phosphorus fumes, ammonia, sulphur,
carbon dust and any acidic or noxious materials.
- An enclosed space that may cause sounds to echo
- Where rain or water may directly hit the unit.
Please also note that the video image may be seriously impaired where the camera
faces directly into the sun, and also in the following situations.
Location where the background is primarily occupied by the sky, such as in
the upper floor of an apartment building.
Location which has an adjacent white wall that will directly reflect sunlight.
Location that receives direct bright sunlight.
IVP-DU features
Adjustable Camera Angle
Battery Operation Capability (for 1 year*1)
Auto Day(Color) / Night(IR) Vision
Max 2 Units in a System
Fluorescent Push Button
AC/DC (10~24V) Adaptable
Splash Proof for Rain and Outdoor Condition*2
*1 calculation based on operations for 10sec times 3 activations per a day
*2 IPX4 Operating Temparature -20 to 50 degC (-4 F to 122 degF)
IMPORTANT NOTICE
1. PARTS IDENTIFICATION
2.
constant moisturization
Operations under harsh environments such as out of warranted temperature,
rapid temperature change, high humidity, constant moisturization may cause the
unit to malfunction.
Electronic device such as TVs, Radios, PCs, Microwave ovens or any other device
with an electric motor may cause the unit to malfunction.
Impact or shocks can cause severe damage to the unit. Please handle the unit
with care and operate without exerting strong forces.
Transmission range of communication between units may decrease under
the following conditions.
- Any unit is installed on a metal surface.
- Presence of reinforced concrete, steel doors or other metal construction
materials between units.
- Places near strong radio sources such as broadcast stations or substations.
Location of Installation is critical to optimize image quality captured by the unit.
Images will be impaired if the ambient backlight is very strong.
Please study the installation environment according to this installation instruction.
- The video image is displayed in color during daytime or in well-lit area, but it is
displayed in black and white at night or in a dark area.
Old and new batteries may not be mixed. Do not use lithium batteries
for IVP-DU. Leakage or possible explosion can occur.
- When Door Camera Unit Low Battery Indicator blinks on HU1,
please replace batteries.
CHOOSING LOCATION
3.
Cable Hole
Screws & Anchors
Wall Mounting BaseBattery Cover
3-1 Places to Avoid
3-2
Position and Field of View
IVP-DU (Door Camera Unit) should be mounted at a position where visitors or
potential trespassers can be captured in the camera’s field of view. In a typical
setting, IVP-DU is positioned at height between 3.6 -5 feet off the ground.
Camera Angle Adjustment Lever can shift the camera’s field of view
max +/- 15 degrees to any combination of vertical and horizontal directions.
Knock Out
Remove the main unit from the mounting base
Open a screw cover
and loosen the screw
Lift the main unit
from the mounting base.
Fix the mounting base on the wall at the height and location selected.
INSTALLATION
4.
4-1 Unit Preparation 4-2 Fixing the Base
Push Button
Camera Lens
Microphone
Speaker
Door Camera Unit (Front)
Camera Angle
Adjustment Lever
Battery
Compartment
Pairing Button
External Power Input
Fixing Screw
Door Camera Unit (Back)
NOTE: When using an external
power source, make a knockout
hole on the Mounting Base before
fixing to a wall. Place the Mounting
Base on a horizontal surface front
side down. Point a driver in the
center of the knock out and apply
gentle impacts to break a hole through.
view downwards
Wall Mounting
Base
Holes
drilled in wall
Mounting
Screws
10~24
Insert a driver into
a small cavity on a rim to
pop up the main unit.
ATTENTION:
Thank you for purchasing the iVISION+ wireless video intercom.
Before installation and usage, please read this instruction manual thoroughly
and keep this safe for future reference.
Knock Out
![](/img.php?id=2154225&img=bg2.png)

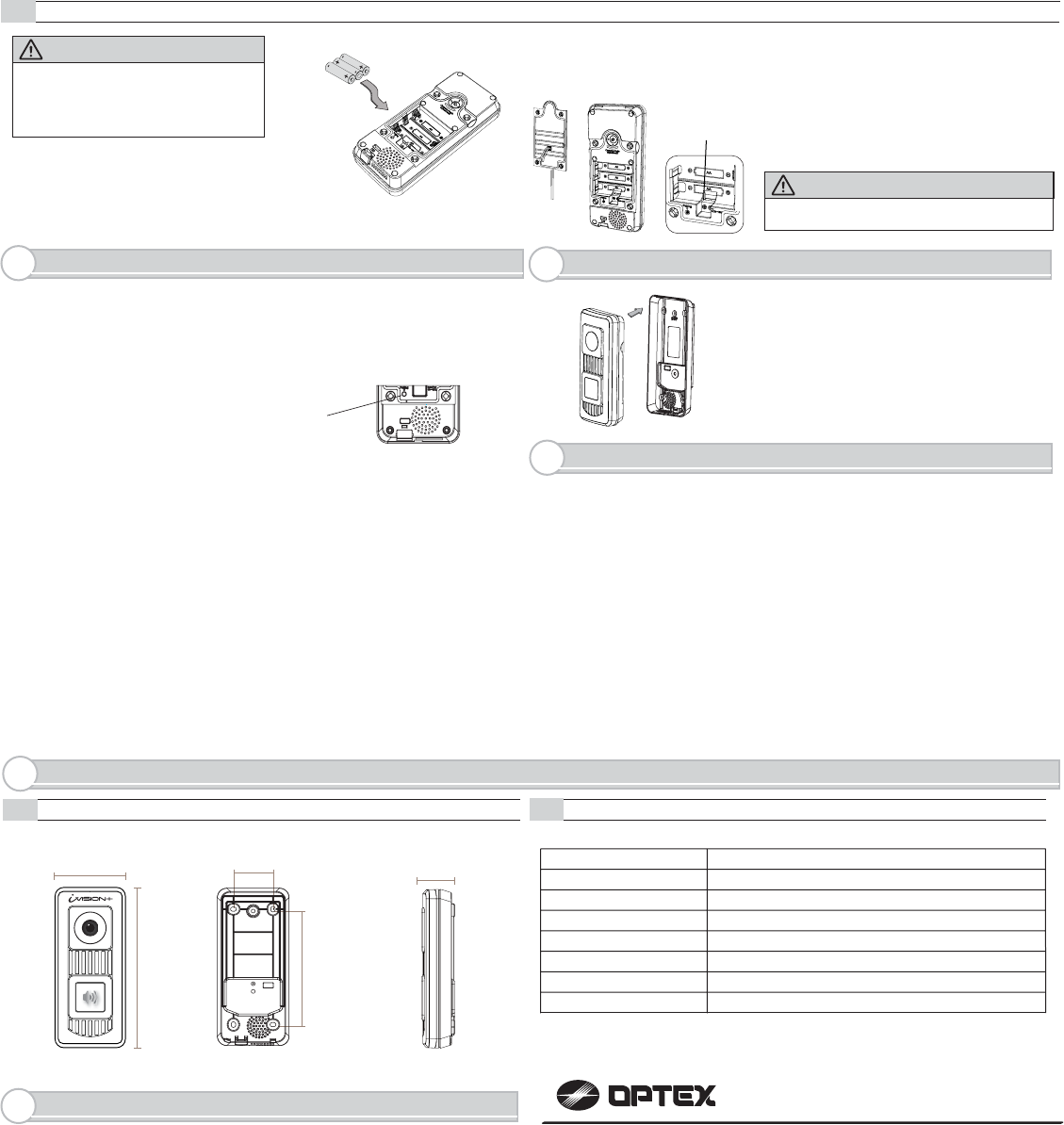

The Camera Door Unit may also be powered from an external power source.
If available, connect the unit directly to the existing AC/DC 10-24V doorbell power
supply or, alternatively, an AC/DC 10-24V third party’s external power pack may be used.
Pass the bell wire or the wire from a power
pack through the mounting plate before
fixing the plate to the wall. Connect the wire
to the Power input terminal.
Power
input
terminal
(1) Fix a Wall Mounting Base to a desired location
using four screws and anchors included in a package.
(2) On to the secured mounting base, hook upper rim
of the main unit and then, press in the entire unit.
(3) Tighten a screw at the bottom to secure the unit.
NOTE: One Handheld Monitor Unit (IVP-HU) must be configured to have
a HOME ID*1 prior to paring up with other iVISION+ devices. For setting up
a new HOME ID, refer to the Installation Instruction of IVP-HU.
A Handheld Monitor Unit bundled with Door Camera Unit already has
a HOME ID set up and paired up to each other. Proceed to OPERATION CHECK
unless additional pairing is required.
(1) Enabling Paring Mode of a Door Camera Unit (IVP-DU)
Press a PUSH button on the front then push pairing button located at the bottom
of battery compartment until the unit makes a beeping sound.
The Door Camera Unit will clear its HOME ID assignment and starts looking for
a New HOME ID. 5 short beeps will repeat until the unit is paired or
power/batteries displacement.
(2) Assigning a HOME ID to a Door Camera Unit (IVP-DU)
When a Handheld Monitor Unit in a paring mode, choose “SCAN” by pressing
Left Function Key. Door Camera Unit will automatically be assigned to a new
HOME ID and beeping will stop. Repeat the same procedure for an addition unit.
The first paired IVP-DU will be assigned as DU1. The second paired IVP-DU
will be assigned as DU2.
NOTE: While the Door Camera Unit is in a factory default setting, the unit has
not been assigned to a HOME ID*1. When powering the unit, 5 short beeps
indicates its paring mode.
OPTEX INCORPORATED (USA)
TEL:+1-909-993-5770
Tech:(800)966-7839
URL:http://www.optexamerica.com/
OPTEX CO., LTD. (JAPAN)
(ISO 9001 Certified)
(ISO 14001 Certified)
5-8-12 Ogoto Otsu
Shiga 520-0101
JAPAN
TEL:+81-77-579-8670
FAX:+81-77-579-8190
URL:http://www.optex.co.jp/e/
13661 Benson Ave., Bldg. C
Chino, CA 91710
U.S.A.
CAUTION
Old and new batteries may not be
mixed. Do not use lithium batteries
for IVP-DU. Leakage or possible
explosion can occur.
Insert 3 x AA alkaline batteries.
Please ensure to match the correct +/- polarity as shown.
(1) Press “Push Button” on the IVP-DU and observe IVP-HU with a visual image.
(2) Carry IVP-HU away from the IVP-DU and Press “Answer” on the IVP-HU.
(3) Have another person speak to the IVP-DU and listen to the sound on IVP-HU.
(4) Speak back from the IVP-HU and listen from the IVP-DU.
If the IVP-DU is powered from the external power source, the Push Button glows
on the IVP-DU.
NOTE: Due to characteristics of 2.4 GHz radio waves, different locations in a home
may vary the performance of transmissions and receptions. Adjust positions of IVP-HU
to places where performance is desirable. If a distance between IVP-DU and IVP-HU
is close, two units may cause an howling effect when communication is in place.
MODEL NAME: OPTEX iVISION+ (IVP-DU) Door Camera Unit
Dust/Water Protection
Operating Temperature
Camera/Lighting Unit
Battery Life Expectancy
Radiowave Frequency
9. WARRANTY
1. This product is warranted under normal use for 1 year from the date of purchase.
If the product proves to be defective, return it with a copy of your dated sales receipt
for repairs or replacement without charge.
2. The warranty is not applicable when below circumstances will be found:
- Mechanical or electrical modification(s) are made to the product
or it is otherwise altered manually.
- The product is already been at place(s) other than the manufacturer.
- It is determined that the product malfunction has resulted from improper use
or from an accident.
- No copy of the dated sales receipt has been submitted together with the product
to be served.
PAIRING WITH IVP-HU (Handheld Monitor Unit)
5. MOUNTING THE UNIT
6.
OPERATION CHECK
7.
SPECIFICATION
8.
4-3 Powering the Unit
WARNING
External power must not be used with batteries.
8-1 Dimensions
8-2
Specification Table
*1 HOME ID is an unique identification number for your iVISION+ system.
Pairing Button
70mm / 2.76” 40mm / 1.57”
120mm / 4.72”
40mm / 1.57”
162mm / 6.38”
- 20 to 50 degC (-4 to 120 degF)
< 90% RH (no condensation)
1 year
IPX4 Splash Proof (Water Drain Structure)
2.4 GHz
12 month *
* Based on 3 activations (approx. 10sec each) per day
Operating Humidity
Warranty
Power
Color vision / IR lighting LED
Battery (3 AA Alkaline) or AC/DC 10-24V 3W (max)
REV 1.00
![](/img.php?id=2154225&img=bg3.png)

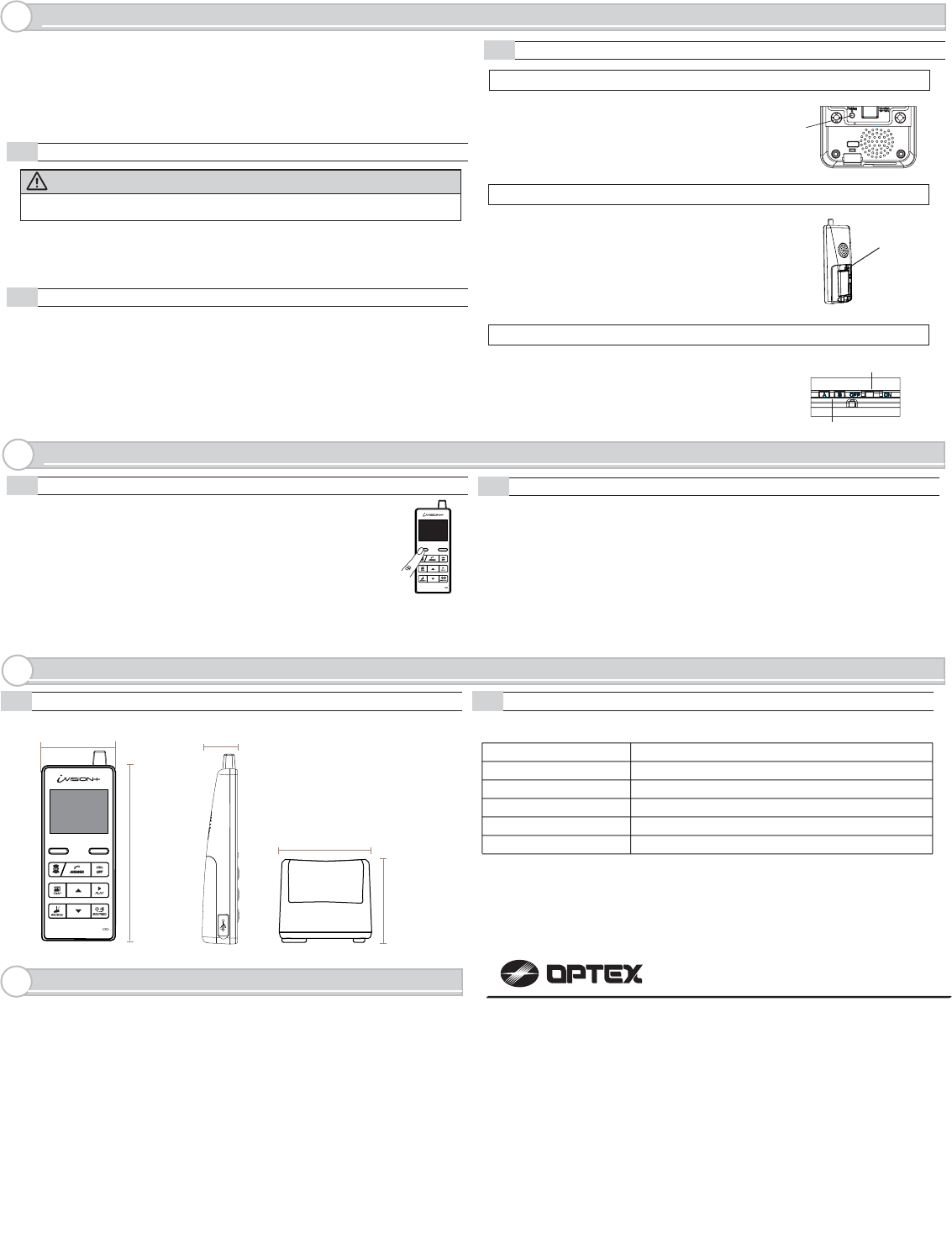

Avoid using the Handheld Monitor Unit in the following areas
- Close to a fire, thermal appliance or other source of extreme heat/cold.
- Within 10ft (3m) of a television, microwave oven, personal computer, wireless
LAN equipment, wireless audio/visual equipment - the radio frequency waves
emitted by these devices can affect operation.
- In direct sunlight.
- Where extreme fluctuations in temperature can occur - if moving the unit from
a warm to cold environment, or vice versa, please allow 30 minutes before use.

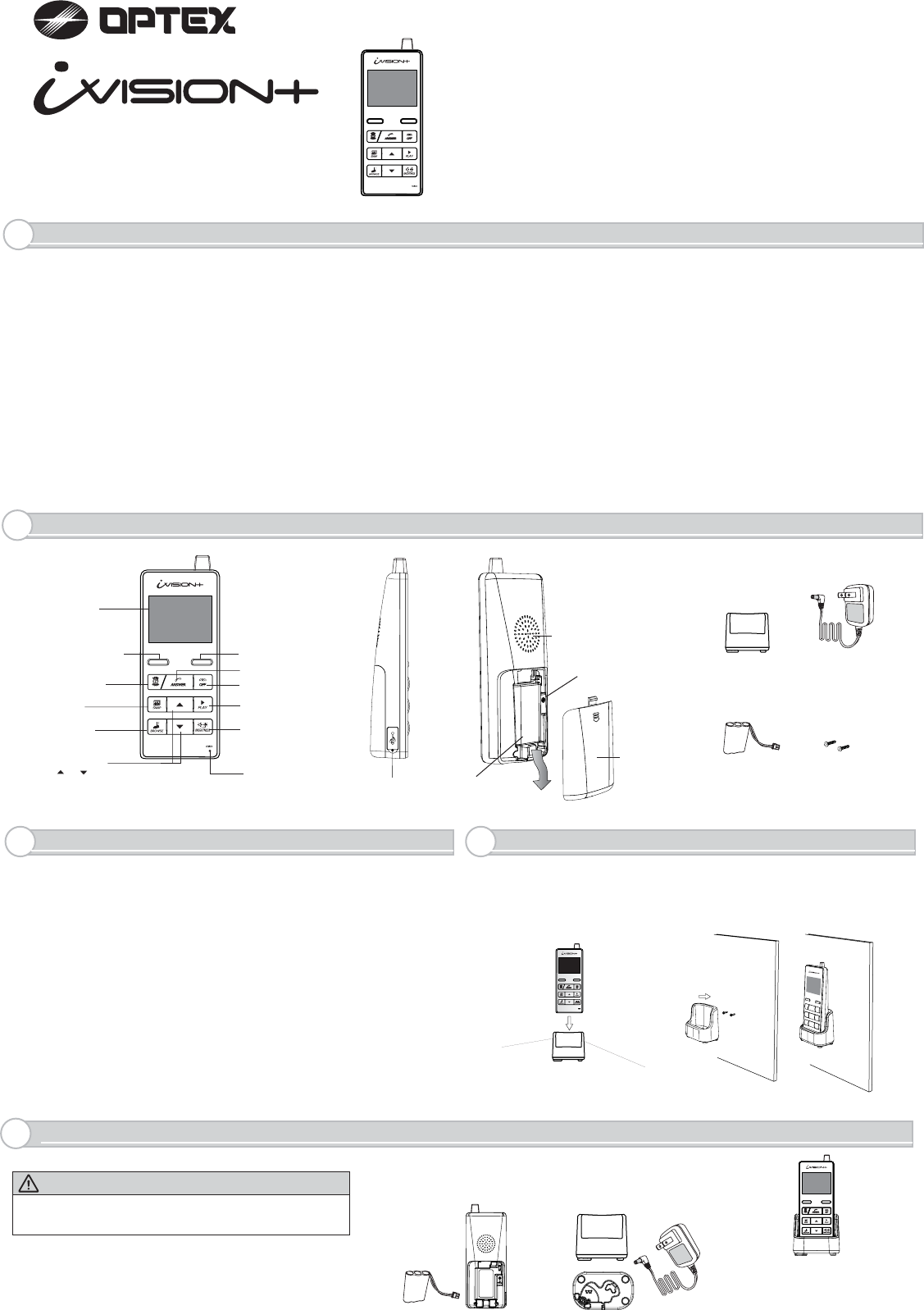

IVP-HU features
2.4 inch TFT LCD Monitor
Wall-mountable Cradle
Max 4 Units in a System
micro-USB port to PC connection
Manual/Auto Talk Switching
IVP-HU
(Handheld Monitor Unit)
Installation Instructions
ATTENTION:
Thank you for purchasing the iVISION+ wireless video intercom.
Before installation and usage, please read this instruction manual thoroughly
and keep this safe for future reference.
Wireless Video Intercom
IMPORTANT NOTICE
1.
Privacy & portrait/image rights
- Please respect the privacy and image rights of others when using this
equipment. By using this equipment the user assumes total responsibility in
upholding these rights.
- Images stored must not be used for any purpose other than that for which the
equipment is designed.
- Images should be deleted once no longer required.
Operations under harsh environments such as out of warranted temperature,
rapid temperature change, high humidity, constant moisturization may cause the
unit to malfunction.
Electronic device such as TVs, Radios, PCs, Microwave ovens or any other device
with an electric motor may cause the unit to malfunction.
Impact or shocks can cause severe damage to the unit. Please handle the unit
with care and operate without exerting strong forces.
Transmission range of communication between units may decrease under
the following conditions.
- Any unit is installed on a metal surface.
- Presence of reinforced concrete, steel doors or other metal construction
materials between units.
- Places near strong radio sources such as broadcast stations or substations.
PARTS IDENTIFICATION
2.
CHOOSING LOCATION
3. INSTALLATION
4.
POWERING THE UNIT
5.
The performance of the iVISION+ system is dependant on the radio frequency
environment and distances between devices. Following materials may decrease
the maximum transmission distance and may cause the Handheld Monitor Unit
inability to respond to incoming signals.
• Metal barricades such as ,metal doors and shutters.
• Walls with aluminium foil insulation.
• Concrete or galvanized metal walls.
The effective communication range is around 300ft (100m) in an open air condition
(line of sight). This range will be significantly reduced by the number and thickness
of walls through which the signal is required to pass. Please keep to a minimum
number of walls wherever possible.
Handheld Monitor Units use 2.4GHz radio frequency. Any electrical appliance may
become a potential cause for malfunction. Please avoid using the Handheld Monitor
Unit near microwave oven or any electrical devices with similar radio frequency.
CAUTION
Please use the included battery pack and a power adaptor only.
Do not disassemble or attempt to use alternative battery packs.
Handheld Monitor Unit must be set on Charging Cradle to retain its power while
iVISION+ system is not in operation. The Charging Cradle can either be free-standing
on a horizontal surface or be mounted on a wall as described below.
Charging Cradle
Mounting Screw
Handheld Monitor Unit
AC Adaptor
Battery Pack
1. Connect Battery pack
to the main unit.
LCD display
LEFT function key
“OPEN DOOR”
“SNAP”
“BROWSE”
Scroll buttons
( UP/ DOWN) Microphone
“BRIGHTNESS”
“PLAY”
“OFF”
“ANSWER”
RIGHT function key
2. Connect AC adapter
to Charging Cradle
3. Press and hold “OFF”
button to power on.
Set the unit onto
the cradle for charging.
Remove and keep the battery seperately if the device is not used
for more than a month. It may require several charge-discharge process
before a battery regains its full capacity after a long storage period.
Battery Pack Compartment
Speaker
USB connection port
Battery Cover
Pairing button
![](/img.php?id=2154225&img=bg4.png)
1. This product is warranted under normal use for 1 year from the date of purchase.
If the product proves to be defective, return it with a copy of your dated sales receipt
for repairs or replacement without charge.
2. The warranty is not applicable when below circumstances will be found:
- Mechanical or electrical modification(s) are made to the product
or it is otherwise altered manually.
- The product is already been at place(s) other than the manufacturer.
- It is determined that the product malfunction has resulted from improper use
or from an accident.
- No copy of the dated sales receipt has been submitted together with the product
to be served.
WARRANTY
9.
SPECIFICATION
8.
OPERATION CHECK
7.
PAIRING WITH OTHER iVISION+ DEVICES
6.
MODEL NAME: OPTEX iVISION+ (IVP-HU) Handheld Monitor Unit
8-1 Dimensions
8-2
Specification Table
(1) In a normal operation mode, press and hold the left function key
for two seconds to enter menu mode.
(2) Select menu number 3 # DEVICES IN NETWORK
by up and down key.
(3) Press LEFT function key to “OK”
(4) The display will show the number of iVISION+ devices in the network.
Confirm number of iVISION+ devices registered with the HOME ID.
(5) Maximum numbers of devices in an iVISION+ system are;
2 IVP-DU, 2 IVP-GU and 4 IVP-HU. Go over pairing procedure unless optimal
numbers of devices are displayed.
IVP-DU: Door Camera Unit
IVP-GU: Gateway Chime Unit
IVP-HU: Handheld Monitor Unit
NOTE: One Handheld Monitor Unit (IVP-HU) must be configured to have a HOME ID*1
prior to paring up with other iVISION+ devices. Handheld Monitor Unit bundled with
Door Camera Unit already has a HOME ID set up and paired up to each other.
*1 HOME ID is an unique network identification protocol for iVISION+ system.
One Handheld Monitor Unit can issue the HOME ID and all other devices on
the same system must be assigned the same HOME ID.
WARNING
Any pre-existing HOME ID set up will be cleared out with this procedure.
6-1 How to create HOME ID by a Handheld Monitor Unit
If not purchased in a bundle package, IVP-DU is
in the pairing mode when powered up. IVP-DU
beeps continuously when PUSH button is pressed.
To purposely enter into a paring mode, press PUSH
button once and hold a pairing button in a back.
1) Press pairing button once in the back of the unit.
The IVP-HU will be in a pairing mode.
2) Press the pairing button again and hold until the unit makes a beep sound.
3) Press “Left function key” on the front to confirm “CREATE.”
6-2 How to enroll other iVISION+ devices to the Handheld Monitor Unit
1) Press pairing button in the back of IVP-HU. The unit will be in “PAIRING MODE”.
2) Proceed to “SCAN” by pressing “Left function key”. IVP-HU starts scanning for
other devices for 60 seconds.
3) Prepare other iVISION+ device into their pairing mode. (REF: 6-3)
When the device is ready, the new unit will be enrolled to the HOME ID and
IVP-HU shows which device was connected.
4) If another device needs to be enrolled, re-enter “SCAN” by “Left Function key”
and repeat the process.
Pairing button
If not purchased in a bundle package, IVP-HU is in the
pairing mode when powered up. Choose “JOIN” by
“Right function key” to enroll into an existing HOME ID.
If otherwise, follow the instruction 6-1 to create
a new HOME ID. After an enrollment of new HU,
reset a Time & Date on HU1 to reflect the setting
onto the added HU unit.
If not purchased in a bundle package, by the factory
default, IVP-GU is in the pairing mode when powered up.
IVP-GU beeps continuously and green/red LED blinks.
Press down both A and B buttons while powering up
the Gateway Chime Unit to enter the pairing mode.
6-3 REFERENCE: How to enter “pairing mode” in iVISION+ devices
7-1 Confirming number of iVISION+ devices in a HOME ID 7-2 Checking operations on Handheld Monitor Unit
(1) Make sure IVP-HU has been charged and there is a green indication on the top
of display.
(2) To confirm RF reception, bring IVP-HU and IVP-DU in a line of sight.
(3) Press “Push button” on a paired Door Camera Unit.
All paired IVP-HUs display an image from the IVP-DU.
(4) Press “Answer” on any of the IVP-HU.
Voice from IVP-HU will be heard from the IVP-DU.
(5) Press “OFF” on the IVP-HU to terminate the communication.
(6) Move IVP-HU (and IVP-DU) to a desired location and repeat (3) to (5)
to confirm reception of signals.
80mm / 3.15”
71mm / 2.8”
Operating Temperature
Dust/Water Protection
Radiowave Frequency
0 to 40 degC (32 to 104 degF)
< 90% RH (no condensation)
1 year
N/A (Indoor Use Only)
2.4 GHz
Operating Humidity
Warranty
Power Power Adaptor 5.5V DC
Pairing Button
60mm / 2.36” 30mm / 1.18”
145mm / 5.71”
SYSTEM SETUP
1 DATE & TIME
2 SYSTEM CONFIGURATION
3 DEVICES IN NETWORK
4 PC CONNECTION
OK BACK
Pairing button A & B
Sound ON/OFF Switch
Use designated battery, IVP-BAT, for IVP-HU.
Please contact your regional technical support for procurement information.
REV 1.00
OPTEX INCORPORATED (USA)
TEL:+1-909-993-5770
Tech:(800)966-7839
URL:http://www.optexamerica.com/
OPTEX CO., LTD. (JAPAN)
(ISO 9001 Certified)
(ISO 14001 Certified)
5-8-12 Ogoto Otsu
Shiga 520-0101
JAPAN
TEL:+81-77-579-8670
FAX:+81-77-579-8190
URL:http://www.optex.co.jp/e/
13661 Benson Ave., Bldg. C
Chino, CA 91710
U.S.A.
![](/img.php?id=2154225&img=bg5.png)
W ir eless Video Intercom
FCC Statement
T
his device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not
cause harmful interference, and (2) this device must accept any interference received, including interference that may cause
undesired operation. Any Changes or modifications not expressly approved by party responsible for compliance coulk void the user’s
authority to operate the equipment.
Note: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FC
C
Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. Thi
s
equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instruction
s
may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a
particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined
by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following
measures:
—
Reorient or relocate the receiving antenna.
—
Increase the separation between the equipment and receiver.
—
Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.
—
Consult the dealer or an experienced radio/TV technician for help.
Radiation Exposure Statement
T
his equipment complies with FCC radiation exposure limits set forth for an uncontrolled environment. This transmitter must not be
co-located or operating in conjunction with any other antenna or transmitter.(see ** )
IC RSS warning
T
his device complies with Industry Canada licence-exempt RSS standard (s). Operation is subject to the following two conditions:
(1) this device may not cause interference, and (2) this device must accept any interference,including interference that may cause
undesired operation of the device.
Le présent appareil est conforme aux CNR d'Industrie Canada applicables aux appareils radio exempts de licence.
L'exploitation est autorisée aux deux conditions suivantes:
(1) l'appareil ne doit pas produire de brouillage, et
(2) l'utilisateur de l'appareil doit accepter tout brouillage radioélectrique subi, même si le brouillage est susceptible d'en
compromettre le fonctionnement.
Under Industry Canada regulations, this radio transmitter may only operate using an antenna of a type and maximum (or lesser)
gain approved for the transmitter by Industry Canada. To reduce potential radio interference to other users, the antenna type and
its gain should be so chosen that, the equivalent isotropically radiated power (e.i.r.p.) is not more than that necessary for successful
communication.
Conformément à la réglementation d'Industrie Canada, le présent émetteur radio peut fonctionner avec une antenne d'un type et
d'un gain maximal (ou inférieur) approuvé pour l'émetteur par Industrie Canada. Dans le but de réduire les risques de brouillage
radioélectrique à l'intention des autres utilisateurs, il faut choisir le type d'antenne et son gain de sorte que la puissance isotrope
rayonnée équivalente (p.i.r.e.) ne dépasse pas l'intensité nécessaire à l'établissement d'une communication satisfaisante.
(1/2) This radio transmitter (identify the device by certification number, or model number if Category II) has been approved by
Industry Canada to operate with the antenna types listed below with the maximum permissible gain and required antenna
impedance for each antenna type indicated. Antenna types not included in this list, having a gain greater than the maximum gain
indicated for that type, are strictly prohibited for use with this device.
Le présent émetteur radio (identifier le dispositif par son numéro de certification ou son numéro de modèle s'il fait partie du matériel
de catégorie I) a été approuvé par Industrie Canada pour fonctionner avec les types d'antenne énumérés ci-dessous et ayant un
gain admissible maximal etl'impédance requise pour chaque type d'antenne. Les types d'antenne non inclus dans cette liste,
ou dont le gain est supérieur au gain maximal indiqué, sont strictement interdits pour l'exploitation de l'émetteur.
IC Radiation Exposure Statement:
T
his equipment complies with IC RF radiation exposure limits set forth for an uncontrolled environment. This transmitter must not
be co-located or operating in conjunction with any other antenna or transmitter. (see **)
** For DU and GU, the equipment should be installed and operated with minimum distance 20cm between the radiator & your body.
