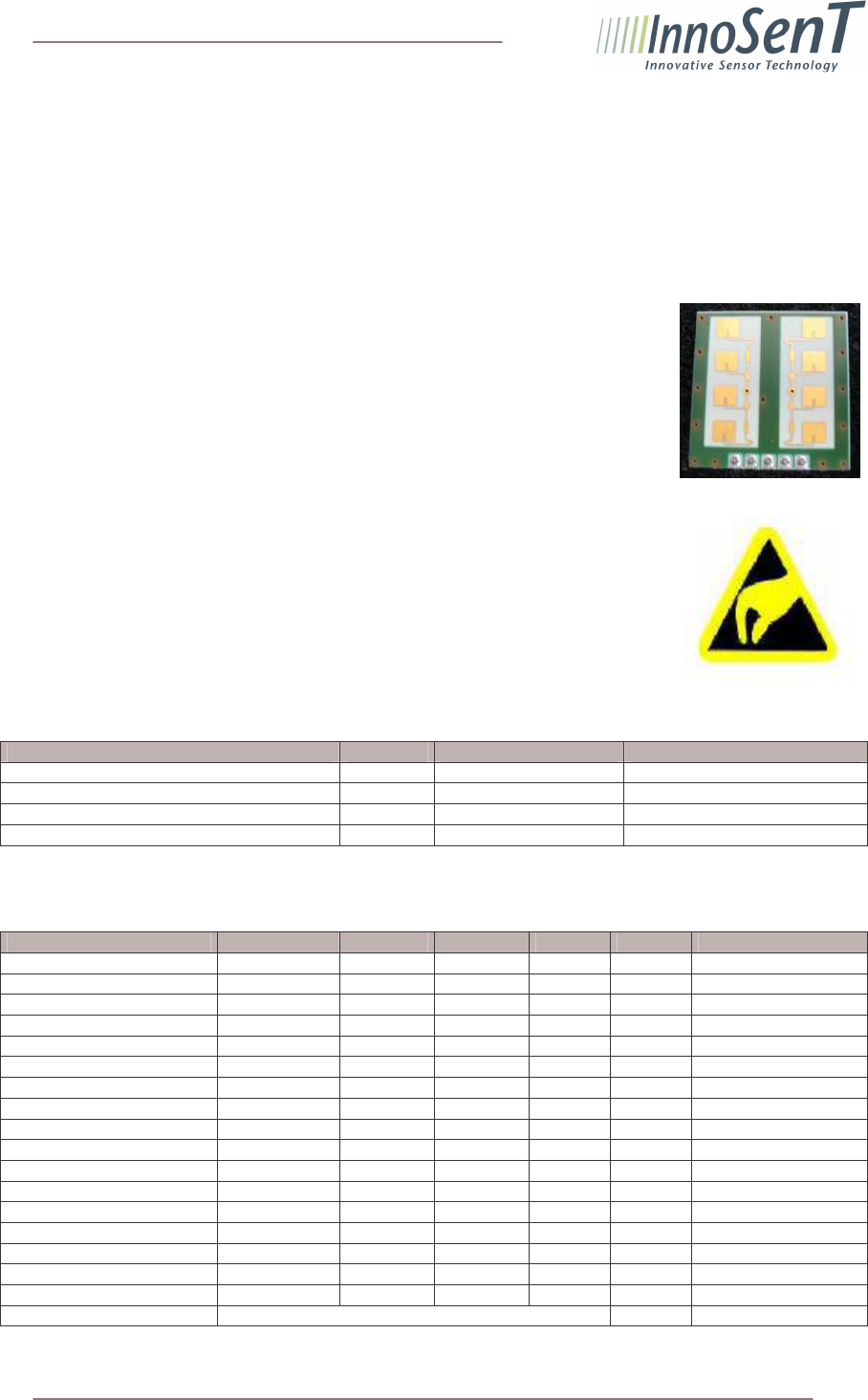

1 von 3 DATA SHEET IVS-465 09-02-2009
Version 1.2
___________________________________________________________________________________________________
DATA SHEET
Product Family: FSK/FMCW-capable Low-cost K-Band VCO Transceiver
Range of use: Industrial Applications
Module Number: IVS-465
_____________________________________________________________________________________________________
Description:
• K-Band VCO radar transceiver for FMCW/FSK applications
• advanced PHEMT –oscillator with low current consumption
• split transmit and receive path for maximum gain
• stereo (dual channel) operation for direction of motion identification
• very small outline dimensions
• Low-cost K-Band VCO Transceiver
Environmental Tests and Handling Precautions:
• This InnoSenT sensor is sensitive to damage from ESD.
• Normal precautions as usually applied to CMOS devices are sufficient when
handling the device. Touching the signal output pins has to be avoided at any
time before soldering or plugging the device into a motherboard.
Absolute maximum and minimum Ratings:
Parameter Symbol Rating Units
supply voltage V
CC
5,5 V
varactor tuning voltage V
Tune
12 V
operating temperature (out of spec) T
OP
. 0,5 V
storage temperature T
STG
-40/+85 °C
Electrical Characteristics:
Parameter Symbol min. typ. max. units comment
transmit frequency f
transmit
24.000 24.125 24.250 GHz depending on V
Tune
varactor tuning voltage V
Tune
0,5 10 V
varactor input impedance see equivalent circuit
modulation input 150 kHz
tuning slope 50 MHz/V
output power (EIRP) P
out
12 dBm
temperature drift f -1 MHz/°C
antenna pattern horizontal 80 ° azimuth
vertical 32 ° elevation
side lobe suppression horizontal 13 ° azimuth
vertical 13 ° elevation
I/Q balance amplitude 6 dB
phase 60 90 120 °
IF output voltage offset
-300 +300 mV
supply voltage V
CC
4.75 5.0 5.25 V
supply current I
CC
35 50 mA
operating temperature T
OP
-20 +60 °C
outline dimensions ~ 25 x 25 x 7 (12.7) mm compare drawing
Innovation in radar sensing
Innovation in radar sensing
2 von 3 DATA SHEET IVS-465 09-02-2009
Version 1.2

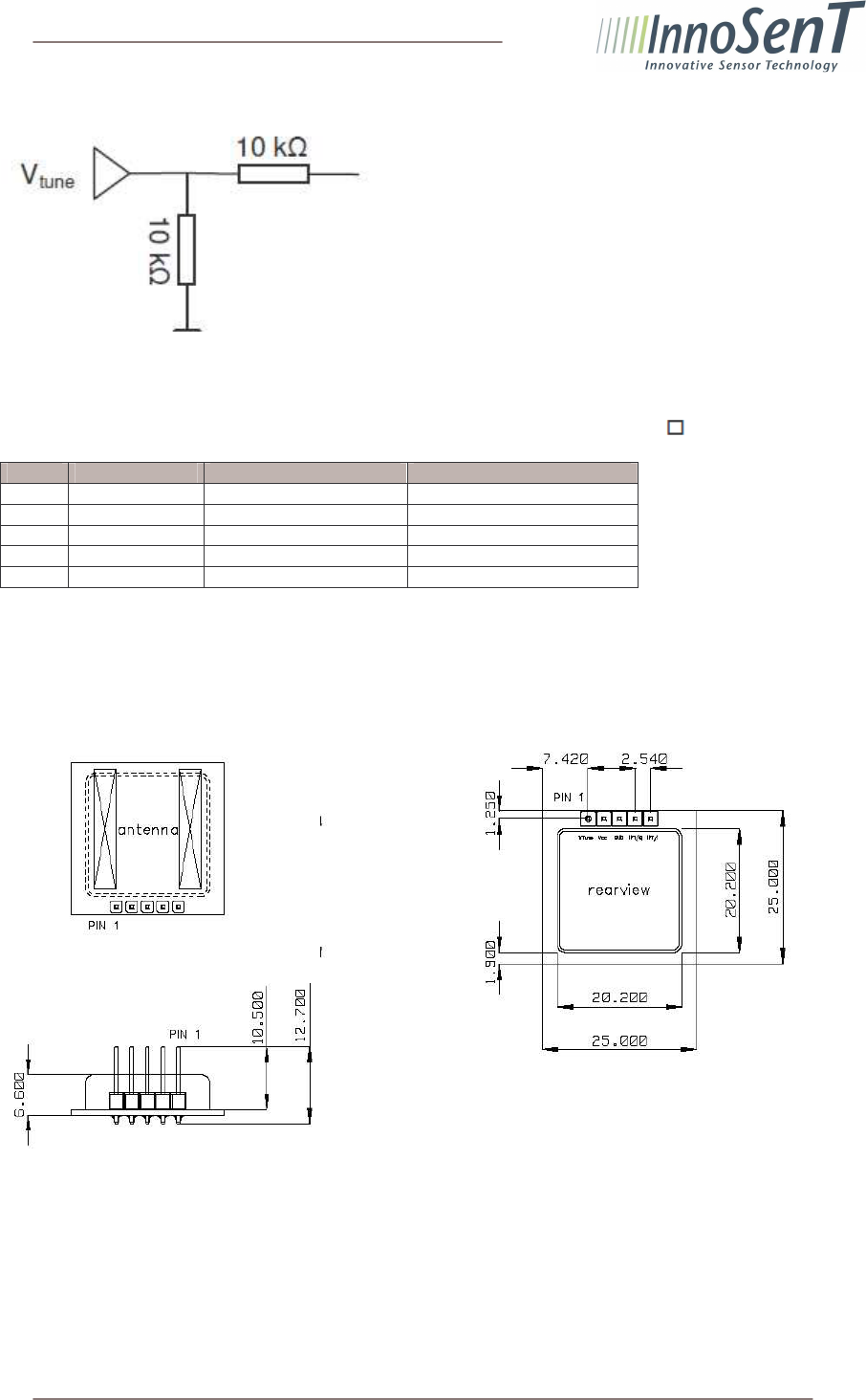

Varactor input impedance equivalent circuit:
Interface:
The sensor provides a 2.54 mm grid, single row pin header (square pin 0.635 mm)
Pin # Description In/Out Comment
1 V
Tune
input varactor tuning voltage
2 V
CC
input supply voltage (+5 V)
3 GND input analog ground
4 IF2 output Signal Q(uadrature)
5 IF1 output Signal I(nphase)
Mechanical Outlines:
(dimensions in mm)
Innovation in radar sensing
Innovation in radar sensing
3 von 3 DATA SHEET IVS-465 09-02-2009
Version 1.2
FCC approval
• This device complies with Part 15 of the FCC Rules and with RSS-210 of Industry Canada.
Operation is subject to the following two conditions:
(1) this device may not cause harmful interference, and
(2) this device must accept any interference received, including interference that may cause
undesired operation.
• Warning: Changes or modifications made to this equipment not expressly approved by InnoSenT GmbH may
void the FCC authorization to operate this equipment.
• Manufacturers of mobile or fixed devices incorporating IVS-465 modules are authorized to use the FCC
Grants and IC Certificates of the IVS-465 modules for their own final products according to the conditions
referenced in these documents. In this case, the FCC label of the module shall be visible from the outside, or
the host device shall bear a second label stating "Contains FCC ID: DC9-IVS465" and
"Contains IC: 4012A-IVS465".
Certification and environment protection:
InnoSenT GmbH has established and applies a quality system for:
Development, production and sales of radar sensors for commercial and
industrial sensors
An audit was performed, Report No. 010350 Proof has been furnished that
the requirements according to DIN EN ISO 9001:2000 are fulfilled.
This InnoSenT product is compliant to the restriction of hazardous substances
(RoHs – European Union directive 2002/95/EG).
InnoSenT Approval
This data sheet contains the technical specifications of the described product.
The technical specifications of this data sheet are approved:
InnoSenT GmbH
Am Roedertor 30
97497 Donnersdorf
GERMANY
Contact Information:
InnoSenT GmbH
Am Roedertor 30
97499 Donnersdorf
Germany
Phone: +49 (0) 9528-9518-0
Fax: +49 (0) 9528-9518-99 E-Mail: info@InnoSenT.de
Web: www.InnoSenT.de
