User MAnual
Operation Manual
1. Scope
2. Note and Warning
3. Electrical Specification
4. Pin Assignment
5. FCC Statement & IC Statement
1. Scope
This module is designed for motion sensing applications.
It consists of Oscillator, Mixer, Filter, detecter and 2element Antennas(T), 2element
Antennas(R). In addition, It have Frequency adjustment, Maintenance structure and
Shield case.
2. Note and Warning
The product is wireless device.It can radiation and receive RF signal. These electric
equipments are very sensitive for RF signal in airplane,hospital,and place to life
relate. The electric equipments almost interference from RF signal if it not shelter
enough and flaw in design. In order to avoid damage for life and property,in
compliance with standard of ever place and electric equipment to use the product.
If the product collide,operate improper,and maintain by oneself. We are not
indemnification. Place responsibility by oneself.
The product need solder a By Pass Capacitor in 22~100nF on DC +5V supply point of
the main PCB. The value of By Pass Capacitor is for reference. Determination of
value must according to require of your system.
3. Electrical Specification
Operating Voltage 5.0±0.2 V dc
Operating Current 35mA typ. (CW operation)
Center Frequency 10.525GHz typ.
Frequency Stability ±5 MHz max. (-30 to +65℃)
Output Power 20mw (E.I.R.P.) max.
Second Harmonic Emission 1μW max.
Antenna beamwidth (-3dB)
E-Plane
H-Plane
70 deg. nom.
40 deg. nom.

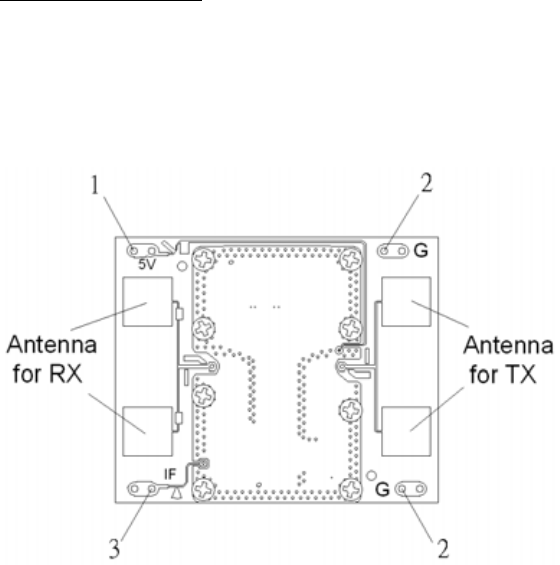

4. Pin Assignment
1. +5V
2. GND
3. IF out
5. FCC Statement & IC Statement
FCC
Statement
Federal Communication Commission Interference Statement
This equipment has been tested and found to comply with the limits for a Class
B digital device,pursuant to Part 15 of the FCC Rules. These limits are
designed to provide reasonable protection against harmful interference in a
residential installation. This equipment generates, uses and can radiate radio
frequency energy and, if not installed and used in accordance with the
instructions, may cause harmful interference to radio communications.
However, there is no guarantee that interference will not occur in a particular
installation. If this equipment does cause harmful interference to radio or
television reception, which can be determined by turning the equipment off and
on, the user is encouraged to try to correct the interference by one of the
following measures:
●
Reorient or relocate the receiving antenna.
●
Increase the separation between the equipment and receiver.
●
Connect the equipment into an outlet on a circuit different from that to which
the receiver is connected.
●
Consult the dealer or an experienced radio/TV technician for help.
FCC Caution: Any changes or modifications not expressly approved by the
party responsible for compliance could void the user’s authority to operate this
equipment.
This device complies with Part 15 of the FCC Rules. Operation is subject to the
following two conditions: (1) This device may not cause harmful interference,
and (2) this device must accept any interference received, including
interference that may cause undesired operation.
For product available in the USA/Canada market, only channel 1~11 can be
operated. Selection of other channels is not possible.
This device and its antenna(s) must not be co-located or operation in
conjunction with any other antenna or transmitter.
IMPORTANT NOTE:
FCC Radiation Exposure Statement:
This equipment complies with FCC radiation exposure limits set forth for an
uncontrolled environment.
This equipment should be installed and operated with minimum distance 20cm
between the radiator & your body.
IMPORTANT NOTE:
This module is intended for OEM integrator. The OEM integrator is still
responsible for the FCC compliance requirement of the end product, which
integrates this module.
20cm minimum distance has to be able to be maintained between the antenna
and the users for the host this module is integrated into. Under such
configuration, the FCC radiation exposure limits set forth for an
population/uncontrolled environment can be satisfied.
Any changes or modifications not expressly approved by the manufacturer
could void the user's authority to operate this equipment.
USERS MANUAL OF THE END PRODUCT:
In the users manual of the end product, the end user has to be informed to
keep at least 20cm separation with the antenna while this end product is
installed and operated. The end user has to be informed that the FCC
radio-frequency exposure guidelines for an uncontrolled environment can be
satisfied. The end user has to also be informed that any changes or
modifications not expressly approved by the manufacturer could void the
user's authority to operate this equipment. If the size of the end product is
smaller than 8x10cm, then additional FCC part 15.19 statement is required to
be available in the users manual: This device complies with Part 15 of FCC
rules. Operation is subject to the following two conditions: (1) this device may
not cause harmful interference and (2) this device must accept any
interference received, including interference that may cause undesired
operation.
LABEL OF THE END PRODUCT:
The final end product must be labeled in a visible area with the following "
Contains TX FCC ID:DC9OPMW ". If the size of the end product is larger than
The end user has to be informed that the FCC radio-frequency exposure
guidelines for an uncontrolled environment can be satisfied. The end user
has to also be informed that any changes or modifications not expressly
approved by the manufacturer could void the user's authority to operate this
equipment. The FCC part 15.19 statement below has to also be available in
the manual: This device complies with Part 15 of FCC rules. Operation is
subject to the following two conditions: (1) this device may not cause harmful
interference and (2) this device must accept any interference received,
including interference that may cause undesired operation.
8x10cm, then the following FCC part 15.19 statement has to also be available
on the label: This device complies with Part 15 of FCC rules.
Operation is subject to the following two conditions: (1) this device may not
cause harmful interference and (2) this device must accept any interference
received, including interference that may cause undesired operation.
IC Statement
This Class B digital apparatus complies with Canadian ICES-003.
Operation is subject to the following two conditions: (1) this device may not
cause interference, and (2) this device must accept any interference, including
interference that may cause undesired operation of the device.
Cet appareil numérique de la classe B est conforme á la norme NMB-003 du
Canada.
For product available in the USA/Canada market, only channel 1~11 can be
operated. Selection of other channels is not possible.
This device and its antenna(s) must not be co-located or operation in
conjunction with any other antenna or transmitter.
For MPE Statement – Mobile device
IMPORTANT NOTE:
IC Radiation Exposure Statement:
This equipment complies with IC RSS-102 radiation exposure limits set forth
for an uncontrolled environment. This equipment should be installed and
operated with minimum distance 20cm between the radiator & your body.
IMPORTANT NOTE:
This module is intended for OEM integrator. The OEM integrator is still
responsible for the IC compliance requirement of the end product, which
integrates this module.
20cm minimum distance has to be able to be maintained between the antenna
and the users for the host this module is integrated into. Under such
configuration, the IC RSS-102 radiation exposure limits set forth for an
population/uncontrolled environment can be satisfied.
Any changes or modifications not expressly approved by the manufacturer
could void the user's authority to operate this equipment.
USERS MANUAL OF THE END PRODUCT:
In the users manual of the end product, the end user has to be informed to
keep at least 20cm separation with the antenna while this end product is
installed and operated. The end user has to be informed that the IC
radio-frequency exposure guidelines for an uncontrolled environment can be
satisfied. The end user has to also be informed that any changes or
modifications not expressly approved by the manufacturer could void the
user's authority to operate this equipment. IC statement is required to be
available in the users manual: This Class B digital apparatus complies with
Canadian ICES-003. Operation is subject to the following two conditions: (1)
this device may not cause harmful interference and (2) this device must accept
any interference received, including interference that may cause undesired
operation.
LABEL OF THE END PRODUCT:
The final end product must be labeled in a visible area with the following "
Contains TX IC :4012A-OPMW ".
The end user has to be informed that the IC radio-frequency exposure
guidelines for an uncontrolled environment can be satisfied. The end user has
to also be informed that any changes or modifications not expressly approved
by the manufacturer could void the user's authority to operate this equipment.
IC statement is required to be available in the users manual: This Class B
digital apparatus complies with Canadian ICES-003. Operation is subject to
the following two conditions: (1) this device may not cause harmful
interference and (2) this device must accept any interference received,
including interference that may cause undesired operation.
