User manual
1000
TC-10U DOOR/WINDOW TRANSMITTER
This product is only compatible with Wireless 1000 series.
TC-10U MANUAL
Please read this manual carefully before installation.
FEATURES
• Compatible with RC-10U (Chime Box W/Relay), RG-10U (Single Relay Receiver)
• Can be installed on Door/Window.
• Weather proof structure (IP54) for indoor and outdoor where don’t have rain direct.
• Over 8 million codes possible, eliminates interference from neighbors
• Powered by CR123 3-Volt lithium battery (not included)
• Low battery signal
• Two unique functions; the first is for its built-in magnet switch and the second is input
terminal for the OPTEX’s battery operated detectors.
CAUTION
Please be careful of the following:
1. Outdoor Use
The TC-10U Transmitter is suitable for both indoor and outdoor where don’t have rain
direct.
2. High Temperature, High Humidity & Dirty Fumes
Do not expose the TC-10U to high temperatures, rapid temperature changes, steam, high
humidity, dirty fumes or oily smoke.
3. Transmission range may decrease under following conditions.
• A steel door, reinforced concrete, or other metal obstructions between the TC-10U and
the receiver.
• Installing either the TC-10U or the receiver on a metal surface.
• Places near strong radio sources such as a broadcast stations or high power lines.
• To comply with the FCC RF exposure compliance requirements, this device and its
antenna must not be co-located or operating in conjunction with any other antenna or
transmitter. The changes or modifications not expressly approved by the party responsible
4. Other Electric Devices
Use the TC-10U at least 3ft (1m) away from following devices: TV, radio, personal Computer,
microwave oven, refrigerator, and any device that has an electric motor (This may cause
malfunction).
5. Impact/Shock
Do not drop the TC-10U or give it a strong impact/shock.
6. Tampering
The changes or modifications not expressly approved by the party responsible for
compliance could void the user’s authority to operate the equipment.
7. Battery Replacement
Replace the battery every 2 years. Use only CR123 3V lithium battery.
8. Cleaning
Harsh cleaners such as paint remover or benzene may ruin the surface. Use a soft, wet cloth
and mild soap or detergent to clean.
MAXIMUM TRANSMISSION RANGE
TC-10U 700ft. (open field, line of sight.)
Measurements were made over level ground without
obstruction.
Natural or man-made obstacles and other environmental
factors can interfere with or otherwise reduce transmission
range. Always confirm actual transmission range during
installation of system. Please use the information below as a
reference for transmission performance.
Plaster construction:
Reinforced concrete construction:
110ft
70ft

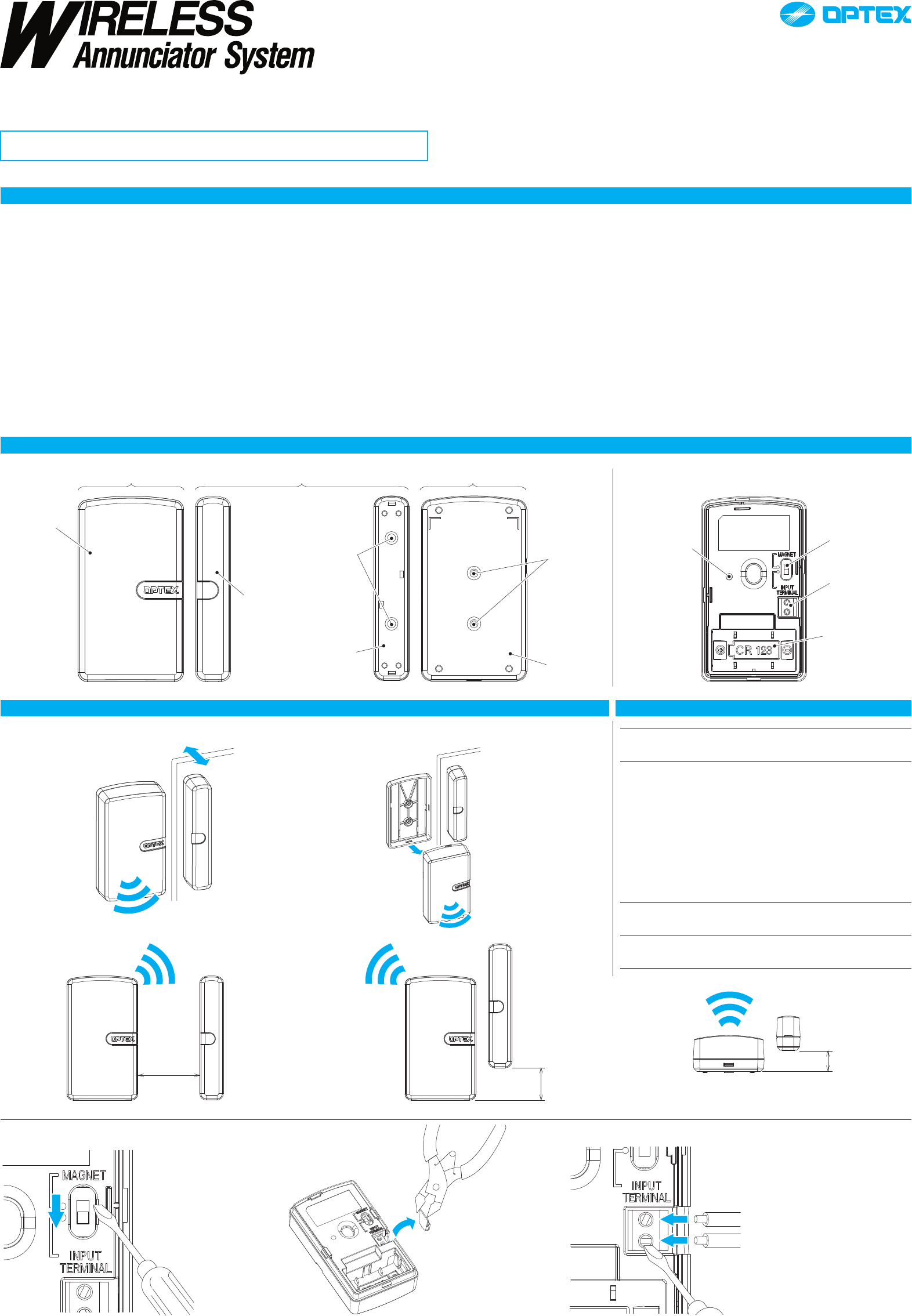

PART IDENTIFICATION
TRANSMITTER UNIT TRANSMITTER UNITMAGNET UNIT
Front cover
Front cover
magnet box
Screw hole
(for mounting)
Rear cover
magnet box
Knockout
(for mounting)
Status indicator Slide switch
(for select function)
Input terminal
Battery
• Use only CR123 3V
lithium battery
Wall plate
Door/
Window
Wall
0.40 ~ 1.18
(10 ~ 30) 0.16 ~ 0.40
(4 ~ 10)
0.32 ~ 0.79
(8 ~ 20)
Unit: inches (mm)
OPERATING CONDITION
It transmits when the door opens or when the transmitter unit is removed from the wall plate.
It transmits when the distance of the magnet unit from the transmitter unit is as shown.
When using OPTEX’s battery operated detector
Move the Slide switch to
input terminal for change
function.
Remove the wiring
knockout as shown.
* It will lost weatherproof
structure.
Wiring knockout
Lead the wire from OPTEX’s battery
operated detector into the input
terminal.
* Put in these detectors’s
backbox.
* About these detectors, please
contact your supplier for
services.
for compliance could void the user's authority to operate the equipment.
123
Door/
Window
Wall
Door/
Window
Wall
0851Q 5915570
OPTEX CO., LTD. (JAPAN)
(ISO 9001 Certified)
(ISO 14001 Certified)
5-8-12 Ogoto Otsu
Shiga 520-0101
JAPAN
TEL:+81-77-579-8670
FAX:+81-77-579-8190
URL:http://www.optex.co.jp/e/
OPTEX INCORPORATED (USA)
TEL:+1-909-993-5770
Tech:(800)966-7839
URL:http://www.optexamerica.com
OPTEX KOREA CO., LTD. (KOREA)
TEL:+82-2-719-5971
URL:http://www.optexkorea.com
OPTEX SECURITY Sp.z o.o. (POLAND)
TEL:+48-22-598-06-55
URL:http://www.optex.com.pl
OPTEX (DONGGUAN) CO., LTD.
SHENZHEN OFFICE (CHINA)
TEL:+86-755-33302950
URL:http://www.optexchina.com
OPTEX (EUROPE) LTD. (UK)
TEL:+44-1628-631000
URL:http://www.optexeurope.com
OPTEX SECURITY SAS (FRANCE)
TEL:+33-437-55-50-50
URL:http://www.optex-security.com
DIMENSIONS Unit: inches (mm)
TEACH TRANSMITTER CODES TO THE RECEIVER
The receiver must be taught this TC-10U’s unique code before use. Refer to the receiver’s manual for details.
1. Preparation
• Press Switch 1 of
the receiver until
the power
indicator starts
flashing.
• Press switch 2 to
select the zone
you wish to assign
to the sensor.
2. Activation
• Separate the magnet unit from transmitter unit.
• Verity that the receiver
has learned
successfully by
observing the zone
indicators of the
receiver. Zone
indicators should have
stopped flashing and
remain continuously on.
3. Verification
• After teaching all the
transmitter’s codes (if
you have multiple
transmitters), return the
receiver to normal
operating status.
• Make sure that the
receiver operates
correctly with all the
transmitters.
Note:
Cover the TC-10U until you are
ready to teach the receiver.
Unwanted detection can cause
the TC-10U to be assigned to the
wrong zone and override the data
of other transmitters.
CONFIRMATION
After installation, door/window open and close.
And confirm the receiver weather it is received.
TROUBLESHOOTING
1. The system is not operating.
Check the transmitter.
Does the status indicator light up when
you remove transmitter unit from
wallplate?
If not, check to see if the battery is inserted correctly.
Otherwise try a new battery.
The magnet unit away by enough distance?
Please separate it by 0.6 inch (15 mm).
Is the status indicator flashing? The battery is old. Replace the battery.
Check the receiver (or repeater).
Is the power indicator of the receiver lit? Is the receiver on? Check the wiring, power switch
and connection.
The receiver does not respond to the TC-
10U.
The TC-10U is not properly recognized by the
receiver. Teach the receiver correctly.
The zone indicator of the receiver is on,
but nothing happens.
Receiver has not been properly setup.
Refer to the receiver’s manual and verify the setting.
Is there anything blocking the
transmission?
Relocate the receiver and/or the TC-10U.
Metal objects can shorten the effective transmission
range.
2. The system is not operating correctly.
It does not transmitting.
Does it makes between Transmitter unit and Magnet
unit within 0.2 inch (5 mm)?
Is its distance more than transmission range to
receiver? Please use repeater.
Before contacting the supplier! Remove the battery, then reinsert the new batteries
and verify the TC-10U’s operation again.
• If the above solutions do not work, please contact your supplier for services.
SPECIFICATIONS
Model
Description
Status Indicator
Power Source
Battery Life
Frequency
Input terminal
Operating Temp.
Installation Location
Accessories
Weight
TC-10U
Door/Window Transmitter
Red LED
3V:CR123 lithium battery (not include)
2years [100 times per day at 70°F (20°C)]
418MHz
Our battery operated detector only
15°F ~ 120°F (-10°C ~ +50°C)
Indoor / Outdoor where don’t have rain direct.
Double stick tape × 3, Screw × 4, Rubber Washer × 2
2.5oz (70g) (not included battery)
Specifications may change without notice
LIMITED ONE-YEAR WARRANTY
(1) This Sensor Transmitter is warranted to the original consumer purchaser to be free from defects in material
and workmanship under normal use for one (1) year from the date of purchase. If the product proves to be
defective, return it postage prepaid with a copy of your dated sales receipt for repairs or replacement
without charge.
(2) This warranty is in lieu of any and all other warranties, whether expressed or implied, including but not
limited to any warranty of merchantability or fitness for a particular purpose.
(3) This warranty is invalid under the following circumstances:
• Mechanical or electrical modification(s) are made to the product or it is otherwise altered manually.
• The product is already been serviced at place(s) other than the manufacturer.
• It is determined that the product malfunction has resulted from improper use or from an accident.
• No copy of the dated sales receipt has been submitted together with the product to be serviced.

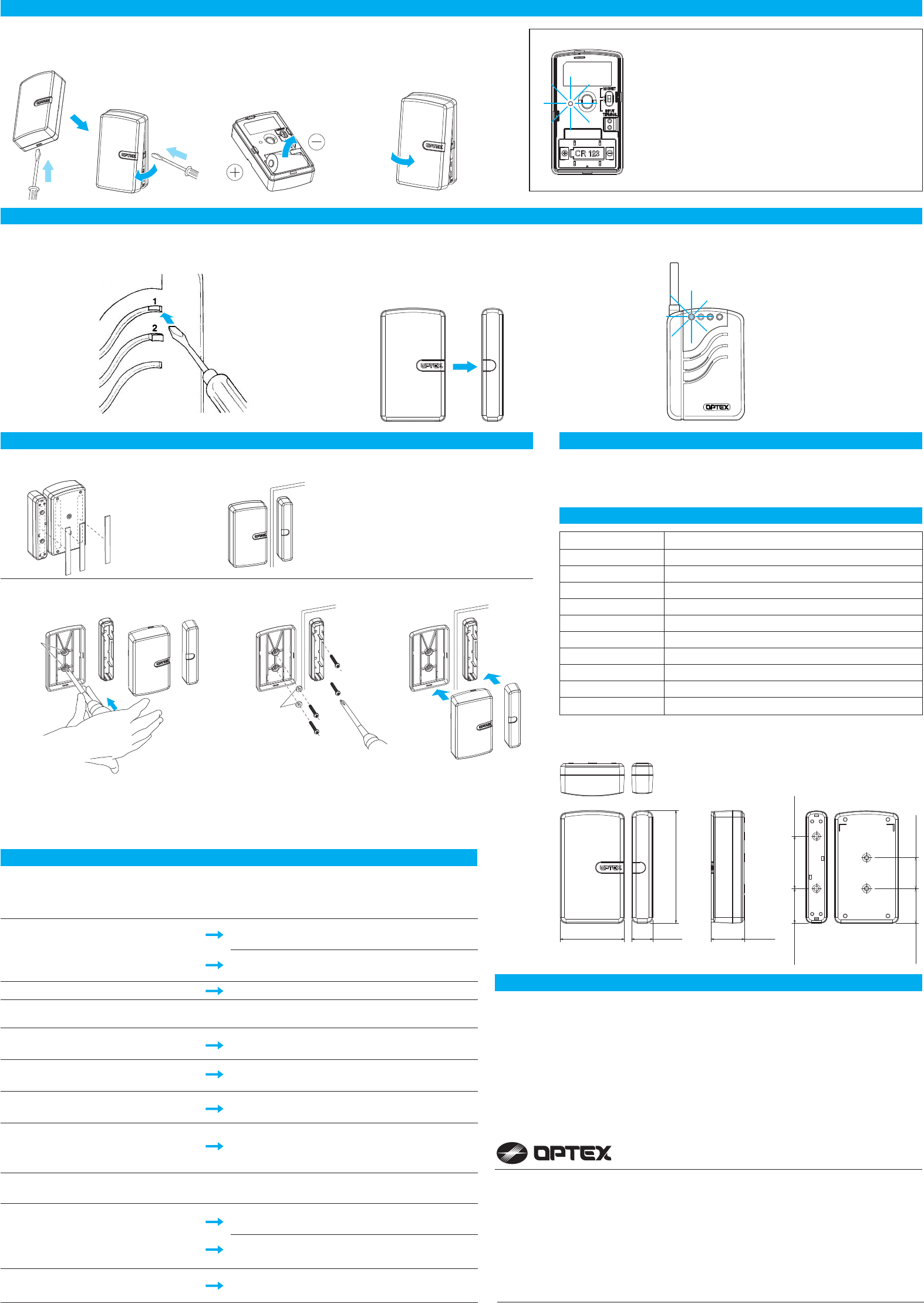

INSTALLATION BATTERY
1. Remove the Front cover
as shown.
2. Insert batteries.
Observe polarity.
(+/- direction)
3. To replace the cover.
*confirm its closed surely
• When the power is low, Status indicator starts
flash.
Replace the battery in such case.
• Low power may become the cause of false
alarm.
• There is no need to readjust the TC-10U nor
the receiver after replacing battery.
• Don’t throw the battery in the fire because
there is the explosion hazard.
INSTALLATION
Double stick tape installation
Put the double stick
tape as shown.
Clean the installation positions before
installing them.
Install the transmitter unit on the wall.
Install the magnet unit on the door or window.
*Align the magnet unit within 0.2 inch (5 mm).
Screw installation
Install the transmitter unit on the wall with rubber washer and mounting screws (two places).
Install the magnet unit on the door or window with mounting screws.
*If it is without rubber washer, it will lost weatherproof structure.
*Align the magnet unit within 0.2 inch (5mm).
To put back the cover.
1.8 (45) 0.6 (15)
3.1 (79)
0.85 (21.7)0.95 (24.2)
0.95 (24.2) 1.5 (36.7)
1.0 (24)
knockout
Rubberwasher
