Panasonic ®

DVD Stereo System

Operating Instructions

The illustration shows the model for U.S.A., Australia and New Zealand• Model No. SC-DK2

V t D E O" (DIGITAL VIDEO1

Before connecting, operating or adjusting this product, please read

these instructions completely.

Please keep this manual for future reference.

[-_ _ _ _ RQT5327-P

U_J_I[ I,;U._|UIIII_I

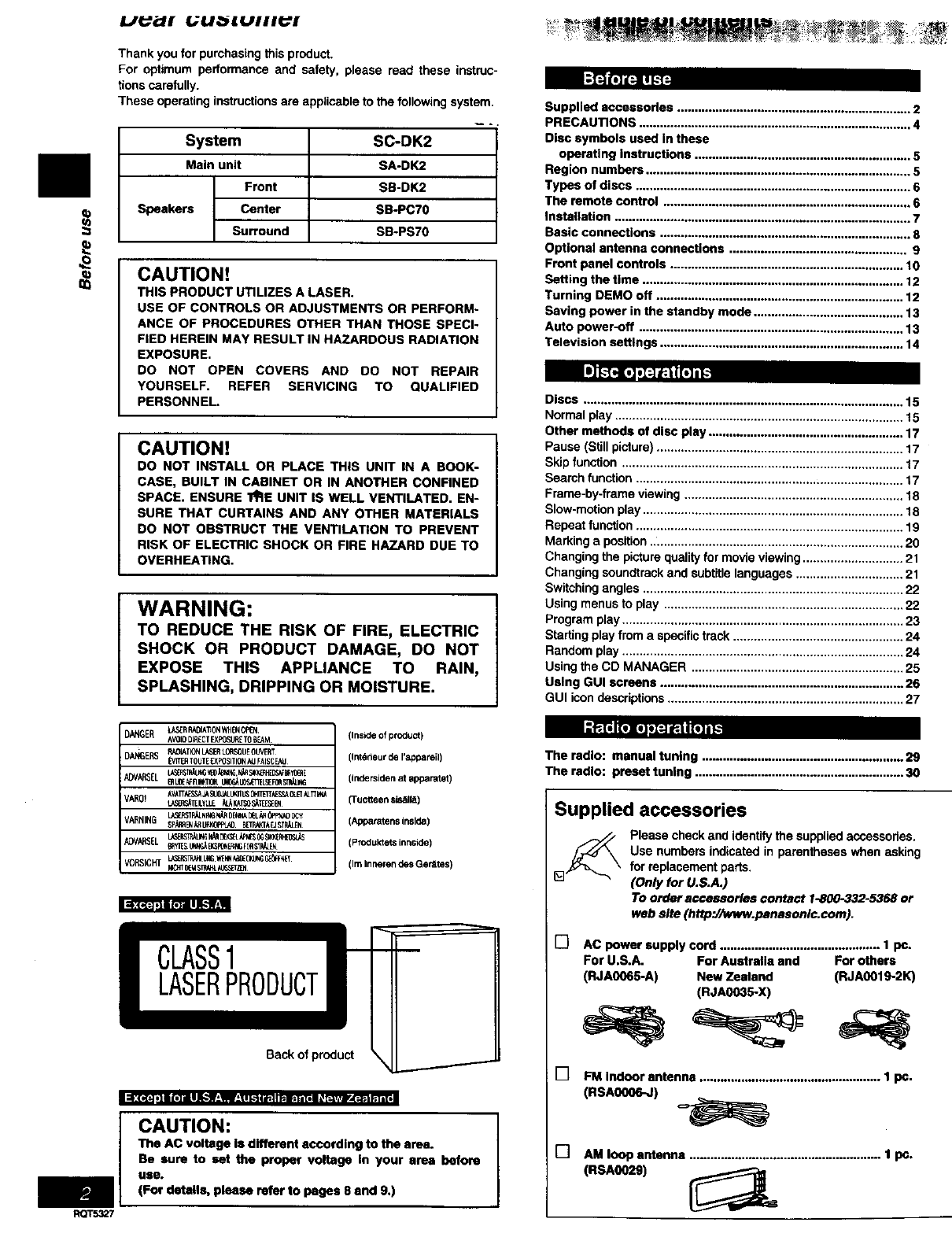

Thank you for purchasing this product.

For optimum performance and safety, please mad these instruc-

tions carefully.

These operating instructions are applicable to the following system.

System

Main unit

Front

Speakers Center

Surround

SC-DK2

SA-DK2

SB-DK2

SB-PCTO

SB-PS70

CAUTIONt

THIS PRODUCT UTILIZES A LASER.

USE OF CONTROLS OR ADJUSTMENTS OR PERFORM-

ANCE OF PROCEDURES OTHER THAN THOSE SPECI-

FIED HEREIN MAY RESULT IN HAZARDOUS RADIATION

EXPOSURE.

DO NOT OPEN COVERS AND DO NOT REPAIR

YOURSELF. REFER SERVICING TO QUALIFIED

PERSONNEL.

[i][T4r_ ,_'J;FItFT;_

CAUTION!

DO NOT INSTALL OR PLACE THIS UNIT IN A BOOK-

CASE, BUILT IN CABINET OR IN ANOTHER CONRNED

SPACE. ENSURE I_E UNIT IS WELL VENTILATED. EN-

SURE THAT CURTAINS AND ANY OTHER MATERIALS

DO NOT OBSTRUCT THE VENTILATION TO PREVENT

RISK OF ELECTRIC SHOCK OR FIRE HAZARD DUE TO

OVERHEATING.

WARNING:

TO REDUCE THE RISK OF FIRE, ELECTRIC

SHOCK OR PRODUCT DAMAGE, DO NOT

EXPOSE THIS APPLIANCE TO RAIN,

SPLASHING, DRIPPING OR MOISTURE.

Supplied accessories ................................................................... 2

PRECAUTIONS .............................................................................. 4

Disc symbols used in these

operating instructions .............................................................. 5

Region numbers ............................................................................ 5

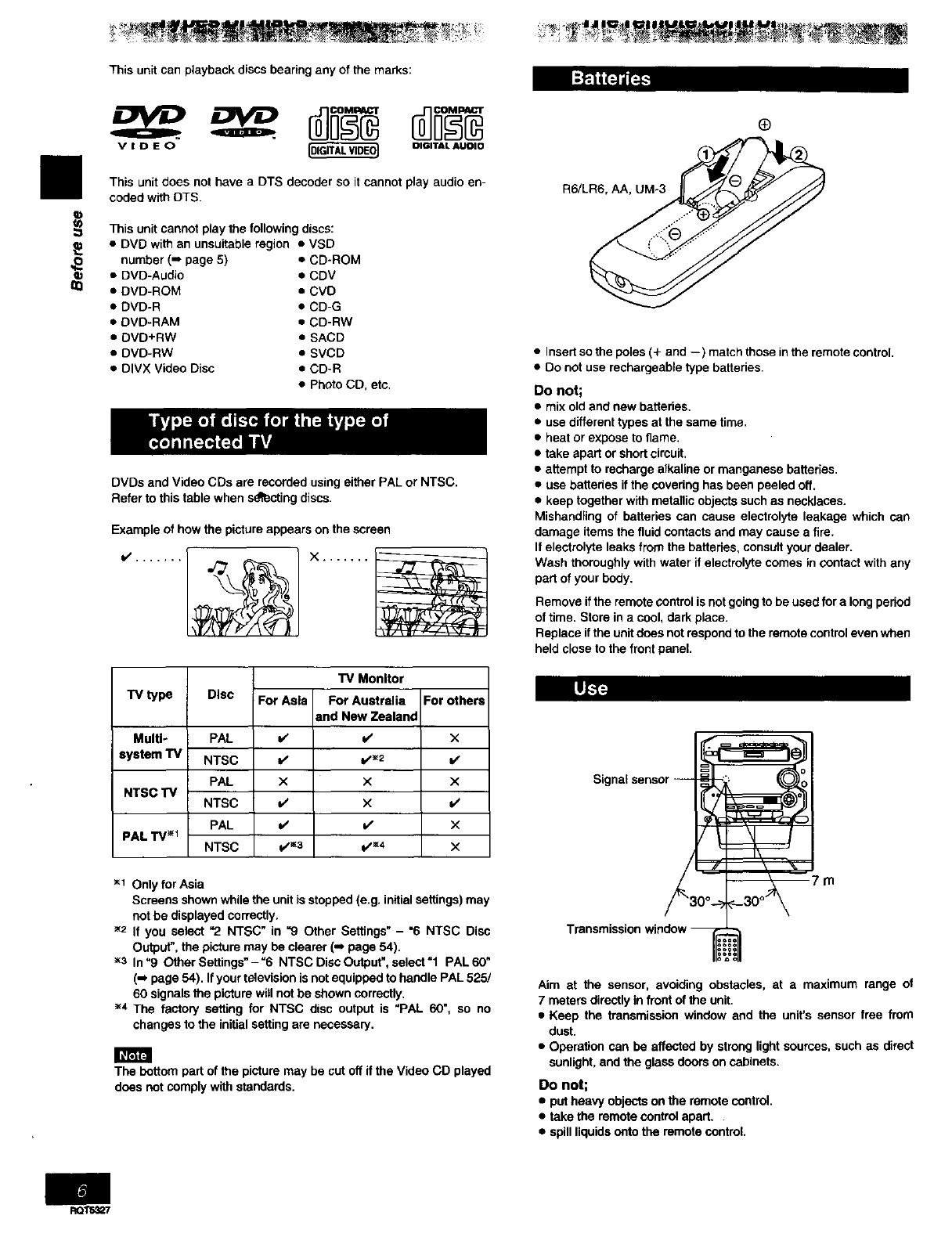

Types of discs ............................................................................... 6

The remote control ....................................................................... 6

Installation .................................................................................... 7

Basic connections ........................................................................ 8

Optional antenna connections ................................................... 9

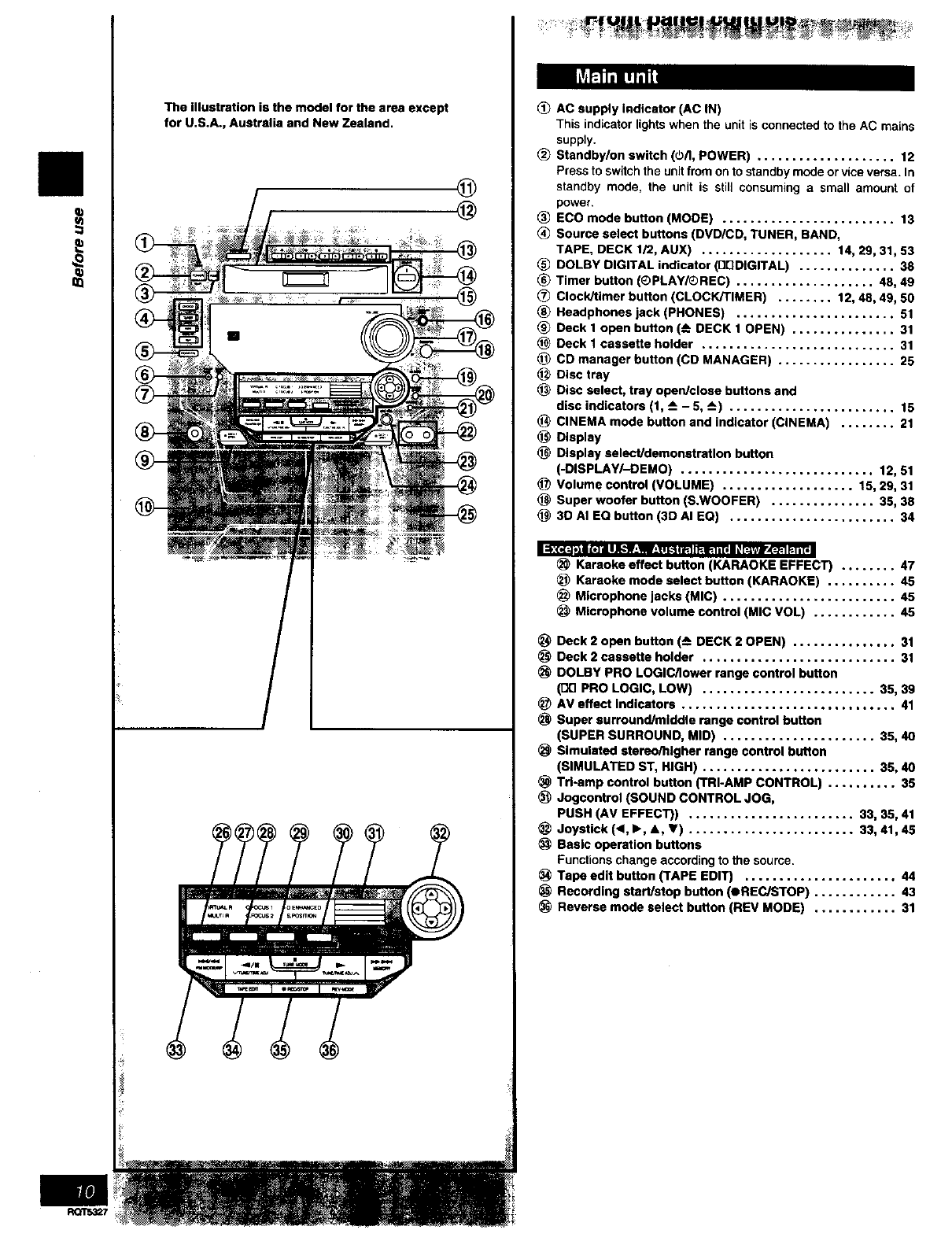

Front panel controls ................................................................... 10

Setting the time ........................................................................... 12

Turning DEMO off ....................................................................... 12

Saving power in the standby mode ........................................... 13

Auto power-off ............................................................................ 13

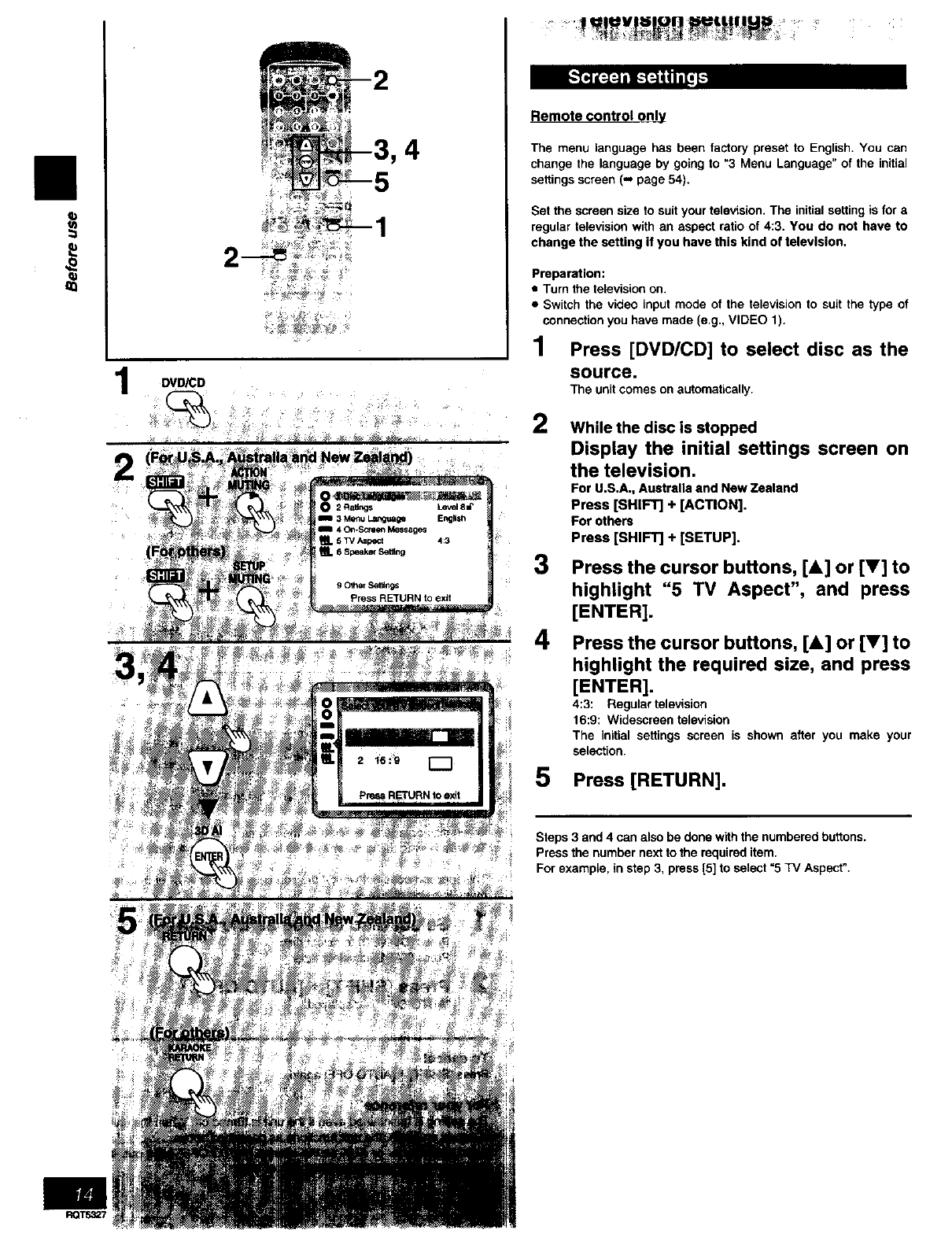

Television settings ...................................................................... 14

Discs ............................................................................................ 15

Normal play ................................................................................... 15

Other methods of disc play ........................................................ 17

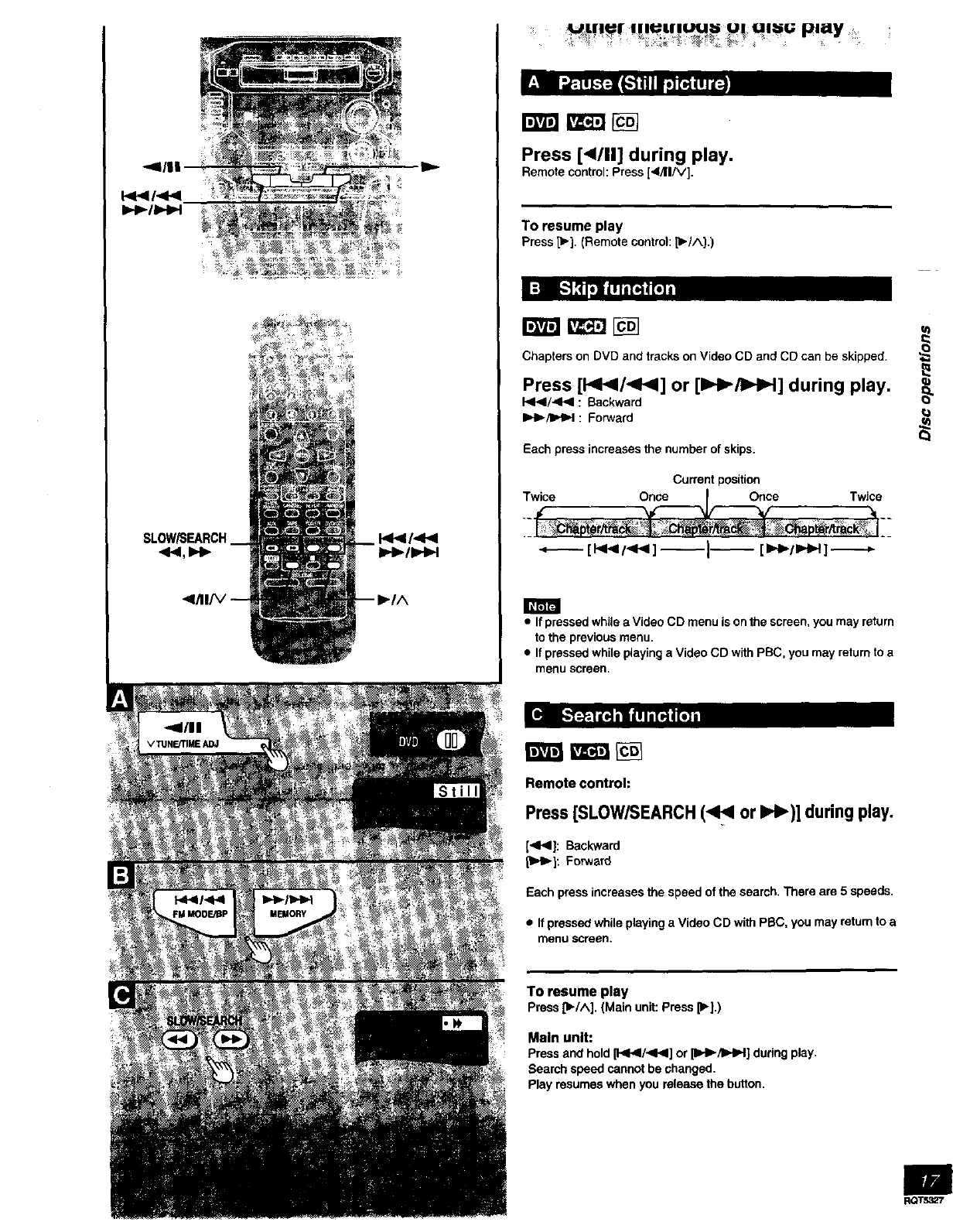

Pause (Still picture) ....................................................................... 17

Skip function ................................................................................. 17

Search function ............................................................................. 17

Frame-by-frame viewing ............................................................... 18

Slow-motion play ........................................................................... 18

Repeat function ............................................................................. 19

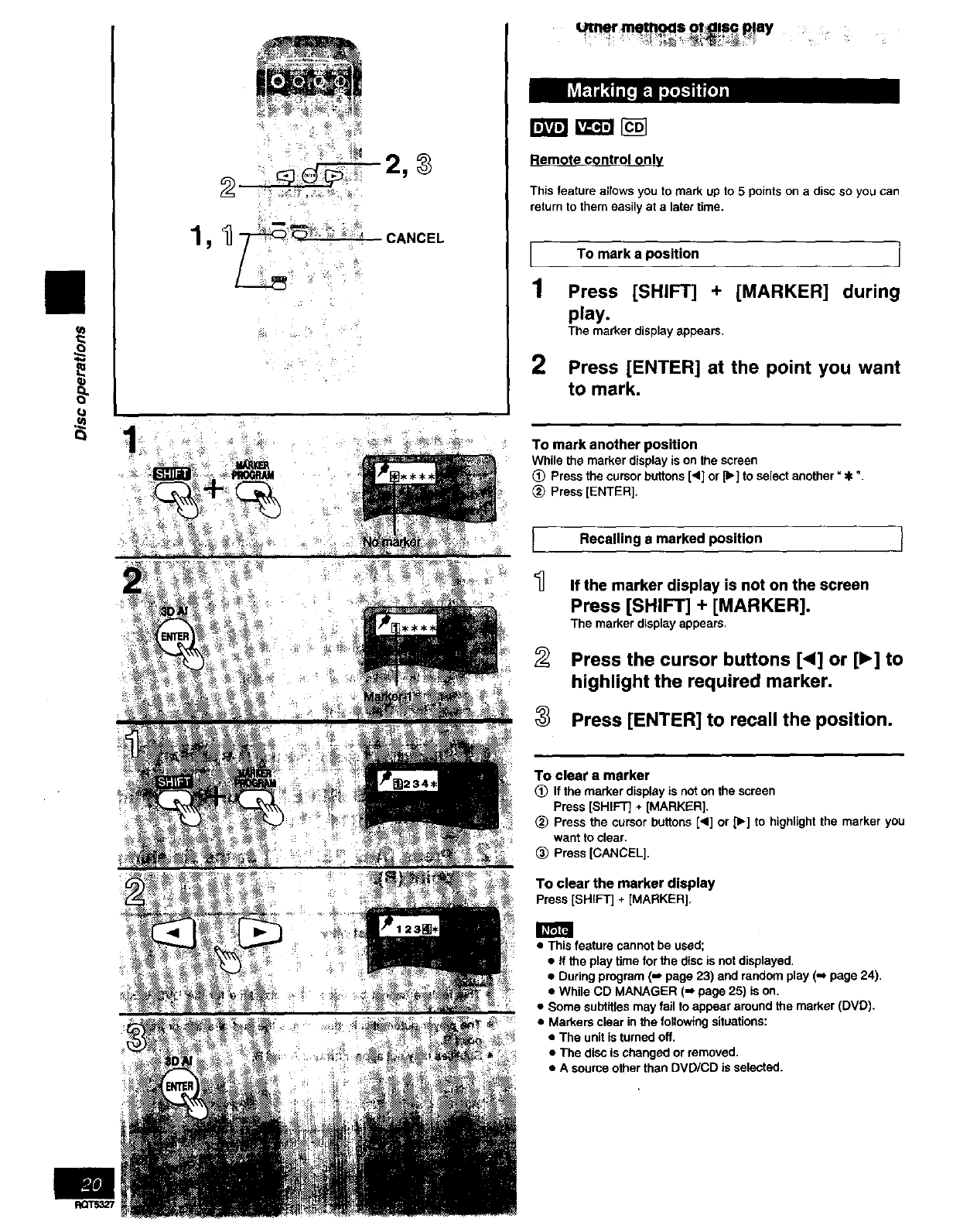

Marking a position ..L...................................................................... 20

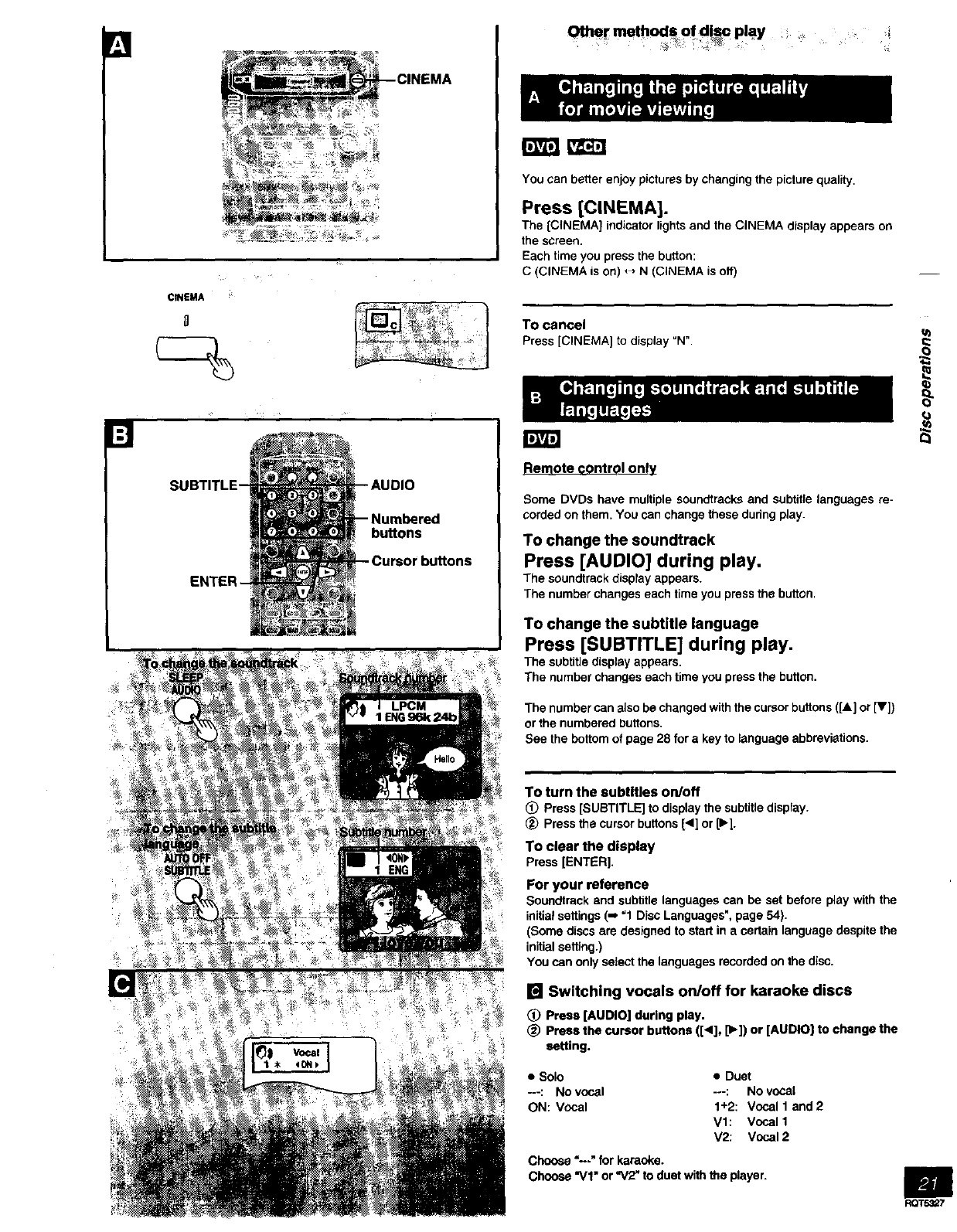

Changing the picture quality for movie viewing ............................. 21

Changing soundtrack and subtitle languages ............................... 21

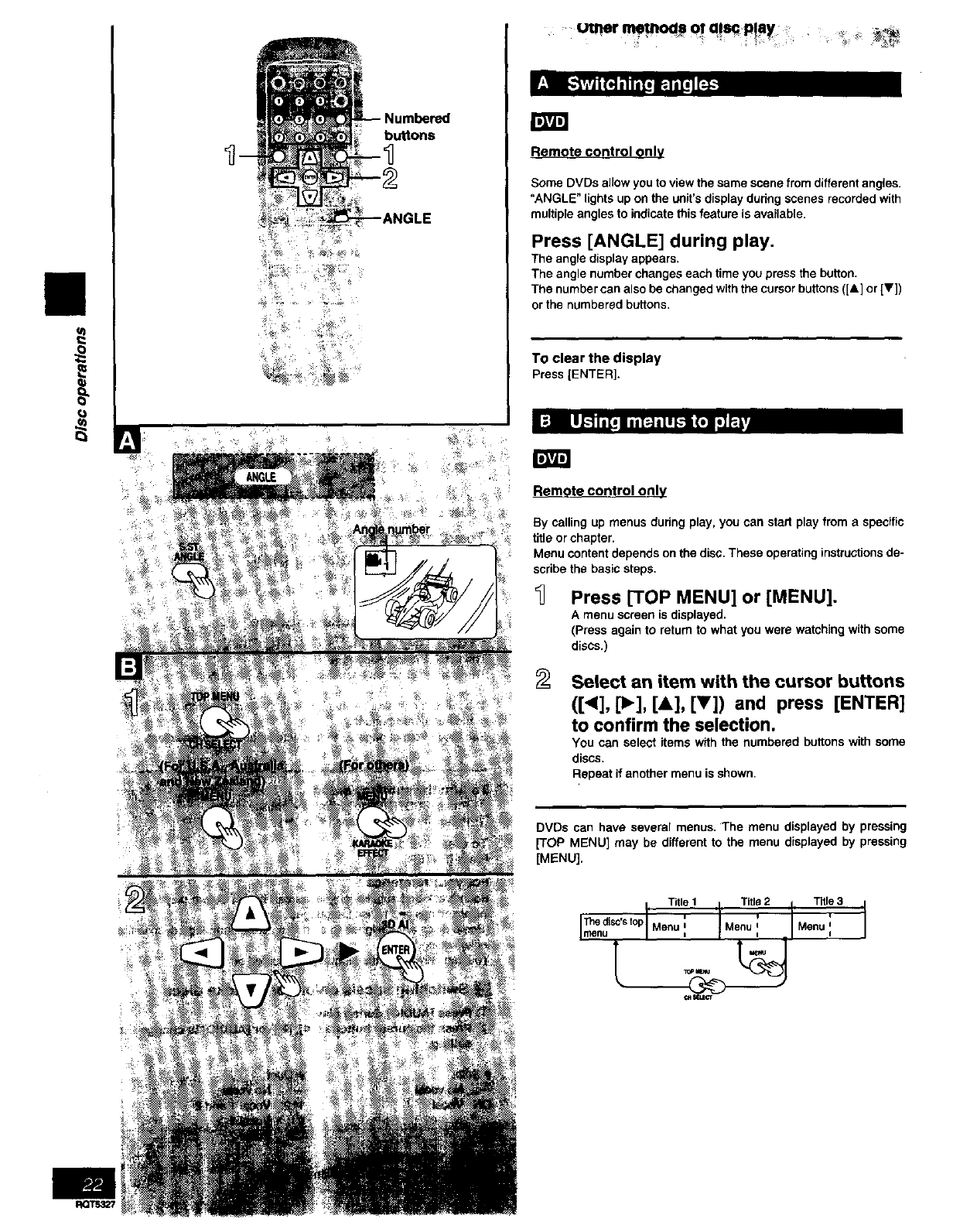

Switching angles ........................................................................... 22

Using menus to play ..................................................................... 22

Program play ................................................................................. 23

Starting play from a specific track ................................................. 24

Random play ................................................................................. 24

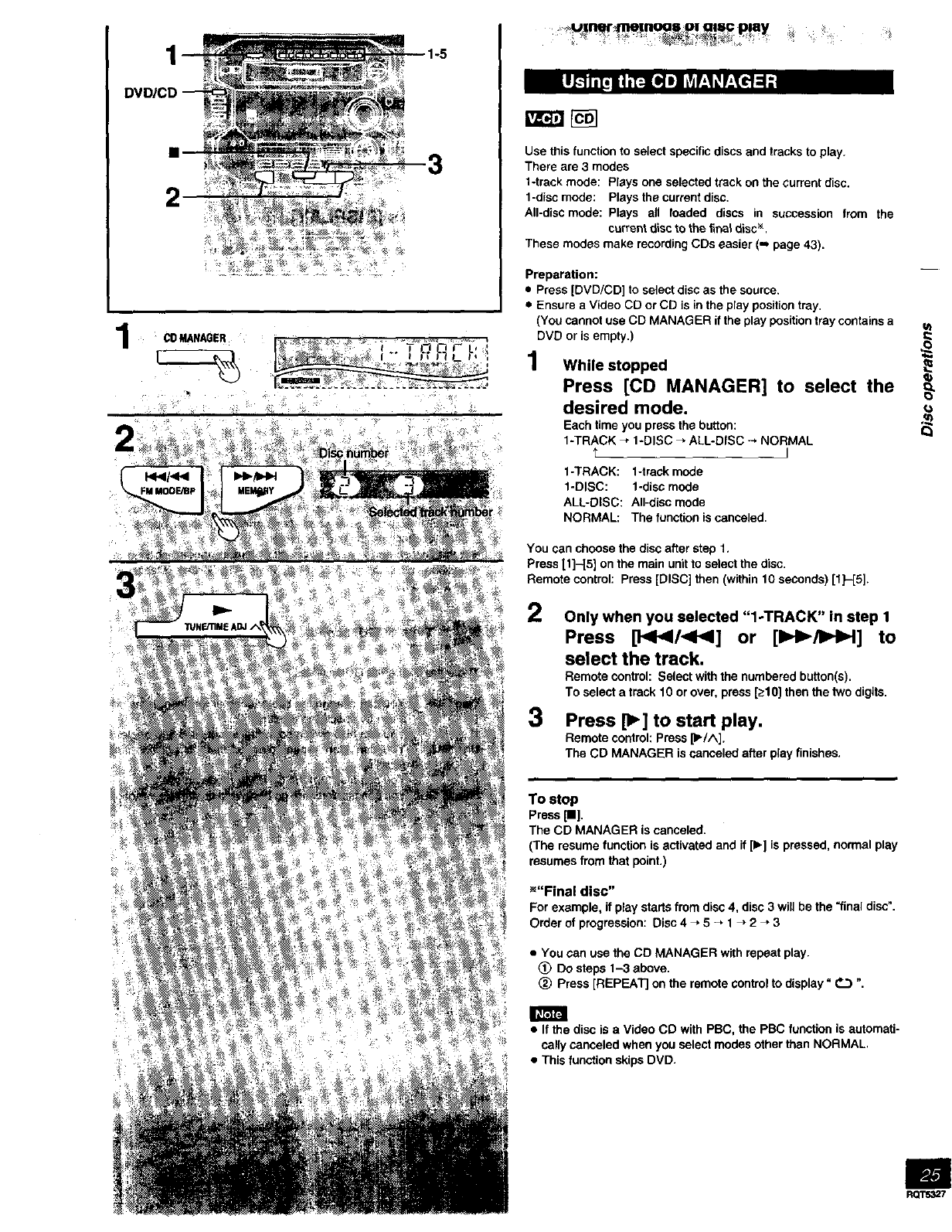

Using the CD MANAGER ............................................................. 25

Using GUI screens ...................................................................... 26

GUI icon descriptions .................................................................... 27

_1(( "-1, ]IB (=] ill IFF.'_r_*W_=_ I k.'tiWq i p.II_*| i [ol i_ _Jl_ R'[_

RQT5327

DANGER L_S_RRN)IAT]0NWdEN0PEN

AV010D_ECTEXPOSUET0BEAM

DANGERS P,A01ATIONLASERL0flSgUE0U_RT

P/IT_ TOUTE_XPOSITION_J FAISCENJ

VAR0! AVATT&E_CA_ S_0_JJ_rlL_ 0HTEITAESSA0LET_LTT_tk_

LZ_TEILYLLE _L_I_TS0_T_I_I_

YARNING SPdeF_U_0PPL_ B[TWC3A_JSTF_N

ADV_SEL _ES U_; _3=_E_ F_ S_EN

V0RSICHT L_ST_t L_ _,N _UNG G_N_

(Inside ofproduct)

(Int_)rieurde I'_pamil)

(InderSidenat apparatet)

(Tuo_eensis_ll_)

(ApparatensInside)

(Produkletsinnside)

(IraInnemndesGenltes)

Back of product

CAUTION:

The AC voltage Is different according to the area.

Be sure to set the proper voltage In your area before

use.

(For details, please refer to pages 8 and 9.)

The radio: manual tuning .......................................................... 29

The radio: preset tuning ............................................................ 30

Supplied accessories

Please check and identify the supplied accossodes,

Use numbers indicated in parentheses when asking

for replacement parts.

(Only for U.S.A.)

To order accessories contact 1-800-332-5368 or

web site (http://www.panasonlc.com).

[] AC power supply cord .............................................. 1 pc.

For U.S.A. For Australia and For others

(RJA(X)65-A) New Zealand (RJA0019-2K)

(RJA0035-X)

[] FM Indoor antenna .................................................... 1pc.

(RSAOOO6-J)

[] AM loop antenna .......................................................1pc.

(RSA0029) _L

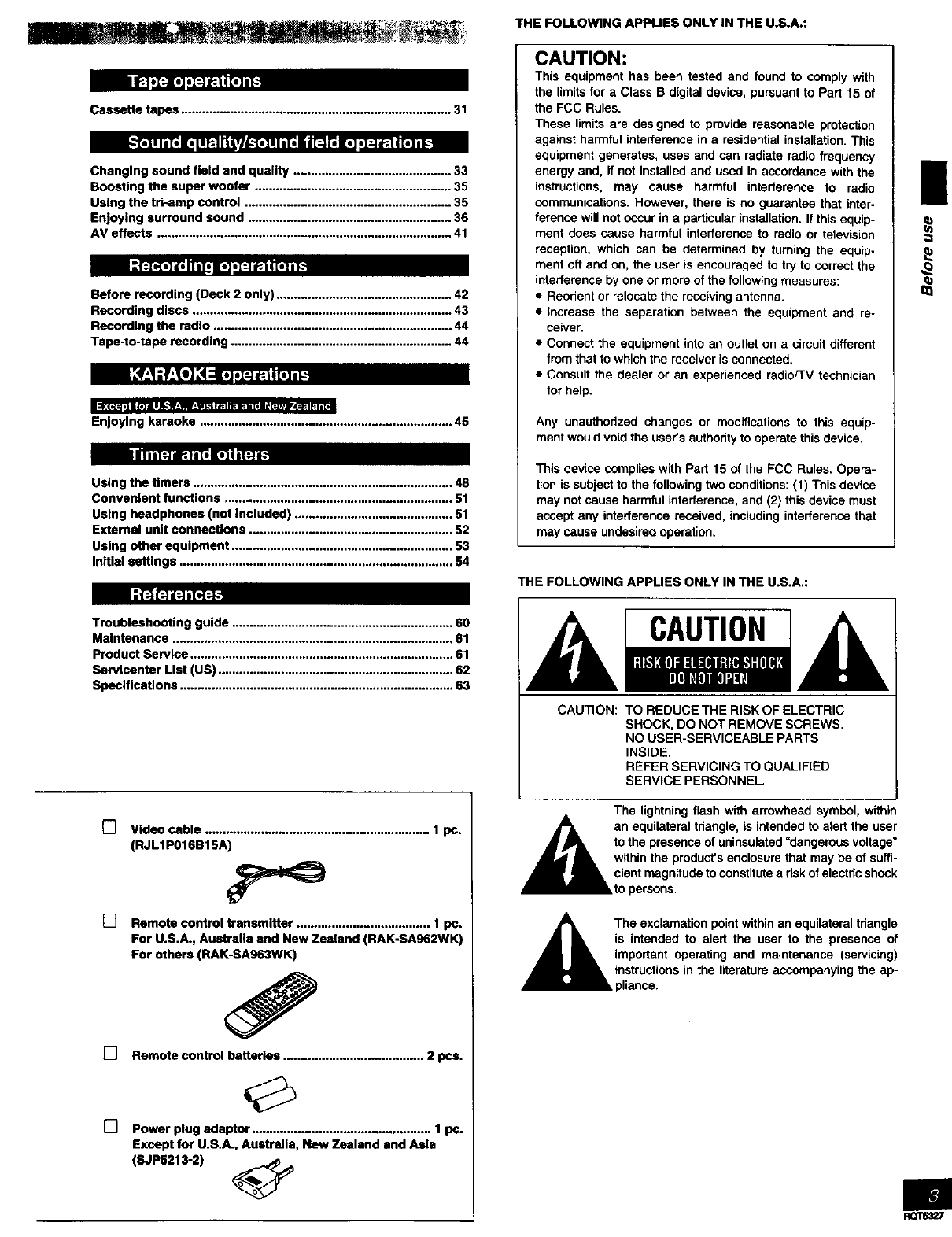

Cassette tapes ............................................................................. 31

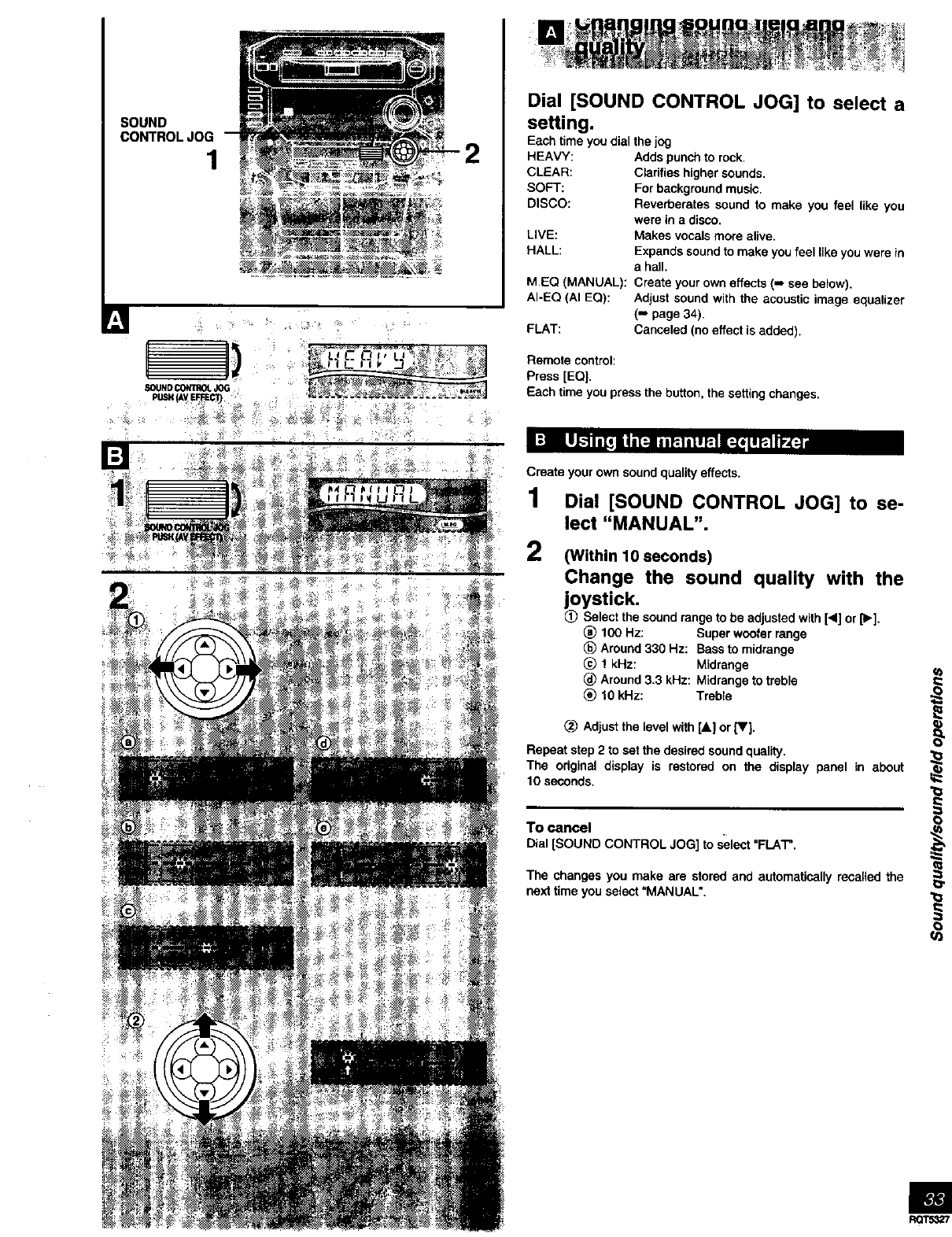

Changing sound field end quality ............................................. 33

Boosting the super woofer ........................................................ 35

Using the tri-amp control ........................................................... 35

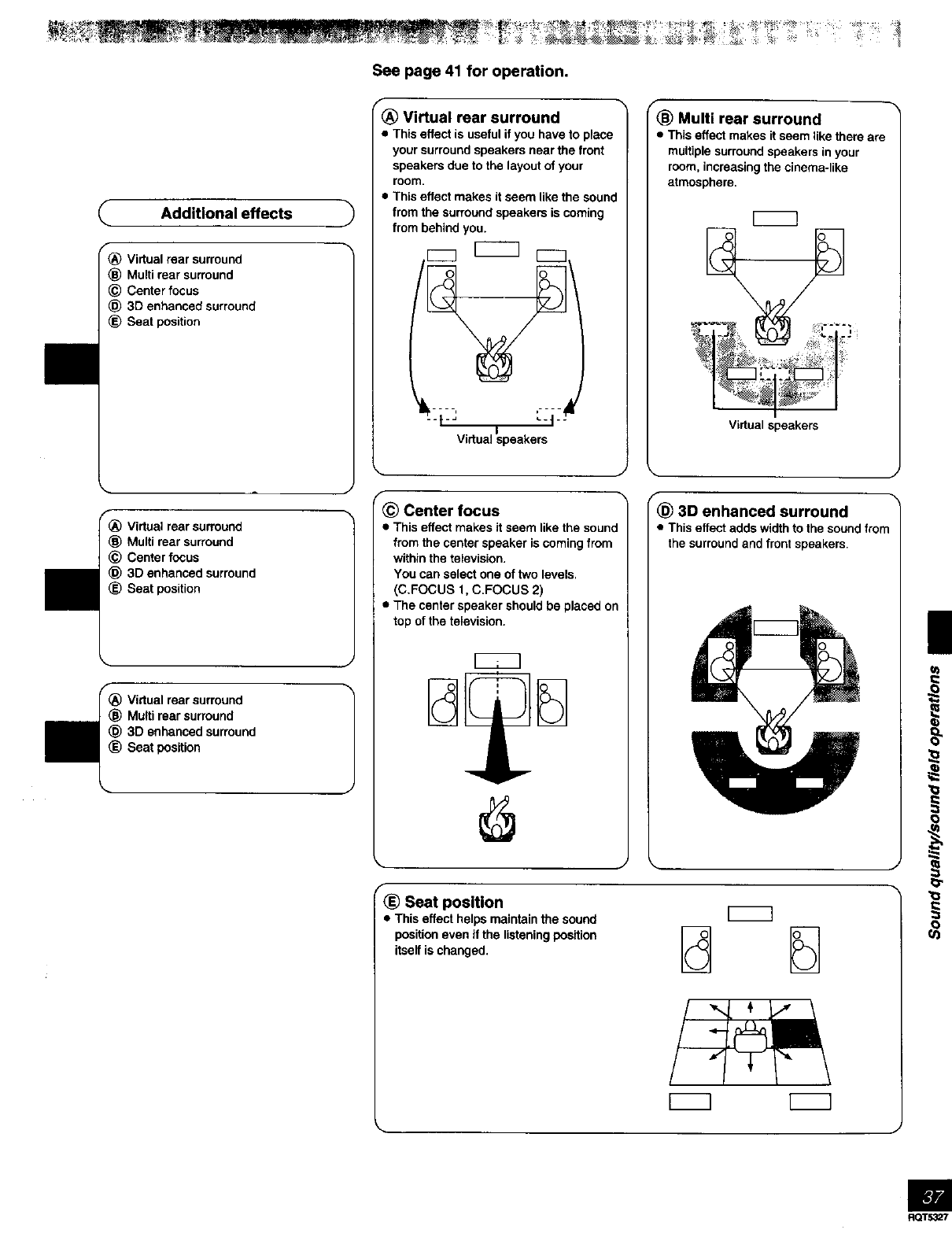

Enjoying surround sound .......................................................... 36

AV effects .................................................................................... 41

:{:_l{e] I[J I I I[I I[_ I[:_ I_.i | [I] il.

Before recording (Deck 2 only) .................................................. 42

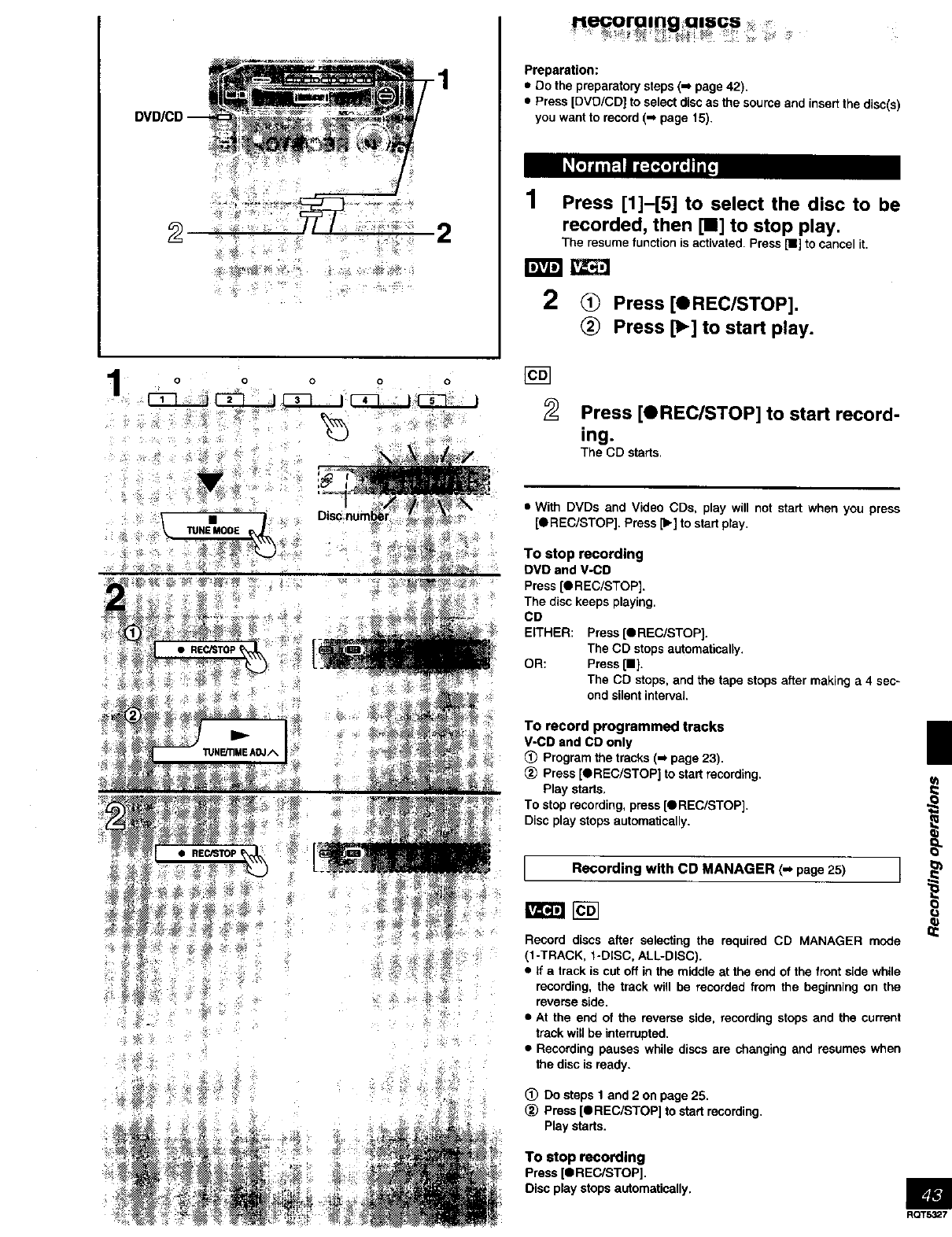

Recording discs .......................................................................... 43

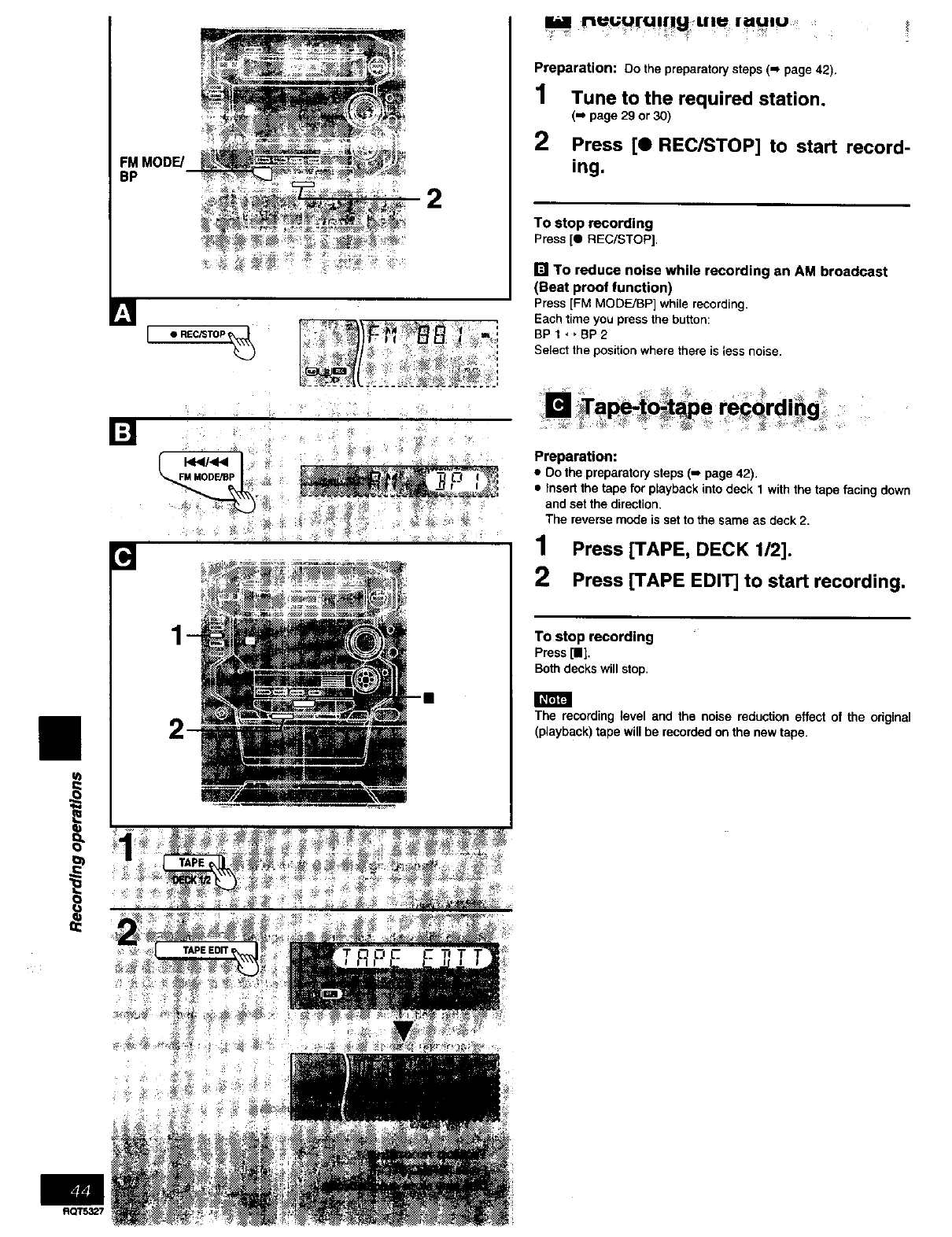

Recording the radio .................................................................... 44

Tape-to-tape recording ............................................................... 44

"f_'1;r:TI] ;4;_11.].I :-]t=.It [i] iI.

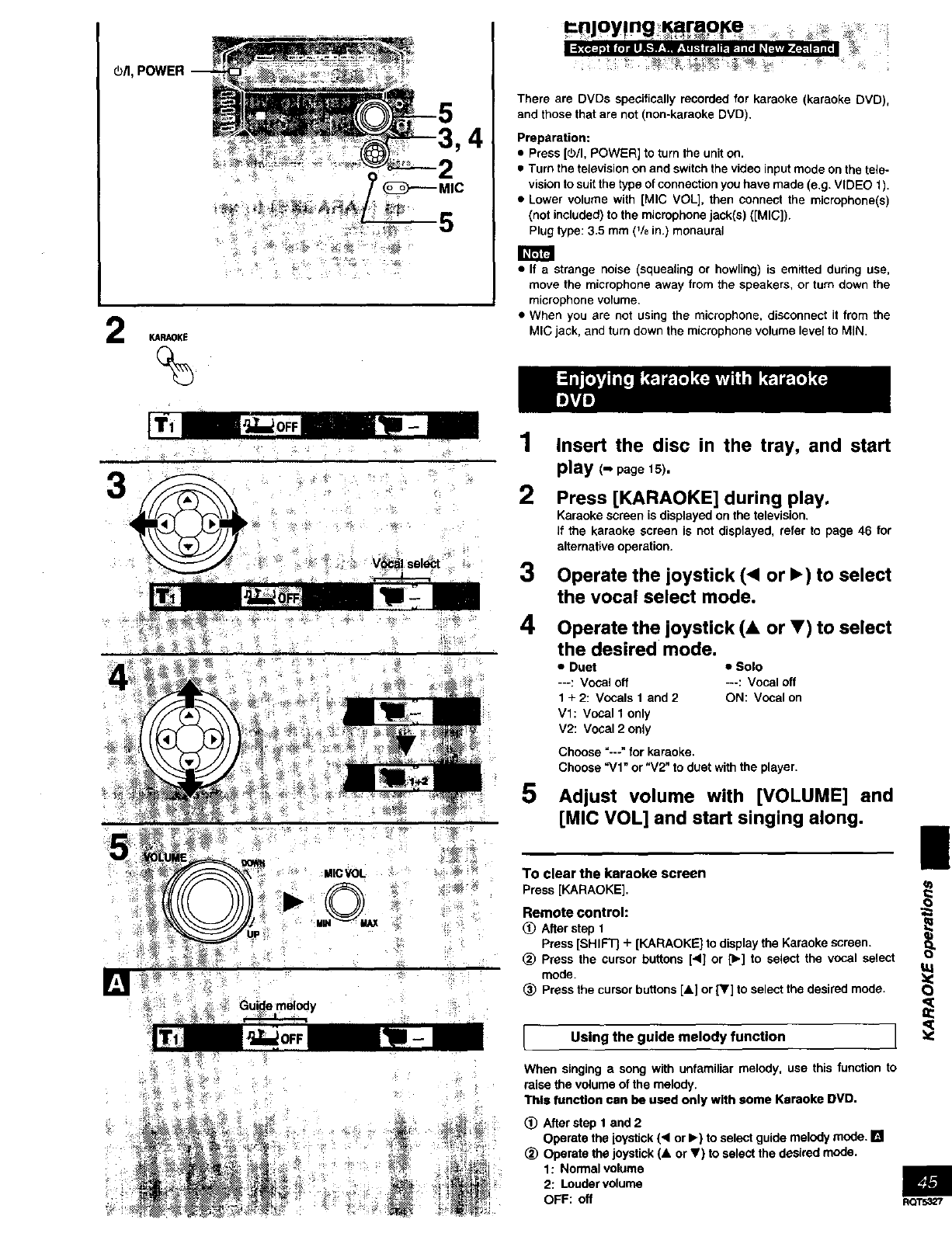

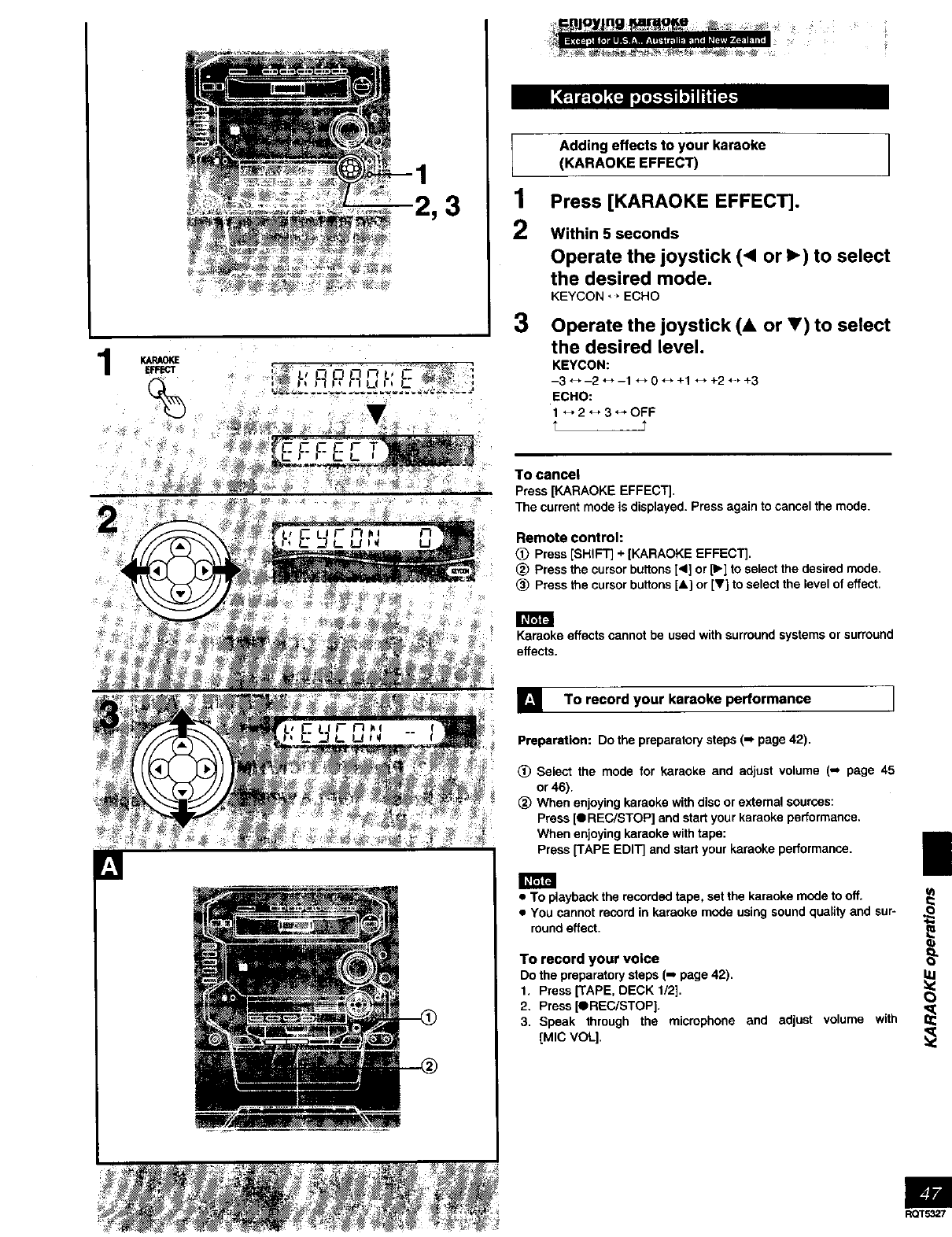

Enjoying keraoke ........................................................................ 45

/I ii[;] | _.li[ll_il[_h_

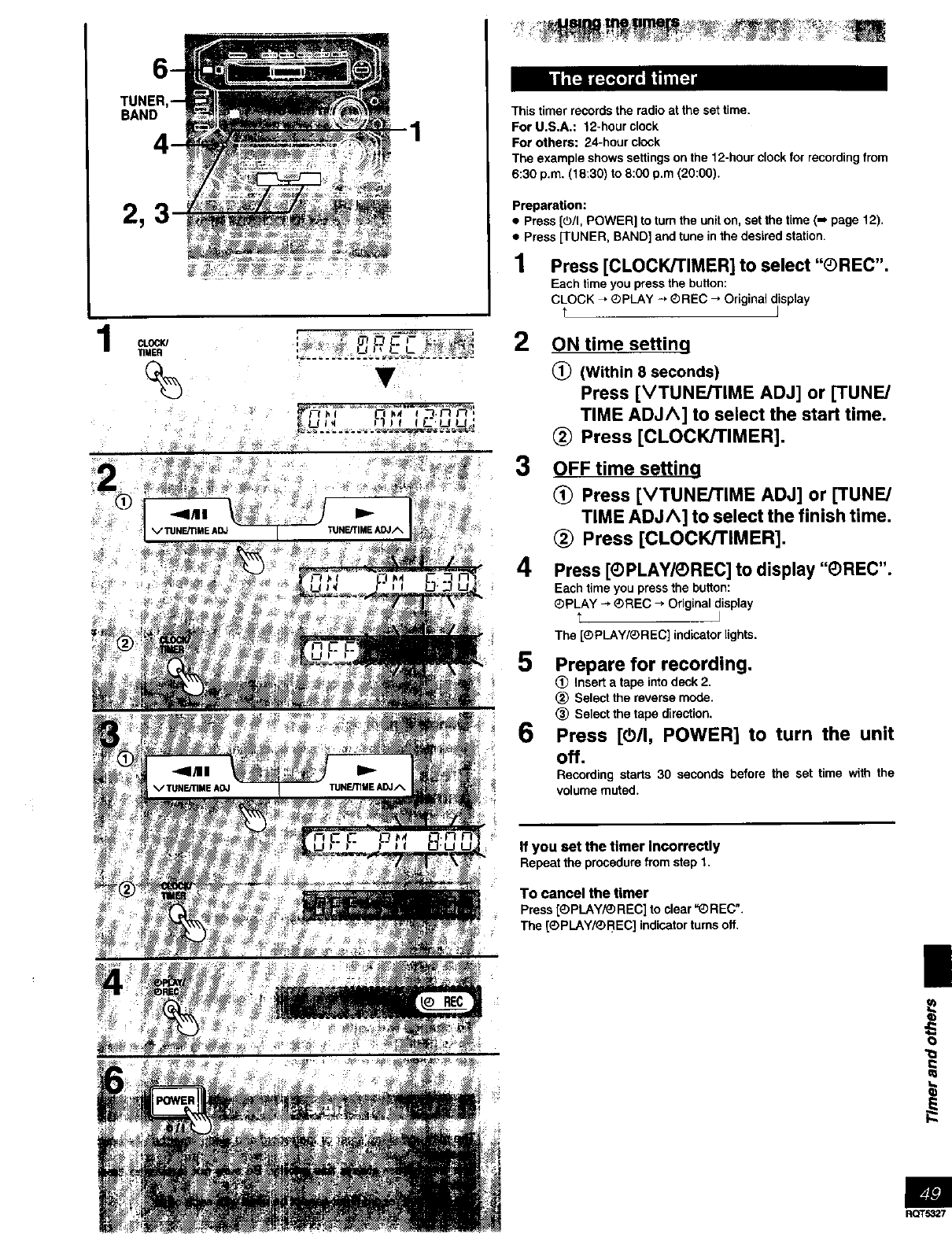

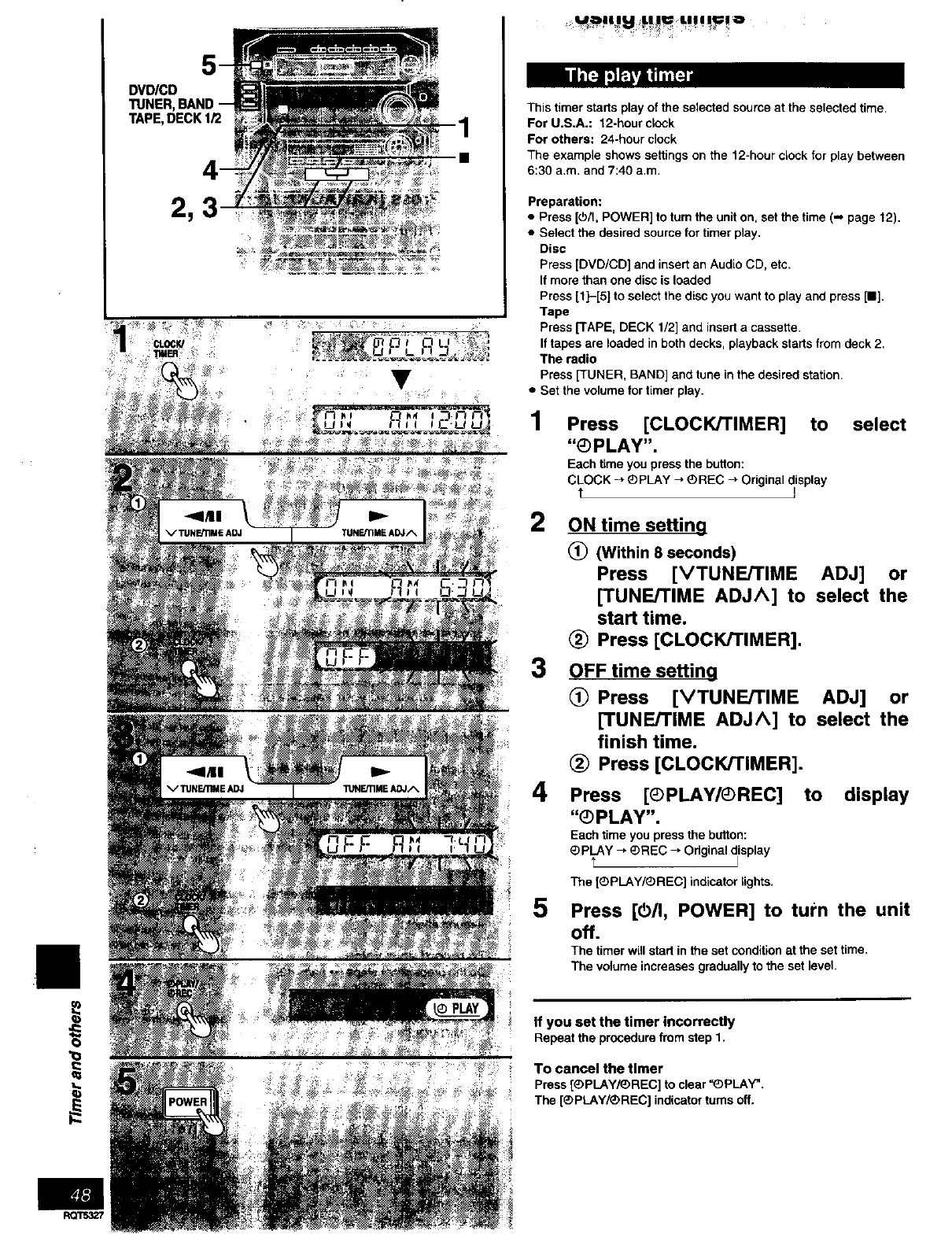

Using the timers .......................................................................... 48

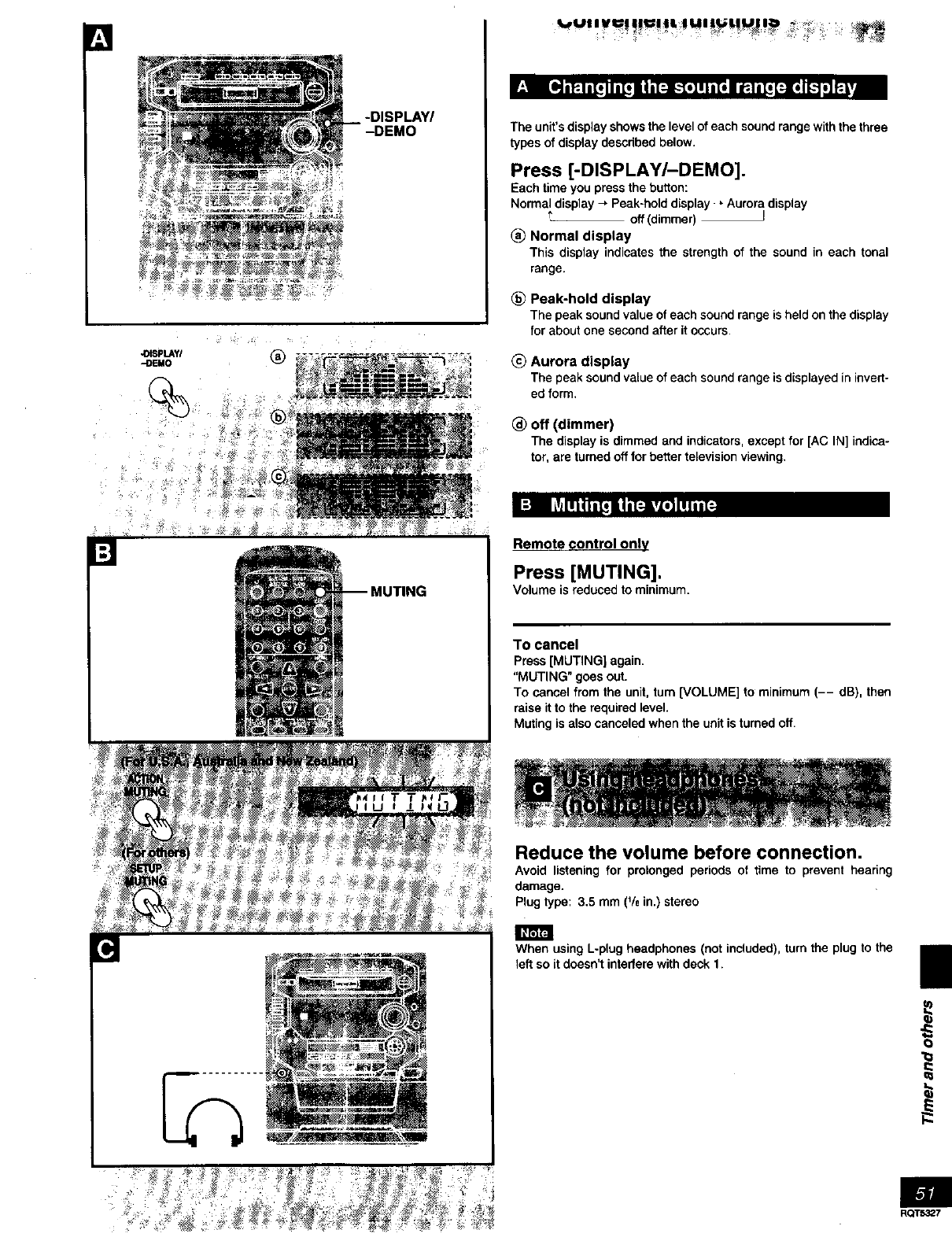

Convenient functions ................................................................. 51

Using headphones (not included) ............................................. 51

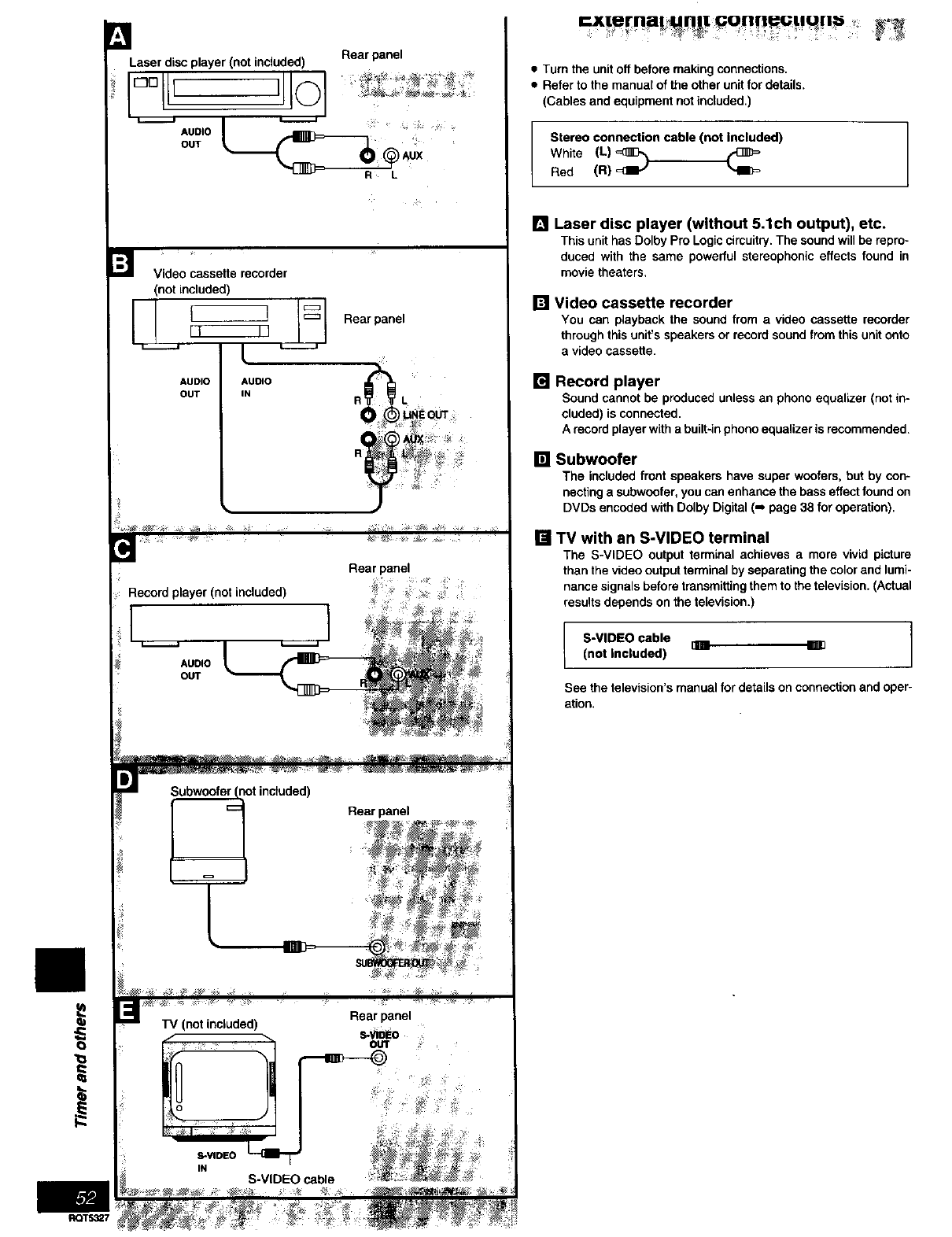

External unit connections .......................................................... 52

Using other equipment ............................................................... 53

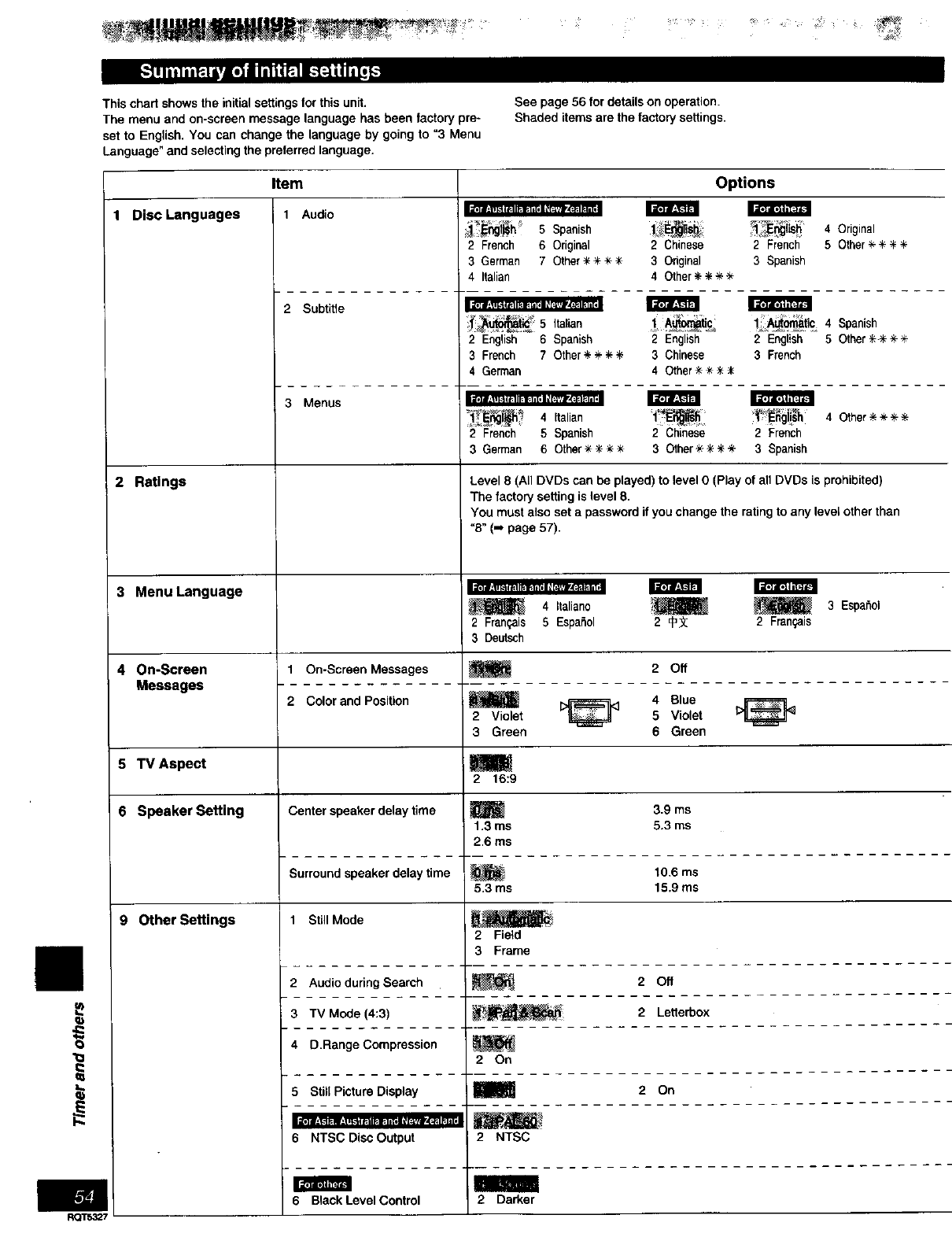

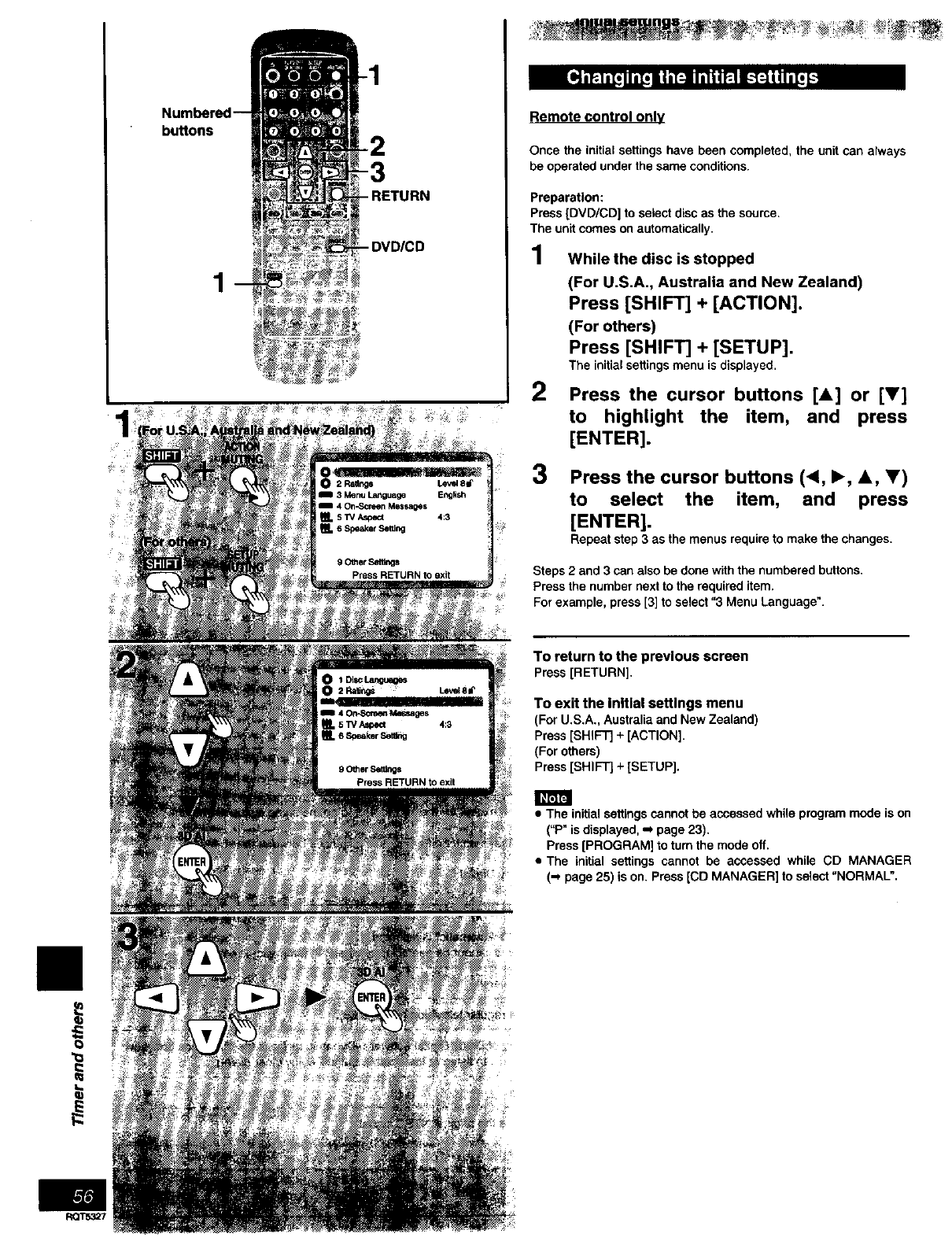

Initial settings .............................................................................. 54

THE FOLLOWING APPLIES ONLY IN THE U.S.A.:

CAUTION:

This equipment has been tested and found to comply with

the limits for a Class B digital device, pursuant to Part 15 of

the FCC Rules.

These limits are designed to provide reasonable protection

against harmful interference in s residential installation. This

equipment generates, uses and can radiate radio frequency

energy and, if not installed and used in accordance with the

instructions, may cause harmful interference to radio

communications. However, there is no guarantee that inter-

ference will not occur in a particular installation. If this equip-

ment does cause harmful interference to radio or television

reception, which can be determined by turning the equip-

ment off and on, the user is encouraged to try to correct the

interference by one or more of the following measures:

• Reorient or relocate the receiving antenna.

• Increase the separation between the equipment and re-

ceiver.

• Connect the equipment into an outlet on a circuit different

from that to which the receiver is connected.

•Consult the dealer or an experienced radioFFV technician

for help.

Any unauthorized changes or modifications to this equip-

ment would void the user's authobty to operate this device.

This device complies with Part 15 of the FCC Rules. Opera-

tion is subject to the following two conditions: (1) This device

may not cause harmful interference, and (2) this device must

accept any interference received, including interference that

may cause undesired operation.

THE FOLLOWING APPLIES ONLY IN THE U.S.A.:

Troubleshooting guide ............................................................... 60

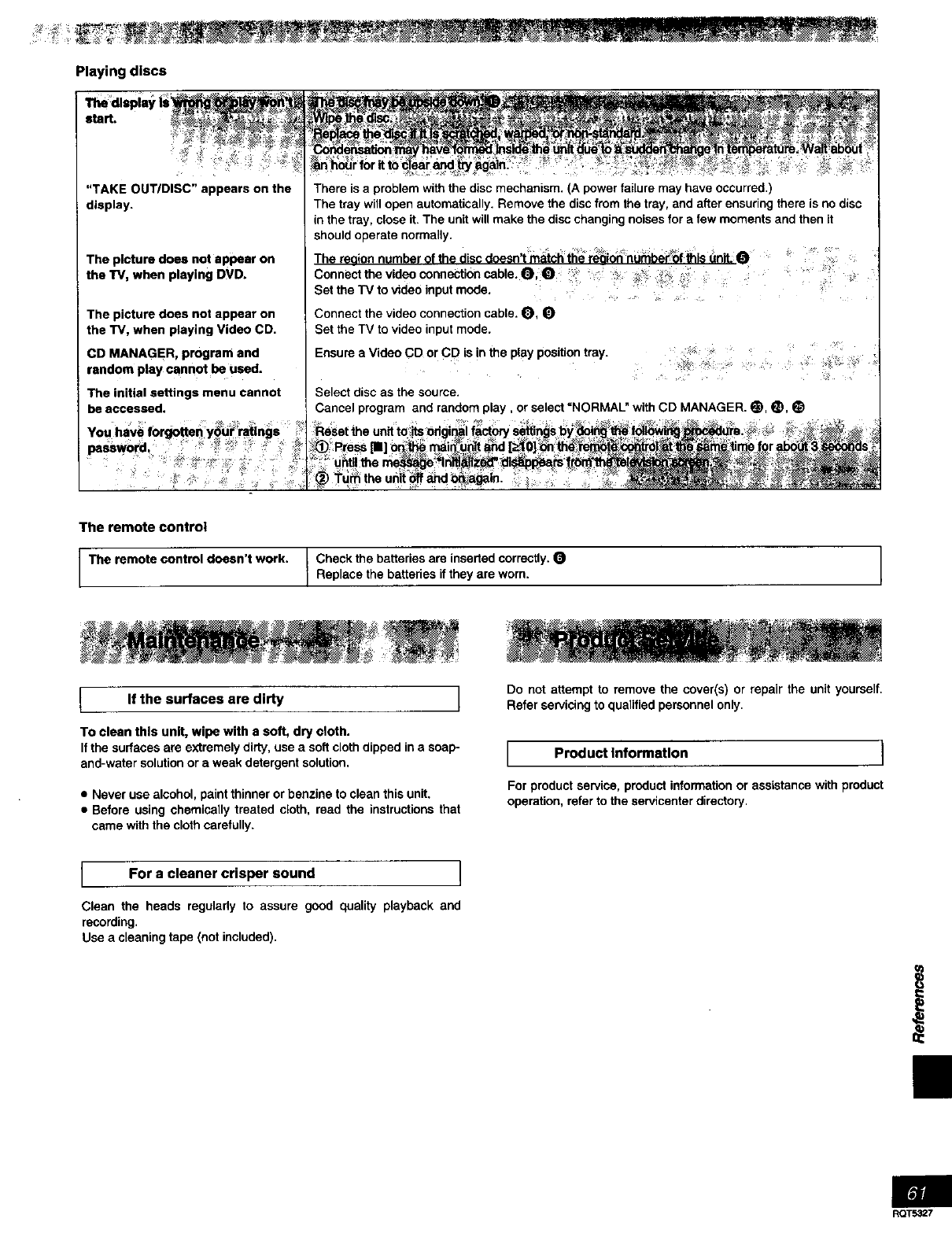

Maintenance ................................................................................ 61

Product Service ........................................................................... 61

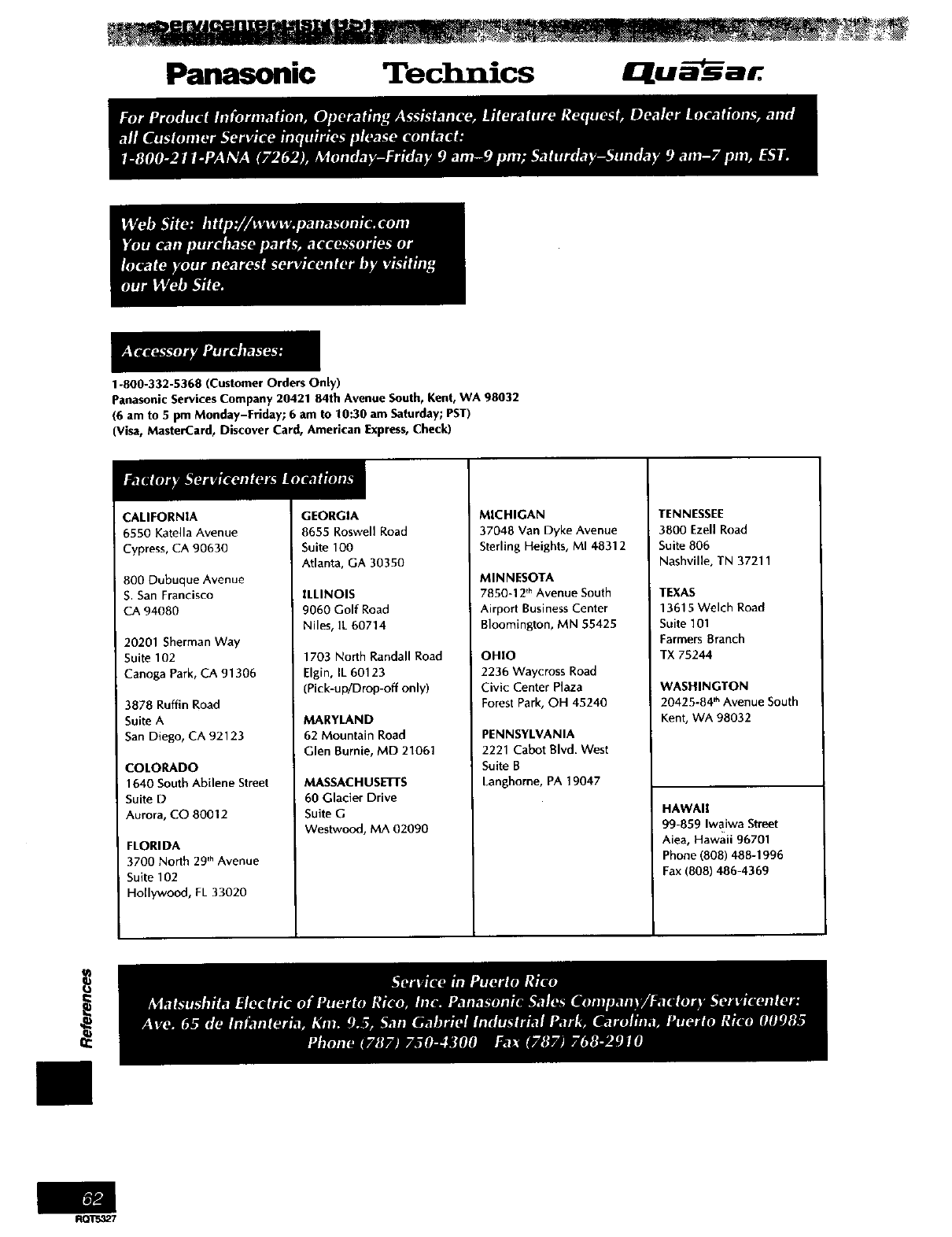

Servicenter List (US) ................................................................... 62

Specifications .............................................................................. 63

[] Video cable ................................................................ 1 pc.

(RJL1 P016B15A)

[] Remote control transmitter ...................................... 1 pc.

For U.S.A., Australia and New Zealand (RAK-SA962WK)

For others (RAK-SA963WK)

[] Remote control batteries ........................................ 2 pcs.

[] Power plug adaptor ................................................... 1pc.

Except for U.S.A., Australia, New Zealand and Asia

(SJP5213-2)

CAUTION

CAUTION: TO REDUCE THE RISK OF ELECTRIC

SHOCK, DO NOT REMOVE SCREWS.

NO USER-SERVICEABLE PARTS

INSIDE.

REFER SERVICING TO QUALIFIED

SERVICE PERSONNEL.

The lightning flash with arrowhead symbol, within

an equilateral triangle, is intended to alert the user

to the presence of uninsulated "dangerous voltage"

within the product's enclosure that may be of suffi-

cient magnitude to constitute arisk of electdc shock

to persons.

The exciemation point within an equilateral tdangle

is intended to alert the user to the presence of

important operating and maintenance (servicing)

instructions in the literature accompanying the ap-

plianca.

RQ'PSS27

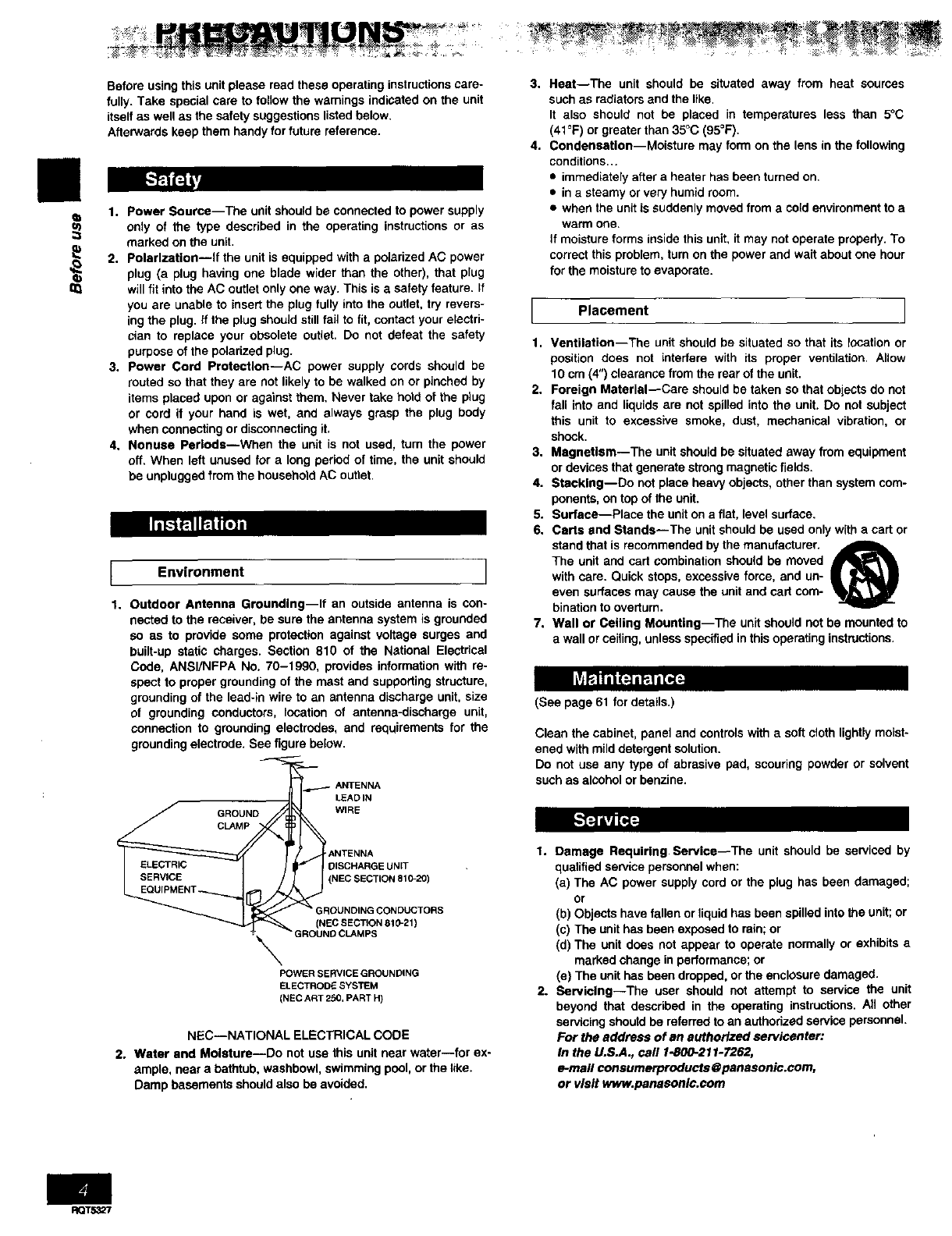

Before using this unit please read these operating instructions care-

fully. Take special care to follow the warnings indicated on the unit

itself as well as the safety suggestions listed below.

Afterwards keep them handy for future reference.

1. Power Source--The unit should be connected to power supply

only of the type described in the operating instructions or as

marked on the unit.

2. Polarization--If the unit is equipped with a polarized AC power

plug (a plug having one blade wider than the other), that plug

will fit into the AC outlet only one way. This is a safety feature, if

you are unable to insert the plug tully into the outlet, try revers-

ing the plug. If the plug should still fail to fit, contact your electri-

cian to replace your obsolete outlet. Do not defeat the safety

purpose of the polarized plug.

3. Power Cord Protection--At power supply cords should be

routed so that they are not likely to be walked on or pinched by

items placed upon or against them. Never take hold of the plug

or cord if your hand is wet, and always grasp the plug body

when connecting or disconnecting it.

4. Nonuee Periods--When the unit is not used, turn the power

off. When left unused for a long period of time, the unit should

be unplugged from the household AC outlet.

[

Environment I

Outdoor Antenna Grounding--If an outside antenna is con-

nected to the receiver, be sure the antenna system is grounded

so as to provide some protaction against voltage surges and

built-up static charges. Section 810 of the National Electrical

Code, ANSI/NFPA No. 70-1990, provides information with re-

spect to proper grounding of the mast and supporting structure,

grounding of the lead-in wire to an antenna discharge unit, size

of grounding conductors, location of antenna-discharge unit,

connection to grounding electrodes, and requirements for the

grounding electrode. See figure below.

_...-_ ANTENNA

LEAD IN

GROUND WIRE

CLAMP

ANTENNA

DISCHARGE UNIT

(NEC SECTION 810-20)

GROUNDING CONDUCTORS

(NEC SECTION 810-21 )

DCLAMPS

Power SERVICE GROUNDING

eLECTRODE SYSTEM

(NEC ART 2_0, PART H)

NEC--NATIONAL ELECTRICAL CODE

2. Water end Moisture--Do not use this unit near water--for ex-

ample, near a bathtub, washbowl, swimming pool, or the like.

Damp basements should also be avoided.

Heat--The unit should be situated away from heat sources

such as radiators and the like.

It also should not be placed in temperatures less than 5°C

(41°F) or greater than 35°C (95°F).

CondenseUon--Moisture may form on the lens in the following

conditions...

• immediately after a heater has been turned on,

•in a steamy or very humid room.

•when the unit is suddenly moved from a cold environment to a

warm one,

if moisture forms inside this unit, it may not operate propedy. To

correct this problem, turn on the power and wait about one hour

for the moisture to evaporate.

[

Placement ]

Ventilation--The unit should be situated so that its location or

position does not interfere with its proper ventilation• Allow

10 cm (4") clearance from the rear of the unit.

2. Foreign Materiel--Care should be taken so that obiects do not

fall into and liquids are not spilled into the unit. Do not subject

this unit to excessive smoke, dust, mechanical vibration, or

shock.

3. Magnetism--The unit should be situated away from equipment

or devices that generate strong magnetic fields.

4. Stacking--Do not place heavy objects, other than system com-

ponents, on top of the unit.

5. Surface--Place the unit on a flat, level surface.

6. Carts and Stands--The unit should be used only with a cart or

stand that is recommended by the manufacturer.

The unit and cart combination should be moved

with care. Quick stops, excessive force, and un- I

even surfaces may cause the unit and cad com-

bination to overturn.

7. Wall or Ceiling Mounting--The unit should not be mounted to

a wall or ceiling, unless specified in this operating instructions.

(See page 61 for details.)

Clean the cabinet, panel and controls with asoft cloth lightly moist-

ened with mild detergent solution.

Do not use any type of abrasive pad, scouring powder or solvent

such as alcohol or benzine.

1. Damage Requiring Service--The unit should be serviced by

qualified service personnel when:

(a) The AC power supply cord or the plug has been damaged;

(b) Objects have fallen or liquid has been spilled into the unit; or

(d) The unit does not appear to operate normally or exhibits a

marked change in performanca; or

(e) The unit has been dropped, or the enclosure damaged.

2. Servicing--The user should not attempt to service the unit

beyond that described in the operating instructions. All other

servicing shoutd be referred to an authodzed service personnel.

For the address of an authorized servicenter:

In the U.S.A., call 1-800-211-7262,

e-mail consumerproducts@panasonic.com,

or visit www.panasonlc.com

RQT5327

lcJ lrRFR

@L_tl_*_eG

Selecting fine audio equipment such as the unit you've just pur-

chased is only the start of your musical enjoyment. Now it's time to

consider how you can maximize the fun and excitement your equip-

ment offers. This manufacturer and the Electronic Industries

Association's Consumer Electronics Group want you to get the

most out of your equipment by playing it at a safe level. One that

lets the sound come through loud and clear without annoying blar-

ing or distortion--and, most importantFy,without affecting your sen-

sitive hearing.

We recommend you to avoid prolonged exposure to excessive

noise.

Sound can be deceiving. Over time your hearing "comfort level"

adapts to higher volumes of sound• So what sounds "normal" can

actually be loud and harmful to your hearing.

Guard against this by setting your equipment at a safe level

BEFORE your hearing adapts.

To establish a safe level:

• Start your volume control at a low setting.

•Slowly increase the soun_until you can hear it comfortably and

clearly, and without distortion.

Once you have established a comfortable sound level:

• Set the dial and leave it there.

Taking a minute to do this now will help to prevent hearing damage

or loss in the future. After all, we want you listening for a lifetime.

The functions you can use depend on the type of disc you play.

These marks are used to indicate which type of disc is available for

use.

: Feature can be used with DVD-Video

FLr;I31 : Feature can be used with Video CD

: Feature can be used with Audio CD

Some features cannot be used even if these symbols are indicated.

Glossary

Track

This is the smallest division on Video CD and Audio CD, and usually

equates to a single song.

Chapter

This is the smallest division on DVD and is roughly equivalent to a

track.

Title

This is the largest division of DVD,

PBC (Playback control)

This method of controlling disc play is included on version 2.0 Video

CDs. You are able to interact with the disc through menus.

Region numbers are allocated to DVD players and software accord-

ing to where they are sold.

DVDs can be played on this unit if their region number is the same or

includes the same number, or if the DVD is marked "ALL".

Confirm the region number for this unit before choosing discs, The

number for this unit is indicated on the rear panel,

(For example)

Rear panel

Discs that can be played by the unit shown In this example.

Thisunitcan playback discs bearing any of the marks:

€0

,,, o, o [o, rrALV,DEOI

DIGITAL aUOIO

This unit does not have a DTS decoder so it cannot play audio en-

coded with DTS.

This unit cannot play the following discs:

•DVD with an unsuitable region • VSD

number (.o page 5) • CD-ROM

• DVD-Audio • CDV

• DVD-ROM • CVD

• DVD-R •CD-G

•DVD-RAM • CD-RW

• DVD+RW • SACD

• DVD-RW • SVCD

• DIVX Video Disc • CD-R

• Photo CD, etc.

DVDs and Video CDs are recorded using either PAL or NTSC.

Refer to this table when s_t3cting discs.

Example of how the picture appears on the screen

.......x.......

TV type

Multi-

system TV

NTSC"IV

PAL "rv_1

TV Monitor

Disc For Asia For Australia

tnd New Zealand

PAL v" v'

NTSC v" v '_2

PAL xx

NTSC I/ X

PAL v" V

NTSC V_3 VE4

For others

• Insert so the poles (+ and --) match those in the remote control.

• Do not use rechargeabFe type batteries.

Do not;

• mix old and new batteries.

• use different types at the same time.

• heat or expose to flame.

•take apart or short circuit.

•attempt to recharge alkaline or manganese batteries.

• use battedas if the covedng has been peeled off.

• keep together with metallic objects such as necklaces.

Mishandling of batteries can cause electrolyte leakage which can

damage items the fluid contacts and may cause afire.

If electrolyte leaks from the batteries, consult your dealer.

Wash thoroughly with water if electrolyte comes in contact with any

part of your body.

Remove ifthe remote control is not going to be used for along period

of time. Store in a cool, dark place.

Replace if the unit does not respond to the remote control even when

held close to the front panel.

_1 Only for Asia

Screens shown while the unit is stopped (e.g. initial settings) may

not be displayed correctly.

_2 If you select "2 NTSC" in =9 Other Settings" - "6 NTSC Disc

Output", the picture may be clearer (-_ page 54).

_3 In "9 Other Settings" - =6 NTSC Disc Output", select "1 PAL 60"

(-_ page 54). If your television is not equipped to handle PAL 525/

60 signals the picture will not be shown correctly.

_4 The factory setting for NTSC disc output is "PAL 60", so no

changes to the initial setting are necessary.

The bottom part of the picture may be cut off it the Video CD played

does not comply with standards.

Aim at the sensor, avoiding obstacles, at a maximum range of

7 meters directly in front of the unit,

•Keep the transmission window and the unit's sensor free from

dust.

•Operation can be affected by strong light sources, such as direct

sunlight, and the glass doors on cabinets.

Do not;

•put heavy objects on the remote control.

•take the remote control apart.

•spill liquids onto the remote control,

RQ_

L_speaker

g==N{

Right speaker

_r;'JF'J

(

,NI

Super woofer

Speaker cone

(_ Center speaker

(SB-PCTO)

Front speaker Front speaker (right)

(SB-DK2) i'-- ._./(SB-DK2)

', I Front view

..<. ">. ,//_ ,_

..'" 120 ° "-.. I"

_FJt_

@ Surround speaker".. .-'" _Surround speaker

(left) (SB-PS70) ""........ " (right) (SB-PS70)

The front, center, and surround speakers should be placed

at approximately the same distance from the listening po-

sition. The angles in the diagram are approximate.

Place the speakers so that the super woofer is on the outside,

•Keep your speakers at least 10 mm (_3/_,,)away from the system

for proper ventilation,

• To avoid damage to the speakers, do not touch the speaker

cones ((_)) if you take the nets off.

Center speaker ]

Placethe center speaker(_)) directly above the television•

Do not place the center speaker on this unit as sound quality will be

affected.

[Surround speakers ]

Place the surround speakers ((_), _)) either side of the listening posi-

tion, or slightly to the rear, about 1 meter higher than ear level.

Place the speakers with the Panasonic logo facing towards the lis-

tening position. However, the position should be adjusted to your

personal preference, because the effect varies to some degree de-

pending upon the type of music and the music source.

If you are unable to position the surround speakers as recommend-

ed, you can put them near the front speakers and stillachieve a sur-

round-like effect (-, pages 37 and 41 "Vidual rear surround").

[] Attaching to a wall

Set speaker onto screws and slide through bracket to lock into posi-

tion,

The wall or pillar on which the speakers are to be attached should be

capable of supporting 5 kg (11 Ib.).

Use only the supplied speakers.

The combination of the unit and the included speakers provides the

best sound. Using other speakers can damage the unit and sound

quality will be adversely affected,

Caution

• Use the speakers only with the recommended

system. Failure to do so may lead to damage

to the amplifier and/or the speakers, end may

result In the risk of fire. Consult aqualified

service person If damage has occurred or If

you experience e sudden change In perform-

aaoe.

•Do not attempt to attach these speakers to

walls using methods other than those de-

scribed In this manual.

If Irregular coloring occurs on your television

Turn the television off for about 30 minutes.

The television'sdemagnetizingfunctionshouldcorrecttheproblem.

If itpersists, movethespeakersfurtheraway from thetelevision.

RQrs327

r- jAdhesive tape

(Left)¸

To household

'_ AC outlet

(_) AM loop antenna

3_ From the right speaker From the left speaker

ned (+)

4_ Center speaker

cENTER

(e_)

Surround speakers

(Left) (Right)

viDEO

oUT

_ToTV

___ for U.S.A.,

(Except

Australia and New

Zealand)

VOLT ADJ

Connector

ACIN_ I

Appliance inlet

[](Except for U.S.A.,

Australia, New

Zealand and Asia)

Before connection

•Do not connect the AC power supply cord until all other con-

nections are complete.

•To prepare the AM loop antenna, speaker cables and FM

antenna, twist the vinyl tip and pull off.

::::_ =;> :=:::_=== ,,/

1FM antenna.

Fix the other end of the antenna where reception is best.

2AM loop antenna.

Clamp the antenna into the antenna holder, then connect the

antenna terminal.

Keep loose antenna cord away from other wires and cords.

3 Front (I/R) speaker cables.

Connect the cables to the terminals of the same color.

Use outdoor antennas if radio reception is poor.

•Disconnect the FM indoor antenna.

• The antenna should be installed by acompetent technician.

P_;J_3

•To prevent damage to circuitry, never shod.circuit positive

(÷) and negative (-) speaker wires.

•Be sure to connect only positive (red, blue or gray) wires to

positive (+) terminals and negative (black) wires to negative

(-) terminals.

Center speaker cable

Surround speaker cables

TV (not included)

Connect the video connection cord from this unit to your TV.

Alternatively, connect through the [S-VIDEO] terminal if the

TV has an S-VIDEO terminal (-_ page 52).

(Except for U.S.A., Australia and New Zealand)

Set the voltage,

Use a fiat-head screwdriver to turn the voltage selector. Set it

to the position for your area.

If the power supply in your area is 115 V or 120 V, please set

the voltage selector as follows

For 115 V: Set to 110 V.

For 120 V: Set to 127 V.

8 AC power supply cord.

The shape of the connector depends on the area.

(Except for U.S.A., Australia, New Zealand and Asia)

[] If the power plug will not fit your socket, use the power plug

adaptor (included).

The included AC power supply cord is for use with this unit only. Do

not use it with other equipment.

For your reference

Information you enter into the unit's memory, except for time,

remains intact for up to a week after the AC power supply cord is

disconnected.

_"_ 30 mm

(_ _-Shield braid

®_--_15mm

_\ Core wire

Run a piece of vinyl wire horizontally across a window or other con-

venient location.

•Leave the loop antenna connected.

•Disconnect the antenna when the unit is not in use. Do not use the

antenna dudng an electrical storm.

AM outdoor antenna:J;

_12m --I

P_TSSg'7

The illustration is the model for the area except

for U.S.A., Australia and New Zealand.

AC supply Indicator (AC IN)

This indicator lights when the unit is connected to the AC mains

supply.

(_ Standby/on switch ((_/l, POWER) .................... 12

Press to switch the unit from on to standby mode or vice versa. In

standby mode, the unit is still consuming a small amount of

power.

ECO mode button (MODE) ......................... 13

Source select buttons (DVD/CD, TUNER, BAND,

TAPE, DECK 1/2, AUX) ................... 14, 29, 31,53

DOLDY DIGITAL indicator (Dr]DIGITAL) .............. 38

Timer button (QPLAY/_REC) .................... 48, 49

CIock/Umer button (CLOCK/TIMER) ........ 12, 48, 49, 50

Headphones jack (PHONES) ....................... 51

Deck 1 open button (-_ DECK 1 OPEN) ............... 31

Deck I cassette holder ............................ 31

_) CD manager button (CD MANAGER) ................. 25

Disc tray

Disc select, tray open/close buttons and

disc indicators (1, --_-5, -_) ........................ 15

(_ CINEMA mode button and indicator (CINEMA) ........ 21

Display

(_ Display select/demonstration button

(-DISPLAY/-DEMO) ............................ 12, 51

Volume control (VOLUME) ................... 15, 29, 31

Super woofer button (S.WOOFER) ............... 35, 38

3D AI EQ button (3D AI EQ) ........................ 34

Karaoke effect button (KARAOKE EFFECT) ........ 47

_) Karaoke mode select button (KARAOKE) .......... 45

Microphone jacks (MIC) ......................... 45

(_ Microphone volume control (MIC VOL) ............ 45

Deck 2 open button (_ DECK 2 OPEN) ............... 31

Deck 2 cassette holder ............................ 31

DOLBY PRO LOGIC/lower range control button

(D[] PRO LOGIC, LOW) ......................... 35, 39

AV effect Indicators ............................... 41

(_ Super surround/middle range control button

(SUPER SURROUND, MID) ...................... 35, 40

_) Simulated stereo/higher range control button

(SIMULATED ST, HIGH) ......................... 35, 40

Trl-amp control button (TRI-AMP CONTROL) .......... 35

Jogcontrol (SOUND CONTROL JOG,

PUSH (AV EFFECT)) ........................ 33, 35, 41

Joystick (_1, I_, &, V) ........................ 33, 41,45

Basic operation buttons

Functions change according to the source.

Tape edit button (TAPE EDIT) ...................... 44

Recording start/stop button (OREC/STOP) ............ 43

Reverse mode select button (REV MODE) ............ 31

ForU.S.A.,AustraliaandNewZealand

ButtonssuchasOfunction in the same way as the controls on

the main unit.

Buttons (_, _ and _ are labeled differently on the remote control

for U.S.A., Australia and New Zealand (-' the lower illustration). !

Subtitle button (SUBTITLE) ........................ 21

_Numbered buttons (0-9, >-10) ............... 15, 23, 30

(_ Top menu button (TOP MENU) ...................... 22

Enter button (ENTER) .......................... 14, 22

GUI select button (DISPLAY) ....................... 26

EQ select button (EQ) ............................. 33

Super woofer button (S.WOOFER) .................. 35

Cancel button (CANCEL) .................... 20, 23, 26

Program button (PROGRAM) ....................... 23

(_ Disc slow/search button

(SLOW/SEARCH <l_l, I_1_) ..................... 17, 18

Shift button (SHIFT)

See below.

Audio button (AUDIO) ............................. 21

Muting button (MUTING) ........................... 51

Disc button (DISC) ................................ 23

Menu button (MENU) .............................. 22

Cursor buttons (4, I_, A, V) .................. 14, 18, 38

Return button (RETURN) .................... 14, 15, 26

A-B repeat button (A-B REPEAT) .................... 19

Angle button (ANGLE) ............................ 22

Repeat button (REPEAT) .......................... 19

Random button (RANDOM) ........................ 24

To operate functions labeled In orange, press [SHIFT]

and the corresponding button st the same time.

Auto power-off button (AUTO OFF) .................. 13

Channel select button (CH SELECT) ................. 38

3D Ai EQ button (3D AI) ........................... 34

Test signal button (TEST) .......................... 38

_) DOLBY PRO LOGIC button (DDPL) .................. 39

AV effect button (AV EFFECT) ...................... 41

Marker button (MARKER) .......................... 20

Sleep button (SLEEP) ............................. 50

initial settings button

il'.'TJ I JJ,."W__IlI!I I I_.'lI _I I r. It=l i (* l _J?l't_tir/_-_'l F-Ti _

(ACTION) ....................................... 14

J2;T&'_h'FJ'Ct

(SETUP) ........................................ 14

_) 2 channel down-mixing button (MIX 2CH) ............. 38

Karaoke effect button (KARAOKE EFFECT) ........ 47

Ksraoke mode select button (KARAOKE) .......... 45

Super surround button (S.SRND) ................... 40

Simulated stereo button (S.ST) ..................... 40

RQT5327

-DISPLAY/

-DEMO

2, 4

,w • •....... •.....

For U.S.A.: 12-hour clock

For others: 24-hour clock

The example shows how to set the 12-hour clock for 4:25 p.m.

(16:25).

1Press [@/I, POWER] to turn the unit

OR.

2Press [CLOCK/TIMER] to display

"CLOCK".

Each time you press the button:

CLOCK_ PLAY-+® REC_Original display

(Within 5 seconds or so)

Press [V TUNEKIME ADJ] or [TUNE/

TIME ADJ A] to set the time.

The time display can be changed in one minute units by tap-

ping the buttons, and quickly by holding down the buttons.

Press [CLOCK/TIMER].

The time is set and the original display is restored,

Displaying the clock

When the unit is off

When ECO mode is off;

The clock is displayed constantly.

When ECO mode is on;

Press [-DISPLAY/-DEMO].

The clock is displayed for about 5 seconds and then the display goes

blank again.

When the unit Is on

Press [CLOCK/TIMER] to display =CLOCK".

The clock is shown for about 5 seconds then the previous display is

restored.

Ademonstration of the display is shown if you have not set the clock.

Turn DEMO off to get the most from ECO mode.

Press and hold [-DISPLAY/-DEMO] until

"NO DEMO" is displayed.

Each time you press and hold the button:

NO DEMO (off) *-, DEMO (on)

Set the unit to reduce energy consumption in the standby mode.

While the unit is on:

1Press [MODE].

The current mode is displayed. •

2Within 2 seconds

Press [MODE] to display "ECO".

Each time you press the button:

ECO (on) *_ NORMAL (off)

ECO: The clock is not displayed in the standby mode. The standby

indicator and [®PLAY/_)REC] indicator (only when the timers

are set) still light.

•The demonstration is shown if DEMO is on, even if ECO is on,

Tum DEMO off if ECO is used.

• The mode can be switched to ECO when the unit is in standby but

it cannot be switched back to NORMAL.

Conserving power

The unit consumes power _even when it is tamed off with [(_/I,

POWER] and ECO mode is turned on. To save power when the unit

is not to be used for a long time, unplug it from the household AC

outlet. Remember to reset the radio stations and any other memory

items before using the unit again.

NORMAL ECO

For U.S.A. 14.5 W _0.25 W

For Australia and New

Zealand 15.0 W _0.4 W

For others 15.0 W _0.8 W

Remote control only

When disc or tape is selected as the source

To save power, the unit tams off if it is left unused for 4 minutes.

This function does not work if the source is tuner or AUX or if a disc

menu is being displayed.

1Select disc or tape as the source.

Press [DVD/CD] to select disc.

Press [TAPE] to select tape•

2Press [SHIFT] + [AUTO OFF].

=AUTO OFF" is displayed.

To cancel

Press [SHIFTJ+ [AUTO OFF] again,

For your reference

The setting is maintained even if the unit is tamed off. When the unit

is tumed on again, the unit functions as descdbed above.

If you select tuner or AUX as the soume, =AUTO OFF" goes out. It

comes on again when you select disc or tape.

ROTS327

DVD/CD

........_uouvllsL_l] _u!lul_

Remote control onlv

The menu language has been factory preset to English. You can

change the language by going to "3 Menu Language" of the initial

settings screen (.., page 54).

Set the screen size to suit your television. The initial setting is for a

regular television with an aspect ratio of 4:3. You do not have to

change the setting if you have this kind of television,

Preparation:

•Turn the television on.

•Switch the video input mode of the television to suit the type of

connection you have made (e.g., VIDEO 1).

1Press [DVD/CD] to select disc as the

source.

The unit comes on automatically.

While the disc is stopped

Display the initial settings screen on

the television.

For U.S.A., Australia and New Zealand

Press [SHIFT] + [ACTION].

For others

Press [SHIFT] + [SETUP].

Press the cursor buttons, [&] or [V] to

highlight "5 TV Aspect", and press

[ENTER].

Press the cursor buttons, [&] or [V] to

highlight the required size, and press

[ENTER].

4:3: Regular television

16:9: Widescreen television

The initial settings screen is shown after you make your

selection.

5 Press [RETURN].

Steps 3 and 4 can also be done with the numbered buttons.

Press the number next to the required item.

For example, in step 3, press [5] to select "5 TV Aspect".

1OOOOO

0o 0 0 , '_ 0

' ; ISC

'$ " _ N, S:

o o

buttons

Screens illustrated are examples.

rmn Fc-

Preparation:

Turn the television on and switch the video input mode on the televi-

sion to suit the type of connection you have made (e.g. VIDEO 1).

1Press a [--_] button to open the tray.

The unit comes on automatically,

2Set the disc on the tray and press the I

same [--_] button to close the tray. II

The tray closed is in the play position (its disc indicator lights).

Some discs start playing automatically,

Load other trays by repeating steps 1 and 2.

3Press [1]-[5] to change the play posi-

tion tray and start play.

Remote control: Press [DISC] -* [1]-[5],

[] If a menu screen appears on the television

Remote control only

Use the cursor buttons (_1, I_, &, V) to highlight an item and

press [ENTER].

You can also salect the desired item by pressing the num-

bered buttons with some discs•

To select title No.10 or over, press [_>10]then the two digits.

e.g. Title No. 12: [_>10]--, [1] -, [2]

4Adjust the volume.

Use the CD MANAGER's ALL-DISC mode to play CDs and Video

CDs in succession (-_ page 25).

To stop the disc

Press[11].

• With some discs, playback may start without showing the menu

screen. To show the menu screen;

DVD : Press [MENU], [TOP MENU] or [RETURN] on the re-

mote control.

Video CD : Press [RETURN] on the remote control.

•The disc continues to rotate while the menu is displayed even after

a particular item has finished. When no more items are to be se-

lected, be sure to press [11]to clear the menu display.

"Q "Is displayed on the TV

Whenthe operationis prohibitedby theunitorthe disc.

"In>" Is displayed on the unit's display

When there are 15 or more tracks on the disc (CD and Video CD

without PBC),

"B "Is displayed on the unit's display

When a DVD is in the play position tray.

"_" Is displayed on the unit's display

When a Video CD is in the play position tray,

"NO DISC" Is displayed on the unit's display

When there is no disc on the selected tray or the disc is set

incorrectly.

"NO PLAY" Is displayed on the unit's display

Whenthe discdoes notcorrespondto theunitandcannotbe played,

"96kHz 24bit" Is displayed on the unit's display

When the disc is one with high quality sound recorded with a sam- I

piing frequency of 96 kHz and 24 bits. ROT5327

IUsing the resume function to restart play 1

If you press [11] during play, the unit remembers the

position,

Thisfunctiondoes notwork if thedisc's playtime is notdisplayed.

[] TO restart play from the point

Press [1_] while "RESUME" Is lit.

Remotecontrol:Press p./A 1,

[] To review the chapters up to the point where

you stopped play (1'_ only)

The message "Press PLAY to Chapter Preview _(=Press PLAY to

Chapter Review" for the Australia and New Zealand) appears for a

few seconds before the resume function is activated after pressing

p'].

Press [1_] while the message is on the TV.

Remote contror: Press p/A].

The beginning podions of each chapter up to the current one are

played.

Full play resumes from the point where you stopped play.

[] To cancel the resume function

Press [11]while "RESUME" is lit.

• The position is saved even if the unit is turned off.

•Resume is canceled if the disc tray is opened or if you change

discs.

•Chapter preview is not possible with some DVDs.

TUNEMODE

]Disc selection

Choosediscswiththese marks:

V I D E O [DIGITJ_. WDE0] DIGITAL AUDIO

Do not;

•use irragulady shaped discs (_)).

•attach extra labels and stickers.

•use discs with labels and stickers that are coming off or with adhe-

sive exuding from under labels and stickers (_)).

• attach scratch-proof covers or any other kind of accessory.

•write anything on the disc.

•clean discs with liquids. (Wipe with asoft, dry cloth.)

•use discs printed with label printers available on the market.

]To prevent damage I

Always observe the following points.

•Load only 1 disc per tray ((_).

•Load discs as shown in figure (_.

An adaptor is not needed with 8 cm discs (singles).

•Set the system on a flat. level sudace.

•Always unload all discs before moving the unit.

Do not;

•set the unit on top of magazines, inclined surfaces, etc.

•move the unit while a tray is opening/closing, or when loaded.

•put anything except discs in trays.

•use cleaning discs or discs which are badly warped or cracked.

I.,<<1/41,<1

Ip.l_/II,,.'IH

Press [</11] during play.

Remote control: Press [4/ll/V],

To resume play

Press[_']. (Remotecentre):[lb/A].)

Chapters on DVD and tracks on Video CD and CD can be skipped.

Press [1<1</<1<1] or [IIH_/IIHIH] during play. _.

I,ql_l/_l_l : Backward

I=.._,,10H_ : Forward

Each press increases the number of skips.

Current position

..,,--.- [t.<.q/<.< ]--]-- [H,,,vz,,._]._--,,-

•If pressed while a Video CD menu is on the screen, you may return

to the previous menu.

•If pressed while playing a Video CD with PBC, you may retum to a

menu screen.

FM MODE,aP

Remote control:

Press [SLOW/SEARCH (<1,<1or IH_)] during play.

[<1,<1]: Backward

t]l_ ]: Forward

Each press increases the speed of the seamh. There are 5 speeds.

•If pressed while playing a Video CD with PBC, you may return to a

menu screen.

To resume play

Press p/A]. (Mainunit:Pressp-].)

Main unit:

Press and hold[1<14/<1<1]or[l_l_/mlH] dudngplay.

Beamh speedcannotbechanged.

Play resumeswhenyoureleasethe button.

ROT5327

(IIII/V

uulUt" mei_s OlU+pc pray++,+ +:++

+ +++++:++++_++_+!++++_+++_++@+_+ ++ + +

+ _® ++ ++ ++ > _+;++>?+ _+ +

Remote control:

(_) Press [4/II/V] during play.

Main unit: Press [</11].

Press the cursor buttons [<] or [1_].

[<]: Backward

[1_]: Forward

Main unit: Press joystick ([4] or [_]),

You cannot move backwards with Video CD.

•The frame changes each time you press a cursor button,

•The frames change in succession if you press and hold a cursor

button.

• The frame also advances each time you press [</II/V],

To resume play

Press lib/A].

l' J

Remote control only

Press [</ll/V] during play.

(_ Press [SLOW/SEARCH (<1,4 or I=H_)].

1<1<]: Backward

[IH_]: Forward

Each press increasesthe speedof the slowmotion.There are5

speeds.

You cannot move backwards with Video CD.

To resume play

Press p/^].

RQT53_7

_; |il[17Rtt_

A-B REPEAT

REPEAT

TVs

'_r __-:_!aY_....... *' _÷;_

Remote c_ontrol only

[] Repeating chapters, titles and tracks I

Press [REPEAT] during play.

Each time you press the button:

DVD I

CHAPTER REPEAT (P,_...3): Current chapter is repeated. ,_ _

_) TITLE REPEAT (_.3_) : Current title is repeated. _

J.=o

REPEAT OFF: Repeat mode is canceled. -- ;_

Video CO, CD O_

: All tracks on the disc are repeated._

Original display: Repeat mode is canceled.

To cancel repeat play

Press[REPEAT] to clear" _",

•When playing Video CDs and CDs, you can combine random play

(,- page 24) or the CD MANAGER (_ page 25) and repeat play.

Repeat play does not work if the play time for the disc is not dis-

played.

To repeat only your favorite tracks

Video CD and CO only

Program the tracks you want (-_ page 23).

2_ Press _1,_/^].

Press [REPEAT] to display" _".

[]

Repeating a specific section (A-B REPEAT) I

Press [A-B REPEAT] during play at

the starting point (A),

Press [A-B REPEAT] at the finishing

point (B).

To cancel A-B repeat play

Press [A-BREPEATJto clear" _".

•This feature cannot be used if the play time for the DVD is not

displayed.

•The player automatically determines the end of a title or track as

point B.

• Subtitles may not appear around Aand B.

RQT53_7

_I_i_j e.._

Remote control only

This feature a;Iows you to mark up to 5 points on a disc so you can

return to them easily at a later time.

L To mark a position I

1 Press [SHIFT] + [MARKER] during

play.

The marker display appears.

2Press [ENTER] at the point you want

to mark,

To mark another position

While the marker display is on the screen

(_ Press the cursor buttons [<] or [1_]to select another =€ ".

_) Press [ENTER].

Recalling a marked position 1I

If the marker display is not on the screen

Press [SHIFT] + [MARKER].

The marker display appears,

Press the cursor buttons [<] or [1_]to

highlight the required marker.

Press [ENTER] to recall the position.

To clear a marker

(_ If the marker display is not on the screen

Press [SHIFT] + [MARKER],

(_ Press the cursor buttons [<] or p.] to highlight the marker you

want to clear.

_) Press [CANCEL].

To clear the marker display

Press[SHIFT] + [MARKER],

• This feature cannot be used;

•If the play time for the disc is not displayed.

•During program (,_ page 23) and random play (,,_page 24).

•While CD MANAGER (m page 25) is on.

•Some subtitles may fail to appear around the marker (DVD).

•Markers clear in the following situations:

•The unit is turned off.

•The disc is changed or removed.

•A source other than DVD/CD is selected.

[]

CINEMA

bu_ons

You can better enjoy pictures by changing the picture quality.

Press [CINEMA].

The [CINEMA] indicator lights and the CINEMA display appears on

the screen.

Each time you press the button:

C (CINEMA is on) _ N (CINEMA is off)

TO cancel

Press [CINEMA[ to display _N".

Remote control only

Some DVDs have multiple soundtraeks and subtitle languages re-

corded on them. You can change these dudng play.

To change the soundtrack

Press [AUDIO] during play.

The soundtrack display appears.

The number changes each time you press the button.

To change the subtitle language

Press [SUBTITLE] during play.

The subtitle display appears.

The number changes each time you press the button.

The number can also be changed with the cursor buttons ([A] or [V])

or the numbered buttons.

See the bottom of page 28 for a key to language abbreviations.

To turn the subtitles on/off

_) Press[SUBTITLE]to displaythesubtitledisplay.

Pressthecursorbuttons[4] or [b-].

To clear the display

Press[ENTER].

For your reference

Soundtrack and subtitle languages can be set before play with the

initial settings (-, "1 Disc Languages", page 54).

(Some discs are designed to start in a certain language despite the

initial setting.)

You can only select the languages recorded on the disc.

[] Switching vocals on/off for karaoke discs

(_) Press [AUDIO] during play.

(_) Press the cursor buttons ([<], [1_]) or [AUDIO] to change the

setting.

• Solo •Duet

---: No vocal -o-: No vocal

ON: Vocal 1+2: Vocal 1 and2

Vl: Vocal 1

V2: Vocal 2

Choose"--" for karsoke.

Choose "VI" or"V2" to duet withtheplayer. m

RQT53_7

buttons

umer me_od_ o; q!sGp ay ;

Remote control qnly

Some DVDs allow you to view the same scene from different angles.

"ANGLE" lights up on the unit's display dudng scenes recorded with

multiple angles to indicate this feature is available.

Press [ANGLE] during play.

The angle display appears.

The angle number changes each time you press the button.

The number can also be changed with the cursor buttons ([&] or [T])

or the numbered buttons.

To clear the display

Press [ENTER].

Remote control only

By calling up menus during play, you can start play from a specific

title or chapter.

Menu content depends on the disc. These operating instructions de-

scribe the basic steps.

Press [TOP MENU] or [MENU].

A menu screen is displayed.

(Press again to return to what you were watching with some

discs.)

$Select an item with the cursor buttons

([<1], [1_1,[i], [V]) and press [ENTER]

to confirm the selection.

You can select items with the numbered buttons with some

discs.

Repeat if another menu is shown•

DVDs can have several menus. The menu displayed by pressing

FOP MENU] may be different to the menu displayed by pressing

[MENU].

<Title1 Title2 , Title 3 ,

""o"i MenuL,Menu!

Ci4I_LiCT

DVD/CD

1<1_1/,,4<

I=,,!_/]HH

Remote control only

You can select up to 24 tracks to play in the order you choose.

Preparation:

•Press [DVD/CD] to select disc as the source.

• Ensure a Video CD or CD is in the play position tray.

(Program play is not possible if the play position tray contains a

DVD or is empty.)

1While stopped I

Press [PROGRAM],

Press [DISC] and (within10seconds)[1]--[5]

to select the disc.

Select the track with the numbered oo"

buttons. ._

To select tracks numbered 10 and over

Press [_>10]then the two digits,

Repeat steps 2 and 3 to program all tracks you want in the required

order.

4Press [_/A].

All the tracks are played in the sstected order.

Step 2 is not necessary when selecting atrack from the disc current-

ly displayed.

To exit program mode

Press [PROGRAM] while stopped.

Program contents wtN be saved in the memory.

YOU can do the following while the disc is stopped

Press [11]to cancel the resume function if it is on.

•To check program contents

While =P" is displayed (B)

Press [1_11_/_11<1]or [IlH_/IIHH].

Each time you press a button, the disc number, track number and

program order are displayed.

•To add to the program

Repeat steps 2 and 3.

•To cancel tracks

From the last programmed Press [CANCEL].

track

A particular track While =P° is displayed

Sstect the track with

[1<1_/<1_1] or [I_I_/tI_I=H] then

press [CANCEL]•

All tracks Press [11].

"CLEAR" is displayed.

When "CD FULL" is displayed

24 tracks have been programmed. No furthar tracks can be

programmed.

•Discs and tracks the unit cannot find can be programmed but are

canceled during play. This is also the case if you program a DVD.

• You can program individual tracks even if the disc is aVideo CD

with PBC.

•Skipping is done in the programmed order. m

RQT5327

DISC

Remote control only

I Press [DISC] and (withinto seconds)[I]--[5]

to select the disc.

2After the first track starts playing

Select the track with the numbered

buttons.

To select a track 10 or over, press [_>10]then the two digits.

Play starts from the selected track.

• When playing Video CDs with PBC, press [11]to stop the disc, then

select the track number. PBG is canceled.

This does not work with some Video CDs with PBC.

Ft=ra

Remote control only

Plays all tracks on the selected disc or on all discs once each in

random order,

Select one of two ways to play tracks.

1-DISC: Plays all the tracks on the current disc in random order.

ALL-DISC: Plays all the tracks on all loaded discs in random order.

Preparation:

•Press [DVD/CD] to select disc as the source.

•Ensure a Video CD or CD is in the play position tray.

(Random play is not possible if the play position tray contains a

DVD or is empty.)

While stopped

Press [RANDOM] to select "l-DISC" or

"ALL-DISC".

Each time you press the button:

1-DISC <-+ALL-DISC

Random play starts,

Random play is canceled when play stops.

To stop

Press [11].

Randomplayis alsocanceled.(The resumefunctionis activatedand

if[1_/^] ispressed,normalplayresumesfrom thatpoint,)

To play only your favorite tracks In random order

(!) Program the track(s) you want (-, page 23).

_) Press [RANDOM] to display "RANDOM".

•You can combine repeat play (-* page 19) and random play.

•This function skips DVD when ALL-DISC mode is selected.

• If the disc is a Video CD with PBC. menu play is automatically can-

celed during random play.

•You cannot skip to tracks already played.

RQT5327

I_irh"I_ [o]_]I_f_I_.tl_I;l

Use this function to select specific discs and tracks to play.

There are 3 modes

1-track mode: Plays one selected track on the current disc.

1-disc mode: Plays the current disc.

All-disc mode: Plays all loaded discs in succession from the

current disc to the _nal disc _.

These modes make recording CDs easier (= page 43).

Preparation:

• Press [DVD/CD] to select disc as the source.

• Ensure a Video CD or CD is in the play position tray.

(You cannot use CD MANAGER if the play position tray contains a

1 _ _ _ .... _ ,_. DVD or is empty.)'" '."-'-"-" 1While stopped

.,Press [CD MANAGER] to select the o_

_" .... .... _ desired mode.

,Each time you press the button:

1-TRACK _" 1-DISC _. ALL-DISC --, NORMAL

t J

1-TRACK: 1-track mode

1-DISC: 1-disc mode

ALL-DISC: All-disc mode

NORMAL: The function is canceled.

You can choose the disc after step 1.

Press [1]-[5] on the main unit to select the disc.

Remote control: Press [DISC] then (within 10 seconds) [1H5].

Only when you selected "l-TRACK" in step 1

Press [},q141/<t<l] or [llH_/ll.,b_] to

select the track.

Remote control: Select with the numbered button(s).

To select a track 10 or over, press [_10] then the two digits.

Press [_] to start play.

Remote control: Press [1_/^].

The CD MANAGER is canceled after play finishes.

To stop

Press [I].

The CD MANAGER is canceled.

(The resume function is activated and if [1_]is pressed, normal play

resumes from that point.)

_"Final disc"

For example, if play starts from disc 4, disc 3 will be the =final disc".

Order of progression: Disc 4_5-, 1_2_3

•You can use the CD MANAGER with repeat play.

(_ Do steps 1--3 above.

(_ Press [REPEAT] on the remote control to display" _".

•If the disc is a Video CD with PBC, the PBC function is automati-

cally canceled when you select modes other than NORMAL.

•This function skips DVD.

RQTS,_7

Remote control only

GUI (Graphic User Interface) are icons that appear on the TV screen

that allow you to interact with the unit. GUI screens show information

about the unit and discs. You can perform various operations by

changing the information shown in these screens.

1Press [DISPLAY].

The GUI screen appears•

It changes each time you press the button (see below),

=1 3

TEST

DISPLAY

Press the cursor buttons [4] or [1_] to

select an item.

Press the cursor buttons [A] or [V] to

change the setting.

To clear the GUI screen

Press [DISPLAY] until the original display is restored.

Pressing [RETURN] or [CANCEL] also clears the GUI screen.

For your reference

• Some items require different operations to change the contents, so

refer to the GUI icon descriptions (-, pages 27 and 28) for details.

•The GUI screens disappear after performing some operations,

such as changing the title or chapter.

• If the GUI screen is partially cut off or fails to appear, change the

position with the initial settings, "4 On-Screen Messages"

(m page 54).

RQT53_7

Disc GUI

Unit GUI ,I.

Shuttle GUI _.

-Original display (GUI not displayed)

]Type of GUI screens 1

There are 3 different GUI screens.

Disc GUh You can change the title or chapter, or change the po-

sition by specifying the time.

You can also switch soundtrack, subtitles and angles.

Unit GUI: You can start repeat play or mark aposition and

recall it.

You can also turn the CINEMA mode on/off.

Shuttle GUI: You can fast forward, go backward or start stow-motion

play.

[€]=]l

IDisc GUI I

Icon Content Operation

"m Title number Press [a] or [V] or the numbered buttons to

/] change the number and press [ENTER).

'_ Chapter number Press [&] or [Y] or the numbered buttons to

Cl change the number and press [ENTER).

.... Time (select a position to start play by specifying a time) Press the numbered buttons and press

Q 1:56:37 [ENTER]

(_ Soundtrack number Press [&] or [v) or the numbered buttons to

See the bottom of page 28 for a key to language change the number.

,__ abbreviations.

_,__ (_)Type of audio signal

•LPCM (linear PCM), DODigitat (Dolby Digital)

Sampling rate or number of channels

•LPCM: 48 kHz or 96 kHz

•DO Digital: 1 to 5.t channels •

_) Number of bits

-- _=--V'_c_ _ _ • LPCM: 16, 20 or 24 bits

IF3_

! %J,# i$ Vl + v2

..... _ _) Vocals on or off

Solo karaoke disc: --- or ON Press [&] or [Y].

Duet karaoke disc: ---, V1 + V2, V1 or V2

(_) Subtitle number press [&] or [V] or the numbered buttons to

_i See the bottom of page 28 for akey to language change the number.

abbreviations.

_) Subtitles on or off Press [&] or [V].

Angle number Press [&] or [V] or the numbered buttons to

change the number.

•Some discs will not allow some of these operations.

The number of channels recorded on the disc

Example:

1/_ 0: No surround

1: Meoo surround

2: Stereo surround (left/dght)

.1: Subweofer signal

(not displayed if there is no subweofer signal)

1: Center

2: Front left + Front dght

3: Front left + Front right + Center

RQT53_/

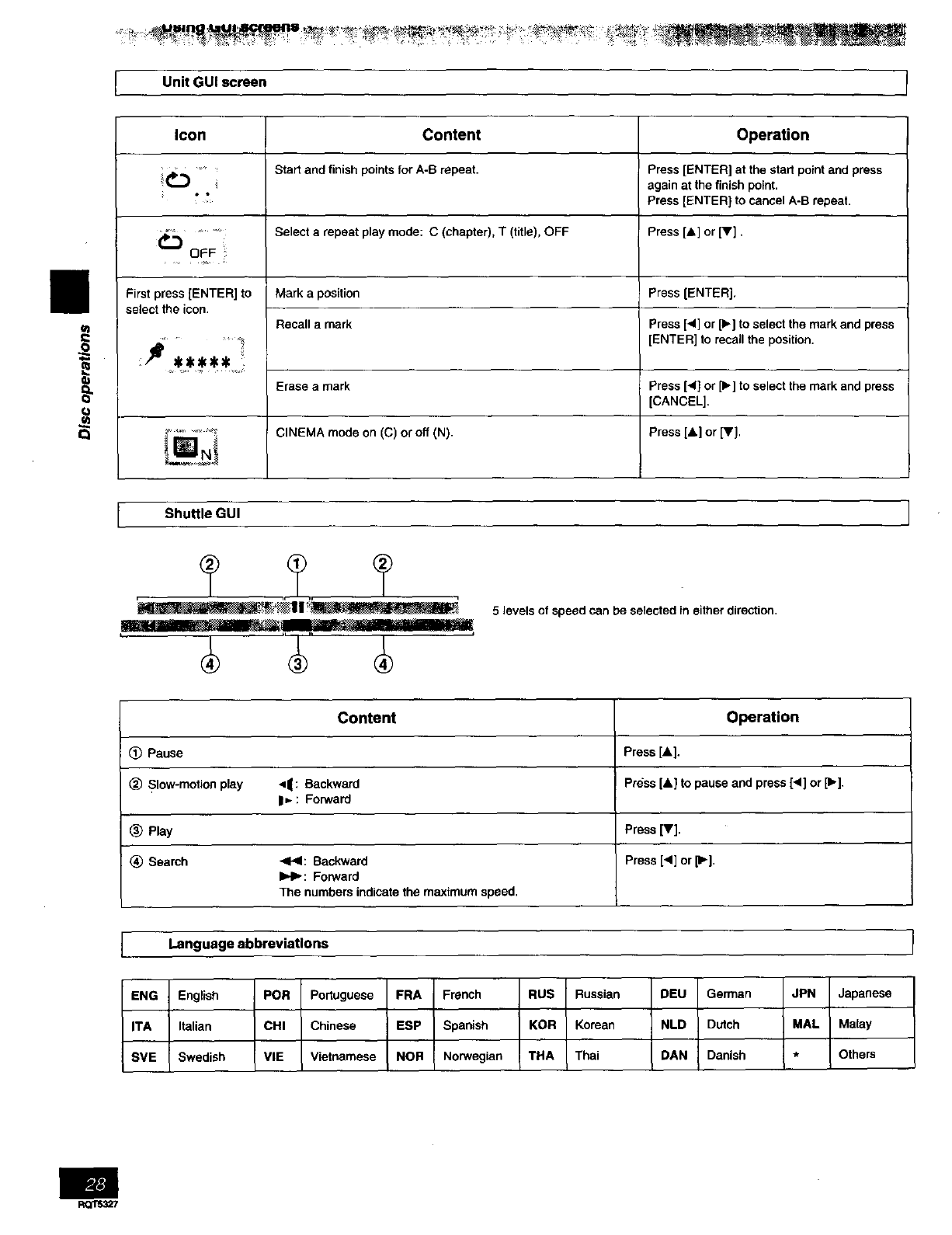

J Unit GUI screen I

Icon Content Operation

.......... Start and finish points for A-S repeat. Press [ENTER] at the start point and press

t,L--/ again at the finish point.

Press [ENTER[ to cancel A-B repeat.

.......... Select a repeat play mode: C (chapter), T (title), OFF Press [A] or [V].

€.30PF

First press [ENTER] to Mark a position Press [ENTER],

select the icon.

Recall a mark Press [4] or [1_] to select the mark and press

'_ [ENTER] to recall the position.

P*****

Erase a mark Press [<1]or [1_]to select the mark and press

[CANCEL[.

CINEMA mode on (C) or off (N). Press [&] or [Y].

I Shuttle GUI J

t.-

5levels of speed can be selected in either direction.

(_ Pause

(_ Slow-motion play

(_) Play

_) Search

Content

•q|: Backward

|=. :Forward

<1,4: Backward

I_1_: Forward

The numbers indicate the maximum speed.

Operation

Press[A].

Press[&] to pause and press [<] or [1_],

Press [V].

Press [_1] or [1_].

Language abbreviations

ENG English POR Portuguese FRA French RUS Russian DEU German JPN Japanese

ITA Italian CHI Chinese ESP Spanish KOR Korean NLD Dutch MAL Malay

SVE Swedish VIE Vietnamese NOR Norwegian THA Thai DAN Danish * Others

Rccrs._7

Radio stations can be tuned manually by selecting the station's

frequency or they can be preset into channels to make it easy to tune

(-, page 30).

Press [TUNER, BAND] to select "FM"

or "AM".

The unit comes on automatically.

Each time you press the button:

FM, _AM

Press [TUNE MODE]

"MANUAL".

Each time you press the button:

MANUAL *_, PRESET

to select

Press [VTUNE/I"IME ADJ] or [TUNE/

TIME ADJA] to select the frequency

of the required station.

Ill

If you press and hold [k/TUNE/TIME ADJ] or [3UN_q-IME mE

ADJA] for a moment, the frequency starts changing automat-

ically and stops when a station is found. It may also stop if

there is outside interference. Press and hold [VTUNE/TIME

ADJ] or [TUNE/TIME ADJA] again to restart. You can also ,_

stop the frequency changing by pressing [VTUNE/TIME ADJ]

or [TUNE/TIME ADJA].

"TUNED" is displayed when a radio station is tuned.

=sT" is displayed when a stereo FM broadcast is being

received.

4Adjust thevolume.

]If noise is excessive in FM 1

Press [FM MODE/BP] to display "MONO".

This mode impreves sound quality if reception is weak but broad-

casts are heard in monaural.

Press [FM MODE/BP] again to cancel the mode,

Leave "MONO" off for normal listening.

Stereo and monaural broadcasts are automatically played as they

are received.

I Allocation settings I

Each country allocates broadcast bands according to their particular

system.

For U.S.A. (FM: 0.2 MHz *_ 0,1 MHz):

This unit can receive FM broadcasts allocated in 0.1 MHz steps.

For others except Australia and New Zealand (AM: 9 kHz *-, 10 kHz):

This unit can receive AM broadcasts allocated in 10 kHz steps.

To change the step

(_) Press and hold [TUNER, BAND].

After a few seconds the display changes to a flashing display of

the current minimum frequency.

(_) Continue to hold [TUNER, BAND] down.

When the minimum frequency changes, release the button.

To return to the original step, repeat the above steps.

i=l

RQ/5327

1: bu_ons

There are two methods of presetting stations.

Automatic presetting: The stations the tuner can receive are

preset.

Manual presetting: You can select the stations to preset and

the order they are preset in.

Up to 12 stations can each be set in the FM and AM bands.

_utomatic presetting 1

Do the following once each for FM and AM.

Preparation:

Tune to the frequency where presetting is to begin (,-, page 29).

Press and hold [MEMORY].

Release the button when the frequency starts changing.

The tuner presets the stations it can receive into the channels inas-

cending order. When finished, the last station memorized is

tuned in.

Manual presetting !

Preset the stations one at a time.

_) Press [TUNER, BAND] to select "FM" or "AM".

(_ Press [MEMORY] then press [VTUNErrlME ADJ] or

[TUNF.JTIME ADJ^] to tune to the required station.

_) Press [MEMORY] then press [VTUNE/TIME ADJ] or

[TUNE/TIME ADJ^] to select a preset channel.

Press [MEMORY].

The station occupying achannel is erased ifanother station is preset

in that channel.

]Selecting channels I

Remote control:

1Press [TUNER] to select "FM" or

"AM".

The unit comes on automatically.

Each time you press the button:

FM _, AM

2Press [_I/II/V] or [_,-/A] to select the

channel.

You can select the channel with the numbered button(s),

To select channel 10 or over

Press [->10] then the two digits.

3 Adjust the volume.

Main unit:

(_) Press [TUNER, BAND] to select "FM" or "AM".

_) Press [TUNE MODE] to select =PRESET".

Each time you press the button:

MANUAL _PRESET

_) Press ['v'TUNEFFIME ADJ] or [TUNEFFIME ADJA] to select the

channel.

Adjust the volume.

REV MODE

• _. _!@:_ !_i_¸_!_,_ _ , _ ....

You can use either deck 1 or deck 2 for tape playback.

1Press [TAPE, DECK 1/2] to select tape

as the source.

The unit comes on automatically.

Press [-_ DECK 1 OPEN] or [-_ DECK 2

OPEN] and insert the cassette.

Insert the cassette with exposed tape facing down and close

the holder by hand.

Press [REV MODE] to select the

reverse mode.

Every time you press the button:

t J

_. : One side is played,

_.) : Both sides are played.

€_) : Both sides are played 8 times each.

Press [</11] (reverseside)or [1_] (forwardside)to

start play.

Adjust the volume.

To stop the tape

Press[11].

[] To change the deck to be used

Press[TAPE, DECK 1/2]to selectthedeckyou wantto play,

To listen to 2 tapes consecutively

Insert a tape into each deck and select "€_.)" in step 3. Both tapes

will be played 8 times each,

Play is interrupted while playing a tape if you open the other deck.

I Cassette tape selection and care I

The unit can correctly play the following typos. It identifies the type

automatically.

Normal position/TYPE I v'

High position/TYPE II v'

Metal position/TYPE IV V'

• Tapes exceeding 1O0 minutes are thin and can break or get caught

in the mechanism,

• Tape slack can get caught up in the mechanism and should be

wound up before the tape is played.

• Endless tapes can get caught up in the deck's moving parts if used

incorrectly. Use tapes appropriate to this unit's auto-reverse mech-

anism.

RQT.5_7

• • , _ • _ _ ._ • • _ ,4, •¸ _ • •

]Fast-forwarding and rewinding I

Press [!'_/.<_] or [1_/1_1_] while the

tape is stopped.

Tape direction rewind fast-forward ]

DI<1</<1_1 I=.'1_/II,-IIH

<3 IH_..IIHI,'I I<1_1/,_1<1

[] Tape program sensor (TPS) J

TPS finds the beginning of a track and plays from there.

Press [1<1<1/<1<1]or [II_/IIHIH] during play.

Tape direction backward forward

DI.<1<1/<1.<1 IH_ ttl,.llH

<3 I_H_/IIHIH I<1</<1<1

Each press increases the number of tracks skipped, up to a maxi-

mum of 9.

The first skip backward takes you to the beginning of the current

track.

TPS may not operate correctly in the following situations:

•if the interval between tracks is less than 4 seconds.

•If there is noise between tracks.

•If there are silent segments within tracks•

SOUND

CONTROLJOG

Dial [SOUND CONTROL JOG] to select a

setting.

Each time you dial the jog

HEAVY: Adds punch to rock,

CLEAR: Clarifies higher sounds.

SOFT: For background music.

DISCO: Reverberates sound to make you feel like you

were in adisco.

LIVE: Makes vocals more alive.

HALL: Expands sound to make you feel like you were in

a hall.

M.EQ (MANUAL): Create your own effects (-_ see below).

AI-EQ (AI EQ): Adjust sound with the acoustic image equalizer

(-* page 34).

FLAT: Canceled (no effect is added).

Remote control:

Press [EQ}.

Each time you press the button, the setting changes.

Create your own sound quality effects.

1 Dial [SOUND CONTROL JOG] to se-

lect "MANUAL".

2(Within 10 seconds)

Change the sound quality with the

joystick.

Select the sound range to be adjusted with [4] or [_'].

(_) 100 Hz: Super woofer range

_) Around 330 Hz: Bass to midrange

@1 kHz: Midrange

(_) Around 3.3 kHz: Midrange to treble

(_) 10 kHz: Treble

(_ Adjust the level with [&] or [V}.

Repeat step 2 to set the desired sound quality.

The original display is restored on the display panel in about

10 seconds.

To cancel

Dial [SOUND CONTROL JOG] to select"FLAT".

The changes you make are stored and automatically recalled the

next time you select "MANUAL".

SOUND

CONTROLJOG

3D AI EQ

Unin IJ_ _

Achieve subtle sound quality settings with the soft, sharp, heavy,

and light coordinates.

1Press [3D AI EQ] to select the sur-

round level.

Each time you press the button:

AI EQ _3D AI 1 _3DAI 2

2Remote control: Press [SHIFT] + [3D AI].

(Within 10 seconds)

Change the sound quality with the

joystick (_1, I_, A, T),

(_ Adjust softness and sharpness with [,] or [1_].

(_ Adjust heaviness and lightness with [&] or [V].

Repeat steps _and (_) to set the desired sound quality.

The original display is restored on the display panel in about

10 seconds.

To cancel

Dial [SOUND CONTROL JOG] to select"FLAT".

The changes you make are stored and automatically recalled the

next time you press [3D AI EQ] or select "AI-EQ" with [SOUND

CONTROL JOG].

• "3D AI 1" and "3D AI 2" cannot be selected while the surround sys-

tem (m page 36) or karaeke mode (except for U.S.A., Australia and

New Zealand) (m page 45) is on.

• "3D AI 1" and "3D AI 2" cannot be selected when you are playing a

DVD (except for MIX 2CH mode).

[]

Press [S.WOOFER].

The button lights•

• When listening through speakers

Each timeyou pressthe button:

MID (medium)-, MAX(high)_ Light off(off)

t J

•When listening through headphones

Eachtime youpressthe button:

Lighton (on), + Lightoff (off)

To cancel

Press[S.WOOFER] to turn the lightoff.

S.WOOFER

[]

-: f.

[] Us|nglhe tr=-a ?cohttpl

The tri-amp control takes advantage of tri-amp wiring of the front

speakers, and controls sound quality by allowing you to adjust the

level of the amplifiers for the low, mid and high regions.

1 Press ['rRI-AMP CONTROL].

[TRI-AMP CONTROL] lights and [LOW] starts flashing.

Within 5 seconds

Press [LOW], [MID] or [HIGH] to select

the region to be adjusted,

While the button is flashing

Dial [SOUND CONTROL JOG] to

adjust the level.

To cancel

Press ['FRI-AMP CONTROL] while a button ([LOW], [MID] or [HIGH])

is flashing to turn the light off•

The tri-amp setting will be saved in the memory.

•The tri-amp control cannot be used while playing DVD encoded

with Dolby Digital (the Dr]DIGITAL indicator lights).

• This function cannot he used with the other types of equalizer

(m page 33), DOLBY PRO LOGIC, SUPER SURROUND and SIM-

ULATED STEREO• These features are canceled when [TRI-AMP

CONTROL] is pressed.

The following chart gives a summary of this unit's surround features. It also shows additional effects that can be used to enhance your enjoyment.

• All the features are only effective ff speakers are used. No discemible effect will be heard through headphones.

• None of the features are effective when radio is selected as the source.

• You may experience a reduction in sound quality when these surround systems and effects are used with some sources. If this occurs, either

turn the surround system or effect off or reduce the level of the effect.

Features _ _ Software

_e Dolby Digital is a discrete 5.1 (6) channel

t surround system developed for cinema

tuse.

The sound signals in Dolby Digital format

are compressed to 1/10 their original

size, allowing an entire movie to be re-

corded on a single DVD.

• This unit automatically recognizes DVDs

that have been recorded with Dolby

Digital.

• Not all Dolby Digital sources are record-

ed with 5.1 (6) channels.

Some sources marked Dolby Digital may

be recorded in Dolby Surround, a2

channel system.

Dolby Pro Logic is a decoding system that

was developed to get a better sense of

presence from sources encoded with

Dolby Surround. The feeling of position

has been improved by the addition of a

separate center speaker channel.

movie software that hasn't been

recorded with the above systems.

the best surround effect.

mode adds surround effects to

Software encoded with Dolby Digital can

be identified with this mark.

Drl

DIGITAL

• DVD

Software encoded with Dolby Surround

can be identified with this mark.

• DVD

•VideoCD, CD

•Laser Disc

• Video tape

stereo sound source except for the

radio.

•Video CD, CD

•Tape

•Video tape

This mode adds stereo-like effects to

monaural sources.

Any monaural sound source except for

the radio.

• Video CD, CD

• Tape

Video tape J

Manufactured under license from Dolby Laboratories.

"Dolby", "Pro Logic" and the double-D symbol are trademarks

of Dolby Laboratories.

Confidential unpublished works. 0 1992-1997 Dolby Labora-

RQT5327

See page 41 for operation.

Additional effects

_) Virtual rear surround

_) Multi rear surround

(_) Center focus

_) 3D enhanced surround

_) Seat position

rVirtual rear surround

•This effect is useful if you have to piece

your surround speakers near the front

speakers due to the layout of your

room.

•This effect makes it seem like the sound

from the surround speakers is coming

from behind you.

i *

V rtua speakers

f_) Multi rear surround

•This effect makes it seem like there are

multiple surround speakers in your

room, increasing the cinema-like

atmosphere.

Virtual speakers

Virtual rear surround

_) Multi rear surround

_) Center focus

_) 3D enhanced surround

(_ Seat position

Virtual roar surround

Multi roar surround

3D enhanced surround

Seat position

_Center focus

•This effect makes it seem like the sound

from the center speaker is coming from

within the television.

You can select one of two levels.

(C.FOCUS 1, C.FOCUS 2)

• The center speaker should be placed on

top of the television.

FLO_3D enhanced surround

•This effect adds width to the sound from

the surround and front speakers.

J •

Seat position

•This effect helps maintain the sound

position even if the listening position

itself is changed.

RQT5327

The

indicator

RQT5327

SHIFT--

Play a DVD encoded with Dolby Digital.

The nnDIGITAL indicator lights.

Subwoofer

You can enhance the surround sound by connecting another

subwoofer (-, page 52 for connection).

If you connect a subwoofer:

Press and hold {S.WOOFER] on the main unit until "SUB W ON" is

displayed.

If you disconnect the subwcofer:

Press and hold [S.WOOFER] on the main unit until _SUB W OFF" is

displayed.

[] To down-mix Dolby Digital (5.1 ch) signals to 2

channels

Remote control only

Press[SHIFT] + [MIX 2CH].

To cancel, press [SHIFT] + [MIX 2CH].

]Speaker level adjustments I

If the level of the speakers appears to be different while listening to a

source, adjust the level of the speakers to the same apparent level.

Sit in the normal listening position and make the adjustments with

the remote control.

Remote control only

Preparation: Turn other surround systems off.

(_ Press [SHIFT] + [TEST] to output a test signal.

A test signal is output from the speakers in the following order•

Lch: Front left speaker

Cch: Center speaker

Rch: Front right speaker

RSch: Right surround speaker

LSch: Left surround speaker

The speaker's indicator flashes while the speaker is outputting

the test signal.

No signal is output for the subwcofer.

_) Press [VOLUME (- or +)] to set the volume level of the front

speakers normally used for enjoying the source.

(_) While the speaker to be adjusted is outputting a signal

Press the cursor buttons [A] (to increase level) or IV] (to

decrease level) to adjust the level of each speaker.

Lch, Rch: -16 dB to OdB

Cch, RSch, LSch: -10 dB to +6 dB

Repeat step (_) to adjust the level accordingly.

To stop the test noise

Press [SHIFT] + [TEST] again.

To select a specific speaker

t. Press [SHIFT] + [CH SELECTJto select the speaker.

Each time youpressthebuttons:

Lch * Cch ÷ Rch_RSch_LSch_SWch

t J

SWch: Subwcofer (Adjust only when connected)

2. While the speaker's indicator is flashing

Press the cursor buttons [&] or [V] to adjust the level.

_joy!ng sur_no s_uf!o

1Press [BF1PRO LOGIC].

The button lights.

2Playbacka Dolby Surround source.

To cancel

Press [DDPRO LOGIC].

The light turns off.

I _r;IF4

Oo,h _ c, rT,- ),

Turn Dolby Pro Logic off when playing a DVD recorded with 5.1-

channel Dolby Digital. The surround effects will not be reproduced

correctly if this is left on,

]Speaker level adjustments i

If the level of the speakers appears to be different while listening to a

source, adjust the level of the speakers to the same apparent level.

Sit in the normal listening position and make the adjustments with

the remote control.

Preparation: Press [DDPRO LOGIC] to turn the light on.

Remote control only

(_ Press [SHIFT] + [TEST] to output a test signal.

Atest signal is output from the speakers in the following order.

Lch: Front left speaker

Cch: Center speaker

Rch: Front dght speaker

Sch: Surround speakers

The speaker's indicator flashes while the speaker is outputting

the test signal.

_) Press [VOLUME (- or +)] to set the volume level of the front

speakers normally used for enjoying the source.

_) While the speaker to be adjusted is outputting a signal

Press the cursor buttons [A] (to increase level) or [V] (to

decrease level) to adjust the level of each speaker.

Lch, Rch: -16 dB to 0 dB

Cch, Sch: -10 dB to +6 dB

Repeat step (_ to adjust the level apcordingly.

,_ To stop the test noise

.... Press [SHIFT]+[TEST]again.

To select a specific speaker

1. Press [SHIFT] + [CH SELECTJ to select the speaker.

Each time you press the buttons:

L_h -* Cch _ Rch _ S_h

2. While the speaker's indicator is flashing

Press the cursor buttons [A] or [V] to adjust the level•

RQT5327

[]

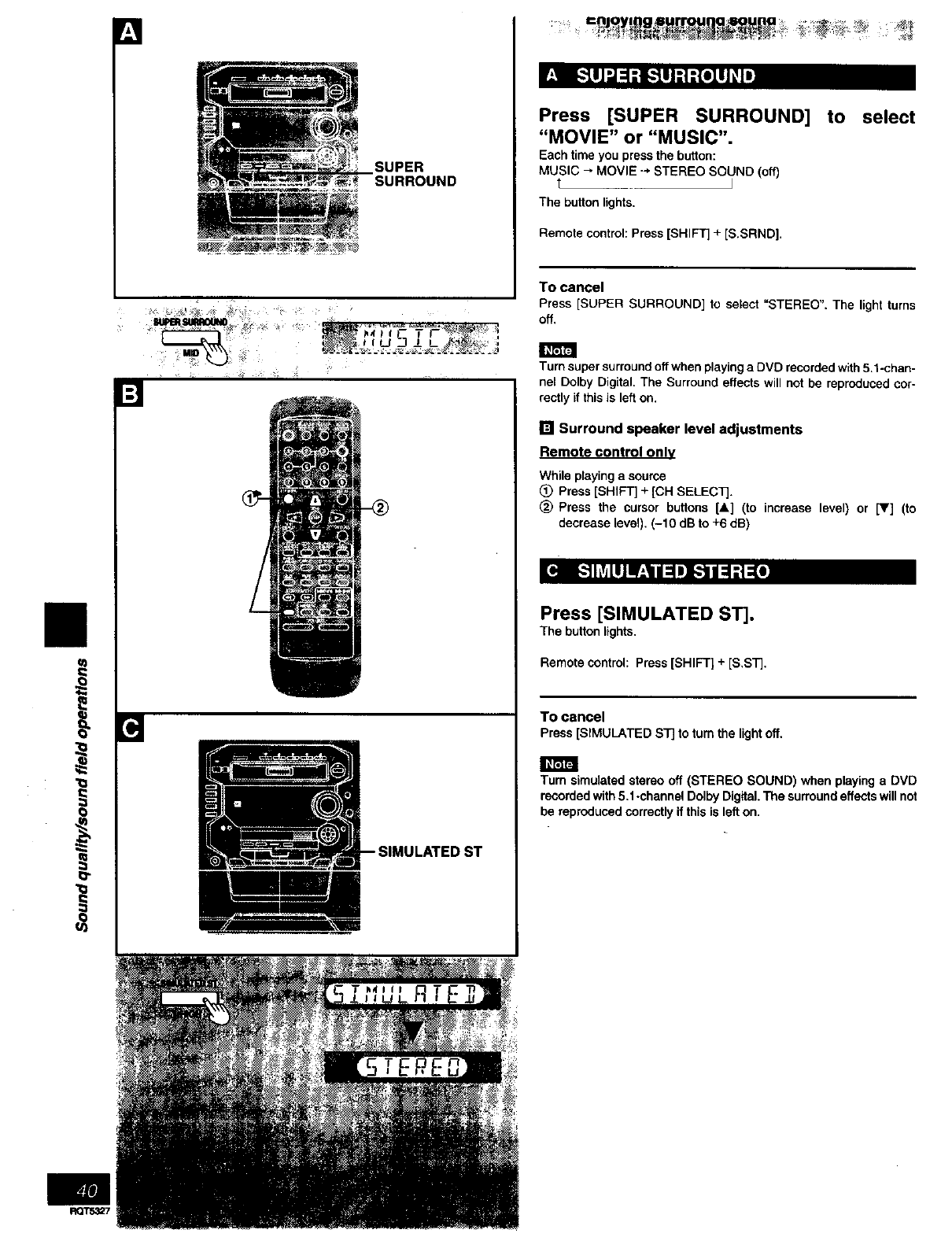

i_ i_!_ ,,_" ,_'!&: :_i_

MID

• i

SUPER

SURROUND

[]

-- SIMULATED ST

= ijoyl g_ a : ....... _

Press [SUPER SURROUND]

"MOVIE" or "MUSIC".

Each time you press the button:

MUSIC _ MOVIE "-* STEREO SOUND (Off)

t J

The button lights,

Remote control: Press [SHIFT] + [S.SRND].

to select

To cancel

Press [SUPER SURROUND] to select "STEREO", The light turns

off,

Turn super surround off when playing aDVD recorded with 5.1 -chan-

nel Dolby Digital. The Surround effects will not be reproduced cor-

rectly if this is left on.

[] Surround speaker level adjustments

Remote control only

While playing a source

_) Press [SHIFT] + [CH SELECT].

_) Press the cursor buttons [A] (to increase level) or [Y] (to

decrease level), (-10 dB to +6 dB)

Press [SIMULATED ST].

The button lights,

Remote control: Press [SHIFT] + [S,ST],

TO cancel

Press [SIMULATEDST]to turnthe lightoff,

Tum simulatod stereo off (STEREO SOUND) when playing a DVD

recorded with 5.1*channel Dolby Digital. The surround effects will net

be reproduced correctly if this is left on.

AV effect

indicators -

1,2,3

Joystick

Use these effects for a more enjoyable surround experience.

ITurning the effects on and off ]

While playing a DVD or when either DOLBY PRO LOGIC or SU-

PER SURROUND is on.

2Press [SOUND CONTROL JOG].

Dial [SOUND CONTROL JOG]

select the desired effect (- page37).

The following effects can be selected:

• Virtual rear surround (VIRTUAL R)

• Multi rear surround (MULTI R)

• Center focus 1 (C.FOCUS 1)

• Center focus 2 (C.FOCUS 2)

• 3D enhanced surround (3-D ENHANCED)

• Seat position (S.POSITION)

The AV effect indicator of the selected effect flashes.

You can combine some of the effects. Effects that cannot be

combined are;

•Vidual rear surround and multi rear surround

•Center focus 1 and center focus 2

Center focus 1and center focus 2 cannot be selected when

super surround Lson.

Press [SOUND CONTROL JOG] to

turn the effect on/off.

When the effect is turned on:

"ON" is displayed and the indicator lights:

When the effect is turned off:

"OFF" is displayed and the indicator turns off,

[] Adjustment of the seat position

Within 10 seconds after turning on seat position

Adjust the position with the joystick (<, I_, A, V).

Remote control:

(_ Press [SHIFT] +[AV EFFECT].

(_ Press the cursor buttons (4, I_, A, V) to select the desired

effect.

(_ Press [SHIFT] + [AV EFFECT] to turn the effect on/off.

•The seat position is remembered by the unit and is reactivated

when you turn seat position on again.

• When used with virtual rear surround or 3D enhanced surround,

seat position is changed in 3 horizontal steps.

...... r....;

L.,,+_ • .....

iI:e

'10

RQT5327

]

Tab for side B

Normal tape

0/I,

Side A

Tab for side A

To re-record

High position tape

DLscrimination hole

REV MODE, }i

wemm re grPmg:

!(Deck 2

Selection of tapes for recording ]

The unit automatically identifies the type of tape.

Normal position/TYPE I

High position/TYPE II

Metal position/TYPE IV X

Metal position tapes can be used, but the unit will not be able to

record or erase them correctly.

]Erasure prevention

The illustration shows how to remove the tabs to prevent recording.

To record on the tape again, cover as shown, being careful not to

cover the high position discrimination hole

quality surround effects l

Volume, sound and

• Recording level is set automatically.

•Multi-channel sources (3 to 5.1 channels) are automatically down-

mixed to 2 channels during recording.

•All sound effects are automatically set to fiat,

[] Erasing recordings I

Preparation:

(Except for U.S.A., Australia and New Zealand)

Disconnect the microphones,

Press [TAPE, DECK1/2].

Insert the recorded tape into deck 2.

Press [REV MODE] to select the reverse mode.

(_ Press [OREC/STOP].

]Preparatory steps I

Recording is done on deck 2. Do not open deck 1 during recording.

Do these steps before each recording.

Wind up the leader tape so recording can begin immediately.

Preparation: Press [(5/I, POWER] to turn the unit on.

1Press [--_ DECK 2 OPEN] and insert

the cassette to be recorded on.

Insert with the tape facing down.

2Press [REV MODE] to select the

reverse mode.

Each time you press the button:

t J

_. : One side only records.

_.) and <_.) : Both sides record (forward _. reverse),

"€_.)" automatically changes to "_.) " when [OREC/STOP]

or [TAPE EDIT] is pressed.

3Set the tape direction,

(_) Press [TAPE, DECK 1/2] to select tape.

(_) Press [<1/11] (<3) or [11_]([>) to select the direction,

then [11].

SI¸_i ?:,_

M_or_'ng ulscs _

Preparation:

• Do the preparatory steps (-- page 42).

•Press [DVD/CD] to select disc as the source and insert the disc(s)

you want to record (m page 15).

1Press [1]-[5] to select the disc to be

recorded, then [11] to stop play.

The resume function is activated. Press [!1] to cancel it.

2 <_ Press [OREC/STOP].

Press [_] to start play.

Press [OREC/STOP] to start record-

ing.

The CD starts,

• With DVDs and Video CDs, play will not start when you press

[OREC/STOP]. Press [b.] to start play.

To stop recording

DVD and V-CD

Press [O REC/STOP],

The disc keeps playing,

EITHER: Press [QREC/STOP].

The CD stops automatically,

OR: Press [11].

The CD stops, and the tape stops after making a 4 sec-

ond silent interval.

To record programmed tracks

V-CD and CD only

Program the tracks (-_ page 23).

_) Press [OREC/STOP] to start recording.

Play starts,

To stop recording, press [_REC/STOP].

Disc play stops automatically.

Recording with CD MANAGER (,,, page25)

Record discs after selecting the required CD MANAGER mode

(I-TRACK, 1-DISC, ALL-DISC)•

•If a track is cut off in the middle at the end of the front side while

recording, the track will be recorded from the beginning on the

reverse side.

•At the end of the reverse side, recording stops and the current

track will be interrupted.

•Recording pauses while discs are changing and resumes when

the disc is ready.

(_ Do steps 1 and 2 on page 25.

_) Press [OREC/STOP] to start recording.

Play starts,

To stop recording

Press [e REC/STOP].

Disc play stops automatically. _J_

RQT5327

FM MODE/

BP 2

[]

• • _ • _i ¸

FM MODE/BP

n_uuruq!y ul_ fuylu

Preparation: Do the preparatory steps (-_ page 42).

1 Tuneto the required station.

('_ page 29 or 30)

2Press [O REC/STOP] to start record-

ing.

To stop recording

Press [e REC/STOP],

[] To reduce noise while recording an AM broadcast

(Beat proof function)

Press [FM MOOFJBP] while recording.

Each time you press the button:

BPI,*BP2

Select the position where there is less noise.

[] _Tape-_o@_e re_qrd=_g

Preparation:

• Do the preparatory steps (-, page 42).

•Insert the tape for playback into deck 1 with the tape facing down

and set the direction.

The reverse mode is set to the same as deck 2.

1Press [TAPE, DECK 1/2].

2Press [TAPE EDIT] to start recording.

To stop recording

Press [I],

Both decks willstop.

The recording level and the noise reduction effect of the original

(playback) tape will be recorded on the new tape.

G/I, POWER

._ • 2 ¸ _ _

L_tJ'J_

KARAOKE

I::n

There are DVDs specifically recorded for karaoke (karaoke DVD),

and those that are not (non-karaoke DVD).

Preparation:

• Press [_/I, POWER] to turn the unit on,

•Turn the television on and switch the video input mode on the tele-

vision to suit the type of connection you have made (e.g. VIDEO 1).

•Lower volume with [MIC VOL], then connect the microphone(s)

(not included) to the microphone jack(s) ([MIC]).

Plug type: 3.5 mm (V8 in.) monaural

•If a strange noise (squealing or howling) is emitted during use,

move the microphone away from the speakers, or turn down the

microphone volume,

• When you are not using the microphone, disconnect it from the

MIC jack, and turn down the microphone volume level to MIN.

Insert the disc in the tray, and start

play (- page15).

Press [KARAOKE] during play.

Karaoke screen is displayed on the television.

If the karaoke screen is not displayed, refer to page 46 for

alternative operation.

Operate the joystick (< or I_) to select

the vocal select mode.

Operate the joystick (& or V) to select

the desired mode.

•Duet •Solo

---: Vocal off ---: Vocal off

1 + 2: Vocals 1 and 2 ON: Vocal on

Vl: Vocal 1 only

V2: Vocal 2 only

Choose "---" for karaoke.

Choose "V1" or "V2" to duet with the player.

5 Adjust volume with [VOLUME] and

[MIC VOL] and start singing along.

MIC VOL

.©. To clear the karaoke screen

Press [KARAOKE].

Remote control:

(_) Afterstep 1

Press [SHIFT] + [KARAOKEJto displaythe Karaokescreen. O_L

_) Pressthe cursorbuttons[4] or [1_]to select the vocal select

mode.

(_ Pressthe cursorbuttons [&] or [_'] to selectthe desired mode.

LUsing the guide melody function J

When singing asong with unfamiliar melody, use this function to

raise the volume of the melody.

This function can be used only with some Kemoke DVD.

(!) After step 1 and 2

Operate the joystick (< or I_) to select guide melody mode. []

(_) Operate the joystick (A or V) to select the desired mode.

1: Normal volume

2: Louder volume

OFF: off RQT5327

For sources other than non-karaoke DVD

XA_OKE

Karaoke function cannot be used when selecting radio as the

source.

1Press [KARAOKE] to select the kara-

oke mode.

Each time you press the button:

Non-karaoke DVD

V.MUTE ,_, Original display (off)

Other sources

V.MUTE * MONO L , MONO R _ Original display (off)

V.MUTE: Voice mute (Lowers vocal volume)

MONO L: Only left channel sound (No vocal)

MONO R: Only right channel sound (Vocal)

(off): Left and right channel sound (Normal sound)

Select voice mute or no vocal for karaoke.

Vocal and no vocal rhay be reversed.

Start the source.

Karaoka with disc: -, page 15

Karaoke with tape: mpage 31

Karaoke with external sources: m page 53

Adjust volume with [VOLUME] and

[MIC VOL] and start singing along.

To cancel

Press[KARAOKE] to select off mode.

Remote control:

Press[SHIFT] +[KARAOKE} to selectthedesired mode.

When using the VOICE MUTE function

Voice mute may not function effectively or noise may interfere when

using the following software,

• Monaural software

•Software with few musical instruments, including classic music and

poetry recitations

•Software with duets or strong choruses

Karaoke mode cannot be used with surround systems or surround

effects.

t_Ts_t7

KAP_

Adding effects to your karaoke

(KARAOKE EFFECT)

Press [KARAOKE EFFECT].

Within 5 seconds

Operate the joystick (< or _) to select

the desired mode.

KEYCON _, ECHO

Operate the joystick (& or 5') to select

the desired level.

KEYCON:

-3 _,-2 _,-1 ._ 0 _, +1 *_ +2 _-, +3

ECHO:

1_" 2'_ 3 _* OFF

t t

To cancel

Press [KARAOKE EFFECT].

The current mode is displayed. Press again to cancel the mode.

Remote control:

Press [SHIFT] + [KARAOKE EFFECT].

(_ Press the cursor buttons [<1]or [1_]to select the desired mode.

(_ Press the cursor buttons [A] or [V] to select the level of effect.

Karaoke effects cannot be used with surround systems or surround

effects.

]To record your karaoke performance I

Preparation: Do the preparatory steps (-, page 42).

(_ Select the mode for karaoke and adjust volume (,_ page 45

or 46).

(_) When enjoying karaoke with disc or external sources:

Press [t REC/STOP] and start your karaoke performance.

When enjoying karaoke with tape:

Press ['rAPE EDIT] and start your karaoke performance. 1

• To playback the recorded tape, set the karaoke mode to off. _

•You cannot record in karaoke mode using sound quality and sur- O

round effect. E

To record your voice

Do the preparatory steps (-, page 42).

1. Press [TAPE, DECK 1/2].

2. Press [OREC/STOP].

3. Speak through the microphone and adjust volume with

[MIC VOL].

RQT5327

DVD/CD

TUNER, BAND

TAPE,DECK 1/2

This timer starts play of the selected source at the selected time•

For U.S.A.: 12-hour clock

For others: 24-hour clock

The example shows settings on the 12-hour clock for play between

6:30 a.m. and 7:40 a.m.

Preparation:

• Press [(_/I, POWER] to turn the unit on, set the time (-, page 12),

•Select the desired source for timer play.

Disc

Press [DVD/CD] and insert an Audio CD, etc.

If more than one disc is loaded

Press [1]-[5] to select the disc you want to play and press [11].

Tape

Press [TAPE, DECK 1/2] and insert a cassette

If tapes are loaded in both decks, playback starts from deck 2.

The radio

Press [TUNER, BAND] and tune in the desired station.

•Set the volume for timer play.

Press [CLOCK/TIMER] to

"®PLAY".

Each time you press the button:

CLOCK -* _PLAY -, _REC --, Original display

t /

select

ON time setting

(_ (Within 8 seconds)

Press [VTUNE/TIME ADJ] or

[TUNE/TIME ADJ^] to select the

start time.

_) Press [CLOCK/TIMER].

OFF time setting

QPress [VTUNE/TIME ADJ] or

[TUNE/TIME ADJ^] to select the

finish time.

_) Press [CLOCK/TIMER].

Press [_PLAY/®REC]

"®PLAY".

Each time you press the button:

®P!_AY -* _)REC :" Odginal dlisplay

The [C)PLAY/®REC] indicator lights.

to display

Press [_/I, POWER] to turn the unit

Off.

The timer will start in the set condition at the set time.

The volume increases gradually to the set level.

if you set the timer incorrectly

Repeat theprocedure from step1.

To cancel the timer

Press [QPLAY/QREC] to clear "_PLAY".

The [_)PLAY/_)REC] indicator turns off.

BAND

This timer records the radio at the set time.

For U.S.A.: 12-hour clock

For others: 24-hour clock

The example shows settings on the 12-hour clock for recording from

6:30 p.m. (18:30) to 8:00 p.m (20:00).

Preparation:

• Press ['_/I, POWER] to tum the unit on, set the time (=, page 12).

• Press [TUNER, BAND] and tune in the desired station•

11MEfl

•5

Press [CLOCK/TIMER] to select "®REC".

Each time you press the button:

CLOCK _ ®pLAY -, QREC _Original display

ON time setting

(_ (Within 8 seconds)

Press [VTUNE/TIME ADJ] or [TUNE/

TIME ADJA] to select the start time.

(_ Press [CLOCK/TIMER].

OFF time settino

(_ Press [VTUNErrlME ADJ] or [TUNE/

TIME ADJ^] to select the finish time.

(_) Press [CLOCK/TIMER].

Press [®PLAY/®REC] to display "®REC".

Each time you press the button:

_PLAY -* ®REC _ Original display

The [®PLAY/®REC] indicator lights.

Prepare for recording•

Insert a tape into deck 2.

(_) Select the reverse mode.

(_ Select the tape direction.

Press [O/I, POWER] to turn the unit

off.

Recording starts 30 seconds before the set time with the

volume muted.

If you set the timer Incorrectly

Repeatthe procedurefromstep 1,

To cancel the timer

Press [_)PLAY/® REC] to clear '_ REC'.

The [_PLAY/®REC] indicator turns off. |

RQT5327

[]

<DPLAY/

<DREC

l_r_

CLOCK/

TIMER

Turning the timers on and off

The selected timer comes on at the set time if the [_PLAY/®REC]

indicator is alight. The indicator can be turned on and off by pressing

[®PLAY/®REC].

Checking the timers

Press [CLOCK/TIMER].

(While the unit is on, press [CLOCK/rIMER] to select "_PLAY" or

"_) REC".)

The set timer conditions are shown in the following order.

Play timer:

start time ÷finish time _source , volume

Record timer:

start time -' finish time -, source

Playing the unit after the timers are set

The unit can be used after the timers are set.

Check the following before turning the unit off again.

If playing tapes or making a recording:

Reset deck selection and tape direction.

If playing disc:

Make sure the desired disc is selected.

• If you turn the unit off and on again while atimer is functioning, the

finish time setting will not be activated.

•If the unit is on, the timer will not function. The unit must be in the

standby mode.

• If AUX is selected as the source, when the timer comes on, the

system turns on and engages AUX as the soume. If you want to

playback or record from aconnected unit, set the other unit's timer

to the same time. (See the other unit's instruction manual.)

•The record timer cannot be used with DVDs and Video CDs.

•The timer cannot be used to start the CD MANAGER or program

play.

RQmote control only

Thistimerturnsthe unitoff aftera set time.

Press [SHIFT] + [SLEEP] to select the time

(minutes).

Each t_meyou press the button:

SLEEP 30 -" SLEEP 60 --, SLEEP 90

_-SLEEP OFF _SLEEP 120

To cancel the sleep timer

Press[SHIFT] + [SLEEP]to select"SLEEP OFF".

To confirm the remaining time

While the timer is functioning

Press [SHIFT] + [SLEEP].

The remaining time is shown for about 5 seconds.

To change the setting

Press [SHIFT] + [SLEEP] to display the remaining time, then press

again to select the required time.

The play and sleep timer or the record and sleep timer can be used

together.

The sleep timer always has priority. Be sure not to overlap timer

settings.

The play and record timer cannot be used with each other.

-DISPLAY/

-DEMO

•OISPLAYI (_

-DESO

The unit's display shows the level of each sound range with the three

types of display described below.

Press [-DISPLAY/-DEMO].

Each time you press the button:

Normal display -, Peak-hold display , Aurora display

toff (dimmer) J

(_ Normal display

This display indicates the strength of the sound in each tonal

range.

Peak-hold display

The peak sound value of each sound range is held on the display

for about one second after it occurs,

(_) Aurora display

The peak sound value of each sound range is displayed in invert-

ed form,

_) off (dimmer)

The display is dimmed and indicators, except for [AC IN] indica-

tor, are turned off for better television viewing.

ITING

Remote control only

Press [MUTING],

Volume is reduced to minimum.

To cancel

Press[MUTING] again.

"MUTING" goes out.

To cancel fromthe unit, turn[VOLUME] to minimum(-- dB), then

raise itto therequiredlevel.

Mutingis alsocanceledwhen theunitis turnedoff.

Reduce the volume before connection,

Avoid listening for prolonged periods of time to prevent hearing

damage.

Plug type: 3.5 mm (% in.) stereo

When using L-plug headphones (not included), turn the plug to the

left so it doesn't interfere with deck 1. II

RQT5327

_Laser disc player (not included)

AUDIO

OUT

Rear panel

11o

'Aux

Video cassette recorder

(not included)

AUDIO AUOIO

OUT IN

Rearpanel

Record player (not included)

AUDIO

OUT

Rear panel

•Turn the unit off before making connections.

• Refer to the manual of the other unit for details.

(Cables and equipment not included.)

Stereo connection cable (not Included)

White (L)

Red (R) _

[] Laser disc player (without 5.1ch output), etc.

This unit has Dolby Pro Logic circuitP/. The sound will be repro-

duced with the same powerful stereophonic effects found in

movie theaters,

[] Video cassette recorder

You can playback the sound from a video cassette recorder

through this unit's speakers or record sound from this unit onto

a video cassette.

[] Record player

Soundcannotbe producedunlessan phonoequalizer(not in-

cluded)is connected.

Arecordplayerwitha built-in phonoequalizeris recommended.

[] Subwoofer

The includedfrontspeakers have super woofers,but by con-

nectinga subwoofer,youcan enhancethebasseffectfoundon

DVDs encodedwithDolbyDigital(=, page 38 foroperation),

[] TV with an S-VIDEO terminal

The S-ViDEO output terminal achieves a more vivid picture

than the video output terminal by separating the color and lumi-

nance signals before transmitting them to the television. (Actual

results depends on the television.)

S-VIDEO cable :_

(not included)

See the television's manual for details on connection and oper-

ation.

[]

Press [AUX].

The unit comes on automatically,

Operate the unit.

See the unit's manual for details on operation and connection.

Do the preparatory steps (-, page 42).

1Press [AUX].

2 Press [OREC/STOP].

3Start the source to be recorded.

See the unit's manual for details on operation and connection,

To stop recording

Press [OREC/STOP].

Select the desired source with the source select buttons.

Start recording on the external unit and start playing the source to be

recorded.

Source select buttons i

t,.

ROTS327

Jrrilg R,J]]I j

Iia-'_ ,'F_

¢j

ROT5327

This chart shows the initial settings for this unit.

The menu and on-screen message language has been factory pre-

set to English. You can change the language by going to "3 Menu

Language" and selecting the preferred language.

See page 56 for details on operation.

Shaded items are the factory settings.

1 Disc Languages

2 Ratings

3 Menu Language

4 On-Screen

Messages

5 TV Aspect

6 Speaker Setting

9 Other Settings

Item

1Audio

2 Subtitle

3 Menus

Options

5 Spanish 4Original

2French 6 Original 2 Chinese 2 French 5 Other ÷ ÷ ÷ ÷

3 German 7 Other÷÷÷÷ 3 Original 3 Spanish

4 Italian 4 Other ÷ ÷ ÷ ÷

_" 5 Italian !,,A_tic 4 Spanish

2 English 6 Spanish 2 English 2 English 5 Other ÷-÷ ÷ ÷

3 French 7Other ÷ ÷ ÷ ÷ 3 Chinese 3 French

4German 4 Other ÷ ÷ ÷ ÷

4Italian _*_g_ 4 Other÷÷÷÷

2 French 5 Spanish 2 Chinese 2 French

3 German 6 Other÷÷÷÷ 3 Other÷÷÷÷ 3 Spanish

Level 8 (All DVDs can be played) to level 0(Play of all DVDs is prohibited)

The factory setting is level 8.

You must also set a password if you change the rating to any level other than

"8" (-, page 57).

4 Italiano 3 EspaSol

2 Francis 5 EspaSol 2 5_ 2 Franc_ais

3 Deutsch

1 On-Screen Messages 2 Off

......................................................

2 Color and Position 4 Blue

2 Violet 5 Violet

3Green 6 Green

2 16:9

Center speaker delay time 3.9 ms

1.3 ms 5.3 ms

2.6 ms

Surround speaker delay time 10,6 ms

5.3 ms 15.9 ms

1 Still Mode

2 Field

3 Frame

................................................... __

2 Audio during Search 2 Off

3 "rv Mode (4:3) 2 Letterbox

4O.Range Compression

2On

5 Still Picture Display _2 On

.............................................

6NTSC Disc Output 2 NTSC

-m ......... m .................................

6 Black Level Control 2Darker

Changesto the initial settings remain intact after the unit is turned off.

Do the setting procedures again to restore to the original settings.

There is no item 7 or 8.

Setting details

Selectthe soundtrack language.Some discs are designedto startin a certainlanguagedespiteanychangesyoumake here.

Input a codenumberwiththe numberedbuttonswhen youselect"5 Other ÷ ÷ ÷ ÷" (,,_page 59).

Select the subtitle language. Some discs are designed to start in a certain language despite any changes you make here.

Input acode number with the numbered buttons when you select "5 Other ÷ ÷ ÷ ÷" (,., page 59).

Select the language for the top menu and other menus shown by the disc.

input a code number with the numbered buttons when you select "4 Other _ ÷ ÷ ÷" (,,, page 59).

Set a ratings level for playing DVDs. The DVDs must have ratings levels recorded on them for this feature to be effective, Discs with this

feature will be marked.

Level 8: All DVDs can be played.

Level 7 to level 1: Prohibits play of DVDs with ratings recorded on them.

Level 0: Prohibits play of all DVDs.

The password screen is shown if you choose levels 7 to 0.

Select the language used for menus and messages the unit displays on the television (including these menus).

Choose whether to show the oo-screen messages that appear on the television when you perform operations.

Select the color and position of on-screen messages and GUI.

Select the aspect ratio to suit your television.

4:3: Regular television 16:9: Widescreen television

The optimum when listening to 5.1 channel sound is for all the speakers, except for the subwoofer, to be the same distance from the

listening position.

You can adjust the delay time for the center and surround speakers to make up for differences in distances between the speakers

(-, page 59).

These adjustments are effective when playing DVDs encoded with Dolby Digital.

Select a picture type for when the picture is paused.

Field: Less blurred field stills are shown. Select it jittering occurs when "1 Automatic" is selected.

Frame: Sharper frame stills are shown. Select if small text or fine patterns cannot be seen clearly when "1 Automatic" is selected.

SeLect whether to have sound on or off during the first level of forward search.

Select how software made for a widescreen television is displayed on a regular television (-, page 58).

Select whether to have dynamic range compression on or off during play of Dolby Digital software. Dynamic range is the difference between

the loudest sound and the softest sound. By compressing this range, you can listen at low volume but still enjoy clear dialog.

Select whether the picture type (I/P/B) is shown when a DVD is paused.

Select whether to output the video signal on NTSC discs as PAL 60 or as the original NTSC signal.

if you have connected a PAL system television, select "1 PAL 60".

If you have connected a mufti system television, select =2 NTSC".

Lighter or darker picture.

RQT5_7

buttons

-DVD/CD

Remote control only

Once the initial settings have been completed, the unit can always

be operated under the same conditions.

Preparation:

Press [DVD/CD] to setect disc as the source.

The unit comes on automatically.

1While the disc is stopped

(For U.S.A., Australia and New Zealand)

Press [SHIFT] + [ACTION].

(For others)

Press [SHIFT] + [SETUP].

The initial settings menu is displayed.

2Press the cursor buttons [,L] or [V]

to highlight the item, and press

[ENTER].

3Press the cursor buttons (<, I_, A, _')

to select the item, and press

[ENTER].

Repeat step 3 as the menus require to make the changes,

Steps 2and 3 can also be done with the numbered buttons.

Press the number next to the required item.

For example, press [3] to select "3 Menu Language".

To return to the previous screen

Press[RETURN].

To exit the Initial settings menu

(For U.S.A., Australiaand New Zealand)

Press[SHIFT]+ [ACTION].

(For others)

Press[SHIFT]+ [SETUP].

• The initial settings cannot be accessed while program mode is on

("P" is displayed, -_ page 23).

Press [PROGRAM] to turn the mode off.

• The initial settings cannot be accessed while CD MANAGER

(-_ page 25) is on. press [CD MANAGER] to select "NORMAL".

ROT5327

The password screen is shown if you choose levels 7 to O.

_! Entera 4-digitpassword,

=m_ thenpressENTER

(_ Input a 4-digit password with the numbered buttons and press

[ENTER].

Example: "4343" -

O_ _ :_

O_ _player is locked,

Rememberthe password.

_ss ENTERtocontinue

(_) Press [ENTER].

To change the level setting or the password

(_) Select "2 Ratings".

The password screen is shown,

i Enteryour4-digitpassword_

: thenpressENTER.

Press RETURN to exit

(_ Input your password with the numbered buttons and press

[ENTER].

(_) Select an item with the cursor buttons and press [ENTER].

1 Unlock Player:

2 Change Password:

3 Change Level:

4 Temporary Unlock:

The rating level returns to 8 and the play-

er is unlocked.

You can change the password.

Enter new 4 digits and press [ENTER],

then press [ENTER] again.

You can change the rating level.

Select anew level with the cursor but-

tons (& or V), then press [ENTER].

The player is unlocked temporarily only

for the current disc. The player is locked

again when the disc tray is opened or the

player is turned off.

Press [RETURN] to restore the odginal display.

RQT5327

I:L'_ _i_4fTL_._L_iL'_.,[-:_ri[.]]m _[]_'_'_[.r.1

DVD software is recorded in avariety of picture formats, and how they appear on your television depends on the software, the kind of television

you have, and the picture mode your television is set to.

•Letterbox refers to pictures where black bands appear at the top and bottom.

•Pan & Scan refers to pictures where part of the picture is cut off so it fills the whole screen.

Television and

Software format _

Wide screen, Pan and Scan

Wide screen,

non-Psc and Scan

Regular (4:3)

Regular (4:3), letterbox

4:3

Edges cut off

'=_-',,,,,

I.... b

Letterbox

'!Z[

Full screen

Letterbox

16:9

full mode

FuI[ screen

Screen stretched

horizontally

Letterbox with screen

stretched hodzontally

16:9

zoom mode

Top and bottom cut off

r ...........

........... J

Top and bottom cut off

• ........... J

Full screen

16:9

auto mode

Full screen

Full screen with black

bands on the left and right

Letterbox with extremities

of picture stretched

The names given to the television picture modes depend on the maker of your television. There may also be slight differences in how the pictures

appear on the screen. Refer to your television's operating instructions for details.

ROT5327

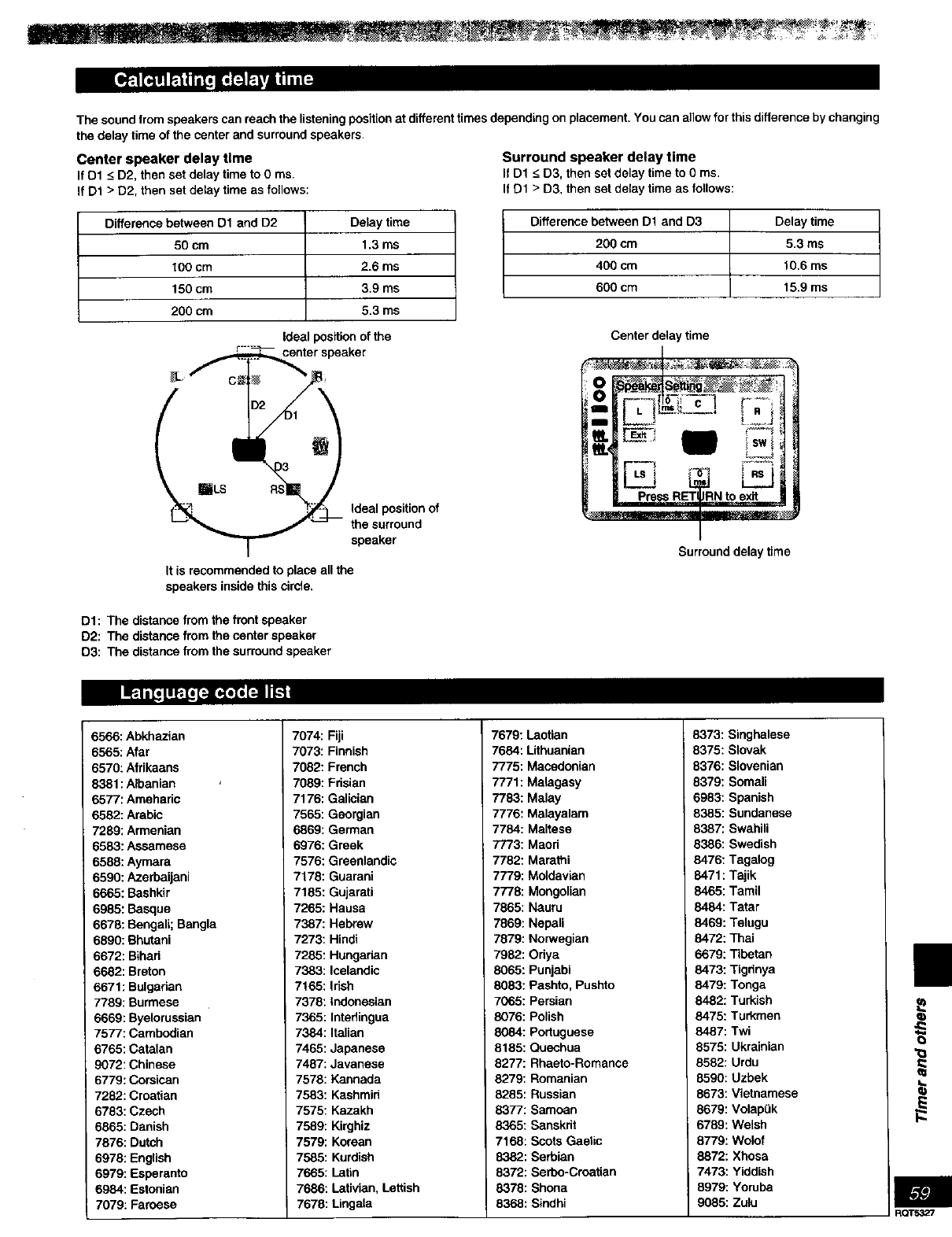

The sound from speakers can reach the listening position at different times depending on placement. You can allow for this difference by changing

the delay time of the center and surround speakers.

Center speaker delay time

If D1 -<D2, then set delay time to O ms.

If D1 > D2, then set delay time as follows:

Surround speaker delay time

if D1 _<D3, then set delay time to 0 ms,

If Dt > D3, then set delay time as follows:

Difference between D1 and D2

50 cm

100 cm

150 cm

200 cm

Delay time

1.3 ms

2.6 ms

3.9 ms

5.3 ms

Ideal position of the

center speaker

Difference between D1 and D3 Delay time

206 cm 5.3 ms

400 cm 10.6 ms

600 cm 15.9 ms

Center delay time

Ideal position of

the surround

speaker

It is recommended to place all the

speakers inside this cimle,

DI: The distance from the front speaker

D2: The distance from the canter speaker

D3: The distance from the surround speaker

Surround delay time

Iii_ I_..,,_ ["_'_'_]_Ii_

6566: Abkhazian

6565: Afar

6570: Afrikaans

8381 : Albanian

6577: Amehadc

6582: Arabic

7289: Armenian

6583: Assamese

6588: Aymara

6590: Azerbaijani

6665: Bashkir

6985: Basque

6678: Bengali; Bangla

6890: Bhuteoi

6672: Bihari

6662: Breton

6671: Bulgadan

7789: Burmese

6669: Byelorussian

7577: Cambodian

6765: Catalan

9072: Chinese

6779: Corsican

7282: Croatian

6783: Czech

6865: Danish

7876: Dutch

6978: English

6979: Esperanto

6984: Estonian

7079: Faroese

7074: Fiji

7073: Finnish

7082: French

7089: Fdsian

7176: Galician

7565: Georgian

6869: German

6976: Greek

7576: Greenlandic

7178: Guarani

7185: Gujarati

7265: Hausa

7387: Hebrew

7273: Hindi

7285: Hungarian

7383: Icelandic

7165: Irish

7378: Indonesian

7365: Intedingua

7384: Italian

7465: Japanese

7487: Javanese

7578: Kannada

7583: Kashmid

7575: Kazakh

7589: Kirghiz

7579: Korean

7585: Kurdish

7665: Latin

7686: Lativian, Lettish

7678: Lingala

7679: Laotian

7684: Uthuanian

7775: Macedonian

/771: Malagasy

7783: Malay

7776: Malayalam

7784: Maltese

7773: Maod

7782: Marathi

7779: Moldavian

7778: Mongolian

7865: Nauru

7869: Nepali

7679: Norwegian

7982: Odya

8065: Punjabi

8083: Pashto, Pushto

7065: Persian

8076: Polish

8084: Portuguese

8185: Queohua

_277: Rhaeto-Romance

8279: Romanian

_285: Russian

8377: Samoan

8365: Sanskrit

7168: Scots Gaelic

8382: Serbian

8372: Serbo-Croatian

8378: Shona

8368: Sindhi

8373: Singhalese

8375: Slovak

8376: Slovenian

8379: Somali

6983: Spanish

8385: Sundanese

8387; Swahili

8386: Swedish

8476: Tagalog

8471: Tajik

8465: Tamil

8484: Tatar

8469: Telugu

8472: Thai

6679: Tibetan

8473: Tigdnya

8479: Tonga

8482: Turkish

8475: Turkmen

8487: Twi

8575: Ukrainian

8582: Urdu

8590: Uzbek

8673: Vietnamese

8679: VolapOk

6789: Welsh

8779: Wolof

8872: Xhoca

7473: Yiddish

8979: Yoruba

9085: Zulu

Beforerequestingservice,makethebelowchecks.Ifyoucan'tfixtheunitasdescribedbelow,orifsomethingnotlistedhereoccurs,refertothe

encloseddirectorytolocateanAuthonzedServiceCenterconvenienttoyouorcontactyourdealer.

For detailed Instructions, contact an authorized servlcenter In the U.S.A..

In the U.S.A., carl 1-800-211-7262, e-mall consumerproducts@paneeonic.com, or visit www.panasonic.com

Reference pages are shown as black circled numbers Q.

Common Problems

NO _nd.' Turn ills v_s:up,

The speaker cab es may be shorted. Turn the unit off check and correct the connections and turn

z:' n

....... the ur_o .0,

Check the speaker connections. O,

Sound is unfixed, reversed or

comes from one speaker only.

Humming heard during play.

- i

"ERROR" is displayed.

"DTS NO AUDIO" is displayed.

"DVD H0[_" Is displayed.

l([3[_will be numbers.)

An AC power supply cord or fluorescent light is near the cables. Keep other appliances and cords

away from this unit's cables.

If possible jn your area, turn the AC power supply cord's plug or connector over io reverse the

plug's polarity.

Incorrect operation performed, Read the instructions and try again,

You Plugg_ the power supply cord in for the first time Or there wasa _wer failure recently.

t_e

Check and correct the speaker cords connection.

if this does not fix the problem, there is a power supply problem. Consult the dealer.

This unit is unable to decode DTS signals.

Tlte mdiL_ _ with asoft cloth; ,, _.

A problem has occurred. Turn the unit off end unplug the AC power supply cord. Wait a moment

and then plug the cord in and turn on the unit again. If the unit is stillnot working correctly, consult

your dealer.

Listening to the radio

When there is e television set nearby

The picture on the TV disappears The location and orientation of the antenna are incorrect• If you are using an indoor antenna.

or stripes appear on the screen, change to an outdoor antenna.

The TV antenna wire is too close to the unit. Separate the antenna wire of the TV set from the unit.

)

RQT5327

Using the cassette deck

..... _ i_ .... .:

It the erasure prevention tabs have been removed, cover the holes with adhesive tape.

Playing discs

"TAKE OUT/DISC" appears on the

display.

The picture does not appear on

the TV, when playing DVD.

The picture does not appear on

the TV, when playing Video CD.

CD MANAGER, program and

random play cannot be used.

The initial settings menu cannot

be accessed.

There is a problem with the disc mechanism. (A power failure may have occurred.)

The tray will open automatically. Remove the disc from the tray, and after ensuring there is no disc

in the tray, close it. The unit will make the disc changing noises for a few moments and then it

should operate normally.

The reason number of the dmc doesn't match the reach numberof this unit: O

Connect the video connection cable. O,_ _? _ •

Set the TV to video input mode. ...... .

Connect the video connection cable. O, O

Set the TV to video input mode.

Ensere a Video CD or CD is in the play position tray.

Select disc as the source•

Cancel program and random play, or select =NORMAL" with CD MANAGER. e, e,

The remote control

The remote control doesn't work. Check the batteries are inserted correctly.

Replace the batteries if they are worn.

If the surfaces are dirty I

To clean this unit, wipe with a soft, dry cloth.

If the surfaces are extremely dirty, use a soft cloth dipped in asoap-

and-water solution or a weak detergent solution,

•Never use alcohol, paint thinner or benzine to clean this unit.

•Before using chemically treated cloth, read the instructions that

came with the cloth carefully.

Do not attempt to remove the cover(s) or repair the unit yourself.

Refer servicing to qualified personnel only.

I Product Information ]

For product service, product information or assistance with product

operation, refer to the servicenter directory.

I For a cleaner crisper sound I

Clean the heads regulady to assure good quality playback and

recording.

Use a cleaning tape (not included).

RQT5327

Panasonic Technics qu - ar.

1-800-332-5368 (Customer Orders OnLy)

Panasonic Services Company 20421 84th Avenue South, Kent, WA 98032

(6 am to 5 pm Monday-Friday; 6 am to 10:30 am Saturday; PST)

(Visa, MasterCard, Discover Card, American Express, Check)

CALIFORNIA

6550 Katella Avenue

Cypress, CA 90630

800 Dubuque Avenue

;. San Francisco

CA 94080

20201 Sherman Way

Suite 102

Canoga Park, CA 91306

3878 Ruffin Road

Suite A

San Diego, CA 92123

COLORADO

1640 South Abilene Street

Suite D

Aurora, CO 80012

FLORIDA

3700 North 29'h Avenue

Suite 102

Hollywood, FL 33020

GEORGIA

8655 Roswell Road

Suite 100

Atlanta, GA 30350

ILLINOIS

9060 Golf Road

Niles, [L 60714

1703 North Randall Road

Elgin, IL 60123

(Pick-up/Drop-off only)

MARYLAND

62 Mountain Road

Glen Burnie, MD 21061

MASSACHUSETFS

60 Glacier Drive

Suite G

Westwood, MA 02090

MICHIGAN

37048 Van Dyke Avenue

Sterling Heights, MI 48312

MINNESOTA

7850+12 thAvenue South

Airport Business Center

Bloomington, MN 55425

OHIO

2236 Waycross Road

Civic Center Plaza

Forest Park, OH 45240

PENNSYLVANIA

2221 Cabot Bird. West

Suite B

Langhorne, PA 19047

TENNESSEE

3800 Ezell Road

Suite 806

Nashville, TN 37211

TEXAS

13615 Welch Road

Suite 101

Farmers Branch

TX 75244

WASHINGTON

20425-84 mAvenue South

Kent, WA 98032

HAWAII

99-859 Iwaiwa Street

Aiea, Hawaii 96701

Phone (808) 488-1996

Fax (008) 486-4369

AMPLIFIER SECTION

Front speaker power output

RMS power output

THD 1.0 %, both channels driven

55 Hz-120 Hz 75 W per channel (6 fz)

120 Hz_ kHz 25 W per channel (6 _)

4 kHz-15 kHz 25 W per channel (6 Q)

Total trl-amp power 125 W per channel

PMPO power output 2700 W

RMS power output

THD 10 %, both channels driven

Total 160 Wper channel (6 _)

LOW (at 100 Hz) 100 W per channel (6 _)

MID (at I kHz) 30 W per channel (6 £z)

HIGH (at 10 kHz) 30 W per channel (6 Q)

Power output in Dolby Pro Logic

RMS power output

THD 1.0 %, both channels driven

Front

(at 55 Hz-120 Hz)

75 Wper channel (6 £z)

(at 120 HZ-15 kHz)

25 W per channel (6 _)

Center (at I kHz) 40 W (8 _)

Surround (at I kHz)

30 W per channel (8 _)

Total power output 300 W

I;F_['dI_I='RF_I

PMPO power output Total 3200 W

RMS power output

THD 10 %, both channels driven

Total 400 W

Front

LOW (at 100 Hz)

100 W per channel (6 _)

HIGH (at 1 kHz) 30W per channel (6 _)

Center (at lkHz) 70 W (8 _)

Surround (at 1 kHz)

35 W per channel (8 _)

Input sensitivity

AUX 250 mV

MIC 0.7 mV

Input Impedance

AUX 10 k.Q

MIC 600

FM TUNER SECTION

Frequency range

(For U.S.A.)

87.9-107.9 MHz (200 kHz step)

87,5-108,0 MHz (100 kHz step)

(For others)

87.50-108.00 MHz (50 kHz step)

Sensitivity 1.8 pV (IHF)

SIN 26 dB 1.5 pV

Antenna terminals 75 Q(unbalanced)

AM TUNER SECTION

Frequency range

(For U.S.A.)

529-1710 kHz (10 kHz step)

(For Australia and New Zealand)

522-1629 kHz (9 kHz step)

(For others)

522-1629 kHz (9 kHz step)

520-1630 kHz (10 kHz step)

Sensitivity

[a'_l.eJK] f_l

S/N 20 dB at 1000 kHz 500 pV/m

S/N 20 dB at 999 kHz 500 pV/m

CASSETTE DECK SECTION

Track system 4 track, 2 channel

Reads

Record/playback Solid permalloy head

Erasure Double gap ferrite head

Motor DC servo motor

Recording system AC bias 100 kHz

Erasing system AC erase 100 kHz

Tape speed 4.8 cm/s (17/8 ips)

Overall frequency response

(+3, -6 dB at DECK OUT)

NORMAL (TYPE I) 35 Hz-14 kHz

HIGH (TYPE II) 35 Hz-14 kHz

S/N ratio 50 dB (A_WTD)

Wow and flutter 0.18 % (WRMS)

' Fast forward and rewind time

Approx. 120 seconds with C-60 cassette tape

DISC SECTION

Disc

DVD-Video

8 cm/12 cm single-sided, single-layer

8 cm/12 cm single-sided, double-layer

8 cm/12 cm double-sided, double-layer

(One layer per side)

Video CD/CD 8 cm/12 cm

Video

Signal system

(For Asia) NTSC/PAL

(depending on disc format)

(For Australia and New Zealand)

PAL/PAL60

(depending on disc format)

(For U.S,A. and others) NTSC

Output level

Composite video 1 Vp-p (75 Q)

S-VIDEO Y 1Vp-p (75 _)

S-VIDEO C

(For Asia)

0,300 Vp-p (75 P/PAL)

0.286 Vp-p (75 P/NTSC)

(For Australia and New Zealand)

0.300 Vp-p (75 P/PAL)

(For U,S.A. and others)

0.286 Vp-p (75 P/NTSC)

Audio

Sampling frequency

CD 44.1 kHz

DVD 48 kHz/g6 kHz

Decoding 16/20/24 bit linear

Wow and flutter BeLow measurable limit

DlgltM filter 8 fs

D/A converter Delta-sigma DAC

Pick up

Beam Source Semiconductor Laser

Wavelength 665 nm

SPEAKER SECTION

IFront speakers SB-DK21

Type

Speakers

Super woofer

woofer

Tweeter

Impedance

HIGH

MID

LOW

Input power

HIGH

MID

LOW

Output sound p_,ssure level

Cross over frequency

Frequency range

Dimensions (WxHxD)

Msu

3 way speaker system

17 cm (61V_e") cone type

12 cm (4_/= ") cone type

6 cm (23/0") cone type

60 W (Musk:)

60 W (Music)

140 W (Music)

07 dB/W (1.0 m)

150 Hz, 3.5 kHz

45 Hz-22 kHz (-16 de)

55 Hz-20 kHz (-10 dB)

220x330x302 mm

(82V="x13"xl 1_/e")

Approx. 4.7 kg (10.4 Ib,)

ISurround speakers SB-PS70 i

Type 1way, 1 speaker

Speaker

Full range 8 cm (3Ve") cone type

impedance 8

Input power 60 W (Musk:)

Output sound pressure level 84 dB/W (1.0 m)

Frequency range 120 Hz-20 kHz (-16 dB)

Dimensions 0NxHxD) 170xl 06xl 18 mm

(6_V_"x4_/_"x4_V=z")

Mass Approx. 0.9 kg (2.0 lb.)

ICenter speaker SB-PC70 I

Type 2 way, 2 speaker

Speaker

Woofer 10 cm (4") cone type

Tweeter 6 cm (2z/s") cone type

Impedance 8

Input power 120 W (Music)

Output sound pressure level 85 dB/W (1.0 m)

Cross over frequency 4 kHz

Frequency range 75 Hz-22 kHz (-16 dB)

Dimensions (WxHxD) 250xl 21x147 mm

(9_/_"x4_/_"x5_/_ ")

Mass Approx. 1.6 kg (3.5 lb.)

GENERAL

Power supply

(For U.S.A.) AC 120 V, 60 Hz

(For Australia and New Zealand)

AC 230-240 V, 50 Hz

(For others)

AC 110/127/220/230-240 V,

50/60 Hz

Power consumpUon

(For U.S.A.) 240 W

(For Australia and New Zealand) 190 W

(For others) 190 W

Dimensions (WxHxD) 270x330x339 mm

(10_/s,,xl3"x13-/=")

Mass

(For U.S.A.)

Approx. 9.3 kg (20.5 lb.)

(For others) Approx. 9.4 kg

Power consumption in standby mode

(For U.S.A.)

(For Australia and

New Zealand)

(For others)

Normal: 14.5 W

ECO: 0,25 W

Normal: 15.0 W

ECO: 0.4 W

Normal: 15,0 W

ECO: 0.8 w

Notes:

1, Specifications are subject to change

without notice.

Mass and dimensions are approximate.

2, Total harmonic distortion is measured

by the digital spectrum analyzer,

RQT5327

The model number and serial number of this product can be

found on either the back or the bottom of the unit,

Please note them in the space provided below and keep for

future reference.

MODEL NUMBER SERIAL NUMBER

Main unit SA-DK2

Front speakers SB-DK2

Center speaker SB-PC70

Surround speakers SB-PST0

User memo:

DATE OF PURCHASE

DEALER NAME

DEALER ADDRESS

TELEPHONE NUMBER I

Apparatus Claims of U.S. Patent Nos. 4,631,603, 4,577,216, and 4,819,090, licensed for limited viewing uses only.

This product incorporates copyright protection technology that is protected by method claims of certain U.S. patents and other intellectual

property rights owned by Macrovision Corporation and other rights owners. Use of this copyright protection technology must be authorized

by Macrovision Corporation, and is intended for home and other limited viewing uses only unless otherwise authorized by Macrovision

Corporation. Reverse engineering or disassembly is prohibited,

Panasonlc Consumer Electronics

Company, Division of Matsushita

Electric Corporation of America

One PanasonicWay Secaucus,

New Jersey 07094

http'J/www.panasonic.com

Panasonic Sales Company,

Division of Matsushita Electric of

Puerto Rico, Inc. ("PSC")

Ave.65 de Infanteria,Km.9.5

San GabrielIndustdatPark, Carolina,

PuertoRico00985

Matsushlta Electric industrial Co., Ltd.

Osaka 542-8588, Japan

Printed in Singapore P0300GL0

PANASONIC DVD Systems Manual L0011104

Navigation menu

Versions of this User Manual:

Views

Navigation
