UserMan
Page 1 Confidential
Driving Recorder - GoSafe WiFi
Version: 1.7 15July 2013
1.1 Key Features
Video Formats Support 1080p30
Auto Recording once Engine Start
Support Cycle Recording
Emergency File Protection by Hand or G-Sensor
Low Luminance 2.4 mega Pixels Image Sensor
Built-in G-Sensor
Built-in WiFi
Control with your smartphone
1.2 Specifications
Items
Specification
Model
GoSafe WiFi
Main Chip
Am
bare
lla A
5s
66
LCD
N/A
Image Sensor
1/
2.8
”
2.4
mega
-
pixel CMOS
(
Sony IMX1
22
)
DRAM
128
Mx16bit(
2
Gb)
DDR III
Internal Memory
128
M x 8bit (
1
Gb) NAND Flash
Operating system
Linux
External Memory
M
icro
SD
HC
Card Slot
Power Supply
5
V
1A USB
Power
Super capacitor
A.
2
Super Capacitor
s
use to supply temporary power to ensure proper shut
down when power is cut off
B. To timing recording, keep going at least 7
day
s
when power off
Power Consumption
4.75V~5.25V / 1A
at
maximum
power output mode
5V/ 5000
μ
A at power
-
off mode
White
Balance
Auto
Exposure Control
Auto
Microphone
Yes
Date/Time (RTC)
Yes
Speaker
1
W x1
G
-
Senso
r
Yes
GPS
N
one
Wifi/GPRS
SDIO Interface (
Atheros
6103)
,
Wireless 802.11 b/g/n
Interface
M
ini
USB 2.0
with 10pin
(Mass stora
ge /
power in
/ plug in gps
)
Micro
SD slot
,
M
ini HDMI
Button
Power
/
EMG REC /
W
ifi
switch
LED indicator
REC
/ Wifi
Operation Temperature
-
2
0~
70
℃
Storage Temperature
-
4
0~
85
℃
Engine Dimensions (LxWxH)
MAX:
4
3
(L) x
40
(W) x
40
(H) mm
Weight
58g

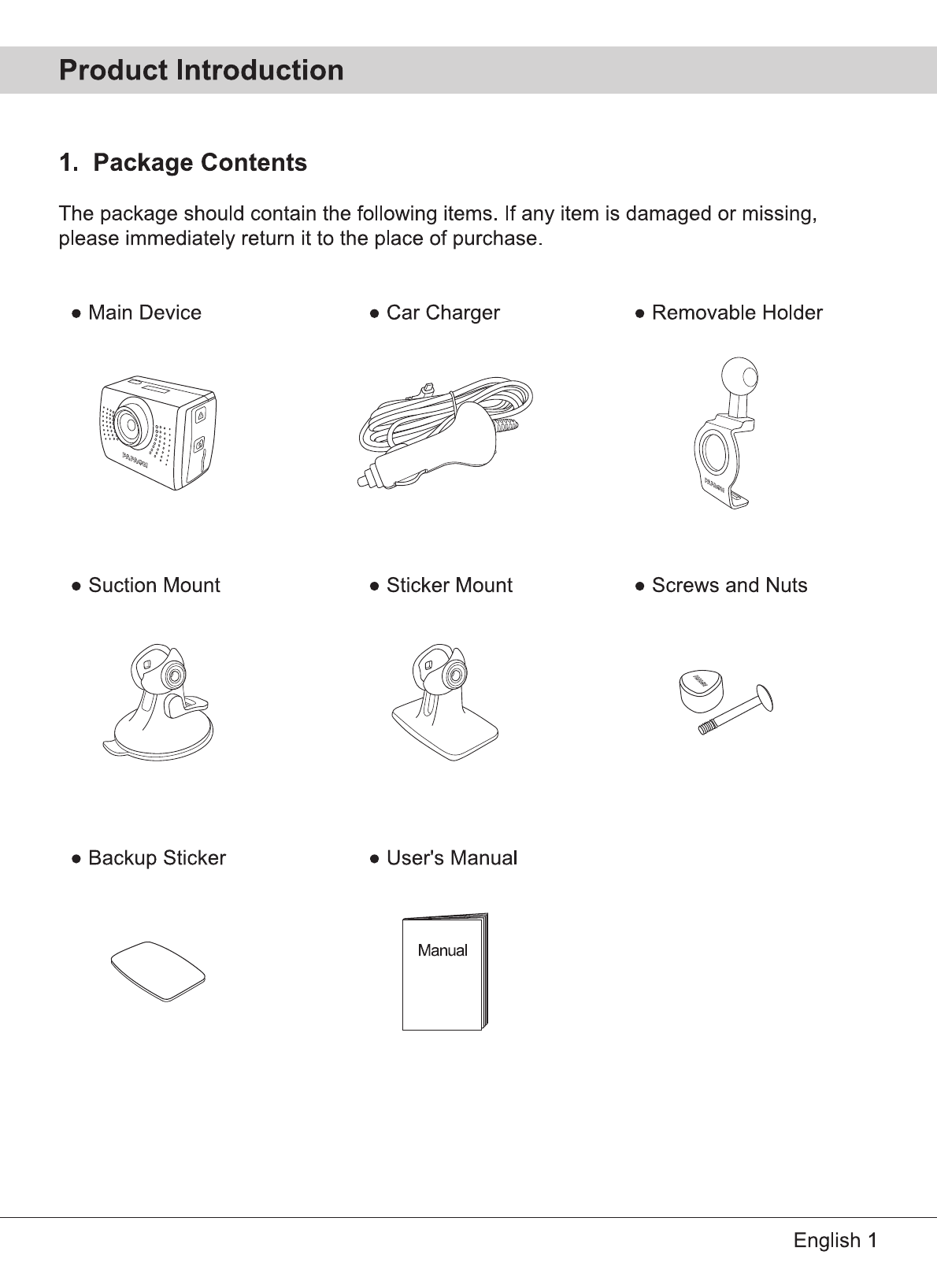

Package Contents
M
ini
USB Car Charger
,
Bracket,
Removable
cradle
, User Guide, Resource CD
,
Warranty Card
Accessor
ies (Option)
Battery Pack
, Waterproof Housing
Certification
BSMI/
CE/FCC
/
NCC
/Wifi Alliance
View Angle
Wide angle lens FOV 1
0
0
°
(
H
)
Lens
F#1.9
FCC Notices
This device complies with Part 15 of the FCC Rules. Operation is subject to the following
two conditions: (1) this device may not cause harmful interference, and (2) this device
must accept any interference received, including interference that may cause undesired
operation.
CAUTION: Change or modification not expressly approved by the party responsible
for compliance could void the user’s authority to operate this equipment.
This equipment has been tested and found to comply with the limits for a Class B
digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide
reasonable protection against harmful interference in a residential installation. This
equipment generates, uses and can radiate radio frequency energy and, if not installed
and used in accordance with the instructions, may cause harmful interference to radio
communications. However, there is no guarantee that interference will not occur in a
particular installation. If this equipment does cause harmful interference to radio or
television reception, which can be determined by turning the equipment off and on, the
user is encouraged to try to correct the interference by one or more of the following
measures:
--Reorient or relocate the receiving antenna.
--Increase the separation between the equipment and receiver.
--Connect the equipment into an outlet on a circuit different from that to which the receiver
is connected.
--Consult the dealer or an experienced radio/TV technician for help.
CAUTION:
Any changes or modifications not expressly approved by the grantee of this device could
void the user's authority to operate the equipment.
RF exposure warning
This equipment must be installed and operated in accordance with provided instructions
and the antenna(s) used for this transmitter must be installed to provide a separation
distance of at least 20 cm from all persons and must not be co-located or operating in
conjunction with any other antenna or transmitter. End-users and installers must be
provide with antenna installation instructions and transmitter operating conditions for
satisfying RF exposure compliance."
