PARROT CK3500 professional car kit with GSM and GPS solutions User Manual
PARROT professional car kit with GSM and GPS solutions
PARROT >
user manual
Hands-free
Car Kit
User manual
For Bluetooth
Mobile Phone
FRA
ESP P.25
ENG P.5
P.15
onAclick inc.
SAT-3500
SAT-3500
www.sat-trac.com
www.sat-trac.com
English
Français
Español
5
15
25
onAclick inc.
Warning :
The manufacturer Parrot S.A. and it’s affiliates shall not be held liable
towards End-Users or third parties for prejudice caused by misuse of
the product, nor for use that would be in violation of local traffic regu-
lations and laws.
Disclaimer :
The information in this document is subject to change without notice and does not
represent a commitment on the part of vendor. No warranty or representation, either
expressed or implied, is made with respect of quality, accuracy or fitness for any parti-
cular purpose of this document.
Information in this document is subject to change without notice. Parrot reserves the
right to change Product Specification and documentation at any time without notice.
In no event will the manufacturer be liable for direct, indirect, special, incidental or
consequential damages arising out of the use or inability to use this product or docu-
mentation, even if advised of the possibility of such damages. This document contains
materials protected by copyright.
All rights are reserved. No part of this manual may be reproduced or transmitted in
any for, by any means or for any purpose without express written consent.
Product names appearing in this document are mentioned fot identification purposes
only.
All trademarks, product names appearing in this document are registered property of
their respective owners.
PTCRB Approved.
FCC Compliance Statement (FCC ID: RKXCK 3500):
This device complies with part 2,15, 22 and 24 of the FCC rules.
Statement according to FCC part 15.19
This device complies with Part 15 of the FCC Rules. Operation is subject to the
following two conditions: (1) this device may not cause harmful interference, and
(2) this device must accept any interference received, including interference that
may cause undesired operation.
Statement according to FCC part 15.21
Modifications not expressly approved by this company could void the user’s
authority to operate the equipment.
Statement according to FCC part 15.105
NOTE: This equipment has been tested and found to comply with the limits for
a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are
designed to provide reasonable protection against harmful interference in a resi-
dential installation. This equipment generates, uses and can radiate radio fre-
quency energy and, if not installed and used in accordance with the instructions,
may cause harmful interference to radio communications.
However, there is no guarantee that interference will not occur in a particular
installation. If this equipment does cause harmful interference to radio or televi-
sion reception, which can be determined by turning the equipment off and on,
the user is encouraged to try to correct the interference by one or more of the
following measures:
. Reorient or relocate the receiving antenna.
. Increase the separation between the equipment and receiver.
. Connect the equipment into an outlet on a circuit different from that to which
the receiver is connected.
. Consult the dealer or an experienced radio/TV technician for help.
Declaration of Conformity:
SAT-3500 is a customized version of the Parrot CK3500.
We, Parrot S.A. of 174 Quai de Jemmapes, 75010 Paris, France, declare under
our sole responsibility that our product, SAT-3500, to which this declaration
relates is in conformity with appropriate standards EN300328, EN301489-17,
EN 60950 following the provision of Radio Equipment and Telecommunication
Equipment directive 1995/5/EC with requirements covering EMC directive
89/336/EEC and Low Voltage directive 73/23/EEC.
Bluetooth:
The Bluetooth® trade mark and logos are owned by the Bluetooth® SIG, Inc.
and any use of such marks by Parrot S.A is under license. Other trademarks
and trade names are those of their respective owners.
Statment warning:
The external antennas used for this mobile transmitter must provide
a separation distance of at least 20 cm from all persons and must not
be co-located or operating in conjunction with any other antenna or
transmitter.
English
User’s guide
EN
SAT-3500 Advanced Car Kit
6User’s guide
OUTLINE
Bluetooth technology offers voice and data transmission via a
short-distance radio link. It can link a wide range of wireless
electronic equipment and expand the communication possibili-
ties of mobile telephones and numerous pieces of equipment.
Based in Paris, founded in 1994 by Henri SEYDOUX, Parrot
S.A is one of the fastest-growing companies. From the very
beginning its specialties have been technologies associated
with voice recognition and signal processing for telecoms and
cars.
The SAT-3500 Car Kit allows you to use your cellular phone
while driving your car with the best of comfort and the best
security possible.
The names of your callers will appear on the screen.
Your phonebook is accessible from the control screen.
The voice command and the voice recognition allow you to
keep your hands on the steering wheel.
Your conversation is carried over the stereo speakers in
your vehicle.
On the screen you can access your telephone phonebook.
Caller name display.
Voice recognition.
Volume control.
Mutes the in-car radio.
(- Requires mutable radio)
Support call waiting.
Pick-up and hang-up via voice
command.
INTRODUCTION
Functionalities
SAT-3500 Advanced Car Kit 7
EN
User’s guide

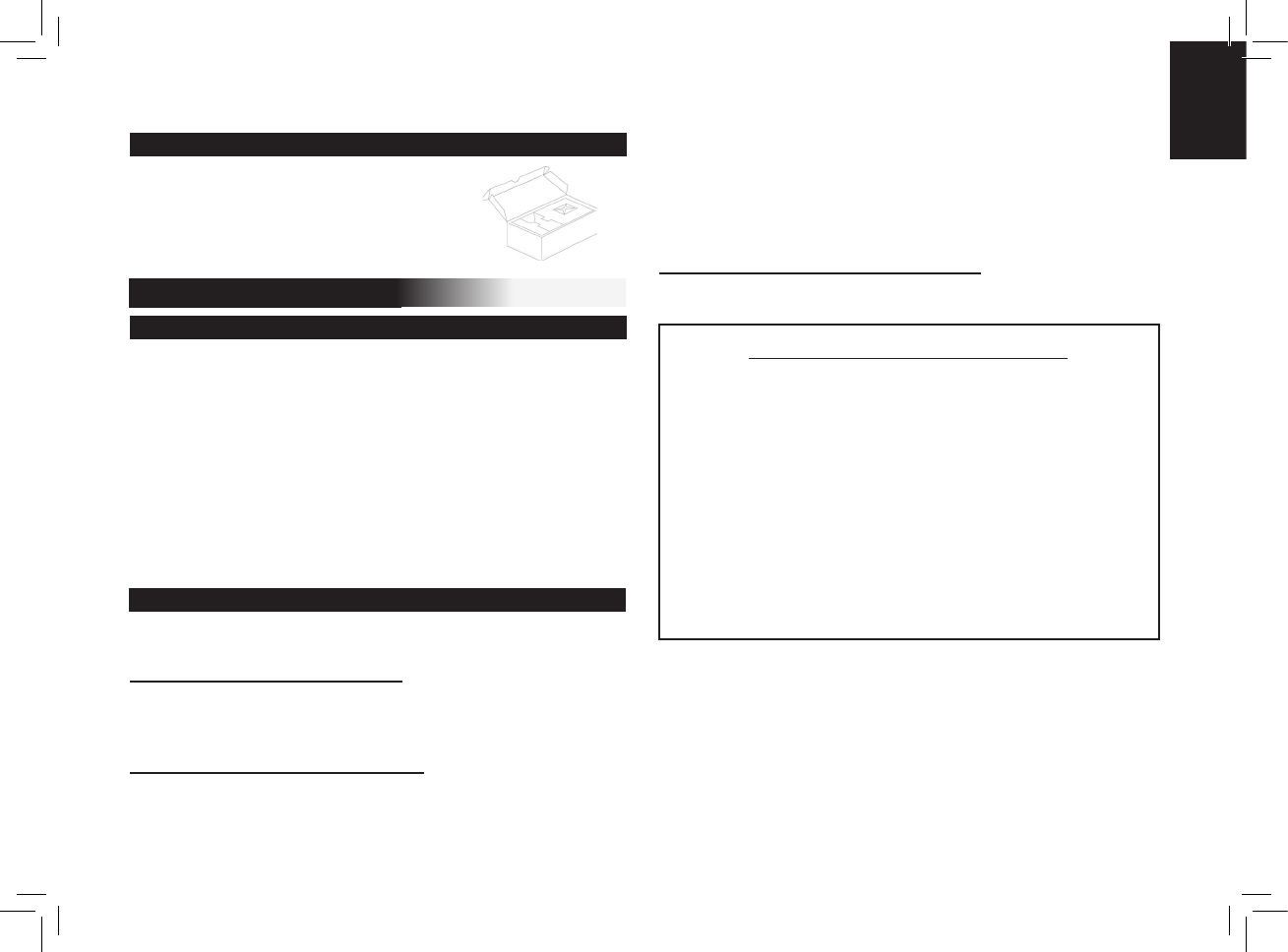

LCD screen Power cable
electronic box microphone
mute cable manual
GSM & GPS Antennas
Contents of the package
SAT-3500 MOUNTING
Installation of the electronic box
The SAT-3500 system is fitted with 4 outputs:
Input - in-car radio output LCD screen power micro-
phone.
It is recommended to install all the cables before fixing the
control box. Each cable supplied has a different connector to
avoid wrong connections.
The box must not be installed near the heating or the air-con-
ditioning.
Ensure that it is not exposed to sunlight. Avoid installing it
behind metal walls, which could alter the quality of the blue-
tooth link.
The mute cable is equipped with black ISO connectors and
with a “line out” output.
In-car radio with «line in» inputs
Preferably use this type of connection by joining the brown and
green wires as well as the yellow wires of the “mute” to the
back of your in-car radio.
In-car radio with «ISO» connectors
Disconnect the audio and supply bundles from the in-car radio
Link the female connectors of the mute supply cables and of
Installation of the in-car radio cable
the power supply cable to the in-car radio. Connect the audio
and supply bundles from the vehicle to the male connectors. If
the in-car radio is equipped with a mute input, connect the
yellow wire of the mute cable to one of the “ Mute in “ inputs 1,
2 or 3.
In-car radio without «ISO» connectors
You must obtain an “ISO” adapter cable
Installation of the power supply cable
The red wire of the power cable must be connected
to the permanent 12V, the orange wire to the 12V and
the black wire to the earth.
Verify the electric wiring of the ISO supply bundle of
the in-car radio.
In some vehicles it is necessary to reverse the positions
of the red and orange wires.
This operation is simply done by reversing the fuse
holders.
If the user does not intend to operate the car at least
once during any thirty day period, we do not recom-
mend connecting the orange wire to the permanent
12V, otherwise you risk causing the vehicle battery to
go flat.
SAT-3500 Advanced Car Kit
8User’s guide

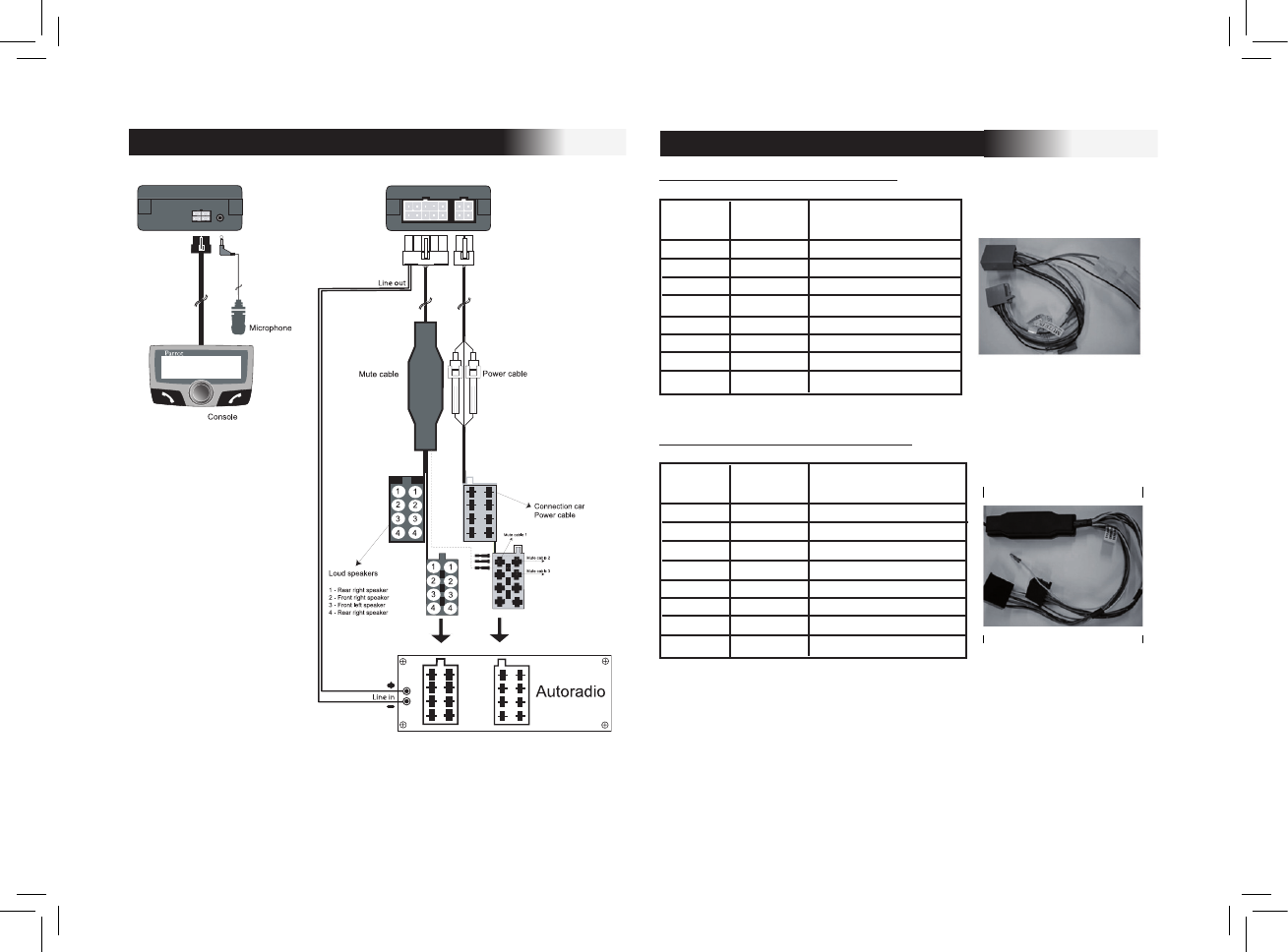

CABLE DIAGRAM CONNECTION
Car kit Parrot, power cable
Pin Color Description
Number
1 White Mute In 1
2 Yellow Mute In 2
3 Blue Mute In 3
4 Orange + 12V Memory
5 Green Not used
6 Brown Not used
7 Red + 12 V Permanent
8 Black Ground
Car kit Parrot, car’s speakers
Pin Color Description
Number
1 Grey Rear right speaker +
2 White Rear right speaker -
3 Blue Front right speaker +
4 Green Front right speaker -
5 Red Front left speaker +
6 Orange Front left speaker -
7 Brown Rear left speaker +
8 Black Rear left speaker -
WIRING FOR ISO CARS
SAT-3500 Advanced Car Kit 9
EN
User’s guide

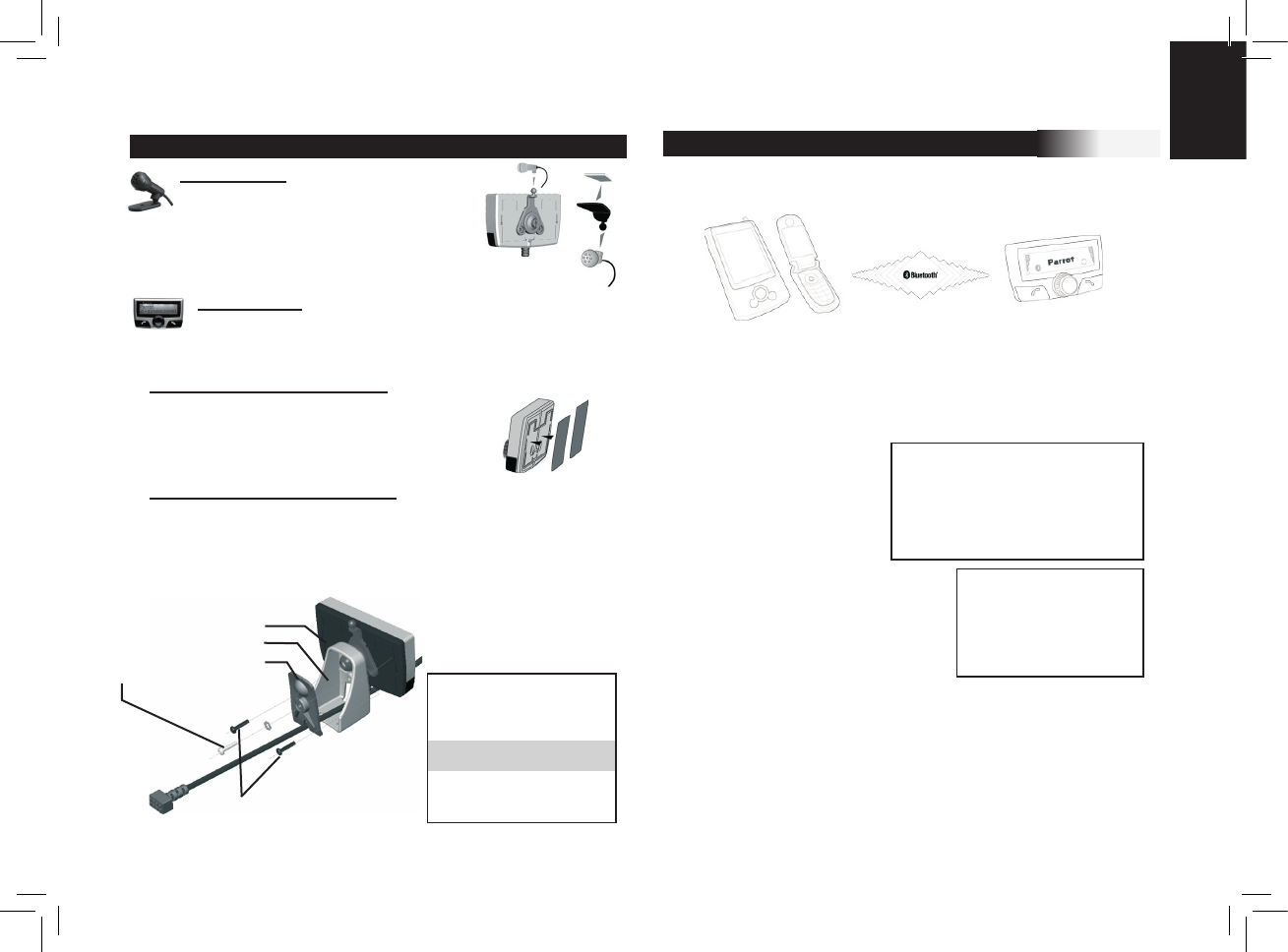

Microphone:
The microphone must be aimed
at the driver and can be installed:
Anywhere in the vehicle or the LCD screen.
LCD screen:
Several accessories allow the screen to be installed in
multiples sites in the body of the vehicle.
Fastening on the dashboard
Using the double-face tape provided.
Just stick the display on a plane and
clean spot on the dashboard.
With a foot on the dashboard
Once the display has been mounted on the foot provided in
the packaging, stick this foot using the double-face tape on the
dashboard. From then on, the screen becomes directional.
During the initial charging, it is necessary to pair your mobile
phone with the hands-free kit.
Activate Bluetooth on your mobile
Search for peripheral devices:
For more information, refer to the booklet on your telephone
( Pairing section )
Or visit www.sat-trac.com
Home / Support /
Download
Once it is detected, “ SAT-
3500” is displayed on your
mobile phone.
Enter the pairing code 1234.
“Pairing underway” is displayed on
the SAT-3500.
“Pairing complete” is displayed on
the screen, once pairing is success-
ful.
The SAT-3500 then connects to your mobile phone.
Once it is connected, the Bluetooth logo is displayed on the
screen (except for mobile phones fitted with the Headset pro-
file).
Mounting Instructions
- Rotate “B” from the left
to the right to screw “B” on “A”
Only use the screws “D”.
- Insert the cable from the “A”
through the hole on “B”
- Then, screw “C” on “B”.
Only use the screw “E”
Don’t forget to insert the disc
Installation of the microphone and the console
A : LCD screen
B : Foot
C : Back support
E : Iron screw ( 10mm )
D : Plastic screws (10mm )
PAIR DEVICE AND FIRST USE
WARNING
Some telephones use Bluetooth in a
particular manner. Verify in the
“Preferences” / “Advanced Pref. “ / “Pair
Telephone” menu if the model of your
telephone is listed there. Then select
the option in the menu.
SAP
If you want to utilize the Sim
Access Profile service on
your telephone, please refer
to the GSM section of the
booklet
SAT-3500 Advanced Car Kit
10 User’s guide
For certain types refer to the page 12 “pair a telephone”
With certain mobile phones, the name of your mobile,
the battery level and the network are displayed on the screen.
The menus are accessible from then on and the hands-free kit
announces their name. From then you are connected to the
hands-free kit and can use it for com-
municating.

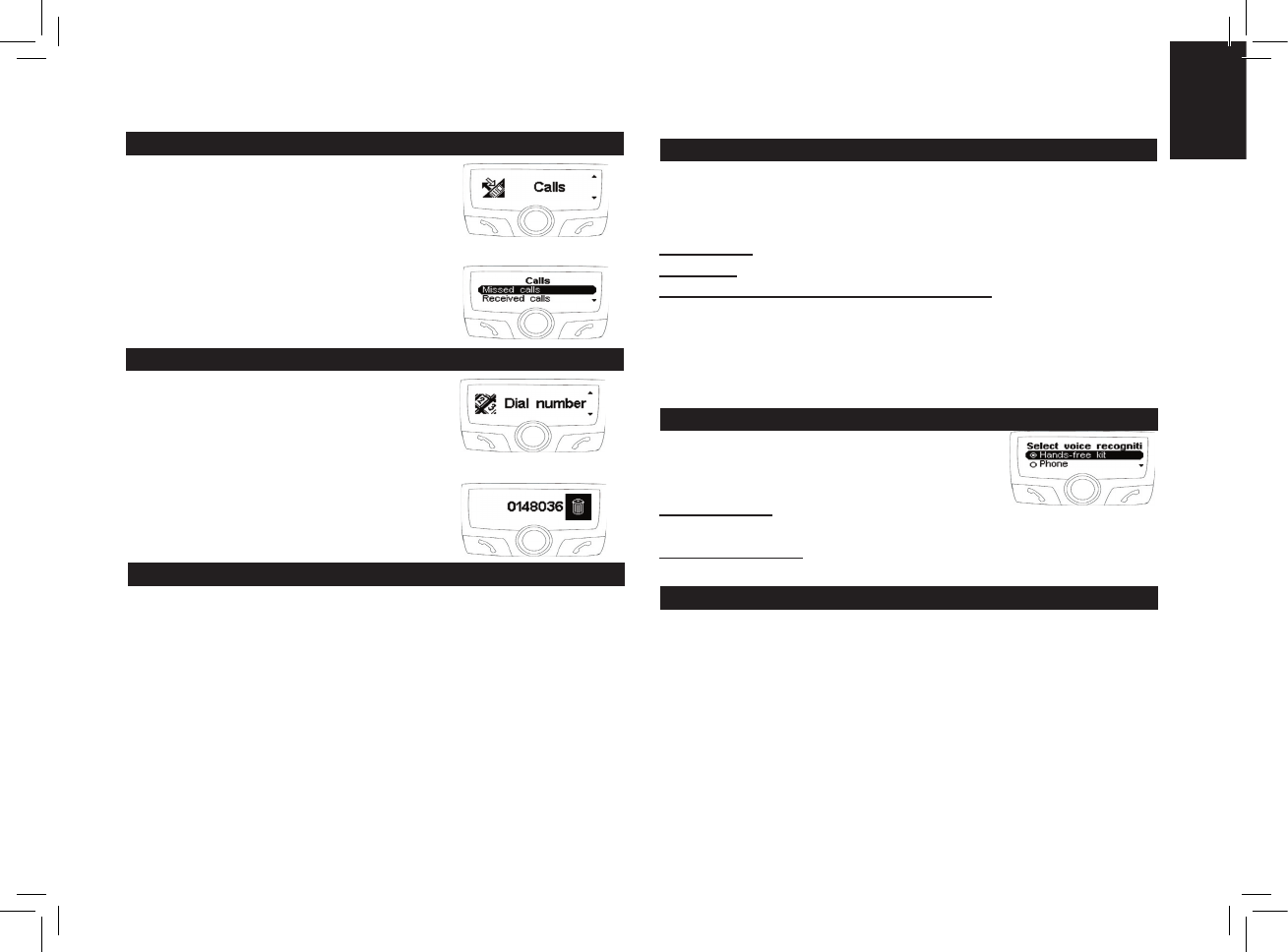

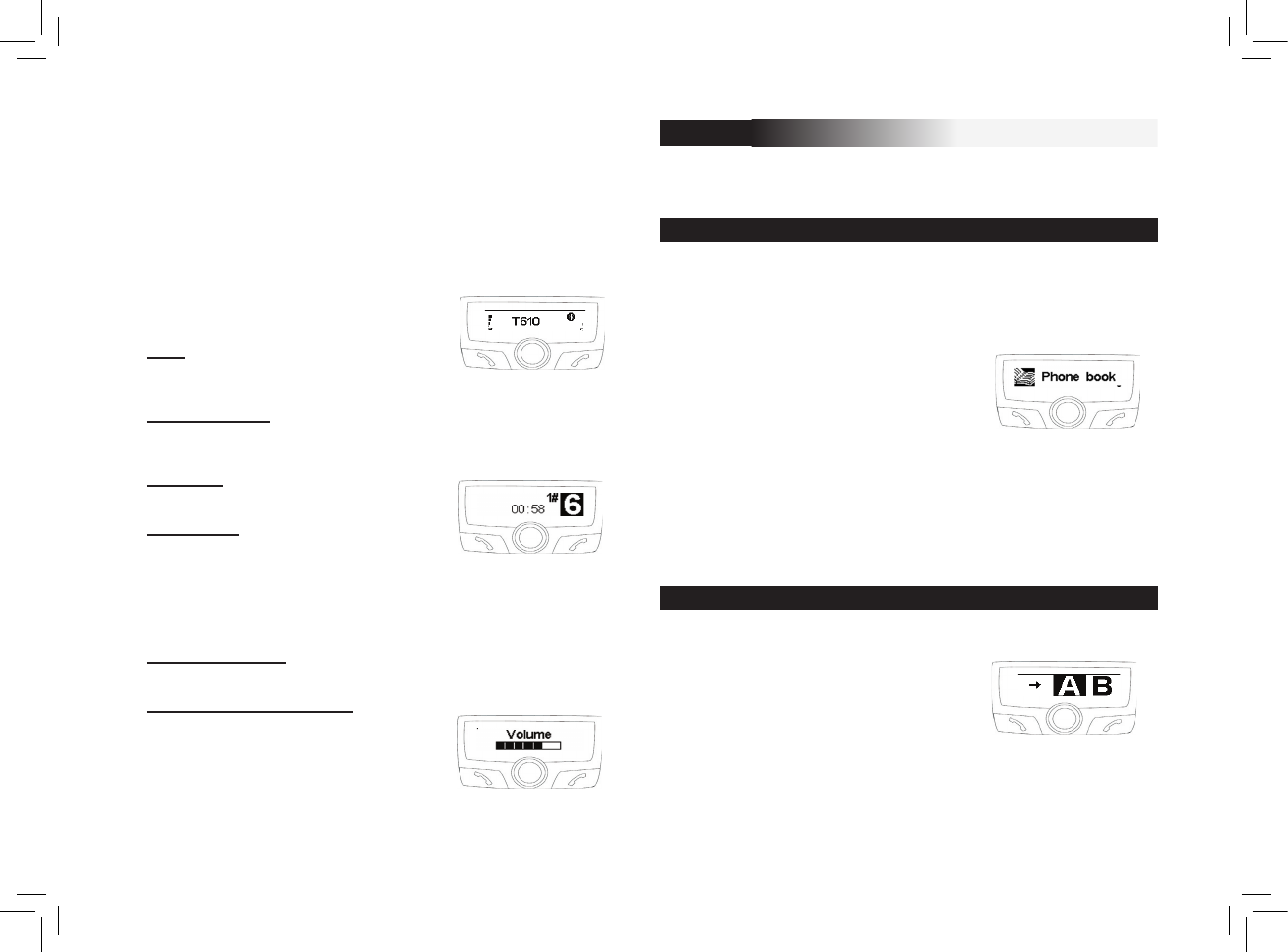

Call: Access your mobile phone’s
phonebook.
Receive a call: Press the green button of the hands-free kit
to pick up the mobile phone.
Hang up: Press the red button of
the SAT-3500.
Voice mail: Click on the scroll but-
ton while communicating. A menu
appears and allows you to dial a
digit. Return to the communication
screen by selecting the arrow.
Repeat function: Press the green key of the hands-free kit
for several seconds to call the last number dialed.
Communication volume: Adjust
the communication volume by turning
the scroll button.

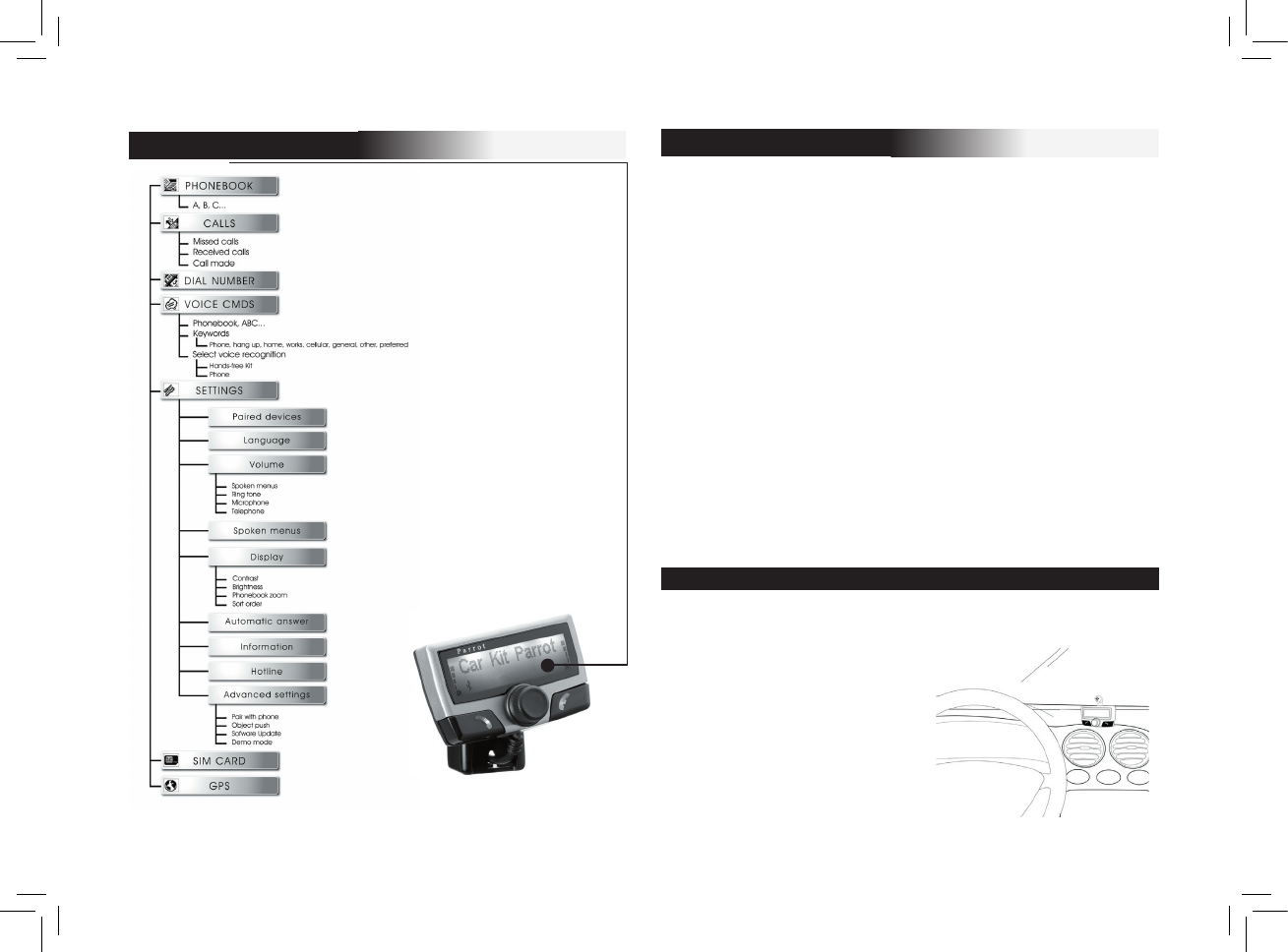

MENU
The menu of the SAT-3500 is made up of the following head-
ings: phone book, call log, dial number, voice cmds, settings,
SIM card, GPS.
Synchronization of your telephone index with the SAT-3500 is
one of the innovative functions of this hands-free kit.
This synchronization is automatic with numerous telephones.
If this is not automatic, you have the option of transferring your
telephone contacts to the kit via
Bluetooth.
Refer to the section “Sending contacts
via Bluetooth” (or “Object push”) in your
telephone user manual.
Reception of contacts via Bluetooth is
available for the Sony Ericsson P800/P900 and smartphones if
pairing is done in the corresponding mode.
(refer to the “ATTENTION” section in the “Pairing” chapter)
Once your contacts are transferred to the kit, you can access
the voice recognition function available in the “Voice com-
mands” menu.
You have the option of making a call from the menu index.
Select phonebook
Select a letter using the scroll button
Confirm by pressing the scroll button
Once the contact is selected:
The green button dials the number by
default.
The scroll button helps select from the different numbers of
the contact.
Press the green button to call.
Phonebook
Call from the phonebook
SAT-3500 Advanced Car Kit 11
EN
User’s guide
The keywords of the SAT-3500 are:
telephone, hang up, work, mobile, general, other and pre-
ferred.
Telephone: Hangs up a call or activate voice recognition.
Hang up: Terminates the communication.
Work, mobile, general, other, preferred:
key words by telephone number. These key words help select
the desired number when a contact comprises several words.
The learning sequence is identical to that of the contacts. The
key words must be recorded to be validated.
Personalized substitutions of keywords are allowed.
Recognition of the SAT-3500 is more
complete than that of most mobile phones
and works in a noisy environment.
Reco. car-kit: voice prints registered in the
memory of the hands-free kit.
Reco. telephone: voice prints registered in the memory of the
telephone.
Press the green button, or say “Telephone” if the key word
“Telephone” is registered.
After the sound beep, pronounce the name of your contact.
The SAT-3500 repeats the name in case of connection, and if
not offers a second attempt following a beep.
If the contact has a single telephone number, the SAT-3500
calls the partner number. If the contact has a single telephone
number, the SAT-3500 calls the partner number.
If the contact has several numbers and the key words per tele-
phone number are registered, the SAT-3500 proposes recog-
nizing the key word linked to the number after a beep.
This heading displays the list of calls
and is divided into 3 sub-menus:
Missed calls / received calls / sent calls
Select the desired contact
Press the scroll button or the green
button to redial.
Dial a number by turning the scroll but-
ton to the right or the left.
Press the scroll button to select a char-
acter.
The basket icon deletes the last charac-
ter. Once the number is dialled, press
the green button to make the call.
This menu programs the voice recognition of the hands-free kit.
It is divided into 3 sub-menus: index / key words / voice reco.
selection. To attribute a voice print to a contact, select a letter:
Select the name by clicking on the scroll button.
Once the name is selected, click on the scroll button to initiate
the machine learning.
Follow the instructions displayed on the screen.
Once the voice imprint is attributed, a bubble is displayed to the
right of the name.
Last calls
Dial a number
Voice commands
Keywords
Make a call via voice recognition
Selection of the type of voice recognition
SAT-3500 Advanced Car Kit
12 User’s guide

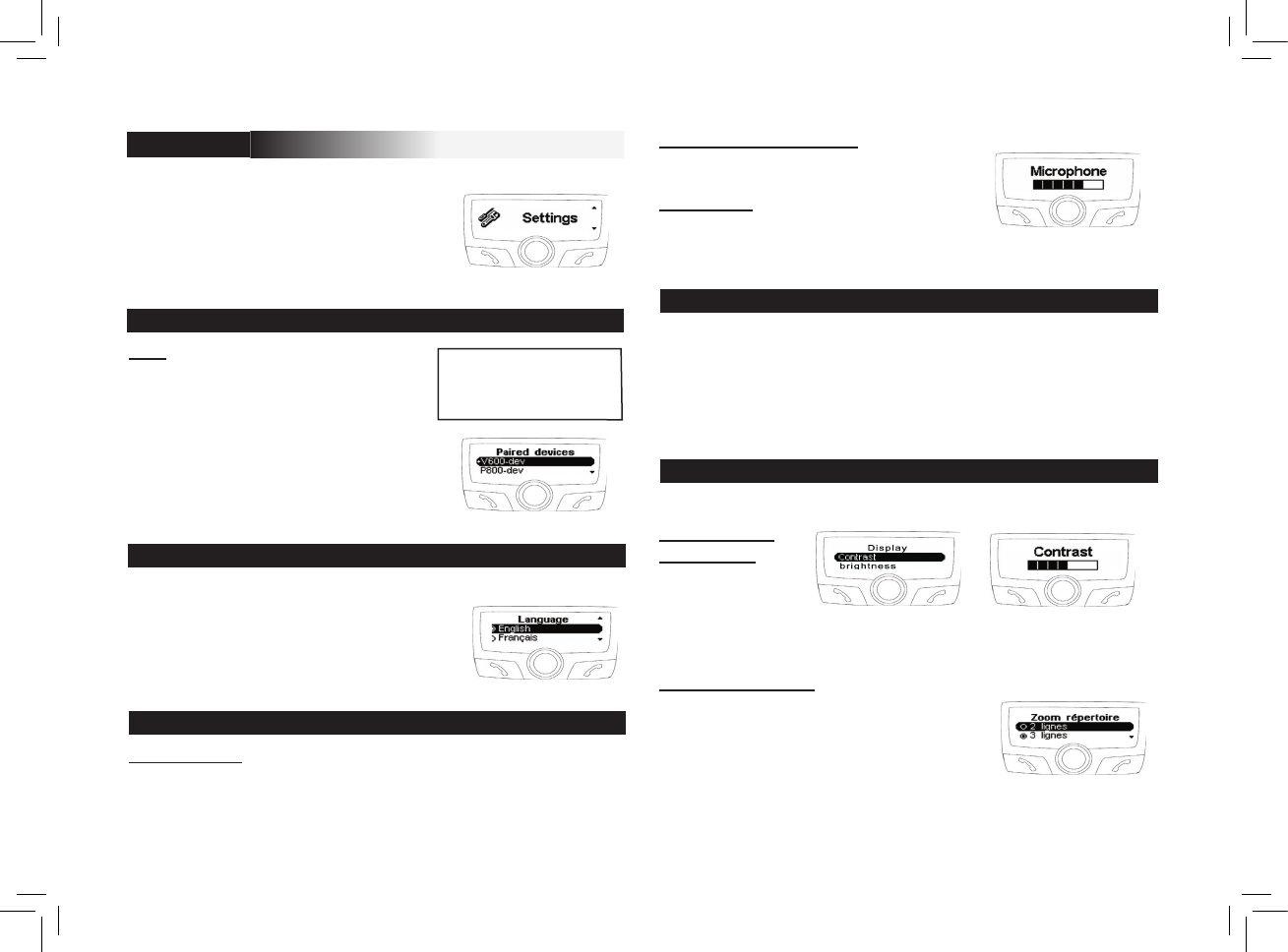

Rings and microphone:
These options let you adjust the volume
of the ring and of the microphone.
Telephone:
This option allows you to adjust the vol-
ume of the communication.
This function activates or deactivates the voice assistant of the
menus.
The menus will be announced by the voice of the operator in
the selected language.
This option optimises the search for info from the interface dur-
ing driving.
3 headings allow you to personalise the display:
Contrast and
brightness:
Use the scroll but-
ton for the desired
level and validate
by clicking on the latter.
Zoom phonebook:
Lets you select the resolution of the
displayed text in the “ phonebook “ and
“ call logs “ menus.
Select the 2-line or 3-line mode.
Confirm by clicking on the scroll button.
This menu allows you to customize the
SAT-3500.
List: You can access the list of
peripheral devices which have been
paired with the SAT-3500.You have
the option of connecting, disconnect-
ing, or wiping from the your telephone
memory.
Select the desired language.
Confirm by clicking on the scroll button.
If you select “ automatic “, the hands-free
kit synchronizes with the language of your
SIM card (this option is available only on
certain devices)
Voice Menus:
This option allows you to adjust the volume of the messages
announced by the hands-free kit and voice imprints, which you
have recorded.
Volume
Voice Menus
Display
Language
WARNING
If you delete a device, all the
voice imprints attributed to it
will be deleted.
Paired devices
SETTINGS
SAT-3500 Advanced Car Kit 13
EN
User’s guide

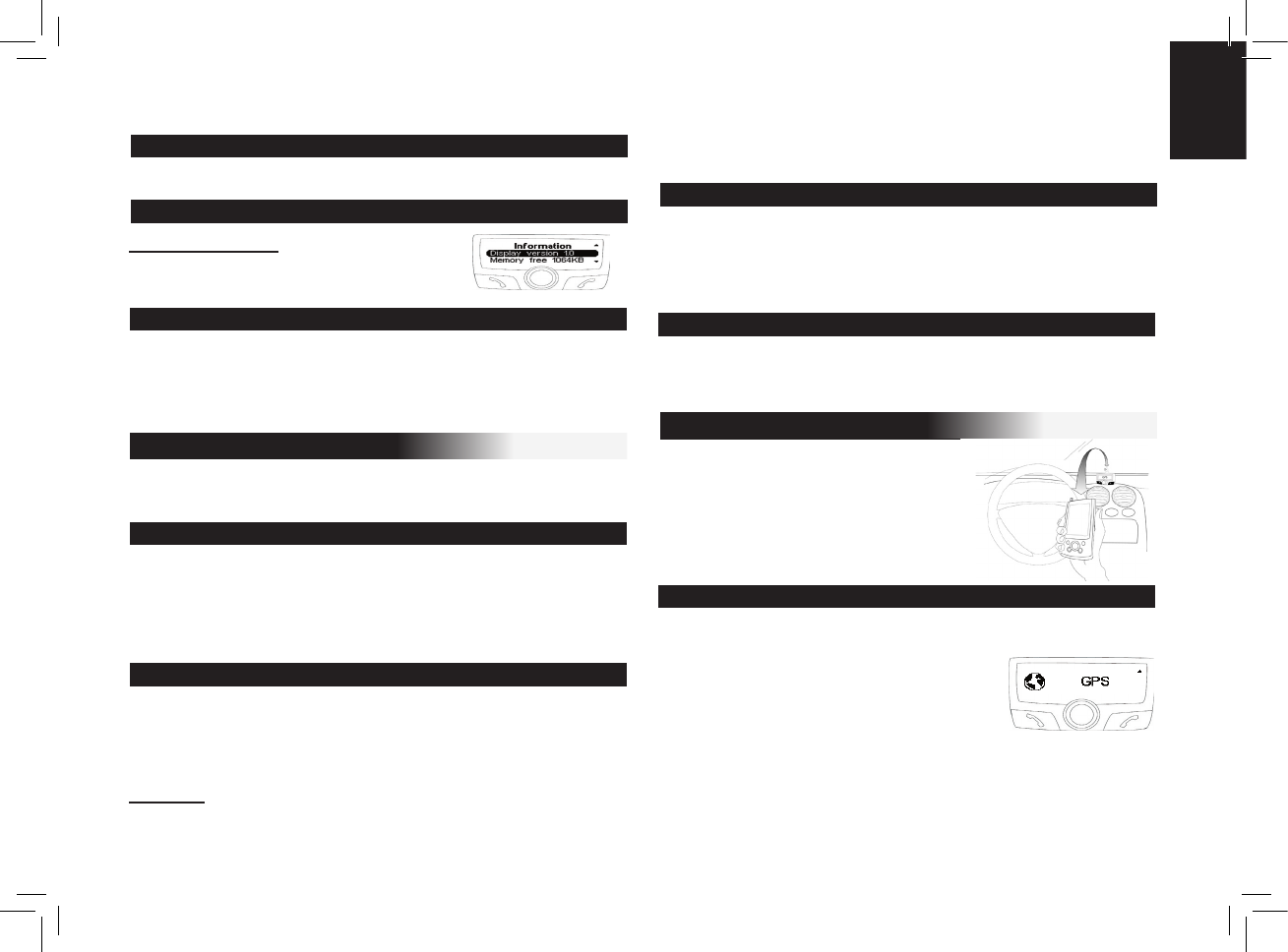

Activate/deactivate the automatic pick-up.
Software version:
Version of the display software / Free
memory.
Our customer service is at your disposal. You can contact it via
email or telephone. Connect to www.sat-trac.com for more
information. Contact: usersupport@sat-trac.com or
techsupport@sat-trac.com
This menu gives access to the following headings:
Pairing a telephone, object push, software upgrade, demo mode.
Some phones require a particular setting of your hands-free kit
before pairing. ( for example SonyEricsson P900, PDA running
Windows CE )
Select the input corresponding to your telephone, then pair
your device when the SAT-3500 displays “Pair your telephone”.
Some telephones can require a particular setting of your
hands-free kit before sending contacts. ( If your telephone
does not display your kit in the list of devices to which
contacts can be sent, activate the “Always active” option.)
Warning: this configuration of your kit can cause poor func-
tioning with certain telephones. We recommend that you return
to “Automatic” mode as soon as you have
sent your contacts.
Activate this option when you install an upgrade by Bluetooth
of your kit, from a personal computer. This option will be auto-
matically disactivated when restarting your kit.
Go to our website for more information : www.sat-trac.com
Launch a demo of the hands-free kit.
Restarting the carkit is necessary to deactivate this mode.
The SAT-3500 kits load a GPS (Global
Positioning System) module giving
access to the current position of the
vehicle. This information is available via
Bluetooth on a channel accessible by
the majority of PDAs and Smartphones.
If you have a navigation application on your PDA or smart-
phone, all you need do is pair this periph-
eral device with the SAT-3500, and open a
series connection to the GPS port. Certain
navigation applications let you directly
select as Bluetooth GPS source.
On your device the GPS configuration to be
selected is NMEA 0183v2 9600, in the event it is necessary to
supply this information. Once connected, a GPS icon is visible
on the screen of the SAT-3500.
Automatic response
Information
Hotline
ADVANCED SETTINGS
Pairing a telephone
Object push
Software upgrade
Demo mode
GPS SAT-3500
Connection to the GPS service
SAT-3500 Advanced Car Kit
14
from the GSM antenna of the SAT-3500 and you save on the
battery in your Bluetooth telephone.
For safety reasons, the pairing procedure of a SAP telephone
is different.
You must select the SIM Access Phone
section in the “Preferences” / “Advanced
Pref.” / “Pair Telephone” menu.
A 16-digit code is displayed on the screen
of the SAT-3500, which is the link code to be captured on your
SAP telephone.
If the SAT-3500 requires the PIN code of your personal SIM
card, it will ask you to enter it.
The SIM Access mode is activated by default if your telephone
supports it. The SAT-3500 will use this mode as soon as your
telephone is detected by maintaining continuity of service.
The functioning of the interface is the same as for Bluetooth
telephony.
This heading allows you to insert/modify the PIN code of your
personal SIM card or to deactivate the SIM Access Profile
mode.
Once the GPS service is connected the SAT-3500 equipped
with GPS module allowsyou to listen to
the sound indications of your navigation
software over the car speakers of your
vehicle. Your navigation will thus be car-
ried out under optimal conditions (this
functionality is available only with certain
navigation software). To do this, from your PDA or smartphone
open the service Ear phone/Headset, which is available on the
car-kit.
If you want to make a call or answer an incoming call, this
service is automatically closed then reopened to allow you to
use telephony functionality under the best conditions.
In this heading you can fully disable the GPS service to pre-
vent anyone from connecting to this service.
The Information section specifies the GPS configuration and
the peripheral device currently connected to this service if it is
active

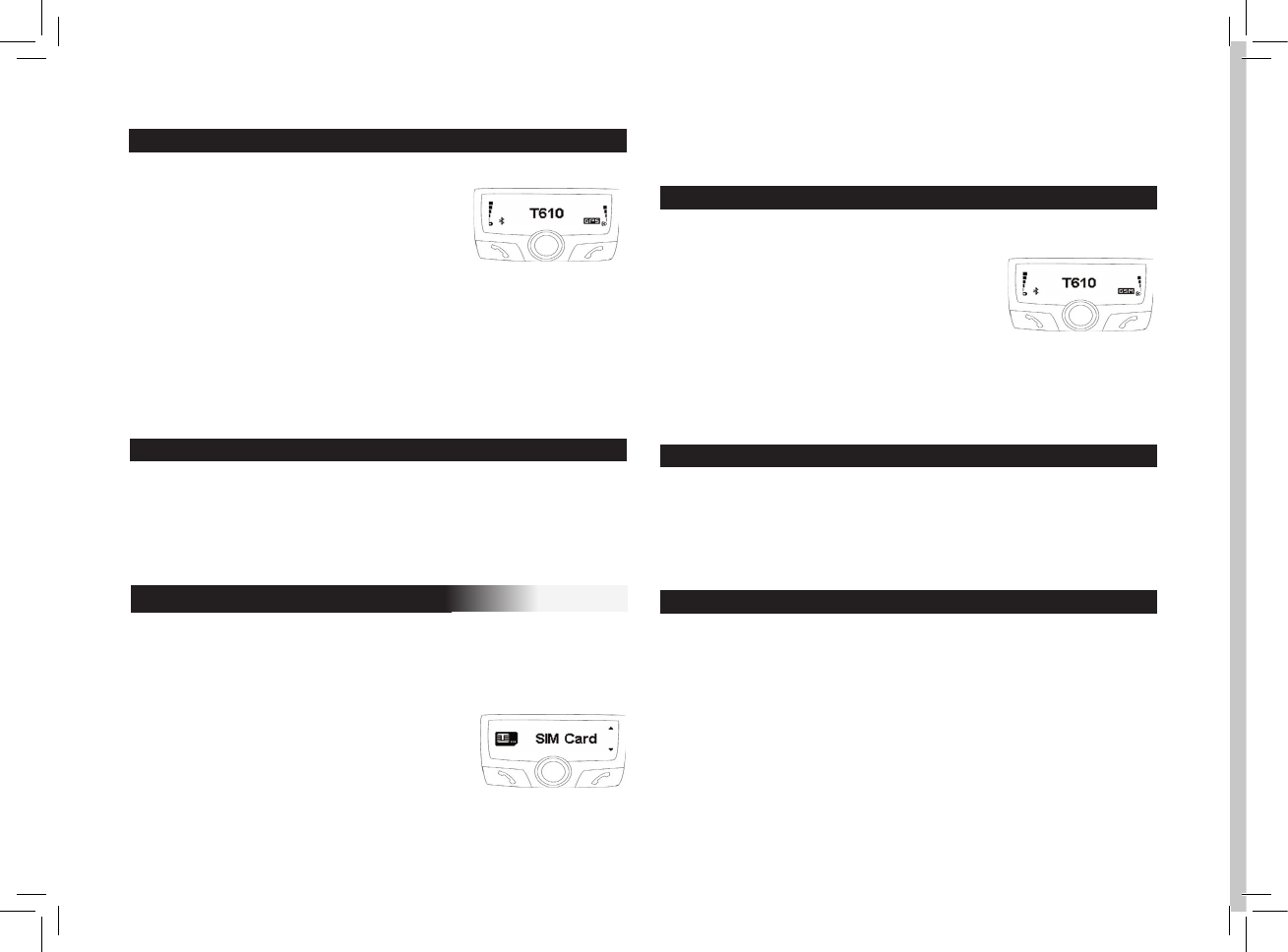

The SAT-3500 loads a class 8/10 GSM/GPRS module. The
presence of this module let you use the SIM Access Profile
(SAP) of your telephone or even use your SAT-3500 directly as
a car phone, without Bluetooth telephone, with only a physical
SIM card, it also lets you use your kit as
Internet access point by using the GPRS.
The SIM Access Profile (SAP) allows the
information on your personal SIM Card
to be used by Bluetooth. You thus benefit
GSM OFFBOARD SAT-3500
Pairing
Functioning
The SIM Card heading
GPS Menu
Voice indications of your navigation
