User manual
NOTE: THE GRANTEE IS NOT RESPONSIBLE FOR ANY CHANGES OR MODIFICATIONS NOT EXPRESSLY APPROVED BY THE
PARTY RESPONSIBLE FOR COMPLIANCE. SUCH MODIFICATIONS COULD VOID THE USER’S AUTHORITY TO OPERATE THE
EQUIPMENT
HOW TO OPEN ESMART TOUCH
Connect the power cable to the controller.

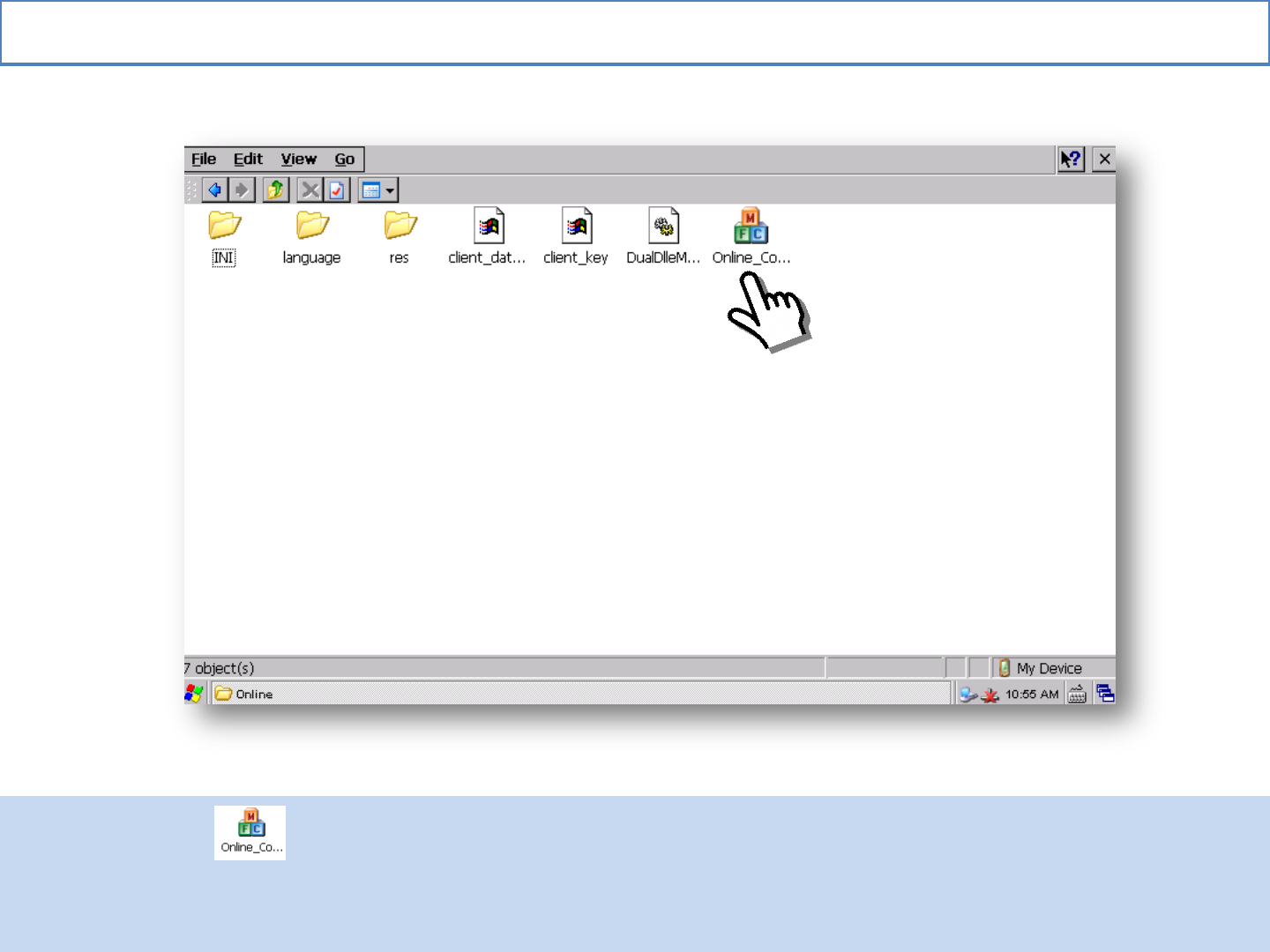

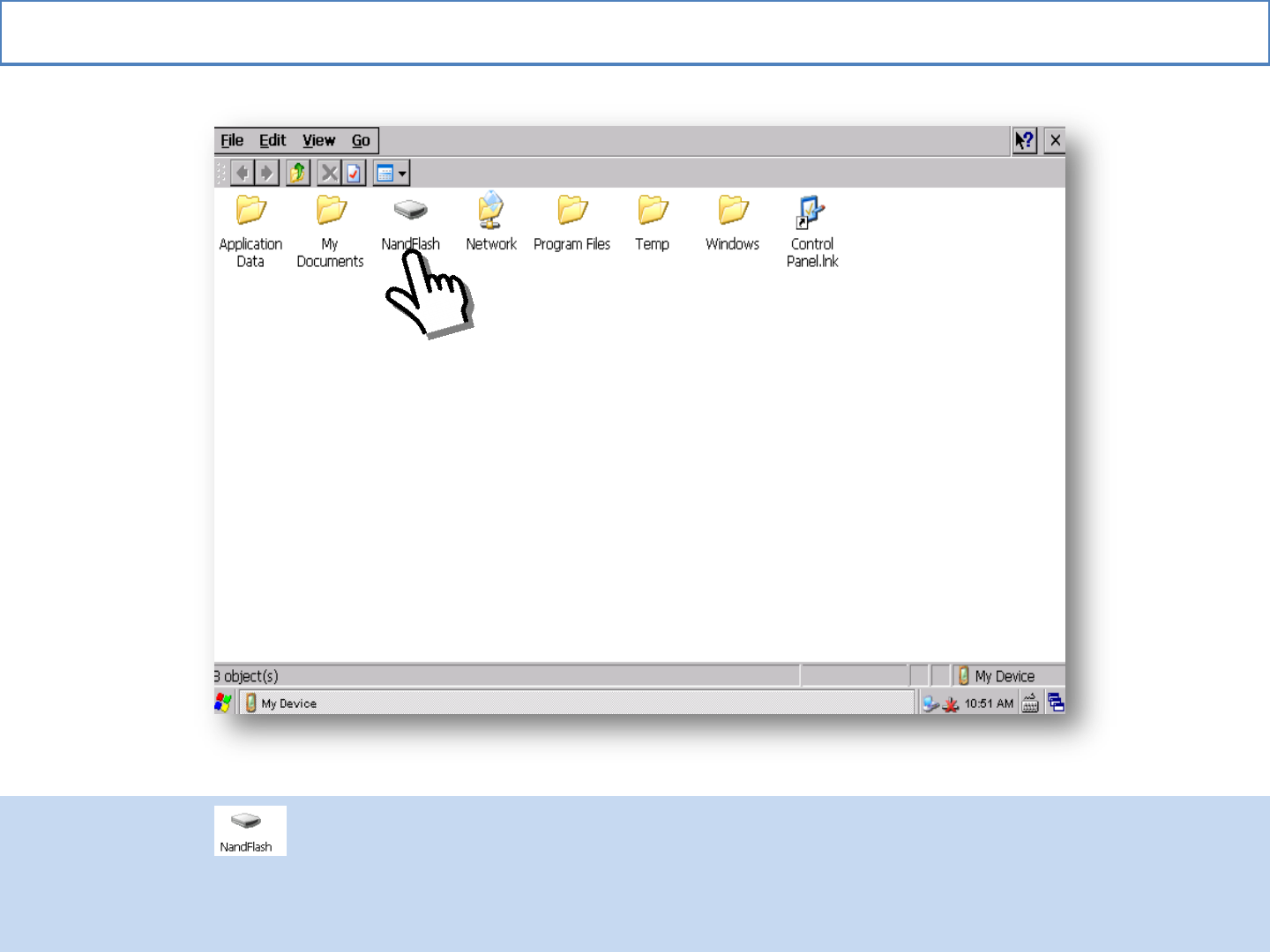

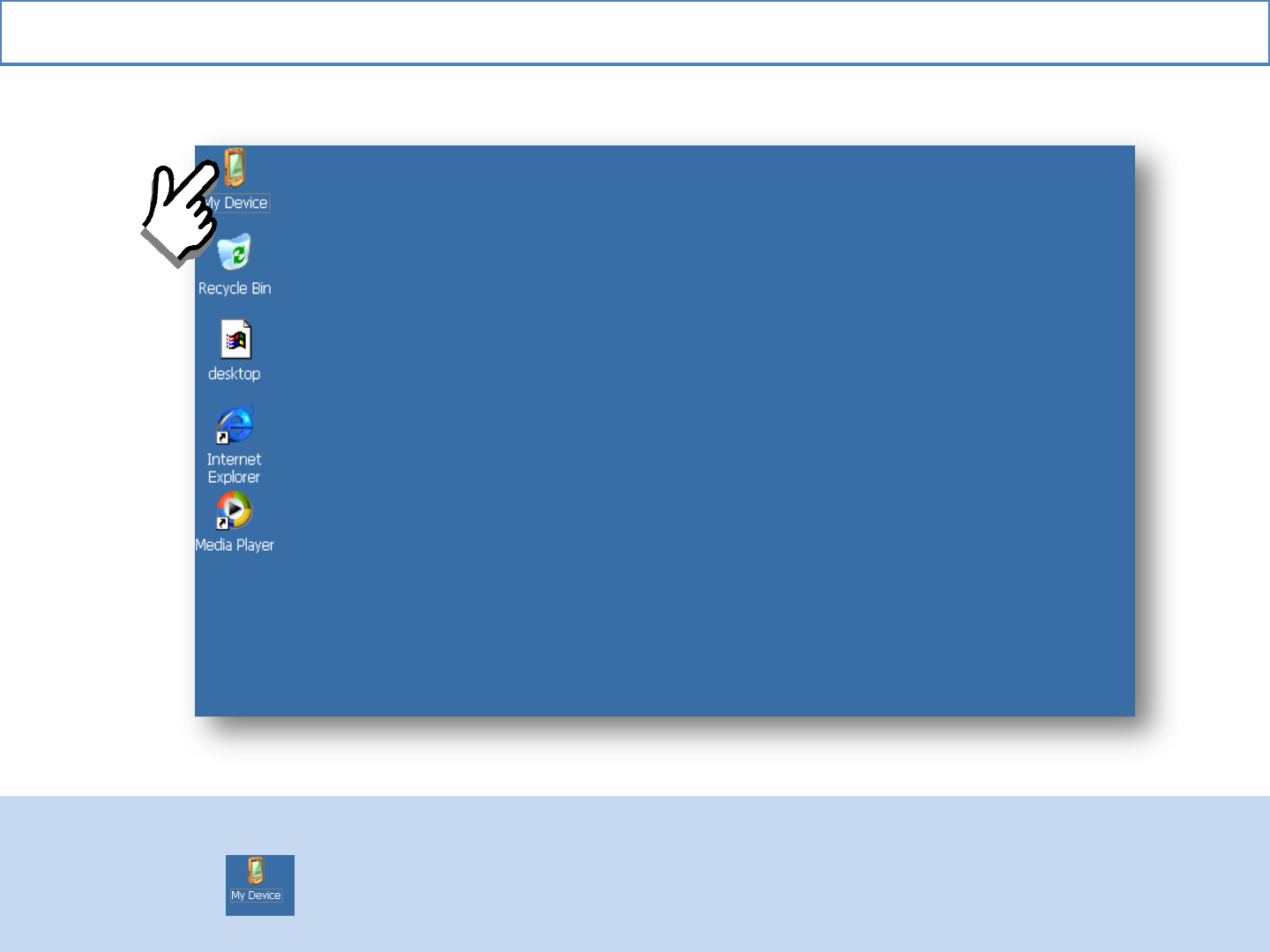

Double click with a pointer.
Double click
HOW TO OPEN ESMART TOUCH
Double click
HOW TO OPEN ESMART TOUCH
Double click
HOW TO OPEN ESMART TOUCH

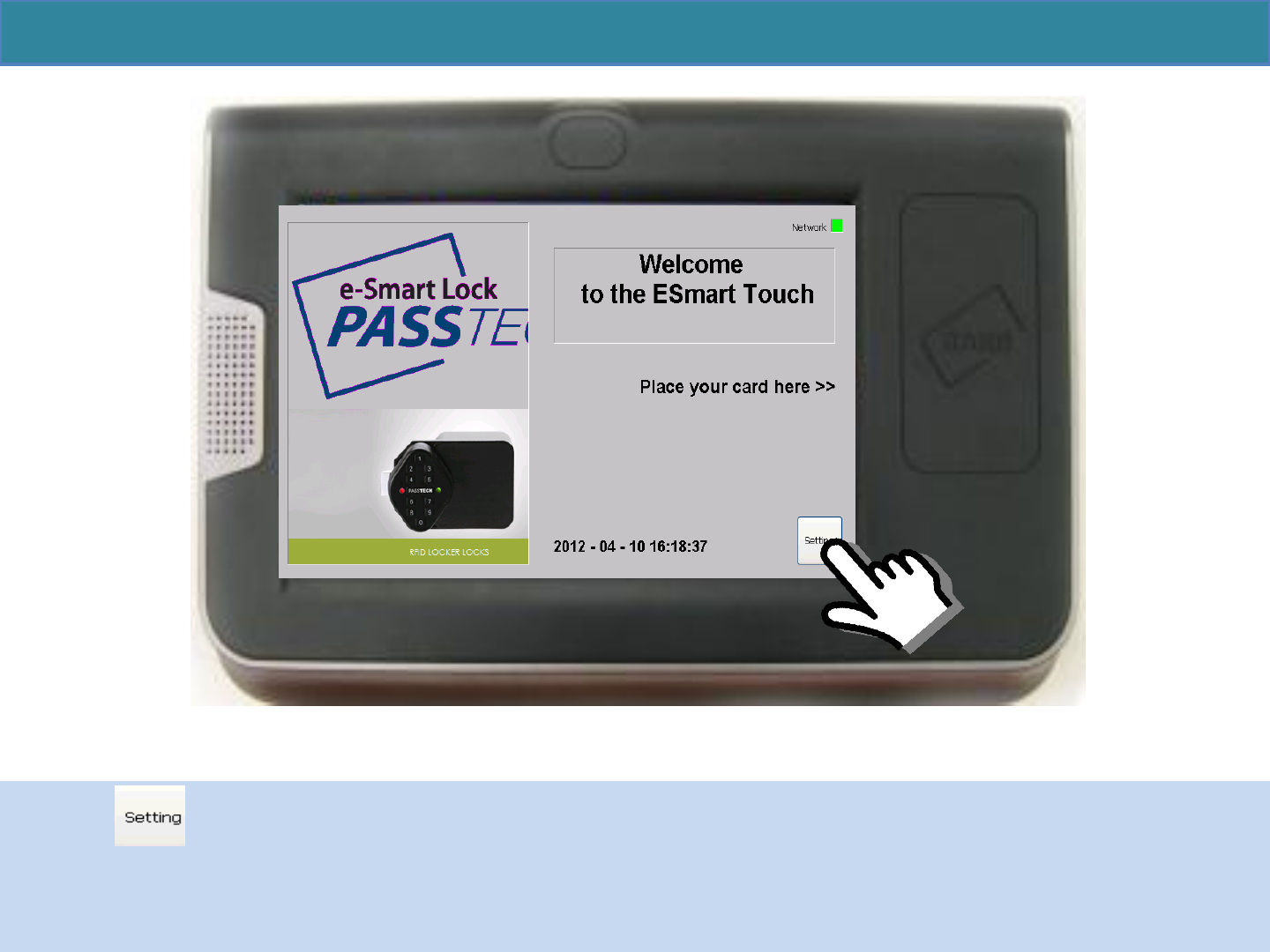

Click
HOW TO CREATE & REGISTER MASTER CARD

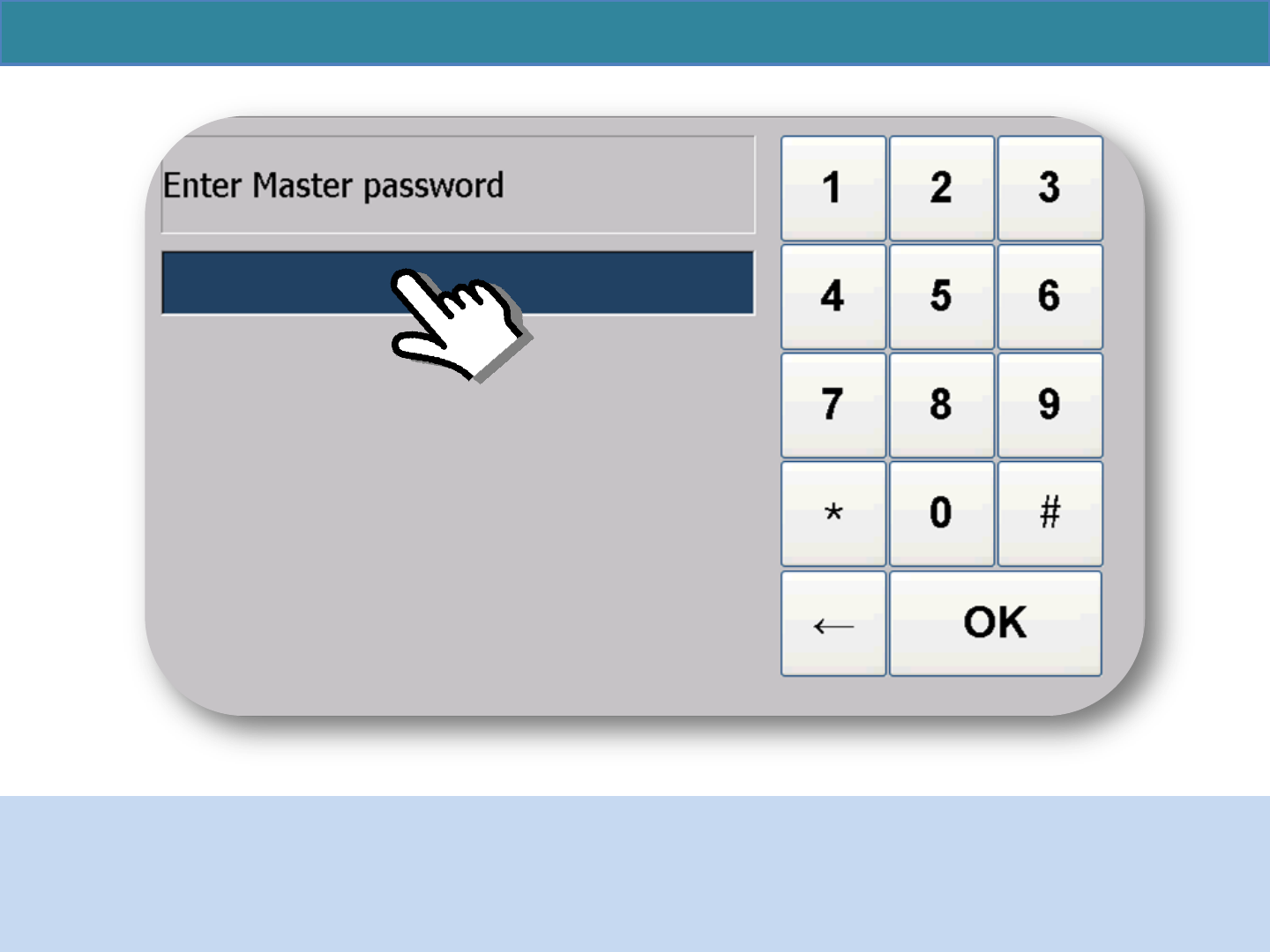

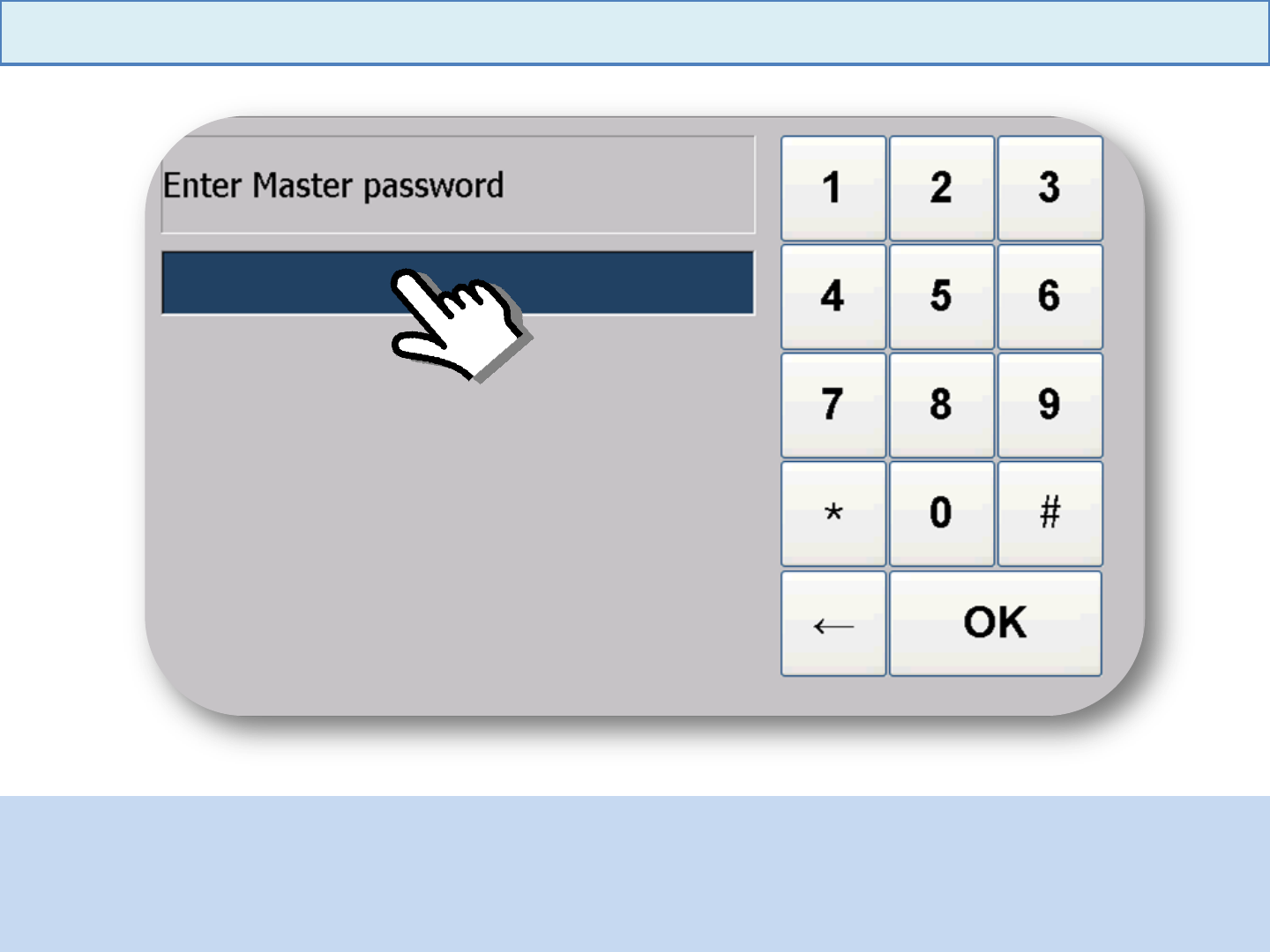

Enter Password - initial password is 1234.
1234
HOW TO CREATE & REGISTER MASTER CARD

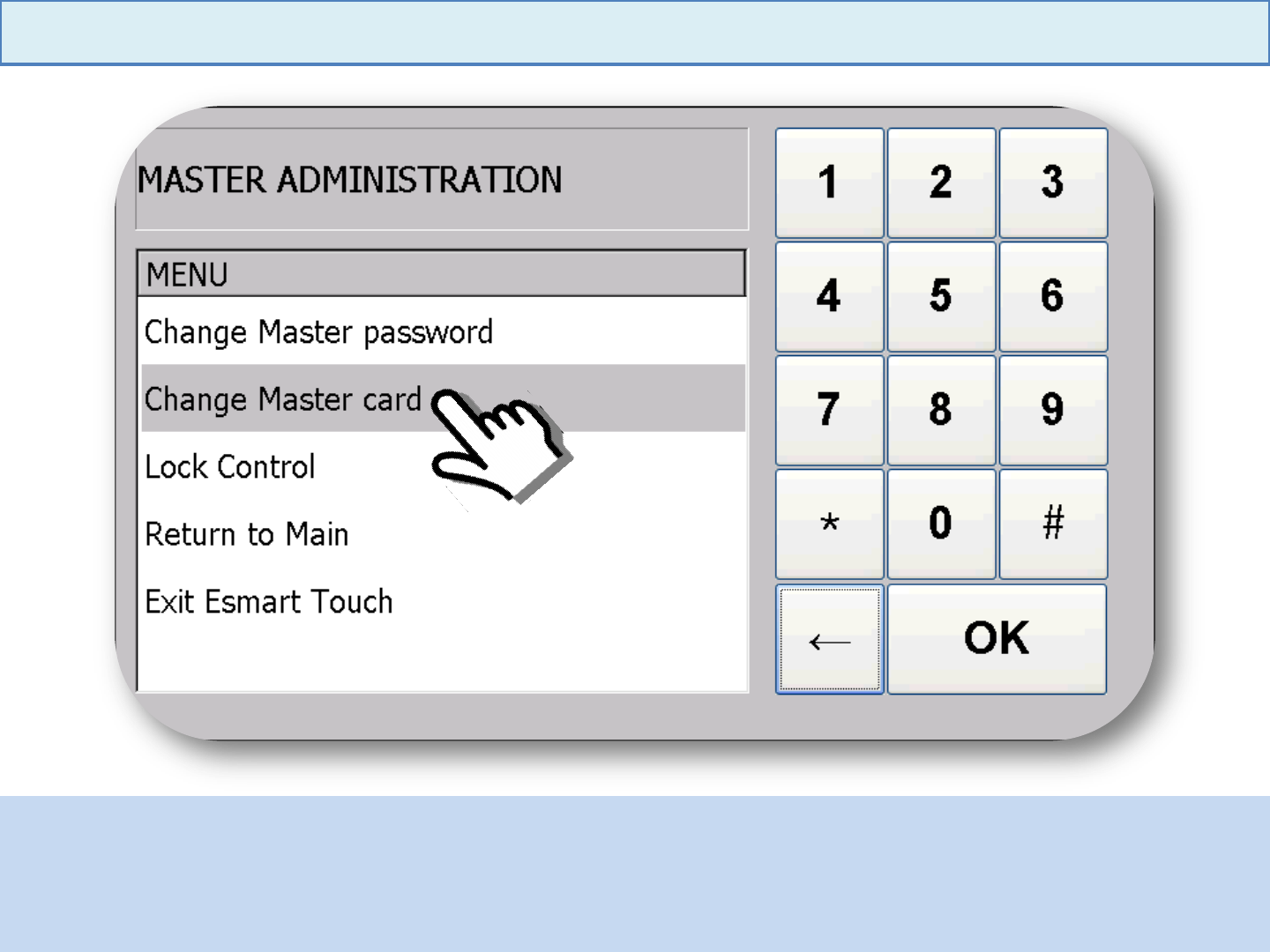

After entering password, MASTER ADMINISTRATION MENU displays.

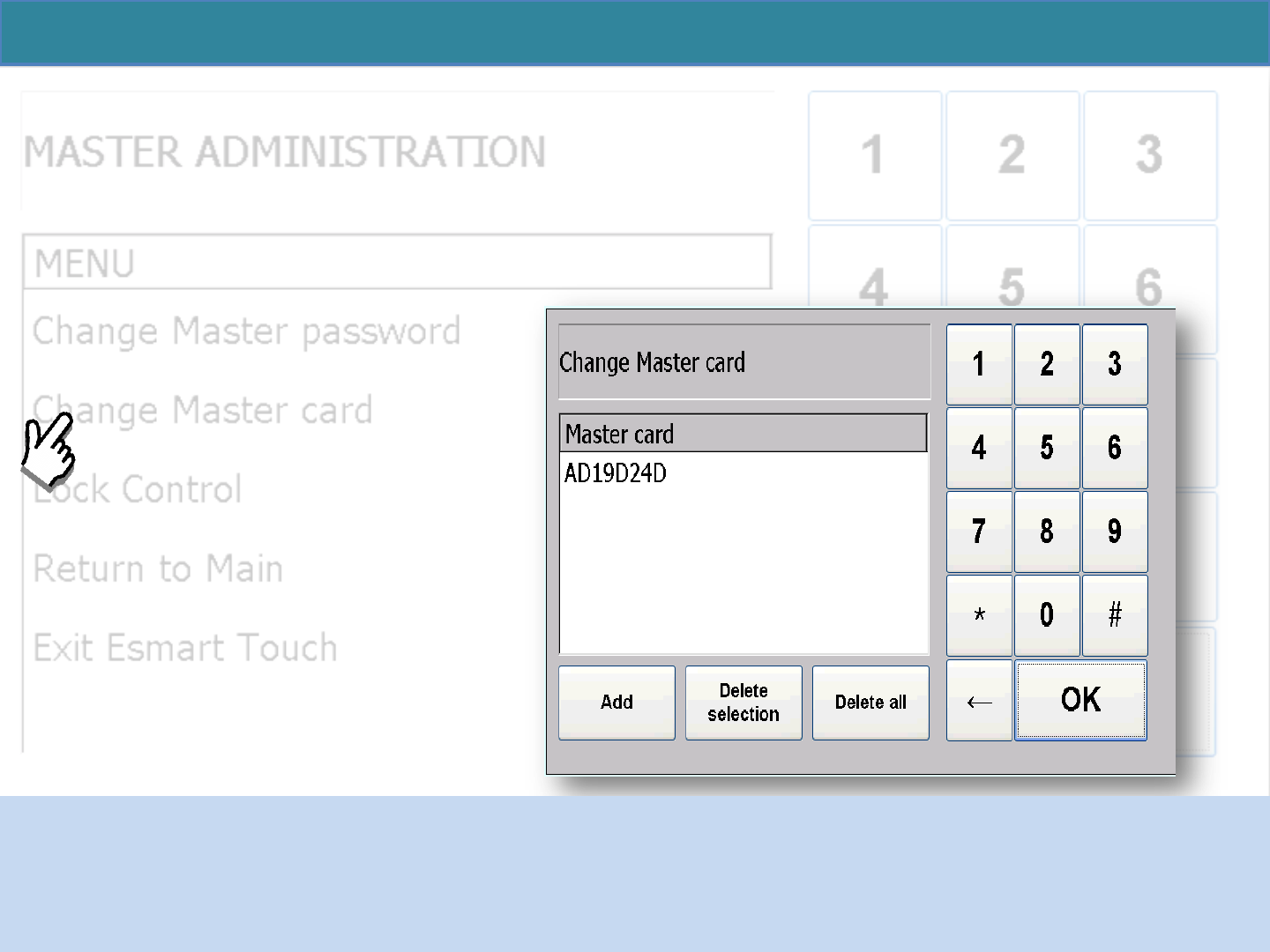

Select Change Master card.
HOW TO CREATE & REGISTER MASTER CARD
Select Add to register Master Card.
HOW TO CREATE & REGISTER MASTER CARD

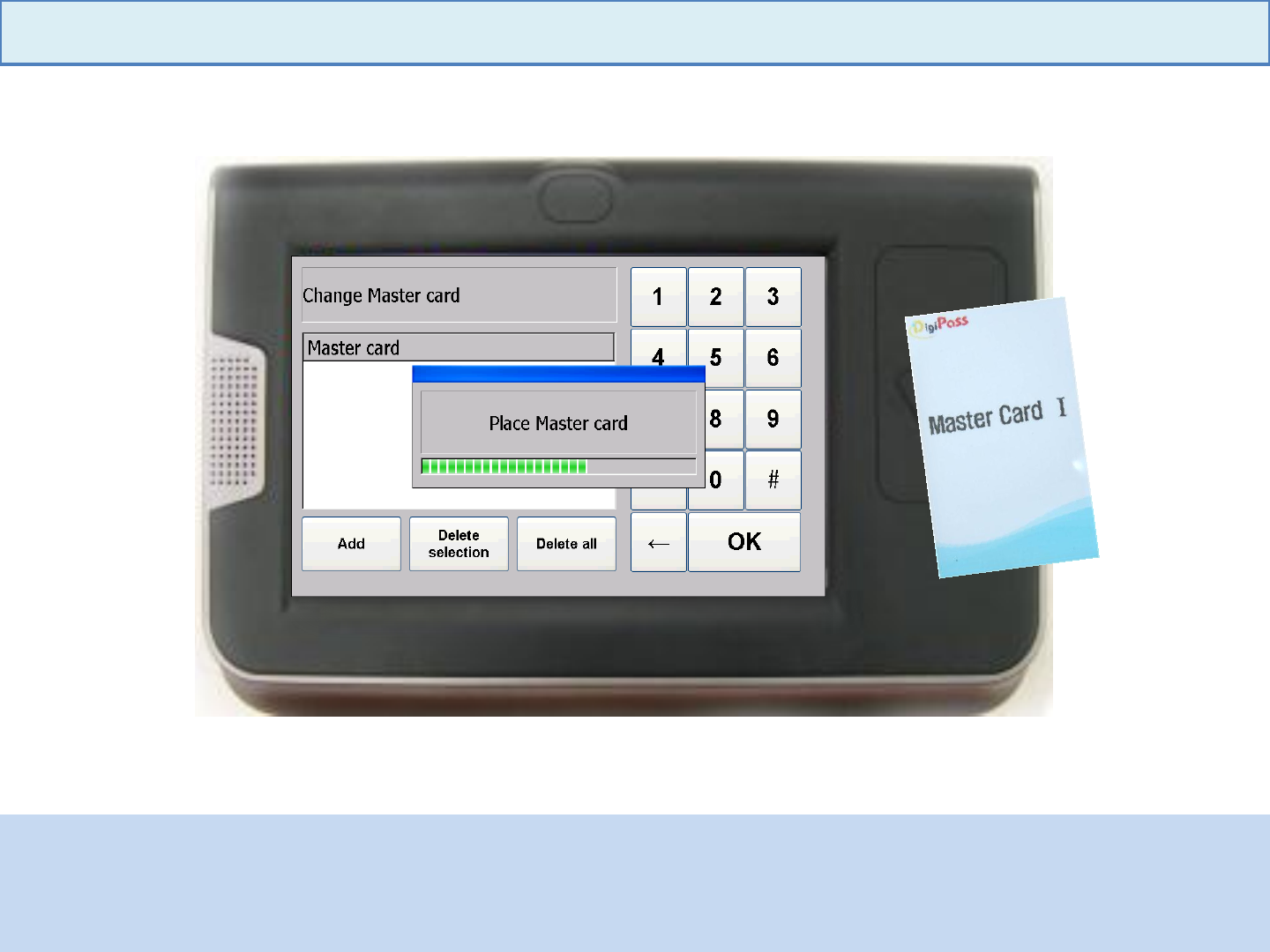

Place any kind of blank MIFARE card to create a Master Card.
HOW TO CREATE & REGISTER MASTER CARD

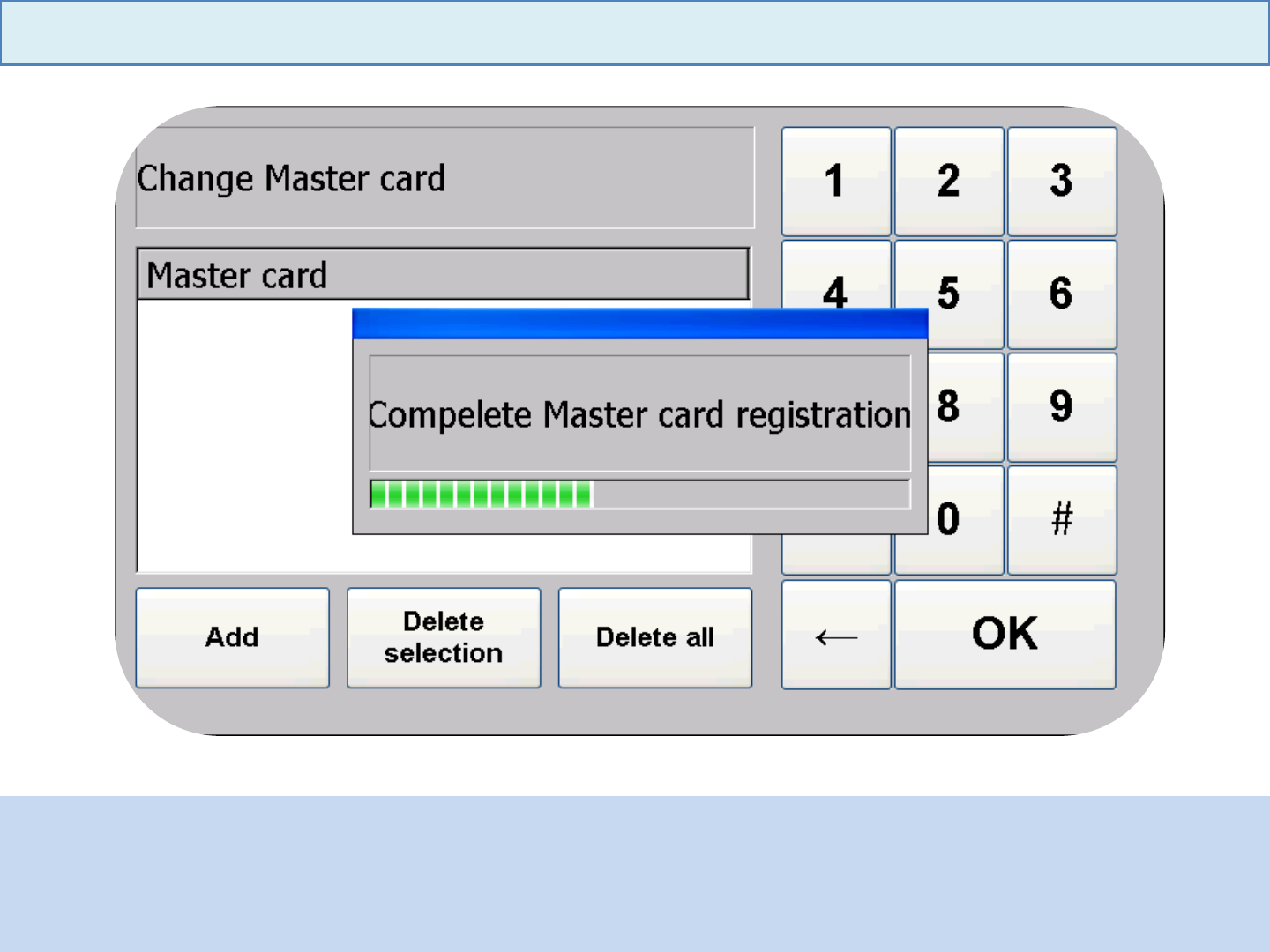

Now, Master Card for this controller has been created.
HOW TO CREATE & REGISTER MASTER CARD

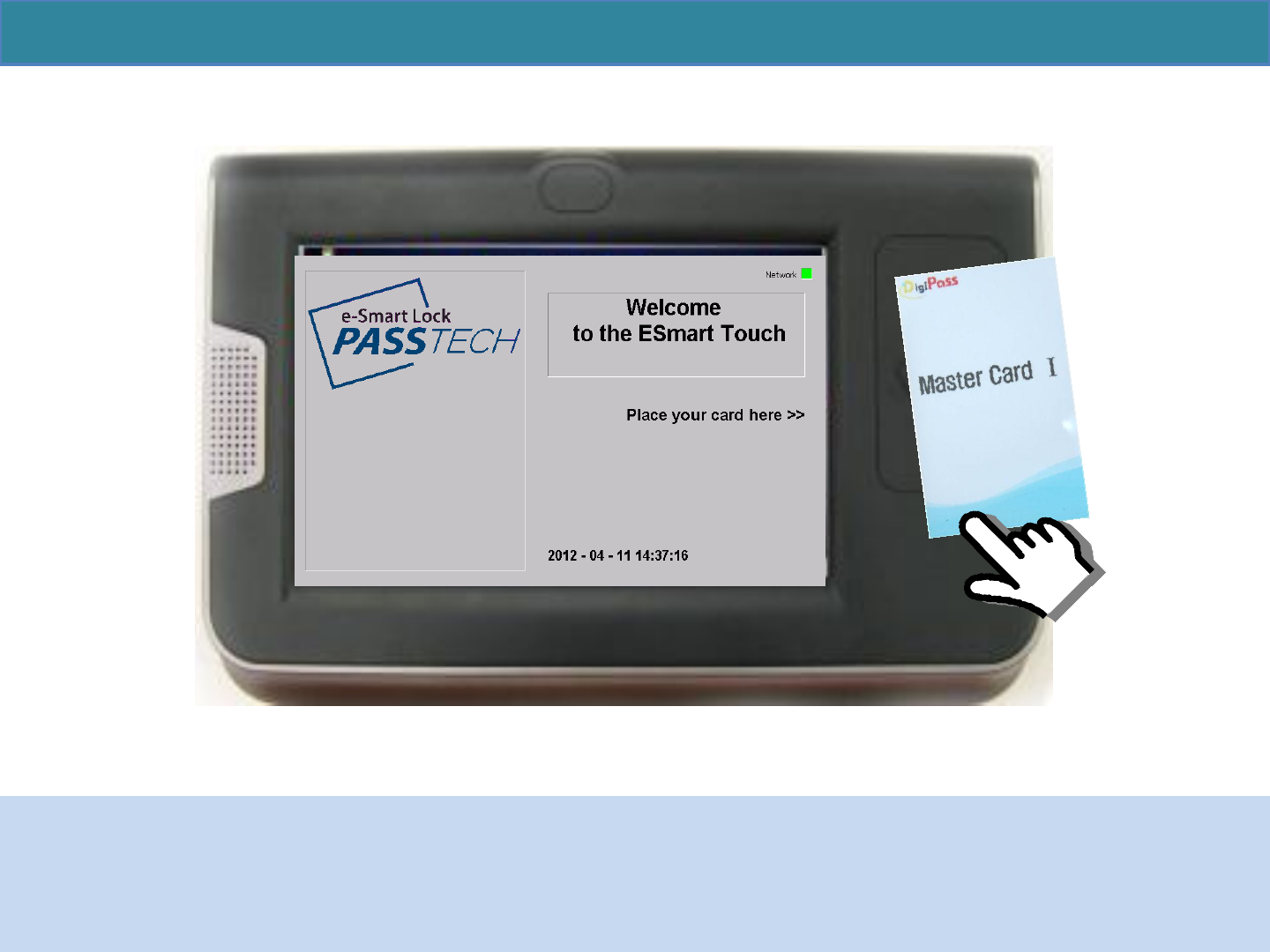

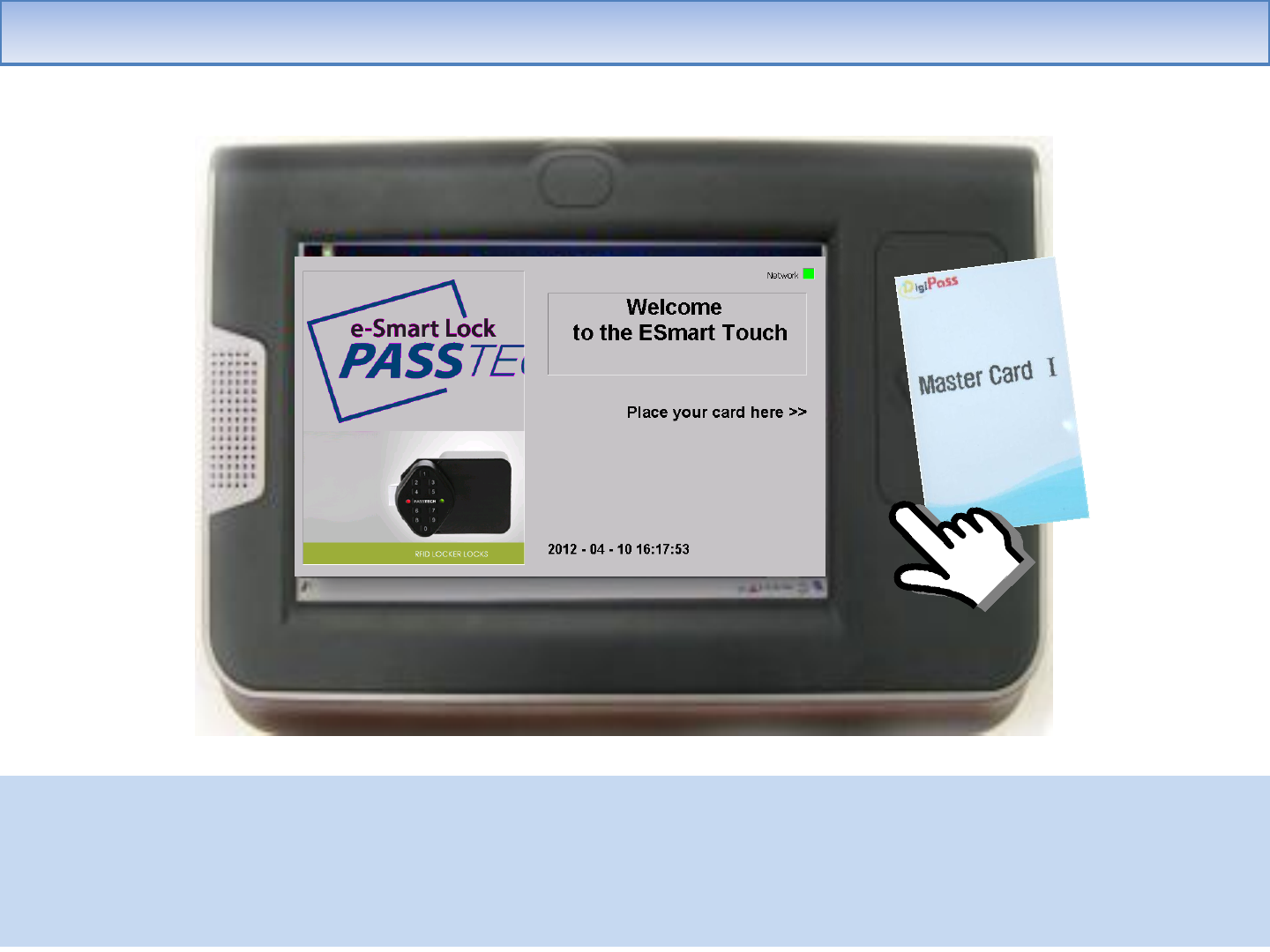

Place Master Card on the controller to set the functions
to operate the locks through controller.

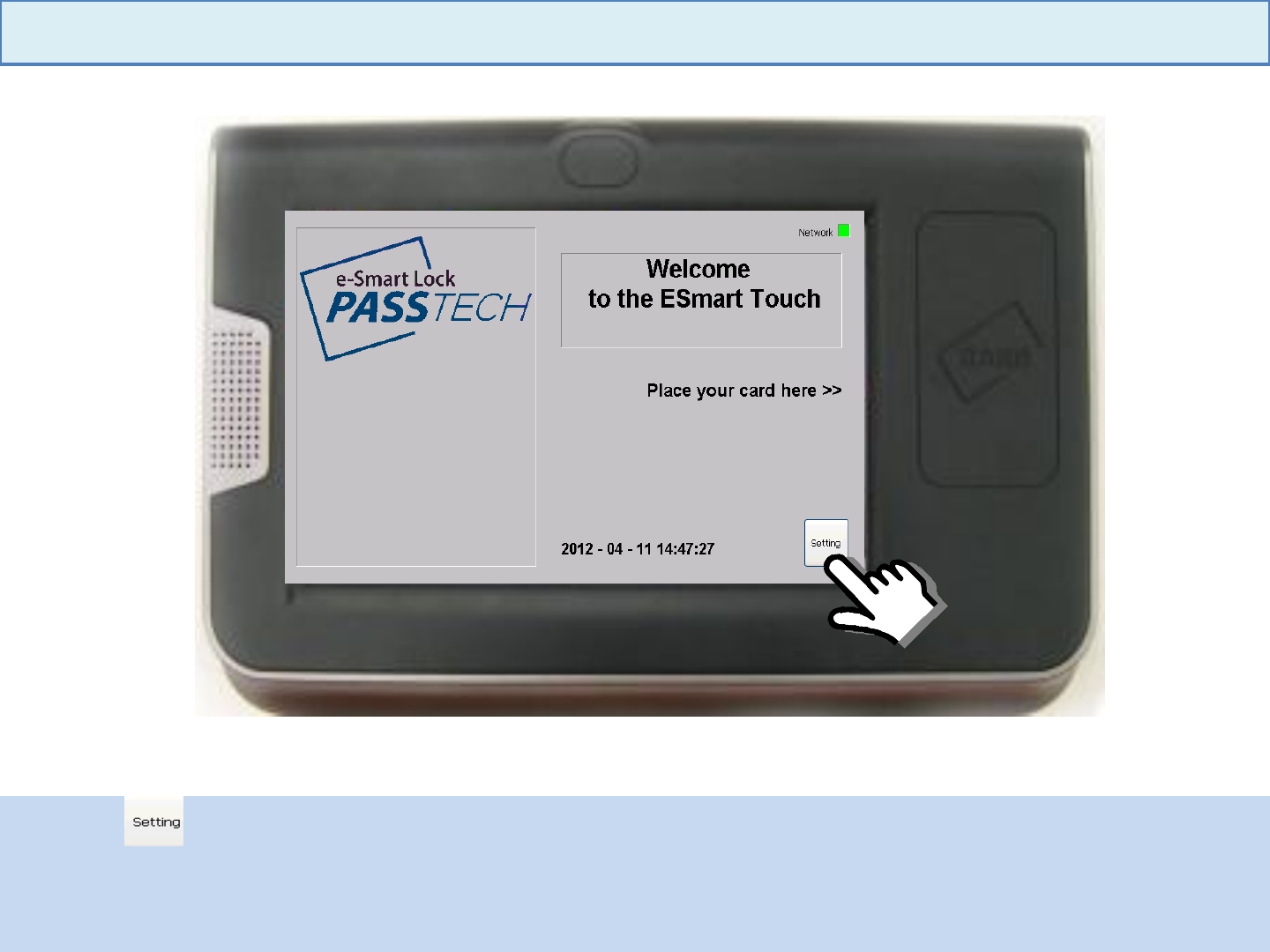

HOW TO SET CONTROLLER FUNCTION
Click
HOW TO SET CONTROLLER FUNCTION
Enter Password - initial password is 1234.
1234
HOW TO SET CONTROLLER FUNCTION
After entering password, MASTER ADMINISTRATION MENU displays.
HOW TO SET CONTROLLER FUNCTION

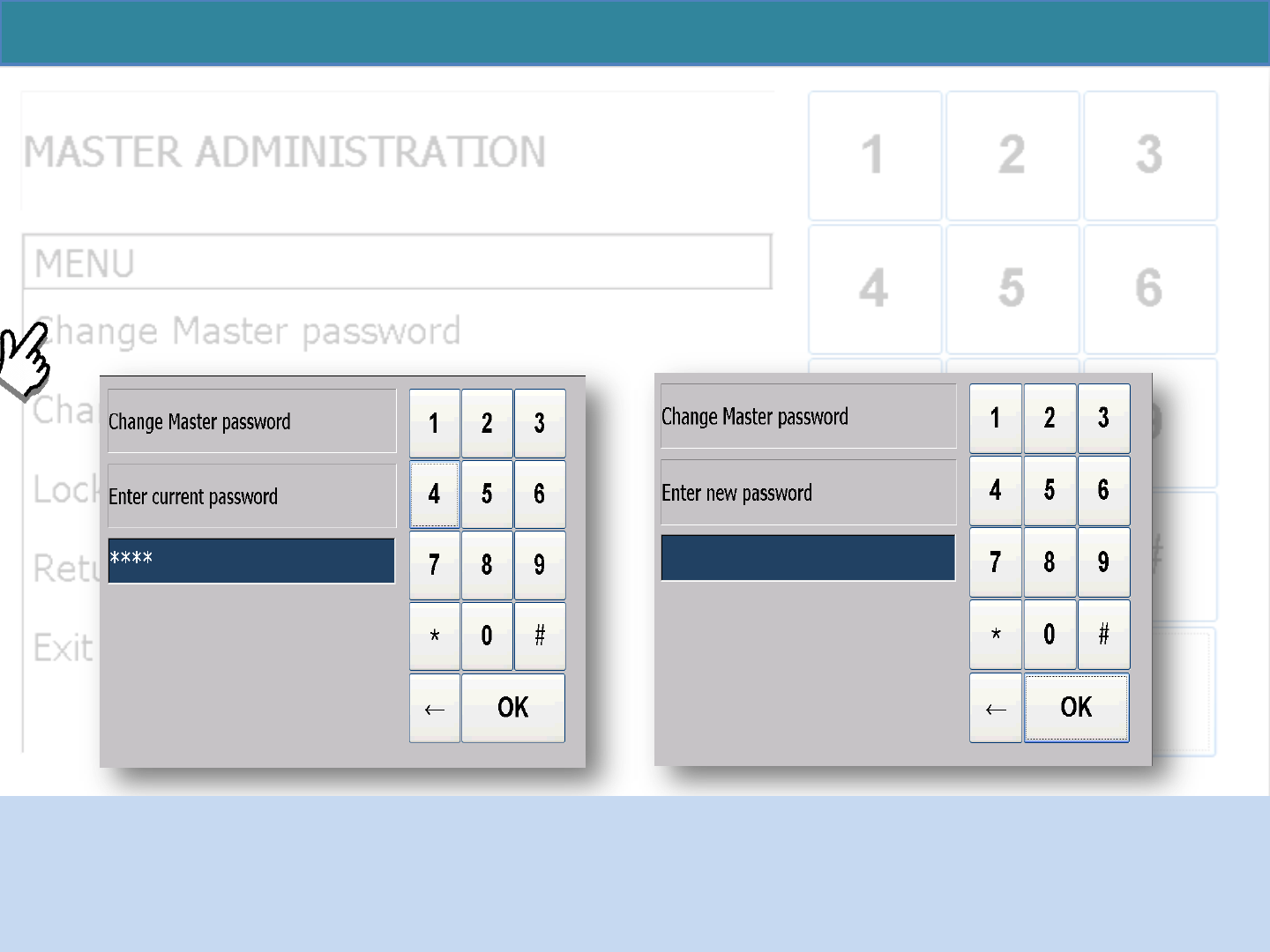

1. CHANGE MASTER PASSWORD
Enter current password and then, new password.
HOW TO SET CONTROLLER FUNCTION
2. CHANGE MASTER CARD
To add new or additional master cards, click Add.
To delete the master cards in the use, click Delete selection.
To delete all master cards, click Delete all.
HOW TO SET CONTROLLER FUNCTION

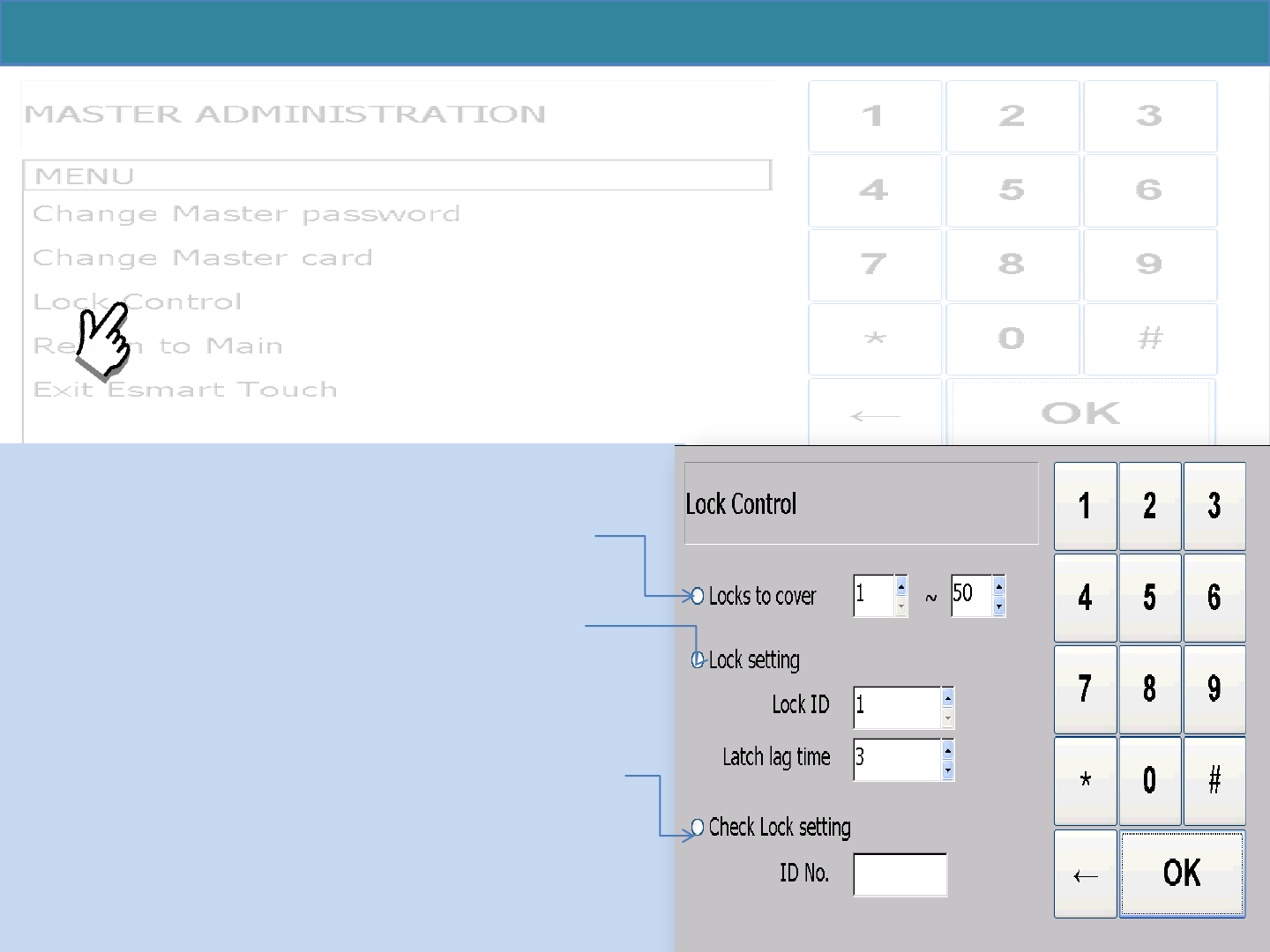

3. LOCK CONTROL
1) Locks to cover : range the locks that the
assigned controller covers.
2) Lock setting : Set Lock ID and latch lag time
(by the seconds) on the menu and then wake-up
by touching or pushing the lock front.
Then, the lock ID is provided to the awaken lock.
3) Check Lock setting : Waking up (by touching or
pushing the lock front), the lock ID already set
displays on the controller. This function is to
confirm the lock ID.
HOW TO SET CONTROLLER FUNCTION
Place MASTER CARD on the controller twice to register user cards &
assign locks as well as opening locks with a master card
at an emergency.
HOW TO USE AND OPERATE THE LOCKS

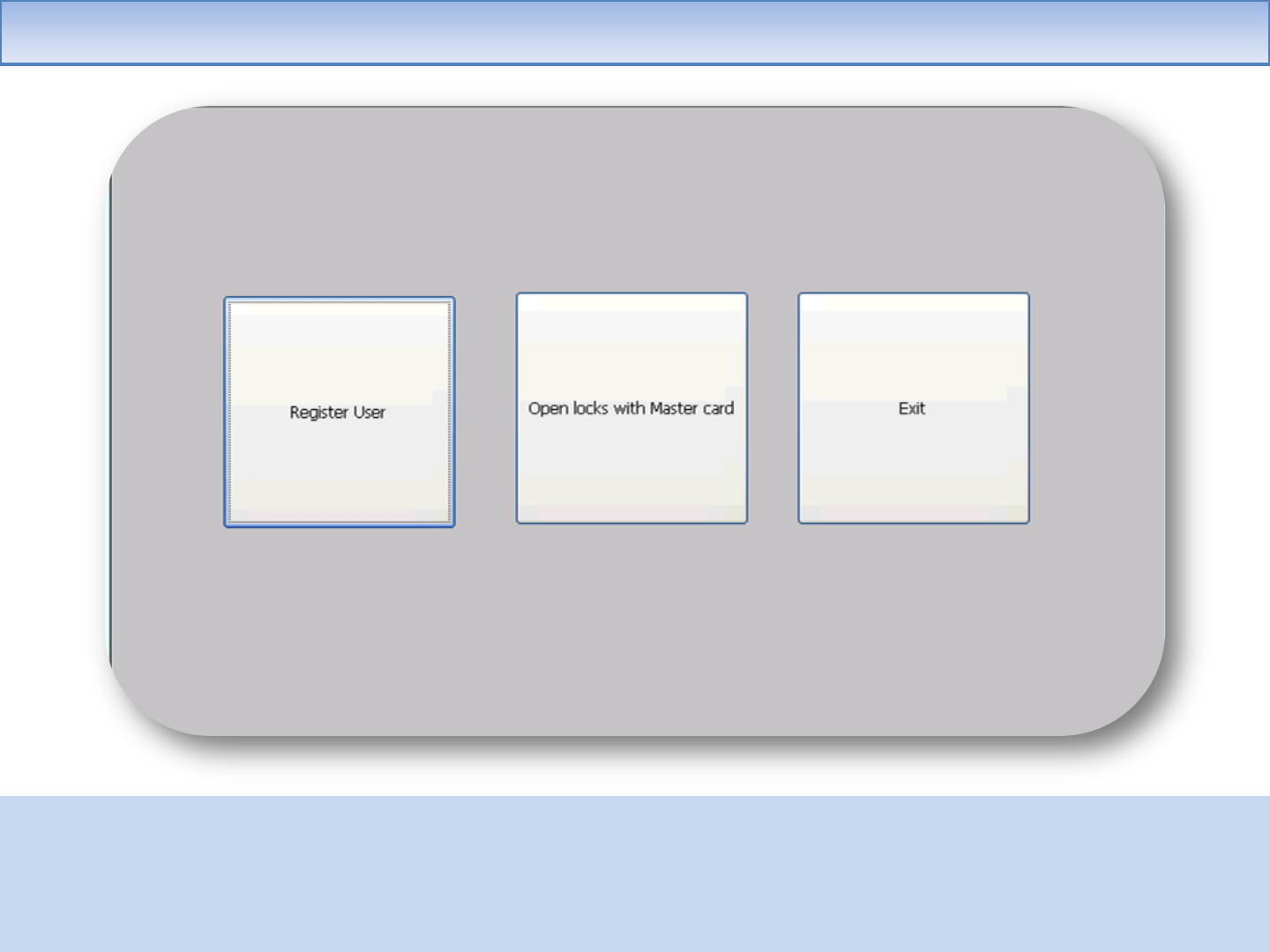

The menu for Register User, Open locks with Master Card displays.
HOW TO USE AND OPERATE THE LOCKS

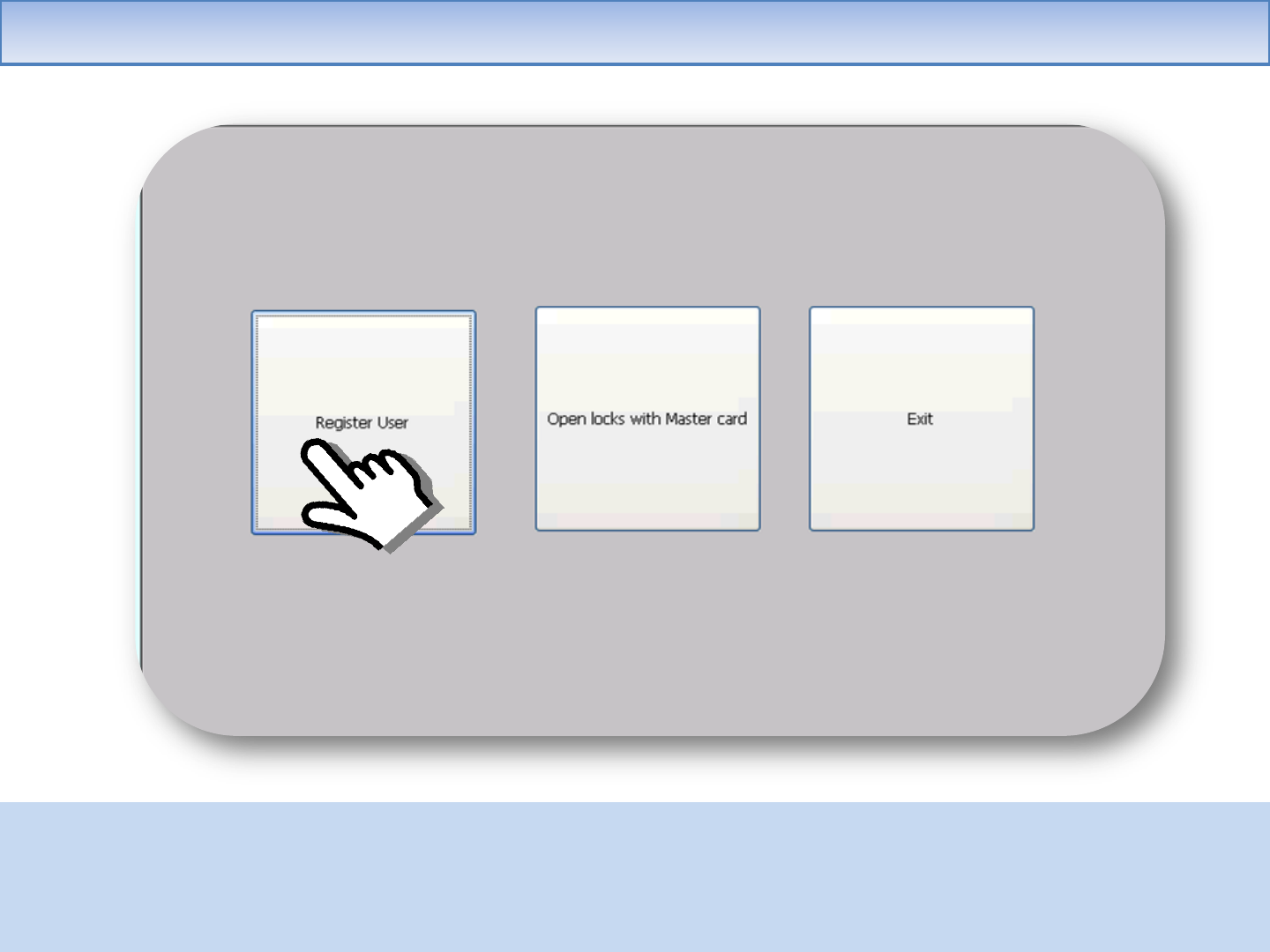

1. REGISTER USER
Click Register User to register user card and select the lockers to occupy & un-occupy.
HOW TO USE AND OPERATE THE LOCKS
There are 2 ways to select free lockers & register user cards.
Show one displays free lockers one by one.
Show all displays free lockers at one sight.
HOW TO USE AND OPERATE THE LOCKS

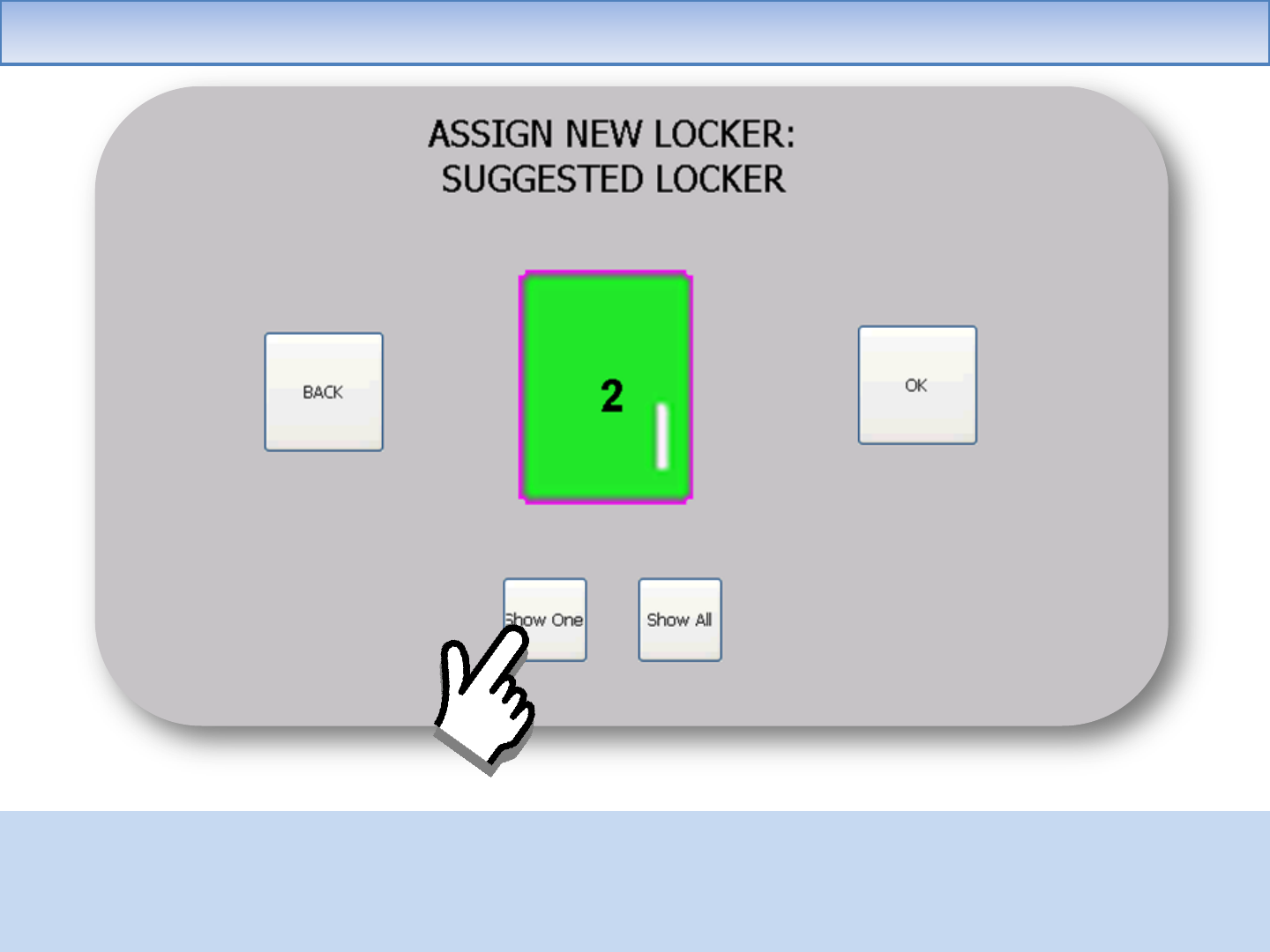

1) Show One
Click Show one to select free locker one by one.
HOW TO USE AND OPERATE THE LOCKS

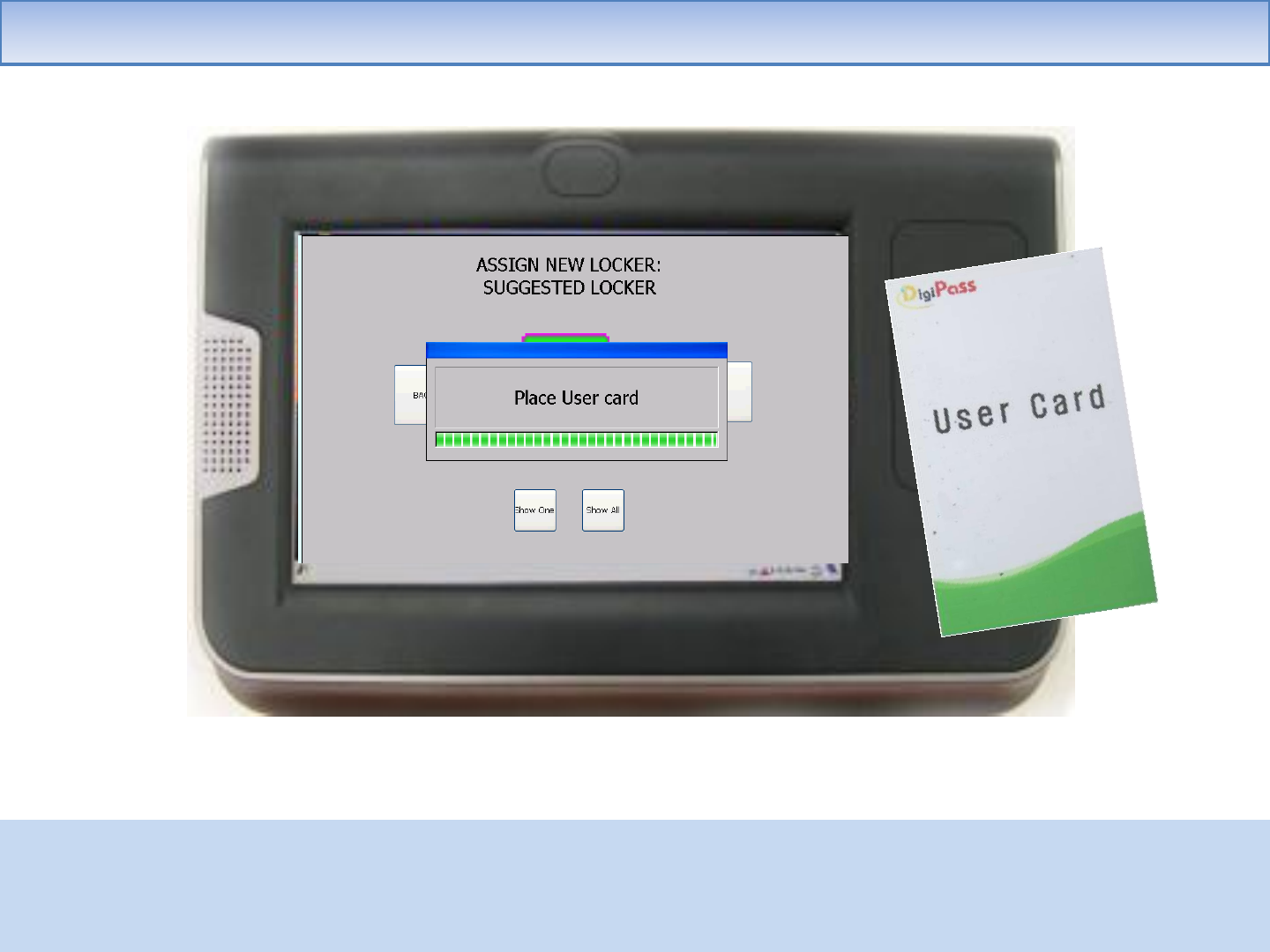

After selecting one free locker (e.g. locker No. 2), place user card on the controller to occupy
the selected locker.
HOW TO USE AND OPERATE THE LOCKS

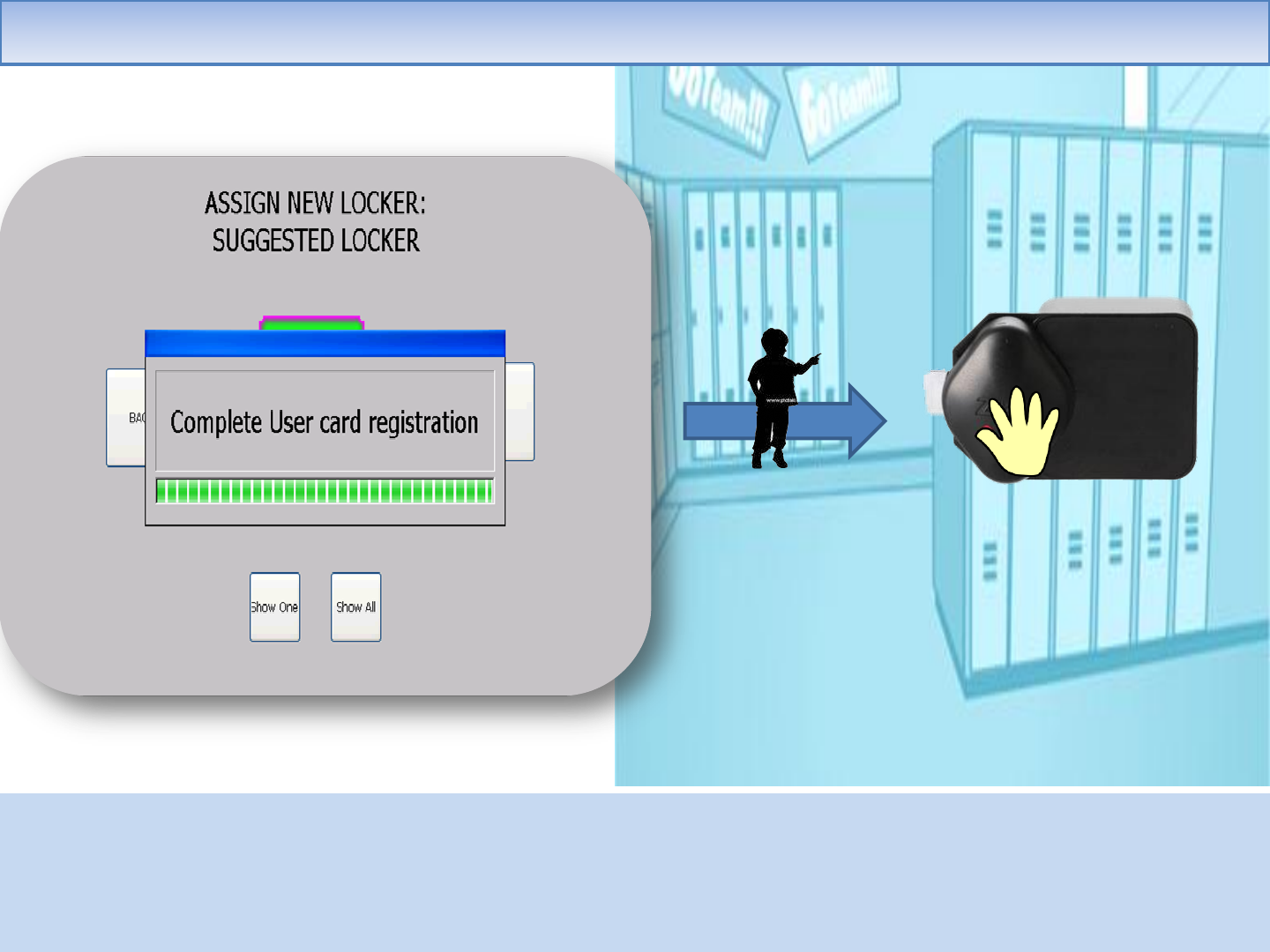

After selecting the locker No. and registered the user card to the selected locker, the user steps towards
the assigned locker and wakes up or push the front of the lock to open the locker.
Place the belongings inside the locker and close the door ( latch is full cycle mode – automatically
opens and locks when the user closes the locker door)
HOW TO USE AND OPERATE THE LOCKS

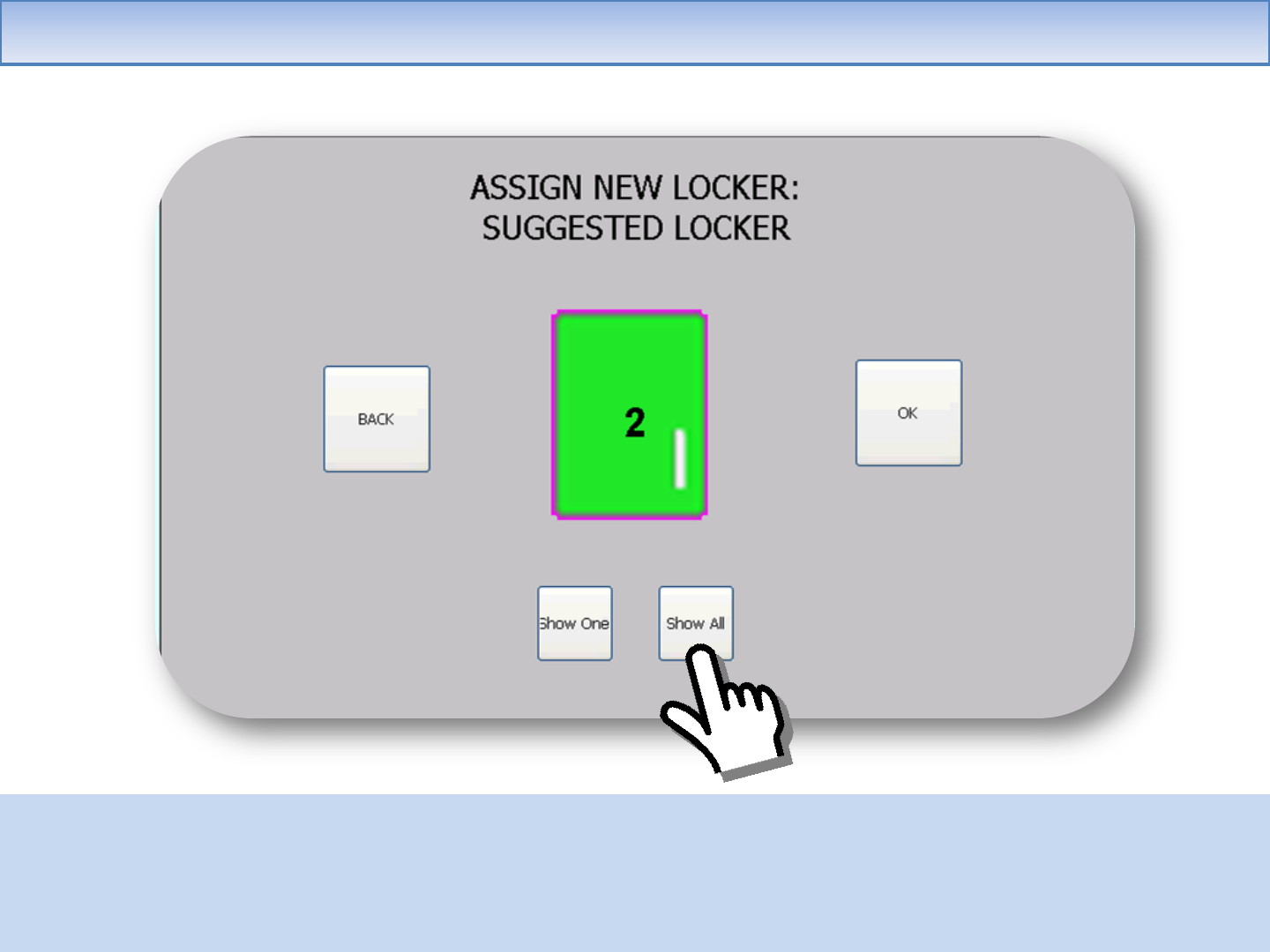

2) Show all
Click Show all to select free locker from all locker list.
HOW TO USE AND OPERATE THE LOCKS

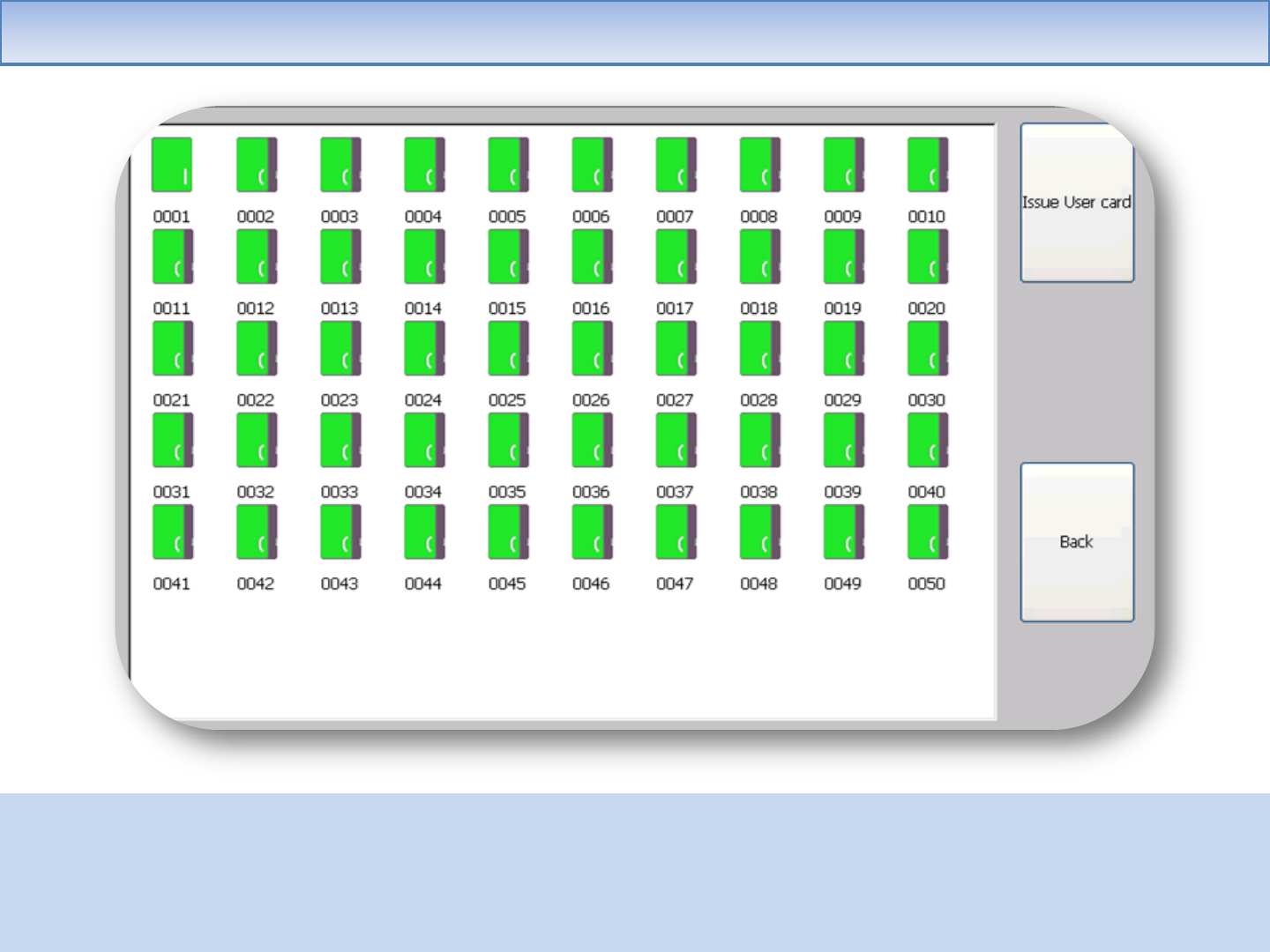

All available lockers display.
HOW TO USE AND OPERATE THE LOCKS

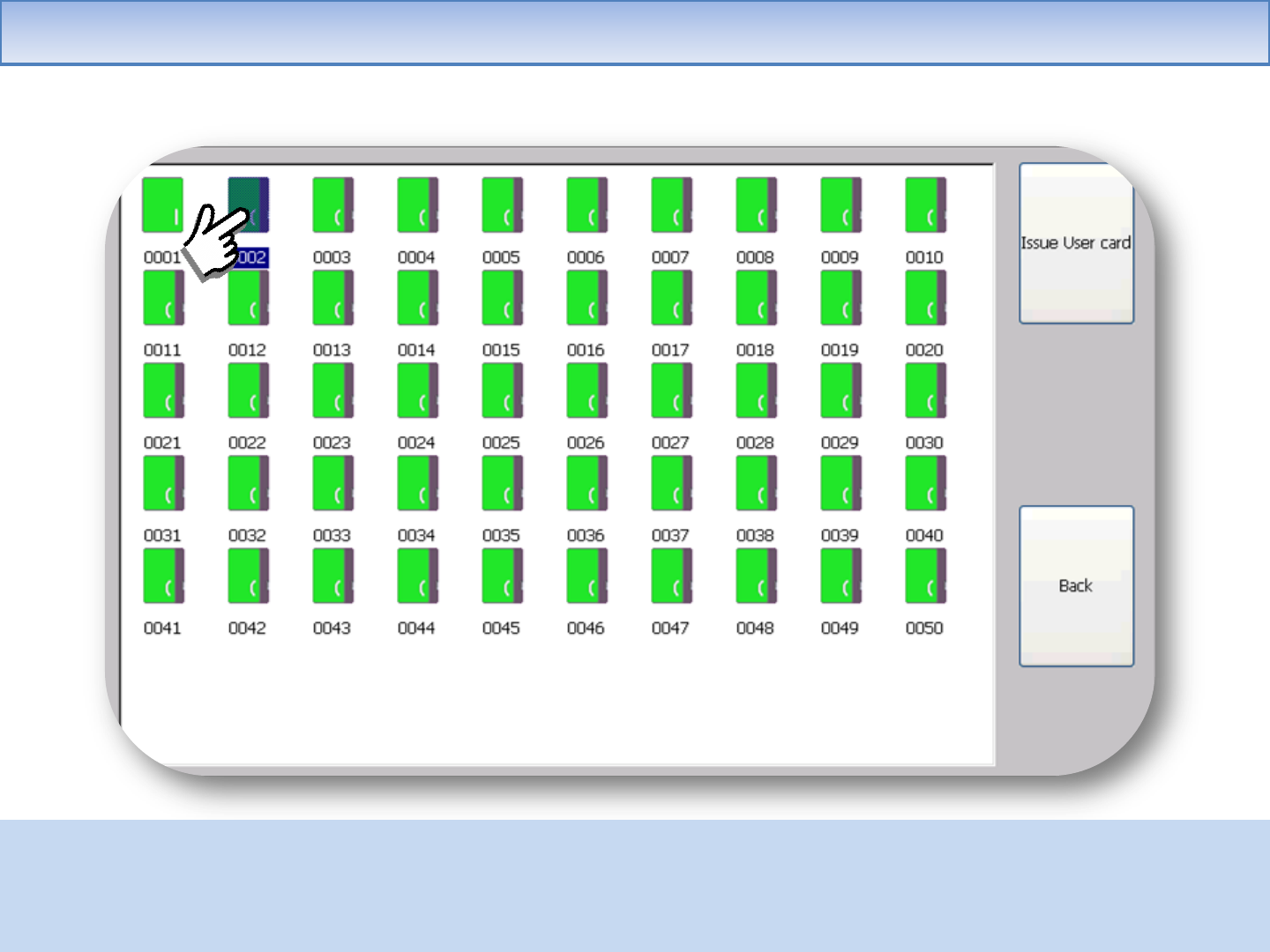

Select the locker to occupy.
HOW TO USE AND OPERATE THE LOCKS
After selecting the free locker, place user card on the controller to occupy the selected locker.
HOW TO USE AND OPERATE THE LOCKS

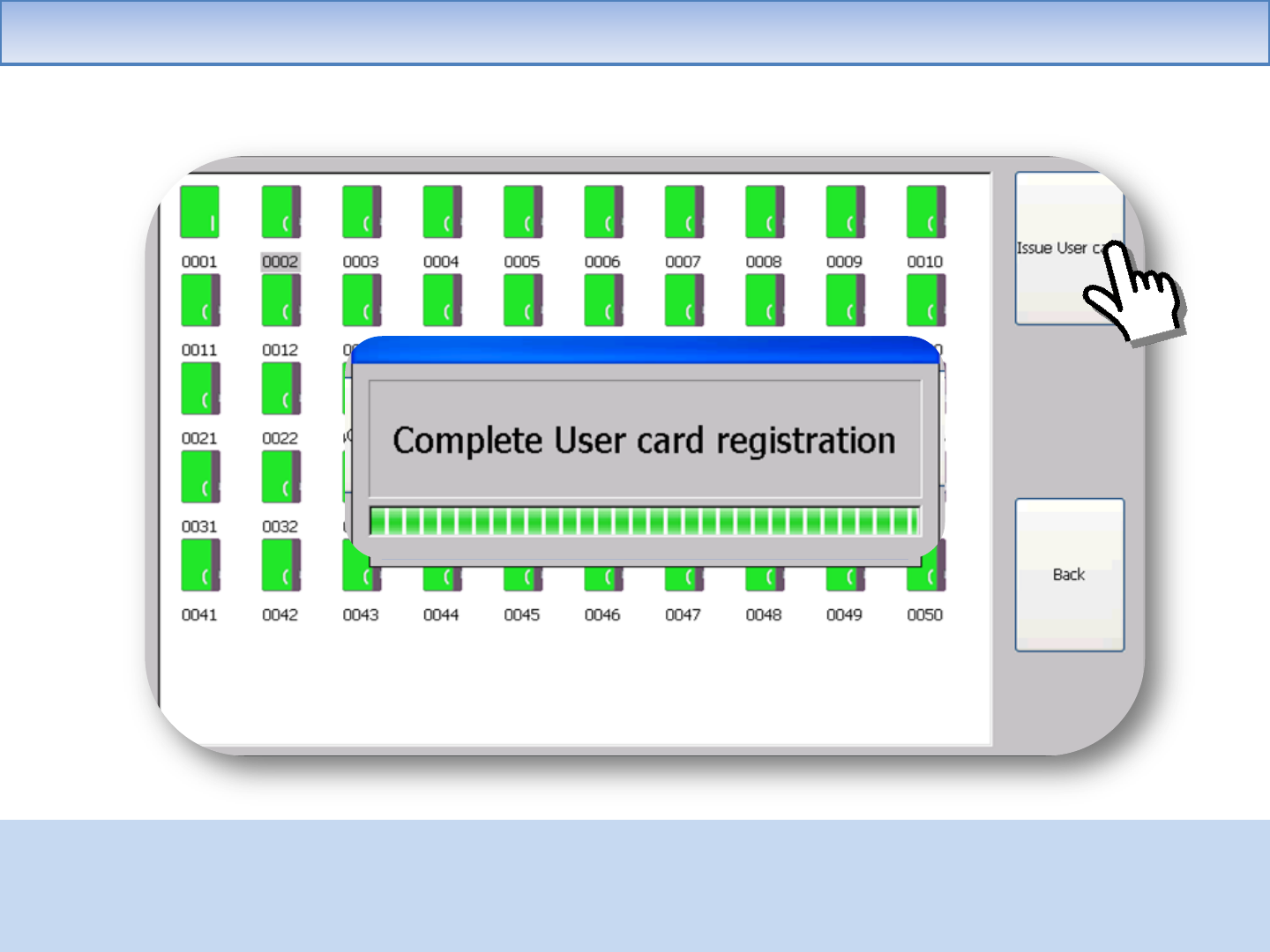

Click Issue User card to register a User card for the selected locker.
HOW TO USE AND OPERATE THE LOCKS

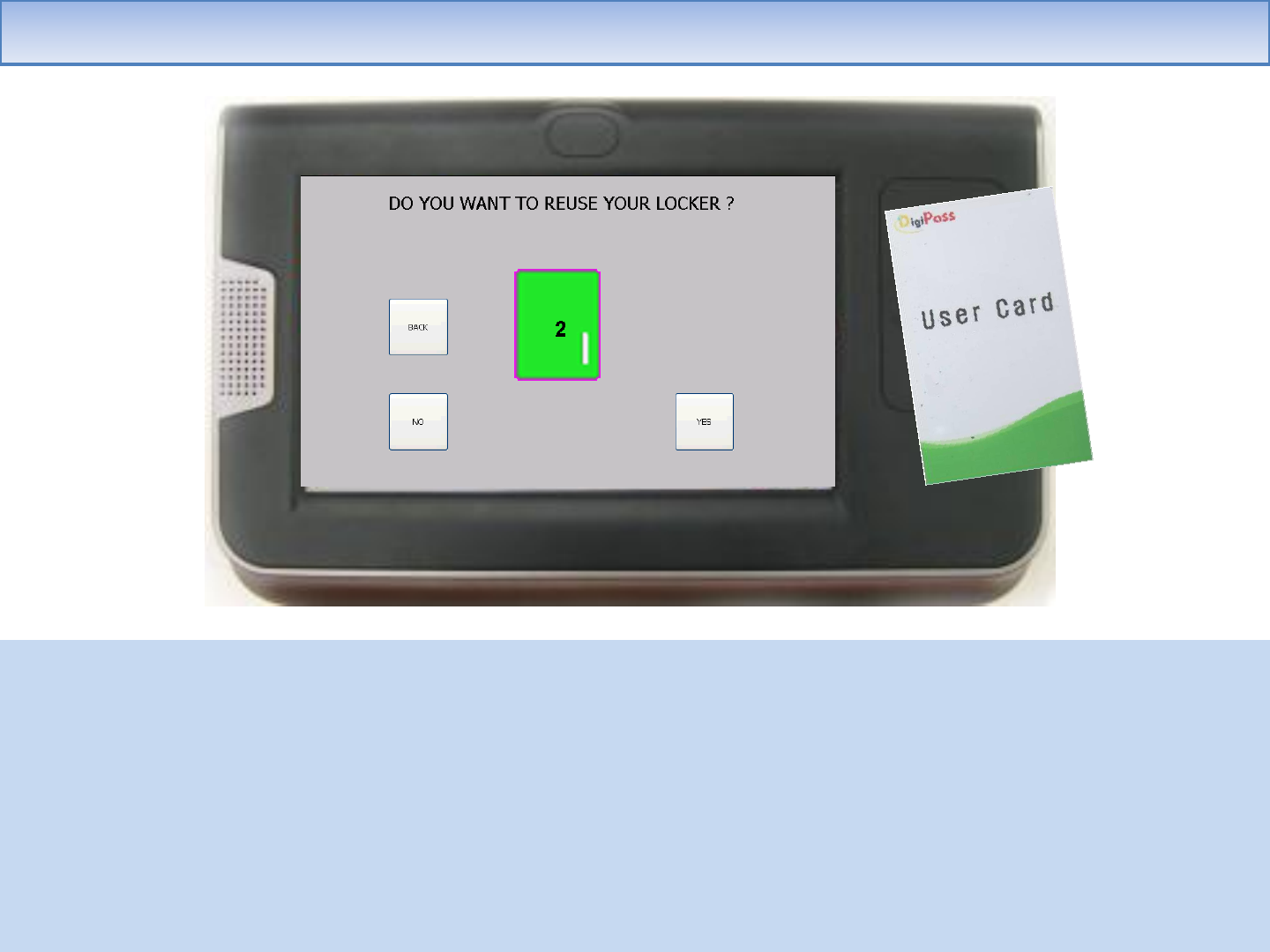

3) Unlock and Re-use the locker
To open the locker the user already occupied, place user card and then the locker No.
the user occupied displays .
- If you want to re-use the locker, click “YES”, then you can reoccupy the selected locker
with your user card without re-registering.
- If you select “No”, you can’t use the selected locker anymore and have to re-register user card
to occupy other free locker.
HOW TO USE AND OPERATE THE LOCKS

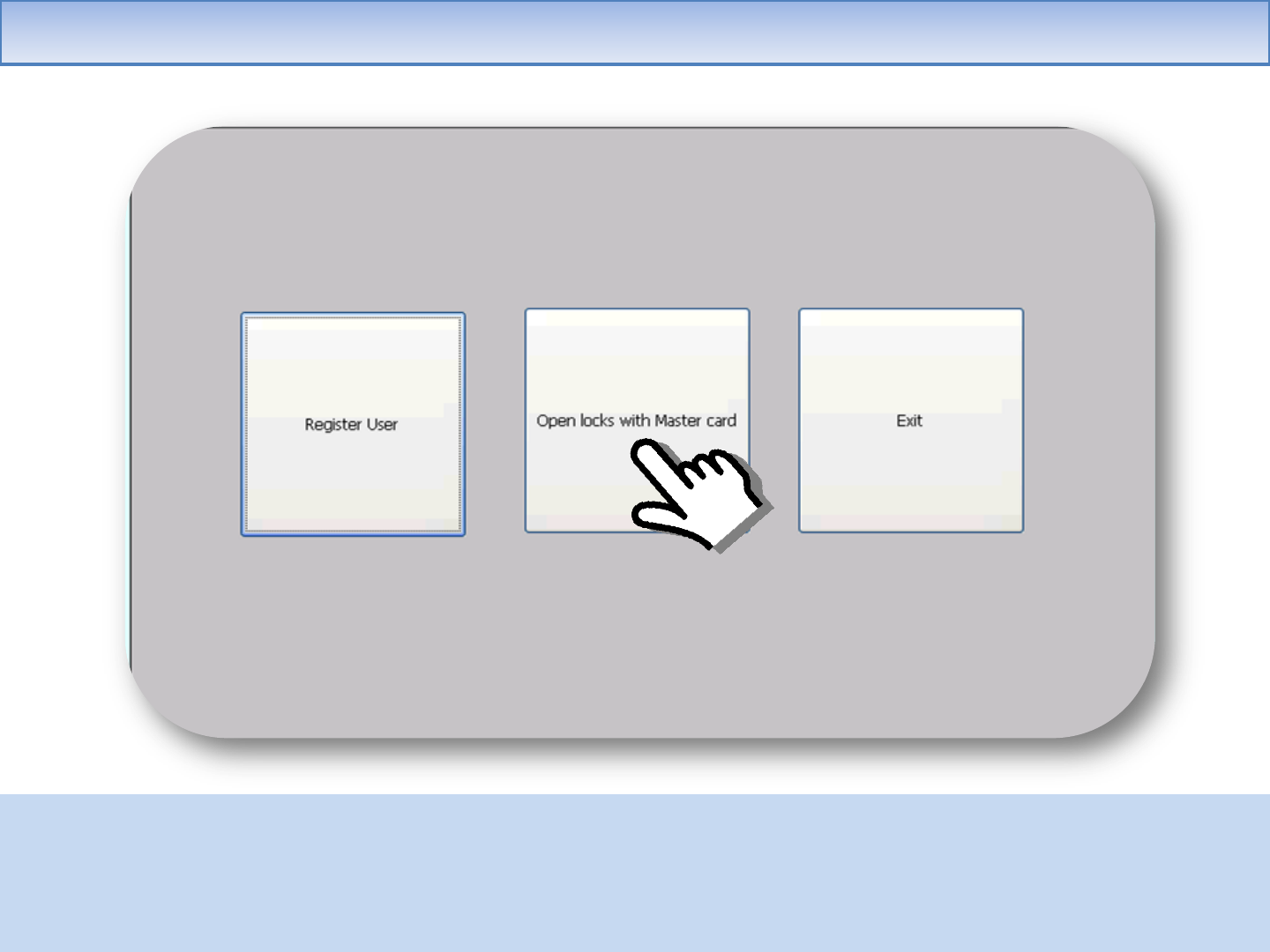

2. OPEN LOCKS WITH MASTER CARD
Click Open locks with Master card to open the locks with Master card at the emergency.
HOW TO USE AND OPERATE THE LOCKS
There are 2 options to open lockers with a Master Card ;
- Open selected locker with Open Selection
- Open all lockers with Open all
HOW TO USE AND OPERATE THE LOCKS

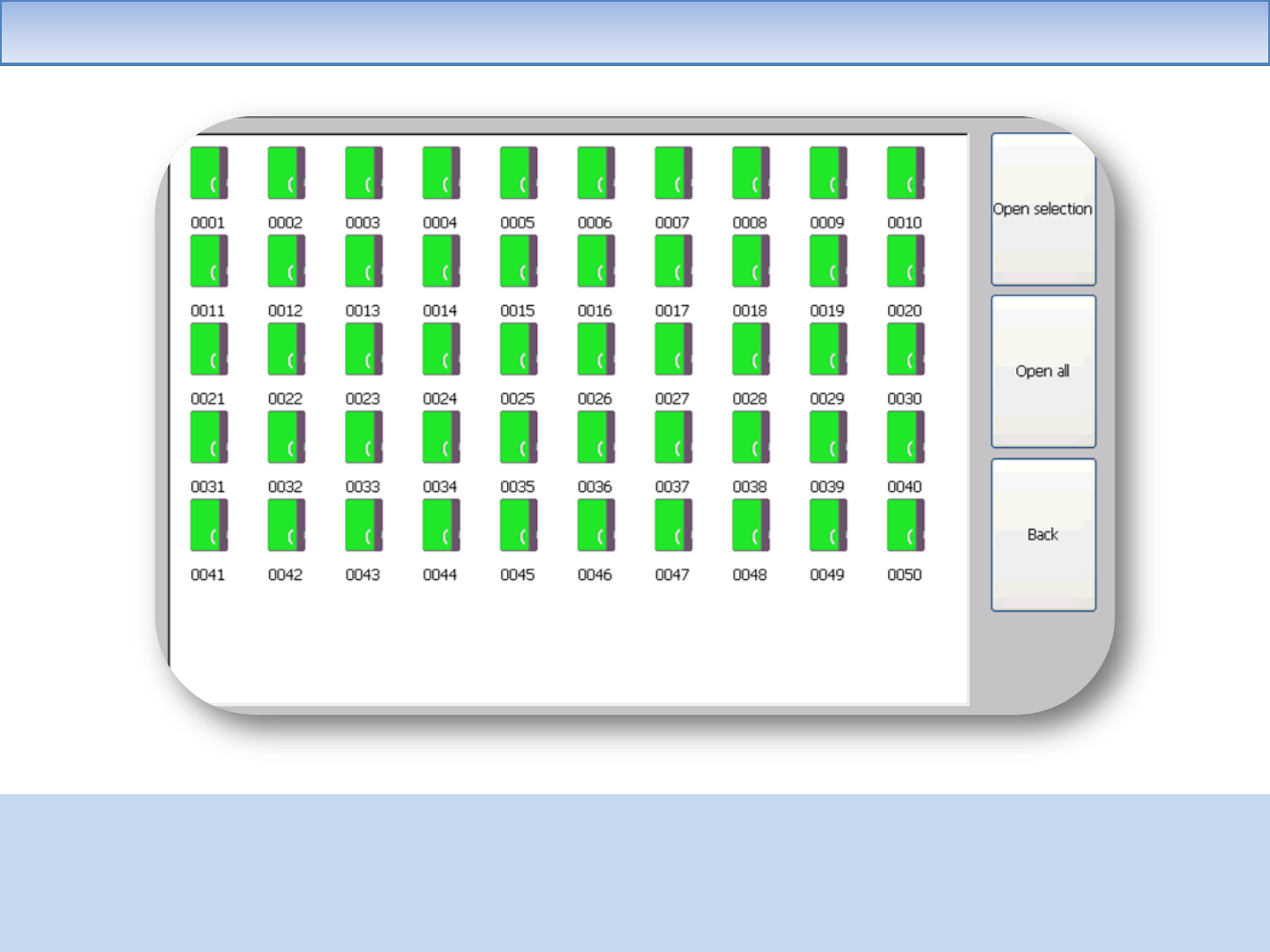

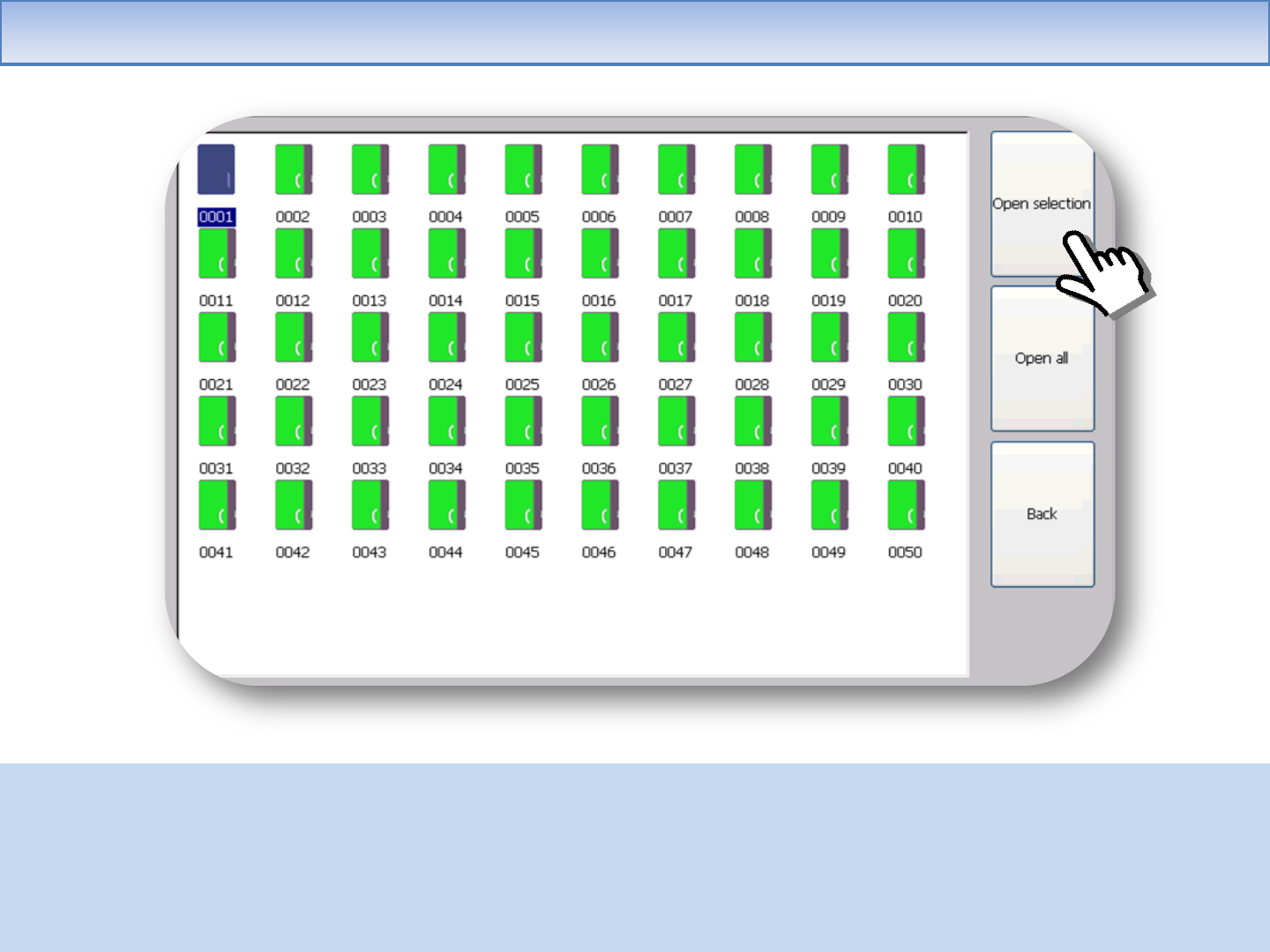

1) Open Selection
- Select the lockers to open.
- Click Open selection.
HOW TO USE AND OPERATE THE LOCKS

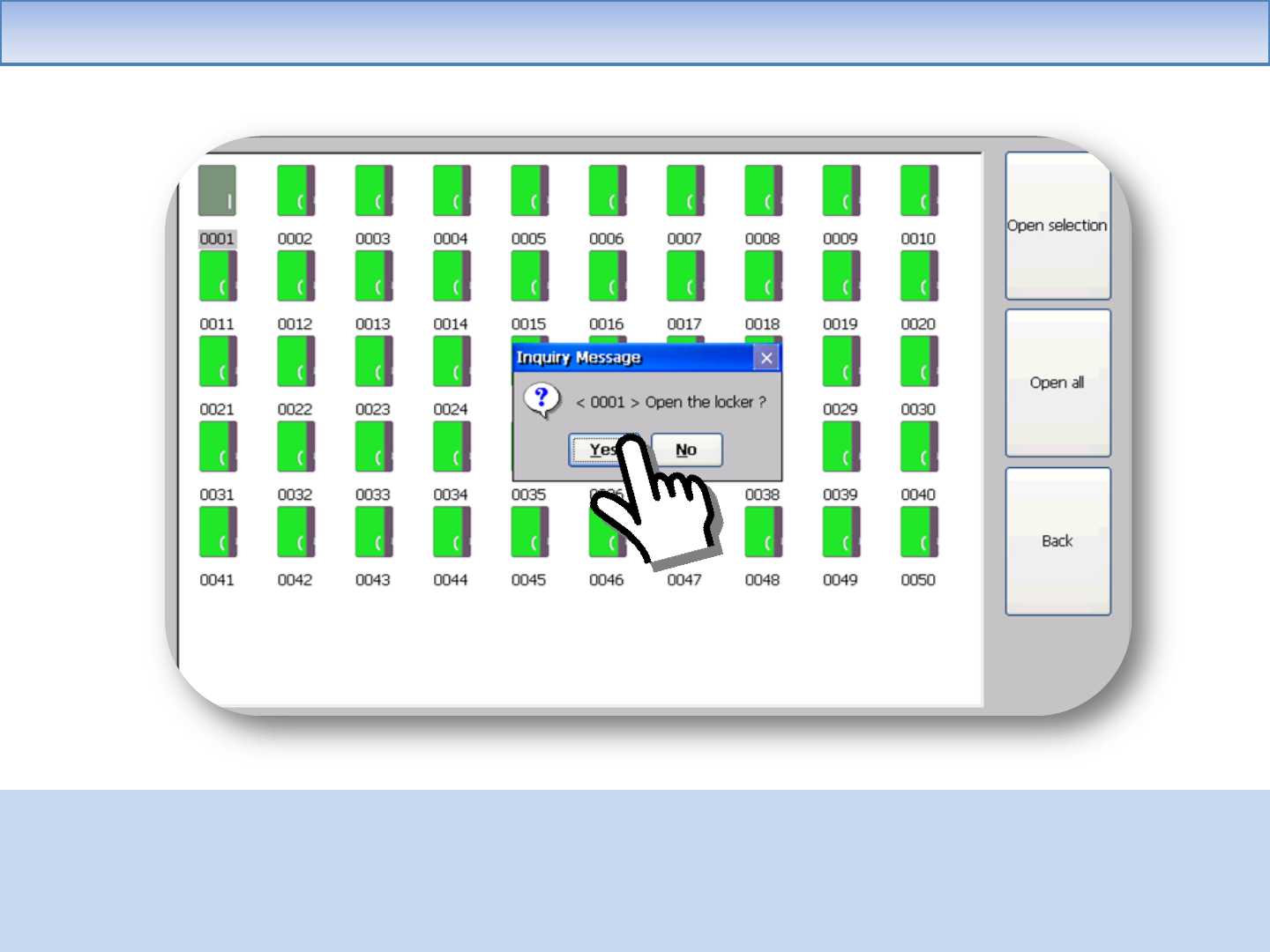

Confirm if the selected lockers are open with Master card.
HOW TO USE AND OPERATE THE LOCKS

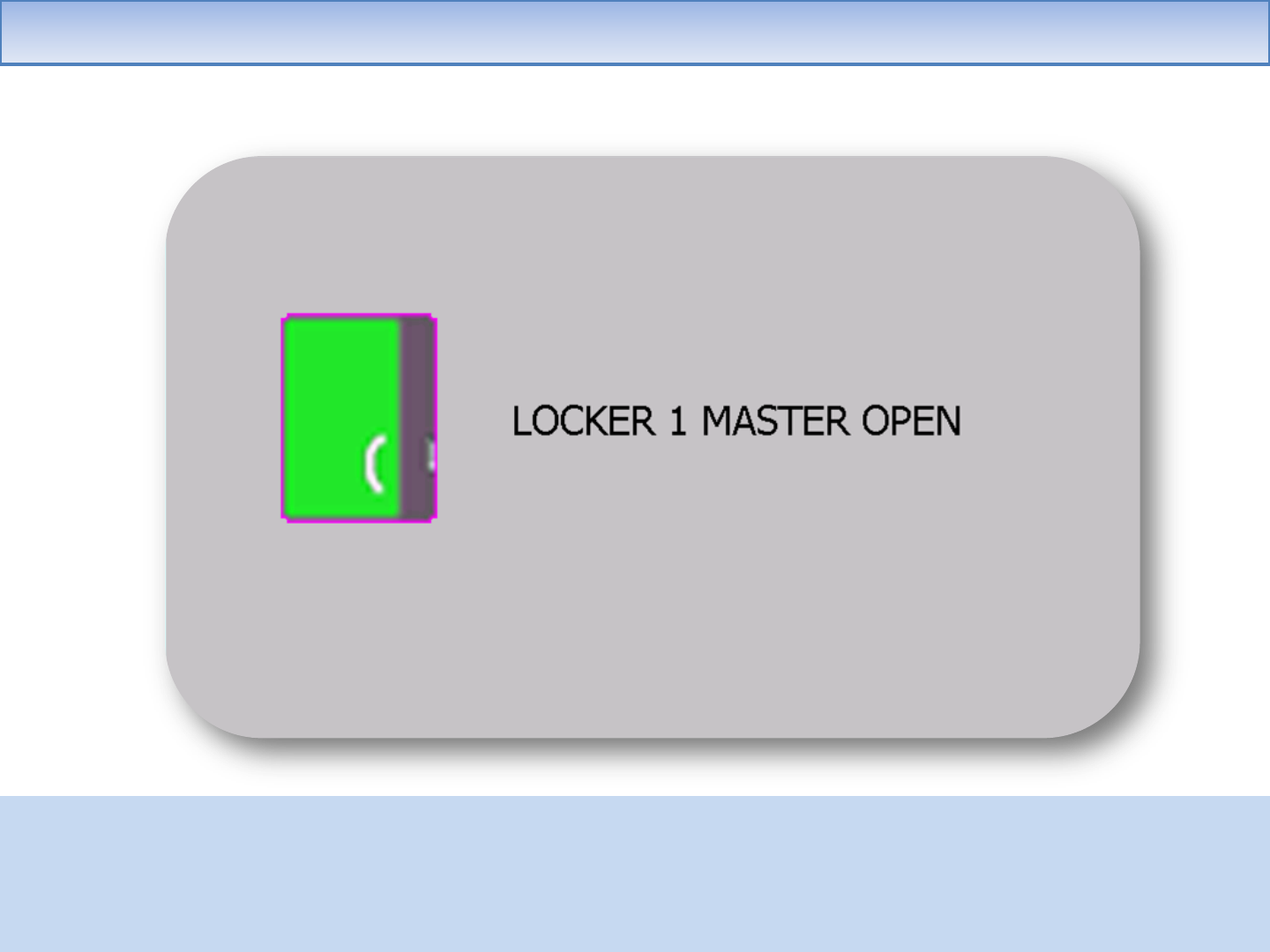

Selected locker is open with Master card.
HOW TO USE AND OPERATE THE LOCKS

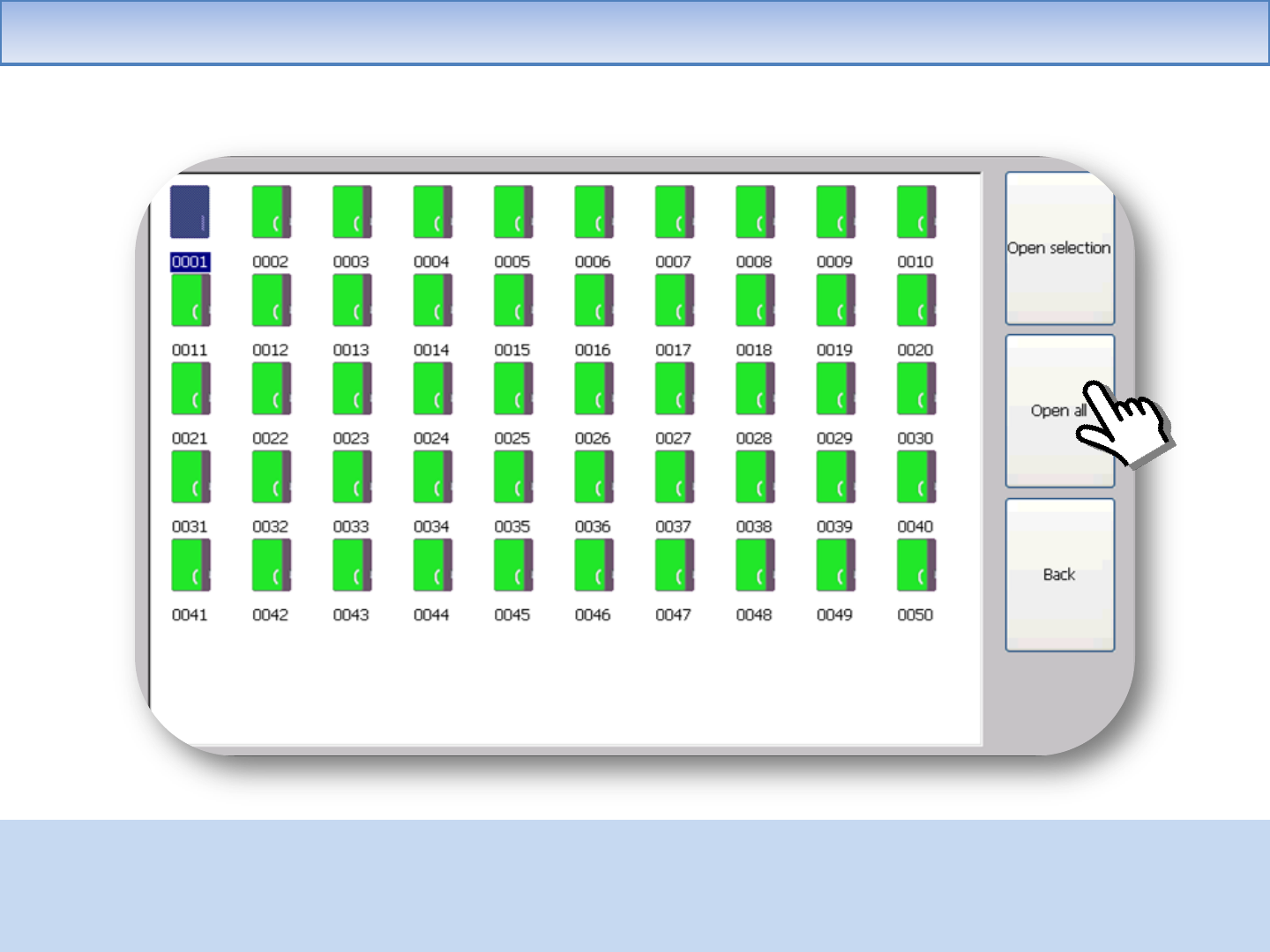

2) Open all
Click Open selection.
HOW TO USE AND OPERATE THE LOCKS

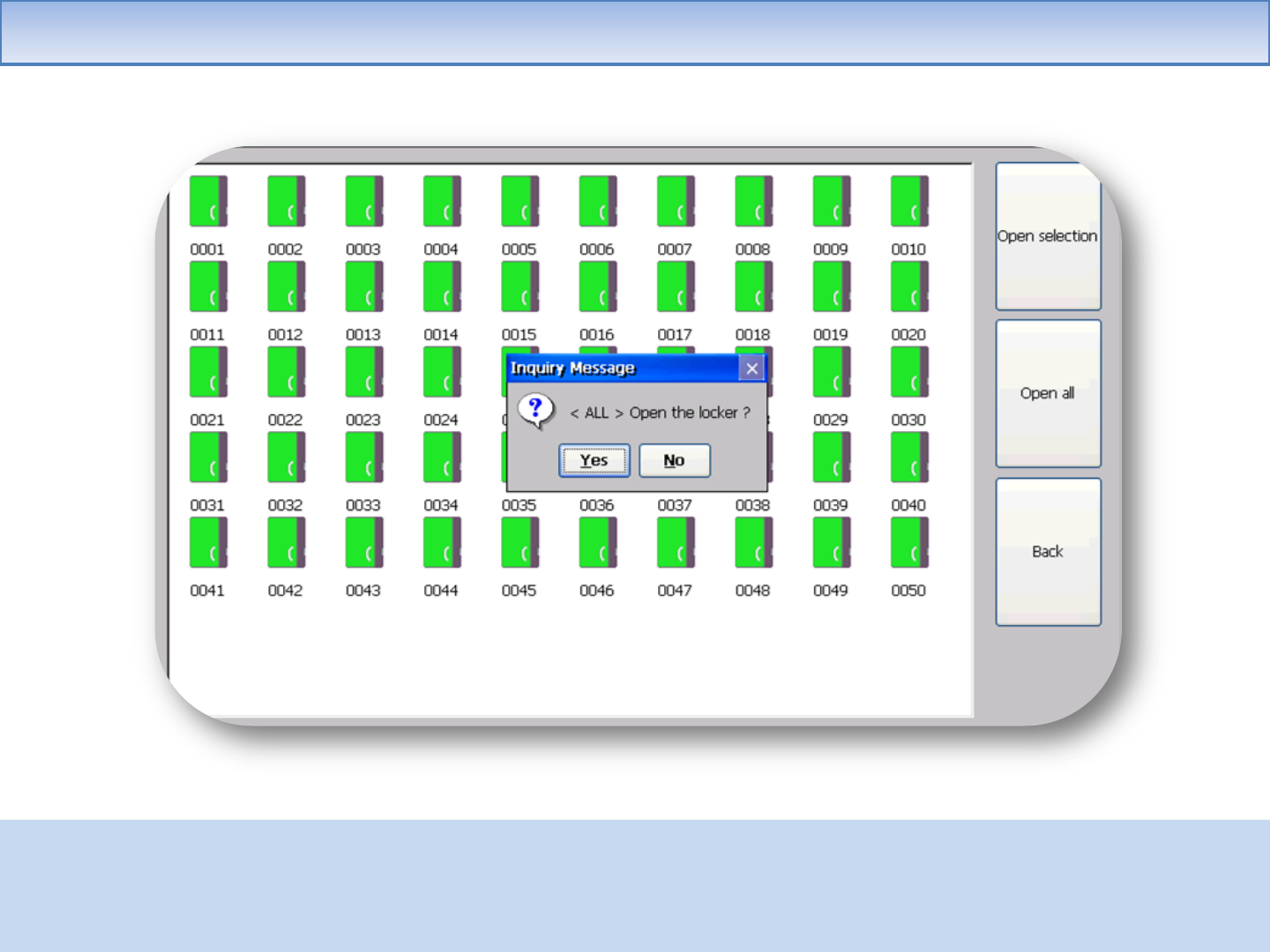

Confirm if all lockers are open with Master card.
HOW TO USE AND OPERATE THE LOCKS

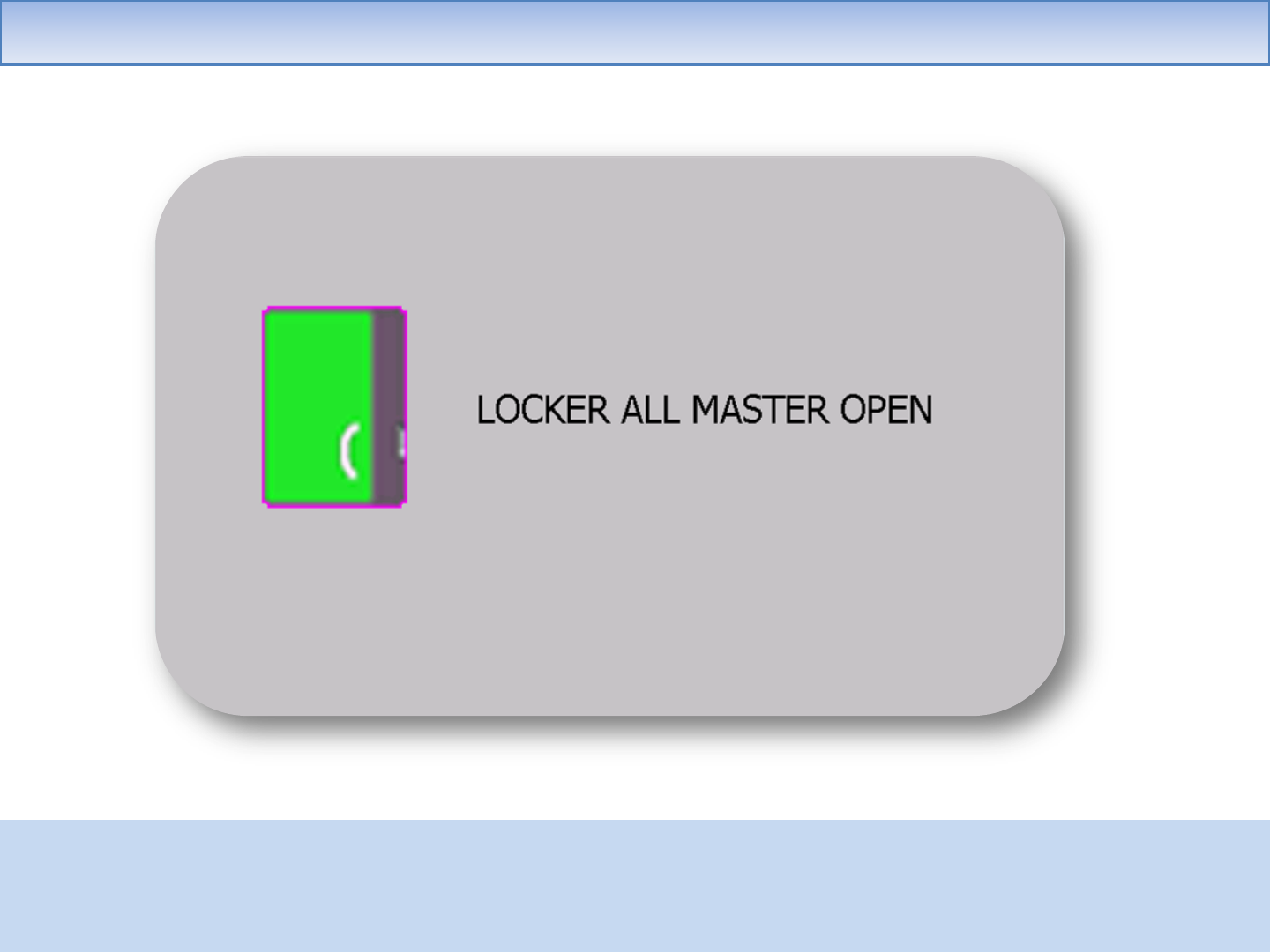

Now all lockers are open with Master card.
