AXELL CSR 3604-3304 UHF REPEATER

PRODUCT DESCRIPTION AND USER’S MANUAL

I DOC PN 3633B-UM Rev. 2.1 © Axell Wireless Ltd

CSR 3604-3304

Channel Selective UHF Repeater

Product Description and User’s Manual

Doc PN 3633B-UM Rev. 2.1

THIS DOCUMENT IS VALID FOR THE

CSR 3604-3304 (3/5MHz) REPEATERS for the US Market

AXELL CSR 3604-3304 UHF REPEATER

PRODUCT DESCRIPTION AND USER’S MANUAL

No part of this document may be copied, distributed, transmitted, transcribed, stored in a

retrieval system, or translated into any human or computer language without the prior

written permission of Axell Wireless Ltd.

The manufacturer has made every effort to ensure that the instructions contained in this

document are adequate and free of errors and omissions. The manufacturer will, if

necessary, explain issues which may not be covered by this document. The manufacturer's

liability for any errors in the document is limited to the correction of errors and the

aforementioned advisory services.

This document has been prepared to be used by professional and properly trained

personnel, and the customer assumes full responsibility when using them. The

manufacturer welcomes customer comments as part of the process of continual

development and improvement of the documentation in the best way possible from the

user's viewpoint. Please submit your comments to the nearest Axell Wireless sales

representative.

Contact Information

Headquarters

Axell Wireless

Aerial House

Asheridge Road

Chesham

Buckinghamshire HP5 2QD

United Kingdom

Tel: +44 1494 777000

Fax: +44 1494 777002

Commercial inquiries

info@axellwireless.com

Web site

www.axellwireless.com

Support issues

support@axellwireless.com

Technical Support Line, English speaking

+44 1494 777 747

Contact information for Axell Wireless offices in other countries can be found on our web

site, www.axellwireless.com

AXELL CSR 3604-3304 UHF REPEATER

PRODUCT DESCRIPTION AND USER’S MANUAL

III DOC PN 3633B-UM Rev. 2.1 © Axell Wireless Ltd

About This Manual

This Product Manual provides the following information:

 Description of the Repeater

 Procedures for setup, configuration and checking the proper operation of the Repeater

 Maintenance and troubleshooting procedures

Users

This Product Manual is intended for experienced technicians and engineers. It is assumed

that the customers installing, operating, and maintaining Axell Wireless Repeaters are

familiar with the basic functionality of Repeaters.

Notice

Confidential - Authorized Customer Use

This document may be used in its complete form only and is solely for the use of Axell

Wireless employees and authorized Axell Wireless channels or customers. The material

herein is proprietary to Axell Wireless. Any unauthorized reproduction, use or disclosure of

any part thereof is strictly prohibited.

All trademarks and registered trademarks are the property of their respective owners.

Disclaimer of Liability

Contents herein are current as of the date of publication. Axell Wireless reserves the right to

change the contents without prior notice. The information furnished by Axell Wireless in this

document is believed to be accurate and reliable. However, Axell Wireless assumes no

responsibility for its use. In no event shall Axell Wireless be liable for any damage resulting

from loss of data, loss of use, or loss of profits and Axell Wireless further disclaims any and

all liability for indirect, incidental, special, consequential or other similes damages. This

disclaimer of liability applies to all products, publications and services during and after the

warranty period.

Safety to Personnel

 Before installing or replacing any of the equipment, the entire manual should be read

and understood.

 This equipment is to be installed only in a restricted access location.

 Throughout this manual, there are "Caution" warnings. "Caution" calls attention to a

procedure or practice, which, if ignored, may result in injury or damage to the system,

system component or even the user. Do not perform any procedure preceded by a

"Caution" until the described conditions are fully understood and met.

CAUTION! This notice calls attention to a procedure or practice

that, if ignored, may result in personal injury or in damage to the

system or system component. Do not perform any procedure

preceded by a "Caution" until described conditions are fully

understood and met.

AXELL CSR 3604-3304 UHF REPEATER

PRODUCT DESCRIPTION AND USER’S MANUAL

Compliance with FCC

Part 90 Signal Boosters THIS IS A 90.219 CLASS A DEVICE

WARNING: This is NOT a CONSUMER device. This device is designed for installation

by FCC LICENCEES and QUALIFIED INSTALLERS. You MUST have an FCC

LICENCE or express consent of an FCC Licensee to operate this device.

You MUST register Class B signal boosters (as defined in 47 CFR 90.219) online at

www.fcc.gov/signal-boosters/registration.

Unauthorized use may result in significant forfeiture penalties, including penalties in

excess of $100,000 for each continuing violation.

The installation procedure must result in the signal booster complying with FCC

requirements 90.219(d). In order to meet FCC requirements 90.219 (d), it may be

necessary for the installer to reduce the UL and/or DL output power for certain

installations.

FCC Part 15

This device complies with part 15 of the FCC Rules. Operation is subject to the following

two conditions:

1. This device may not cause harmful interference, and

2. This device must accept any interference received, including interference that may

cause undesired operation.

If not installed and used in accordance with the instructions, this equipment generates, uses

and can radiate radio frequency energy. However, there is no guarantee that interference

will not occur in a particular installation. If this equipment does cause harmful interference to

RF reception, which can be determined by turning the equipment off and on, the user is

encouraged to try to correct the interference by one or more of the following measures:

 Reorient or relocate the Donor antenna.

 Increase the separation between the equipment and receiver.

 Connect the equipment into an outlet on a circuit different from that to which the

receiver is connected.

Unauthorized Changes to Equipment

Changes or Modifications not expressly approved by the manufacturer responsible for

compliance could void the user’s authority to operate the equipment

FCC RF Exposure Limits

This unit complies with FCC RF exposure limits for an uncontrolled environment. This

equipment can only be installed in in-building applications, driving passive or active DAS

systems. All antennas must be operated at a minimum distance of 47 cm between the

radiator and any person’s body.

AXELL CSR 3604-3304 UHF REPEATER

PRODUCT DESCRIPTION AND USER’S MANUAL

V DOC PN 3633B-UM Rev. 2.1 © Axell Wireless Ltd

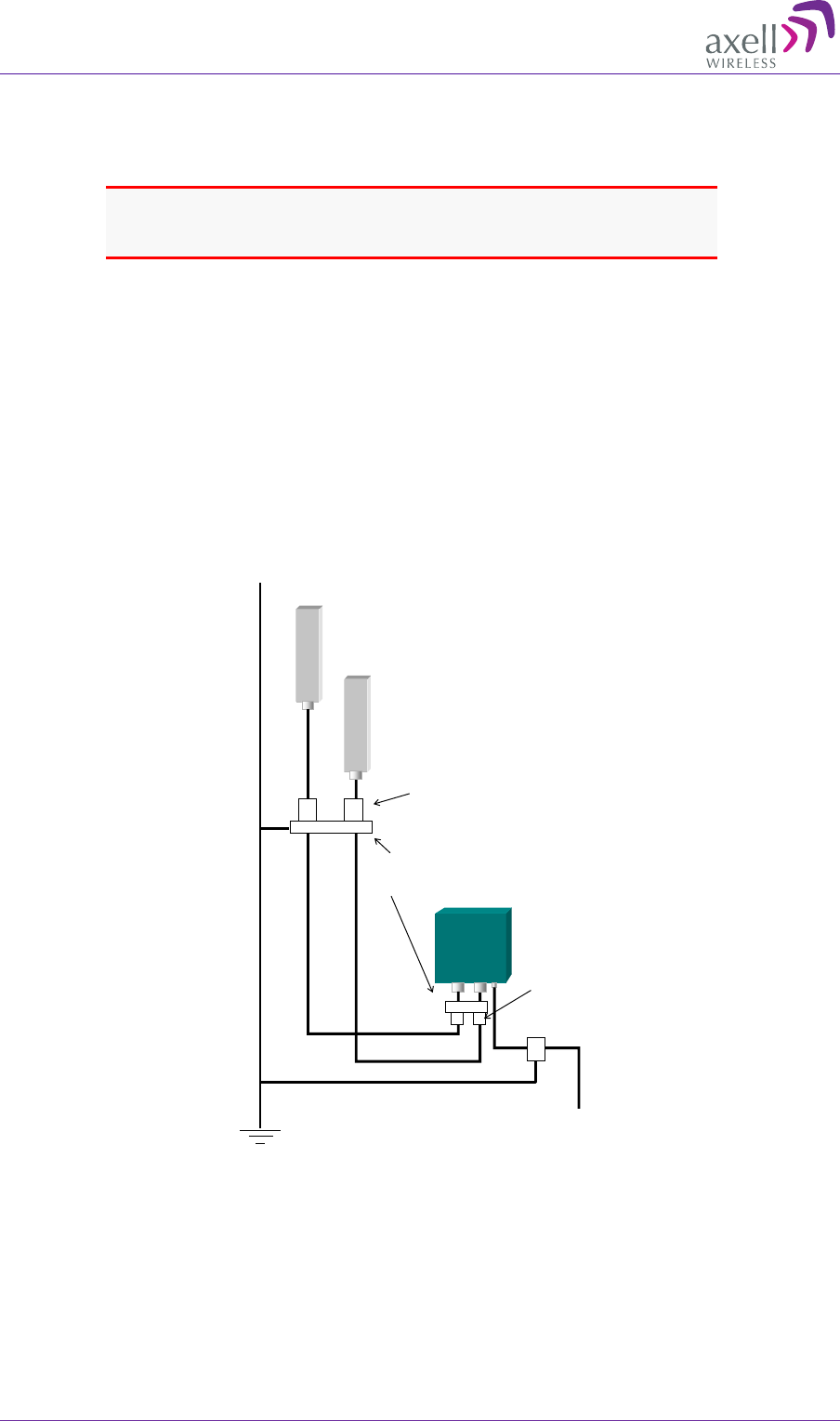

Antenna Installation

Installation of an antenna must comply with the FCC RF exposure requirements. The

antenna used for this transmitter must be mounted on permanent structures.

The FCC regulation mandate that the ERP of type A signal boosters should not exceed 5 W,

this is equivalent to 8.2W EIRP.

Therefore the max antenna gain allowed for this type of signal booster should be limited to

the values given by equation (1) for the service antenna and equation (2) for the donor

antenna

Equation (1) - Max SERVICE antenna gain

Max SERVICE antenna gain (dBi) = 39.1 – (37dBm - # of antennas in dB – cable losses in dB).

For example:

No. of Antennas

Cable Losses

Max Allowed Antenna Gain

39.1 - (37-6-3) =11.1dBi

39.1- (37-0-3) = 5.1dbi

39.1- (37-10-3) = 15.1dbi

Equation (2) - Max DONOR antenna gain

Max DONOR antenna gain (dBi) = 39.1 – (27dBm - cable losses in dB).

For example:

No. of Antennas

Cable Losses

Max Allowed Antenna Gain

39.1 - (27-2) = 14.1dBi

Compliance with FCC deployment rule regarding the radiation

of noise

Good engineering practice must be used in regard to the signal booster’s noise radiation.

Thus, the gain of the signal booster should be set so that the ERP of the output noise from

the signal booster should not exceed the level of -43 dBm in 10 kHz measurement

bandwidth.

In the event that the noise level measured exceeds the aforementioned value, the signal

booster gain should be decreased accordingly.

In general, the ERP of noise on a spectrum more than 1 MHz outside of the pass band

should not exceed -70 dBm in a 10 kHz measurement bandwidth.

The CSR3x04 series of signal boosters have a noise level of -55 dBm in 10 kHz

measurement at 1 MHz spectrum outside the passband of the signal booster and an in-band

noise level at around -50 dBm in a 10 kHz bandwidth. Therefore, the noise at the antenna

input port should be calculated based on equation (3).

Equation (3) - Input Noise to service antenna

Input Noise to service antenna:

-55 dBm + Service Antenna gain – Antenna splitter losses in dB – cable loss in dB

AXELL CSR 3604-3304 UHF REPEATER

PRODUCT DESCRIPTION AND USER’S MANUAL

Example:

Signal booster connected to 10 service antennas with a 100m long ½ inch cable.

Losses of such a cable with the connectors = ~ 11dB

Gain = ~ 2 dBi

Assuming 10 service antennas: antenna splitter losses = 11 dB

Based on equation (3) Input antenna noise (to the antenna) = -55+2-11 -11=-75 dBm

The inband input noise to the antenna should be -50+2 -11-11= -70dbm

NOTE: In this example there is no need to add an external band pass filter to attenuate the out of

band noise.

Conclusion:

Good engineering practice requires that in general when the out of band noise measured at

the service antenna input is more than -70 dBm per 10 kHz measurement bandwidth, an

external band pass filter should be added to attenuate the out of band noise level.

All Axell Wireless repeaters include high selectivity duplexers and filters to attenuate the out

of band noise. Should additional filtering be required, we have a comprehensive range of

interference filters which can be supplied upon request.

Compliance with IC

Under Industry Canada regulations, this radio transmitter may only operate using an antenna of a type

and maximum (or lesser) gain approved for the transmitter by Industry Canada. To reduce potential

radio interference to other users, the antenna type and its gain should be so chosen that the equivalent

isotropically radiated power (e.i.r.p.) is not more than that necessary for successful communication.

Conformément à la réglementation d'Industrie Canada, le présent émetteur radio peut fonctionner

avec une antenne d'un type et d'un gain maximal (ou inférieur) approuvé pour l'émetteur par

Industrie Canada. Dans le but de réduire les risques de brouillage radioélectrique à l'intention des

autres utilisateurs, il faut choisir le type d'antenne et son gain de sorte que la puissance isotrope

rayonnée équivalente (p.i.r.e.) ne dépasse pas l'intensité nécessaire à l'établissement d'une

communication satisfaisante.

The Manufacturer's rated output power of this equipment is for single carrier operation. For

situations when multiple carrier signals are present, the rating would have to be reduced by

3.5 dB, especially where the output signal is re-radiated and can cause interference to

adjacent band users. This power reduction is to be by means of input power or gain reduction

and not by an attenuator at the output of the device.

This equipment complies with IC RSS-102 radiation exposure limits set forth for an uncontrolled

environment. This equipment should be installed and operated with minimum distance of 47cm

between the antenna and your body,

La puissance de sortie nominale indiquée par le fabricant pour cet appareil concerne son

fonctionnement avec porteuse unique. Pour des appareils avec porteuses multiples, on doit réduire la

valeur nominale de 3.5dB, surtout si le signal de sortie est retransmis et qu'il peut causer du

brouillage aux utilisateurs de bandes adjacentes. Une telle réduction doit porter sur la puissance

d'entrée ou sur le gain, et ne doit pas se faire au moyen d'un atténuateur raccordé à la sortie du

dispositif.

Cet appareil est conforme aux limitations de la norme IC RSS-102 concernant l’exposition aux

radiations dans un environnement non contrôlé. Cet appareil doit être installé et utilisé avec une

distance minimale de 47cm entre l’antenne et le corps de l’utilisateur.

AXELL CSR 3604-3304 UHF REPEATER

PRODUCT DESCRIPTION AND USER’S MANUAL

VII DOC PN 3633B-UM Rev. 2.1 © Axell Wireless Ltd

General Safety Warnings Concerning Use of This System

Always observe standard safety precautions during installation, operation and maintenance

of this product. Only a qualified and authorized personnel should carry out adjustment,

maintenance or repairs to the components of this equipment.

NOTE: Please refer to Axell Wireless for additional information and for requests for

notifications to authorities.

Caution labels!

Throughout this manual, there are "Caution" warnings. "Caution" calls

attention to a procedure or practice, which, if ignored, may result in injury

or damage to the system, system component or even the user. Do not

perform any procedure preceded by a "Caution" until the described

conditions are fully understood and met.

Danger: Electrical Shock

This equipment can either be installed indoors or outdoors. When

installed outdoors - wet conditions increase the potential for receiving an

electric shock when installing or using electrically powered equipment. To

prevent electrical shock when installing or modifying the system power

wiring, disconnect the wiring at the power source before working with un

insulated wires or terminals.

Caution: RF Exposure

RF radiation, (especially at UHF frequencies) arising from transmitter

outputs connected to AWL’s equipment, must be considered a safety

hazard.

This condition might only occur in the event of cable disconnection, or

because a ‘spare’ output has been left un-terminated. Either of these

conditions would impair the system’s efficiency. No investigation should

be carried out until all RF power sources have been removed. This would

always be a wise precaution, despite the severe mismatch between the

impedance of an N type connector at 50Ω, and that of free space at

377Ω, which would severely compromise the efficient radiation of RF

power. Radio frequency burns could also be a hazard, if any RF power

carrying components were to be carelessly touched!

Where the equipment is used near power lines or in association with

temporary masts not having lightning protection, the use of a safety earth

connected to the case-earthing bolt is strongly advised.

For FCC compliance, the Maximum Channel output must be <5W ERP.

Warning: Antenna

Installation

Antenna positions should be chosen to comply with requirements (both

local & statutory) regarding exposure of personnel to RF radiation. When

connected to an antenna, the unit is capable of producing RF field

strengths, which may exceed guideline safe values especially if used with

antennas having appreciable gain. In this regard the use of directional

antennas with backscreens and a strict site rule that personnel must

remain behind the screen while the RF power is on, is strongly

recommended.

Installation of an antenna must comply with the FCC RF exposure

requirements.

The antenna used for this transmitter must be mounted on outdoor or

indoor permanent structures. The maximum antenna gain for indoor

operation is 2.2 dBi. In indoor applications the antenna must be installed

at a minimum separation distance of 47 cm from all nearby persons.

AXELL CSR 3604-3304 UHF REPEATER

PRODUCT DESCRIPTION AND USER’S MANUAL

Caution: Safety to

personnel.

Before installing or replacing any of the equipment, the entire manual

should be read and understood.

The user needs to supply the appropriate AC or DC power to the

repeater. Incorrect power settings can damage the repeater and may

cause injury to the user.

Please be aware that the equipment may, during certain conditions

become very warm and can cause minor injuries if handled without

any protection, such as gloves

Caution: Safety to

equipment

When installing, replacing or using this product, observe all safety

precautions during handling and operation. Failure to comply with the

following general safety precautions and with specific precautions

described elsewhere in this manual violates the safety standards of

the design, manufacture, and intended use of this product.

Axell Wireless assumes no liability for the customer's failure to

comply with these precautions. This entire manual should be read

and understood before operating or maintaining the repeater.

Warning: Restricted

Access Location

Access to the Axell unit installation location is restricted to SERVICE

PERSONNEL and to USERS who have been instructed on the

restrictions and the required precautions to be taken.

Attention: Electrostatic

Sensitivity

Observe electrostatic precautionary procedures.

ESD = Electrostatic Discharge Sensitive Device.

Semiconductor transmitters and receivers provide highly reliable

performance when operated in conformity with their intended design.

However, a semiconductor may be damaged by an electrostatic

discharge inadvertently imposed by careless handling.

Static electricity can be conducted to the semiconductor chip from the

centre pin of the RF input connector, and through the AC connector

pins. When unpacking and otherwise handling the repeater, follow

ESD precautionary procedures including use of grounded wrist

straps, grounded workbench surfaces, and grounded floor mats.

Caution: Battery

Replacement

Risk of explosion if battery is replaced with incorrect type. Dispose of

used batteries according to instructions.

AXELL CSR 3604-3304 UHF REPEATER

PRODUCT DESCRIPTION AND USER’S MANUAL

Table of Contents

1 Introduction ................................................................................................................ 1

1.1 Features and Capabilities .................................................................................................... 2

1.2 Rechargeable Battery Pack ................................................................................................. 2

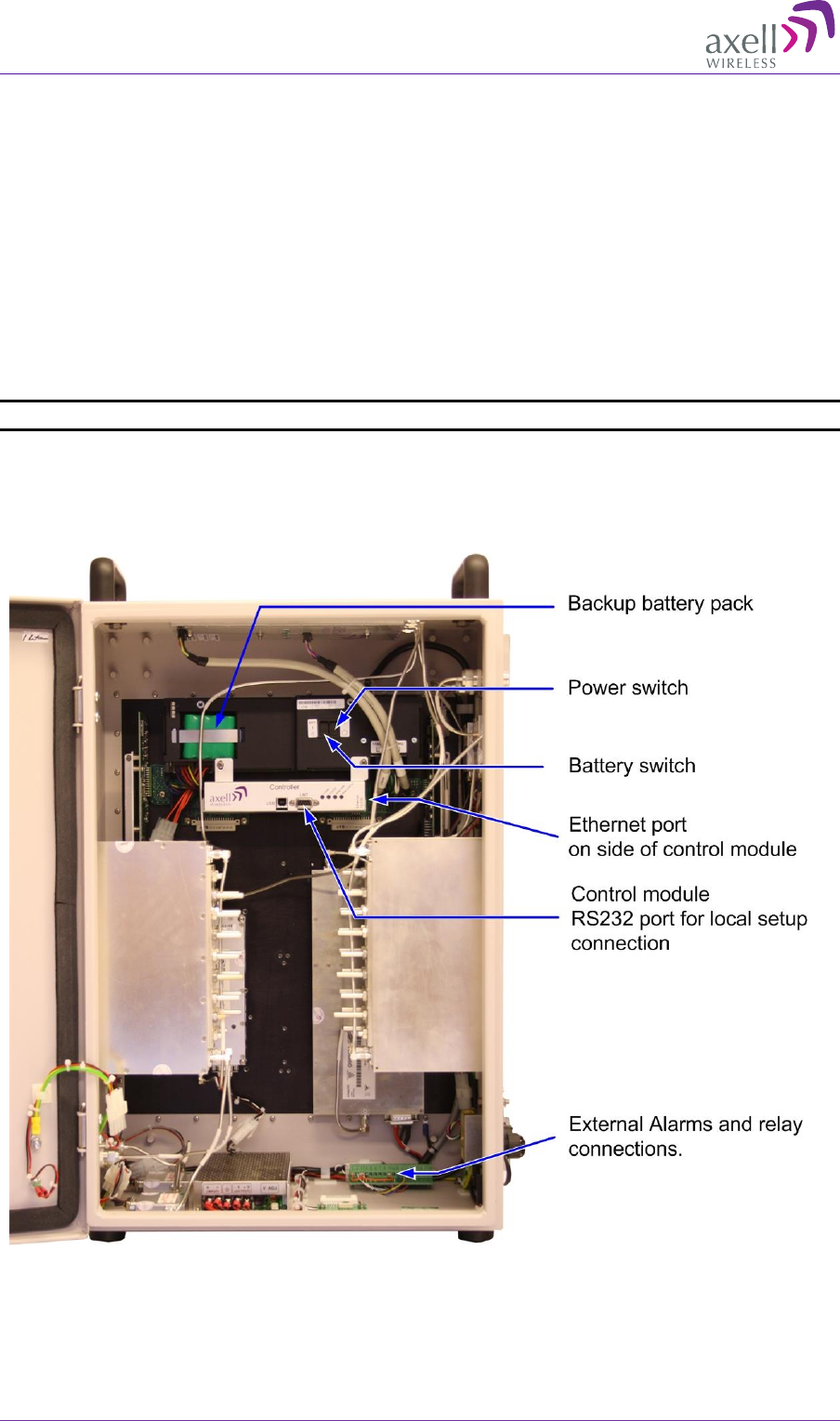

1.3 CSR 3604-3304 Interfaces ................................................................................................... 3

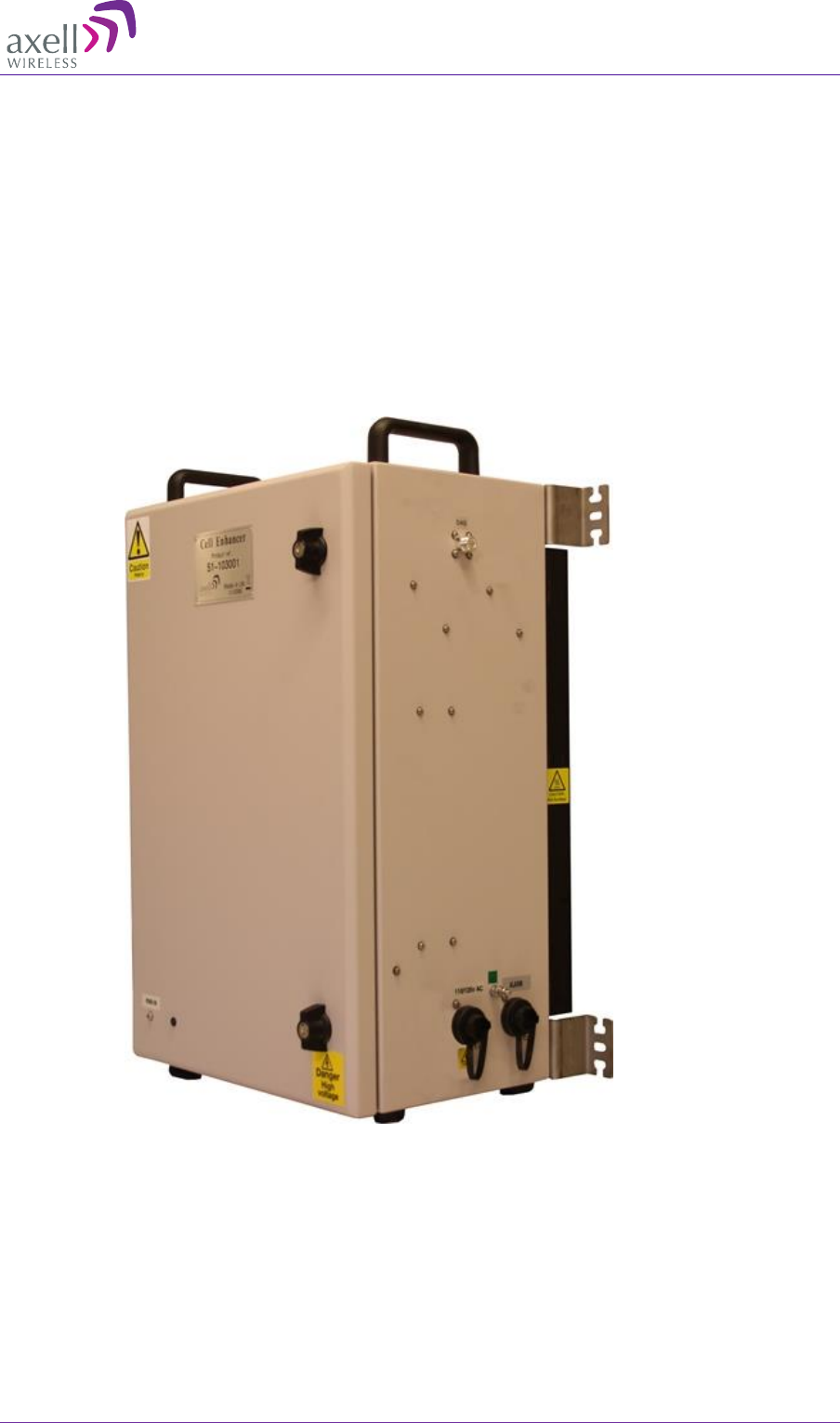

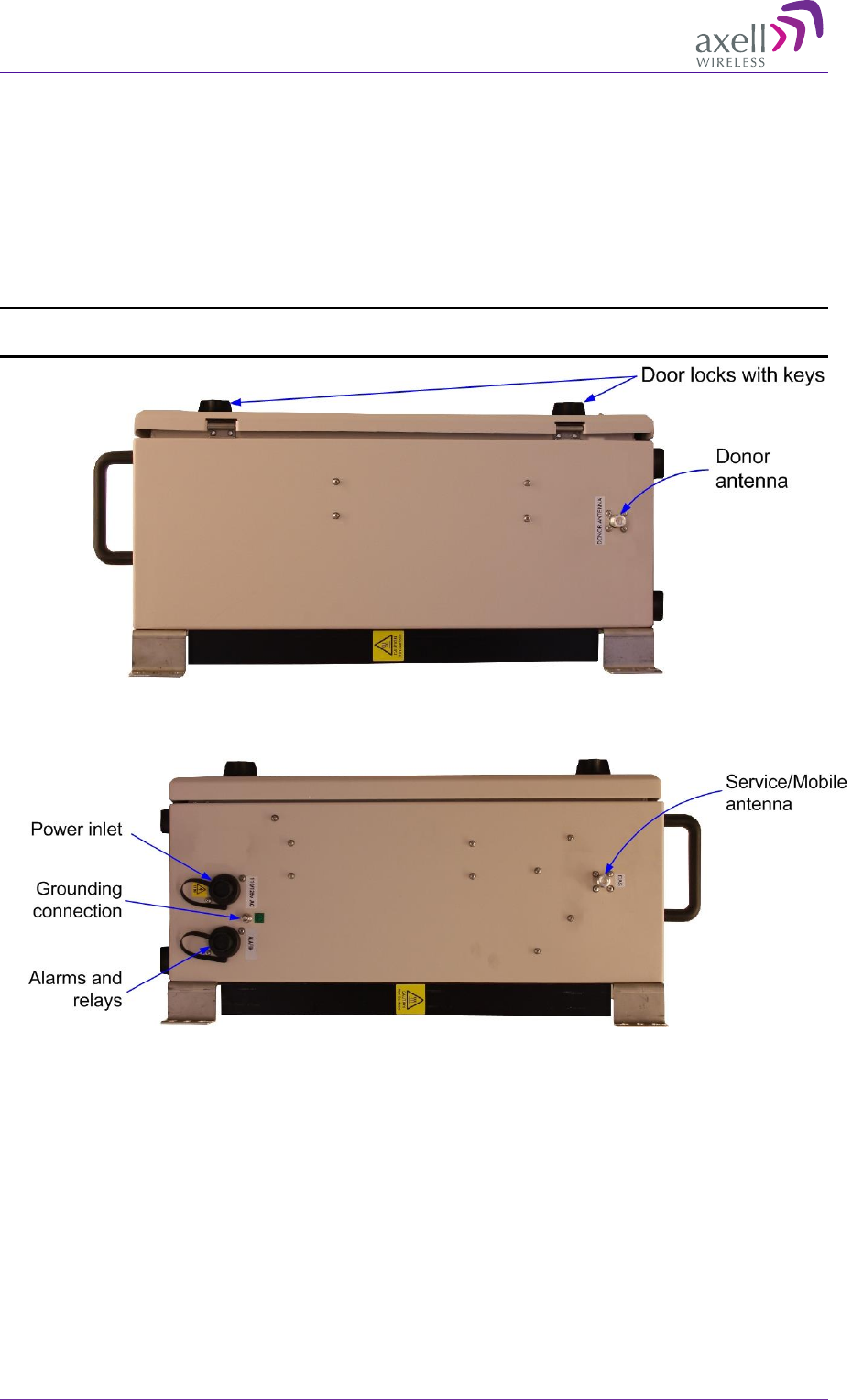

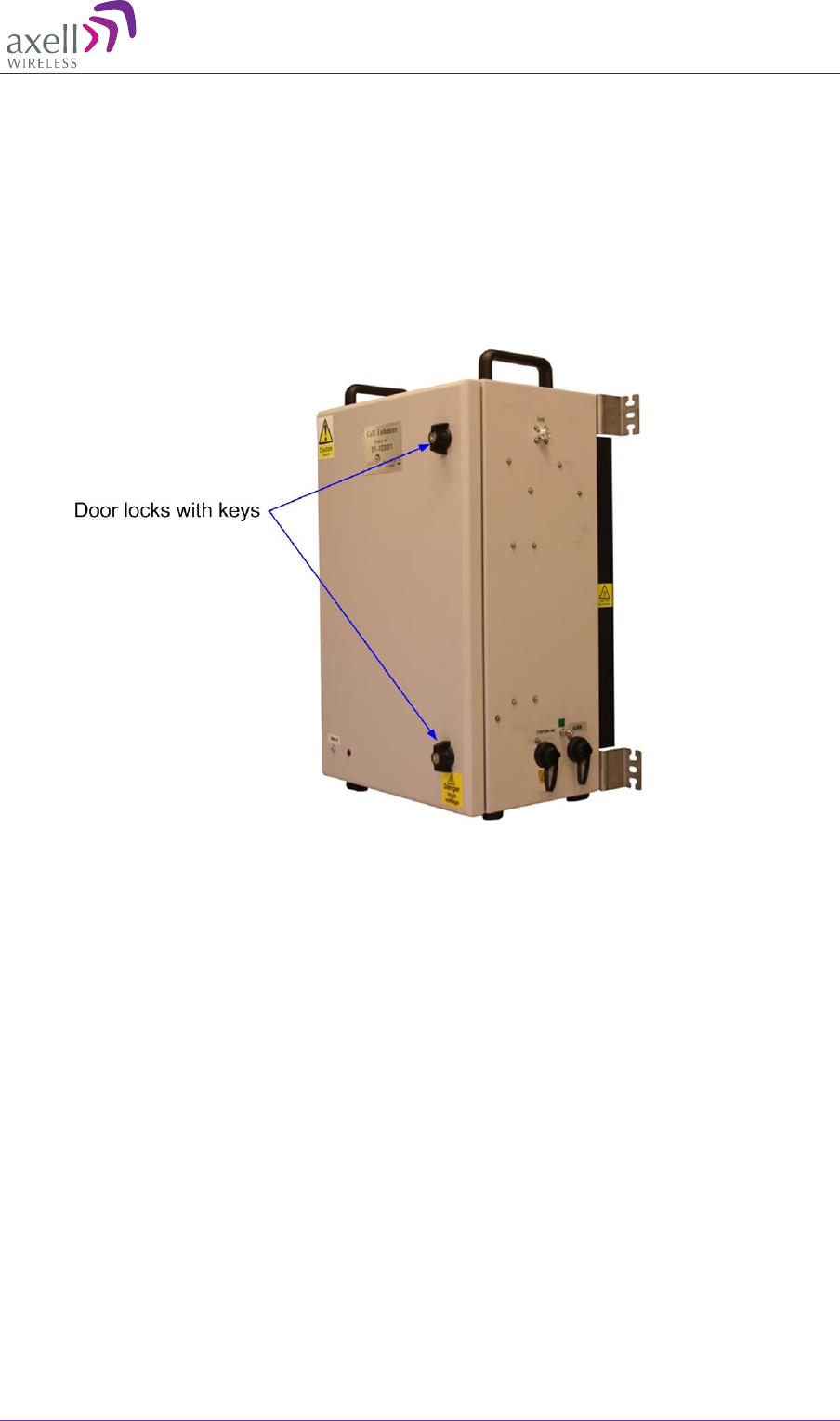

1.3.1 CSR 3604-3304 – Wall Mount Casing ...................................................................... 3

2 Antenna Specifications and Installation Criteria ...................................................... 7

2.1 Base (Donor) Antenna ......................................................................................................... 7

2.1.1 Required Antenna Information .................................................................................. 7

2.1.2 Donor Antenna specification ..................................................................................... 7

2.1.3 Installation Criteria ..................................................................................................... 8

2.2 Service Antenna Requirements .......................................................................................... 8

2.2.1 Required Antenna Information .................................................................................. 8

2.2.2 Indoor Installations .................................................................................................... 8

2.3 RF Cabling Requirements ................................................................................................. 10

3 Pre-Installation Requirements ..................................................................................11

3.1 Safety Guidelines ............................................................................................................... 11

3.2 Required BTS Information ................................................................................................. 11

3.3 Selecting a Location .......................................................................................................... 11

3.3.1 Relative Location of Base Station ........................................................................... 11

3.3.2 Cooling and Airflow ................................................................................................. 11

3.3.3 Wall Compatibility .................................................................................................... 12

3.3.4 Access to the Repeater ........................................................................................... 12

4 Physical Installation ..................................................................................................13

4.1 Overview of the Installation Procedure ........................................................................... 13

4.2 Required Tools and Materials ........................................................................................... 14

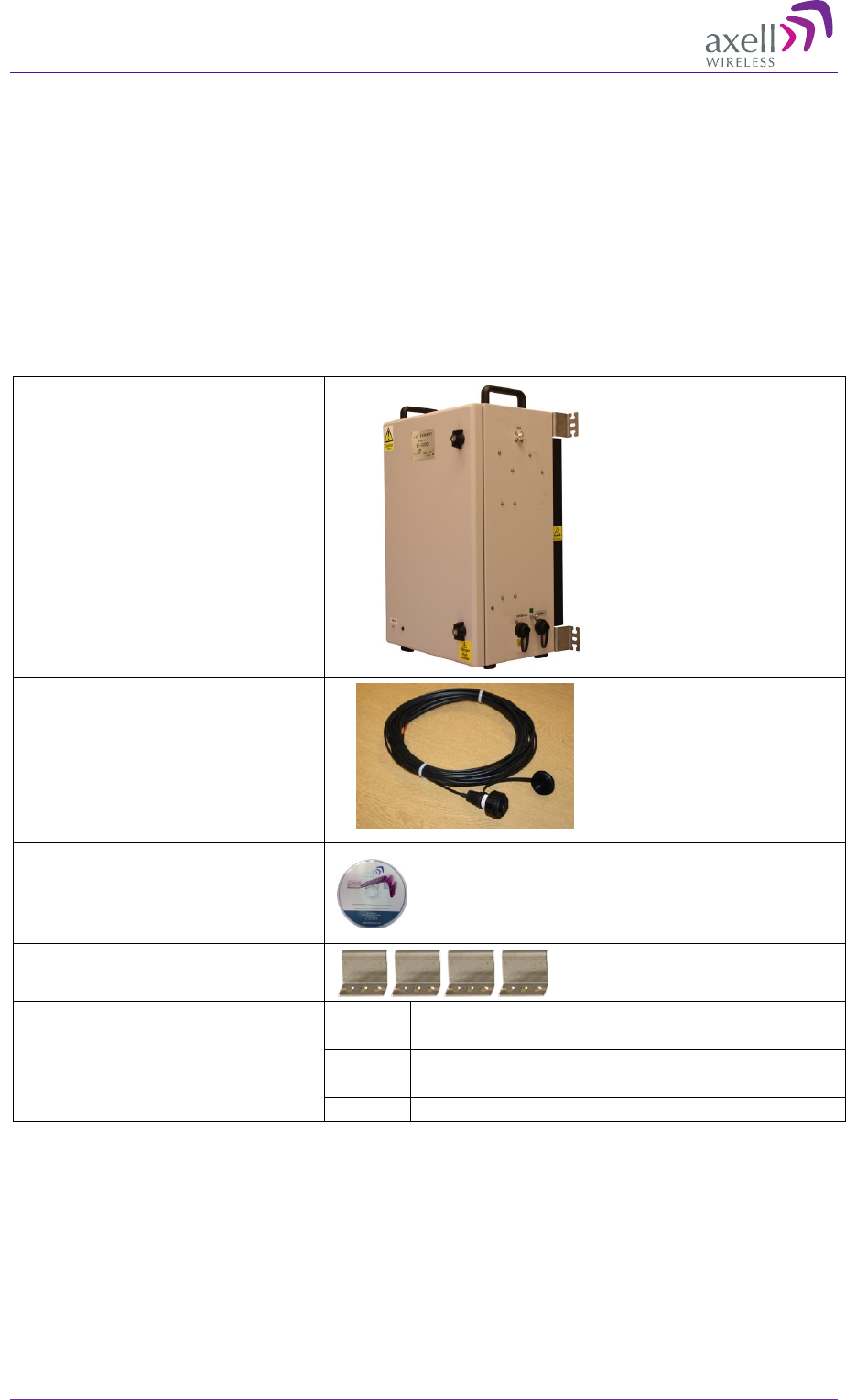

4.3 Unpacking ........................................................................................................................... 14

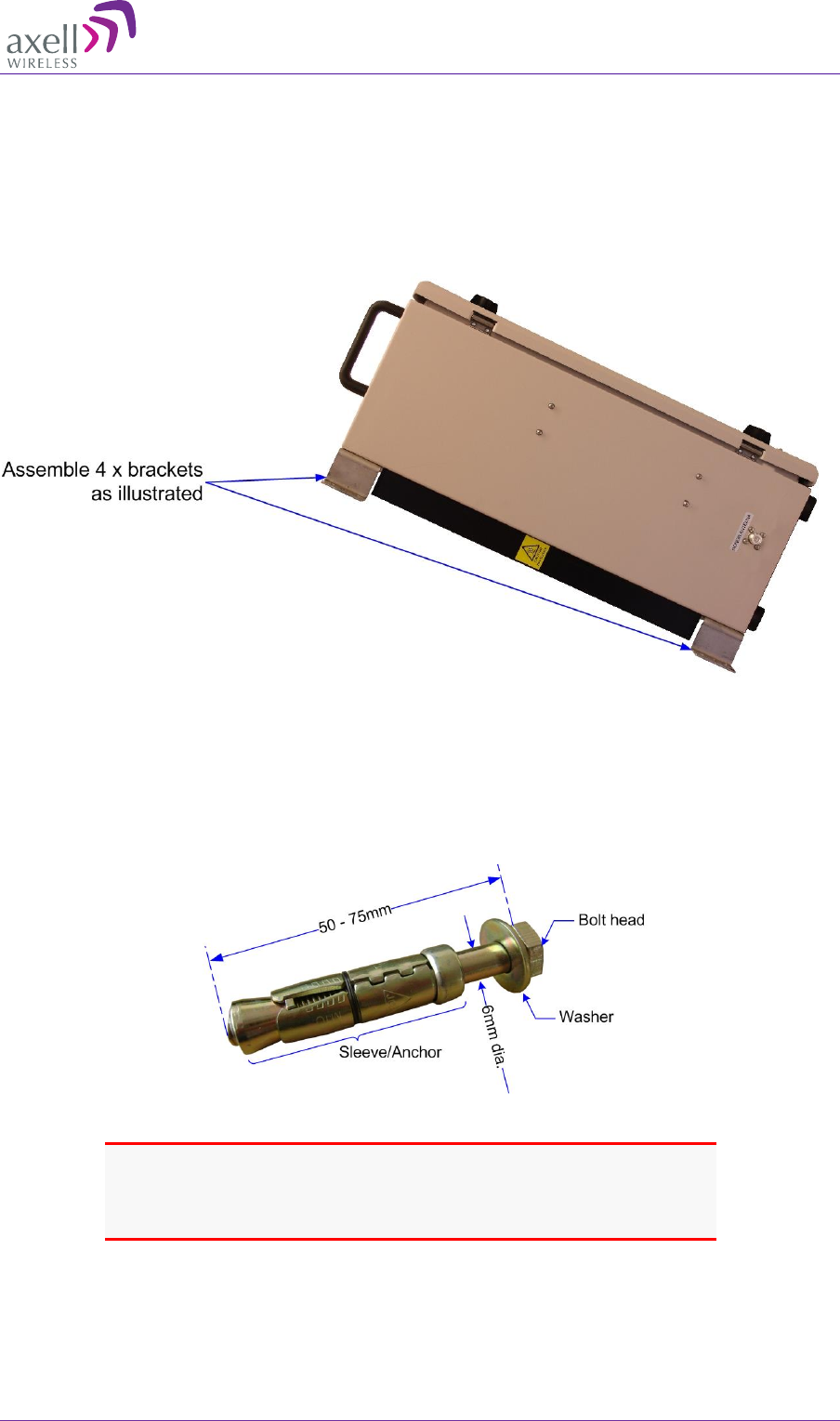

4.4 Bracket Assembly .............................................................................................................. 15

4.5 Wallmount Procedure ........................................................................................................ 15

4.5.1 Requirements .......................................................................................................... 15

4.5.2 Planning the Repeater Location and Drilling ........................................................... 16

4.5.3 Hanging the Repeater on the Wall .......................................................................... 17

4.6 Grounding ........................................................................................................................... 17

4.7 EMV Protection ................................................................................................................... 18

4.8 Insert SIM Card ................................................................................................................... 19

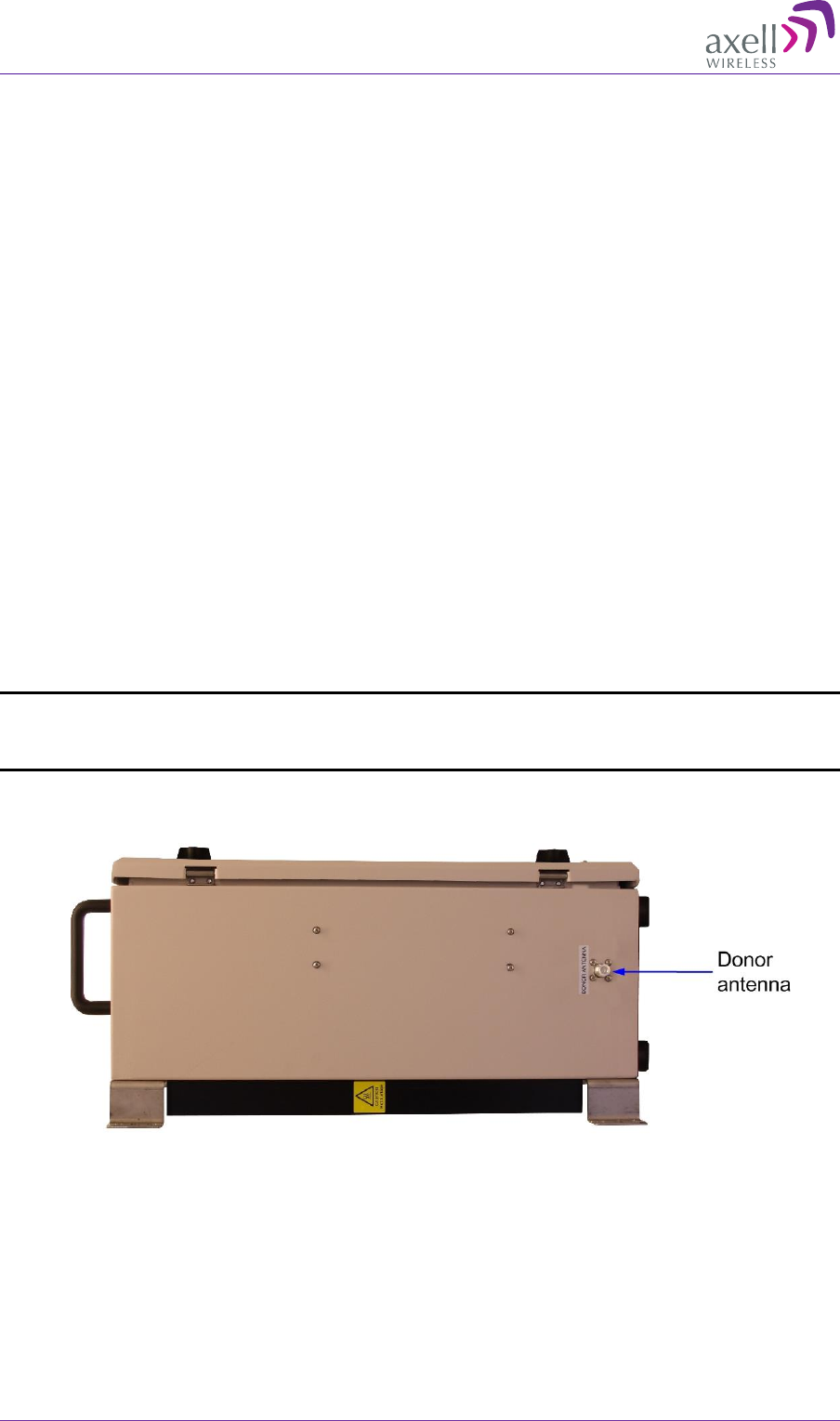

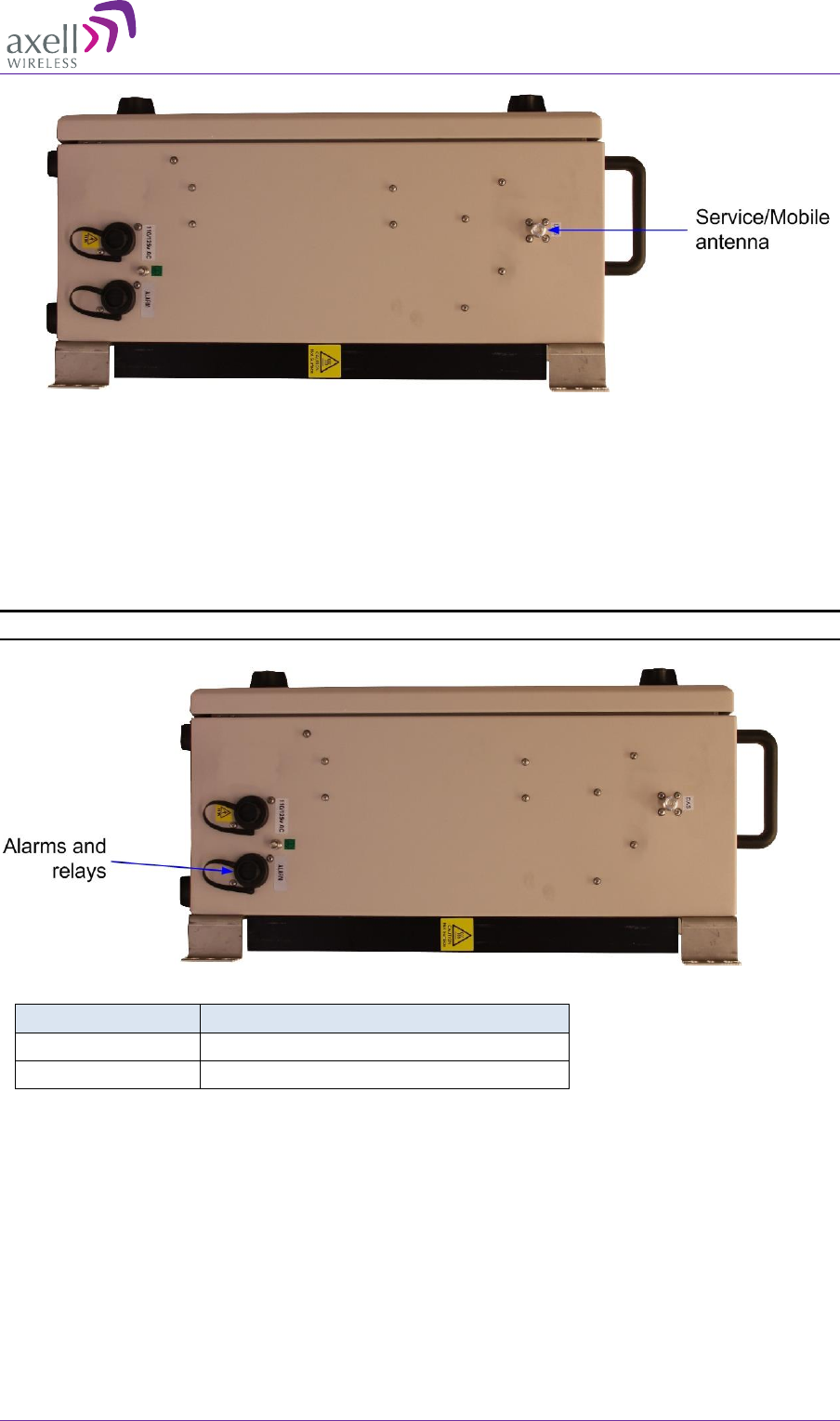

4.9 Antenna (RF) Connections ................................................................................................ 20

4.9.1 Verifying the Link between the BTS and the Repeater ........................................... 20

4.9.2 RF Antenna Connections ........................................................................................ 20

4.10 External Alarm and Relay (Internal Alarm) Connections ............................................... 21

4.11 Power Connections ............................................................................................................ 22

4.11.1 Circuit Breaker Connections .................................................................................... 22

4.11.2 Switching Power ON ............................................................................................... 22

5 Login and GUI Navigation .........................................................................................24

5.1 Opening a Local Web Session to the Repeater .............................................................. 24

5.1.1 Connect the Repeater to the Computer .................................................................. 24

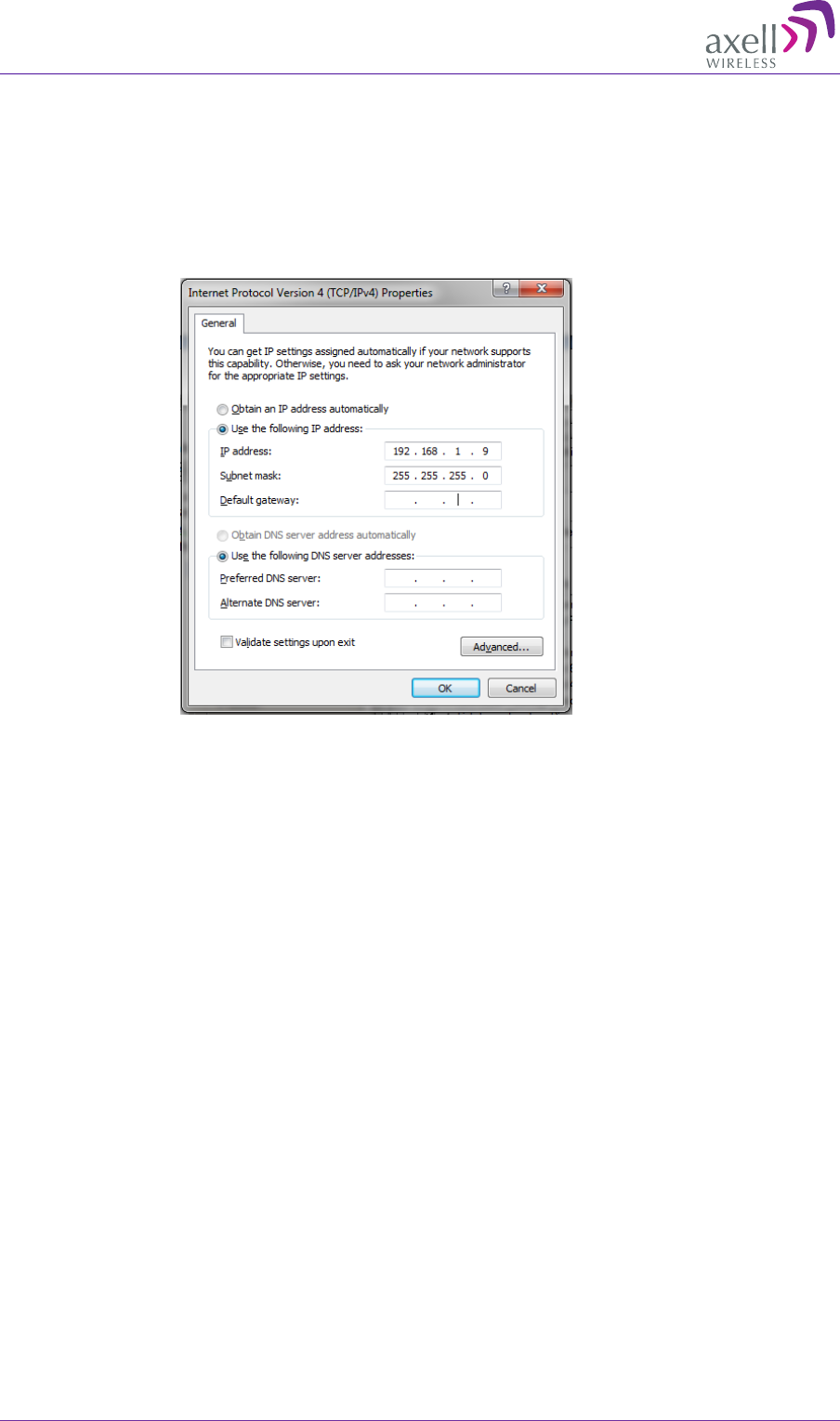

5.1.2 Configure the Computer Network Parameters ........................................................ 25

5.2 Web Session Login to the Repeater ................................................................................. 27

5.3 Navigating the Web GUI Application ................................................................................ 28

AXELL CSR 3604-3304 UHF REPEATER

PRODUCT DESCRIPTION AND USER’S MANUAL

X DOC PN 3633B-UM Rev. 2.1 © Axell Wireless Ltd

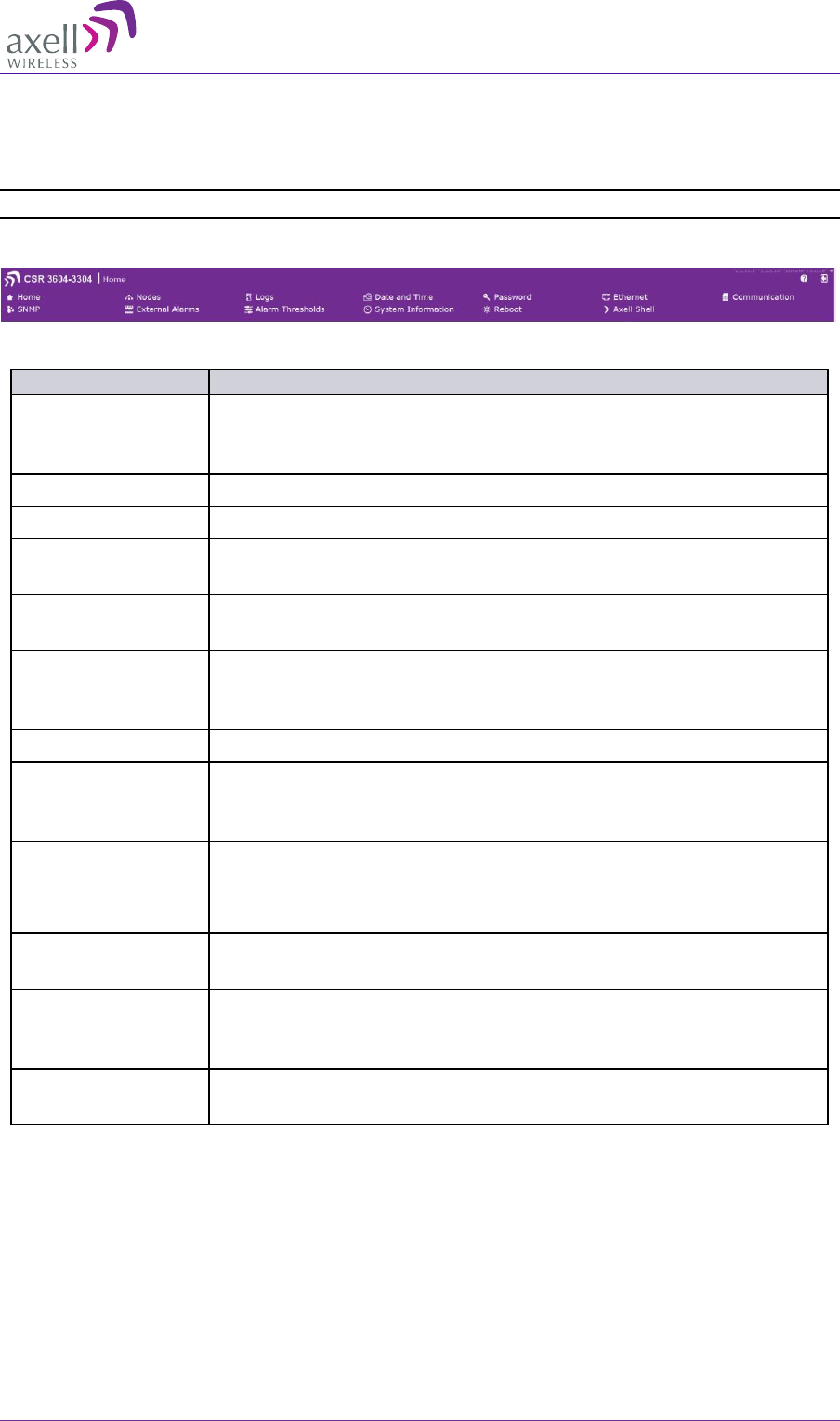

5.3.1 Title Bar Menu Options ............................................................................................ 29

6 Setup .......................................................................................................................... 30

6.1 Overview of the Setup Procedures ................................................................................... 30

6.2 Assigning Repeater a Recognizable Name ..................................................................... 30

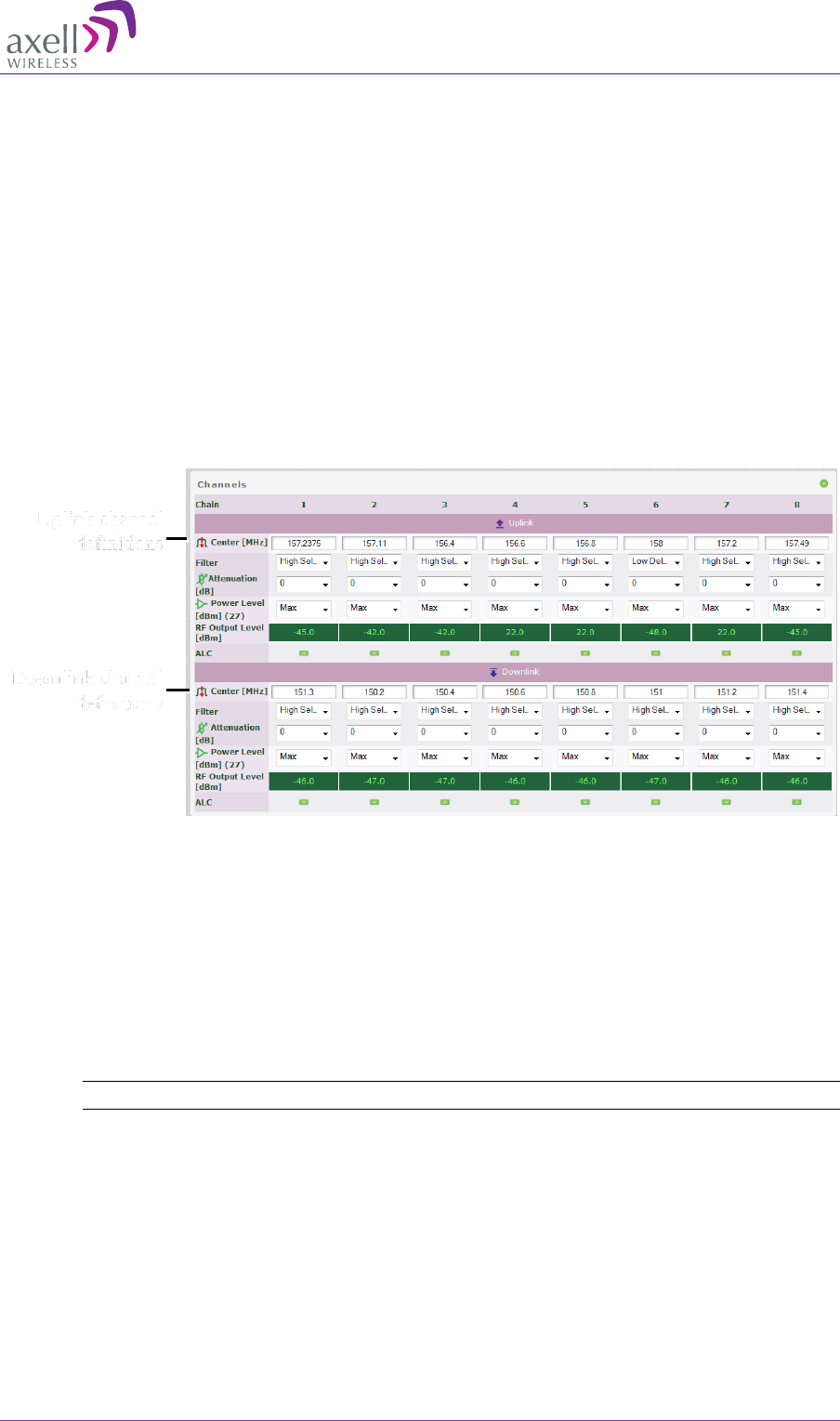

6.3 CSR Channel Configuration .............................................................................................. 31

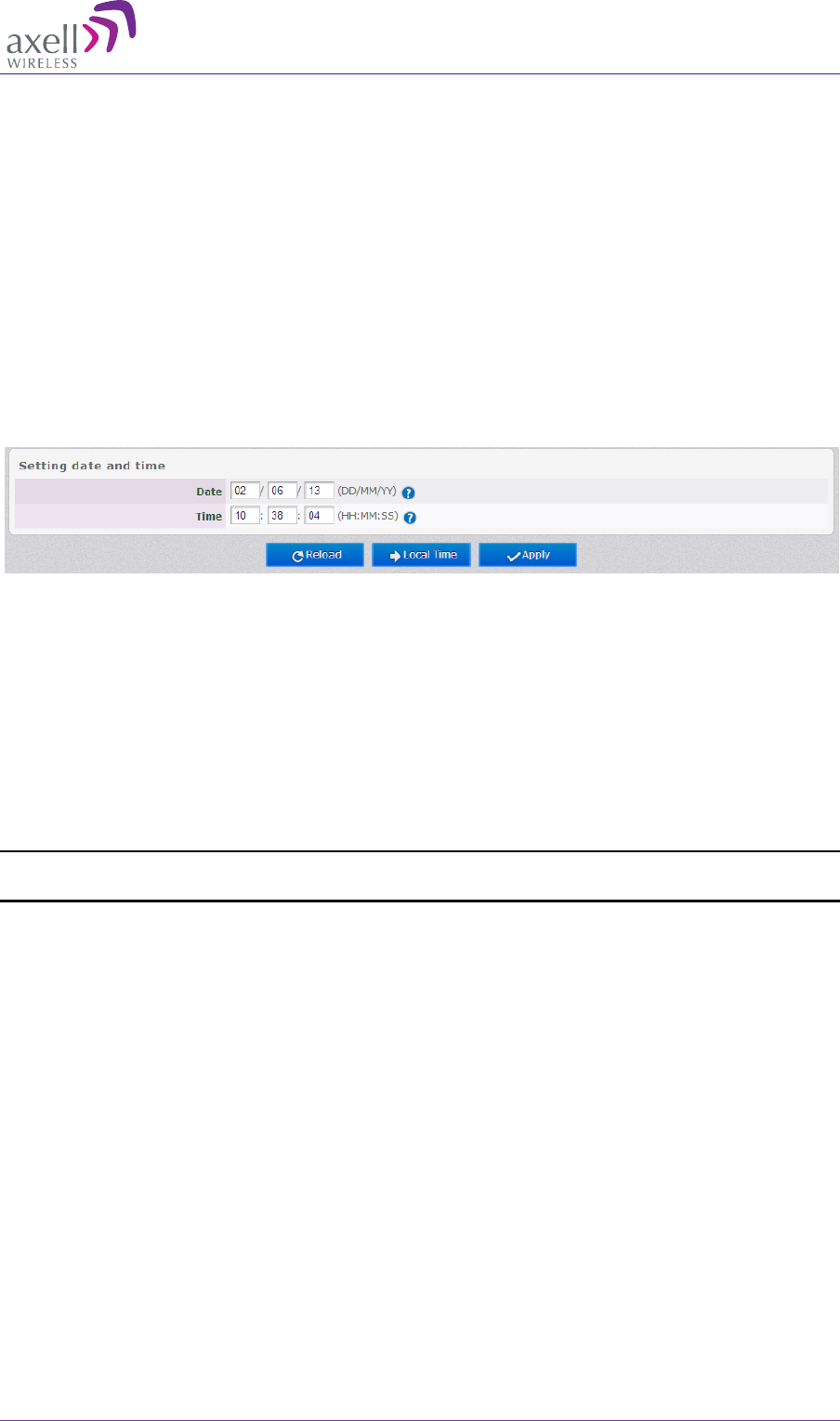

6.4 Setting Date and Time........................................................................................................ 33

6.5 Additional Configuration Options .................................................................................... 33

6.5.1 Configuring External Alarms .................................................................................... 33

6.5.2 IP Address ............................................................................................................... 34

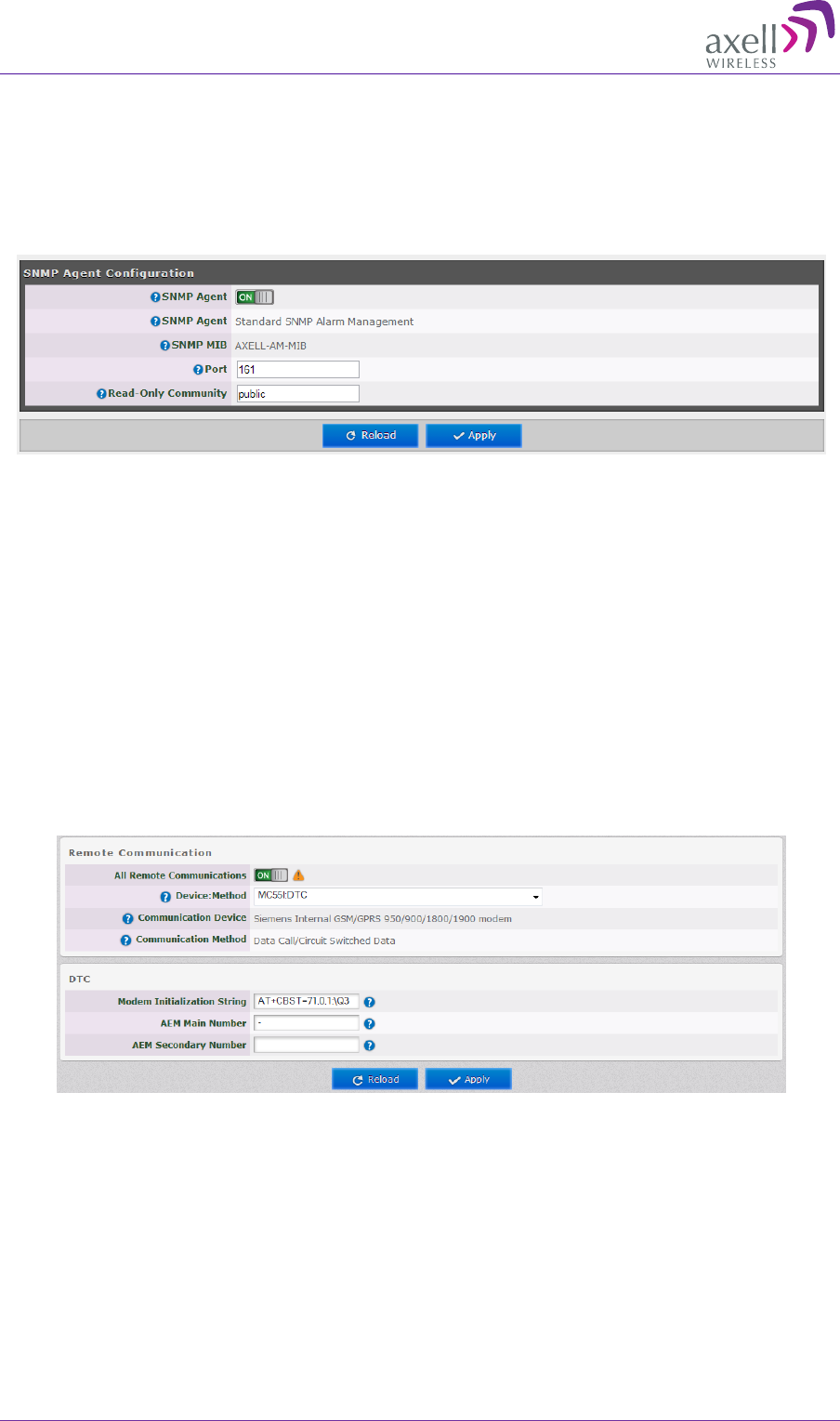

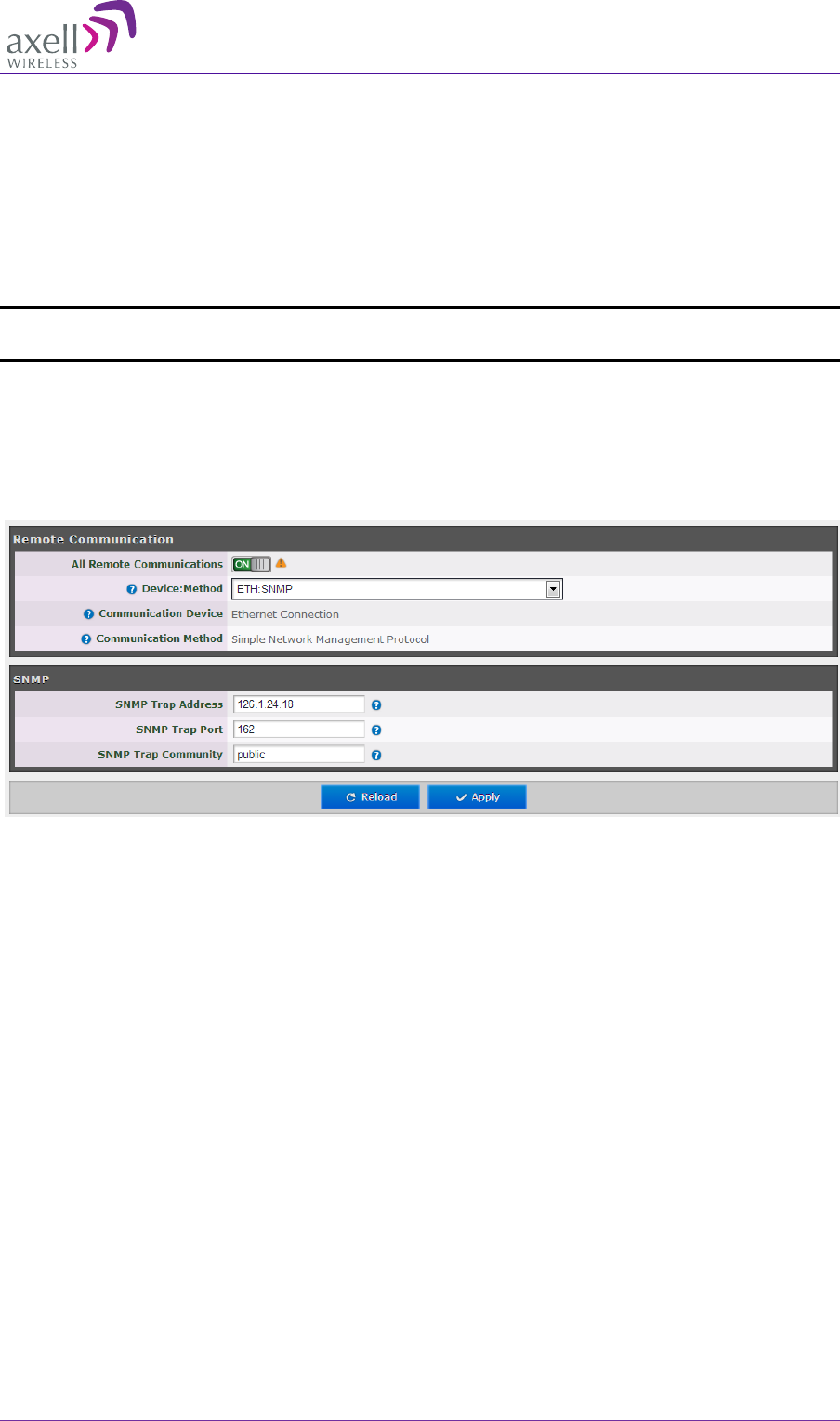

6.5.3 SNMP Support ......................................................................................................... 35

6.5.4 TCP/IP and Ethernet ............................................................................................... 36

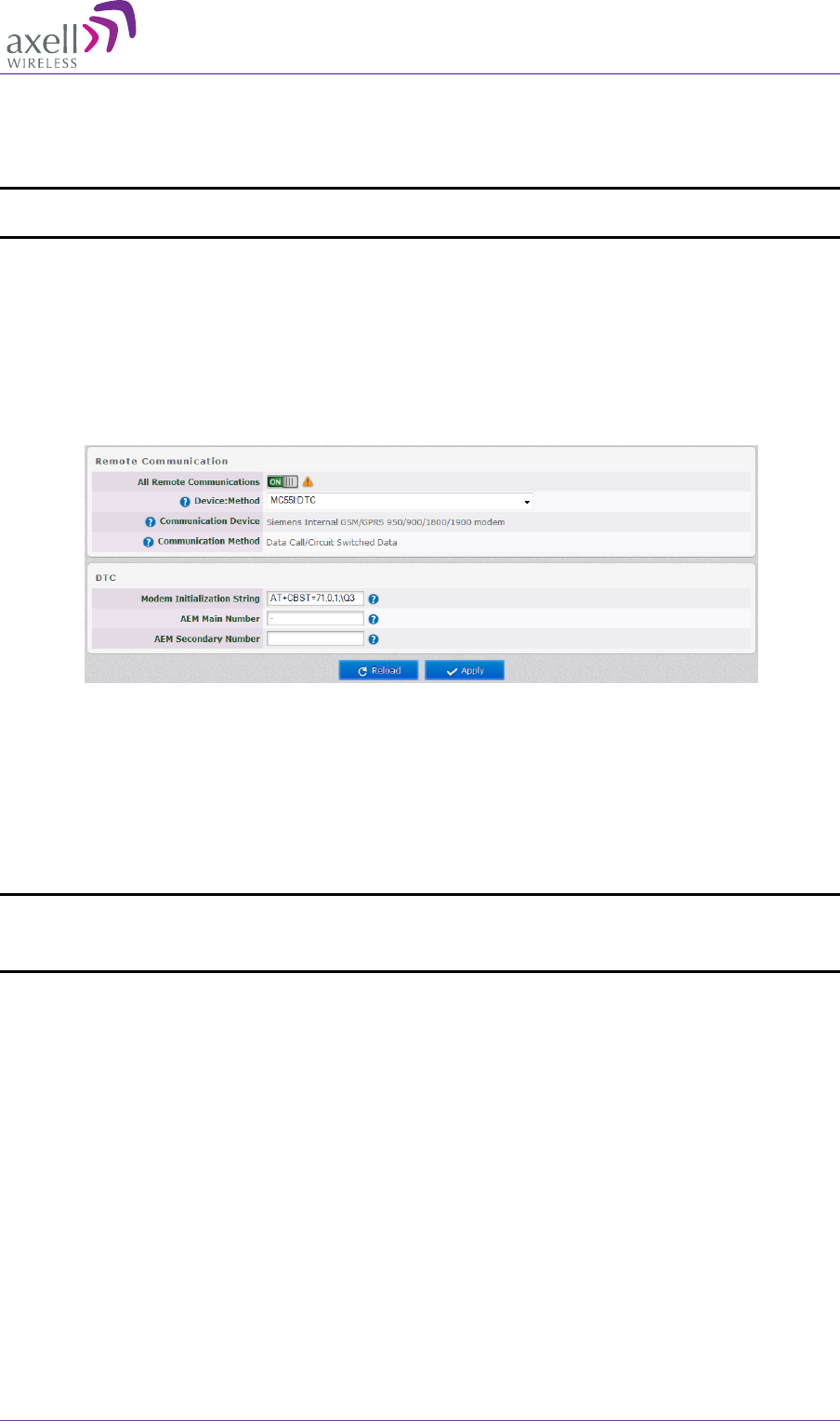

6.5.5 Modem Setup .......................................................................................................... 37

6.6 Integration into the AEM .................................................................................................... 39

7 Administration and Monitoring ................................................................................ 40

7.1 User Accounts .................................................................................................................... 40

7.1.1 Default User Accounts ............................................................................................. 40

7.1.2 User Access Levels ................................................................................................. 40

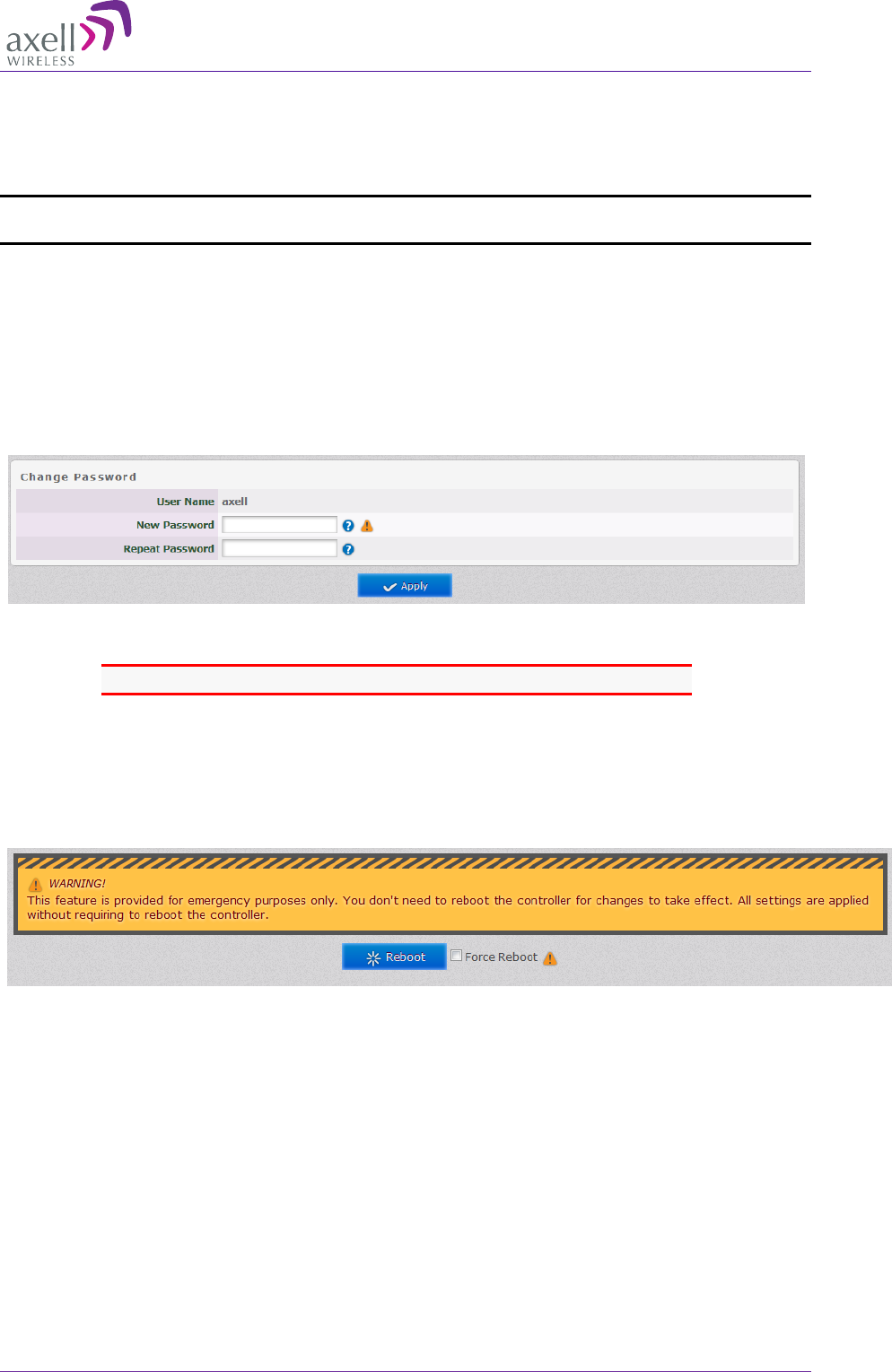

7.1.3 Password Change ................................................................................................... 41

7.2 Reboot ................................................................................................................................. 41

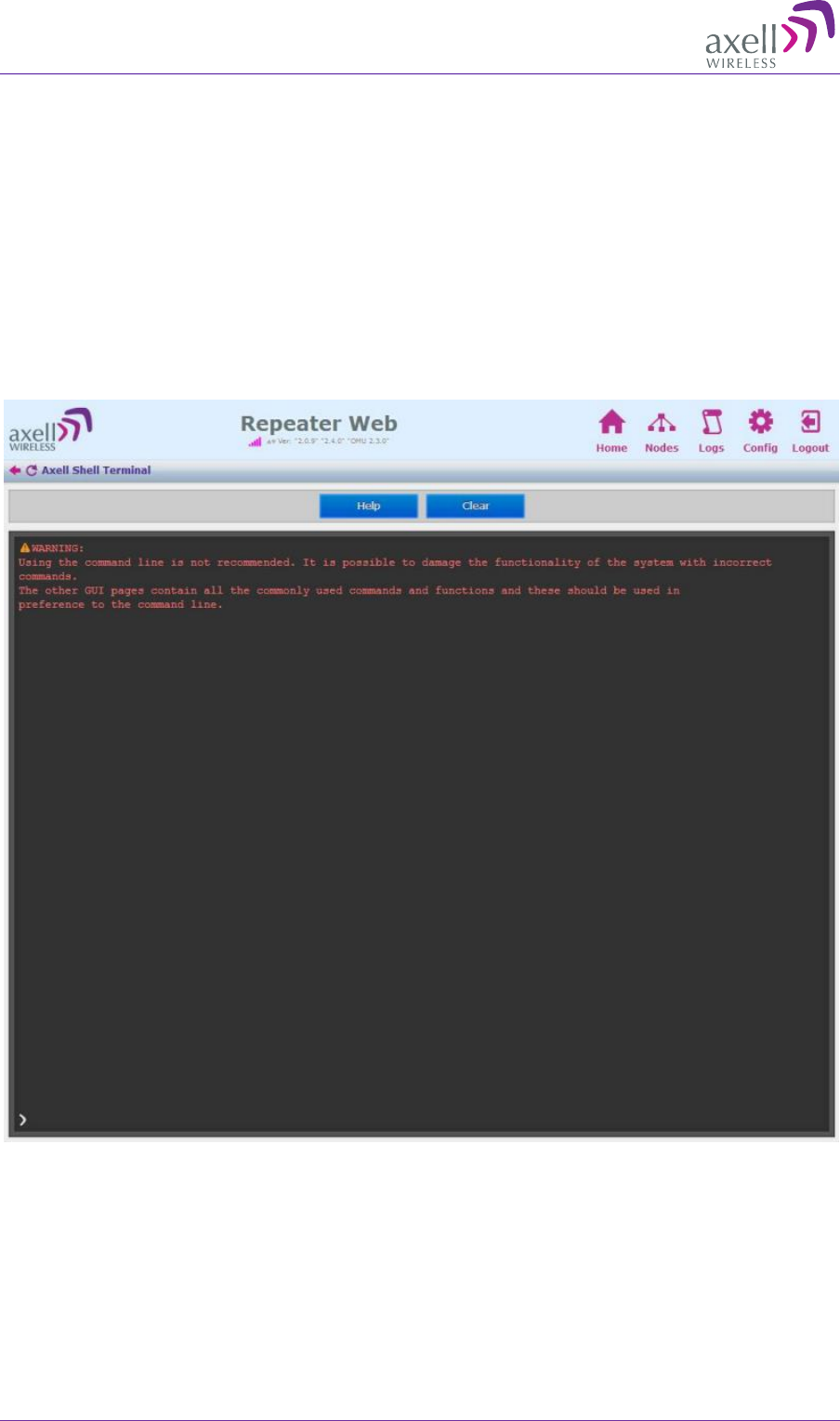

7.3 Axell Shell ........................................................................................................................... 42

8 Monitoring and Troubleshooting ............................................................................. 43

8.1 Monitoring ........................................................................................................................... 43

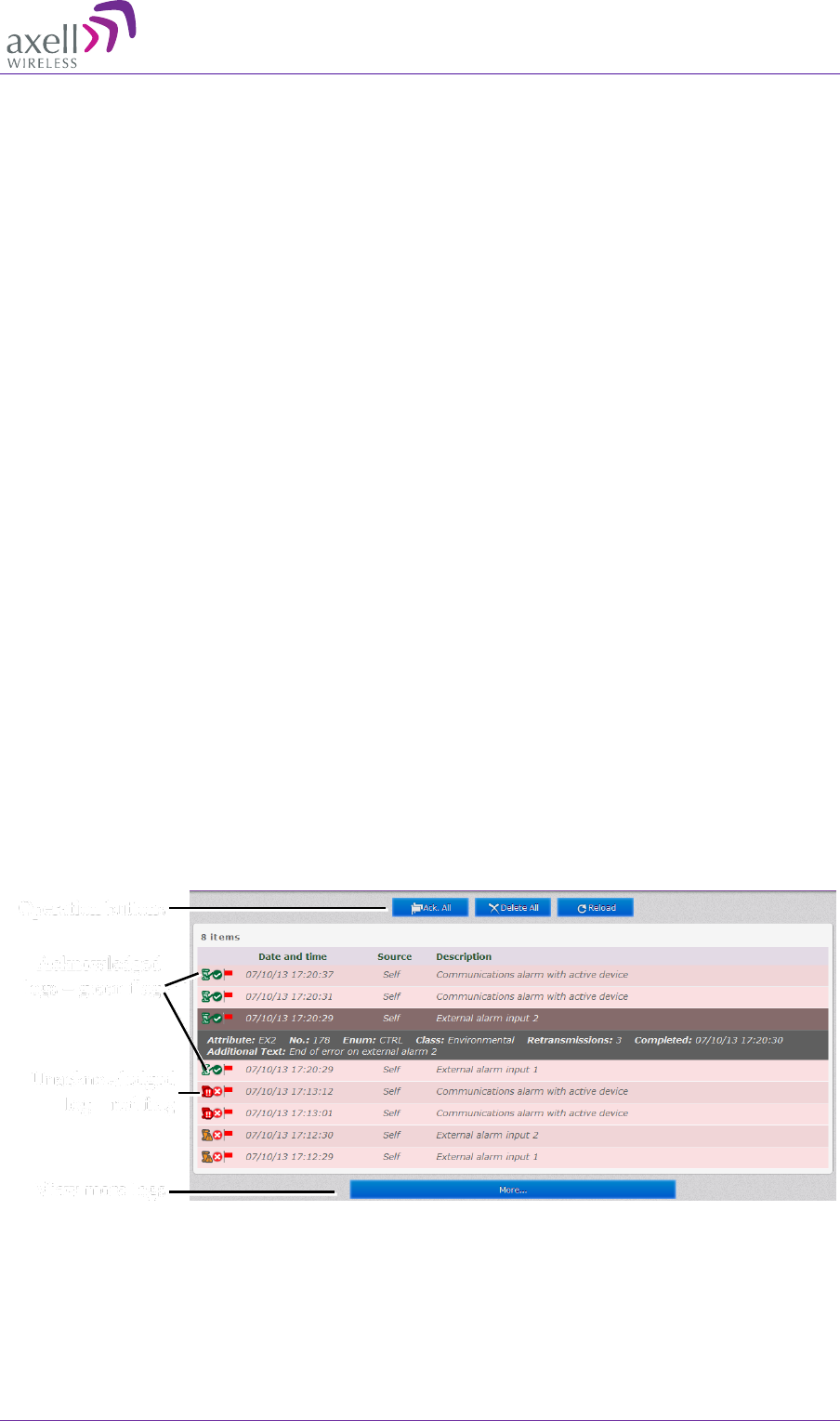

8.1.1 Logs Screen ............................................................................................................ 43

8.1.2 Alarm Classification and Thresholds ....................................................................... 44

8.1.3 Home Screen Monitoring ......................................................................................... 46

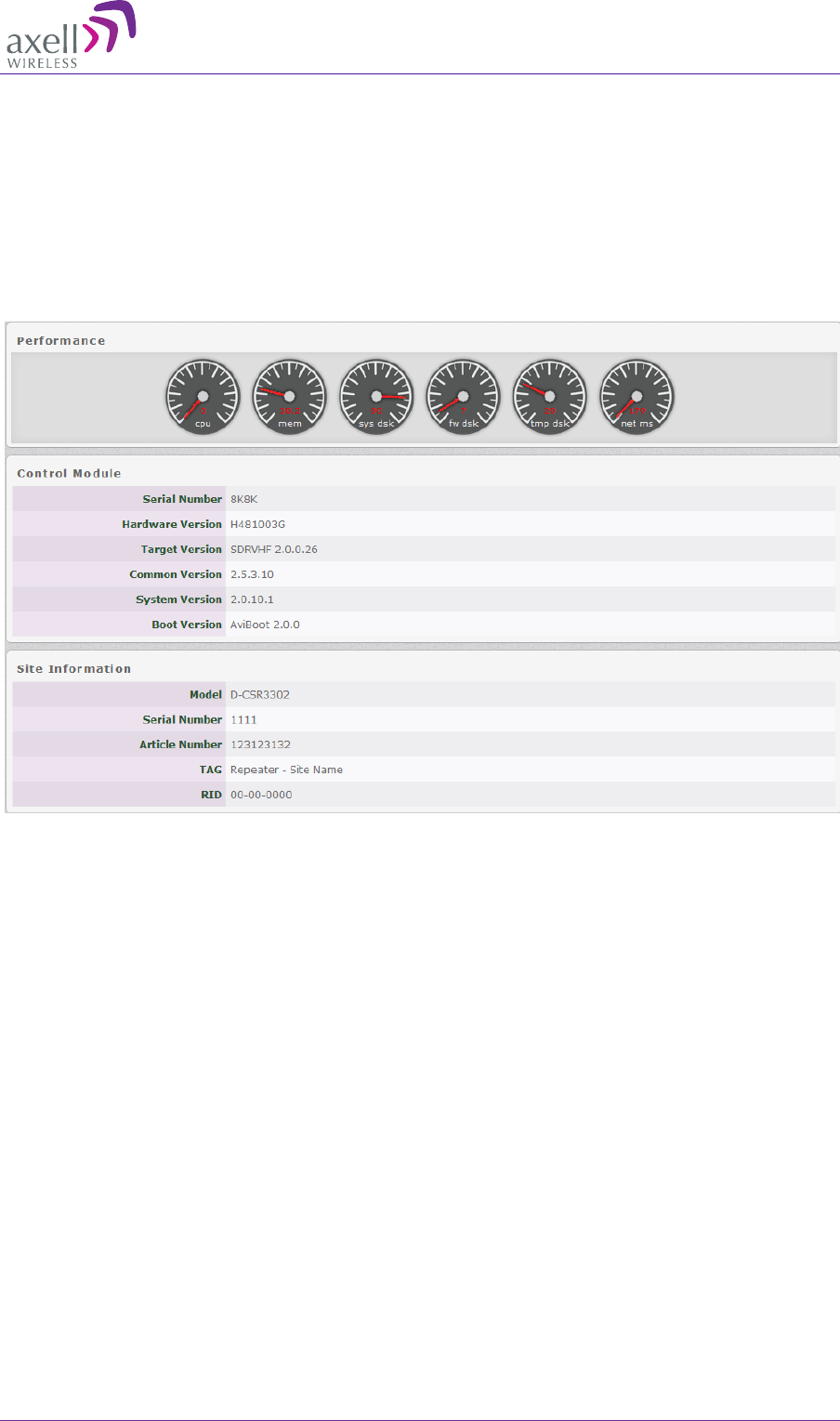

8.1.4 Site Information and System Performance ............................................................. 47

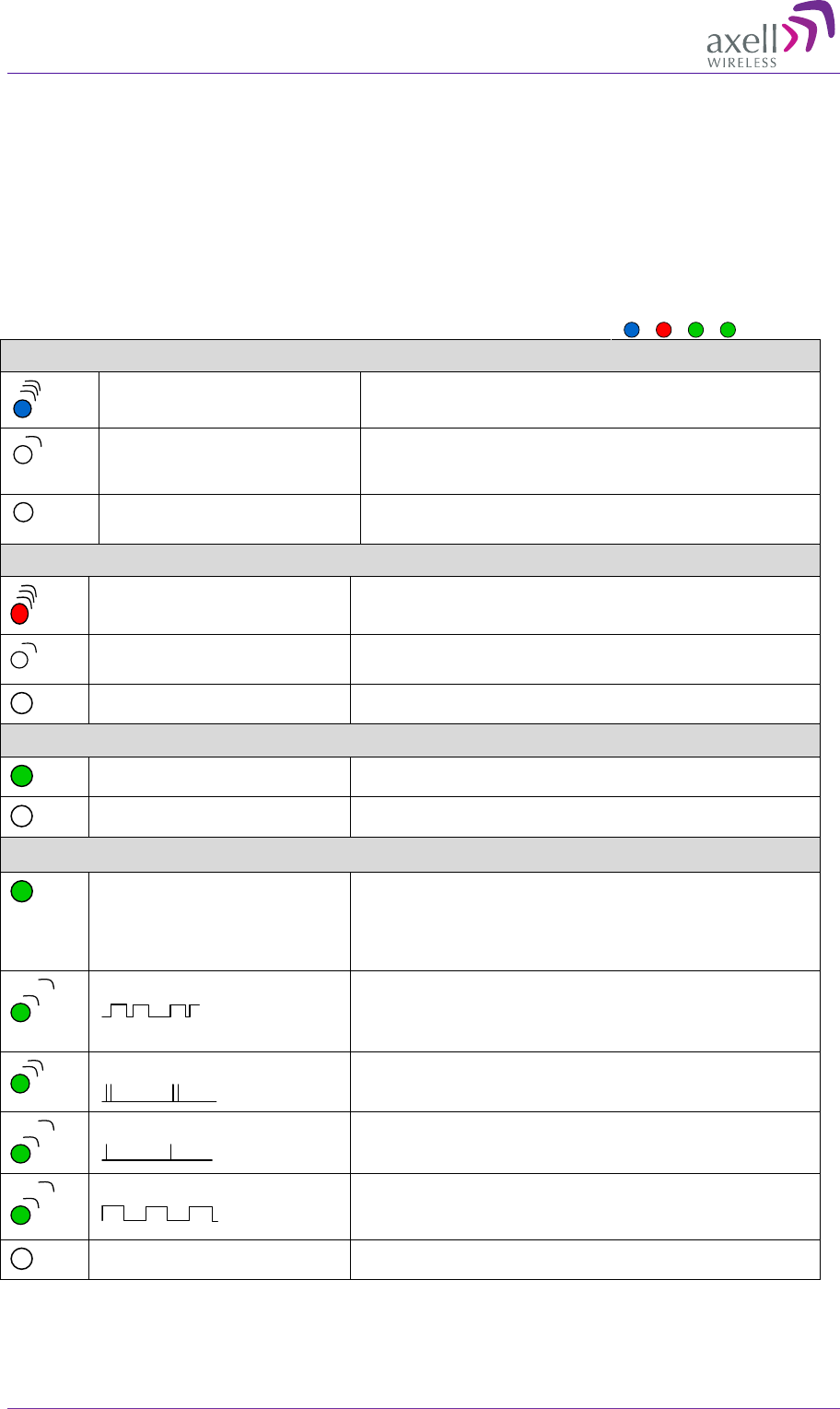

8.2 Module LEDs ....................................................................................................................... 48

8.2.1 Control Module LEDs .............................................................................................. 48

8.2.2 Power Supply LEDs................................................................................................. 48

8.3 Troubleshooting Remote Communication ...................................................................... 50

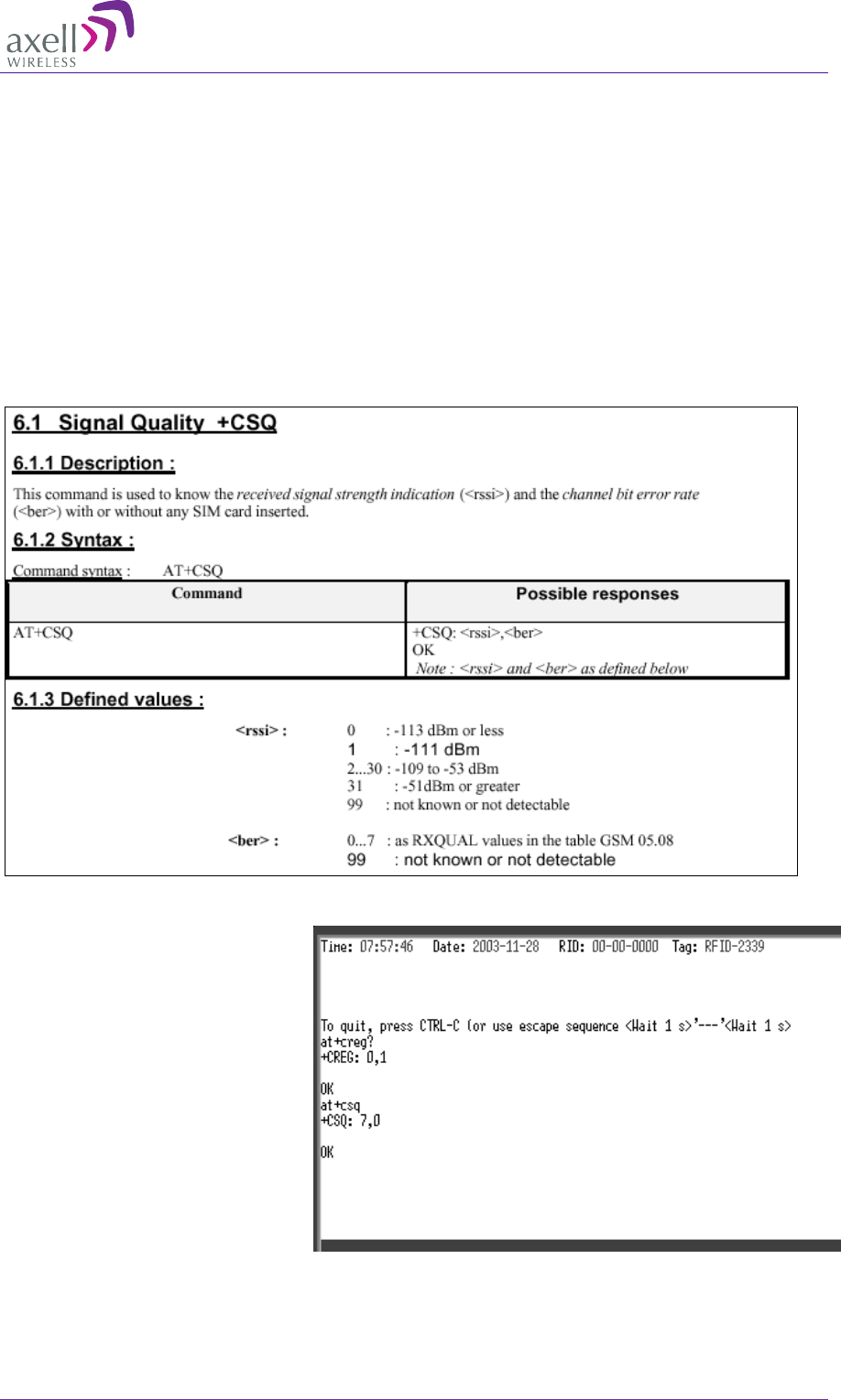

8.3.1 Direct Modem Access.............................................................................................. 50

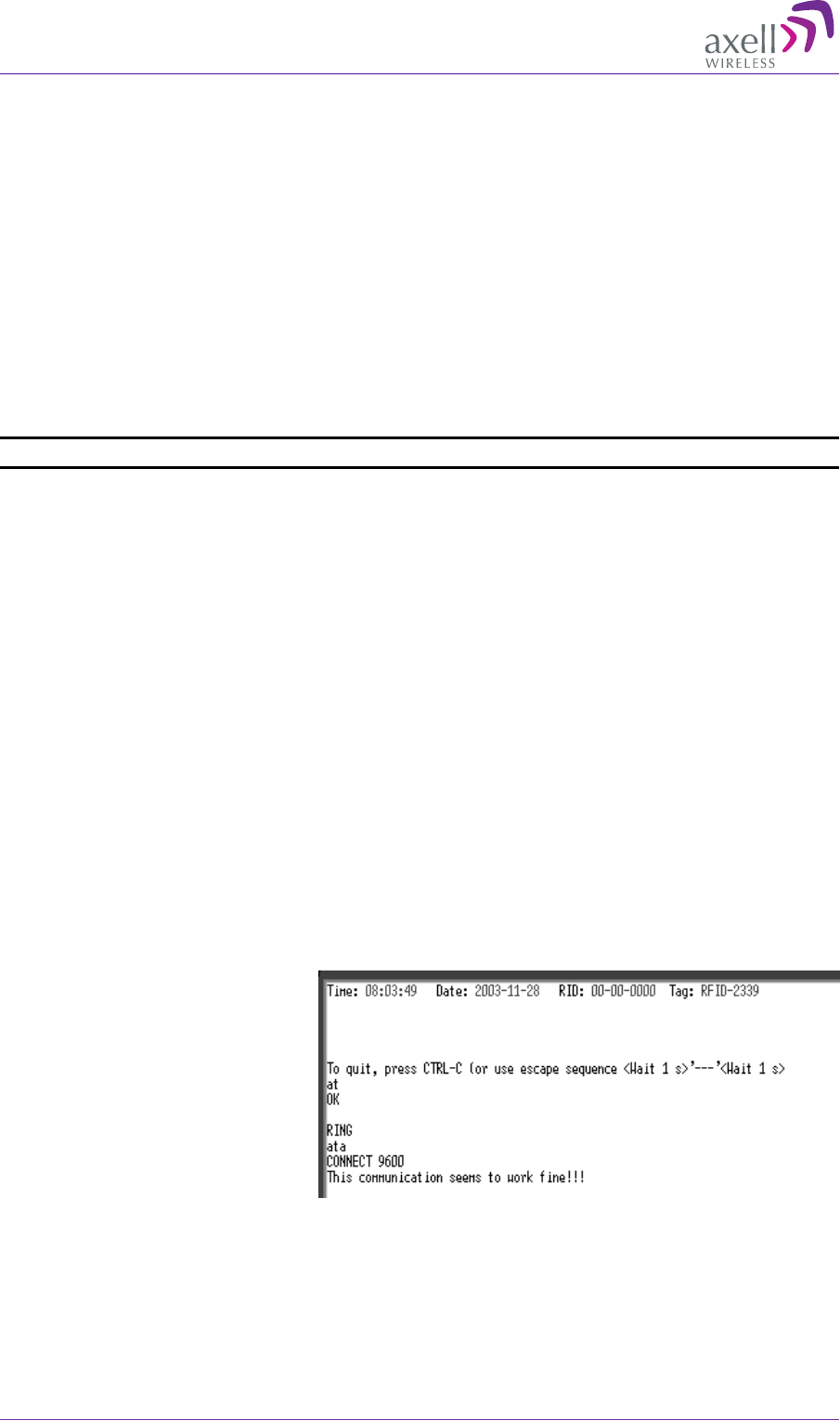

8.3.2 Trace Modem .......................................................................................................... 51

8.3.3 Manually Answering Incoming Calls ........................................................................ 52

8.3.4 Common Problems .................................................................................................. 53

9 Maintenance .............................................................................................................. 55

9.1 General ................................................................................................................................ 55

9.2 Preventative Maintenance ................................................................................................. 55

9.3 Component Replacement .................................................................................................. 55

9.4 Product Disposal ................................................................................................................ 55

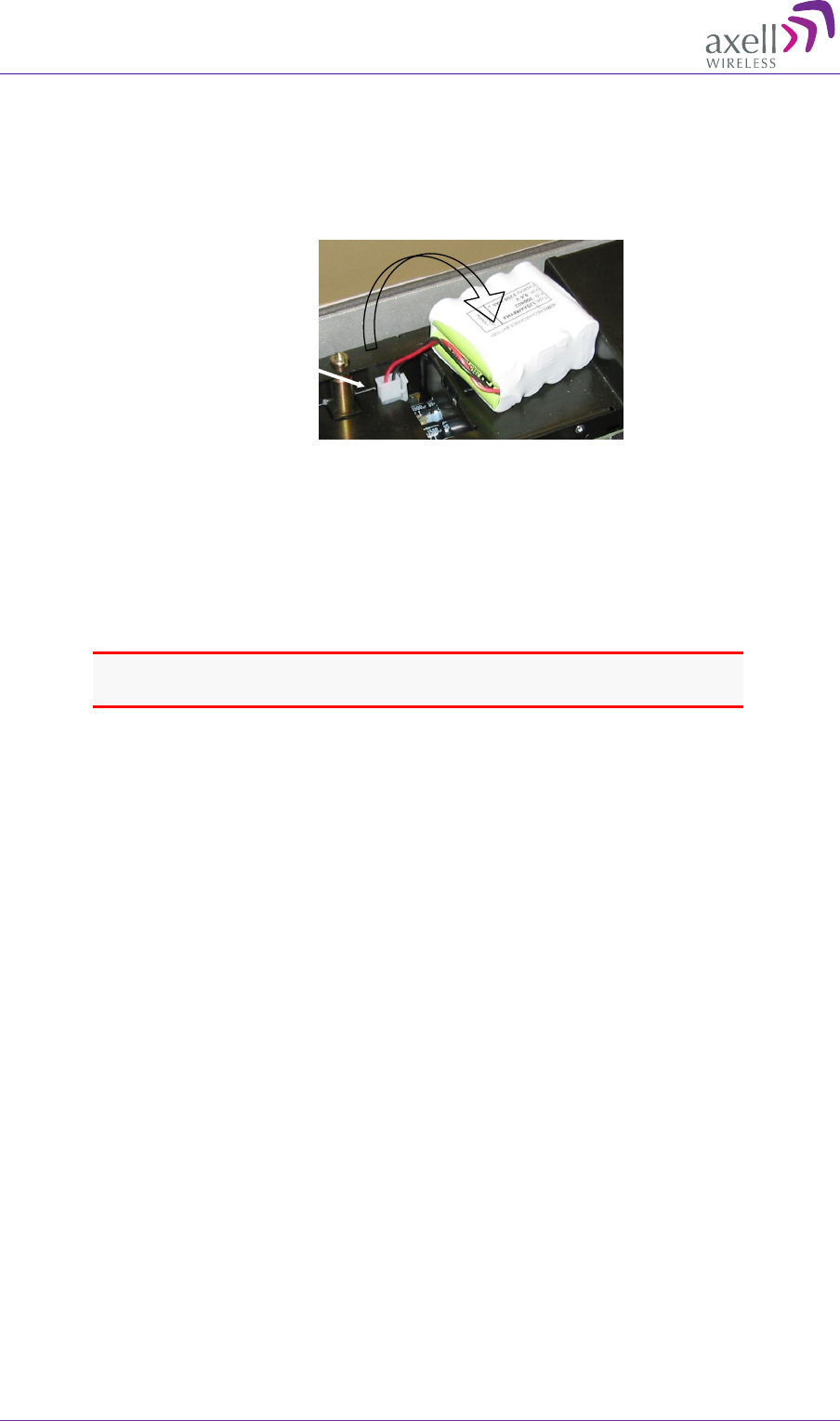

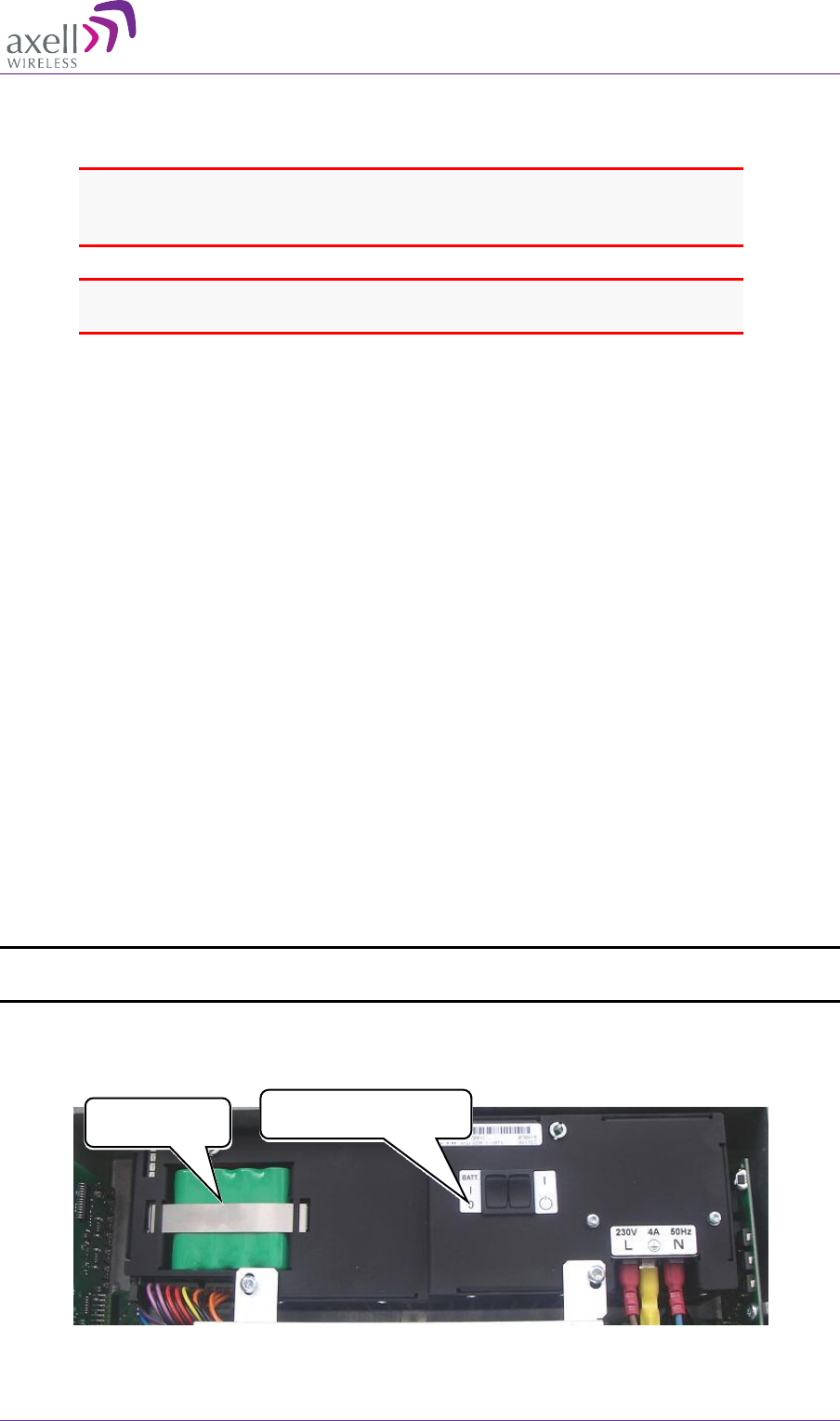

9.5 Replacing Backup Battery ................................................................................................. 55

9.6 Troubleshooting ................................................................................................................. 56

9.7 Component Replacement .................................................................................................. 56

9.8 Product Disposal ................................................................................................................ 56

Appendix A - Specifications ............................................................................................ 57

AXELL CSR 3604-3304 UHF REPEATER

PRODUCT DESCRIPTION AND USER’S MANUAL

1 Introduction

The Axell CSR 3604-3304 (Channel Selective Repeater) is a repeater operating in the UHF

bands of 450MHz to 510MHz. Channel selective repeaters are mainly used for in-building

coverage, as well as coverage of dead zones, shadows, or other uncovered patches within

the current coverage area. The gap-filler repeaters can be used as a complement to the

network of base stations. They acquire their signal over-the-air from the Base Station and

transmit over the designated coverage area via service antennas.

A range of CSR repeater models are available for various site coverage requirements. This

manual describes the installation procedure for the US market.

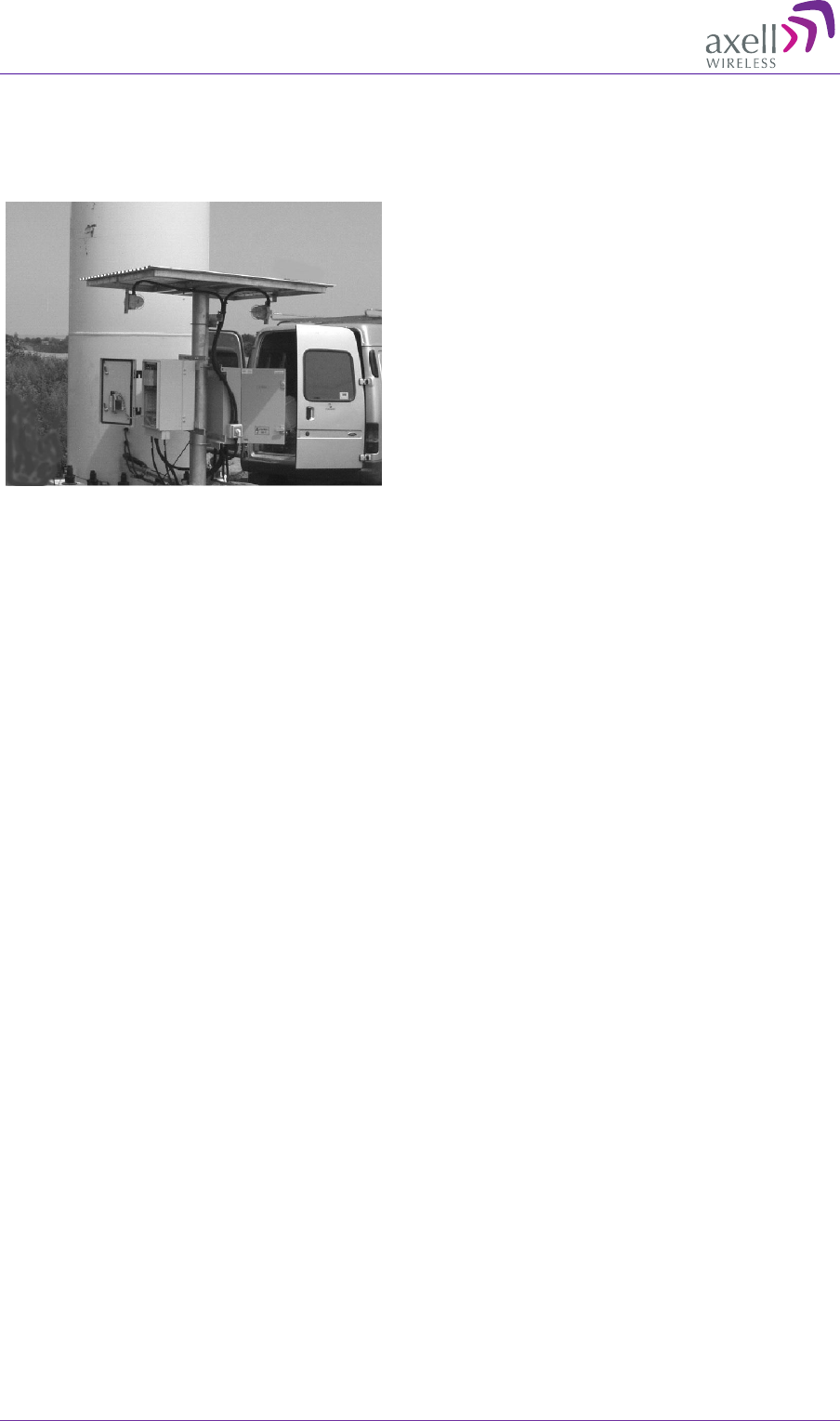

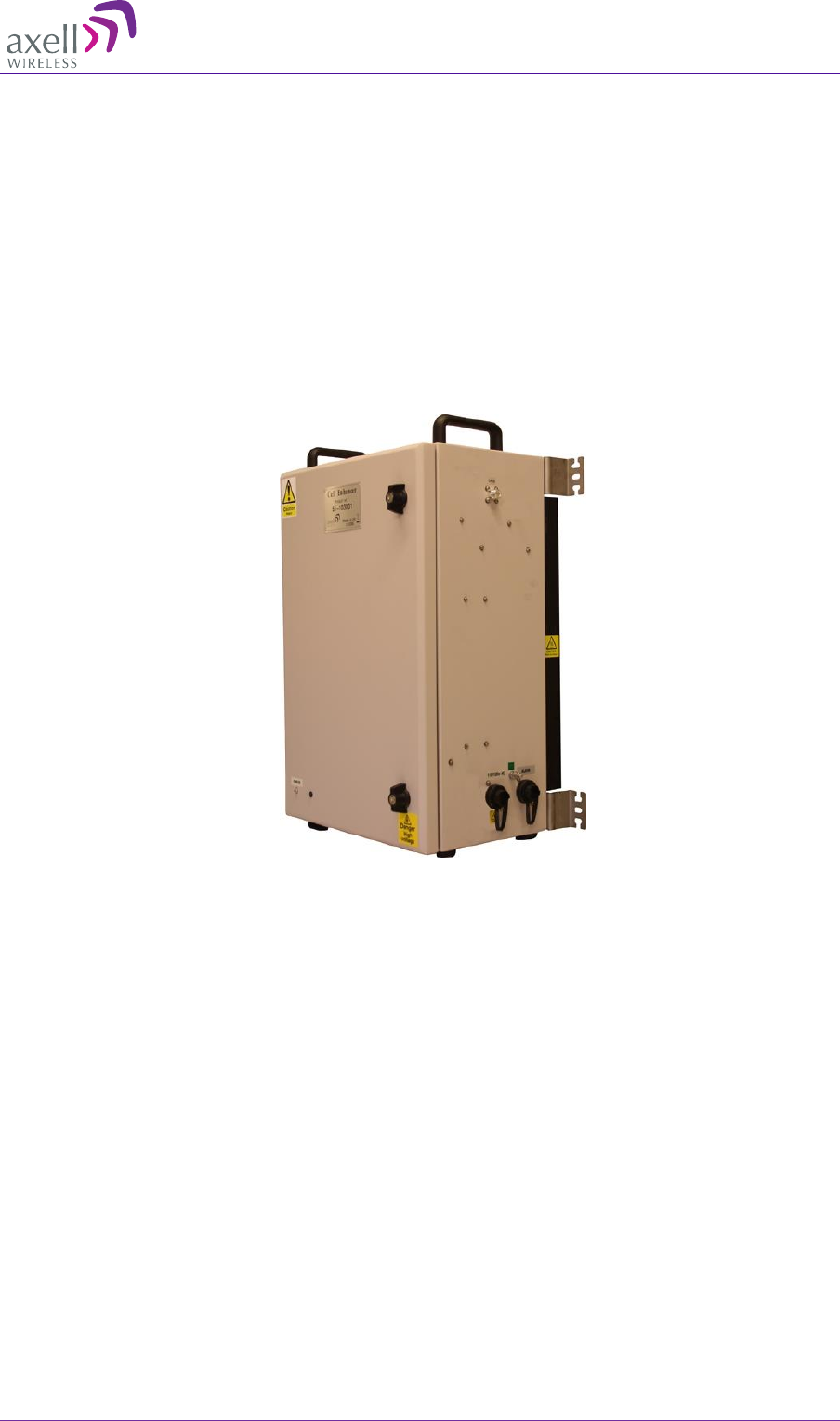

Figure 1-1. CSR 3604-3304 Repeater Model

AXELL CSR 3604-3304 UHF REPEATER

PRODUCT DESCRIPTION AND USER’S MANUAL

2 DOC PN 3633B-UM Rev. 2.1 © Axell Wireless Ltd

1.1 Features and Capabilities

 Standard frequency ranges available UL/DL: 450 - 510MHz

 450-470 with 5MHz duplex

 470-512 with 3MHz duplex

 Supports up to 8 channels

 Output Power per carrier DL/UL: 450-470MHz 470-510MHz

 2 carriers: 33/33dBm 30/24dBm

 4 carriers: 30/30dBm 27/21dBm

 8 carriers: 27/27dBm 24/18dBm

 Gain (in 1 dB steps): 55 to 85 dB

 Large repeater coverage footprint due to high output power and gain

 Very low propagation delay leading to higher security, resilience and availability of

information

 Easy system implementation with build-in commissioning tools

 Time-slot based ALC

 Supervision available over Radio modems

 Remotely upgradeable for future challenges

 Ethernet and Wireless modem connection for remote management

 Backup battery for ‘last gasp’ modem indication (sending fault error before power

failure)

 Can connect to either 110VAC or -48V power (model dependent)

1.2 Rechargeable Battery Pack

In the event of a power disruption this battery will supply the modem and the Control Module

with power for enough time so the repeater can send out an alarm.

AXELL CSR 3604-3304 UHF REPEATER

PRODUCT DESCRIPTION AND USER’S MANUAL

1.3 CSR 3604-3304 Interfaces

1.3.1 CSR 3604-3304 – Wall Mount Casing

1.3.1.1 Front Cover

The repeater is locked with a key.

Figure 1-2. CSR 3604-3304 Enclosure

IMPORTANT: The two locks must be securely closed. Failure to do so may affect the IP65

compliancy and therefore any warranty.

AXELL CSR 3604-3304 UHF REPEATER

PRODUCT DESCRIPTION AND USER’S MANUAL

4 DOC PN 3633B-UM Rev. 2.1 © Axell Wireless Ltd

1.3.1.2 External Interfaces

The repeater is secured with two locks located on the repeater door. The repeater interfaces

are located on both the left and right side panels as follows:

 Left panel – Base/Donor antenna port

 Right panel – Mobile/Service antenna port as well as power, GND, and alarm

connections

NOTE: Depending on your installation, modem antenna and Ethernet ports may also be located on

either the left or right panel.

Figure 1-3. CSR Door Locks and Left Side Panel Interfaces

Figure 1-4. CSR right side panel interfaces

AXELL CSR 3604-3304 UHF REPEATER

PRODUCT DESCRIPTION AND USER’S MANUAL

The following table provides a description of the interfaces shown above.

Port

Description

Donor Antenna

Connection to antenna towards Base Station.

Connection – N type female connector.

Service/Mobile

antenna

Connection to mobile (service) antennas.

Connection - N type female connector.

Power

One of the following (model dependent):

110VAC, 230 VAC or -48V DC

Power cable supplied.

GND

Grounding lug (See section 4.6)

Alarms

Two external alarms are supported (See section 4.10)

Alarm cable supplied.

Modem Antenna

Only on units that include a modem. The Modem antenna port is

located either on the left or right side panel.

Connection – N-type female connector.

Ethernet port

Available externally only on models supporting an Ethernet connection

to the network. For local setup, open the repeater and connect directly

to the Ethernet port on the Controller (section 1.2.1.3)

AXELL CSR 3604-3304 UHF REPEATER

PRODUCT DESCRIPTION AND USER’S MANUAL

6 DOC PN 3633B-UM Rev. 2.1 © Axell Wireless Ltd

1.3.1.3 Internal Interfaces

The following internal interfaces are relevant to the user operations:

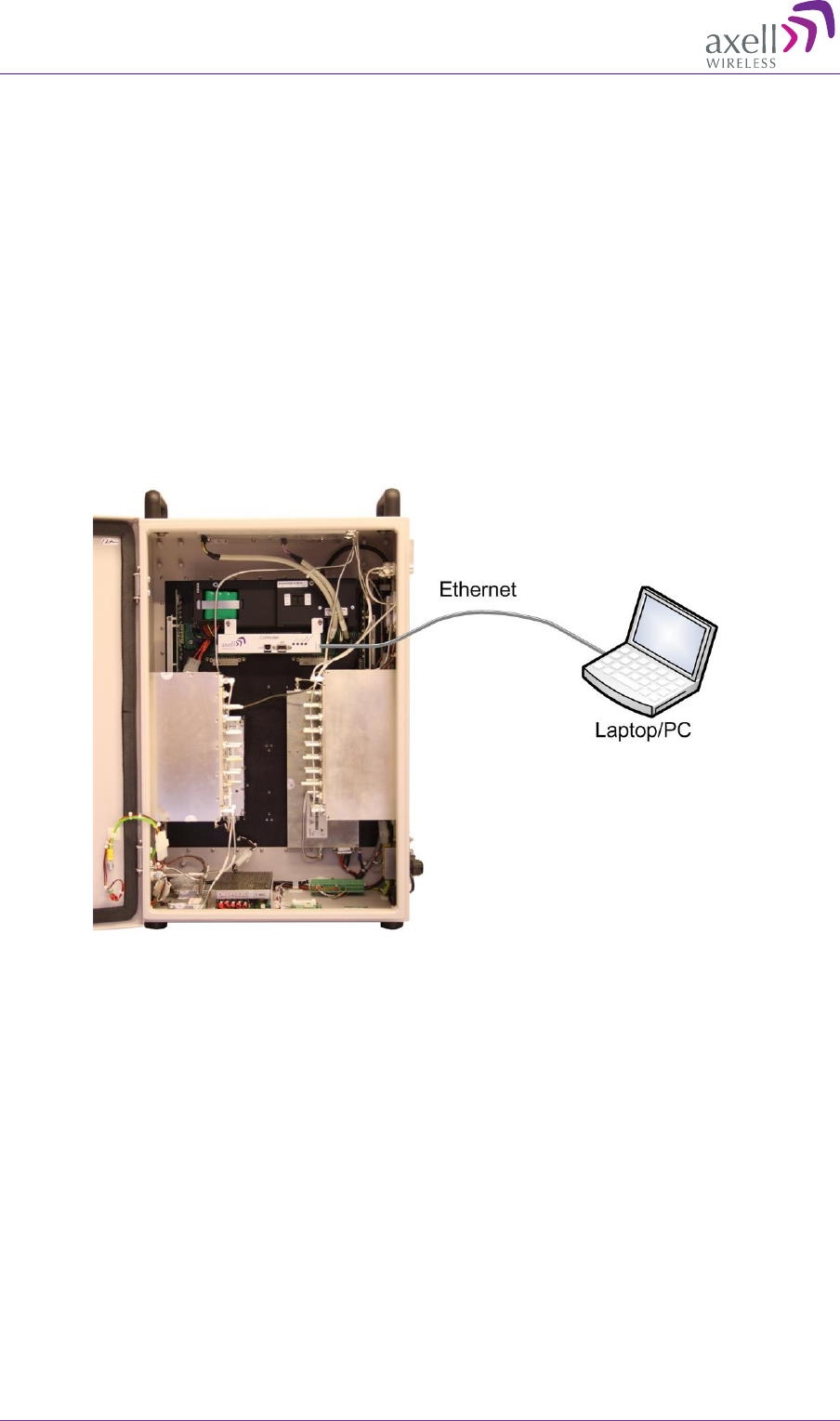

 Ethernet port used for setup (and optionally, for remote management)

 RS232 port used for local setup connection

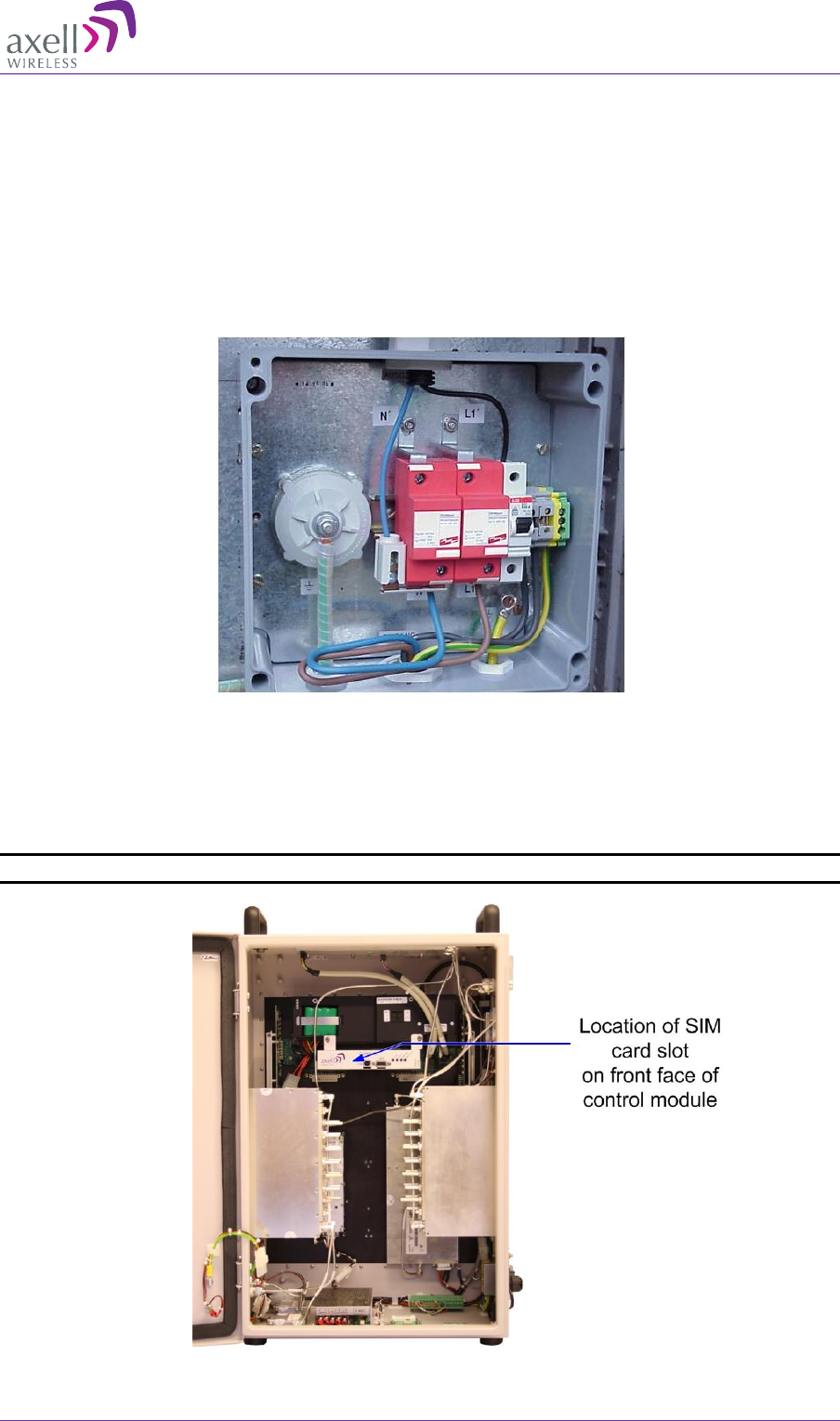

 SIM card slot (On Control module, for models supporting a modem)

 Power and battery switches

 Backup Battery

NOTE: The rechargeable battery pack is located internally and is accessed by opening the repeater.

1-5. CSR with door open

AXELL CSR 3604-3304 UHF REPEATER

PRODUCT DESCRIPTION AND USER’S MANUAL

2 Antenna Specifications and Installation

Criteria

WARNING!!!

The installer is held accountable for implementing the rules

required for deployment.

Good engineering practice must be used to avoid interference.

Output power should be reduced to solve any IMD interference

issues.

This chapter provides information on the specifications of the donor and service antennas

suitable for operation with this repeater, and on the installation requirements of the

antennas.

NOTE: The Donor and Mobile antennas can be positioned and installed (without connection

to the Repeater) at any time either before or after mounting and grounding the Repeater.

2.1 Base (Donor) Antenna

The Base (Donor) antenna is usually installed outdoors and is either a directional antenna

such as a Yagi or a Panel antenna.

2.1.1 Required Antenna Information

You will require the following antenna information:

 Antenna type and characteristics

 Height

 Length and type of coaxial cable required for connecting the Donor antenna to the

Repeater and the attenuation.

2.1.2 Donor Antenna specification

 Very sharp beam pointed to the BTS.

 Minimum cable and jumper loss = 2dB.

Equation (2) - Max DONOR antenna gain

Max DONOR antenna gain (dBi) = 39.1 – (27dBm - cable losses in dB).

For example:

No. of Antennas

Cable Losses

Max Allowed Antenna Gain

39.1 - (27-2) = 14.1dBi

Typical Antenna Types:

 4 element yagi 8.8dBi beam width 90o

 6 element yagi 10.3dBi beam width 64o

AXELL CSR 3604-3304 UHF REPEATER

PRODUCT DESCRIPTION AND USER’S MANUAL

8 DOC PN 3633B-UM Rev. 2.1 © Axell Wireless Ltd

2.1.3 Installation Criteria

Installation requirements:

 Select a location for the Donor antenna and verify that there is enough signal strength at

that location.

 Install the Donor Antenna at the designated height.

 The antenna should point to the direction of the base station for maximum input power.

 Verify that the antenna is in the base stations line of sight (raise the antenna if needed).

 Install the donor antenna at a higher level (i.e. floor) than the mobile antenna.

2.2 Service Antenna Requirements

WARNING!!!

a. The installer is held accountable for implementing the rules required for deployment.

b. Good engineering practice must be used to avoid interference.

c. Output power should be reduced to solve any IMD interference issues”

The Service antenna type depends on the design of the indoors DAS.

2.2.1 Required Antenna Information

The following antenna requirements, specifications and site considerations should be met:

 Type of installation – indoor DAS/Radiating Cable

 Service area type and size

 Antenna type and characteristics

 Height

 Length and type of coaxial cable required for connecting the antenna to the Repeater

and the attenuation.

2.2.2 Indoor Installations

2.2.2.1 Recommended Antennas

The following describes the requirements for an omni-directional mobile used for indoor

applications.

Specifications:

 One or a combination of the following antennas can be used: Ceiling Mount Patch

antenna, Wall Mount Patch antenna, Corner Reflector.

 Choose an antenna with high side lobe attenuation which enables maximum isolation

from the service/ mobile antenna.

AXELL CSR 3604-3304 UHF REPEATER

PRODUCT DESCRIPTION AND USER’S MANUAL

Equation (1) - Max SERVICE antenna gain

Max SERVICE antenna gain (dBi) = 39.1 – (37dBm - # of antennas in dB – cable losses in dB).

For example:

No. of Antennas

Cable Losses

Max Allowed Antenna Gain

39.1 - (37-6-3) = 11.1dBi

39.1- (37-0-3) = 5.1dBi

39.1- (37-10-3) = 15.1dBi

Typical Antenna Types:

 Indoor Dome 2.1dBi beam width 360o

 Indoor Panel 4.2dBi beam width 106o

 Radiating Cable Typically < -50dBi

2.2.2.2 Recommended Splitters and Couplers

Axell Wireless can supply a comprehensive range of splitters and Couplers to aid the

installation of the internal DAS system. Typical specifications as below:

Splitter Part Numbers

90-851202

90-851203

90-851204

Frequency Band

300 - 500MHz

Split

2 way

3 way

4 way

Max Insertion Loss

0.3dB

0.5dB

0.4dB

Split Loss

3dB

4.8dB

6dB

Coupler Part Number

90-852306

90-852310

90-852315

90-852320

Frequency Band

300 - 500MHz

Coupling

-6dB ±1.0dB

-10dB ±1.0dB

-15dB ±1.0dB

-20dB ±1.0dB

Max Mainline Loss

1.7dB

0.8dB

0.4dB

0.22dB

2.2.2.3 Installation Criteria

Determine the antenna installation configuration, according to the transmission

requirements and the installation site conditions.

Installation requirements:

 An indoor antenna should be installed at a convenient location. It should be free of

metallic obstruction.

 Install the Service Antenna at the designated height and tune it roughly toward the

Service coverage area.

AXELL CSR 3604-3304 UHF REPEATER

PRODUCT DESCRIPTION AND USER’S MANUAL

10 DOC PN 3633B-UM Rev. 2.1 © Axell Wireless Ltd

2.3 RF Cabling Requirements

 For all coaxial connections to/from the Repeater - high performance, flexible, low loss

50Ω coaxial communications cable.

 All cables shall be weather-resistant type.

 Cable length - determined by the Repeater installation plan. When calculating the cable

length, take into account excess cable slack so as not to limit the insertion paths.

 Make sure that cable and connector are compatible. Using cables and connectors from

the same manufacturer is helpful.

 All connectors must be clean and dry

 Waterproof all outdoor connections using silicone, vulcanizable tape or other suitable

substance as moisture and dust can impair RF characteristics.

 Make sure enough room has been allocated for the bending radius of the cable. RF

cables must not be kinked, cut or damaged in any way

 Connect the RF cable to the antenna tightly but without damaging threads

 Fasten cables tight to cable ladder or aluminum sheet

 For short length of feeder cables use ½ “, for longer feeder cables use 7/8”. Chose

thicker coax cables for lower attenuation. Minimize the length of the coax cables to

reduce the attenuation

 Use jumper cable for easy installation. The RF Coaxial cable can be substituted at each

end with a jumper cable.

AXELL CSR 3604-3304 UHF REPEATER

PRODUCT DESCRIPTION AND USER’S MANUAL

3 Pre-Installation Requirements

3.1 Safety Guidelines

Before installing the Repeater, review the following safety information:

 Follow all local safety regulations when installing the Repeater.

 Only qualified personnel are authorized to install and maintain the Repeater.

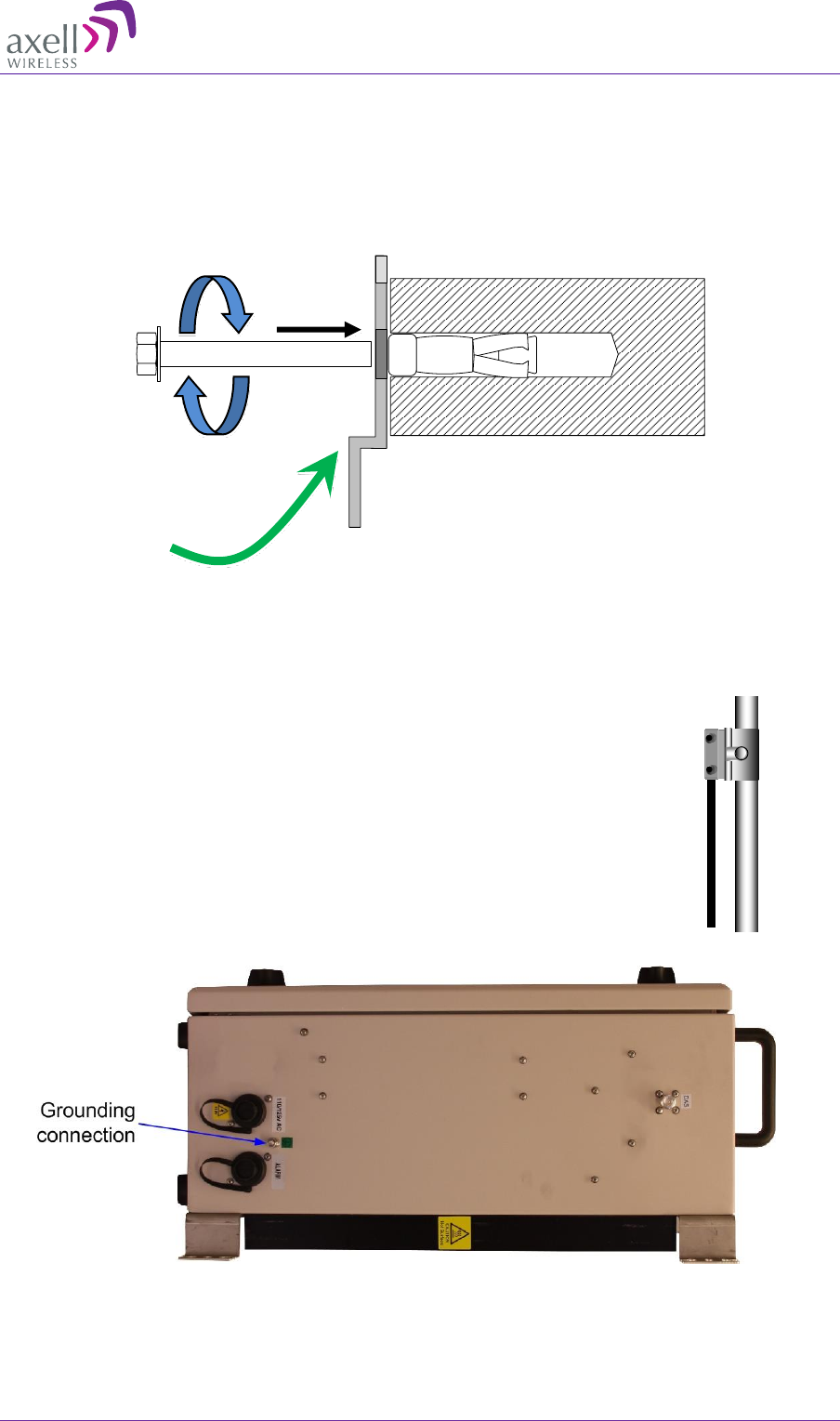

 Ground the Repeater with the grounding bolt located on the underside of the Repeater.

 Do not use the grounding bolt to connect external devices.

 Follow Electro-Static Discharge (ESD) precautions.

3.2 Required BTS Information

Required BTS Information

 BTS channels

 BTS output power per channel

 BTS antenna gain

 BTS antenna height

 Distance from Repeater site to BTS

3.3 Selecting a Location

Select a location that will take into account the following criteria:

 Relative location of Base Station

 Cooling and airflow

 Wall compatibility

 Access to the repeater for installation or maintenance

3.3.1 Relative Location of Base Station

The repeater site shall be located where the BTS signal strength is great enough to be

recognized by the system. For example, a CSR 3604-3304 (85dBm max gain) and signal

strength of -70dBm at the pickup antenna, a gain in the pickup antenna of 10dBi, a repeater

gain of 85dBm and a server antenna gain of 2dBi the resulting ERP would be 27dBm.

Losses in cables and other elements would change these figures slightly.

 Repeater location near enough to BTS for received signal to be of adequate strength

 Ideally the repeater’s donor antenna should have line of sight (LOS) contact with the

BTS antenna. If the signal strength is high enough, LOS may in some cases not be

necessary.

 Distance from antenna site - It is recommended that the installation location be as close

as possible to the antenna site in order to maintain the cable loss to a minimum.

3.3.2 Cooling and Airflow

 Install the Repeater in a shielded, ventilated, and easy-to-reach area.

 The Repeater is convection cooled so airflow and alternation should be possible.

 Verify that ambient temperature of the environment does not exceed 50C (122F)

Mount the repeater so that heat can be dispersed from it. The repeater wall mounting kit

ensures an optimum airflow between the wall and the repeater itself. Do not block this air

AXELL CSR 3604-3304 UHF REPEATER

PRODUCT DESCRIPTION AND USER’S MANUAL

12 DOC PN 3633B-UM Rev. 2.1 © Axell Wireless Ltd

channel as it will cause the MTBF of the repeater to drop dramatically, or even in the worst

case cause the repeater to fail completely.

If possible use a wall in the shadow to minimize the overall sun loading. If sufficient

shielding cannot be obtained, an additional sun shield should be mounted.

3-1. Example of a sun shield outdoors

Operating Temperature

The CSR repeaters are designed primarily

for multi carrier purposes. If the repeater is

run at full output power over a long period of

time the convection cooling might not be

enough. The repeater has a power

management function implemented that will

step down the power and if needed fully shut

down the amplifier chains until temperature

has reached normal values. In situations

where a repeater will be run in such a

manner extra cooling can be provided for

instance by putting the repeater in a

temperature controlled environment or via

external fans.

3.3.3 Wall Compatibility

 Check the suitability of the wall on which the Repeater is to be mounted.

 The Repeater wall mount brackets assembly should be fixed to a solid wall (these

include brickwork, blockwork, and concrete.);

 (Due to the weight of the Repeater, it is NOT recommended to fix to a hollow wall).

3.3.4 Access to the Repeater

 Plan connection cable clearances - the Optical, RF and power connections located on

the underside of the Repeater will need at least 300mm vertical clearance below the

Repeater to enable the connections to be made. The minimum bend radius for Optical

and RF cables must not be less than the recommendations made by the cable

manufacturer. Plan the cable runs and ensure adequate space is available.

 Allow for door opening - ensure that there is sufficient space at the front of the

Repeater to allow the door to be fully opened and for maintenance engineers to get

access to the unit with test equipment such as a spectrum analyser.

 Allow space around the repeater - verify that there is a minimum of a 50 cm (20”)

radius of space around the Repeater, enabling easy access to the repeater for

maintenance and on-site inspection. Allow an additional 50 cm of space in front of the

Repeater when the door is fully open.

 Monitoring repeater - install the Repeater close to the service area to monitor the

output power.

AXELL CSR 3604-3304 UHF REPEATER

PRODUCT DESCRIPTION AND USER’S MANUAL

4 Physical Installation

4.1 Overview of the Installation Procedure

Note the following:

 The Donor and Mobile antennas can be positioned and installed (without connection

to the Repeater) at any time either before or after mounting and grounding the

Repeater.

 It is important to perform the installation procedure according to the order described

below..

System installation phases:

1. Determine an appropriate location for the system according to the requirements

described in section 3.3.

2. Unpack the Repeater kit (see 4.3).

3. Assemble the brackets and mount the CSR Repeater on the (concrete or brick) wall (see

4.4).

4. For models supporting a modem:

Insert the SIM card (requires opening repeater door).

Connect the modem antenna (external port)

5. Ground the Repeater (see 4.6)

6. If you have not already done so, position and install the Base and Mobile antennas in

the relevant locations (see chapter 2).

7. Before powering up the Repeater:

Verify isolation between the donor and mobile antennas.

Verify link between BTS and Base Repeater.

Connect the Donor and Service antennas to the Repeater.

8. Power-up the Repeater.

WARNING! Be sure to perform the power supply connection last,

otherwise damage may be caused to the system!

9. Optional - Connect the external alarms. This can be done at any time, before or after

powering up the Repeater.

10. Initial system setup. See Chapter 6

AXELL CSR 3604-3304 UHF REPEATER

PRODUCT DESCRIPTION AND USER’S MANUAL

14 DOC PN 3633B-UM Rev. 2.1 © Axell Wireless Ltd

4.2 Required Tools and Materials

A standard professional toolbox is required in order to mount the Repeater.

4.3 Unpacking

Upon receiving the CSR Repeater perform the following:

1. Examine the shipping container for damage before unpacking the unit.

2. Perform a visual inspection to reveal any physical damage to the equipment.

3. Verify that all of the equipment (listed below) is included. Otherwise contact Axell

Wireless Ltd. The CSR Repeater is shipped with the following equipment:

CSR single-band Repeater

External Alarms Cable

(P/N 90-400006)

CD with RMC and

documentations

Mounting Brackets x 4

Additional (supplied) installation

components:

Qty.

Description

8 to 12

M6 screws for securing the brackets

110V/220 AC Cable - for AC power model

48VDC Cable – for DC power model

2 x

Sets of keys

AXELL CSR 3604-3304 UHF REPEATER

PRODUCT DESCRIPTION AND USER’S MANUAL

4.4 Bracket Assembly

The Repeater is supplied with four wall mounting brackets; when the Repeater is mounted

on these brackets adequate ventilation is provided between the Repeater and the wall to

which it is fixed.

Fix mounting brackets to Repeater with the supplied screws.

4-1. Bracket Assembly Examples

4.5 Wallmount Procedure

4.5.1 Requirements

The Repeater wall mount brackets assembly should be fixed to a solid wall (these include

brickwork, blockwork, and concrete.);

Due to the weight of the Repeater, it is NOT recommended to fix to a hollow wall.

Figure 4-2. M6 Rawlbolt – recommended for wallmount.

IMPORTANT!

Always check that there are no pipes or cables hidden in the wall beneath

the area to be drilled. Various pipe and cable detectors are available for

this type of inspection.

To provide secure fixing to a solid wall, the most common method is drilling and plugging.

The size of fixing is dependent on the item to be fixed and the nature of the wall, The

Repeater should be fixed with mild steel, M6 (50mm to 75mm) Rawl bolts or similar.

AXELL CSR 3604-3304 UHF REPEATER

PRODUCT DESCRIPTION AND USER’S MANUAL

16 DOC PN 3633B-UM Rev. 2.1 © Axell Wireless Ltd

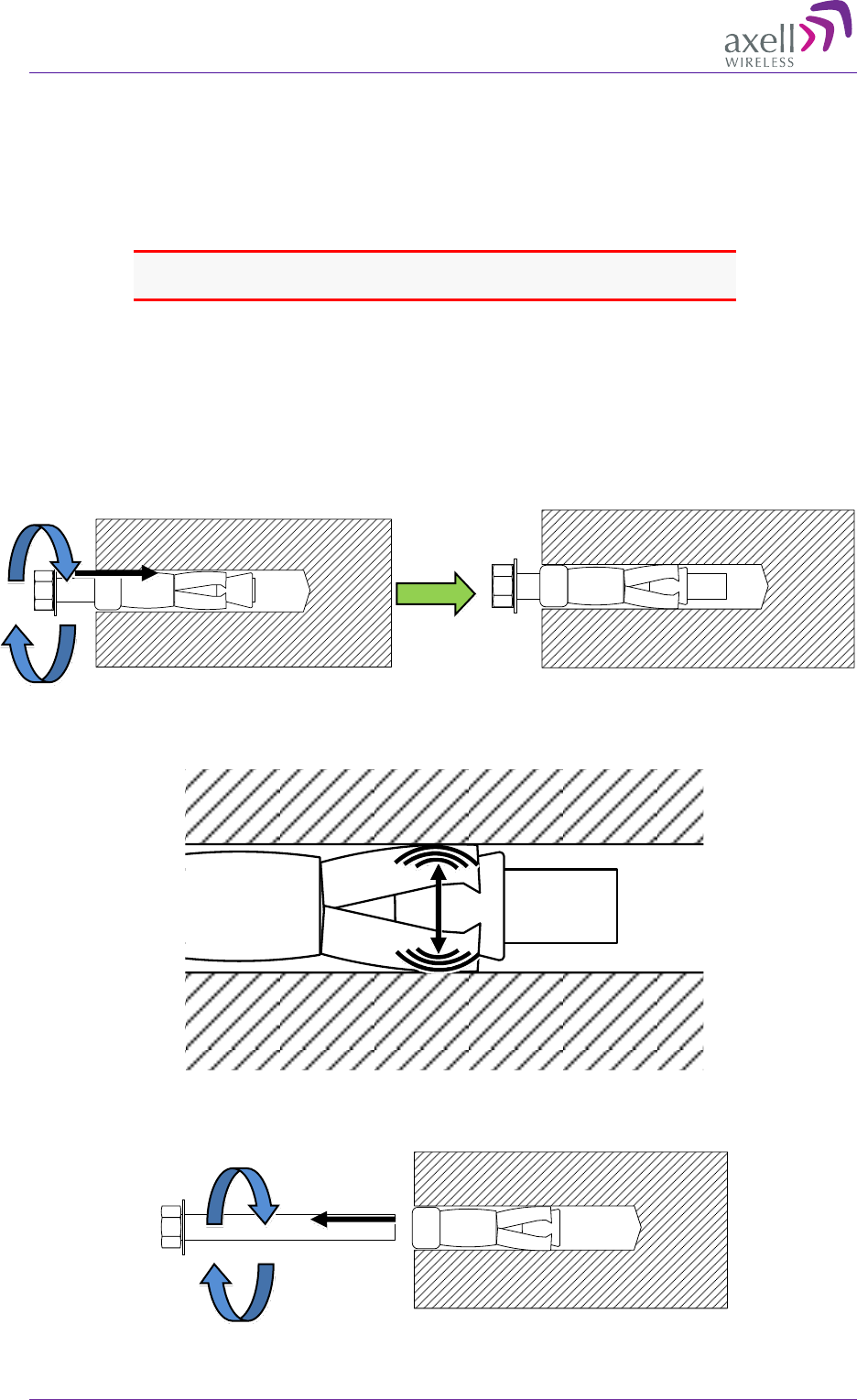

4.5.2 Planning the Repeater Location and Drilling

1. Mark out on the chosen wall the fixing centres of the repeater and the location of the

brackets.

2. Mark and drill the wall with the correct size masonry bit as specified by the fixing

manufacturer.

WARNING: It is good practice to wear goggles to protect your eyes from

flying debris when using power tools.

3. Hold the drill bit against the mark and begin drilling slowly so that the bit does not

wander from the position. The wall should be drilled to a depth which is sufficient to

accommodate the full length of the fixing.

4. Insert the fixings so that the top of the sleeve/anchor section is level with the wall

surface.

5. Gently tighten the bolt by hand so that the anchor section of the fixing expands and grips

the inside of the hole.

Figure 4-3. Inserting Fixing and Tightening

6. As the bolt pulls its way in, the sides of the anchor section are forced outwards, gripping

the surrounding surface.

Figure 4-4 Anchor Sides Pushed Outwards

7. Once all four fixings are in place, carefully withdraw the four bolts.

Figure 4-5. Withdraw Bolts.

AXELL CSR 3604-3304 UHF REPEATER

PRODUCT DESCRIPTION AND USER’S MANUAL

4.5.3 Hanging the Repeater on the Wall

1. Align repeater with the four fixings. Exercise great care as the repeater is very heavy (a

suitably rated heavy duty scissor lift table/trolley may be suitable for this operation).

2. Carefully insert the fixing bolts through the mounting lugs of the Repeater and into the

sleeve/anchor sections of the fixing in the wall and tighten the bolts.

Figure 4-6. Mount Repeater.

4.6 Grounding

1. GND the repeater grounding bolt.

2. Ensure that good grounding protection measures are taken

to create a reliable repeater site.

3. Make sure to use adequately dimensioned grounding

cables. The minimum recommended conductive area for a

grounding cable is 16mm2.

Figure 4-7. Grounding

Align Repeater

and Secure Bolts

AXELL CSR 3604-3304 UHF REPEATER

PRODUCT DESCRIPTION AND USER’S MANUAL

18 DOC PN 3633B-UM Rev. 2.1 © Axell Wireless Ltd

4.7 EMV Protection

CAUTION! If insufficient Electromagnetic Protection is provided,

or if EMV measures are not taken, warranties issued by Axell Wireless

are not valid.

The lightning hazard to electric and electronic equipment consists in the interferences of

direct lightning current infections and high surge voltages induced by the electromagnetic

field of nearby lightning channels or down conductors. Amplitudes from cloud-to-earth

lightning amounts to several 10kA and may last longer than 2(ms). The damage caused

depends on the energy involved and on the sensitivity of the electronics systems.

Ensure that lightning protection measures are taken to create a reliable repeater site.

Protect all coaxial cables and power cables from the transients caused by lightning. Fit all

cables with suitable lightning protection devices.

For detailed information please refer to IEC 61024-1 and 61312-1 for international standards

for protection of information systems against LEMP, Lightning Electromagnetic Pulse,

including radio transmitters. They define proper planning, installation and inspection of

effective lightning protection systems.

Figure 4-8. Example of EMV protection for a repeater system

Antennas

Primary Protective

Devices

Equipotential

Grounding Bars

230V AC/48V DC

Protective Device

Secondary

Protective Devices

The top of the

mast must be

higher than

the antennas

and be

properly

grounded

The

grounding

path must

have reliable

continuity

and be

correctly

dimensioned

VAC/DC

AXELL CSR 3604-3304 UHF REPEATER

PRODUCT DESCRIPTION AND USER’S MANUAL

About installing lightening protection devices:

 Several lightning protection devices should be used in series with declining threshold

voltages to help attenuate the pulse component which makes it through the first layer of

protection.

 The primary protective device is part of the site installation and is not supplied by Axell

Wireless. Coaxial lightning protection is normally one of these three types: Gas capsule,

High-pass and Bandpass.

 There also need to be a protective device installed on the power supply cord.

Figure 4-9. Protective device installed in connection with the power supply

4.8 Insert SIM Card

For models supporting GPRS/GSM or PSTN/GSM modems, open the repeater door and

insert the SIM card in the slot as illustrated below.

NOTE: You will also need to configure the modem according to section 6.5.5.

4-10. Insert SIM card

AXELL CSR 3604-3304 UHF REPEATER

PRODUCT DESCRIPTION AND USER’S MANUAL

20 DOC PN 3633B-UM Rev. 2.1 © Axell Wireless Ltd

4.9 Antenna (RF) Connections

4.9.1 Verifying the Link between the BTS and the Repeater

This test checks the signal strength from the BTS antenna to the Repeater.

Proceed as follows:

1. Using a Spectrum analyzer, measure the received signal from BTS at the Donor

antenna port near the Repeater.

2. Adjust the Donor antenna direction to receive the maximum signal strength.

3. Compare the received signal strength with the calculated signal strength from the design

phase.

In case of discrepancy, check for one of the following:

 Antenna out of direction

 Antenna tuned to side lobe instead of main lobe

 Antenna connector or antenna cable faulty

 Line-of-sight problem (obstruction), etc.

 Register the signal strength of the downlink channel for the system operation phase.

4.9.2 RF Antenna Connections

Refer to the following figure for the CSR RF antenna connections.

NOTE: For models supporting a GPRS modem, you may also connect the modem antennas

at this stage. If your repeater includes a modem, the modem antenna port may either be on

the left or right panel – depending on your enclosure.

Figure 4-11. Donor Antenna Connection

AXELL CSR 3604-3304 UHF REPEATER

PRODUCT DESCRIPTION AND USER’S MANUAL

Figure 4-12. Mobile Antenna Connection

4.10 External Alarm and Relay (Internal Alarm)

Connections

The Alarm connector located on the side panel provides two external alarm connections.

Use the alarm cable provided with your unit. The alarms are activated and configured

according to section 0(6.5.1)

NOTE: The Alarms connections can be protected with a cover which is screwed in place.

Figure 4-13. Alarm and Relay Connections

PINS

DESCRIPTION

Pins 3 and 4

External alarm A

Pins 5 and 6

External alarm B

External Alarms details

 Pins 3 and 4, 5 and 6

 Two external alarm sources can be connected to the repeater.

 Alarm operating voltage: between 12 and 24VDC.

 Alarm operation criteria can be configured. (6.5.1)

 Active-low - when there is no voltage the alarm indicator will turn red

 Active-high - an applied voltage of between 12 and 24 V will cause the external

alarm indicator to turn red.

AXELL CSR 3604-3304 UHF REPEATER

PRODUCT DESCRIPTION AND USER’S MANUAL

22 DOC PN 3633B-UM Rev. 2.1 © Axell Wireless Ltd

4.11 Power Connections

Caution! Make sure the antenna cables or 50 ohm terminations

are connected to the repeater’s antenna connectors before the

repeater is turned on.

Caution! Be sure a CIRCUIT BREAKER meeting the instructions

given in this section is connected near the unit at an easily

reachable and accessible location from the unit.

4.11.1 Circuit Breaker Connections

To disconnect the unit (either manually or automatically in case of over-current), it is

required to install a circuit breaker on the wall near the unit, at an easily accessible distance

and location from the unit.

Circuit-breaker minimum requirements

 20AT, 115VAC

 Needs to be SAFETY approved

4.11.2 Switching Power ON

Note the following:

 The power switch has two positions; “on” and “stand by”. In the stand by position the

repeater is still connected to the power supply but not operational.

 The backup battery is operational for five years. Refer to section 9.3 for backup battery

replacement.

 The CSR supports a backup battery for last gasp in case of power failure. To power on

the unit, it is required to switch-on both power and backup battery switches.

The image below shows the location of the various power elements.

Figure 4-14. Power Elements Inside Repeater

Power ON/Standby

switch

Backup battery

pack

Battery (BATT) ON/OFF

switch

AXELL CSR 3604-3304 UHF REPEATER

PRODUCT DESCRIPTION AND USER’S MANUAL

To switch the repeater ON

1. Open repeater door to access switches.

2. Set to ON both Power and Battery switches (located inside the repeater).

3. Connect the supplied power cable between the Repeater Power connector and the

circuit breaker.

4. Turn the repeater on from the circuit breaker.

5. Verify the LEDs from the following internal modules are indicating correct operation

(section 8.1):

 Control module.

 Power supply modules

NOTE: To switch power OFF – set battery switch to OFF and power switch to Standby.

AXELL CSR 3604-3304 UHF REPEATER

PRODUCT DESCRIPTION AND USER’S MANUAL

24 DOC PN 3633B-UM Rev. 2.1 © Axell Wireless Ltd

5 Login and GUI Navigation

This section describes how to open a session to the repeater, and provides a brief

description of the WEB GUI and describes the initial setup procedures.

5.1 Opening a Local Web Session to the Repeater

5.1.1 Connect the Repeater to the Computer

Connect computer to the Repeater Ethernet connection

Using the supplied Ethernet cable, connect either to the repeater EXTERNAL ETH port (if

an external ETH port is available on one of the side panels), or to the INTERNAL Ethernet

port (located internally at the side of the Controller).

The following figure shows an internal ETH connection – to the side of the controller.

Figure 5-1. Connection to an internal Ethernet port (if external port is not available)

AXELL CSR 3604-3304 UHF REPEATER

PRODUCT DESCRIPTION AND USER’S MANUAL

5.1.2 Configure the Computer Network Parameters

Configure the computer network parameters to communicate with the Repeater. Note that

the procedure may vary slightly depending on the operating system installed on your

computer. The following procedure is for MS Windows 7.

To configure the computer’s network parameters:

1. Click the Start menu and choose Control Panel.

2. In the Control Panel, click Network and Internet.

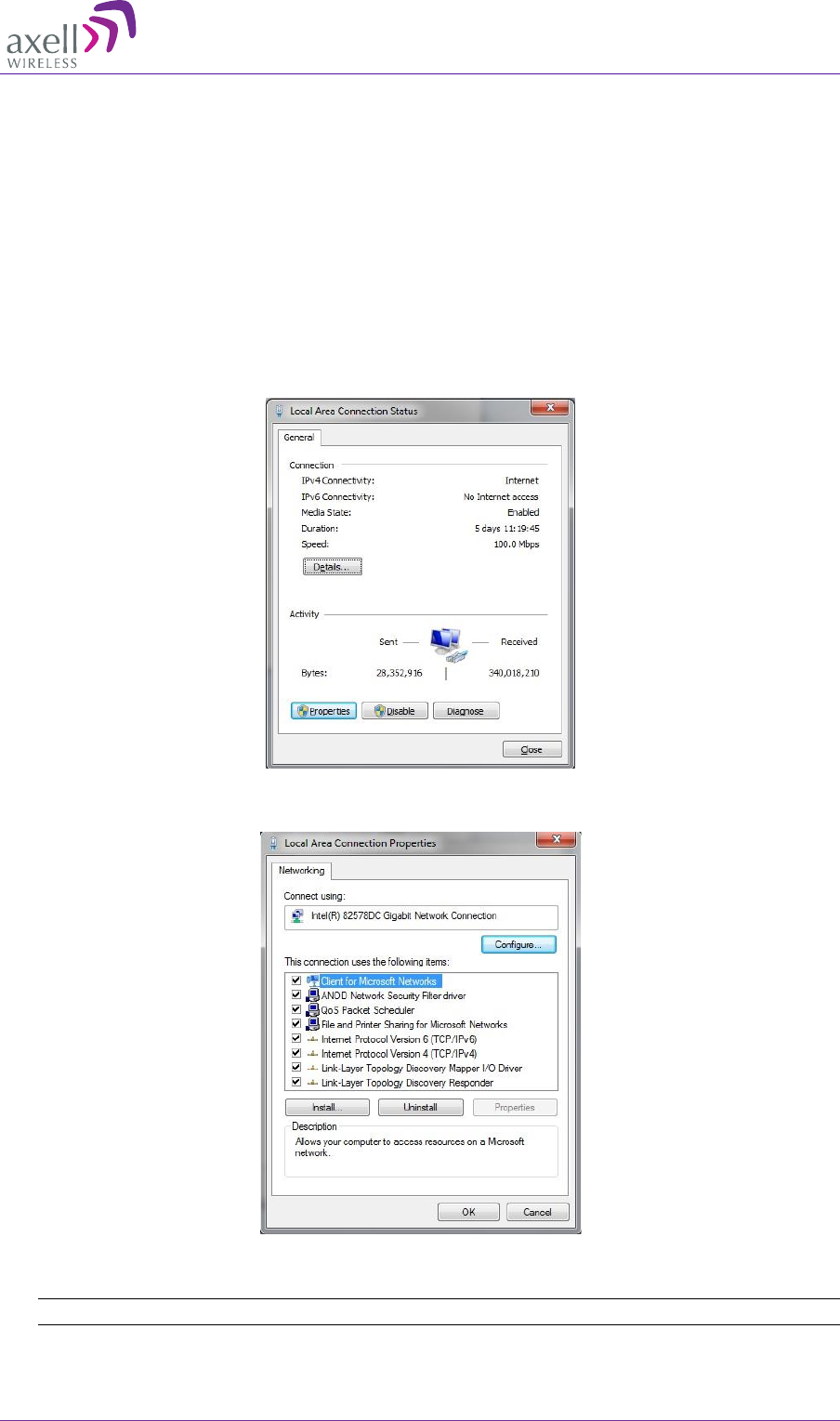

3. Click Network and Sharing Centre and then click Local Area Connection. The Local

Area Connections Status dialog appears with the General tab displayed by default.

4. Click the Properties button. The Networking tab appears.

5. In the Items list, double-click the “Internet Protocol Version 4 (TCP*IPv4)” item.

6. The Internet Protocol Version 4 (TCP/IPv4) Properties dialog appears.

Note: The Repeater is supplied with the default IP address 192.168.1.253.

AXELL CSR 3604-3304 UHF REPEATER

PRODUCT DESCRIPTION AND USER’S MANUAL

26 DOC PN 3633B-UM Rev. 2.1 © Axell Wireless Ltd

7. Assign your computer an IP address in the same subnet, in order to communicate with

the unit.

In the IP address area:

Enter the IP address 192.168.1.x, where ‘x’ can be any number between 2 and

250 inclusive. For example, (192.168.1.9)

Define the subnet mask as shown (255.255.255.0)

8. Click OK. The computer communication parameters are now defined and a session to

the Repeater can be opened.

AXELL CSR 3604-3304 UHF REPEATER

PRODUCT DESCRIPTION AND USER’S MANUAL

5.2 Web Session Login to the Repeater

NOTE: The Repeater is factory assigned the address 192.168.1.253. Initial login is

performed using this address; however it is recommended to make the necessary

modifications according to information provided by your network administrator.

To login to the Repeater via a web session

1. Open a standard Flash-enabled browser (e.g. Internet Explorer or Firefox).

2. In the address line, enter the IP address of the Repeater. http://192.168.1.253. A session

will be established with the Repeater and the login dialog appears.

3. Enter the default login values as follows:

Password AxellPasswd (case sensitive).

Notes:

Do not use the number pad when entering numbers.

For security, it is highly recommended to change the password (section 7).

4. Click Login. The application main window appears. The repeater mode appears in the

top left side of the Menu bar:

CSR xx02 = Channel operation mode

Repeater Mode

AXELL CSR 3604-3304 UHF REPEATER

PRODUCT DESCRIPTION AND USER’S MANUAL

28 DOC PN 3633B-UM Rev. 2.1 © Axell Wireless Ltd

5.3 Navigating the Web GUI Application

NOTE: It is assumed you have already logged in to the Repeater according to section 5.2.

The Web GUI window provides access to the configuration and management options of the

CSR units.

The following figure shows an example of the Basic View. The Advanced view provides

more options.

The window consists of the following main areas:

 Title bar – provides access to a range of configuration options by hovering over the bar.

See section 5.3.1 for details.

 View Buttons – Basic (displayed by default) and Advanced display options.

 General information – show user defined repeater name, general identification

information and status of external alarms.

 Radio (FCC) – shows current UL and DL power level

 Channels – provides UL and DL channel configuration options and RF output power per

channel

 Miscellaneous – status of various parameters, mainly power related

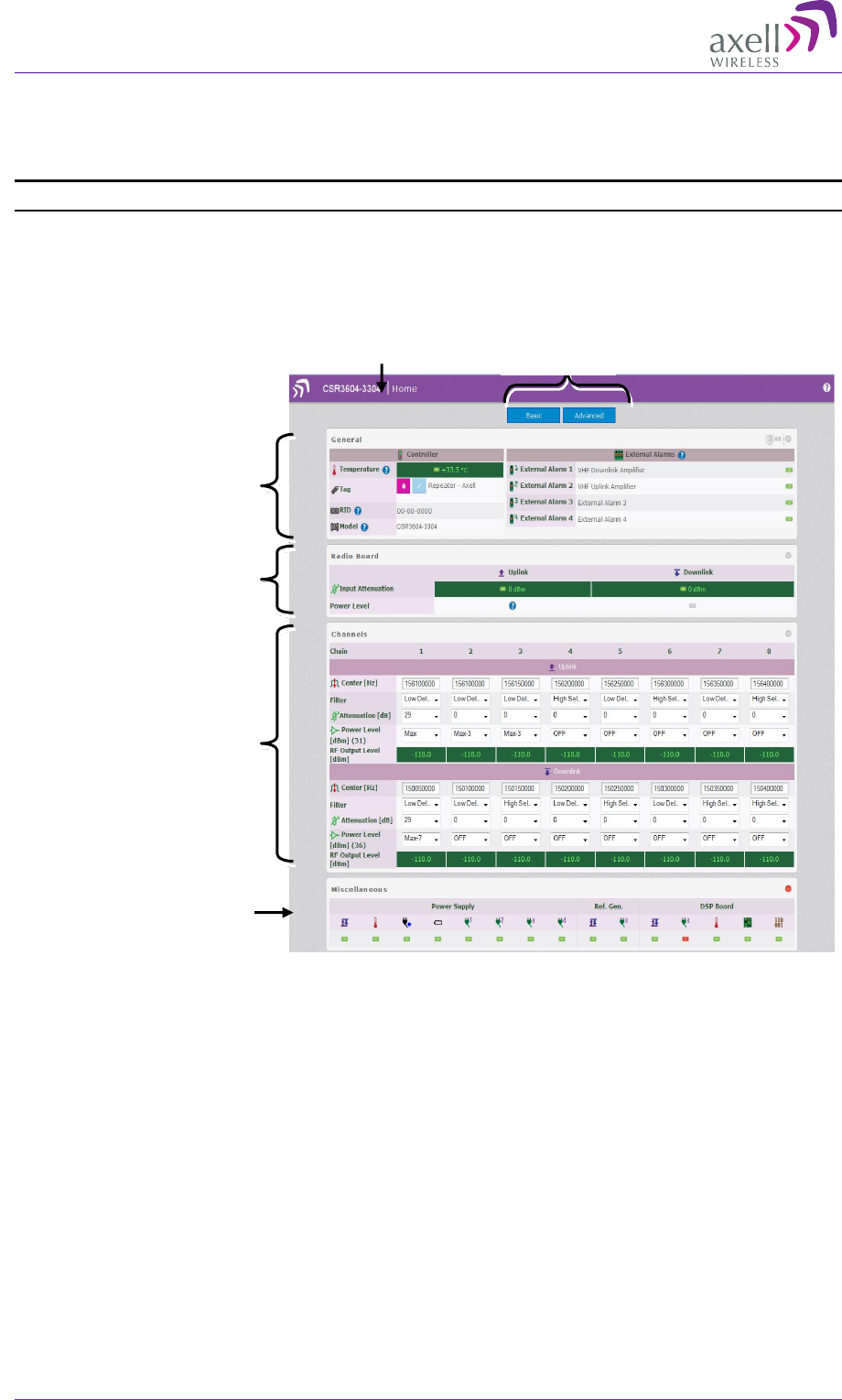

View options

Title bar - hover for options

UL/DL Channel

configuration options

General identification

information and External

alarms status

(only Alarm 1, 2 are relevant)

UL and DL

output power

Status indicators – mostly

hardware status

AXELL CSR 3604-3304 UHF REPEATER

PRODUCT DESCRIPTION AND USER’S MANUAL

5.3.1 Title Bar Menu Options

NOTE: These options are available by hovering over the Title bar of the main window.

The Menu Bar allows access to all configuration and commissioning options:

Item

Description

Home

This is the default welcome screen. It displays general status

information and provides the RF UL and DL channel configuration

options. (Section 0).

SNMP

SNMP agent configuration options. (Section 6.5.3.2)

Nodes

Not Applicable

External Alarms

Configure, activate and assign names to two external alarms.

(Section 6.5.1)

Logs

List of alarms and operations. Alarms are raised according to user

defined Thresholds in Alarm Threshold. (Section 8.1.1)

Alarm Thresholds

Define thresholds for all system alarms (alarms are displayed in

Logs).

(Section 8.1.2)

Date and Time

Configure the time stamp for dating CSR events. (Section 6.4)

System Information

Display CSR hardware and software identification information and

system performance parameters (CPU load average, memory

usage and network response time (ms)). (Section 8.1.4

Password

Change login password. (Section 7)

NOTE: It is highly recommended to change the login password.

Reboot

Soft restarts the CSR. (Section 7.2)

Ethernet

Define the IP Address and network parameters for direct remote

access via Ethernet. (Section 6.5.2)

Axell Shell

Command line used to communicate with the remote units. List of

commands can be found in the Common Commands and

Attributes document. (Section 7.3)

Communication

Configure modem parameters (if the unit supports a modem) and

view AEM Server IP (provided by AEM). (Section 6.5.5)

AXELL CSR 3604-3304 UHF REPEATER

PRODUCT DESCRIPTION AND USER’S MANUAL

30 DOC PN 3633B-UM Rev. 2.1 © Axell Wireless Ltd

6 Setup

This section describes the available setup procedures: required and optional according to

your system installation.

6.1 Overview of the Setup Procedures

The following setup procedures are required to operate the repeater:

 Assigning the repeater a recognizable name – for easy identification of the source of

events

 Defining channels

 Setting the clock and time – used to timestamp events

 Additional setup procedures – according to your system installation and requirements:

 Configuring external alarms

 IP address – for connection to the Ethernet network

 SNMP support

 TCP/IP

 Modem setup

6.2 Assigning Repeater a Recognizable Name

The CSR is automatically assigned an ID by the AEM. In addition, it is recommended to

assign each repeater a recognizable name that will identify the location, site name, etc.

To assign the Tag

NOTE: The repeater tag can be locked in order to prevent being accidentally modified from the AEM

side (unlock by clicking on the button).

1. In the Home screen, under the General section next to Tag, click the Edit option.

2. Assign the Repeater a name (up to 30 characters) that indicates the location of the

Repeater.

3. Click OK.

TAG

AXELL CSR 3604-3304 UHF REPEATER

PRODUCT DESCRIPTION AND USER’S MANUAL

6.3 CSR Channel Configuration

The initial setup procedure consists of defining the required VHF channels. Up to eight

channels can be defined, where each channel is defined according to the following

parameters:

 UL center frequency and DL center frequency

 Type of channel according to usage (High Selectivity or Low Delay)

 Attenuation

 Power level

To configure channel RF parameters

1. Access the Home screen (displayed by default).

A partial image showing only the channel definitions area is illustrated below.

2. Define the Downlink and the Uplink parameters for each required channel:

 Set the Centre frequency.

 Set the type of Filter to Low Delay or High Selectivity according to site requirements.

 Set the Power Level according to the following options:

 Max – maximum power available according to the number of active channels.

 Max-1 to Max-9 – from 1 to 9 dBm less than the maximum power according to

the number of active channels.

 OFF – no power is transmitted on corresponding UL or DL channel.

NOTE: Be sure to disable inactive channels by setting the Power Level to OFF.

Downlink channel

definitions

Uplink channel

definitions

AXELL CSR 3604-3304 UHF REPEATER

PRODUCT DESCRIPTION AND USER’S MANUAL

32 DOC PN 3633B-UM Rev. 2.1 © Axell Wireless Ltd

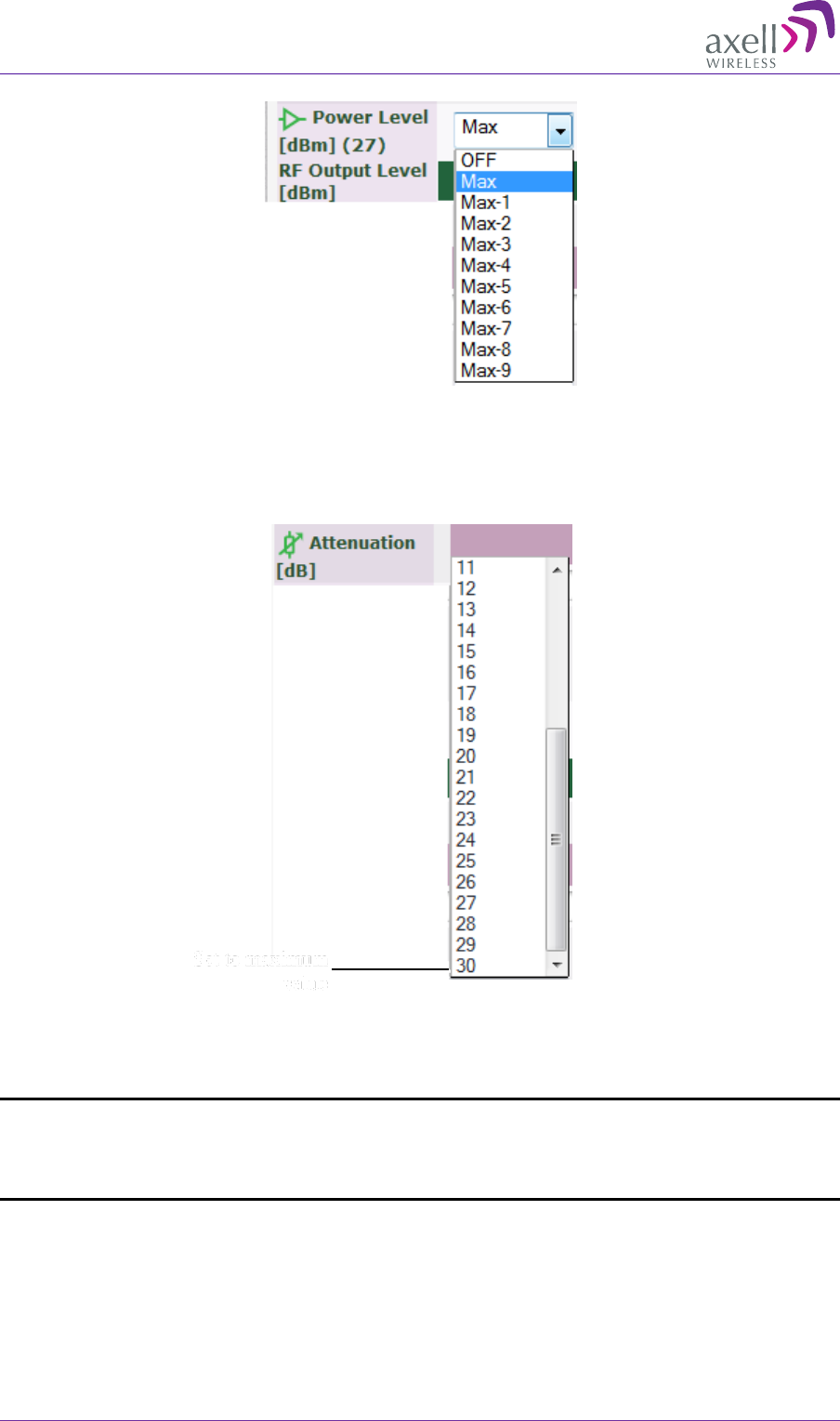

Set the Attenuation as follows:

Under the selected Chain (channel), in the Downlink section, set DL Attenuation

to the maximum value. The values shown in the figure below are for example

only.

Lower the Attenuation level step by step until the desired output power level is

reached (zero attenuation = maximum gain).

NOTE: Since the base station is more sensitive than a mobile unit there may be less signal

gain from the mobile unit in to the base station (UL) than in the opposite direction. The

uplink attenuation can be adjusted more accurately later on, once test signal measurements

have been completed.

Set to maximum

value

AXELL CSR 3604-3304 UHF REPEATER

PRODUCT DESCRIPTION AND USER’S MANUAL

6.4 Setting Date and Time

Be sure to set the correct date and time in order to accurately timestamp all events

occurring on the CSR.

To set the Date & Time

1. From any screen, hover on the Title area and click on Date and Time.

2. Do one of the following:

Either, enter the correct date and time according to the displayed formats.

Or, click on Local Time to set the time according to the PC running the Web-GUI.

3. Click Apply.

6.5 Additional Configuration Options

Depending on your installation and supported repeater options, you may also want to:

 Configure the external alarms – if external alarms are connected

 IP address – for repeaters that will be connected to the Ethernet network after the initial

setup procedure

 SNMP support – requires configuring the agent and trap destination address

 TCP/IP support

 Modem setup – for units supporting a GPRS/GSM modem

NOTE: For units managed via the AEM, no configuration procedures are required on the repeater

side; the repeater access information is configured into the AEM.

6.5.1 Configuring External Alarms

The unit supports up to two external alarms. Connected external alarms must be configured

according to the trigger (high or low) and it is recommended to assign the alarms

recognizable names (such as Door Open, High Temperature, etc.)

To configure the external alarms

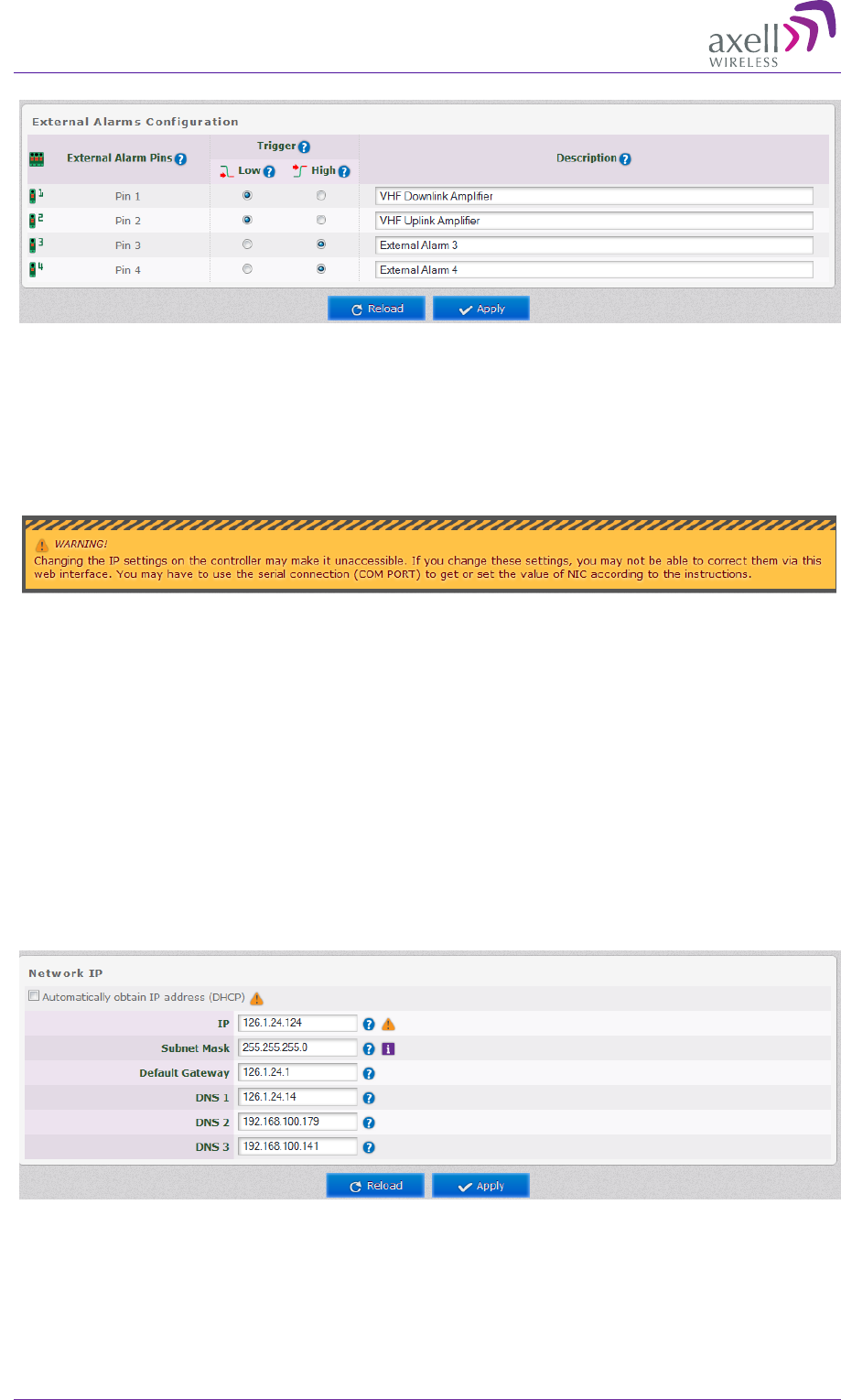

1. Hover on the Title area and click on External Alarms.

2. Set the alarm Trigger:

High – voltage triggers alarm

Low – no voltage triggers alarm

3. Assign a description to each relevant alarm in the Description area.

4. Click Apply to save the changes.

AXELL CSR 3604-3304 UHF REPEATER

PRODUCT DESCRIPTION AND USER’S MANUAL

34 DOC PN 3633B-UM Rev. 2.1 © Axell Wireless Ltd

6.5.2 IP Address

This procedure describes how to set up the IP address either manually or configure for

acquisition via DHCP.

To configure the IP address

1. Hover on the Title area and click on Ethernet.

2. For manual IP address configuration:

Verify that the option Automatically obtain IP address is disabled.

Set the IP, Subnet Mask, Default Gateway and DNS addresses.

Click Apply.

3. For DHCP IP address configuration:

Select Automatically Obtain IP Address (DHCP).

No other settings are required.

Click Apply.

The Manual configuration settings are illustrated below.

AXELL CSR 3604-3304 UHF REPEATER

PRODUCT DESCRIPTION AND USER’S MANUAL

6.5.3 SNMP Support

The CSR includes SNMP support, including an SNMP Agent and SNMP traps (alarms). All

SNMP queries and traps are supported either via the OMU II or a direct connection to the

unit.

6.5.3.1 SNMP Traps Parameters

The MBF-40 sends SNMP traps to user defined destination addresses.

NOTE: One destination address can currently be defined via the Web.

Seven more destination addresses can be defined via the Axell Shell.

To configure the SNMP traps destination address

1. Click on the Configure button (top right corner).

2. Select Remote Communication.

3. In the Device:Method field, select ETH:SNMP

4. Define the SNMP trap destination IP address (additional addresses can be defined via

the Axell Shell.).

5. Enter the (destination address device) Trap Port and its Community parameters.

6. Click Apply.

6.5.3.2 SNMP Agent - Activating and Configuring

The SNMP agent provides inventory management for hosted repeaters (on which the SNMP

agent is enabled) and a table of active alarms in the controller or Fiber system for remote

querying.

The SNMP Agent is responsible for responding to queries and carries out requests. The

SNMP Agent also provides the proprietary Axell MIB (AXELL-AM-MIB), accessible via any

SNMP manager (e.g. HP OpenView).

All SNMP queries to the remote are implemented via an OMU session.

To allow SNMP agent queries

 To allow SNMP queries of the OMU II – the SNMP agent must be enabled on the OMU

II.

 To allow SNMP queries of the remote devices via OMU II – the SNMP agent must be

enabled on the OMU II and on the remote device (repeater).

AXELL CSR 3604-3304 UHF REPEATER

PRODUCT DESCRIPTION AND USER’S MANUAL

36 DOC PN 3633B-UM Rev. 2.1 © Axell Wireless Ltd

 Remote units(repeaters) configured with an IP address and connected to the

communication infrastructure, can be queried directly.

To activate the CSR SNMP Agent

1. In the Hover menu (hover over the header), select SNMP. The following pane appears:

2. Set the SNMP Agent toggle to ON.

3. Set the port and the Read-Only community.

4. Click Apply.

6.5.4 TCP/IP and Ethernet

TCP/IP communication is run over a company’s network. Therefore, each company needs

to define the details regarding the configuration, IP addresses, etc.

TCP/IP Communication Setup

1. Hover on the Home page Title bar and choose Communication from the displayed

icons.

2. From Device:Method select ETH:TCP (Ethernet:TCP/IP).

3. Click Apply.

AXELL CSR 3604-3304 UHF REPEATER

PRODUCT DESCRIPTION AND USER’S MANUAL

6.5.5 Modem Setup

NOTE: This section is relevant only if a modem is installed in the CSR repeater. If so, the SIM card

should already have been installed according to section 4.8.

The CSR can communicate over two types of modem: Packet Switched (GPRS, GSM etc.)

or Circuit Switched (PSTN/GSM). The available options depend on the modem type

installed in your unit.

Modem Setup Overview

1. The Hover on the Home page Title bar and choose Modem from the displayed icons.

The following dialog appears.

2. Verify that Remote Communication is ON.

3. Select the Device:Method – communication method. Only the options relevant to your

installed modem will be displayed. (STD:DTC = Standard AT:Data Call, ETH:TCP =

Ethernet:TCP connection)

4. Configure your communication method according to the relevant following section.

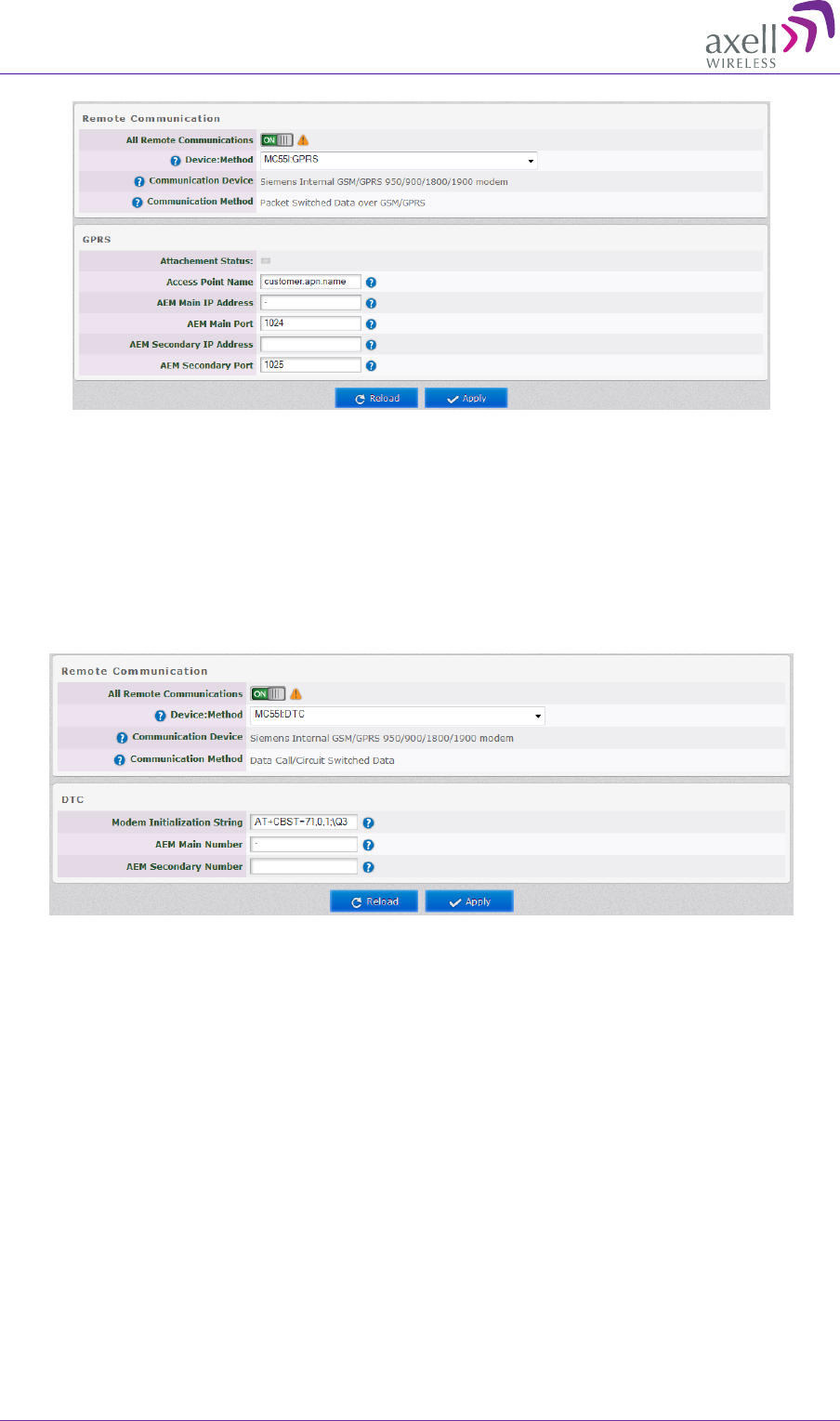

6.5.5.1 Packet Switched Modem Configuration (GSM/GPRS)

NOTE: In case the network connection is not performed properly (using GPRS), it is

necessary to telnet, SSH or serial into the controller and enter TRACE MODEM to see why

modem is not initialized (wrong / missing PIN, wrong APN etc).

 From the Remote communication menu, select ***: GPRS.

 In the GRPS area, enter the following:

 Access Point Name – customer’s Access Point name.

 Click Apply.

AXELL CSR 3604-3304 UHF REPEATER

PRODUCT DESCRIPTION AND USER’S MANUAL

38 DOC PN 3633B-UM Rev. 2.1 © Axell Wireless Ltd

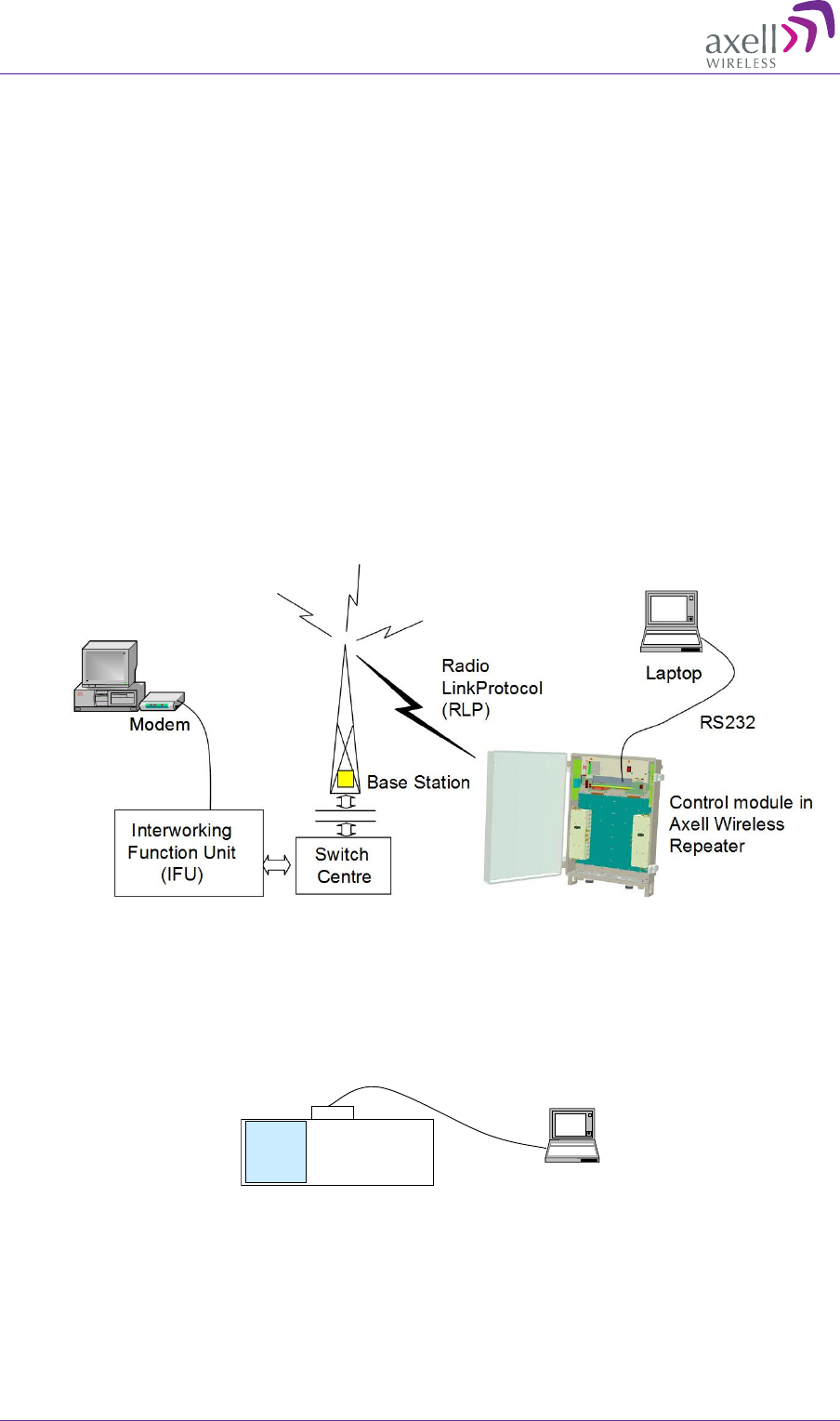

6.5.5.2 Circuit Switched Modem (PSTN/GSM)

Using a circuit switched modem requires a landline connection be present at the site (for

PSTN) or a SIM card supporting this feature (for wireless GSM).

Communication Setup

1. From Device:Method select STD:DTC (Stadnard AT:DataCall).

2. In the modem initialization string type: AT+CBST=7,0,1.

3. Click Apply.

Verify Circuit Switched Modem Functionality

1. Use the ACT RCD command via the Axell Shell or via Terminal to launch a modem

restart (if logged in, restart will be performed on the first logout).

2. Dial the modem number (if PSTN) or the data number (if SIM card).

3. Verify modem LEDs are lit correctly (see section 8.1).

4. Use any ACT command using a Terminal to test connectivity and responsiveness.

6.5.5.3 SIM-card Using Single Numbering Scheme

If using SNS (Single Numbering Scheme), calls to the modem within the network are

automatically classified as DATA. However, if calling from outside the network, you must

first verify how its interfaces handle the VOICE vs. DATA bearing.

This cannot be solved at remote level. The external network administrator must provide the

above information.

AXELL CSR 3604-3304 UHF REPEATER

PRODUCT DESCRIPTION AND USER’S MANUAL

6.6 Integration into the AEM

When the repeater has been installed at site and the remote communication has been

enabled, the repeater can be integrated to the Axell Element Manager. This is done by the

operator of the AEM. After entering the telephone number to the repeater, the AEM dials up

the repeater, downloads all the repeater parameters and statuses into a database. When all

parameters have been downloaded, the AEM configures the repeater with the telephone

number where alarms and reports should be sent, and optionally with a secondary

telephone number where the repeater can dial in case connection to primary number fails.

When heartbeat reports and alarms are sent from the repeater to the AEM also the latest

information about the status and RF-configuration is included. This means that the AEM

operator always has information about the current status in the AEM database (and do not

need to call the repeater to find this out).

NOTE: Once the repeater is integrated to the AEM, all changes to the repeater should

preferably be done from the Axell Element Manager in order to ensure that the database

always contains correct information.

AXELL CSR 3604-3304 UHF REPEATER

PRODUCT DESCRIPTION AND USER’S MANUAL

40 DOC PN 3633B-UM Rev. 2.1 © Axell Wireless Ltd

7 Administration and Monitoring

7.1 User Accounts

The CSR comes pre-configured with default usernames and passwords in the various

administration levels.

The password for the Axell user name can be modified via the Web GUI. Passwords for

other user names can be modified via the Command Line Interface (CLI) or Axell Shell. See

the Common Commands and Attributes document for detailed commands and syntax or

click on the Help button at the top right of the Web-GUI screen.

7.1.1 Default User Accounts

User

Name

Default

Password

Details

Axell

AxellPasswd

Default user name. Can be modified via the WEB

GUI.

omcuname

iwnkhoob

Axell Element Manager (AEM) user account. This

account will not generate VLI, LGO or CLR alarms.

sysadmin

AxellAdmin4050

This is the system administration password which is

used for firmware upgrades and user administration.

Escalation to this level is achieved by issuing command

SYSADMIN from the user prompt.

useradmin

UseradminPwd23

This account contains user administration privileges.

Escalation to this level is achieved by issuing command

USERADMIN from the user prompt.

NOTE: It is strongly recommended to change the default user names and passwords

immediately at commissioning. This is done by using the command ACT PASSWORD.

Please refer to the User Administration section in Common Commands and Attributes

document for detailed syntax.

7.1.2 User Access Levels

In this generation of the system, standard users can be promoted to login via the Web

Interface, inheriting the Read-Write or Read-Only access to this interface.

There are five different access levels:

Access Level

Default User Levels

Read-Only

axell, omcuname, useradmin, sysadmin

Read-Write

axell, omcuname, useradmin, sysadmin

Web

Axell

User Administrator

omcuname, useradmin, sysadmin

System Administrator

omcuname, sysadmin

Note: New users added to the system have read-only access.

Users may be promoted to read-write and/or web access using the ACT USERPROMOTE

command. See Common Commands and Attributes document for details on promoting

users.

NOTE: Users omcuname, sysadmin and useradmin cannot be promoted to Web Access

due to security reasons.

AXELL CSR 3604-3304 UHF REPEATER

PRODUCT DESCRIPTION AND USER’S MANUAL

7.1.3 Password Change

To prevent unauthorized access, it is highly recommended to change the default password

of the user.

NOTE: Password should be at least 5 characters long and only contain printable characters. You can

only change the password for the User Name with which the session was accessed.

To change the Password

1. Hover on the Home screen Title bar and select Password.

2. For the current User Name (e.g. axell):

Enter the New password.

Repeat the entry.

3. Click Apply.

7.2 Reboot

Caution! Use this function in Emergency Cases ONLY!

To reboot the Repeater

1. Hover on the Home screen Title bar and select Reboot.

2. Click on the Reboot icon.

3. Approve the Reboot sequence.

AXELL CSR 3604-3304 UHF REPEATER

PRODUCT DESCRIPTION AND USER’S MANUAL

7.3 Axell Shell

This option provides Axell Command Line Interface capabilities.

The Axell Shell button invokes the CLI pane. It is used to run some of the commands that

are currently not provided by the Web GUI (e.g. user privileges and administration) and/or

for advanced troubleshooting and configurations procedures.

All configuration and management procedures can be implemented using this interface.

Please refer to the Help section (by clicking the Help on the top right) for detailed syntax

and available commands.

To access the Axell Shell:

Hover on the Home screen Title bar and select Axell Shell.

AXELL CSR 3604-3304 UHF REPEATER

PRODUCT DESCRIPTION AND USER’S MANUAL

8 Monitoring and Troubleshooting

8.1 Monitoring

The CSR Repeater provides the following monitoring and fault sourcing tools:

 Logs screen – shows alarms and information messages according to user definitions in

the Thresholds screen

 Alarm Classification and Threshold – screen allowing user configuration of the alarm

generation criteria

 Main screen – displays a summary of all configured channels, module status and

general information

 Site information and system performance – site details, system SW and HW versions

and system performance indicators.

8.1.1 Logs Screen

The Alarms Log displays the last 100 alarms and/or user actions on the remote system in a

chronological order. The alarms are generated according to user defined thresholds (see

the following section).

To display the Logs screen

Hover on the Title bar and click Logs. The Logs screen appears showing the latest

generated alarms and information on user actions.

You can perform the following operations:

 View more information on the log - Hover on the log

 Acknowledge a log - click on a log flag. The log flag will be green and the log details

displayed.

 Acknowledge all logs – click Ack All operation button.

 View all the logs – click on More…

Figure 8-1: Logs

Operation buttons

Acknowledged

logs – green flag

Unacknowledged

log – red flag

View more logs

AXELL CSR 3604-3304 UHF REPEATER

PRODUCT DESCRIPTION AND USER’S MANUAL

Icon

Description

Alarm attended to and cleared.

System alarm – displayed when system functionality may be compromised.

Alarm status: OK

Alarm status: Error

Acknowledge alarm – Green = Acknowledged.

Click to change acknowledgement.

Use the Ack All button to acknowledge all alarm logs.

8.1.2 Alarm Classification and Thresholds

The user can set the criteria according to which the alarms are generated. The criteria

include Class and Severity selection, whether it will be transmitted to the AEM and more.

The alarm generation criteria are grouped according to the type of alarms: External Alarms,

User Events, Firmware Events, etc.

To access the Alarm Threshold configuration screen

1. Hover on the Menu Bar and click on Alarm Thresholds. The following screen appears.

Refresh view and

Apply changes

Criteria

AXELL CSR 3604-3304 UHF REPEATER

PRODUCT DESCRIPTION AND USER’S MANUAL

2. For each group of alarms, change the required criteria according to the following table

and click Apply.

Criteria

Description

Class

Type of alarm or event.

Severity

The severity level allocated to this event.

AEM Transmission

Whether this alarm is to be sent to the AEM server

Affect Relay

Whether this alarm will activate the relay

Acknowledge

Required

Whether acknowledgement of the alarm is required.

Trigger Range

Defines the minimum and maximum range outside of

which an alarm will be triggered.

Interval

The number of seconds for consecutive measurements in

error state before an alarm is triggered

AXELL CSR 3604-3304 UHF REPEATER

PRODUCT DESCRIPTION AND USER’S MANUAL

8.1.3 Home Screen Monitoring

In addition to RF settings and readings, the CSR Home screen provides detailed information

on the operation status of internal modules. This information can be used to aid in remotely

troubleshooting the repeater.

This section describes monitoring the Basic view Home screens. To view more details, click

Advanced.

Figure 8-2: Main Screen – Basic View

Figure 8-3: Module Status Details

Temperature

level

Input

attenuation and

Power level

Module

status

External Alarms

status

Comm

Temp

Pwr.

input

Batt.

Status

Pwr.

modules

status

Reference

Generator

UL RF settings

per channel

DL RF settings

per channel

AXELL CSR 3604-3304 UHF REPEATER

PRODUCT DESCRIPTION AND USER’S MANUAL

8.1.4 Site Information and System Performance

To view CSR Site Information

Hover over the Title bar click on Site Information. Two areas are displayed:

 Performance – repeater status dashboard, displaying status of key parameters

 Control Module – provides hardware and software version information.

 Site Information – provides CSR identification information.

Figure 8-4. CSR Site Information

AXELL CSR 3604-3304 UHF REPEATER

PRODUCT DESCRIPTION AND USER’S MANUAL

8.2 Module LEDs

8.2.1 Control Module LEDs

The Control Module has four LEDs which provide information on

the repeater and modem status and if someone is logged on to

the repeater.

Blue LED - Login

Quick flash

Control Module switched on, someone logged in locally and/or

remotely

Off

(except for a quick flash every 10th

second)

Control Module switched on, no one logged in

Off

(permanent)

Control Module switched OFF

Red LED - Status

Quick flash

Control Module switched on, one or more errors/alarms detected

Off (except for a quick flash every

10th second)

Control Module switched on, status OK

Off (permanent)

Control Module switched off

Green LED – Modem Power

Modem Power is on

Off

Modem Power is off

Green LED – Modem Status

Depending on type of call:

Voice call: Connected to remote party

Data call: Connected to remote party or exchange of parameters

while setting up or disconnecting a call

Flashing

(irregular)

Indicates GPSR data transfer. When a GPRS transfer is in progress

the LED goes on within 1 second after data packets were

exchanged. Flash duration in approximately 0.5s.

75ms on/75ms off/75ms on/3s off

One or more GPRS contexts activated

75ms on/3s off

Logged to network (monitoring control channels and user

interactions). No call in progress

600ms on/600ms off

No SIM card inserted, or no PIN entered, or network search in

progress, or ongoing user authentications, or network login in

progress

Off

Modem is off

8.2.2 Power Supply LEDs

This section provides a detailed description of the LEDs and examples of faults.

STATUS

MDM PWR

MDM STATUS

AXELL CSR 3604-3304 UHF REPEATER

PRODUCT DESCRIPTION AND USER’S MANUAL

LED 1, Input Power, Green

Slow flash

Power supply unit operating on AC or DC

OFF

Power supply unit not operating

LED 2, +6V, Red

Slow flash (every 10 seconds)

+6V power supply operating

Quick flash

+6V power supply not operating or operating with

malfunction

LED 3, +15V, Red

Slow flash (every 10 seconds)

+15V power supply operating

Quick flash

+15V power supply not operating or operating with

malfunction

LED 4, +28V, Red

Slow flash (every 10 seconds)

+28V power supply operating

Quick flash

+28V power supply not operating or

operating with malfunction

Examples

LED 1 is flashing slowly, LED 2 – 4 are flashing

slowly (once every 10 seconds)

=> power supply unit is operating without problem

LED 1 is flashing slowly, one or two of the red

LEDs are flashing quickly

=> Input power is operating but there is a problem

with some of the other voltages

LED 1 is flashing slowly, all of the red LEDs are

flashing quickly

=> Input power is out and unit is operating on

backup battery

Input

Power +6V +15V +28V

Input

Power +6V +15V +28V

Input

Power +6V +15V +28V

Input

Power +6V +15V +28V

AXELL CSR 3604-3304 UHF REPEATER

PRODUCT DESCRIPTION AND USER’S MANUAL

LaptopLaptop

RS232 cable

Control Module

GSM

Module

LMT Port

8.3 Troubleshooting Remote Communication

Please also refer to the document Common Command and Attributes for guidance.

Since many networks have their own “personality”, performing first time configuration of the

remote communication sometimes requires tweaking of the modem parameters.

This section describes some trouble shooting techniques if configuring the repeater for

remote access fails.

The illustration below is a simplified schematic of the remote communication between a

GSM modem in a repeater and an analogue modem. The analogue modem in the computer

communicates with the Interworking Function Unit (IFU), which is the GSM network

analogue network interface. The call is routed via the switch centre over the air interface to

the data call number in the SIM-card of the GSM module.

The Control Module is responsible for establishing connections with the Axell Element

Manager, and to answer incoming calls to the repeater.

As described in previous sections, the Control Module only accepts one login at a time,

either via Local Maintenance port (LMT) or modem connection. Hence, when verifying the

remote access of the repeater, it is important to log out from the repeater locally before

trying to access the repeater remotely.

8.3.1 Direct Modem Access

To allow for advanced trouble shooting of the communications, it is possible to connect

directly to the modem by opening the repeater and connecting to the Control Module from a

computer.

HyperTerminal™.

When the login is completed, select Terminal Mode, this will give access to the repeater

command prompt in the same way as with HyperTerminal.

When the repeater prompt is accessible, type in the command

ACCESS MODEM <Enter>.

AXELL CSR 3604-3304 UHF REPEATER

PRODUCT DESCRIPTION AND USER’S MANUAL

When typing ACCESS MODEM, the controller will send all the characters that are typed

directly out to the modem port. All characters replied back from the modem will go directly to

the LMT port and back to the computer.

To abort an ACCESS MODEM session, press three ‘-‘ in a row (all three within one second)

to come back to the repeater command prompt.

NOTE: When accessing the modem port the modem might be configured with “echo off”,

meaning that the characters entered will not be echoed back to the screen. In order to

enable “echo”, press Enter.

Type

ATE1 <enter>

(invisible)

The modem replies with

indicating that the echo is enabled. All characters entered will now be echoed back to the

terminal program.

8.3.2 Trace Modem

For troubleshooting purposes it is possible to trace the actual progress of initializing the

modem. This trace is useful when having problems with the modem initialization.

Go to Terminal Mode and type

TRACE MODEM

To end session type CTRL-Z

AXELL CSR 3604-3304 UHF REPEATER

PRODUCT DESCRIPTION AND USER’S MANUAL

8.3.3 Manually Answering Incoming Calls

It is possible to manually answer incoming calls without involving the repeater software at

all, to verify that the remote access and the network itself works as intended. In order to

verify the remote communication, make sure to have someone stand by to dial up the

repeater with a terminal emulation program, for example HyperTerminal™.

Go in to Direct Modem Access as described earlier. When in direct access mode, ask the

person standing by to dial up the repeater.

As soon as a call is received, the text RING will repeatedly be displayed on the screen.

Type ATA <enter>

This will inform the modem to answer (ATtention Answer).

When the connection is established, a connect message will be displayed including the

connection speed. Sometimes the information comes together with some miscellaneous

information, such as error correction protocols etc.

NOTE:Make sure the remote peer dials the Data Call number

If the voice number is dialed instead of the data number, or if the modem contains an illegal

modem initialization string, the message

NO CARRIER

will be displayed almost immediately.

Try to change the modem initialization string. The modem initialization string mainly used to

configure the remote communication is AT+CBST.

Successful modem initialization strings used by Axell Wireless includes (most common first):

AT+CBST=71,0,1;\Q3

AT+CBST=7,0,1;\Q3

AT+CBST=0,0,1;\Q3

AT+CBST=7,0,3;\Q3

Once the modem initialization string is entered, try again to dial up the repeater. For details

on the different modem initialization strings, please refer to the modem’s user guide.

If the setup is successful, the connect message will be brought up;

CONNECT 9600

This means that an online connection is established to the remote peer. From now on, all

characters typed on the keyboard will end up on the remote peer’s screen. Similarly, all

characters typed by the remote peer will be displayed on the screen.

In the example, the incoming

call was successfully answered,

and the remote user entered the

text message.

In order to come back to modem command mode, press +++ (three pluses) rapidly (within

one second).

Receiving OK means that the modem is back in command mode.

Type ATH <enter>

This terminates the connection to the remote peer. The message NO CARRIER will be

displayed.

AXELL CSR 3604-3304 UHF REPEATER

PRODUCT DESCRIPTION AND USER’S MANUAL

8.3.4 Common Problems

8.3.4.1 Problem 1

When enabling the remote access for the repeater, the modem fails to log in to the network.

8.3.4.2 Solution

Signal strength from the donor site is too low. The signal strength can be read directly from

the modem. Go in to Direct Modem Access as described earlier. Use the command

AT+CSQ (documented below) to read out the signal strength.

In order to have good signal quality, Axell Wireless recommends that the signal strength

should be better than -95 dBm. If signal strength is lower, try to adjust the antennas to get a

better signal strength from the donor.

Documentation of +CSQ command from a modem’s manual.

In the example the reply to

AT+CSQ is 0,7 meaning 7*2 dB

above -113 dBm; the modem

detects a signal level of -99

dBm.

AXELL CSR 3604-3304 UHF REPEATER

PRODUCT DESCRIPTION AND USER’S MANUAL

8.3.4.3 Problem 2a

Repeater is configured properly, and answers the incoming call, but when trying to dial the

repeater using an analogue mode, no modem handshaking is heard from the dialing

modem.

8.3.4.4 Problem 2b

When dialing the repeater, the repeater answers the incoming call, but no connection is

established, and after a while the repeater disconnects the call.

8.3.4.5 Solution

The most common cause is that the number called is the voice number of the SIM, not the

data number. Therefore, make sure to dial the data number.

If data call is used, the problem probably is an illegal modem initialization string.

In order to change the modem string, go to the repeater command prompt. Try changing the

modem initialization string and log out to let the controller reinitialize the modem.

If problem remains, try a few different modem initialization strings. Axell Wireless has been

successful with the following modem initialization strings:

AT+CBST=71,0,1;\Q3

AT+CBST=7,0,1;\Q3

AT+CBST=0,0,1;\Q3

AT+CBST=7,0,3;\Q3

Please refer to the modem manual for detailed description of the modem initialization

strings.

8.3.4.6 Problem 3

It is possible to call the repeater from another GSM mobile, but not from an analogue

modem.

8.3.4.7 Solution

This problem is most likely related to the modem configuration and/or the configuration of

the IFU unit. Try to decrease the communications speed and make sure that the modem

error correction is supported by the IFU. Verify the IFU configuration to see if there are any

known problems with the modem connections.

8.3.4.8 Problem 4

When dialing the repeater, or when the repeater is dialing the Element Manager, the

connection is terminated before the handshaking is completed.

8.3.4.9 Solution

When a repeater is answering an incoming modem call, or calling up the OMC to deliver an

alarm or a report, the repeater will wait a configurable number of seconds for the call to be

established. If no communication is established within this time, the call will be hung up. If

this interval is set too low, the handshaking is terminated too fast. In the RMC, verify the

Modem Connect Time to see that it is set to at least 30 seconds.

AXELL CSR 3604-3304 UHF REPEATER

PRODUCT DESCRIPTION AND USER’S MANUAL

9 Maintenance

CAUTION!! Please be aware that the equipment may, during certain

conditions become very warm and can cause minor injuries if handled

without any protection, such as gloves.

CAUTION!! Risk of explosion if battery is replaced by an incorrect type.

Dispose of used batteries according to local laws and instructions.

9.1 General

The system normally operates without any operator intervention or maintenance. If in the

unlikely event of any unit failure, the faulty repeater should be replaced. A failed unit can be

removed and replaced with a spare while the rest of the system (other repeaters) is still

operating. However, the power supply of the failed repeater should be isolated from the

power before anything is replaced.

In the event of a malfunction in the system, the status of the antenna systems as well as the

continuity of the cabling should be checked before replacing any modules within the

repeater.

9.2 Preventative Maintenance

The repeater does not require preventative maintenance apart from changing the battery

once every three years.

9.3 Component Replacement

Except for the backup battery, none of the modules in the repeater can be replaced without

removing the repeater from its mounting and opening the cover of the repeater.

9.4 Product Disposal

Disposal of this product must be handled according to all national laws and regulations. For

detailed information regarding materials, please refer to Axell Wireless.

9.5 Replacing Backup Battery

NOTE: The backup battery should be replaced every five years. Contact your Axell service

representative for specifications of the replacement battery.

The image below shows the location of the various power elements. These are described in

detail in the following sections.

Figure 9-1. Power Elements Inside Repeater

Backup battery

pack

Battery (BATT) ON/OFF

switch

AXELL CSR 3604-3304 UHF REPEATER

PRODUCT DESCRIPTION AND USER’S MANUAL

To replace the backup battery

4. Set the battery switch to OFF.

5. The battery is replaced by lifting the battery pack out of the crate and disconnecting

the cable.

Figure 9-2. Backup Battery Connections

9.6 Troubleshooting

In the event of a failure Axell Wireless’s support service should be contacted for advice on a

possible module replacement or other action to be taken.

CAUTION! If a shipment of a repeater back to Axell Wireless is made

within the period of guarantee the original packing must be used.

9.7 Component Replacement

None of the modules in the repeater can be replaced without removing the repeater from its

mounting and opening the cover of the repeater.

9.8 Product Disposal

Disposal of this product must be handled according to all national laws and regulations. For

detailed information regarding materials, please refer to Axell Wireless.

Connector

AXELL CSR 3604-3304 UHF REPEATER

PRODUCT DESCRIPTION AND USER’S MANUAL

Appendix A - Specifications

The following tables provide specifications for all models.

Electrical Specifications

Operator Duplex

5MHz

3MHz

Frequency range

450-470MHz

470-512MHz

Output power/carrier (DL)

+36dBm 1 carrier

+33dBm 2 carriers

+30dBm 4 carriers

+40 dBm 1 carrier

+30 dBm 2 carriers

+27 dBm 4 carriers

Gain

55 – 85 dB, in 1 dB steps

Operator bandwidth

2.5MHz

1.5MHz

Duplex distance

5MHz

3MHz

Number of Channels

Up to 8

Impedance

50 

IP3

+68 dBm, typical

Noise figure (UL)

4.5 dB at maximum gain

Selectivity

According to ETSI TS 101-789-1

Group delay

< 12 µs max (14 µs at high selectivity)

ALC

Time slot based

Spurious Emissions from

RF port

< -13dBm

Intermodulation Products

< -60dBc (according to TS 101-789-1)

Power Requirements

5MHz

3MHz

Power Requirements

115VAC 60Hz or –48VDC

Power Consumption

180 Watts typical

External Connections

Local Maintenance port

RS232

RF port

N-type Female

AC/DC input

Circular, 3-pin

RF Mechanical Specification

5MHz

3MHz

Dimensions

600 x 400 x 310 mm (24 x 16 x 12.2 in.) (h x w x d)

Enclosure

IP65

Weight

30kg/66lbs

48kg (106 lbs)

Cooling

Convection

RF Environmental Specification

Operating temperature

-10 to +50 °C (-14 to +122 °F)

Storage temperature

-30 to 70° C (-58 to 158° F)

Humidity Condensed

10% – 90%

PBE Europe as Axell Wireless 51-102SERIES D-CSR-3604-8-470-490-DP-AC Selective Repeater User Manual CSR 3604 3304

Axell Wireless D-CSR-3604-8-470-490-DP-AC Selective Repeater CSR 3604 3304

Manual

Navigation menu

Namespaces

Views

Navigation
