User manual
1
Thank you for purchasing the LTE WIFI wireless data terminal (short for WIFI)
Description:
The pic ture i s fo r y our ref ere nce only, as for the W IFI fu nc tion a nd th e app earan ce , ple as e adh ere to th e
actual pro duct instead. The detailed information o f the pro duct selection, please inquire the operator.
This brochure intr o d uc es basic oper ation s of the WIF I . As to the oper atio n s of man ag em ent par am e t er
co nfigur ation of th e W IFI , plea se re fer to t he ma na gem en t proced ur es or the onlin e help o n th e w eb
management page.
The WIFI c an be us ed in th e relatively en closed s pac e such as th e p o cket o r th e bag . Howeve r, if the WIF I is
in use for an ex ten ded p eriod of tim e, i t will b ecome w arm bec aus e it’s hard fo r th e WIF I to dissip at e th e he at
in the enclos ed sp ace and th e cu rr ent temp er ature will rise . A nd a t th e sam e tim e, the WIF I will au to m atic ally
turn off or cut off the network connection for to protect itself from damage. When this case happened, please
put it in the v entilated area to h elp to dissipate the heat. And then, you can turn it on.
Pack ing info rmation: the head, introductio n brochure, certificatio n, data cable and warranty card
2

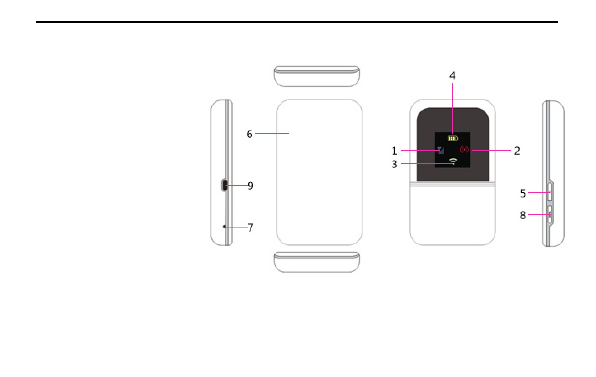

Getting to know
your MIFI
1. Signal indicator
2. WPS indicator
3. Wifi indicator
4. Battery indicator
5. Switch button
6. Battery cover
7. RESET button
8. WPS button
9. Micro USB port
3
4
Getting to know the information of the MIFI indicator
I Signal indicator
1. Green indicates 4G signal; 2. Blinking green indicates data transfer 3. Red indicates 3G signal 4. Blinking
indicates data transfer
II WPS indicator
Long press the WPS button for 3 seconds to enable WPS function; WPS indicator blinks after enabling WPS
function or indicator keep long light on if WPS client connects success. WPS function will disable if no WPS client
connects in 2 minutes.
III Message indicator
Message indicator always lights on when there is unread message.
IV Batte ry i n d i cator
1. Always Green indicates more than 60% b attery po wer;
2. Blinking Green indicates 20-60% battery power;
3. Blinking Red indicates less than 2 0% battery po wer;
5
4. Blinking switch between Green and Red indicates charging.
Install the SIM card and battery
*
Steps: Remo v e the battery cov er according to direction of the above blue arro w. Remo v e battery, Put SIM card
to entrance of SIM slo t according to the right direction, insert it into slo t. Push into the battery fro m to p down,
and then install the battery co v er according to the right directio n.
USB stick
Connect the MIFI with the co m puter by data cab le, and the computer will read the inserted T-Flash card of the
MIFI. And it is used as USB stick.
6
Connecting to the internet by WIFI/WAPI
Note: by default, the MIFI management par ameters h av e been preset according to y o ur o perator’s
requirements. Yo u can go q u ickly into the internet by the follo wing steps. As to ho w to configure management
parameter, please refer to the management procedures o r the online help on the web management page.
Step1: turning on the MIFI
Step2: establishing WIFI connection or wired connection
Step3: connecting to the internet
I. Turning on the WIFI

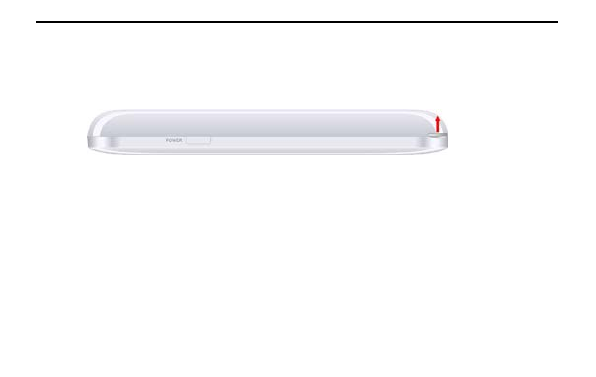

Press and hold the “power button” until the screen is bright, indicating that the WIFI is turned on; and then
press and hold it again until the screen is dark, indicating that the WIFI is turn ed o ff.( Note: when the WIFI is
turned on, the “power button” also can b e used as page turnin g butto n. If it d isplay s “the first page”, press
“power b utton”, then it will show “the seco nd page”; and at this moment, press “power button” again, it will
appear “the first page”.)
II. Establishing WIFI connection or wired connection
7
1. Establishing WIFI connection. ( Take the computer for example)
① Gu arantee M IF I po wer on, indicator is light on.
② C l i c k “ S ta r t ” —Control panel —Network connection—Wir eless network connection. (No te: before
Estab lishing WIF I co nnectio n, please ensure that the computer is eq uipped with a WL AN card. If the co mputer
indicates a wireless network connection, and
the WLAN card can be used. Otherwise, y o u
need to verify that your WLAN card is working
properly. )
③Click and ch eck the av ailable wireless
ne twork , and i t will display a lis t of w ireless
network connections.

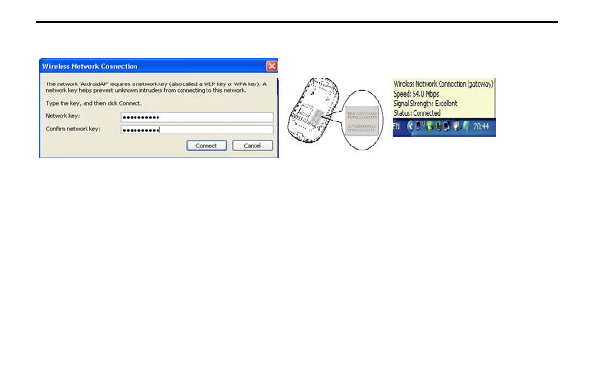

Select the wireless netwo rk connection with the WIFI’s SSID , and click .
If the wir eless ne two r k conn ection is enc ry pte d, you need to en ter th e correc t network en cryption key (the
pass word). To view th e current SSID and th e network encryption key, pleas e see th e words printed on th e
8
Label o f the M IF I. ( O r see the content of “the second page” on the screen).
W
ait a mome nt fo r the wireless ne two rk connec tion icon to appear in the system tr ay in the lower
right corner of the compu ter scr een. And the wireless network is then established.
2. Establishing wired connection
After turning on the MIFI, y ou can connect it with the co m puter by data cable.
① wh en th e compu ter pop s up “findin g ne w h ardw are”, and on th e menu “Can Win dows b e link ed wi th
Windows Update to search for the software? ”, select “No, temporarily not (T) ”, then click “next step ( N) > ”;
② After select “automatically install software (recommended) (I)”, click “next step(N)>”;
③ Wh en it appears “ unable to install this software”, and click “finish”;
9
④ Repeat the abov e steps. These are th e driv ers fo r o th er uses u nrelated to wire co nnectio n;
⑤ Until “ Mobile RNDIS Netwo rk Adap ter” appears, select “ auto m atically install software ( r ecommended)(I) ” .
And th en click “nex t st ep (N) > ” , and click “ finish”. When th e driv er h as be en inst alle d auto m ati cally, “ Es tab li sh
wired conn ec tio n” finishes . Connec ting t he MIF I and the co mpu ter by dat a cabl e, and th e comput er can b e
co nnected to th e internet by the wired netwo rk .
III. Connecting to the internet
When the WIFI is connected with client, it will get into the internet automatically. (If your SIM card is short o f
cash, it will not be connected.)
Logging into the Web Management Page
1. Mak e sure the co nnection between the M IF I and the co mputer is wo rk ing normally .
2. Open the browser, and enter http://192.168.0.1 in the address box.
3. En ter th e password, an d click “login”.
Th e administrato r has the right to check and modify configuration permission. The default user name is
“admin”, and the default passwo r d is “admin”.
Note: If y o u can’ t go into the web management page while the M IFI is l inking with the computer b y data cable,
10
y o u can start the management procedu res and then could o p en web management page, and it will be available
Daily use
Charging the battery
Note: If th e battery hasn’t b een used fo r a long time, please char ge it for a while before using.
The first method: charging by power adapter
Note:
1 . Yo u should use the po wer adapter compatible with th e WIFI (5v, 100m A) prov ided by the designated
manufacture. If y ou use any incompatible o ne which is pro v ided by o th er producer or agent, it may cause th e
WIFI to malfunction or ev en cause danger. And it also v iolates the warranty ter ms of the MIFI and some
regulations about co m munication terminal products set by the gov ernment.
11
2. The power adapter is an optio nal accesso ry. If it is no t inclu ded in the package, please co ntact with the
producer to buy a compatible one that is in good quality.
The second method: Charging by connecting with the computer
Please use the data cable provided with y our dev ice to connect the WIF I to the co mputer.
Sleeping mode
If you don’t do an y o perations to MIFI for a perio d o f time, th e screen will be dark. And in defaul t, the M IF I will
go into sleeping mode if there isn’t any info rmation transmitted within 10 minutes.
12
Verifying the PIN code
If the Verify ing functio n is available, p lease lo g into the web management page and click “ dial up”.And according
to th e tip, enter the righ t PIN co de in the corresponding po sition. PIN/PU K code and SIM car d all to geth er are
provided by the operator. Please inquire the o perato r for the detailed information. As to how to log into the web
management page, p lease refer to “lo gging web m anagement page”.
Connecting with multi-devices
WiFi devices or computers can get into the internet by the MIFI. The steps for connecting are depended on WiFi
devices or the operating system of the computer. Please operate according to the detailed tips.
Res to ri n g to factory s e tti n gs
If you forget some configuration parameters, you can restore to factory settings and then configure them again. You
can log into WEB UI to restore to factory settings. Or you can straighten “clip”, and insert it into “Reset button”,
then press it for 5 seconds, and the MIFI will restart again and restore to factory settings.
Note: After these operations, all the configured parameters in the MIFI personal center will be deleted. All
configurations of the web management page will be restored to factory settings.
13
Tip s :
If your MIFI cannot work normally, here are some tips and you can have a try:
1. Check the management procedures or the online help on the web management page.
2. Reset the MIFI
3. Restore to factory settings
4. If all the connection and the working state are all in good condition, but your SIM card is short of cash, you are
still unable to surf in the internet.
5. Consult the operator
Notes: The pictures are for reference o n l y; please adhere to the actual product.
FC C State m e n t
1. This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions:
(1) This device may not cause harmful interference.
14
(2) This device must accept any interference received, including interference that may cause undesired operation.
2. Changes or modifications not expressly approved by the party responsible for compliance could void the user's
authority to o pe rate th e e quipment.
N O TE:
This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part
15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a
residential installation.
This equipment generates uses and can radiate radio frequency energy and, if not installed and used in
accordance with the instructions, may cause harmful interference to radio communications. However, there is no
guarantee that interference will not occur in a particular installation. If this equipment does cause harmful
interference to radio or television reception, which can be determined by turning the equipment off and on, the
user is encouraged to try to correct the interference by one or more of the following measures:
Reorient or relocate the receiving antenna.
Increase the separation between the equipment and receiver.
15
Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.
Con s u l t the dealer or an experienced radio/TV technician for help.
SAR Information State m e n t
Your wireless data terminal is a radio transmitter and receiver. It is designed and manufactured not to exceed the
emission limits for exposure to radiofrequency (RF) energy set by the Federal Communications Commission of the
U.S. Government. These limits are part of comprehensive guidelines and establish permitted levels of RF energy
for the general population. The guidelines are based on standards that were developed by independent scie nti fic
organizations through periodic and thorough evaluation of scientific studies. The standards include a substantial
safety margin designed to assure the safety of all persons, regardless of age and health. The exposure standard
fo r wi re l e ss m ob i le phones employs a unit of measurement known as the Specific Absorption Rate, or SAR. The
SAR limit set by the FCC is 1.6 W/kg. * Tests for SAR are conducted with the phone transmitting at its highest
certified power level in all tested frequency bands. Although the SAR is determined at the highest certified power
level, the actual SAR level of the phone while operating can be well below the maximum value. This is because
16
the device is designed to operate at multiple power levels so as to use only the power required to reach the
network. In general, the closer you are to a wireless base station antenna, the lower the power output. Before a
phone model is available for sale to the public, it must be tested and certified to the FCC that it does not exceed
the limit established by the government adopted requirement for safe exposure. The tests are performed in
positions and locations (e.g., at the ear and worn on the body) as required by the FCC for each model. The
highest SAR value for this model phone when worn on the body, as described in this user guide, is
0.538W/Kg(Body-worn measurements differ among phone models, depending upon available accessories and
FCC requirements). The maximum scaled SAR in hotspot mode is 0.666W/Kg. While there may be differences
between the SAR levels of various phones and at various positions, they all meet the government requirement
for safe exposure. The FCC has granted an Equipment Authorization for this model phone with all reported SAR
levels evaluated as in compliance with the FCC RFexposure guidelines. SAR information on this model phone is on
file with the FCC and can be found under the Display Grant section of http://www.fcc.gov/ oet/fccid after
searching on
FCC ID: 2ALJJJ500 Additional information on Specific Absorption Rates (SAR) can be found on the Cellular
17
Telecommunications Industry Asso-ciation (CTIA) we b-site at h ttp://www.wow-com.com. * In the U ni te d States
and Canada, the SAR limit for mobile phones used by the public is 1.6 watts/kg (W/kg) averaged over one gram
of tissue. The standard incorp orate s a s u b-stantial margin of safety to give additional protection for the public
and to account for any variations in measurements.
Body-worn O p e rati o n
This device was tested for typical body-worn operations. To comply with RF exposure requirements, a minimum
separation distance
of 10mm must be maintained between the user’s body and the handset, including the antenna. Third-party belt-
clips, holsters,
and similar accessories used by this device should not contain any metallic components. Body-worn accessories
that do not meet these requirements may not comply with RF exposure requirements and should be avoided.
Use only the supplied or an approved antenna.
