PEGATRON CORPORATION Wireless USB Dongle Manual

Manual

WL-166N11
Wireless USB Dongle
Hardware and Driver Reference
WL-166N11 Hardware & Driver Reference
2
CONTENTS
CONTENTS .................................................................................................................2
INTRODUCTION ......................................................................................................3
SCOPE ............................................................................................. 3
ACRONYMS AND DEFINITIONS ..................................................... 3
GENERAL FEATURES ..................................................................... 3
DETAILED FEATURES ..................................................................... 4
Hardware Information ....................................................................... 5
CERTIFICATION ............................................................................... 5
DRIVER INSTALLATION STEPS ..................................................... 6
DEVICE AND DRIVER DETAILS ...................................................... 7
WIRELESS CONNECTION .............................................................. 8
SAFETY STATEMENTS ............................................................................................9
NOTE: Information in this document is subject to change after this document is
made available.
WL-166N11 Hardware & Driver Reference 3
INTRODUCTION
SCOPE
The primary purpose of this documentation is to describe the WL-
166N11 product specications, features, and requirements. The
WL-166N11 is an IEEE802.11 b/g/n USB dongle. It allows you to
easily upgrade your PC-Platform or Laptop to 802.11n Draft 3.0. It
provides an access speed of 150Mbps with IEEE802.11n Draft3.0
protocol. It is also ofcially recommended by Xlink Kai, which is
a software that allows PSP or Nintendo DS users to play online
games all over the world. WL-166N11 can easily setup a wireless
LAN through its integrated WPS button (requires a router with the
same WPS button). In addition, The WL-166N11 also provides
software WPS functionality that allows you to make connections
through its budled utility. Even a rst time wireless LAN user can
easily setup the WL-166N11.
ACRONYMS AND DEFINITIONS
Acronym Description
BPSK Binary Phase Shift Keying
QAM Quadrature Amplitude Modulation
QPSK Quadrature Phase Shift Keying
WEP Wired Equivalent Privacy
WPA WiFi Protected Access
WPS WiFi Protected Setup
GENERAL FEATURES
USB dongle that supports IEEE 802.11b/g/n draft 3.0•
BPSK, QPSK, 16QAM, 64QAM, DBPSK, DQPSK, CCK modu-•
lation schemes
WEP, TKIP, AES, WPA, WPA2 security support
•
WL-166N11 Hardware & Driver Reference4
DETAILED FEATURES
Features Description
Network Standard IEEE 802.11 b/g/n (Draft-3.0)
Chipset Ralink RT3070 (Baseband/MAC and RF Transceiver)
Input Voltage 5V
Host interface USB 1.1/2.0 Interface (Type A Connector)
Dimension L: 44.33mm*W:20mm*H:7.75mm
Data Rate 802.11b: 1, 2, 5.5, 11Mbps
802.11g: 6, 9, 12, 18, 24, 36, 48, 54Mbps
802.11n-20 MHz: 7.2, 14.4, 21.7, 28.9, 43.3, 57.8, 65, 72.2Mbps
802.11n-40 MHz: 15, 30, 45, 60, 90, 120, 135, 150 Mbps
Modulation
802.11b: DBPSK (1Mbps), DQPSK (2Mbps), CCK (5.5Mbps,11Mbps)
802.11g: BPSK (6Mbps,9Mbps), QPSK (12Mbps,18Mbps),
16QAM (24Mbps,36Mbps), 64QAM (48Mbps,54Mbps)
802.11n: BPSK (7.2/15Mbps), QPSK (14.4/21.7/30/45Mbps),
16QAM (28.9/43.3/60/90Mbps),
64QAM (57.8/65/72.2/120/135/150Mbps)
Operating Freq. 802.11b/g/n (2412 ~ 2484 MHz)
Operating Chan. 1~11 for N. America & Taiwan, 1~13 for Europe, 1~14 for Japan
Transceiver/ 1T1R Mode
Receiver Mode
Antenna Type Printed antenna with 2.95dBi gain
RF Output Power 18.00dBm for 802.11b
22.00dBm for 802.11g
22.00dBm for draft 802.11n (20MHz)
22.00dBm for draft 802.11n (40MHz)
Security WEP 64/128, WPA, & WPA2 coupled with Int. Reg 802.11d+h
Driver OS Support Windows Vista, XP, 2000, Linux, MAC
Weight Approx. 7g
INTRODUCTION
WL-166N11 Hardware & Driver Reference 5
INTRODUCTION

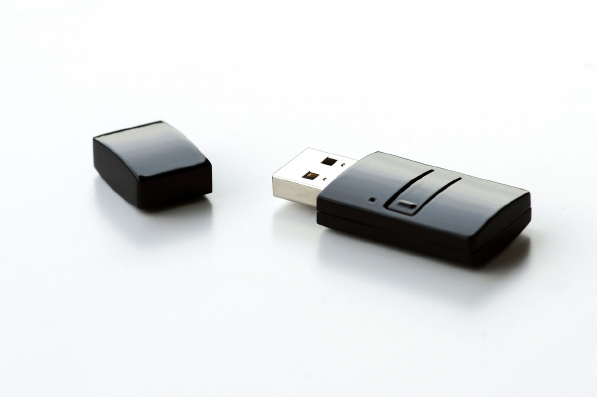

HARDWARE INFORMATION
Item Description
Form Factor USB Dongle
Host Interface USB 2.0
Antenna Type PIFA Antenna
PCB 4 layer
The WL-166N11 is a USB 2.0 Wi-Fi dongle which adopts Ralink
RT3070 single chipset solution integrating MAC/Baseband and
2.4GHz RF. It fully complies with IEEE 802.11n draft 3.0 and IEEE
802.11 b/g feature. Its high standard wireless connectivity delivers
reliable, cost-effective, higher throughput, and extended wireless
cover range. Optimized RF architecture and baseband algorithms
provide superb performance and low power consumption.
Intelligent MAC design deploys a high efcient USB engine and
hardware data processing accelerators without overloading the
host processor. WL-166N11 is designed to support standard based
features in the areas of security, quality of service and international
regulation, giving end users the greatest performance anytime in
any circumstance.
CERTIFICATION
Regulatory
These are pending certications:
Country Requirement Criteria
USA RF FCC Part 15. Subpart C
EU RF EN300 328/ EN301 489-1&17
Taiwan RF LP002
WL-166N11 Hardware & Driver Reference
6

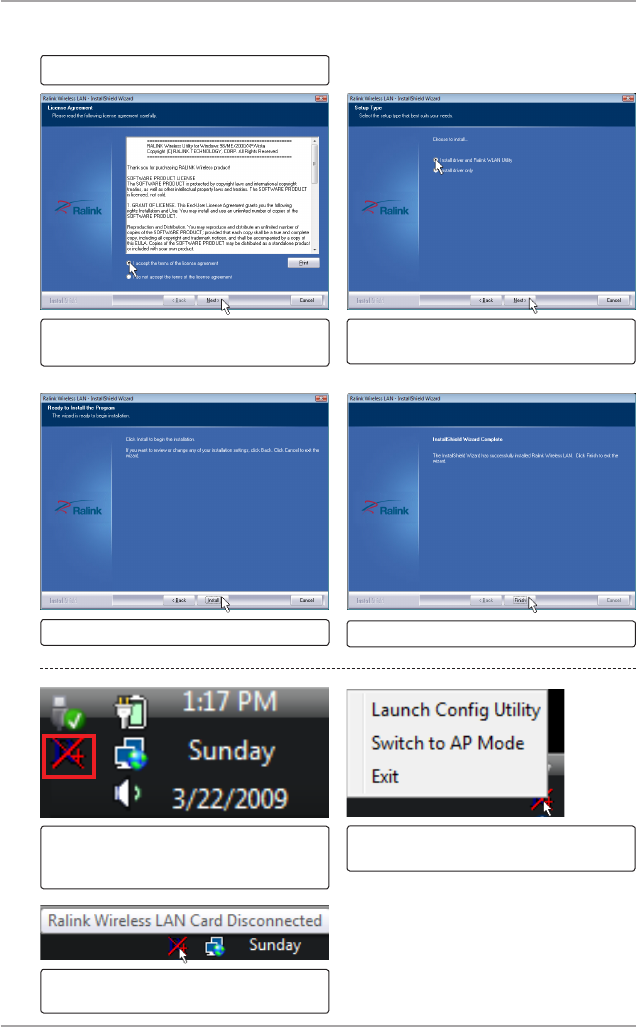

Double-click the driver setup le.
Select “Install driver and Ralink WLAN
Utility”. Click Next to continue.
Click Next to begin installation.
Read the agreement. Select “I
accept...” and click Next to continue.
INTRODUCTION
DRIVER INSTALLATION STEPS
After installation, click Finish to exit.
The Ralink Utility icon will show on the
Windows taskbar. A red X will show
when there is no connection.
Status will show when your cursor is
placed over it.
Right click the Ralink Utility icon to
bring up a shortcut menu.
WL-166N11 Hardware & Driver Reference 7
DEVICE AND DRIVER DETAILS

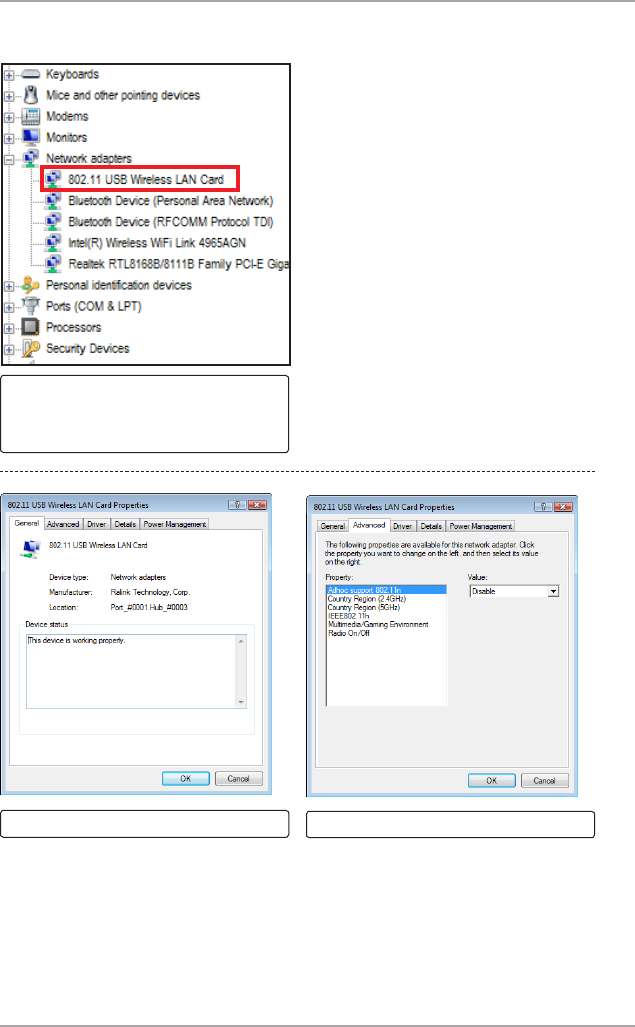

After driver installation, the wireless
module shows as “802.11 USB
Wireless LAN Card” in Windows
Device Manager.
DRIVER INSTALLATION
Detailed device info.
Detailed driver info.
WL-166N11 Hardware & Driver Reference
8
WIRELESS CONNECTION
DRIVER INSTALLATION

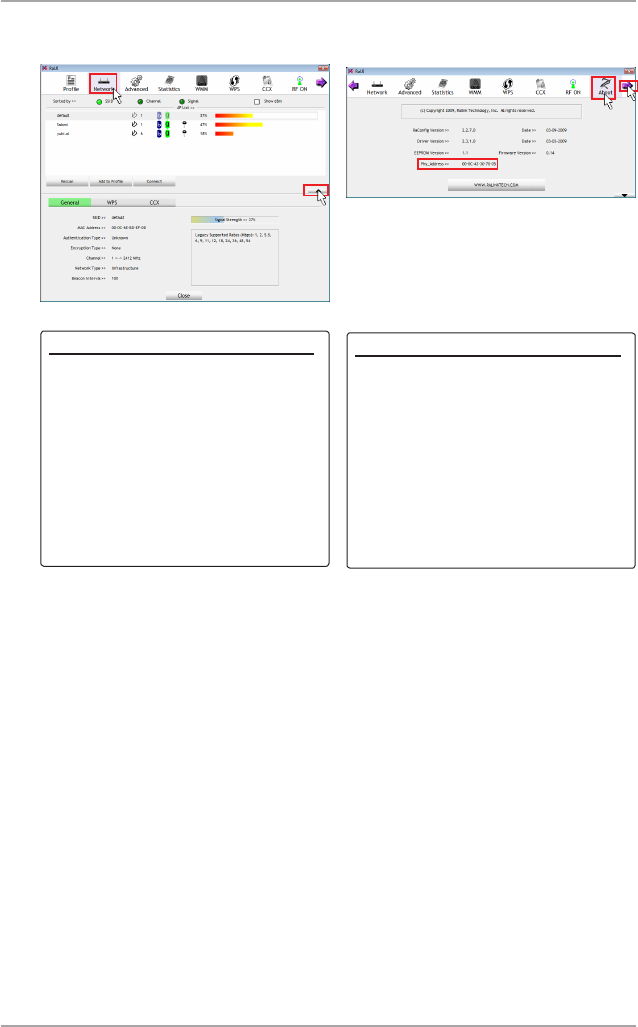

Connection to a wireless LAN:
When you launch the Cong Utility, click
the Network icon and you will see a list
of detected access points. Double-click
the access point name to connect to it.
(Extra information may be needed by
the access point if security is enabled.)
Click the arrow on the right side of the
window to show or hide details. (The
above details are shown.)
Learning your device address:
Click the violet right arrow to show
more icons. Click the About icon
to display information about your
wireless device.
You can see the “Phy_Address” in
this window. This address is need for
connection to access points that has
accept/reject security access.
WL-166N11 Hardware & Driver Reference 9
SAFETY STATEMENTS
Federal Communications Commission Statement
This device complies with FCC Rules Part 15. Operation is subject to the following two conditions:
• Thisdevicemaynotcauseharmfulinterference,and
• Thisdevicemustacceptanyinterferencereceived,includinginterferencethat
maycauseundesiredoperation.
ThisequipmenthasbeentestedandfoundtocomplywiththelimitsforaclassBdigital
device,pursuanttoPart15oftheFederalCommunicationsCommission(FCC)rules.
These limits are designed to provide reasonable protection against harmful interfer-
enceinaresidentialinstallation.Thisequipmentgenerates,uses,andcanradiateradio
frequencyenergyand,ifnotinstalledandusedinaccordancewiththeinstructions,may
causeharmfulinterferencetoradiocommunications.However,thereisnoguaranteethat
interference will not occur in a particular installation. If this equipment does cause harm-
fulinterferencetoradioortelevisionreception,whichcanbedeterminedbyturningthe
equipmentoffandon,theuserisencouragedtotrytocorrecttheinterferencebyoneor
more of the following measures:
• Reorientorrelocatethereceivingantenna.
• Increasetheseparationbetweentheequipmentandreceiver.
• Connecttheequipmentintoanoutletonacircuitdifferentfromthattowhich
the receiver is connected.
• Consultthedealeroranexperiencedradio/TVtechnicianforhelp.
WL-166N11 Hardware & Driver Reference10
SAFETY STATEMENTS
Declaration of Conformity for R&TTE directive 1999/5/EC
Protection requirements for health and safety - Article 3.1a
The protection of the health and the safety of the user and any other person, including the objec-
tives with respect to safety requirements contained in Directive 73/23/EEC, but with no voltage limit
applying.
Protection requirements for electromagnetic compatibility (EMC) - Article 3.1b
The protection requirements with respect to electromagnetic compatibility contained in Directive
89/336/EEC.
Effective use of the radio spectrum - Article 3.2
Radio equipment shall be so constructed that it effectively uses the spectrum allocated to terres-
trial/space radio communication and orbital resources so as to avoid harmful interference.
FCC Radio Frequency (RF) Exposure Caution Statement
This equipment complies with FCC RF exposure limits set forth for an uncontrolled environment.
To maintain compliance with FCC RF exposure compliance requirements, please follow operation
instructions in the user’s manual.
FCC CAUTION: Any changes or modications not expressly approved by the
party responsible for compliance could void the user’s authority to operate
this equipment. “The manufacturer declares that this device is limited to
the channels in the US frequency band by a specied rmware controlled
in the USA.”
CE Mark Warning
This is a Class B product, in a domestic environment, this product may cause radio interference, in
which case the user may be required to take adequate measures.
Hereby that Pegatron Corporation, declares that this device is in compliance with the essential
requirements and other relevant provisions of Directive 1999/5/EC.
CE MARK NOTICE: This equipment should be installed and operated with a
minimum distance of 20cm between the radiator and your body.
