PEGATRON CORPORATION WL-266N22-Duband Users Manual
PEGATRON >
Users Manual
1
WL-266N22_DUBAND
11bgn Wireless Dongle
Hardware and Driver Reference
2
CONTENTS
INTRODUCTION.................................................................................................................................. 3
SCOPE ......................................................................................................................................... 3
ACRONYMS AND DEFINITIONS................................................................................................. 3
GENERAL FEATURES................................................................................................................. 3
HARDWARE INFORMATION ....................................................................................................... 4
DRIVER INSTALLATION STEPS ................................................................................................. 5
DEVICE AND DRIVER DETAILS.................................................................................................. 7
SAFETY STATAMENTS ...................................................................................................................... 8
FCC Radio Frequency (R F) Exposure Caution Statement...................................................... 8
3
INTRODUCTION
SCOPE
The primary purpose of this documentation is to describe the WL-266N22_DUBAND product specifications, features, and
requirements. The WL-266N22_DUBAND is an IEEE802.11 b/g/n USB dongle. It allows you to easily upgrade your
PC-Platform or Laptop to 802.11n (final n). It provides an access speed of 150Mbps with IEEE802.11n (final n)protocol. It
is also officially recommended by Xlink Kai, which is a software that allows PSP or Nintendo DS users to play online games
all over the world. Optimized RF architecture and baseband algorithms provide superb performance and low power
consumption. Intelligent MAC design deploys a high efficient USB engine and hardware data processing accelerators
without overloading the host processor. WL-266N22_DUBAND is designed to support standard based features in the
areas of security, quality of service and international regulation, giving end users the greatest performance anytime in any
circumstance.
ACRONYMS AND DEFINITIONS
Acronym Description
BPSK Binary Phase Shift Keying
QAM Quadrature Amplitude Modulation
QPSK Quadrature Phase Shift Keying
WEP Wired Equivalent Privacy
WPA WiFi Protected Access
GENERAL FEATURES
USB dongle that supports IEEE 802.11b/g/n (final n).
BPSK, QPSK, 16QAM, 64QAM, DBPSK, DQPSK, CCK modulation schemes
WEP, TKIP, AES, WPA, WPA2 security support•
4
HARDWARE INFORMATION
Item Description
Form Factor USB Dongle
Host Interface USB 2.0
Antenna Type PCB Antenna
PCB 4 layer
The WL-266N22_DUBAND is a USB 2.0 Wi-Fi dongle which adopts Ralink RT3572 single chipset solution integrating
MAC/Baseband and 2.4GHz RF. It fully complies with IEEE 802.11n (final n) and IEEE 802.11 b/g feature. Its high
standard wireless connectivity delivers reliable, cost-effective, higher throughput, and extended wireless cover range.
Optimized RF architecture and baseband algorithms provide superb performance and low power consumption.
Intelligent MAC design deploys a high efficient USB engine and hardware data processing accelerators without
overloading the host processor. WL-266N22_DUBAND is designed to support standard based features in the areas of
security, quality of service and international regulation, giving end users the greatest performance anytime in any
circumstance.
5

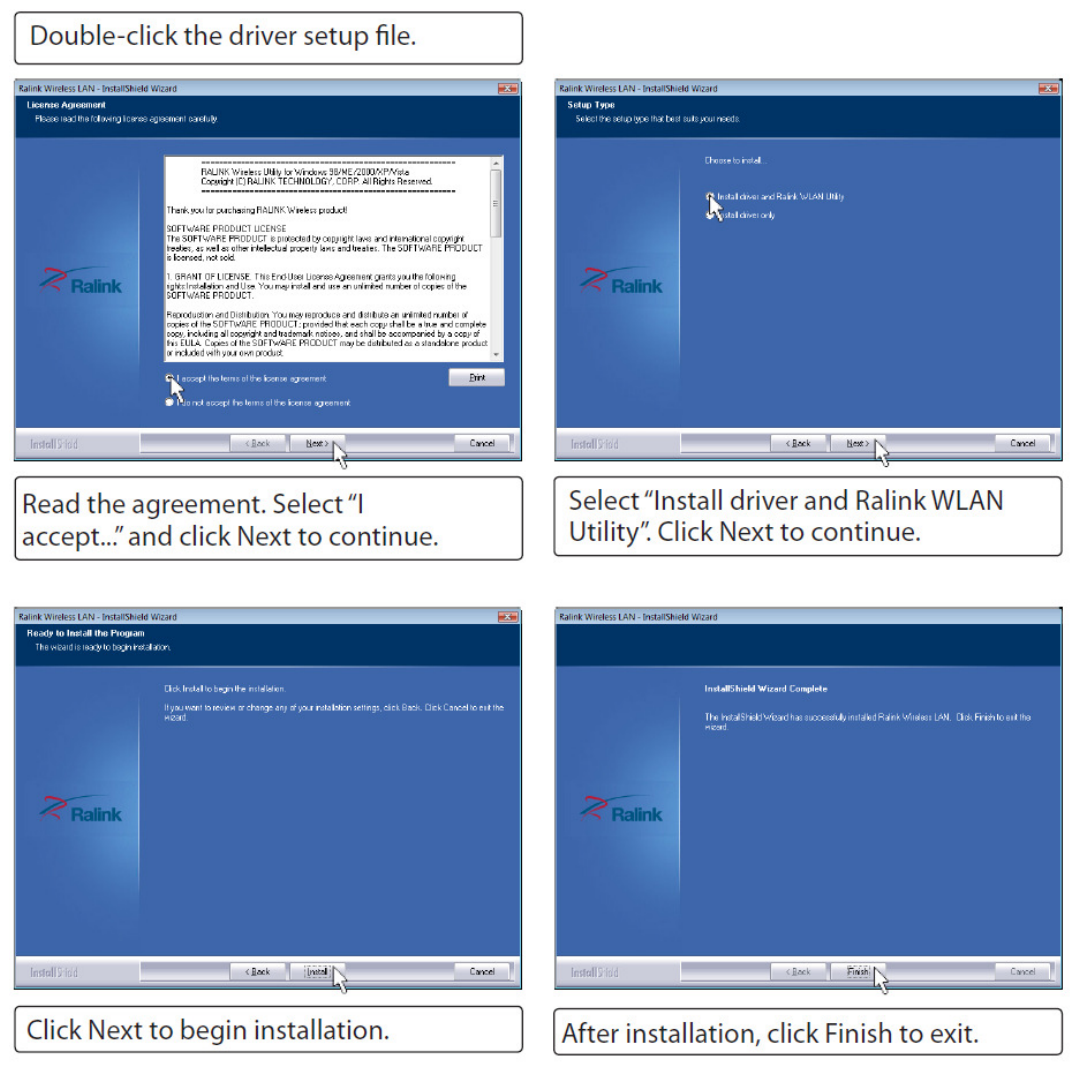

DRIVER INSTALLATION STEPS
6
7

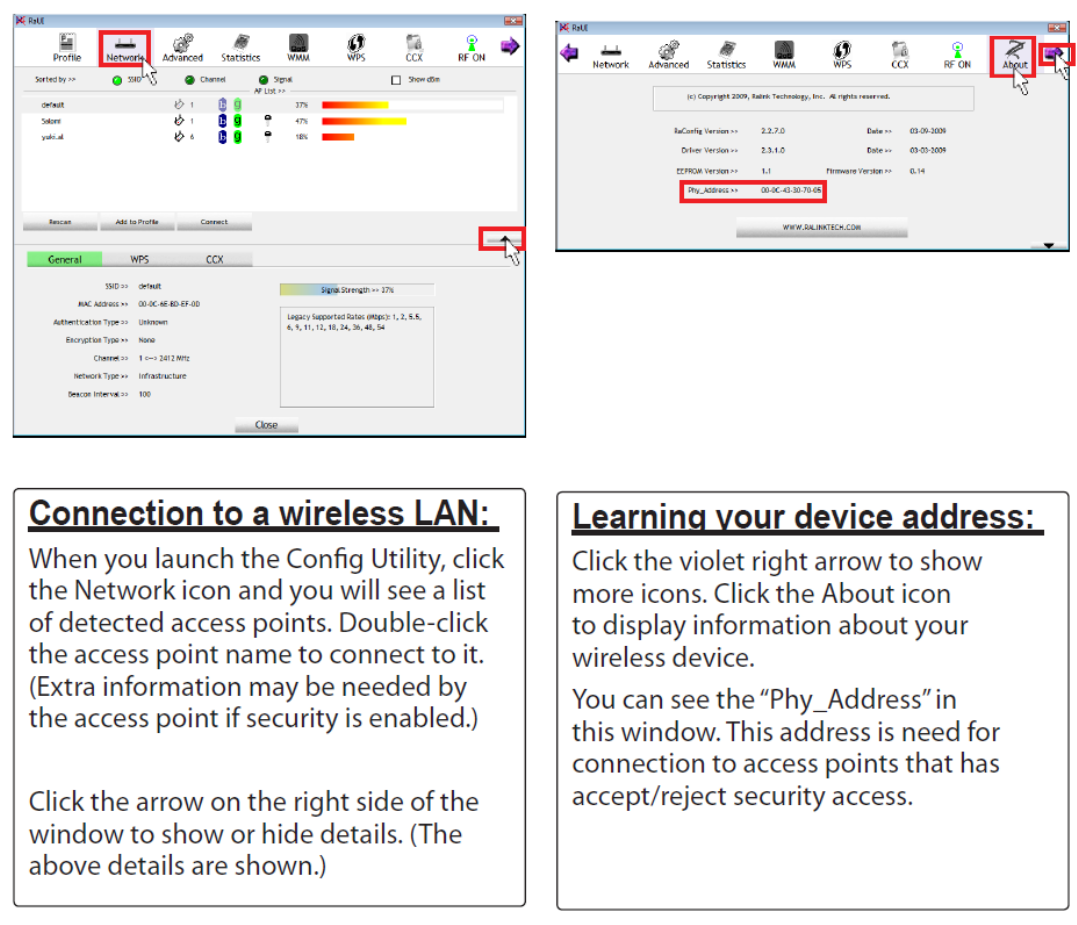

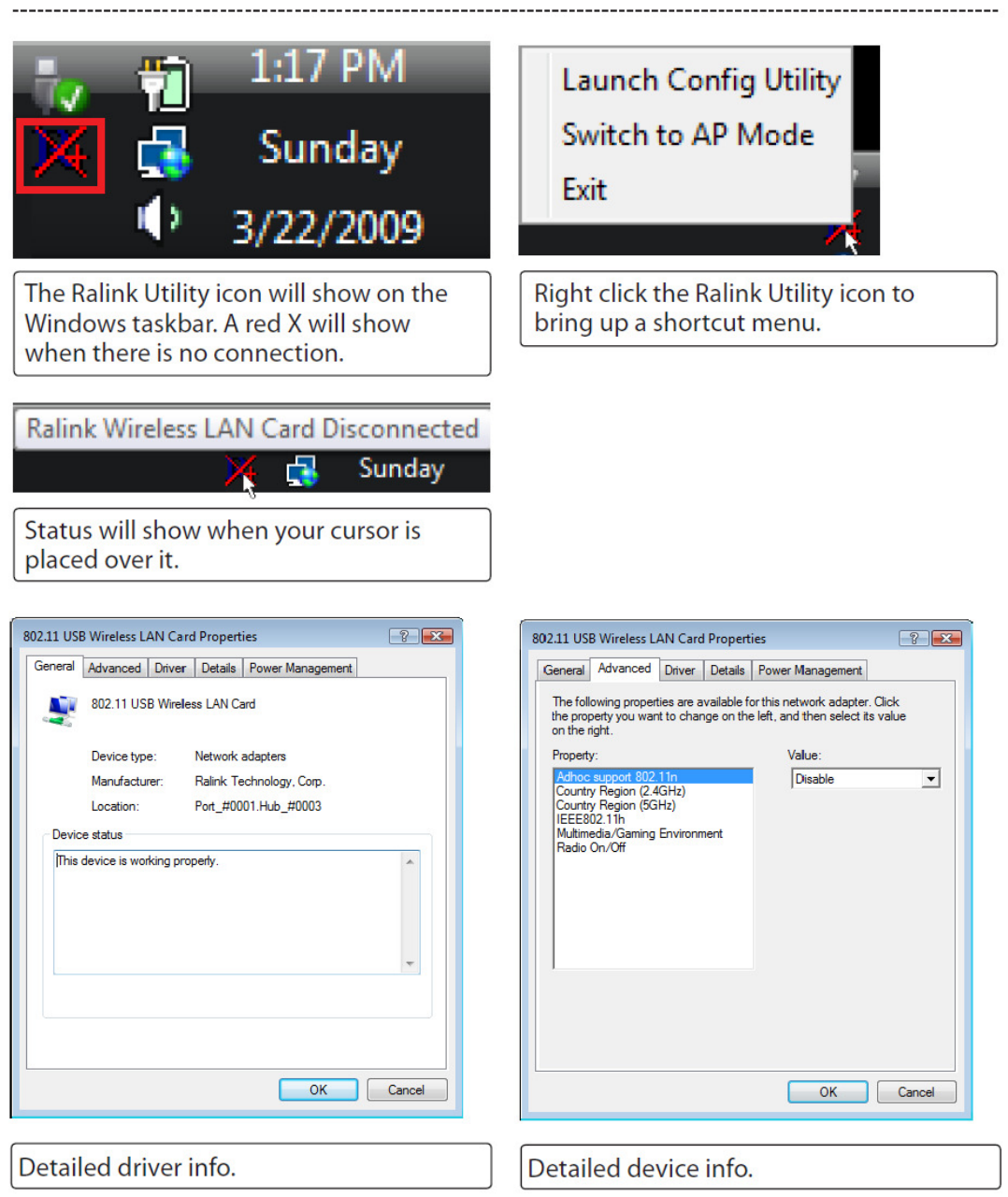

DEVICE AND DRIVER DETAILS
8
SAFETY STATEMENTS
FCC Radio Frequency (R F) Exposure Caution Statement
This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the
FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential
installation. This equipment generates uses and can radiate radio frequency energy and, if not installed and used in
accordance with the instructions, may cause harmful interference to radio communications. However, there is no
guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to
radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to
correct the interference by one of the following measures:
Reorient or relocate the receiving antenna.
Increase the separation between the equipment and receiver.
Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.
Consult the dealer or an experienced radio/TV technician for help.
--------------------------------------------------------------------------------------------------------------------------------------
FCC CAUTION: Any changes or modifications not expressly approved by the party responsible for compliance
could void the user’s authority to operate this equipment. “The manufacturer declares that this device is limited to
the channels in the US frequency band by a specified firmware controlled in the USA.
For product available in the USA/Canada market, only channel 1~11 can be operated. Selection of other channels
is not possible. This equipment complies with FCC RF exposure limits set forth for an uncontrolled environment.
To maintain compliance with FCC RF exposure compliance requirements, please follow operation instructions in
the user’s manual.
--------------------------------------------------------------------------------------------------------------------------------------
--------------------------------------------------------------------------------------------------------------------------------------
FCC Label Compliance Statement:
This device complies with Part 15 of FCC rules. Operation is subject to the following two conditions: (1) this
device may not cause harmful interference and (2) this device must accept any interference received, including
interference that may cause undesired operation.
--------------------------------------------------------------------------------------------------------------------------------------
--------------------------------------------------------------------------------------------------------------------------------------
Module User Requirements:
When the module be installed into new host and a separation distance of more than 20cm from the human body.
However if the module is placed into the host that is RF category portable, the FCC RF exposure requirements of
the portable host must be properly\addressed .The label shall include following message:
Contains FCC ID:
VUI-WL266N22BGN
--------------------------------------------------------------------------------------------------------------------------------------
