Users Manual

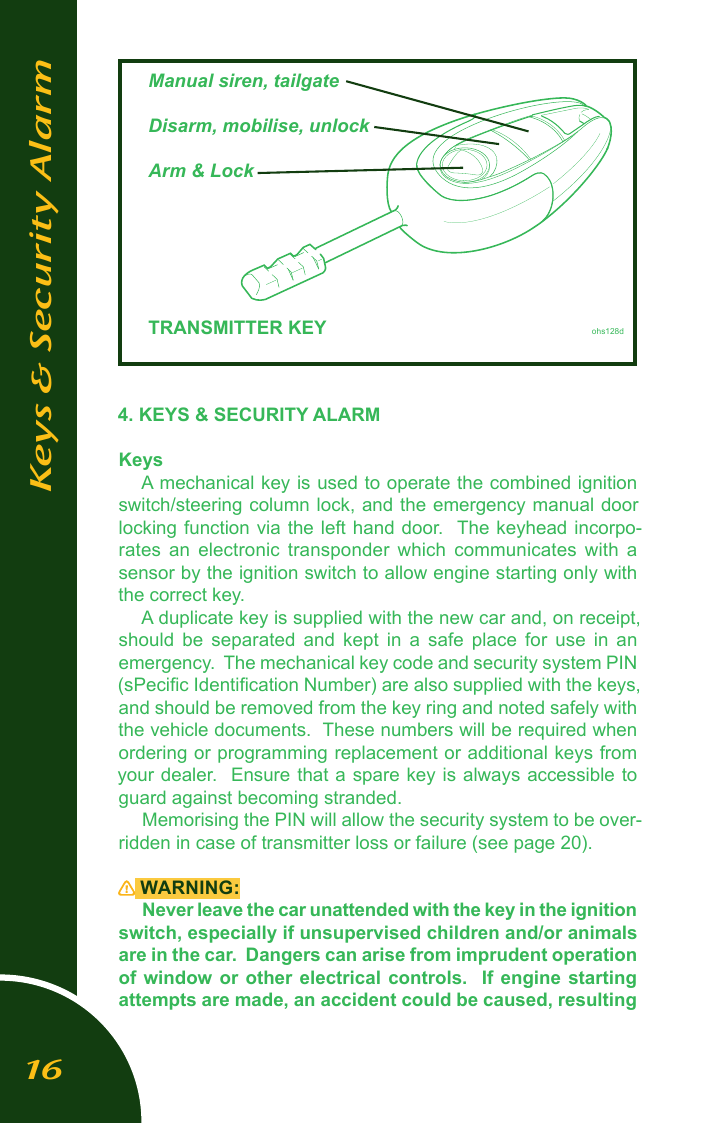

4. KEYS & SECURITY ALARMKeysA mechanical key is used to operate the combined ignition switch/steering column lock, and the emergency manual door locking function  via the left  hand door.  The  keyhead incorpo-rates  an  electronic  transponder  which  communicates  with  a sensor by the ignition switch to allow engine starting only with the correct key.A duplicate key is supplied with the new car and, on receipt, should  be  separated  and  kept  in  a  safe  place  for  use  in  an emergency.  The mechanical key code and security system PIN (sPecific Identification Number) are also supplied with the keys, and should be removed from the key ring and noted safely with the vehicle documents.  These numbers will be required when ordering or programming replacement or additional keys from your dealer.  Ensure that a spare key is always accessible to guard against becoming stranded.  Memorising the PIN will allow the security system to be over-ridden in case of transmitter loss or failure (see page 20).  WARNING:Never leave the car unattended with the key in the ignition switch, especially if unsupervised children and/or animals are in the car.  Dangers can arise from imprudent operation of window or other electrical controls.   If  engine  starting attempts are made, an accident could be caused, resulting Keys & Security Alarm  Manual siren, tailgate  Disarm, mobilise, unlock  Arm & Lock            TRANSMITTER KEY         ohs128d16

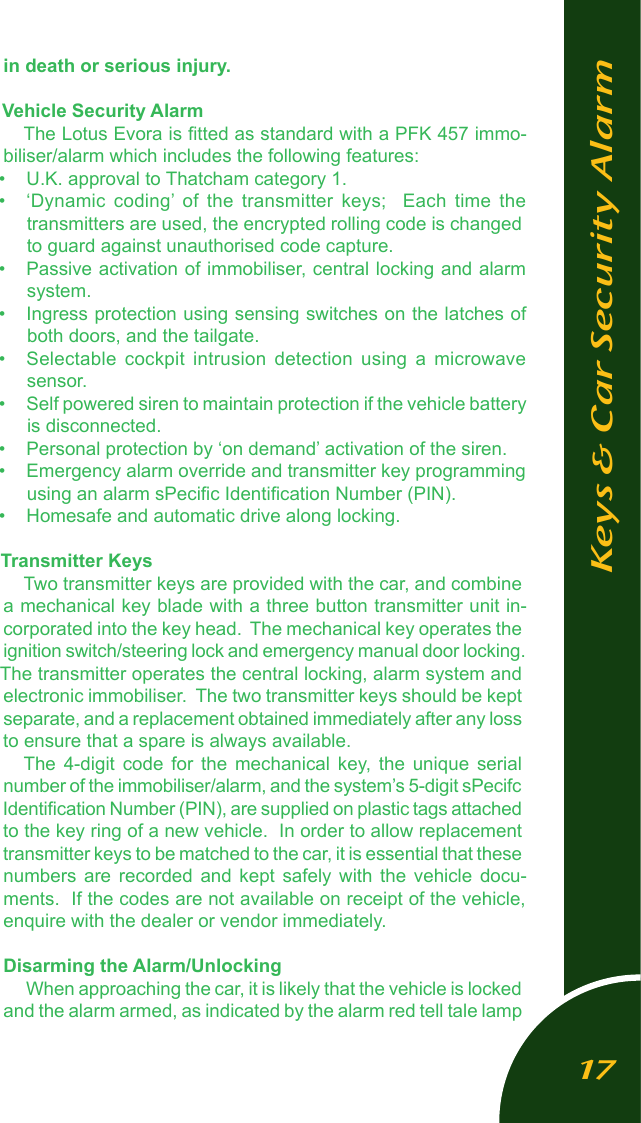

in death or serious injury. Vehicle Security AlarmThe Lotus Evora is fitted as standard with a PFK 457 immo-biliser/alarm which includes the following features:•  U.K. approval to Thatcham category 1.•  ‘Dynamic  coding’  of  the  transmitter  keys;    Each  time  the transmitters are used, the encrypted rolling code is changed to guard against unauthorised code capture.•  Passive activation of immobiliser, central locking and alarm system.•  Ingress protection using sensing switches on the latches of both doors, and the tailgate.•  Selectable  cockpit  intrusion  detection  using  a  microwave  sensor. •  Self powered siren to maintain protection if the vehicle battery is disconnected.•  Personal protection by ‘on demand’ activation of the siren. •  Emergency alarm override and transmitter key programming using an alarm sPecific Identification Number (PIN).•  Homesafe and automatic drive along locking.Transmitter KeysTwo transmitter keys are provided with the car, and combine a mechanical key blade with a three button transmitter unit in-corporated into the key head.  The mechanical key operates the ignition switch/steering lock and emergency manual door locking.  The transmitter operates the central locking, alarm system and electronic immobiliser.  The two transmitter keys should be kept separate, and a replacement obtained immediately after any loss to ensure that a spare is always available.The  4-digit  code  for  the  mechanical  key,  the  unique  serial number of the immobiliser/alarm, and the system’s 5-digit sPecifc Identification Number (PIN), are supplied on plastic tags attached to the key ring of a new vehicle.  In order to allow replacement transmitter keys to be matched to the car, it is essential that these numbers  are  recorded  and  kept  safely  with  the  vehicle  docu-ments.  If the codes are not available on receipt of the vehicle, enquire with the dealer or vendor immediately.Disarming the Alarm/Unlocking When approaching the car, it is likely that the vehicle is locked and the alarm armed, as indicated by the alarm red tell tale lamp Keys & Car Security Alarm17

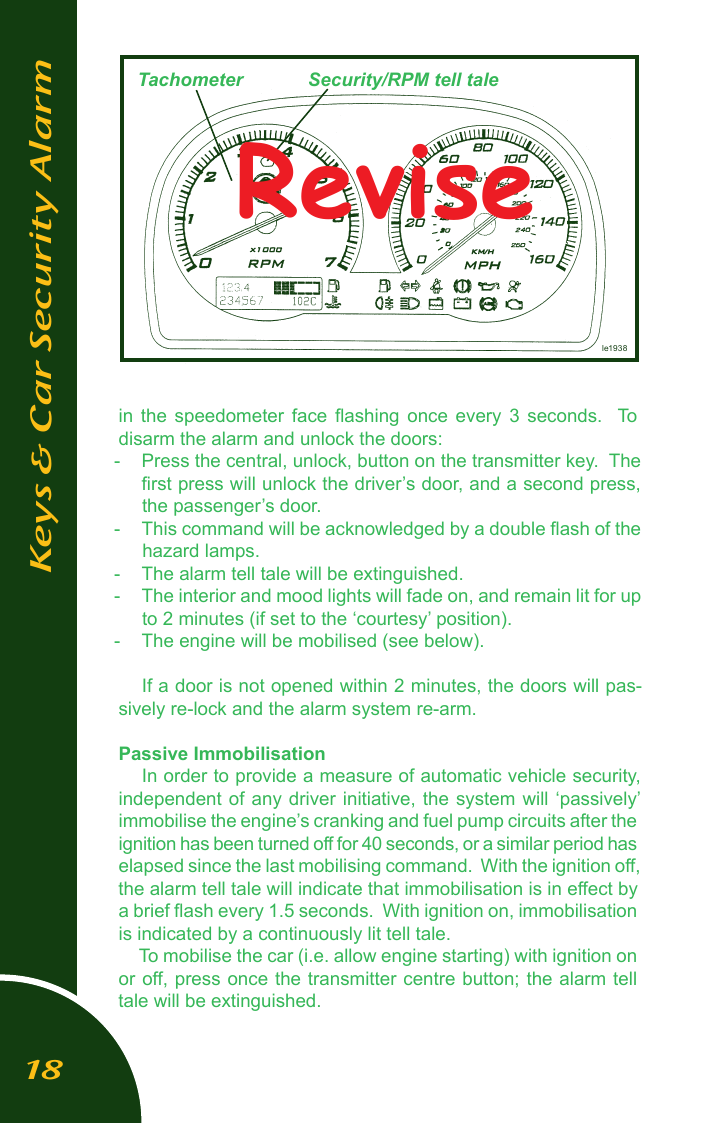

in  the  speedometer  face  flashing  once  every  3  seconds.    To disarm the alarm and unlock the doors:-  Press the central, unlock, button on the transmitter key.  The first press will unlock the driver’s door, and a second press,  the passenger’s door.-  This command will be acknowledged by a double flash of the hazard lamps.-  The alarm tell tale will be extinguished.-  The interior and mood lights will fade on, and remain lit for up to 2 minutes (if set to the ‘courtesy’ position).-  The engine will be mobilised (see below).If a door is not opened within 2 minutes, the doors will pas-sively re-lock and the alarm system re-arm. Passive ImmobilisationIn order to provide a measure of automatic vehicle security, independent of  any driver initiative, the  system will ‘passively’ immobilise the engine’s cranking and fuel pump circuits after the ignition has been turned off for 40 seconds, or a similar period has elapsed since the last mobilising command.  With the ignition off, the alarm tell tale will indicate that immobilisation is in effect by a brief flash every 1.5 seconds.  With ignition on, immobilisation is indicated by a continuously lit tell tale.To mobilise the car (i.e. allow engine starting) with ignition on or off, press once the transmitter centre button; the alarm tell tale will be extinguished.le1938Keys & Car Security AlarmTachometer Security/RPM tell taleRevise18

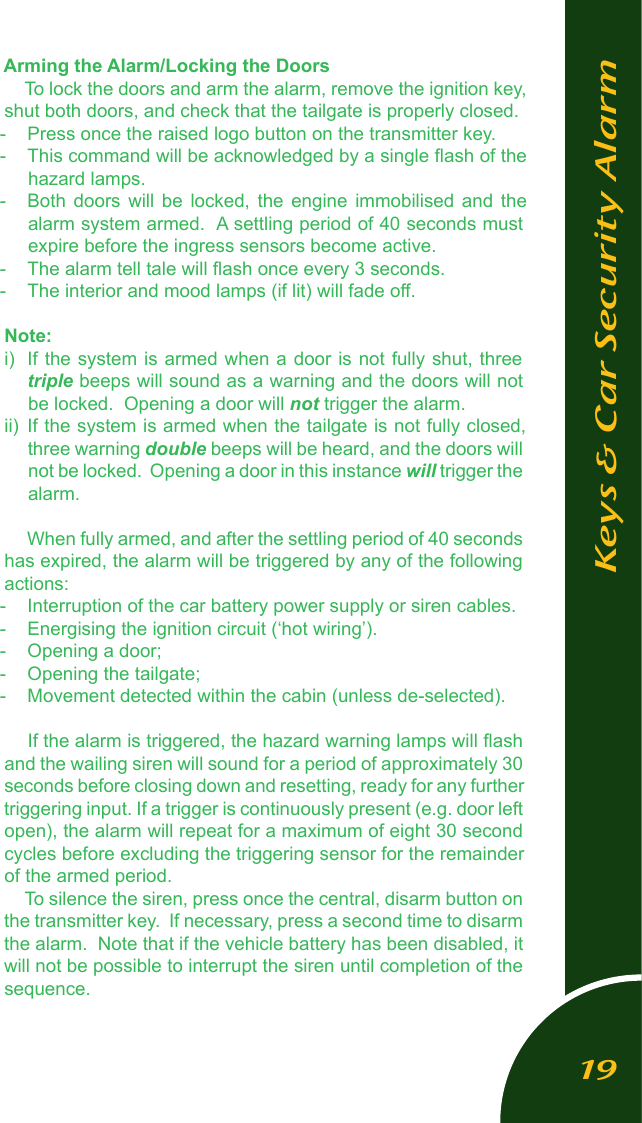

Arming the Alarm/Locking the DoorsTo lock the doors and arm the alarm, remove the ignition key, shut both doors, and check that the tailgate is properly closed.  -  Press once the raised logo button on the transmitter key.  -  This command will be acknowledged by a single flash of the hazard lamps.-  Both  doors  will  be  locked,  the  engine  immobilised  and  the alarm system armed.  A settling period of 40 seconds must expire before the ingress sensors become active.-  The alarm tell tale will flash once every 3 seconds.-  The interior and mood lamps (if lit) will fade off.Note:i)  If the system is armed  when a door is not fully  shut, three triple beeps will sound as a warning and the doors will not be locked.  Opening a door will not trigger the alarm.ii)  If the system is armed when the tailgate is not fully closed, three warning double beeps will be heard, and the doors will not be locked.  Opening a door in this instance will trigger the alarm. When fully armed, and after the settling period of 40 seconds has expired, the alarm will be triggered by any of the following actions:-  Interruption of the car battery power supply or siren cables.-  Energising the ignition circuit (‘hot wiring’).-  Opening a door;-  Opening the tailgate;-  Movement detected within the cabin (unless de-selected).If the alarm is triggered, the hazard warning lamps will flash and the wailing siren will sound for a period of approximately 30 seconds before closing down and resetting, ready for any further triggering input. If a trigger is continuously present (e.g. door left open), the alarm will repeat for a maximum of eight 30 second cycles before excluding the triggering sensor for the remainder of the armed period.To silence the siren, press once the central, disarm button on the transmitter key.  If necessary, press a second time to disarm the alarm.  Note that if the vehicle battery has been disabled, it will not be possible to interrupt the siren until completion of the sequence.Keys & Car Security Alarm19

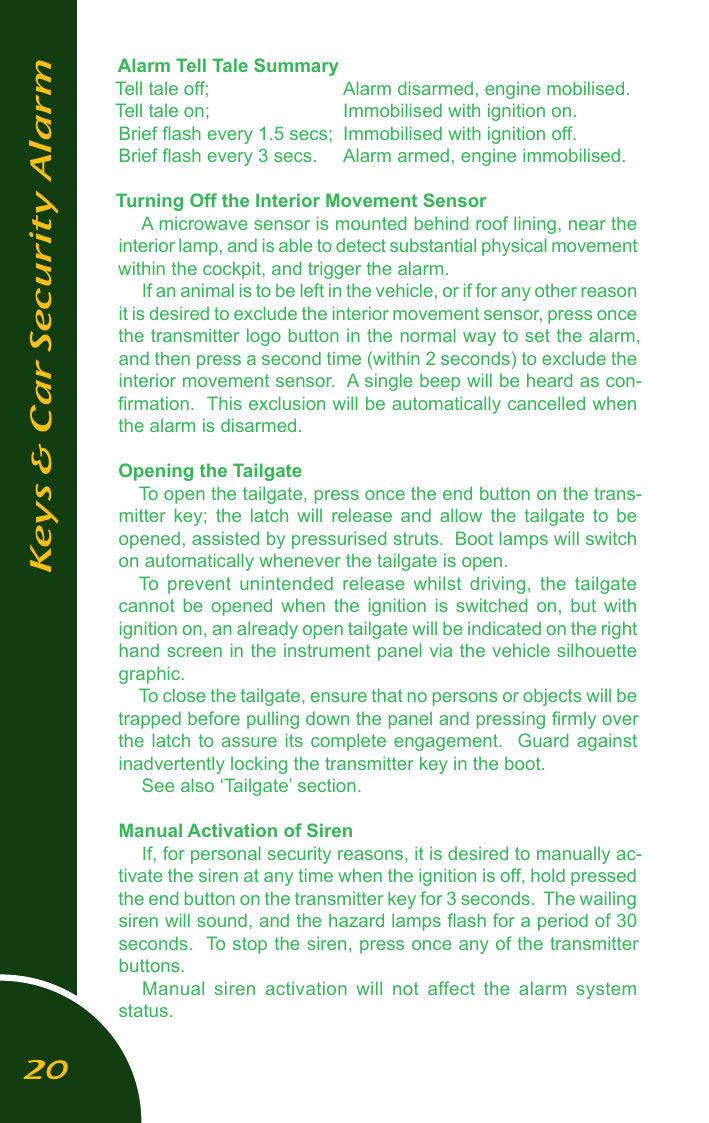

Alarm Tell Tale SummaryTell tale off;    Alarm disarmed, engine mobilised.Tell tale on;    Immobilised with ignition on.Brief flash every 1.5 secs;  Immobilised with ignition off.Brief flash every 3 secs.  Alarm armed, engine immobilised.Turning Off the Interior Movement SensorA microwave sensor is mounted behind roof lining, near the interior lamp, and is able to detect substantial physical movement within the cockpit, and trigger the alarm. If an animal is to be left in the vehicle, or if for any other reason it is desired to exclude the interior movement sensor, press once the transmitter logo button in the normal way to set the alarm, and then press a second time (within 2 seconds) to exclude the interior movement sensor.  A single beep will be heard as con-firmation.  This exclusion will be automatically cancelled when the alarm is disarmed.Opening the TailgateTo open the tailgate, press once the end button on the trans-mitter  key;  the  latch  will  release  and  allow  the  tailgate  to  be opened, assisted by pressurised struts.  Boot lamps will switch on automatically whenever the tailgate is open.To  prevent  unintended  release  whilst  driving,  the  tailgate cannot  be  opened  when  the  ignition  is  switched  on,  but  with ignition on, an already open tailgate will be indicated on the right hand screen in the instrument panel via the vehicle silhouette graphic.To close the tailgate, ensure that no persons or objects will be trapped before pulling down the panel and pressing firmly over the latch  to  assure  its  complete  engagement.    Guard  against inadvertently locking the transmitter key in the boot.See also ‘Tailgate’ section.Manual Activation of SirenIf, for personal security reasons, it is desired to manually ac-tivate the siren at any time when the ignition is off, hold pressed the end button on the transmitter key for 3 seconds.  The wailing siren will sound, and the hazard lamps flash for a period of 30 seconds.  To stop the siren, press once any of the transmitter buttons.Manual  siren  activation  will  not  affect  the  alarm  system status.Keys & Car Security Alarm20

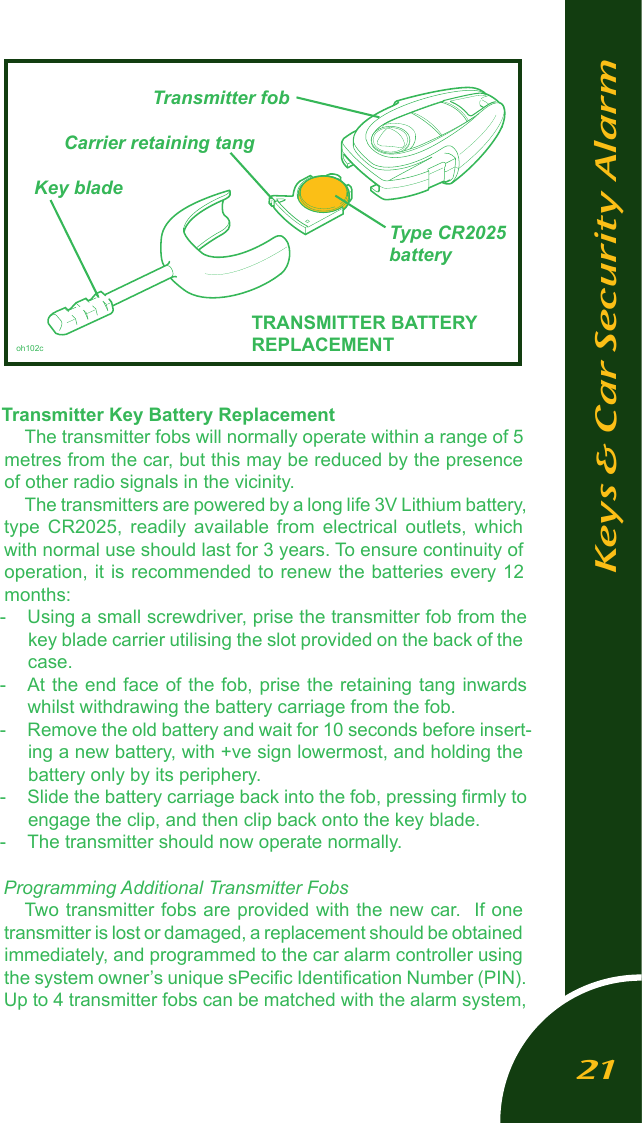

Transmitter Key Battery ReplacementThe transmitter fobs will normally operate within a range of 5 metres from the car, but this may be reduced by the presence of other radio signals in the vicinity. The transmitters are powered by a long life 3V Lithium battery, type  CR2025,  readily  available  from  electrical  outlets,  which with normal use should last for 3 years. To ensure continuity of operation, it is recommended to renew the batteries every 12 months:-  Using a small screwdriver, prise the transmitter fob from the key blade carrier utilising the slot provided on the back of the case.-  At the end face of the fob, prise the retaining tang inwards whilst withdrawing the battery carriage from the fob.-  Remove the old battery and wait for 10 seconds before insert-ing a new battery, with +ve sign lowermost, and holding the battery only by its periphery.-  Slide the battery carriage back into the fob, pressing firmly to engage the clip, and then clip back onto the key blade. -  The transmitter should now operate normally.Programming Additional Transmitter FobsTwo transmitter fobs are provided with the new car.  If one transmitter is lost or damaged, a replacement should be obtained immediately, and programmed to the car alarm controller using the system owner’s unique sPecific Identification Number (PIN). Up to 4 transmitter fobs can be matched with the alarm system, Keys & Car Security Alarm          Transmitter fob    Carrier retaining tang  Key blade                          Type CR2025                           battery                      TRANSMITTER BATTERY     oh102c                REPLACEMENT         21

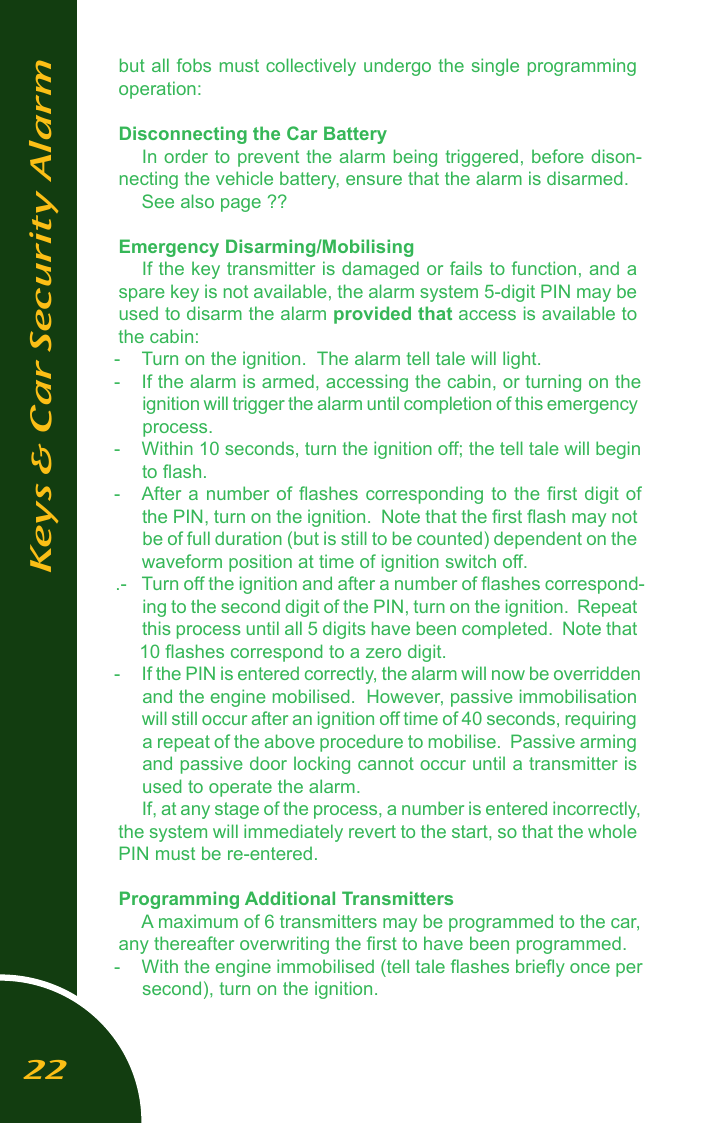

but all fobs must collectively undergo the single programming operation:Disconnecting the Car BatteryIn order to prevent the alarm being triggered, before dison-necting the vehicle battery, ensure that the alarm is disarmed.See also page ??Emergency Disarming/MobilisingIf the key transmitter is damaged or fails to function, and a spare key is not available, the alarm system 5-digit PIN may be used to disarm the alarm provided that access is available to the cabin:-  Turn on the ignition.  The alarm tell tale will light.  -  If the alarm is armed, accessing the cabin, or turning on the ignition will trigger the alarm until completion of this emergency process.-  Within 10 seconds, turn the ignition off; the tell tale will begin to flash.-  After a number  of flashes corresponding  to the first digit of the PIN, turn on the ignition.  Note that the first flash may not be of full duration (but is still to be counted) dependent on the waveform position at time of ignition switch off..-  Turn off the ignition and after a number of flashes correspond-ing to the second digit of the PIN, turn on the ignition.  Repeat this process until all 5 digits have been completed.  Note that 10 flashes correspond to a zero digit.-  If the PIN is entered correctly, the alarm will now be overridden and the engine mobilised.  However, passive immobilisation will still occur after an ignition off time of 40 seconds, requiring a repeat of the above procedure to mobilise.  Passive arming and passive door locking cannot occur until a transmitter is used to operate the alarm.If, at any stage of the process, a number is entered incorrectly, the system will immediately revert to the start, so that the whole PIN must be re-entered.Programming Additional TransmittersA maximum of 6 transmitters may be programmed to the car, any thereafter overwriting the first to have been programmed.-   With the engine immobilised (tell tale flashes briefly once per second), turn on the ignition.Keys & Car Security Alarm22

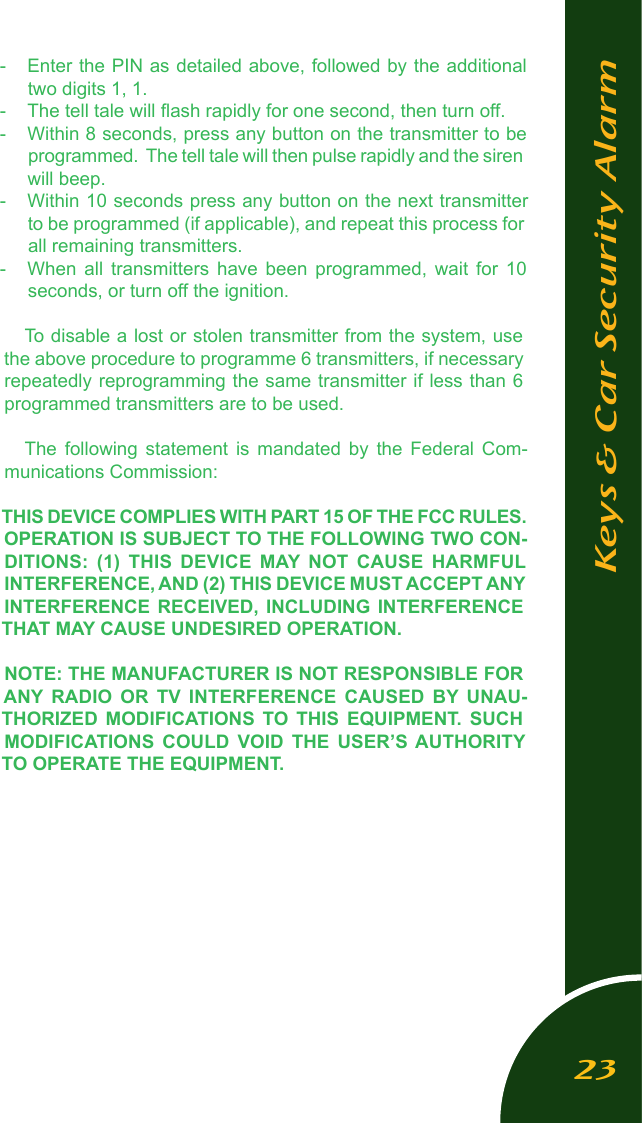

-  Enter the PIN as detailed above, followed by the additional two digits 1, 1.-  The tell tale will flash rapidly for one second, then turn off.-  Within 8 seconds, press any button on the transmitter to be programmed.  The tell tale will then pulse rapidly and the siren will beep.-  Within 10 seconds press any button on the next transmitter to be programmed (if applicable), and repeat this process for all remaining transmitters.-  When  all  transmitters  have  been  programmed,  wait  for  10 seconds, or turn off the ignition.To disable a lost or stolen transmitter from the system, use the above procedure to programme 6 transmitters, if necessary repeatedly reprogramming the same transmitter if less than 6 programmed transmitters are to be used.The  following  statement  is  mandated  by  the  Federal  Com-munications Commission:THIS DEVICE COMPLIES WITH PART 15 OF THE FCC RULES. OPERATION IS SUBJECT TO THE FOLLOWING TWO CON-DITIONS:  (1)  THIS  DEVICE  MAY NOT  CAUSE  HARMFUL INTERFERENCE, AND (2) THIS DEVICE MUST ACCEPT ANY INTERFERENCE  RECEIVED,  INCLUDING  INTERFERENCE THAT MAY CAUSE UNDESIRED OPERATION.NOTE: THE MANUFACTURER IS NOT RESPONSIBLE FOR ANY  RADIO  OR  TV  INTERFERENCE  CAUSED  BY  UNAU-THORIZED  MODIFICATIONS  TO  THIS  EQUIPMENT.  SUCH MODIFICATIONS  COULD  VOID  THE  USER’S AUTHORITY TO OPERATE THE EQUIPMENT.Keys & Car Security Alarm23
