POWER ONE ITALY 3N89E Cellular Module for Data Monitoring User Manual Item Cleanup Project 2007

POWER-ONE ITALY SPA Cellular Module for Data Monitoring Item Cleanup Project 2007

User Manual

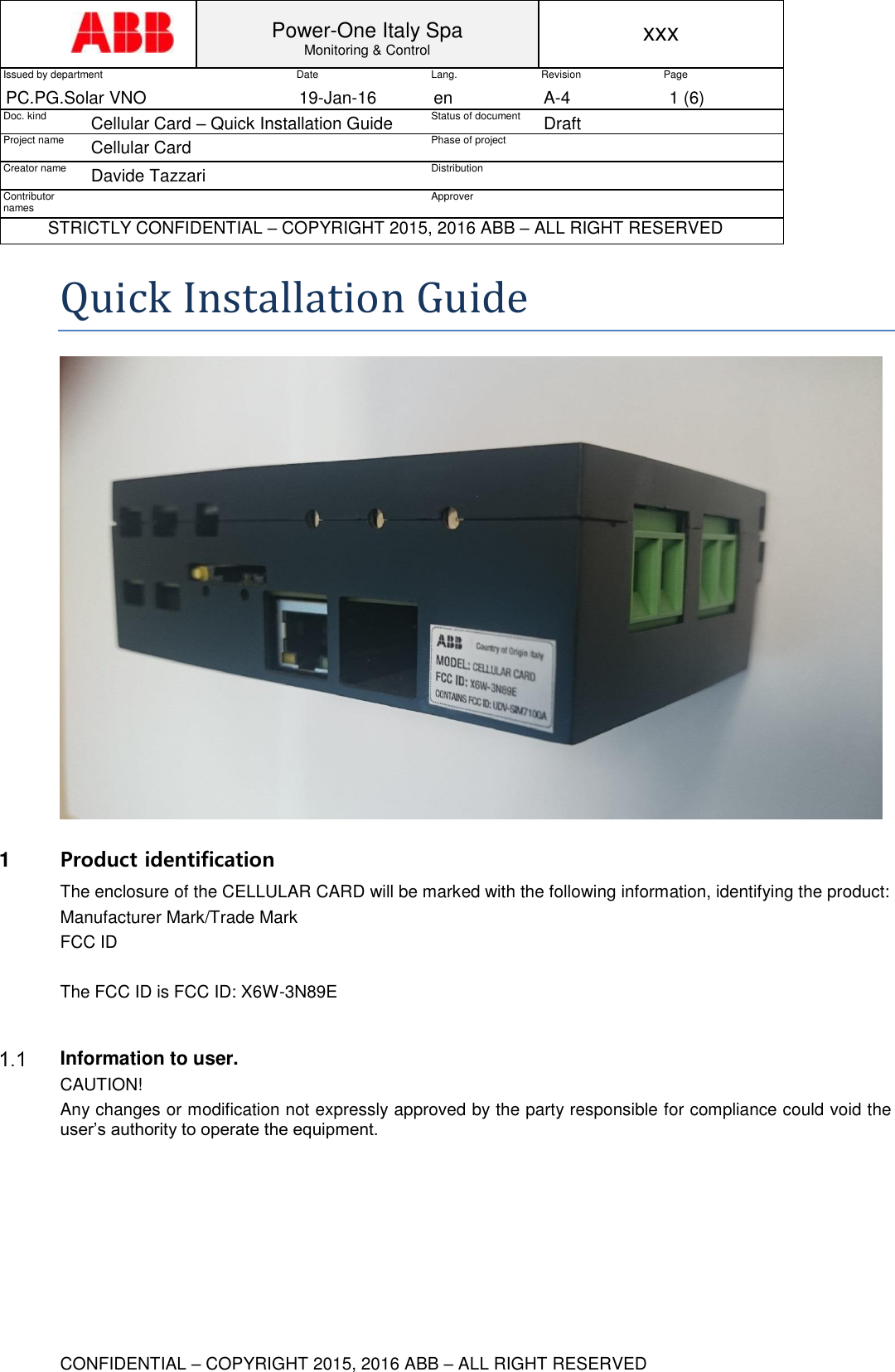

Power-One Italy Spa Monitoring & Control xxx Issued by department Date Lang. Revision Page PC.PG.Solar VNO 19-Jan-16 en A-4 1 (6) Doc. kind Cellular Card – Quick Installation Guide Status of document Draft Project name Cellular Card Phase of project Creator name Davide Tazzari Distribution Contributor names Approver STRICTLY CONFIDENTIAL – COPYRIGHT 2015, 2016 ABB – ALL RIGHT RESERVED CONFIDENTIAL – COPYRIGHT 2015, 2016 ABB – ALL RIGHT RESERVED Quick Installation Guide 1 Product identification The enclosure of the CELLULAR CARD will be marked with the following information, identifying the product: Manufacturer Mark/Trade Mark FCC ID The FCC ID is FCC ID: X6W-3N89E Information to user. CAUTION! Any changes or modification not expressly approved by the party responsible for compliance could void the user’s authority to operate the equipment.
Power-One Italy SpA Monitoring & Control xxx Doc. Title Revision Page Cellular Card – Block Diagram A-4 2 (6) CONFIDENTIAL – COPYRIGHT 2015, 2016 ABB – ALL RIGHT RESERVED Page 2 of 6 2 Connectivity and led WIFI ANTENNA CELL ANTENNA 12V AUX SUPPLY INVERTER COM. ISOLATED 485 SIM CARD HOLDER 12V AUX SUPPLY GRID ETHERNET Reactive Power LED Real Power LED Status LED

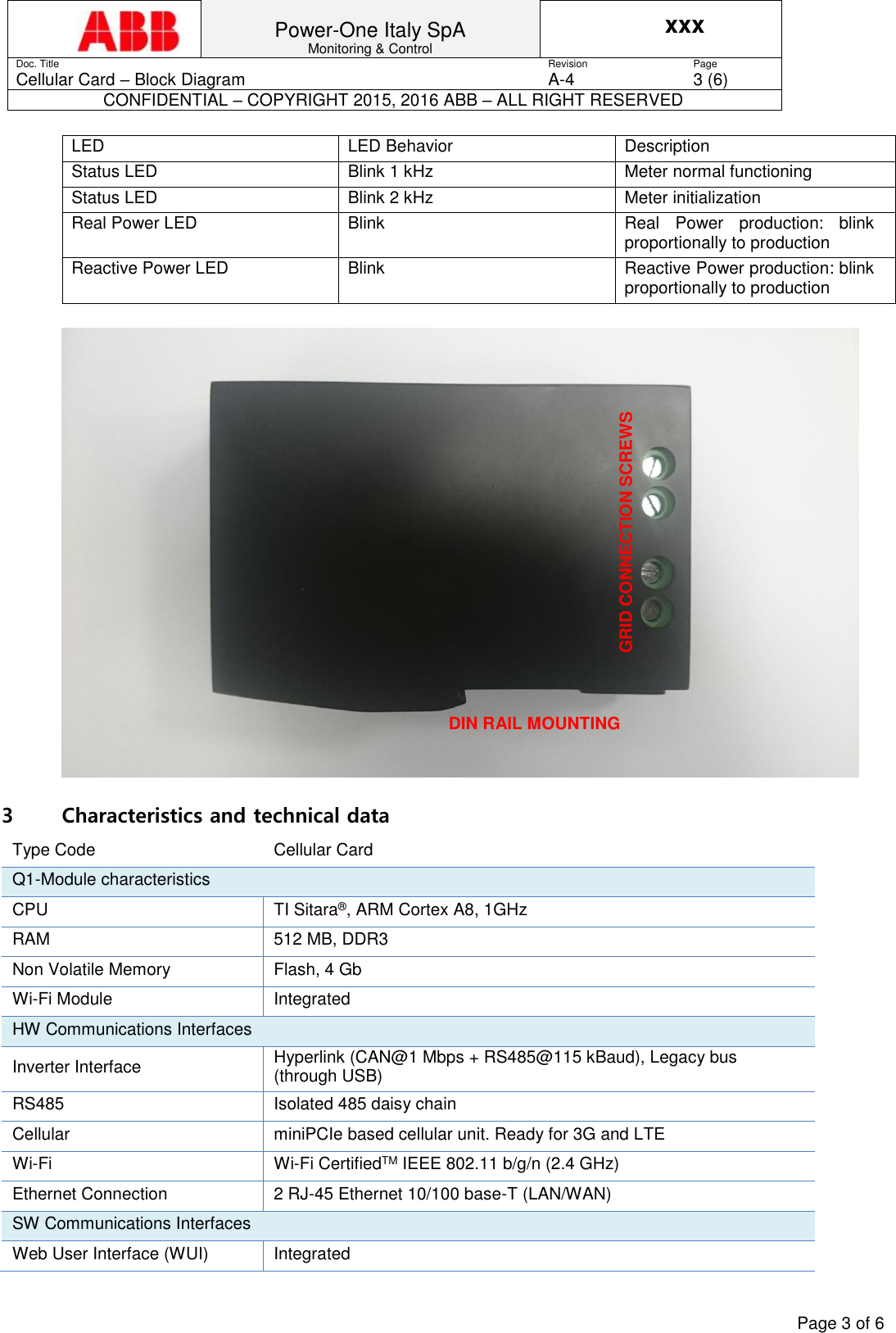

Power-One Italy SpA Monitoring & Control xxx Doc. Title Revision Page Cellular Card – Block Diagram A-4 3 (6) CONFIDENTIAL – COPYRIGHT 2015, 2016 ABB – ALL RIGHT RESERVED Page 3 of 6 LED LED Behavior Description Status LED Blink 1 kHz Meter normal functioning Status LED Blink 2 kHz Meter initialization Real Power LED Blink Real Power production: blink proportionally to production Reactive Power LED Blink Reactive Power production: blink proportionally to production 3 Characteristics and technical data Type Code Cellular Card Q1-Module characteristics CPU TI Sitara®, ARM Cortex A8, 1GHz RAM 512 MB, DDR3 Non Volatile Memory Flash, 4 Gb Wi-Fi Module Integrated HW Communications Interfaces Inverter Interface Hyperlink (CAN@1 Mbps + RS485@115 kBaud), Legacy bus (through USB) RS485 Isolated 485 daisy chain Cellular miniPCIe based cellular unit. Ready for 3G and LTE Wi-Fi Wi-Fi CertifiedTM IEEE 802.11 b/g/n (2.4 GHz) Ethernet Connection 2 RJ-45 Ethernet 10/100 base-T (LAN/WAN) SW Communications Interfaces Web User Interface (WUI) Integrated DIN RAIL MOUNTING GRID CONNECTION SCREWS

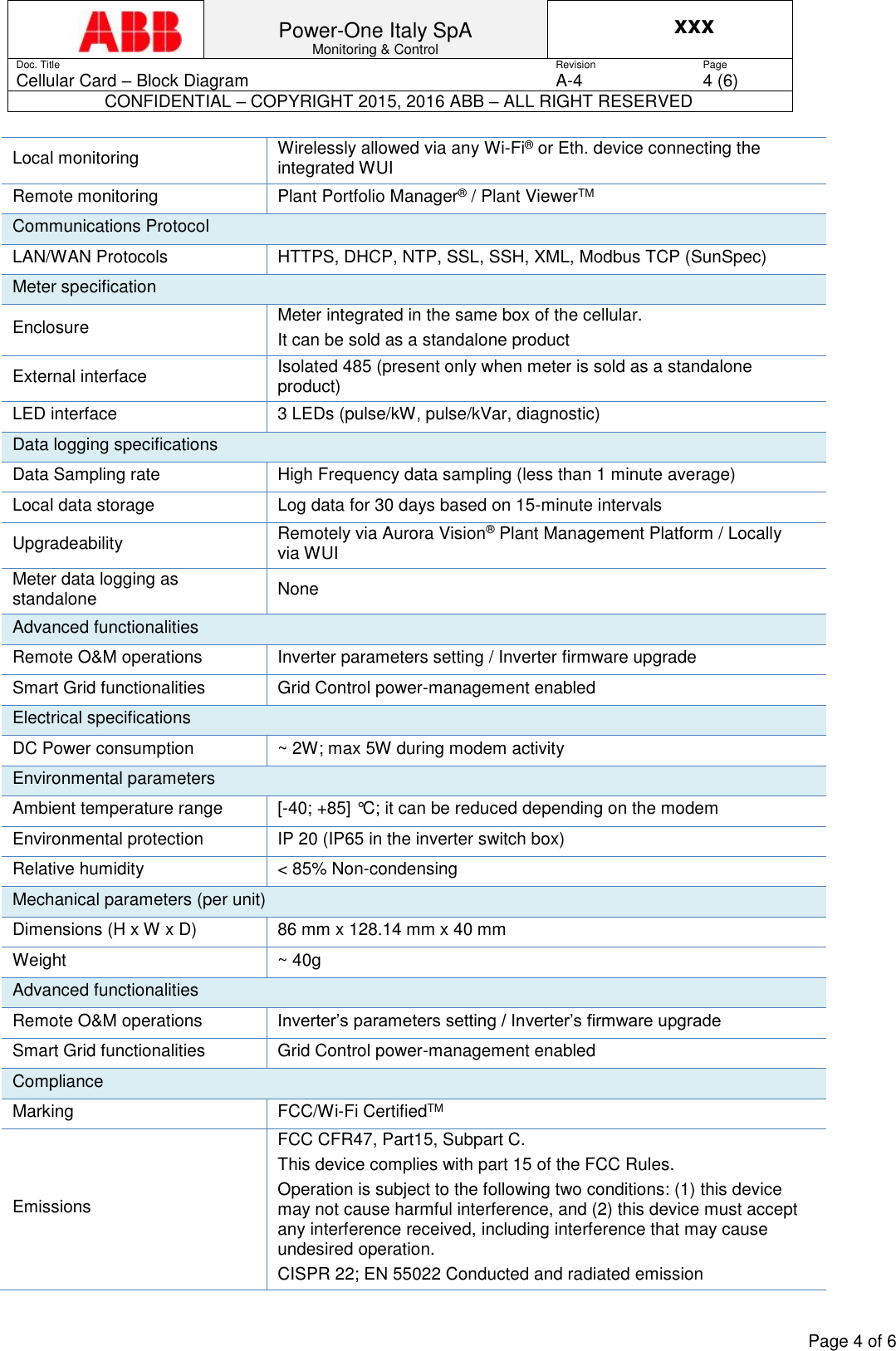

Power-One Italy SpA Monitoring & Control xxx Doc. Title Revision Page Cellular Card – Block Diagram A-4 4 (6) CONFIDENTIAL – COPYRIGHT 2015, 2016 ABB – ALL RIGHT RESERVED Page 4 of 6 Local monitoring Wirelessly allowed via any Wi-Fi® or Eth. device connecting the integrated WUI Remote monitoring Plant Portfolio Manager® / Plant ViewerTM Communications Protocol LAN/WAN Protocols HTTPS, DHCP, NTP, SSL, SSH, XML, Modbus TCP (SunSpec) Meter specification Enclosure Meter integrated in the same box of the cellular. It can be sold as a standalone product External interface Isolated 485 (present only when meter is sold as a standalone product) LED interface 3 LEDs (pulse/kW, pulse/kVar, diagnostic) Data logging specifications Data Sampling rate High Frequency data sampling (less than 1 minute average) Local data storage Log data for 30 days based on 15-minute intervals Upgradeability Remotely via Aurora Vision® Plant Management Platform / Locally via WUI Meter data logging as standalone None Advanced functionalities Remote O&M operations Inverter parameters setting / Inverter firmware upgrade Smart Grid functionalities Grid Control power-management enabled Electrical specifications DC Power consumption ~ 2W; max 5W during modem activity Environmental parameters Ambient temperature range [-40; +85] °C; it can be reduced depending on the modem Environmental protection IP 20 (IP65 in the inverter switch box) Relative humidity < 85% Non-condensing Mechanical parameters (per unit) Dimensions (H x W x D) 86 mm x 128.14 mm x 40 mm Weight ~ 40g Advanced functionalities Remote O&M operations Inverter’s parameters setting / Inverter’s firmware upgrade Smart Grid functionalities Grid Control power-management enabled Compliance Marking FCC/Wi-Fi CertifiedTM Emissions FCC CFR47, Part15, Subpart C. This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. CISPR 22; EN 55022 Conducted and radiated emission

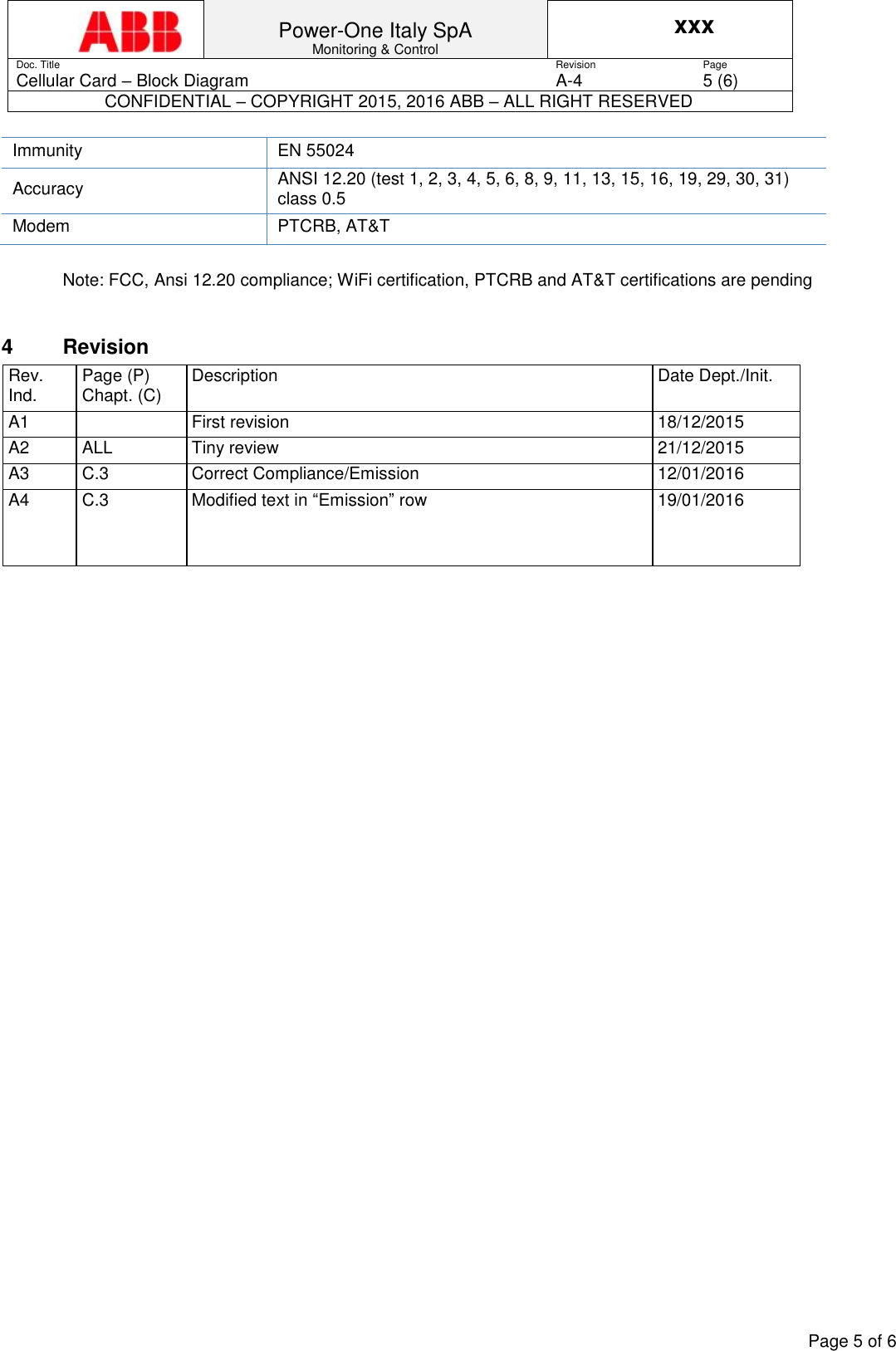

Power-One Italy SpA Monitoring & Control xxx Doc. Title Revision Page Cellular Card – Block Diagram A-4 5 (6) CONFIDENTIAL – COPYRIGHT 2015, 2016 ABB – ALL RIGHT RESERVED Page 5 of 6 Immunity EN 55024 Accuracy ANSI 12.20 (test 1, 2, 3, 4, 5, 6, 8, 9, 11, 13, 15, 16, 19, 29, 30, 31) class 0.5 Modem PTCRB, AT&T Note: FCC, Ansi 12.20 compliance; WiFi certification, PTCRB and AT&T certifications are pending 4 Revision Rev. Ind. Page (P) Chapt. (C) Description Date Dept./Init. A1 First revision 18/12/2015 A2 ALL Tiny review 21/12/2015 A3 C.3 Correct Compliance/Emission 12/01/2016 A4 C.3 Modified text in “Emission” row 19/01/2016

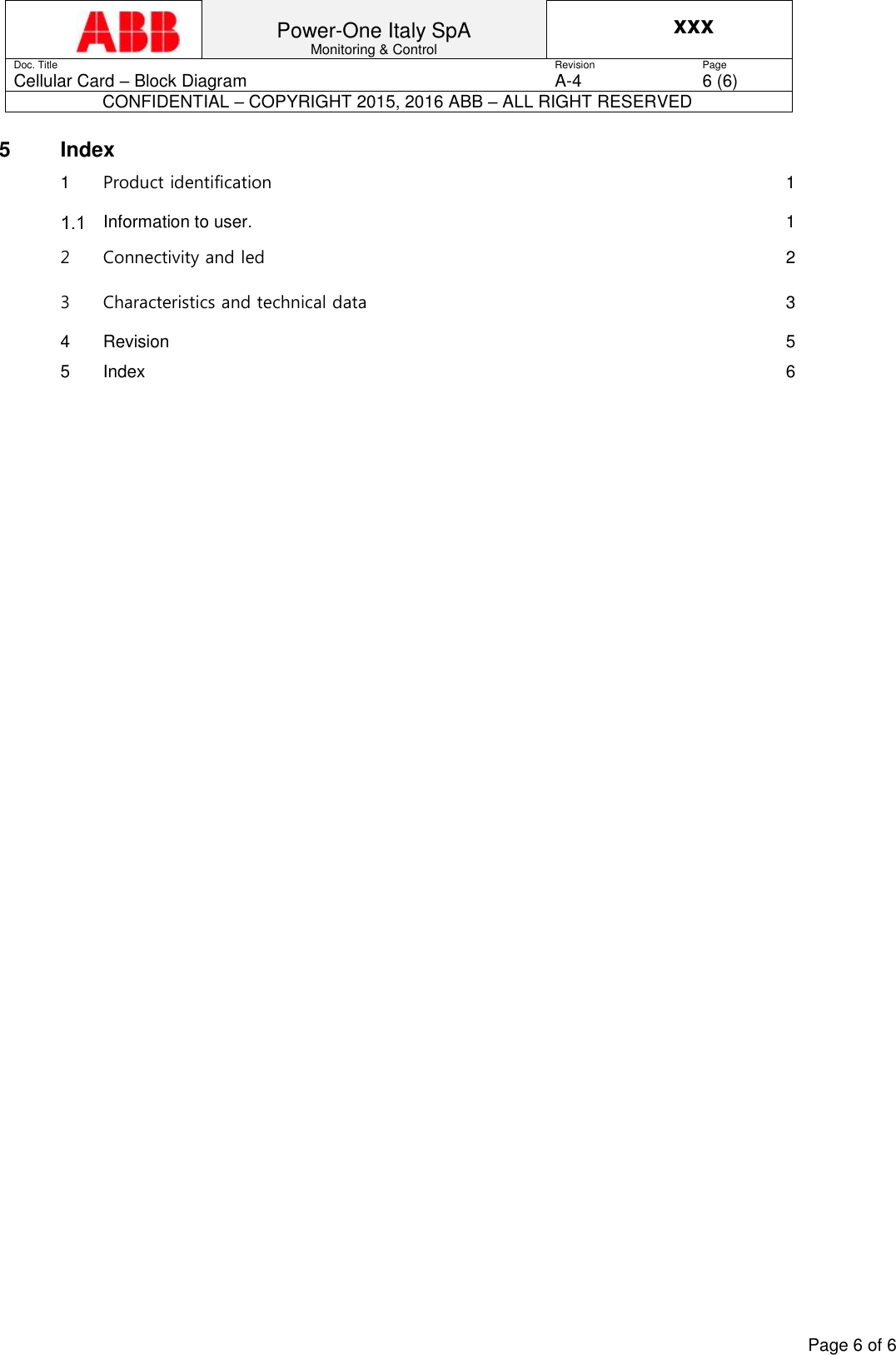

Power-One Italy SpA Monitoring & Control xxx Doc. Title Revision Page Cellular Card – Block Diagram A-4 6 (6) CONFIDENTIAL – COPYRIGHT 2015, 2016 ABB – ALL RIGHT RESERVED Page 6 of 6 5 Index 1 Product identification 1 Information to user. 1 2 Connectivity and led 2 3 Characteristics and technical data 3 4 Revision 5 5 Index 6
