POWER ONE ITALY 3N89E Cellular Module for Data Monitoring User Manual Item Cleanup Project 2007
POWER-ONE ITALY SPA Cellular Module for Data Monitoring Item Cleanup Project 2007
User Manual
Power-One Italy Spa
Monitoring & Control
xxx
Issued by department
Date
Lang.
Revision
Page
PC.PG.Solar VNO
19-Jan-16
en
A-4
1 (6)
Doc. kind
Cellular Card – Quick Installation Guide
Status of document
Draft
Project name
Cellular Card
Phase of project
Creator name
Davide Tazzari
Distribution
Contributor
names
Approver
STRICTLY CONFIDENTIAL – COPYRIGHT 2015, 2016 ABB – ALL RIGHT RESERVED
CONFIDENTIAL – COPYRIGHT 2015, 2016 ABB – ALL RIGHT RESERVED
Quick Installation Guide

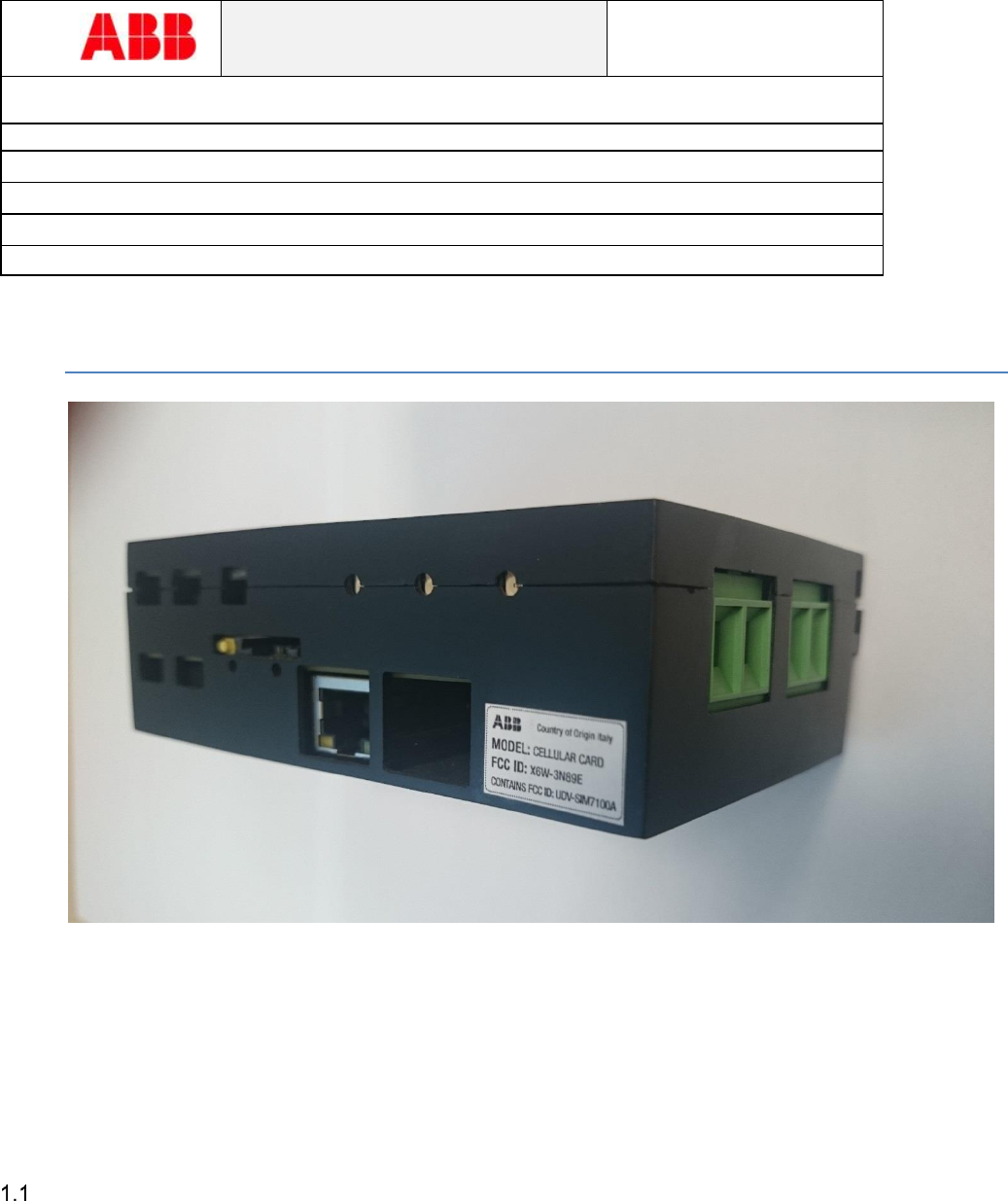

1 Product identification
The enclosure of the CELLULAR CARD will be marked with the following information, identifying the product:
Manufacturer Mark/Trade Mark
FCC ID
The FCC ID is FCC ID: X6W-3N89E
Information to user.
CAUTION!
Any changes or modification not expressly approved by the party responsible for compliance could void the
user’s authority to operate the equipment.
Power-One Italy SpA
Monitoring & Control
xxx
Doc. Title
Revision
Page
Cellular Card – Block Diagram
A-4
2 (6)
CONFIDENTIAL – COPYRIGHT 2015, 2016 ABB – ALL RIGHT RESERVED
Page 2 of 6

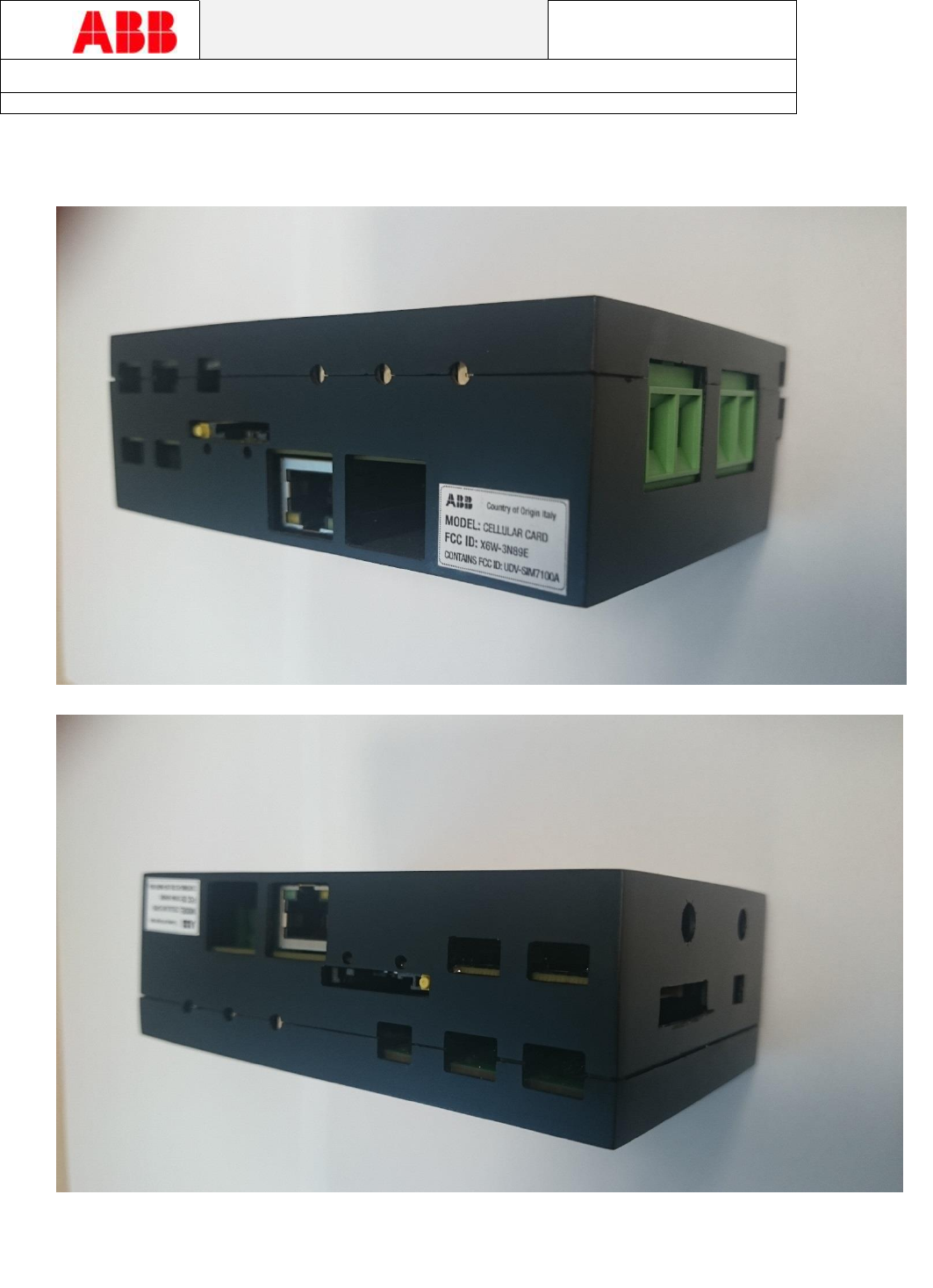

2 Connectivity and led
WIFI ANTENNA
CELL ANTENNA
12V AUX SUPPLY
INVERTER COM.
ISOLATED 485
SIM CARD HOLDER
12V AUX SUPPLY
GRID
ETHERNET
Reactive Power LED
Real Power LED
Status LED
Power-One Italy SpA
Monitoring & Control
xxx
Doc. Title
Revision
Page
Cellular Card – Block Diagram
A-4
3 (6)
CONFIDENTIAL – COPYRIGHT 2015, 2016 ABB – ALL RIGHT RESERVED
Page 3 of 6

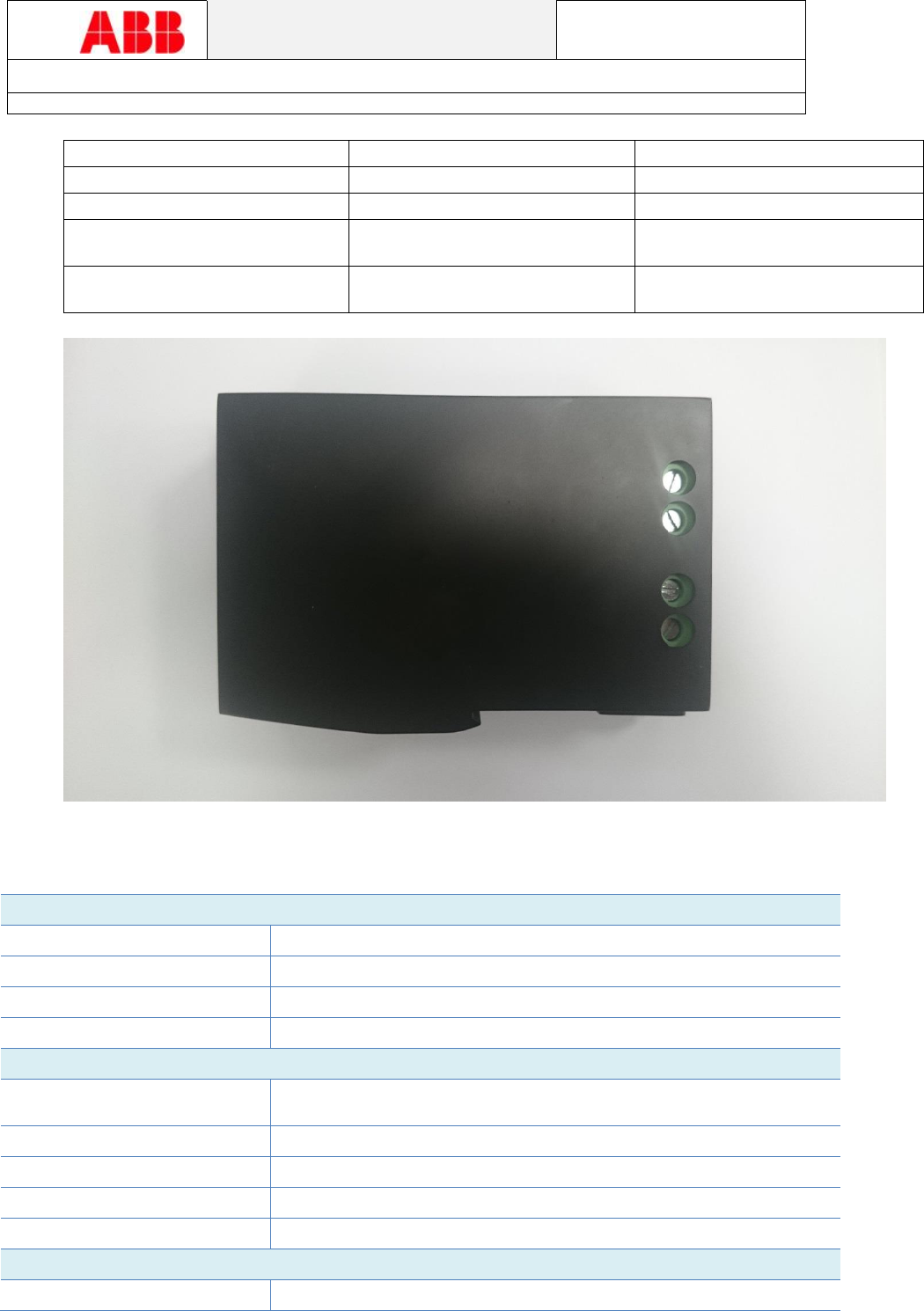

LED
LED Behavior
Description
Status LED
Blink 1 kHz
Meter normal functioning
Status LED
Blink 2 kHz
Meter initialization
Real Power LED
Blink
Real Power production: blink
proportionally to production
Reactive Power LED
Blink
Reactive Power production: blink
proportionally to production
3 Characteristics and technical data
Type Code
Cellular Card
Q1-Module characteristics
CPU
TI Sitara®, ARM Cortex A8, 1GHz
RAM
512 MB, DDR3
Non Volatile Memory
Flash, 4 Gb
Wi-Fi Module
Integrated
HW Communications Interfaces
Inverter Interface
Hyperlink (CAN@1 Mbps + RS485@115 kBaud), Legacy bus
(through USB)
RS485
Isolated 485 daisy chain
Cellular
miniPCIe based cellular unit. Ready for 3G and LTE
Wi-Fi
Wi-Fi CertifiedTM IEEE 802.11 b/g/n (2.4 GHz)
Ethernet Connection
2 RJ-45 Ethernet 10/100 base-T (LAN/WAN)
SW Communications Interfaces
Web User Interface (WUI)
Integrated
DIN RAIL MOUNTING
GRID CONNECTION SCREWS
Power-One Italy SpA
Monitoring & Control
xxx
Doc. Title
Revision
Page
Cellular Card – Block Diagram
A-4
4 (6)
CONFIDENTIAL – COPYRIGHT 2015, 2016 ABB – ALL RIGHT RESERVED
Page 4 of 6
Local monitoring
Wirelessly allowed via any Wi-Fi® or Eth. device connecting the
integrated WUI
Remote monitoring
Plant Portfolio Manager® / Plant ViewerTM
Communications Protocol
LAN/WAN Protocols
HTTPS, DHCP, NTP, SSL, SSH, XML, Modbus TCP (SunSpec)
Meter specification
Enclosure
Meter integrated in the same box of the cellular.
It can be sold as a standalone product
External interface
Isolated 485 (present only when meter is sold as a standalone
product)
LED interface
3 LEDs (pulse/kW, pulse/kVar, diagnostic)
Data logging specifications
Data Sampling rate
High Frequency data sampling (less than 1 minute average)
Local data storage
Log data for 30 days based on 15-minute intervals
Upgradeability
Remotely via Aurora Vision® Plant Management Platform / Locally
via WUI
Meter data logging as
standalone
None
Advanced functionalities
Remote O&M operations
Inverter parameters setting / Inverter firmware upgrade
Smart Grid functionalities
Grid Control power-management enabled
Electrical specifications
DC Power consumption
~ 2W; max 5W during modem activity
Environmental parameters
Ambient temperature range
[-40; +85] °C; it can be reduced depending on the modem
Environmental protection
IP 20 (IP65 in the inverter switch box)
Relative humidity
< 85% Non-condensing
Mechanical parameters (per unit)
Dimensions (H x W x D)
86 mm x 128.14 mm x 40 mm
Weight
~ 40g
Advanced functionalities
Remote O&M operations
Inverter’s parameters setting / Inverter’s firmware upgrade
Smart Grid functionalities
Grid Control power-management enabled
Compliance
Marking
FCC/Wi-Fi CertifiedTM
Emissions
FCC CFR47, Part15, Subpart C.
This device complies with part 15 of the FCC Rules.
Operation is subject to the following two conditions: (1) this device
may not cause harmful interference, and (2) this device must accept
any interference received, including interference that may cause
undesired operation.
CISPR 22; EN 55022 Conducted and radiated emission
Power-One Italy SpA
Monitoring & Control
xxx
Doc. Title
Revision
Page
Cellular Card – Block Diagram
A-4
5 (6)
CONFIDENTIAL – COPYRIGHT 2015, 2016 ABB – ALL RIGHT RESERVED
Page 5 of 6
Immunity
EN 55024
Accuracy
ANSI 12.20 (test 1, 2, 3, 4, 5, 6, 8, 9, 11, 13, 15, 16, 19, 29, 30, 31)
class 0.5
Modem
PTCRB, AT&T
Note: FCC, Ansi 12.20 compliance; WiFi certification, PTCRB and AT&T certifications are pending
4 Revision
Rev.
Ind.
Page (P)
Chapt. (C)
Description
Date Dept./Init.
A1
First revision
18/12/2015
A2
ALL
Tiny review
21/12/2015
A3
C.3
Correct Compliance/Emission
12/01/2016
A4
C.3
Modified text in “Emission” row
19/01/2016
Power-One Italy SpA
Monitoring & Control
xxx
Doc. Title
Revision
Page
Cellular Card – Block Diagram
A-4
6 (6)
CONFIDENTIAL – COPYRIGHT 2015, 2016 ABB – ALL RIGHT RESERVED
Page 6 of 6
