POWER ONE ITALY VSN300S WiFi radio module User Manual

POWER-ONE ITALY SPA WiFi radio module Users Manual

Users Manual

       Release 0.5 – April 2018 © Copyright 2018 ABB. Tutti i diritti riservati.      © Copyright 2018 ABB. All rights reserved. Specifiche soggette a modifica senza preavviso.          Specifications are subject to change without notice. Le immagini di prodotto sono solo a scopo dimostrativo.         The product images are for demonstration purposes only.VSN300s – General Connectivity Module    VSN 300s – General Connectivity Module is a factory optionally assembled communication board proper to be used for instance on PVS inverter series but not limited to this product family.  This communication board provides the fol-lowing features: - Wireless bidirectional communication 802.11 b/g/n compliant; - Dual mode, access point + station; - Data logging capabilities; - 4GByte Flash disk storage; - Integrated web server  - Dual LAN ports for Ethernet connectivity - USB ports for expanded connectivity - ADC/PWM/LCD support  It is a pluggable board directly connected to PVS logic board through a dedicated con-nector. Its installation on inverter is typically done by the factory, but when installed as a spare part in a repairing process, the installation has to be executed by trained personnel only. The board is powered by the inverter. Proper connector for antenna is available on board.  The board uses a Murata LBEP5CLXRC-701, an 802.11b/g/n WLAN module built around the Texas Instruments WL1801 chipset.   .                  This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including in-terference that may cause undesired opera-tion.  The manufacturer is not responsible for any radio or TV interference caused by unauthor-ized modifications to this equipment. Such modifications could void the user’s authority to operate the equipment.  This equipment has been tested and found to comply with the limits for a Class B digital de-vice, pursuant to part 15 of the FCC Rules. These limits are designed to provide reason-able protection against harmful interference in a residential installation. This equipment gen-erates, uses and can radiate radio frequency energy and, if not installed and used in ac-cordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interfer-ence will not occur in a particular installation. If this equipment does cause harmful interfer-ence to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:   (continue on the next page)         MODEL: VSN300s  FCC ID: X6W-VSN300S

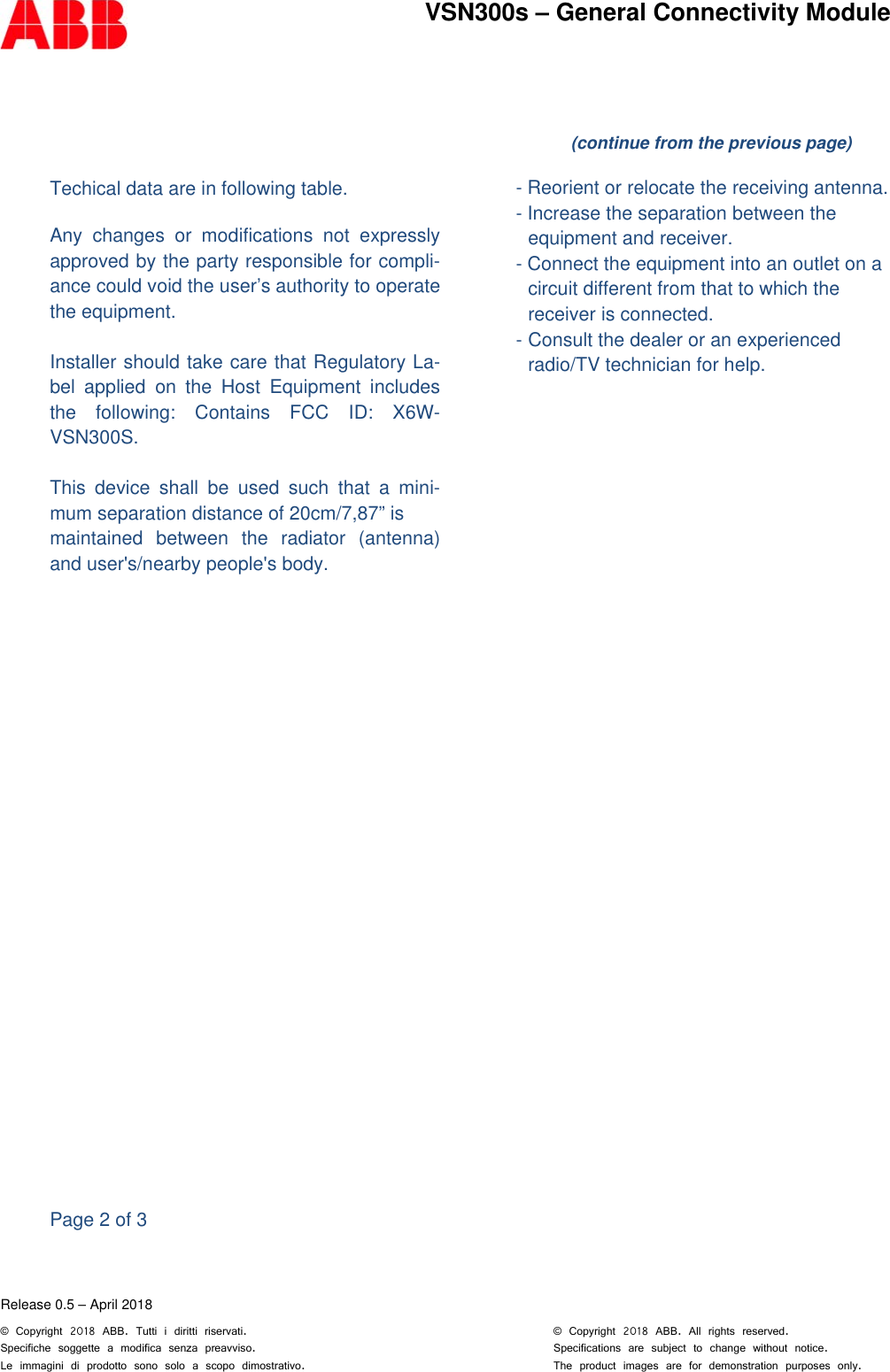

       Release 0.5 – April 2018 © Copyright 2018 ABB. Tutti i diritti riservati.      © Copyright 2018 ABB. All rights reserved. Specifiche soggette a modifica senza preavviso.          Specifications are subject to change without notice. Le immagini di prodotto sono solo a scopo dimostrativo.         The product images are for demonstration purposes only.VSN300s – General Connectivity Module   Techical data are in following table.  Any changes or modifications not expressly   approved by the party responsible for compli-ance could void the user’s authority to operate the equipment.  Installer should take care that Regulatory La-bel applied on the Host Equipment includes the following: Contains FCC ID: X6W-VSN300S.  This device shall be used such that a mini-mum separation distance of 20cm/7,87” is  maintained between the radiator (antenna) and user's/nearby people's body.                          Page 2 of 3   (continue from the previous page)    - Reorient or relocate the receiving antenna.  - Increase the separation between the  equipment and receiver.  - Connect the equipment into an outlet on a  circuit different from that to which the  receiver is connected.  - Consult the dealer or an experienced  radio/TV technician for help.

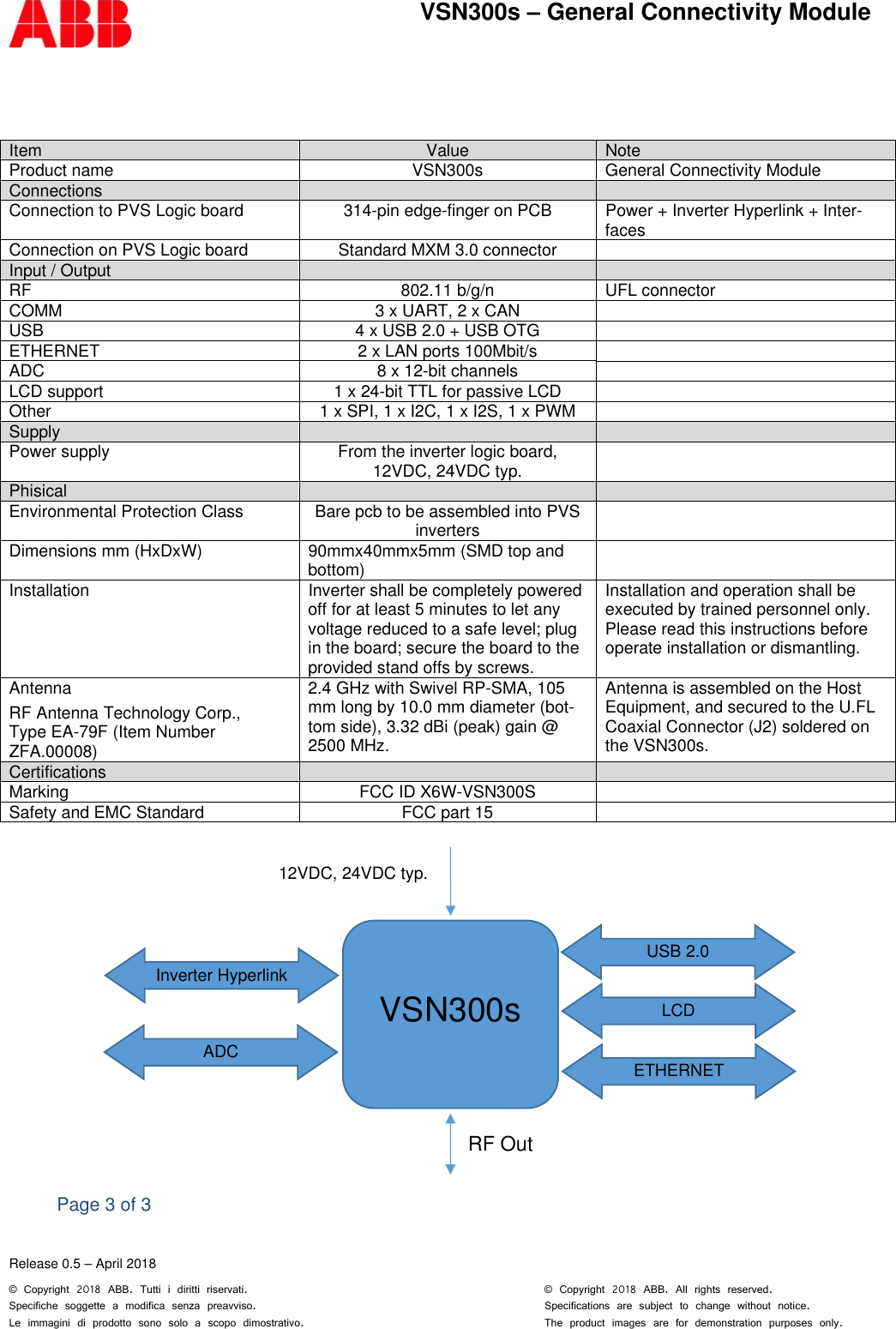

       Release 0.5 – April 2018 © Copyright 2018 ABB. Tutti i diritti riservati.      © Copyright 2018 ABB. All rights reserved. Specifiche soggette a modifica senza preavviso.          Specifications are subject to change without notice. Le immagini di prodotto sono solo a scopo dimostrativo.         The product images are for demonstration purposes only.VSN300s – General Connectivity Module                Page 3 of 3 Item  Value  Note Product name  VSN300s  General Connectivity Module Connections     Connection to PVS Logic board  314-pin edge-finger on PCB  Power + Inverter Hyperlink + Inter-faces Connection on PVS Logic board  Standard MXM 3.0 connector   Input / Output     RF  802.11 b/g/n  UFL connector COMM  3 x UART, 2 x CAN   USB  4 x USB 2.0 + USB OTG   ETHERNET  2 x LAN ports 100Mbit/s   ADC  8 x 12-bit channels   LCD support  1 x 24-bit TTL for passive LCD   Other  1 x SPI, 1 x I2C, 1 x I2S, 1 x PWM   Supply     Power supply  From the inverter logic board, 12VDC, 24VDC typ.   Phisical     Environmental Protection Class  Bare pcb to be assembled into PVS inverters   Dimensions mm (HxDxW)  90mmx40mmx5mm (SMD top and bottom)   Installation  Inverter shall be completely powered off for at least 5 minutes to let any voltage reduced to a safe level; plug in the board; secure the board to the provided stand offs by screws.  Installation and operation shall be executed by trained personnel only. Please read this instructions before operate installation or dismantling.  Antenna  RF Antenna Technology Corp.,  Type EA-79F (Item Number ZFA.00008) 2.4 GHz with Swivel RP-SMA, 105 mm long by 10.0 mm diameter (bot-tom side), 3.32 dBi (peak) gain @ 2500 MHz. Antenna is assembled on the Host Equipment, and secured to the U.FL Coaxial Connector (J2) soldered on the VSN300s. Certifications     Marking   FCC ID X6W-VSN300S   Safety and EMC Standard  FCC part 15     VSN300s   12VDC, 24VDC typ. PWM4  ENABLE VOUTInverter Hyperlink RF Out USB 2.0 ADC  ETHERNET LCD
