RCP 915 RF Installation Instructions
General
RCP 915 RF Installation Instructions.docx Template V1.0, HAH
13.03.2014
Seite 1 von 17
Installation instructions
RCP 915 RF
RCP 915 RF Installation Instructions.docx
Distribution list:
Name Function Date Signature
Hermann Haslauer Creator 12.03.2014
Bernhard Wieder Project leader 12.03.2014
Validation
Quality management
RCP 915 RF Installation Instructions
General
RCP 915 RF Installation Instructions.docx Template V1.0, HAH
13.03.2014
Seite 2 von 17
Contents
1GENERAL ...................................................................................................................... 3
1.1Modification history ......................................................................................................... 3
1.2Standards und policies .................................................................................................... 3
1.3Referenced documents ................................................................................................... 3
1.4Acronyms und abbreviations ........................................................................................... 3
1.5Terms ............................................................................................................................. 3
2INTRODUCTION ............................................................................................................ 4
3RCP 915 RF TRANSCEIVER MODULE ........................................................................ 5
4HOST SYSTEMS ............................................................................................................ 6
4.1RCP 915 mobile unit ...................................................................................................... 6
4.2RCP 915 mobile unit antenna ........................................................................................ 6
4.3RCP 915 base station .................................................................................................... 7
4.4RCP 915 base station antenna ...................................................................................... 7
5HOST SYSTEM BOARDS .............................................................................................. 8
5.1Host board mobile unit linear lever-big ............................................................................ 8
5.2Host board mobile unit joystick-big .................................................................................. 9
5.3Host board mobile unit linear lever-small ...................................................................... 10
5.4Host board mobile unit joystick-small ............................................................................ 11
5.5Host board base station ................................................................................................ 12
6MODULE INSTALLATION ........................................................................................... 13
6.1Module on mobile units ................................................................................................. 13
6.2Antenna connection on mobile units ............................................................................. 14
6.3Module on base station ................................................................................................. 15
6.4Antenna connection on base station ............................................................................. 16
7LEGAL ISSUES FOR FCC (US) AND IC (CANADA) ................................................... 17
RCP 915 RF Installation Instructions
General
RCP 915 RF Installation Instructions.docx Template V1.0, HAH
13.03.2014
Seite 3 von 17
1 General
1.1 Modification history
Version Release date Creator changed sections
1.0 12.03.2014 Hermann Haslauer creation
1.2 Standards und policies
Reference Title Version
1.3 Referenced documents
Reference Title Version
1.4 Acronyms und abbreviations
Meaning
1.5 Terms
Meaning
RCP 915 RF Installation Instructions
Introduction
RCP 915 RF Installation Instructions.docx Template V1.0, HAH
13.03.2014
Seite 4 von 17
2 Introduction
This instruction manual describes the installation of the Palfinger RCP 915 RF radio transceiver module
into a Palfinger radio remote control host system.
Please read this manual carefully and completely before you begin to install the RF Transceiver into the
Host system.
Keep this Installation Manual on a safe place.
Ignoring information in this manual may lead to faulty installation and damages either to the RF Trans-
ceiver module or to the host system.
RCP 915 RF Installation Instructions
RCP 915 RF Transceiver module
RCP 915 RF Installation Instructions.docx Template V1.0, HAH
13.03.2014
Seite 5 von 17

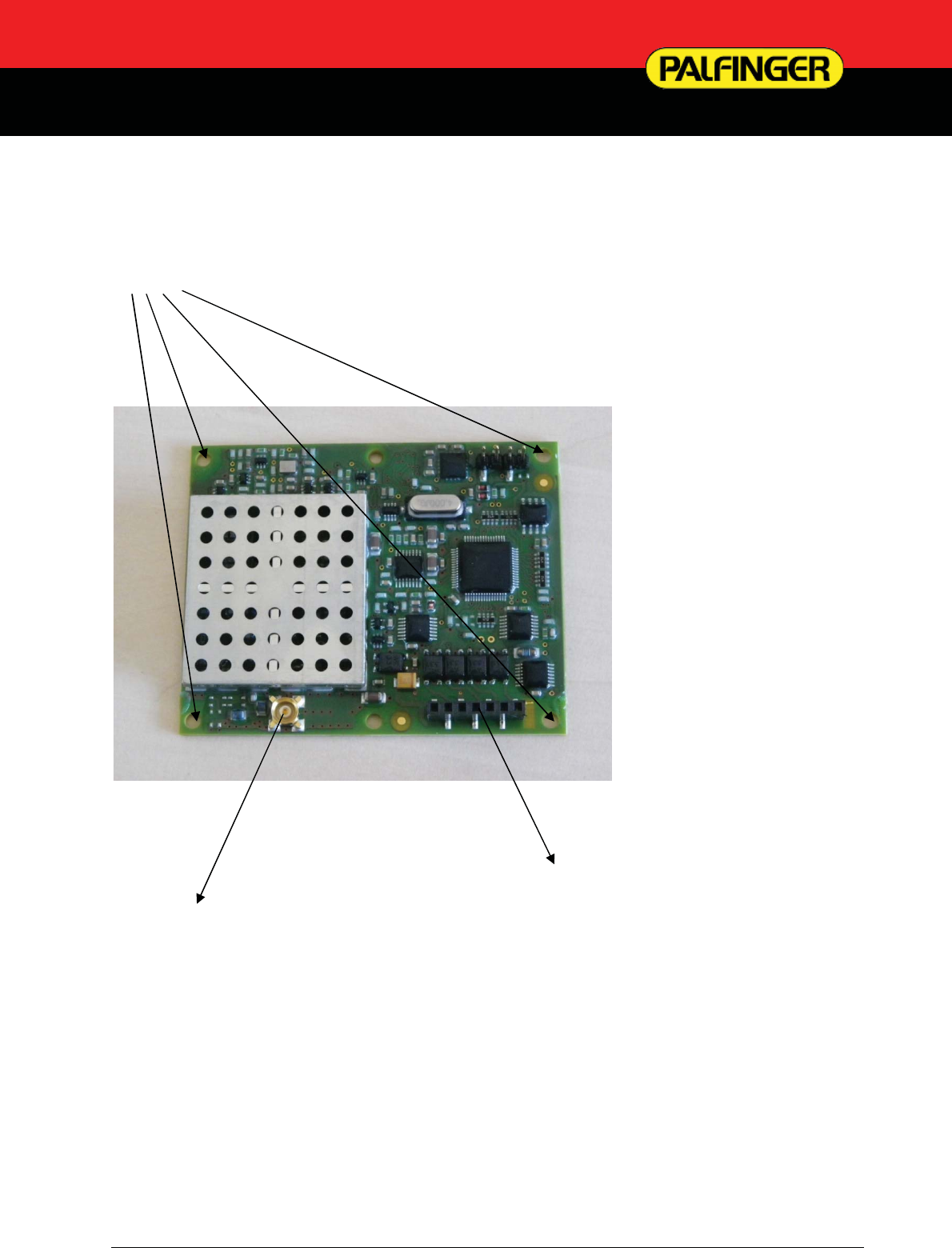

3 RCP 915 RF Transceiver module
Mounting holes
Host connector
Antenna connector
RCP 915 RF Installation Instructions
Host Systems
RCP 915 RF Installation Instructions.docx Template V1.0, HAH
13.03.2014
Seite 6 von 17
4 Host Systems

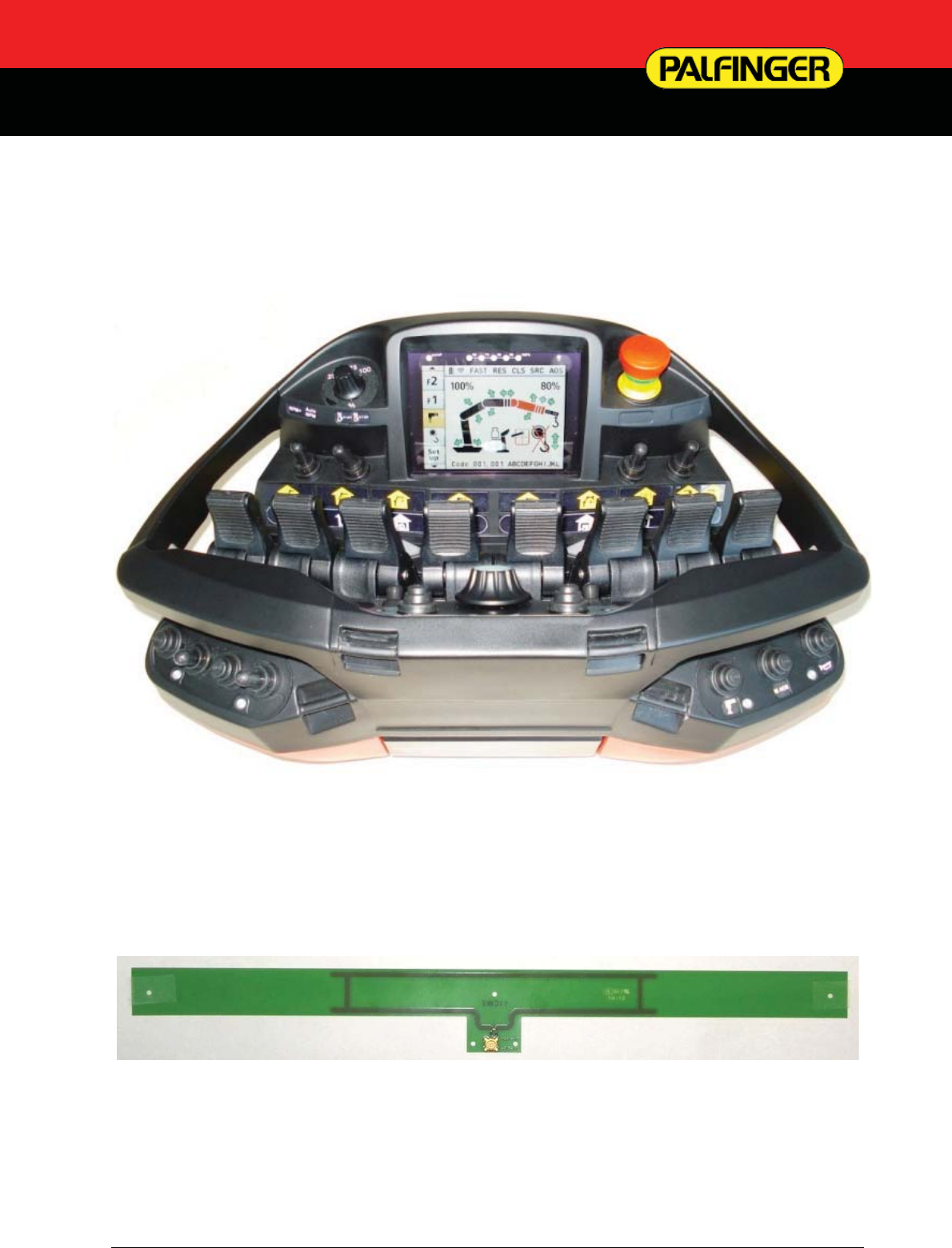

4.1 RCP 915 mobile unit
4.2 RCP 915 mobile unit antenna
RCP 915 RF Installation Instructions
Host Systems
RCP 915 RF Installation Instructions.docx Template V1.0, HAH
13.03.2014
Seite 7 von 17

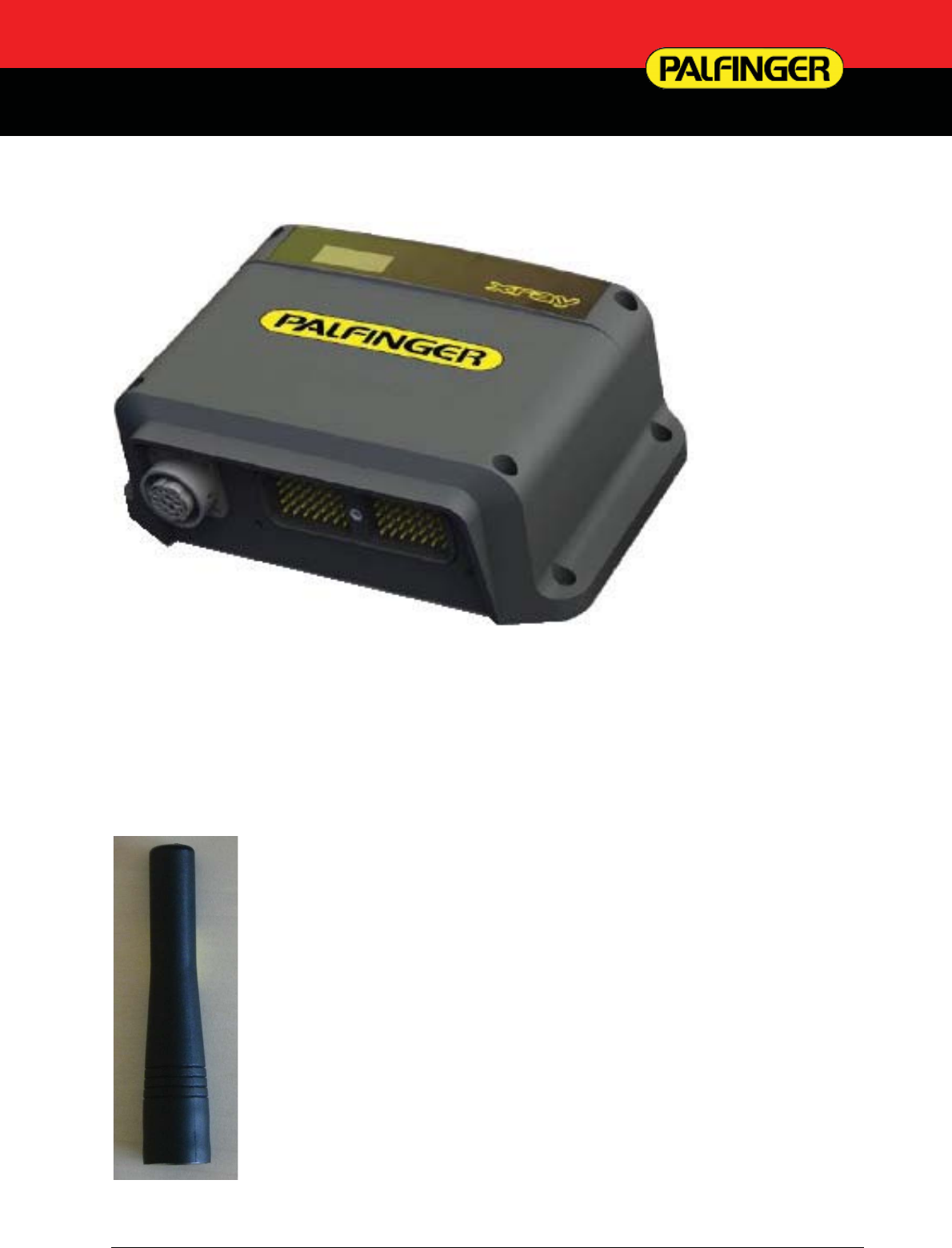

4.3 RCP 915 base station
4.4 RCP 915 base station antenna
RCP 915 RF Installation Instructions
Host system boards
RCP 915 RF Installation Instructions.docx Template V1.0, HAH
13.03.2014
Seite 8 von 17
5 Host system boards

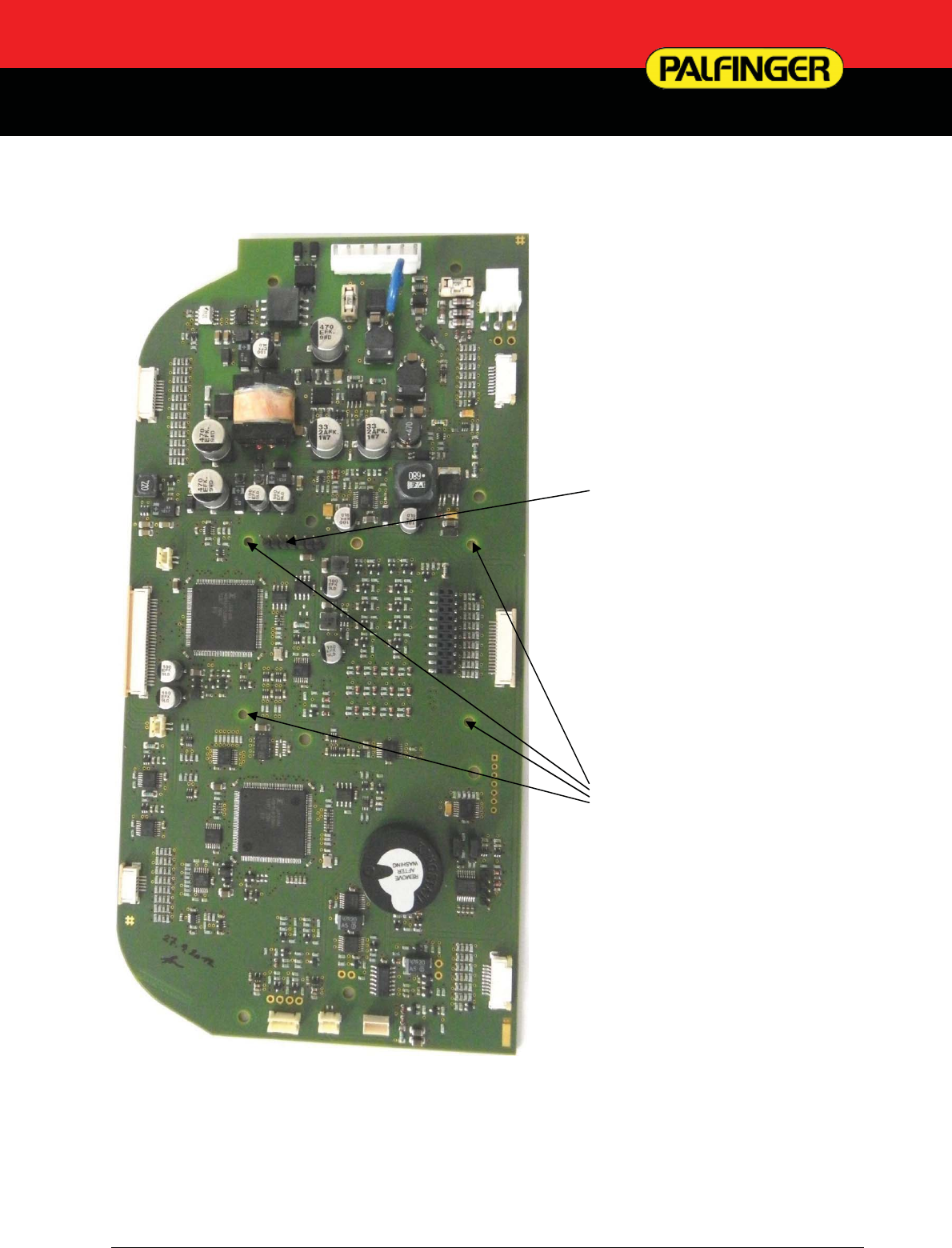

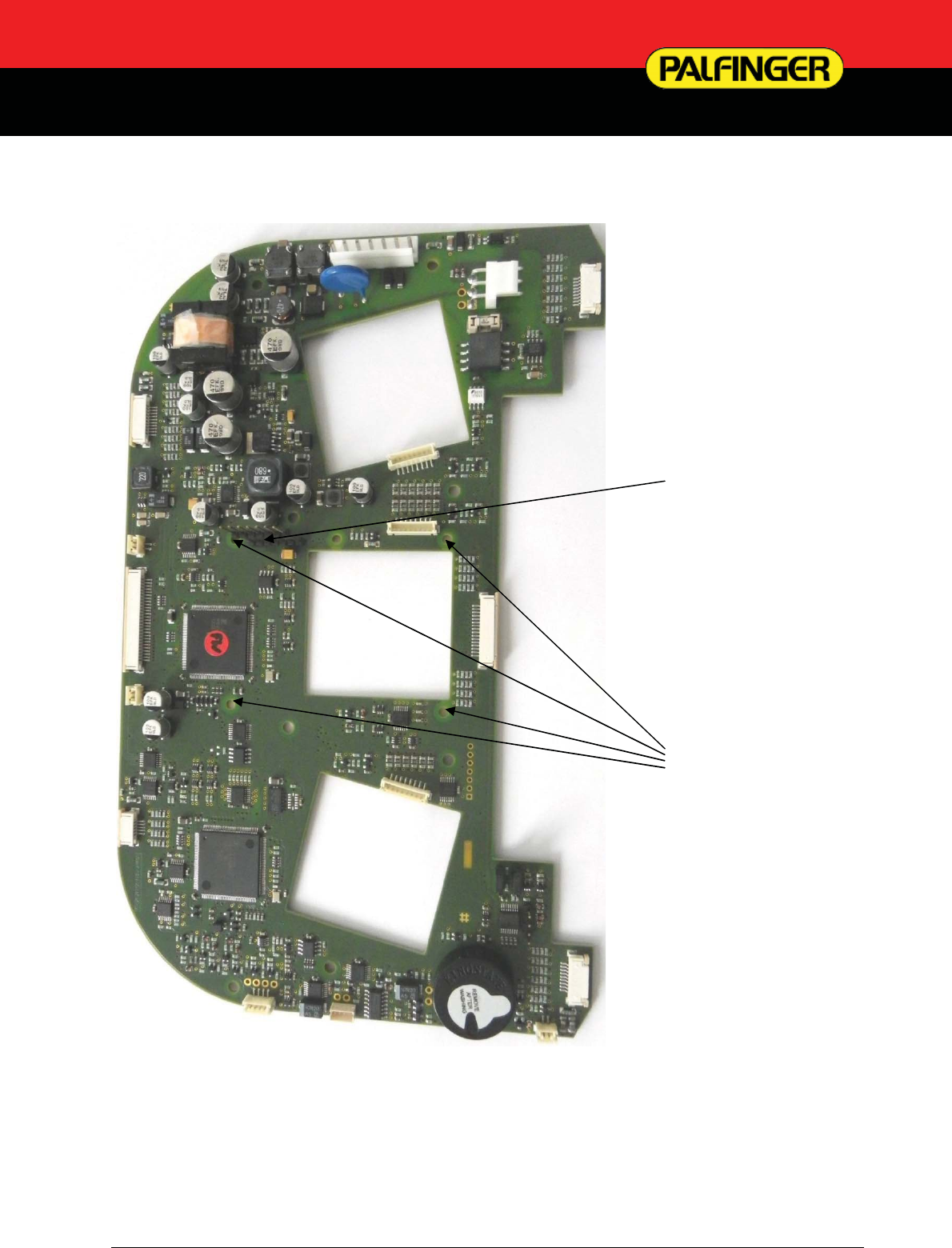

5.1 Host board mobile unit linear lever-big
Host connector
Mounting bolts
RCP 915 RF Installation Instructions
Host system boards
RCP 915 RF Installation Instructions.docx Template V1.0, HAH
13.03.2014
Seite 9 von 17

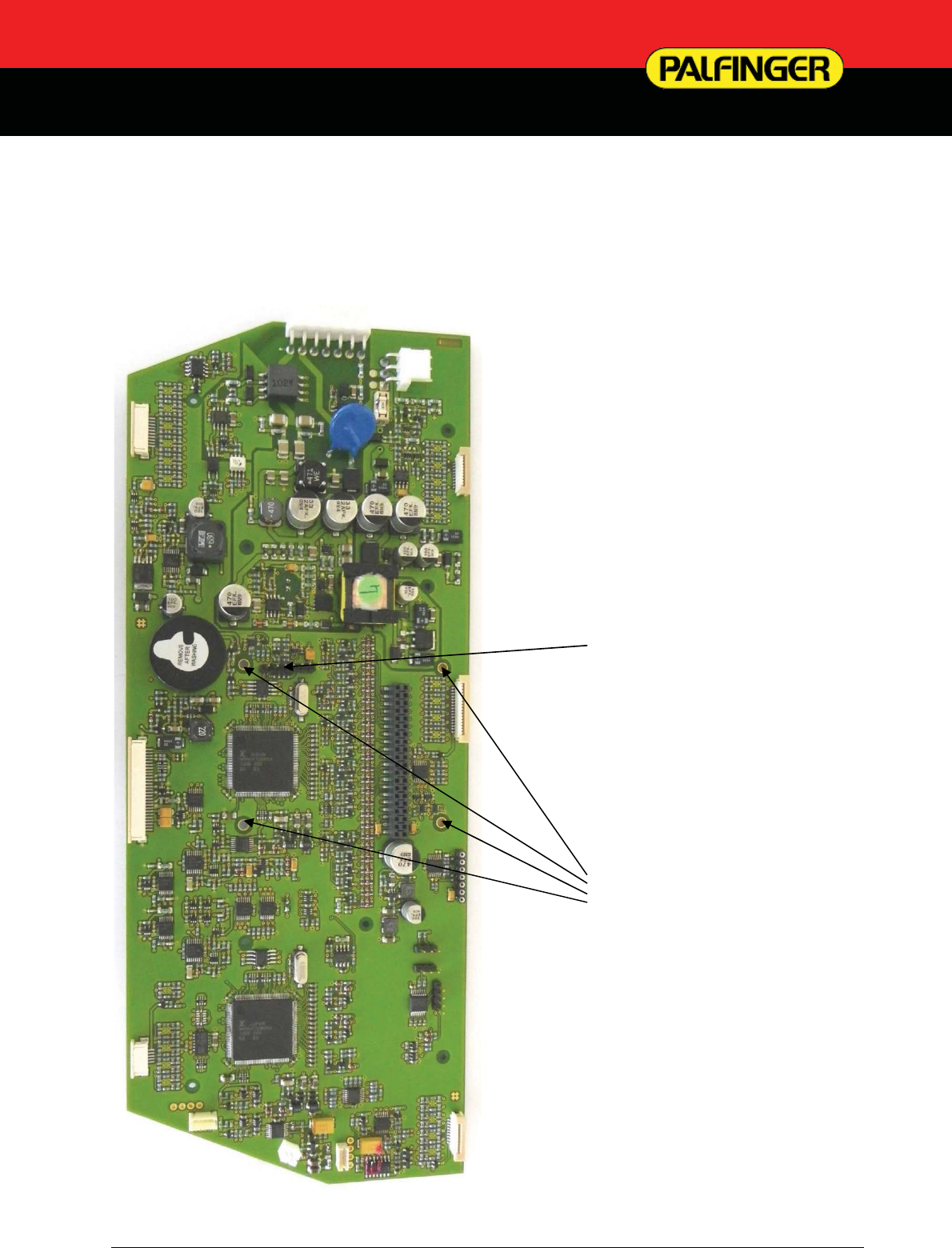

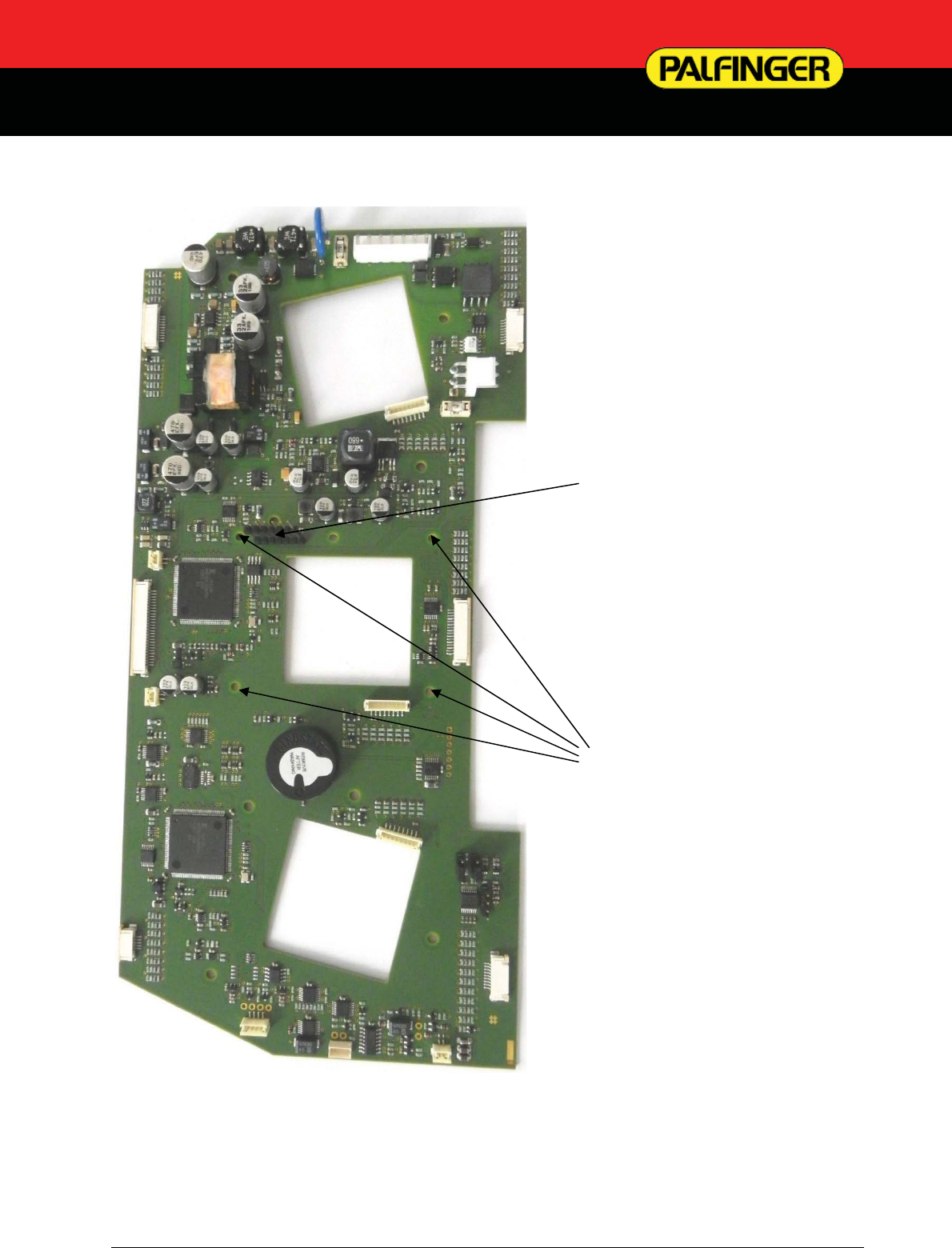

5.2 Host board mobile unit joystick-big
Host connector
Mounting bolts
RCP 915 RF Installation Instructions
Host system boards
RCP 915 RF Installation Instructions.docx Template V1.0, HAH
13.03.2014
Seite 10 von 17
5.3 Host board mobile unit linear lever-small
Host connector
Mounting bolts
RCP 915 RF Installation Instructions
Host system boards
RCP 915 RF Installation Instructions.docx Template V1.0, HAH
13.03.2014
Seite 11 von 17
5.4 Host board mobile unit joystick-small
Host connector
Mounting bolts
RCP 915 RF Installatio
n
Host system boards
RCP 915 RF Installation Instruction
s
13.03.2014

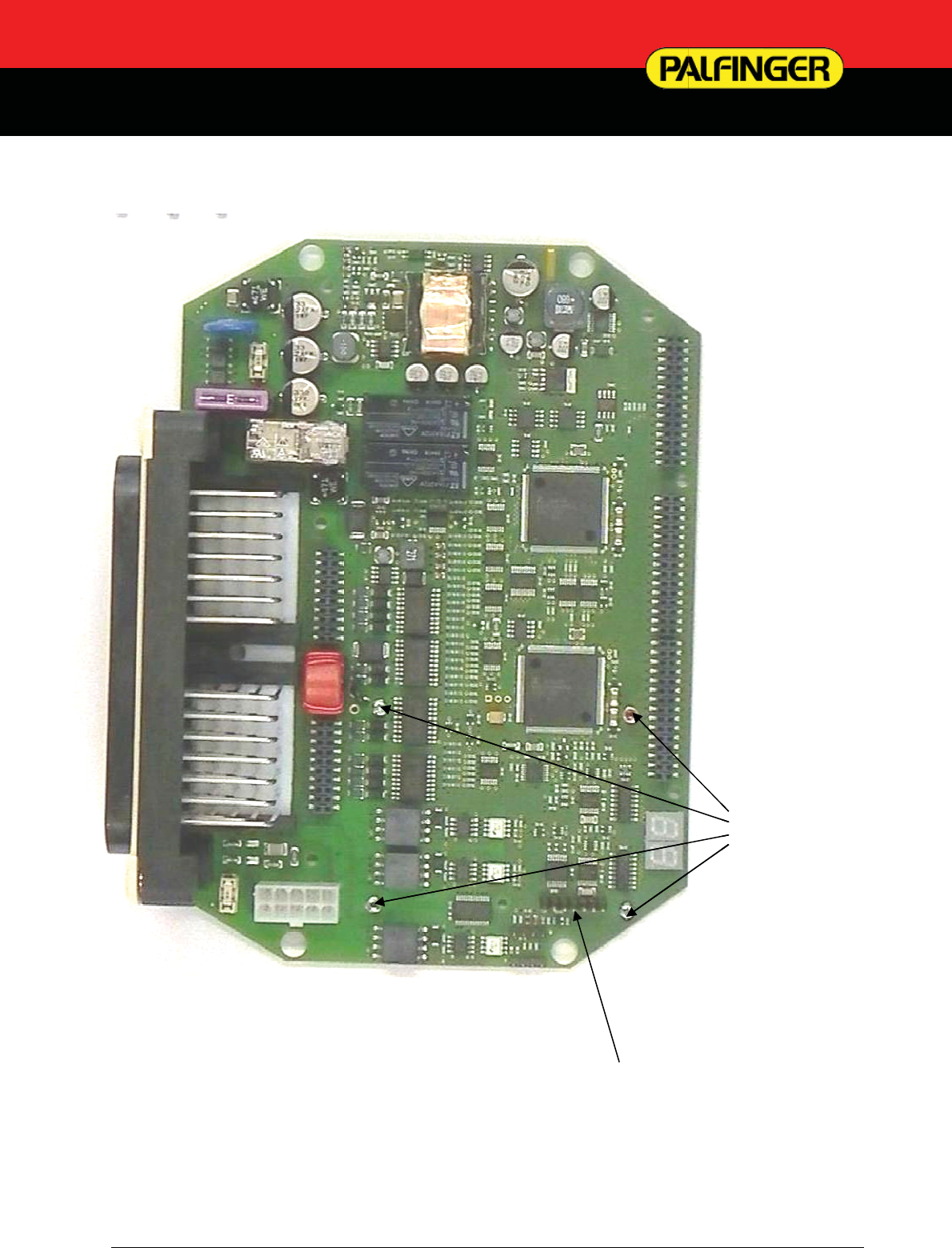

5.5 Host board base st
a
n
Instructions
s
.docx
a
tion
Host c
o
Template V1.0, HAH
Seite 12 von 17
Mounting
bolts
o
nnector
RCP 915 RF Installation Instructions
Module Installation
RCP 915 RF Installation Instructions.docx Template V1.0, HAH
13.03.2014
Seite 13 von 17
6 Module Installation

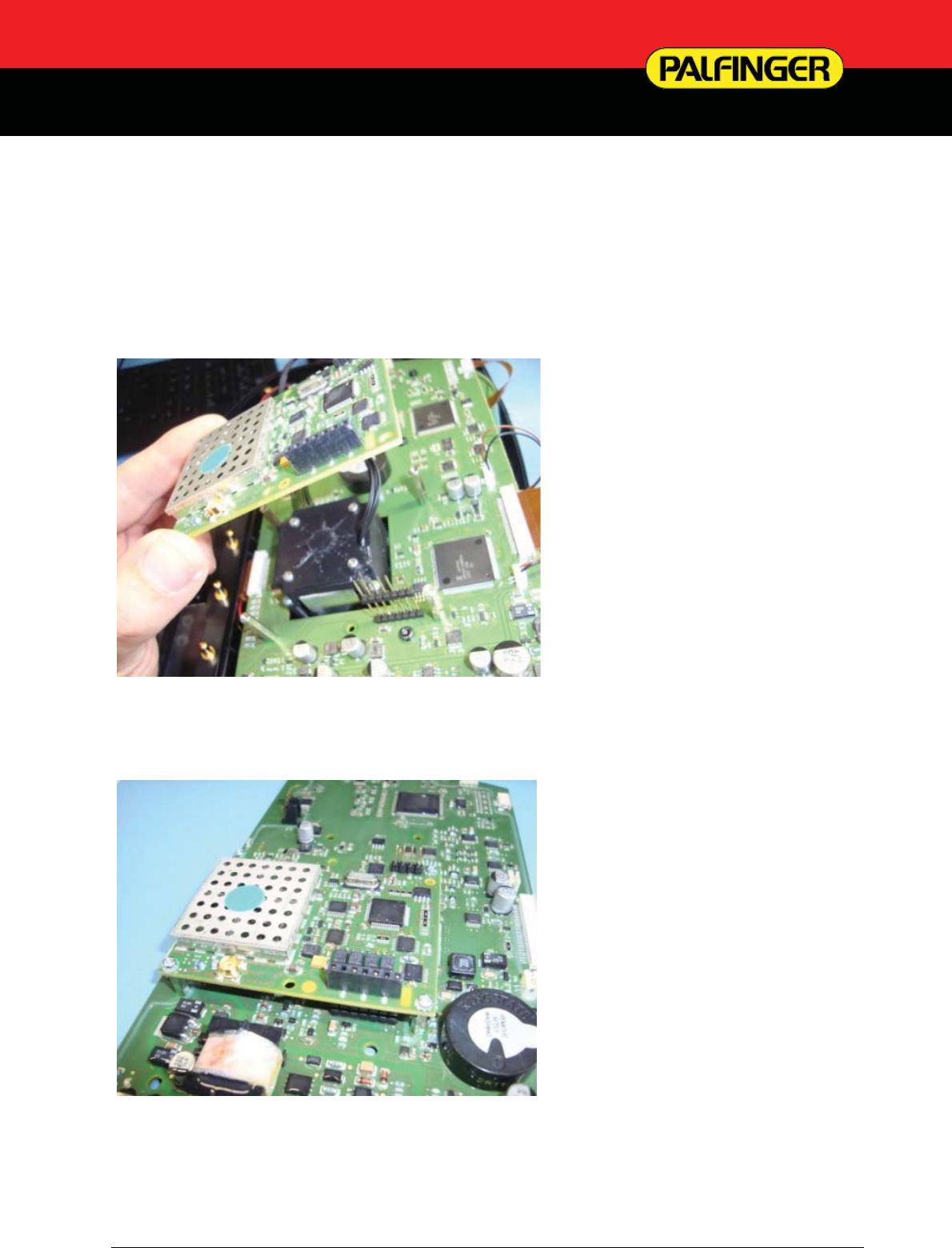

6.1 Module on mobile units
Connect the module female connector to the mobile unit male connector.
Take special care that every pin is connected properly.
Fix the RCP 915 RF module with the screws on the mounting bolts on the mobile unit.
RCP 915 RF Installation Instructions
Module Installation
RCP 915 RF Installation Instructions.docx Template V1.0, HAH
13.03.2014
Seite 14 von 17

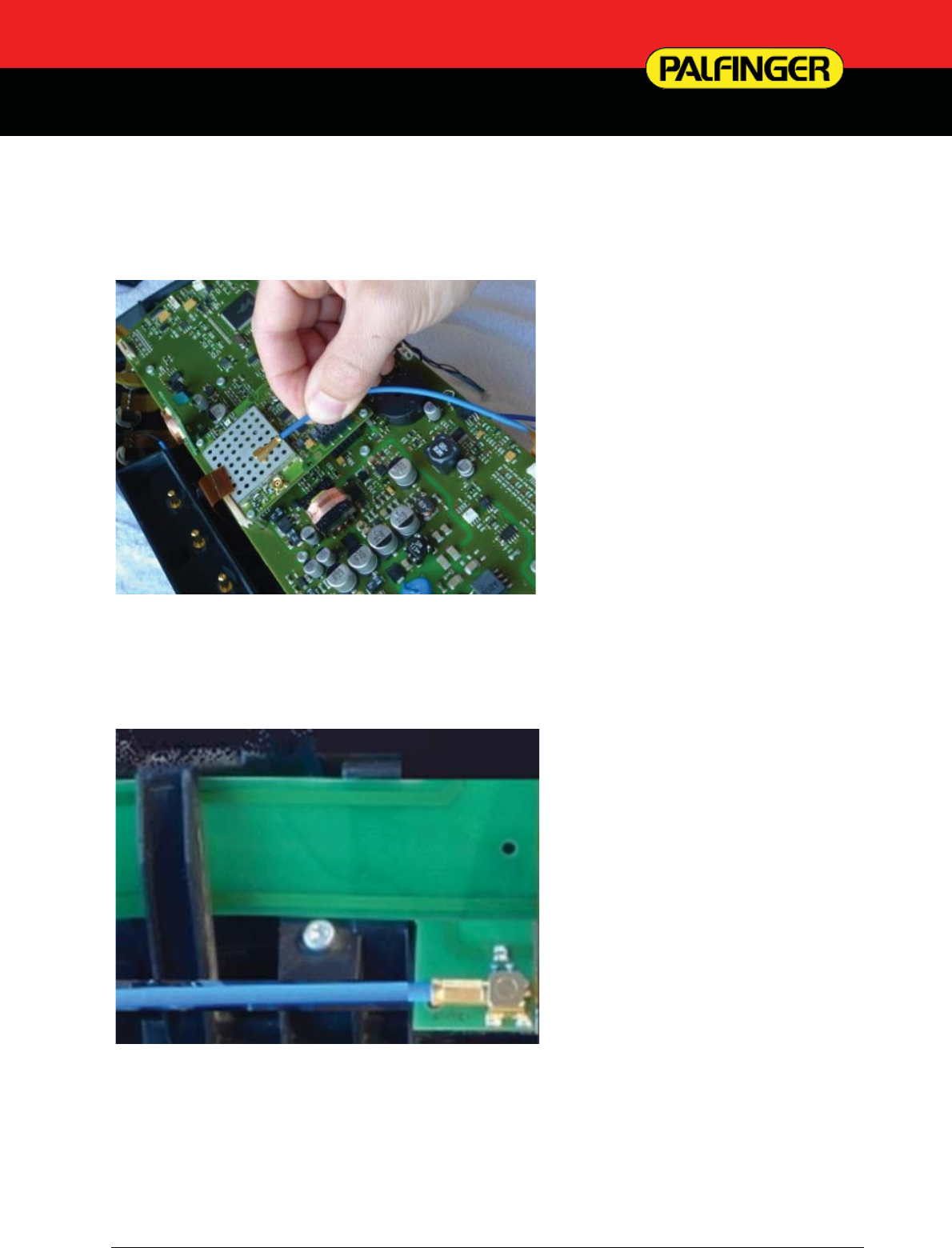

6.2 Antenna connection on mobile units
Connect the antenna cable to the antenna connector on the RCP 915 RF module.
Take special care that the connector is fixed properly.
Connect antenna cable to the antenna connector on the dipole antenna
Take special care that the connector is fixed properly.
RCP 915 RF Installatio
n
Module Installation
RCP 915 RF Installation Instruction
s
13.03.2014

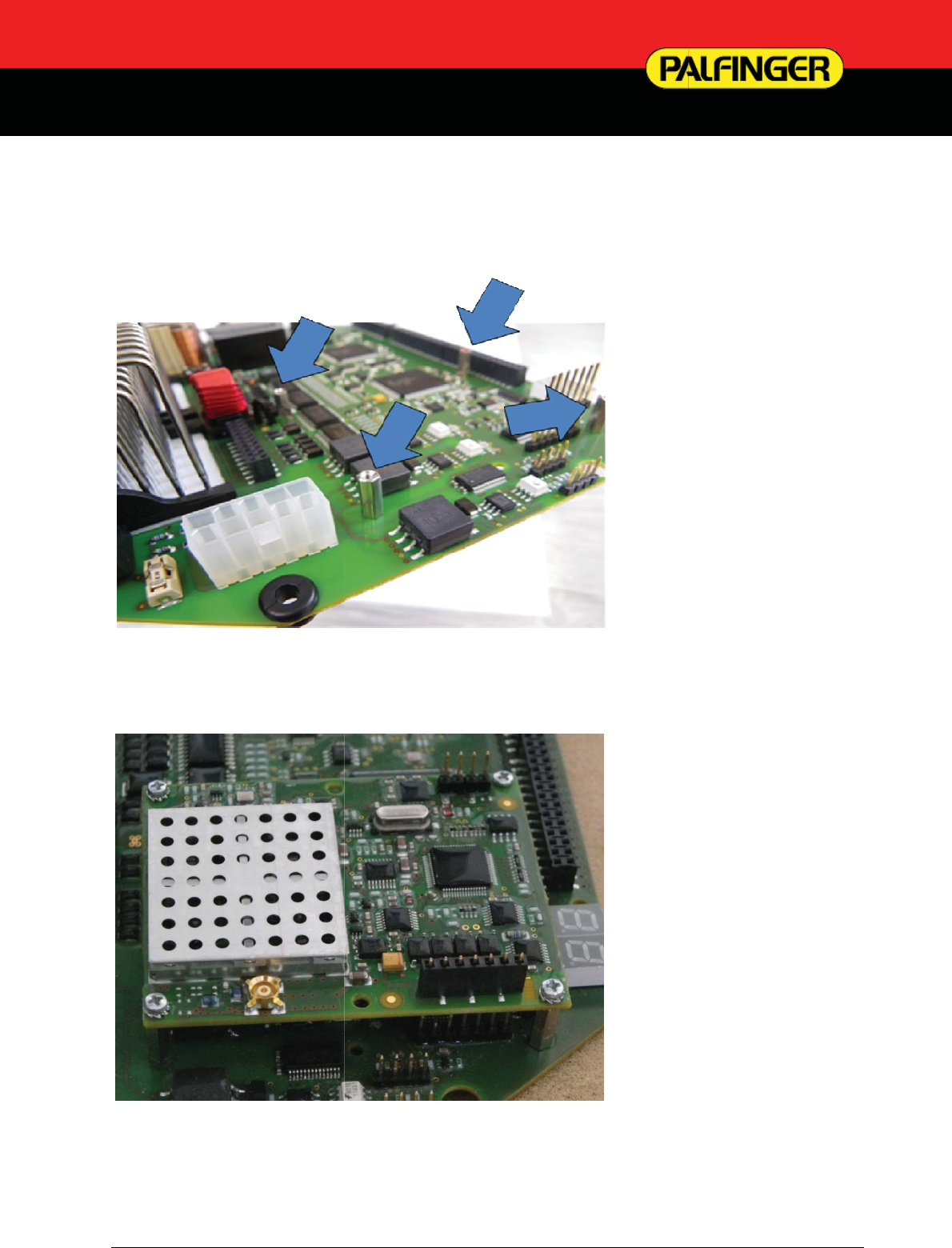

6.3 Module on base st
a
Connect the module female con
n
Take special care that every
p
in
Fix the RCP 915 RF module wit
h
n
Instructions
s
.docx
a
tion
n
ector to the base station male connector.
is connected
p
ro
p
erly.
h
the screws on the mounting bolts on the base s
t
Template V1.0, HAH
Seite 15 von 17
t
ation.
RCP 915 RF Installation Instructions
Module Installation
RCP 915 RF Installation Instructions.docx Template V1.0, HAH
13.03.2014
Seite 16 von 17

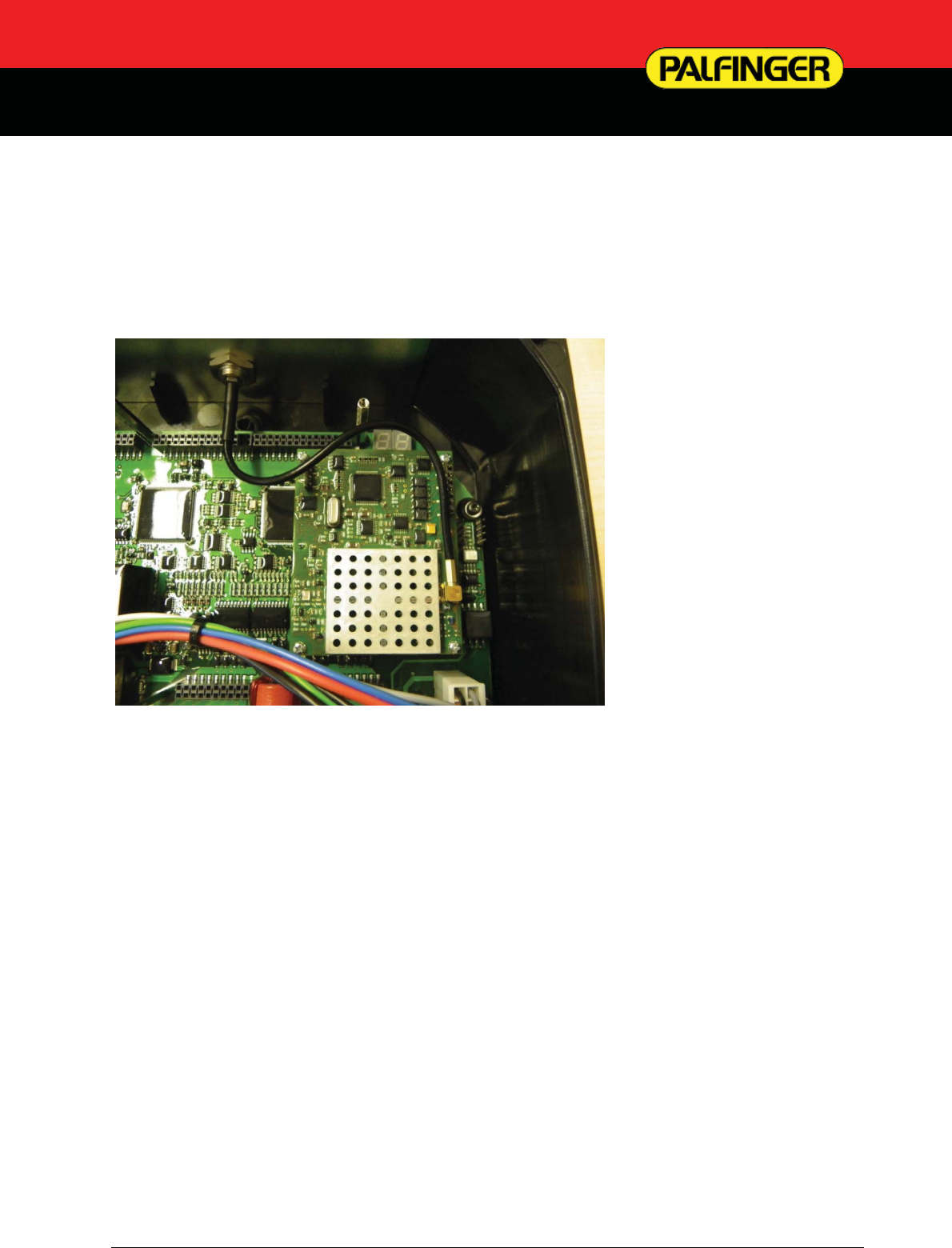

6.4 Antenna connection on base station
Connect antenna cable to the antenna connector on the RCP 915 RF module like shown in chapter 6.2.
Take special care that the connector is fixed properly.
The picture shows the proper connected antenna cable.
RCP 915 RF Installation Instructions
Legal issues for FCC (US) and IC (Canada)
RCP 915 RF Installation Instructions.docx Template V1.0, HAH
13.03.2014
Seite 17 von 17
7 Legal issues for FCC (US) and IC (Canada)
Changes or modifications made to the equipment not expressly approved by PALFINGER AG may void
the FCC / IC authorization to operate this equipment.
The use of the transceiver module is authorized in mobile or fixed host devices taking into account the
conditions listed below:
• OEM Integrator must ensure that the end user manual may not contain any information about the
way to install or remove the module from the final product.
• Depending on the final host device additional authorization requirements for the non-transmitter
functions of the transmitter module may be required (i.e., Verification, or Declaration of Conformi-
ty) The OEM integrator is responsible for ensuring that after the module is installed and opera-
tional the host continues to be compliant with the Part 15B unintentional radiator requirements.
• The information on the label and in the user manual is required to be incorporated in the user
manual of the final host. See 47 CFR15 requirements for more details (e.g. 15.19 / 15.21 / 15.101
/ 15.105 / RSS-GEN / ICES)
• Additional label with the words ‘Contains FCC ID: Q68-RCP915RF001’ and ‘Contains IC:
10683A-RCP915RF001’ shall be applied and visible from the outside of the host product.
• The module must be installed and used in strict accordance with the manufacturer’s instructions
as described in the user documentation that comes with the module.
• The end user manual for the final host product operating with this transmitter must include operat-
ing instructions to satisfy RF exposure compliance requirements.
Radiofrequency radiation exposure Information:
This equipment complies with FCC radiation exposure limits set forth for an uncontrolled envi-
ronment. This equipment should be installed and operated with minimum distance of 20 cm be-
tween the radiator and your body.
This transmitter must not be co-located or operating in conjunction with any other antenna or
transmitter.
• Only the antennas approved by PALFINGER AG must be used. The antennas may not be modi-
fied. The antenna must not be co-located or operating in conjunction with any other antenna or
transmitter. No additional antenna must be used.
• When the final host product operating with this transmitter deviate from above, installation of this
module into specific final hosts may require the submission of a Class II permissive change appli-
cation containing data pertinent to RF Exposure, spurious emissions, ERP/EIRP, and
host/module authentication, or new application if appropriate.
Feel free to contact us if additional guidance is required.
