PaloSanto Solutions MICROUCS Elastix microUCS User Manual microUCS Installastion Guide
PaloSanto Solutions Elastix microUCS microUCS Installastion Guide
Manual
microUCS User Manual
Hardware Version:V1.2
Guide Version: V1.0
1
Copyright
Copyright
©
2012 PaloSanto Solutions Inc. All rights reserved. No part of this
document may be reproduced without prior written permission.
Confidentiality
Information contained herein is of a highly sensitive nature and is confidential and
proprietary to PaloSanto Solutions Inc. No part may be distributed, reproduced or
disclosed orally or in written form to any party other than the direct recipients without
the express written consent of PaloSanto Solutions Inc.
Disclaimer
PaloSanto Solutions Inc. reserves the right to modify the design, characteristics, and
products at any time without notification or obligation and shall not be held liable for
any error or damage of any kind resulting from the use of this document.
PaloSanto Solutions has made every effort to ensure that the information contained in
this document is accurate and complete; however, the contents of this document are
subject to revision without notice. Please contact PaloSanto Solutions to ensure you
have the latest version of this document.
Trademarks
All other trademarks mentioned in this document are the property of their respective
owners.
2
Compliance information
EMI and EMS
For FCC, MICROUCS has been tested as a CPU board, installed in an enclosure,
with the top cover removed. No further testing should be required if the board is used
with other FCC tested modular components. Please see http://www.fcc.gov/oet/ for
more details.
Testing for CE mark must be done at the level of the complete product. Please
contact PaloSanto Solutions for assistance and documentation. It can be used as an
I.T.E, as well as a generic device. For an I.T.E, it must be tested according to
EN55022 and EN55024; for a generic device, it is suit for EN 61000-6-2 (EMI test for
commercial and light industrial environment) and EN61000-6-3 (Immuty test for
Industrial environment).
ESD
For satisfactory resistance to electrostatic discharge events (ESD), the case of the
MICROUCS board should be grounded earth Ground termintal. (eg. through the
mounting holes, or the serial port connector). Under this condition, the system can be
get class B evaluation according to EN 61000-4-2.
Recycling / disposal
Do not discard electronic products in household trash!
All waste electronics equipment should be recycled according to local regulations.
Information for the recycler
Please cut off Lithium battery, if present, for separate recycling.
PaloSanto Solutions enclosures are made of aluminum.
3
Chapter 1 Overview
The microUCS is the ideal IP PBX for small business or for your home, allowing
you to monitor your communications in a very small but also powerful device that
comes pre-installed with Elastix.
A micro computer with a powerful solution, The compact design of microUCS
together with Elastix® as a unified communications solution, makes it a powerful IP
PBX that allows you to monitor communications in your office or home from
anywhere. Easy to install, powerful administration as only Elastix® offers and its very
low power consumption, make it a very safe and cost effective solution.
Features
Auto Attendants
Voicemail
Dial
-By-Name Directory
Music on Hold
Multiple Languages
Ring Groups
Call Queue
Call Waiting
Caller Display
Conference Call
Call Hold/Transfer
Call Park
Call Pickup
Automatic Fax Detection
Remote Management
Remote Exte
nsions
Specification
CPU: TI AM1808B 456MHZ
DRAM: 2 GB DDR2 SDRAM
Storage: 1 SD Socket
I/O: 1*DB9 serial port, 1*USB 2.0 port
Network interface: 10/100Mbps
Operating System: Elastix 32 bitx
PBX size: (28.3mm x 165 mm x95.8mm)
4
Temperature: 0°C to 60°C
PCB layer: 6
Voltage range :12V DC supply through DC jack
Power dissipation: ~1.5W (Minimum Power Dissipation)
Chapter 2 microUCS Connector and Jumper

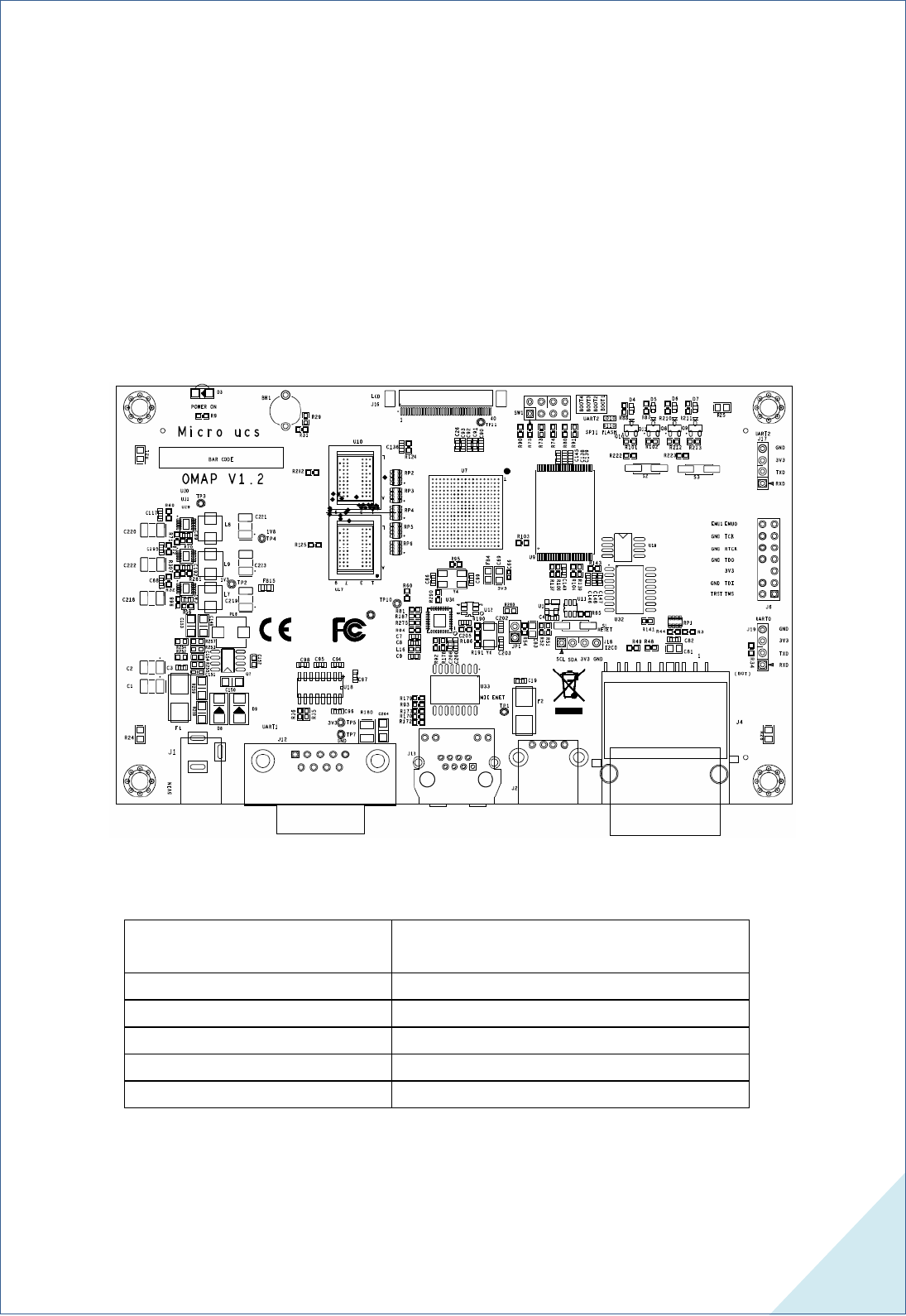

1. Layout
2. Connector and Jumper List
Name Function
J1 Main Power in Jacket
J12
Serial Port (RS232)
J13 Ethernet Port
J2 USB Port
J4 SD Card interface
3. System Status Indicator
5
Name Function
D3 System status indicator

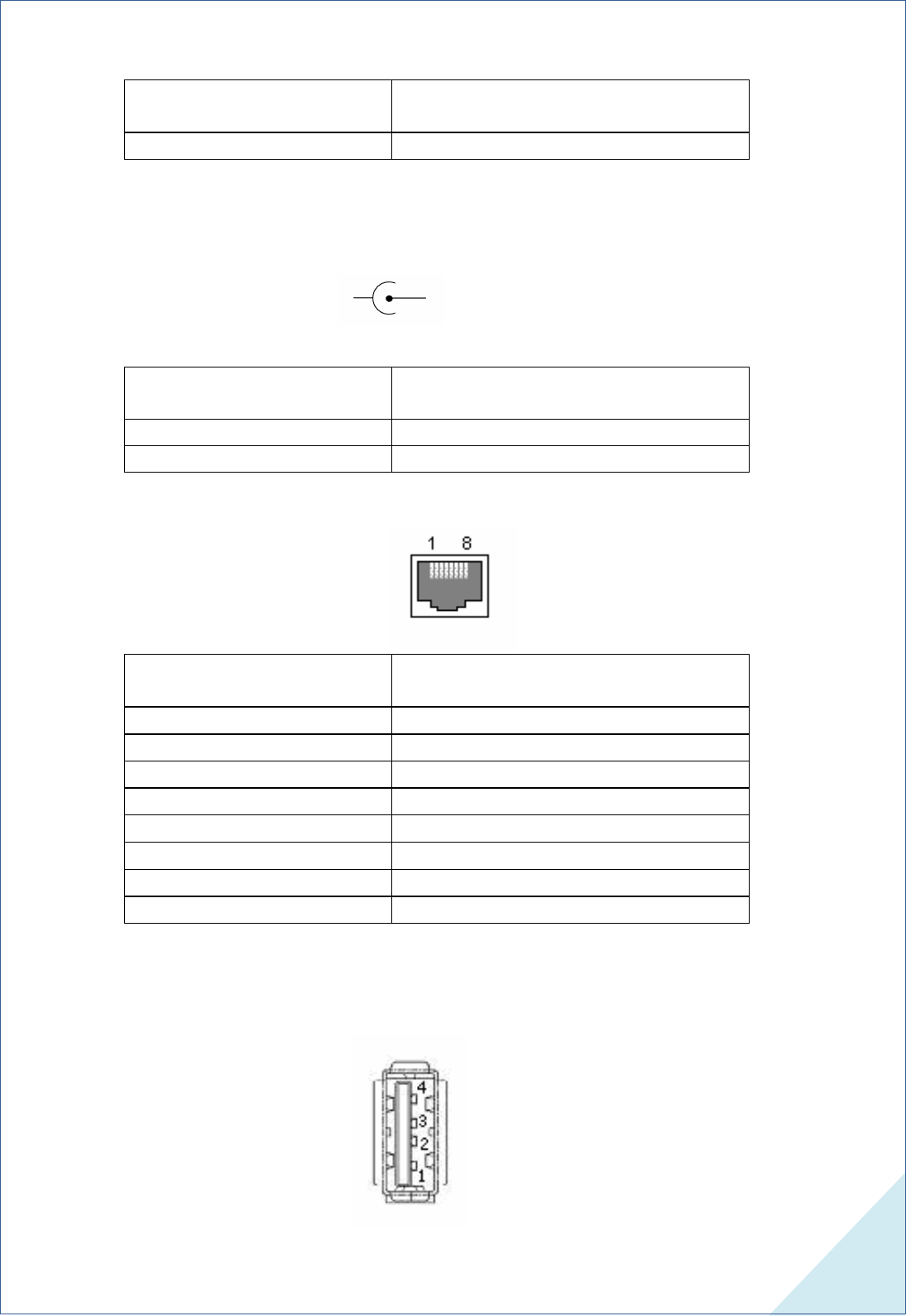

4. Connector and Jumper Description
J1 Main Power Jacket DC in @12V
1 2
Pin Name
1 Gnd
2 Vin
J13 100Mbps Ethernet Port
Pin Name
1 TD+
2 TD-
3 RD+
4 -
5 -
6 RD-
7 -
8 -
J2 USB Port
1 USB2.0 ports. 500 mA Continuous Current per Channel. Short-Circuit and Thermal
Protection with Overcurrent Logic.
6
Pin Name Pin Name
1 5v 3 Data+
2 Data- 4 Ground

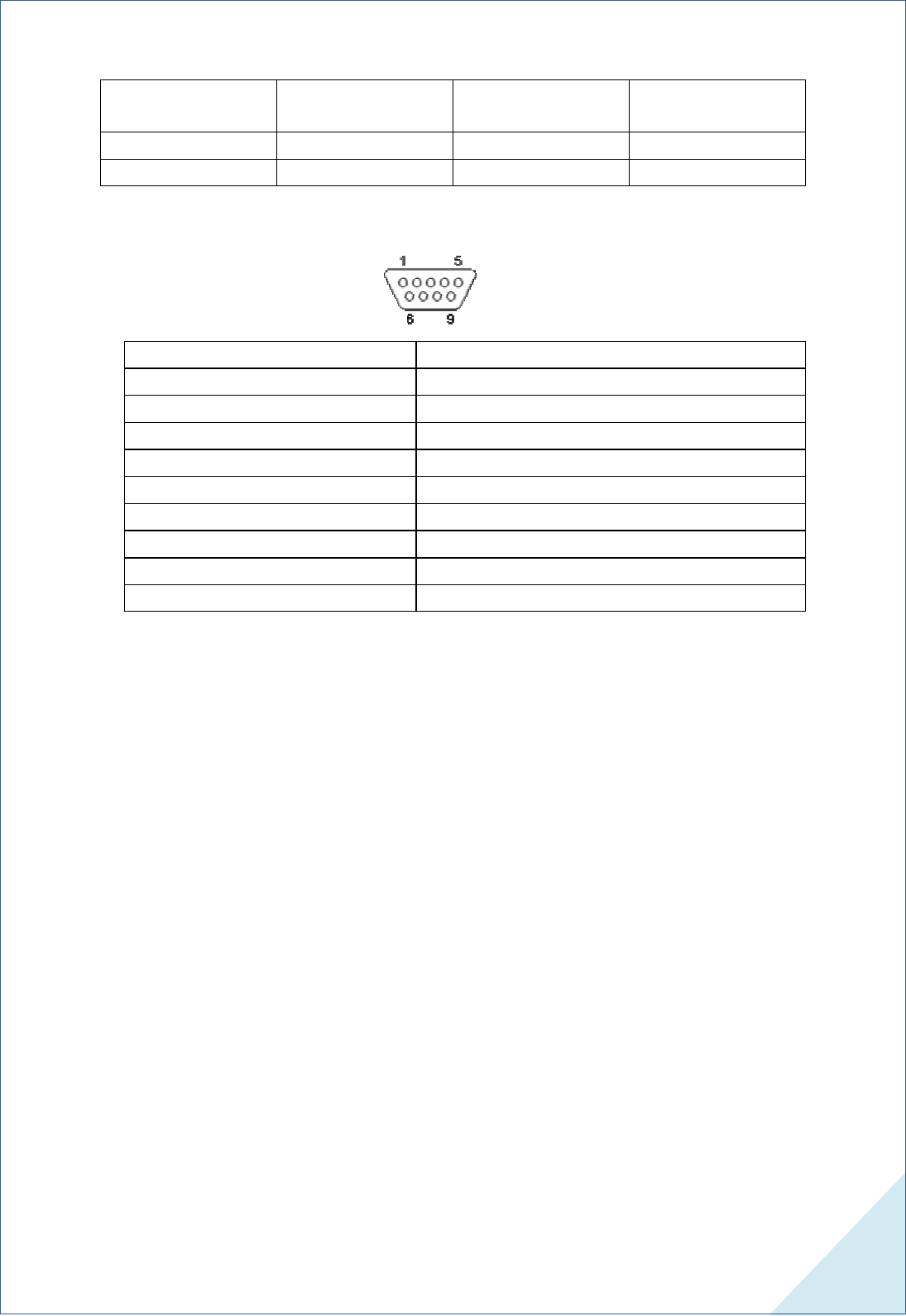

J12
Serial Port (rs232)
Pin Name
1 --
2 RXD
3 TXD
4 --
5 GND
6 --
7 --
8 --
9 --
FCC STATEMENT:
This device complies with Part 15 of the FCC Rules. Operation is subject to the
following two conditions:
(1) This device may not cause harmful interference, and
(2) This device must accept any interference received, including interference that may
cause undesired operation.
Warning: Changes or modifications not expressly approved by the party responsible
for compliance could void the user's authority to operate the equipment.
NOTE: This equipment has been tested and found to comply with the limits for a
Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are
designed to provide reasonable protection against harmful interference in a residential
installation.
This equipment generates uses and can radiate radio frequency energy and, if not
installed and used in accordance with the instructions, may cause harmful interference
to radio communications. However, there is no guarantee that interference will not
occur in a particular installation. If this equipment does cause harmful interference to
radio or television reception, which can be determined by turning the equipment off
and on, the user is encouraged to try to correct the interference by one or more of the
following measures:
Reorient or relocate the receiving antenna.
Increase the separation between the equipment and receiver.
Connect the equipment into an outlet on a circuit different from that to which the
receiver is connected.
Consult the dealer or an experienced radio/TV technician for help.
