Panasonic Connect 208013A UMTS/ GSM Cellular Mobile with RFID User Manual Part 3

Panasonic Mobile Communications Development of Europe Ltd UMTS/ GSM Cellular Mobile with RFID Part 3

User Manual Part 3

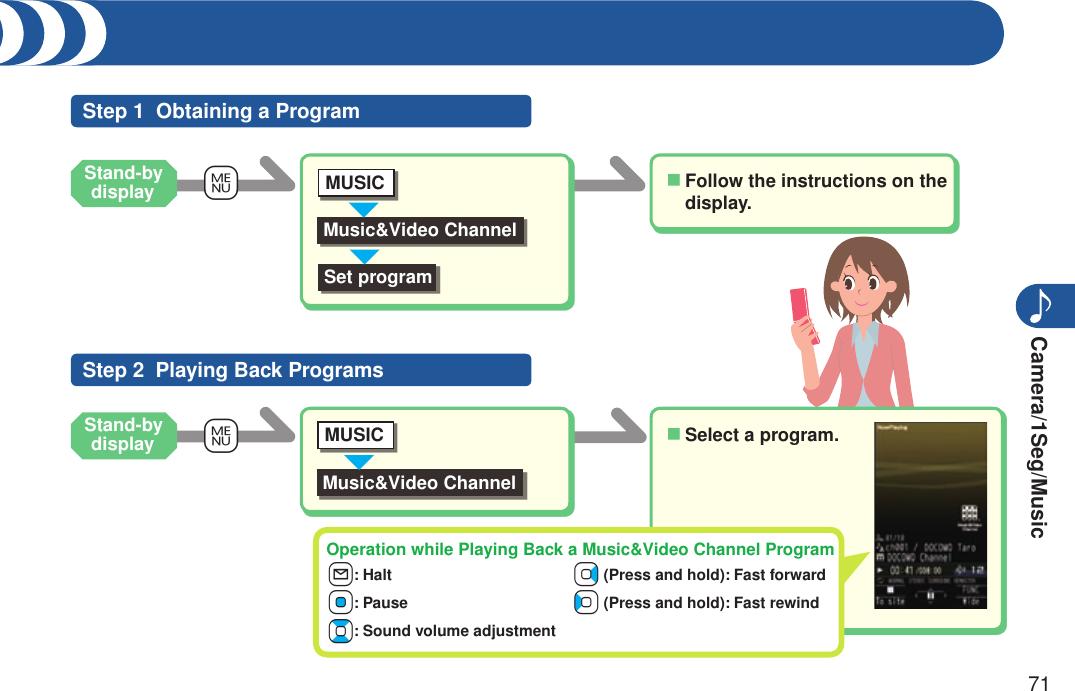

Camera/1Seg/Music71Using Music&Video ChannelFollow the instructions on the display.■+mSelect a program.■+mStep 1 Obtaining a ProgramStep 2 Playing Back ProgramsMusic&Video ChannelSet programMUSICMusic&Video ChannelMUSICOperation while Playing Back a Music&Video Channel Program+N+l: Halt+N+Oo: PauseBX+N+Bo: Sound volume adjustmentV+N+Vo (Press and hold): Fast forwardC+N+Co (Press and hold): Fast rewindStand-by displayStand-by display

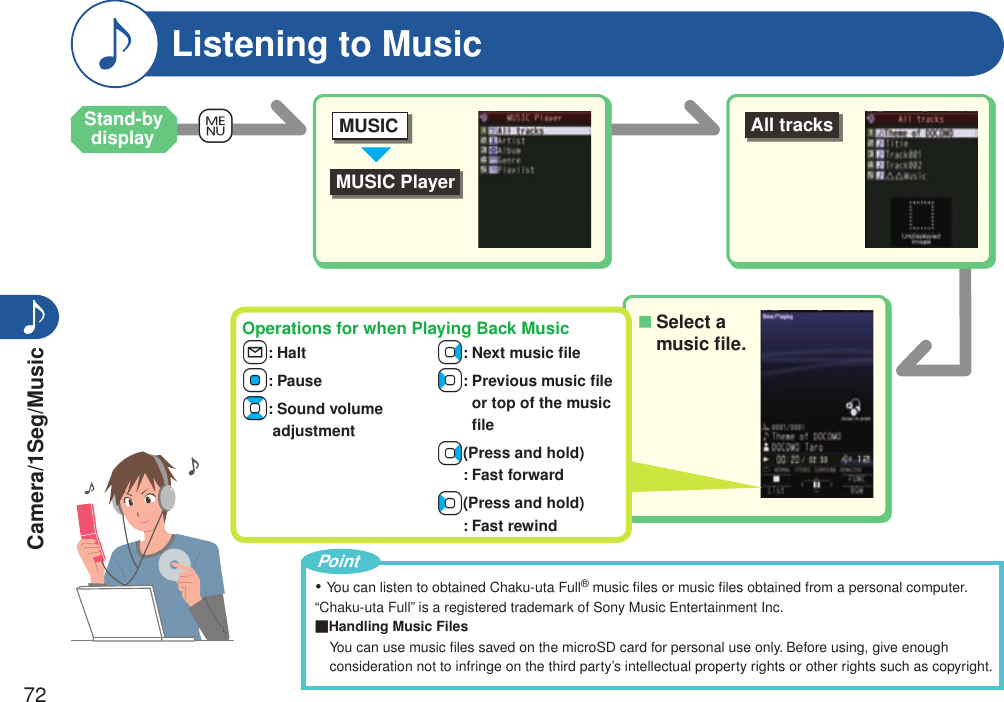

Camera/1Seg/Music72+mAll tracksOperations for when Playing Back Music+N+l: Halt+N+Oo: PauseBX+N+Bo: Sound volume adjustmentV+N+Vo: Next music fileC+N+Co: Previous music file or top of the music fileV+N+Vo(Press and hold) : Fast forwardC+N+Co(Press and hold) : Fast rewindSelect a music file.■MUSIC PlayerMUSICYou can listen to obtained Chaku-uta Full® music files or music files obtained from a personal computer.“Chaku-uta Full” is a registered trademark of Sony Music Entertainment Inc.■Handling Music FilesYou can use music files saved on the microSD card for personal use only. Before using, give enough consideration not to infringe on the third party’s intellectual property rights or other rights such as copyright.・PointListening to MusicStand-by display
Camera/1Seg/Music73

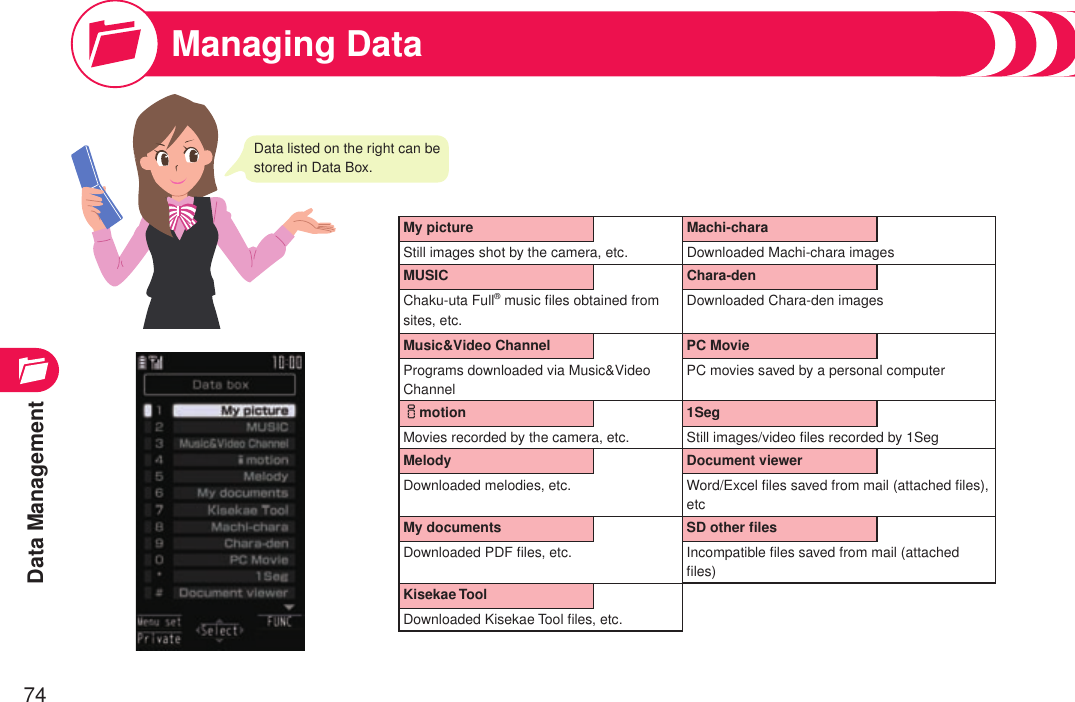

Data Management74Managing DataData listed on the right can be stored in Data Box.My picture Machi-charaStill images shot by the camera, etc. Downloaded Machi-chara imagesMUSIC Chara-denChaku-uta Full® music files obtained from sites, etc.Downloaded Chara-den imagesMusic&Video Channel PC MoviePrograms downloaded via Music&Video ChannelPC movies saved by a personal computerimotion 1SegMovies recorded by the camera, etc. Still images/video files recorded by 1SegMelody Document viewerDownloaded melodies, etc. Word/Excel files saved from mail (attached files), etc My documents SD other filesDownloaded PDF files, etc. Incompatible files saved from mail (attached files)Kisekae ToolDownloaded Kisekae Tool files, etc.

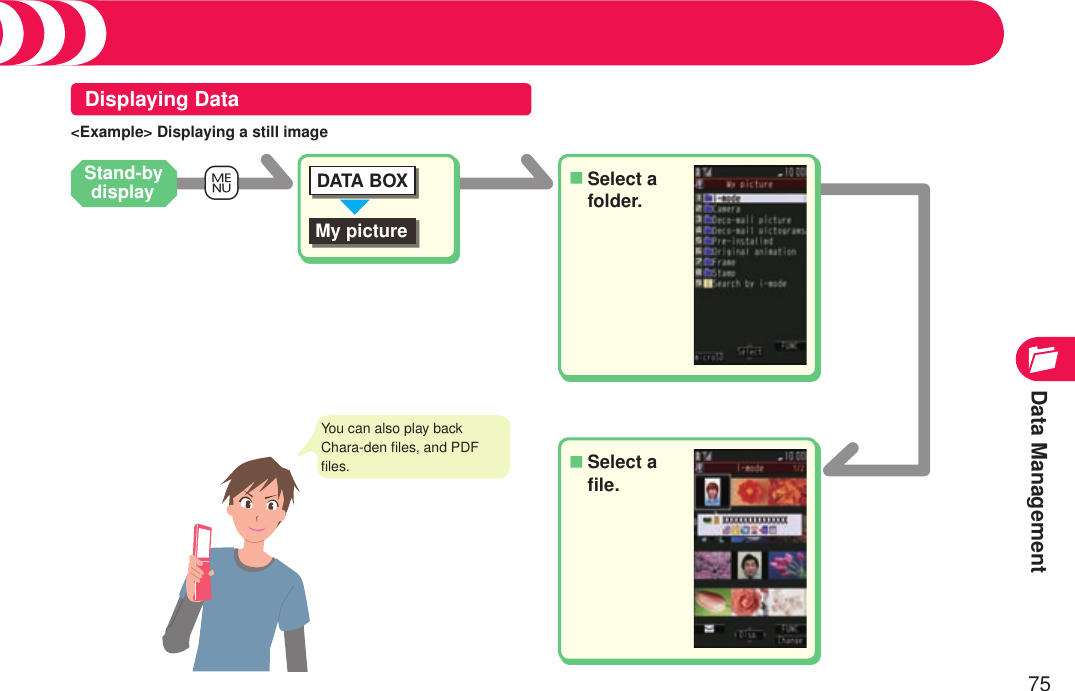

Data Management75Managing DataDisplaying Data+mYou can also play back Chara-den files, and PDF files.Select a folder.■Select a file.■DATA BOXMy picture<Example> Displaying a still imageStand-by display

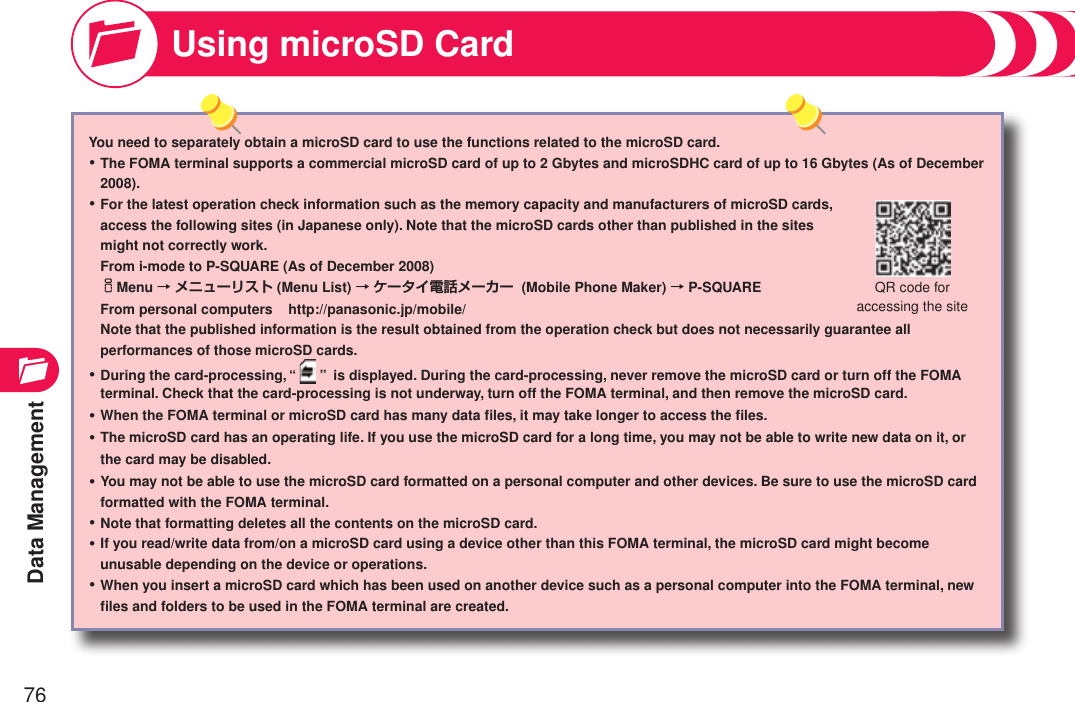

Data Management76You need to separately obtain a microSD card to use the functions related to the microSD card.The FOMA terminal supports a commercial microSD card of up to 2 Gbytes and microSDHC card of up to 16 Gbytes (As of December 2008).For the latest operation check information such as the memory capacity and manufacturers of microSD cards, access the following sites (in Japanese only). Note that the microSD cards other than published in the sites might not correctly work. From i-mode to P-SQUARE (As of December 2008) iMenu → メニューリスト (Menu List) → ケータイ電話メーカー (Mobile Phone Maker) → P-SQUARE From personal computers http://panasonic.jp/mobile/ Note that the published information is the result obtained from the operation check but does not necessarily guarantee all performances of those microSD cards.During the card-processing, “ ” is displayed. During the card-processing, never remove the microSD card or turn off the FOMA terminal. Check that the card-processing is not underway, turn off the FOMA terminal, and then remove the microSD card.When the FOMA terminal or microSD card has many data files, it may take longer to access the files.The microSD card has an operating life. If you use the microSD card for a long time, you may not be able to write new data on it, or the card may be disabled.You may not be able to use the microSD card formatted on a personal computer and other devices. Be sure to use the microSD card formatted with the FOMA terminal.Note that formatting deletes all the contents on the microSD card.If you read/write data from/on a microSD card using a device other than this FOMA terminal, the microSD card might become unusable depending on the device or operations.When you insert a microSD card which has been used on another device such as a personal computer into the FOMA terminal, new files and folders to be used in the FOMA terminal are created.・・・・・・・・・Using microSD CardQR code for accessing the site

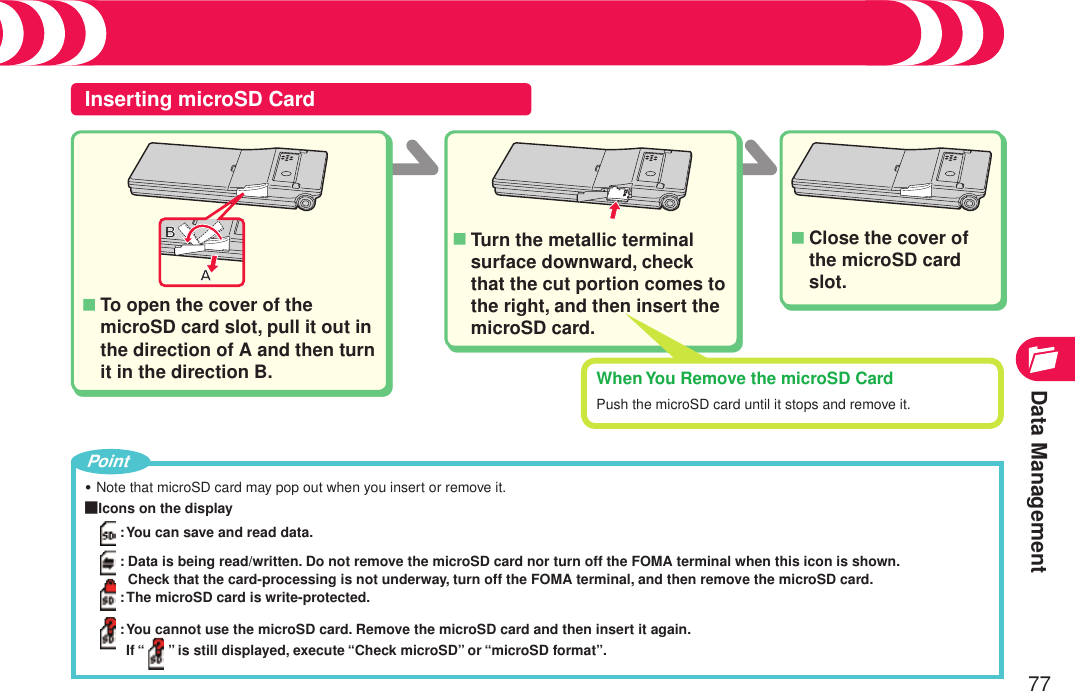

Data Management77Inserting microSD CardTo open the cover of the microSD card slot, pull it out in the direction of A and then turn it in the direction B.■Turn the metallic terminal surface downward, check that the cut portion comes to the right, and then insert the microSD card.■Close the cover of the microSD card slot.■Using microSD CardNote that microSD card may pop out when you insert or remove it.■Icons on the display: You can save and read data.: Data is being read/written. Do not remove the microSD card nor turn off the FOMA terminal when this icon is shown. Check that the card-processing is not underway, turn off the FOMA terminal, and then remove the microSD card.: The microSD card is write-protected.: You cannot use the microSD card. Remove the microSD card and then insert it again. If “ ” is still displayed, execute “Check microSD” or “microSD format”.・PointWhen You Remove the microSD CardPush the microSD card until it stops and remove it.

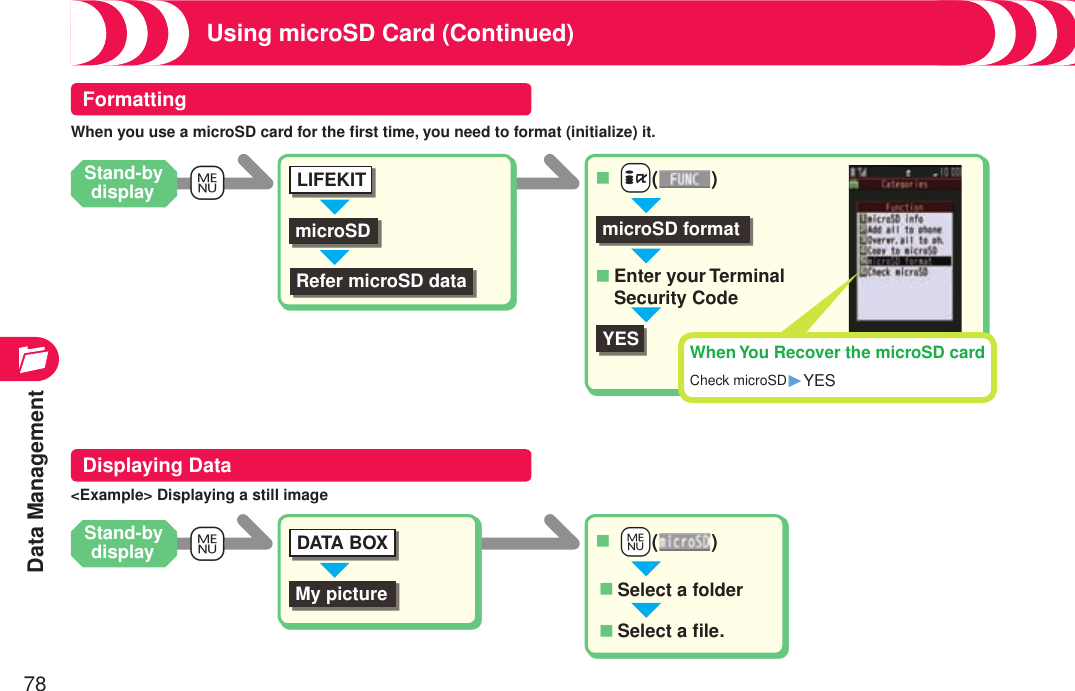

Data Management78+mmicroSDRefer microSD data ++i( )■microSD formatYES When You Recover the microSD cardCheck microSD1YES When you use a microSD card for the first time, you need to format (initialize) it.Using microSD Card (Continued)LIFEKITEnter your Terminal Security Code■FormattingDisplaying Data+mDATA BOXMy picture ++m( )■Select a folder■Select a file.■<Example> Displaying a still imageStand-by displayStand-by display

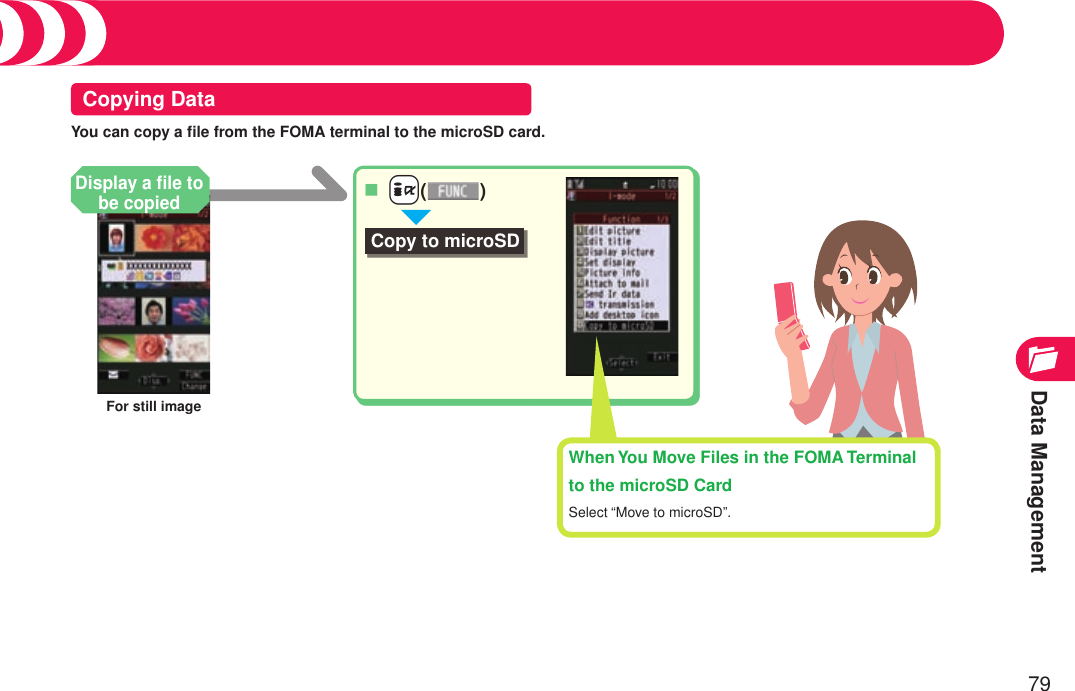

Data Management79Using microSD Card (Continued)Copying Data ++i( )■Copy to microSDWhen You Move Files in the FOMA Terminal to the microSD CardSelect “Move to microSD”.Display a file to be copiedYou can copy a file from the FOMA terminal to the microSD card.For still image

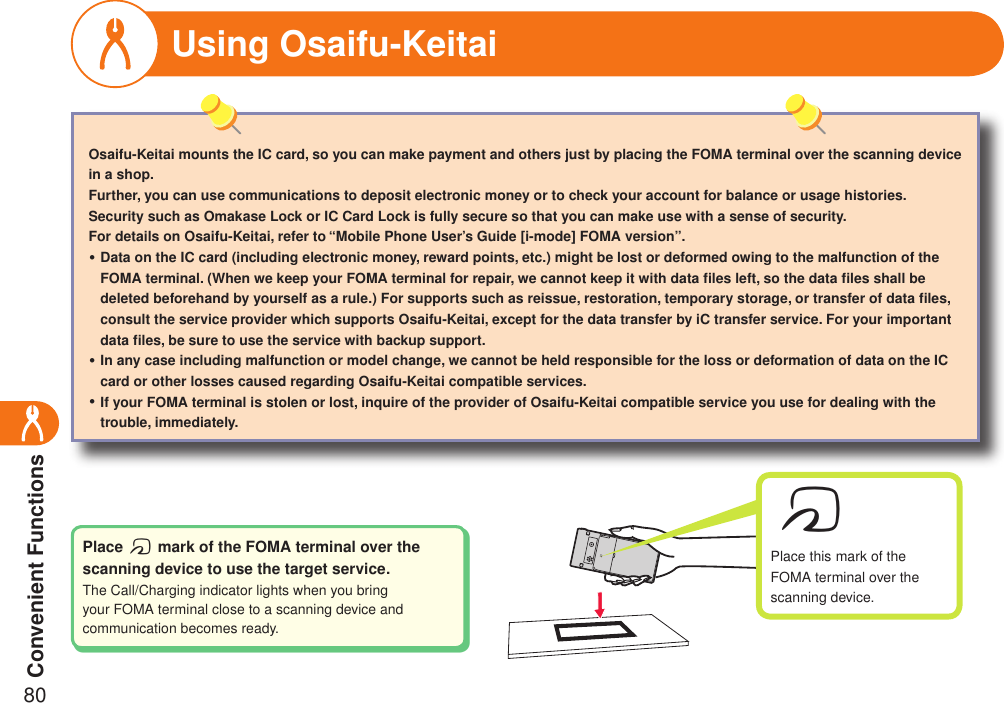

Convenient Functions80Using Osaifu-KeitaiOsaifu-Keitai mounts the IC card, so you can make payment and others just by placing the FOMA terminal over the scanning device in a shop.Further, you can use communications to deposit electronic money or to check your account for balance or usage histories. Security such as Omakase Lock or IC Card Lock is fully secure so that you can make use with a sense of security.For details on Osaifu-Keitai, refer to “Mobile Phone User’s Guide [i-mode] FOMA version”.Data on the IC card (including electronic money, reward points, etc.) might be lost or deformed owing to the malfunction of the FOMA terminal. (When we keep your FOMA terminal for repair, we cannot keep it with data files left, so the data files shall be deleted beforehand by yourself as a rule.) For supports such as reissue, restoration, temporary storage, or transfer of data files, consult the service provider which supports Osaifu-Keitai, except for the data transfer by iC transfer service. For your important data files, be sure to use the service with backup support.In any case including malfunction or model change, we cannot be held responsible for the loss or deformation of data on the IC card or other losses caused regarding Osaifu-Keitai compatible services.If your FOMA terminal is stolen or lost, inquire of the provider of Osaifu-Keitai compatible service you use for dealing with the trouble, immediately.・・・Place f mark of the FOMA terminal over the scanning device to use the target service.The Call/Charging indicator lights when you bring your FOMA terminal close to a scanning device and communication becomes ready.fPlace this mark of the FOMA terminal over the scanning device.

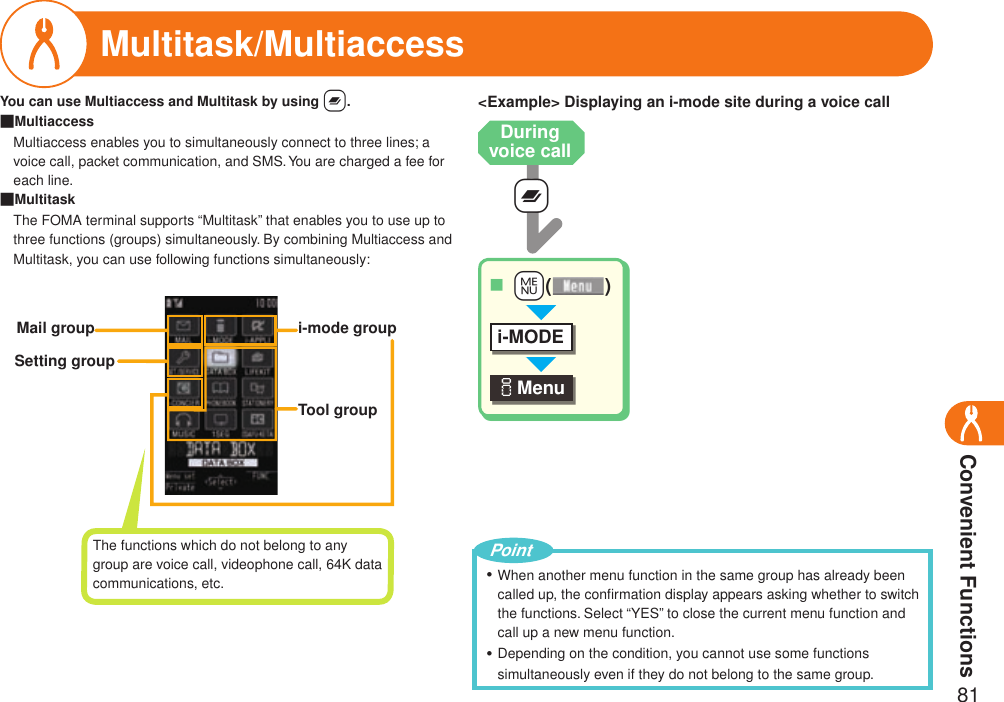

Convenient Functions81Multitask/Multiaccess+xiMenu ++m( )■i-MODEYou can use Multiaccess and Multitask by using x.Multiaccess Multiaccess enables you to simultaneously connect to three lines; a voice call, packet communication, and SMS. You are charged a fee for each line.MultitaskThe FOMA terminal supports “Multitask” that enables you to use up to three functions (groups) simultaneously. By combining Multiaccess and Multitask, you can use following functions simultaneously:■■i-mode groupMail groupSetting groupTool group<Example> Displaying an i-mode site during a voice callDuring voice callThe functions which do not belong to any group are voice call, videophone call, 64K data communications, etc. When another menu function in the same group has already been called up, the confirmation display appears asking whether to switch the functions. Select “YES” to close the current menu function and call up a new menu function.Depending on the condition, you cannot use some functions simultaneously even if they do not belong to the same group.・・Point

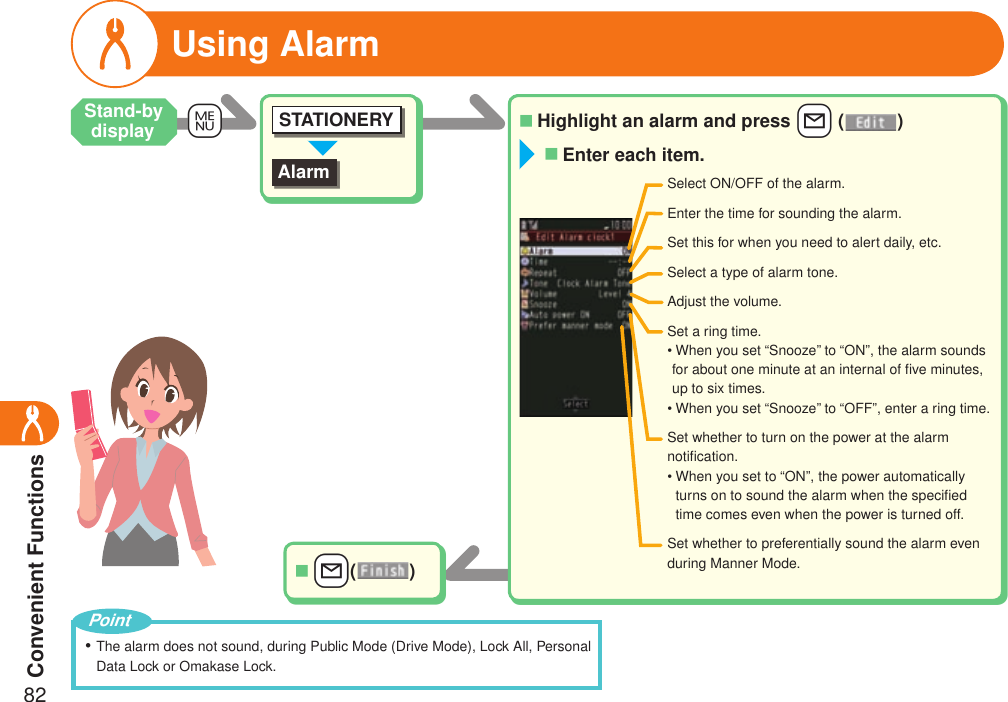

Convenient Functions82Highlight an alarm and press +l ( )■AlarmSTATIONERY+m++l( )■Select ON/OFF of the alarm.Enter the time for sounding the alarm.Set this for when you need to alert daily, etc.Select a type of alarm tone.Adjust the volume.Set whether to turn on the power at the alarm notification.• When you set to “ON”, the power automatically turns on to sound the alarm when the specified time comes even when the power is turned off.Set whether to preferentially sound the alarm even during Manner Mode.Set a ring time.• When you set “Snooze” to “ON”, the alarm sounds for about one minute at an internal of five minutes, up to six times.• When you set “Snooze” to “OFF”, enter a ring time.Enter each item.■Using AlarmThe alarm does not sound, during Public Mode (Drive Mode), Lock All, Personal Data Lock or Omakase Lock.・PointStand-by display

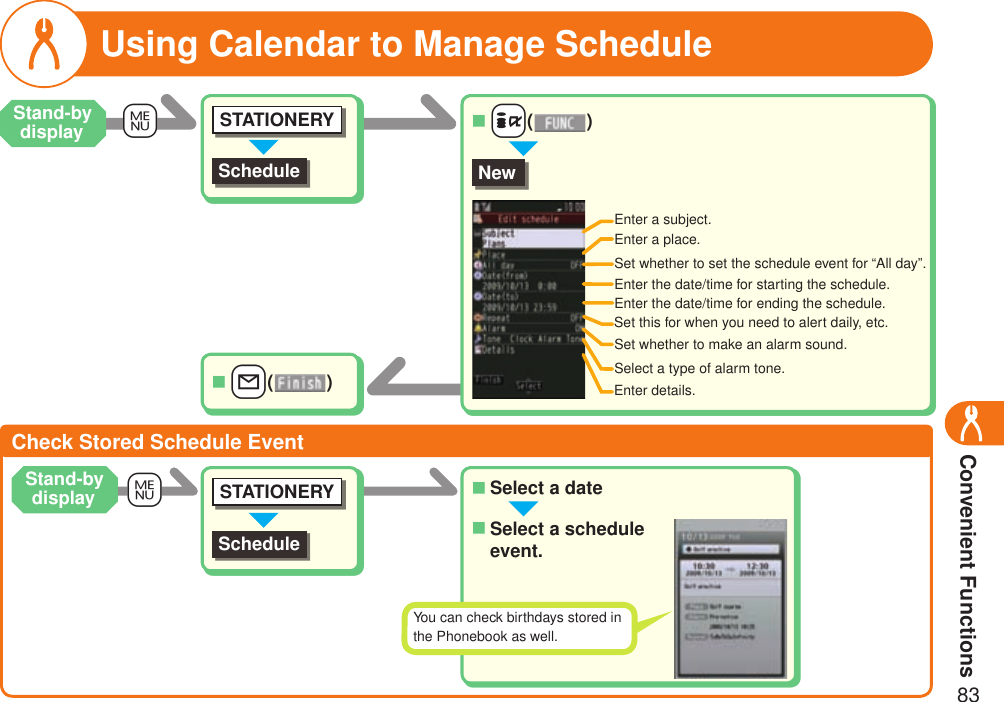

Convenient Functions83+mUsing Calendar to Manage ScheduleScheduleSTATIONERYNewEnter a subject.Enter a place.Set whether to set the schedule event for “All day”.Enter the date/time for starting the schedule.Set this for when you need to alert daily, etc.Set whether to make an alarm sound.Select a type of alarm tone.Enter details.Check Stored Schedule EventSelect a date■Select a schedule event.■++i( )■++l( )■Enter the date/time for ending the schedule.+mStand-by displayStand-by displayScheduleSTATIONERYYou can check birthdays stored in the Phonebook as well.

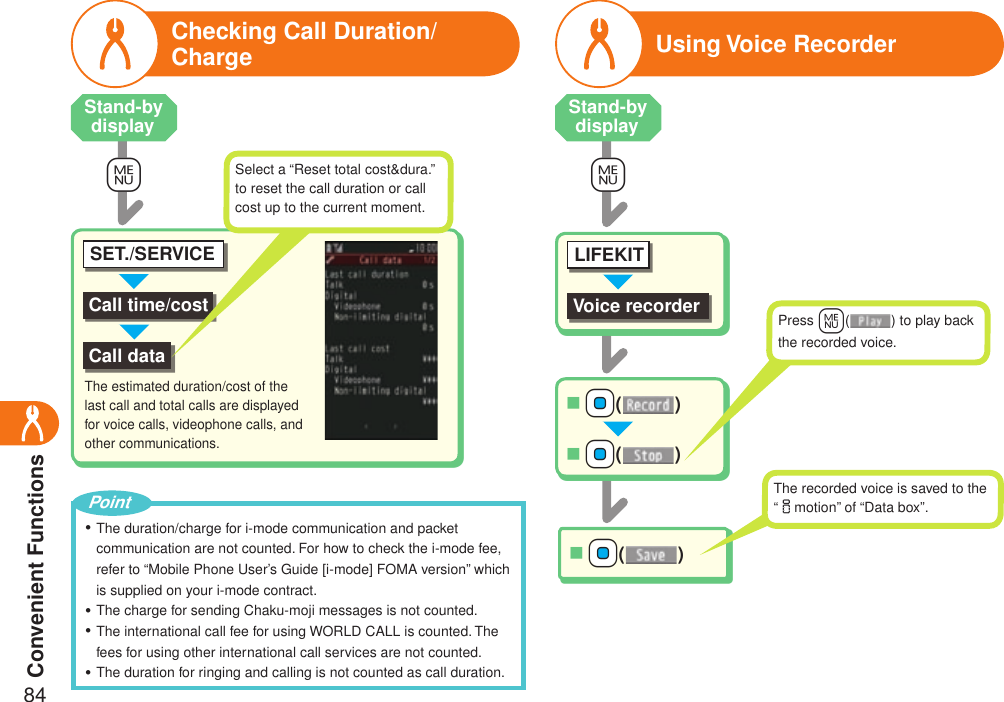

Convenient Functions84Checking Call Duration/ChargeCall time/costSET./SERVICECall data+mSelect a “Reset total cost&dura.” to reset the call duration or call cost up to the current moment.The estimated duration/cost of the last call and total calls are displayed for voice calls, videophone calls, and other communications.Using Voice RecorderVoice recorderLIFEKITO+N+Oo()■O+N+Oo()■O+N+Oo()■Press +m( ) to play back the recorded voice.The recorded voice is saved to the “imotion” of “Data box”.+mThe duration/charge for i-mode communication and packet communication are not counted. For how to check the i-mode fee, refer to “Mobile Phone User’s Guide [i-mode] FOMA version” which is supplied on your i-mode contract.The charge for sending Chaku-moji messages is not counted.The international call fee for using WORLD CALL is counted. The fees for using other international call services are not counted.The duration for ringing and calling is not counted as call duration.・・・・PointStand-by display Stand-by display

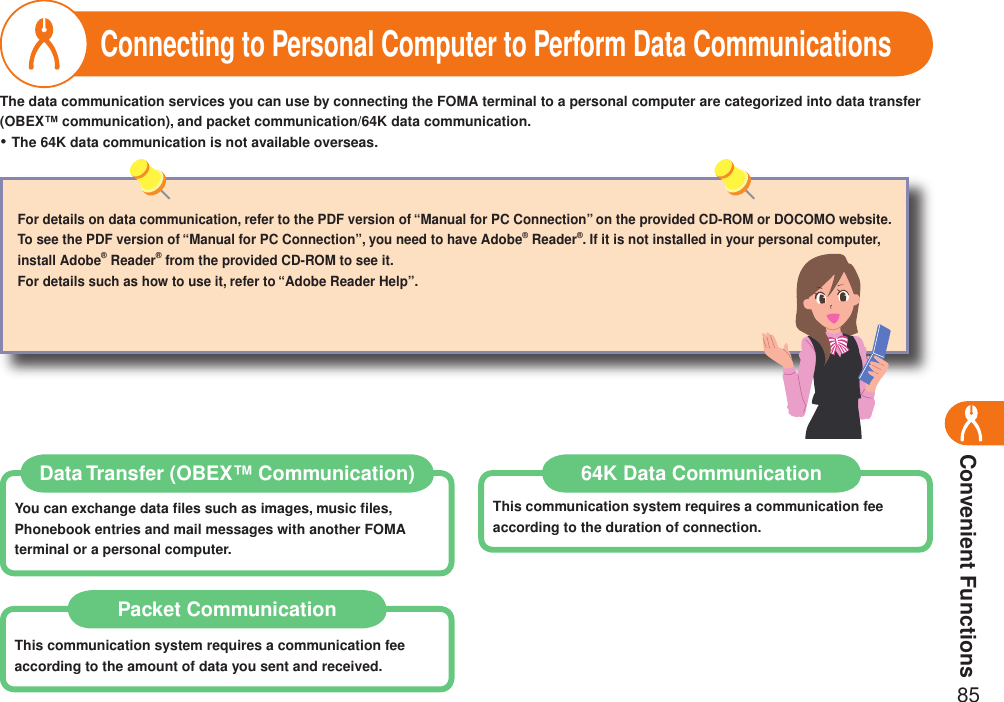

Convenient Functions85Connecting to Personal Computer to Perform Data CommunicationsThe data communication services you can use by connecting the FOMA terminal to a personal computer are categorized into data transfer(OBEX™ communication), and packet communication/64K data communication.The 64K data communication is not available overseas.・For details on data communication, refer to the PDF version of “Manual for PC Connection” on the provided CD-ROM or DOCOMO website.To see the PDF version of “Manual for PC Connection”, you need to have Adobe® Reader®. If it is not installed in your personal computer, install Adobe® Reader® from the provided CD-ROM to see it.For details such as how to use it, refer to “Adobe Reader Help”.Data Transfer (OBEX™ Communication)You can exchange data files such as images, music files, Phonebook entries and mail messages with another FOMA terminal or a personal computer.Packet CommunicationThis communication system requires a communication fee according to the amount of data you sent and received.64K Data CommunicationThis communication system requires a communication fee according to the duration of connection.

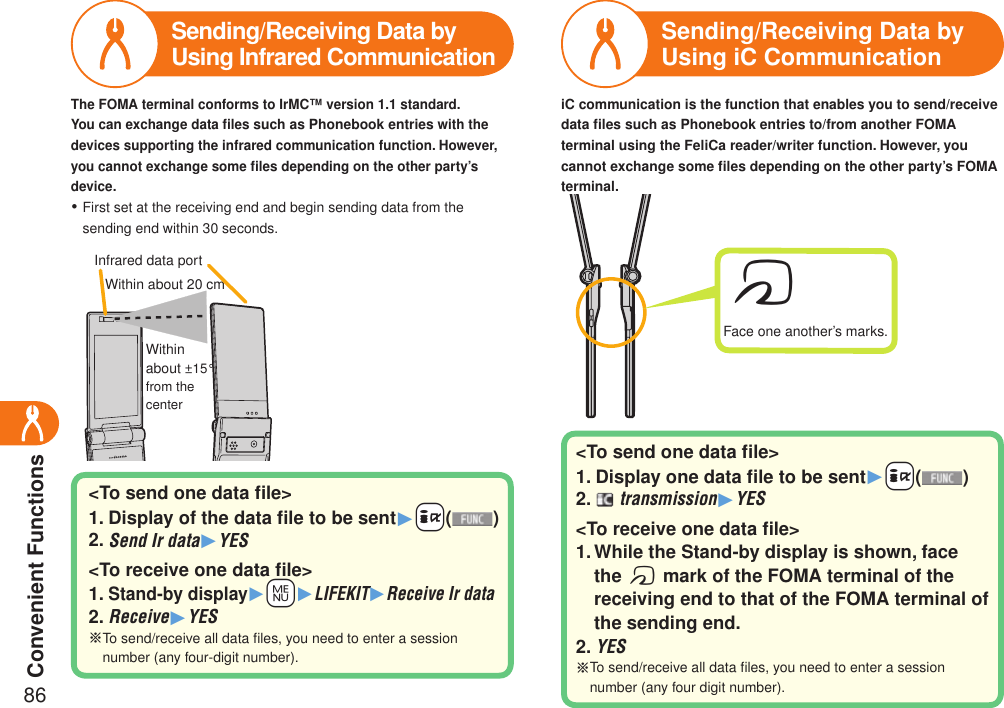

Convenient Functions86Sending/Receiving Data by Using Infrared Communication Sending/Receiving Data by Using iC CommunicationThe FOMA terminal conforms to IrMC™ version 1.1 standard.You can exchange data files such as Phonebook entries with the devices supporting the infrared communication function. However, you cannot exchange some files depending on the other party’s device.First set at the receiving end and begin sending data from the sending end within 30 seconds.・<To send one data file>1. Display of the data file to be sent1+i()2. Send Ir data1YES<To receive one data file>1. Stand-by display1+m1LIFEKIT1Receive Ir data2. Receive1YES※ To send/receive all data files, you need to enter a session number (any four-digit number).iC communication is the function that enables you to send/receive data files such as Phonebook entries to/from another FOMA terminal using the FeliCa reader/writer function. However, you cannot exchange some files depending on the other party’s FOMA terminal.<To send one data file>1. Display one data file to be sent1+i()2. transmission1YES<To receive one data file>1. While the Stand-by display is shown, face the f mark of the FOMA terminal of the receiving end to that of the FOMA terminal of the sending end.2. YES※ To send/receive all data files, you need to enter a session number (any four digit number).Within about 20 cmWithin about ±15° from the centerfInfrared data portFace one another’s marks.

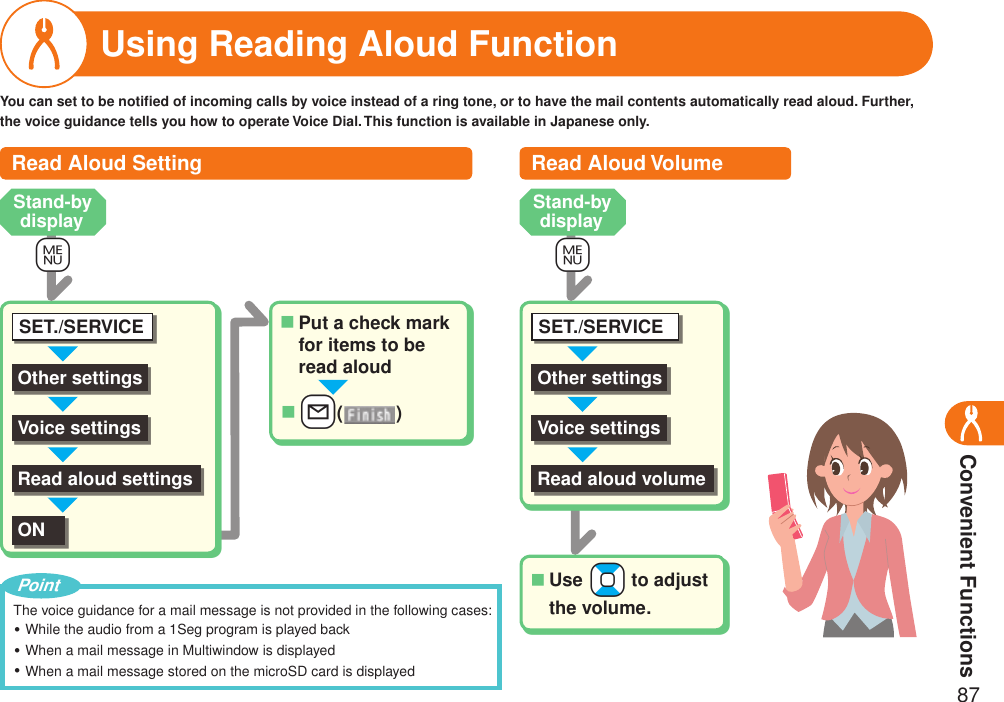

Convenient Functions87Using Reading Aloud FunctionOther settingsSET./SERVICEVoice settings+mYou can set to be notified of incoming calls by voice instead of a ring tone, or to have the mail contents automatically read aloud. Further, the voice guidance tells you how to operate Voice Dial. This function is available in Japanese only.Read aloud settingsONPut a check mark for items to be read aloud■++l( )■The voice guidance for a mail message is not provided in the following cases:While the audio from a 1Seg program is played backWhen a mail message in Multiwindow is displayedWhen a mail message stored on the microSD card is displayed・・・PointRead Aloud Setting Read Aloud VolumeOther settingsSET./SERVICEVoice settings+mRead aloud volumeUse +Bo to adjust the volume.■Stand-by display Stand-by display

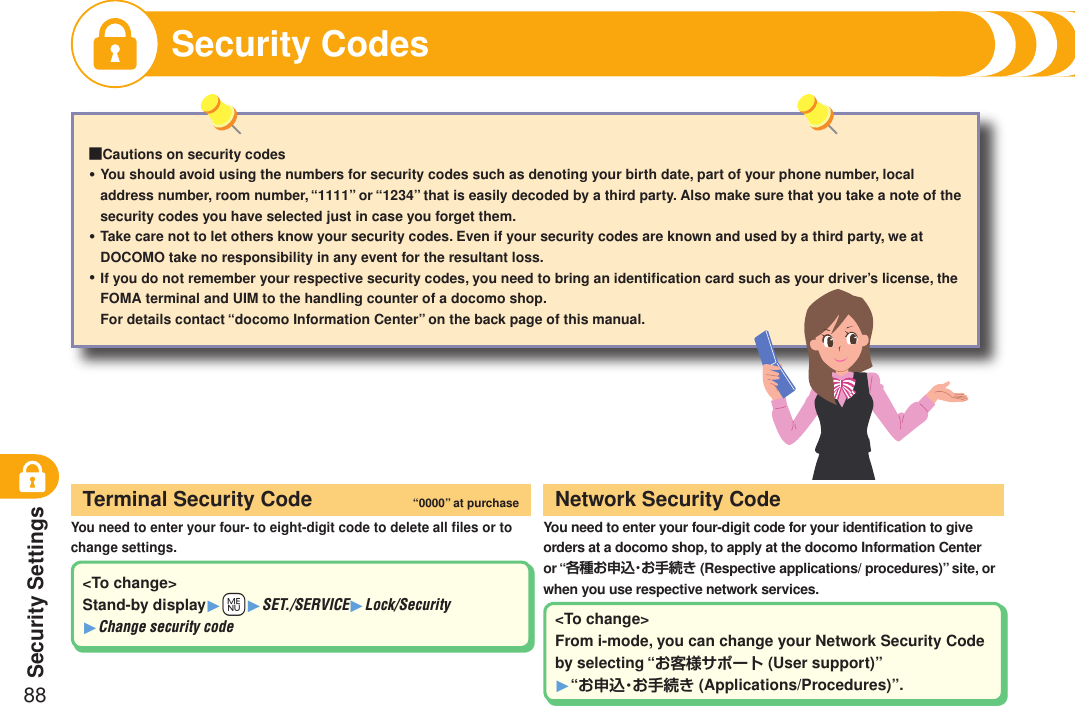

Security Settings88Security Codes■Cautions on security codesYou should avoid using the numbers for security codes such as denoting your birth date, part of your phone number, local address number, room number, “1111” or “1234” that is easily decoded by a third party. Also make sure that you take a note of the security codes you have selected just in case you forget them.Take care not to let others know your security codes. Even if your security codes are known and used by a third party, we at DOCOMO take no responsibility in any event for the resultant loss.If you do not remember your respective security codes, you need to bring an identification card such as your driver’s license, the FOMA terminal and UIM to the handling counter of a docomo shop.For details contact “docomo Information Center” on the back page of this manual.・・・You need to enter your four- to eight-digit code to delete all files or to change settings.Terminal Security Code “0000” at purchaseYou need to enter your four-digit code for your identification to give orders at a docomo shop, to apply at the docomo Information Center or “各種お申込・お手続き (Respective applications/ procedures)” site, or when you use respective network services.Network Security Code<To change>Stand-by display1+m1SET./SERVICE1Lock/Security 1Change security code <To change>From i-mode, you can change your Network Security Code by selecting “お客様サポート (User support)” 1“お申込・お手続き (Applications/Procedures)”.

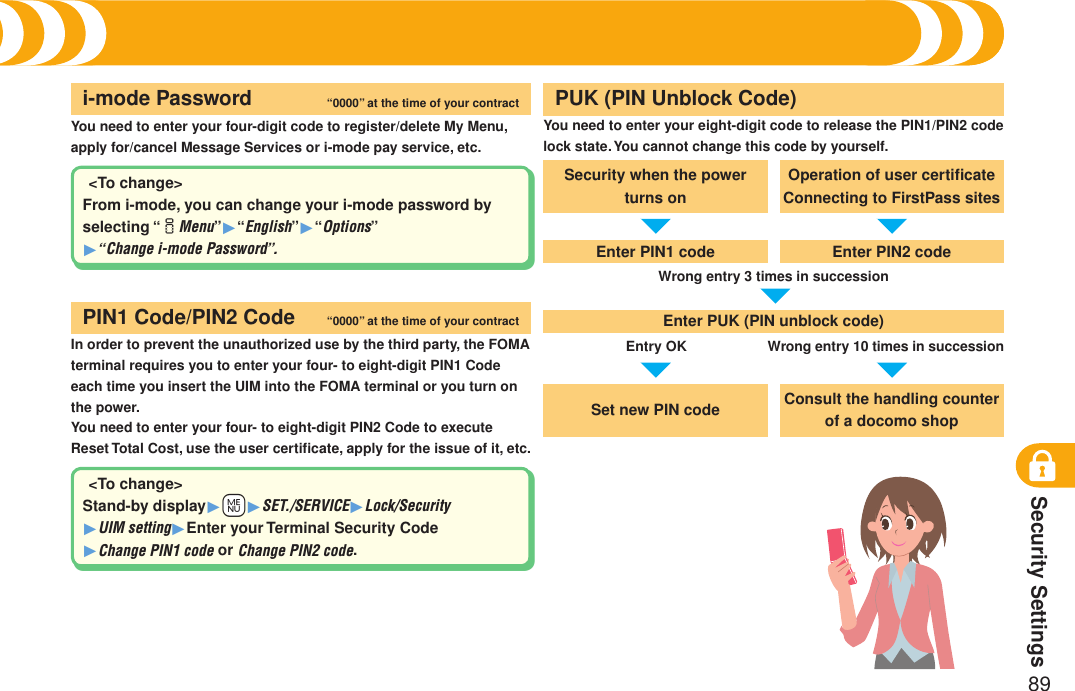

Security Settings89You need to enter your four-digit code to register/delete My Menu, apply for/cancel Message Services or i-mode pay service, etc.i-mode Password “0000” at the time of your contractIn order to prevent the unauthorized use by the third party, the FOMA terminal requires you to enter your four- to eight-digit PIN1 Code each time you insert the UIM into the FOMA terminal or you turn on the power.You need to enter your four- to eight-digit PIN2 Code to execute Reset Total Cost, use the user certificate, apply for the issue of it, etc.PIN1 Code/PIN2 Code “0000” at the time of your contractYou need to enter your eight-digit code to release the PIN1/PIN2 code lock state. You cannot change this code by yourself.Security when the power turns onEnter PIN1 codeEnter PUK (PIN unblock code)Set new PIN codeOperation of user certificate Connecting to FirstPass sitesEnter PIN2 codeWrong entry 3 times in successionEntry OKConsult the handling counter of a docomo shopWrong entry 10 times in successionPUK (PIN Unblock Code)<To change>From i-mode, you can change your i-mode password by selecting “iMenu”1“English”1“Options” 1“Change i-mode Password”.<To change>Stand-by display1+m1SET./SERVICE1Lock/Security 1UIM setting1Enter your Terminal Security Code 1Change PIN1 code or Change PIN2 code.

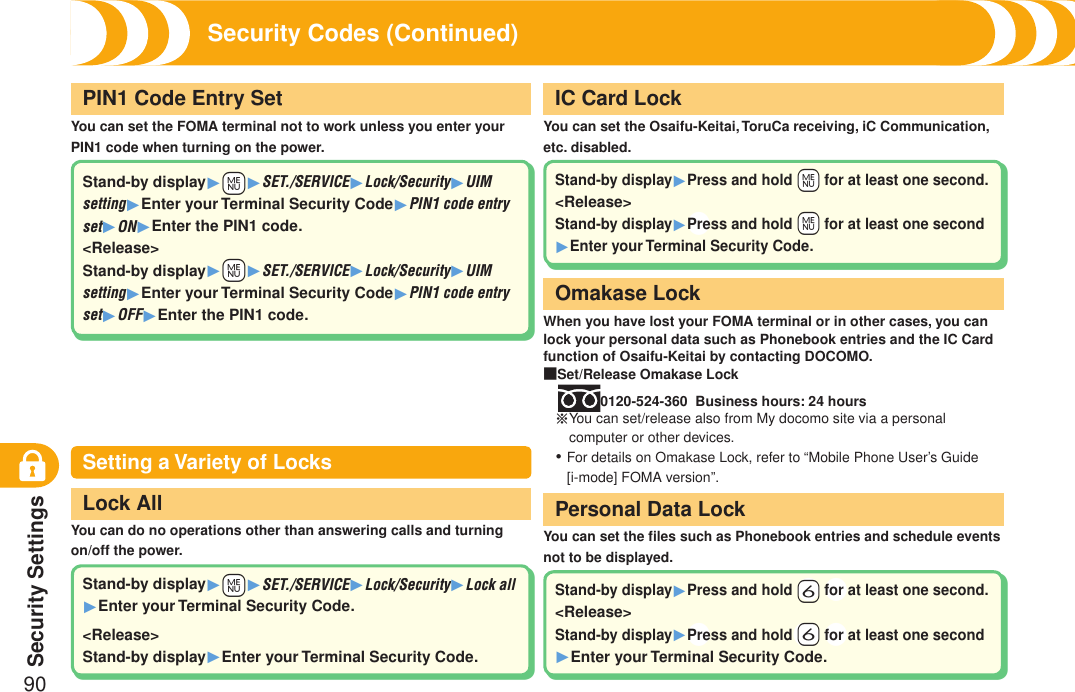

Security Settings90Security Codes (Continued)Setting a Variety of LocksYou can set the FOMA terminal not to work unless you enter your PIN1 code when turning on the power.PIN1 Code Entry SetYou can set the Osaifu-Keitai, ToruCa receiving, iC Communication, etc. disabled.IC Card LockWhen you have lost your FOMA terminal or in other cases, you can lock your personal data such as Phonebook entries and the IC Card function of Osaifu-Keitai by contacting DOCOMO.■Set/Release Omakase Lock0120-524-360 Business hours: 24 hours※ You can set/release also from My docomo site via a personal computer or other devices.For details on Omakase Lock, refer to “Mobile Phone User’s Guide [i-mode] FOMA version”.・Omakase LockYou can do no operations other than answering calls and turning on/off the power.Lock AllYou can set the files such as Phonebook entries and schedule events not to be displayed.Personal Data LockStand-by display1+m1SET./SERVICE1Lock/Security1UIM setting1Enter your Terminal Security Code1PIN1 code entry set1ON1Enter the PIN1 code.<Release>Stand-by display1+m1SET./SERVICE1Lock/Security1UIM setting1Enter your Terminal Security Code1PIN1 code entry set1OFF1Enter the PIN1 code.Stand-by display1+m1SET./SERVICE1Lock/Security1Lock all 1Enter your Terminal Security Code.<Release>Stand-by display1Enter your Terminal Security Code.Stand-by display1Press and hold +m for at least one second.<Release>Stand-by display1+Press and hold +m for at least one second 1Enter your Terminal Security Code.Stand-by display1Press and hold +6 +for at least one second.<Release>Stand-by display1+Press and hold+ +6 +for at least one second1Enter your Terminal Security Code.

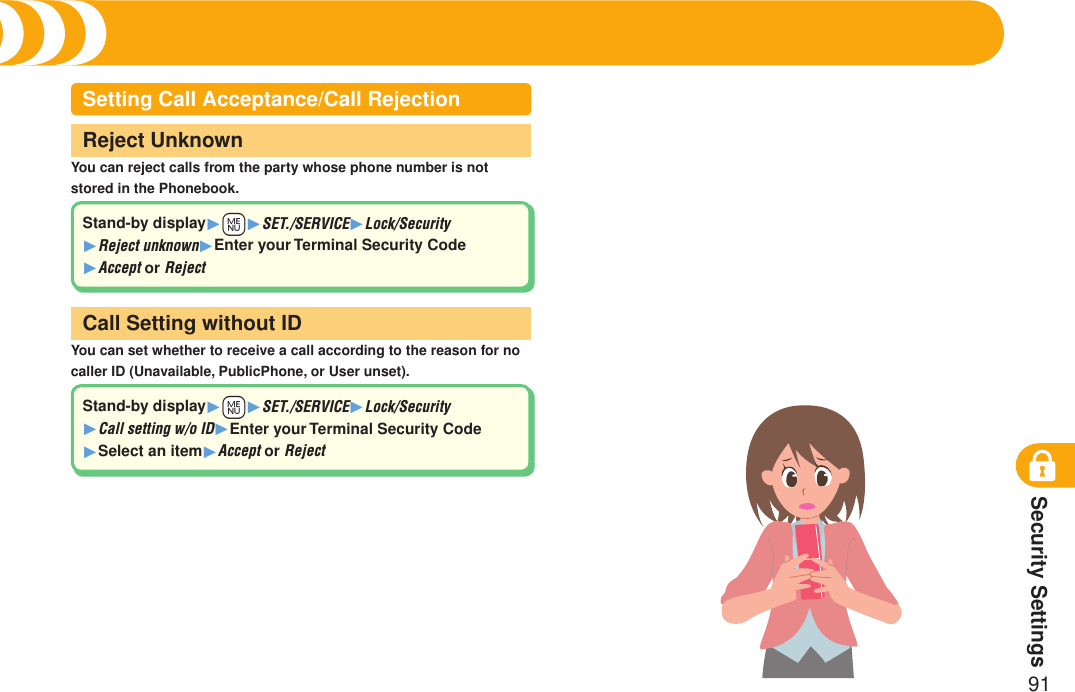

Security Settings91Security Codes (Continued)You can reject calls from the party whose phone number is not stored in the Phonebook.Reject UnknownYou can set whether to receive a call according to the reason for no caller ID (Unavailable, PublicPhone, or User unset).Call Setting without IDSetting Call Acceptance/Call RejectionStand-by display1+m1SET./SERVICE1Lock/Security 1Reject unknown1Enter your Terminal Security Code 1Accept or RejectStand-by display1+m1SET./SERVICE1Lock/Security 1Call setting w/o ID1Enter your Terminal Security Code 1Select an item1Accept or Reject

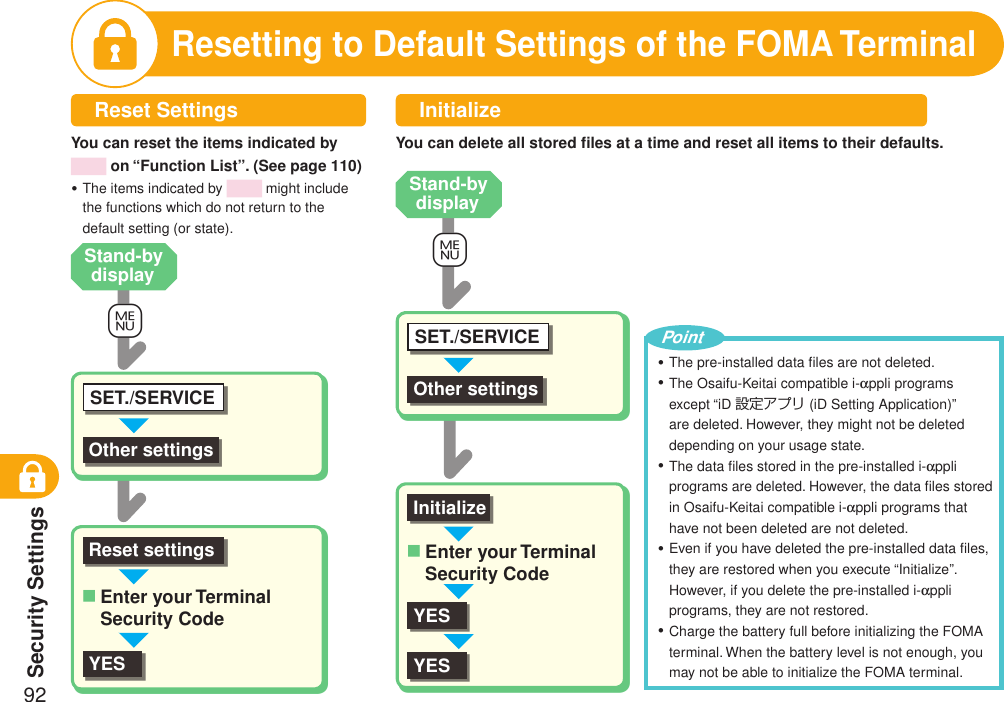

Security Settings92Resetting to Default Settings of the FOMA Terminal+mOther settingsSET./SERVICEReset settingsYESEnter your Terminal Security Code■Reset SettingsYou can reset the items indicated by on “Function List”. (See page 110)The items indicated by might include the functions which do not return to the default setting (or state).・InitializeYou can delete all stored files at a time and reset all items to their defaults.+mOther settingsSET./SERVICEInitializeYESYESThe pre-installed data files are not deleted.The Osaifu-Keitai compatible i-appli programs except “iD 設定アプリ (iD Setting Application)” are deleted. However, they might not be deleted depending on your usage state.The data files stored in the pre-installed i-appli programs are deleted. However, the data files stored in Osaifu-Keitai compatible i-appli programs that have not been deleted are not deleted.Even if you have deleted the pre-installed data files, they are restored when you execute “Initialize”. However, if you delete the pre-installed i-appli programs, they are not restored.Charge the battery full before initializing the FOMA terminal. When the battery level is not enough, you may not be able to initialize the FOMA terminal.・・・・・PointStand-by displayStand-by displayEnter your Terminal Security Code■

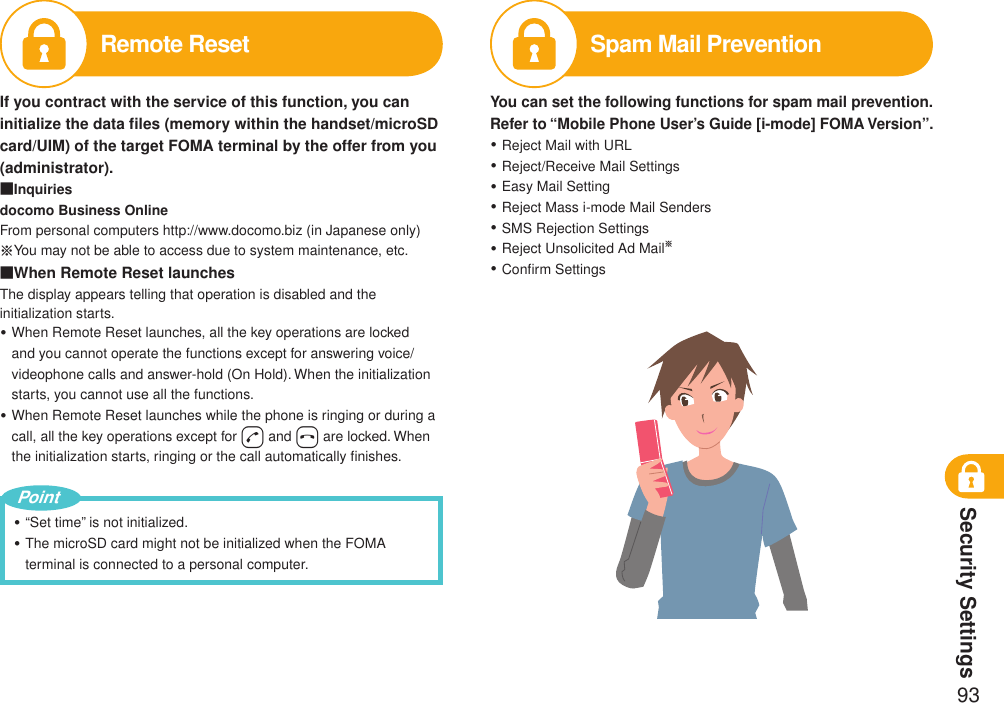

Security Settings93Remote ResetIf you contract with the service of this function, you can initialize the data files (memory within the handset/microSD card/UIM) of the target FOMA terminal by the offer from you (administrator).■Inquiriesdocomo Business OnlineFrom personal computers http://www.docomo.biz (in Japanese only)※You may not be able to access due to system maintenance, etc.■When Remote Reset launchesThe display appears telling that operation is disabled and the initialization starts.When Remote Reset launches, all the key operations are locked and you cannot operate the functions except for answering voice/videophone calls and answer-hold (On Hold). When the initialization starts, you cannot use all the functions.When Remote Reset launches while the phone is ringing or during a call, all the key operations except for d and h are locked. When the initialization starts, ringing or the call automatically finishes.・・“Set time” is not initialized.The microSD card might not be initialized when the FOMA terminal is connected to a personal computer.・・PointSpam Mail PreventionYou can set the following functions for spam mail prevention.Refer to “Mobile Phone User’s Guide [i-mode] FOMA Version”.Reject Mail with URLReject/Receive Mail SettingsEasy Mail SettingReject Mass i-mode Mail SendersSMS Rejection SettingsReject Unsolicited Ad Mail※Confirm Settings・・・・・・・

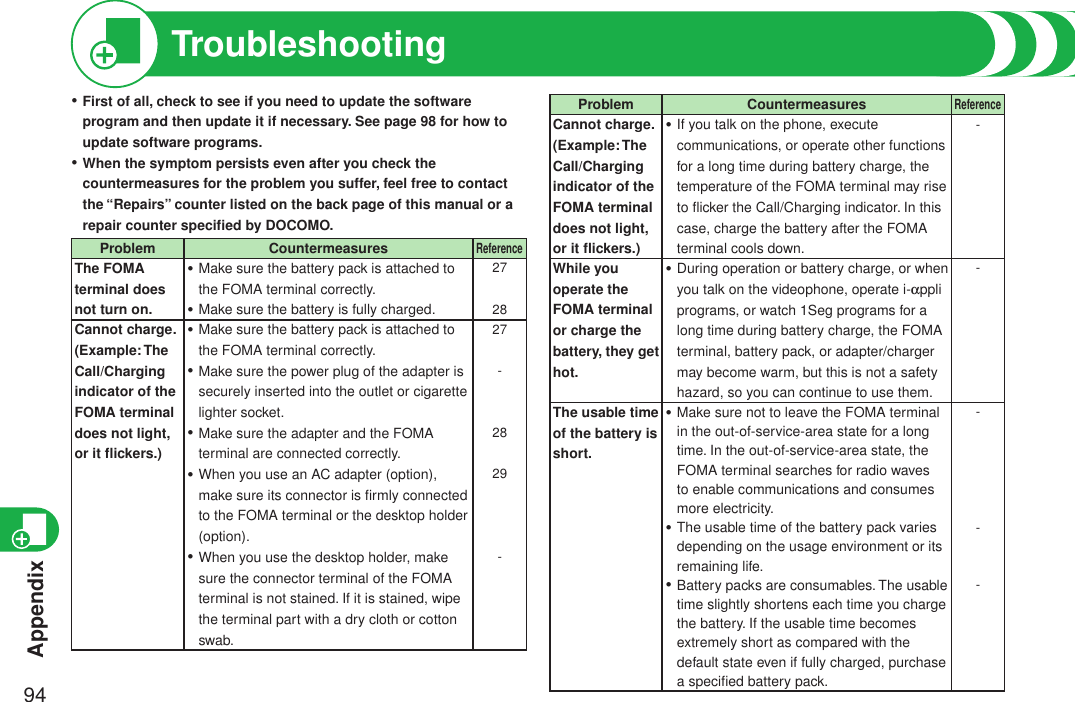

Appendix94First of all, check to see if you need to update the software program and then update it if necessary. See page 98 for how to update software programs.When the symptom persists even after you check the countermeasures for the problem you suffer, feel free to contact the “Repairs” counter listed on the back page of this manual or a repair counter specified by DOCOMO.Problem CountermeasuresReferenceThe FOMA terminal does not turn on. Make sure the battery pack is attached to the FOMA terminal correctly.Make sure the battery is fully charged.・・2728Cannot charge.(Example: The Call/Charging indicator of the FOMA terminal does not light, or it flickers.)Make sure the battery pack is attached to the FOMA terminal correctly.Make sure the power plug of the adapter is securely inserted into the outlet or cigarette lighter socket.Make sure the adapter and the FOMA terminal are connected correctly.When you use an AC adapter (option), make sure its connector is firmly connected to the FOMA terminal or the desktop holder (option).When you use the desktop holder, make sure the connector terminal of the FOMA terminal is not stained. If it is stained, wipe the terminal part with a dry cloth or cotton swab.・・・・・27-2829-・・Problem CountermeasuresReferenceCannot charge.(Example: The Call/Charging indicator of the FOMA terminal does not light, or it flickers.)If you talk on the phone, execute communications, or operate other functions for a long time during battery charge, the temperature of the FOMA terminal may rise to flicker the Call/Charging indicator. In this case, charge the battery after the FOMA terminal cools down.・-While you operate the FOMA terminal or charge the battery, they get hot.During operation or battery charge, or when you talk on the videophone, operate i-appli programs, or watch 1Seg programs for a long time during battery charge, the FOMA terminal, battery pack, or adapter/charger may become warm, but this is not a safety hazard, so you can continue to use them.・-The usable time of the battery is short.Make sure not to leave the FOMA terminal in the out-of-service-area state for a long time. In the out-of-service-area state, the FOMA terminal searches for radio waves to enable communications and consumes more electricity.The usable time of the battery pack varies depending on the usage environment or its remaining life.Battery packs are consumables. The usable time slightly shortens each time you charge the battery. If the usable time becomes extremely short as compared with the default state even if fully charged, purchase a specified battery pack.・・・---Troubleshooting

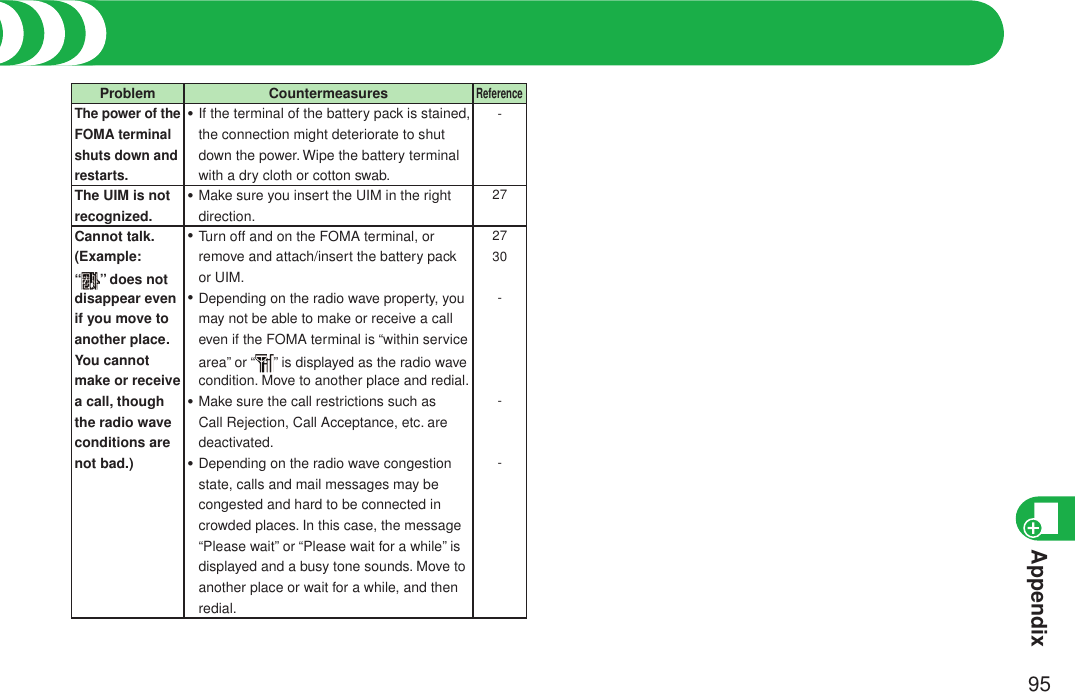

Appendix95Problem CountermeasuresReferenceThe power of the FOMA terminal shuts down and restarts.If the terminal of the battery pack is stained, the connection might deteriorate to shut down the power. Wipe the battery terminal with a dry cloth or cotton swab.・-The UIM is not recognized.Make sure you insert the UIM in the right direction.・27Cannot talk.(Example: “” does not disappear even if you move to another place. You cannot make or receive a call, though the radio wave conditions are not bad.)Turn off and on the FOMA terminal, or remove and attach/insert the battery pack or UIM.Depending on the radio wave property, you may not be able to make or receive a call even if the FOMA terminal is “within service area” or “ ” is displayed as the radio wave condition. Move to another place and redial.Make sure the call restrictions such as Call Rejection, Call Acceptance, etc. are deactivated.Depending on the radio wave congestion state, calls and mail messages may be congested and hard to be connected in crowded places. In this case, the message “Please wait” or “Please wait for a while” is displayed and a busy tone sounds. Move to another place or wait for a while, and then redial.・・・・27 30---Troubleshooting

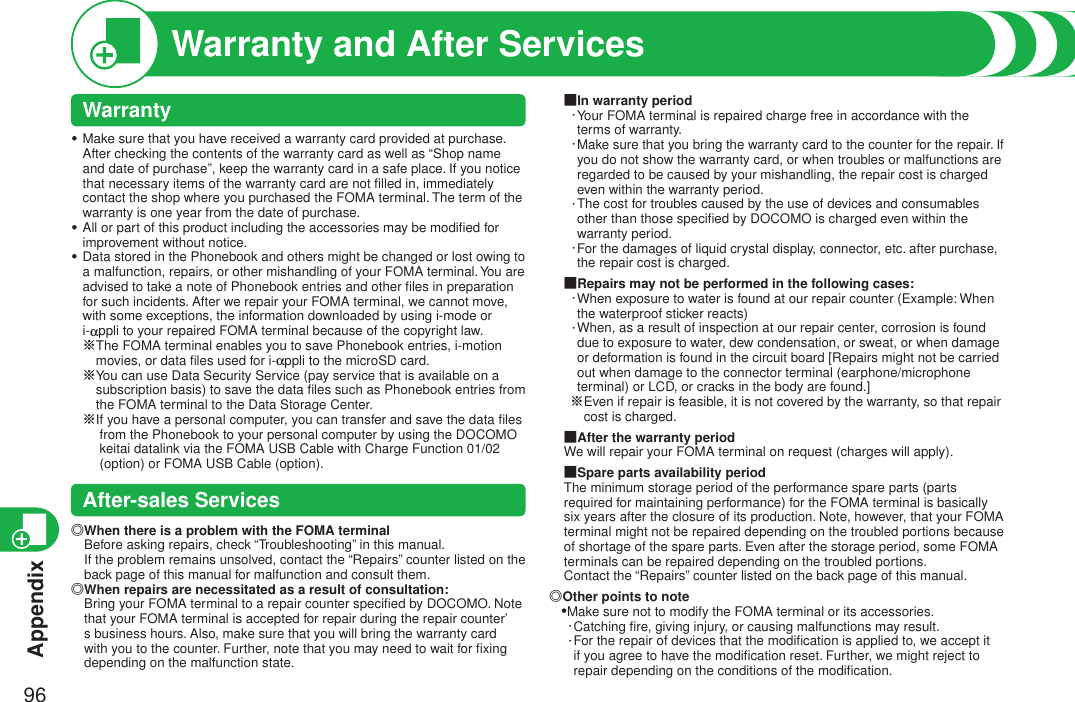

Appendix96Warranty and After ServicesWarrantyMake sure that you have received a warranty card provided at purchase. After checking the contents of the warranty card as well as “Shop name and date of purchase”, keep the warranty card in a safe place. If you notice that necessary items of the warranty card are not filled in, immediately contact the shop where you purchased the FOMA terminal. The term of the warranty is one year from the date of purchase.All or part of this product including the accessories may be modified for improvement without notice.Data stored in the Phonebook and others might be changed or lost owing to a malfunction, repairs, or other mishandling of your FOMA terminal. You are advised to take a note of Phonebook entries and other files in preparation for such incidents. After we repair your FOMA terminal, we cannot move, with some exceptions, the information downloaded by using i-mode or i-appli to your repaired FOMA terminal because of the copyright law. ※ The FOMA terminal enables you to save Phonebook entries, i-motion movies, or data files used for i-appli to the microSD card.※ You can use Data Security Service (pay service that is available on a subscription basis) to save the data files such as Phonebook entries from the FOMA terminal to the Data Storage Center.※I f you have a personal computer, you can transfer and save the data files from the Phonebook to your personal computer by using the DOCOMO keitai datalink via the FOMA USB Cable with Charge Function 01/02 (option) or FOMA USB Cable (option).After-sales Services◎ When there is a problem with the FOMA terminal Before asking repairs, check “Troubleshooting” in this manual. If the problem remains unsolved, contact the “Repairs” counter listed on the back page of this manual for malfunction and consult them.◎ When repairs are necessitated as a result of consultation: Bring your FOMA terminal to a repair counter specified by DOCOMO. Note that your FOMA terminal is accepted for repair during the repair counter’s business hours. Also, make sure that you will bring the warranty card with you to the counter. Further, note that you may need to wait for fixing depending on the malfunction state.・・・■In warranty period・ Your FOMA terminal is repaired charge free in accordance with the terms of warranty.・ Make sure that you bring the warranty card to the counter for the repair. If you do not show the warranty card, or when troubles or malfunctions are regarded to be caused by your mishandling, the repair cost is charged even within the warranty period.・ The cost for troubles caused by the use of devices and consumables other than those specified by DOCOMO is charged even within the warranty period.・ For the damages of liquid crystal display, connector, etc. after purchase, the repair cost is charged.■Repairs may not be performed in the following cases:・ When exposure to water is found at our repair counter (Example: When the waterproof sticker reacts)・ When, as a result of inspection at our repair center, corrosion is found due to exposure to water, dew condensation, or sweat, or when damage or deformation is found in the circuit board [Repairs might not be carried out when damage to the connector terminal (earphone/microphone terminal) or LCD, or cracks in the body are found.]※ Even if repair is feasible, it is not covered by the warranty, so that repair cost is charged.■After the warranty periodWe will repair your FOMA terminal on request (charges will apply).■Spare parts availability periodThe minimum storage period of the performance spare parts (parts required for maintaining performance) for the FOMA terminal is basically six years after the closure of its production. Note, however, that your FOMA terminal might not be repaired depending on the troubled portions because of shortage of the spare parts. Even after the storage period, some FOMA terminals can be repaired depending on the troubled portions.Contact the “Repairs” counter listed on the back page of this manual.◎Other points to note•Make sure not to modify the FOMA terminal or its accessories.・Catching fire, giving injury, or causing malfunctions may result. ・ For the repair of devices that the modification is applied to, we accept it if you agree to have the modification reset. Further, we might reject to repair depending on the conditions of the modification.

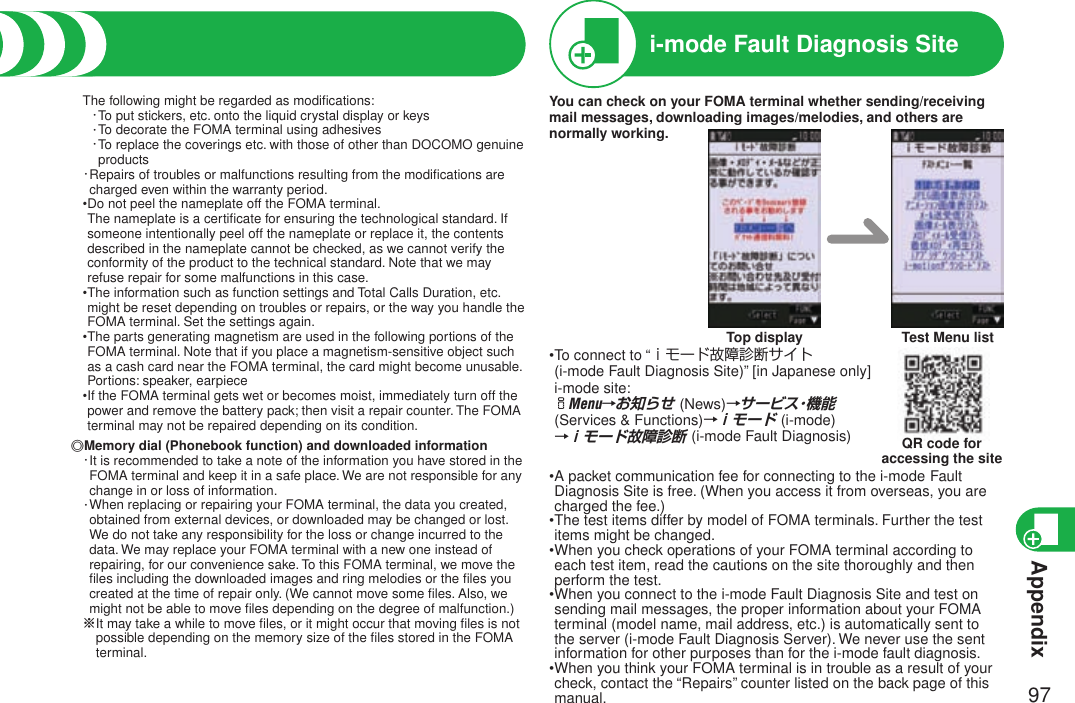

Appendix97Warranty and After ServicesThe following might be regarded as modifications:・To put stickers, etc. onto the liquid crystal display or keys ・To decorate the FOMA terminal using adhesives ・ To replace the coverings etc. with those of other than DOCOMO genuine products・ Repairs of troubles or malfunctions resulting from the modifications are charged even within the warranty period.• Do not peel the nameplate off the FOMA terminal. The nameplate is a certificate for ensuring the technological standard. If someone intentionally peel off the nameplate or replace it, the contents described in the nameplate cannot be checked, as we cannot verify the conformity of the product to the technical standard. Note that we may refuse repair for some malfunctions in this case.• The information such as function settings and Total Calls Duration, etc. might be reset depending on troubles or repairs, or the way you handle the FOMA terminal. Set the settings again.• The parts generating magnetism are used in the following portions of the FOMA terminal. Note that if you place a magnetism-sensitive object such as a cash card near the FOMA terminal, the card might become unusable. Portions: speaker, earpiece• If the FOMA terminal gets wet or becomes moist, immediately turn off the power and remove the battery pack; then visit a repair counter. The FOMA terminal may not be repaired depending on its condition.◎Memory dial (Phonebook function) and downloaded information・ It is recommended to take a note of the information you have stored in the FOMA terminal and keep it in a safe place. We are not responsible for any change in or loss of information.・ When replacing or repairing your FOMA terminal, the data you created, obtained from external devices, or downloaded may be changed or lost. We do not take any responsibility for the loss or change incurred to the data. We may replace your FOMA terminal with a new one instead of repairing, for our convenience sake. To this FOMA terminal, we move the files including the downloaded images and ring melodies or the files you created at the time of repair only. (We cannot move some files. Also, we might not be able to move files depending on the degree of malfunction.)※ It may take a while to move files, or it might occur that moving files is not possible depending on the memory size of the files stored in the FOMA terminal.i-mode Fault Diagnosis SiteYou can check on your FOMA terminal whether sending/receiving mail messages, downloading images/melodies, and others are normally working.Top display Test Menu list• To connect to “ｉモード故障診断サイト (i-mode Fault Diagnosis Site)” [in Japanese only] i-mode site: iMenu→お知らせ (News)→サービス・機能 (Services & Functions)→ｉモード (i-mode) →ｉモード故障診断 (i-mode Fault Diagnosis)• A packet communication fee for connecting to the i-mode Fault Diagnosis Site is free. (When you access it from overseas, you are charged the fee.)• The test items differ by model of FOMA terminals. Further the test items might be changed.• When you check operations of your FOMA terminal according to each test item, read the cautions on the site thoroughly and then perform the test.• When you connect to the i-mode Fault Diagnosis Site and test on sending mail messages, the proper information about your FOMA terminal (model name, mail address, etc.) is automatically sent to the server (i-mode Fault Diagnosis Server). We never use the sent information for other purposes than for the i-mode fault diagnosis.• When you think your FOMA terminal is in trouble as a result of your check, contact the “Repairs” counter listed on the back page of this manual.QR code for accessing the site

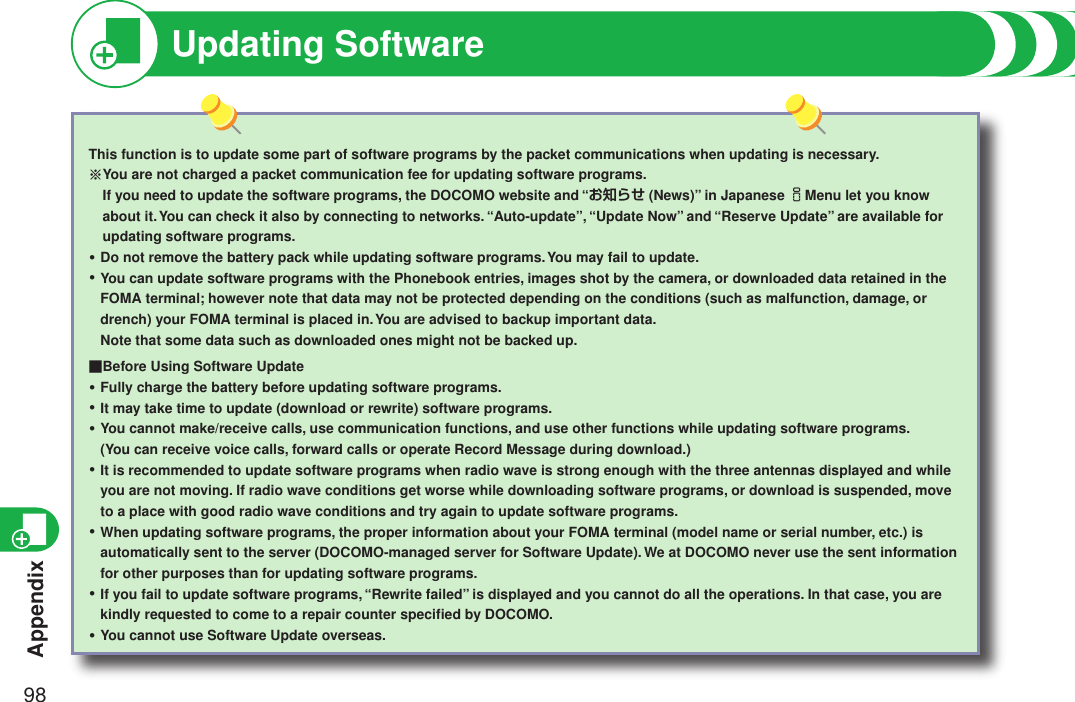

Appendix98Updating SoftwareThis function is to update some part of software programs by the packet communications when updating is necessary.※ You are not charged a packet communication fee for updating software programs. If you need to update the software programs, the DOCOMO website and “お知らせ (News)” in Japanese iMenu let you know about it. You can check it also by connecting to networks. “Auto-update”, “Update Now” and “Reserve Update” are available for updating software programs.Do not remove the battery pack while updating software programs. You may fail to update.You can update software programs with the Phonebook entries, images shot by the camera, or downloaded data retained in the FOMA terminal; however note that data may not be protected depending on the conditions (such as malfunction, damage, or drench) your FOMA terminal is placed in. You are advised to backup important data. Note that some data such as downloaded ones might not be backed up.■Before Using Software UpdateFully charge the battery before updating software programs.It may take time to update (download or rewrite) software programs.You cannot make/receive calls, use communication functions, and use other functions while updating software programs. (You can receive voice calls, forward calls or operate Record Message during download.)It is recommended to update software programs when radio wave is strong enough with the three antennas displayed and while you are not moving. If radio wave conditions get worse while downloading software programs, or download is suspended, move to a place with good radio wave conditions and try again to update software programs.When updating software programs, the proper information about your FOMA terminal (model name or serial number, etc.) is automatically sent to the server (DOCOMO-managed server for Software Update). We at DOCOMO never use the sent information for other purposes than for updating software programs.If you fail to update software programs, “Rewrite failed” is displayed and you cannot do all the operations. In that case, you are kindly requested to come to a repair counter specified by DOCOMO.You cannot use Software Update overseas.・・・・・・・・・

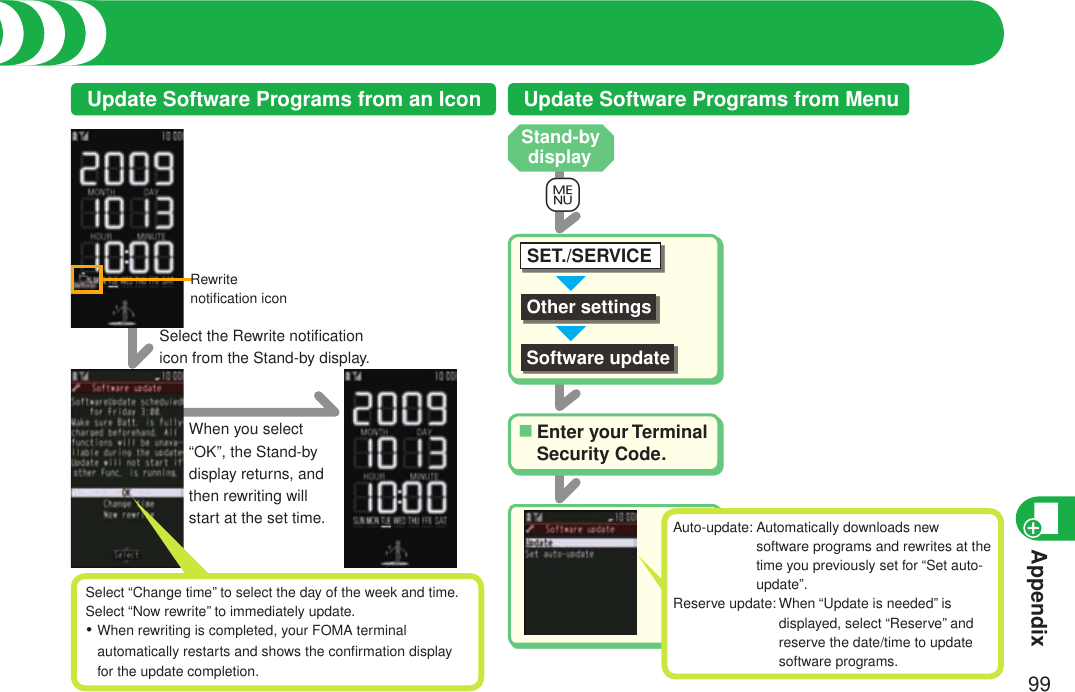

Appendix99Updating SoftwareRewrite notification iconSelect the Rewrite notification icon from the Stand-by display.When you select “OK”, the Stand-by display returns, and then rewriting will start at the set time.Update Software Programs from an IconSelect “Change time” to select the day of the week and time.Select “Now rewrite” to immediately update.When rewriting is completed, your FOMA terminal automatically restarts and shows the confirmation display for the update completion.・Update Software Programs from MenuEnter your Terminal Security Code.■Other settings Software updateSET./SERVICEAuto-update: Automatically downloads new software programs and rewrites at the time you previously set for “Set auto-update”.Reserve update: When “Update is needed” is displayed, select “Reserve” and reserve the date/time to update software programs. Stand-by display+m
Appendix100Protecting FOMA Terminal from Harmful DataRegarding data and programs obtained to the FOMA terminal, you can detect data that might cause failure, can delete it, and can stop starting an application program.The scan function is for filtering out the data that causes failure to mobile phones at the time of browsing web pages or receiving mail messages. Note that this function works only when the pattern data for each failure has been downloaded to your mobile phone and when the pattern data for each failure is found.The data contained in the pattern data varies depending on the mobile phone model. Therefore, note that we may stop distributing the pattern data to mobile phones that have been on the market for three years or more.・・Display for Scanning ResultA warning display appears when problematic data is found. Select “Detail” from the warning display to show the name of the problem element.When six or more problem elements are found, the sixth and later problem element names are omitted.“Detail” might not appear depending on the detected problem element.・・Alert level 0 Alert level 1 Alert level 2 Alert level 3 Alert level 4OK… Continues the operation.YES… Stops and ends the operation.NO … Continues the operation.OK… Stops and ends the operation.YES… Deletes the data and ends the operation.NO … Stops and ends the operation.OK… Deletes the data and ends the operation.The alert displays for when you display i-mode mail messages or SMS messages may differ from the ones on the left.・About Scanning Function■To update pattern dataStand-by display1m1SET./SERVICE1Lock/Security1Scanning function1Update1YES1YES1OKFirst of all, update the pattern to make it the latest.■About the display for scanned problem elements

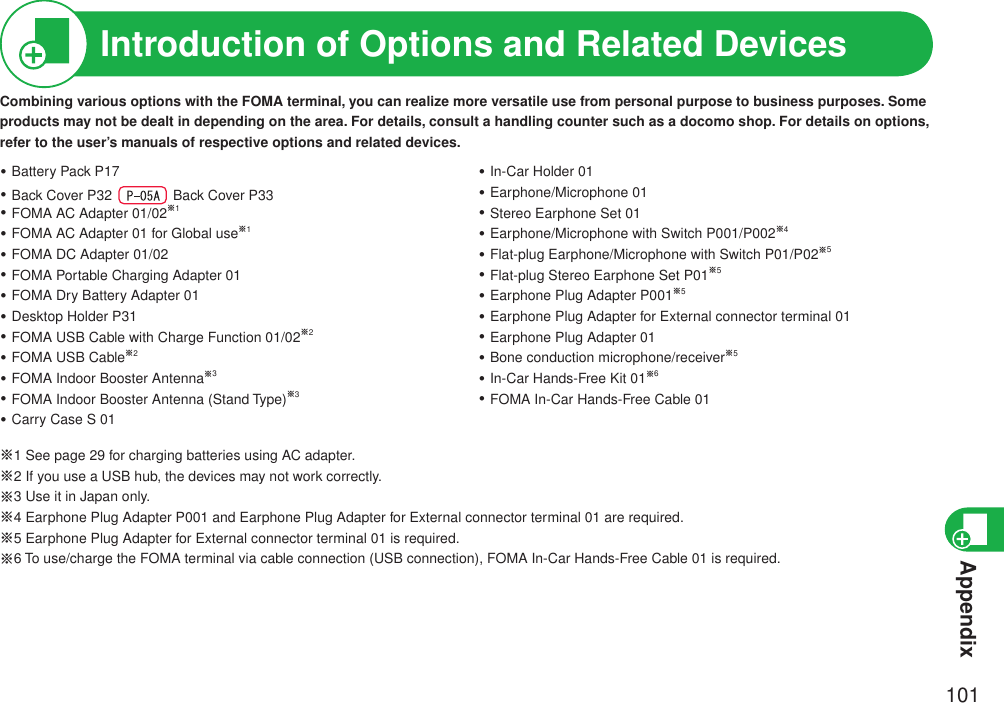

101Introduction of Options and Related DevicesBattery Pack P17Back Cover P32 Back Cover P33FOMA AC Adapter 01/02※1FOMA AC Adapter 01 for Global use※1FOMA DC Adapter 01/02FOMA Portable Charging Adapter 01FOMA Dry Battery Adapter 01Desktop Holder P31FOMA USB Cable with Charge Function 01/02※2FOMA USB Cable※2FOMA Indoor Booster Antenna※3FOMA Indoor Booster Antenna (Stand Type)※3Carry Case S 01・・・・・・・・・・・・・In-Car Holder 01Earphone/Microphone 01Stereo Earphone Set 01Earphone/Microphone with Switch P001/P002※4Flat-plug Earphone/Microphone with Switch P01/P02※5Flat-plug Stereo Earphone Set P01※5Earphone Plug Adapter P001※5Earphone Plug Adapter for External connector terminal 01Earphone Plug Adapter 01Bone conduction microphone/receiver※5In-Car Hands-Free Kit 01※6FOMA In-Car Hands-Free Cable 01・・・・・・・・・・・・Combining various options with the FOMA terminal, you can realize more versatile use from personal purpose to business purposes. Some products may not be dealt in depending on the area. For details, consult a handling counter such as a docomo shop. For details on options, refer to the user’s manuals of respective options and related devices.※1 See page 29 for charging batteries using AC adapter.※2 If you use a USB hub, the devices may not work correctly.※3 Use it in Japan only.※4 Earphone Plug Adapter P001 and Earphone Plug Adapter for External connector terminal 01 are required.※5 Earphone Plug Adapter for External connector terminal 01 is required.※6 To use/charge the FOMA terminal via cable connection (USB connection), FOMA In-Car Hands-Free Cable 01 is required.Appendix

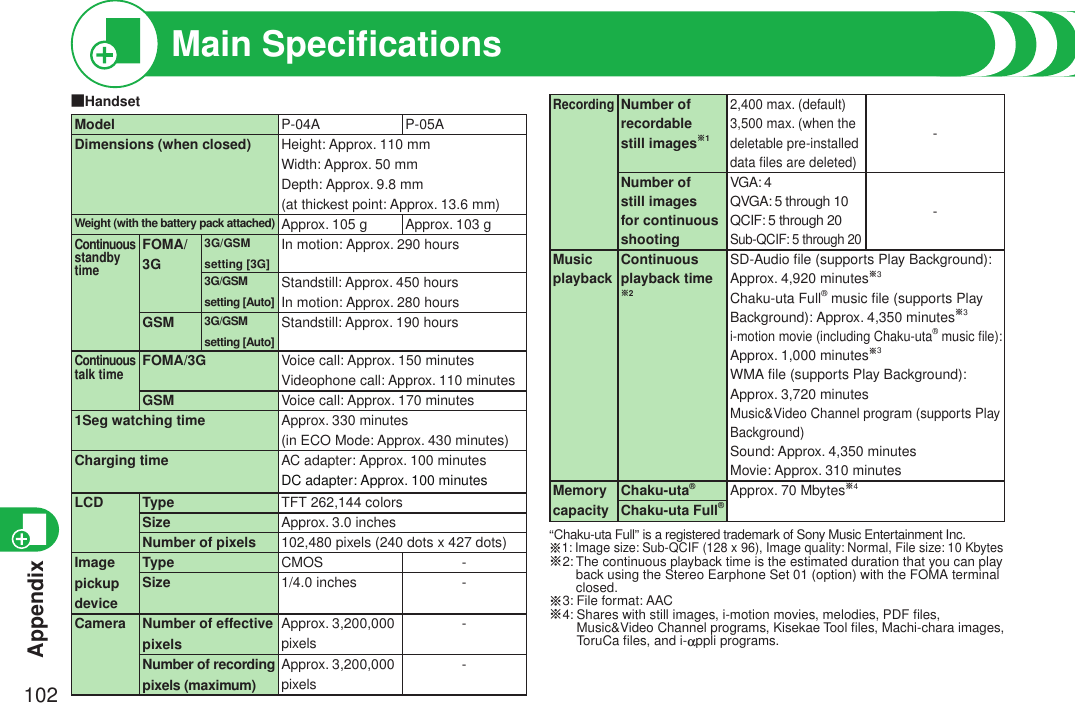

Appendix102■HandsetModel P-04A P-05ADimensions (when closed) Height: Approx. 110 mmWidth: Approx. 50 mmDepth: Approx. 9.8 mm(at thickest point: Approx. 13.6 mm)Weight (with the battery pack attached) Approx. 105 g Approx. 103 gContinuous standby timeFOMA/3G3G/GSM setting [3G]In motion: Approx. 290 hours3G/GSM setting [Auto]Standstill: Approx. 450 hoursIn motion: Approx. 280 hoursGSM 3G/GSM setting [Auto]Standstill: Approx. 190 hoursContinuous talk timeFOMA/3G Voice call: Approx. 150 minutesVideophone call: Approx. 110 minutesGSM Voice call: Approx. 170 minutes1Seg watching time Approx. 330 minutes (in ECO Mode: Approx. 430 minutes)Charging time AC adapter: Approx. 100 minutesDC adapter: Approx. 100 minutesLCD Type TFT 262,144 colorsSize Approx. 3.0 inchesNumber of pixels 102,480 pixels (240 dots x 427 dots)ImagepickupdeviceType CMOS -Size 1/4.0 inches -Camera Number of effectivepixelsApprox. 3,200,000 pixels-Number of recordingpixels (maximum)Approx. 3,200,000 pixels-RecordingNumber of recordablestill images※12,400 max. (default)3,500 max. (when the deletable pre-installed data files are deleted)-Number of still images for continuous shootingVGA: 4QVGA: 5 through 10QCIF: 5 through 20Sub-QCIF: 5 through 20-MusicplaybackContinuousplayback time ※2SD-Audio file (supports Play Background):Approx. 4,920 minutes※3Chaku-uta Full® music file (supports PlayBackground): Approx. 4,350 minutes※3i-motion movie (including Chaku-uta® music file):Approx. 1,000 minutes※3WMA file (supports Play Background):Approx. 3,720 minutesMusic&Video Channel program (supports PlayBackground)Sound: Approx. 4,350 minutesMovie: Approx. 310 minutesMemorycapacityChaku-uta®Approx. 70 Mbytes※4Chaku-uta Full®“Chaku-uta Full” is a registered trademark of Sony Music Entertainment Inc.※1: Image size: Sub-QCIF (128 x 96), Image quality: Normal, File size: 10 Kbytes※2: The continuous playback time is the estimated duration that you can play back using the Stereo Earphone Set 01 (option) with the FOMA terminal closed.※3: File format: AAC※4: Shares with still images, i-motion movies, melodies, PDF files, Music&Video Channel programs, Kisekae Tool files, Machi-chara images, ToruCa files, and i-appli programs.Main Specifications

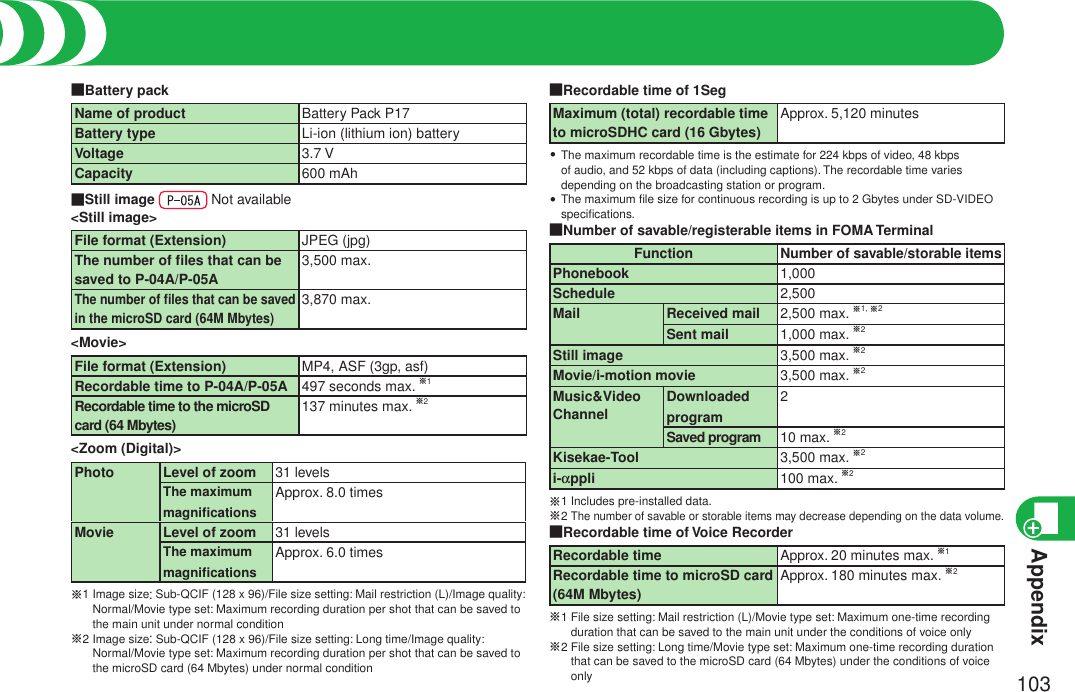

103■Battery packName of product Battery Pack P17Battery type Li-ion (lithium ion) batteryVoltage 3.7 VCapacity 600 mAh■Still image Not available<Still image>File format (Extension) JPEG (jpg)The number of files that can be saved to P-04A/P-05A3,500 max.The number of files that can be saved in the microSD card (64M Mbytes)3,870 max.<Movie>File format (Extension) MP4, ASF (3gp, asf)Recordable time to P-04A/P-05A 497 seconds max. ※1Recordable time to the microSD card (64 Mbytes)137 minutes max. ※2<Zoom (Digital)>Photo Level of zoom 31 levelsThe maximum magnificationsApprox. 8.0 timesMovie Level of zoom 31 levelsThe maximum magnificationsApprox. 6.0 times※1 Image size: Sub-QCIF (128 x 96)/File size setting: Mail restriction (L)/Image quality: Normal/Movie type set: Maximum recording duration per shot that can be saved to the main unit under normal condition※2 Image size: Sub-QCIF (128 x 96)/File size setting: Long time/Image quality: Normal/Movie type set: Maximum recording duration per shot that can be saved to the microSD card (64 Mbytes) under normal conditionMain Specifications■Recordable time of 1Seg Maximum (total) recordable time to microSDHC card (16 Gbytes)Approx. 5,120 minutesThe maximum recordable time is the estimate for 224 kbps of video, 48 kbps of audio, and 52 kbps of data (including captions). The recordable time varies depending on the broadcasting station or program.The maximum file size for continuous recording is up to 2 Gbytes under SD-VIDEO specifications.■Number of savable/registerable items in FOMA TerminalFunctionNumber of savable/storable itemsPhonebook 1,000Schedule 2,500Mail Received mail 2,500 max. ※1, ※2Sent mail 1,000 max. ※2Still image 3,500 max. ※2Movie/i-motion movie 3,500 max. ※2Music&Video Channel Downloaded program2Saved program 10 max. ※2Kisekae-Tool 3,500 max. ※2i-appli 100 max. ※2※1 Includes pre-installed data.※2 The number of savable or storable items may decrease depending on the data volume.■Recordable time of Voice RecorderRecordable time Approx. 20 minutes max. ※1Recordable time to microSD card (64M Mbytes)Approx. 180 minutes max. ※2※1 File size setting: Mail restriction (L)/Movie type set: Maximum one-time recording duration that can be saved to the main unit under the conditions of voice only※2 File size setting: Long time/Movie type set: Maximum one-time recording duration that can be saved to the microSD card (64 Mbytes) under the conditions of voice only・・Appendix

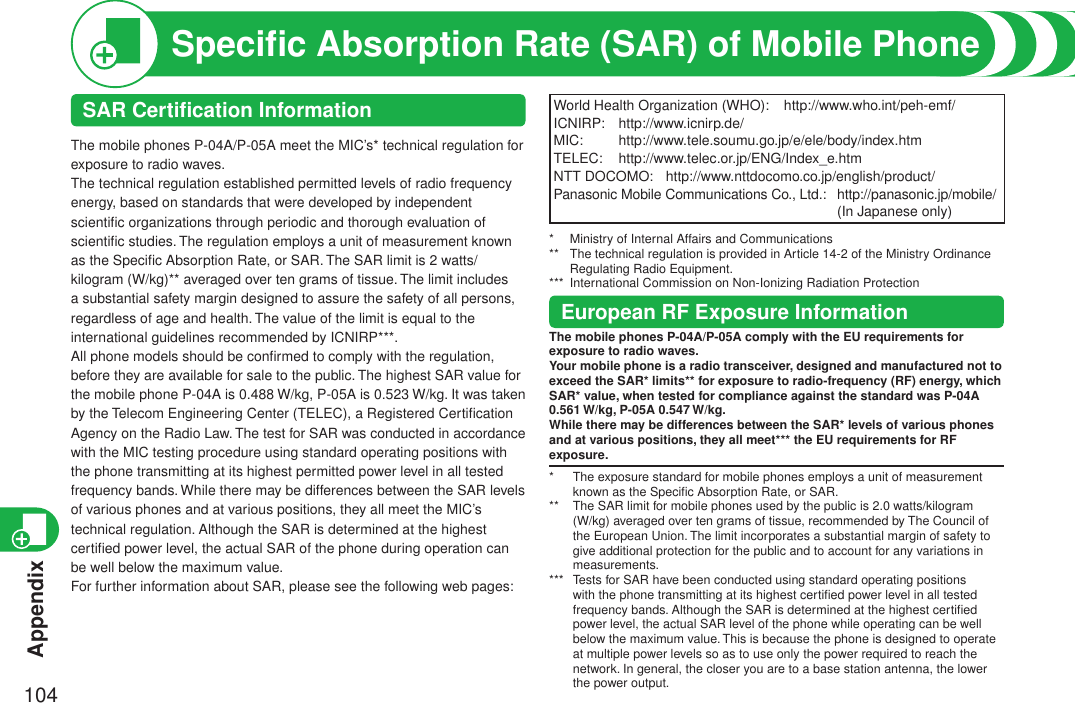

Appendix104World Health Organization (WHO): http://www.who.int/peh-emf/ICNIRP: http://www.icnirp.de/MIC: http://www.tele.soumu.go.jp/e/ele/body/index.htmTELEC: http://www.telec.or.jp/ENG/Index_e.htmNTT DOCOMO: http://www.nttdocomo.co.jp/english/product/Panasonic Mobile Communications Co., Ltd.: http://panasonic.jp/mobile/ (In Japanese only)* Ministry of Internal Affairs and Communications** The technical regulation is provided in Article 14-2 of the Ministry Ordinance Regulating Radio Equipment.*** International Commission on Non-Ionizing Radiation ProtectionEuropean RF Exposure InformationThe mobile phones P-04A/P-05A comply with the EU requirements for exposure to radio waves.Your mobile phone is a radio transceiver, designed and manufactured not to exceed the SAR* limits** for exposure to radio-frequency (RF) energy, which SAR* value, when tested for compliance against the standard was P-04A 0.561 W/kg, P-05A 0.547 W/kg.While there may be differences between the SAR* levels of various phones and at various positions, they all meet*** the EU requirements for RF exposure.* The exposure standard for mobile phones employs a unit of measurement known as the Specific Absorption Rate, or SAR.** The SAR limit for mobile phones used by the public is 2.0 watts/kilogram (W/kg) averaged over ten grams of tissue, recommended by The Council of the European Union. The limit incorporates a substantial margin of safety to give additional protection for the public and to account for any variations in measurements.*** Tests for SAR have been conducted using standard operating positions with the phone transmitting at its highest certified power level in all tested frequency bands. Although the SAR is determined at the highest certified power level, the actual SAR level of the phone while operating can be well below the maximum value. This is because the phone is designed to operate at multiple power levels so as to use only the power required to reach the network. In general, the closer you are to a base station antenna, the lower the power output.Specific Absorption Rate (SAR) of Mobile PhoneSAR Certification InformationThe mobile phones P-04A/P-05A meet the MIC’s* technical regulation for exposure to radio waves.The technical regulation established permitted levels of radio frequency energy, based on standards that were developed by independent scientific organizations through periodic and thorough evaluation of scientific studies. The regulation employs a unit of measurement known as the Specific Absorption Rate, or SAR. The SAR limit is 2 watts/kilogram (W/kg)** averaged over ten grams of tissue. The limit includes a substantial safety margin designed to assure the safety of all persons, regardless of age and health. The value of the limit is equal to the international guidelines recommended by ICNIRP***.All phone models should be confirmed to comply with the regulation, before they are available for sale to the public. The highest SAR value for the mobile phone P-04A is 0.488 W/kg, P-05A is 0.523 W/kg. It was taken by the Telecom Engineering Center (TELEC), a Registered Certification Agency on the Radio Law. The test for SAR was conducted in accordance with the MIC testing procedure using standard operating positions with the phone transmitting at its highest permitted power level in all tested frequency bands. While there may be differences between the SAR levels of various phones and at various positions, they all meet the MIC’s technical regulation. Although the SAR is determined at the highest certified power level, the actual SAR of the phone during operation can be well below the maximum value.For further information about SAR, please see the following web pages:

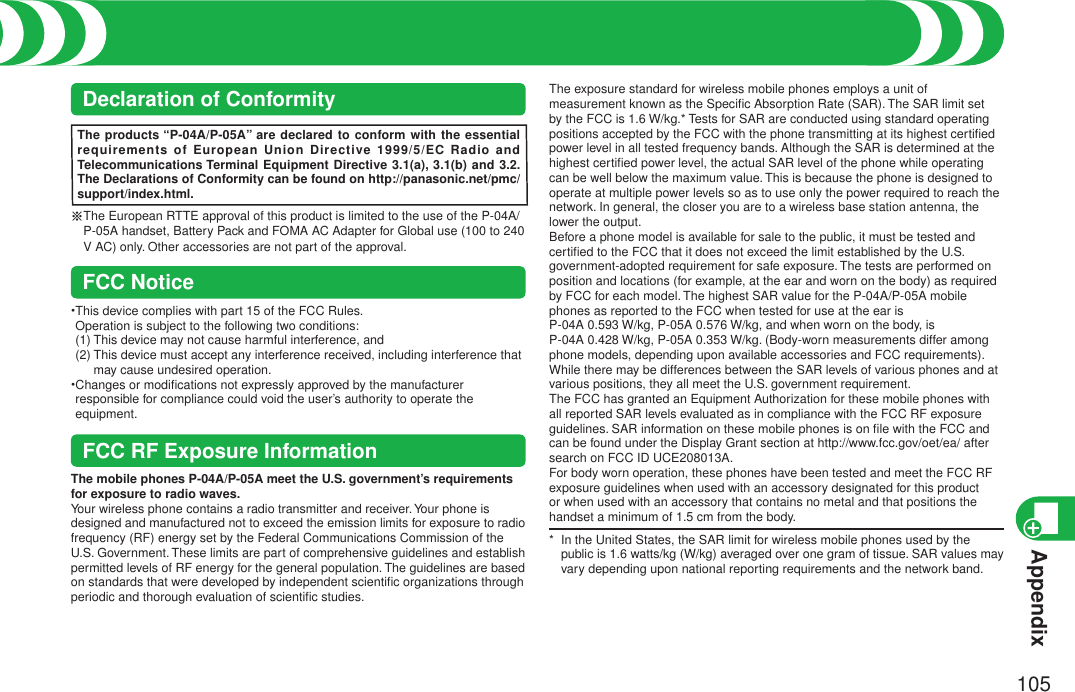

Appendix105Specific Absorption Rate (SAR) of Mobile PhoneDeclaration of ConformityThe products “P-04A/P-05A” are declared to conform with the essential requirements of European Union Directive 1999/5/EC Radio and Telecommunications Terminal Equipment Directive 3.1(a), 3.1(b) and 3.2. The Declarations of Conformity can be found on http://panasonic.net/pmc/support/index.html.※ The European RTTE approval of this product is limited to the use of the P-04A/P-05A handset, Battery Pack and FOMA AC Adapter for Global use (100 to 240 V AC) only. Other accessories are not part of the approval.FCC Notice• This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) This device must accept any interference received, including interference that may cause undesired operation.• Changes or modifications not expressly approved by the manufacturer responsible for compliance could void the user’s authority to operate the equipment.FCC RF Exposure InformationThe mobile phones P-04A/P-05A meet the U.S. government’s requirements for exposure to radio waves.Your wireless phone contains a radio transmitter and receiver. Your phone is designed and manufactured not to exceed the emission limits for exposure to radio frequency (RF) energy set by the Federal Communications Commission of the U.S. Government. These limits are part of comprehensive guidelines and establish permitted levels of RF energy for the general population. The guidelines are based on standards that were developed by independent scientific organizations through periodic and thorough evaluation of scientific studies.The exposure standard for wireless mobile phones employs a unit of measurement known as the Specific Absorption Rate (SAR). The SAR limit set by the FCC is 1.6 W/kg.* Tests for SAR are conducted using standard operating positions accepted by the FCC with the phone transmitting at its highest certified power level in all tested frequency bands. Although the SAR is determined at the highest certified power level, the actual SAR level of the phone while operating can be well below the maximum value. This is because the phone is designed to operate at multiple power levels so as to use only the power required to reach the network. In general, the closer you are to a wireless base station antenna, the lower the output.Before a phone model is available for sale to the public, it must be tested and certified to the FCC that it does not exceed the limit established by the U.S. government-adopted requirement for safe exposure. The tests are performed on position and locations (for example, at the ear and worn on the body) as required by FCC for each model. The highest SAR value for the P-04A/P-05A mobile phones as reported to the FCC when tested for use at the ear is P-04A 0.593 W/kg, P-05A 0.576 W/kg, and when worn on the body, is P-04A 0.428 W/kg, P-05A 0.353 W/kg. (Body-worn measurements differ among phone models, depending upon available accessories and FCC requirements). While there may be differences between the SAR levels of various phones and at various positions, they all meet the U.S. government requirement.The FCC has granted an Equipment Authorization for these mobile phones with all reported SAR levels evaluated as in compliance with the FCC RF exposure guidelines. SAR information on these mobile phones is on file with the FCC and can be found under the Display Grant section at http://www.fcc.gov/oet/ea/ after search on FCC ID UCE208013A.For body worn operation, these phones have been tested and meet the FCC RF exposure guidelines when used with an accessory designated for this product or when used with an accessory that contains no metal and that positions the handset a minimum of 1.5 cm from the body.* In the United States, the SAR limit for wireless mobile phones used by the public is 1.6 watts/kg (W/kg) averaged over one gram of tissue. SAR values may vary depending upon national reporting requirements and the network band.

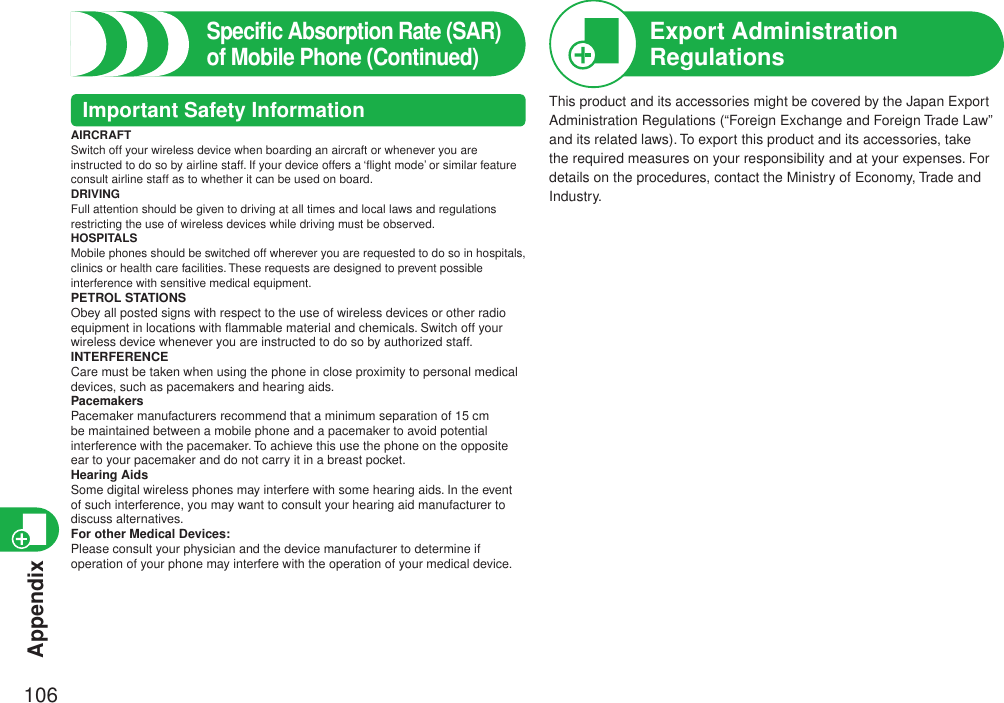

Appendix106Specific Absorption Rate (SAR) of Mobile Phone (Continued)Important Safety InformationAIRCRAFTSwitch off your wireless device when boarding an aircraft or whenever you are instructed to do so by airline staff. If your device offers a ‘flight mode’ or similar feature consult airline staff as to whether it can be used on board.DRIVINGFull attention should be given to driving at all times and local laws and regulations restricting the use of wireless devices while driving must be observed.HOSPITALSMobile phones should be switched off wherever you are requested to do so in hospitals, clinics or health care facilities. These requests are designed to prevent possible interference with sensitive medical equipment.PETROL STATIONSObey all posted signs with respect to the use of wireless devices or other radio equipment in locations with flammable material and chemicals. Switch off your wireless device whenever you are instructed to do so by authorized staff.INTERFERENCECare must be taken when using the phone in close proximity to personal medical devices, such as pacemakers and hearing aids.PacemakersPacemaker manufacturers recommend that a minimum separation of 15 cm be maintained between a mobile phone and a pacemaker to avoid potential interference with the pacemaker. To achieve this use the phone on the opposite ear to your pacemaker and do not carry it in a breast pocket.Hearing AidsSome digital wireless phones may interfere with some hearing aids. In the event of such interference, you may want to consult your hearing aid manufacturer to discuss alternatives.For other Medical Devices:Please consult your physician and the device manufacturer to determine if operation of your phone may interfere with the operation of your medical device.This product and its accessories might be covered by the Japan Export Administration Regulations (“Foreign Exchange and Foreign Trade Law” and its related laws). To export this product and its accessories, take the required measures on your responsibility and at your expenses. For details on the procedures, contact the Ministry of Economy, Trade and Industry.Export Administration Regulations
Appendix107

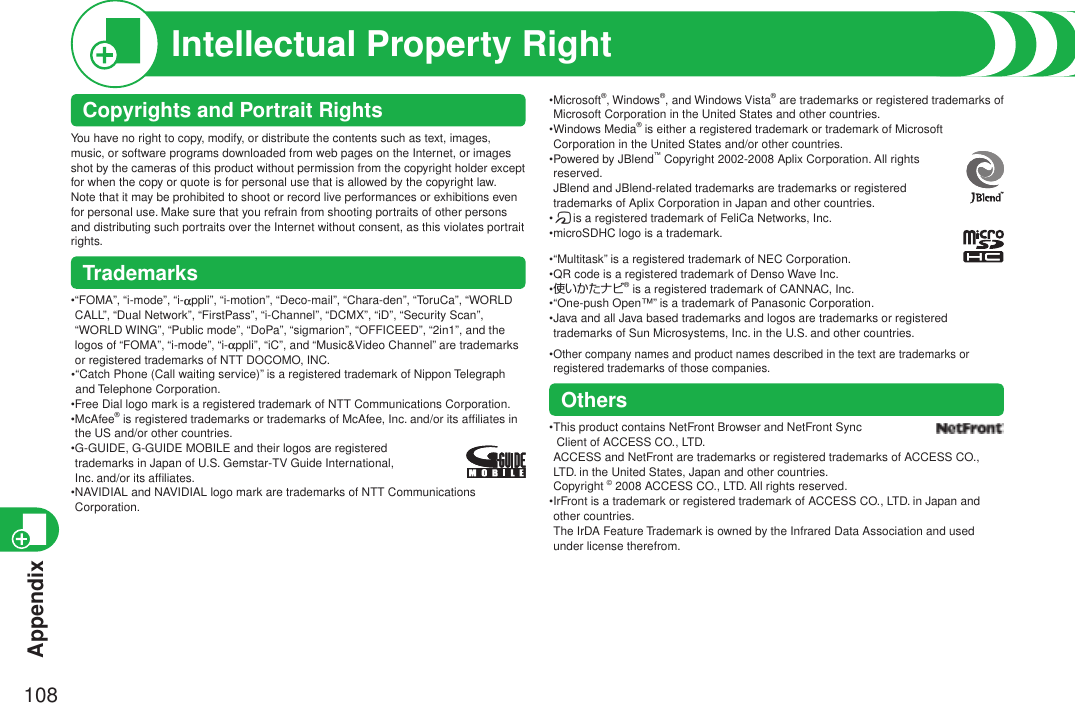

Appendix108Intellectual Property Right• Microsoft®, Windows®, and Windows Vista® are trademarks or registered trademarks of Microsoft Corporation in the United States and other countries.• Windows Media® is either a registered trademark or trademark of Microsoft Corporation in the United States and/or other countries.• Powered by JBlend™ Copyright 2002-2008 Aplix Corporation. All rights reserved. JBlend and JBlend-related trademarks are trademarks or registered trademarks of Aplix Corporation in Japan and other countries.•fis a registered trademark of FeliCa Networks, Inc.•microSDHC logo is a trademark.•“Multitask” is a registered trademark of NEC Corporation.•QR code is a registered trademark of Denso Wave Inc.•使いかたナビ® is a registered trademark of CANNAC, Inc.• “One-push Open™” is a trademark of Panasonic Corporation.• Java and all Java based trademarks and logos are trademarks or registered trademarks of Sun Microsystems, Inc. in the U.S. and other countries.• Other company names and product names described in the text are trademarks or registered trademarks of those companies.Others• This product contains NetFront Browser and NetFront Sync Client of ACCESS CO., LTD. ACCESS and NetFront are trademarks or registered trademarks of ACCESS CO., LTD. in the United States, Japan and other countries. Copyright © 2008 ACCESS CO., LTD. All rights reserved.• IrFront is a trademark or registered trademark of ACCESS CO., LTD. in Japan and other countries. The IrDA Feature Trademark is owned by the Infrared Data Association and used under license therefrom.Copyrights and Portrait RightsYou have no right to copy, modify, or distribute the contents such as text, images, music, or software programs downloaded from web pages on the Internet, or images shot by the cameras of this product without permission from the copyright holder except for when the copy or quote is for personal use that is allowed by the copyright law.Note that it may be prohibited to shoot or record live performances or exhibitions even for personal use. Make sure that you refrain from shooting portraits of other persons and distributing such portraits over the Internet without consent, as this violates portrait rights.Trademarks• “FOMA”, “i-mode”, “i-appli”, “i-motion”, “Deco-mail”, “Chara-den”, “ToruCa”, “WORLD CALL”, “Dual Network”, “FirstPass”, “i-Channel”, “DCMX”, “iD”, “Security Scan”, “WORLD WING”, “Public mode”, “DoPa”, “sigmarion”, “OFFICEED”, “2in1”, and the logos of “FOMA”, “i-mode”, “i-appli”, “iC”, and “Music&Video Channel” are trademarks or registered trademarks of NTT DOCOMO, INC.• “Catch Phone (Call waiting service)” is a registered trademark of Nippon Telegraph and Telephone Corporation.• Free Dial logo mark is a registered trademark of NTT Communications Corporation.• McAfee® is registered trademarks or trademarks of McAfee, Inc. and/or its affiliates in the US and/or other countries.• G-GUIDE, G-GUIDE MOBILE and their logos are registered trademarks in Japan of U.S. Gemstar-TV Guide International, Inc. and/or its affiliates.• NAVIDIAL and NAVIDIAL logo mark are trademarks of NTT Communications Corporation.

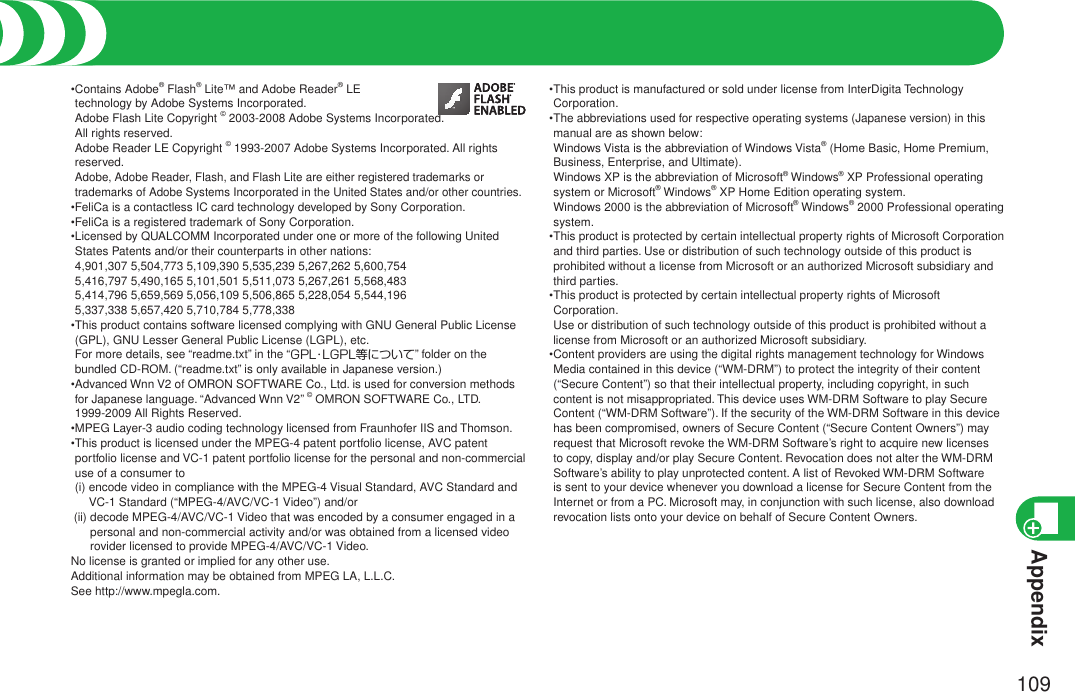

Appendix109• Contains Adobe® Flash® Lite™ and Adobe Reader® LE technology by Adobe Systems Incorporated. Adobe Flash Lite Copyright © 2003-2008 Adobe Systems Incorporated. All rights reserved. Adobe Reader LE Copyright © 1993-2007 Adobe Systems Incorporated. All rights reserved. Adobe, Adobe Reader, Flash, and Flash Lite are either registered trademarks or trademarks of Adobe Systems Incorporated in the United States and/or other countries.•FeliCa is a contactless IC card technology developed by Sony Corporation.•FeliCa is a registered trademark of Sony Corporation.• Licensed by QUALCOMM Incorporated under one or more of the following United States Patents and/or their counterparts in other nations: 4,901,307 5,504,773 5,109,390 5,535,239 5,267,262 5,600,754 5,416,797 5,490,165 5,101,501 5,511,073 5,267,261 5,568,483 5,414,796 5,659,569 5,056,109 5,506,865 5,228,054 5,544,196 5,337,338 5,657,420 5,710,784 5,778,338• This product contains software licensed complying with GNU General Public License (GPL), GNU Lesser General Public License (LGPL), etc. For more details, see “readme.txt” in the “GPL・LGPL等について” folder on the bundled CD-ROM. (“readme.txt” is only available in Japanese version.)• Advanced Wnn V2 of OMRON SOFTWARE Co., Ltd. is used for conversion methods for Japanese language. “Advanced Wnn V2” © OMRON SOFTWARE Co., LTD. 1999-2009 All Rights Reserved.•MPEG Layer-3 audio coding technology licensed from Fraunhofer IIS and Thomson.• This product is licensed under the MPEG-4 patent portfolio license, AVC patent portfolio license and VC-1 patent portfolio license for the personal and non-commercial use of a consumer to (i) encode video in compliance with the MPEG-4 Visual Standard, AVC Standard and VC-1 Standard (“MPEG-4/AVC/VC-1 Video”) and/or (ii) decode MPEG-4/AVC/VC-1 Video that was encoded by a consumer engaged in a personal and non-commercial activity and/or was obtained from a licensed video rovider licensed to provide MPEG-4/AVC/VC-1 Video.No license is granted or implied for any other use.Additional information may be obtained from MPEG LA, L.L.C.See http://www.mpegla.com.• This product is manufactured or sold under license from InterDigita Technology Corporation.• The abbreviations used for respective operating systems (Japanese version) in this manual are as shown below: Windows Vista is the abbreviation of Windows Vista® (Home Basic, Home Premium, Business, Enterprise, and Ultimate). Windows XP is the abbreviation of Microsoft® Windows® XP Professional operating system or Microsoft® Windows® XP Home Edition operating system. Windows 2000 is the abbreviation of Microsoft® Windows® 2000 Professional operating system.• This product is protected by certain intellectual property rights of Microsoft Corporation and third parties. Use or distribution of such technology outside of this product is prohibited without a license from Microsoft or an authorized Microsoft subsidiary and third parties.• This product is protected by certain intellectual property rights of Microsoft Corporation. Use or distribution of such technology outside of this product is prohibited without a license from Microsoft or an authorized Microsoft subsidiary.• Content providers are using the digital rights management technology for Windows Media contained in this device (“WM-DRM”) to protect the integrity of their content (“Secure Content”) so that their intellectual property, including copyright, in such content is not misappropriated. This device uses WM-DRM Software to play Secure Content (“WM-DRM Software”). If the security of the WM-DRM Software in this device has been compromised, owners of Secure Content (“Secure Content Owners”) may request that Microsoft revoke the WM-DRM Software’s right to acquire new licenses to copy, display and/or play Secure Content. Revocation does not alter the WM-DRM Software’s ability to play unprotected content. A list of Revoked WM-DRM Software is sent to your device whenever you download a license for Secure Content from the Internet or from a PC. Microsoft may, in conjunction with such license, also download revocation lists onto your device on behalf of Secure Content Owners.Intellectual Property Right

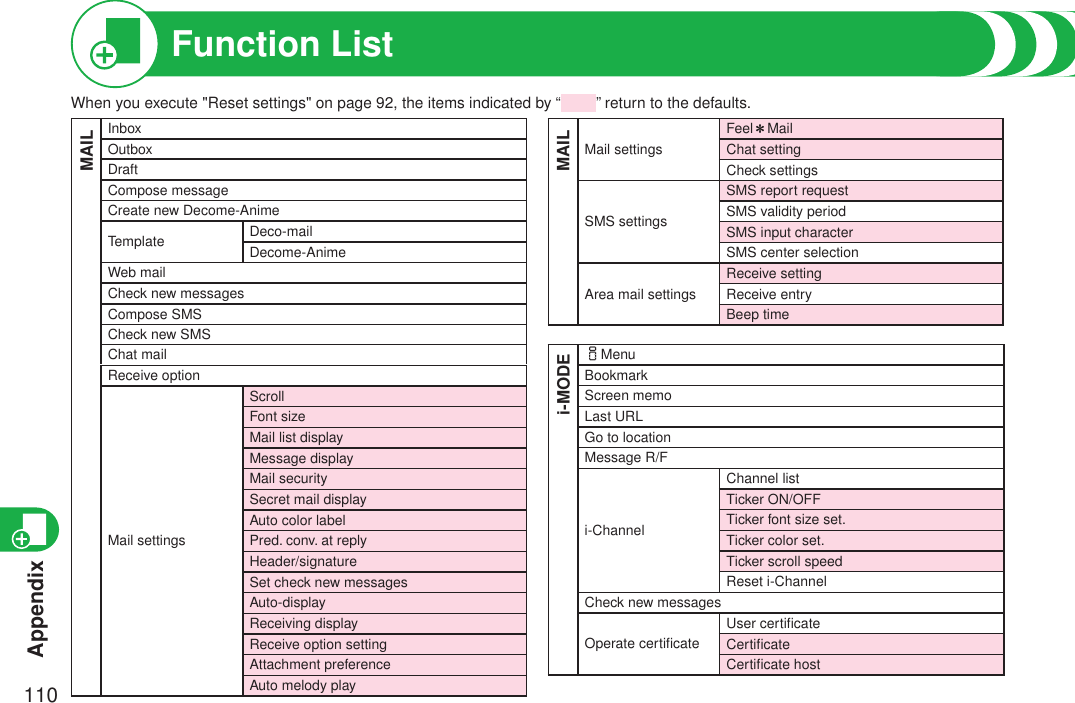

Appendix110Function ListMAILInboxOutboxDraftCompose messageCreate new Decome-AnimeTemplateDeco-mailDecome-AnimeWeb mailCheck new messagesCompose SMSCheck new SMSChat mailReceive optionMail settingsScrollFont sizeMail list displayMessage displayMail securitySecret mail displayAuto color labelPred. conv. at replyHeader/signatureSet check new messagesAuto-displayReceiving displayReceive option settingAttachment preferenceAuto melody playMAILMail settingsFeel＊MailChat settingCheck settingsSMS settingsSMS report requestSMS validity periodSMS input characterSMS center selectionArea mail settingsReceive settingReceive entryBeep timei-MODEiMenuBookmarkScreen memoLast URLGo to locationMessage R/Fi-ChannelChannel listTicker ON/OFFTicker font size set.Ticker color set.Ticker scroll speedReset i-ChannelCheck new messagesOperate certificateUser certificateCertificateCertificate hostWhen you execute "Reset settings" on page 92, the items indicated by “ ” return to the defaults.

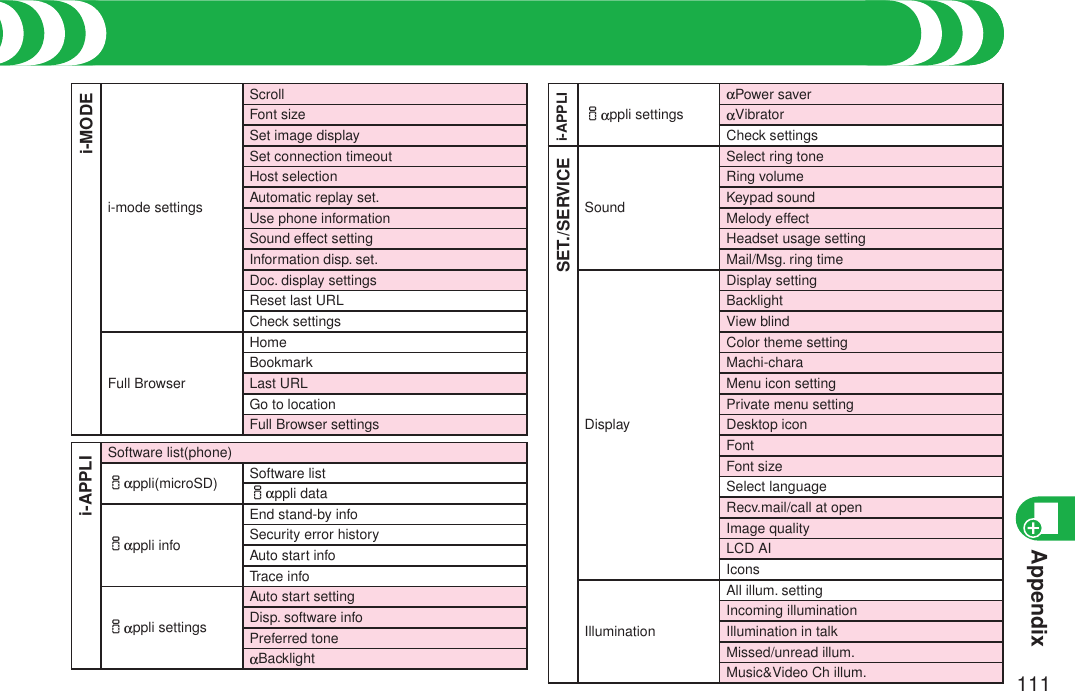

Appendix111i-MODEi-mode settingsScrollFont sizeSet image displaySet connection timeoutHost selectionAutomatic replay set.Use phone informationSound effect settingInformation disp. set.Doc. display settingsReset last URLCheck settingsFull BrowserHomeBookmarkLast URLGo to locationFull Browser settingsi-APPLISoftware list(phone)iappli(microSD)Software listiappli dataiappli infoEnd stand-by infoSecurity error historyAuto start infoTrace infoiappli settingsAuto start settingDisp. software infoPreferred toneaBacklight i-APPLIiappli settingsaPower saveraVibratorCheck settingsSET./SERVICESoundSelect ring toneRing volumeKeypad soundMelody effectHeadset usage settingMail/Msg. ring timeDisplayDisplay settingBacklightView blindColor theme settingMachi-charaMenu icon settingPrivate menu settingDesktop iconFontFont sizeSelect languageRecv.mail/call at openImage qualityLCD AIIconsIlluminationAll illum. settingIncoming illuminationIllumination in talkMissed/unread illum.Music&Video Ch illum.Function List

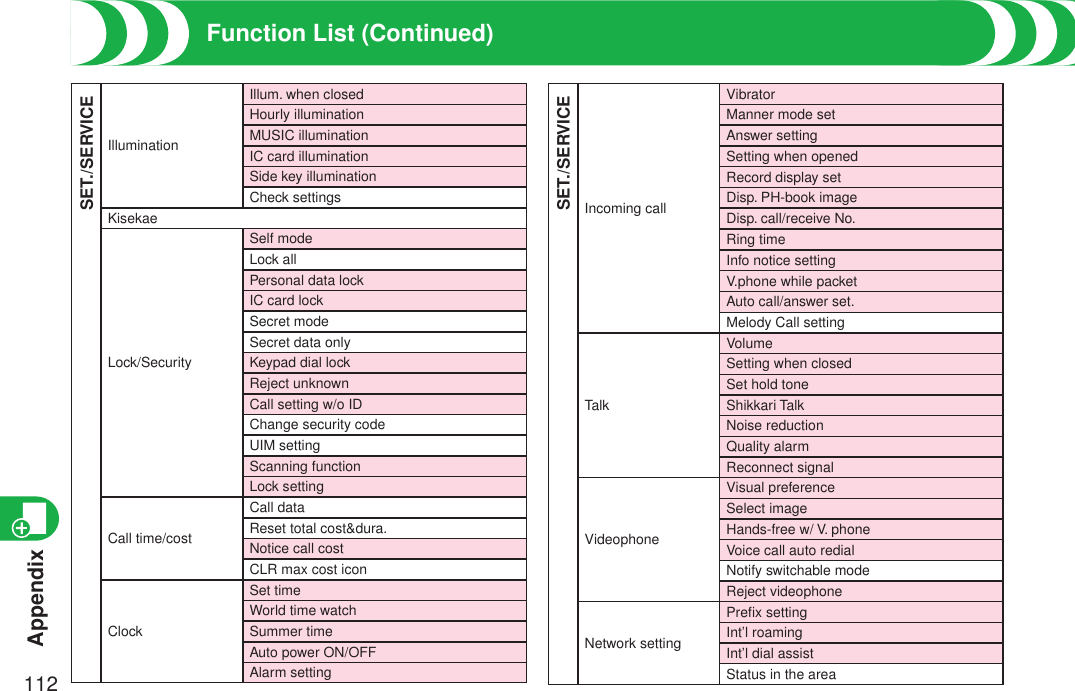

Appendix112Function List (Continued)SET./SERVICEIlluminationIllum. when closedHourly illuminationMUSIC illuminationIC card illuminationSide key illuminationCheck settingsKisekaeLock/SecuritySelf modeLock allPersonal data lockIC card lockSecret modeSecret data onlyKeypad dial lockReject unknownCall setting w/o IDChange security codeUIM settingScanning functionLock settingCall time/costCall dataReset total cost&dura.Notice call costCLR max cost iconClockSet timeWorld time watchSummer timeAuto power ON/OFFAlarm settingSET./SERVICEIncoming callVibratorManner mode setAnswer settingSetting when openedRecord display setDisp. PH-book imageDisp. call/receive No.Ring timeInfo notice settingV.phone while packetAuto call/answer set.Melody Call settingTalkVolumeSetting when closedSet hold toneShikkari TalkNoise reductionQuality alarmReconnect signalVideophoneVisual preferenceSelect imageHands-free w/ V. phoneVoice call auto redialNotify switchable modeReject videophoneNetwork settingPrefix settingInt’l roamingInt’l dial assistStatus in the area

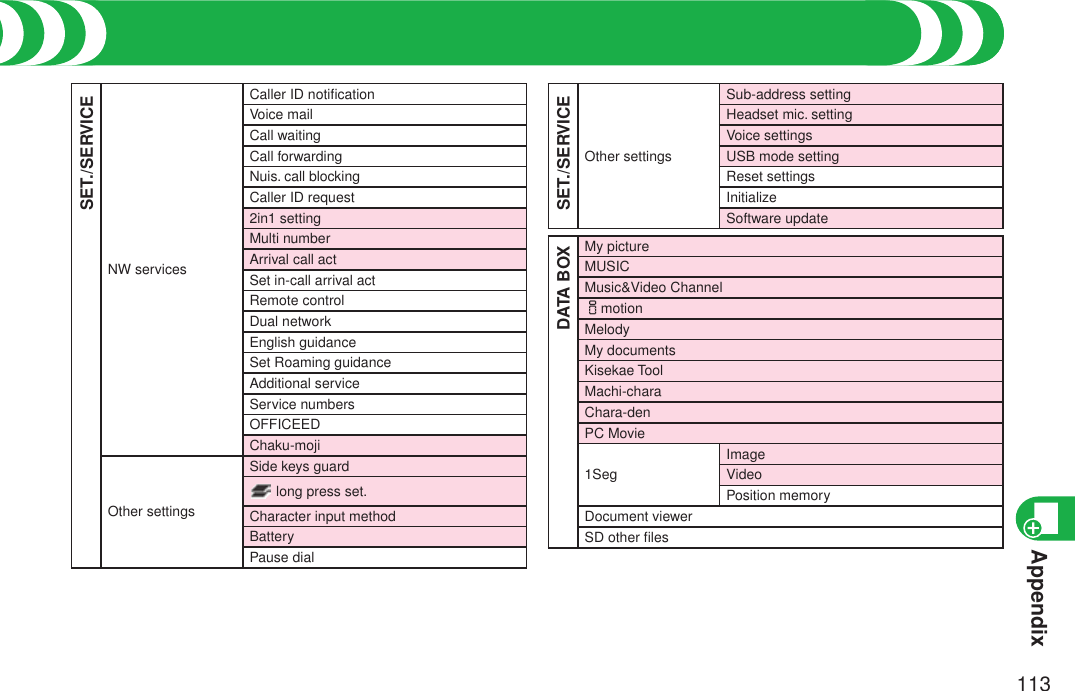

Appendix113SET./SERVICENW servicesCaller ID notificationVoice mailCall waitingCall forwardingNuis. call blockingCaller ID request2in1 settingMulti numberArrival call actSet in-call arrival actRemote controlDual networkEnglish guidanceSet Roaming guidanceAdditional serviceService numbersOFFICEEDChaku-mojiOther settingsSide keys guard long press set.Character input methodBatteryPause dialSET./SERVICEOther settingsSub-address settingHeadset mic. settingVoice settingsUSB mode settingReset settingsInitializeSoftware updateDATA BOXMy pictureMUSICMusic&Video ChannelimotionMelodyMy documentsKisekae ToolMachi-charaChara-denPC Movie1SegImageVideoPosition memoryDocument viewerSD other filesFunction List (Continued)

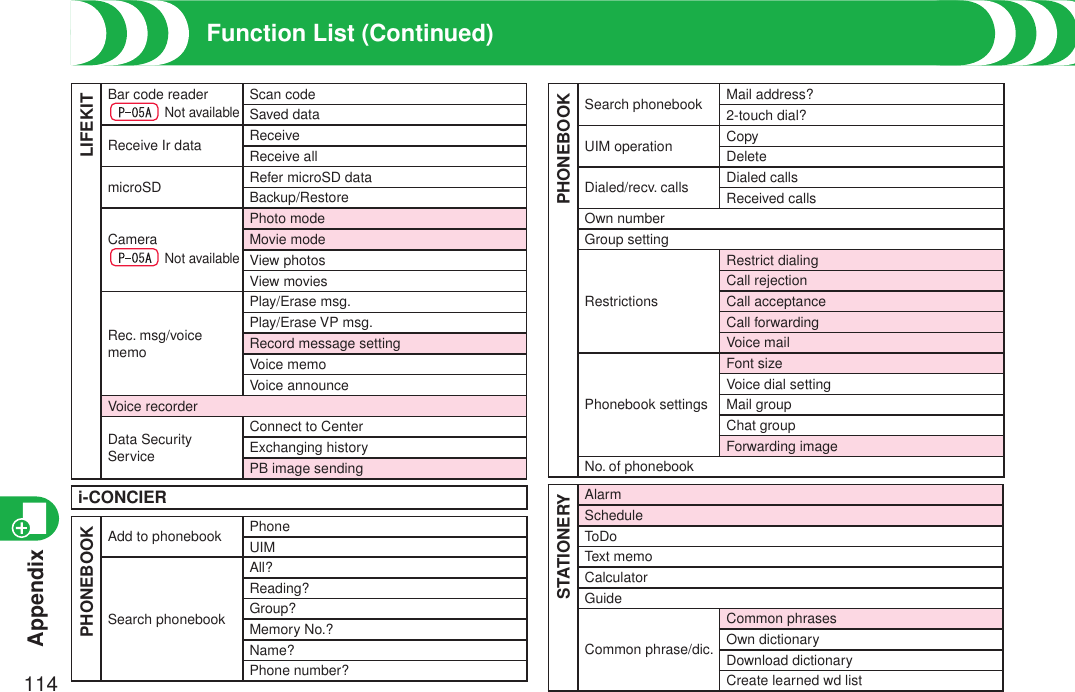

Appendix114Function List (Continued)LIFEKITBar code reader Not availableScan codeSaved dataReceive Ir dataReceiveReceive allmicroSDRefer microSD dataBackup/RestoreCamera Not availablePhoto modeMovie modeView photosView moviesRec. msg/voice memoPlay/Erase msg.Play/Erase VP msg.Record message settingVoice memoVoice announceVoice recorderData Security ServiceConnect to CenterExchanging historyPB image sendingi-CONCIERPHONEBOOKAdd to phonebookPhoneUIMSearch phonebookAll?Reading?Group?Memory No.?Name?Phone number?PHONEBOOKSearch phonebookMail address?2-touch dial?UIM operationCopyDeleteDialed/recv. callsDialed callsReceived callsOwn numberGroup settingRestrictionsRestrict dialingCall rejectionCall acceptanceCall forwardingVoice mailPhonebook settingsFont sizeVoice dial settingMail groupChat groupForwarding imageNo. of phonebookSTATIONERYAlarmScheduleToDoText memoCalculatorGuideCommon phrase/dic.Common phrasesOwn dictionaryDownload dictionaryCreate learned wd list

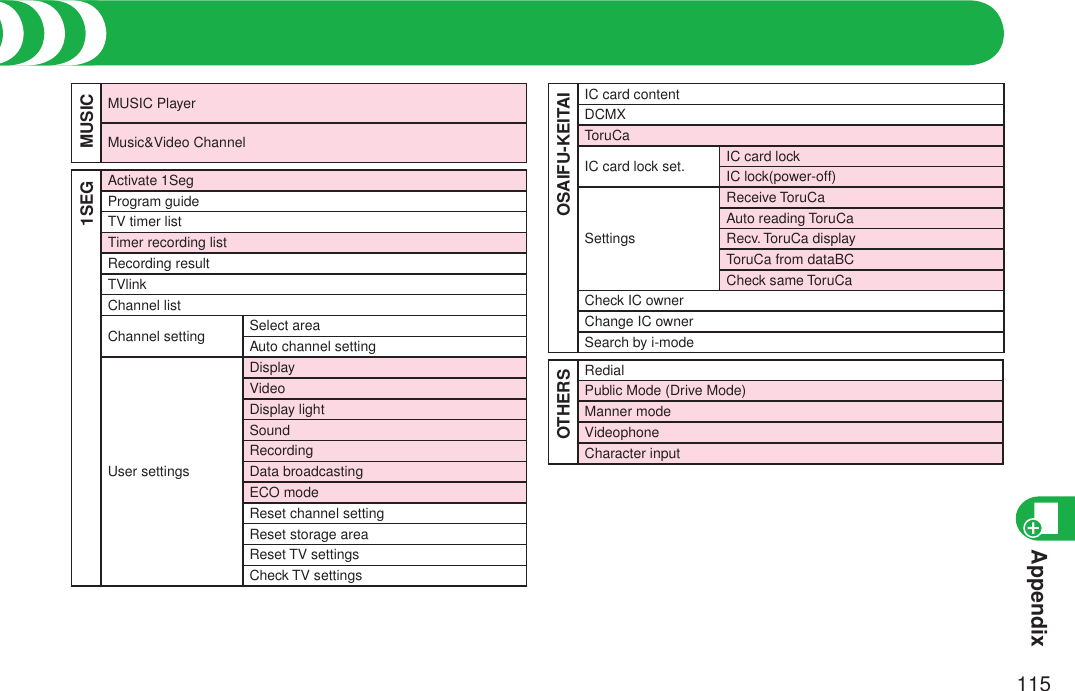

Appendix115MUSICMUSIC PlayerMusic&Video Channel1SEGActivate 1SegProgram guideTV timer listTimer recording listRecording resultTVlinkChannel listChannel settingSelect areaAuto channel settingUser settingsDisplayVideoDisplay lightSoundRecordingData broadcastingECO modeReset channel settingReset storage areaReset TV settingsCheck TV settingsOSAIFU-KEITAIIC card contentDCMXToruCaIC card lock set.IC card lockIC lock(power-off)SettingsReceive ToruCaAuto reading ToruCaRecv. ToruCa displayToruCa from dataBCCheck same ToruCaCheck IC ownerChange IC ownerSearch by i-modeOTHERSRedialPublic Mode (Drive Mode)Manner modeVideophoneCharacter inputFunction List (Continued)

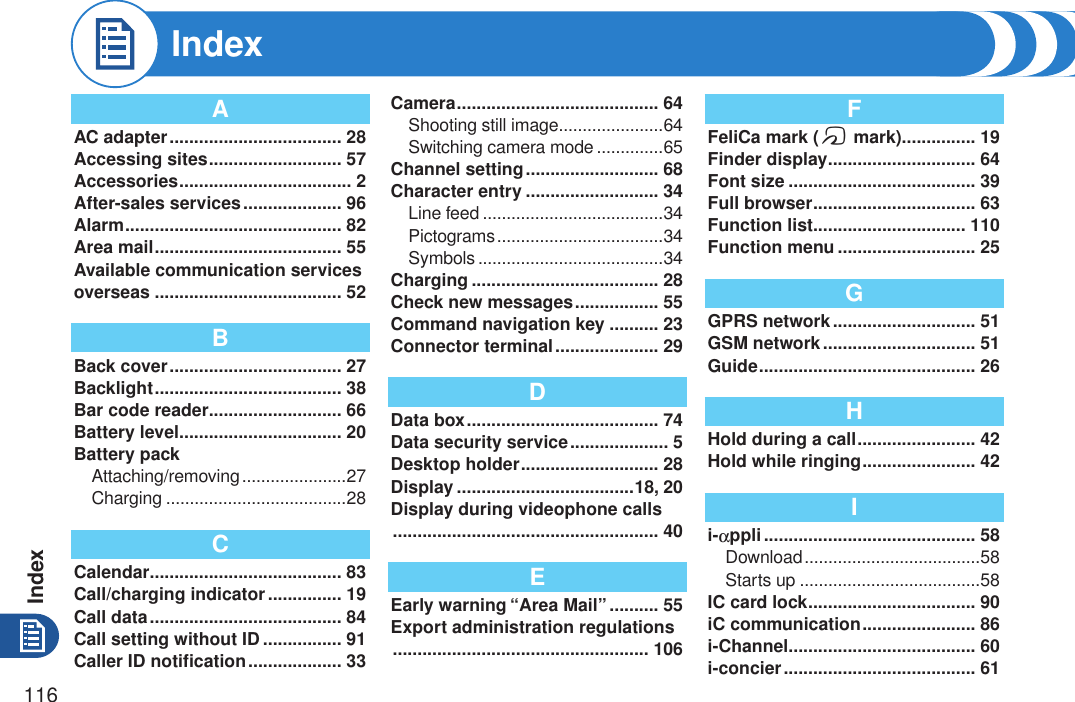

Index116AAC adapter ................................... 28Accessing sites ........................... 57Accessories ................................... 2After-sales services .................... 96Alarm ............................................ 82Area mail ...................................... 55Available communication services overseas ...................................... 52BBack cover ................................... 27Backlight ...................................... 38Bar code reader ........................... 66Battery level ................................. 20Battery packAttaching/removing ......................27Charging ......................................28CCalendar ....................................... 83Call/charging indicator ............... 19Call data ....................................... 84Call setting without ID ................ 91Caller ID notification ................... 33Camera ......................................... 64Shooting still image ......................64Switching camera mode ..............65Channel setting ........................... 68Character entry ........................... 34Line feed ......................................34Pictograms ...................................34Symbols .......................................34Charging ...................................... 28Check new messages ................. 55Command navigation key .......... 23Connector terminal ..................... 29DData box ....................................... 74Data security service .................... 5Desktop holder ............................ 28Display ....................................18, 20Display during videophone calls ...................................................... 40EEarly warning “Area Mail” .......... 55Export administration regulations .................................................... 106FFeliCa mark (f mark)............... 19Finder display .............................. 64Font size ...................................... 39Full browser ................................. 63Function list ............................... 110Function menu ............................ 25GGPRS network ............................. 51GSM network ............................... 51Guide ............................................ 26HHold during a call ........................ 42Hold while ringing ....................... 42Ii-appli ........................................... 58Download .....................................58Starts up ......................................58IC card lock .................................. 90iC communication ....................... 86i-Channel ...................................... 60i-concier ....................................... 61Index

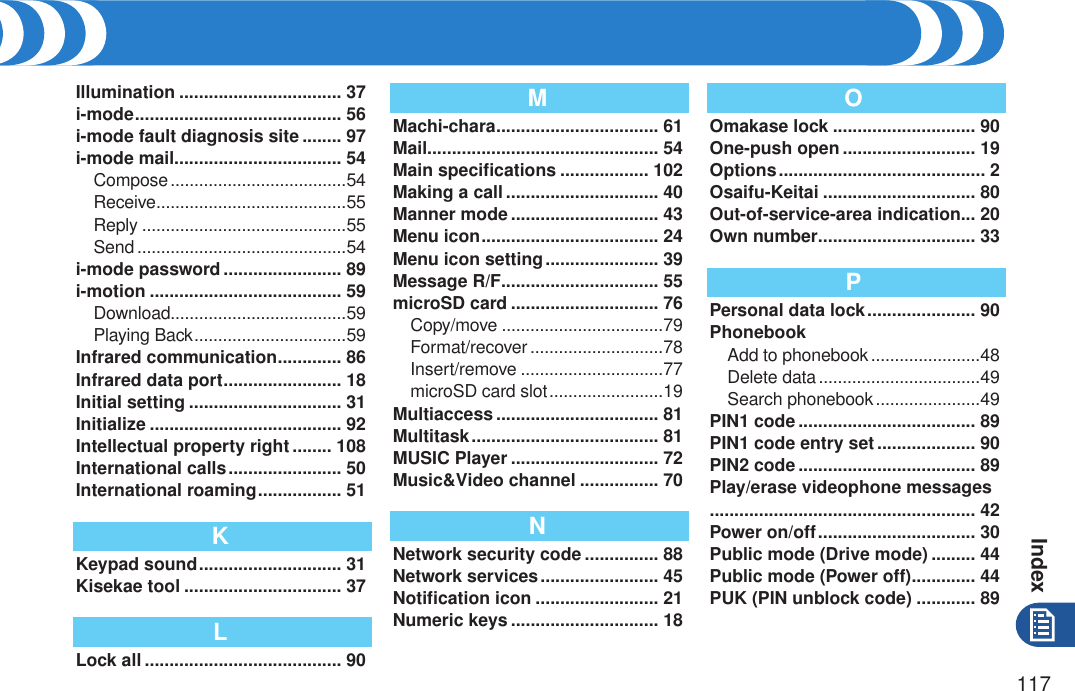

Index117Illumination ................................. 37i-mode .......................................... 56i-mode fault diagnosis site ........ 97i-mode mail.................................. 54Compose .....................................54Receive ........................................55Reply ...........................................55Send ............................................54i-mode password ........................ 89i-motion ....................................... 59Download.....................................59Playing Back ................................59Infrared communication ............. 86Infrared data port ........................ 18Initial setting ............................... 31Initialize ....................................... 92Intellectual property right ........ 108International calls ....................... 50International roaming ................. 51KKeypad sound ............................. 31Kisekae tool ................................ 37LLock all ........................................ 90MMachi-chara ................................. 61Mail............................................... 54Main specifications .................. 102Making a call ............................... 40Manner mode .............................. 43Menu icon .................................... 24Menu icon setting ....................... 39Message R/F................................ 55microSD card .............................. 76Copy/move ..................................79Format/recover ............................78Insert/remove ..............................77microSD card slot ........................19Multiaccess ................................. 81Multitask ...................................... 81MUSIC Player .............................. 72Music&Video channel ................ 70NNetwork security code ............... 88Network services ........................ 45Notification icon ......................... 21Numeric keys .............................. 18OOmakase lock ............................. 90One-push open ........................... 19Options .......................................... 2Osaifu-Keitai ............................... 80Out-of-service-area indication... 20Own number ................................ 33PPersonal data lock ...................... 90PhonebookAdd to phonebook .......................48Delete data ..................................49Search phonebook ......................49PIN1 code .................................... 89PIN1 code entry set .................... 90PIN2 code .................................... 89Play/erase videophone messages ...................................................... 42Power on/off ................................ 30Public mode (Drive mode) ......... 44Public mode (Power off) ............. 44PUK (PIN unblock code) ............ 89

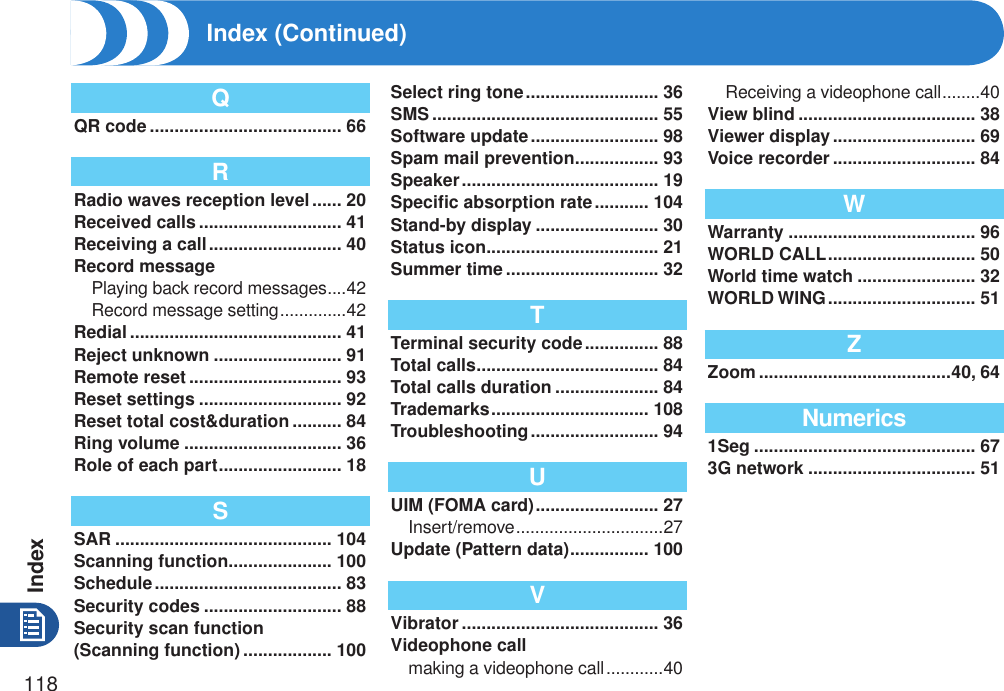

Index118QQR code ....................................... 66RRadio waves reception level ...... 20Received calls ............................. 41Receiving a call ........................... 40Record messagePlaying back record messages ....42Record message setting ..............42Redial ........................................... 41Reject unknown .......................... 91Remote reset ............................... 93Reset settings ............................. 92Reset total cost&duration .......... 84Ring volume ................................ 36Role of each part ......................... 18SSAR ............................................ 104Scanning function ..................... 100Schedule ...................................... 83Security codes ............................ 88Security scan function (Scanning function) .................. 100Select ring tone ........................... 36SMS .............................................. 55Software update .......................... 98Spam mail prevention ................. 93Speaker ........................................ 19Specific absorption rate ........... 104Stand-by display ......................... 30Status icon ................................... 21Summer time ............................... 32TTerminal security code ............... 88Total calls ..................................... 84Total calls duration ..................... 84Trademarks ................................ 108Troubleshooting .......................... 94UUIM (FOMA card) ......................... 27Insert/remove ...............................27Update (Pattern data) ................ 100VVibrator ........................................ 36Videophone callmaking a videophone call ............40Receiving a videophone call ........40View blind .................................... 38Viewer display ............................. 69Voice recorder ............................. 84WWarranty ...................................... 96WORLD CALL .............................. 50World time watch ........................ 32WORLD WING .............................. 51ZZoom .......................................40, 64Numerics1Seg ............................................. 673G network .................................. 51Index (Continued)

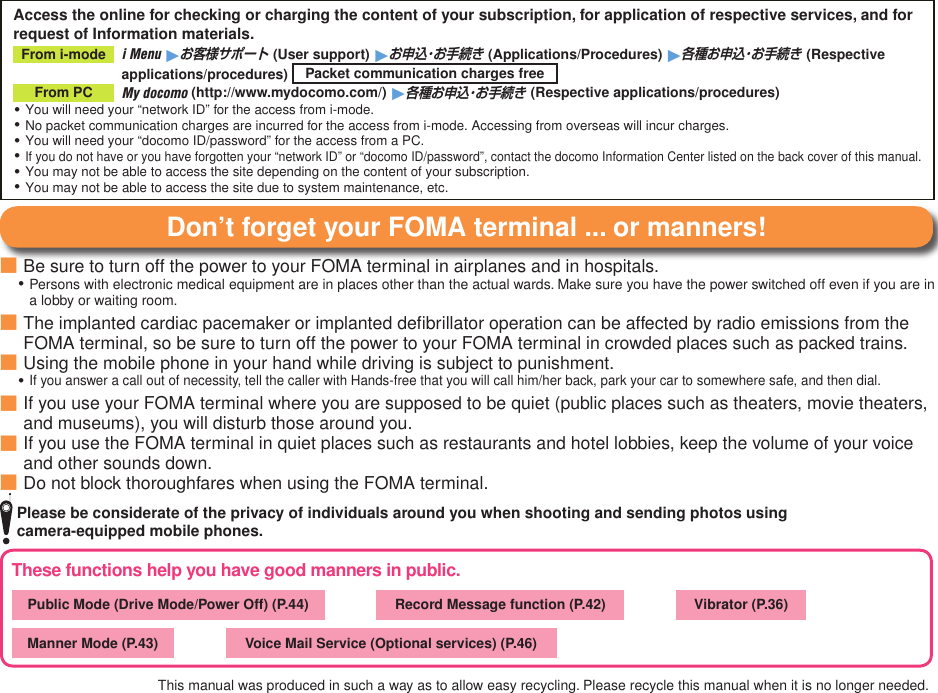

These functions help you have good manners in public.Public Mode (Drive Mode/Power Off) (P.44) 　　　 Record Message function (P.42) 　　　 Vibrator (P.36)Manner Mode (P.43) 　　　 Voice Mail Service (Optional services) (P.46)Access the online for checking or charging the content of your subscription, for application of respective services, and for request of Information materials.From i-mode i Menu 1お客様サポート (User support) 1お申込・お手続き (Applications/Procedures) 1各種お申込・お手続き (Respective applications/procedures) Packet communication charges freeFrom PC My docomo (http://www.mydocomo.com/) 1各種お申込・お手続き (Respective applications/procedures)You will need your “network ID” for the access from i-mode.No packet communication charges are incurred for the access from i-mode. Accessing from overseas will incur charges.You will need your “docomo ID/password” for the access from a PC.If you do not have or you have forgotten your “network ID” or “docomo ID/password”, contact the docomo Information Center listed on the back cover of this manual.You may not be able to access the site depending on the content of your subscription.You may not be able to access the site due to system maintenance, etc.・・・・・・Don’t forget your FOMA terminal ... or manners!Be sure to turn off the power to your FOMA terminal in airplanes and in hospitals.Persons with electronic medical equipment are in places other than the actual wards. Make sure you have the power switched off even if you are in a lobby or waiting room.The implanted cardiac pacemaker or implanted defibrillator operation can be affected by radio emissions from the FOMA terminal, so be sure to turn off the power to your FOMA terminal in crowded places such as packed trains.Using the mobile phone in your hand while driving is subject to punishment.If you answer a call out of necessity, tell the caller with Hands-free that you will call him/her back, park your car to somewhere safe, and then dial.If you use your FOMA terminal where you are supposed to be quiet (public places such as theaters, movie theaters, and museums), you will disturb those around you.If you use the FOMA terminal in quiet places such as restaurants and hotel lobbies, keep the volume of your voice and other sounds down.Do not block thoroughfares when using the FOMA terminal.■・■■・■■■This manual was produced in such a way as to allow easy recycling. Please recycle this manual when it is no longer needed. Please be considerate of the privacy of individuals around you when shooting and sending photos using camera-equipped mobile phones.

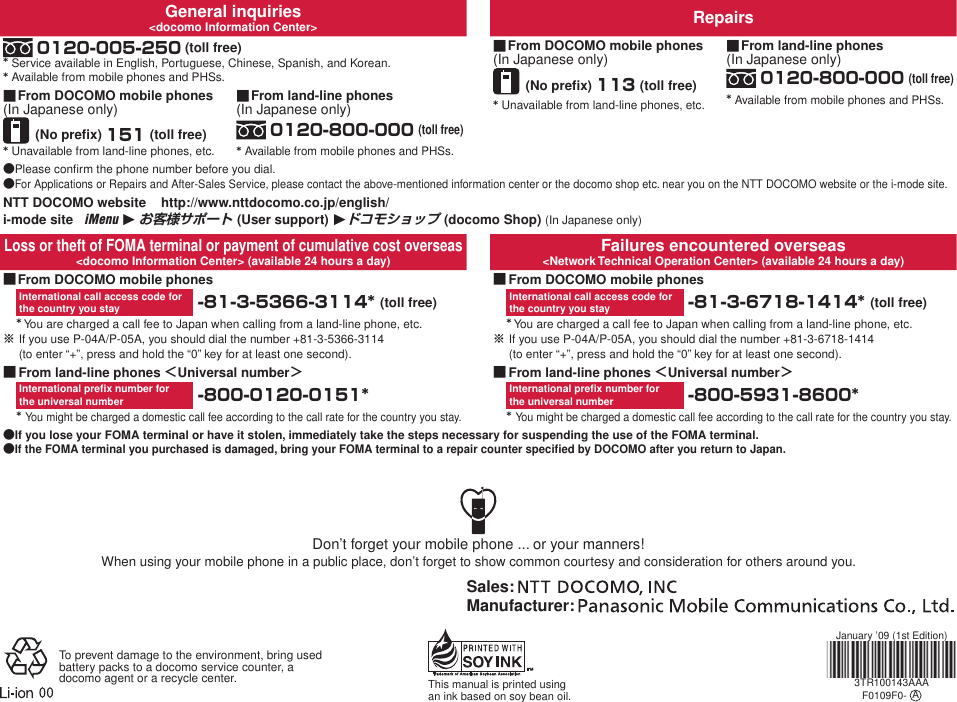

General inquiries<docomo Information Center> Repairs 0120-005-250 (toll free)* Service available in English, Portuguese, Chinese, Spanish, and Korean.* Available from mobile phones and PHSs. From DOCOMO mobile phones(In Japanese only)(No prefix) 113 (toll free)* Unavailable from land-line phones, etc.■ From land-line phones(In Japanese only) 0120-800-000 (toll free)* Available from mobile phones and PHSs.■ From DOCOMO mobile phones(In Japanese only)(No prefix) 151 (toll free)* Unavailable from land-line phones, etc.■ From land-line phones(In Japanese only) 0120-800-000 (toll free)* Available from mobile phones and PHSs.■Please confirm the phone number before you dial.For Applications or Repairs and After-Sales Service, please contact the above-mentioned information center or the docomo shop etc. near you on the NTT DOCOMO website or the i-mode site.●●NTT DOCOMO website http://www.nttdocomo.co.jp/english/i-mode site iMenu 1 お客様サポート (User support) 1ドコモショップ (docomo Shop) (In Japanese only)Loss or theft of FOMA terminal or payment of cumulative cost overseas<docomo Information Center> (available 24 hours a day) Failures encountered overseas<Network Technical Operation Center> (available 24 hours a day) From DOCOMO mobile phonesInternational call access code for the country you stay -81-3-5366-3114* (toll free)* You are charged a call fee to Japan when calling from a land-line phone, etc. If you use P-04A/P-05A, you should dial the number +81-3-5366-3114 (to enter “+”, press and hold the “0” key for at least one second).■※ From DOCOMO mobile phonesInternational call access code for the country you stay -81-3-6718-1414* (toll free)* You are charged a call fee to Japan when calling from a land-line phone, etc. If you use P-04A/P-05A, you should dial the number +81-3-6718-1414 (to enter “+”, press and hold the “0” key for at least one second).■※ From land-line phones ＜Universal number＞International prefix number for the universal number -800-0120-0151** You might be charged a domestic call fee according to the call rate for the country you stay.■ From land-line phones ＜Universal number＞International prefix number for the universal number -800-5931-8600** You might be charged a domestic call fee according to the call rate for the country you stay.■If you lose your FOMA terminal or have it stolen, immediately take the steps necessary for suspending the use of the FOMA terminal.If the FOMA terminal you purchased is damaged, bring your FOMA terminal to a repair counter specified by DOCOMO after you return to Japan.●●Don’t forget your mobile phone ... or your manners!When using your mobile phone in a public place, don’t forget to show common courtesy and consideration for others around you.Sales: Manufacturer: To prevent damage to the environment, bring used battery packs to a docomo service counter, a docomo agent or a recycle center. This manual is printed using an ink based on soy bean oil.January ’09 (1st Edition)3TR100143AAAF0109F0- A
