Panasonic Connect 209019A UMTS/ GSM Cellular Mobile Radio User Manual 4

Panasonic Mobile Communications Development of Europe Ltd UMTS/ GSM Cellular Mobile Radio 4

User Manual 4

16-20Appendix16

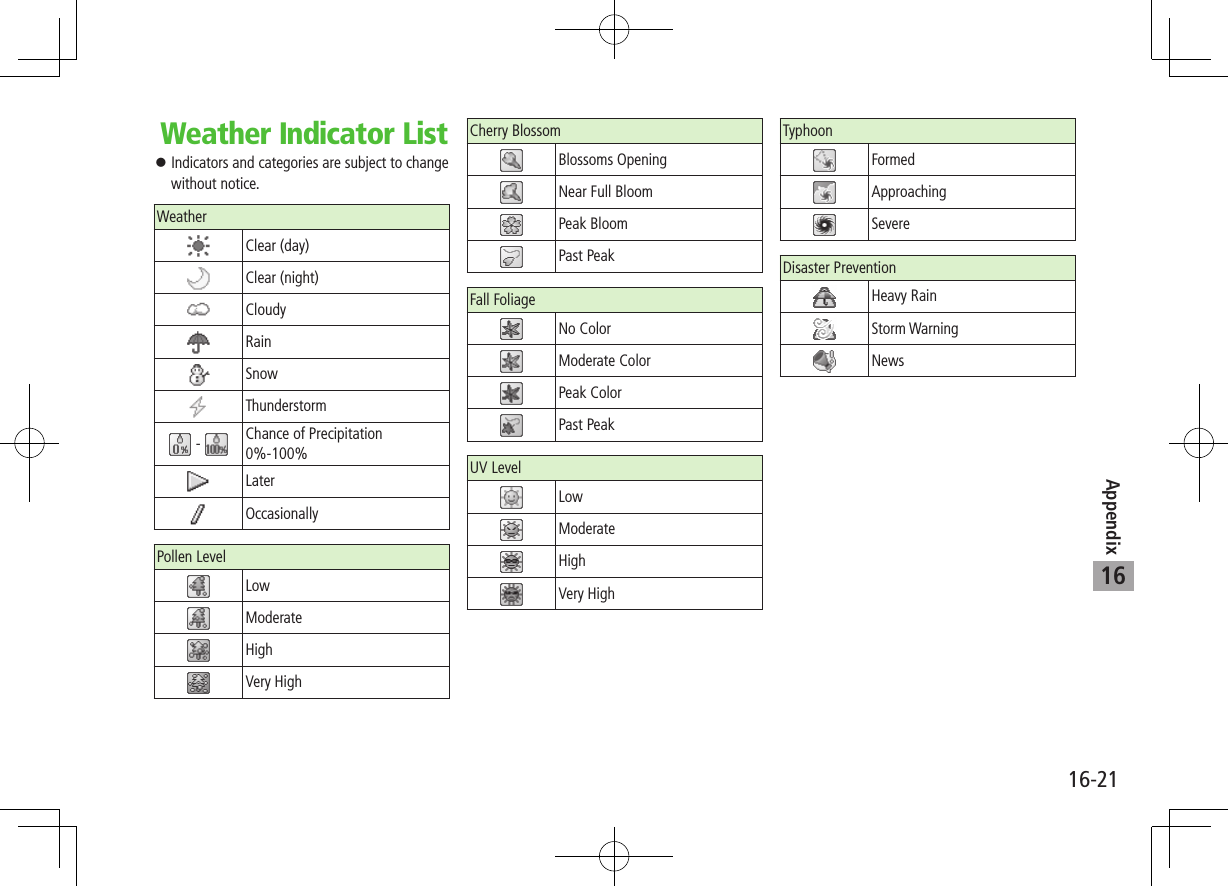

16-21Appendix16 Weather Indicator List ⿟Indicators and categories are subject to change without notice.Weather Clear (day) Clear (night) Cloudy Rain Snow Thunderstorm - Chance of Precipitation 0%-100% Later Occasionally Pollen Level Low Moderate High Very High Cherry Blossom Blossoms Opening Near Full Bloom Peak Bloom Past Peak Fall Foliage No Color Moderate Color Peak Color Past Peak UV Level Low Moderate High Very High Typhoon Formed Approaching Severe Disaster Prevention Heavy Rain Storm Warning News

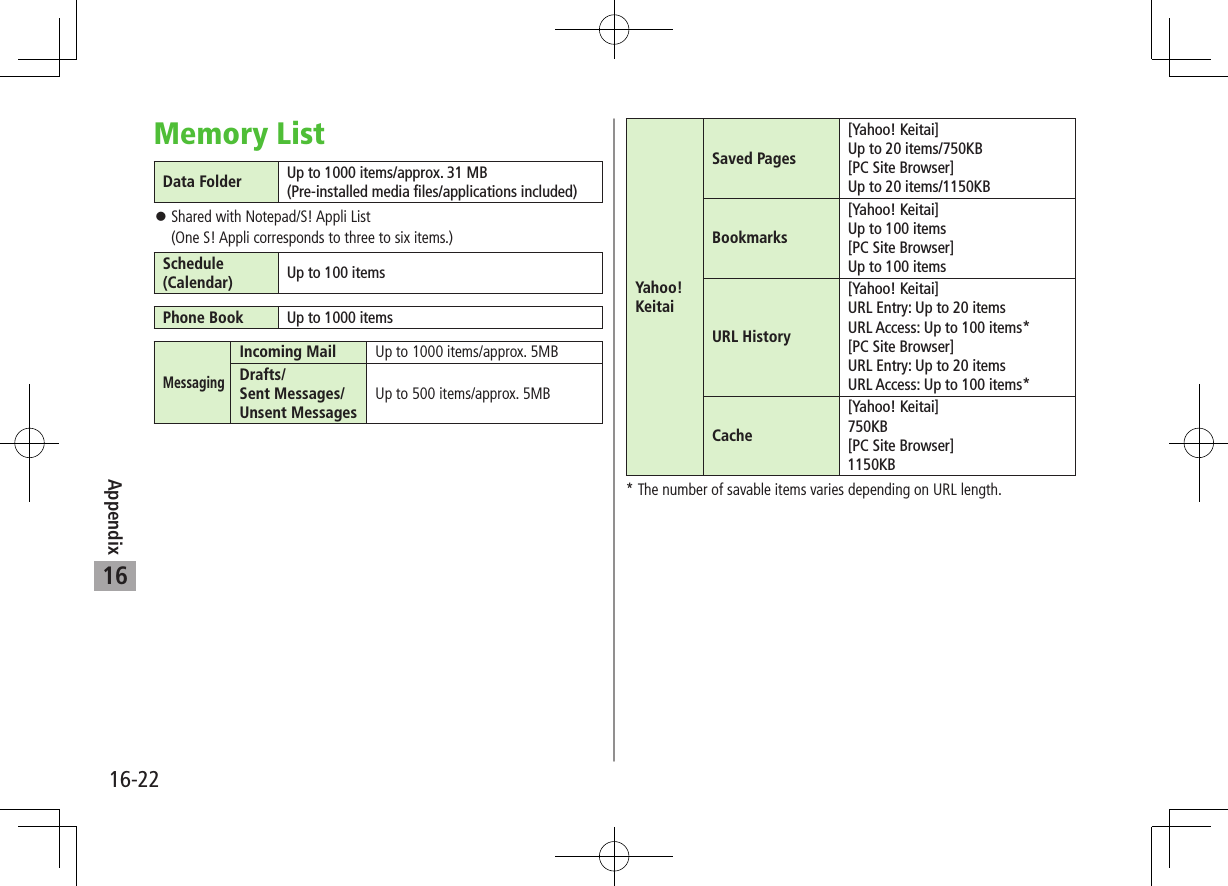

Appendix16-2216Memory ListData Folder Up to 1000 items/approx. 31 MB(Pre-installed media files/applications included) ⿟Shared with Notepad/S! Appli List (One S! Appli corresponds to three to six items.)Schedule(Calendar) Up to 100 itemsPhone Book Up to 1000 itemsMessagingIncoming Mail Up to 1000 items/approx. 5MBDrafts/ Sent Messages/ Unsent MessagesUp to 500 items/approx. 5MBYahoo!KeitaiSaved Pages[Yahoo! Keitai]Up to 20 items/750KB[PC Site Browser]Up to 20 items/1150KBBookmarks[Yahoo! Keitai]Up to 100 items[PC Site Browser]Up to 100 itemsURL History[Yahoo! Keitai]URL Entry: Up to 20 itemsURL Access: Up to 100 items*[PC Site Browser]URL Entry: Up to 20 itemsURL Access: Up to 100 items*Cache[Yahoo! Keitai]750KB[PC Site Browser]1150KB* The number of savable items varies depending on URL length.

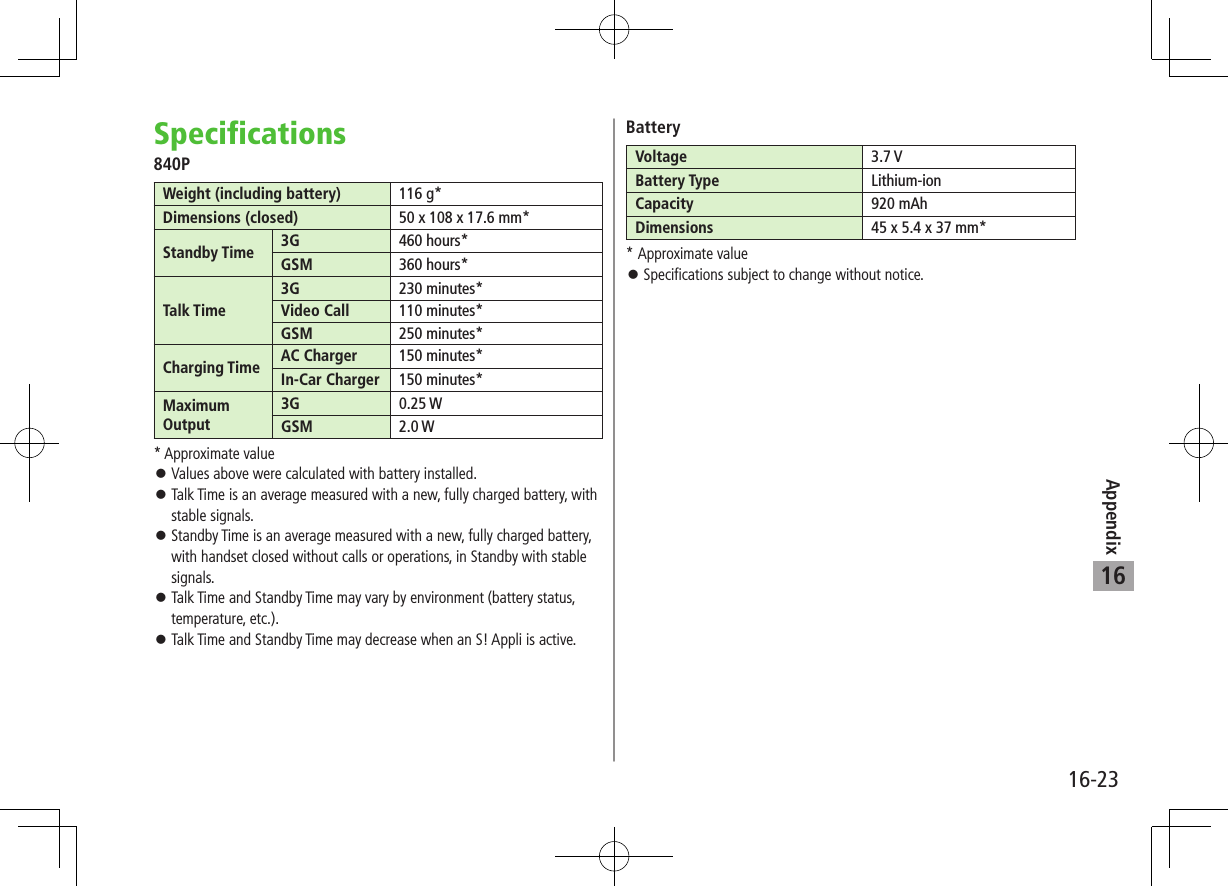

Appendix16-2316Specifications840PWeight (including battery) 116 g*Dimensions (closed) 50 x 108 x 17.6 mm*Standby Time 3G 460 hours*GSM 360 hours*Talk Time3G 230 minutes*Video Call 110 minutes*GSM 250 minutes*Charging Time AC Charger 150 minutes*In-Car Charger 150 minutes*MaximumOutput3G 0.25 WGSM 2.0 W* Approximate value ⿟Values above were calculated with battery installed. ⿟Talk Time is an average measured with a new, fully charged battery, with stable signals. ⿟Standby Time is an average measured with a new, fully charged battery, with handset closed without calls or operations, in Standby with stable signals. ⿟Talk Time and Standby Time may vary by environment (battery status, temperature, etc.). ⿟Talk Time and Standby Time may decrease when an S! Appli is active.BatteryVoltage 3.7 VBattery Type Lithium-ionCapacity 920 mAhDimensions 45 x 5.4 x 37 mm** Approximate value ⿟Specifications subject to change without notice.

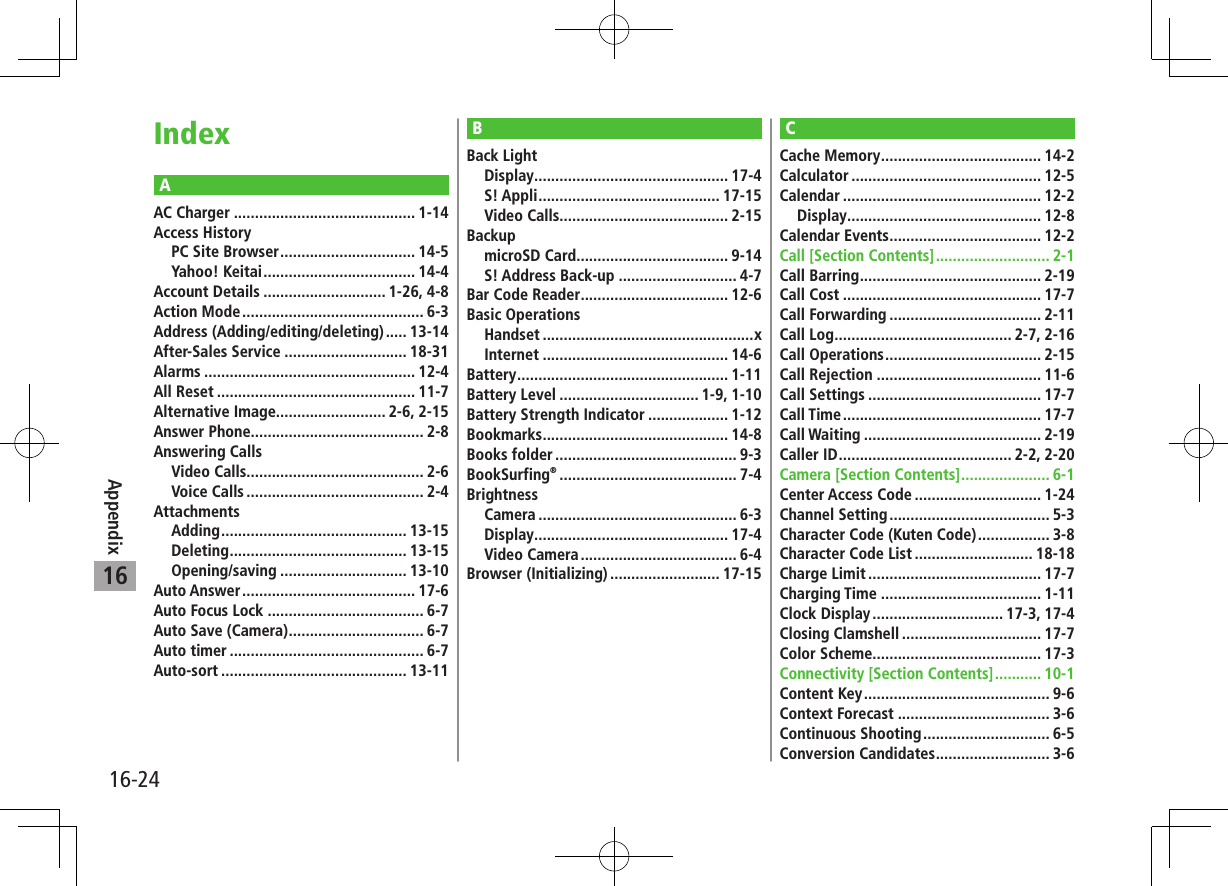

16-24Appendix16AAC Charger ........................................... 1-14Access HistoryPC Site Browser ................................ 14-5Yahoo! Keitai .................................... 14-4Account Details ............................. 1-26, 4-8Action Mode ........................................... 6-3Address (Adding/editing/deleting) ..... 13-14After-Sales Service ............................. 18-31Alarms .................................................. 12-4All Reset ............................................... 11-7Alternative Image.......................... 2-6, 2-15Answer Phone......................................... 2-8Answering CallsVideo Calls.......................................... 2-6Voice Calls .......................................... 2-4AttachmentsAdding ............................................ 13-15Deleting .......................................... 13-15Opening/saving .............................. 13-10Auto Answer ......................................... 17-6Auto Focus Lock ..................................... 6-7Auto Save (Camera) ................................ 6-7Auto timer .............................................. 6-7Auto-sort ............................................ 13-11CCache Memory ...................................... 14-2Calculator ............................................. 12-5Calendar ............................................... 12-2Display .............................................. 12-8Calendar Events .................................... 12-2Call [Section Contents] ........................... 2-1Call Barring ........................................... 2-19Call Cost ............................................... 17-7Call Forwarding .................................... 2-11Call Log .......................................... 2-7, 2-16Call Operations ..................................... 2-15Call Rejection ....................................... 11-6Call Settings ......................................... 17-7Call Time ............................................... 17-7Call Waiting .......................................... 2-19Caller ID ......................................... 2-2, 2-20Camera [Section Contents] ..................... 6-1Center Access Code .............................. 1-24Channel Setting ...................................... 5-3Character Code (Kuten Code) ................. 3-8Character Code List ............................ 18-18Charge Limit ......................................... 17-7Charging Time ...................................... 1-11Clock Display ............................... 17-3, 17-4Closing Clamshell ................................. 17-7Color Scheme........................................ 17-3Connectivity [Section Contents] ........... 10-1Content Key ............................................ 9-6Context Forecast .................................... 3-6Continuous Shooting .............................. 6-5Conversion Candidates ........................... 3-6BBack LightDisplay .............................................. 17-4S! Appli ........................................... 17-15Video Calls........................................ 2-15BackupmicroSD Card .................................... 9-14S! Address Back-up ............................ 4-7Bar Code Reader ................................... 12-6Basic OperationsHandset ..................................................xInternet ............................................ 14-6Battery .................................................. 1-11Battery Level ................................. 1-9, 1-10Battery Strength Indicator ................... 1-12Bookmarks ............................................ 14-8Books folder ........................................... 9-3BookSurfing® .......................................... 7-4BrightnessCamera ............................................... 6-3Display .............................................. 17-4Video Camera ..................................... 6-4Browser (Initializing) .......................... 17-15Index

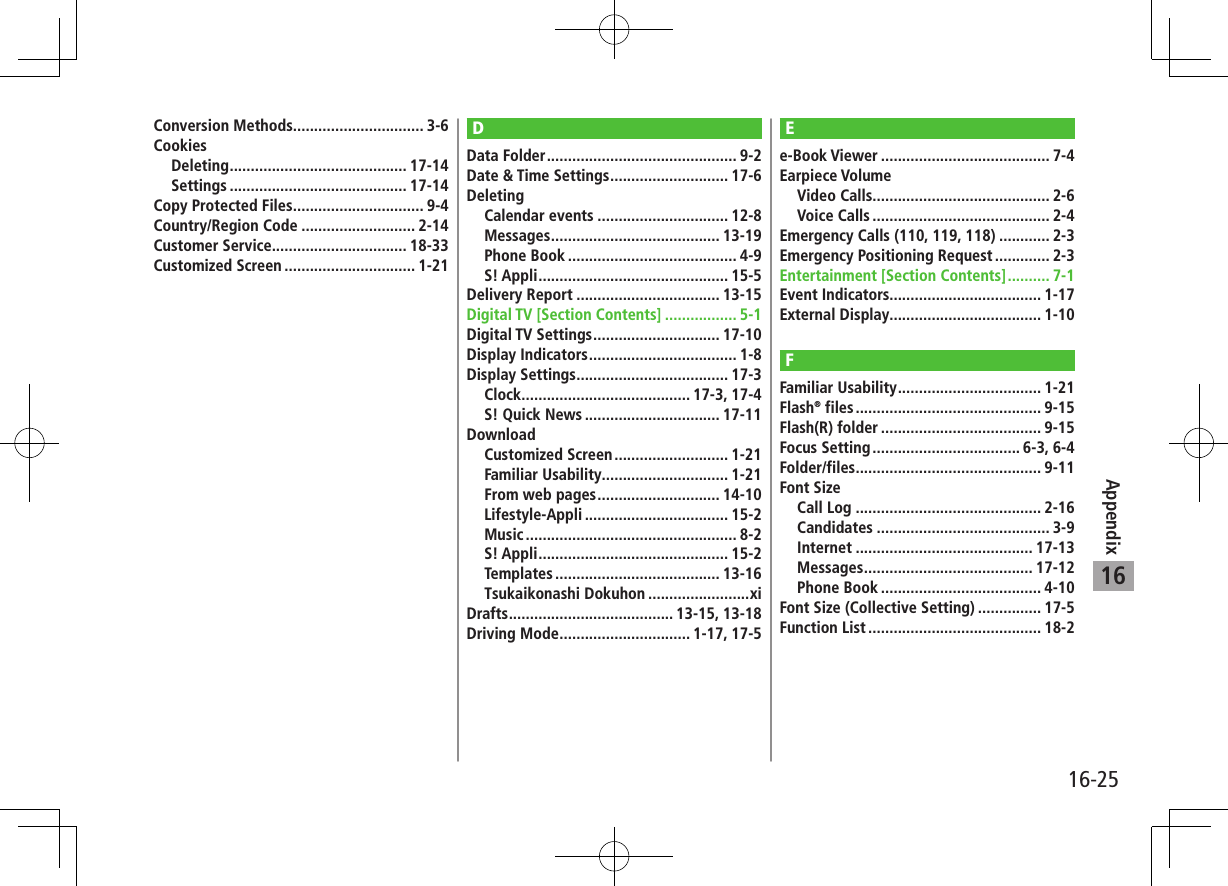

16-25Appendix16Conversion Methods............................... 3-6CookiesDeleting .......................................... 17-14Settings .......................................... 17-14Copy Protected Files ............................... 9-4Country/Region Code ........................... 2-14Customer Service................................ 18-33Customized Screen ............................... 1-21DData Folder ............................................. 9-2Date & Time Settings ............................ 17-6DeletingCalendar events ............................... 12-8Messages ........................................ 13-19Phone Book ........................................ 4-9S! Appli ............................................. 15-5Delivery Report .................................. 13-15Digital TV [Section Contents] ................. 5-1Digital TV Settings .............................. 17-10Display Indicators ................................... 1-8Display Settings .................................... 17-3Clock ........................................ 17-3, 17-4S! Quick News ................................ 17-11DownloadCustomized Screen ........................... 1-21Familiar Usability .............................. 1-21From web pages ............................. 14-10Lifestyle-Appli .................................. 15-2Music .................................................. 8-2S! Appli ............................................. 15-2Templates ....................................... 13-16Tsukaikonashi Dokuhon ........................xiDrafts ....................................... 13-15, 13-18Driving Mode ............................... 1-17, 17-5Ee-Book Viewer ........................................ 7-4Earpiece VolumeVideo Calls.......................................... 2-6Voice Calls .......................................... 2-4Emergency Calls (110, 119, 118) ............ 2-3Emergency Positioning Request ............. 2-3Entertainment [Section Contents] .......... 7-1Event Indicators.................................... 1-17External Display.................................... 1-10FFamiliar Usability .................................. 1-21Flash® files ............................................ 9-15Flash(R) folder ...................................... 9-15Focus Setting ................................... 6-3, 6-4Folder/files ............................................ 9-11Font SizeCall Log ............................................ 2-16Candidates ......................................... 3-9Internet .......................................... 17-13Messages ........................................ 17-12Phone Book ...................................... 4-10Font Size (Collective Setting) ............... 17-5Function List ......................................... 18-2

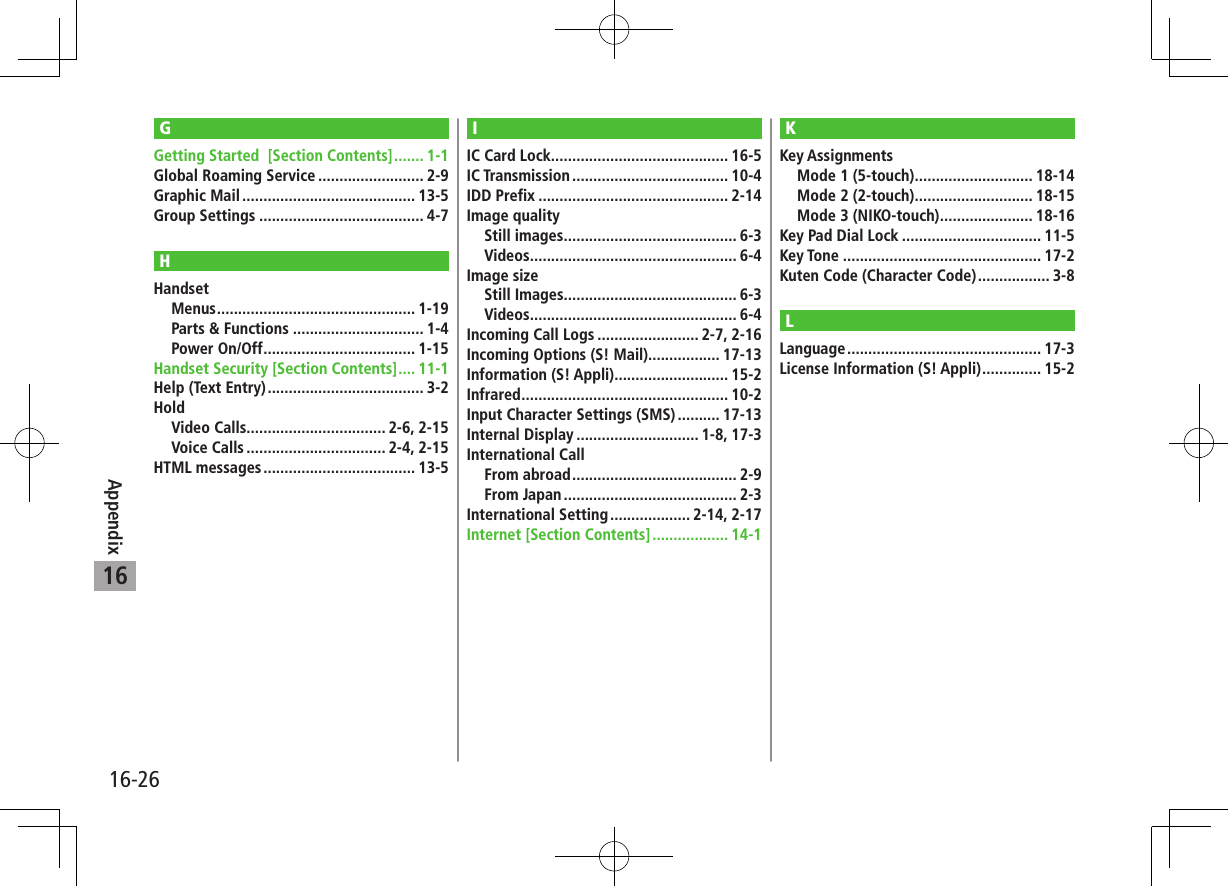

16-26Appendix16GGetting Started [Section Contents] ....... 1-1Global Roaming Service ......................... 2-9Graphic Mail ......................................... 13-5Group Settings ....................................... 4-7HHandsetMenus ............................................... 1-19Parts & Functions ............................... 1-4Power On/Off .................................... 1-15Handset Security [Section Contents] .... 11-1Help (Text Entry) ..................................... 3-2HoldVideo Calls................................. 2-6, 2-15Voice Calls ................................. 2-4, 2-15HTML messages .................................... 13-5IIC Card Lock .......................................... 16-5IC Transmission ..................................... 10-4IDD Prefix ............................................. 2-14Image qualityStill images ......................................... 6-3Videos ................................................. 6-4Image sizeStill Images......................................... 6-3Videos ................................................. 6-4Incoming Call Logs ........................ 2-7, 2-16Incoming Options (S! Mail)................. 17-13Information (S! Appli) ........................... 15-2Infrared ................................................. 10-2Input Character Settings (SMS) .......... 17-13Internal Display ............................. 1-8, 17-3International CallFrom abroad ....................................... 2-9From Japan ......................................... 2-3International Setting ................... 2-14, 2-17Internet [Section Contents] .................. 14-1KKey AssignmentsMode 1 (5-touch) ............................ 18-14Mode 2 (2-touch) ............................ 18-15Mode 3 (NIKO-touch) ...................... 18-16Key Pad Dial Lock ................................. 11-5Key Tone ............................................... 17-2Kuten Code (Character Code) ................. 3-8LLanguage .............................................. 17-3License Information (S! Appli) .............. 15-2

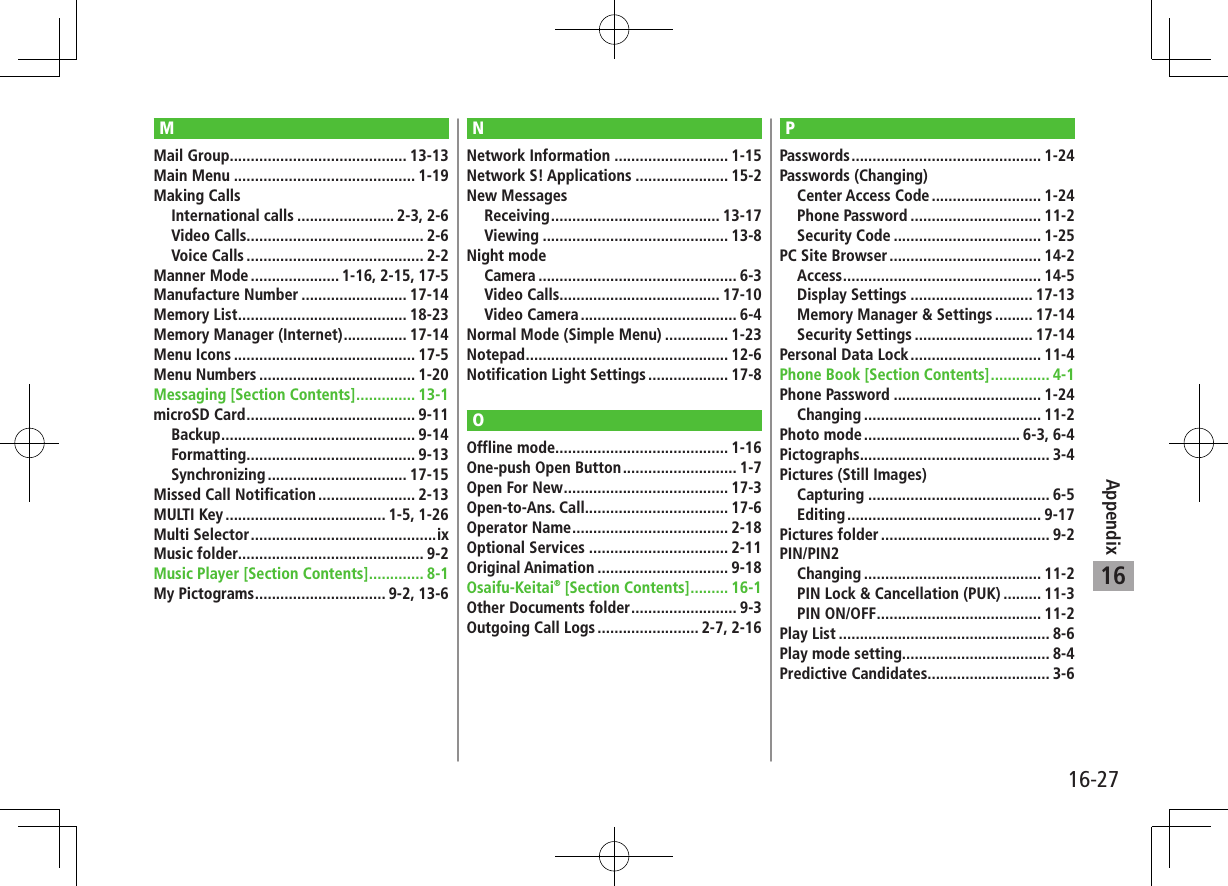

16-27Appendix16MMail Group .......................................... 13-13Main Menu ........................................... 1-19Making CallsInternational calls ....................... 2-3, 2-6Video Calls.......................................... 2-6Voice Calls .......................................... 2-2Manner Mode ..................... 1-16, 2-15, 17-5Manufacture Number ......................... 17-14Memory List ........................................ 18-23Memory Manager (Internet) ............... 17-14Menu Icons ........................................... 17-5Menu Numbers ..................................... 1-20Messaging [Section Contents] .............. 13-1microSD Card ........................................ 9-11Backup .............................................. 9-14Formatting ........................................ 9-13Synchronizing ................................. 17-15Missed Call Notification ....................... 2-13MULTI Key ...................................... 1-5, 1-26Multi Selector ............................................ixMusic folder............................................ 9-2Music Player [Section Contents] ............. 8-1My Pictograms ............................... 9-2, 13-6NNetwork Information ........................... 1-15Network S! Applications ...................... 15-2New MessagesReceiving ........................................ 13-17Viewing ............................................ 13-8Night modeCamera ............................................... 6-3Video Calls...................................... 17-10Video Camera ..................................... 6-4Normal Mode (Simple Menu) ............... 1-23Notepad ................................................ 12-6Notification Light Settings ................... 17-8OOffline mode......................................... 1-16One-push Open Button ........................... 1-7Open For New ....................................... 17-3Open-to-Ans. Call.................................. 17-6Operator Name ..................................... 2-18Optional Services ................................. 2-11Original Animation ............................... 9-18Osaifu-Keitai® [Section Contents] ......... 16-1Other Documents folder ......................... 9-3Outgoing Call Logs ........................ 2-7, 2-16PPasswords ............................................. 1-24Passwords (Changing)Center Access Code .......................... 1-24Phone Password ............................... 11-2Security Code ................................... 1-25PC Site Browser .................................... 14-2Access ............................................... 14-5Display Settings ............................. 17-13Memory Manager & Settings ......... 17-14Security Settings ............................ 17-14Personal Data Lock ............................... 11-4Phone Book [Section Contents] .............. 4-1Phone Password ................................... 1-24Changing .......................................... 11-2Photo mode ..................................... 6-3, 6-4Pictographs ............................................. 3-4Pictures (Still Images)Capturing ........................................... 6-5Editing .............................................. 9-17Pictures folder ........................................ 9-2PIN/PIN2Changing .......................................... 11-2PIN Lock & Cancellation (PUK) ......... 11-3PIN ON/OFF ....................................... 11-2Play List .................................................. 8-6Play mode setting................................... 8-4Predictive Candidates............................. 3-6

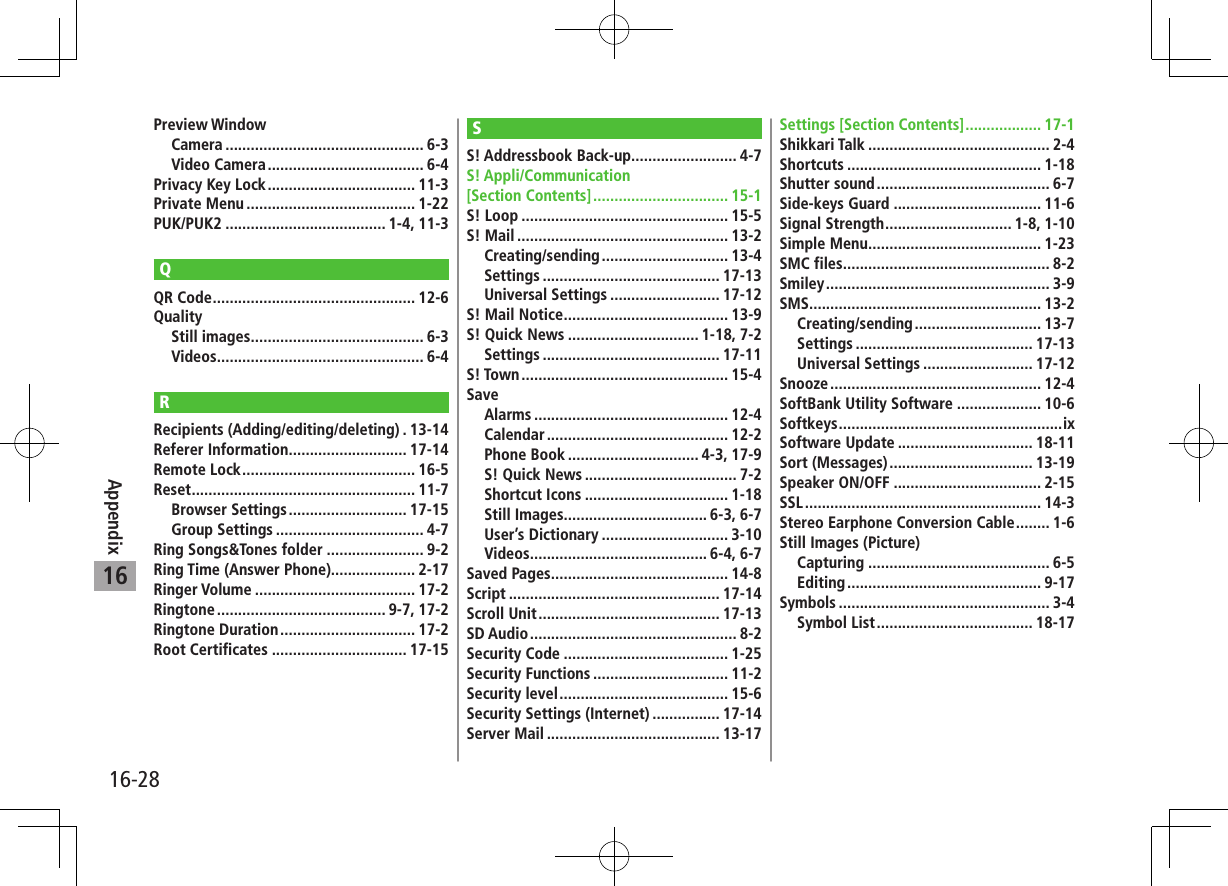

16-28Appendix16Preview WindowCamera ............................................... 6-3Video Camera ..................................... 6-4Privacy Key Lock ................................... 11-3Private Menu ........................................ 1-22PUK/PUK2 ...................................... 1-4, 11-3QQR Code ................................................ 12-6QualityStill images ......................................... 6-3Videos ................................................. 6-4RRecipients (Adding/editing/deleting) . 13-14Referer Information ............................ 17-14Remote Lock ......................................... 16-5Reset ..................................................... 11-7Browser Settings ............................ 17-15Group Settings ................................... 4-7Ring Songs&Tones folder ....................... 9-2Ring Time (Answer Phone).................... 2-17Ringer Volume ...................................... 17-2Ringtone ........................................ 9-7, 17-2Ringtone Duration ................................ 17-2Root Certificates ................................ 17-15SS! Addressbook Back-up......................... 4-7S! Appli/Communication [Section Contents] ................................ 15-1S! Loop ................................................. 15-5S! Mail .................................................. 13-2Creating/sending .............................. 13-4Settings .......................................... 17-13Universal Settings .......................... 17-12S! Mail Notice ....................................... 13-9S! Quick News ............................... 1-18, 7-2Settings .......................................... 17-11S! Town ................................................. 15-4SaveAlarms .............................................. 12-4Calendar ........................................... 12-2Phone Book ............................... 4-3, 17-9S! Quick News .................................... 7-2Shortcut Icons .................................. 1-18Still Images.................................. 6-3, 6-7User’s Dictionary .............................. 3-10Videos .......................................... 6-4, 6-7Saved Pages .......................................... 14-8Script .................................................. 17-14Scroll Unit ........................................... 17-13SD Audio ................................................. 8-2Security Code ....................................... 1-25Security Functions ................................ 11-2Security level ........................................ 15-6Security Settings (Internet) ................ 17-14Server Mail ......................................... 13-17Settings [Section Contents] .................. 17-1Shikkari Talk ........................................... 2-4Shortcuts .............................................. 1-18Shutter sound ......................................... 6-7Side-keys Guard ................................... 11-6Signal Strength .............................. 1-8, 1-10Simple Menu ......................................... 1-23SMC files ................................................. 8-2Smiley ..................................................... 3-9SMS ....................................................... 13-2Creating/sending .............................. 13-7Settings .......................................... 17-13Universal Settings .......................... 17-12Snooze .................................................. 12-4SoftBank Utility Software .................... 10-6Softkeys .....................................................ixSoftware Update ................................ 18-11Sort (Messages) .................................. 13-19Speaker ON/OFF ................................... 2-15SSL ........................................................ 14-3Stereo Earphone Conversion Cable ........ 1-6Still Images (Picture)Capturing ........................................... 6-5Editing .............................................. 9-17Symbols .................................................. 3-4Symbol List ..................................... 18-17

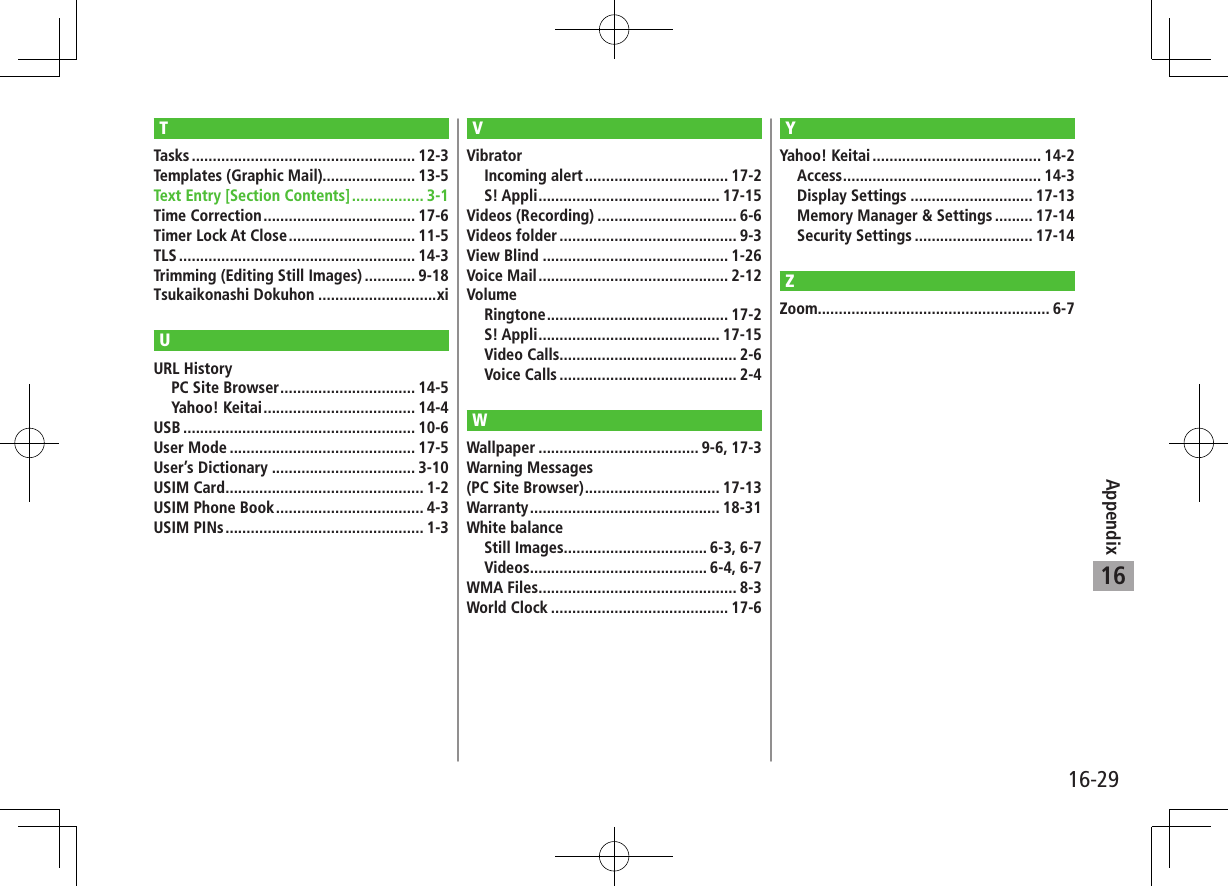

16-29Appendix16TTasks ..................................................... 12-3Templates (Graphic Mail)...................... 13-5Text Entry [Section Contents] ................. 3-1Time Correction .................................... 17-6Timer Lock At Close .............................. 11-5TLS ........................................................ 14-3Trimming (Editing Still Images) ............ 9-18Tsukaikonashi Dokuhon ............................xiUURL HistoryPC Site Browser ................................ 14-5Yahoo! Keitai .................................... 14-4USB ....................................................... 10-6User Mode ............................................ 17-5User’s Dictionary .................................. 3-10USIM Card ............................................... 1-2USIM Phone Book ................................... 4-3USIM PINs ............................................... 1-3VVibratorIncoming alert .................................. 17-2S! Appli ........................................... 17-15Videos (Recording) ................................. 6-6Videos folder .......................................... 9-3View Blind ............................................ 1-26Voice Mail ............................................. 2-12VolumeRingtone ........................................... 17-2S! Appli ........................................... 17-15Video Calls.......................................... 2-6Voice Calls .......................................... 2-4WWallpaper ...................................... 9-6, 17-3Warning Messages (PC Site Browser) ................................ 17-13Warranty ............................................. 18-31White balanceStill Images.................................. 6-3, 6-7Videos .......................................... 6-4, 6-7WMA Files ............................................... 8-3World Clock .......................................... 17-6YYahoo! Keitai ........................................ 14-2Access ............................................... 14-3Display Settings ............................. 17-13Memory Manager & Settings ......... 17-14Security Settings ............................ 17-14ZZoom....................................................... 6-7

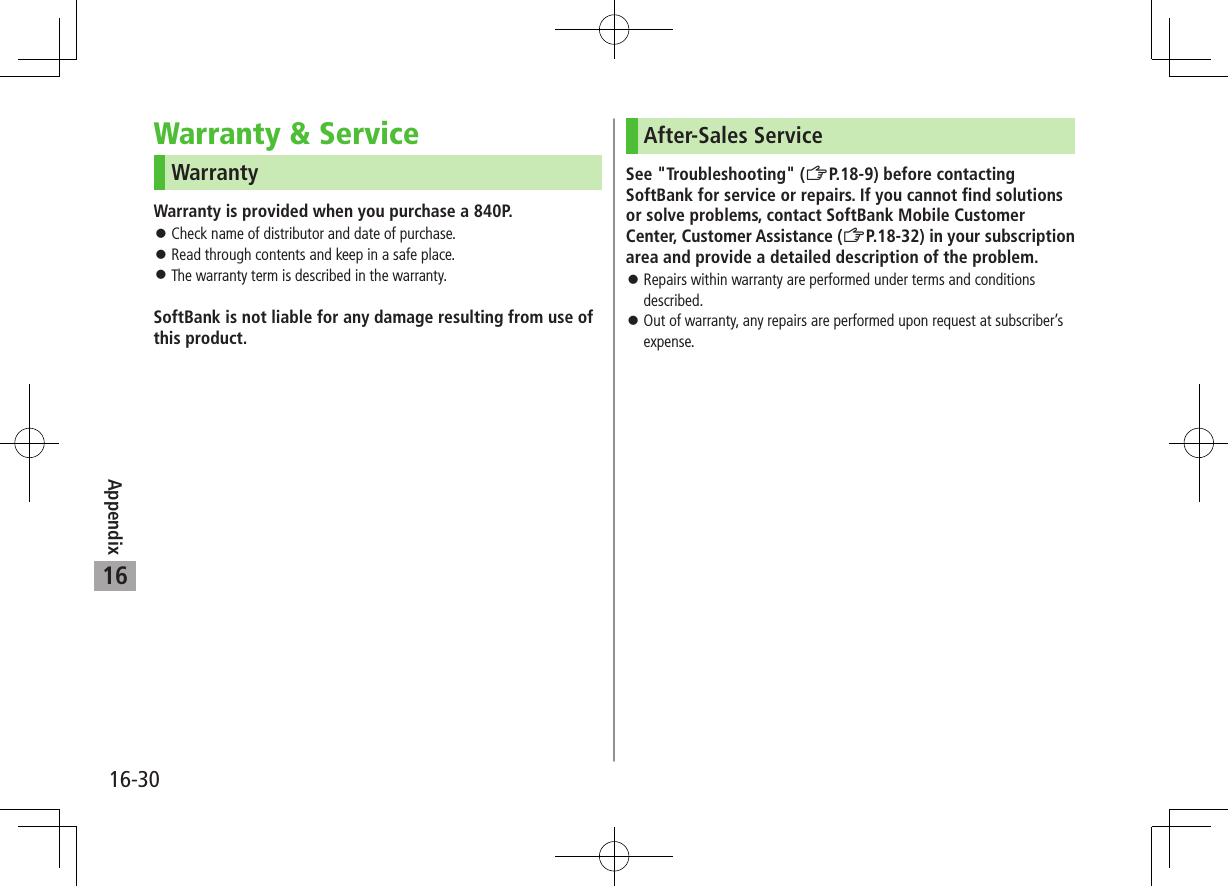

Appendix16-3016Warranty & ServiceWarrantyWarranty is provided when you purchase a 840P. ⿟Check name of distributor and date of purchase. ⿟Read through contents and keep in a safe place. ⿟The warranty term is described in the warranty.SoftBank is not liable for any damage resulting from use of this product.After-Sales ServiceSee "Troubleshooting" (ZP.18-9) before contacting SoftBank for service or repairs. If you cannot find solutions or solve problems, contact SoftBank Mobile Customer Center, Customer Assistance (ZP.18-32) in your subscription area and provide a detailed description of the problem. ⿟Repairs within warranty are performed under terms and conditions described. ⿟Out of warranty, any repairs are performed upon request at subscriber’s expense.

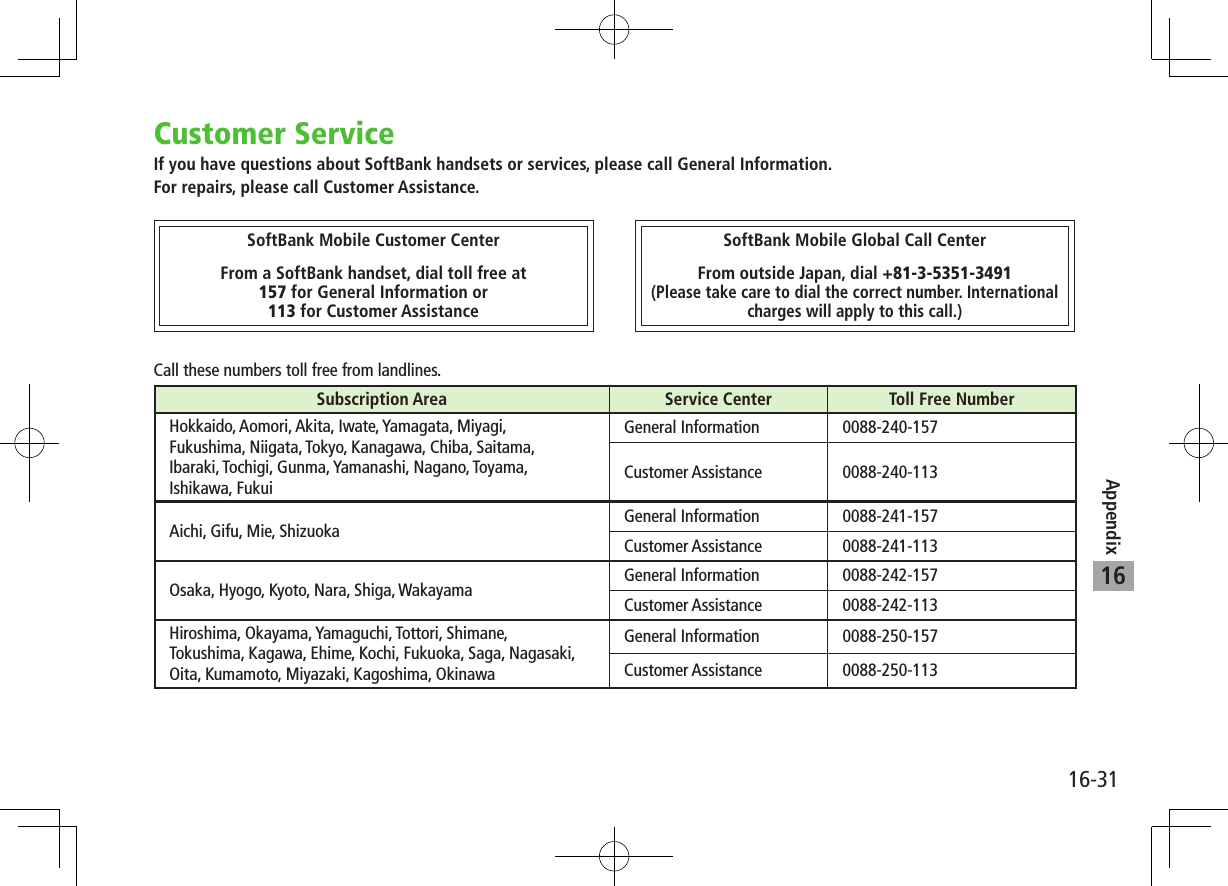

16-31Appendix16Customer ServiceIf you have questions about SoftBank handsets or services, please call General Information.For repairs, please call Customer Assistance.Call these numbers toll free from landlines.Subscription Area Service Center Toll Free NumberHokkaido, Aomori, Akita, Iwate, Yamagata, Miyagi,Fukushima, Niigata, Tokyo, Kanagawa, Chiba, Saitama,Ibaraki, Tochigi, Gunma, Yamanashi, Nagano, Toyama,Ishikawa, FukuiGeneral Information 0088-240-157Customer Assistance 0088-240-113Aichi, Gifu, Mie, Shizuoka General Information 0088-241-157Customer Assistance 0088-241-113Osaka, Hyogo, Kyoto, Nara, Shiga, Wakayama General Information 0088-242-157Customer Assistance 0088-242-113Hiroshima, Okayama, Yamaguchi, Tottori, Shimane,Tokushima, Kagawa, Ehime, Kochi, Fukuoka, Saga, Nagasaki,Oita, Kumamoto, Miyazaki, Kagoshima, OkinawaGeneral Information 0088-250-157Customer Assistance 0088-250-113SoftBank Mobile Customer CenterFrom a SoftBank handset, dial toll free at157 for General Information or113 for Customer AssistanceSoftBank Mobile Global Call CenterFrom outside Japan, dial +81-3-5351-3491(Please take care to dial the correct number. Internationalcharges will apply to this call.)

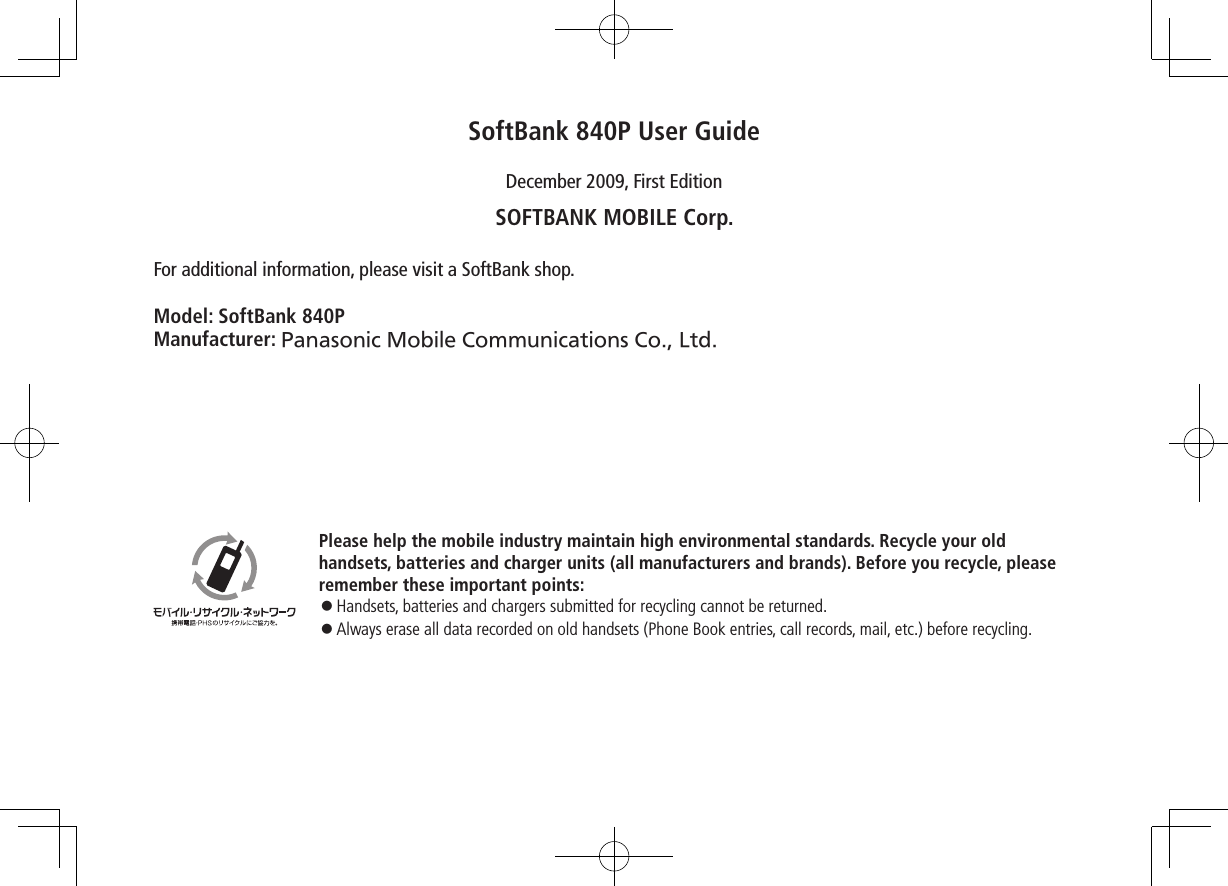

Please help the mobile industry maintain high environmental standards. Recycle your oldhandsets, batteries and charger units (all manufacturers and brands). Before you recycle, please remember these important points:◦.Handsets, batteries and chargers submitted for recycling cannot be returned.◦..Always erase all data recorded on old handsets (Phone Book entries, call records, mail, etc.) before recycling.SoftBank 840P User GuideDecember 2009, First EditionSOFTBANK MOBILE Corp.For additional information, please visit a SoftBank shop.Model: SoftBank 840PManufacturer: Panasonic Mobile Communications Co., Ltd.
