Panasonic Connect 211049A Dual Mode UMTS / GSM Cellular Mobile Radio with Bluetooth User Manual Part 2 of 2

Panasonic Mobile Communications Development of Europe Ltd Dual Mode UMTS / GSM Cellular Mobile Radio with Bluetooth Part 2 of 2

Contents

User Manual Part 2 of 2

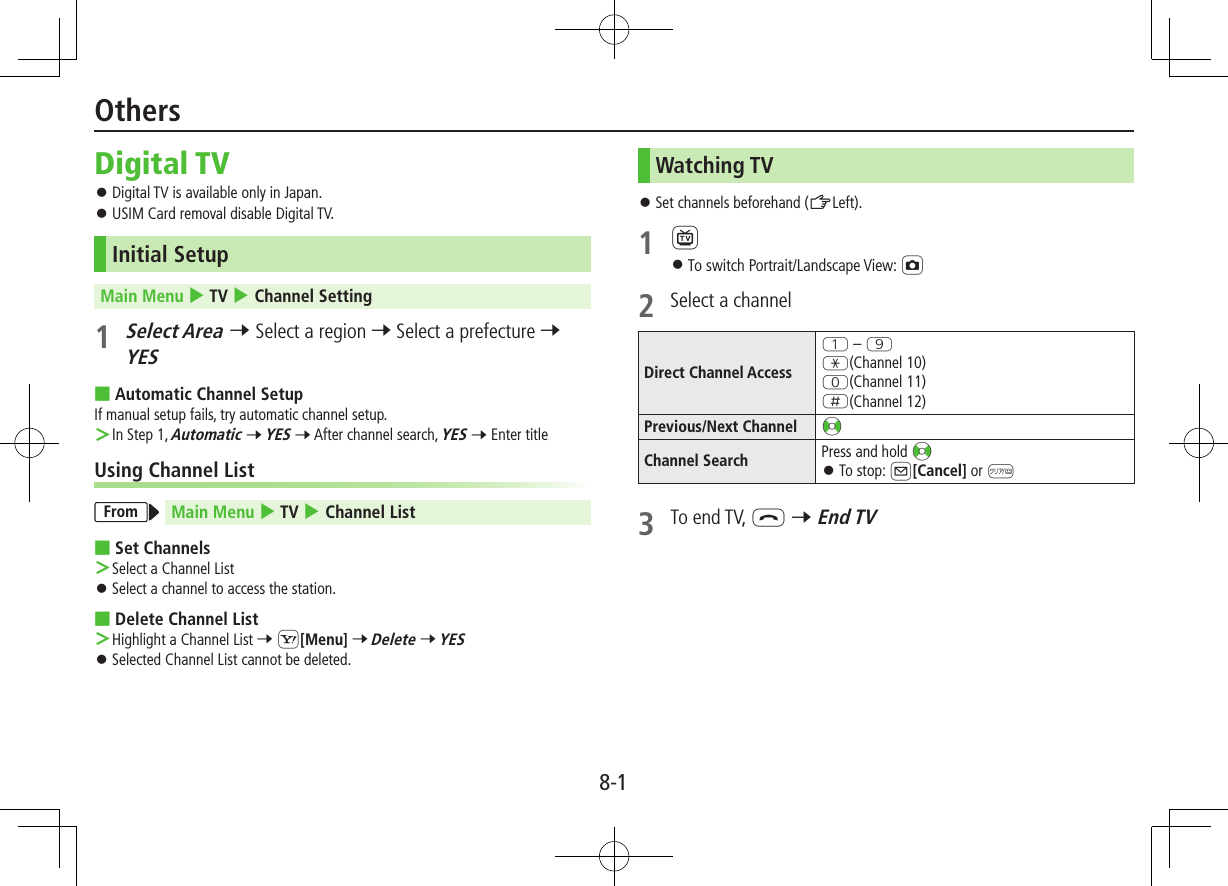

8-1Digital TV ⿟Digital TV is available only in Japan. ⿟USIM Card removal disable Digital TV.Initial SetupMain Menu 4 TV 4 Channel Setting1 Select Area 7 Select a region 7 Select a prefecture 7 YES ■Automatic Channel SetupIf manual setup fails, try automatic channel setup. ＞In Step 1, Automatic 7 YES 7 After channel search, YES 7 Enter titleUsing Channel ListFrom Main Menu 4 TV 4 Channel List ■Set Channels ＞Select a Channel List ⿟Select a channel to access the station. ■Delete Channel List ＞Highlight a Channel List 7 S[Menu] 7 Delete 7 YES ⿟Selected Channel List cannot be deleted.Watching TV ⿟Set channels beforehand (ZLeft).1 1 ⿟To switch Portrait/Landscape View: F2 Select a channelDirect Channel AccessQ – OG(Channel 10)P(Channel 11)H(Channel 12)Previous/Next Channel <zChannel Search Press and hold <z ⿟To stop: A[Cancel] or K3 To end TV, L 7 End TVOthers

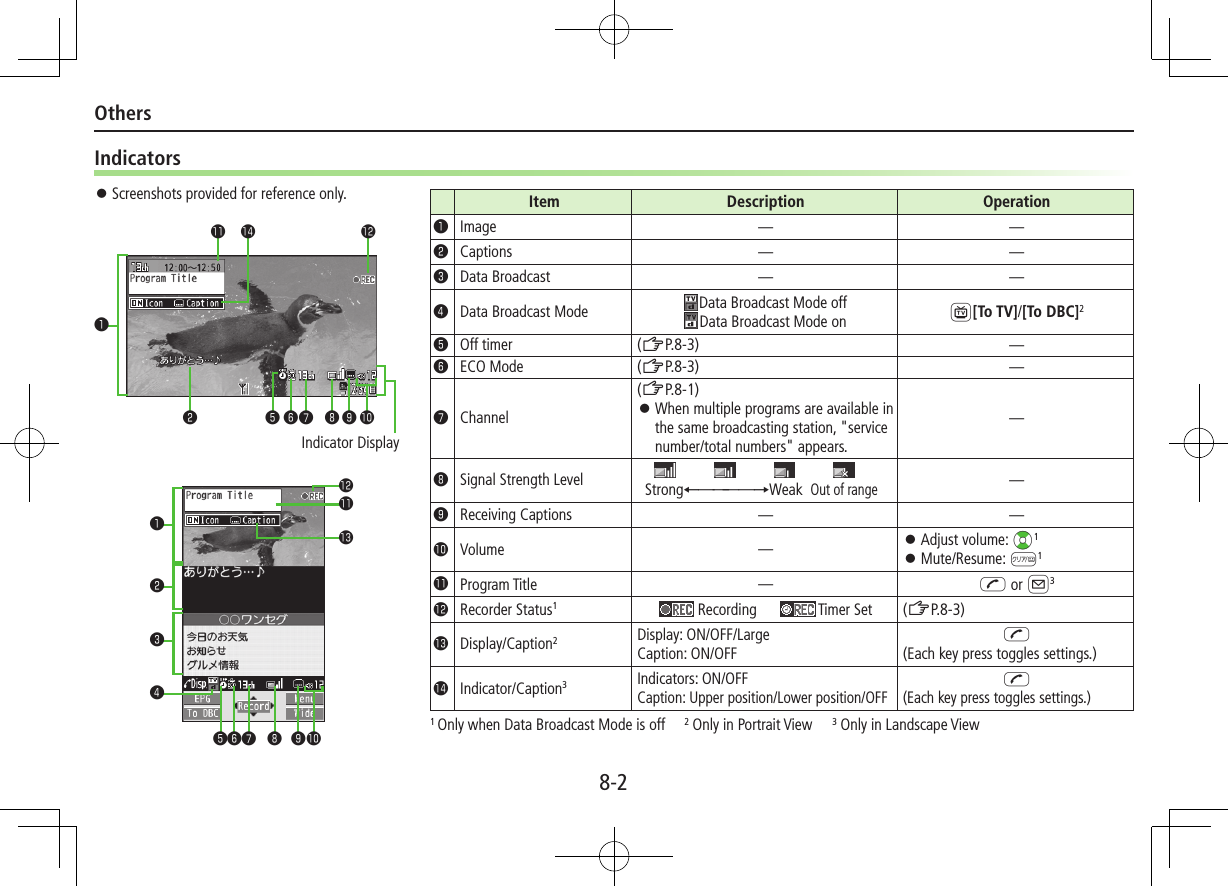

8-2OthersIndicators ⿟Screenshots provided for reference only. Item Description Operation●❶Image — —●❷Captions — —●❸Data Broadcast — —●❹Data Broadcast Mode Data Broadcast Mode offData Broadcast Mode on 1[To TV]/[To DBC]2●❺Off timer (ZP.8-3) —●❻ECO Mode (ZP.8-3) —●❼Channel(ZP.8-1) ⿟When multiple programs are available in the same broadcasting station, "service number/total numbers" appears.—●❽Signal Strength Level Strong←――――→Weak Out of range—●❾Receiving Captions — —●󱀓Volume — ⿟Adjust volume: ?z1 ⿟Mute/Resume: K1●󱀔Program Title —J or A3●󱀕Recorder Status1 Recording Timer Set (ZP.8-3)●󱀖Display/Caption2Display: ON/OFF/LargeCaption: ON/OFFJ(Each key press toggles settings.)●󱀗Indicator/Caption3 Indicators: ON/OFFCaption: Upper position/Lower position/OFFJ(Each key press toggles settings.)1 Only when Data Broadcast Mode is off 2 Only in Portrait View 3 Only in Landscape View❶󱀔 󱀗❼ ❽ ❾ 󱀓Indicator Display❷ ❺ ❻󱀕❶❷❸󱀔󱀕❻❼ ❽ ❾󱀓❹❺󱀖

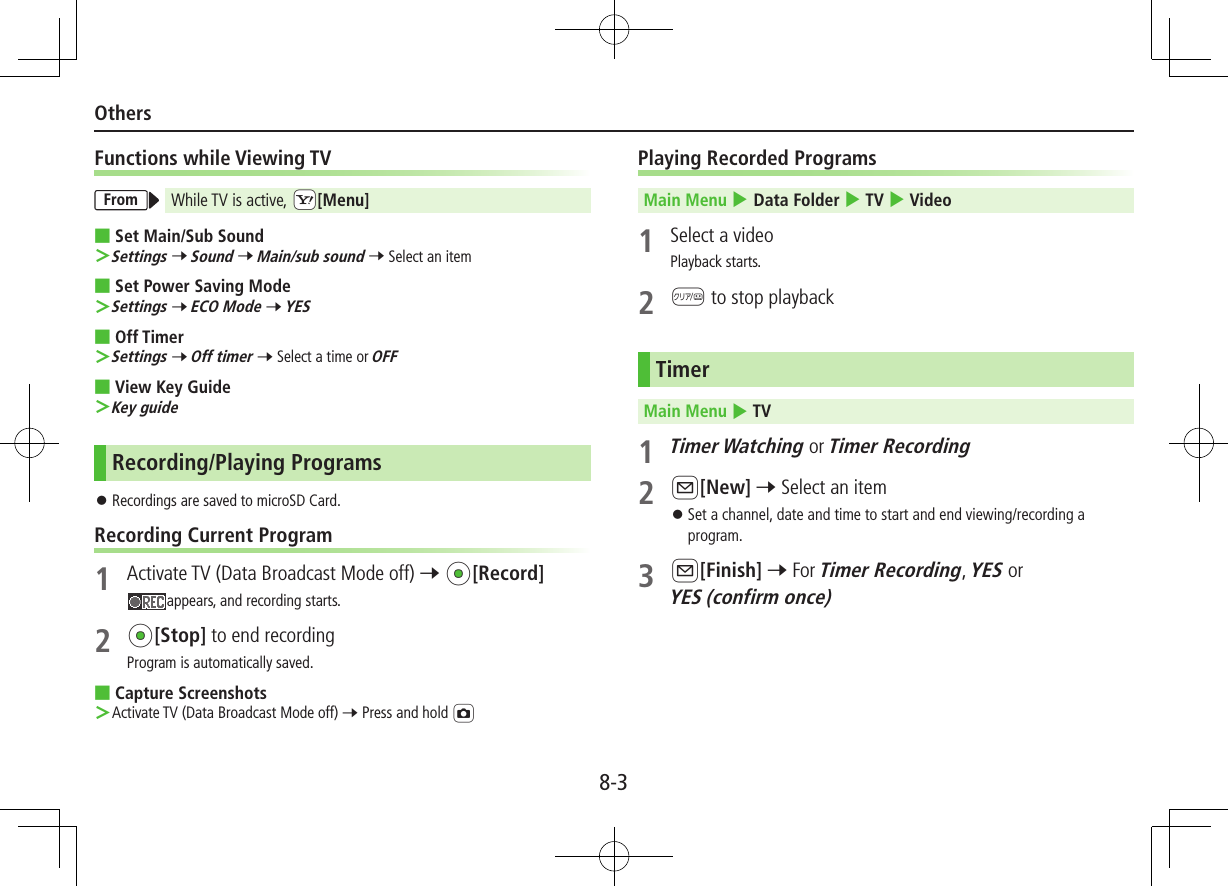

8-3OthersFunctions while Viewing TVFrom While TV is active, cS[Menu] ■Set Main/Sub Sound ＞Settings 7 Sound 7 Main/sub sound 7 Select an item ■Set Power Saving Mode ＞Settings 7 ECO Mode 7 YES ■Off Timer ＞Settings 7 Off timer 7 Select a time or OFF ■View Key Guide ＞Key guideRecording/Playing Programs ⿟Recordings are saved to microSD Card.Recording Current Program1 Activate TV (Data Broadcast Mode off) 7 *z[Record]appears, and recording starts.2 *z[Stop] to end recordingProgram is automatically saved. ■Capture Screenshots ＞Activate TV (Data Broadcast Mode off) 7 Press and hold FPlaying Recorded ProgramsMain Menu 4 Data Folder 4 TV 4 Video1 Select a videoPlayback starts.2 K to stop playbackTimerMain Menu 4 TV1 Timer Watching or Timer Recording2 A[New] 7 Select an item ⿟Set a channel, date and time to start and end viewing/recording a program.3 A[Finish] 7 For Timer Recording, YES or YES (confirm once)

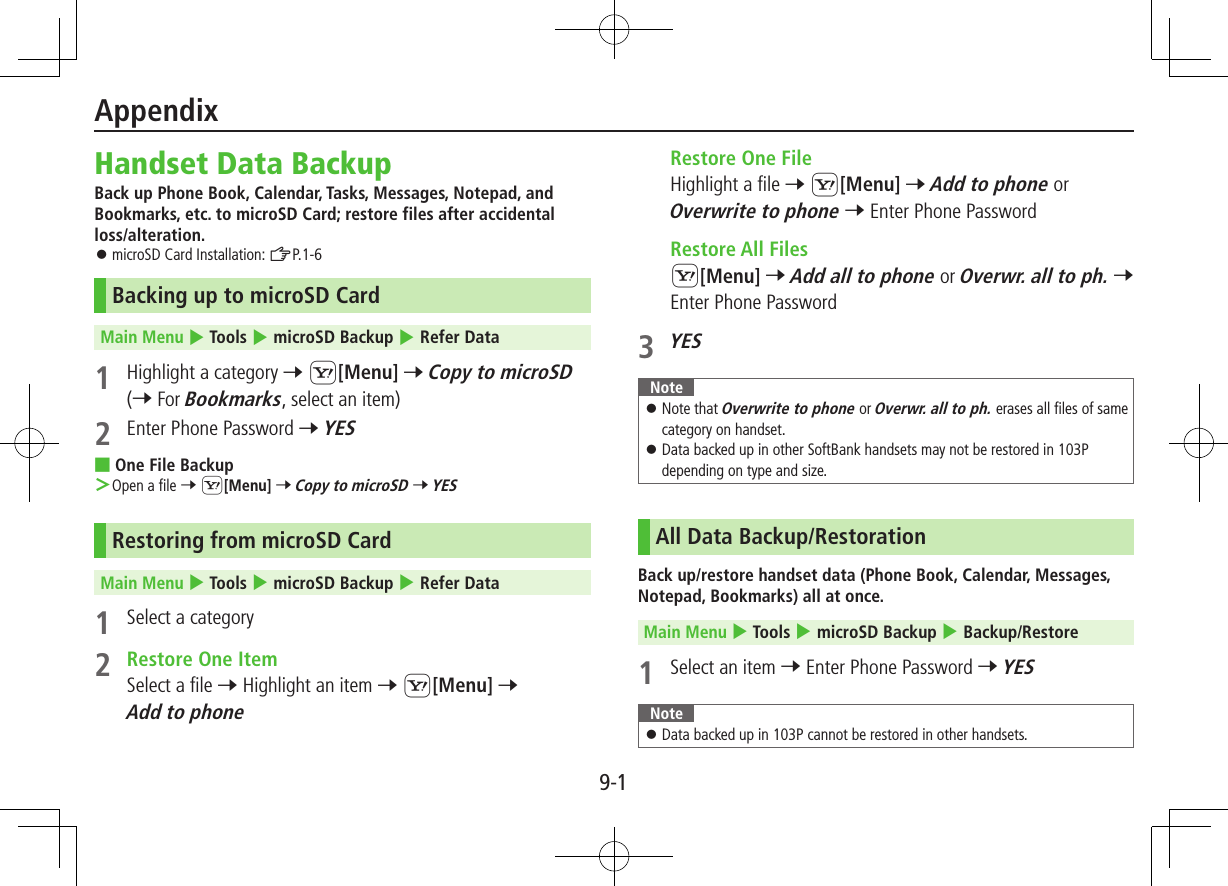

9-1Handset Data BackupBack up Phone Book, Calendar, Tasks, Messages, Notepad, and Bookmarks, etc. to microSD Card; restore files after accidental loss/alteration. ⿟microSD Card Installation: ZP.1-6Backing up to microSD CardMain Menu 4 Tools 4 microSD Backup 4 Refer Data1 Highlight a category 7 S[Menu] 7 Copy to microSD (7 For Bookmarks, select an item)2 Enter Phone Password 7 YES ■One File Backup ＞Open a file 7 S[Menu] 7 Copy to microSD 7 YESRestoring from microSD CardMain Menu 4 Tools 4 microSD Backup 4 Refer Data1 Select a category2 Restore One ItemSelect a file 7 Highlight an item 7 S[Menu] 7 Add to phone Restore One FileHighlight a file 7 S[Menu] 7 Add to phone or Overwrite to phone 7 Enter Phone Password Restore All FilesS[Menu] 7 Add all to phone or Overwr. all to ph. 7 Enter Phone Password3 YESNote ⿟Note that Overwrite to phone or Overwr. all to ph. erases all files of same category on handset. ⿟Data backed up in other SoftBank handsets may not be restored in 103P depending on type and size.All Data Backup/RestorationBack up/restore handset data (Phone Book, Calendar, Messages, Notepad, Bookmarks) all at once.Main Menu 4 Tools 4 microSD Backup 4 Backup/Restore1 Select an item 7 Enter Phone Password 7 YESNote ⿟Data backed up in 103P cannot be restored in other handsets.Appendix

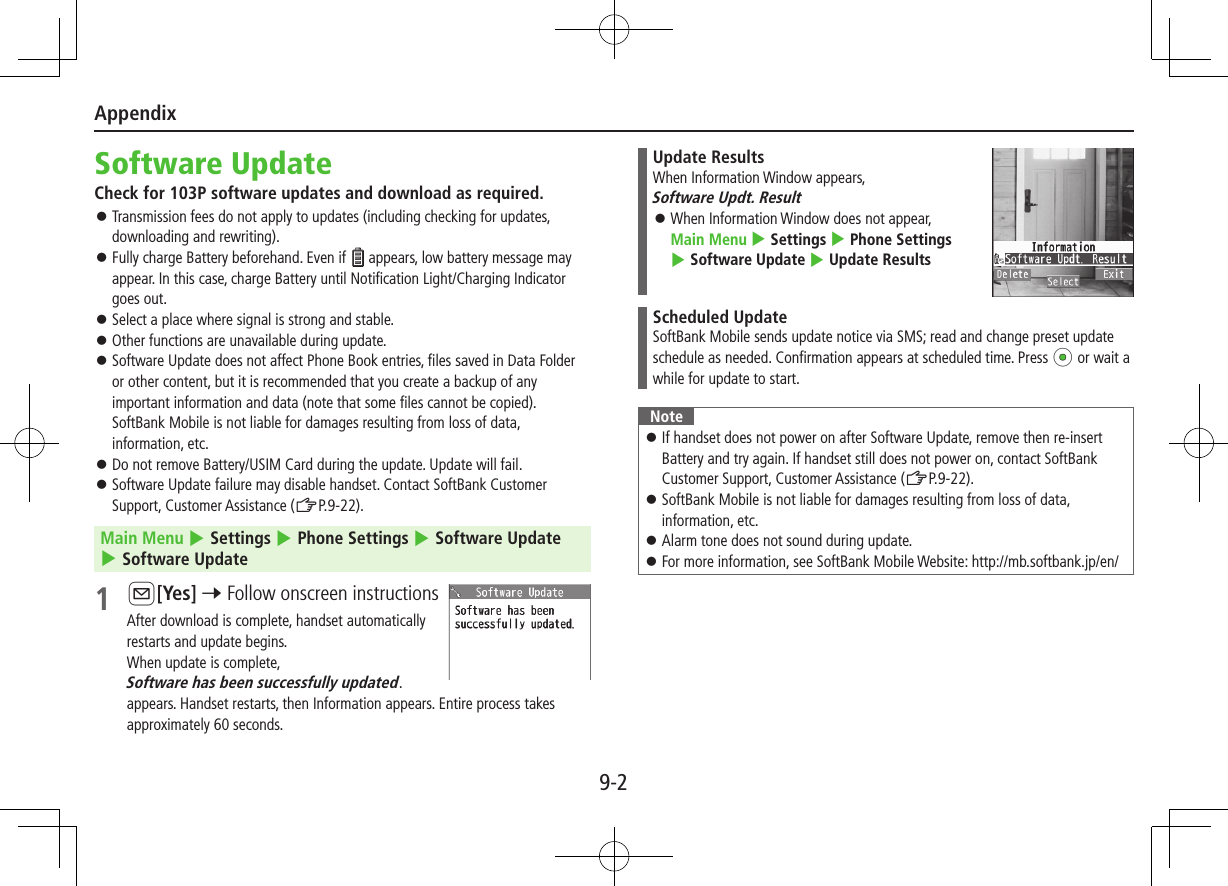

Appendix9-2Software UpdateCheck for 103P software updates and download as required. ⿟Transmission fees do not apply to updates (including checking for updates, downloading and rewriting). ⿟Fully charge Battery beforehand. Even if appears, low battery message may appear. In this case, charge Battery until Notification Light/Charging Indicator goes out. ⿟Select a place where signal is strong and stable. ⿟Other functions are unavailable during update. ⿟Software Update does not affect Phone Book entries, files saved in Data Folder or other content, but it is recommended that you create a backup of any important information and data (note that some files cannot be copied). SoftBank Mobile is not liable for damages resulting from loss of data, information, etc. ⿟Do not remove Battery/USIM Card during the update. Update will fail. ⿟Software Update failure may disable handset. Contact SoftBank Customer Support, Customer Assistance (ZP.9-22).Main Menu 4 Settings 4 Phone Settings 4 Software Update 4 Software Update1 A[Yes] 7 Follow onscreen instructionsAfter download is complete, handset automatically restarts and update begins.When update is complete, Software has been successfully updated. appears. Handset restarts, then Information appears. Entire process takes approximately 60 seconds.Update ResultsWhen Information Window appears, Software Updt. Result ⿟When Information Window does not appear, Main Menu 4 Settings 4 Phone Settings 4 Software Update 4 Update ResultsScheduled UpdateSoftBank Mobile sends update notice via SMS; read and change preset update schedule as needed. Confirmation appears at scheduled time. Press *z or wait a while for update to start.Note ⿟If handset does not power on after Software Update, remove then re-insert Battery and try again. If handset still does not power on, contact SoftBank Customer Support, Customer Assistance (ZP.9-22). ⿟SoftBank Mobile is not liable for damages resulting from loss of data, information, etc. ⿟Alarm tone does not sound during update. ⿟For more information, see SoftBank Mobile Website: http://mb.softbank.jp/en/

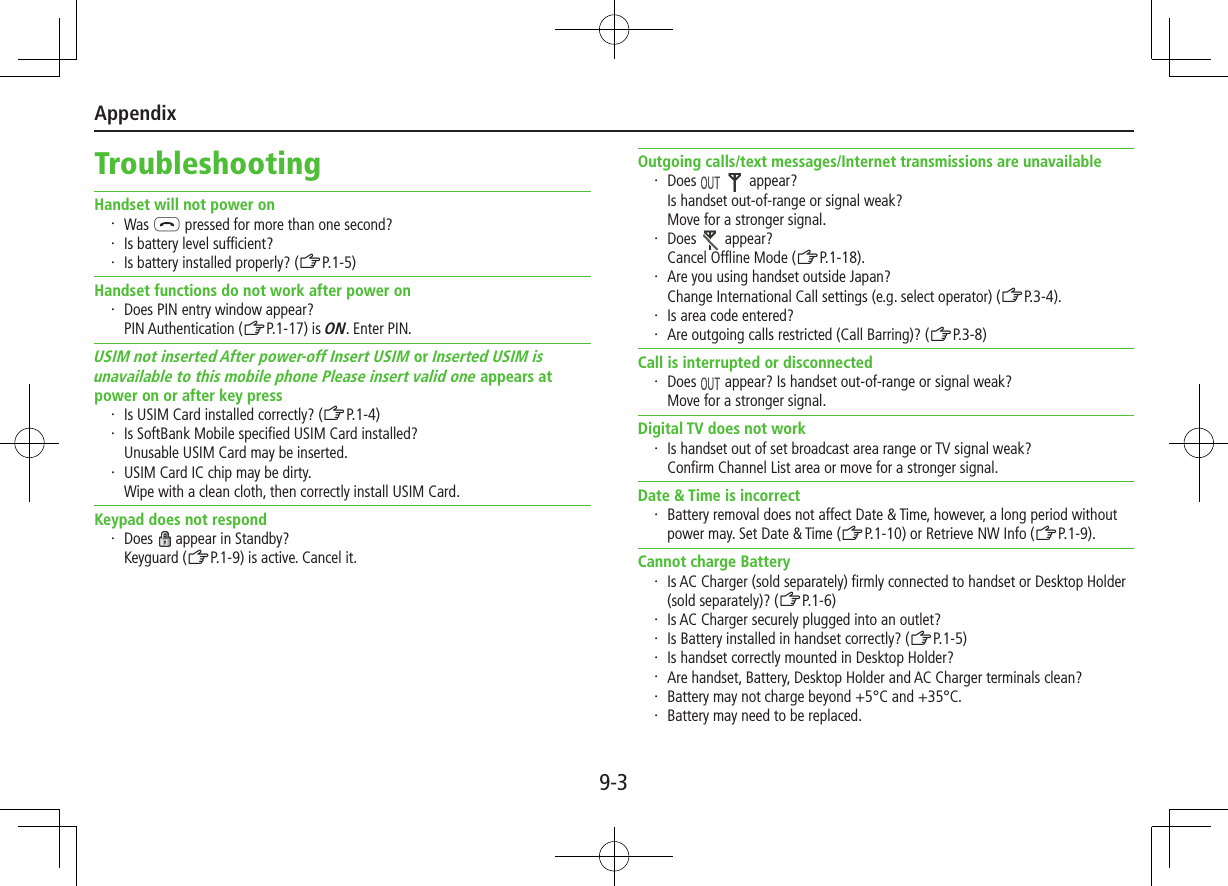

Appendix9-3TroubleshootingHandset will not power on・ Was L pressed for more than one second?・ Is battery level sufficient?・ Is battery installed properly? (ZP.1-5)Handset functions do not work after power on・ Does PIN entry window appear? PIN Authentication (ZP.1-17) is ON. Enter PIN.USIM not inserted After power-off Insert USIM or Inserted USIM is unavailable to this mobile phone Please insert valid one appears at power on or after key press・ Is USIM Card installed correctly? (ZP.1-4)・ Is SoftBank Mobile specified USIM Card installed? Unusable USIM Card may be inserted.・ USIM Card IC chip may be dirty. Wipe with a clean cloth, then correctly install USIM Card.Keypad does not respond・ Does appear in Standby?Keyguard (ZP.1-9) is active. Cancel it.Outgoing calls/text messages/Internet transmissions are unavailable・ Does appear?Is handset out-of-range or signal weak? Move for a stronger signal.・ Does appear?Cancel Offline Mode (ZP.1-18).・ Are you using handset outside Japan? Change International Call settings (e.g. select operator) (ZP.3-4).・ Is area code entered?・ Are outgoing calls restricted (Call Barring)? (ZP.3-8)Call is interrupted or disconnected・ Does appear? Is handset out-of-range or signal weak?Move for a stronger signal.Digital TV does not work・ Is handset out of set broadcast area range or TV signal weak? Confirm Channel List area or move for a stronger signal.Date & Time is incorrect・ Battery removal does not affect Date & Time, however, a long period without power may. Set Date & Time (ZP.1-10) or Retrieve NW Info (ZP.1-9).Cannot charge Battery・ Is AC Charger (sold separately) firmly connected to handset or Desktop Holder (sold separately)? (ZP.1-6)・ Is AC Charger securely plugged into an outlet?・ Is Battery installed in handset correctly? (ZP.1-5)・ Is handset correctly mounted in Desktop Holder?・ Are handset, Battery, Desktop Holder and AC Charger terminals clean?・ Battery may not charge beyond +5°C and +35°C.・ Battery may need to be replaced.

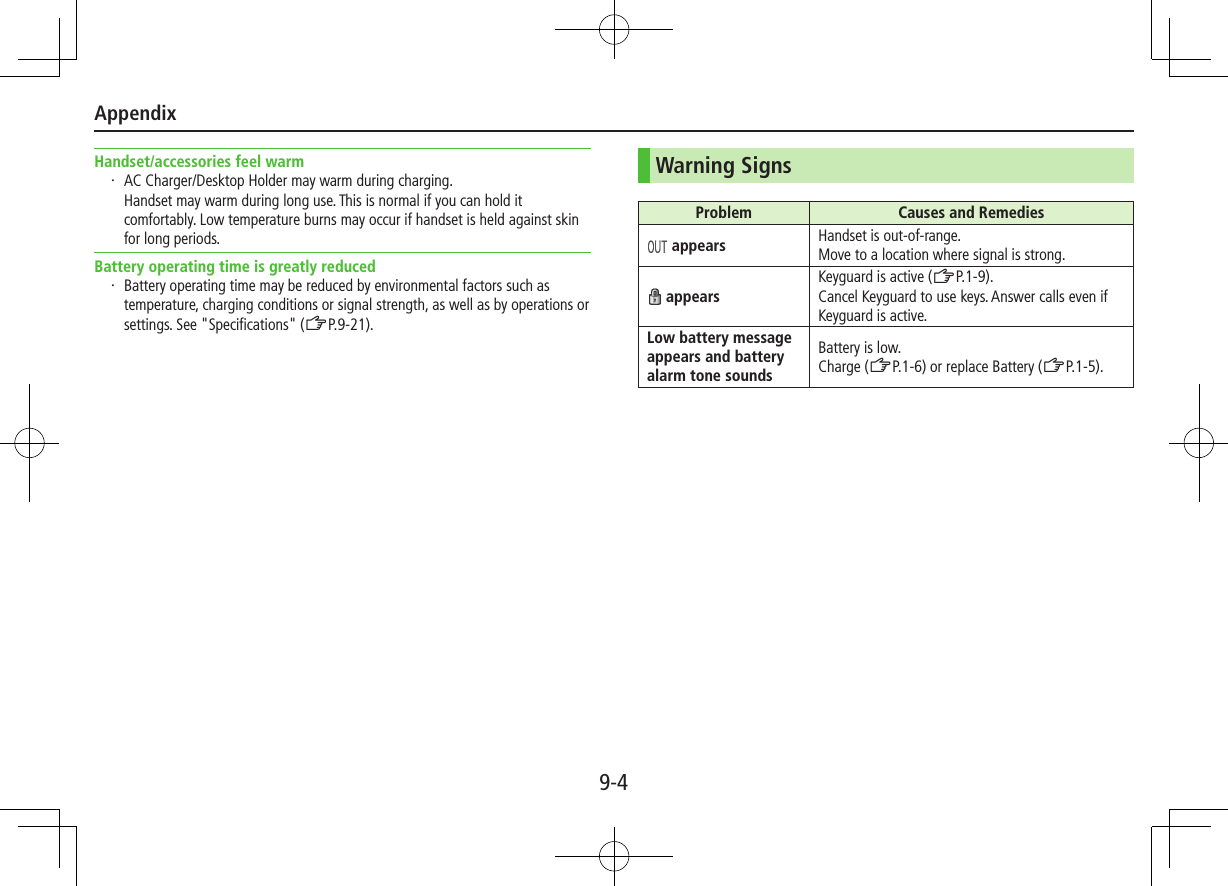

Appendix9-4Handset/accessories feel warm・ AC Charger/Desktop Holder may warm during charging. Handset may warm during long use. This is normal if you can hold it comfortably. Low temperature burns may occur if handset is held against skin for long periods.Battery operating time is greatly reduced・ Battery operating time may be reduced by environmental factors such as temperature, charging conditions or signal strength, as well as by operations or settings. See "Specifications" (ZP.9-21).Warning SignsProblem Causes and Remedies appears Handset is out-of-range.Move to a location where signal is strong. appearsKeyguard is active (ZP.1-9).Cancel Keyguard to use keys. Answer calls even if Keyguard is active.Low battery message appears and battery alarm tone soundsBattery is low.Charge (ZP.1-6) or replace Battery (ZP.1-5).

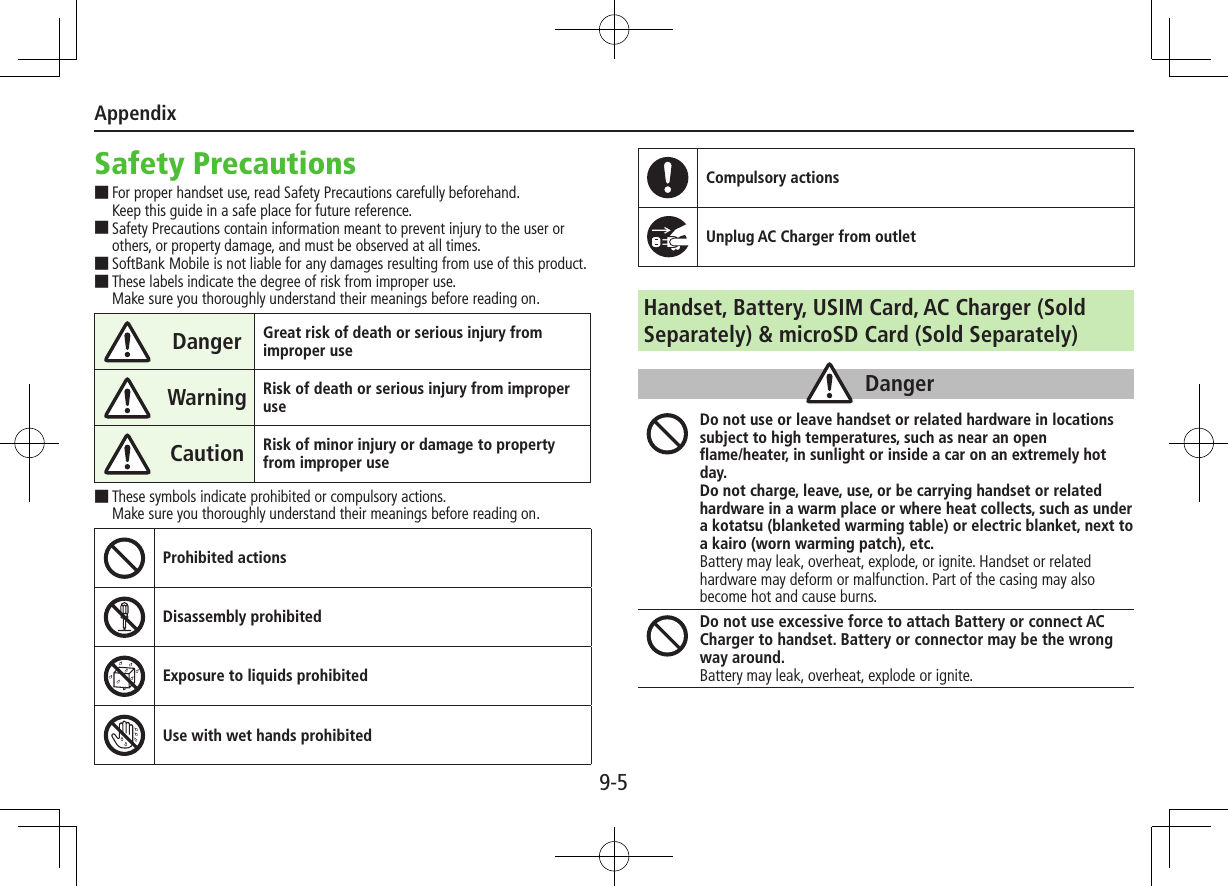

Appendix9-5Safety Precautions ■For proper handset use, read Safety Precautions carefully beforehand. Keep this guide in a safe place for future reference. ■Safety Precautions contain information meant to prevent injury to the user or others, or property damage, and must be observed at all times. ■SoftBank Mobile is not liable for any damages resulting from use of this product. ■These labels indicate the degree of risk from improper use. Make sure you thoroughly understand their meanings before reading on.Danger Great risk of death or serious injury from improper useWarning Risk of death or serious injury from improper useCaution Risk of minor injury or damage to property from improper use ■These symbols indicate prohibited or compulsory actions. Make sure you thoroughly understand their meanings before reading on.Prohibited actionsDisassembly prohibitedExposure to liquids prohibitedUse with wet hands prohibitedCompulsory actionsUnplug AC Charger from outletHandset, Battery, USIM Card, AC Charger (Sold Separately) & microSD Card (Sold Separately)DangerDo not use or leave handset or related hardware in locations subject to high temperatures, such as near an open flame/heater, in sunlight or inside a car on an extremely hot day.Do not charge, leave, use, or be carrying handset or related hardware in a warm place or where heat collects, such as under a kotatsu (blanketed warming table) or electric blanket, next to a kairo (worn warming patch), etc.Battery may leak, overheat, explode, or ignite. Handset or related hardware may deform or malfunction. Part of the casing may also become hot and cause burns.Do not use excessive force to attach Battery or connect AC Charger to handset. Battery or connector may be the wrong way around.Battery may leak, overheat, explode or ignite.

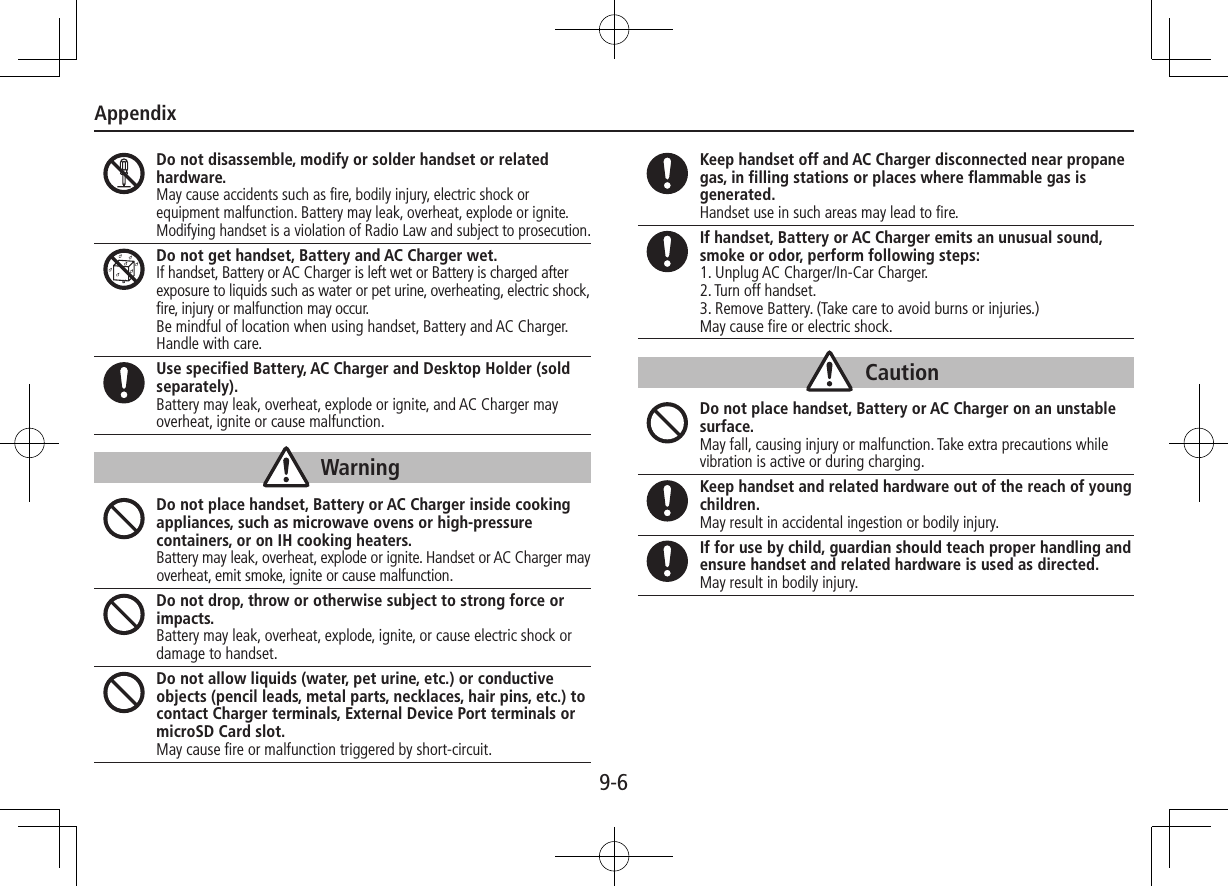

Appendix9-6Do not disassemble, modify or solder handset or related hardware.May cause accidents such as fire, bodily injury, electric shock or equipment malfunction. Battery may leak, overheat, explode or ignite.Modifying handset is a violation of Radio Law and subject to prosecution.Do not get handset, Battery and AC Charger wet.If handset, Battery or AC Charger is left wet or Battery is charged after exposure to liquids such as water or pet urine, overheating, electric shock, fire, injury or malfunction may occur.Be mindful of location when using handset, Battery and AC Charger. Handle with care.Use specified Battery, AC Charger and Desktop Holder (sold separately).Battery may leak, overheat, explode or ignite, and AC Charger may overheat, ignite or cause malfunction.WarningDo not place handset, Battery or AC Charger inside cooking appliances, such as microwave ovens or high-pressure containers, or on IH cooking heaters.Battery may leak, overheat, explode or ignite. Handset or AC Charger may overheat, emit smoke, ignite or cause malfunction.Do not drop, throw or otherwise subject to strong force or impacts.Battery may leak, overheat, explode, ignite, or cause electric shock or damage to handset.Do not allow liquids (water, pet urine, etc.) or conductive objects (pencil leads, metal parts, necklaces, hair pins, etc.) to contact Charger terminals, External Device Port terminals or microSD Card slot.May cause fire or malfunction triggered by short-circuit.Keep handset off and AC Charger disconnected near propane gas, in filling stations or places where flammable gas is generated.Handset use in such areas may lead to fire.If handset, Battery or AC Charger emits an unusual sound, smoke or odor, perform following steps:1. Unplug AC Charger/In-Car Charger.2. Turn off handset.3. Remove Battery. (Take care to avoid burns or injuries.)May cause fire or electric shock.CautionDo not place handset, Battery or AC Charger on an unstable surface.May fall, causing injury or malfunction. Take extra precautions while vibration is active or during charging.Keep handset and related hardware out of the reach of young children.May result in accidental ingestion or bodily injury.If for use by child, guardian should teach proper handling and ensure handset and related hardware is used as directed.May result in bodily injury.

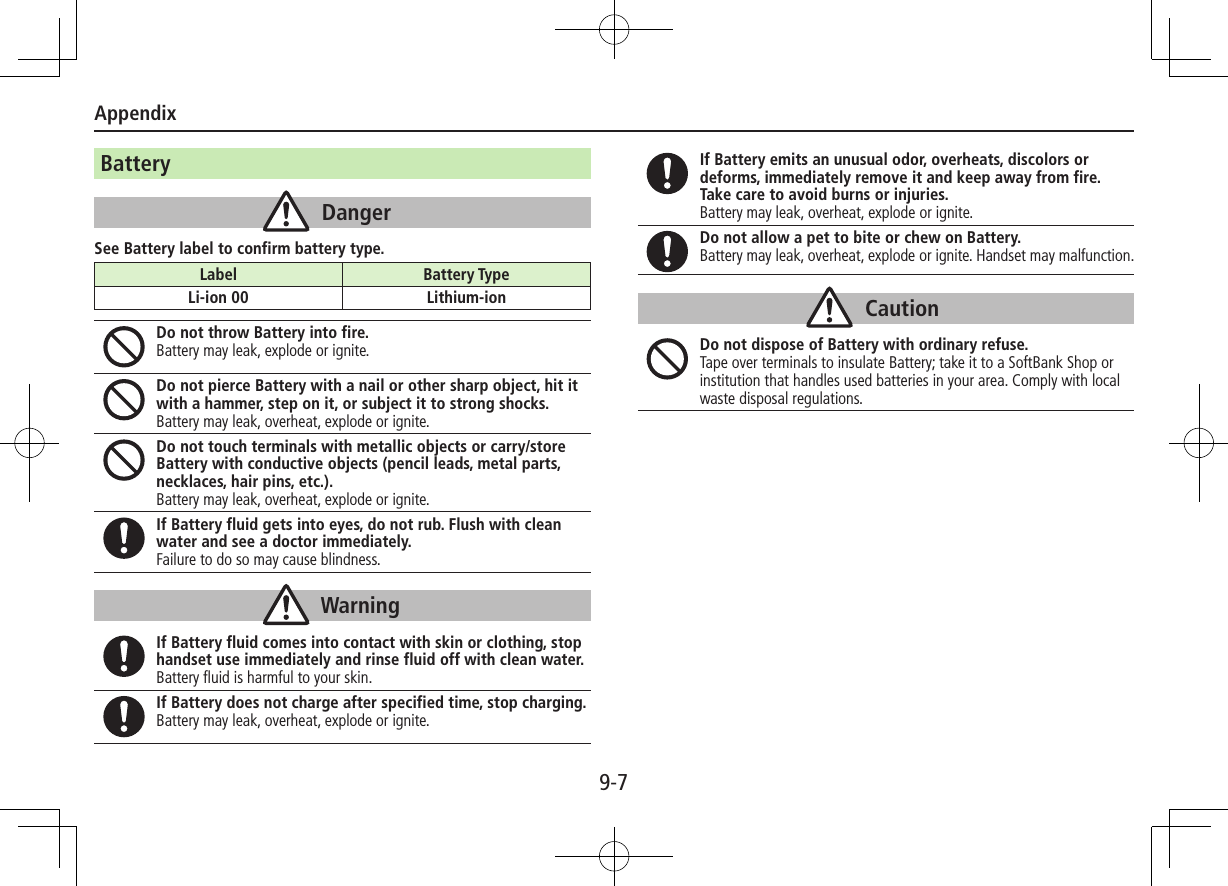

Appendix9-7BatteryDangerSee Battery label to confirm battery type.Do not throw Battery into fire.Battery may leak, explode or ignite.Do not pierce Battery with a nail or other sharp object, hit it with a hammer, step on it, or subject it to strong shocks.Battery may leak, overheat, explode or ignite.Do not touch terminals with metallic objects or carry/store Battery with conductive objects (pencil leads, metal parts, necklaces, hair pins, etc.).Battery may leak, overheat, explode or ignite.If Battery fluid gets into eyes, do not rub. Flush with clean water and see a doctor immediately.Failure to do so may cause blindness.WarningIf Battery fluid comes into contact with skin or clothing, stop handset use immediately and rinse fluid off with clean water.Battery fluid is harmful to your skin.If Battery does not charge after specified time, stop charging.Battery may leak, overheat, explode or ignite.Label Battery TypeLi-ion 00 Lithium-ionIf Battery emits an unusual odor, overheats, discolors or deforms, immediately remove it and keep away from fire. Take care to avoid burns or injuries.Battery may leak, overheat, explode or ignite.Do not allow a pet to bite or chew on Battery.Battery may leak, overheat, explode or ignite. Handset may malfunction.CautionDo not dispose of Battery with ordinary refuse.Tape over terminals to insulate Battery; take it to a SoftBank Shop or institution that handles used batteries in your area. Comply with local waste disposal regulations.

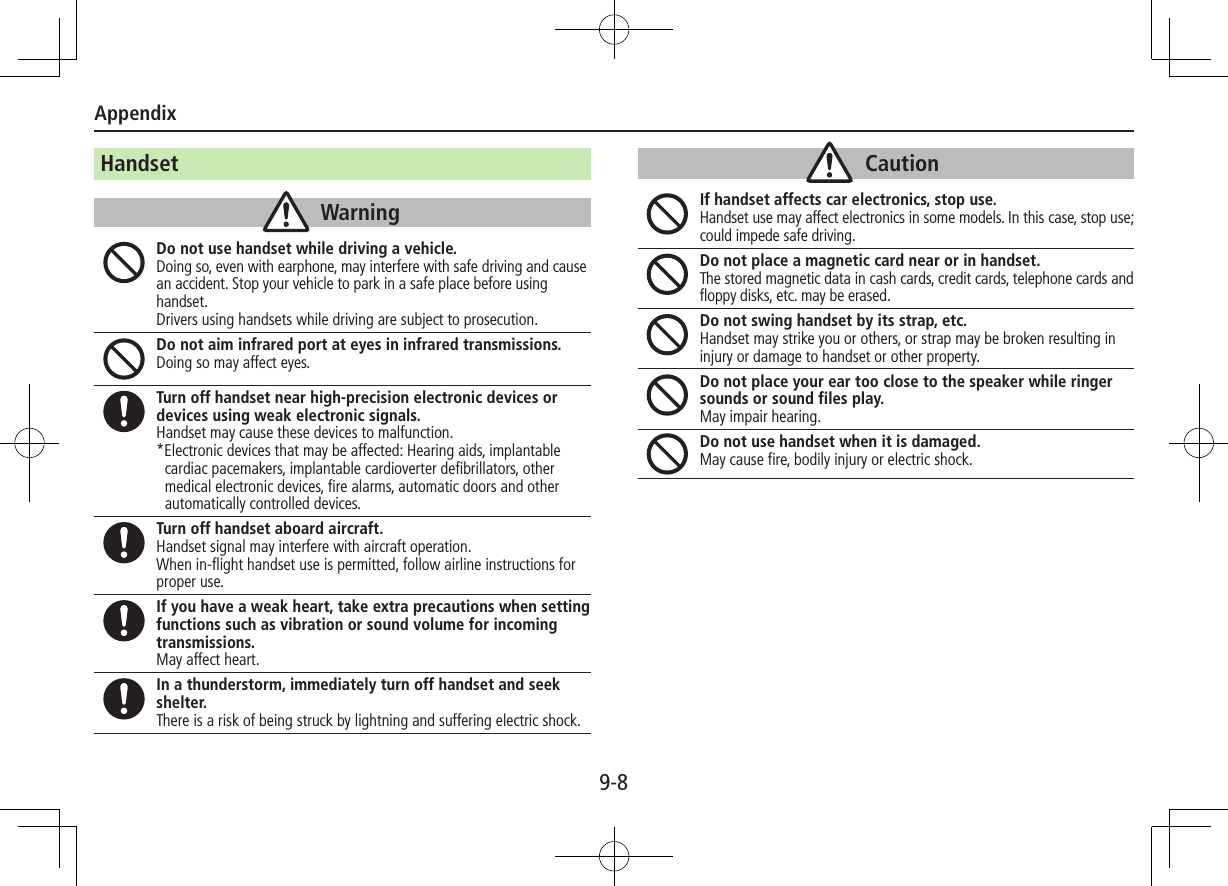

Appendix9-8HandsetWarningDo not use handset while driving a vehicle.Doing so, even with earphone, may interfere with safe driving and cause an accident. Stop your vehicle to park in a safe place before using handset. Drivers using handsets while driving are subject to prosecution.Do not aim infrared port at eyes in infrared transmissions.Doing so may affect eyes.Turn off handset near high-precision electronic devices or devices using weak electronic signals.Handset may cause these devices to malfunction.*Electronic devices that may be affected: Hearing aids, implantable cardiac pacemakers, implantable cardioverter defibrillators, other medical electronic devices, fire alarms, automatic doors and other automatically controlled devices.Turn off handset aboard aircraft.Handset signal may interfere with aircraft operation.When in-flight handset use is permitted, follow airline instructions for proper use.If you have a weak heart, take extra precautions when setting functions such as vibration or sound volume for incoming transmissions.May affect heart.In a thunderstorm, immediately turn off handset and seek shelter.There is a risk of being struck by lightning and suffering electric shock.CautionIf handset affects car electronics, stop use.Handset use may affect electronics in some models. In this case, stop use; could impede safe driving.Do not place a magnetic card near or in handset.The stored magnetic data in cash cards, credit cards, telephone cards and floppy disks, etc. may be erased.Do not swing handset by its strap, etc.Handset may strike you or others, or strap may be broken resulting in injury or damage to handset or other property.Do not place your ear too close to the speaker while ringer sounds or sound files play.May impair hearing.Do not use handset when it is damaged.May cause fire, bodily injury or electric shock.

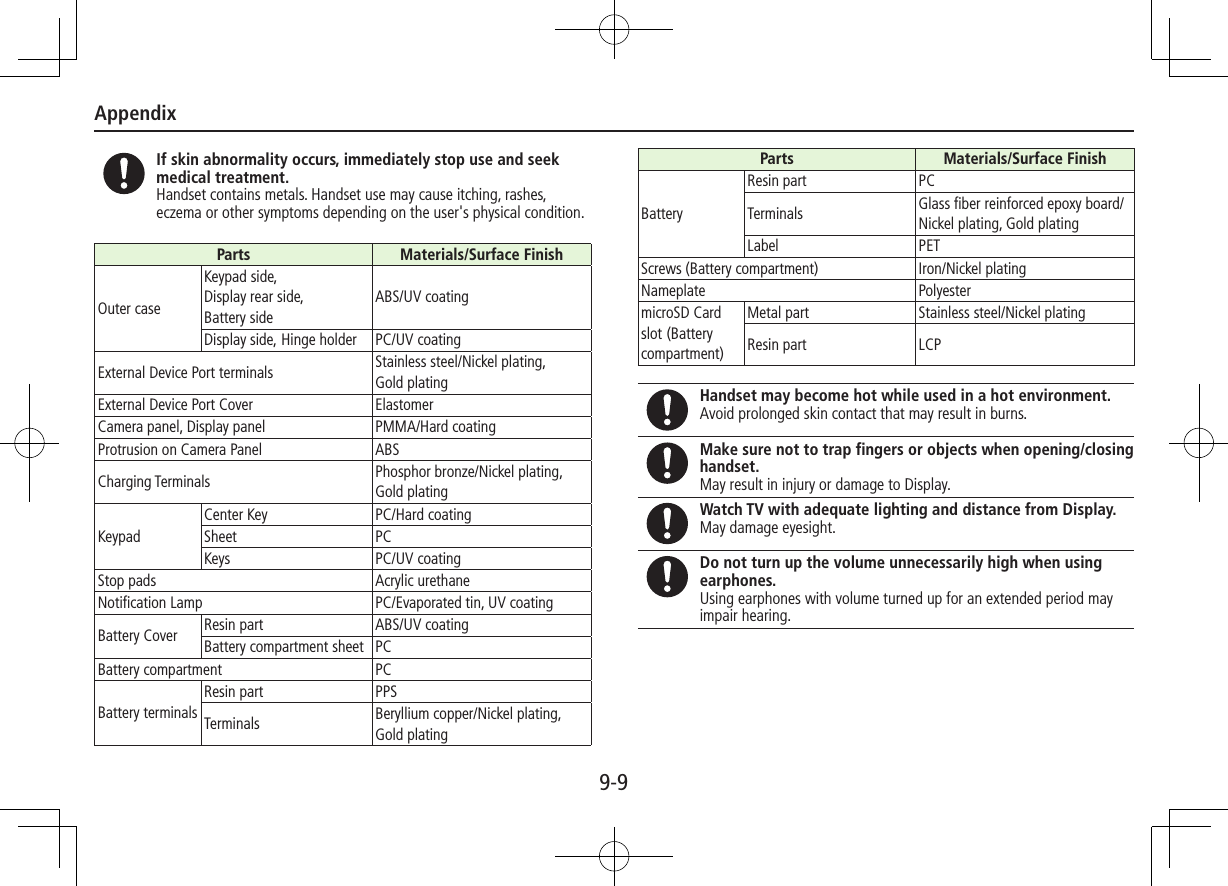

Appendix9-9If skin abnormality occurs, immediately stop use and seek medical treatment.Handset contains metals. Handset use may cause itching, rashes, eczema or other symptoms depending on the user's physical condition.Parts Materials/Surface FinishOuter caseKeypad side,Display rear side,Battery sideABS/UV coatingDisplay side, Hinge holder PC/UV coatingExternal Device Port terminals Stainless steel/Nickel plating, Gold platingExternal Device Port Cover ElastomerCamera panel, Display panel PMMA/Hard coatingProtrusion on Camera Panel ABSCharging Terminals Phosphor bronze/Nickel plating, Gold platingKeypadCenter Key PC/Hard coatingSheet PCKeys PC/UV coatingStop pads Acrylic urethaneNotification Lamp PC/Evaporated tin, UV coatingBattery Cover Resin part ABS/UV coatingBattery compartment sheet PCBattery compartment PCBattery terminalsResin part PPSTerminals Beryllium copper/Nickel plating, Gold platingParts Materials/Surface FinishBatteryResin part PCTerminals Glass fiber reinforced epoxy board/Nickel plating, Gold platingLabel PETScrews (Battery compartment) Iron/Nickel platingNameplate PolyestermicroSD Card slot (Battery compartment)Metal part Stainless steel/Nickel platingResin part LCPHandset may become hot while used in a hot environment.Avoid prolonged skin contact that may result in burns.Make sure not to trap fingers or objects when opening/closing handset.May result in injury or damage to Display.Watch TV with adequate lighting and distance from Display.May damage eyesight.Do not turn up the volume unnecessarily high when using earphones.Using earphones with volume turned up for an extended period may impair hearing.

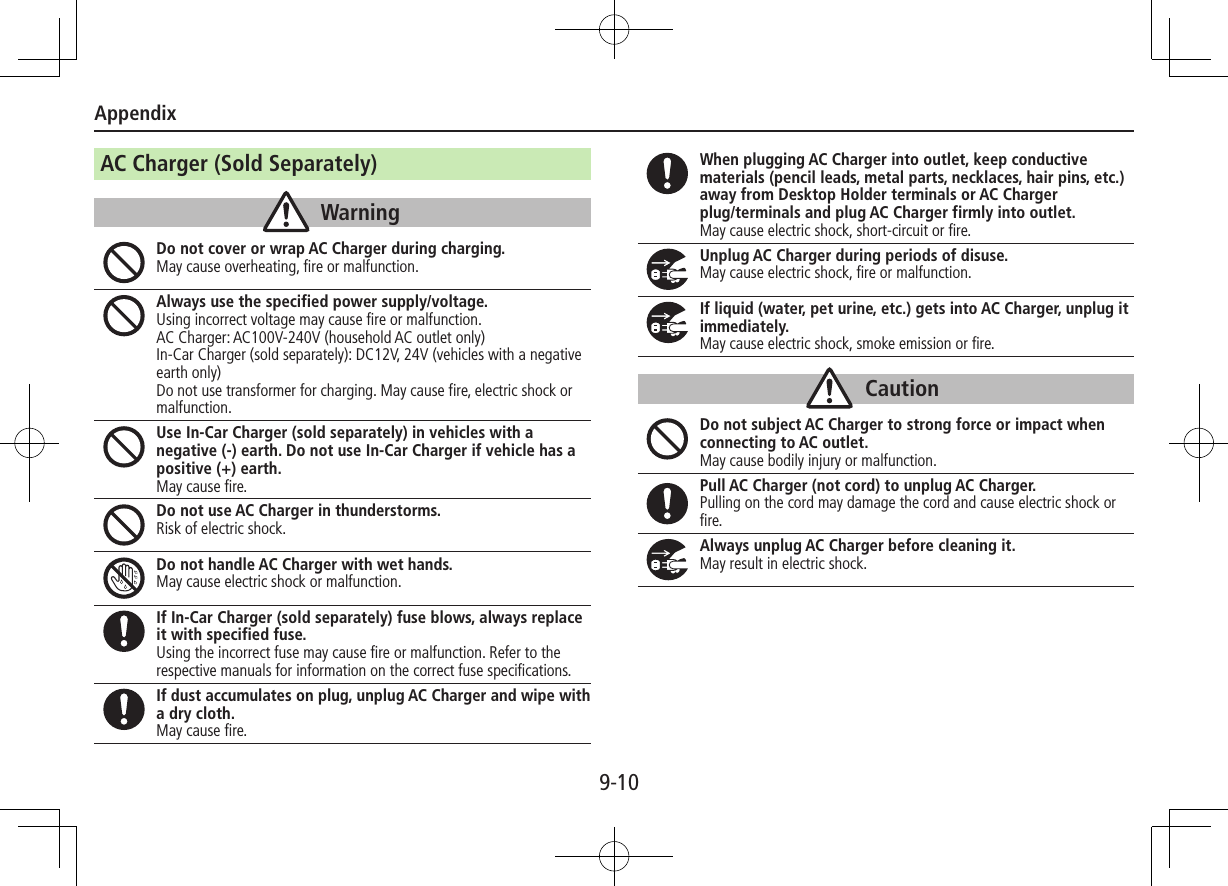

Appendix9-10AC Charger (Sold Separately)WarningDo not cover or wrap AC Charger during charging.May cause overheating, fire or malfunction.Always use the specified power supply/voltage.Using incorrect voltage may cause fire or malfunction.AC Charger: AC100V-240V (household AC outlet only) In-Car Charger (sold separately): DC12V, 24V (vehicles with a negative earth only)Do not use transformer for charging. May cause fire, electric shock or malfunction.Use In-Car Charger (sold separately) in vehicles with a negative (-) earth. Do not use In-Car Charger if vehicle has a positive (+) earth.May cause fire.Do not use AC Charger in thunderstorms.Risk of electric shock.Do not handle AC Charger with wet hands.May cause electric shock or malfunction.If In-Car Charger (sold separately) fuse blows, always replace it with specified fuse.Using the incorrect fuse may cause fire or malfunction. Refer to the respective manuals for information on the correct fuse specifications.If dust accumulates on plug, unplug AC Charger and wipe with a dry cloth.May cause fire.When plugging AC Charger into outlet, keep conductive materials (pencil leads, metal parts, necklaces, hair pins, etc.) away from Desktop Holder terminals or AC Charger plug/terminals and plug AC Charger firmly into outlet.May cause electric shock, short-circuit or fire.Unplug AC Charger during periods of disuse.May cause electric shock, fire or malfunction.If liquid (water, pet urine, etc.) gets into AC Charger, unplug it immediately.May cause electric shock, smoke emission or fire.CautionDo not subject AC Charger to strong force or impact when connecting to AC outlet.May cause bodily injury or malfunction.Pull AC Charger (not cord) to unplug AC Charger.Pulling on the cord may damage the cord and cause electric shock or fire.Always unplug AC Charger before cleaning it.May result in electric shock.

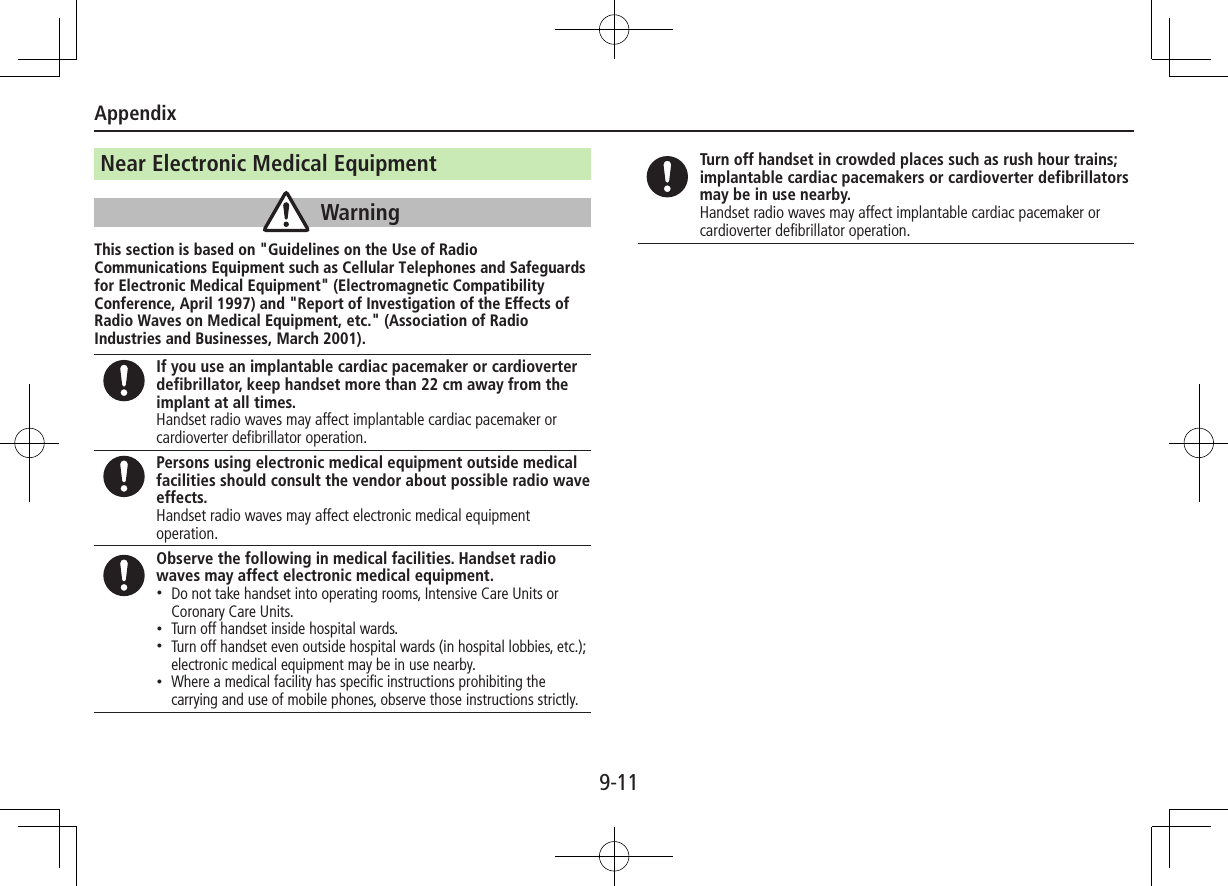

Appendix9-11Near Electronic Medical EquipmentWarningThis section is based on "Guidelines on the Use of Radio Communications Equipment such as Cellular Telephones and Safeguards for Electronic Medical Equipment" (Electromagnetic Compatibility Conference, April 1997) and "Report of Investigation of the Effects of Radio Waves on Medical Equipment, etc." (Association of Radio Industries and Businesses, March 2001).If you use an implantable cardiac pacemaker or cardioverter defibrillator, keep handset more than 22 cm away from the implant at all times.Handset radio waves may affect implantable cardiac pacemaker or cardioverter defibrillator operation.Persons using electronic medical equipment outside medical facilities should consult the vendor about possible radio wave effects.Handset radio waves may affect electronic medical equipment operation.Observe the following in medical facilities. Handset radio waves may affect electronic medical equipment. •Do not take handset into operating rooms, Intensive Care Units or Coronary Care Units. •Turn off handset inside hospital wards. •Turn off handset even outside hospital wards (in hospital lobbies, etc.); electronic medical equipment may be in use nearby. •Where a medical facility has specific instructions prohibiting the carrying and use of mobile phones, observe those instructions strictly.Turn off handset in crowded places such as rush hour trains; implantable cardiac pacemakers or cardioverter defibrillators may be in use nearby.Handset radio waves may affect implantable cardiac pacemaker or cardioverter defibrillator operation.

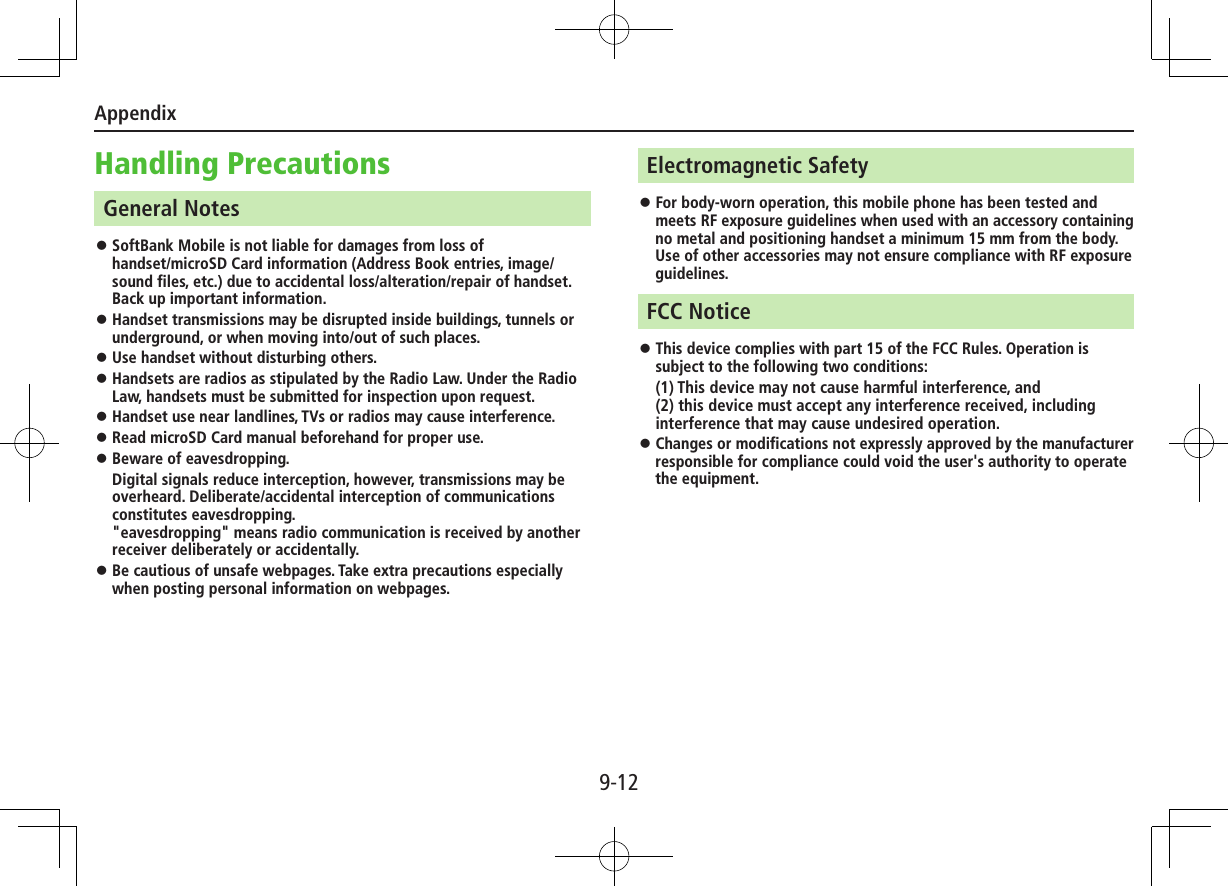

Appendix9-12Handling PrecautionsGeneral Notes ⿟SoftBank Mobile is not liable for damages from loss of handset/microSD Card information (Address Book entries, image/sound files, etc.) due to accidental loss/alteration/repair of handset. Back up important information. ⿟Handset transmissions may be disrupted inside buildings, tunnels or underground, or when moving into/out of such places. ⿟Use handset without disturbing others. ⿟Handsets are radios as stipulated by the Radio Law. Under the Radio Law, handsets must be submitted for inspection upon request. ⿟Handset use near landlines, TVs or radios may cause interference. ⿟Read microSD Card manual beforehand for proper use. ⿟Beware of eavesdropping.Digital signals reduce interception, however, transmissions may be overheard. Deliberate/accidental interception of communications constitutes eavesdropping. "eavesdropping" means radio communication is received by another receiver deliberately or accidentally. ⿟Be cautious of unsafe webpages. Take extra precautions especially when posting personal information on webpages.Electromagnetic Safety ⿟For body-worn operation, this mobile phone has been tested and meets RF exposure guidelines when used with an accessory containing no metal and positioning handset a minimum 15 mm from the body. Use of other accessories may not ensure compliance with RF exposure guidelines.FCC Notice ⿟This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions:(1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. ⿟Changes or modifications not expressly approved by the manufacturer responsible for compliance could void the user's authority to operate the equipment.

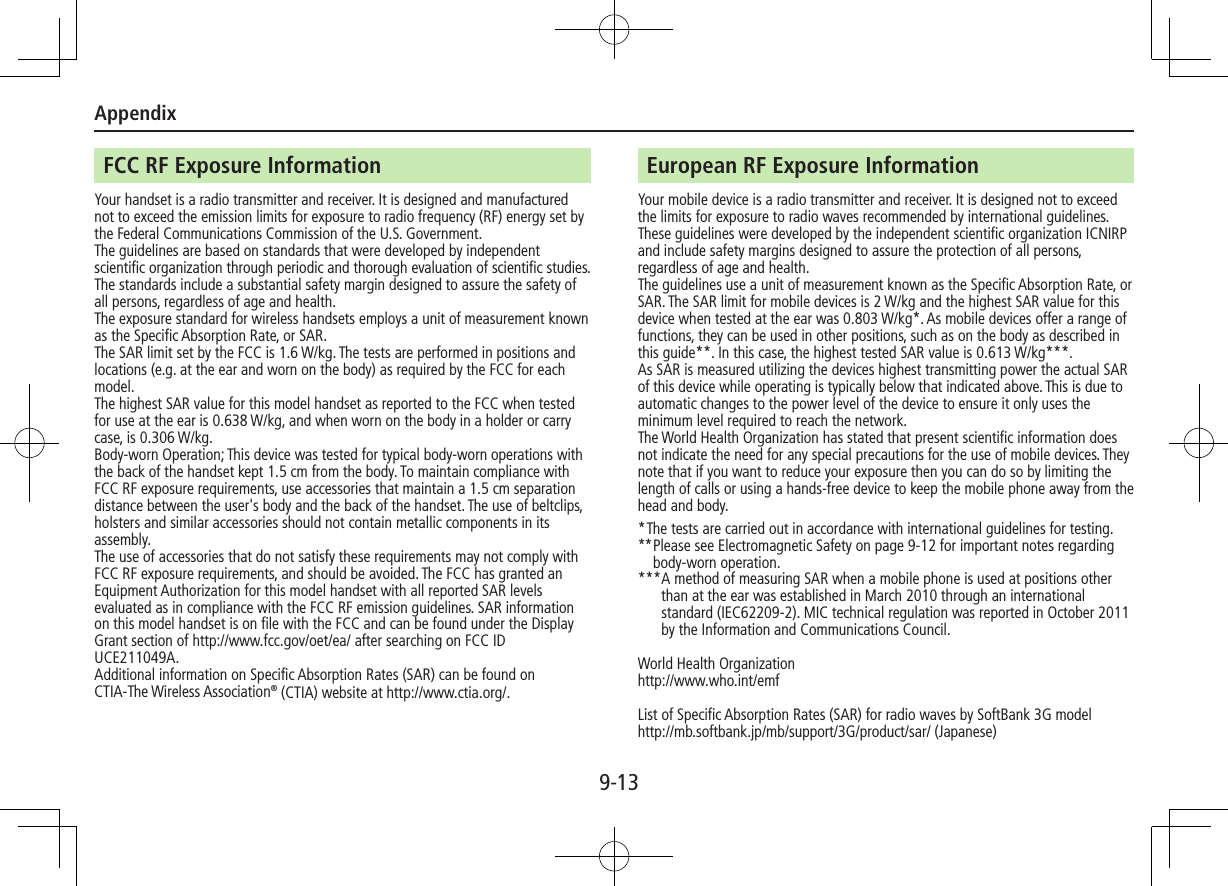

Appendix9-13FCC RF Exposure InformationYour handset is a radio transmitter and receiver. It is designed and manufactured not to exceed the emission limits for exposure to radio frequency (RF) energy set by the Federal Communications Commission of the U.S. Government.The guidelines are based on standards that were developed by independent scientific organization through periodic and thorough evaluation of scientific studies. The standards include a substantial safety margin designed to assure the safety of all persons, regardless of age and health.The exposure standard for wireless handsets employs a unit of measurement known as the Specific Absorption Rate, or SAR.The SAR limit set by the FCC is 1.6 W/kg. The tests are performed in positions and locations (e.g. at the ear and worn on the body) as required by the FCC for each model.The highest SAR value for this model handset as reported to the FCC when tested for use at the ear is 0.638 W/kg, and when worn on the body in a holder or carry case, is 0.306 W/kg.Body-worn Operation; This device was tested for typical body-worn operations with the back of the handset kept 1.5 cm from the body. To maintain compliance with FCC RF exposure requirements, use accessories that maintain a 1.5 cm separation distance between the user's body and the back of the handset. The use of beltclips, holsters and similar accessories should not contain metallic components in its assembly.The use of accessories that do not satisfy these requirements may not comply with FCC RF exposure requirements, and should be avoided. The FCC has granted an Equipment Authorization for this model handset with all reported SAR levels evaluated as in compliance with the FCC RF emission guidelines. SAR information on this model handset is on file with the FCC and can be found under the Display Grant section of http://www.fcc.gov/oet/ea/ after searching on FCC ID UCE211049A.Additional information on Specific Absorption Rates (SAR) can be found on CTIA-The Wireless Association® (CTIA) website at http://www.ctia.org/.European RF Exposure InformationYour mobile device is a radio transmitter and receiver. It is designed not to exceed the limits for exposure to radio waves recommended by international guidelines. These guidelines were developed by the independent scientific organization ICNIRP and include safety margins designed to assure the protection of all persons, regardless of age and health.The guidelines use a unit of measurement known as the Specific Absorption Rate, or SAR. The SAR limit for mobile devices is 2 W/kg and the highest SAR value for this device when tested at the ear was 0.803 W/kg*. As mobile devices offer a range of functions, they can be used in other positions, such as on the body as described in this guide**. In this case, the highest tested SAR value is 0.613 W/kg***. As SAR is measured utilizing the devices highest transmitting power the actual SAR of this device while operating is typically below that indicated above. This is due to automatic changes to the power level of the device to ensure it only uses the minimum level required to reach the network.The World Health Organization has stated that present scientific information does not indicate the need for any special precautions for the use of mobile devices. They note that if you want to reduce your exposure then you can do so by limiting the length of calls or using a hands-free device to keep the mobile phone away from the head and body.* The tests are carried out in accordance with international guidelines for testing.** Please see Electromagnetic Safety on page 9-12 for important notes regarding body-worn operation.*** A method of measuring SAR when a mobile phone is used at positions other than at the ear was established in March 2010 through an international standard (IEC62209-2). MIC technical regulation was reported in October 2011 by the Information and Communications Council.World Health Organizationhttp://www.who.int/emfList of Specific Absorption Rates (SAR) for radio waves by SoftBank 3G model http://mb.softbank.jp/mb/support/3G/product/sar/ (Japanese)

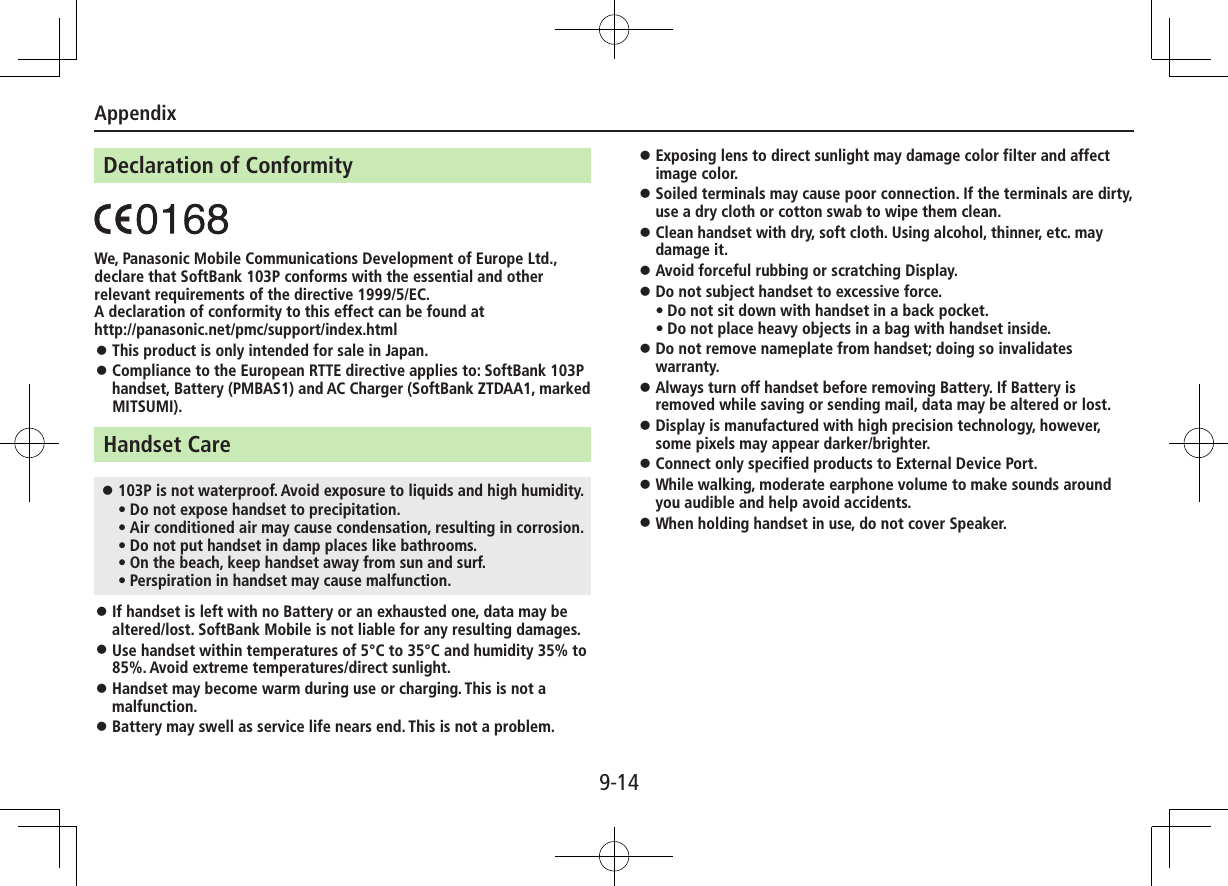

Appendix9-14Declaration of ConformityWe, Panasonic Mobile Communications Development of Europe Ltd., declare that SoftBank 103P conforms with the essential and other relevant requirements of the directive 1999/5/EC.A declaration of conformity to this effect can be found at http://panasonic.net/pmc/support/index.html ⿟This product is only intended for sale in Japan. ⿟Compliance to the European RTTE directive applies to: SoftBank 103P handset, Battery (PMBAS1) and AC Charger (SoftBank ZTDAA1, marked MITSUMI).Handset Care ⿟103P is not waterproof. Avoid exposure to liquids and high humidity. • Do not expose handset to precipitation. • Air conditioned air may cause condensation, resulting in corrosion. • Do not put handset in damp places like bathrooms. • On the beach, keep handset away from sun and surf. • Perspiration in handset may cause malfunction. ⿟If handset is left with no Battery or an exhausted one, data may be altered/lost. SoftBank Mobile is not liable for any resulting damages. ⿟Use handset within temperatures of 5°C to 35°C and humidity 35% to 85%. Avoid extreme temperatures/direct sunlight. ⿟Handset may become warm during use or charging. This is not a malfunction. ⿟Battery may swell as service life nears end. This is not a problem. ⿟Exposing lens to direct sunlight may damage color filter and affect image color. ⿟Soiled terminals may cause poor connection. If the terminals are dirty, use a dry cloth or cotton swab to wipe them clean. ⿟Clean handset with dry, soft cloth. Using alcohol, thinner, etc. may damage it. ⿟Avoid forceful rubbing or scratching Display. ⿟Do not subject handset to excessive force.• Do not sit down with handset in a back pocket. • Do not place heavy objects in a bag with handset inside. ⿟Do not remove nameplate from handset; doing so invalidates warranty. ⿟Always turn off handset before removing Battery. If Battery is removed while saving or sending mail, data may be altered or lost. ⿟Display is manufactured with high precision technology, however, some pixels may appear darker/brighter. ⿟Connect only specified products to External Device Port. ⿟While walking, moderate earphone volume to make sounds around you audible and help avoid accidents. ⿟When holding handset in use, do not cover Speaker.

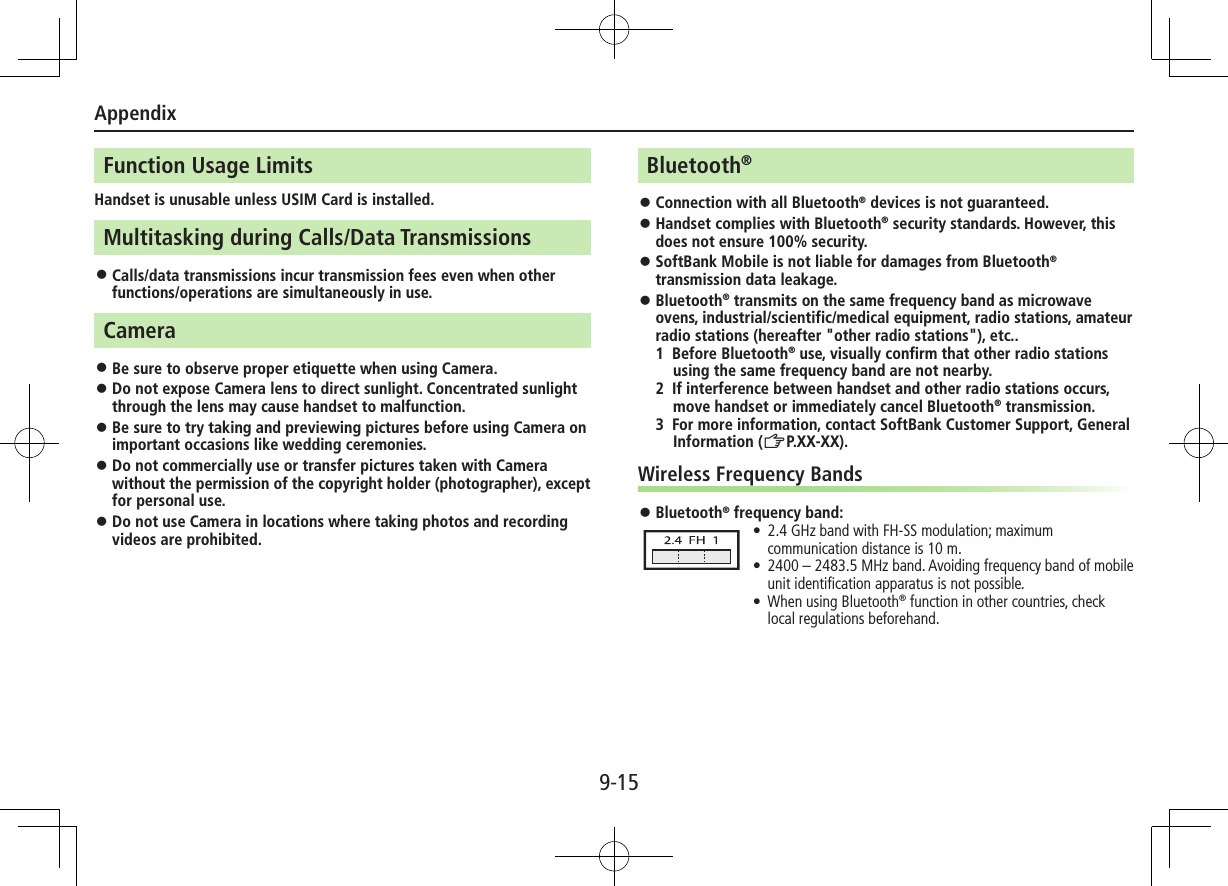

Appendix9-15Function Usage LimitsHandset is unusable unless USIM Card is installed.Multitasking during Calls/Data Transmissions ⿟Calls/data transmissions incur transmission fees even when other functions/operations are simultaneously in use.Camera ⿟Be sure to observe proper etiquette when using Camera. ⿟Do not expose Camera lens to direct sunlight. Concentrated sunlight through the lens may cause handset to malfunction. ⿟Be sure to try taking and previewing pictures before using Camera on important occasions like wedding ceremonies. ⿟Do not commercially use or transfer pictures taken with Camera without the permission of the copyright holder (photographer), except for personal use. ⿟Do not use Camera in locations where taking photos and recording videos are prohibited.Bluetooth® ⿟Connection with all Bluetooth® devices is not guaranteed. ⿟Handset complies with Bluetooth® security standards. However, this does not ensure 100% security. ⿟SoftBank Mobile is not liable for damages from Bluetooth® transmission data leakage. ⿟Bluetooth® transmits on the same frequency band as microwave ovens, industrial/scientific/medical equipment, radio stations, amateur radio stations (hereafter "other radio stations"), etc..1 Before Bluetooth® use, visually confirm that other radio stations using the same frequency band are not nearby.2 If interference between handset and other radio stations occurs, move handset or immediately cancel Bluetooth® transmission.3 For more information, contact SoftBank Customer Support, General Information (ZP.XX-XX).Wireless Frequency Bands ⿟Bluetooth® frequency band: •2.4 GHz band with FH-SS modulation; maximum communication distance is 10 m. •2400 – 2483.5 MHz band. Avoiding frequency band of mobile unit identification apparatus is not possible. •When using Bluetooth® function in other countries, check local regulations beforehand.

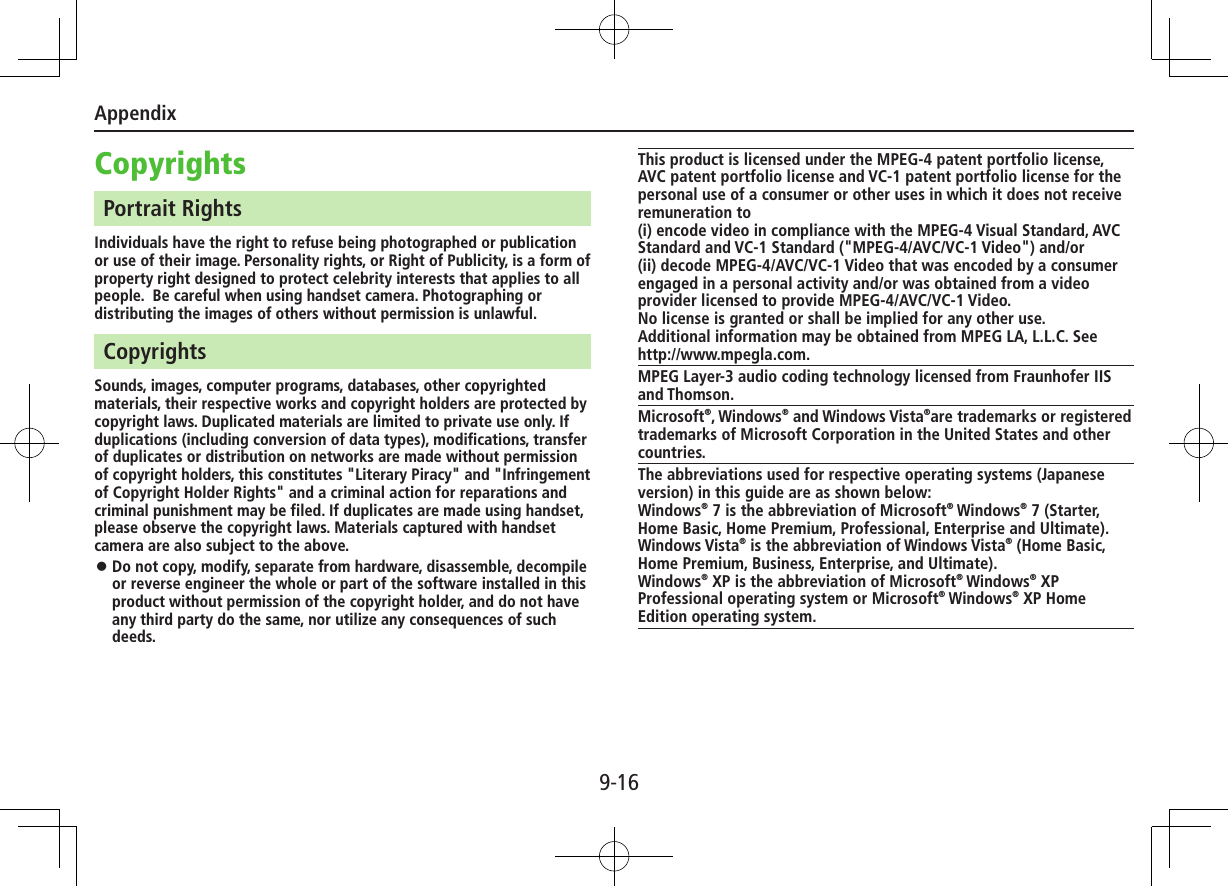

Appendix9-16CopyrightsPortrait RightsIndividuals have the right to refuse being photographed or publication or use of their image. Personality rights, or Right of Publicity, is a form of property right designed to protect celebrity interests that applies to all people. Be careful when using handset camera. Photographing or distributing the images of others without permission is unlawful.CopyrightsSounds, images, computer programs, databases, other copyrighted materials, their respective works and copyright holders are protected by copyright laws. Duplicated materials are limited to private use only. If duplications (including conversion of data types), modifications, transfer of duplicates or distribution on networks are made without permission of copyright holders, this constitutes "Literary Piracy" and "Infringement of Copyright Holder Rights" and a criminal action for reparations and criminal punishment may be filed. If duplicates are made using handset, please observe the copyright laws. Materials captured with handset camera are also subject to the above. ⿟Do not copy, modify, separate from hardware, disassemble, decompile or reverse engineer the whole or part of the software installed in this product without permission of the copyright holder, and do not have any third party do the same, nor utilize any consequences of such deeds.This product is licensed under the MPEG-4 patent portfolio license, AVC patent portfolio license and VC-1 patent portfolio license for the personal use of a consumer or other uses in which it does not receive remuneration to (i) encode video in compliance with the MPEG-4 Visual Standard, AVC Standard and VC-1 Standard ("MPEG-4/AVC/VC-1 Video") and/or(ii) decode MPEG-4/AVC/VC-1 Video that was encoded by a consumer engaged in a personal activity and/or was obtained from a video provider licensed to provide MPEG-4/AVC/VC-1 Video.No license is granted or shall be implied for any other use. Additional information may be obtained from MPEG LA, L.L.C. See http://www.mpegla.com.MPEG Layer-3 audio coding technology licensed from Fraunhofer IIS and Thomson.Microsoft®, Windows® and Windows Vista®are trademarks or registered trademarks of Microsoft Corporation in the United States and other countries.The abbreviations used for respective operating systems (Japanese version) in this guide are as shown below:Windows® 7 is the abbreviation of Microsoft® Windows® 7 (Starter, Home Basic, Home Premium, Professional, Enterprise and Ultimate).Windows Vista® is the abbreviation of Windows Vista® (Home Basic, Home Premium, Business, Enterprise, and Ultimate).Windows® XP is the abbreviation of Microsoft® Windows® XP Professional operating system or Microsoft® Windows® XP Home Edition operating system.

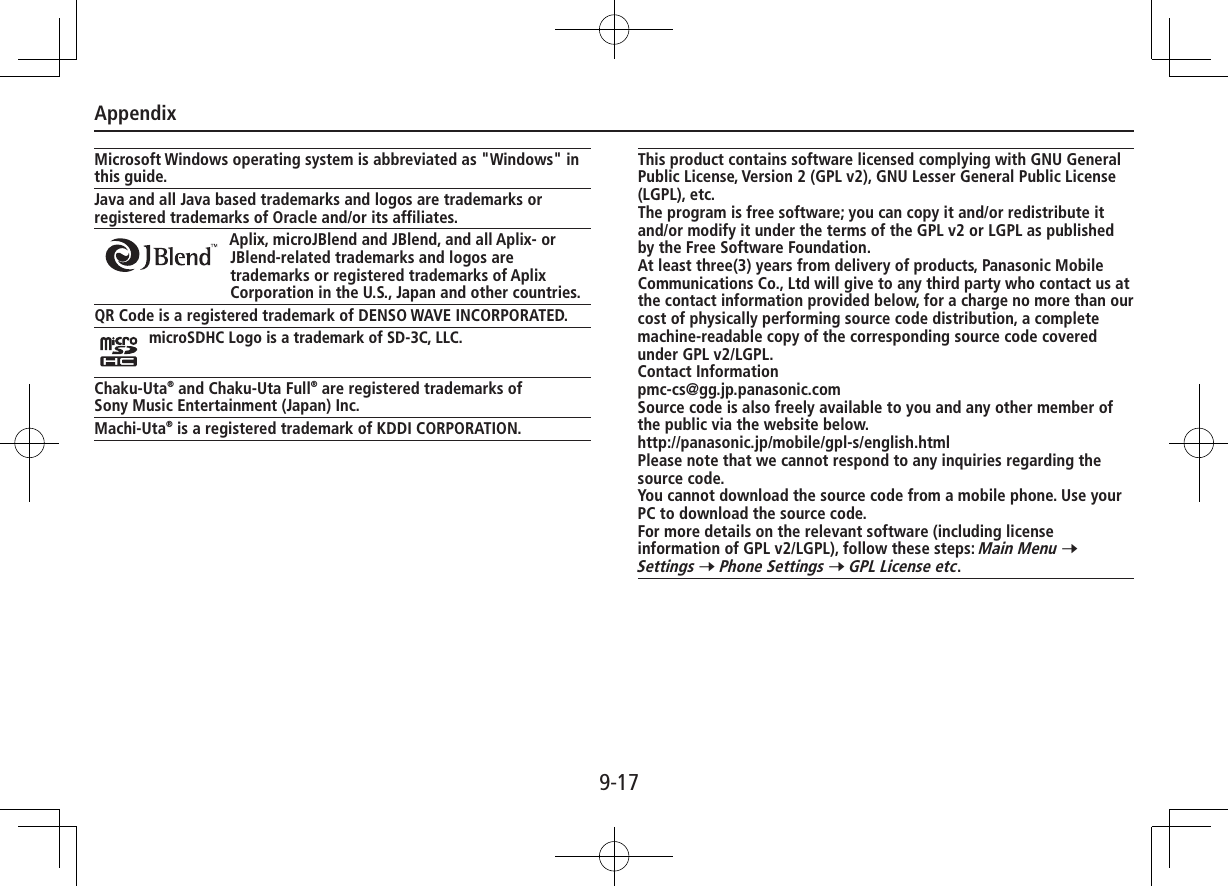

Appendix9-17Microsoft Windows operating system is abbreviated as "Windows" in this guide.Java and all Java based trademarks and logos are trademarks or registered trademarks of Oracle and/or its affiliates.Aplix, microJBlend and JBlend, and all Aplix- or JBlend-related trademarks and logos are trademarks or registered trademarks of Aplix Corporation in the U.S., Japan and other countries.QR Code is a registered trademark of DENSO WAVE INCORPORATED.microSDHC Logo is a trademark of SD-3C, LLC.Chaku-Uta® and Chaku-Uta Full® are registered trademarks ofSony Music Entertainment (Japan) Inc.Machi-Uta® is a registered trademark of KDDI CORPORATION.This product contains software licensed complying with GNU General Public License, Version 2 (GPL v2), GNU Lesser General Public License (LGPL), etc. The program is free software; you can copy it and/or redistribute it and/or modify it under the terms of the GPL v2 or LGPL as published by the Free Software Foundation. At least three(3) years from delivery of products, Panasonic Mobile Communications Co., Ltd will give to any third party who contact us at the contact information provided below, for a charge no more than our cost of physically performing source code distribution, a complete machine-readable copy of the corresponding source code covered under GPL v2/LGPL.Contact Informationpmc-cs@gg.jp.panasonic.comSource code is also freely available to you and any other member of the public via the website below.http://panasonic.jp/mobile/gpl-s/english.htmlPlease note that we cannot respond to any inquiries regarding the source code. You cannot download the source code from a mobile phone. Use your PC to download the source code.For more details on the relevant software (including license information of GPL v2/LGPL), follow these steps: Main Menu 7 Settings 7 Phone Settings 7 GPL License etc.

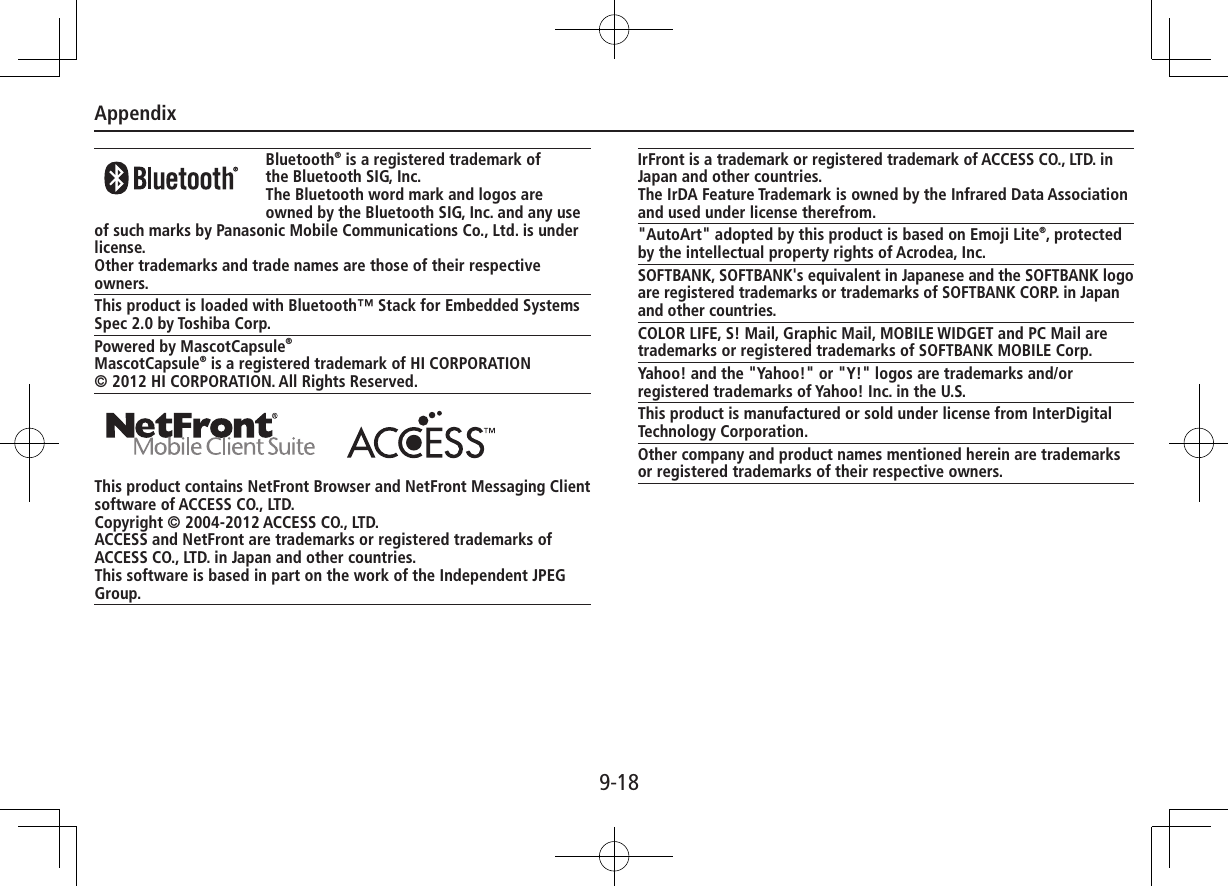

Appendix9-18 Bluetooth® is a registered trademark ofthe Bluetooth SIG, Inc.The Bluetooth word mark and logos are owned by the Bluetooth SIG, Inc. and any use of such marks by Panasonic Mobile Communications Co., Ltd. is under license.Other trademarks and trade names are those of their respective owners.This product is loaded with Bluetooth™ Stack for Embedded Systems Spec 2.0 by Toshiba Corp.Powered by MascotCapsule®MascotCapsule® is a registered trademark of HI CORPORATION© 2012 HI CORPORATION. All Rights Reserved. This product contains NetFront Browser and NetFront Messaging Client software of ACCESS CO., LTD.Copyright © 2004-2012 ACCESS CO., LTD.ACCESS and NetFront are trademarks or registered trademarks of ACCESS CO., LTD. in Japan and other countries.This software is based in part on the work of the Independent JPEG Group.IrFront is a trademark or registered trademark of ACCESS CO., LTD. in Japan and other countries.The IrDA Feature Trademark is owned by the Infrared Data Association and used under license therefrom."AutoArt" adopted by this product is based on Emoji Lite®, protected by the intellectual property rights of Acrodea, Inc.SOFTBANK, SOFTBANK's equivalent in Japanese and the SOFTBANK logo are registered trademarks or trademarks of SOFTBANK CORP. in Japan and other countries.COLOR LIFE, S! Mail, Graphic Mail, MOBILE WIDGET and PC Mail are trademarks or registered trademarks of SOFTBANK MOBILE Corp.Yahoo! and the "Yahoo!" or "Y!" logos are trademarks and/or registered trademarks of Yahoo! Inc. in the U.S.This product is manufactured or sold under license from InterDigital Technology Corporation.Other company and product names mentioned herein are trademarks or registered trademarks of their respective owners.

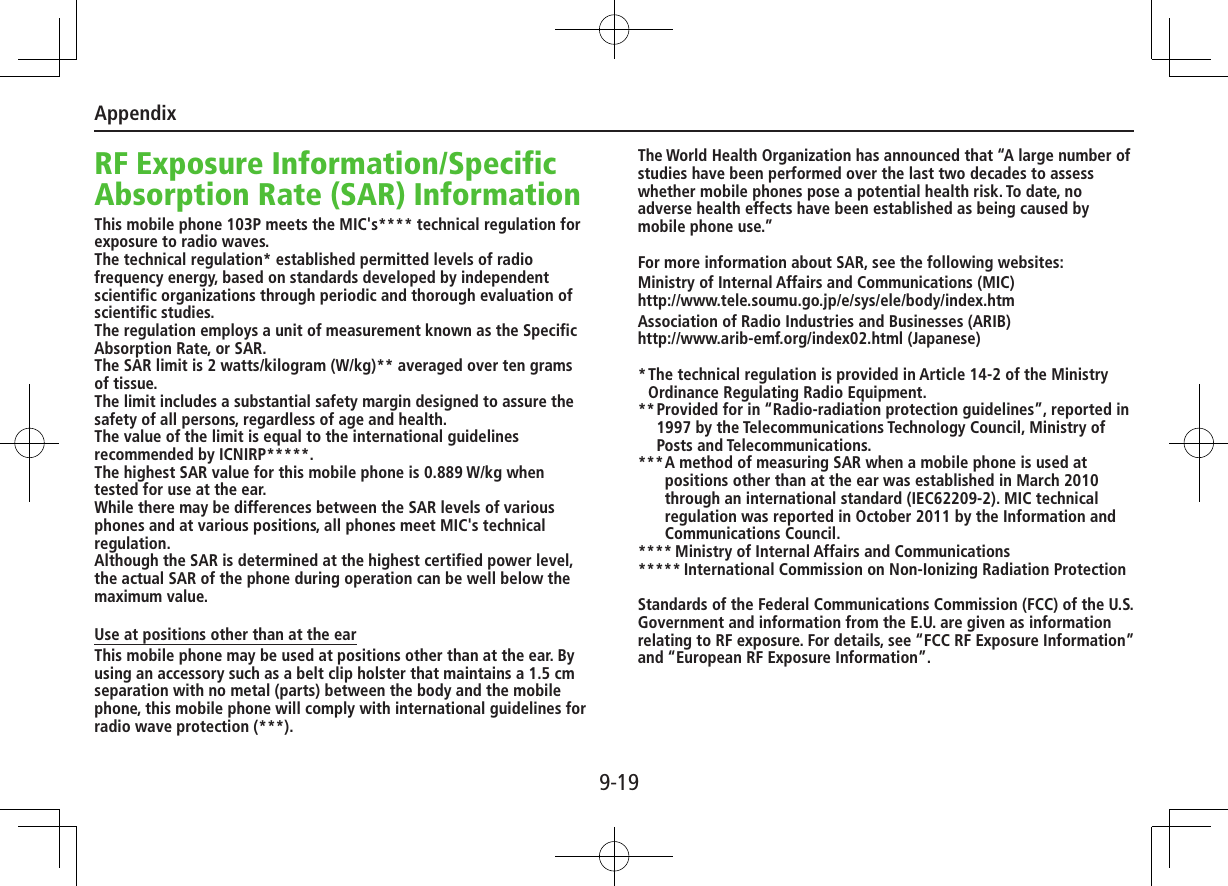

Appendix9-19RF Exposure Information/Specific Absorption Rate (SAR) InformationThis mobile phone 103P meets the MIC's**** technical regulation for exposure to radio waves.The technical regulation* established permitted levels of radio frequency energy, based on standards developed by independent scientific organizations through periodic and thorough evaluation of scientific studies.The regulation employs a unit of measurement known as the Specific Absorption Rate, or SAR.The SAR limit is 2 watts/kilogram (W/kg)** averaged over ten grams of tissue.The limit includes a substantial safety margin designed to assure the safety of all persons, regardless of age and health.The value of the limit is equal to the international guidelines recommended by ICNIRP*****.The highest SAR value for this mobile phone is 0.889 W/kg when tested for use at the ear.While there may be differences between the SAR levels of various phones and at various positions, all phones meet MIC's technical regulation.Although the SAR is determined at the highest certified power level, the actual SAR of the phone during operation can be well below the maximum value.Use at positions other than at the earThis mobile phone may be used at positions other than at the ear. By using an accessory such as a belt clip holster that maintains a 1.5 cm separation with no metal (parts) between the body and the mobile phone, this mobile phone will comply with international guidelines for radio wave protection (***).The World Health Organization has announced that “A large number of studies have been performed over the last two decades to assess whether mobile phones pose a potential health risk. To date, no adverse health effects have been established as being caused by mobile phone use.”For more information about SAR, see the following websites:Ministry of Internal Affairs and Communications (MIC) http://www.tele.soumu.go.jp/e/sys/ele/body/index.htmAssociation of Radio Industries and Businesses (ARIB) http://www.arib-emf.org/index02.html (Japanese)* The technical regulation is provided in Article 14-2 of the Ministry Ordinance Regulating Radio Equipment.** Provided for in “Radio-radiation protection guidelines”, reported in 1997 by the Telecommunications Technology Council, Ministry of Posts and Telecommunications.*** A method of measuring SAR when a mobile phone is used at positions other than at the ear was established in March 2010 through an international standard (IEC62209-2). MIC technical regulation was reported in October 2011 by the Information and Communications Council.**** Ministry of Internal Affairs and Communications***** International Commission on Non-Ionizing Radiation ProtectionStandards of the Federal Communications Commission (FCC) of the U.S. Government and information from the E.U. are given as information relating to RF exposure. For details, see “FCC RF Exposure Information” and “European RF Exposure Information”.

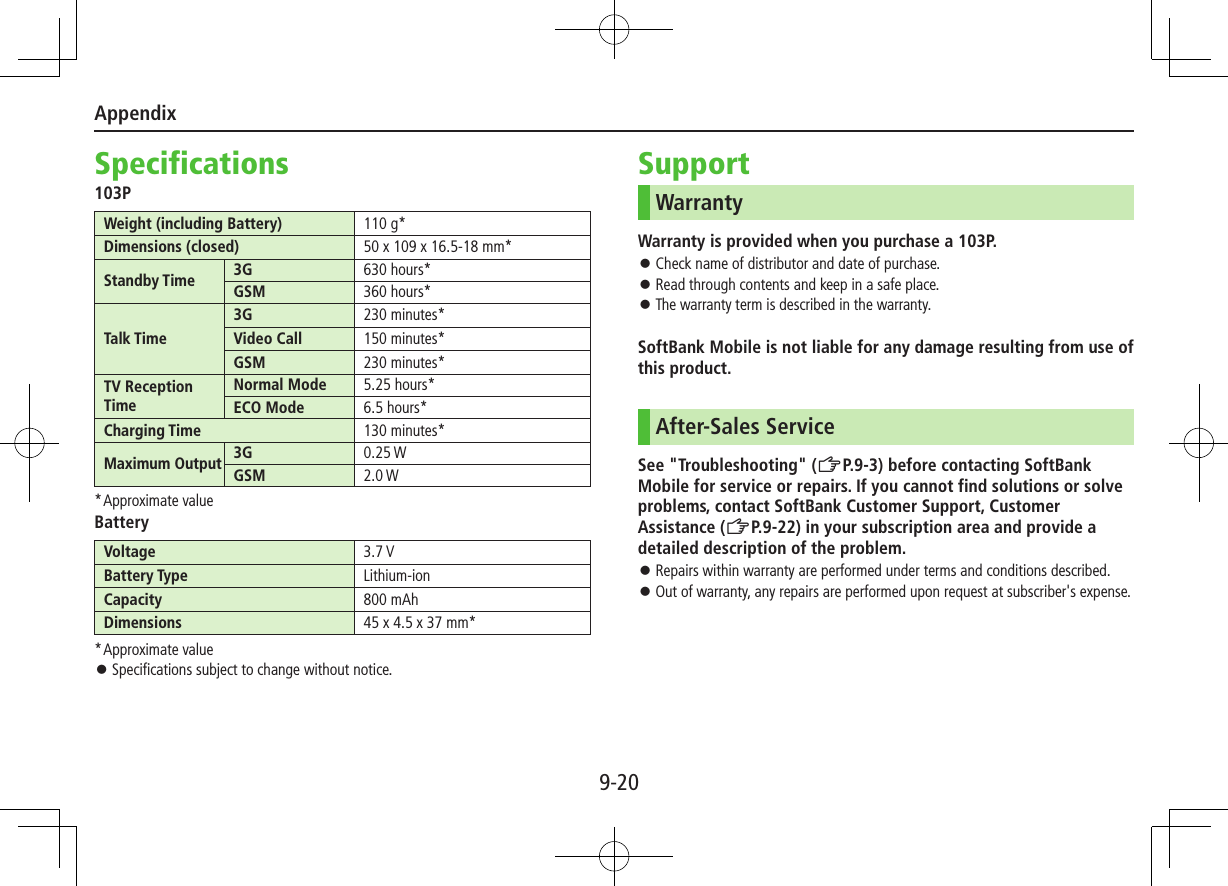

Appendix9-20Specifications103PWeight (including Battery) 110 g*Dimensions (closed) 50 x 109 x 16.5-18 mm*Standby Time 3G 630 hours*GSM 360 hours*Talk Time3G 230 minutes*Video Call 150 minutes*GSM 230 minutes*TV Reception TimeNormal Mode 5.25 hours*ECO Mode 6.5 hours*Charging Time 130 minutes*Maximum Output 3G 0.25 WGSM 2.0 W* Approximate valueBatteryVoltage 3.7 VBattery Type Lithium-ionCapacity 800 mAhDimensions 45 x 4.5 x 37 mm** Approximate value ⿟Specifications subject to change without notice.SupportWarrantyWarranty is provided when you purchase a 103P. ⿟Check name of distributor and date of purchase. ⿟Read through contents and keep in a safe place. ⿟The warranty term is described in the warranty.SoftBank Mobile is not liable for any damage resulting from use of this product.After-Sales ServiceSee "Troubleshooting" (ZP.9-3) before contacting SoftBank Mobile for service or repairs. If you cannot find solutions or solve problems, contact SoftBank Customer Support, Customer Assistance (ZP.9-22) in your subscription area and provide a detailed description of the problem. ⿟Repairs within warranty are performed under terms and conditions described. ⿟Out of warranty, any repairs are performed upon request at subscriber's expense.

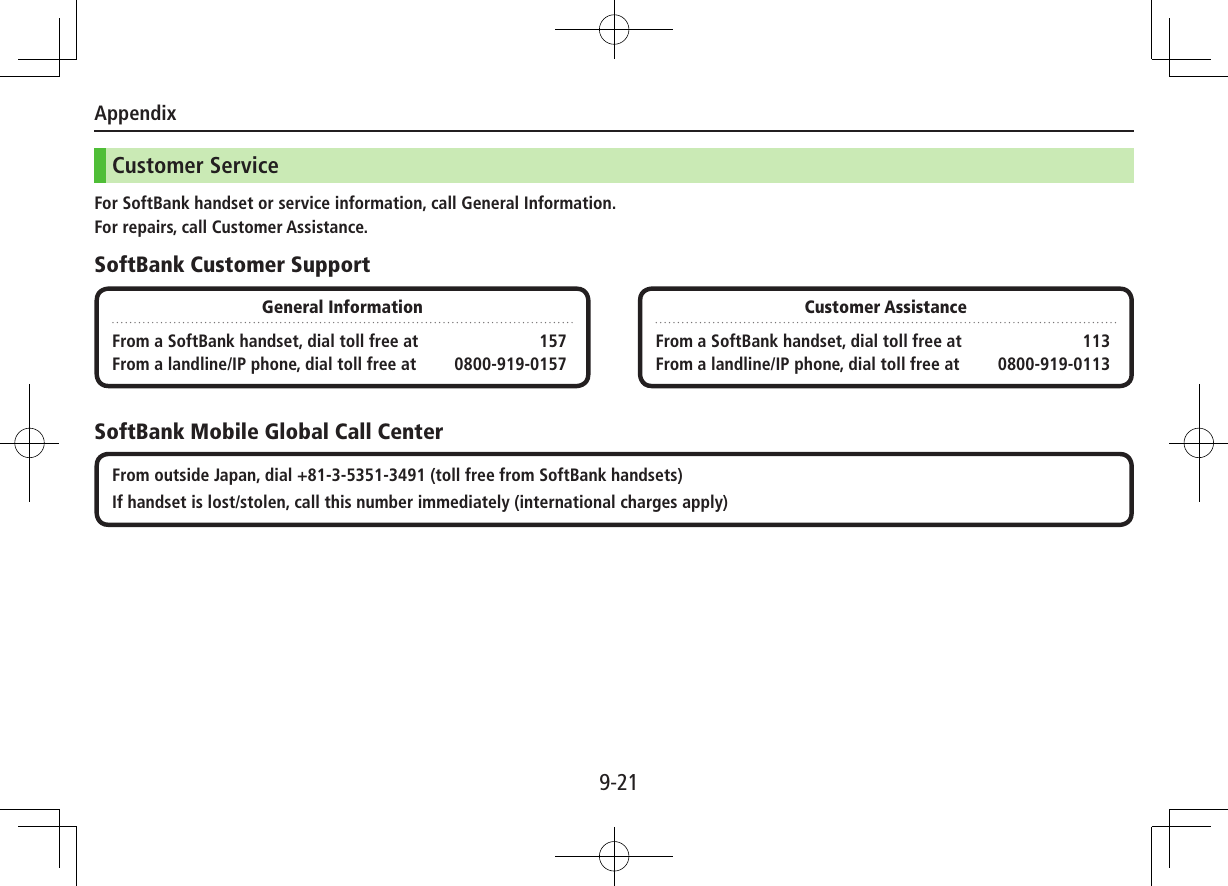

Appendix9-21Customer ServiceFor SoftBank handset or service information, call General Information.For repairs, call Customer Assistance.SoftBank Customer SupportSoftBank Mobile Global Call CenterGeneral InformationFrom a SoftBank handset, dial toll free at 157From a landline/IP phone, dial toll free at 0800-919-0157Customer AssistanceFrom a SoftBank handset, dial toll free at 113From a landline/IP phone, dial toll free at 0800-919-0113From outside Japan, dial +81-3-5351-3491 (toll free from SoftBank handsets)If handset is lost/stolen, call this number immediately (international charges apply)

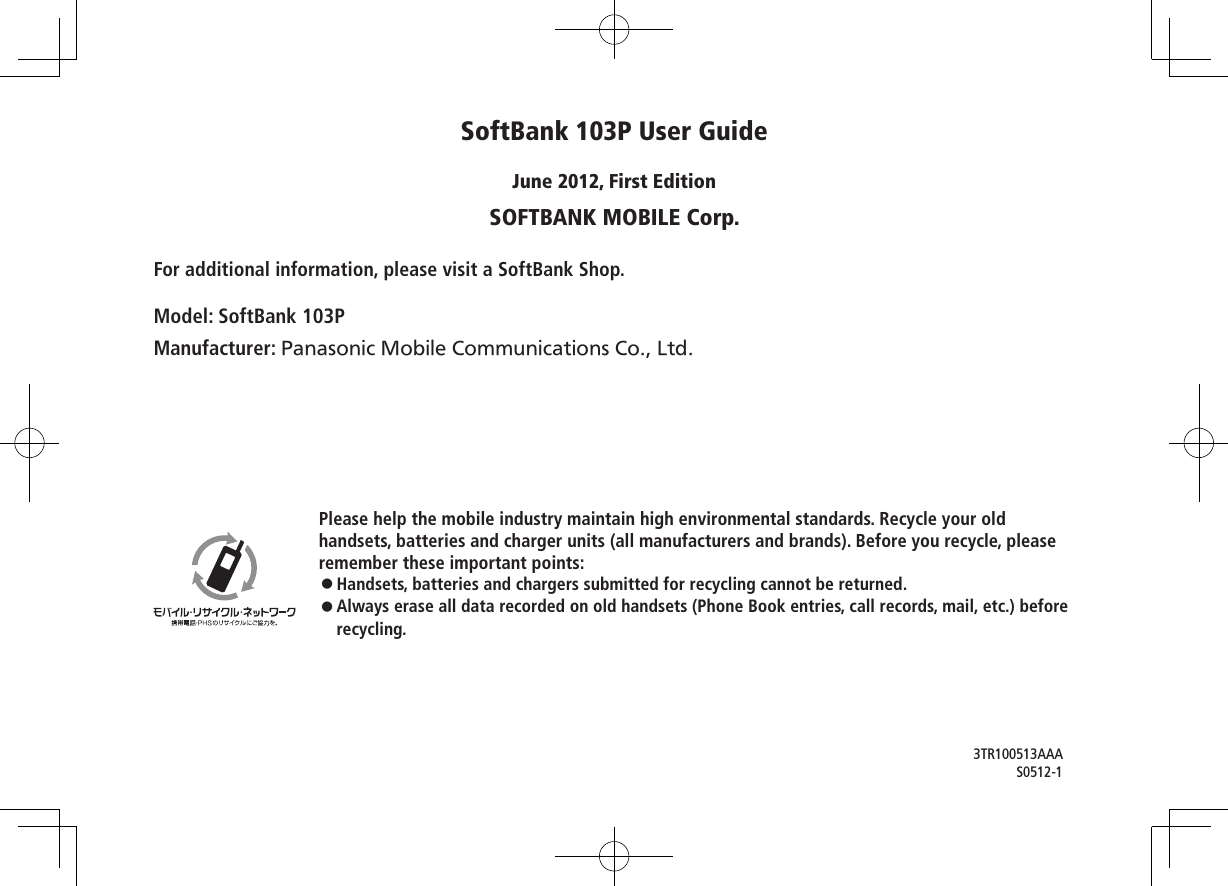

Please help the mobile industry maintain high environmental standards. Recycle your oldhandsets, batteries and charger units (all manufacturers and brands). Before you recycle, please remember these important points:◦Handsets, batteries and chargers submitted for recycling cannot be returned.◦Always erase all data recorded on old handsets (Phone Book entries, call records, mail, etc.) before recycling.SoftBank 103P User GuideJune 2012, First EditionSOFTBANK MOBILE Corp.For additional information, please visit a SoftBank Shop.Model: SoftBank 103PManufacturer: Panasonic Mobile Communications Co., Ltd.3TR100513AAAS0512-1
