Panasonic Devices Europe EBMU Bluetooth Module User Manual PAN1321 PO
Panasonic Industrial Devices Europe GmbH Bluetooth Module PAN1321 PO
Contents
- 1. UserMan
- 2. 15_PAN1320 UserMan_Rev1.2
UserMan
August 2013
User’s Manual
Hardware Description
Revision 1.3
ENW89841A3KF
Bluetooth QD ID:B021246 (End Product Listing)
FCC ID: T7VEBMU
IC ID: 216QEBMU
PAN1322-SPP
Intel’s
BlueMoonUniversal Platform
Wireless Modules
Edition 2013-08-14
Published by
Panasonic Industrial Devices Europe GmbH
Zeppelinstrasse 19
D-21337 Lüneburg, Germany
© 2013 Panasonic Industrial Devices Europe GmbH
All Rights Reserved.
Legal Disclaimer
The information given in this document shall in no event be regarded as a guarantee of conditions or
characteristics. With respect to any examples or hints given herein, any typical values stated herein and/or any
information regarding the application of the device, Panasonic Industrial Devices Europe GmbH hereby disclaims
any and all warranties and liabilities of any kind, including without limitation, warranties of non-infringement of
intellectual property rights of any third party.
Information
For further information on technology, delivery terms and conditions and prices please contact your nearest
Panasonic Office in Germany or one of our Distributor or write an e-mail to wireless@eu.panasonic.com.
Warnings
Due to technical requirements components may contain dangerous substances. For information on the types in
question please contact your nearest Panasonic Office.
Panasonic Electronic Devices may only be used in life-support devices or systems with the express written
approval of Panasonic Devices, if a failure of such components can reasonably be expected to cause the failure
of that life-support device or system, or to affect the safety or effectiveness of that device or system. Life support
devices or systems are intended to be implanted in the human body, or to support and/or maintain and sustain
and/or protect human life. If they fail, it is reasonable to assume that the health of the user or other persons may
be endangered.
Initial Version from 2013-02-01
Delete chapter 4.3, Update module picture on page 8, delete antenna reference list in chapter 9.1,
update chapter 9.8
Refer in chapter 1.7 FW Version to Appendix [2]
Update QD ID
User’s Manual 3 Revision 1.3, 2013-08-14
Hardware Description
PAN1322-SPP
ENW89841A3KF
Trademark Information:
BlueMoon® is a trademark of Intel Mobile Communications GmbH.
IPhone®, iPad®, iPad® and Apple® are trademarks of Apple Inc.
ENW89841A3KF - Intel’s BlueMoonTM Universal Platform
Revision History: 2013-08-14, Revision 1.3
Previous Version: 1.2
Revision Subjects (major changes since last revision)
Rev1.0
Rev1.1
Rev1.2
Rev1.3
User’s Manual 4 Revision 1.3, 2013-08-14
Hardware Description
PAN1322-SPP
ENW89841A3KF
Table of Contents
Table of Contents . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4
List of Figures . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6
List of Tables . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7
1 General Device Overview . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8
1.1 Features . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8
1.2 Block Diagram . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9
1.3 Pin Configuration LGA . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9
1.4 Pin Description . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10
1.5 System Integration . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13
1.6 SW Patch in EEPROM . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 14
1.7 FW Version . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 14
2 Basic Operating Information . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 15
2.1 Power Supply . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 15
2.2 Clocking . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 15
2.3 Low Power Modes . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 15
2.3.1 Low Power Mode . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 15
2.3.2 Complete Power Down . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 15
2.3.3 ON/OFF . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 15
3 PAN1322-SPP Interfaces . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 16
3.1 UART Interface . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 16
3.1.1 UART . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 16
3.1.1.1 Baud Rates . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 16
3.1.1.2 Detailed UART Behavior . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 17
3.1.1.3 UARTCTS Response Time . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 17
3.2 Low Power Control . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 17
4 General Device Capabilities . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 18
4.1 RF Test Application . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 18
4.2 Firmware ROM Patching . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 18
4.2.1 Patch Support . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 18
5 Ordering Information . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 18
6 Bluetooth Capabilities . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 19
6.1 Supported Features . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 19
6.2 PAN1322-SPP Bluetooth Features . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 19
6.2.1 Secure Simple Pairing . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 19
6.2.2 Role Switch . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 19
6.2.3 Sniff Mode . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 19
6.2.4 Sniff Subrating . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 19
6.2.5 Enhanced Power Control . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 19
6.2.6 Encryption Pause and Resume . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 20
7 Electrical Characteristics . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 21
7.1 Absolute Maximum Ratings . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 21
7.2 Operating Conditions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 21
7.3 DC Characteristics . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 22
7.3.1 Pad Driver and Input Stages . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 22
7.3.2 Pull-ups and Pull-downs . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 24
Table of Contents
User’s Manual 5 Revision 1.3, 2013-08-14
Hardware Description
PAN1322-SPP
ENW89841A3KF
Table of Contents
7.3.3 Protection Circuits . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 24
7.3.4 System Power Consumption . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 25
7.4 RF Part . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 25
7.4.1 Characteristics RF Part . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 25
7.4.1.1 Bluetooth Related Specifications . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 25
8 Package Information . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 29
8.1 Package Marking . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 29
8.2 Production Package . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 29
8.2.1 Pin Mark . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 30
9 Bluetooth Qualification and Regulatory Certification . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 31
9.1 Reference Design . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 31
9.2 FCC Class B Digital Devices Regulatory Notice . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 32
9.3 FCC Wireless Notice . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 32
9.4 FCC Interference Statement . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 33
9.5 FCC Identifier . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 34
9.6 European R&TTE Declaration of Conformity . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 34
9.7 Bluetooth Qualified Design ID . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 36
9.8 Industry Canada Certification . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 36
9.9 Label Design of the Host Product . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 36
9.10 Regulatory Test House . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 36
10 Assembly Guidelines . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 37
10.1 General Description of the Module . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 37
10.2 Printed Circuit Board Design . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 37
10.3 Solder Paste Printing . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 39
10.4 Assembly . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 39
10.4.1 Component Placement . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 39
10.4.2 Pin Mark . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 39
10.4.3 Package . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 40
10.5 Soldering Profile . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 41
10.6 Rework . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 42
10.6.1 Removal Procedure . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 42
10.6.2 Replacement Procedure . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 42
10.6.2.1 Alternative 1: Dispensing Solder . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 42
10.6.2.2 Alternative 2: Printing Solder . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 43
10.7 Inspection . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 43
10.8 Component Salvage . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 43
10.9 Voids in the Solder Joints . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 44
10.9.1 Expected Void Content and Reliability . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 44
10.9.2 Parameters with an Impact on Voiding . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 44
11 Terminology . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 46
12 References . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 50
User’s Manual 6 Revision 1.3, 2013-08-14
Hardware Description
PAN1322-SPP
ENW89841A3KF
List of Figures

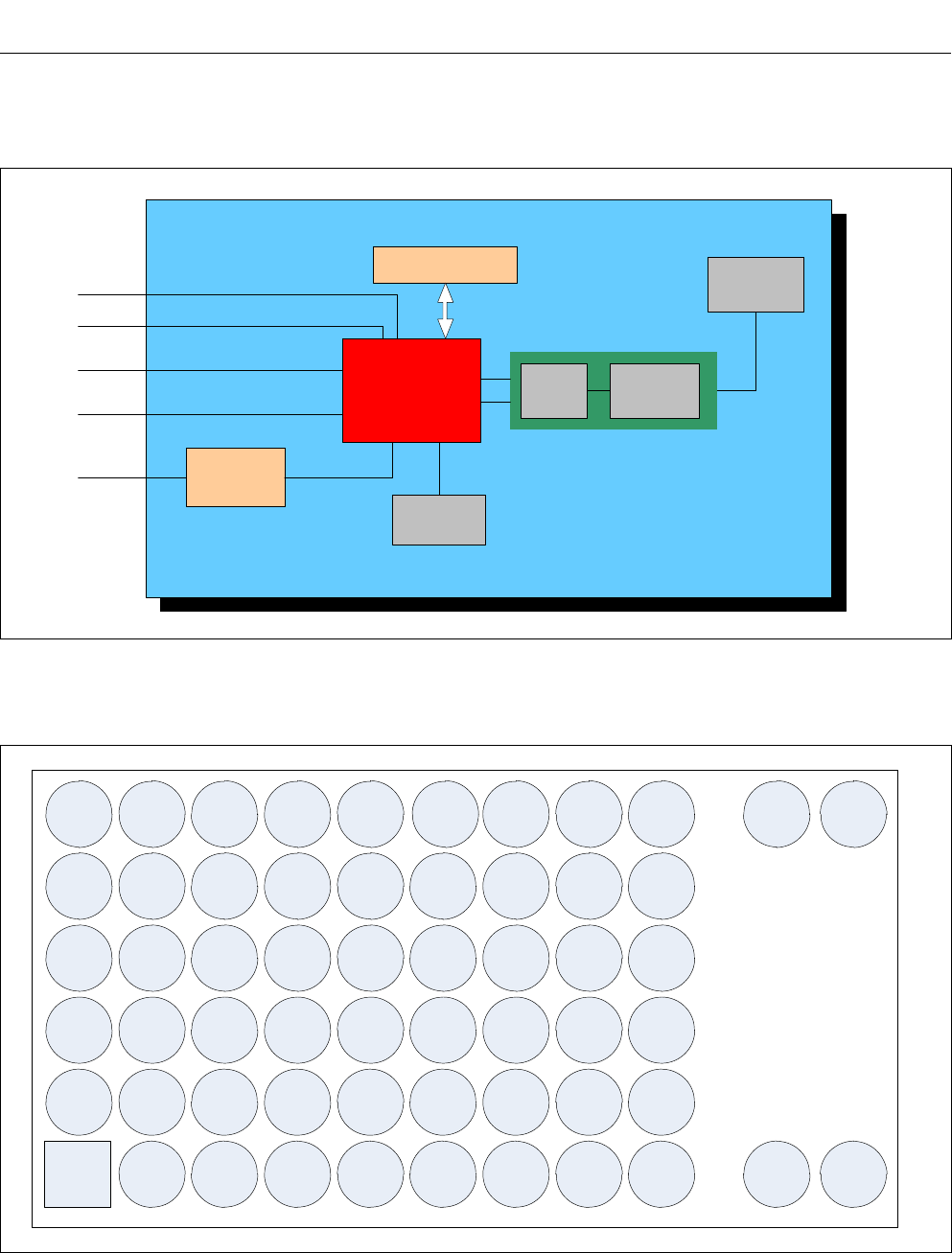

Figure 1 Simplified Block Diagram of PAN1322-SPP . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9

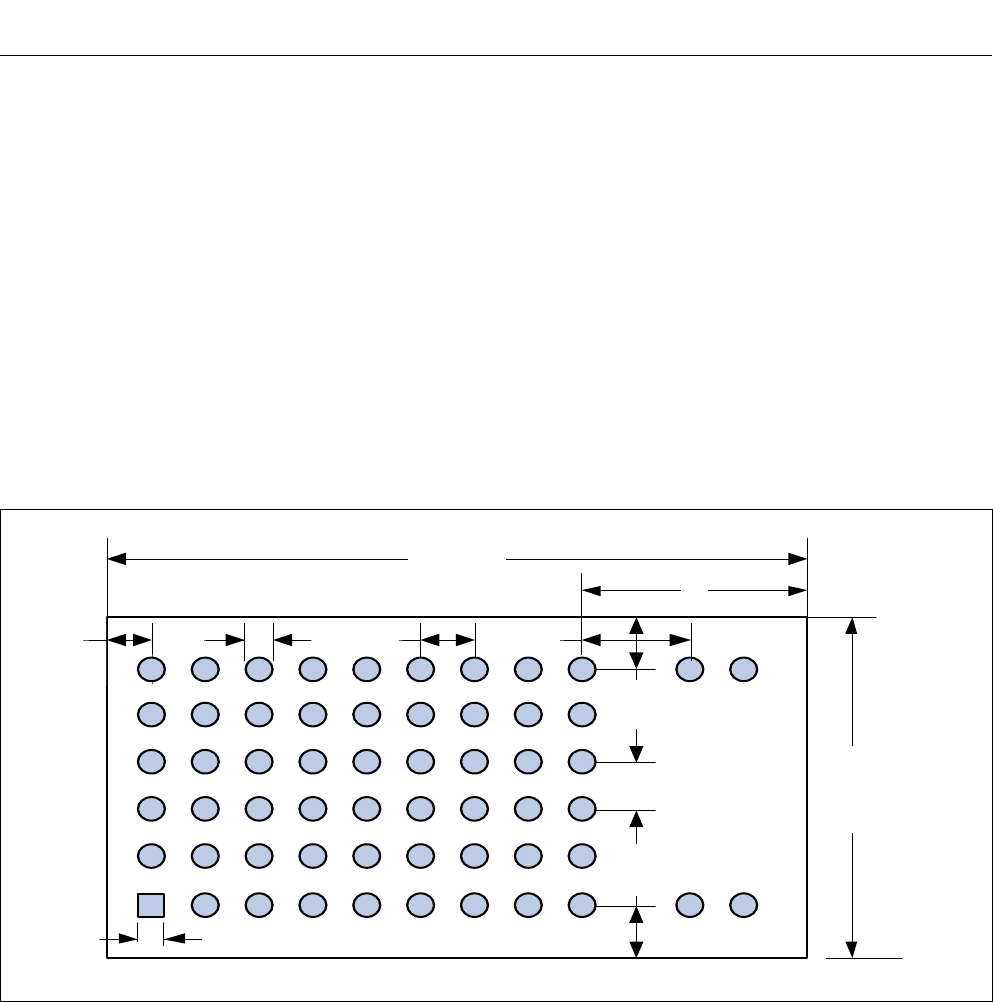

Figure 2 Pin Configuration for PAN1322-SPP in Top View (footprint) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9

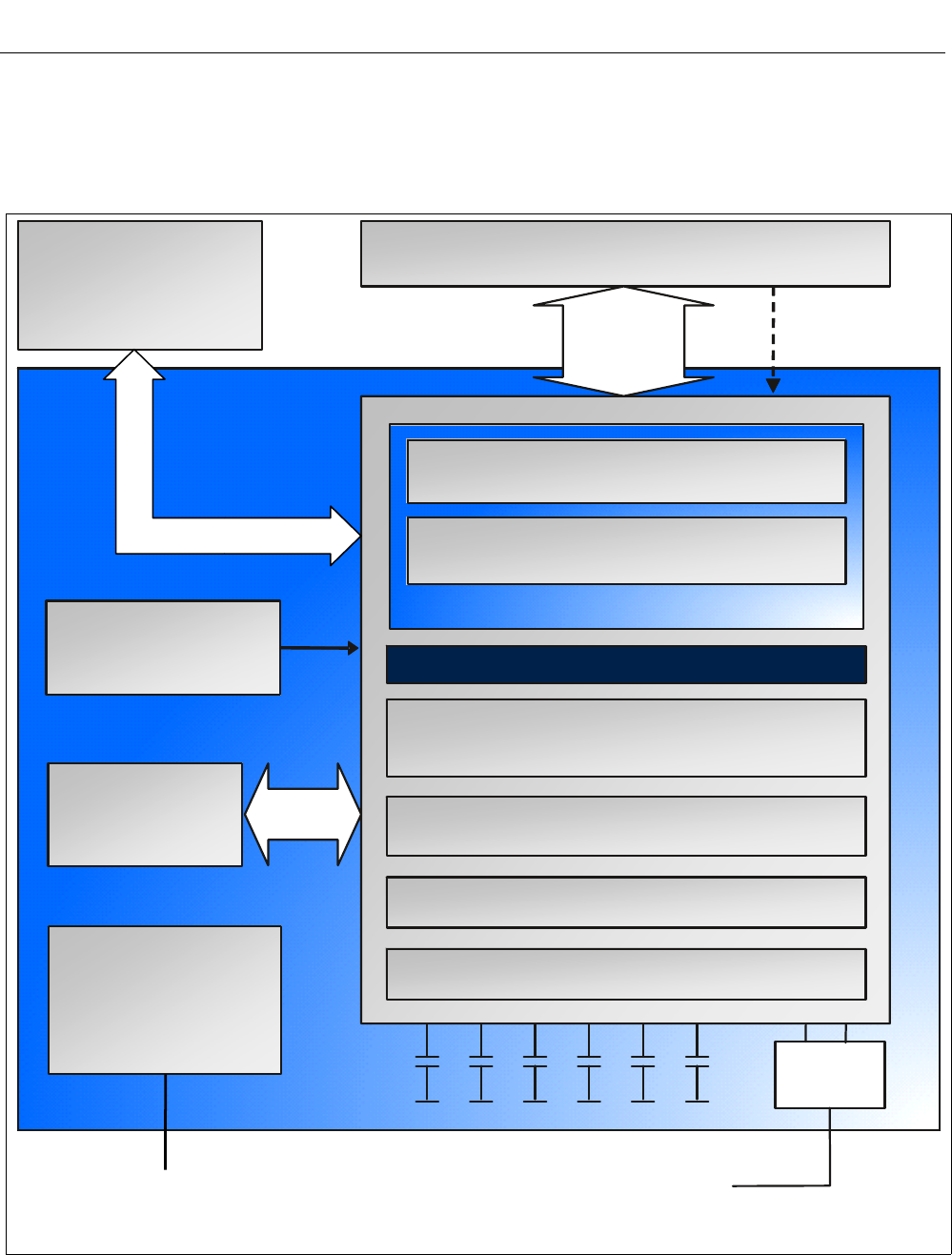

Figure 3 System Architecture Example of a Bluetooth System using eUniStone . . . . . . . . . . . . . . . . . . . . . 13

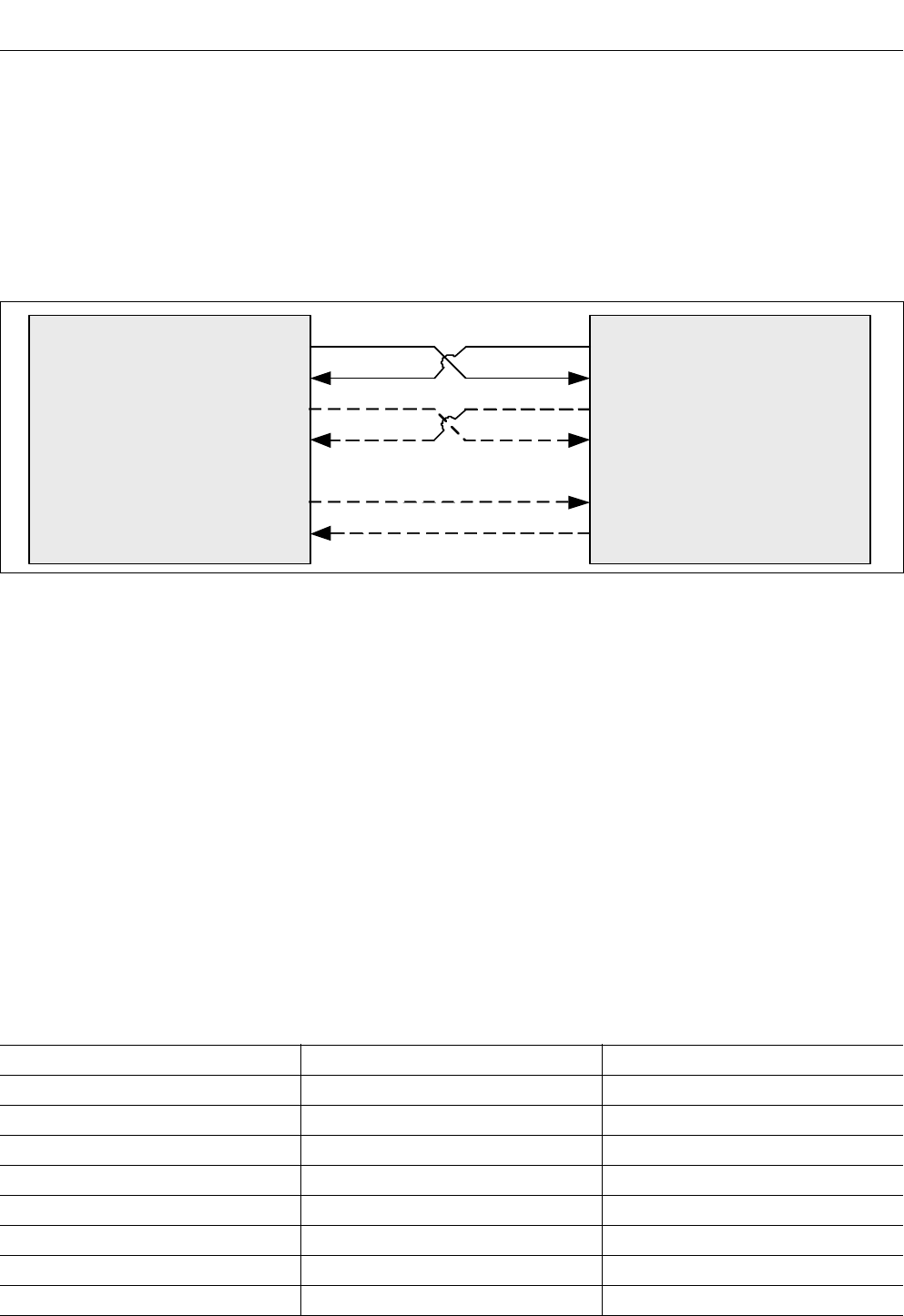

Figure 4 UART Interface . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 16

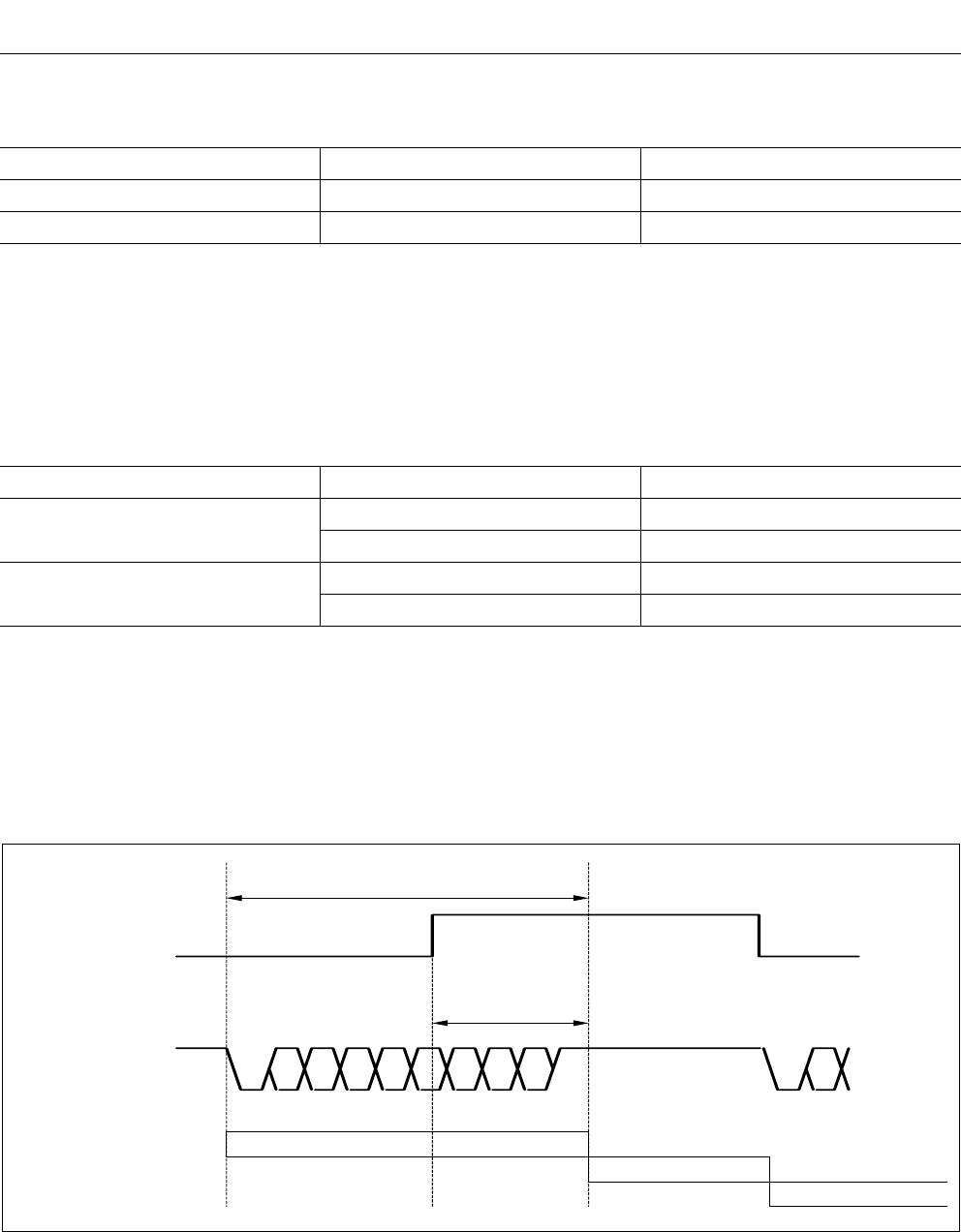

Figure 5 UARTCTS Response Time. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 17

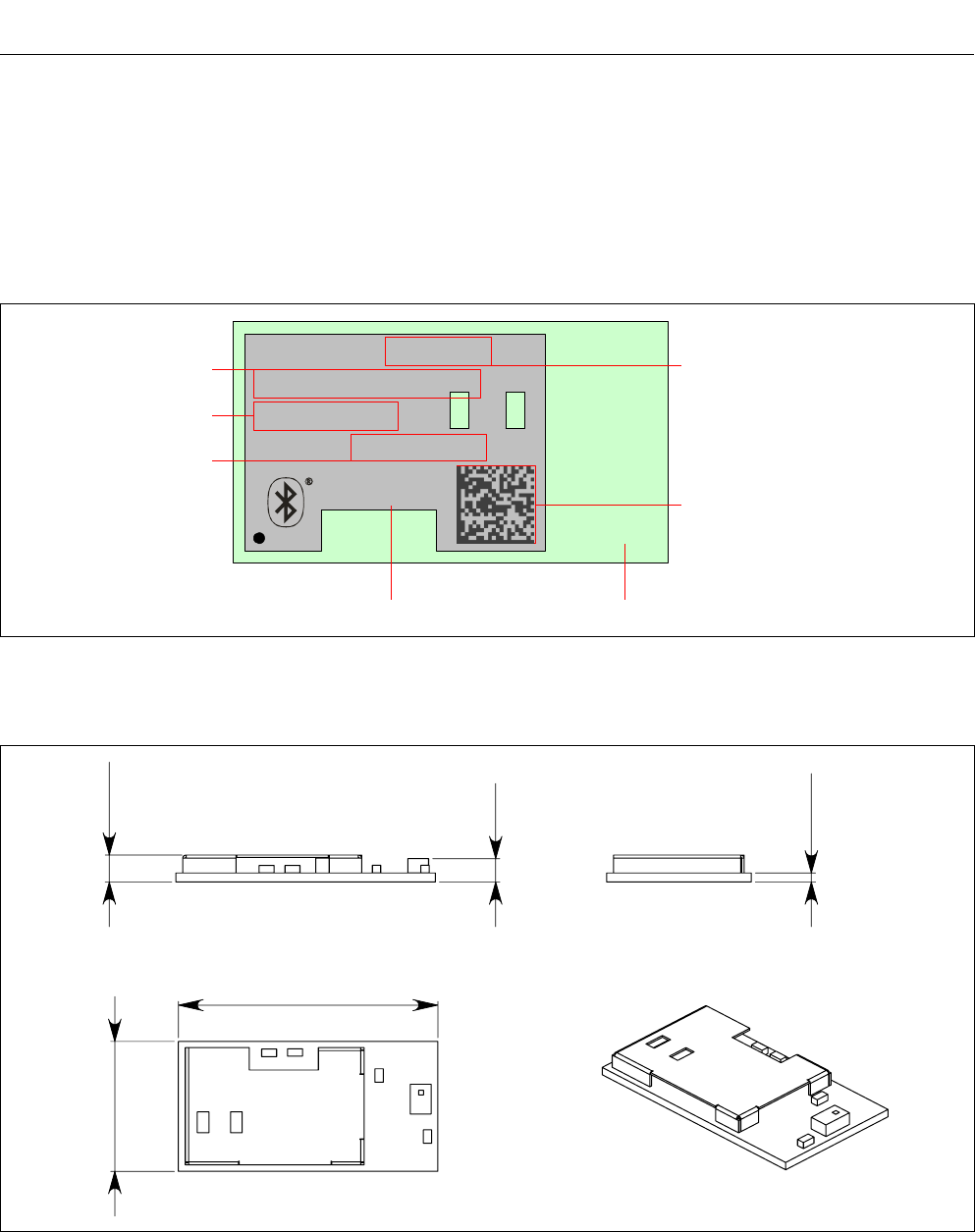

Figure 6 Package Marking . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 29
Figure 7 Production Package . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 29

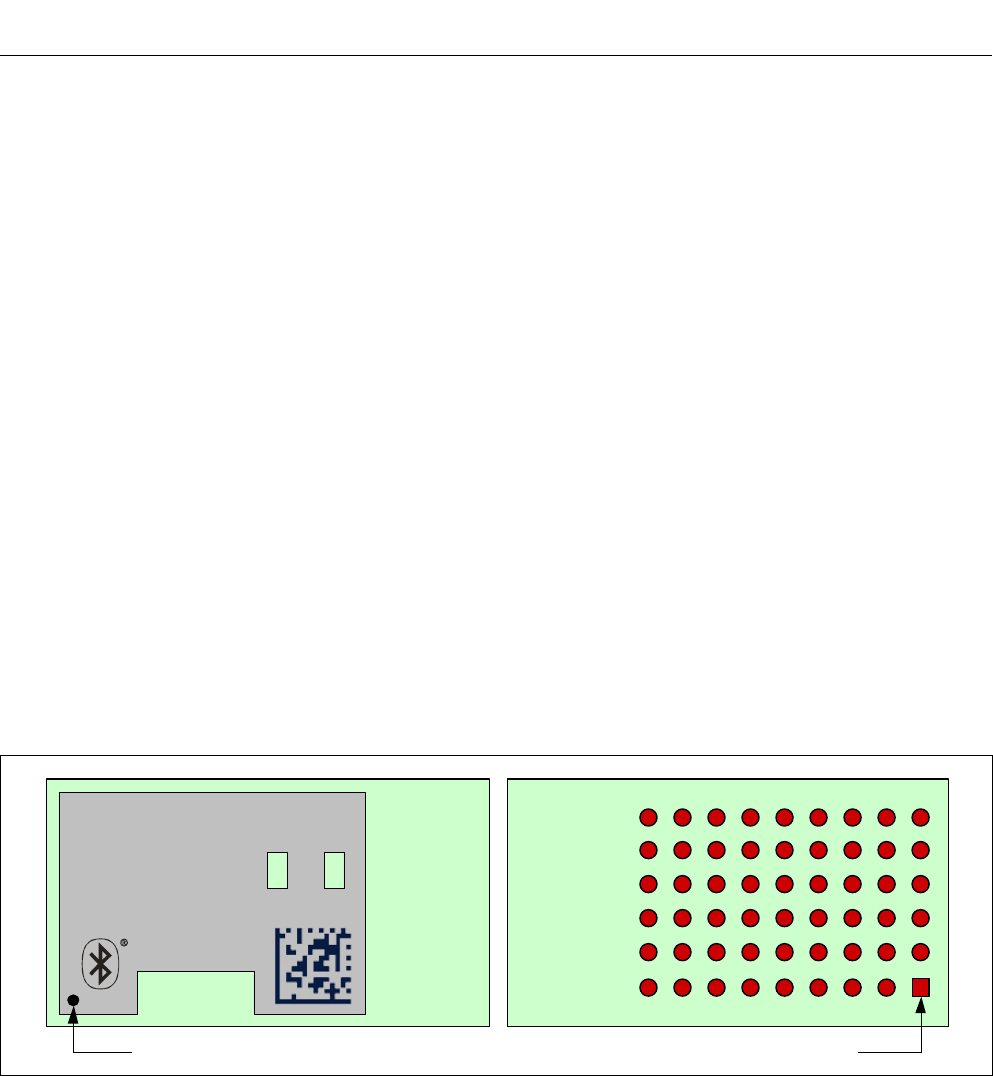

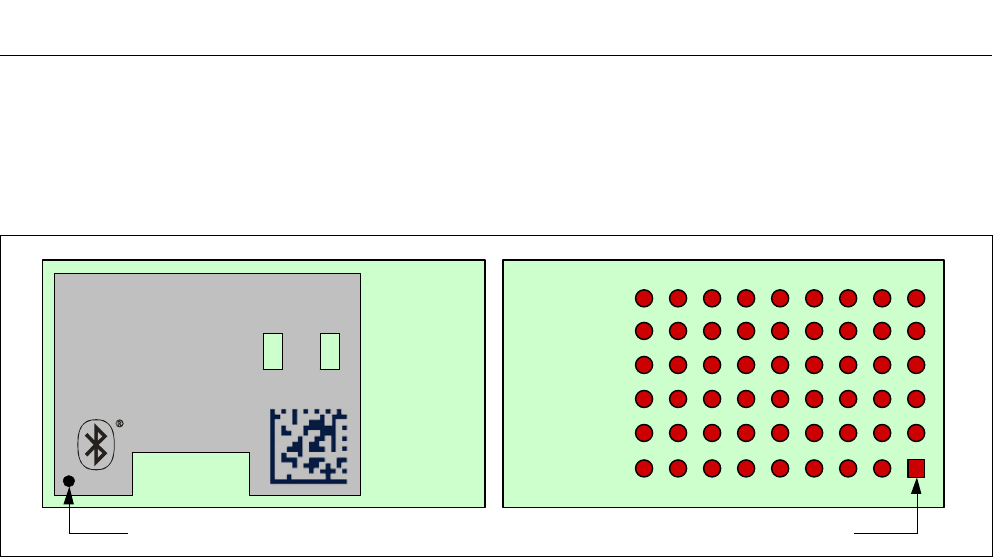

Figure 8 Top View and Bottom View. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 30
Figure 9 Reference Design Schematics . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 31

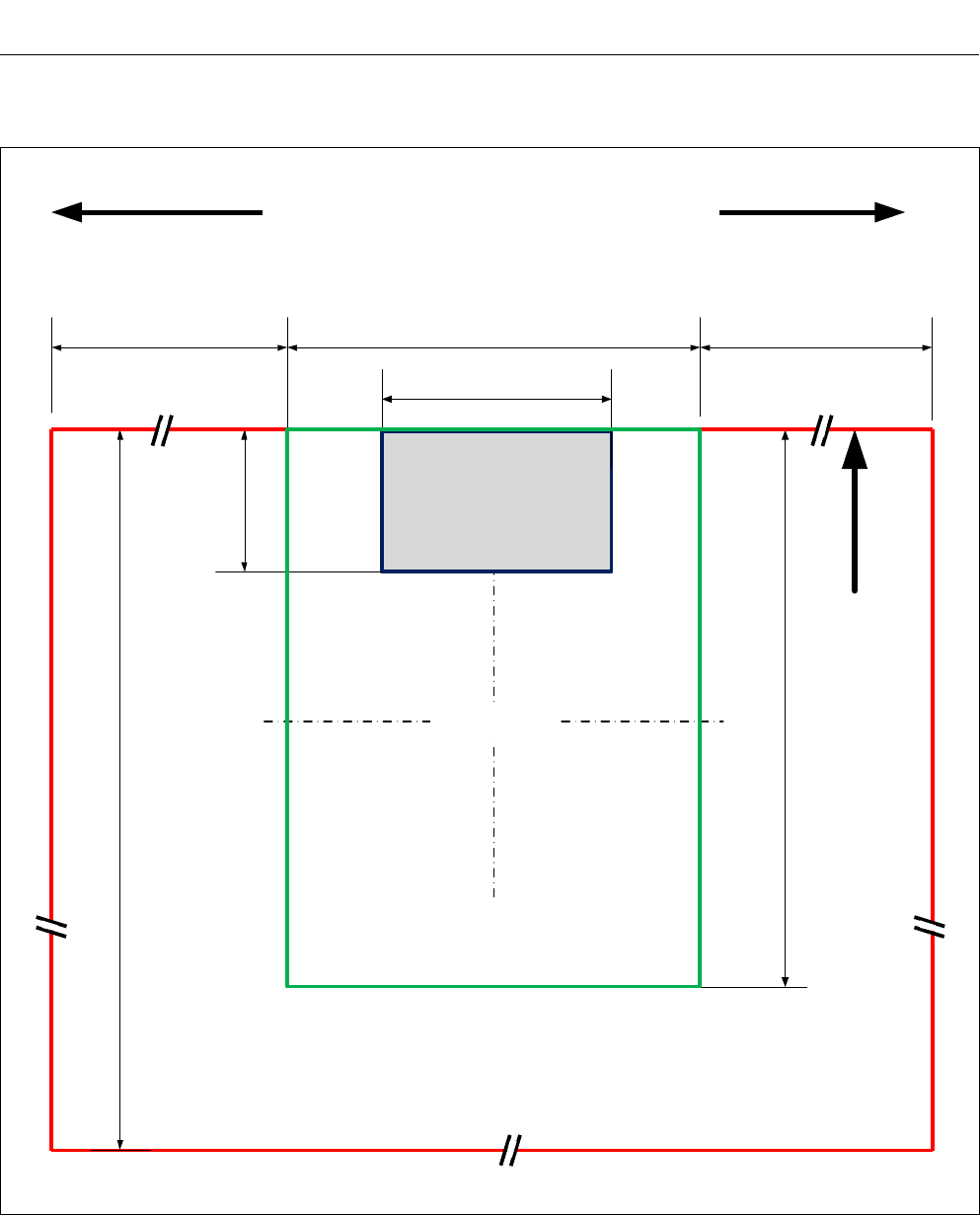

Figure 10 Cutout Drawing . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 33
Figure 11 Equipment Label. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 34

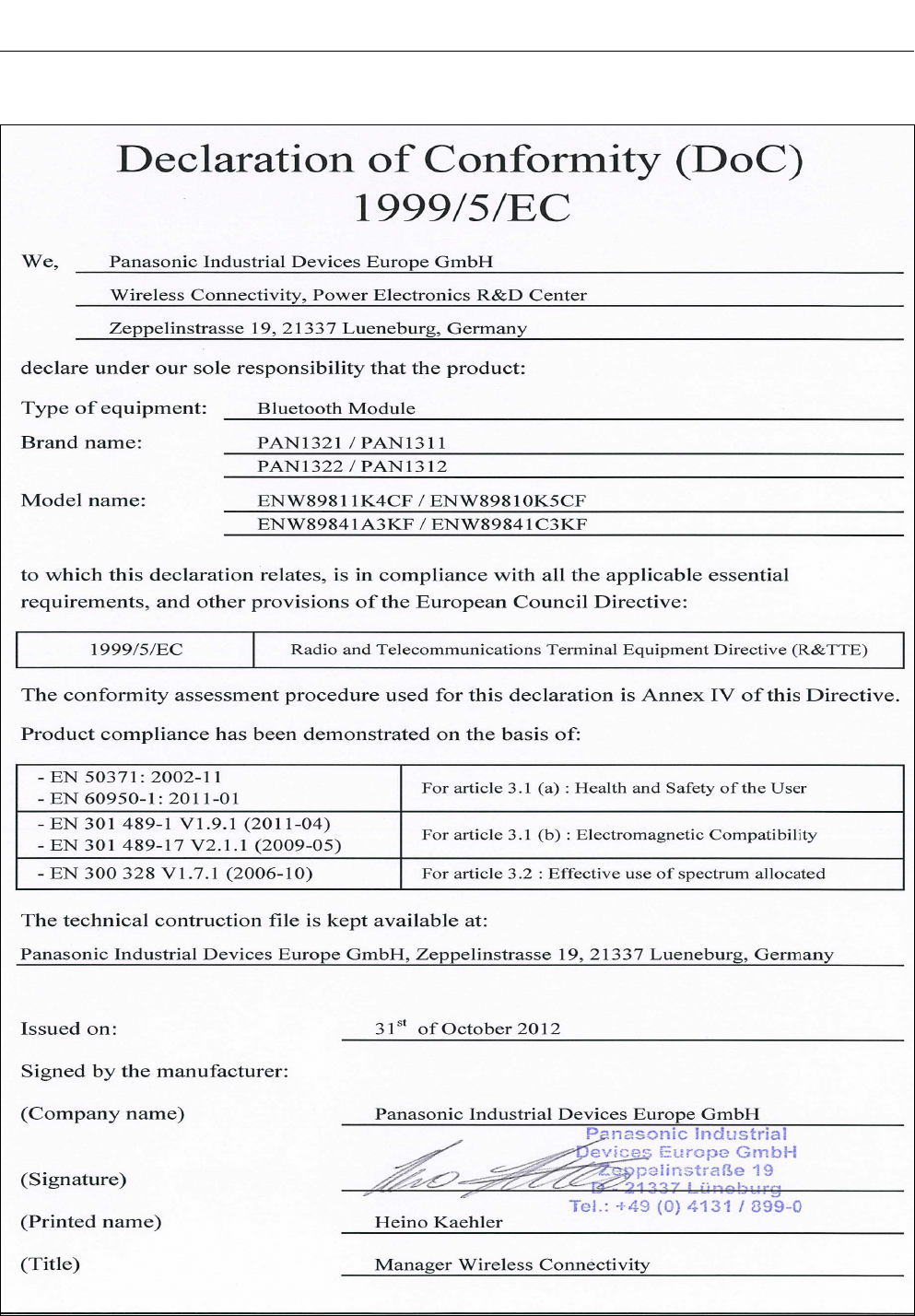

Figure 12 Declaration of Conformity . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 35
Figure 13 Pad Layout on the Module (top view) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 37
Figure 14 Cutout Drawing . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 38
Figure 15 Pin Marking. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 39
Figure 16 Tape on Reel . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 40

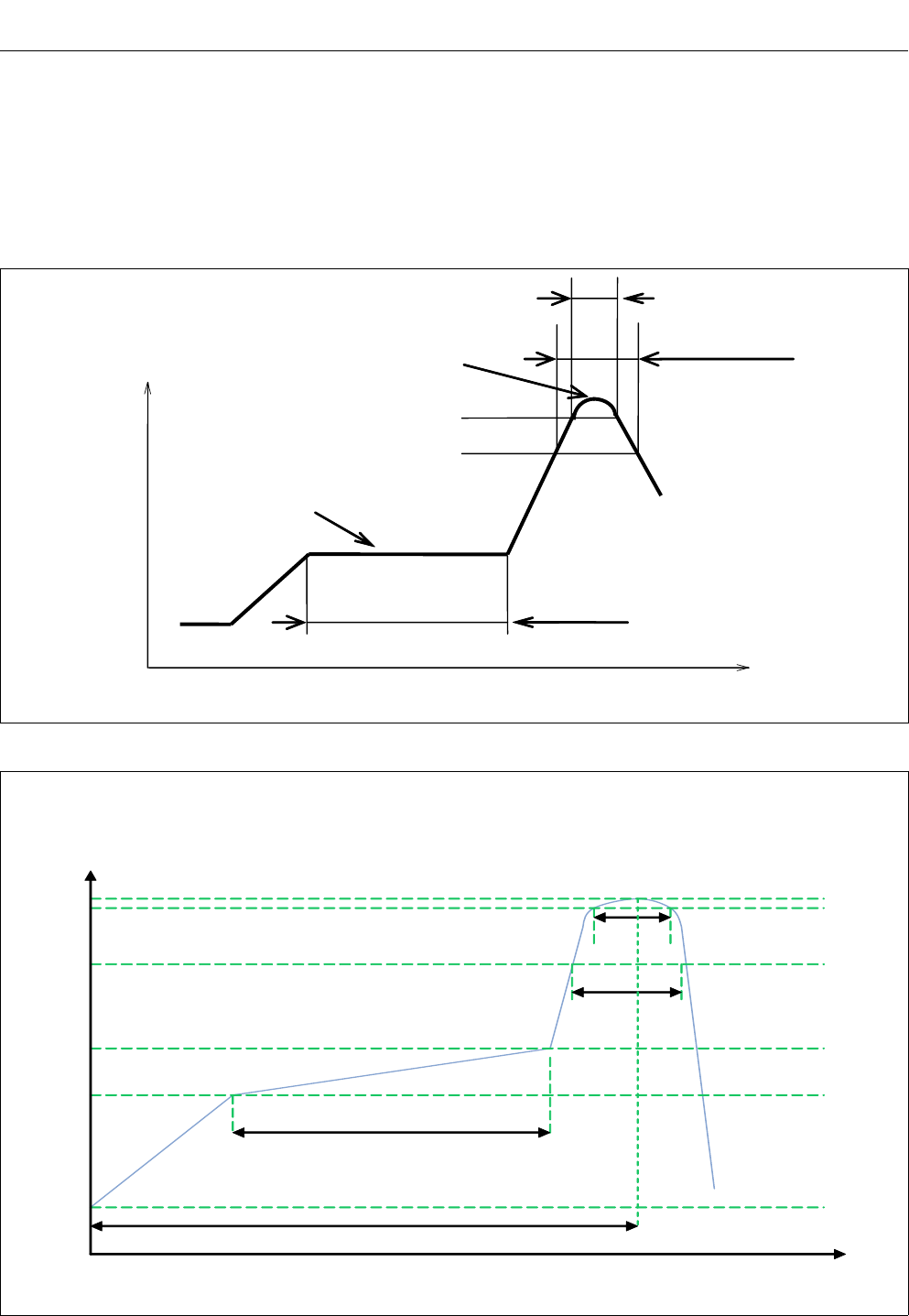

Figure 17 Eutectic Lead-Solder Profile . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 41
Figure 18 Eutectic Leadfree-Solder Profile . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 41
Figure 19 Solder Printing . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 43

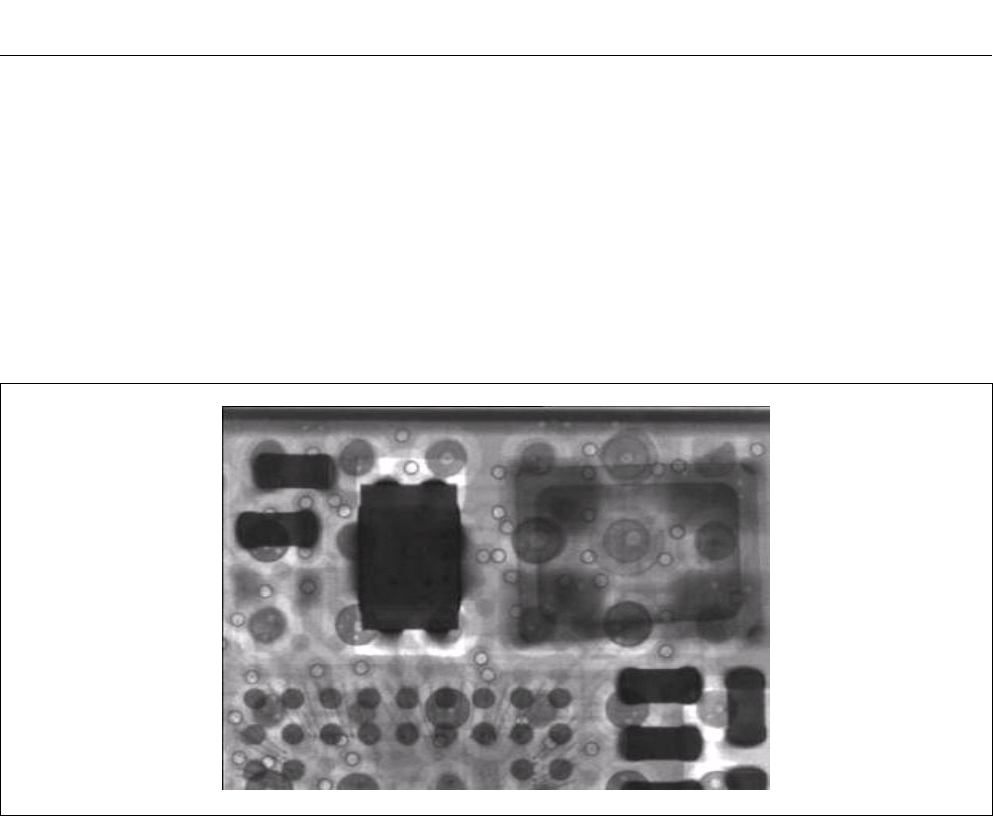

Figure 20 X-ray Picture Showing Voids Conforming to IPC-A-610D . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 44
List of Figures
User’s Manual 7 Revision 1.3, 2013-08-14
Hardware Description
PAN1322-SPP
ENW89841A3KF
List of Tables
Table 1 Pin Description . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10
Table 2 UART Baud Rates . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 16
Table 3 Default (non-inverted) behavior of UART signals . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 17
Table 4 Order Code as of 2013-05-14. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 18
Table 5 Absolute Maximum Ratings . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 21
Table 6 Operating Conditions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 21
Table 7 Internal1 (1.5 V) Supplied Pins . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 22
Table 8 Internal2 (2.5 V) Supplied Pins . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 22
Table 9 VDDUART Supplied Pins . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 22
Table 10 VDD1 Supplied Pins . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 23
Table 11 ONOFF PIN . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 23
Table 12 Pull-up and Pull-down Currents . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 24
Table 13 Max. Load at the Different Supply Voltages . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 25
Table 14 BDR - Transmitter Part . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 25
Table 15 BDR - Receiver Part . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 26
Table 16 EDR - Transmitter Part . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 27
Table 17 EDR -Receiver Part . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 27
List of Tables
PAN1322-SPP
ENW89841A3KF
User’s Manual 8 Revision 1.3, 2013-08-14
Hardware Description
General Device Overview
1General Device Overview
1.1 Features
General
• Complete Bluetooth 2.1 + EDR solution
• Implements a single point-to-point data link to other
SPP capable Bluetooth devices
• Ultra low power design in 0.13 μm CMOS
• Temperature range from -40°C to 85°C
• Integrates ARM7TDMI, RAM and patchable ROM
• On-module voltage regulators. External supply 2.9 - 4.1 V
• On-module EEPROM with configuration data
• On-module tuned reference clock
• Module can enter low power mode in idle state and during sniff intervals
Interfaces
• AT command interface over UART with HW flow control
• Default UART baudrate 115200 bit/s
• Module configuration reprogrammable for 9600 bit/s up to 3.25 Mbit/s UART baudrate
• JTAG for boundary scan in production test
RF
• Class 2 device up to +4 dBm
• Receiver sensitivity typ. -86 dBm
• Integrated antenna, balun and ISM band filter
• Integrated LNA with excellent blocking and intermodulation performance
• Digital demodulation for optimum sensitivity and co-/adjacent channel performance
Bluetooth
• Bluetooth V2.1 + EDR compliant
• Secure Simple Pairing
• Device A (initiating link) or Device B (accepting link) role supported
• Single point-to-point data link, role switch supported
• Packet data mode and stream data mode supported
• Sniff mode and Sniff Subrating is supported with above capabilities
• 5 trusted devices stored in EEPROM
• SW version available to configure specific RF certification tests
User’s Manual 9 Revision 1.3, 2013-08-14
Hardware Description
PAN1322-SPP
ENW89841A3KF
General Device Overview
1.2 Block Diagram
PAN1322-SPP
PMB8754
BlueMoon
UniCellular
EEPROM
Voltage
Regulator
Crystal
26 MHz
Balun Filter /
Matching
I2C
Vsupply
GPIO
UART
VDD_UART
VDD1 Ceramic
Antenna
Figure 1 Simplified Block Diagram of PAN1322-SPP
1.3 Pin Configuration LGA
F1
VSS
F2
P1.2
TDI
F3
P0.11
F4
LPMin
P0.14
F5
UARTCTS
F6
VDDUART
F7
UARTTXD
F8
UARTRTS
F9
VSS
F11
VSS
F12
VSS
E1
P0.12
SDA0
E2
P0.13
SCL0
E3
P1.3
TDO
E4
LPMout
P0.0
E5
P0.1
E6
UARTRXD E7
(NC)
E8
VSS
E9
VSS
D1
P0.10
D2
P0.8
D3
P1.1
TCK
D4
P0.3
D5
P0.2
D6
(NC)
D7
VSS
D8
VSS
D9
(NC)
C1
VREG
C2
P0.9
C3
JTAG#
C4
TRST#
C5
VDD1
C6
(NC)
C7
(NC)
C8
VSS
C9
VSS
B1
P1.7
B2
P1.8
B3
P1.0
TMS
B4
P1.4
RTCK
B5
ONOFF
B6
(NC)
B7
(NC)
B8
(NC)
B9
P0.15
A2
P1.6
A3
RESET#
A4
VSUPPLY
A6
VSUPPLY A7
VSS
A8
P1.5
A9
VSS
A11
VSS
A12
VSS
A1
VSS
Top
View
A5
VSUPPLY
Figure 2 Pin Configuration for PAN1322-SPP in Top View (footprint)
PAN1322-SPP
ENW89841A3KF
User’s Manual 10 Revision 1.3, 2013-08-14
Hardware Description
General Device Overview
1.4 Pin Description
The non-shaded cells indicate pins that will be fixed for the product lifetime. Shaded cells indicate that the pin might
be removed/changed in future variants. Pins not listed below shall not be connected.
Table 1 Pin Description
Pin
No.
Symbol Input /
Output
Supply Voltage During
Reset
After
Reset
Function
A2 P1.6 I/O/OD Internal1 ZZPort 1.6
A3 RESET# AI Internal1 Input Input Hardware Reset, active low
A8 P1.5 I/O/OD Internal1 Input Input Port 1.5
B1 P1.7 I/O/OD Internal1 PD/ Input PD/ Input Port 1.7
B2 P1.8 I/O/OD Internal1 PD PD Port 1.8
B3 P1.0 /
TMS
I/O/OD Internal2 PU1) PU1) Port 1.0 or
JTAG interface
B4 P1.4 /
RTCK
I/O/OD Internal2 ZZPort 1.4 or
JTAG interface
B5 ONOFF I --Connect to VDD1 and refer to
chapter 12 item [3].
B9 SLEEPX I/O VDDUART PD HSleep indication signal
C2 P0.9 I/O/OD Internal2 ZZPort 0.9
C3 JTAG# IInternal2 PU PU Mode selection Port 1:
0: JTAG
1: Port
C4 TRST# IInternal2 PD PD JTAG interface
D1 P0.10 I/O/OD Internal2 ZZPort 0.10
D2 P0.8 I/O/OD Internal2 PD PD Port 0.8
D3 P1.1 /
TCK
I/O/OD Internal2 PU1) PU1) Port 1.1 or
JTAG interface
D4 P0.3 I/O/OD VDD1 Conf.
PD def.
Conf.
PD def.
Port 0.3
D5 P0.2 I/O/OD VDD1 ZZPort 0.2
E1 P0.12 / SDA0 I/O/OD Internal2 PU PU I2C data signal
E2 P0.13 / SCL0 I/O/OD Internal2 PU PU I2C clock signal
E3 P1.3 /
TDO
I/O/OD Internal2 ZZPort 1.3 or
JTAG interface
E4 P0.0 I/O/OD VDD1 PD PD Port 0.0
LPM wakeup output
E5 P0.1 I/O/OD VDD1 PD PD Port 0.1
E6 P0.5 /
UARTRXD
I/O/OD VDDUART ZZPort 0.5 or
UART receive data
F2 P1.2 /
TDI
I/O/OD Internal2 PU1) PU1) Port 1.2 or
JTAG interface
F3 P0.11 I/O/OD Internal2 ZZPort 0.11
User’s Manual 11 Revision 1.3, 2013-08-14
Hardware Description
PAN1322-SPP
ENW89841A3KF
General Device Overview
F4 P0.14 LPmin I/O VDDUART ZZPort 0.14
LPM wakup input
F5 P0.7 /
UARTCTS
I/O/OD VDDUART ZZPort 0.7 or
UART CTS flow control
F7 P0.4 /
UARTTXD
I/O/OD VDDUART PU PU Port 0.4 or
UART transmit data
F8 P0.6 /
UARTRTS
I/O/OD VDDUART PU PU Port 0.6 or
UART RTS flow control
A4,
A5,
A6
VSUPPLY SI --Power supply
C1 VREG SO --Regulated Power supply
F6 VDDUART SI --UART interface Power supply
C5 VDD1 SI --Power supply
A1,
A7,
A9,
A11,
A12,
C8,
C9,
D7,
D8,
E8,
E9,
F1,
F9
F11,
F12
VSS --Ground
B6,
B7,
B8,
C6,
C7,
D6,
D9,
E7
NC - - - - No connection
1) Fixed pull-up/pull-down if JTAG interface is selected, not affected by any chip reset. If JTAG interface is not selected the
port is tristate.
Table 1 Pin Description
Pin
No.
Symbol Input /
Output
Supply Voltage During
Reset
After
Reset
Function
PAN1322-SPP
ENW89841A3KF
User’s Manual 12 Revision 1.3, 2013-08-14
Hardware Description
General Device Overview
Descriptions of acronyms used in the pin list:
Input
Output
Output with open drain capability
Tristate
Pull-up
Pull-down
Analog (e.g. AI means analog input)
Supply (e.g. SO means supply output)
Acronym Description
I
O
OD
Z
PU
PD
A
S
User’s Manual 13 Revision 1.3, 2013-08-14
Hardware Description
PAN1322-SPP
ENW89841A3KF
General Device Overview
1.5 System Integration
PAN1322-SPP is optimized for a low bill of material (BOM) and a small PCB size. Figure 3 shows a typical
application example.
Example_Application_ PAN1311 .vsd
BT Baseband
BT Stack
RFCOMM
API
BT RF
Oscillator
HOST
I
2
C
BALUN
RESET
Antenna
Loaded from EEPROM
SPP(Serial Port Profile )
AT interface
UART
command
Keys,
Leds
EEPROM
Voltage
Regulator
VSUPPLY
GPIO
Figure 3 System Architecture Example of a Bluetooth System using eUniStone
PAN1322-SPP
ENW89841A3KF
User’s Manual 14 Revision 1.3, 2013-08-14
Hardware Description
General Device Overview
The UART interface is used for communication between the host and PAN1322-SPP. The lines UARTTXD and
UARTRXD are used for commands, events and data. The lines UARTRTS and UARTCTS are used for hardware
flow control.
Low power mode control of PAN1322-SPP and the host can be implemented in by using the pins P0.14 and P0.0.
P0.14 is used by the host to allow PAN1322-SPP to enter low power mode and P0.0 is used by PAN1322-SPP to
wake-up the host when attention is required. Additionally, the host could hardware reset PAN1322-SPP using the
RESET# pin.
Power is supplied to a single VSUPPLY input from which internal regulators can generate all required voltages.
The UART and the GPIO’s interfaces have separate supply voltages so that they can comply with host signaling.
1.6 SW Patch in EEPROM
Bug fixes for the SW in ROM are downloaded from the EEPROM. Panasonic may include new bug fixes in
EEPROM during product lifetime.
1.7 FW Version
PAN1322-SPP is available in different firmware (FW) versions. Please check corresponding release documents
for latest information in item [2].
The identifier about the software version will be visible on the module, please refer to Figure 6, here it is the
identifier SW (Software). For example SW01 match with FW3.1.
User’s Manual 15 Revision 1.3, 2013-08-14
Hardware Description
PAN1322-SPP
ENW89841A3KF
Basic Operating Information
2Basic Operating Information
2.1 Power Supply
PAN1322-SPP is supplied from a single supply voltage VSUPPLY. This supply voltage must always be present.
The PAN1322-SPP chip is supplied from an internally generated 2.5 V supply voltage. This voltage can be
accessed from the VREG pin. This voltage may not be used for supplying other components in the host system
but can be used for referencing the host interfaces.
The GPIO’s and the UART interface are supplied with dedicated, independent, reference levels via the VDD1 and
VDDUART pins. All other digital I/O pins are supplied internally by either 2.5 V (Internal2) or 1.5 V (Internal1).
Section 1.4 provides a mapping between pins and supply voltages.
The I/O power domains (VDD1 and VDDUART) are completely separated from the other power domains and can
stay present also in low power modes.
2.2 Clocking
PAN1322-SPP contains a crystal from which the internal 26 MHz system clock is generated. Also, the low power
mode clock of 32,768 kHz is generated internally, which means that no external clock is needed.
2.3 Low Power Modes
To minimize current consumption, eUniStone automatically switches between different low power modes. The
major modes are described below.
2.3.1 Low Power Mode
In Low Power Mode (LPM) most parts of eUniStone are powered down. This is done automatically in idle mode
or if the link is in Sniff mode and the host allows LPM with the pin P0.14.
2.3.2 Complete Power Down
If Bluetooth functionality is not needed at all, VSUPPLY should be grounded to minimize power consumption. In
this state there is no activity in eUniStone and the Bluetooth state (native clock, etc.) is not updated.
2.3.3 ON/OFF
PAN1322-SPP provides an alternative way to power down using the ONOFF logic input. When the ONOFF is low,
the internal regulator on the module is turned OFF. The intention with the signal is to have the possibility to turn
off the module without having to turn off the supply voltage. In the OFF state, the module will consume less than
1mA excluding the interface currents that is mainly set by the external load.
If this signal isn’t used then it should be connected to VSUPPLY on the host PCB.
PAN1322-SPP
ENW89841A3KF
User’s Manual 16 Revision 1.3, 2013-08-14
Hardware Description
PAN1322-SPP Interfaces
3 PAN1322-SPP Interfaces
3.1 UART Interface
The UART interface is the main communication interface between the host and PAN1322-SPP. AT commands
are desribed in detail in the AT Commands specification [1].
The interface consists of four UART signals and two LPM control signals as shown in Figure 4.
UARTTXD
UARTRXD
UARTRTS
UARTCTS
WAKEUP_BT
WAKEUP_HOST
UARTTXD
UARTRXD
UARTRTS
UARTCTS
P0.14 input
P0.0 output
Host PAN1322
Figure 4 UART Interface
3.1.1 UART
The lines UARTTXD and UARTRXD are used for commands, responses and data. The lines UARTRTS and
UARTCTS are used for hardware flow control. A separate supply voltage, VDDUART, defines the UART reference
levels to fit any system requirements.
3.1.1.1 Baud Rates
The UART baud rate can be configured with the BD_DATA parameter UART_Baudrate. The module is
programmed for a default baudrate of 115200 baud. Reprogramming of the EEPROM configuration is possible by
AT commands at manufacturing time of the end product. The baudrate written to EEPROM will be used each time
PAN1322-SPP starts or, HW or SW reset is done.
The host is also able to change the baudrate temporarily with an AT command. This baudrate is used by
PAN1322-SPP until a HW or SW reset is done, when it will change back to the baudrate stored in the EEPROM.
The supported baud rates are listed in Table 3 together with the small deviation error that results from the internal
clock generation.
Table 2 UART Baud Rates
Wanted Baud Rate Real Baud Rate Deviation Error (%)
9600 9615 0.16
19200 19230 0.16
38400 38461 0.16
57600 57522 -0.14
115200 115044 -0.14
230400 230088 -0.14
460800 464285 0.76
921600 928571 0.76
User’s Manual 17 Revision 1.3, 2013-08-14
Hardware Description
PAN1322-SPP
ENW89841A3KF
PAN1322-SPP Interfaces
3.1.1.2 Detailed UART Behavior
After reset the UART interface is configured with one start bit, eight data bits, no parity bit and one stop bit. The
least significant bit is transmitted first.
The polarity of the UART signals can be changed with the BD_DATA parameter UART_Invert. The default (non-
nverted) behavior is shown in Table 4.
0Start bit, ’0’ bit in character.
Idle level, stop bit
0Flow on
Flow stopped
3.1.1.3 UARTCTS Response Time
Figure 5 shows the UARTCTS response time. Assuming non-inverted UART signals, the data flow stops within
the “flow off response time” after UARTCTS has been set to high. If UARTCTS goes high during the transmission
of a byte (phase 1 in the figure) this byte will be completely transmitted. While UARTCTS is high, no data will be
transmitted (phase 2). When UARTCTS goes low again, data transmission will continue (phase 3).
The maximum flow off response time is 10 UART bits (including start and stop bits). As an example, if the UART
baud rate is 115200 Baud, the maximum flow off response time is 10 x 1/115200 s = 87 µs.
HCI_UARTCTS_Response_Time.vsd
UARTCTS
UARTTXD
bi t 0
bi t 1
bi t 2
bi t 3
bi t 4
bi t 5
bi t 6
bi t 7
start
stop
bi t 0
start
...
phase 1
phase 2
phase 3
flow off
response
time
max. flow off response
time
Figure 5 UARTCTS Response Time
3.2 Low Power Control
Pin P0.14 and P0.0 are optional, but strongly recommended to be used. P0.14 is used to allow PAN1322-SPP to
enter Low Power Mode (LPM). P0.0 is used by PAN1322-SPP when in LPM to wake up the host.
1843200 1857142 0.76
3250000 3250000 0
Table 3 Default (non-inverted) behavior of UART signals
Signal Level Meaning
UARTTXD / UARTRXD
1
UARTRTS / UARTCTS
1
Table 2 UART Baud Rates (cont’d)
Wanted Baud Rate Real Baud Rate Deviation Error (%)
PAN1322-SPP
ENW89841A3KF
User’s Manual 18 Revision 1.3, 2013-08-14
Hardware Description
General Device Capabilities
4General Device Capabilities
This chapter describes features available in the PAN1322 (ENW89841A3KF) core.
Actual feature set and how to access the features can be found in the AT Command document [1]. Release
specific performance characteristics, like data speed, is related in the SW Release Notes [2].
4.1 RF Test Application
The PAN1322 module can be programmed over UART with a specific application for RF test purposes, e.g. TX
continuous or TX burst mode. This test application is controlled over the UART through Intel specific HCI
commands. The commands supported by this test application are described in the document “T8753-2-
Infineon_Specific_HCI_Commands-7600.pdf”.
4.2 Firmware ROM Patching
In any chip with complex firmware in ROM it is wise to support patching. The risk of project delay is significantly
reduced when problems can be solved without hardware changes. Enhancements, adaptations and bug fixes can
be handled very late during design-in, even after the PAN1322 has been soldered in the final product.
The well-proven patch concept used in PAN1322 is described below.
4.2.1 Patch Support
PAN1322-SPP contains dedicated hardware that makes it possible to apply patches to the code and data in the
firmware ROM. The hardware is capable of replacing up to 32 blocks of 16 bytes each with new content. This area
can be filled with any combination of code and data. The firmware patch is stored in EEPROM and automatically
loaded after startup. This provides a flexible bugfix solution for the ROM part of the firmware.
5Ordering Information
This chapter shows the different order codes for the PAN1322-SPP. In case, there is no specific software version
mentioned in the order, we will always deliver the latest official software release, which is downwards compatible.
Please refer also to Table 2 “Firmware Releases as of 2013-05-14” on Page 14.
1)
PAN1322-SPP Bluetoth 2.1 Module with integrated Antenna and a
standard SPP software.
1500
Table 4 Order Code as of 2013-08-14
Order Code Description MOQ 1)
ENW89841A3KF
1) Abbreviation for Minimum Order Quantity (MOQ). The standard MOQ for mass production
are 1500 pieces, fewer only on customer demand. Samples for evaluation can be delivered
at any quantity.
User’s Manual 19 Revision 1.3, 2013-08-14
Hardware Description
PAN1322-SPP
ENW89841A3KF
Bluetooth Capabilities
6Bluetooth Capabilities
6.1 Supported Features
• Bluetooth V2.1 + EDR compliant
• Enhanced Data Rate 2 and 3 Mbit/s symbol rate on the air
• Secure Simple Pairing
• Device A (initiating link) or Device B (accepting link) role supported
• Single point-to-point data link, role switch supported
• Packet data mode and stream data mode supported
• Link in sniff mode supported. Device enters Low Power Mode in sniff intervals if permitted by the host.
• Sniff Subrating
• 5 trusted devices stored in EEPROM
• Connection to a Bluetooth Tester
6.2 PAN1322-SPP Bluetooth Features
6.2.1 Secure Simple Pairing
The device implements Secure Simple Pairing with the following association models according to BT2.1 core
specification:
• Numeric Comparisoon
•Just Works
• Passkey Entry
Also pairing with legacy (BT2.0 and older) devices is supported.
6.2.2 Role Switch
The initiating device (devA) starts as Bluetooth master of the link, the accepting device starts as Bluetooth slave
of the link. The remote device can request a role change to accomodate with other Bluetooth links. If that happens,
the module will send an event to the host. Also if the PAN1322-SPP start as slave, (Device B), the other device
can change it's own role making PAN1322-SPP master. The host controlling PAN1322-SPP will be notified with
the same event.
6.2.3 Sniff Mode
The local host or the remote device can request sniff mode for the link. During sniff mode, the devices synchronize
on sniff instants only. The module will enter low power mode in the sniff intervals, if allowed by the host LPM control
signals. Data packets can be exchanged at the sniff instants only, so the data rate is reduced in sniff mode. The
module will wake up the host when data is received or other responses need to be transmitted.
6.2.4 Sniff Subrating
The local host or the remote device can request Sniff Subrating for the link. When in sniff mode, the device will
automatically switch between Sniff Mode and Sniff Subrating Mode making it possible to stay longer in Low Power
Mode when there is no data transmitted or received.
6.2.5 Enhanced Power Control
PAN1322-SPP support Enhanced Power Control according to Bluetooth specification 3.0. The Enhanced Power
Control is handled automatically to make different modulations modes transmit on optimal levels.
PAN1322-SPP
ENW89841A3KF
User’s Manual 20 Revision 1.3, 2013-08-14
Hardware Description
Bluetooth Capabilities
6.2.6 Encryption Pause and Resume
Encryption Pause Resume is supported making it possible to change connection link key on an encrypted link,
pause the encryption and resume it with the new link key. This is handled automatically by PAN1322-SPP to make
the link more secure.
User’s Manual 21 Revision 1.3, 2013-08-14
Hardware Description
PAN1322-SPP
ENW89841A3KF
Electrical Characteristics
7Electrical Characteristics
7.1 Absolute Maximum Ratings
Values
-40 –125 °C –
-0.3 –6.0 V –
-0.9 –4.0 V –
-0.9 –4.0 V –
-0.3 –4.0 VVSUPPLY > 4 V
-0.3 –VSUPPLY VVSUPPLY < 4 V
-0.3 –VSUPPLY+0.3 V
-0.9 –4.0 V –
-0.9 –4.0 V-9
– – 1.0 kV According to MIL-STD883D
method 3015.7
Note: Stresses above those listed here are likely to cause permanent damage to the device. Exposure to absolute
maximum rating conditions for extended periods may affect device reliability.
Maximum ratings are absolute ratings; exceeding only one of these values may cause irreversible damage
to the integrated circuit.
Maximum ratings are not operating conditions.
7.2 Operating Conditions
Values
-40 –85 °C –
2.9 –
1) At ambient temperatures above 65°C the maximum allowed power dissipation in the module is limited to 200 mW
4.11) V –
1.35 –3.6 V –
1.35 –3.6 V –
Table 5 Absolute Maximum Ratings
Parameter Symbol Unit Note / Test Condition
Min. Typ. Max.
Storage temperature
VSUPPLY supply voltage
VDDUART supply voltage
VDD1 supply voltage
VREG
VREG
ONOFF
Input voltage range
Output voltage range
ESD
Table 6 Operating Conditions
Parameter Symbol Unit Note / Test Condition
Min. Typ. Max.
Operating temperature
Main supply voltage (Vsupply)
VDDUART
VDD1
PAN1322-SPP
ENW89841A3KF
User’s Manual 22 Revision 1.3, 2013-08-14
Hardware Description
Electrical Characteristics
7.3 DC Characteristics
7.3.1 Pad Driver and Input Stages
For more information, see Chapter 1.4.
Values
-0.3 –0.27 V –
1.15 –3.6 V –
––0.25 VIOL = 1 mA
1.1 – – V IOH = -1 mA
––1mA –
––10 pF –
–0.01 1μAInput and output drivers
disabled
Values
-0.3 –0.45 V –
1.93 –2.8 VP0.10
1.93 –3.6 VOther pins
––0.25 VIOL = 5 mA
––0.15 VIOL = 2 mA
2.0 – – V IOH = -5 mA
2.1 – – V IOH = -2 mA
––5mA –
––10 pF –
–0.01 1μAInput and output drivers
disabled
Table 7 Internal1 (1.5 V) Supplied Pins
Parameter Symbol Unit Note / Test Condition
Min. Typ. Max.
Input low voltage
Input high voltage
Output low voltage
Output high voltage
Continuous Load1)
1) The totaled continuous load for all Internal1 supplied pins shall not exceed 2mA at the same time
Pin Capacitance
Magnitude Pin Leakage
Table 8 Internal2 (2.5 V) Supplied Pins
Parameter Symbol Unit Note / Test Condition
Min. Typ. Max.
Input low voltage
Input high voltage
Input high voltage
Output low voltage
Output low voltage
Output high voltage
Output high voltage
Continuous Load1)
1) The totaled continuous load for all Internal2 supplied pins shall not exceed 35 mA at the same time
Pin Capacitance
Magnitude Pin Leakage
Table 9 VDDUART Supplied Pins
Parameter Symbol Values Unit Note / Test Condition
Min. Typ. Max.
Input low voltage -0.3 –0.2*VDDUART V –
Input high voltage 0.7*VDDUART –VDDUART+0.3 VP0.5/UARTRXD
Input high voltage 0.7*VDDUART –3.6 VOther pins
User’s Manual 23 Revision 1.3, 2013-08-14
Hardware Description
PAN1322-SPP
ENW89841A3KF
Electrical Characteristics
Output low voltage – – 0.25 VIOL = 5 mA
VDDUART = 2.5 V
Output low voltage – – 0.15 VIOL = 2 mA
VDDUART = 2.5 V
Output high voltage VDDUART
-0.25
– – V IOH = -5 mA
VDDUART = 2.5 V
Output high voltage VDDUART
-0.15
– – V IOH = -2 mA
VDDUART = 2.5 V
Continuous Load1) – – 5 mA –
Pin Capacitance – – 10 pF –
Magnitude Pin Leakage –0.01 1μAInput and output drivers
disabled
Values
-0.3 –0.2*VDD1 V –
0.7*VDD1 –3.6 V –
– – 0.25 VIOL = 5 mA
VDD1 = 2.5 V
– – 0.15 VIOL = 2 mA
VDD1 = 2.5 V
VDD1
-0.25
– – V IOH = -5 mA
VDD1 = 2.5 V
VDD1
-0.15
– – V IOH = -2 mA
VDD1 = 2.5 V
– – 5 mA –
– – 10 pF –
–0.01 1μAInput and output drivers
disabled
Values
– – 0.7 V –
1.7 –VSUPPLY V –
-1 0.01 1μAONOFF = 0 V
1) The totaled continuous load for all VDDUART supplied pins shall not exceed 35 mA at the same time
Table 10 VDD1 Supplied Pins
Parameter Symbol Unit Note / Test Condition
Min. Typ. Max.
Input low voltage
Input high voltage
Output low voltage
Output low voltage
Output high voltage
Output high voltage
Continuous Load1)
1) The totaled continuous load for all VDD1 supplied pins shall not exceed 35 mA at the same time
Pin Capacitance
Magnitude Pin Leakage
Table 11 ONOFF PIN
Parameter Symbol Unit Note / Test Condition
Min. Typ. Max.
Input low voltage
Input high voltage
Input current
Table 9 VDDUART Supplied Pins (cont’d)
Parameter Symbol Values Unit Note / Test Condition
Min. Typ. Max.
PAN1322-SPP
ENW89841A3KF
User’s Manual 24 Revision 1.3, 2013-08-14
Hardware Description
Electrical Characteristics
7.3.2 Pull-ups and Pull-downs
260 740 1300 N/A N/A N/A μAPull-up current
measured with
pin voltage = 0 V
Pull-down current
measured with
pin voltage =
supply voltage
Min measured at 125°C
with supply = 1.35 V
Typ. measured at 27°C
with supply = 2.5V
Max measured at
-40°C with
supply = 3.63 V
22 130 350 23 150 380 μA
4.2 24 68 3.0 20 55 μA
1.1 6.0 17 0.75 5.0 14 μA
7.3.3 Protection Circuits
All pins have an inverse protection diode against VSS.
P0.10 has an inverse diode against Internal2.
P0.5/UARTRXD has an inverse diode against VDDUART.
All other pins have no diode against their supply.
Table 12 Pull-up and Pull-down Currents
Pin Pull Up Current Pull Down Current Unit Conditions
Min. Typ. Max. Min. Typ. Max.
P0.12
P0.13
P0.0
P0.1
P0.2
P0.3
P0.4
P0.5
P0.6
P0.7
P0.10
P0.8
P0.9
P0.11
P0.14
P0.15
P1.0
P1.1
P1.2
P1.3
P1.4
P1.5
P1.6
P1.7
P1.8
User’s Manual 25 Revision 1.3, 2013-08-14
Hardware Description
PAN1322-SPP
ENW89841A3KF
Electrical Characteristics
7.3.4 System Power Consumption
Values
– – 100 mA Peak current
Note: I/O currents are not included since they depend mainly on external loads. For more details see [2].
7.4 RF Part
7.4.1 Characteristics RF Part
The characteristics involve the spread of values to be within the specific temperature range. Typical characteristics
are the median of the production.
All values refers to Panasonic reference design.
7.4.1.1 Bluetooth Related Specifications
Table 13 Max. Load at the Different Supply Voltages
Parameter Symbol Unit Note / Test Condition
Min. Typ. Max.
Vsupply
Table 14 BDR - Transmitter Part
Parameter Symbol Values Unit Note / Test Condition
Min. Typ. Max.
Output power (high gain) 0.5 2.5 4.5 dBm Default settings
Output power (highest gain) –4.5 –dBm Maximum settings
Power control step size 4 6 8 dB –
Frequency range fL 2400 2401.3 –MHz –
Frequency range fH –2480.7 2483.5 MHz –
20 dB bandwidth –0.930 1MHz –
2nd adjacent channel power –-40 -20 dBm –
3rd adjacent channel power –-60 -40 dBm –
>3rd adjacent channel power –-64 -40 dBm Max. 2 of 3 exceptions @
52 MHz offset might be used
Average modulation deviation
for 00001111 sequence
140 156 175 kHz –
Minimum modulation deviation
for 01010101 sequence
115 145 –kHz –
Ratio Deviation 01010101 /
Deviation 00001111
0.8 1 – –
Initial carrier frequency
tolerance |foffset|
– – 75 kHz –
Carrier frequency drift
(one slot) |fdrift|
–10 25 kHz –
Carrier frequency drift
(three slots) |fdrift|
–10 40 kHz –
PAN1322-SPP
ENW89841A3KF
User’s Manual 26 Revision 1.3, 2013-08-14
Hardware Description
Electrical Characteristics
Carrier frequency drift
(five slots) |fdrift|
–10 40 kHz –
Carrier frequency driftrate
(one slot) |fdriftrate|
– 5 20 kHz/50 ms –
Carrier frequency driftrate
(three slots) |fdriftrate|
– 5 20 kHz/50 ms –
Carrier frequency driftrate
(five slots) |fdriftrate|
– 5 20 kHz/50 ms –
Values
–-86 -81 dBm Ideal wanted signal
–-51 -40 dB –
–-46 -20 dB –
–-35 -9 dB –
–-4 0dB –
– 9 11 dB –
–-4 0dB –
–-40 -30 dB –
–-50 -40 dB –
10 – – dBm Some spurious responses, but
according to BT-specification
-27 – – dBm –
-27 – – dBm –
10 – – dBm Some spurious responses, but
according to BT-specification
-39 -34 –dBm Valid for all intermodulation tests
-20 – – dBm –
Table 15 BDR - Receiver Part
Parameter Symbol Unit Note / Test Condition
Min. Typ. Max.
Sensitivity
C/I-performance:
-4th adjacent channel
C/I-performance:
-3rd adjacent channel
(1st adj. of image)
C/I-performance:
-2nd adjacent channel (image)
C/I-performance:
-1st adjacent channel
C/I-performance: co. channel
C/I-performance:
+1st adjacent channel
C/I-performance:
+2nd adjacent channel
C/I-performance:
+3rd adjacent channel
Blocking performance
30 MHz - 2 GHz
Blocking performance
2 GHz - 2.4 GHz
Blocking performance
2.5 GHz - 3 GHz
Blocking performance
3 GHz - 12.75 GHz
Intermodulation performance
Maximum input level
Table 14 BDR - Transmitter Part (cont’d)
Parameter Symbol Values Unit Note / Test Condition
Min. Typ. Max.
Values
-2.5 – 2 dBm
-4 -0.6 1dB
– – 75 kHz –
– – 75 kHz –
– 2 10 kHz –
–10 20 % –
–10 13 % –
–20 35 % –
–20 25 % –
– – 30 % –
– – 20 % –
99 100 – % –
–-40 -26 dBc –
– – -20 dBm Carrier power measured at basic
rate
– – -40 dBm Carrier power measured at basic
rate
User’s Manual 27 Revision 1.3, 2013-08-14
Hardware Description
PAN1322-SPP
ENW89841A3KF
Electrical Characteristics
Table 16 EDR - Transmitter Part
Parameter Symbol Unit Note / Test Condition
Min. Typ. Max.
Output power (high gain)
Relative transmit power:
PxPSK - PGFSK
Carrier frequency stability |ωi|
Carrier frequency stability |ωi+ω0|
Carrier frequency stability |ω0|
DPSK - RMS DEVM
8DPSK - RMS DEVM
DPSK - Peak DEVM
8DPSK - Peak DEVM
DPSK - 99% DEVM
8DPSK - 99% DEVM
Differential phase encoding
1st adjacent channel power
2nd adjacent channel power
3rd adjacent channel power
Table 17 EDR -Receiver Part
Parameter Symbol Values Unit Note / Test Condition
Min. Typ. Max.
DQPSK-Sensitivity –-88 -83 dBm Ideal wanted signal
8DPSK-Sensitivityl –-83 -77 dBm Ideal wanted signal
DQPSK - BER Floor Sensitivity –-84 -60 dBm –
8DPSK - BER Floor Sensitivity –-79 -60 dBm –
DQPSK - C/I-performance:
-4th adjacent channel
–-53 -40 dB –
DQPSK - C/I-performance:
-3rd adjacent channel (1st adj. of image)
–-47 -20 dB –
DQPSK - C/I-performance:
-2nd adjacent channel (image)
–-31 -7 dB –
DQPSK - C/I-performance:
-1st adjacent channel
–-7 0dB –
DQPSK - C/I-performance:
co. channel
–11 13 dB –
DQPSK - C/I-performance:
+1st adjacent channel
–-9 0dB –
PAN1322-SPP
ENW89841A3KF
User’s Manual 28 Revision 1.3, 2013-08-14
Hardware Description
Electrical Characteristics
DQPSK - C/I-performance:
+2nd adjacent channel
–-44 -30 dB –
DQPSK - C/I-performance:
+3rd adjacent channel
–-50 -40 dB –
8DPSK - C/I-performance:
-4th adjacent channel
–-48 -33 dB –
8DPSK - C/I-performance:
-3rd adjacent channel (1st adj. of image)
–-44 -13 dB –
8DPSK - C/I-performance:
-2nd adjacent channel (image)
–-25 0dB –
8DPSK - C/I-performance:
-1st adjacent channel
–-5 5dB –
8DPSK - C/I-performance:
co. channel
–17 21 dB –
8DPSK - C/I-performance:
+1st adjacent channel
–-5 5dB –
8DPSK - C/I-performance:
+2nd adjacent channel
–-36 -25 dB –
8DPSK - C/I-performance:
+3rd adjacent channel
–-46 -33 dB –
Maximum input level -20 – – dBm –
Table 17 EDR -Receiver Part (cont’d)
Parameter Symbol Values Unit Note / Test Condition
Min. Typ. Max.
User’s Manual 29 Revision 1.3, 2013-08-14
Hardware Description
PAN1322-SPP
ENW89841A3KF
Package Information
8Package Information
8.1 Package Marking
Please refer to “Ordering Information” on Page 18
PAN1322
ENW89841A3KF
YYWWDLL
FCC ID:T7VEBMU
Version
HW ±Hardware Version
SW ±Software Version
Ordering Code
Date Code
FCC ID Machine readable
2D bar code
Panasonic usage only,
could be changed without
any notice
Case PCB
HW/SW
Figure 6 Package Marking
8.2 Production Package
Figure 7 Production Package
All dimensions are in mm.
Tolerances on all outer dimensions, height, width and length, are +/- 0.2 mm.
PAN1322-SPP
ENW89841A3KF
User’s Manual 30 Revision 1.3, 2013-08-14
Hardware Description
Package Information
8.2.1 Pin Mark
Pin 1 (A1) is marked on bottom footprint and on the top of the shield on the module according to Figure 8.
Diameter of pin 1 mark on the shield is 0.40mm.
Pin 1 marking bottom side
PAN1322 01/01
ENW89841A3KF
1302401
FCC ID:T7VEBMU
F2F3F4F5F6
E1E2E3E4E5E6E7E8E9
D1D2D3D4D5D6D7D8
C1C2C3C4C5C6C7C8
B1B2B3B4B5B6B7B8B9
A2A3A4A5A6A7A8 A1
F9 F7 F1F8
D9
C9
A9
Pin 1 marking top side

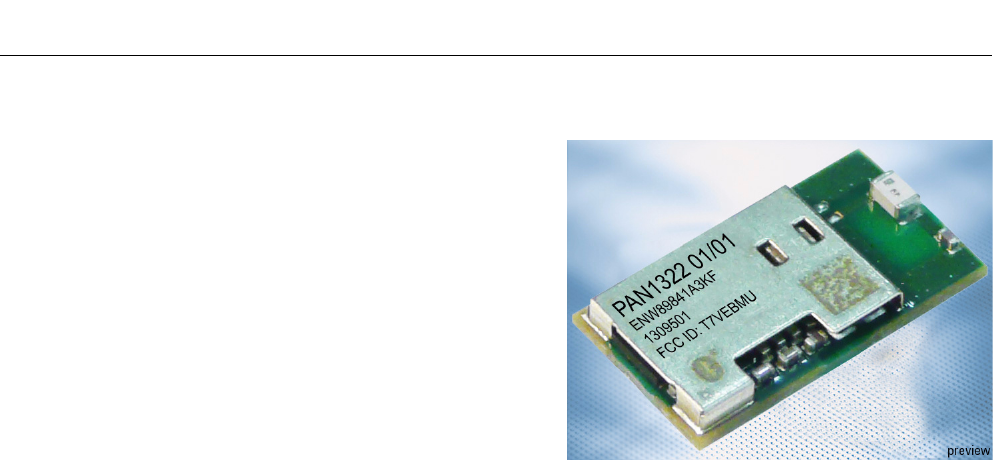

Figure 8 Top View and Bottom View
User’s Manual 31 Revision 1.3, 2013-08-14
Hardware Description
PAN1322-SPP
ENW89841A3KF
Bluetooth Qualification and Regulatory Certification
9Bluetooth Qualification and Regulatory Certification
9.1 Reference Design
Figure 9 Reference Design Schematics
PAN1322-SPP
ENW89841A3KF
User’s Manual 32 Revision 1.3, 2013-08-14
Hardware Description
Bluetooth Qualification and Regulatory Certification
ENW89841A3KF is intended to be installed inside end user equipment. ENW89841A3KF is Bluetoooth-qualified
and also FCC-certified and Industry Canada approved, and conforms to R&TTE (European) requirements and
directives with the reference design described in Figure 9.
Manufacturers of mobile, fixed or portable devices incorporating this device are advised to clarify any regulatory
questions and to have their complete product tested and approved for compliance (FCC or other when applicable).
When using other antennas, a “class II permissive change” is required for FCC approval. The normal procedure
is to first provide a technical test report showing that 4 dBi is not exceeded and to continue working with a
regulatory test house to finalize the approval for a new antenna implementation.
There are no parts in ENW89841A3KF that can be modified by the user except modifications of the device BD
data and loading of SW patches. Any changes or modifications made to this device that are not expressly
approved by Panasonic, may void the user’s authority to operate the equipment.
9.2 FCC Class B Digital Devices Regulatory Notice
This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part
15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in
a residential installation. This equipment generates, uses, and can radiate radio frequency energy and, if not
installed and used in accordance with the instructions, may cause harmful interference to radio communications.
However, there is no guarantee that interference will not occur in a particular installation. If this equipment does
cause harmful interference to radio or television reception, which can be determined by turning the equipment off
and on, the user is encouraged to try to correct the interference by 1 or more of the following measures:
• Reorient or relocate the antenna
• Increase the separation between the equipment and receiver
• Connect the equipment into an outlet on a circuit different from that to which the receiver is connected
• Consult the dealer or an experienced radio or television technician for help
9.3 FCC Wireless Notice
This product emits radio frequency energy, but the radiated output power of this device is far below the FCC radio
frequency exposure limits. Nevertheless, the device should be used in such a manner that the potential for human
contact with the antenna during normal operation is minimized.
To meet the FCC's RF exposure rules and regulations:
• The system antenna used for this transmitter must not be co-located or operating in conjunction with any other
antenna or transmitter.
• The system antenna used for this module must not exceed 4 dBi.
• Users and installers must be provided with antenna installation instructions and transmitter operating
conditions for satisfying RF exposure compliance, please refer to Figure 10.
Top View
8.7
15.6
Restricted Area
No copper any layer
5.00
3.00
min. 15mm
min. 15mm
All dimensions are in mm.
Use a Ground plane in the area surrounding
the PAN1322 module wherever possible.
min. 40mm
Place PAN1322 at the edge of
mother PCB.
PAN1322
If possible place PAN1322 in the
center of main PCB.
User’s Manual 33 Revision 1.3, 2013-08-14
Hardware Description
PAN1322-SPP
ENW89841A3KF
Bluetooth Qualification and Regulatory Certification
Figure 10 Cutout Drawing
Manufacturers of mobile, fixed or portable devices incorporating this module are advised to clarify any regulatory
questions and to have their complete product tested and approved for FCC compliance.
9.4 FCC Interference Statement
This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions:
1. This device may not cause harmful interference
PAN1322-SPP
ENW89841A3KF
User’s Manual 34 Revision 1.3, 2013-08-14
Hardware Description
Bluetooth Qualification and Regulatory Certification
2. This device must accept any interference received, including interference that may cause undesired operation.
9.5 FCC Identifier
FCC ID: T7VEBMU
9.6 European R&TTE Declaration of Conformity
Hereby, Panasonic Industrial Devices Europe GmbH, declares that the Bluetooth module ENW89841A3KF is in
compliance with the essential requirements and other relevant provisions of Directive 1999/5/EC.
As a result of the conformity assessment procedure described in Annex III of the Directive 1999/5/EC, the end-
customer equipment should be labelled as follows:
Figure 11 Equipment Label
PAN1322 in the specified reference design can be used in the following countries:
Austria, Belgium, Cyprus, Czech Republic, Denmark, Estonia, Finland, France, Germany, Greece, Hungary,
Ireland, Italy, Latvia, Lithuania, Luxembourg, Malta, Poland, Portugal, Slovakia, Slovenia, Spain, Sweden, The
Netherlands, the United Kingdom, Switzerland, and Norway.
User’s Manual 35 Revision 1.3, 2013-08-14
Hardware Description
PAN1322-SPP
ENW89841A3KF
Bluetooth Qualification and Regulatory Certification
Figure 12 Declaration of Conformity
PAN1322-SPP
ENW89841A3KF
User’s Manual 36 Revision 1.3, 2013-08-14
Hardware Description
Bluetooth Qualification and Regulatory Certification
9.7 Bluetooth Qualified Design ID
Panasonic has submitted End Product Listing (EPL) for PAN1322, based on Intel eBMU plattform, in the Qualified
Product List of the Bluetooth SIG. These EPL are referring the Bluetooth qualfication of the SPP-AT application
running on the eBMU chip under QD ID B021246.
Manufacturers of Bluetooth devices incorporating PAN1322 can reference the same QD ID number.
Bluetooth QD ID: B021246 (PAN1322 SPP BT2.1).
9.8 Industry Canada Certification
PAN1322 complies with the regulatory requirements of Industry Canada (IC), license: IC: 216Q-EBMU
Manufacturers of mobile, fixed or portable devices incorporating this module are advised to clarify any regulatory
questions and ensure compliance for SAR and/or RF exposure limits. Users can obtain Canadian information on
RF exposure and compliance from www.ic.gc.ca.
This device has been designed to operate with the built in antenna. It is not allowed to alter the antenna or connecting an
external antenna to the module. The built in antenna used for this transmitter must not be collocated or operating
in conjunction with any other antenna or transmitter.
9.9 Label Design of the Host Product
It is recommended to include the following information on the host product label:
Contains transmitter Module FCC ID: T7VEBMU / IC: 216QEBMU
9.10 Regulatory Test House
The test house used by Panasonic in the Bluetooth and Regulatory approvals for the module PAN1322:
Eurofins Product Service GmbH
Storkower Str. 38c
D-15526 Reichenwalde b. Berlin
GERMANY
Tel.: +49 33631 888 0
Fax: +49 33631 888 650
www.eurofins.com
User’s Manual 37 Revision 1.3, 2013-08-14
Hardware Description
PAN1322-SPP
ENW89841A3KF
Assembly Guidelines
10 Assembly Guidelines
The target of this chapter is to provide guidelines for customers to successfully introduce the PAN1322-SPP
module in production. This includes general description, PCB-design, solder printing process, assembly, soldering
process, rework and inspection.
10.1 General Description of the Module
PAN1322-SPP is a Land Grid Array (LGA 8.7mm x 15.6mm) module made for surface mounting. The pad
diameter is 0.6 mm and the pitch 1.2 mm.
All solder joints on the module will reflow during soldering on the mother board. All components and shield will stay
in place due to wetting force. Wave soldering is not possible.
Surface treatment on the module pads is Nickel (5 - 8 µm)/Gold (0.04 - 0.10 µm).
Figure 13 shows the pad layout on the module, seen from the component side.
F2 F3 F4 F5
E1 E2 E3 E4 E5 E6 E7 E8 E9
D1 D2 D3 D4 D5 D6 D7 D8
C1 C2 C3 C4 C5 C6 C7 C8
B1 B2 B3 B4 B5 B6 B7 B8 B9
A2 A3 A4 A5 A6 A7 A8A1
1.0
8.70 mm
0.6
5.0
0.6
1.35 1.35
1.2
F9
1.2
F7F1 F8
D9
C9
A9
15.6 mm
F6 F11
A11
F12
A12
2.4
Figure 13 Pad Layout on the Module (top view)
10.2 Printed Circuit Board Design
The land pattern on the PCB shall be according to the land pattern on the module, which means that the diameter
of the LGA pads on the PCB shall be 0.6 mm. It is recommended that each pad on the PCB shall be surrounded
by a solder mask clearance of about 75 µm to avoid overlapping solder mask and pad.
Top View
8.7
15.6
Restricted Area
No copper any layer
5.00
3.00
min. 15mm
min. 15mm
All dimensions are in mm.
Use a Ground plane in the area surrounding
the PAN1322 module wherever possible.
min. 40mm
Place PAN1322 at the edge of
mother PCB.
PAN1322
If possible place PAN1322 in the
center of main PCB.
PAN1322-SPP
ENW89841A3KF
User’s Manual 38 Revision 1.3, 2013-08-14
Hardware Description
Assembly Guidelines
Figure 14 Cutout Drawing
In order to preserve the characteristics of the embedded antenna, a cutout must be respected under the antenna
through all metal layers of the PCB, as shown in drawing Figure 14.
Placing the module inside a metal housing or close to metal parts like fasteners, shielding cages, washers, etc.
can significantly affect the antenna characteristics.
User’s Manual 39 Revision 1.3, 2013-08-14
Hardware Description
PAN1322-SPP
ENW89841A3KF
Assembly Guidelines
10.3 Solder Paste Printing
The solder paste deposited on the PCB by stencil printing has to be of eutectic or near eutectic tin leadfree / lead
composition. A no-clean solder paste is preferred, since cleaning of the solder joints is difficult because of the small
gap between the module and the PCB.
Preferred thickness of the solder paste stencil is 100 - 127 µm (4 - 5 mils). The apertures on the solder paste stencil
shall be of the same size as the pads, 0.6 mm.
10.4 Assembly
10.4.1 Component Placement
In order to assure a high yield, good placement on the PCB is necessary. As a rule of thumb the tolerable
misplacement is 150 µm. This means that the PAN1322 module can be assembled with a variety of placement
systems.
It is recommended to use a vision system capable of package pad recognition and alignment that evaluates the
pad locations on the package (in contrast to outline centring). This eliminates the pad to package edge tolerance.
The recommendation is to pick and place the module with a nozzle in the centre of the shield. The nozzle diameter
shall not be bigger than 4 mm.
10.4.2 Pin Mark
Pin 1 (A1) is marked on bottom footprint and on the top of the shield on the module according to Figure 15.
Diameter of pin 1 mark on the shield is 0.40 mm.
Pin 1 marking bottom side
PAN1322 01/01
ENW89841A3KF
1302401
FCC ID:T7VEBMU
F2F3F4F5F6
E1E2E3E4E5E6E7E8E9
D1D2D3D4D5D6D7D8
C1C2C3C4C5C6C7C8
B1B2B3B4B5B6B7B8B9
A2A3A4A5A6A7A8 A1
F9 F7 F1F8
D9
C9
A9
Pin 1 marking top side
Figure 15 Pin Marking
User’s Manual 41 Revision 1.3, 2013-08-14
Hardware Description
PAN1322-SPP
ENW89841A3KF
Assembly Guidelines
10.5 Soldering Profile
Generally all standard reflow soldering processes (vapour phase, convection, infrared) and typical temperature
profiles used for surface mount devices are suitable for the PAN1322 module. Wave soldering is not possible.
Figure 17 and Figure 18 shows example of a suitable solder reflow profile. One for leaded and one for leadfree
solder.
Lead _Solder _Profile .vs d
Recommended temp. profile
for reflow soldering
Tem
p
.
[
°C
]
Time [s]
235°C max.
220
±
5°C
200°C
150
±
10°C
90
±
30s
10 ±1s
30 +20/-10s
Figure 17 Eutectic Lead-Solder Profile
LeadFree _Solder _Profile .vsd
25°C
150°C
200°C
217°C
255°C
260°C
60 ~ 120 sec @ 3’C/sec ma
x
60 ~ 150 sec
30 sec
max
6’C/sec
max
8 minutes ma
x
Temp.[°C]
Time [s]
Recommended temp. profile
for reflow soldering (J-STD-020C)
Figure 18 Eutectic Leadfree-Solder Profile
PAN1322-SPP
ENW89841A3KF
User’s Manual 42 Revision 1.3, 2013-08-14
Hardware Description
Assembly Guidelines
At the reflow process each solder joint has to be exposed to temperatures above solder liquids for a sufficient time
to get the optimum solder joint quality, whereas overheating the board with its components has to be avoided.
Using infrared ovens without convection special care may be necessary to assure a sufficiently homogeneous
temperature profile for all solder joints on the PCB (especially on large, complex boards with different thermal
masses of the components). The most recommended types are therefore forced convection or vapour phase
reflow. Nitrogen atmosphere can generally improve solder joint quality, but is normally not necessary.
The reflow profiles and other reflow parameters are dependent on the used solder paste. The paste manufacturer
provides a reflow profile recommendation for this product.
Additionally it is important not to overheat the PAN1322 module by a too large reflow peak temperature. PAN1322
contain several plastic packages and is there by sensitive of the moisture content level at the time of board
assembly.
Overheating in combination with excessive moisture content could result in package delaminations or cracks
(popcorn effect). The heating rate should not exceed 3°C/s and max sloping rate should not exceed 4°C/s.
PAN1322 shall be handled according to MSL3, which means a floor life of 168h in 30°C/60% r.h.
The PAN1322 module can be soldered according to max. J-STD-020C curve, assuming that all other conditions
are followed stated in Product Specification, Qualification Report and in Application Note. Restriction is that
PAN1322 can be soldered two times, since one time is already consumed when soldering devices on Module.
10.6 Rework
10.6.1 Removal Procedure
1. Heat the module with an appropriate heating nozzle according to the instruction of the equipment or on a hot
plate (about 225°C dependent on the board). Hot plate can only be used if the board is single side assembled.
The temperature of the module shall be 200-220°C.
2. Use grippers or a pair of tweezers to remove the module. The module has to be gripped on two opposite edges
of the module (not on the shield).
3. Remove excess solder by using solder sucker, suction soldering irons or solder wick.
10.6.2 Replacement Procedure
Replacement can be done in two ways, dependent of how the solder is applied. Solder can be applied either by
dispensing on the mother board or by printing the solder paste directly on the module.
10.6.2.1 Alternative 1: Dispensing Solder
A dispenser with controlled volume must be used to assure the same volume on every pad. The volume on each
pad shall be about 0.04 mm3.
1. Dispense 0.04 mm3 on each LGA pad
2. Pick the module by a nozzle and place in the right position on the board
3. Reflow the solder.
User’s Manual 43 Revision 1.3, 2013-08-14
Hardware Description
PAN1322-SPP
ENW89841A3KF
Assembly Guidelines

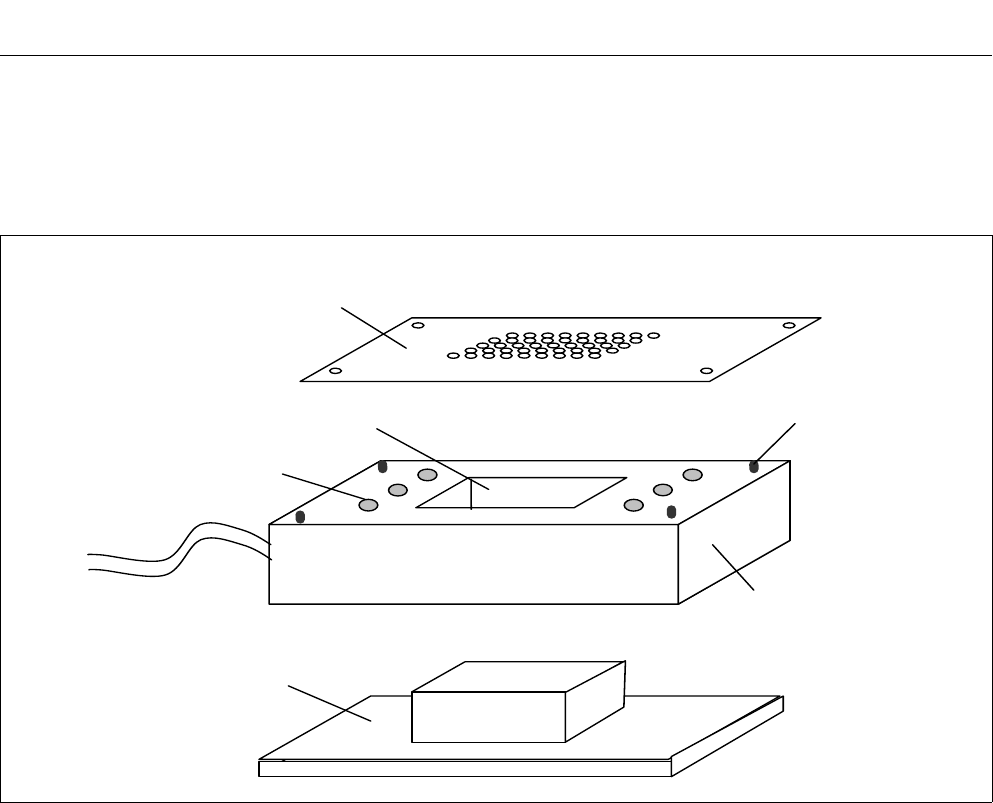

10.6.2.2 Alternative 2: Printing Solder
To print solder on the module a fixture must be used. The purpose of the fixture is to get a flat surface and fix the
stencil and module for printing. An example of how this fixture can be designed is shown in Figure 19.
Solder_Printing .vsd
Vacuum hol es
Solder paste stencil
Cavity of the module Tooling pins
Bottom
Fixture
Figure 19 Solder Printing
1. Assemble the fixture to the bottom
2. Place the module in the cavity with the LGA pads upwards
3. Place the solder paste stencil on the fixture and make sure it fits to the tooling pins and the module
4. Apply vacuum to fix the solder paste stencil
5. Apply solder paste on the stencil and print by using a blade
6. Turn everything (bottom, fixture and stencil) upside down.
7. Separate carefully the bottom from the fixture
8. Pick the module by a nozzle and place in the right position on the board
9. Reflow the solder.
10.7 Inspection
Automatic inspection of the solder paste printing before assembly is highly recommended to ensure high yield and
good long term reliability.
10.8 Component Salvage
If it is intended to send a defect PAN1322 module back to the supplier for failure analysis, please note that during
the removal of this component no further defects must be introduced to the device, because this may hinder the
failure analysis at the supplier. This includes ESD precautions, not to apply high mechanical force for component
removal, and to prevent excess moisture content in the package during salvage (risk of pop corning failures).
Therefore if the maximum storage time out of the dry pack (see label on packing material) is exceeded after board
assembly, the PCB has to be dried 24h at 125°C before soldering off the defect component, because otherwise
too much moisture may have been accumulated.
PAN1322-SPP
ENW89841A3KF
User’s Manual 44 Revision 1.3, 2013-08-14
Hardware Description
Assembly Guidelines
10.9 Voids in the Solder Joints
10.9.1 Expected Void Content and Reliability
The content of voids is larger on LGA modules than for modules with BGA or leads. At a LGA solder joint the
outgassing flux has a longer way to the surface of the solder and it has a relatively small surface to the air.
The void content of the PAN1322 module conforms to IPC-A-610D (25% or less voiding area/area).
Figure 20 shows an example of void-content at a module assembled at production site. Normally you can see the
whole spectra of void content variation within the same lot and occasion of assembly.
Voids_IPC_A_610D.vsd
Figure 20 X-ray Picture Showing Voids Conforming to IPC-A-610D
10.9.2 Parameters with an Impact on Voiding
If the void content has to be reduced following parameters have an impact.
Solderability on module and PCB
Bad solderability is often connected to oxidation and has therefore a major impact on voiding. Flux will get
entrapped on oxidized surfaces. In general, Ni/Au pads show fewer voids than HASL and OSP.
Solder paste
Higher activity of the flux will remove oxide rapidly and less flux will get entrapped.
Voiding increases with increasing solder paste exposure time, since long exposure time will result in more
oxidation and moisture pickup.
Pad size
A large soldering pad means that the outgassing flux has a longer way to the surface of the solder, and will thereby
create more voids.
Solder paste
Smaller powder size and higher metal load means more metal surface to deoxidize and thereby more entrapped
flux and voiding. Higher metal load does also mean higher viscosity and more difficult for outgassed flux to remove
from the solder.
User’s Manual 45 Revision 1.3, 2013-08-14
Hardware Description
PAN1322-SPP
ENW89841A3KF
Assembly Guidelines
Stencil thickness
A thick solder paste stencil means more surface area to the air and thereby easier for the outgassing flux to leave
the solder.
Temperature soldering profile
Too short preheat time means that the flux does not get enough time to react and flux get entrapped in the solder
and create voids.
Too long reflow time gives larger voids
Too short reflow time gives a fraction of voids
PAN1322-SPP
ENW89841A3KF
User’s Manual 46 Revision 1.3, 2013-08-14
Hardware Description
Terminology
11 Terminology
A
ACK Acknowledgement
ACL Asynchronous Connection-oriented (logical transport)
AFH Adaptive Frequency Hopping
AHS Adaptive Hop Sequence
ARQ Automatic Repeat reQuest
B
bbit/bits (e.g. kb/s)
BByte/Bytes (e.g. kB/s)
BALUN BALanced UNbalanced
BD_ADDR Bluetooth Device Address
BER Bit Error Rate
BMU BlueMoon Universal
BOM Bill Of Material
BT Bluetooth
BW Bandwidth
C
CMOS Complementary Metal Oxide Semiconductor
COD Class Of Device
CODEC COder/DECoder
CPU Central Processing Unit
CQDDR Channel Quality Driven Data Rate
CRC Cyclic Redundancy Check
CTS Clear To Send (UART flow control signal)
CVSD Continuous Variable Slope Delta (modulation)
CDCT Clock Drift Compensation Task
CQDDR Channel Quality Driven Data Rate
D
DC Direct Current
DDC Device Data Control
DM Data Medium-Rate (packet type)
DMA Direct Memory Access
DH Data High-Rate (packet type)
DPSK Differential Phase Shift Keying (modulation)
DQPSK Differential Quaternary Phase Shift Keying (modulation)
DSP Digital Signal Processor
DUT Device Under Test
User’s Manual 47 Revision 1.3, 2013-08-14
Hardware Description
PAN1322-SPP
ENW89841A3KF
Terminology
E
EDR Enhanced Data Rate
EEPROM Electrically Erasable Programmable Read Only Memory
eSCO Extended Synchronous Connection-Oriented (logical transport)
EV Extended Voice (packet type)
F
FEC Forward Error Correction
FHS Frequency Hop Synchronization (packet)
FIFO First In First Out (buffer)
FM Frequency Modulation
FW Firmware
G
GFSK Gaussian Frequency Shift Keying (modulation)
GPIO General Purpose Input/Output
GSM Global System for Mobile communication
H
HCI Host Controller Interface
HCI+ Infineon Specific HCI command set
HEC Header Error Check
HV High quality Voice (packet type)
HW Hardware
I
I2C Inter-IC Control (bus)
I2S Inter-IC Sound (bus)
IAC Inquiry Access Code
ID IDentifier
IEEE Institute of Electrical and Electronics Engineers
IF Intermediate Frequency
ISM Industrial Scientific & Medical (frequency band)
J
JTAG Joint Test Action Group
L
LAN Local Area Network
LAP Lower Address Part
LM Link Manager
LMP Link Manager Protocol
LNA Low Noise Amplifier
LO Local Oscillator
LPM Low Power Mode(s)
LPO Low Power Oscillator
PAN1322-SPP
ENW89841A3KF
User’s Manual 48 Revision 1.3, 2013-08-14
Hardware Description
Terminology
LSB Least Significant Bit/Byte
LT_ADDR Logical Transport Address
M
MSB Most Significant Bit/Byte
MSRS Master-Slave Role Switch
N
NC No Connection
NOP No OPeration
NVM Non-Volatile Memory
O
OCF Opcode Command Field
OGF Opcode Group Field
P
PA Power Amplifier
PCB Printed Circuit Board
PCM Pulse Coded Modulation
PDU Protocol Data Unit
PER Packet Error Rate
PIN Personal Identification Number
PLC Packet Loss Concealment
PLL Phase Locked Loop
PMU Power Management Unit
POR Power-On Reset
PTA Packet Traffic Arbitration
PTT Packet Type Table
Q
QoS Quality Of Service
R
RAM Random Access Memory
RF Radio Frequency
ROM Read Only Memory
RSSI Received Signal Strength Indication
RTS Request To Send (UART flow control signal)
RX Receive
RXD Receive Data (UART signal)
S
SCO Synchronous Connection-Oriented (logical transport)
SIG Special Interest Group (Bluetooth SIG)
SW Software
SYRI Synthesizer Reference Input
User’s Manual 49 Revision 1.3, 2013-08-14
Hardware Description
PAN1322-SPP
ENW89841A3KF
Terminology
T
TBD To Be Determined
TCK Test Clock (JTAG signal)
TDI Test Data In (JTAG signal)
TDO Test Data Out (JTAG signal)
TL Transport Layer
TMS Test Mode Select (JTAG signal)
TX Transmit
TXD Transmit Data (UART signal)
U
UART Universal Asynchronous Receiver & Transmitter
ULPM Ultra Low Power Mode
V
VCO Voltage Controlled Oscillator
W
WLAN Wireless LAN (Local Area Network)
PAN1322-SPP
ENW89841A3KF
User’s Manual 50 Revision 1.3, 2013-08-14
Hardware Description
References
12 References
[1] Intel AT Command Specification
(eUniStone_1.00_UM_SD.pdf)
Always the latest revisionwill be available under the link below
(SPP-AT User’s Manual)
[2] Release Notes for SPP AT application Software (SW)
(eUniStone_1.00_SW_3.1_RN.pdf)
Always the latest revision will be available under the link below, please refer also to Table 2 “Firmware
Releases as of 2013-05-14” on Page 14.
(SPP-AT Release Notes)
[3] PAN1322 Application Note Design Guide
Always the latest revision, as a pdf file, will be available under the link below
(PAN1322 Application Note Design Guide)
[4] PAN1322-SPP User’s Manual (Data Sheet)
It is this document.
Always the latest revision, as a pdf file, will be available under the link below
(PAN1322-SPP Data Sheet)
User’s Manual 51 Revision 1.3, 2013-08-14
Hardware Description
PAN1322-SPP
ENW89841A3KF
References
