Exhibit E Instruction Manual
SUPERDISK USB DRIVE UNIT
LKM-RMB33
INSTRUCTION MANUAL
Please read through these instructions before operating the unit.
Interface : USB
iii
TABLE OF CONTENTS
IMPORTANT SAFETY NOTICE
1. PRECAUTIONS WHEN OPERATING................................................................... A-2
1.1 PRECAUTIONS WHEN TRANSPORTING...................................................... A-2
1.2 INSTALLATION LOCATION ............................................................................ A-2
1.3 PRECAUTIONS FOR USE .............................................................................. A-2
1.4 PRECAUTIONS FOR OPERATION ................................................................ A-2
1.5 PRECAUTIONS WHEN HANDLING DISKS .................................................... A-2
2. PARTS AND FUNCTIONS .................................................................................... A-3
2.1 FRONT VIEW................................................................................................... A-3

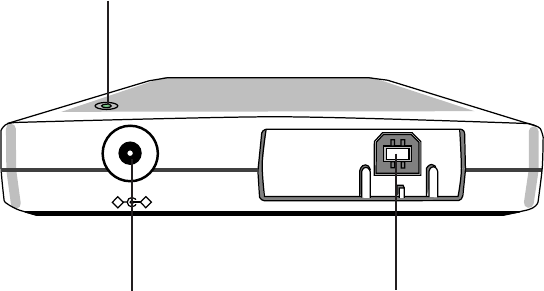

2.2 REAR VIEW ..................................................................................................... A-4

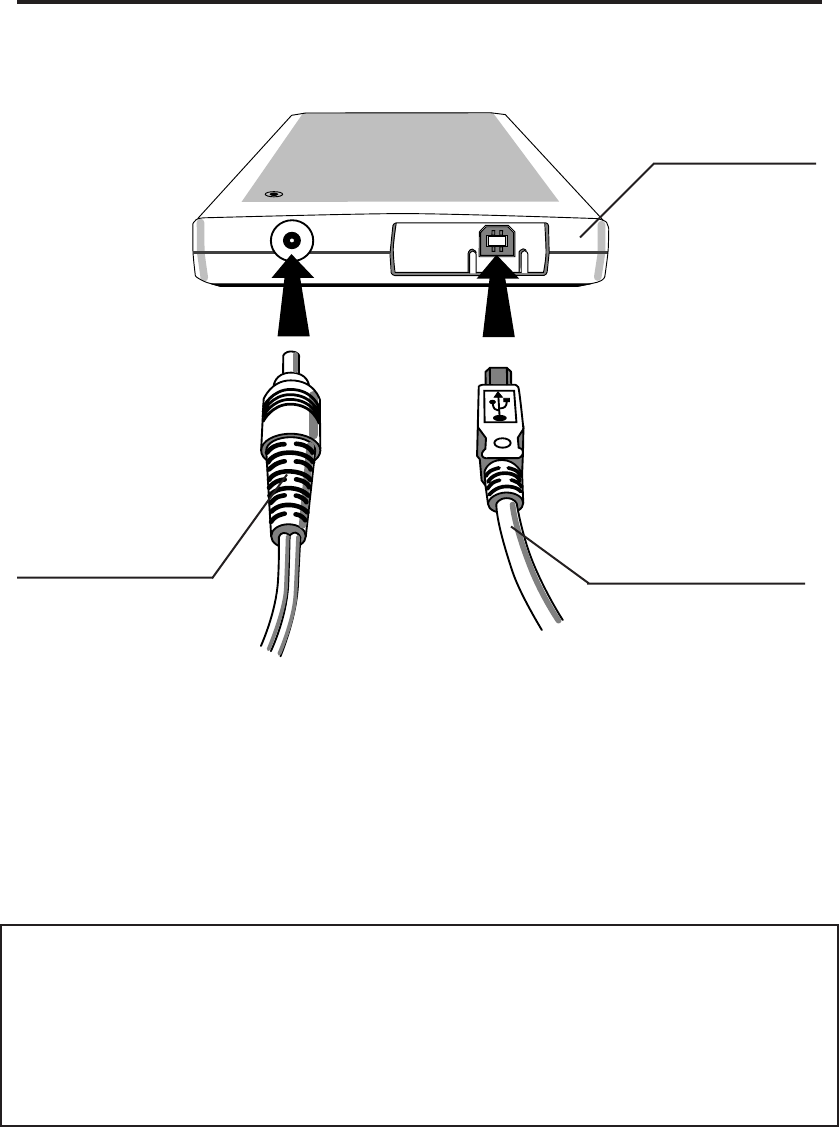

3. CONNECTIONS..................................................................................................... A-5
3.1 CONNECTING VIEW ....................................................................................... A-5
4. GUIDE TO OPERATION ....................................................................................... A-6
4.1 INSTALLATIONS ............................................................................................. A-6
5. GENERAL DESCRIPTION .................................................................................... A-7
5.1 SUMMARY OF FEATURES............................................................................. A-7
5.2 SYSTEM SET UP ............................................................................................ A-7
5.3 POWER SAVING ............................................................................................. A-7
6. SPECIFICATION SUMMARY ................................................................................ A-8
6.1 PERFORMANCE ............................................................................................. A-8
6.2 ERROR RATES ............................................................................................... A-8
6.3 GENERAL PERFORMANCE ........................................................................... A-8
6.4 ENVIRONMENTAL CONDITIONS ................................................................... A-8
6.5 PICK UP LASER .............................................................................................. A-8
7. BEFORE REQUESTING SERVICE....................................................................... A-9
7.1 TROUBLESHOOTING ..................................................................................... A-9
APPENDIX ...............................................................................................................A-10
SUPERDISK USB DRIVE UNIT
LKM-RMB33
INSTRUCTION MANUAL
Please read through these instructions before operating the unit.
Interface : USB
BUSY
iv
IMPORTANT SAFETY NOTICE
NOTICE
(1) You may not reproduce or transcribe any part of this publication without permission.
(2) We reserve the right to revise this document at any time without notice.
(3) If you have any questions about contents of this document, contact your sales
representative.
SAFETY NOTICE
(1) To prevent fire or electric shock, do not expose this drive unit to rain or moisture.
(2) To avoid electric shock or damage to the eyes due to laser beam, do not attempt to
disassemble the cabinet.
FEDERAL COMMUNICATIONS COMMISSION (FCC) RADIO
FREQUENCY INTERFERENCE STATEMENT
Class B Computing Device
NOTE : This equipment has been tested and found to comply with the limits for a Class B
digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide
reasonable protection against harmful interference in a residential installation. This
equipment generates, uses and can radiate radio frequency energy and , if not installed
and used in accordance with the instructions, may cause harmful interference to radio
communications. However, there is no guarantee that interference will not occur in a
particular installation. If this equipment does cause harmful interference to radio or
television reception, which can be determined by turning the equipment off and on, the
user is encouraged to try to correct the interference by one or more of the following
measures :
- - Reorient or relocate the receiving antenna.
- - Increase the separation between the equipment and receiver.
- - Connect the equipment into an outlet on a circuit different from that to which the
receiver is connected.
- - Consult the dealer or an experienced radio/TV technician for help.
FCC WARNING : Changes or modifications not expressly approved by the party
responsible for compliance could void the user’s authority to operate the equipment.
CAUTION : Use shielded connecting cables in order to meet FCC emission limits and
also to prevent interference to nearby radio and television reception.
For USA
This equipment is certified to conform to EN60950, EN60825.
The drive system with AC Adapter and Interface cable must be certified to conform to the
relevant regulations.
v
LASER SAFETY INFORMATION
Class 1 LASER Product
This equipment is certified to comply with DHHS Rule 21 CFR Chapter 1, Subchapter J in
effect as of date of manufacture.
Elsewhere, the drive is certified to conform to the requirements of the International
Electrotechnical Commission (IEC) 825 and CENELEC EN60825 for Class 1 laser
products.
Class 1 laser products are not considered to be hazardous. To ensure continued product
safety, the following precautions should be heeded.
Caution :
(1) The use of controls or adjustments or procedures other than those specified herein
may result in hazardous radiation exposure.
(2) Do not open the drive unit; no user adjustable or serviceable parts are inside.
LASER Spesifikasjon: (For Norway)
Type: Halvleder laser GaAlAs
Bølgelengde: 795 ± 20 nm
Divergens:
θ
v
= 30° ~ 36°
Utgangseffekt: 3,6 mW
Laser Specifikationer: (For Denmark)
Type: Semiconductor GaAlAs
Bølge-længde: 795 ± 20 nm
Divergens:
θ
v
= 30° ~ 36°
Udgang-effekt: 3,6 mW
LASERin tekniset tiedot: (For Finland)
Tyyppi: Laserpuolijohdin GaAlAs
Aallon pituus: 795 ± 20 nm
Hajaantuminen:
θ
v
= 30° ~ 36°
Teho: 3,6 mW
LASER Specification
Type: Semiconductor laser GaAlAs
Wave Length: 795 ± 20 nm
Divergence:
θ
v
= 30° ~ 36°
Output Power: 3.6 mW
Laser-Daten: (For German)
Typ: GaAlAs-Halbleiter-Laser
Wellenlänge: 795 ± 20 nm
Divergenz:
θ
v
= 30 ° ~ 36 °
Ausgangsleistung: 3,6 mW
Laser- specifikationer: (For Sweden)
Typ: Laserhalvedare GaAlAs
Våglängd: 795 ± 20 nm
Divergens:
θ
v
= 30° ~ 36°
Uteffekt: 3,6 mW
VAROITUS! Laitteen käyttäminen muulla kuin tässä käyttöohjeessa mainitulla tavalla
saattaa altistaa käyttäjän turvallisuusluokan 1 ylittävälle näkymättömälle
lasersäteilylle.
VARNING! Om apparaten används på annat sätt än i denna bruksanvisning
specificerats, kan användaren utsättas för osynlig laserstrålning, som
överskrider gränsen för laserklass 1.
For Finland
For Sweden
vi
CLASS 1 LASER PRODUCT
LASER KLASSE 1
LUOKAN 1 LASERLAITE
KLASS 1 LASER APPARAT
APPAREIL A LASER DE CLASSE 1
EN60825
CAUTION–
VORSICHT–
ADVARSEL–
ADVARSEL–
VARNING–
VARO
!
INVISIBLE LASER RADIATION WHEN OPEN
DO NOT STARE INTO BEAM OR VIEW DIRECTLY WITH OPTICAL INSTRUMENTS.
UNSICHTBARE LASERSTRAHLUNG, WENN ABDECKUNG GEÖFFNET, NICHT IN DEN
STRAHL BLICKEN AUCH NICHT MIT OPTISCHEN INSTRUMENTEN.
USYNLIG LASERSTRÅLING VED ÅBNING.
SE IKKE IND I STRÅLEN–HELLER IKKE MED OPTISKE INSTRUMENTER.
USYNLIG LASERSTRÅLING NÅR DEKSEL ÅPNES.
STIRR IKKE INN I STRÅLEN ELLER SE DIREKTE MED OPTISKE INSTRUMENTER.
OSYNLIG LASERSTRÅLNING NÄR DENNA DEL ÄR ÖPPNAD.
STIRRA EJ IN I STRÅLEN OCH BETRAKTA EJ STRÅLEN MED OPTISKA INSTRUMENT.
NÄKYMÄTÖNTÄ AVATTAESSA OLET ALTTIINA LASERSÄTEILYLLE.
ÄLÄ TUIJOTA SÄTEESEEN ÄLÄKÄ KATSO SITÄ OPTISEN LAITTEEN LÄPI.
CAUTION–
VORSICHT–
ADVARSEL–
ADVARSEL–
VARNING–
VARO
!
INVISIBLE LASER RADIATION WHEN OPEN
DO NOT STARE INTO BEAM OR VIEW DIRECTLY WITH OPTICAL INSTRUMENTS.
UNSICHTBARE LASERSTRAHLUNG, WENN ABDECKUNG GEÖFFNET, NICHT IN DEN
STRAHL BLICKEN AUCH NICHT MIT OPTISCHEN INSTRUMENTEN.
USYNLIG LASERSTRÅLING VED ÅBNING.
SE IKKE IND I STRÅLEN–HELLER IKKE MED OPTISKE INSTRUMENTER.
USYNLIG LASERSTRÅLING NÅR DEKSEL ÅPNES.
STIRR IKKE INN I STRÅLEN ELLER SE DIREKTE MED OPTISKE INSTRUMENTER.
OSYNLIG LASERSTRÅLNING NÄR DENNA DEL ÄR ÖPPNAD.
STIRRA EJ IN I STRÅLEN OCH BETRAKTA EJ STRÅLEN MED OPTISKA INSTRUMENT.
NÄKYMÄTÖNTÄ AVATTAESSA OLET ALTTIINA LASERSÄTEILYLLE.
ÄLÄ TUIJOTA SÄTEESEEN ÄLÄKÄ KATSO SITÄ OPTISEN LAITTEEN LÄPI.
CLASS 1 LASER PRODUCT
LASER KLASSE 1
LUOKAN 1 LASERLAITE
KLASS 1 LASER APPARAT
APPAREIL A LASER DE CLASSE 1
EN60825
• This label is attached to the bottom of the drive unit.
• Diese Aufschrift befinded sich auf der Bodenplatte des Gerätes. (For German)
• Märkningen återfinns på drivenhetens undersida. (For Sweden)
• Denne merkelappen er festet til undersiden av spilleren. (For Norway)
• Denne etiket er sat fast i bunden af drev-enheden. (For Denmark)
• Tämä etiketti on liimattu laitteen pohjaan. (For Finland)
• You can see this label on the bottom shield when removing the bottom cover.
• Dieser Aufkleber findet sich an der Bodenplatte nach Entfernen der Bodenabdeckung.
(For German)
• Ni kan finna denna etiketten på den undre delen när det nedersta locket tas bort.(For Sweden)
• De kan finne denne etiketten på undersiden når det nederste lokket fjernes. (For Norway)
• De kan finde denne etiket på undersiden når den nederste låg tages vak. (For Denmark)
• Tämä merkki näkyy pohjalevyssä kun poistat pohjansuojan. (For Finland)
• You can see this label on the upper shield when opening the top cover.
• Dieser Aufkleber ist auf der oberen Abschirmung sichtbar, wenn die obere Abdeckung geöffnet wird.
(For German)
• Ni kan finna dette märket på den övre skärmen när Ni öppnar den översta locken. (For Sweden)
• De kan finne dette merket på den øvre skjermen når De åper den øverste lokken. (For Norway)
• Denne mærkat kan ses på den øverste afskærmning, når topdækslet åbnes. (For Denmark)
• Tämä nimilappu näkyy yläsuojuksella, kun avaat kannen. (For Finland)
A-1
INTRODUCTION
SuperDisk diskette can store high capacity data (up to 83 disks of the standard FD).
This SuperDisk drive can read/ write the SuperDisk diskette and provides a full read/ write
compatibility with the standard 3.5 " 2DD/ 2HD (720 KB/ 1.44 MB).
System Requirements
• Computer
IBM PC-AT or Compatible
• Operating System
MS Windows 98 (Pre-installed)
TM
This drive unit uses SuperDisk diskettes which bear the following mark.
This mark is a trademark of Imation Corporation.
A-2
CHAPTER 1 PRECAUTIONS WHEN OPERATING
1.1 PRECAUTIONS WHEN TRANSPORTING
To avoid damages
* Keep the original packing materials for the drive unit.
* Prior to sending the drive unit, remove the disk from drive unit and repack
drive unit as it was originally packed.
1.2 INSTALLATION LOCATION
Do not expose unit to the following environments.
* High-temperature, high-humidity, extreme temperature changes.
* Dusty
* Excessive vibration/ sudden shock.
* Inclined place.
* Direct sunlight.
1.3 PRECAUTIONS FOR USE
* Never push or insert objects of any kind through the disk slot, never spill liquid
of any kind on the unit.
* Never use the Magnetic head cleaning kit. If you use it, it may shave the head. The
SuperDisk drive’s head is cleaned by itself.
* Do not place objects on the product.
* Do not attempt to repair this product yourself.
* Do not open or remove covers.
1.4 PRECAUTIONS FOR OPERATION
To avoid data read/ write error
* Do not move the drive unit during operation.
* Do not operate the unit immediately after a sudden increase in temperature.
* Do not use the SuperDisk drive with vertical installation.

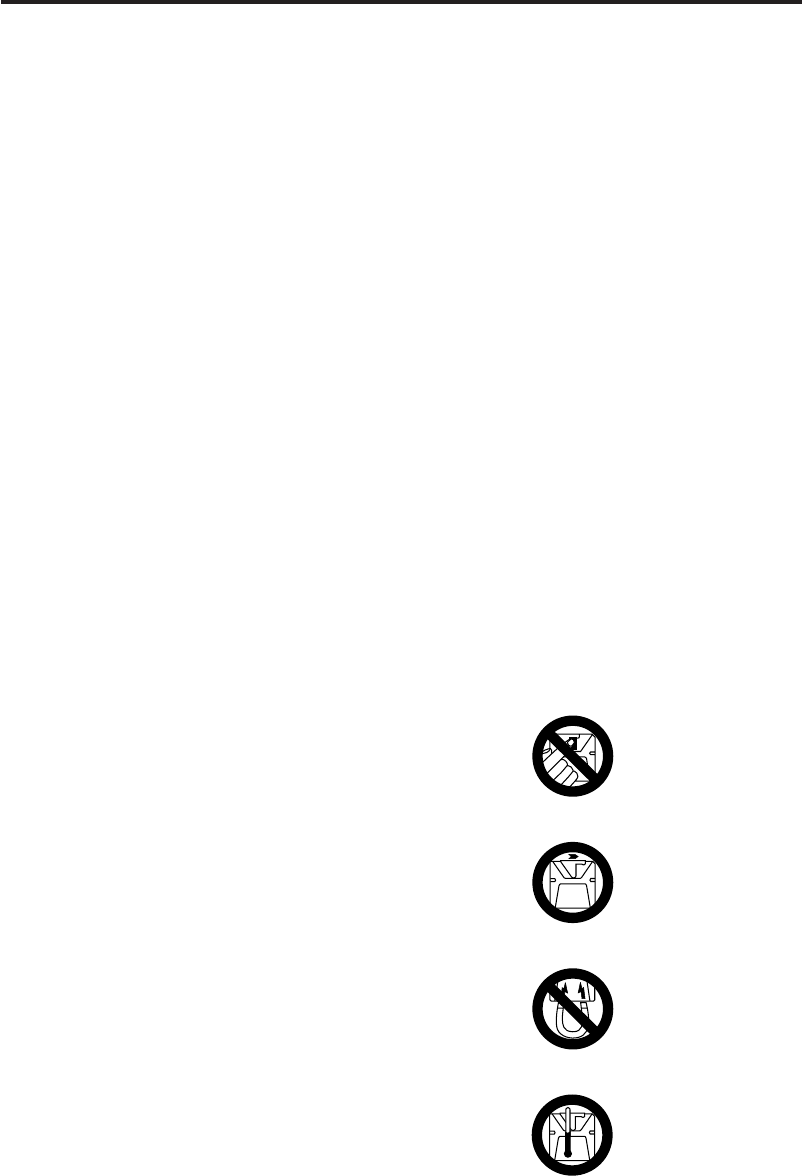

1.5 PRECAUTIONS WHEN HANDLING DISKS
➀Do not finger the magnetic disk through
the shutter.
➁While not using, ensure the disk shutter is
tightly closed to protect the magnetic
surface.
➂Keep away any magnetic instrument from
a disk.
➃Store a disk in the specified environment:
Temperature: 4 to 60 °C
Relative humidity: 8 to 90 %
Max. wet bulb temp. is 29 °C
No moisture condensation
Never!
Protect
Never!
4-60°C ( 39-140°F)
A-3
BUSY
CHAPTER 2 PARTS AND FUNCTIONS

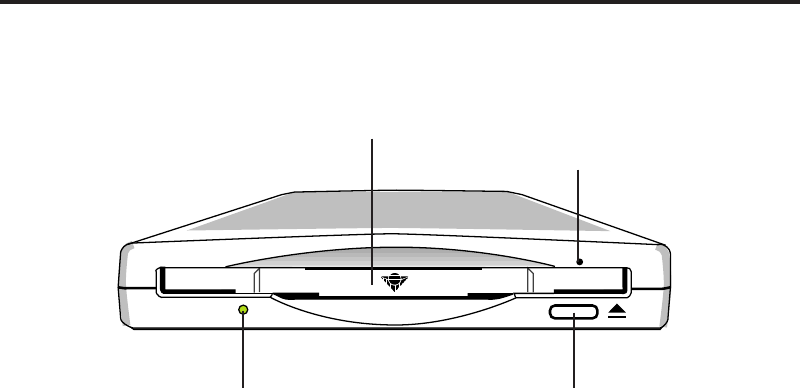

2.1 FRONT VIEW
➀ DISK SLOT
Insert a disk.
➁ BUSY INDICATOR
Lights while a command from host is executed. (including read/ write operations)
➂ EJECT BUTTON
Ejects a disk.
➃ EMERGENCY EJECT HOLE
Insert an instrument such as straightened paper clip pin into this hole to manually
eject a disk. (See 4.1)
➀
➁➂
➃
A-4
2.2 REAR VIEW
➀ POWER INDICATOR
Lights up while the drive power is on.
➁ DC (IN) CONNECTOR
Connects to 5V DC power source.
➂ USB CONNECTOR
Connects to host computer’s USB interface port.
DC IN 5V
+
–
INTERFACE
➀
➁ ➂
A-5
CHAPTER 3 CONNECTIONS
3.1 CONNECTING VIEW
INTERFACE
From 5V DC Power Source To USB Port on Host PC
5V DC Power Cable USB Interface Cable
Note :
When you connect the SuperDisk drive while the host computer power is on (hot-plug),
first, the SuperDisk drive must be plugged to 5 V DC power source, and next, plugged to USB
port on the host computer in the order.
When you disconnect, unplug in the reverse order. If not, the host computer may hang-up.
Rear Side
of the drive unit
The AC Adapter for this SuperDisk(LKM-RMB33) must be satisfied the below
requirements.
1. The AC Adapter has been certified to conform to the requirements of the relevant
regulations.
2. The AC Adapter output is supplied through SELV (Safety Extra Low Voltage) circuit and
Limited Current circuit.
3. The AC Adapter output voltage and current value are the prescribed one.
A-6
Paper clip pin
Min. 45 mm
BUSY
CHAPTER 4 GUIDE TO OPERATION
4.1 INSTALLATIONS
• To start operation on drive.
➀Turn on the power supply of Host PC.
➁ Plug the 5V DC cable and USB interface cable from Host PC to the SuperDisc
drive. (Refer the previous page)

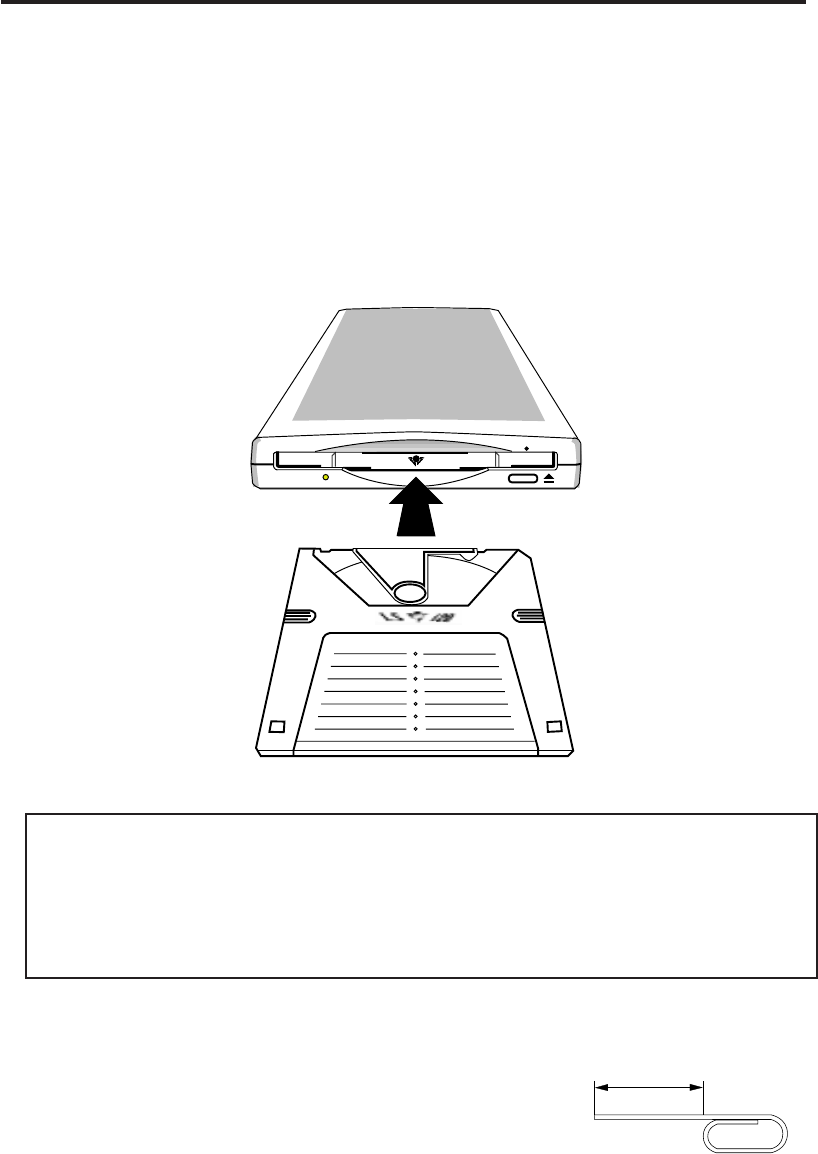

➂Insert a disk into the disk slot with the disk’s label facing up and the shutter side
heading as shown in the figure below.
CAUTION:
• Do not insert any foreign objects into the disk slot. This could result in a
malfunction.
• Do not press down hard on a disk when inserting the disk, because this may cause
damages or malfunction to the disk and/or the drive unit.
• In case of emergency, eject the disk manually
If for some reason the disk does not eject automatically,
press the eject-bar (for example, insert a straightened paper
clip pin with minimum straight length = 45 mm, Diameter =
1 ~ 1.3 mm) into the emergency eject hole to eject the disk.
(Before proceeding with this emergency step, make sure
that the power is switched OFF.)
A-7
CHAPTER 5 GENERAL DESCRIPTION
5.1 SUMMARY OF FEATURES
➀High Data Storage Capacity (with SuperDisk diskette)
➁Full read/ write compatibility with the standard 2DD/ 2HD (720 KB/ 1.44 MB)
➂Embedded USB Interface
➃Slim Stand Alone Design
➄Horizontal Installation Type
5.2 SYSTEM SET UP
The USB technology Devices are fully hot-pluggable to the USB-enabled computer.
The SuperDisk drive with USB interface is able to be attached to host computer and
used without turning off or rebooting the computer.
5.3 POWER SAVING (Standby Mode)
➀When the drive waits for a command from the Host for more than four seconds,
then the drive enters Power Save Mode. Laser and Spindle motor stop.
➁Restart is automatic when the Host Command is acknowledged.
NOTE :
• USB : Universal Serial Bus.
• MS Windows is a registered trademark of Microsoft Corporation.
• IBM PC-AT is a registered trademark of International Business Machines
Corporation.
•SuperDisk and the SuperDisk logo are trademarks of Imation Corporation.
A-8
CHAPTER 6 SPECIFICATION SUMMARY
6.1 PERFORMANCE
➀Disk Diameter 3.5 inches
➁Disk speed
720 r/min
➂Storage Capacity (Formatted)
120 MBytes (SuperDisk)
720 KB/1.44 MBytes (2DD/ 2HD)
➃Recording Density 33.8 k FCI (SuperDisk)
➄Track Density 2490 TPI (SuperDisk)
➅Typical Sustained Transfer Rate from Disk
266 ~ 479 KBytes/ s (SuperDisk)
➆Seek Time (average) 70 ms typical
MTBF 15,000 POH (@duty 25 %)
6.2 ERROR RATES
• Hard read errors Less than 10 -12
6.3 GENERAL PERFORMANCE
➀Power requirement +5 V 1.2 A
➁Dimensions (W x H x D) 111 x 21.5 x 167 mm
➂Weight 370 g typ.
6.4 ENVIRONMENTAL CONDITIONS
Operating Non-operating
• Temperature 5 ~ 35 °C –10 ~ 60 °C
• Humidity 20 ~ 80 %Rh 20 ~ 80 %Rh
(Non-condensation) (Non-condensation)
Note: The Media specification limits the environment to a wet bulb temperature
of 29.4 deg.C (85 deg.F)
6.5 PICK UP LASER
• Type Semiconductor laser GaAlAs
• Wave Length 795 ± 20 nm
• Divergence
θ
v
= 30° ~ 36°
• Output power 3.6 mW
A-9
CHAPTER 7 BEFORE REQUESTING SERVICE
7.1 TROUBLESHOOTING
(1) There are many kinds of problems caused by misuses. When a problem occurs,
check the table below which describes possible problems occurring with your
SuperDisk drive.
(2) If the SuperDisk drive does not operate correctly and you cannot restore operation
by the following detailed procedures in the table, do not remove the cover of the
units or adjust further.
(3) In the case of (2) above, unplug the unit and consult with your dealer or the nearest
service station.
TROUBLE
• SuperDisk drive does not
operate and Busy Indicator
does not light.
CORRECTION
➀Ensure that the DC power cable has been plugged
surely.
➁Ensure that the USB connection between the SuperDisk
drive and the host computer is correct.
➂Ensure that the Device Driver installation has been
completed.
➃Ensure that the disk has been inserted label side up and
shutter side head.
➄Ensure that foreign objects are not inserted.
A-10
APPENDIX
Installation of the SuperDisk Device Driver for Windows 98
1. Turn on the personal computer and start Windows 98.
2. Set the SuperDisk driver disc in your CD-ROM drive.
3. Open the Run… window from the Start menu.
4. Type "A:\SETUP.EXE" and press OK. (assumes that your drive is designed "A")
5. Follow the procedures displayed on the screen to install SuperDisk Device Driver.
This Device Driver software must be installed into your host computer before operating the
SuperDisk drive.
Formatting of SuperDisk / 2DD or 2HD disk for Windows 98
1. Insert a disk that you wish to format into the SuperDisk drive.
2. Right-click on the " 3 1/2 Floppy " icon.
3. Left-click on the " Format utility For SuperDisk ".
4. " Format Utility for SuperDisk " window appears.
Follow the procedures displayed on the screen to perform formatting of disk.
Note : Low-level formatting for SuperDisk disk is not supported.
(You can also use the Formater attached with Windows 98)
Weight and dimensions shown are approximate.
Specifications are subject to change without notice.
Created by MKE in Japan
