Step 3 Connections
≥Turn off all equipment before connection and read the appropriate owner’s manual.
Do not connect the AC power supply cord until all other connections are complete.
∫HDMI
The HDMI connection supports VIERA Link “HDAVI Control” (>25) when used with a compatible Panasonic TV.
≥Use the High Speed HDMI Cables. It is recommended that you use Panasonic’s HDMI cable.
Recommended part number (High Speed HDMI cable):
RP-CDHS15 (1.5 m/4.9 ft), RP-CDHS30 (3.0 m/9.8 ft), RP-CDHS50 (5.0 m/16.4 ft), etc.
≥Non-HDMI-compliant cables cannot be utilized.
Verify if the TV’s HDMI terminal is labeled “HDMI (ARC)”.
∫What is ARC?
ARC is an abbreviation of Audio Return Channel, also known as HDMI ARC. It refers to one of the HDMI functions. When you
connect the main unit to the terminal labeled “HDMI (ARC)”, the optical digital audio cable that is usually required in order to
listen to sound from a TV is no longer required, and TV pictures and sound can be enjoyed with a single HDMI cable.

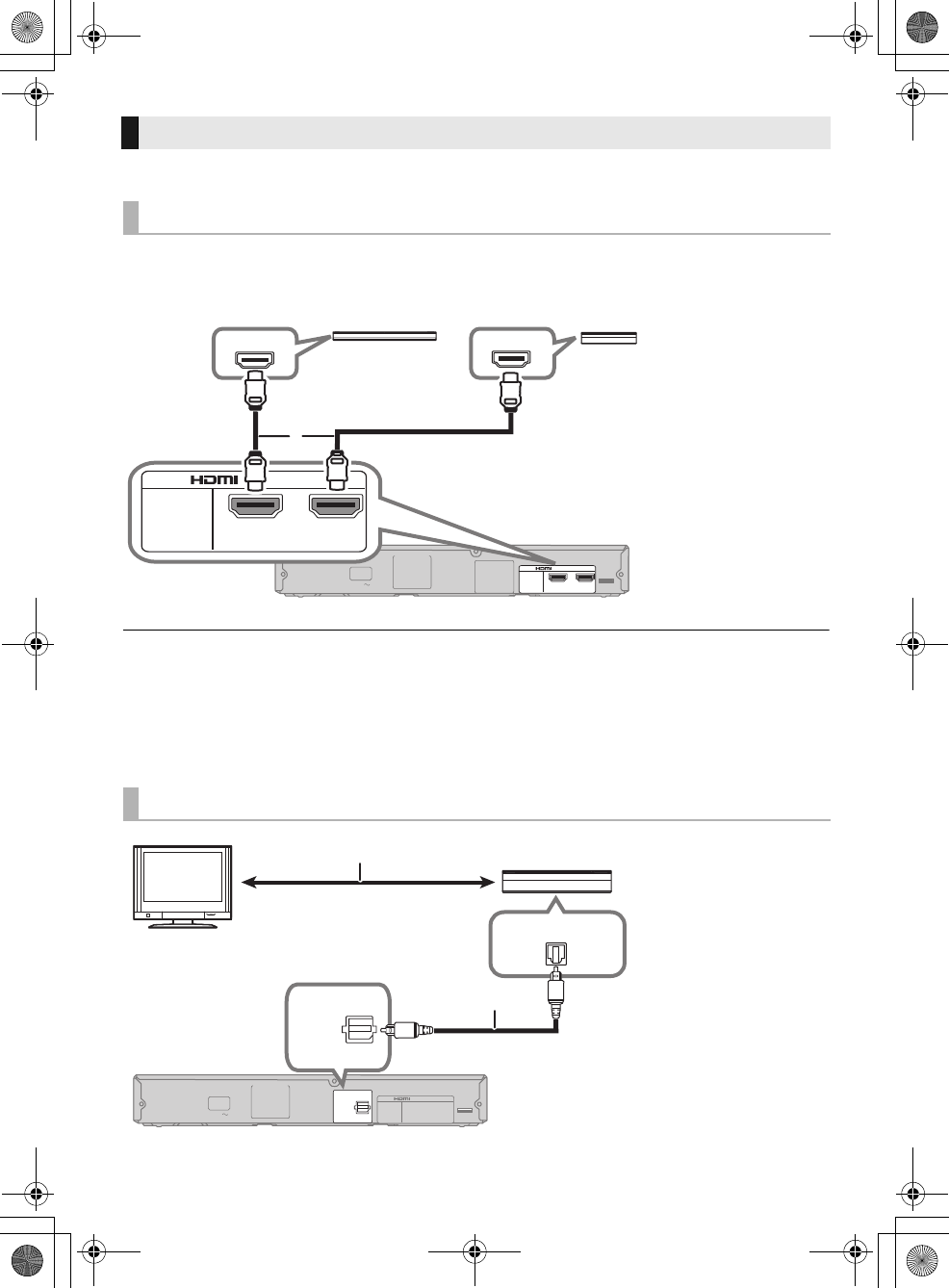

Make the connection.

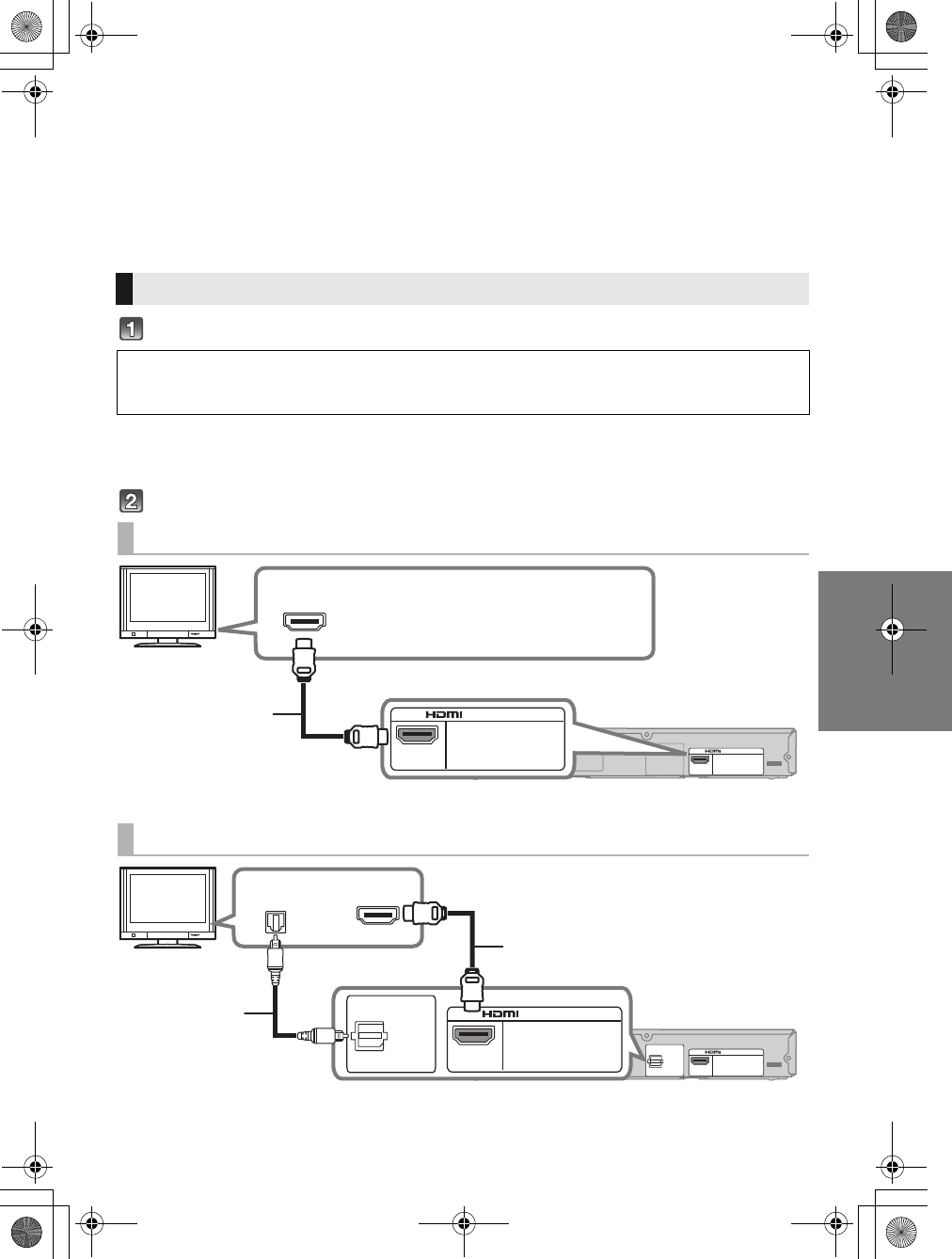

Connection with the TV
Connection differs depending on the label printed next to the HDMI terminal.
Labeled “HDMI (ARC)”: Connection [A]
Not Labeled “HDMI (ARC)”: Connection [B]
[A] Labeled “HDMI (ARC)”
HDMI cable
[B] Not labeled “HDMI (ARC)”
HDMI cable
Optical digital audio cable
≥When you use the optical digital audio cable, insert the tip correctly into the terminal.
SPEAKERS / HAUT-PARLEURS
AV OUT
DIGITAL
AUDIO
IN
TV (ARC)
AC IN
HDMI IN
(ARC)
AV IN
TV (ARC)
BD/DVD
(HDMI1)
BD/DVD
(HDMI1)
AUX1
(HDMI2)
AV OUT
TV
Main unit
Be sure to connect to the TV’s ARC
compatible terminal. (Refer to the
operating instructions for the TV.)
SPEAKERS / HAUT-PARLEURS
6
R
L
AV OUT
DIGITAL
AUDIO
IN
TV
(OPT1) TV (ARC)
AC IN
HDMI IN
OPTICAL
OUT
TV (ARC)
AV OUT
DIGITAL
AUDIO
IN
TV
(OPT1)
TV
Main unit
SC-HTB550_RQT9660_mst.book Page 19 Tuesday, December 20, 2011 1:55 PM
20 RQT9660
You can direct the audio signal from the connected Blu-ray Disc playerTM, DVD player, Set Top Box, etc.
to this system.
Preparation
≥Connect the main unit to the TV (>19).
∫HDMI standby pass-through
Even if the main unit is in standby mode, the audio and/or video signal from the device connected to the BD/DVD or AUX1
terminal will be sent to the TV connected to the HDMI OUT terminal (the sound will not be output from this system). When
devices are connected to both BD/DVD and AUX1 terminals, audio and/or video signal of the device whose input is lastly
selected is output.
∫3D compatibility
Compatible with FULL HD 3D TV and Blu-ray Disc playerTM.
≥The main unit can pass the 3D video signal from a 3D compatible Blu-ray Disc playerTM to a FULL HD 3D TV.
Connection with other devices
When the device has an HDMI terminal
HDMI cable
When the device has an optical digital audio output terminal
Refer to the operating
instructions of the
respective devices for
the optimal connection
Optical digital audio
cable
HDMI OUT HDMI OUT
SPEAKERS / HAUT-PARLEURS
AV IN
DIGITAL
AUDI O
IN
BD/DVD
(HDMI1)
BD/DVD
(HDMI1)
AUX1
(HDMI2)
AC IN
AV IN
BD/DVD
(HDMI1)
BD/DVD
(HDMI1)
AUX1
(HDMI2)
e.g., Video game console
Main unit
e.g., Blu-ray Disc playerTM
OPTICAL OUT
SPEAKERS / HAUT-PARLEURS
DIGITAL
AUDIO
IN
AUX2
(OPT2)
AC IN
DIGITAL
AUDIO
IN
AUX2
(OPT2)
e.g., Set top box
Main unit
TV
SC-HTB550_RQT9660_mst.book Page 20 Tuesday, December 20, 2011 1:55 PM
Getting started
RQT9660 21
Match the connector shape and connect to the terminals of the same color.
≥Connect only after all other connections are complete.
≥The main unit and active subwoofer consume a small amount of AC power, even when it is turned off
(this unit: approx. 0.1 W, active subwoofer: approx. 0.1 W). In the interest of power conservation, if you
will not be using this system for a long time, unplug it from the household AC outlet.

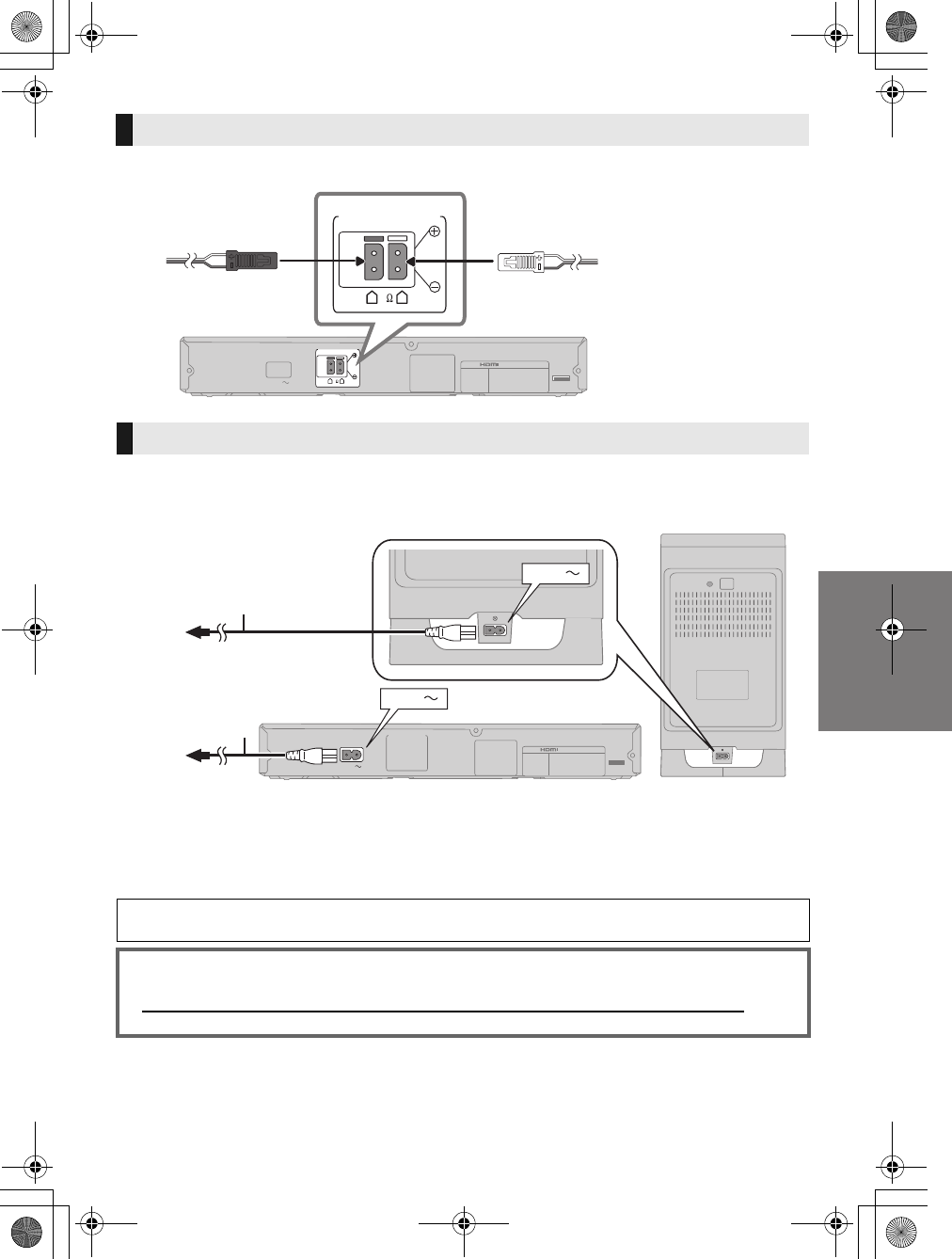

Speaker cable connection
RED
Right speaker channel (R)
WHITE
Left speaker channel (L)
AC power supply cord connection
AC power supply cord To a household AC outlet
Install this unit so that the power cord can be unplugged from the socket outlet immediately if any
problem occurs.
Saving energy
The main unit is designed to conserve its power consumption and save energy.
≥The main unit will automatically switch to standby mode when
no signal is input and no operation is performed for approx. 30 minutes.
Main unit
AC IN
SPEAKERS / HAUT-PARLEURS
DIGITAL
AUDIO
IN
AC IN


AC IN
Main unit
Active subwoofer
SC-HTB550_RQT9660_mst.book Page 21 Tuesday, December 20, 2011 1:55 PM
22 RQT9660
Preparation

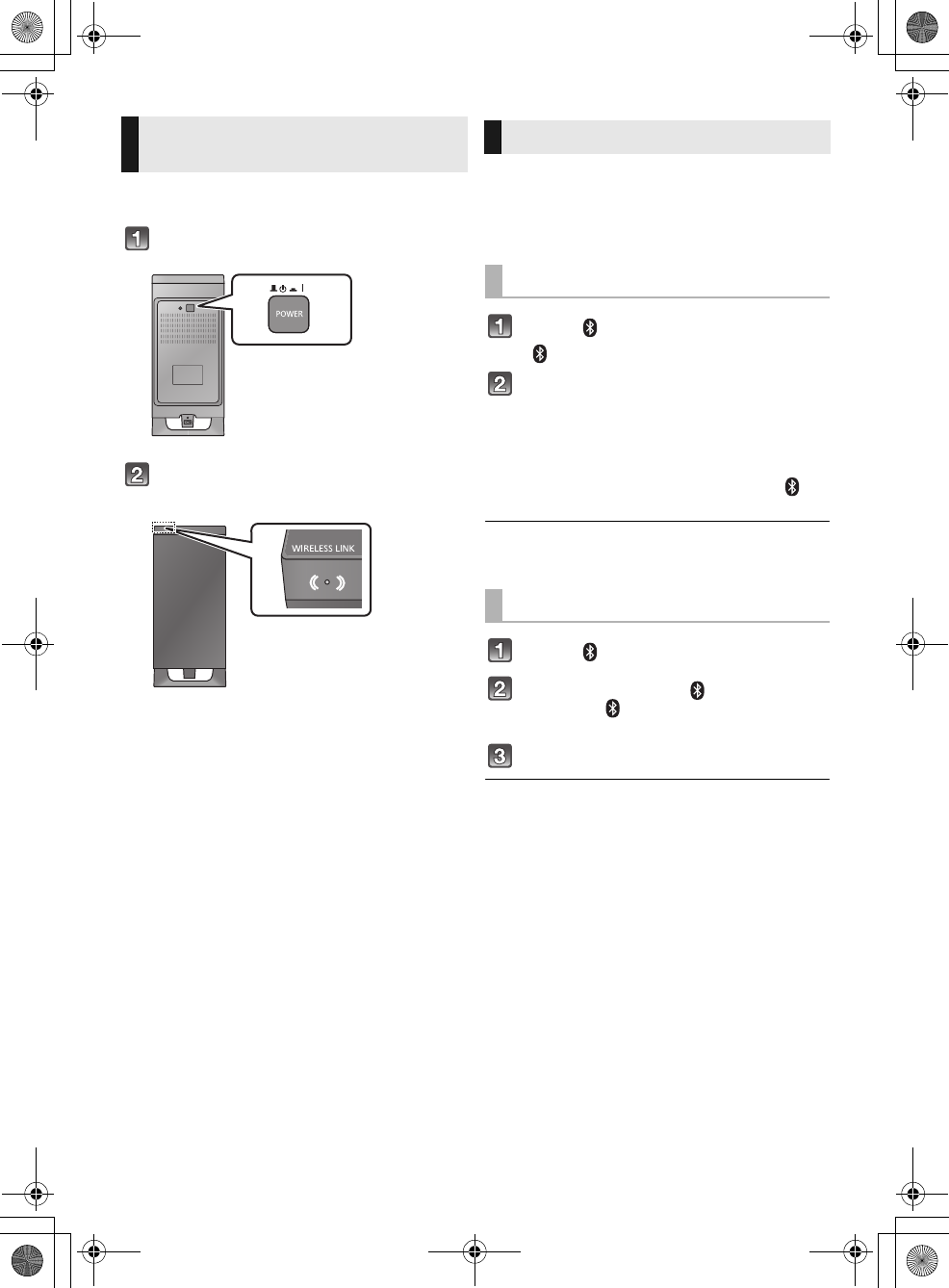

≥Turn on the main unit.
Press [BÍ CI].
Check that the wireless link is
activated.
WIRELESS LINK indicator lights
≥Red:
The wireless link is not activated.
≥Green:
The wireless link is activated.
The unit will still consume a small amount of power
even when it is turned off (B, Í)
With the Bluetooth® connection you can output the
audio from the connected wireless device.
Preparation
≥Turn on the Bluetooth® feature of the device and
place the device near this unit.
Press [, j PAIRING].
≥“” indicator will blink quickly.
Select “SC-HTB550” from the
Bluetooth® device’s Bluetooth®
menu.
≥Refer to the operating instructions of the Bluetooth®
device for further instruction on how to connect a
Bluetooth® device.
≥Once the Bluetooth® device is connected, the “ ”
indicator stops flashing and lights up.
≥If prompted for the passkey on the Bluetooth® device, enter
“0000”.
Press [, j PAIRING].
Press and hold the [ , j PAIRING]
until the “ ” indicator flashes
quickly.
Repeat step 2 of “Pairing a device”.
≥You can register up to 6 devices with this unit. If a 7th device
is paired, the device that has not been used for the longest
time will be replaced.
≥This unit can only be connected to one device at a time.
≥To change the sound quality, refer to “Bluetooth®
communication mode” on page 26.
Active subwoofer wireless
connection
Bluetooth® connection
Pairing a device
Pairing additional devices
SC-HTB550_RQT9660_mst.book Page 22 Tuesday, December 20, 2011 1:55 PM
Getting started
Operations
RQT9660 23
Operations
Using this unit
Preparation
≥Turn on the TV and/or connected device.
Press [Í] to turn on the main unit.
Select the source.
≥This remote control cannot be used to control the operations
of the connected devices.
∫When “ ” is selected as the source
On the Bluetooth® device:
Select this unit as the output source of the Bluetooth®
device and start the playback.
≥Make sure that the Bluetooth® device is already paired with
this unit. (>22)
≥Playback may pause when a different source is selected.
∫When “BD/DVD” or “AUX1” is
selected as the source
On the connected device:
Select the TV’s input for this unit and start the playback on
the connected device.
∫When “AUX2” is selected as the
source
On the connected device:
Select the TV’s input for the device connected to “AUX2”
terminal and start the playback on the connected device.

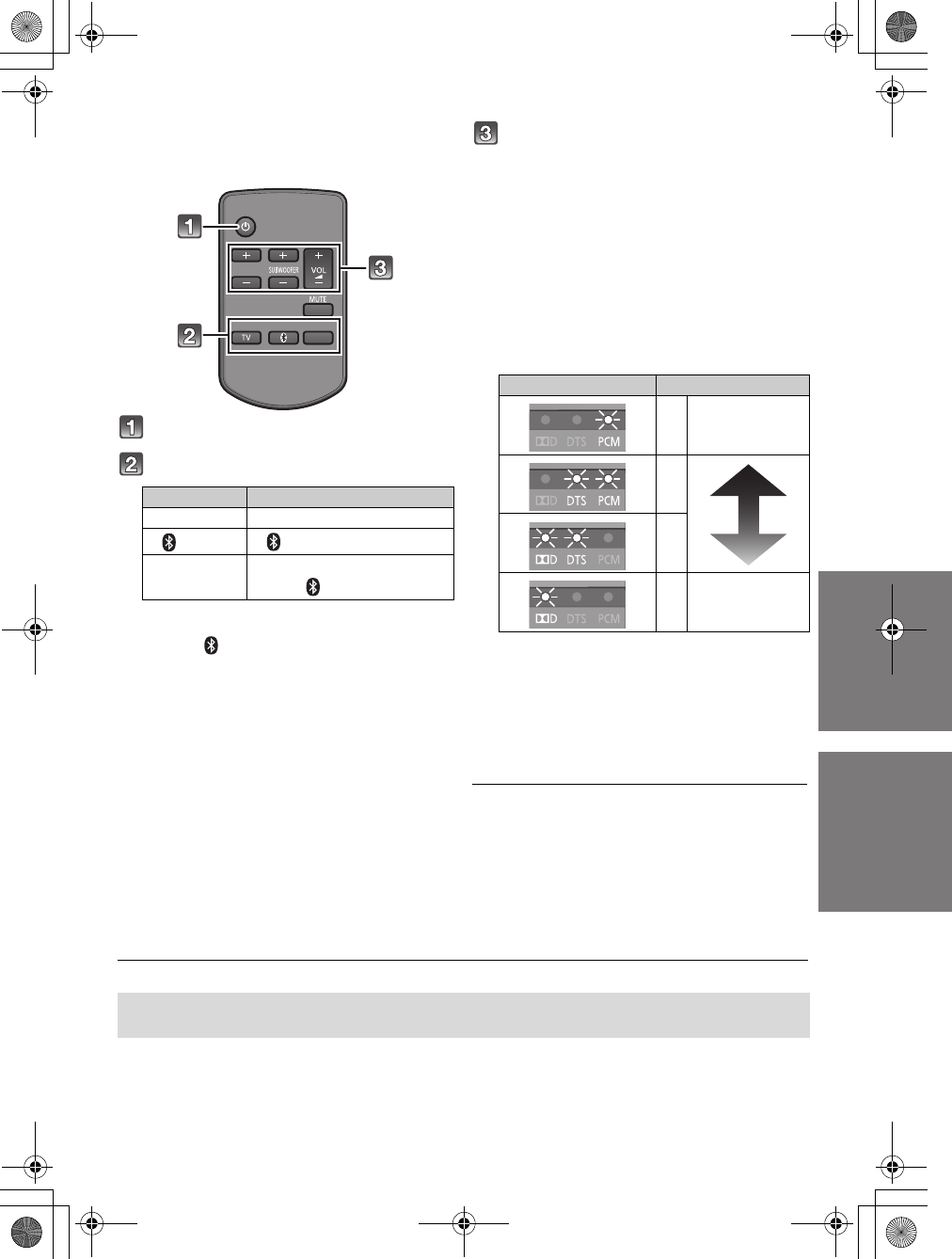

Adjust the volume and sound effect
level.
∫To adjust the volume of the system
Press [iVOL j].
≥Volume range: 1 to 100§
∫To adjust the dialog effect level
This setting will change the level of the Clear-
mode dialog effect. (>24)
1 Press [iDIALOG LEVEL j] to display the
current level.
2 While the level is displayed:
Press [iDIALOG LEVEL j] to adjust the
level.§
∫To adjust the subwoofer level
1 Press [iSUBWOOFER j] to display the
current level.
2 While the level is displayed:
Press [iSUBWOOFER j] to adjust the
level.§
≥The level indication pattern is the same as dialog effect
level.
∫To mute the sound
Press [MUTE]
≥While muting, the audio format indicators blink
simultaneously.
≥To cancel, press the button again or adjust the volume.
≥Muting is canceled if the main unit is turned off.
§The audio format indicators blink from left to right (i) or from right to left (s) while adjusting.
The indicators will not blink when it has reached the maximum or minimum.
≥If there is sound coming out of the TV’s speakers, reduce the volume of the TV to its minimum.
≥If the main unit is turned off with the volume setting in the greater half (above 50), the main unit will automatically lower the
volume to the middle (50) when the main unit is turned on (Volume limitation).
To turn this function off, refer to page 27.
Press To select
[TV] “TV”
[] “ ” (Bluetooth®)
[INPUT
SELECTOR]
“TV”# “BD/DVD”#“AUX1”
^---- “”(--- “AUX2”(-}
DIALOG LEVEL
LINK MODE
PAIRING
----
INPUT
SELECTOR
Indication Effect level
4Highest
3
2
1Lowest
If the main unit does not operate as expected or sound is unusual, return the settings to the
factory preset and operate the system again. (>28)
SC-HTB550_RQT9660_mst.book Page 23 Tuesday, December 20, 2011 1:55 PM
24 RQT9660

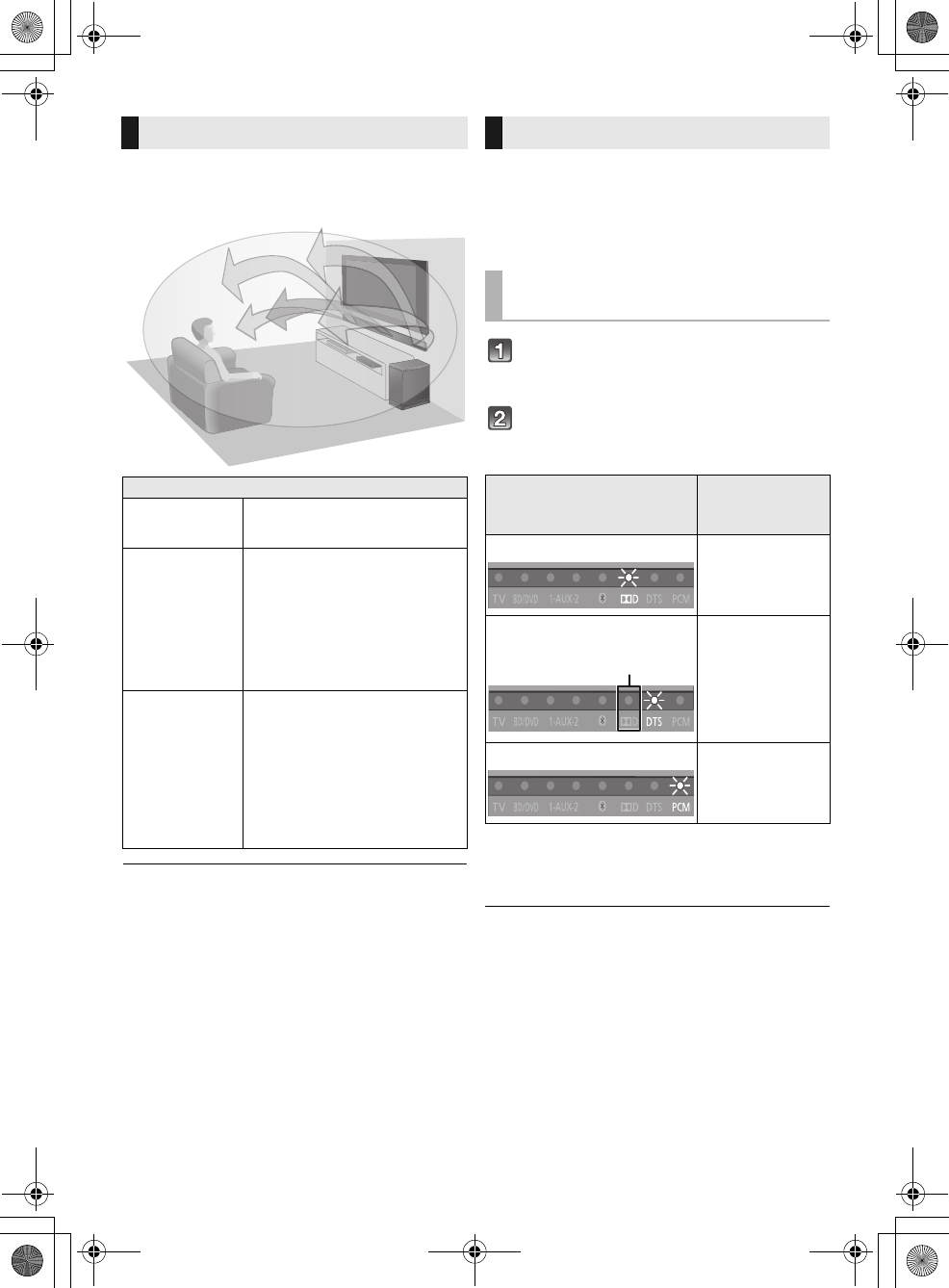

This system provides a feeling that the sound and the
image are as one. The 3D sound effect will be applied to
Multi-channel audio sources as a factory preset.
Dolby Virtual Speaker and the 3D surround effects can be
turned off and on by changing the audio output mode settings.
As a factory preset, Dolby Virtual Speaker and the 3D
surround effects will be applied to Multi-channel audio
sources, such as those from a Blu-ray Disc playerTM or
DVD player, etc.
By changing the audio output setting, it is possible to
apply the Dolby Virtual Speaker and 3D surround effects
to 2ch audio sources, such as the audio from the TV.
Press and hold [MUTE] for more than
2 sec.
≥The indicator for the current setting blinks for 10 sec.
While the indicator is blinking, press
[MUTE] again to change the setting.
≥The setting changes each time [MUTE] is pressed.
§1 Depending on the audio source, Dolby Virtual Speaker and
3D surround effect settings are automatically adjusted.
§2 This indicator will also light when the audio source is Multi-
channel audio.
When using the optical digital audio cable, Dolby Virtual
Speaker and the 3D surround effect will be temporarily
canceled if the audio signal’s sampling frequency is greater
than 48 kHz.
3D sound
3D sound
Dolby Virtual
Speaker
With this effect you can enjoy a
surround sound effect similar to
5.1ch.
3D surround
effect
Adding to the Dolby Virtual
Speaker effect, Panasonic has
applied its own sound field
controlling technology to expand
the sound field forwards,
backwards, upwards, and
downwards, providing a sound
with depth and force that better
matches 3D images.
Clear-mode
dialog
Sports commentary and dialogs
from TV dramas are heard as if the
sound is coming from the TV,
giving the feeling that the sound
and the image are one.
Also, the dialog will stand out from
the other sounds during normal
volume playback and when the
volume is lowered for night time
viewing.
e.g., Image of 3D sound field
Audio output modes
To change the audio output
mode
Audio output mode
Dolby Virtual
Speaker and 3D
surround effect
Multi-channel mode The effects are
applied to all audio
sources.
Auto mode (Direct mode)§1
(Factory preset)
The effects are
applied to Multi-
channel audio
sources.
The effects are not
applied to 2
channel audio
sources.
2ch mode The effects are not
applied to any
audio source.
2
SC-HTB550_RQT9660_mst.book Page 24 Tuesday, December 20, 2011 1:55 PM
Operations
RQT9660 25
Linked operations with the TV
(VIERA LinkTM “HDAVI ControlTM”)
Preparation
1Confirm that the HDMI connection has been made.
(>19)
2Set the “HDAVI Control” operations on the connected
equipment (e.g., TV).
3For the optimal “HDAVI Control” operations change
the following settings on the connected TV§1.
≥Set the default speaker settings to this system.§2
≥Set the speaker selection settings to this system.
4Turn on all “HDAVI Control” compatible equipment
and select the TV’s input for this system so that the
“HDAVI Control” function works properly.
5If a device is connected to the HDMI IN terminal, start
play to check that the picture is displayed on the TV
correctly.
When the connection or settings are changed,
repeat this procedure.
§1 The availability and function of the settings may vary
depending on the TV. Refer to the operating instructions
for the TV for details.
§2 If the TV has a default speaker setting within the VIERA
Link setting items, choosing this system as the default
speaker will automatically change the speaker selection to
this system.
≥VIERA Link “HDAVI Control”, based on the control functions
provided by HDMI which is an industry standard known as
HDMI CEC (Consumer Electronics Control), is a unique
function that we have developed and added. As such, its
operation with other manufacturers’ equipment that
supports HDMI CEC cannot be guaranteed.
≥This unit supports “HDAVI Control 5” function.
“HDAVI Control 5” is the newest standard (current as of
November, 2011) for Panasonic’s HDAVI Control compatible
equipment. This standard is compatible with Panasonic’s
conventional HDAVI equipment.
≥Please refer to individual manuals for other manufacturers’
equipment supporting VIERA Link function.
To make sure that the audio is output from this system,
turn the main unit on by using the TV’s remote control and
selecting home theater from the speaker menu of VIERA
Link menu. The availability and function of the settings
may vary depending on the TV. Refer to the operating
instructions for the TV for details.
∫Speaker control
You can select whether audio output is from this system or
the TV speakers by using the TV menu settings.
Home theater
This system is active.
≥When this system is in standby mode, changing the TV
speakers to this system in the VIERA Link menu will
automatically turn this system on and select TV as the
source.
≥You can control the volume setting of this system using the
volume or mute button on the TV remote control.
≥If you turn off this system, TV speakers will be automatically
activated.
≥Audio will automatically be output from this system if the TV
is compatible to VIERA Link “HDAVI Control 4” or later.
TV
TV speakers are active.
≥The volume of this system is set to its minimum.
∫Automatic input switching
When the following operations are performed, this system
will automatically change the input to the corresponding
source.
jWhen play starts on an HDMI connected device.§3
jWhen the TV input or the TV channel is changed.
§3 If the speaker output setting on the TV is set to this
system, the TV and this system turn on automatically
(Power on link).
∫Power off link
When the TV is turned off, the main unit also turns off
automatically. (This function does not work when
Bluetooth® is the source.)
∫Automatic lip-sync function
(for HDAVI Control 3 or later)
Delay between audio and video is automatically adjusted
by adding time-lag to the audio output, enabling you to
enjoy smooth audio for the picture.
The delay information is automatically set if the TV is
compatible to VIERA Link “HDAVI Control 3” or later and the
VIERA Link is set to on.
What is VIERA Link “HDAVI
Control”?
VIERA LinkTM is a new name for EZ SyncTM.
VIERA Link “HDAVI Control” is a convenient
function that offers linked operations of this
unit, and a Panasonic TV (VIERA) under
“HDAVI Control”.
You can use this function by connecting the
equipment with an HDMI cable. See the
operating instructions for connected
equipment for operational details.
What you can do with
VIERA Link “HDAVI
Control”
SC-HTB550_RQT9660_mst.book Page 25 Tuesday, December 20, 2011 1:55 PM
26 RQT9660
Advanced operations
Change the dual audio from main to secondary.
Confirm the digital audio output
setting on the connected TV or
player, etc. is set to “Bitstream”.
Press and hold [TV] for more than 2
sec.
While the indicator of the current
setting is blinking, press [TV] to
change the setting.
≥The indicator for the current setting blinks for 10 sec.
≥The setting works only when the dual audio is available
in the audio source.
≥The setting is maintained until it is changed again.
≥The same setting is used for all digital audio sources.
With this function, you can prevent sudden loud sounds.
The output will be reduced automatically when the input
exceeds a certain level.
Press and hold [INPUT SELECTOR]
on remote controller for more than 2
sec.
≥The indicator for the current setting blinks for 10 sec.
While the indicator is blinking, press
[INPUT SELECTOR] to change the
setting.
≥The setting changes each time [INPUT SELECTOR] is
pressed.
≥The setting is maintained until it is changed again.
≥Default setting of this function is OFF.
You can select different modes to suit the type of
connections which emphasis on connectivity or high
quality audio.
≥Make sure that a Bluetooth® device is already paired
with this unit. (>22)
Disable the Bluetooth® connection of
the device.
≥“” indicator will blink slowly.
Press [LINK MODE, ] to display the
current mode.
≥The indicator for the current setting blinks for 10 sec.
While the mode is displayed, press
[LINK MODE, ] to select the mode.
≥The setting changes each time [LINK MODE, ] is
pressed.
≥The setting is maintained until it is changed again.
Depending on your preference, It is possible to use only
the Dolby Virtual Speaker effect by turning off the 3D
surround effect and the clear-mode dialog effect.
Press and hold [TV] on the remote
control and [VOL r] on the main unit
for more than 2 sec.
≥The indicator for the current setting blinks for 10 sec.
While the indicator is blinking, press
[TV] to change the setting.
≥The setting changes each time [TV] is pressed.
≥This setting will be reset to on when this system is
turned off.
≥When off is selected, the dialog effect level cannot be
adjusted.

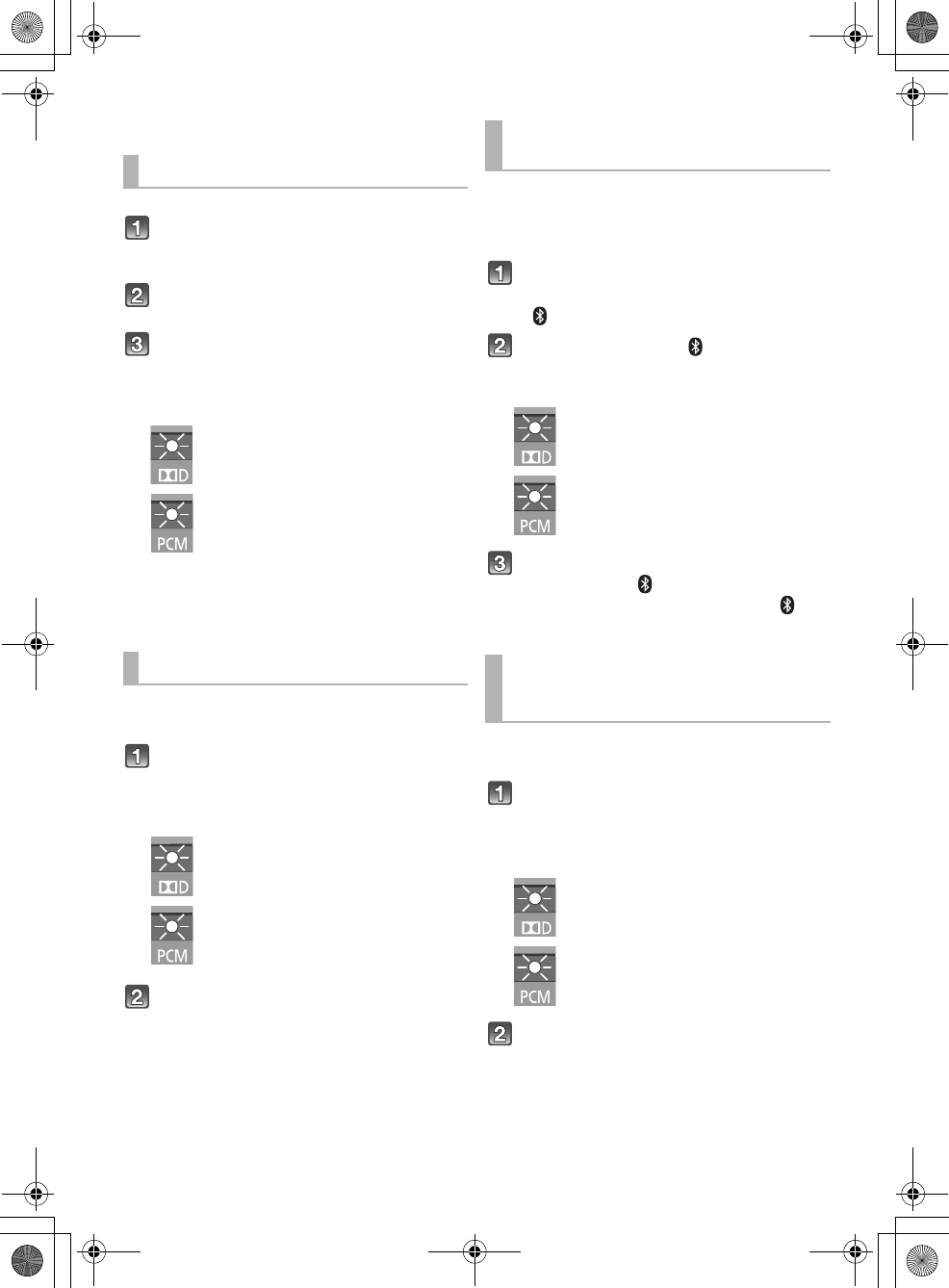

Changing the dual audio
: Main
: Secondary
(SAP: Secondary Audio Program)
, : Main and secondary
Auto gain control
Dolby Digital indicator blinks:
Auto gain control is on.
PCM indicator blinks:
Auto gain control is off.
Bluetooth® communication
mode
MODE1: (Factory preset)
Emphasis on connectivity
MODE2:
Emphasis on audio quality
To turn off the 3D surround
effect and clear-mode
dialog effect
Dolby Digital indicator blinks:
3D surround effect and clear-
mode dialog effect is on.
PCM indicator blinks:
3D surround effect and clear-
mode dialog effect is off.
SC-HTB550_RQT9660_mst.book Page 26 Tuesday, December 20, 2011 1:55 PM
Operations
RQT9660 27
∫Remote control code
When other Panasonic devices respond to this system’s
remote control, change the remote control code on the
main unit and the remote control.
Preparation
≥Turn off all other Panasonic products.
≥Turn on the main unit.
Change the remote control code to code 2:
1 Aim the remote control at this system’s remote
control sensor.
2 Press and hold [MUTE] and [ ] on the remote
control for more than 4 sec.
≥All the indicators will blink for 10 sec when the code of
this system is changed.
≥The setting is maintained until it is changed again.
≥If this system does not operate after changing the code,
repeat steps 1 and 2.
≥To change the remote control code to code 1, repeat the
steps above, but replace [] with [TV].
∫To reduce the clear-mode dialog effect
When the dialog does not sound natural while the volume
is set low, for example, It is possible to reduce the dialog
enhancing effect as follows:
Press and hold [TV] on the remote control and [sVOL] on
the main unit for more than 2 sec.
≥All the indicators will blink once when the clear-mode dialog
effect is reduced.
≥Even if clear-mode dialog effect is reduced, dialog effect
level is still adjustable.
∫To turn off VIERA Link “HDAVI
Control”
When “HDAVI Control” compatible equipment does not
work well with this system, for example, it is possible to
turn off this function as follows:
≥When VIERA Link is turned off the ARC function is not
available. Be sure to connect the optical digital audio
cable. (>19)
1 Press and hold [MUTE] on the remote control
and [sVOL] on the main unit for more than 2
sec.
2 After the setting has changed, turn off all the
connected devices and then turn them on
again.
≥All the indicators will blink once when VIERA Link “HDAVI
Control” is turned off.
∫To turn off the volume limitation
If a state of the lowered volume disturbs you every time
this system turns on, for example, it is possible to turn off
this function as follows:
Press and hold [MUTE] on the remote control and
[VOL r] on the main unit for more than 2 sec.
≥All the indicators will blink once when the volume limitation
is turned off.
The settings of the clear-mode dialog effect, VIERA Link
“HDAVI Control”, and the volume limitation remain intact even
if you switch this system to standby mode. To turn these 3
functions back on, this system must be set back to the factory
preset. (>28)
Others
The following settings are unnecessary under
general usage conditions of the system.
SC-HTB550_RQT9660_mst.book Page 27 Tuesday, December 20, 2011 1:55 PM
28 RQT9660
Referenc e
Troubleshooting
Before requesting service, make the following checks. If
you are in doubt about some of the check points, or if the
solutions indicated in the following guide do not solve the
problem, refer to “Customer Services Directory (United
States and Puerto Rico)” on page 34 if you reside in the
U.S.A. or Puerto Rico, or refer to “WARRANTY SERVICE”
on page 35 if you reside in Canada.
No power.
≥Insert the AC power supply cord securely. (>21)
≥After turning the main unit on, if the indicators blink and
the main unit immediately turns off, unplug the AC
power supply cord and consult your dealer.
The remote control does not work properly.
≥The battery is depleted. Replace it with a new one.
(>7)
≥It is possible that the insulation sheet has not been
removed. Remove the insulation sheet. (>7)
≥It may be necessary to set the code of the remote
control again after changing the battery of the remote
control. (>27)
≥Use the remote control within the correct operation
range. (>7)
The “TV” indicator blinks.
Remove the AC power supply cord and consult your
dealer. If there are any other indicators blinking, be sure to
inform your dealer about the blinking indicators.
The main unit is automatically switched to
standby mode.
The main unit will automatically switch to standby mode
when no signal is input and no operation is performed for
approx. 30 minutes. (>21)
The main unit is turned off when the TV’s
speakers are selected in the speaker control.
This is a normal feature when using VIERA Link (HDAVI
Control 4 or later). Please read the operating instructions
for the TV for details about its power save feature. (>25)
This system does not operate correctly.
If the HDMI cable is connected to the wrong terminal
(HDMI IN or HDMI OUT), this system will not operate
correctly. Turn the main unit off, disconnect the AC power
supply cord and reconnect the HDMI cable(s). (>19)
VIERA Link related operations no longer
function properly.
≥Check the VIERA Link setting on the connected
devices.
≥Have you turned the VIERA Link settings off? (>27)
≥When the HDMI connections are changed, after a
power failure or after the AC power supply cord has
been removed, VIERA Link operations may not function
properly.
jTurn on all the devices that are connected to the TV
with an HDMI cable and then turn the TV on.
jTurn off the VIERA Link settings of the TV and turn it
on again. For details refer to the operating
instructions for the TV.
jWhile this system and the TV are connected with the
HDMI cable, turn on the TV and then remove the
main unit’s AC power supply cord and reconnect it
again.
The first few seconds of audio cannot be heard
when using the HDMI connection.
This may occur during DVD-Video chapter playback.
Change the digital audio output setting on the connected
device from “Bitstream” to “PCM”.
When operating an HDMI compatible device of
a different brand, the main unit reacts in an
unwanted manner.
HDAVI Control commands may use a different signal
depending on the brand of the device. In this case, turn
VIERA Link off. (>27)
Pairing cannot be done.
Check the Bluetooth® device condition.
The device cannot be connected.
≥The pairing of the device was unsuccessful. Try pairing
the device again.
≥The pairing of the device has been replaced. Pair the
device again. (>22)
≥The system might be connected to a different device.
Disconnect the other device and try pairing the device
again.
The device is connected but audio cannot be
heard through the system.
For some built-in Bluetooth® devices, you have to set the
audio output to “SC-HTB550” manually. Read the
operating instructions for the device for details.
To return to the factory preset.
While the main unit is on, press [Í/I] on the main
unit for more than 4 sec.
(All the indicators will blink twice when the main
unit is reset.)
If the system does not operate as expected,
returning the settings to the factory preset
may solve the problem.
≥The remote control code will return to “1” when
the main unit is returned to the factory preset.
To change the remote control code, refer to
page 27.
General operation
HDMI
Bluetooth®
SC-HTB550_RQT9660_mst.book Page 28 Tuesday, December 20, 2011 1:55 PM
Reference
RQT9660 29
Sound from the device is uneven.
≥The device is out of the 10 m (33 ft) communication
range. Bring the device closer to the main unit.
≥Remove any obstacle between the main unit and the
device.
≥Switch off any wireless LAN device.
≥Select “MODE 1” for stable communication. (>26)
No sound (or image).
≥Turn muting off. (>23)
≥Check the connections to the other devices. (>19)
≥Make sure that the received audio signal is compatible
with this system. (>32)
≥Turn this system off and then on again.
≥If this system is connected to the TV with only an HDMI
cable, make sure that the TV’s HDMI terminal is labeled
“HDMI (ARC)”. If not, connect using the optical digital
audio cable. (>19)
≥If this system is connected to a Panasonic TV and
turned on using the button on the main unit or the
remote control, sound might not be output from this
system. In this case, turn the main unit on using the
TV’s remote control. (>25)
≥If the connections are correct, there might be a problem
with the cables. Redo the connections with different
cables.
≥Check the audio output settings on the connected
device.
≥If the AUX1 indicator flashes and there is no audio
output, try the following.
1Turn the connected device off and then on.
2Turn off this system, remove the HDMI cable, then
reconnect the HDMI cable and turn this system
back on.
The dual audio cannot be changed from main
to secondary.
If the audio received from the connected device is not
“Dolby Dual Mono” or the output setting is not “Bitstream”,
the setting cannot be changed from this system. Change
the setting on the connected device.
The volume is lowered when this system is
turned on.
If the main unit is turned off with the volume setting in the
greater half (above 50), the main unit will automatically
lower the volume to the middle (50) when the main unit is
turned on. (>27)
The dialog is too persistent or the dialog does
not sound natural.
This system has a function to make the dialog stand out
when the volume is low. (>27)
There is no audio.
The power of the main unit turns off
automatically.
(When the main unit detects a problem, a safety measure
is activated and the main unit automatically switches to
standby mode.)
≥There is a problem with the amplifier.
≥Is the volume extremely high?
If so, lower the volume.
≥Is this system placed in an extremely hot place?
If so, move this system to a cooler place and wait a few
moments and then try to turn it on again.
If the problem persists, confirm the TV indicator and AUX1
indicator blink, turn the system off, remove the AC power
supply cord and consult your dealer. Please be sure to
remember the indicators that were blinking and inform the
dealer.
No power.
Ensure the AC power supply cord of the active subwoofer
is connected properly.
After turning the subwoofer on, it immediately
turns off.
Unplug the AC power supply cord and consult your dealer.
No sound from the subwoofer.
≥Check that the active subwoofer is turned on.
≥Check that the wireless link indicator lights green.
(>22)
The wireless link indicator lights red.
≥There is no link between this unit and the active
subwoofer.
jCheck that this unit is turned on.
jTurn the active subwoofer off and then back on.
Alternatively, turn the active subwoofer off,
disconnect the AC power supply cord and then
reconnect it.
≥The active subwoofer and the main unit may not be
paired correctly. Try the following operation. (Wireless
pairing)
1Turn on the main unit and active subwoofer.
2Press [ID SET] on the rear of the active subwoofer.
(The WIRELESS LINK indicator will light red and
green alternately.)
3Press and hold [INPUT SELECTOR] on remote
control and [VOL r] on the main unit for more than
2 sec. (The BD/DVD indicator will blink and audio
format indicators light up in sequence.)
≥When the wireless pairing is successful, BD/DVD
indicator will stop flashing and WIRELESS LINK
indicator lights green.
4Turn the main unit off and on.
≥Consult your dealer if the problem persists.
Sound
Active Subwoofer
SC-HTB550_RQT9660_mst.book Page 29 Tuesday, December 20, 2011 1:55 PM
30 RQT9660

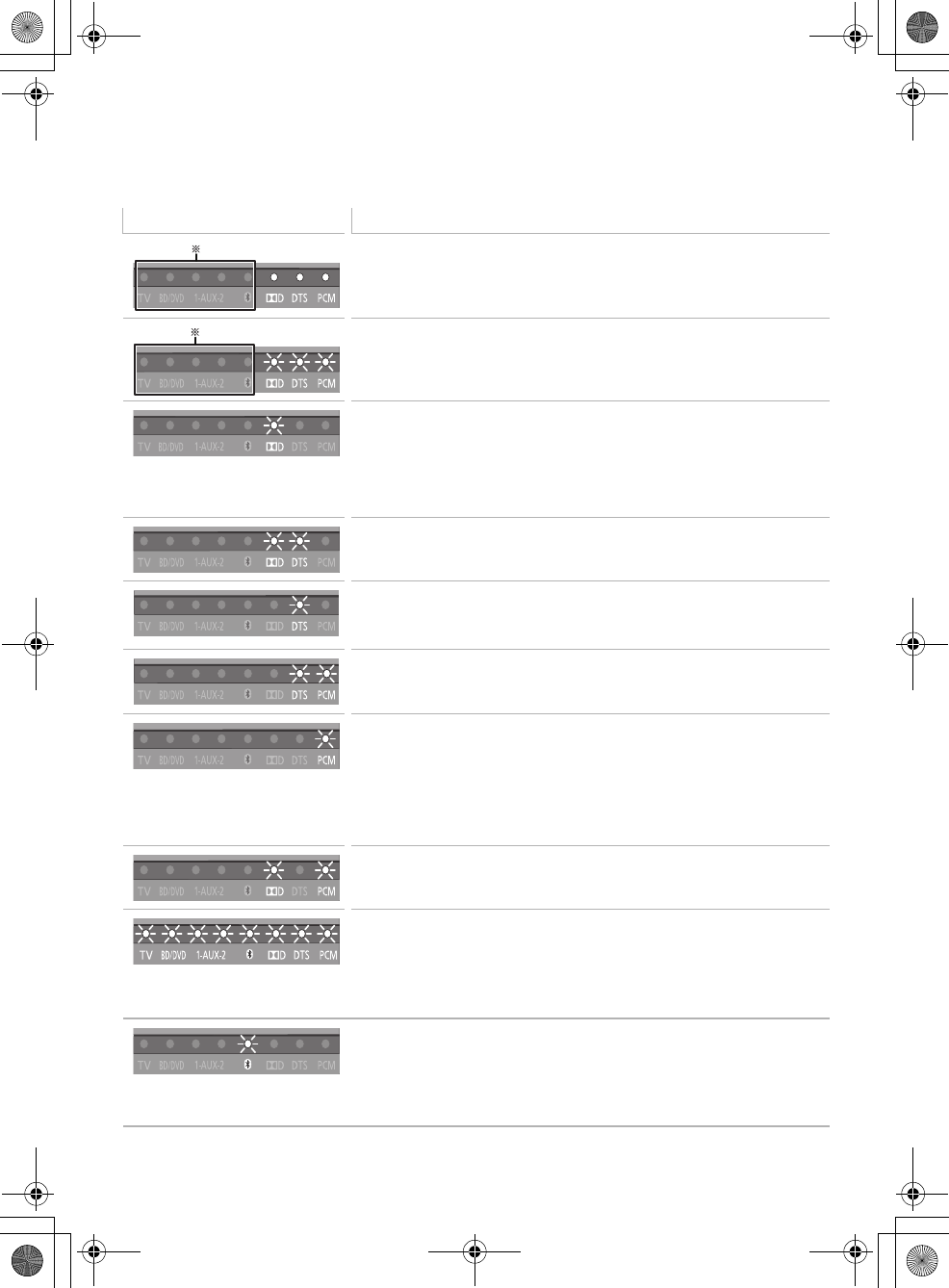

Indicator illumination
The indicators display the condition of this system by flashing. The indicator patterns illustrated below
are displayed during normal operational conditions. They do not refer to the indications of a problem.
Refer to “Troubleshooting” (>28) if the indicators do not light up as illustrated below.
§The selected source indicator will also light.
Indicator Description
The indicators blink from left to right (i) or from right to left (s).
≥When the speaker volume, the dialog effect level, or the subwoofer level is
adjusted (>23)
The indicators blink simultaneously.
≥When “MUTE” is on (>23)
The indicator blinks for 10 sec.
≥When the audio output mode is Multi-channel mode (>24)
≥When 3D surround effect and clear-mode dialog effect are on (>26)
≥When the dual audio setting is Main (>26)
≥When the auto gain control is on (>26)
≥When the Bluetooth® communication is mode 1 (>26)
≥When the dialog effect level or the subwoofer level is 1 (>23)
The indicators blink for 10 sec.
≥When the audio output mode is Auto mode (>24)
≥When the dialog effect level or the subwoofer level is 2 (>23)
The indicator blinks for 10 sec.
≥When the audio output mode is Auto mode (>24)
The indicators blink for 10 sec.
≥When the dialog effect level or the subwoofer level is 3 (>23)
The indicator blinks for 10 sec.
≥
When the audio output mode is 2ch mode
(>24)
≥When 3D surround effect and clear-mode dialog effect are off (>26)
≥When the dual audio setting is Secondary (SAP: Secondary Audio Program)
(>26)
≥When the auto gain control is off (>26)
≥When the Bluetooth® communication is mode 2 (>26)
≥When the dialog effect level or the subwoofer level is 4 (>23)
The indicators blink for 10 sec.
≥When the dual audio setting is Main and Secondary (>26)
The indicators blink for 10 sec.
≥When the remote control code is changed (>27)
The indicators blink once.
≥When changing the setting (“To reduce the clear-mode dialog effect”, “To turn
off VIERA Link “HDAVI Control””, and “To turn off the volume limitation”)
(>27)
Bluetooth® indicator blinks quickly.
≥When the main unit is ready for pairing
Bluetooth® indicator blinks slowly.
≥When the main unit is waiting to connect
Bluetooth® indicator turns on.
≥When the main unit is connected with a Bluetooth® device
SC-HTB550_RQT9660_mst.book Page 30 Tuesday, December 20, 2011 1:55 PM
Reference
RQT9660 31
About Bluetooth®
∫Frequency band used
This unit uses the 2.4 GHz frequency band.
∫Certification of this device
≥This system conforms to frequency restrictions and has
received certification based on frequency laws. Thus, a
wireless permit is not necessary.
≥The action below are punishable by law in some
countries:
jTaking apart or modifying the unit.
jRemoving specification indications.
∫Restrictions of use
≥Wireless transmission and/or usage with all Bluetooth®
equipped devices is not guaranteed.
≥All devices must conform to standards set by Bluetooth
SIG, Inc.
≥Depending on the specifications and settings of a
device, it can fail to connect or some operations can be
different.
≥This system supports Bluetooth® security features. But
depending on the operating environment and/or
settings, this security is possibly not sufficient. Transmit
data wirelessly to this system with caution.
≥This system cannot transmit data to a Bluetooth®
device.
∫Range of use
Use this device at a maximum range of 10 m (33 ft).
The range can decrease depending on the environment,
obstacles or interference.
∫Interference from other devices
≥When other devices use the same frequency as this
system, this system may operate incorrectly or the
sound may be distorted.
≥To prevent interference from other devices:
jKeep the system away from other devices that emit
radio frequency interference.
jDo not use this system and a wireless LAN device at
the same time. Switch off any wireless LAN device.
∫Intended usage
≥This unit is for normal, general use only.
≥Do not use this system near an equipment or in an
environment that is sensitive to radio frequency
interference (example: airports, hospitals, laboratories,
etc).
Unit care
∫Clean the system with a soft, dry cloth
≥When dirt is heavy, wring a cloth moistened in water
tightly to wipe the dirt, and then wipe it with a dry cloth.
≥When cleaning the system, use a fine cloth. Do not use
tissues or other materials (towels, etc.) that can fall
apart. Small grains may get stuck inside the speaker
cover.
≥Never use alcohol, paint thinner or benzine to clean the
system.
≥Before using chemically-treated cloth, carefully read the
instructions that came with the cloth.
Panasonic bears no responsibility for data
and/or information that is compromised
during a wireless transmission.
Manufactured under license from Dolby Laboratories.
Dolby, Pro Logic, and the double-D symbol are trademarks
of Dolby Laboratories.
Manufactured under license under U.S. Patent Nos:
5,956,674; 5,974,380; 6,487,535 & other U.S. and
worldwide patents issued & pending.
DTS, the Symbol, & DTS and the Symbol together are
registered trademarks & DTS Digital Surround and the DTS
logos are trademarks of DTS, Inc. Product includes
software.
© DTS, Inc. All Rights Reserved.
HDMI, the HDMI Logo, and High-Definition Multimedia
Interface are trademarks or registered trademarks of HDMI
Licensing LLC in the United States and other countries.
HDAVI Control™ is a trademark of Panasonic Corporation.
VIERA Link™ is a trademark of Panasonic Corporation.
EZ Sync™ is a trademark of Panasonic Corporation.
The Bluetooth® word mark and logos are owned by the
Bluetooth SIG, Inc. and any use of such marks by
Panasonic Corporation is under license. Other trademarks
and trade names are those of their respective owners.
SC-HTB550_RQT9660_mst.book Page 31 Tuesday, December 20, 2011 1:55 PM
32 RQT9660
Specifications
AMPLIFIER SECTION
RMS output power
10 % total harmonic distortion
Subwoofer ch
120 W per channel (100 Hz, 8 ≠)
Front ch (L, R ch)
60 W per channel (1 kHz, 6 ≠)
Total RMS Dolby Digital mode power
240 W
FTC output power
1.0 % total harmonic distortion
Subwoofer ch
60 Hz to 120 Hz 40 W (8 ≠)
Front ch (L, R ch)
120Hzto20kHz25W(6≠)
Total FTC Dolby Digital mode power
90 W
WIRELESS SECTION
Wireless module
Frequency Range 5.150 GHz to 5.250 GHz
5.725 GHz to 5.850 GHz
Number of channels 9
TERMINAL SECTION
HDAVI Control
This unit supports “HDAVI Control 5” function.
HDMI AV input (BD/DVD, AUX1) 2
Input connector Type A (19 pin)
HDMI AV output (TV (ARC)) 1
Output connector Type A (19 pin)
Digital audio input
Optical digital input (TV, AUX2) 2
Sampling frequency
32 kHz, 44.1 kHz, 48 kHz
88.2 kHz, 96 kHz (only LPCM)
Audio format
LPCM, Dolby Digital, DTS
SPEAKER SECTION
Front speakers
2 way, 2 speaker system (Bass reflex type)
Speaker unit(s) Impedance 6≠
Woofer
6.5 cm (2 1/2q) cone typek1
Tweeter
2.5 cm (1q) semi-dome typek1
Frequency range
100 Hz to 30 kHz (
`
16 dB)
150 Hz to 25 kHz (
`
10 dB)
Active subwoofer
1 way, 1 speaker system (Bass reflex type)
Woofer 16 cm (6 1/2q) cone typek1
Frequency range 30 Hz to 180 Hz (
`
16 dB)
35 Hz to 160 Hz (
`
10 dB)
GENERAL
Power consumption Main unit: 29 W
Active subwoofer: 21 W
In standby condition
Main unit: Approx. 0.1 W
Active subwoofer: Approx. 0.1 W
Power supply AC 120 V, 60 Hz
Dimensions (WkHkD)
Main unit
Cabinet dimension
310 mmk44 mmk195 mm
(12 7/32qk123/32qk711/16q)
Maximum outer dimension
310 mmk45 mmk202 mm
(12 7/32qk125/32qk715/16q)
Active subwoofer
180 mmk408 mmk306 mm
(7 3/32qk16 1/16qk12 1/16q)
Mass (Weight)
Main unit 1.1 kg(2.4 lbs)
Active subwoofer 5.2 kg(11.47 lbs)
Operating temperature range
0oC to r40 oC (r32 oF to r104 oF)
Operating humidity range
20 % to 80 % RH (no condensation)
SC-HTB550_RQT9660_mst.book Page 32 Tuesday, December 20, 2011 1:55 PM
Reference
RQT9660 33
1 Specifications are subject to change without notice.
2 Weight and dimensions are approximate.
3 Total harmonic distortion is measured by a digital spectrum
analyzer.
SPEAKER GENERAL
Horizontal placement using the stands
Dimensions (WkHkD)
956 mmk102 mmk74 mm
(37 5/8qk41/32qk229/32q)
Mass (Weight) 1.61 kg(3.7 lbs)
Horizontal placement using the speaker feet
and the support legs
Dimensions (WkHkD)
956 mmk78 mmk55 mm
(37 5/8qk31/16qk25/32q)
Mass (Weight) 1.57 kg(3.5 lbs)
Horizontal placement (for wall mount)
Dimensions (WkHkD)
956 mmk75 mmk35 mm
(37 5/8qk215/16qk13/8q)
Mass (Weight) 1.54 kg(3.5 lbs)
Vertical placement using the speaker bases
Dimensions (WkHkD)
148 mmk528 mmk145 mm
(5 13/16qk20 25/32qk523/32q)
Mass (Weight) 0.88 kg(1.98 lbs)
Vertical placement (for wall mount)
Dimensions (WkHkD)
75 mmk478 mmk35 mm
(2 15/16qk18 13/16qk13/8q)
Mass (Weight) 0.77 kg(1.76 lbs)
Bluetooth® SECTION
Bluetooth® system specification
V2.1 + EDR
Wireless equipment classification
Class 2 (2.5 mW)
Supported profiles A2DP, AVRCP
Frequency band
2402 MHz to 2480 MHz
(Adaptive Frequency Hopping)
Operating distance
10 m (33 ft) Line of Sight
SC-HTB550_RQT9660_mst.book Page 33 Tuesday, December 20, 2011 1:55 PM
34 RQT9660
Limited Warranty
(ONLY FOR U.S.A. AND PUERTO RICO)
Panasonic Consumer Marketing Company of North America,
Division of Panasonic Corporation of North America
One Panasonic Way, Secaucus, New Jersey 07094
Panasonic Home Audio Products Limited Warranty
Limited Warranty Coverage
(For USA and Puerto Rico Only)
If your product does not work properly because of a defect in materials or
workmanship, Panasonic Consumer Marketing Company of North America
(referred to as “the warrantor”) will, for the length of the period indicated on
the chart below, which starts with the date of original purchase (“warranty
period”), at its option either (a) repair your product with new or refurbished
parts, (b) replace it with a new or a refurbished equivalent value product, or
(c) refund your purchase price. The decision to repair, replace or refund will
be made by the warrantor.
During the “Labor” warranty period there will be no charge for labor. During
the “Parts” warranty period, there will be no charge for parts. This Limited
Warranty excludes both parts and labor for non-rechargeable batteries,
antennas, and cosmetic parts (cabinet). This warranty only applies to
products purchased and serviced in the United States or Puerto Rico. This
warranty is extended only to the original purchaser of a new product which
was not sold “as is”.
Carry-In or Mail-In Service
To find a service center please visit http://www.panasonic.com/help or call
1-800-211-PANA (7262).
When shipping the unit, carefully pack, include all supplied accessories listed
in the Owner’s Manual, and send it prepaid, adequately insured and packed
well in a carton box. When shipping Lithium Ion batteries please visit our
Web Site at www.panasonic.com/BatteryHandling as Panasonic is
committed to providing the most up to date information. Include a letter
detailing the complaint, a return address and provide a daytime phone
number where you can be reached. A valid registered receipt is required
under the Limited Warranty.
IF REPAIR IS NEEDED DURING THE WARRANTY PERIOD, THE
PURCHASER WILL BE REQUIRED TO FURNISH A SALES RECEIPT/
PROOF OF PURCHASE INDICATING DATE OF PURCHASE, AMOUNT
PAID AND PLACE OF PURCHASE. CUSTOMER WILL BE CHARGED
FOR THE REPAIR OF ANY UNIT RECEIVED WITHOUT SUCH PROOF
OF PURCHASE.
Limited Warranty Limits And Exclusions
This warranty ONLY COVERS failures due to defects in materials or
workmanship, and DOES NOT COVER normal wear and tear or cosmetic
damage. The warranty ALSO DOES NOT COVER damages which occurred
in shipment, or failures which are caused by products not supplied by the
warrantor, or failures which result from accidents, misuse, abuse, neglect,
mishandling, misapplication, alteration, faulty installation,
set-up adjustments, misadjustment of consumer controls, improper
maintenance, power line surge, lightning damage, modification, introduction
of sand, humidity or liquids, commercial use such as hotel, office, restaurant,
or other business or rental use of the product, or service by anyone other
than a Factory Service Center or other Authorized Servicer, or damage that
is attributable to acts of God.
THERE ARE NO EXPRESS WARRANTIES EXCEPT AS LISTED
UNDER “LIMITED WARRANTY COVERAGE”.
THE WARRANTOR IS NOT LIABLE FOR INCIDENTAL OR
CONSEQUENTIAL DAMAGES RESULTING FROM THE USE OF THIS
PRODUCT, OR ARISING OUT OF ANY BREACH OF THIS
WARRANTY.
(As examples, this excludes damages for lost time, travel to and from the
servicer, loss of or damage to media or images, data or other memory or
recorded content. The items listed are not exclusive, but for illustration only.)
ALL EXPRESS AND IMPLIED WARRANTIES, INCLUDING THE
WARRANTY OF MERCHANTABILITY, ARE LIMITED TO THE PERIOD
OF THE LIMITED WARRANTY.
Some states do not allow the exclusion or limitation of incidental or
consequential damages, or limitations on how long an implied warranty lasts,
so the exclusions may not apply to you.
This warranty gives you specific legal rights and you may also have other
rights which vary from state to state. If a problem with this product develops
during or after the warranty period, you may contact your dealer or Service
Center. If the problem is not handled to your satisfaction, then write to the
warrantor’s Consumer Affairs Department at the addresses listed for the
warrantor.
PARTS AND SERVICE, WHICH ARE NOT COVERED BY THIS
LIMITED WARRANTY, ARE YOUR RESPONSIBILITY.
As of January 2012
Product or Part Name Parts Labor
Audio Products
(except items below)
1 year 1 year
DVD Home Theater System 1 year 1 year
Home Theater Audio System 1 year 1 year
SD Memory Cards, Rechargeable Battery
Packs (defective exchange)
90 days Not
Applicable
Customer Services Directory (United States and Puerto Rico)
Obtain Product Information and Operating Assistance; locate
your nearest Dealer or Service Center; purchase Parts and
Accessories; or make Customer Service and Literature requests
by visiting our Web Site at:
http://www.panasonic.com/help
or, contact us via the web at:
http://www.panasonic.com/contactinfo
You may also contact us directly at:
1-800-211-PANA (7262)
Monday-Friday 9am-9pm,
Saturday-Sunday 10am-7pm EST
For hearing or speech impaired TTY users, TTY: 1-877-833-8855
Accessory Purchases (United States and Puerto Rico)
Purchase Parts, Accessories and Instruction Books online for all
Panasonic Products by visiting our Web Site at:
http://www.pstc.panasonic.com
Or, send your request by E-mail to:
npcparts@us.panasonic.com
You may also contact us directly at:
1-800-332-5368 (Phone) 1-800-237-9080 (Fax Only)
(Monday-Friday 9am-9pm EST)
Panasonic National Parts Center
20421 84th Ave S., Kent, WA 98032
(We accept Visa, MasterCard, Discover Card, American Express)
For hearing or speech impaired TTY users, TTY: 1-866-605-1277
The model number and serial number of this product can be
found on either the back or the bottom of the unit.
Please note them in the space provided below and keep for future
reference.
MODEL NUMBER SC-HTB550
SERIAL NUMBER
User memo:
DATE OF PURCHASE ______________________________
DEALER NAME ___________________________________
DEALER ADDRESS________________________________
_________________________________________________
TELEPHONE NUMBER _____________________________
SC-HTB550_RQT9660_mst.book Page 34 Tuesday, December 20, 2011 1:55 PM
Reference
RQT9660 35
Limited Warranty (
ONLY FOR
CANADA)
Panasonic Canada Inc.
5770 Ambler Drive, Mississauga, Ontario L4W 2T3
PANASONIC PRODUCT - LIMITED WARRANTY
Panasonic Canada Inc. warrants this product to be free from defects in material and workmanship under normal use
and for a period as stated below from the date of original purchase agrees to, at its option either (a) repair your product
with new or refurbished parts, (b) replace it with a new or a refurbished equivalent value product, or (c) refund your
purchase price. The decision to repair, replace or refund will be made by Panasonic Canada Inc.
Technics Audio Product - One (1) year, parts and labour
Panasonic BD/DVD Product - One (1) year, parts and labour
Panasonic Audio Receivers - One (1) year, parts and labour
Home Theater Systems Product - One (1) year, parts and labour
This warranty is given only to the original purchaser, or the person for whom it was purchased as a gift, of a Panasonic
brand product mentioned above sold by an authorized Panasonic dealer in Canada and purchased and used in
Canada, which product was not sold “as is”, and which product was delivered to you in new condition in the original
packaging.
IN ORDER TO BE ELIGIBLE TO RECEIVE WARRANTY SERVICE HEREUNDER, A PURCHASE RECEIPT OR
OTHER PROOF OF DATE OF ORIGINAL PURCHASE, SHOWING AMOUNT PAID AND PLACE OF PURCHASE IS
REQUIRED
LIMITATIONS AND EXCLUSIONS
This warranty ONLY COVERS failures due to defects in materials or workmanship, and DOES NOT COVER normal
wear and tear or cosmetic damage. The warranty ALSO DOES NOT COVER damages which occurred in shipment, or
failures which are caused by products not supplied by Panasonic Canada Inc., or failures which result from accidents,
misuse, abuse, neglect, mishandling, misapplication, alteration, faulty installation, set-up adjustments, misadjustment of
consumer controls, improper maintenance, power line surge, lightning damage, modification, introduction of sand,
humidity or liquids, commercial use such as hotel, office, restaurant, or other business or rental use of the product, or
service by anyone other than an Authorized Servicer, or damage that is attributable to acts of God.
Dry cell batteries are also excluded from coverage under this warranty.
THIS EXPRESS, LIMITED WARRANTY IS IN LIEU OF ALL OTHER WARRANTIES, EXPRESS OR IMPLIED,
INCLUDING ANY IMPLIED WARRANTIES OF MERCHANTABILITY AND FITNESS FOR A PARTICULAR PURPOSE.
IN NO EVENT WILL PANASONIC CANADA INC. BE LIABLE FOR ANY SPECIAL, INDIRECT OR CONSEQUENTIAL
DAMAGES RESULTING FROM THE USE OF THIS PRODUCT OR ARISING OUT OF ANY BREACH OF ANY
EXPRESS OR IMPLIED WARRANTY. (As examples, this warranty excludes damages for lost time, travel to and from
the Authorized Servicer, loss of or damage to media or images, data or other memory or recorded content. This list of
items is not exhaustive, but for illustration only.)
In certain instances, some jurisdictions do not allow the exclusion or limitation of incidental or consequential damages,
or the exclusion of implied warranties, so the above limitations and exclusions may not be applicable. This warranty
gives you specific legal rights and you may have other rights which vary depending on your province or territory.
WARRANTY SERVICE
For product operation and information assistance, please contact:
PRODUCT OPERATION ASSISTANCE
Customer Care Centre: Telephone #: 1-800-561-5505
Fax #: (905) 238-2360
Email link: “Support # contact us # email” on www.panasonic.ca
PRODUCT REPAIRS
Please locate your nearest Authorized Servicentre.
Link: “Support # Panasonic Servicentre® locator” on www.panasonic.ca
IF YOU SHIP THE PRODUCT TO A SERVICENTRE
Carefully pack and send prepaid, adequately insured and preferably in the original carton.
Include details of the defect claimed, and proof of date of original purchase.
SC-HTB550_RQT9660_mst.book Page 35 Tuesday, December 20, 2011 1:55 PM
Panasonic Corporation 2011
Printed in Malaysia
One Panasonic Way, Secaucus,
New Jersey 07094
http://www.panasonic.com
www.panasonic.ca
5770 Ambler Drive
Mississauga, Ontario
L4W 2T3
Panasonic Consumer Marketing
Company of North America,
Division of Panasonic Corporation of
North America
Panasonic Canada Inc.
RQT9660-P
F1211RK0
-If you see this symbol-
Information on Disposal in other Countries outside the
European Union
This symbol is only valid in the European Union.
If you wish to discard this product, please contact
your local authorities or dealer and ask for the
correct method of disposal.
As an ENERGY STAR
Partner,
Panasonic has determined that
this product meets the ENERGY STAR
guidelines for energy efficiency.
®
®
For Canada only: The word “Participant” is
used in place of the word “Partner”.
SC-HTB550_RQT9660_mst.book Page 36 Tuesday, December 20, 2011 1:55 PM

Navigation menu
