User Manual
Model No.
KX-A405
DECT 6.0 Repeater
Installation Manual
Document Version: 2010-06
Thank you for purchasing a Panasonic DECT 6.0 Repeater.
Please read this manual carefully before using this product and save this manual for future use.
Important Information
SAVE THESE INSTRUCTIONS
Safety Notices
Please observe the safety notices in this manual in order to avoid danger to users or other people, and prevent
damage to property.
The notices are classified as follows, according to the severity of injury or damage:
WARNING This notice means that misuse could result in death or serious injury.
CAUTION This notice means that misuse could result in injury or damage to
property.
WARNING
SAFETY REQUIREMENTS
•The product must only be installed and serviced by qualified service personnel. The product should be
used as-is from the time of purchase; it should not be disassembled or modified. Disassembly or
modification can cause a fire, electric shock, or damage to the product.
•Make sure that the wall that the unit will be attached to is strong enough to support the unit (approx.
80 g [2.8 oz]). If not, it is necessary for the wall to be reinforced.
•Only use the wall-mounting equipment (screws, washers) included with the unit.
•When this unit is no longer in use, make sure to detach it from the wall.
•Do not connect or disconnect the AC plug with wet hands.
•Disconnect the unit from the AC outlet and contact the dealer if:
–The AC adaptor cord or AC plug becomes damaged or frayed.
–The unit is exposed to rain, water, or any other liquid.
–The unit is dropped or damaged.
–Internal components are exposed due to damage.
–The unit does not operate properly.
–Performance deteriorates.
•Disconnect the unit from the AC outlet if the unit emits smoke, an abnormal smell, or makes unusual
noise. These conditions can cause fire or electric shock. Confirm that smoke has stopped and contact
an authorized service center.
•Clean the AC plug periodically with a soft, dry cloth to remove dust and other debris.
•Do not touch the unit or AC adaptor during a lightning storm.
•Use only the included AC adaptor (PQLV219).
•Do not allow anything to rest on the AC adaptor cord. Do not locate this unit where the AC adaptor
cord may be stepped on or tripped on.
CAUTION
SAFETY REQUIREMENTS
•The unit should be kept free of dust, moisture, high temperature (more than 40 °C [104 °F]), low
temperature (less than 0 °C [32 °F]), and vibration, and should not be exposed to direct sunlight.
•The unit should not be placed outdoors (use indoors).
•The unit should not be placed near high-voltage equipment.
•The unit should not be placed on a metal object.
2 Installation Manual Document Version 2010-06
Important Information
•When driving the screws into the wall, be careful to avoid touching any metal laths, wire laths or metal
plates in the wall.
•To prevent malfunction, deformity, overheating, rust, and discoloration, do not install or place
equipment in the following types of locations:
–Locations where air ventilation is poor.
–Locations that may be exposed to sulphurous gas, such as near hot springs.
–Near devices that emit heat, such as heaters.
–Near devices that emit electromagnetic noise, such as radios or televisions.
–Near devices that emit high-frequency noise, such as sewing machines or welders.
•Do not stretch or bend the cable. Also, do not allow anything to rest on the cable.
•The unit and the cable should never be placed near or over a radiator or other heat source.
•Do not bundle the cable that is connected to the unit with the AC power cords of machines located
nearby.
•Make sure the cable is securely fastened to the wall.
•The AC adaptor is used as the main disconnect device. Ensure that the AC adaptor is located near the
unit and is easily accessible.
•Disconnect the AC adaptor cord from the unit before cleaning. Clean the unit with a soft, dry cloth. Do
not use liquid, aerosol cleaners, abrasive powders, or chemical agents to clean the unit.
•When left unused for a long period of time, disconnect the unit from the AC outlet.
•Medical—consult the manufacturer of any personal medical devices, such as pacemakers, to
determine if they are adequately shielded from external RF (radio frequency) energy. (The unit operates
in the frequency range of 1920 MHz to 1930 MHz, and the output peak power level is less than
0.12 W.) Do not use the unit in health care facilities if any regulations posted in the area instruct you
not to do so. Hospitals or health care facilities may be using equipment that could be sensitive to
external RF (radio frequency) energy.
SECURITY REQUIREMENTS
Preventing Data Disclosure Over the Network
•To ensure the security of private conversations, only connect the unit to a secure network.
•To prevent unauthorized access, only connect the unit to a network that is properly managed.
Notice
SAFETY REQUIREMENTS
•Before connecting the unit, confirm that the unit supports the intended operating environment.
•If the unit does not operate properly, disconnect the AC adaptor cord, then connect again.
•The unit may not operate in the event of a power failure.
•Do not move the unit while it is in use.
•Satisfactory operation, interoperability, and compatibility cannot be guaranteed with all equipment
connected to the unit, nor with all services provided by telecommunications providers over networks
connected to the unit.
SECURITY REQUIREMENTS
Privacy of communications may not be ensured when using the wireless systems.
Document Version 2010-06 Installation Manual 3
Important Information
Additional Information
F.C.C. REQUIREMENTS AND RELEVANT INFORMATION
CAUTION
Any changes or modifications not expressly approved by the party responsible for compliance could void
the user’s authority to operate this device.
Note
This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant
to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful
interference in a residential installation. This equipment generates, uses, and can radiate radio frequency
energy and, if not installed and used in accordance with the instructions, may cause harmful interference
to radio communications. However, there is no guarantee that interference will not occur in a particular
installation. If this equipment does cause harmful interference to radio or television reception, which can
be determined by turning the equipment off and on, the user is encouraged to try to correct the interference
by one or more of the following measures:
•Reorient or relocate the receiving antenna.
•Increase the distance between the equipment and receiver.
•Connect the equipment to an outlet on a circuit different from that to which the receiver is connected.
•Consult the dealer or an experienced radio/TV technician for help.
Some wireless telephones operate at frequencies that may cause interference to nearby TVs and VCRs.
To minimize or prevent such interference, the repeater should not be placed near or on top of a TV or VCR.
If interference is experienced, move the repeater and wireless telephone further away from the TV or VCR.
This will often reduce, or eliminate, interference.
RF Exposure Warning:
This product complies with FCC radiation exposure limits set forth for an uncontrolled environment. To comply
with FCC RF exposure requirements, this product must be installed and operated in accordance with the
provided instructions. The installed unit requires a minimum 20 cm (8 inches) of spacing between the product
and a person’s body (excluding hands, wrists and feet) during wireless modes of operation.
This transmitter must not be co-located or operated in conjunction with any other antennas or transmitters.
4 Installation Manual Document Version 2010-06
Important Information
Table of Contents
1 Overview ...................................................................................................6
System Overview ..............................................................................................................6
System Connection Examples .........................................................................................6
Names and Locations .......................................................................................................7
Unpacking ..........................................................................................................................7
LED Indications .................................................................................................................7
Compatible Devices ..........................................................................................................9
Specifications ..................................................................................................................10
2 Registering the Repeater .......................................................................11
Easy Registration ............................................................................................................11
Manual Registration ........................................................................................................12
De-registration .................................................................................................................13
ID Modification ................................................................................................................14
3 Using the Repeater ................................................................................15
ID Confirmation Mode/Verification Tone Mode ............................................................15
Site Survey Mode ............................................................................................................16
4 Wall Mounting .........................................................................................17
Mounting ..........................................................................................................................17

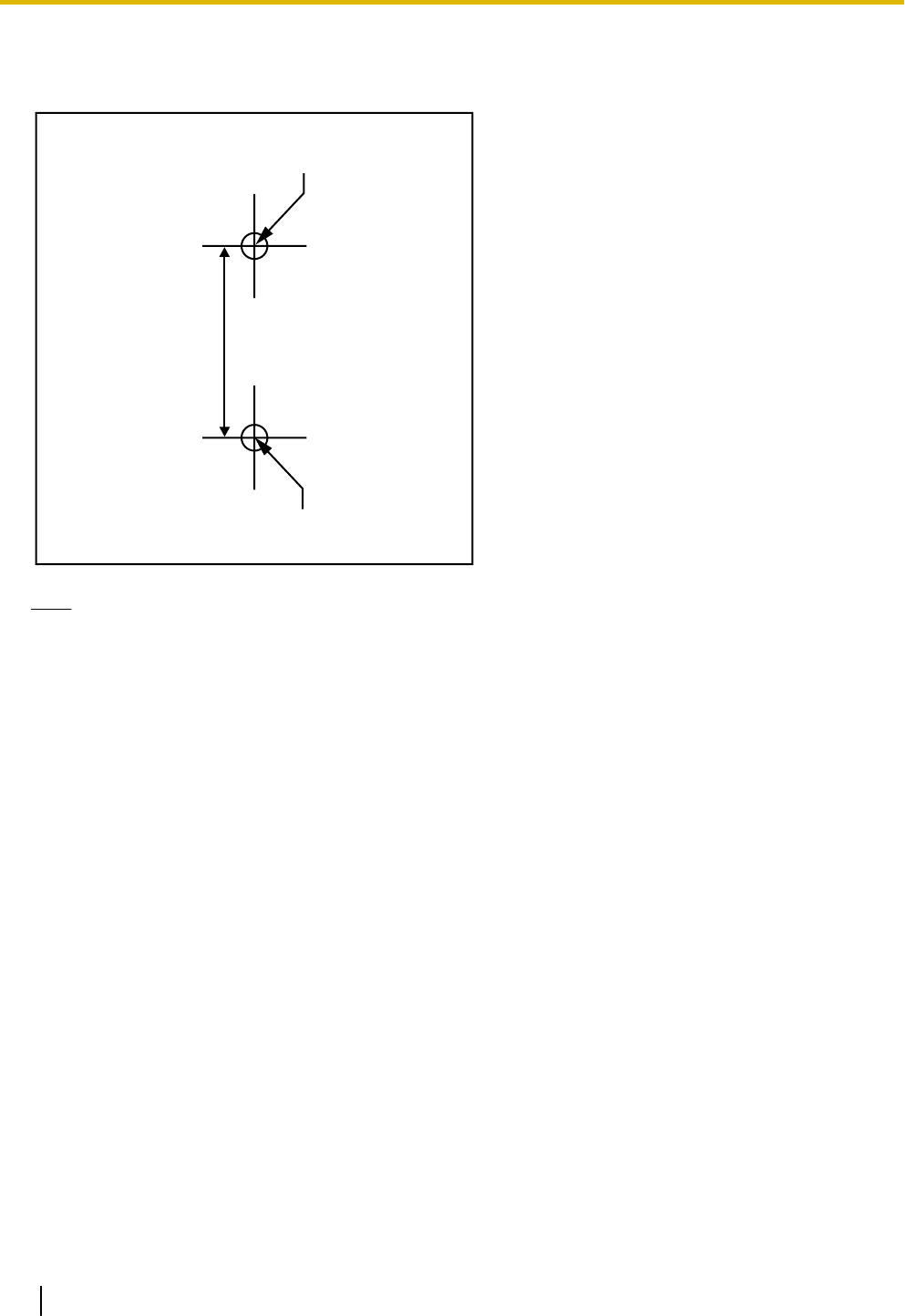

Reference for Wall Mounting .........................................................................................18
5 Troubleshooting .....................................................................................19
Document Version 2010-06 Installation Manual 5
Table of Contents
1 Overview
System Overview
A repeater is used when you need to extend the range of a DECT 6.0 Portable Station (PS) or DECT 6.0 Cell
Station (CS) connected to a PBX, to include areas where reception was previously not available. The repeater
extends the range in all directions, allowing several floors to be covered.
Up to 6 repeaters can be registered to one CS, and up to 3 repeaters can be arranged in a cascade
configuration.
The number of simultaneous calls on a CS is reduced by adding a repeater. This is by design. Each repeater
is controlled using one speech path. The repeater can support up to a maximum of 4 simultaneous calls.
Note
In this manual, the illustrations of the PBX are based on the KX-NCP500.

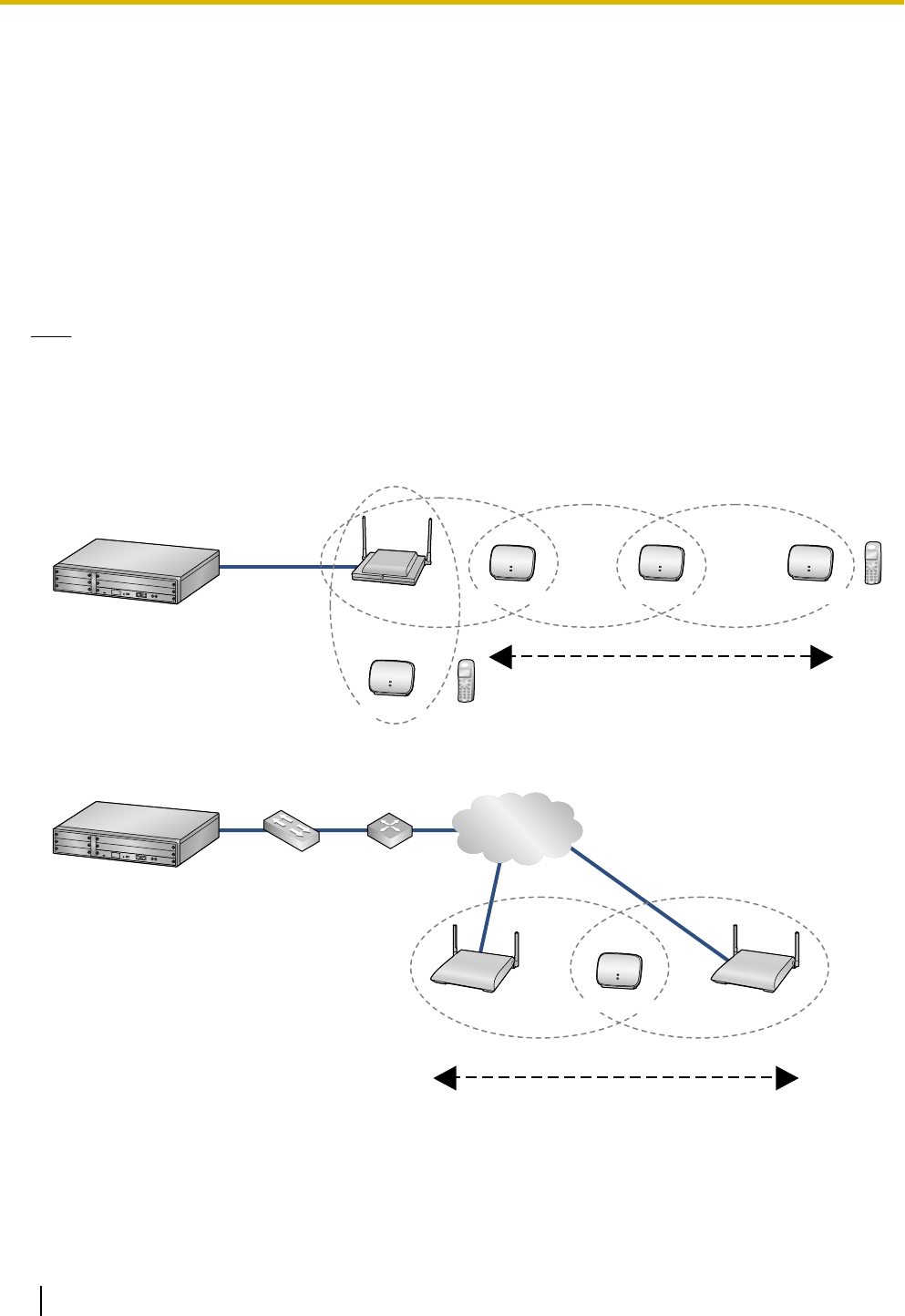

System Connection Examples
Example 1: Extending the range of a CS
PBX
CS
Repeater
Repeater Repeater Repeater PS
PS
Cascade Configuration
Example 2: Connecting two IP-CSs
PBX
Repeater
Bridging two IP-CSs (Air Synchronization)
Switching Hub
IP Network
IP-CS IP-CS
Router
6 Installation Manual Document Version 2010-06
1 Overview
Names and Locations
STATUS LED
RSSI*1/ID LED
DC Jack PROGRAM Button
*1 RSSI: Received Signal Strength Indication
Unpacking
Unpack the box and check the items below:
Repeater (KX-A405) 1
AC Adaptor (PQLV219) 1
Screws 2
Washers 2
LED Indications
Mode Status
LED
STATUS RSSI/ID
— Power Off Off Off
De-registration Mode
Entering De-registration
mode (0–5 seconds) Red Flashing
Off
Entering De-registration
mode (5–10 seconds) Quick Red Flashing
De-registration complete
(after 10 seconds) Red On
Registration Mode
(Easy/Manual) Searching for devices Red Flashing Off
Document Version 2010-06 Installation Manual 7
1 Overview
Mode Status
LED
STATUS RSSI/ID
Operation Mode
Standby (signal is strong)
Green On
Green On
Standby (signal is weak) Amber On
Standby (out of range) Red On Red On
Talking (signal is strong)
Green Flashing
Green On
Talking (signal is weak) Amber On
Busy (signal is strong)
Quick Green Flashing
Green On
Busy (signal is weak) Amber On
Manual Registration
Mode
ID1
Amber Flashing
One Red Flash
ID2 Two Red Flashes
ID3 Three Red Flashes
ID4 Four Red Flashes
ID5 Five Red Flashes
ID6 Six Red Flashes
Confirming ID Red On
ID Modification Mode
ID1
Amber On
One Red Flash
ID2 Two Red Flashes
ID3 Three Red Flashes
ID4 Four Red Flashes
ID5 Five Red Flashes
ID6 Six Red Flashes
Confirming ID Red On
ID Confirmation Mode/
Verification Tone Mode
ID1
Amber On
One Green Flash
ID2 Two Green Flashes
ID3 Three Green Flashes
ID4 Four Green Flashes
ID5 Five Green Flashes
ID6 Six Green Flashes
8 Installation Manual Document Version 2010-06
1 Overview
Mode Status
LED
STATUS RSSI/ID
Site Survey Mode
Channel 1 One Green Flash
Off
Channel 2 Two Green Flashes
Channel 3 Three Green Flashes
Channel 4 Four Green Flashes
Channel 0 Five Green Flashes
Flashing Speeds
LEDs flash in a cycle at the following speeds:
Type of Flashing Speed
Regular Flashing 640 ms On ® 640 ms Off
Quick Flashing 320 ms On ® 320 ms Off
One Flash 640 ms On ® 640 ms Off ® 3 s Off
Two Flashes (640 ms On ® 640 ms Off) ´ 2 ® 3 s Off
Three Flashes (640 ms On ® 640 ms Off) ´ 3 ® 3 s Off
: :
Compatible Devices
Compatible Device Model No.
CS
•KX-T0155
•KX-TDA0156
•KX-T0158
•KX-NCP0158 (IP-CS)
PS
•KX-TD7685
•KX-TD7695
•KX-TD7696
•KX-WT125
•KX-WT126
Document Version 2010-06 Installation Manual 9
1 Overview
Specifications
Basic Specifications
Maximum Number of Simultaneous Calls 4
Maximum Number of Cascade Steps 3
Maximum Number of Repeaters Registered to a CS 6
General Specifications
Dimensions 111 mm (W) ´ 82 mm (H) ´ 39 mm (D)
(4-3/8 in ´ 3-1/4 in ´ 1-1/2 in)
Weight 80 g (2.8 oz)
Power Supply
AC Adaptor (PQLV219)
Input: AC 120 V, 60 Hz
Output: DC 6.5 V, 500 mA
Operating Temperature 0 °C to 40 °C (32 °F to 104 °F)
RF Specifications
Wireless Interface DECT 6.0
Radio Access Method MultiCarrier TDMA-TDD
Frequency Band 1920 MHz to 1930 MHz
Number of Carriers 5
Carrier Spacing 1728 kHz
Bit Rate 1152 kbps
Modulation Scheme GFSK
10 Installation Manual Document Version 2010-06
1 Overview
2 Registering the Repeater

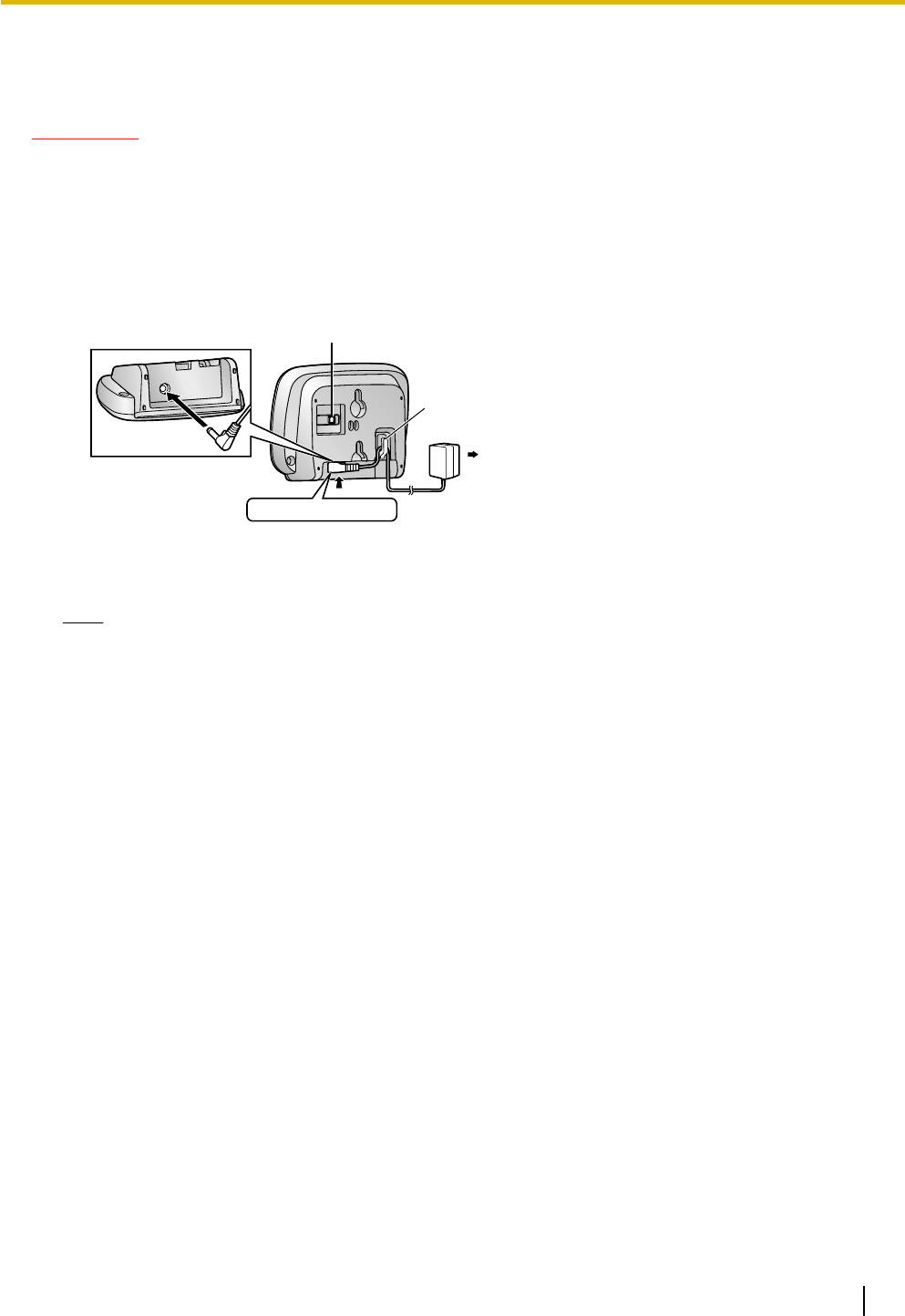

Easy Registration
In easy registration, the repeater can be registered to a CS easily.
WARNING
When installing or testing a product with an external AC adaptor, the AC adaptor should be plugged
into a wall outlet or floor-mounted AC outlet. Do not connect the AC adaptor to a ceiling-mounted
AC outlet, as the weight of the adaptor may cause it to become disconnected.
Note
•Easy registration cannot be performed if the repeater is already registered to another CS. Please follow
the procedure in "De-registration" before attempting easy registration.
•We recommend that you power down any CS that you do not wish to connect to the repeater prior to
registration.
1. Ensure that the repeater is turned off by disconnecting the AC adaptor.
2. Turn on the repeater by connecting the AC adaptor.
Press plug firmly.
Hook
To AC Outlet
The STATUS LED will turn amber for 2 seconds.
3. If the repeater is unregistered, the STATUS LED will flash red, and the repeater automatically enters Easy
Registration mode.
4. When the repeater has found a CS, the STATUS LED will turn green.
Registration is complete.
Note
If easy registration is unsuccessful within 2 minutes, the repeater will be reset and easy registration
will be repeated automatically.
Document Version 2010-06 Installation Manual 11
2 Registering the Repeater

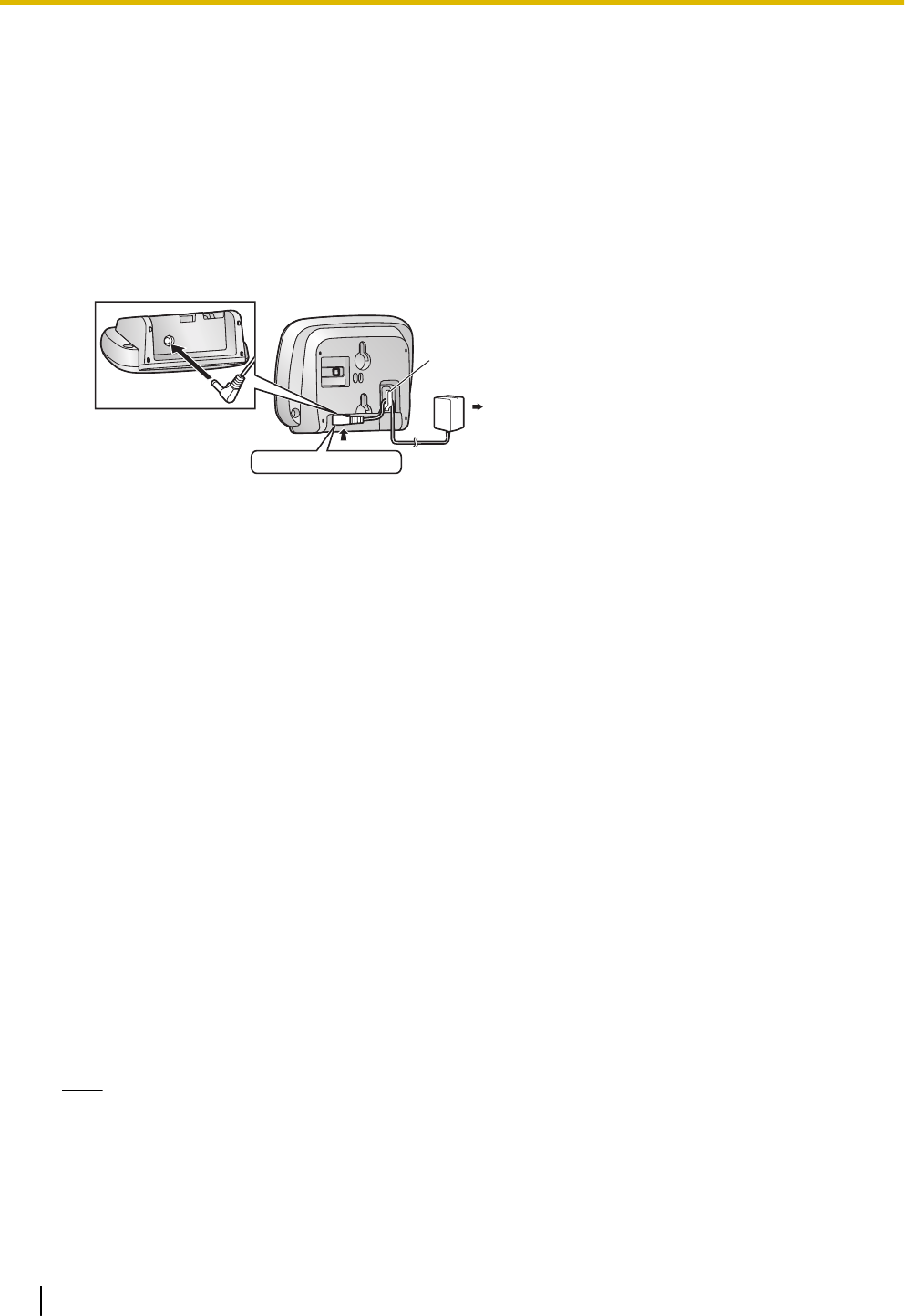

Manual Registration
In manual registration, the repeater can be registered to another repeater to create a cascade configuration.
WARNING
When installing or testing a product with an external AC adaptor, the AC adaptor should be plugged
into a wall outlet or floor-mounted AC outlet. Do not connect the AC adaptor to a ceiling-mounted
AC outlet, as the weight of the adaptor may cause it to become disconnected.
1. Ensure that the repeater is turned off by disconnecting the AC adaptor.
2. Turn on the repeater by connecting the AC adaptor.
Press plug firmly.
Hook
To AC Outlet
The STATUS LED will turn amber for 2 seconds.
3. When the repeater is unregistered:
The STATUS LED will flash red, and the repeater automatically enters Easy Registration mode.
When the repeater is registered:
The repeater automatically enters Operation mode.
4. Check the ID of the repeater you are attempting to register to (destination repeater).
a. In Operation mode, press the destination repeater's PROGRAM button to switch to ID Confirmation
mode.
The ID is indicated by the number of times the RSSI/ID LED flashes green.
b. Return the destination repeater to Operation mode by pressing the PROGRAM button again.
5. On the repeater you are registering, press and hold down the PROGRAM button for 5 seconds to enter
Manual Registration mode.
The STATUS LED will flash amber.
The RSSI/ID LED will flash red once to indicate that the ID is currently set to 1.
6. If the ID of the destination repeater was not 1, press the PROGRAM button to select the ID that matches
the destination repeater.
The ID can be selected from 1 through 6 by pressing the PROGRAM button. The ID will increase by one
each time the button is pressed.
7. Press and hold down the PROGRAM button for 5 seconds to assign the ID to the repeater.
The RSSI/ID LED will turn red.
8. Release the PROGRAM button to reset the repeater.
The STATUS LED will turn amber for 2 seconds and then start flashing red. The repeater will then start
searching for a repeater with the assigned ID.
9. When the repeater has found a repeater with the assigned ID, the STATUS LED will turn green.
Registration is complete.
Note
If a repeater with the assigned ID cannot be found within 2 minutes, the repeater will automatically
reset and start searching for a repeater with the same ID again.
12 Installation Manual Document Version 2010-06
2 Registering the Repeater

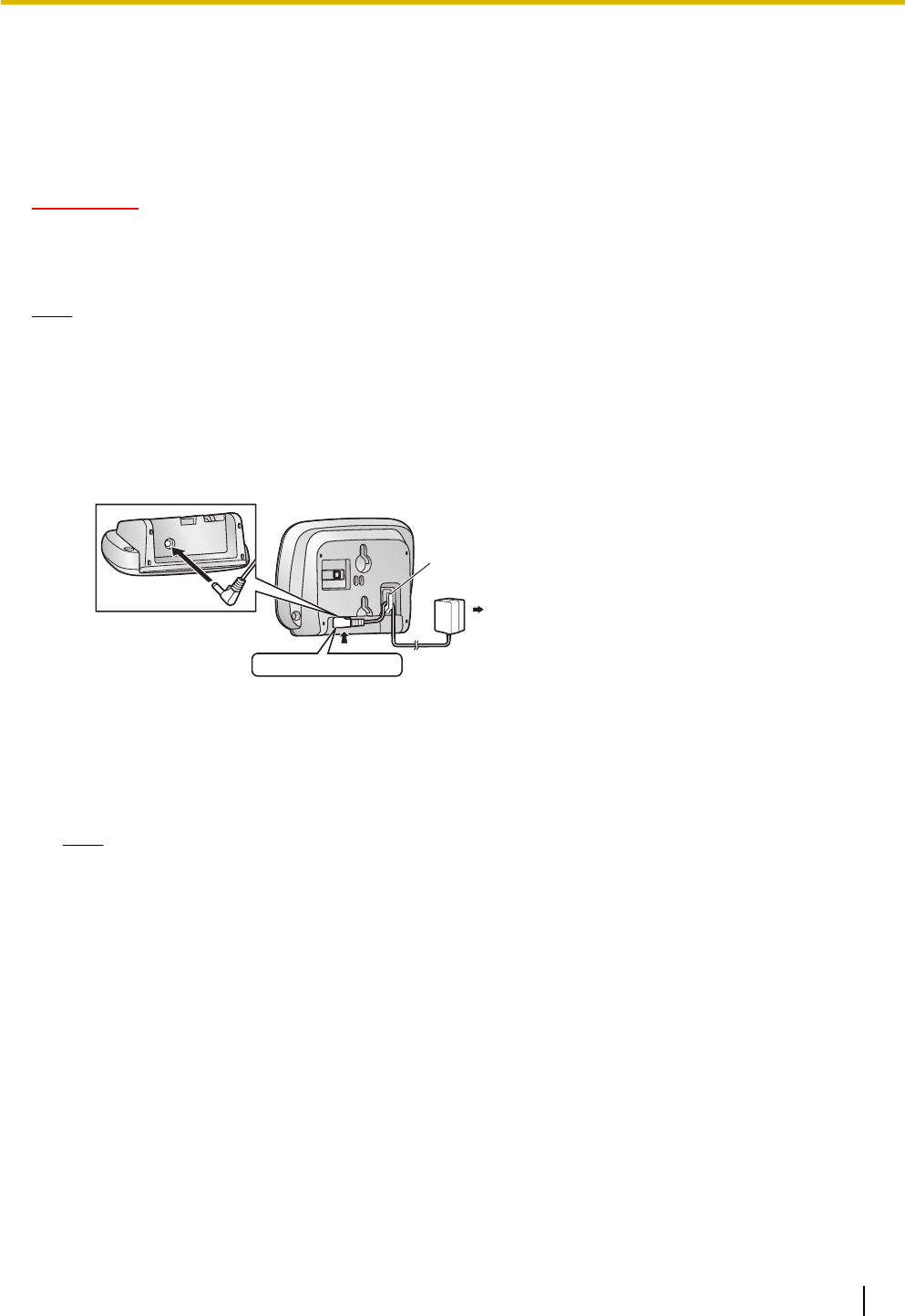

De-registration
Perform de-registration to delete the ID of the CS/repeater that the repeater is registered to.
WARNING
When installing or testing a product with an external AC adaptor, the AC adaptor should be plugged
into a wall outlet or floor-mounted AC outlet. Do not connect the AC adaptor to a ceiling-mounted
AC outlet, as the weight of the adaptor may cause it to become disconnected.
1. Ensure that the repeater is turned off by disconnecting the AC adaptor.
2. While pressing and holding down the PROGRAM button, turn on the repeater by connecting the AC
adaptor.
Press plug firmly.
Hook
PROGRAM Button
To AC Outlet
3. Continue to hold down the PROGRAM button for 10 seconds.
When the STATUS LED turns red, de-registration is complete.
Note
If the PROGRAM button is released after 5 seconds but before 10 seconds have elapsed, while the
STATUS LED is flashing quickly, the repeater will enter Site Survey mode.
4. Release the PROGRAM button to reset the repeater.
The repeater automatically enters Easy Registration mode. For details about the easy registration
procedure, refer to "Easy Registration".
Document Version 2010-06 Installation Manual 13
2 Registering the Repeater
ID Modification
In ID Modification mode, the ID of the repeater (RPN [Radio Part Number]) can be selected. Registered
repeaters are automatically assigned an ID during the registration process. This ID can be changed by following
the procedure below.
1. In Operation mode, or Easy Registration mode if the repeater is unregistered, press and hold down the
PROGRAM button for 8 seconds to enter ID Modification mode.
The STATUS LED will turn amber.
The RSSI/ID LED will flash red once to indicate that the ID is currently set to 1.
2. Press the PROGRAM button to select the desired ID.
The ID can be selected from 1 through 6 by pressing the PROGRAM button. The ID will increase by one
each time the button is pressed.
3. Press and hold down the PROGRAM button for 5 seconds to assign the ID to the repeater.
The RSSI/ID LED will turn red.
4. Release the PROGRAM button to reset the repeater.
The STATUS LED will turn amber for 2 seconds and then the repeater will return to Operation mode, or
Easy Registration mode if the repeater is unregistered.
14 Installation Manual Document Version 2010-06
2 Registering the Repeater
3 Using the Repeater
ID Confirmation Mode/Verification Tone Mode
The ID of currently registered repeaters can be checked in ID Confirmation mode.
Also, repeater coverage can be checked using a PS, in Verification Tone mode. When the beep is no longer
heard, the PS is no longer in range of the repeater.
1. In Operation mode, press the PROGRAM button to switch to ID Confirmation mode/Verification Tone mode.
The STATUS LED will turn amber.
2. The current ID is indicated by the number of times the RSSI/ID LED flashes green. At the same time, the
verification tone will be activated, and the coverage of the repeater can be checked.
3. Return the repeater to Operation mode by pressing the PROGRAM button again.
The verification tone will be deactivated.
Note
If you press and hold down the PROGRAM button for 5 seconds, the repeater will enter "Manual
Registration" mode.
Document Version 2010-06 Installation Manual 15
3 Using the Repeater
Site Survey Mode
This function can be used to measure the transmission quality, and identify problematic transmission areas of
the repeater installation. This function can be used when registered or de-registered.
WARNING
When installing or testing a product with an external AC adaptor, the AC adaptor should be plugged
into a wall outlet or floor-mounted AC outlet. Do not connect the AC adaptor to a ceiling-mounted
AC outlet, as the weight of the adaptor may cause it to become disconnected.
Note
•The repeater’s Site Survey mode works independently from the CS. This means that the CS does not
have to be placed into Site Survey mode.
•When using more than 1 repeater in Site Survey mode simultaneously, please ensure repeaters are
set to different channels.
1. Ensure that the repeater is turned off by disconnecting the AC adaptor.
2. While pressing and holding down the PROGRAM button, turn on the repeater by connecting the AC
adaptor.
The STATUS LED will flash red.
3. Continue to hold down the PROGRAM button for 5 seconds.
The STATUS LED will flash red quickly.
Note
If you continue to hold down the PROGRAM button for 10 seconds, the repeater will enter
De-registration mode.
4. Release the PROGRAM button.
The STATUS LED will flash red to indicate the current channel number, and a carrier sense will start to
check whether the current channel is available (idle) or not.
5. If the current channel is available, the STATUS LED will change to flash green.
Site Survey mode on the current channel is now operational.
Note
A carrier sense is performed regularly in Site Survey mode. If the selected channel is not available
(busy), the STATUS LED will flash red to indicate the channel number and the repeater will stop
transmitting.
6. Activate the site survey function on the PS to measure the radio signal strength level. The repeater CSID
is 1234567890.
Note
For details about using the PS during a site survey, refer to the appropriate CS Quick Installation Guide.
7. To change the site survey channel, press the PROGRAM button.
The channel number will increase by one each time the button is pressed. The channel number can be
selected from 0 through 4.
8. To turn off Site Survey mode, turn off the repeater by disconnecting the AC adaptor, and then turn on the
repeater by connecting the AC adaptor.
16 Installation Manual Document Version 2010-06
3 Using the Repeater
4 Wall Mounting
Mounting
WARNING
•Make sure that the wall that the unit will be attached to is strong enough to support the unit
(approx. 80 g [2.8 oz]). If not, it is necessary for the wall to be reinforced.
•Only use the wall-mounting equipment (screws, washers) included with the unit.
•When this unit is no longer in use, make sure to detach it from the wall.
CAUTION
•When driving the screws into the wall, be careful to avoid touching any metal laths, wire laths or metal
plates in the wall.
•Do not stretch or bend the cable. Also, do not allow anything to rest on the cable.
•The unit and the cable should never be placed near or over a radiator or other heat source.
•Do not bundle the cable that is connected to the unit with the AC power cords of machines located
nearby.
•Make sure the cable is securely fastened to the wall.
1. Place the reference for wall mounting on the wall to mark the 2 screw positions.
2. Install the 2 screws and washers (included) into the wall.
Note
•Make sure that the screw heads are at the same distance from the wall.
•Install the screws perpendicular to the wall.
3. Hook the repeater on the screw heads.
Washer
Drive the screw
to this point.
Document Version 2010-06 Installation Manual 17
4 Wall Mounting
Reference for Wall Mounting
Print this page and use as a reference for wall mounting.
Install a screw here.
Install a screw here.
37 mm
(1-15/32 in)
Note
Make sure to set the print size to correspond with the size of this page. If the dimension of the paper output
still deviates slightly from the measurement indicated here, use the measurement indicated here.
18 Installation Manual Document Version 2010-06
4 Wall Mounting
5 Troubleshooting
PROBLEM PROBABLE CAUSE SOLUTION
•The repeater does not turn
on.
•The AC adaptor is not
connected properly.
•Make sure that the AC adaptor is
properly connected to both the
repeater and the AC outlet.
•Cannot register the
repeater. (The STATUS
LED and RSSI/ID LED
flash green and red
alternately.)
•The CS is out of range. •Move the repeater closer to the CS and
repeat the registration procedure.
•The CS is not turned on. •Confirm that the CS is on.
•The PS is beeping. •The verification tone is
turned on.
•Turn the verification tone off.
•Poor audio quality. •The CS is out of range. •Move the repeater closer to the CS.
•The PS is out of range. •Move the PS closer to the repeater.
•A ringing call suddenly
stops when moving
between CS/repeater
zones.
•There is a delay when
moving from a CS zone to a
repeater zone when
receiving a call in group ring
mode.
•Answer the call before moving between
CS/repeater zones.
•When talking and moving
between zones, you hear
an alarm or continuous
noise, or your call is
disconnected.
•The new zone is "busy", so
handover cannot occur.
•Return to the original zone and
continue your call.
Document Version 2010-06 Installation Manual 19
5 Troubleshooting
One Panasonic Way, Secaucus, New Jersey 07094
http://www.panasonic.com/csd
Copyright:
This material is copyrighted by Panasonic System Networks Co., Ltd., and may be reproduced for internal
use only. All other reproduction, in whole or in part, is prohibited without the written consent of Panasonic
System Networks Co., Ltd.
© Panasonic System Networks Co., Ltd. 2010
PNQX2992ZA KK0910NT0 (v0.005)
