Wireless Indoor Camera
Model No. KX-HNC200
Thank you for purchasing a Panasonic product.
Please read this document before using the unit and save it for future
reference.
For assistance, visit our Web site: http://www.panasonic.com/help
for customers in the U.S.A. or Puerto Rico.
For your safety
To prevent severe injury and loss of life/
property, read this section carefully before
using the product to ensure proper and safe
operation of your product.
WARNING
Power connection
RUse only the power source marked on the
product.
RDo not overload power outlets and
extension cords. This can result in the risk
of fire or electric shock.
RCompletely insert the AC adaptor/power
plug into the power outlet. Failure to do so
may cause electric shock and/or excessive
heat resulting in a fire.
RRegularly remove any dust, etc. from the
AC adaptor/power plug by pulling it from
the power outlet, then wiping with a dry
cloth. Accumulated dust may cause an
insulation defect from moisture, etc.
resulting in a fire.
RUnplug the product from power outlets if it
emits smoke, an abnormal smell, or makes
an unusual noise. These conditions can
cause fire or electric shock. Confirm that
smoke has stopped emitting and contact us
at www.panasonic.com/contactinfo
RUnplug from power outlets and never touch
the inside of the product if its casing has
been broken open.
RNever touch the plug with wet hands.
Danger of electric shock exists.
Installation
RDo not allow the AC adaptor cord to be
excessively pulled, bent or placed under
heavy objects.
RDo not connect a power cable to a terminal
that is not specified in this guide.
RWhen opening holes in walls for installation
or wiring, or when securing the power
cable, make sure you do not damage
existing wiring and ductwork.
RDo not perform any actions (such as
fabricating, twisting, stretching, bundling,
forcibly bending, damaging, altering,
exposing to heat sources, or placing heavy
objects on the power cable) that may
damage the power cable. Using the product
with a damaged power cable may cause
electric shock, short circuits, or fire. Contact
an authorized service center for repairs.
RDo not mount the bracket in an unstable
location, in a location subject to frequent
vibration, on a ceiling, or on a weak wall.
(Do not mount on plaster board, concrete
blocks, wooden materials exposed to the
outdoors, walls with very rough surfaces, or
surfaces that are narrower than the width of
the wall mount bracket.) There is a risk of
injury if the product falls, or of fire or electric
shock if water enters the product.
Operating safeguards
RUnplug the product from power outlets
before cleaning. Do not use liquid or
aerosol cleaners.
RDo not disassemble the product.
RNever put metal objects inside the product.
If metal objects enter the product, turn off
the circuit breaker and contact an
authorized service center.
Medical
RConsult the manufacturer of any personal
medical devices, such as pacemakers or
hearing aids, to determine if they are
adequately shielded from external RF
(radio frequency) energy. DECT features
operate between 1.92 GHz and 1.93 GHz
with a peak transmission power of 115 mW.
Wi-Fi features operate between 2.412 GHz
and 2.462 GHz with a peak transmission
power of 100 mW.
RDo not use the product in health care
facilities if any regulations posted in the
area instruct you not to do so. Hospitals or
health care facilities may be using
equipment that could be sensitive to
external RF energy.
CAUTION
Installation and location
RNever install wiring during an electrical
storm.
RThe AC adaptor is used as the main
disconnect device. Ensure that the AC
outlet is installed near the product and is
easily accessible.
Preventing accidents and injuries
RDo not put your ear(s) near the speaker, as
loud sounds emitted from the speaker may
cause hearing impairment.
2For assistance, please visit http://www.panasonic.com/help
Installation
Important safety
instructions
When using your product, basic safety
precautions should always be followed to
reduce the risk of fire, electric shock, and
injury to persons, including the following:
1. Do not use this product near water for
example, near a bathtub, washbowl,
kitchen sink, or laundry tub, in a wet
basement or near a swimming pool.
2. Use only the power cord indicated in this
document.
SAVE THESE INSTRUCTIONS
For best performance
Base unit location/avoiding noise
The base unit and other compatible Panasonic
units use radio waves to communicate with
each other.
Environment
RKeep the product away from electrical noise
generating devices, such as fluorescent
lamps and motors.
RThe product should be kept free from
excessive smoke, dust, high temperature,
and vibration.
RThe product should not be exposed to
direct sunlight.
RDo not place heavy objects on top of the
product.
RWhen you leave the product unused for a
long period of time, unplug the product from
the power outlet.
RThe product should be kept away from heat
sources such as heaters, kitchen stoves,
etc. It should not be placed in rooms where
the temperature is less than 0 °C (32 °F) or
greater than 40 °C (104 °F). Damp
basements should also be avoided.
Routine care
RWipe the outer surface of the product with a
soft moist cloth.
RDo not use benzine, thinner, or any
abrasive powder.
Camera image quality
RCamera images may have the following
characteristics.
– Colors in images may differ from the
actual colors.
– When there is light behind the subject
(i.e., backlighting), faces may appear
dark.
– Image quality may be reduced in dark
locations.
– Images may appear hazy when there
are outdoor lights in use.
RDistinguishing faces is difficult in the
following situations.
– When the person is too far (over approx.
9.8 ft. [3 m]) from the camera even when
the surrounding area is bright.
(Depending on the viewing angle or the
conditions when images were viewed,
such as when there are shadows or
backlighting, faces may not be
distinguishable even when the person is
within 9.8 ft. [3 m] of the camera.)
– In the late afternoon and at night, or
other times when the surrounding area is
dark. (This may reduce image quality.)
– When people are moving (which causes
blurring) in front of the camera.
Notice:
• This product is designed for use in the
United States of America. Sale or use of
this product in other countries may violate
local laws.
• Cet appareil est conçu pour être utilisé aux
États-Unis d’Amérique. La vente ou l’emploi
de cet appareil dans certains autres pays
peut constituer une infraction à la législation
locale.
• Este producto está diseñado para usarse
en los Estados Unidos de América.
La venta o el empleo de este producto en
ciertos países puede constituir violación de
la legislación local.
• ҁౢࠔࣁऍ୯٬ҔԶǶऩӧځд୯ৎᎍ
୧܈٬ҔǴёૈၴϸӦݤٯǶ
• ࡇࡢ〇ရࡣࠊ᪥ᮏᅜእ࡛ࡢ⏝ࢆ┠ⓗࡋ
࡚タィࡉࢀ࡚࠾ࡾࠊ᪥ᮏᅜෆ࡛ࡢ⏝ࡣ
ἲᚊ㐪࡞ࡾࡲࡍࠋᚑࡗ࡚ࠊᙜ♫࡛ࡣ
᪥ᮏᅜෆ࠾࠸࡚ࡣཎ๎ࡋ࡚ಟ⌮࡞ࡢ
ࢧ࣮ࣅࢫࡣ⮴ࡋࡡࡲࡍࠋ
For assistance, please visit http://www.panasonic.com/help 3
Installation
FCC and other
information
This device complies with Part 15 of the FCC
Rules. Operation is subject to the following
two conditions:
(1) This device may not cause harmful
interference, and (2) this device must accept
any interference received, including
interference that may cause undesired
operation.
Privacy of communications may not be
ensured when using this phone.
CAUTION:
Any changes or modifications not expressly
approved by the party responsible for
compliance could void the user’s authority to
operate this device.
NOTE:
This equipment has been tested and found to
comply with the limits for a Class B digital
device, pursuant to Part 15 of the FCC Rules.
These limits are designed to provide
reasonable protection against harmful
interference in a residential installation. This
equipment generates, uses, and can radiate
radio frequency energy and, if not installed
and used in accordance with the instructions,
may cause harmful interference to radio
communications. However, there is no
guarantee that interference will not occur in a
particular installation. If this equipment does
cause harmful interference to radio or
television reception, which can be determined
by turning the equipment off and on, the user
is encouraged to try to correct the interference
by one or more of the following measures:
– Reorient or relocate the receiving antenna.
– Increase the separation between the
equipment and receiver.
– Connect the equipment into an outlet on a
circuit different from that to which the
receiver is connected.
– Consult the dealer or an experienced radio/
TV technician for help.
Some cordless telephones operate at
frequencies that may cause interference to
nearby TVs and VCRs. To minimize or
prevent such interference, the base of the
cordless telephone should not be placed near
or on top of a TV or VCR. If interference is
experienced, move the cordless telephone
further away from the TV or VCR. This will
often reduce or eliminate interference.
FCC RF Exposure Warning:
RThis product complies with FCC radiation
exposure limits set forth for an uncontrolled
environment.
RTo comply with FCC RF exposure
requirements, the base unit must be
installed and operated 20 cm (8 inches) or
more between the product and all person’s
body.
RThis product may not be collocated or
operated in conjunction with any other
antenna or transmitter.
RFor body-worn operation, the handset must
be used only with a non-metallic accessory.
Use of other accessories may not ensure
compliance with FCC RF exposure
requirements.
Notice:
RFCC ID can be found inside the battery
compartment or on the bottom of the units.
4For assistance, please visit http://www.panasonic.com/help
Installation
Physical features

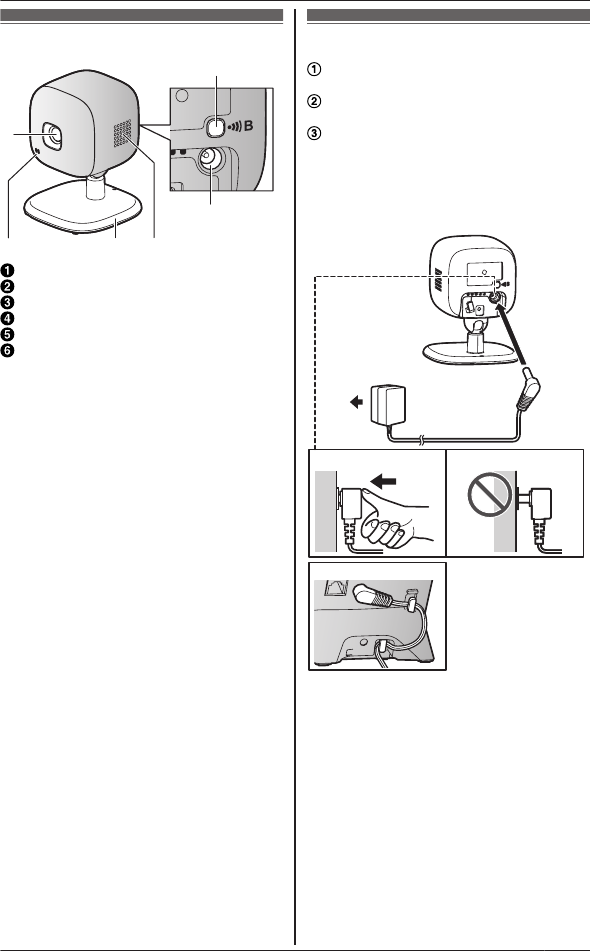

A
F
E
C DB
Camera
Status light
Stand
Speaker
Registration button
DC jack
Connections
Insert the AC adaptor plug firmly into the
DC jack.
Secure the AC adaptor cord by wrapping
around the hook.
Connect the AC adaptor to the power
outlet.
Note:
RUse only the supplied Panasonic AC
adaptor PNLV236.
C
A
B
For assistance, please visit http://www.panasonic.com/help 5
Setup

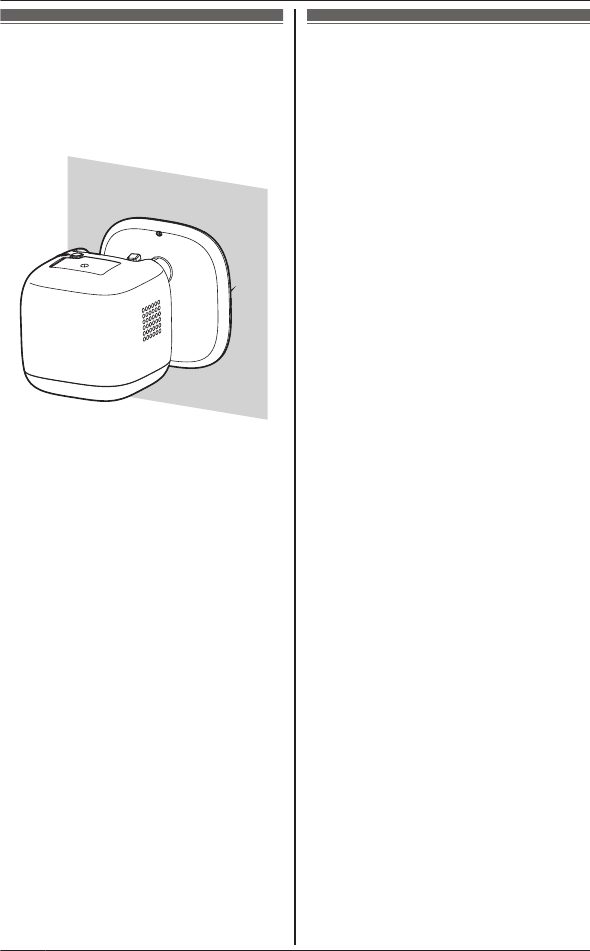

Wall mounting
1Attach the wall mount bracket to the wall
using screws (not included) appropriate
for the material of the wall.
2Attach the camera stand to the wall
mount bracket.
3Adjust the position of the camera.
Specifications
RFrequency range
DECT:
1.92 GHz–1.93 GHz
Wi-Fi:
2.412 GHz–2.462 GHz (channels 1–11)
RPower source
120 V AC, 60 Hz
ROperating conditions
-20 °C–50 °C (-4 °F–122°F)
up to 90% relative air humidity
(non-condensing)
RTransmitting range
Approx. 100 m (328 feet) (line-of-sight
distance from the base unit)
RImage sensor
0.3· megapixel CMOS
RMinimum illuminance required
1 lx*1
RFocal length
Fixed, 0.4 m (1.3 feet)–infinity)
RAngular field of view (camera angle)
Horizontal: approx. 70°
Vertical: approx. 53°
RSensor detection method
Pyroelectric infrared sensor (heat sensor)
and motion detection
RHeat sensor detection range*2
Horizontal: approx. 63°
Vertical: approx. 20°
Distance: approx. 5 m (16.4 feet)
RMotion detection sensor detection range
Horizontal: approx. 53°
Vertical: approx. 41°
RLighting method
2 white LED lights*3
RAdjustable mounting angles*4
Horizontal: ±90°
Vertical: facing forward - facing down
approx. 60°
RHeat sensor adjustable angles
Manually adjustable to 2 angles
*1 The minimum illuminance required when
the camera’s [Brightness] setting is set to
[+3].
*2 When the surrounding temperature is
approx. 20 °C (68 °F).
*3 Approx. 8.5 lx when 3 m (9.8 feet) in front
of the camera, and approx. 4 lx when 3 m
(9.8 feet) away and 20° to the left or right
of the camera.
*4 Adjustable when mounting.
6For assistance, please visit http://www.panasonic.com/help
Setup
Two Riverfront Plaza, Newark, NJ 07102-5490
© Panasonic System Networks Co., Ltd. 2014
Printed in China
