User Manual
Operating Instructions
Home Network System
Keychain Remote
Model No. KX-HNK102
Thank you for purchasing a Panasonic product.
This document explains how to operate the keychain remote properly.
For details about how to use the system, refer to the User’s Guide
(page 12).
Please read this document before using the unit and save it for future
reference.
For assistance, please contact us at 1-800-272-7033 or visit our Web
site: http://shop.panasonic.com/support for customers in the U.S.A.
Please register your product: http://shop.panasonic.com/support
In order to use this device:
RDownload the latest version of the [Home Network] app.
RUpdate your hub to the latest firmware version (version 5.50 or later).
For more information, refer to the User’s Guide (page 12).
Printed in China
HNK102_(en_en_)_0616_ver.021.pdf 1 2015/06/16 18:14:13
Important Information
Accessory information ...............3
About this system ......................4
For your safety ...........................4
Important safety instructions ......5
For best performance ................5
Other information .......................6
Setup
Part names and functions ..........8
LED indicator .............................8
Setup overview ..........................9
Inserting the battery .................10
Attaching the key ring ..............10
Registering the remote ............11
Wireless communication
range .......................................11
Appendix
Using the remote .....................12
Features available when using the
[Home Network] app ................12
Accessing the User’s Guide ....12
Specifications ..........................13
FCC and other information ......14
Customer services ...................15
Limited Warranty (ONLY FOR
U.S.A.) .....................................16
2
Table of Contents
HNK102_(en_en_)_0616_ver.021.pdf 2 2015/06/16 18:14:13

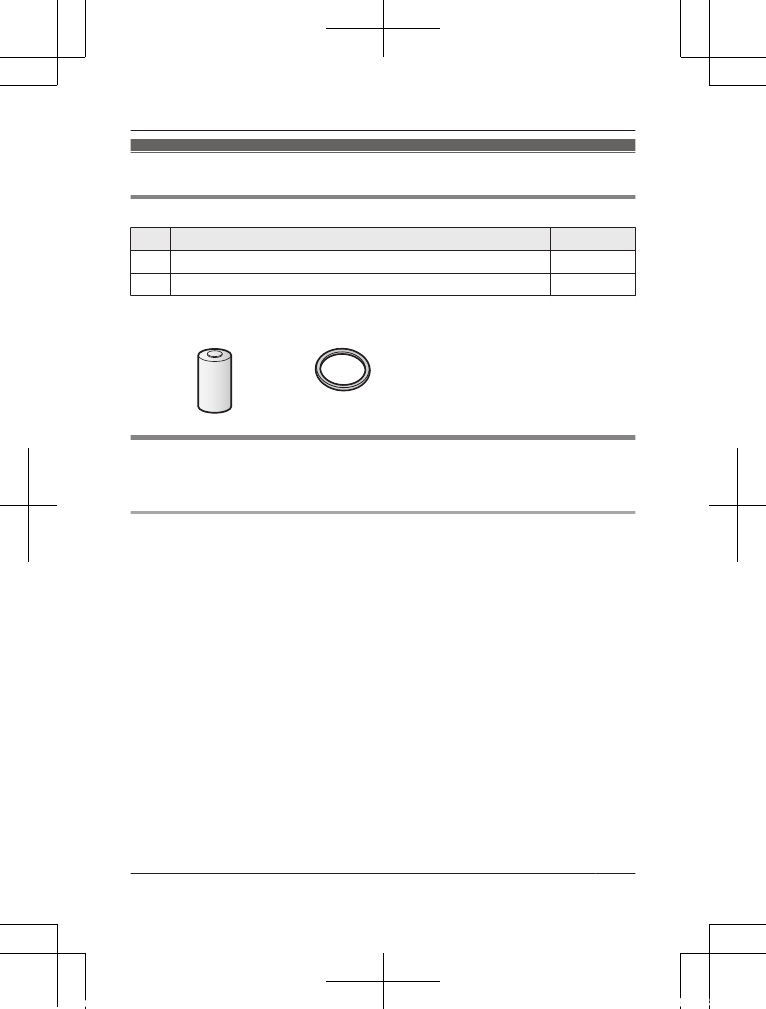

Accessory information
Supplied accessories
No. Accessory item/Part number Quantity
ABattery*11
BKey ring/PNGX1035Z 1
*1 When replacing the battery, refer to the battery specifications noted under
“Power source” on page 13.
AB
Other information
RDesign and specifications are subject to change without notice.
RThe illustrations in these instructions may vary slightly from the actual product.
Trademarks
RiPhone and iPad are registered trademarks of Apple Inc.
RAndroid is a trademark of Google Inc.
RMicrosoft, Windows, and Internet Explorer are either registered trademarks or
trademarks of Microsoft Corporation in the United States and/or other countries.
RAll other trademarks identified herein are the property of their respective owners.
For assistance, please visit http://shop.panasonic.com/support 3
Important Information
HNK102_(en_en_)_0616_ver.021.pdf 3 2015/06/16 18:14:13
About this system
RThis system is an auxiliary system; it
is not designed to provide complete
protection from property loss.
Panasonic will not be held
responsible in the event that
property loss occurs while this
system is in operation.
RThe system’s wireless features are
subject to interference, therefore
functionality in all situations cannot
be guaranteed. Panasonic will not
be held responsible for injury or
damage to property that occurs in
the event of wireless communication
error or failure.
For your safety
To prevent severe injury and loss of life/
property, read this section carefully
before using the product to ensure
proper and safe operation of your
product.
WARNING
Power connection
RUse only the power source marked
on the product.
RDo not connect non-specified
devices.
Installation
RTo prevent the risk of fire or
electrical shock, do not expose the
product to rain or any type of
moisture.
RDo not place or use this product
near automatically controlled
devices such as automatic doors
and fire alarms. Radio waves
emitted from this product may cause
such devices to malfunction
resulting in an accident.
Operating safeguards
RDo not disassemble the product.
Medical
RConsult the manufacturer of any
personal medical devices, such as
pacemakers or hearing aids, to
determine if they are adequately
shielded from external RF (radio
frequency) energy. DECT features
operate between 1.92 GHz and
1.93 GHz with a peak transmission
power of 115 mW.
RDo not use the product in health
care facilities if any regulations
posted in the area instruct you not to
do so. Hospitals or health care
facilities may be using equipment
that could be sensitive to external
RF energy.
CR Lithium battery
RDo not recharge, disassemble,
remodel, heat or throw it into fire.
RDo not touch the terminals and
with metal objects.
RRisk of explosion if battery is
replaced by an incorrect type.
Dispose of used battery according to
local regulations.
RIf any electrolyte should come into
contact with your hands or clothes,
wash it off thoroughly with water.
RIf any electrolyte should come into
contact with your eyes, never rub
your eyes. Rinse your eyes
4For assistance, please visit http://shop.panasonic.com/support
Important Information
HNK102_(en_en_)_0616_ver.021.pdf 4 2015/06/16 18:14:13
thoroughly with water, and then
consult a doctor.
CAUTION
CR Lithium battery
RUse only the battery noted on
page 3.
RInsert the battery correctly.
RDo not leave the battery in an
automobile exposed to direct
sunlight for a long period of time with
the doors and windows closed.
RRemove the battery if you do not
use the product for a long period of
time. Keep it in a cool, dark area.
RDo not replace a battery with wet
hands.
RKeep out of the reach of small
children. There is a risk of
swallowing. If the battery is
swallowed, seek medical attention
immediately.
RRemove the battery if it becomes
unusable. There is a risk of leakage,
overheating, and rupture. Do not
attempt to use a battery if it is
leaking.
RExercise care when handling the
batteries. Do not allow conductive
materials such as rings, bracelets, or
keys to touch the batteries,
otherwise a short circuit may cause
the batteries and/or the conductive
material to overheat and cause
burns.
Do not intentionally pour water on
the battery or allow it to get wet.
There is a risk of fire and smoke. If
the battery becomes wet, remove it
immediately and contact an
authorized service center.
Important safety
instructions
When using your product, basic safety
precautions should always be followed
to reduce the risk of fire, electric shock,
and injury to persons, including the
following:
1. Do not use this product near water
for example, near a bathtub,
washbowl, kitchen sink, or laundry
tub, in a wet basement or near a
swimming pool.
2. Use only the batteries indicated in
this document. Do not dispose of
batteries in a fire. They may
explode. Check with local codes for
possible special disposal
instructions.
SAVE THESE INSTRUCTIONS
For best performance
Hub location/avoiding noise
The hub and other compatible
Panasonic devices use radio waves to
communicate with each other.
RFor maximum coverage and
noise-free communications, place
your hub:
– at a convenient, high, and central
location with no obstructions
between the product and hub in
an indoor environment.
– away from electronic appliances
such as TVs, radios, personal
computers, wireless devices, or
other phones.
– facing away from radio frequency
transmitters, such as external
For assistance, please visit http://shop.panasonic.com/support 5
Important Information
HNK102_(en_en_)_0616_ver.021.pdf 5 2015/06/16 18:14:13
antennas of mobile phone cell
stations. (Avoid putting the hub
on a bay window or near a
window.)
RIf the reception for a hub location is
not satisfactory, move the hub to
another location for better reception.
Environment
RKeep the product away from
electrical noise generating devices,
such as fluorescent lamps and
motors.
RThe product should be kept free
from excessive smoke, dust, high
temperature, and vibration.
RThe product should not be exposed
to direct sunlight.
RDo not place heavy objects on top of
the product.
RThe product should be kept away
from heat sources such as heaters,
kitchen stoves, etc. It should not be
placed in rooms where the
temperature is less than 0 °C (32 °F)
or greater than 40 °C (104 °F).
ROperating the product near electrical
appliances may cause interference.
Move away from the electrical
appliances.
Other information
CAUTION: Risk of explosion if battery
is replaced by an incorrect type.
Dispose of used batteries according to
the instructions.
Routine care
RWipe the outer surface of the
product with a soft moist cloth.
RDo not use benzine, thinner, or any
abrasive powder.

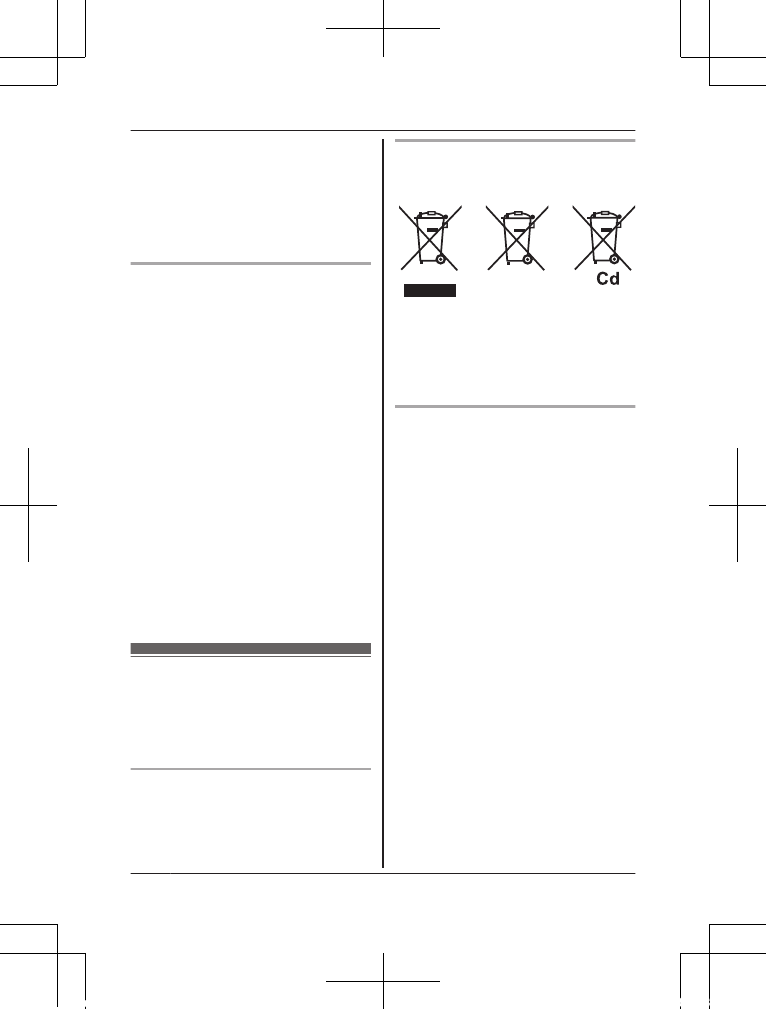

Information on Disposal in other
Countries outside the European
Union
These symbols are only valid in the
European Union. If you wish to discard
these items, please contact your local
authorities or dealer and ask for the
correct method of disposal.
Note for the battery removal
procedure
Refer to “Inserting the battery” on
page 10.
6For assistance, please visit http://shop.panasonic.com/support
Important Information
HNK102_(en_en_)_0616_ver.021.pdf 6 2015/06/16 18:14:13
Notice
For assistance, please visit http://shop.panasonic.com/support 7
Important Information
HNK102_(en_en_)_0616_ver.021.pdf 7 2015/06/16 18:14:13
Part names and
functions
n Front view
A
B
C
D
n Rear view
E
F
H
I
G
LED indicator
(Arm: Away) button
Arms the alarm system using the
[Arm: Away] mode.
(disarm) button
Disarms the alarm system.
(smart) button
Used to turn on a smart plug,
trigger the alarm system, etc.
Battery cover lock
Battery cover
M N
Used to register the keychain
remote to the hub.
Key ring eyelet
Key ring
LED indicator
You can use the LED indicator to
confirm the remote’s status.
Indicator Status
Off Normal operation or
no power*1
Amber,
blinking
quickly
Signal is being sent
to the hub (you are
pressing a button)*2
Red, lit [Arm: Away] mode
selected (you
pressed the arm
button)*2
Green, lit [Disarm] mode
selected (you
pressed the disarm
button), or you
pressed the smart
button*2
8For assistance, please visit http://shop.panasonic.com/support
Setup
HNK102_(en_en_)_0616_ver.021.pdf 8 2015/06/16 18:14:14
Indicator Status
Red, blinking Remote is out of
range of the hub, or
could not
communicate with
the hub
Green,
blinking slowly
Registration mode
(you pressed and
held MN)
Repeating
pattern of
blinking green
and blinking
red
Low battery
*1 The LED lights for about 2
seconds after a button is pressed,
then turns off. If the LED indicator
does not light when you press a
button, the battery must be
replaced.
*2 The LED indicator does not
indicate remote’s status if the
remote has not been registered
(page 11).
Setup overview
1Initial setup
Make sure you can access the
system using your mobile device.
For details, refer to the System
Setup Guide included with your
hub.
2Insert the battery
The remote is battery powered.
3Registration
Required only if the remote was
purchased separately (i.e., not as
part of a bundle).
4Confirm the usage area
Read the information in this
document to confirm that the
desired usage area is suitable to
proper operation.
For assistance, please visit http://shop.panasonic.com/support 9
Setup
HNK102_(en_en_)_0616_ver.021.pdf 9 2015/06/16 18:14:14
Inserting the battery
RUSE ONLY a CR2 Lithium battery.
RConfirm the polarities ( , ).
RUsing a metal object to open the
lock may scratch the lock.
1Remove the battery cover.
RInsert a thin, flat object into the
battery cover lock and rotate it
to the “unlocked” position, as
shown below.
Locked Unlocked
RGrasp the indented areas on
the sides of the battery cover
(A) and lift the cover up (B).
1
1
2
2Insert the battery.
3Attach and lock the battery cover.
RAfter attaching the battery
cover, rotate the lock to the
“locked” position.
Attaching the key
ring
Attach the key ring to the remote as
shown.
10 For assistance, please visit http://shop.panasonic.com/support
Setup
HNK102_(en_en_)_0616_ver.021.pdf 10 2015/06/16 18:14:14

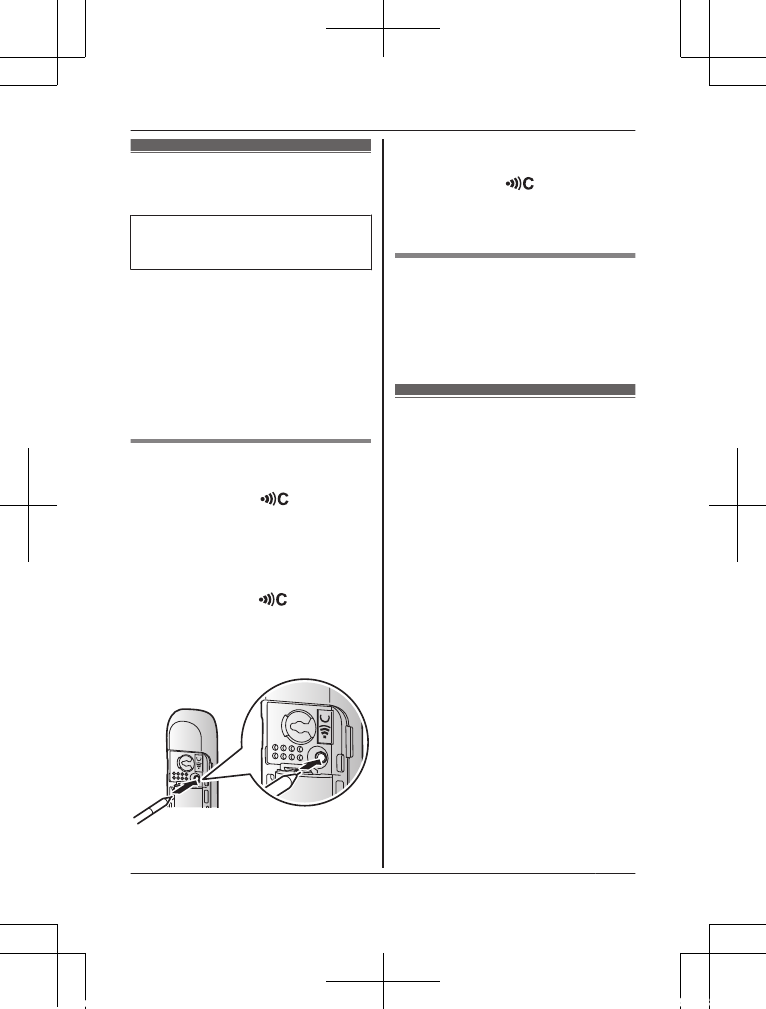

Registering the
remote
This procedure is not required for
devices that were included as part of
a bundle.
Before you can use the remote, it must
be registered to the hub.
If you purchased devices separately
(i.e., not as part of a bundle), you must
register each device to the hub.
You can register each device by using
the registration buttons or the [Home
Network] app.
Using registration buttons
1Hub:
Press and hold M OTHER
DEVICEN until the LED indicator
blinks slowly in green.
2Remote:
Open the battery cover (page 10),
then use an object with a thin tip,
press and hold MN until the
LED indicator blinks slowly in
green (page 8).
RWhen registration is complete,
the hub sounds one long beep.
Note:
RTo cancel without registering the
remote, press MN on the hub and
on the remote again.
RIf registration fails, the hub sounds
several short beeps.
Using the app
When you register the remote by using
the [Home Network] app, you can
assign a name to your devices. For
more information, refer to the User’s
Guide (page 12).
Wireless
communication
range
The wireless communication range of
each device in the system from the hub
is approximately 50 m (160 feet)
indoors and approximately 300 m
(1,000 feet) outdoors. Wireless
communication may be unreliable
when the following obstacles are
located between the hub and other
devices.
RMetal doors or screens
RWalls containing aluminum-sheet
insulation
RWalls made of concrete or
corrugated iron
RDouble-pane glass windows
RMultiple walls
RWhen using each device on
separate floors or in different
buildings
For assistance, please visit http://shop.panasonic.com/support 11
Setup
HNK102_(en_en_)_0616_ver.021.pdf 11 2015/06/16 18:14:14
Using the remote
Changing the arm mode
Press the desired arm mode button.
RThe LED indicator lights for about 2
seconds according to the arm mode
(page 8).
Canceling an alert
When the hub is sounding an alert, you
can press or on the
keychain remote to cancel the alert.
RWhen the keychain remote cancels
the alert, the LED indicator lights for
about 2 seconds.
Using the smart button
You can press the keychain remote’s
smart button to turn on a smart plug,
trigger the alarm system, etc.
Use the [Home Network] app to
change the feature assigned to the
smart button. For more information,
refer to the User’s Guide (page 12).
Features available
when using the
[Home Network] app
Some of the features that are available
when using the [Home Network] app
are listed below. For more information,
refer to the User’s Guide (page 12).
–Alarm system
You can use the app to arm and
disarm the alarm system.
–Device management
You can use the app to change the
remote’s name and assign a feature
to the keychain remote’s smart
button.
Accessing the User’s
Guide
The User’s Guide is a collection of
online documentation that helps you
get the most out of the [Home
Network] app.
1iPhone®/iPad®
Tap in the app’s home screen.
Android™ devices
Tap or press your mobile
device’s menu button in the app’s
home screen.
2Tap [User’s Guide].
Note:
RMicrosoft® Windows® Internet
Explorer® 8 and earlier versions are
not supported.
RAndroid 4.1 or later versions are
recommended.
RYou can also access the User’s
Guide at the web page listed below.
www.panasonic.net/pcc/support/tel/
homenetwork/manual/
12 For assistance, please visit http://shop.panasonic.com/support
Appendix
HNK102_(en_en_)_0616_ver.021.pdf 12 2015/06/16 18:14:14
Specifications
RStandards
DECT (Digital Enhanced Cordless
Telecommunications)
RFrequency range
DECT: 1.92 GHz – 1.93 GHz
RRF transmission power
DECT: 115 mW (max.)
RPower source
Lithium battery CR2 (1 ´ 3.0 V,
850 mAh)
ROperating conditions
0 °C – 40 °C (32 °F – 104 °F)
RBattery life
Approx. 2 years (when the remote is
used 10 times a day, in an
environment of 25 °C (77 °F))*1
RDimensions (height ´ width ´
depth)
77 mm ´ 27 mm ´ 18 mm
(3 1/32 inches ´ 1 1/18 inches ´
23/32 inches)
(without the key ring attached)
RMass (weight)
Approx. 17 g (0.04 lb), excluding the
battery and without the key ring
attached
*1 Battery life may be reduced
depending on the operating
environment, and whether the
remote is used when it is out of
range of the hub.
For assistance, please visit http://shop.panasonic.com/support 13
Appendix
HNK102_(en_en_)_0616_ver.021.pdf 13 2015/06/16 18:14:14
FCC and other
information
This device complies with Part 15 of
the FCC Rules. Operation is subject to
the following two conditions:
(1) This device may not cause harmful
interference, and (2) this device must
accept any interference received,
including interference that may cause
undesired operation.
Privacy of communications may not be
ensured when using this device.
CAUTION:
Any changes or modifications not
expressly approved by the party
responsible for compliance could void
the user’s authority to operate this
device.
NOTE:
This equipment has been tested and
found to comply with the limits for a
Class B digital device, pursuant to Part
15 of the FCC Rules. These limits are
designed to provide reasonable
protection against harmful interference
in a residential installation. This
equipment generates, uses, and can
radiate radio frequency energy and, if
not installed and used in accordance
with the instructions, may cause
harmful interference to radio
communications. However, there is no
guarantee that interference will not
occur in a particular installation. If this
equipment does cause harmful
interference to radio or television
reception, which can be determined by
turning the equipment off and on, the
user is encouraged to try to correct the
interference by one or more of the
following measures:
– Reorient or relocate the receiving
antenna.
– Increase the separation between the
equipment and receiver.
– Connect the equipment into an
outlet on a circuit different from that
to which the receiver is connected.
– Consult the dealer or an
experienced radio/TV technician for
help.
Some devices operate at frequencies
that may cause interference to nearby
TVs and VCRs. To minimize or prevent
such interference, this device should
not be placed near or on top of a TV or
VCR. If interference is experienced,
move this device further away from the
TV or VCR. This will often reduce or
eliminate interference.
FCC RF Exposure Warning:
RThis product complies with FCC
radiation exposure limits set forth for
an uncontrolled environment.
RThis product may not be collocated
or operated in conjunction with any
other antenna or transmitter.
RFor body-worn operation, the device
must be used only with a
non-metallic accessory. Use of other
accessories may not ensure
compliance with FCC RF exposure
requirements.
Notice:
RFCC ID can be found inside the unit.
14 For assistance, please visit http://shop.panasonic.com/support
Appendix
HNK102_(en_en_)_0616_ver.021.pdf 14 2015/06/16 18:14:14
Customer services
You may also contact us directly at: 1-800-272-7033,
Monday - Friday 9 am to 9 pm;
Saturday - Sunday 10 am to 7 pm, EST.
Accessories!
h!p://shop.panasonic.com/support
Customer Services Directory
Shop
for all your Panasonic gear
Go to
Get everything you need to get the most out of
your Panasonic products
Accessories & Parts for your Camera, Phone, A/V
products, TV, Computers & Networking, Personal
Care, Home Appliances, Headphones, Ba!eries,
Backup Chargers & more…
For Product Informa"on, Opera"ng Assistance,
Parts, Owner’s Manuals, Dealer and Service info
go to h!p://shop.panasonic.com/support
For the hearing or speech impaired TTY: 1- 877-833-8855
As of June 2015
For assistance, please visit http://shop.panasonic.com/support 15
Appendix
HNK102_(en_en_)_0616_ver.021.pdf 15 2015/06/16 18:14:14
Limited Warranty (ONLY FOR U.S.A.)
Limited Warranty Coverage (For USA Only)
Labor
One (1) Year
Parts
One (1) Year
To submit a new repair request and for quick repair status visit our Web Site at
http://shop.panasonic.com/support
Panasonic Products Limited Warranty
Online Repair Request
Mail-In Service--Online Repair Request
If your product does not work properly because of a defect in materials or workmanship,
Panasonic Corporation of North America (referred to as “the warrantor”) will, for the length
of the period indicated on the chart below, which starts with the date of original purchase
(“warranty period”), at its option either (a) repair your product with new or refurbished parts,
(b) replace it with a new or a refurbished equivalent value product, or (c) refund your
purchase price. The decision to repair, replace or refund will be made by the warrantor.
During the “Labor” warranty period there will be no charge for labor. During the “Parts”
warranty period, there will be no charge for parts. This Limited Warranty excludes both
parts and labor for non-rechargeable batteries, antennas, and cosmetic parts (cabinet).
This warranty only applies to products purchased and serviced in the United States.
This warranty is extended only to the original purchaser of a new product which was
not sold “as is”.
Home Network System Products
microSD card (Included model only) 90 days N/A
When shipping the unit, carefully pack, include all supplied accessories listed in the
Owner’s Manual, and send it prepaid, adequately insured and packed well in a carton box.
When shipping Lithium Ion batteries please visit our Web Site at
http://shop.panasonic.com/support as Panasonic is committed to providing the most up to
date information. Include a letter detailing the complaint, a return address and provide a
daytime phone number where you can be reached. A valid registered receipt is required
under the Limited Warranty.
IF REPAIR IS NEEDED DURING THE WARRANTY PERIOD, THE PURCHASER WILL
BE REQUIRED TO FURNISH A SALES RECEIPT/PROOF OF PURCHASE INDICATING
DATE OF PURCHASE, AMOUNT PAID AND PLACE OF PURCHASE. CUSTOMER WILL
BE CHARGED FOR THE REPAIR OF ANY UNIT RECEIVED WITHOUT SUCH PROOF
OF PURCHASE.
Product or Part Name
16 For assistance, please visit http://shop.panasonic.com/support
Appendix
HNK102_(en_en_)_0616_ver.021.pdf 16 2015/06/16 18:14:14
Limited Warranty Limits and Exclusions
(As examples, this excludes damages for lost time, travel to and from the servicer,
loss of or damage to media or images, data or other memory or recorded content.
The items listed are not exclusive, but for illustration only.)
This warranty ONLY COVERS failures due to defects in materials or workmanship,
and DOES NOT COVER normal wear and tear or cosmetic damage. The warranty
ALSO DOES NOT COVER damages which occurred in shipment, or failures which
are caused by products not supplied by the warrantor, or failures which result from
accidents, misuse, abuse, neglect, mishandling, misapplication, alteration, faulty
installation, set-up adjustments, misadjustment of consumer controls, improper
maintenance, power line surge, lightning damage, modification, introduction of sand,
humidity or liquids, commercial use such as hotel, office, restaurant, or other business
or rental use of the product, or service by anyone other than a Factory Service Center
or other Authorized Servicer, or damage that is attributable to acts of God.
THERE ARE NO EXPRESS WARRANTIES EXCEPT AS LISTED UNDER
“LIMITED WARRANTY COVERAGE”.
THE WARRANTOR IS NOT LIABLE FOR INCIDENTAL OR CONSEQUENTIAL
DAMAGES RESULTING FROM THE USE OF THIS PRODUCT, OR ARISING OUT
OF ANY BREACH OF THIS WARRANTY.
ALL EXPRESS AND IMPLIED WARRANTIES, INCLUDING THE WARRANTY OF
MERCHANTABILITY, ARE LIMITED TO THE PERIOD OF THE LIMITED WARRANTY.
PARTS AND SERVICE, WHICH ARE NOT COVERED BY THIS LIMITED WARRANTY,
ARE YOUR RESPONSIBILITY.
Some states do not allow the exclusion or limitation of incidental or consequential damages,
or limitations on how long an implied warranty lasts, so the exclusions may not apply to you.
This warranty gives you specific legal rights and you may also have other rights which vary
from state to state. If a problem with this product develops during or after the warranty period,
you may contact your dealer or Service Center. If the problem is not handled to your
satisfaction, then write to:
Consumer Affairs Department
Panasonic Corporation of North America
661 Independence Pkwy
Chesapeake, VA 23320
As of June 2015
For assistance, please visit http://shop.panasonic.com/support 17
Appendix
HNK102_(en_en_)_0616_ver.021.pdf 17 2015/06/16 18:14:14
18
Notes
HNK102_(en_en_)_0616_ver.021.pdf 18 2015/06/16 18:14:14
19
Notes
HNK102_(en_en_)_0616_ver.021.pdf 19 2015/06/16 18:14:14
A Use CR2 Lithium battery.
B
IMPORTANT!
If your product is not working properly. . .
Visit our Web site: http://shop.panasonic.com/support
LFAQ and troubleshooting hints are available.
Use the Home Network app to access the User’s Guide
and refer to the Troubleshooting section.
For your future reference
We recommend keeping a record of the following information to assist
with any repair under warranty.
Serial No. Date of purchase
(found on the product’s carton
box)
Name and address of dealer
Attach your purchase receipt here.
Two Riverfront Plaza, Newark, NJ 07102-5490
© Panasonic System Networks Co., Ltd. 2015
HNK102_(en_en_)_0616_ver.021.pdf 20 2015/06/16 18:14:14
