Panasonic of North America 96NKX-HNS105 DECT 6.0 Indoor Siren User Manual Installation Manual English

Panasonic Corporation of North America DECT 6.0 Indoor Siren Installation Manual English

Users Manual

Installation Guide
Home Network System
Indoor Siren
Model No. KX-HNS105
Thank you for purchasing a Panasonic product.
This document explains how to install the indoor siren properly.
For details about how to use the system, refer to the User’s Guide
(page 12).
Please read this document before using the unit and save it for future
reference.
For assistance, please contact us at 1-800-272-7033 or visit our Web
site: www.panasonic.com/support for customers in the U.S.A. or
Puerto Rico.
Please register your product: www.panasonic.com/prodreg
Printed in China
HNS105_(en_en)_1120_ver.010.pdf 1 2014/11/19 20:18:28
Introduction
Accessory information ...............3
Important Information
About this system ......................4
For your safety ...........................4
Important safety instructions ......5
For best performance ................5
Other information .......................6
Setup
Part names and functions ..........7
About the LED indicator .............7
Setup overview ..........................7
Registering the siren ..................8
Confirming the usage area ........9
Wall mounting ..........................10
Note about power
connections .............................11
Appendix
Testing the siren ......................12
Adjusting the siren’s volume ....12
Features available when using the
[Home Network] app ................12
Accessing the User’s Guide ....12
Specifications ..........................12
FCC and other information ......14
Customer services ...................15
Warranty (For United States and
Puerto Rico) .............................16
2
Table of Contents
HNS105_(en_en)_1120_ver.010.pdf 2 2014/11/19 20:18:28
Accessory information
Supplied accessories
No. Accessory item/Part number Quantity
AAC adaptor/PNLV2360Z 1
BWall mounting screws (25 mm (1 inch))/XTB4+25AVW 2
A B
Other information
RDesign and specifications are subject to change without notice.
RThe illustrations in these instructions may vary slightly from the actual product.
Trademarks
RiPhone and iPad are registered trademarks of Apple Inc.
RAndroid is a trademark of Google Inc.
For assistance, please visit www.panasonic.com/support 3
Introduction
HNS105_(en_en)_1120_ver.010.pdf 3 2014/11/19 20:18:28
About this system
This system is an auxiliary system; it is
not designed to provide complete
protection from property loss.
Panasonic will not be held responsible
in the event that property loss occurs
while this system is in operation.
For your safety
To prevent severe injury and loss of life/
property, read this section carefully
before using the product to ensure
proper and safe operation of your
product.
WARNING
Power connection
RUse only the power source marked
on the product.
RDo not overload power outlets and
extension cords. This can result in
the risk of fire or electric shock.
RCompletely insert the AC adaptor/
power plug into the power outlet.
Failure to do so may cause electric
shock and/or excessive heat
resulting in a fire.
RRegularly remove any dust, etc.
from the AC adaptor/power plug by
pulling it from the power outlet, then
wiping with a dry cloth. Accumulated
dust may cause an insulation defect
from moisture, etc. resulting in a fire.
RUnplug the product from power
outlets if it emits smoke, an
abnormal smell, or makes an
unusual noise. These conditions can
cause fire or electric shock. Confirm
that smoke has stopped emitting
and contact us at
www.panasonic.com/contactinfo
RUnplug from power outlets and
never touch the inside of the product
if its casing has been broken open.
Danger of electric shock exists.
RNever touch the plug with wet
hands. Danger of electric shock
exists.
RDo not connect non-specified
devices.
Installation
RTo prevent the risk of fire or
electrical shock, do not expose the
product to rain or any type of
moisture.
RDo not place or use this product
near automatically controlled
devices such as automatic doors
and fire alarms. Radio waves
emitted from this product may cause
such devices to malfunction
resulting in an accident.
RDo not allow the AC adaptor to be
excessively pulled, bent or placed
under heavy objects.
RKeep small parts (screws, etc.) out
of the reach of children. There is a
risk of swallowing. In the event they
are swallowed, seek medical advice
immediately.
Operating safeguards
RUnplug the product from power
outlets before cleaning. Do not use
liquid or aerosol cleaners.
RDo not disassemble the product.
RNever put metal objects inside the
product. If metal objects enter the
product, turn off the circuit breaker
and contact an authorized service
center.
4For assistance, please visit www.panasonic.com/support
Important Information
HNS105_(en_en)_1120_ver.010.pdf 4 2014/11/19 20:18:28
Medical
RConsult the manufacturer of any
personal medical devices, such as
pacemakers or hearing aids, to
determine if they are adequately
shielded from external RF (radio
frequency) energy. DECT features
operate between 1.92 GHz and
1.93 GHz with a peak transmission
power of 115 mW.
RDo not use the product in health
care facilities if any regulations
posted in the area instruct you not to
do so. Hospitals or health care
facilities may be using equipment
that could be sensitive to external
RF energy.
CAUTION
Installation and location
RNever install wiring during a lightning
storm.
RThe AC adaptor is used as the main
disconnect device. Ensure that the
AC outlet is installed near the
product and is easily accessible.
RTo avoid the risk of strangulation,
keep the product and the AC
adaptor cord at least 1 m (3 feet)
from a child’s crib and out of the
reach of small children.
Preventing accidents and injuries
RDo not put your ear(s) near the
speaker, as loud sounds emitted
from the speaker may cause hearing
impairment.
RDo not look directly at the LED lights
when they are lit. Failure to do so
may cause damage to eyes.
Important safety
instructions
When using your product, basic safety
precautions should always be followed
to reduce the risk of fire, electric shock,
and injury to persons, including the
following:
1. Do not use this product near water
for example, near a bathtub,
washbowl, kitchen sink, or laundry
tub, in a wet basement or near a
swimming pool.
2. Use only the power cord indicated
in this document.
SAVE THESE INSTRUCTIONS
For best performance
Hub location/avoiding noise
The hub and other compatible
Panasonic devices use radio waves to
communicate with each other.
RFor maximum coverage and
noise-free communications, place
your hub:
– at a convenient, high, and central
location with no obstructions
between the product and hub in
an indoor environment.
– away from electronic appliances
such as TVs, radios, personal
computers, wireless devices, or
other phones.
– facing away from radio frequency
transmitters, such as external
antennas of mobile phone cell
stations. (Avoid putting the hub
on a bay window or near a
window.)
For assistance, please visit www.panasonic.com/support 5
Important Information
HNS105_(en_en)_1120_ver.010.pdf 5 2014/11/19 20:18:28
RIf the reception for a hub location is
not satisfactory, move the hub to
another location for better reception.
Environment
RKeep the product away from
electrical noise generating devices,
such as fluorescent lamps and
motors.
RThe product should be kept free
from excessive smoke, dust, high
temperature, and vibration.
RThe product should not be exposed
to direct sunlight.
RDo not place heavy objects on top of
the product.
RWhen you leave the product unused
for a long period of time, unplug the
product from the power outlet.
RThe product should be kept away
from heat sources such as heaters,
kitchen stoves, etc. It should not be
placed in rooms where the
temperature is less than 0 °C (32 °F)
or greater than 40 °C (104 °F).
Damp basements should also be
avoided.
ROperating the product near electrical
appliances may cause interference.
Move away from the electrical
appliances.
Other information
Routine care
RWipe the outer surface of the
product with a soft moist cloth.
RDo not use benzine, thinner, or any
abrasive powder.
Notice
6For assistance, please visit www.panasonic.com/support
Important Information
HNS105_(en_en)_1120_ver.010.pdf 6 2014/11/19 20:18:28

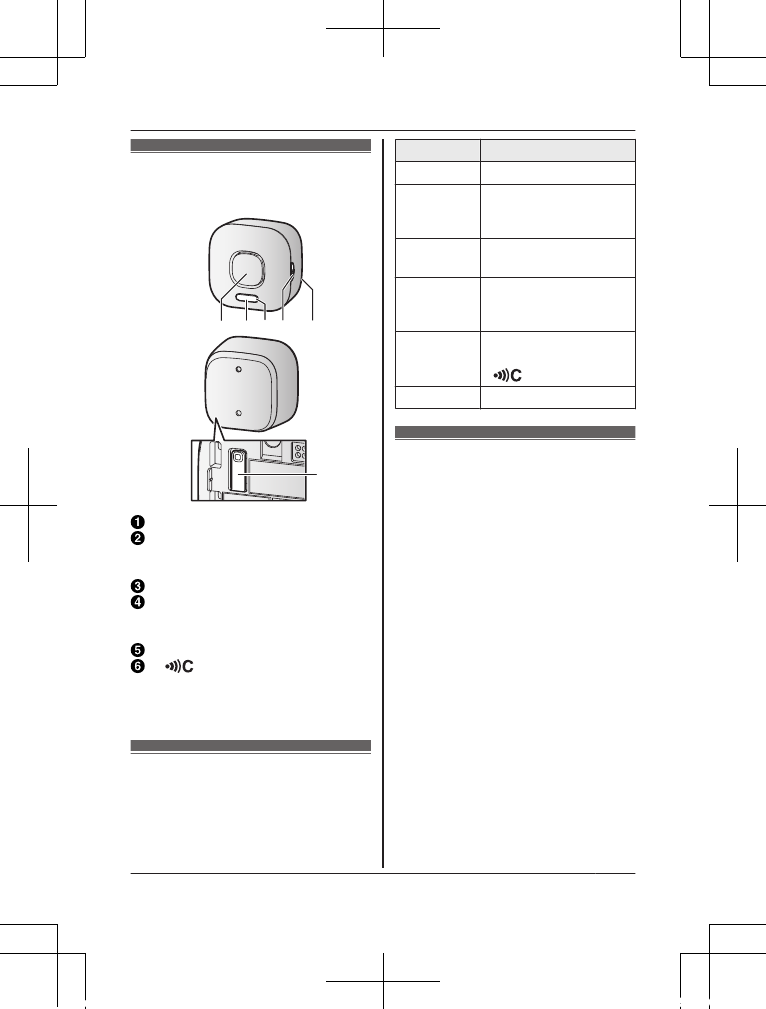

Part names and
functions
A B D E
F
C
Horn
Strobe light
Flashes when the siren is
sounding.
LED indicator
MHIGHN/MLOWN
Used to adjust the siren’s volume
(page 12).
Rear cover
M N
Used to confirm the status of the
siren or register the siren to the
hub.
About the LED
indicator
You can use the LED indicator to
confirm the siren’s status.
Indicator Status
Green, lit Normal operation
Red,
blinking
slowly
Siren is not registered
to a hub
Red,
blinking
Siren is out of range of
the hub
Red,
blinking
quickly
Alarm system was
triggered
Green,
blinking
Registration mode
(You pressed and held
MN)
Off No power
Setup overview
1Initial setup
Make sure you can access the
system using your mobile device.
For details, refer to the System
Setup Guide included with your
hub.
2Registration
Required only if the siren was
purchased separately (i.e., not as
part of a bundle).
3Confirm the installation area
Read the information in this
document to confirm that the
desired installation area is suitable
to proper operation.
4Installation
Install the siren in the desired
location.
For assistance, please visit www.panasonic.com/support 7
Setup
HNS105_(en_en)_1120_ver.010.pdf 7 2014/11/19 20:18:28
Registering the siren
This procedure is not required for
devices that were included as part of
a bundle.
Before you can use the siren, it must
be registered to the hub.
If you purchased devices separately
(i.e., not as part of a bundle), you must
register each device to the hub.
You can register each device by using
the registration buttons or the [Home
Network] app.
Note:
RBefore registering the siren, make
sure the AC adaptors of the hub and
siren are connected and each
device is powered.
Using registration buttons
1Hub:
Press and hold M OTHER
DEVICEN until the LED indicator
blinks in green.
2Siren:
Press and hold MN until the
LED indicator blinks in green
(page 7).
RWhen registration is complete,
the hub sounds one long beep.
Note:
RTo cancel the registration, press
M N on the hub and on the siren.
RIf registration fails, the hub sounds
several short beeps.
Using the app
When you register the siren by using
the [Home Network] app, you can
assign a name to your devices and
group them by location. For more
information, refer to the User’s Guide
(page 12).
8For assistance, please visit www.panasonic.com/support
Setup
HNS105_(en_en)_1120_ver.010.pdf 8 2014/11/19 20:18:28
Confirming the
usage area
Wireless communication
range
The wireless communication range of
each device in the system from the hub
is approximately 50 m (160 feet)
indoors and approximately 300 m
(1,000 feet) outdoors. Wireless
communication may be unreliable
when the following obstacles are
located between the hub and other
devices.
RMetal doors or screens
RWalls containing aluminum-sheet
insulation
RWalls made of concrete or
corrugated iron
RDouble-pane glass windows
RMultiple walls
RWhen using each device on
separate floors or in different
buildings
Note:
RYou can use the siren’s LED
indicator to confirm the siren’s
communication status (page 7). If
the LED indicator is lit in green or is
blinking quickly in red, the siren is
communicating properly with the
hub.
Usage area cautions
Using the siren in the following areas
may cause deformation, malfunction, or
operational failure.
RIn direct sunlight
RAreas exposed to grease or steam,
such as kitchens
RNear fire or heating devices
RNear magnetic fields (such as near
microwaves and magnets)
RAreas subject to extreme
temperature changes, such as next
to air conditioners
RAreas with reflective objects, such
as glass, that can interfere with
detection of temperature variation
RAreas where the temperature is
affected by strong illuminating
objects (such as fluorescent lights)
RNear devices that emit strong radio
waves, such as mobile phones
For assistance, please visit www.panasonic.com/support 9
Setup
HNS105_(en_en)_1120_ver.010.pdf 9 2014/11/19 20:18:28
Wall mounting
To mount the siren flat against the wall,
use the rear cover.
Mounting examples*1 of the rear
cover
1
A Rear cover
*1 View of looking from above.
Note:
RThe strobe light flashes when the
siren sounds. Mount the siren in a
location where its strobe light will be
visible.
RMount the siren on the stable
location where the siren can be
adequately supported when
mounting.
RDo not mount siren on a soft
material. It may fall down, break or
cause injury.
RDo not mount the siren on the
following places: gypsum board,
ALC (autoclaved lightweight cellular
concrete), concrete block, plywood
less than 25.4 mm (1 inch) thick, etc.
Using the rear cover
1Remove the rear cover by
pressing the upper sides of the
cover (A) and sliding it down (B).
A
B
2Attach the rear cover to the wall by
using screws (
1
).
RPlace the rear cover with “UP”
mark facing upwards.
R
2
37 mm (1 15/32 inches)
2
1
1
10 For assistance, please visit www.panasonic.com/support
Setup
HNS105_(en_en)_1120_ver.010.pdf 10 2014/11/19 20:18:28

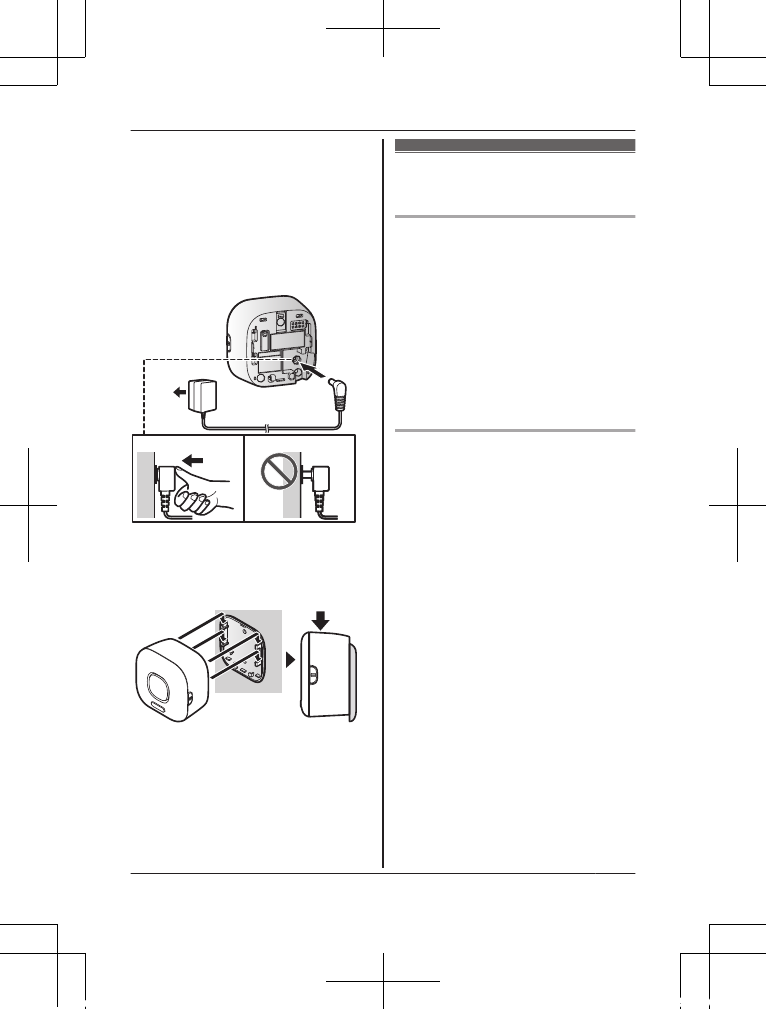

3Insert the AC adaptor plug firmly
into the DC jack (A).
4Connect the AC adaptor to the
power outlet (B).
Note:
RUse only the supplied
Panasonic AC adaptor
PNLV236.
2
1
5Attach the siren to the rear cover.
RInsert the grooves on the siren
to the 4 tabs on the rear cover,
and then push down the siren.
Note about power
connections
AC adaptor connection
RThe AC adaptor must remain
connected at all times. (It is normal
for the adaptor to feel warm during
use.)
RThe AC adaptor should be
connected to a vertically oriented or
floor-mounted AC outlet. Do not
connect the AC adaptor to a
ceiling-mounted AC outlet, as the
weight of the adaptor may cause it
to become disconnected.
Power failure
RThe siren will not work during a
power failure.
For assistance, please visit www.panasonic.com/support 11
Setup
HNS105_(en_en)_1120_ver.010.pdf 11 2014/11/19 20:18:28
Testing the siren
After you have installed the [Home
Network] app on your mobile device,
you can use your mobile device to test
the siren. For more information, refer to
the User’s Guide (page 12).
1Start the [Home Network], and
tap [Settings].
2Tap [Device Registration] and
select [Device Profiles].
3Tap [Siren] and select
[Installation Test].
4Tap [Play].
Adjusting the siren’s
volume
You can adjust the siren’s volume
using the siren’s MHIGHN/MLOWN switch
(page 7).
Features available
when using the
[Home Network] app
Some of the siren’s features that are
available when using the [Home
Network] app are listed below. For
more information, refer to the User’s
Guide (page 12).
–Alarm system
You can use the app to arm and
disarm the alarm system, confirm
the current status of the system’s
devices, and view a log of previous
events. You can also use the app to
stop the siren from sounding.
–Device management
You can use the app to confirm the
wireless signal strength of the siren,
change the siren’s name, change
whether the siren sounds, flashes,
or both, and test the siren.
Accessing the User’s
Guide
The User’s Guide is a collection of
online documentation that helps you
get the most out of the [Home
Network] app.
1iPhone®/iPad®
Tap in the app’s home screen.
Android™ devices
Tap or press your mobile
device’s menu button in the app’s
home screen.
2Tap [User’s Guide].
Note:
RYou can also access the User’s
Guide at the web page listed below.
www.panasonic.net/pcc/support/tel/
homenetwork/manual/
Specifications
RStandards
DECT 6.0 (Digital Enhanced
Cordless Telecommunications 6.0)
RFrequency range
DECT: 1.92 GHz – 1.93 GHz
12 For assistance, please visit www.panasonic.com/support
Appendix
HNS105_(en_en)_1120_ver.010.pdf 12 2014/11/19 20:18:29
RRF transmission power
DECT: 115 mW (max.)
RPower source
120 V AC, 60 Hz
RPower consumption
Standby: Approx. xx W
Maximum: Approx. xx W
RAlert tone volume
High alert level: approx. 110 dB
Low alert level: approx. xx dB
(measured approx. 10 cm
(3 15/16 inches))
ROperating conditions
0 °C – 40 °C (32 °F – 104 °F)
RDimensions
Approx. xx mm ´ xx mm ´ xx mm
(xx inches ´ xx inches ´ xx inches)
RMass (weight)
Approx. xx g (xx lb)
For assistance, please visit www.panasonic.com/support 13
Appendix
HNS105_(en_en)_1120_ver.010.pdf 13 2014/11/19 20:18:29
FCC and other
information
This device complies with Part 15 of
the FCC Rules. Operation is subject to
the following two conditions:
(1) This device may not cause harmful
interference, and (2) this device must
accept any interference received,
including interference that may cause
undesired operation.
Privacy of communications may not be
ensured when using this device.
CAUTION:
Any changes or modifications not
expressly approved by the party
responsible for compliance could void
the user’s authority to operate this
device.
NOTE:
This equipment has been tested and
found to comply with the limits for a
Class B digital device, pursuant to Part
15 of the FCC Rules. These limits are
designed to provide reasonable
protection against harmful interference
in a residential installation. This
equipment generates, uses, and can
radiate radio frequency energy and, if
not installed and used in accordance
with the instructions, may cause
harmful interference to radio
communications. However, there is no
guarantee that interference will not
occur in a particular installation. If this
equipment does cause harmful
interference to radio or television
reception, which can be determined by
turning the equipment off and on, the
user is encouraged to try to correct the
interference by one or more of the
following measures:
– Reorient or relocate the receiving
antenna.
– Increase the separation between the
equipment and receiver.
– Connect the equipment into an
outlet on a circuit different from that
to which the receiver is connected.
– Consult the dealer or an
experienced radio/TV technician for
help.
Some devices operate at frequencies
that may cause interference to nearby
TVs and VCRs. To minimize or prevent
such interference, the devices should
not be placed near or on top of a TV or
VCR. If interference is experienced,
move this device away from the TV or
VCR. This will often reduce or eliminate
interference.
FCC RF Exposure Warning:
RThis product complies with FCC
radiation exposure limits set forth for
an uncontrolled environment.
RTo comply with FCC RF exposure
requirements, the device must be
installed and operated 20 cm
(8 inches) or more between the
product and all person’s body.
RThis product may not be collocated
or operated in conjunction with any
other antenna or transmitter.
RFor body-worn operation, the device
must be used only with a
non-metallic accessory. Use of other
accessories may not ensure
compliance with FCC RF exposure
requirements.
Notice:
RFCC ID can be found inside the unit.
14 For assistance, please visit www.panasonic.com/support
Appendix
HNS105_(en_en)_1120_ver.010.pdf 14 2014/11/19 20:18:29
Customer services
Customer Services Directory (United States and
Puerto Rico)
www.panasonic.com/support
or, contact us via the web at:
www.panasonic.com/contactinfo
For hearing or speech impaired TTY users, TTY: 1-877-833-8855
For hearing or speech impaired TTY users, TTY: 1-866-605-1277
www.pstc.panasonic.com
or, send your request by E-mail to:
npcparts@us.panasonic.com
Accessory Purchases (United States and
Puerto Rico)
Obtain Product Information and Operating Assistance; locate your nearest
Dealer or Service Center; purchase Parts and Accessories; or make Customer
Service and Literature requests by visiting our Web Site at:
You may also contact us directly at: 1-800-272-7033,
Monday - Friday 9 am to 9 pm; Saturday - Sunday 10 am to 7 pm, EST.
Purchase Parts, Accessories and Owner’s Manual online for all
Panasonic Products by visiting our Web Site at:
You may also contact us directly at:1-800-237-9080 (Fax Only)
(Monday - Friday 9 am to 9 pm, EST.)
Panasonic National Parts Center
20421 84th Avenue S., Kent, WA 98032
(We accept Visa, MasterCard, Discover Card, American Express.)
For assistance, please visit www.panasonic.com/support 15
Appendix
HNS105_(en_en)_1120_ver.010.pdf 15 2014/11/19 20:18:29
Warranty (For United States and Puerto Rico)
Limited Warranty Coverage
Labor
One (1) Year
Parts
One (1) Year
Online Repair Request
To submit a new repair request and for quick repair status visit our Web Site at
www.panasonic.com/repair
PROOF OF PURCHASE.
Panasonic Home Network System Products
Limited Warranty
Mail-In Service--Online
If your product does not work properly because of a defect in materials or workmanship,
Panasonic Corporation of North America (referred to as “the warrantor”) will, for the length
of the period indicated on the chart below, which starts with the date of original purchase
(“Limited Warranty period”), at its option either (a) repair your product with new or
refurbished parts, or (b) replace it with a new or a refurbished equivalent value product, or
(c) refund your purchase price. The decision to repair, replace or refund will be made by
the warrantor.
During the “Labor” Limited Warranty period there will be no charge for labor. During the
“Parts” Limited Warranty period, there will be no charge for parts. You must mail-in your
product prepaid during the Limited Warranty period. This Limited Warranty excludes both
parts and labor for batteries, antennas, and cosmetic parts (cabinet). This Limited
Warranty only applies to products purchased and serviced in the United States or Puerto
Rico. This Limited Warranty is extended only to the original purchaser and only covers
products purchased as new.
Home Network System Products
microSD card (Included model only) 90 days N/A
When shipping the unit carefully pack in a padded shipping carton, include all
accessories, and send it prepaid. Include a letter detailing the complaint, a return
address and provide a day time phone number where you can be reached. P.O. Boxes
are not acceptable. Keep the tracking number for your records. A copy of valid
registered receipt is required under the 1 year parts and labor Limited Warranty.
For Limited Warranty service for headsets if a headset is included with this
product please follow instructions above.
IF REPAIR IS NEEDED DURING THE LIMITED WARRANTY PERIOD THE
PURCHASER WILL BE REQUIRED TO FURNISH A SALES
RECEIPT/PROOF OF PURCHASE INDICATING DATE OF PURCHASE,
AMOUNT PAID AND PLACE OF PURCHASE. CUSTOMER WILL BE
CHARGED FOR THE REPAIR OF ANY UNIT RECEIVED WITHOUT SUCH
16 For assistance, please visit www.panasonic.com/support
Appendix
HNS105_(en_en)_1120_ver.010.pdf 16 2014/11/19 20:18:29
Limited Warranty Limits And Exclusions
This Limited Warranty ONLY COVERS failures due to defects in materials or workmanship,
and DOES NOT COVER normal wear and tear or cosmetic damage. The Limited Warranty
ALSO DOES NOT COVER damages which occurred in shipment, or failures which are
caused by products not supplied by the warrantor, or failures which result from accidents,
misuse, abuse, neglect, bug infestation, mishandling, misapplication, alteration, faulty
installation, set-up adjustments, misadjustment of consumer controls, improper maintenance,
power line surge, lightning damage, modification, introduction of sand, humidity or liquids,
commercial use such as hotel, office, restaurant, or other business or rental use of the
product, or service by anyone other than a Factory Service Center or other Authorized
Servicer, or damage that is attributable to acts of God.
THERE ARE NO EXPRESS WARRANTIES EXCEPT AS LISTED UNDER "LIMITED
WARRANTY COVERAGE". THE WARRANTOR IS NOT LIABLE FOR INCIDENTAL OR
CONSEQUENTIAL DAMAGES RESULTING FROM THE USE OF THIS PRODUCT, OR
ARISING OUT OF ANY BREACH OF THIS LIMITED WARRANTY. (As examples, this
excludes damages for lost time, lost calls or messages, cost of having someone remove or
re-install an installed unit if applicable, travel to and from the servicer. The items listed are not
exclusive, but are for illustration only.) ALL EXPRESS AND IMPLIED WARRANTIES,
INCLUDING THE WARRANTY OF MERCHANTABILITY, ARE LIMITED TO THE PERIOD
OF THE LIMITED WARRANTY.
Some states do not allow the exclusion or limitation of incidental or consequential damages,
or limitations on how long an implied warranty lasts, so the exclusions may not apply to you.
This Limited Warranty gives you specific legal rights and you may also have other rights
which vary from state to state. If a problem with this product develops during or after the
Limited Warranty period, you may contact your dealer or Service Center. If the problem is not
handled to your satisfaction, then write to the warrantor's Consumer Affairs Department at the
addresses listed for the warrantor.
PARTS AND SERVICE, WHICH ARE NOT COVERED BY THIS LIMITED WARRANTY, ARE
YOUR RESPONSIBILITY.
When you ship the product
ȷCarefully pack your unit, preferably in the original carton.
ȷAttach a letter, detailing the symptom.
ȷSend the unit to Panasonic Exchange Center, prepaid and adequately insured.
ȷDo not send your unit to Panasonic Corporation of North America listed on the back
cover or to executive or regional sales offices. These locations do not repair consumer
products.
For assistance, please visit www.panasonic.com/support 17
Appendix
HNS105_(en_en)_1120_ver.010.pdf 17 2014/11/19 20:18:29
18
Notes
HNS105_(en_en)_1120_ver.010.pdf 18 2014/11/19 20:18:29
19
Notes
HNS105_(en_en)_1120_ver.010.pdf 19 2014/11/19 20:18:29
For your future reference
We recommend keeping a record of the following information to assist
with any repair under warranty.
Serial No. Date of purchase
(found inside the unit)
Name and address of dealer
Attach your purchase receipt here.
Two Riverfront Plaza, Newark, NJ 07102-5490
© Panasonic System Networks Co., Ltd. 2015
HNS105_(en_en)_1120_ver.010.pdf 20 2014/11/19 20:18:29

Navigation menu
