2.4GHz FHSS Cordless Answering System
Model No. KX-TG2200B
Pulse-or-tone-dialing capability
Operating Instructions
Charge the battery for about 8 hours before initial use.
PLEASE READ BEFORE USE AND SAVE.
Contents:
Location of controls 2
Installation 5
Handset battery charge 10
Making/Answering calls with the base unit 11
Making/Answering calls with
the cordless handset 12
Caller ID Service 13
Voice Mail System 13
Automated Attendant System 14
Answering System 15
Listening to messages 16
Important Safety Instructions 17
FCC and other information 19
–2–
Please read IMPORTANT SAFETY
INSTRUCTIONS on page 17 before use.
Read and understand all instructions.
Location of controls

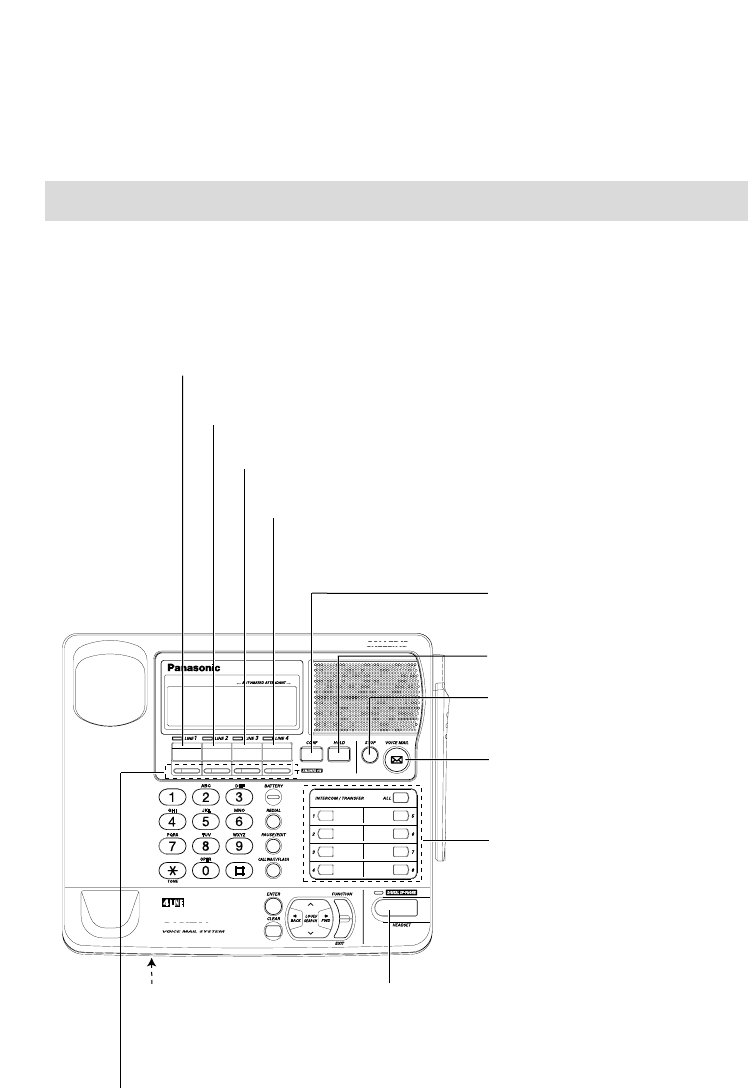

■Base Unit
LINE1 Button and Indicator
LINE2 Button and Indicator
LINE3 Button and Indicator
LINE4 Button and Indicator
CONF (Conference)
Button
HOLD Button
STOP Button
VOICE MAIL Button
INTERCOM/
TRANSFER Buttons
DIGITAL SP-PHONE
(Speakerphone)/HEADSET
Button and Indicator
MIC (microphone)
ANSWER ON Buttons
–3–

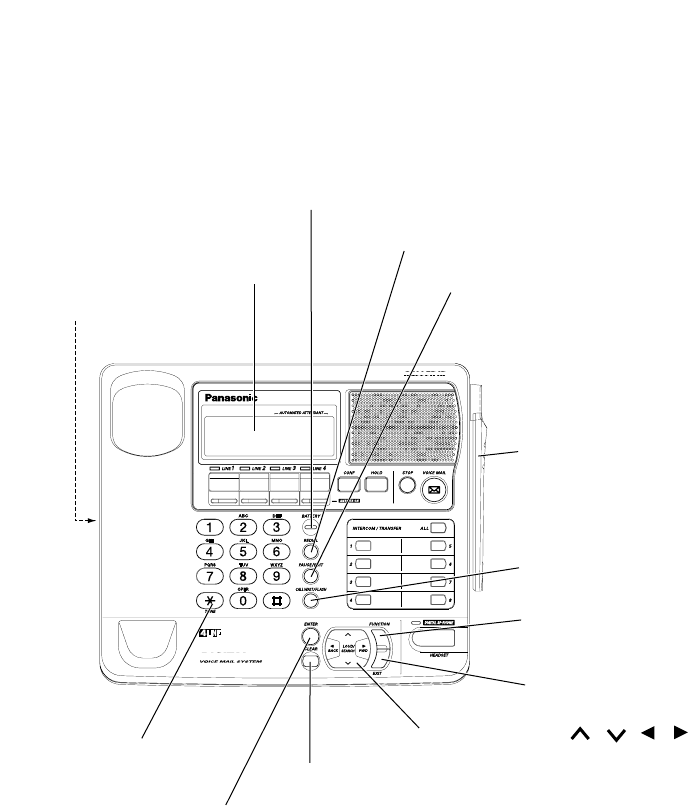

■Base Unit
REDIAL Button
BATTERY Indicator
PAUSE/EDIT Button
CALL WAIT/FLASH
Button
FUNCTION Button
EXIT Button
Navigator Key ( , , , )
ENTER Button
CLEAR Button
TONE Button
Antenna
Display
Headset Jack
–4–

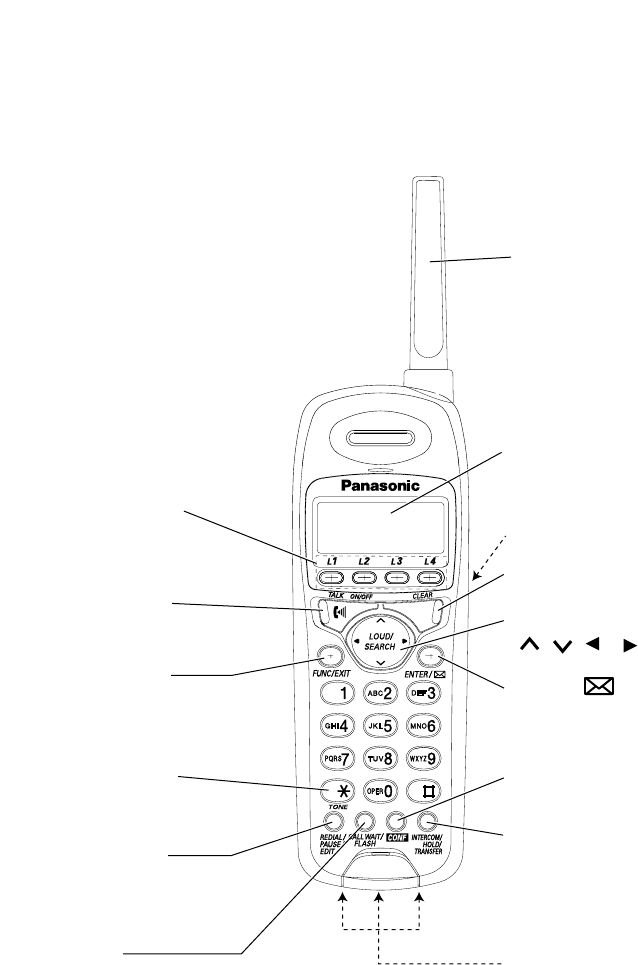

■Cordless Handset
Antenna
Display
Headset Jack
CLEAR Button
ENTER/ (Voice Mail)
Button
CONF (Conference)
Button
INTERCOM/HOLD/
TRANSFER Button
Charge Contacts
LINE Buttons
TALK Button
FUNC (Function)/
EXIT Button
TONE Button
REDIAL/PAUSE/
EDIT Button
CALL WAIT/FLASH
Button
Navigator Key
( , , , )
–5–
Installation
■Installing the backup battery in the base unit
A rechargeable Ni-Cd battery works as emergency power during a power
failure. The fully charged backup battery provides the base unit with 20
minutes operation. The battery is charged in the base unit while the AC
adaptor is connected. It takes 10 hours to charge fully.
Install the backup battery in the battery compartment, and close the cradle
cover.
•The battery cannot be overcharged.
■Charger
Attention:
The product you have purchased is powered by a nickel
cadmium battery which is recyclable.
At the end of its useful life, under various state and local laws, it
is illegal to dispose of this battery into your municipal waste
stream. Please call 1-800-8-BATTERY for information on how to
recycle this battery.
CHARGE
Charge Contacts
CHARGE Indicator
–6–

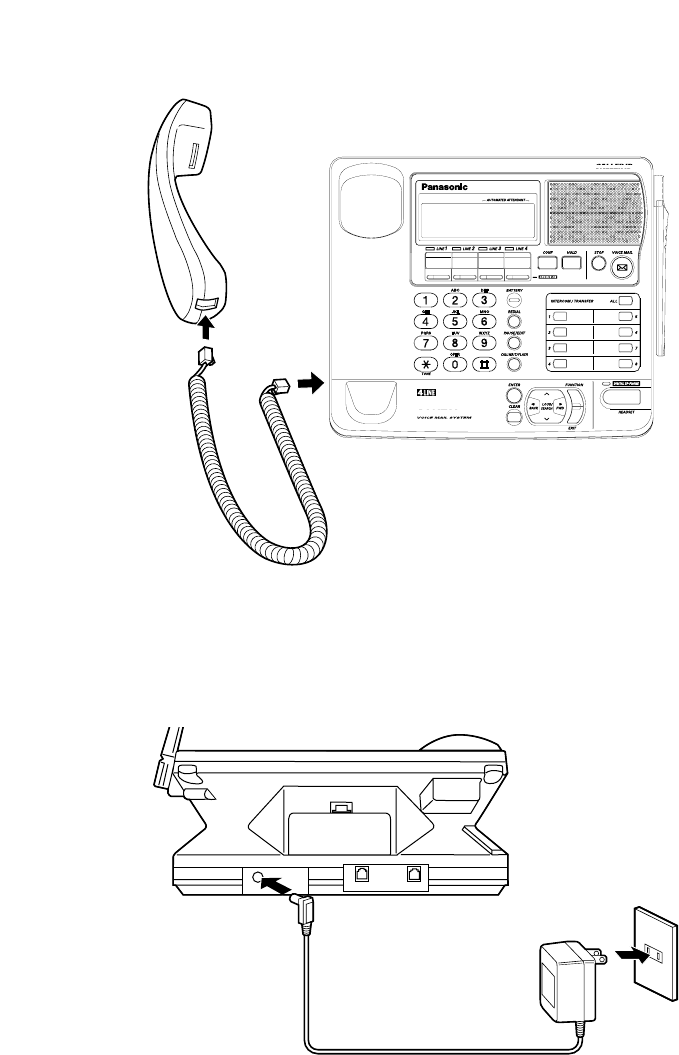

■Connect the handset to the base unit
Handset
■Connect the AC adaptor to the base unit
Raise the antenna.
Power Outlet
(AC 120 V, 60 Hz)
•USE ONLY WITH Panasonic AC ADAPTOR PQLV12.
•The AC adaptor must remain connected at all times. (It is normal for the
adaptor to feel warm during use.)
Handset Cord
AC Adaptor
•Use only a Panasonic Handset for the KX-TG2200B.
–7–
■Connecting the telephone line cord to 2 two-line telephone jack
LINE 1
LINE 2
Two-Line Telephone
Jacks (RJ14C)
4-Wired Telephone
Line Cords
LINE 3
LINE 4
–8–

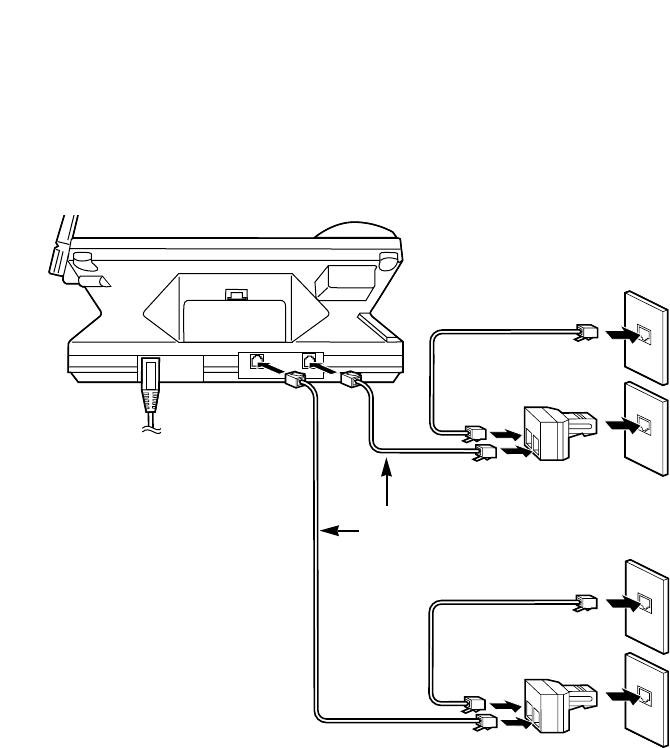

■Connecting the telephone line cords to four single-line telephone
jacks
For this connection, please purchase two Panasonic T-adaptors and two
2-wired telephone line cords.
LINE 1
Single-Line
Telephone
Jacks (RJ11C)
4-Wired Telephone
Line Cords
LINE 2
LINE 3
LINE 4
2-Wired Telephone
Line Cords
2-Wired Telephone
Line Cords
T-Adaptor
T-Adaptor
–9–

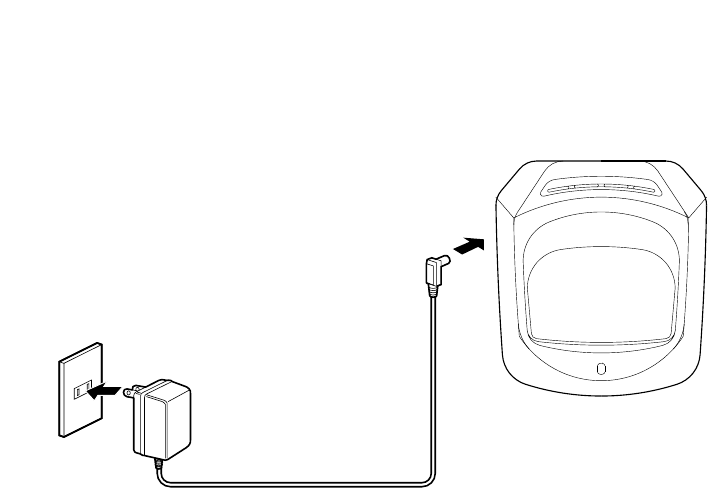

■Connecting the AC Adaptor to the charger
•USE ONLY WITH Panasonic AC ADAPTOR TCA1.
•The AC adaptor must remain connected at all times. (It is normal for the
adaptor to feel warm during use.)
Power Outlet
(AC 120 V, 60 Hz)
AC Adaptor
CHARGE
–10–
Handset battery charge
■Recharge
Recharge the battery when:
–" " flashes on the display, or
– the handset beeps every minute while it is in use.
•Clean the charge contacts of the handset and charger with a soft dry
cloth once a month. Clean more often if the unit is subject to grease,
dust or high humidity. If not, the battery may not charge properly.
•If the battery is fully charged, you do not have to place the handset on the
charger until " " flashes. This will maximize the battery life.
•The battery cannot be overcharged.
To power the cordless handset, charge the battery.
Place the handset on the charger for about 8 hours before initial use.
•The CHARGE indicator lights.
–11–
Making/Answering calls with the base unit
■To make a call
When you lift the handset to make a call, the unit will automatically select a
free line.
Using the digital duplex speakerphone:
1 Press DIGITAL SP-PHONE.
•The indicator and the selected line indicator light.
2 Dial a telephone number.
3 Talk into the MIC (microphone).
4 To hang up, press DIGITAL SP-PHONE.
•The indicator lights go out.
•In step 1, you may select a line manually by pressing the line button instead
of DIGITAL SP-PHONE.
•To redial the last number: Lift the handset or press DIGITAL SP-PHONE,
then press REDIAL.
•To adjust the handset volume (4 levels)/speaker volume (8 levels):
To increase, press . To decrease, press .
•To put a call on hold: Press HOLD.
•To release the hold, press the line button.
■To answer a call
Lift the handset.
OR
Press DIGITAL SP-PHONE, then talk into the MIC (microphone).
•You can answer a call by pressing the line button instead of
DIGITAL SP-PHONE.
–12–
■To make a call
1 Press TALK.
2 Dial a telephone number.
3 To hang up, press TALK or place the handset on the charger.
•The indicator lights go out.
•If "Out of range" is displayed and an alarm tone sounds in step 1, move
closer to the base unit, and try again.
•In step 1, you may select a line manually by pressing the line button instead
of TALK.
•To redial the last number, press TALK, then press REDIAL.
•To adjust the receiver volume (4 levels):
To increase, press . To decrease, press .
•To put a call on hold, press HOLD.
•To release the hold, press the line button.
■To answer a call
Press TALK.
•You can answer a call by pressing the line button instead of TALK.
Making/Answering calls with the cordless
handset
–13–
Caller ID Service
This unit is compatible with a Caller ID service offered by your telephone
company.
After subscribing to a Caller ID service, the calling party’s information will be
shown on the base unit and cordless handset displays after the first ring.
The base unit can record information of up to 50 different callers in the caller
list. Each cordless handset can record information of up to 30 different callers
in the caller list. The Caller List information is sorted from the most recent to
the oldest call. When the base unit receives the 51st call or the handset
receives the 31st call, the oldest call is deleted.
If your unit is connected to a PBX system which does not support Caller ID
services, you cannot access those services. Please consult your equipment
supplier.
Voice Mail System
The Voice Mail System is a voice message receiving and delivery system
which allows callers to leave messages in the mailboxes.
The unit accommodates one general delivery mailbox and a maximum of 8
personal mailboxes for the cordless handsets.
The Voice Mail System fully works with the automated attendant system. This
system routes incoming calls to the specified mailbox. If a caller did not
specify the mailbox, the call is routed to the general delivery mailbox.
If you select the answering system, all calls are routed to the general delivery
mailbox.
The base unit and cordless handset users can use the Voice Mail System
features by accessing their mailboxes.
Each cordless handset user can only access to his/her own mailbox. The
general delivery mailbox is managed by the base unit user. However, any
cordless handset users can access to this mailbox.
The following features are accessible:
—listening to the recorded messages
—transferring the mailbox messages to the destination mailboxes
—delivering their own messages to the destination mailboxes
–14–
Automated Attendant System
Your can set this system to your desired lines to suit your needs.
The automated attendant answers incoming calls and routes the callers to the
base unit or the desired cordless handset.
■ To select the automated attendant system
You can record up to 4 greeting messages (up to 2 minutes each), and assign
one of them to the line.
•All messages (greeting, incoming, etc.) are stored in digital memory. The
total recording time is about 50 minutes. We recommend you record a
brief greeting message in order to leave more time in memory.
If you do not record a greeting message, the pre-recorded greeting message
can be selected.
To select the pre-recorded message:
1 Press the desired line’s ANSWER ON button.
2 Press FUNCTION within 10 seconds.
3 Press or to select “Auto attendant”, and press H.
4 Press H.
•The pre-recorded message is played.
•The line’s auto attendant icon will be displayed.
To record your greeting message:
1 Press the desired line’s ANSWER ON button.
2 Press FUNCTION within 10 seconds.
3 Press or to select “Auto attendant”, and press H.
4 Press to select “Greeting1”.
5 Press H.
6 Press H.
•“Record greeting at the tone” is heard.
7 Talk clearly, about 8 inches (20 cm) away from the MIC (microphone).
8 Press H.
•The recorded message is played.
•The line’s auto attendant icon will be displayed.
–15–
Answering System
If you can set this system for your desired lines, the unit will answer a call with
a greeting message, and the caller can leave a message.
■ To select the answering system
Select the number of times the unit rings before the answering system
answers a call.
You can record up to 4 desired greeting messages (up to 2 minutes each),
and assign one of them to the line.
•All messages (greeting, incoming, etc.) are stored in digital memory. The
total recording time is about 50 minutes. We recommend you record a
brief greeting message in order to leave more time in memory.
If you do not record a greeting message, the pre-recorded greeting message
can be selected.
To select the pre-recorded message:
1 Press the desired line’s ANSWER ON button.
2 Press FUNCTION within 10 seconds.
3 While “Auto answering” is at the arrow, press H.
4 Select the desired setting, “2” to “7” or “Toll Saver”, by pressing or ,
and pressing H.
5 Press H.
•The pre-recorded message is played.
To record your greeting message:
1 Follow steps 1 to 4 above.
2 Press to select “Greeting1”.
3 Press H.
4 Press H.
•“Record greeting at the tone” is heard.
5 Talk clearly.
6 Press H.
•The recorded message is played.
–16–
Listening to messages
■ With the base unit
To listen to only new messages in the general delivery mailbox:
1 Press .
•The unit announces the number of new messages and the new
messages are played.
2 After listening to all new messages, press .
To listen to all new messages in the general delivery mailbox:
1 Press , and press (1).
•The unit announces the number of all messages and plays them back.
2 After listening to all messages, press .
■ With the cordless handset
To listen to only new messages in the mailbox:
1 Press .
•The unit announces the number of new messages and the new
messages are played.
2 After listening to all new messages, press .
To listen to all new messages in the mailbox:
1 Press , and press (1).
•The unit announces the number of all messages and plays them back.
2 After listening to all messages, press .
–17–
When using this unit, basic safety precautions should always be followed to
reduce the risk of fire, electric shock, or personal injury.
1. Read and understand all instructions.
2. Follow all warnings and instructions marked on this unit.
3. Unplug this unit from AC outlets before cleaning. Do not use liquid or
aerosol cleaners. Use a damp cloth for cleaning.
4. Do not use this unit near water, for example, near a bathtub, washbowl,
kitchen sink, or the like.
5. Place this unit securely on a stable surface. Serious damage and/or injury
may result if the unit falls.
6. Do not cover slots and openings on the unit. They are provided for
ventilation and protection against overheating. Never place the unit near
radiators, or in a place where proper ventilation is not provided.
7. Use only the power source marked on the unit. If you are not sure of the
type of power supplied to your home, consult your dealer or local power
company.
8. Do not place objects on the power cord. Install the unit where no one can
step or trip on the cord.
9. Do not overload wall outlets and extension cords. This can result in the
risk of fire or electric shock.
10. Never push any objects through slots in this unit. This may result in the
risk of fire or electric shock. Never spill any liquid on the unit.
11. To reduce the risk of electric shock, do not disassemble this unit. Take the
unit to an authorized servicenter when service is required. Opening or
removing covers may expose you to dangerous voltages or other risks.
Incorrect reassembly can cause electric shock when the unit is
subsequently used.
12. Unplug this unit from the wall outlet and refer servicing to an authorized
servicenter when the following conditions occur:
A. When the power supply cord or plug is damaged or frayed.
B. If liquid has been spilled into the unit.
C. If the unit has been exposed to rain or water.
D. If the unit does not work normally by following the operating
instructions.
Adjust only controls covered by the operating instructions. Improper
adjustment may require extensive work by an authorized servicenter.
E. If the unit has been dropped or physically damaged.
F. If the unit exhibits a distinct change in performance.
13. During thunderstorms, avoid using telephones except cordless types.
There may be a remote risk of an electric shock from lightning.
14. Do not use this unit to report a gas leak, when in the vicinity of the leak.
SAVE THESE INSTRUCTIONS
Important Safety Instructions
–18–
CAUTION:
To reduce the risk of fire or injury to persons, read and follow these
instructions.
1. Use only the battery(ies) specified.
2. Do not dispose of the battery(ies) in a fire. They may explode. Check with
local waste management codes for special disposal instructions.
3. Do not open or mutilate the battery(ies). Released electrolyte is corrosive
and may cause burns or injury to the eyes or skin. The electrolyte may be
toxic if swallowed.
4. Exercise care in handling batteries in order not to short the battery to
conductive materials such as rings, bracelets, and keys. The battery
and/or conductor may overheat and cause burns.
5. Charge the battery(ies) provided with or identified for use with this product
only in accordance with the instructions and limitations specified in this
manual.
WARNING:
TO PREVENT FIRE OF SHOCK HAZARD, DO NOT EXPOSE THIS
PRODUCT TO RAIN OR ANY TYPE OF MOISTURE.
–19–
If requested by the telephone company, inform them as follows:
FCC Registration No. .............................................. (found on the bottom of the unit)
Facility Interface Code ..................................................................................... 02LS2
Service Order Code .............................................................................................9.0F
Required Network Interface Jack................................................................RJ11, RJ14
Ringer Equivalence ............................................................................................. 0.2B
The particular telephone lines to which the equipment is connected.
This unit must not be connected to a coin operated line.
If you are on a party line, check with your local telephone company.
Ringer Equivalence No. (REN):
The REN is useful in determining the quantity of devices you may connect to your
telephone line and still have all of those devices ring when your telephone number is
called. In most, but not all areas, the sum of the REN's of all devices connected to one
line should not exceed five (5.0). To be certain of the number of devices you may
connect to your line, as determined by the REN, you should contact your local
telephone company to determine the maximum REN for your calling area.
In the event terminal equipment causes harm to the telephone network, the telephone
company should notify the customer, if possible, that service may be stopped.
However, where prior notice is impractical, the company may temporarily cease service
providing that they:
(a) Promptly notify the customer.
(b) Give the customer an opportunity to correct the problem with their equipment.
(c) Inform the customer of the right to bring a complaint to the Federal Communication
Commission pursuant to procedures set out in FCC Rules and Regulations Subpart
E of Part 68.
The Telephone Company may make changes in its communications facilities,
equipment, operations or procedures, where such action is reasonably required in the
operation of its business and is not inconsistent with the rules and regulations in FCC
Part 68.
If such changes can be reasonably expected to render any customer terminal
equipment incompatible with telephone company communications facilities, or require
modification or alteration of such terminal equipment, or otherwise materially affect its
use or performance, the customer shall be given adequate notice in writing, to allow
the customer an opportunity to maintain uninterrupted service.
When programming emergency numbers and/or making test calls to emergency
numbers:
1. Remain on the line and briefly explain to the dispatcher the reason for the call
before hanging up.
2. Perform such activities in the off-peak hours, such as early morning hours or late
evenings.
FCC and other information
–20–
This device complies with Part 15 of the FCC Rules. Operation is subject to the
following two conditions:
(1) This device may not cause harmful interference, and (2) this device must accept
any interference received, including interference that may cause undesired operation.
Privacy of communications may not be ensured when using this phone.
CAUTION:
Any changes or modifications not expressly approved by the party responsible for
compliance could void the user's authority to operate this device.
Note:
This equipment has been tested and found to comply with the limits for a Class B
digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to
provide reasonable protection against harmful interference in a residential installation.
This equipment generates, uses, and can radiate radio frequency energy and, if not
installed and used in accordance with the instructions, may cause harmful interference
to radio communications. However, there is no guarantee that interference will not
occur in a particular installation. If this equipment does cause harmful interference to
radio or television reception, which can be determined by turning the equipment off
and on, the user is encouraged to try to correct the interference by one or more of the
following measures:
— Reorient or relocate the receiving antenna.
— Increase the separation between the equipment and receiver.
— Connect the equipment into an outlet on a circuit different from that to which the
receiver is connected.
— Consult the dealer or an experienced radio/TV technician for help.
Some cordless telephones operate at frequencies that may cause interference to
nearby TVs and VCRs. To minimize or prevent such interference, the base of the
cordless telephone should not be placed near or on top of a TV or VCR. If interference
is experienced, move the cordless telephone further away from the TV or VCR. This
will often reduce or eliminate interference.
•Environment — do not place the unit in a room where the temperature is less than
5°C (41°F) or greater than 40°C (104°F). Allow 10 cm (4") clearance around the unit
for proper ventilation. Avoid excessive smoke, dust, mechanical vibration, shock, or
direct sunlight.
•Medical — consult the manufacturer of any personal medical devices, such as
pacemakers, to determine if they are adequately shielded from external RF (radio
frequency) energy. (The unit operates in the frequency range of 2401MHz to
2478MHz.) Do not use the unit in health care facilities if any regulations posted in the
area instruct you not to do so. Hospitals or health care facilities may be using
equipment that could be sensitive to external RF (radio frequency) energy.
•Routine care — wipe the unit with a soft cloth. Do not use benzine, thinner, or any
abrasive powder. When you leave the unit unused for a long period of time, unplug
the AC adaptor from the outlet.
•If there is any trouble — disconnect the unit from the telephone line and connect a
known working phone. If the known working phone operates properly, have your unit
repaired by one of the authorized Panasonic Factory Service Centers. If the known
working phone does not operate properly, consult your telephone company.
For product service
•Panasonic Servicenters are listed in the servicenter directory.
•Call 1-800-211-PANA(7262) for the location of an authorized servicenter.
When you ship the product
•Carefully pack your unit, preferably in the original carton.
•Attach a letter, detailing the symptom, to the outside of the carton.
Symptom
•Send the unit to an authorized servicenter, prepaid and adequately insured.
•Do not send your unit to the Panasonic Consumer Electronics Company
listed on the back cover or to executive or regional sales offices. These
locations do not repair consumer products.
For your future reference
Serial No. Date of purchase
(found on the bottom of the unit)
Name and address of dealer
Panasonic Consumer Electronics Company,
Division of Matsushita Electric Corporation of America
One Panasonic Way, Secaucus, New Jersey 07094
Panasonic Sales Company,
Division of Matsushita Electric of Puerto Rico, Inc.
Ave. 65 de Infantería, Km. 9.5, San Gabriel Industrial Park
Carolina, Puerto Rico 00985
