2.4GHz Cordless Answering System
Model No. KX-TG2257S
Pulse-or-tone-dialing capability
Operating Instructions
Charge the battery for about 15 hours before initial use.
PLEASE READ BEFORE USE AND SAVE.
Contents:
Location of Controls 2
Connections 5
Battery Charge 6
Recording a Greeting Message 7
Making/Answering calls with the handset 8
Making/Answering calls with the base unit 9
Caller ID Service 9
Automatic Answering Operation 10
Listening to Messages 10
Important Safety Instructions 11
FCC and Other Information 13
–2–
Please read IMPORTANT SAFETY
INSTRUCTIONS on page 11 before use.
Read and understand all instructions.
Location of Controls

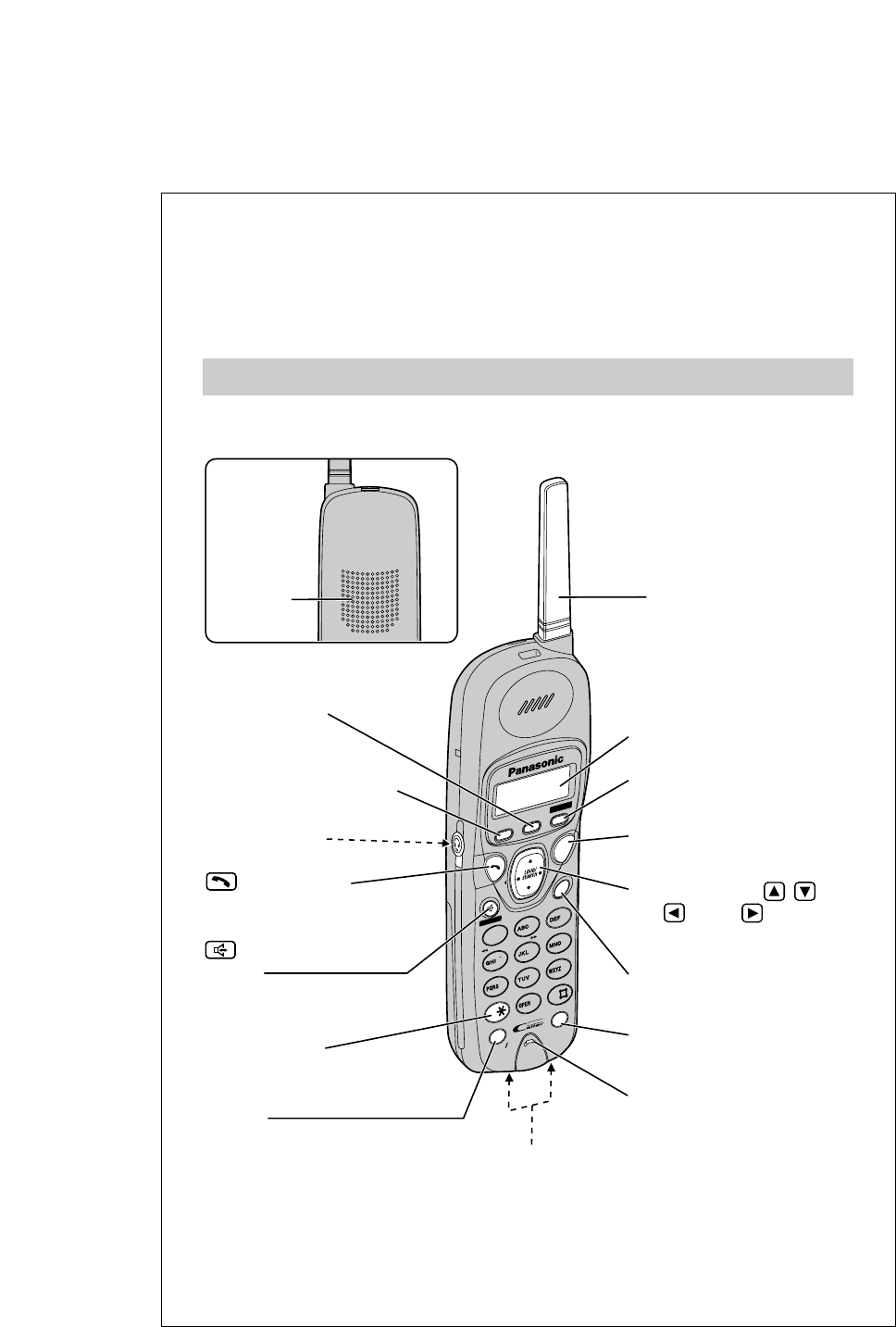

■Handset
CH
EDI T
CALL L WA
WAIT
PAUSEUSE
ALL
L MSG
NEW
W MSG
TONETONE
STOP
AN
ANS
S OFF
OFF
ANS
S ON
SKIP
KIP
REPE
PEAT
PL
PLAY BACK
AY BACK
9
8
3
2
1
6
5
4
7
0
INTERCOM
SP-PHONE
CL
CLEAR
FUNCTIONFUNCTION /
MUTEMUTE
2WAY REC2WAY REC
OPENLCROPENLCR
OFFOFF
HOL HOLD
REDIAL
FL ASH
H
Antenna
Back side
Display
(OPENLCR) Button
(MUTE) Button
(FUNCTION/2WAYÒREC)
(OFF) Button
(HOLD/INTERCOM/CLEAR)
Button
(REDIAL/PAUSE)
Button
(TONE) Button
(FLASH/CALL!WAIT/PLAYBACK)
Button
Navigator Key ( , ,
CH , EDIT )
Headset Jack
Microphone
Speaker
(Talk) Button
(Speakerphone)
Button
Charge Contacts
–3–

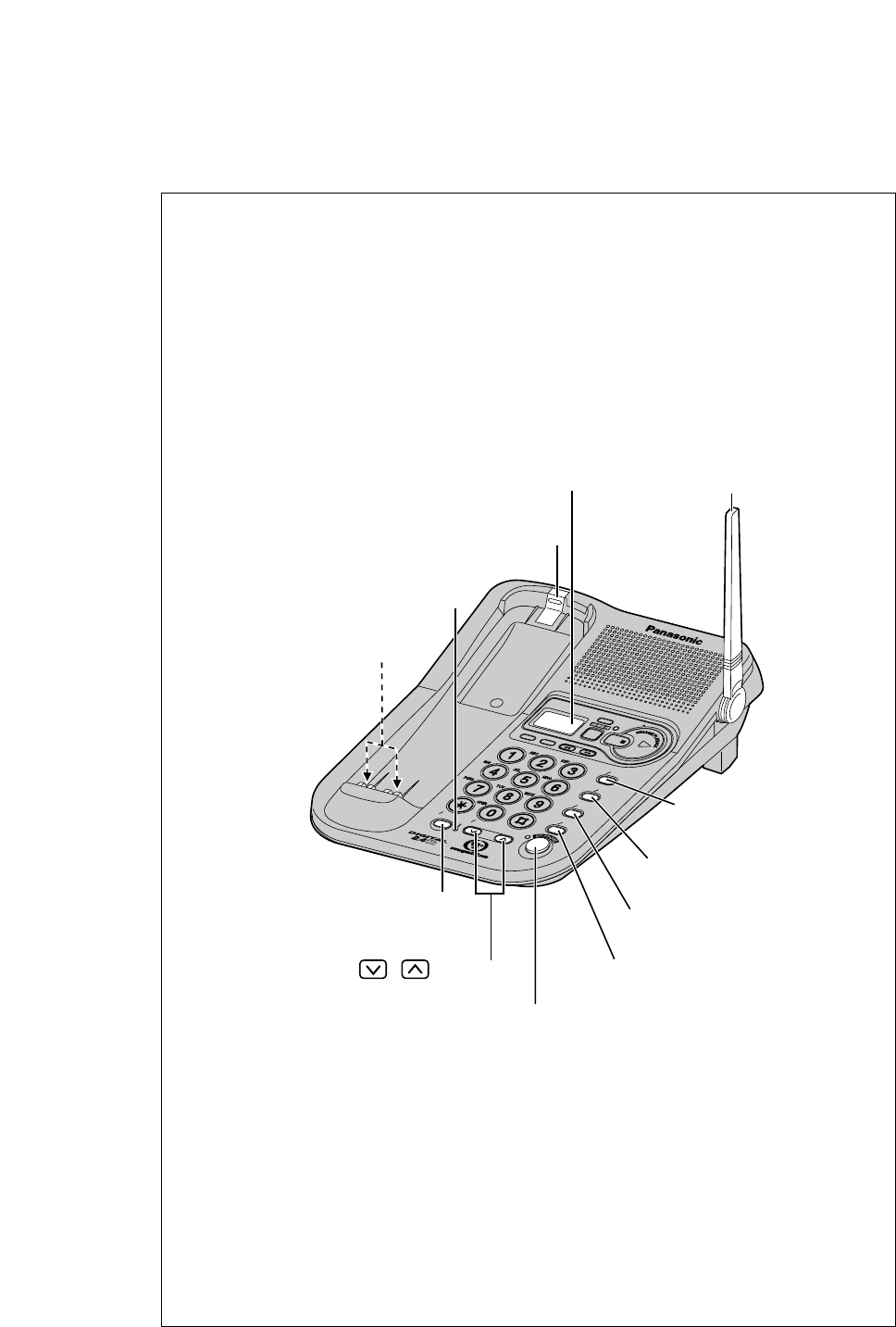

■Base unit
MUTE
TE
RINGER
INT
INTERCOM/
ERCOM/
HOLD
LD
LOCATOR
TOR
IN UN USE SE
CHCHARGE
VOL
VOLUME
UME
AUTO TO
PR
PROGRAM
AM
FL
FLASH
ASH
CA
CALL WAI
WAIT
MIC
SKIP
SKIPREPEAT
REPEAT
ERASE
MEMO
MEMO
REDIAL
AL
PAUSE
SE
TONE
SLOW
SLOW TALK
TALK
GREETING
STOP
KX-TGKX-TG
22572257
IN USE/CHARGE Indicator
(AUTO/PROGRAM)
Button
(REDIAL/PAUSE)
Button
(FLASH/CALLÒWAIT)
Button
(MUTE/RINGER)
Button
(HOLD/LOCATOR/INTERCOM)
Button
(SP-PHONE) Button and Indicator
Antenna
Display
Charge Contacts
VOLUME , Buttons
Hook
–4–

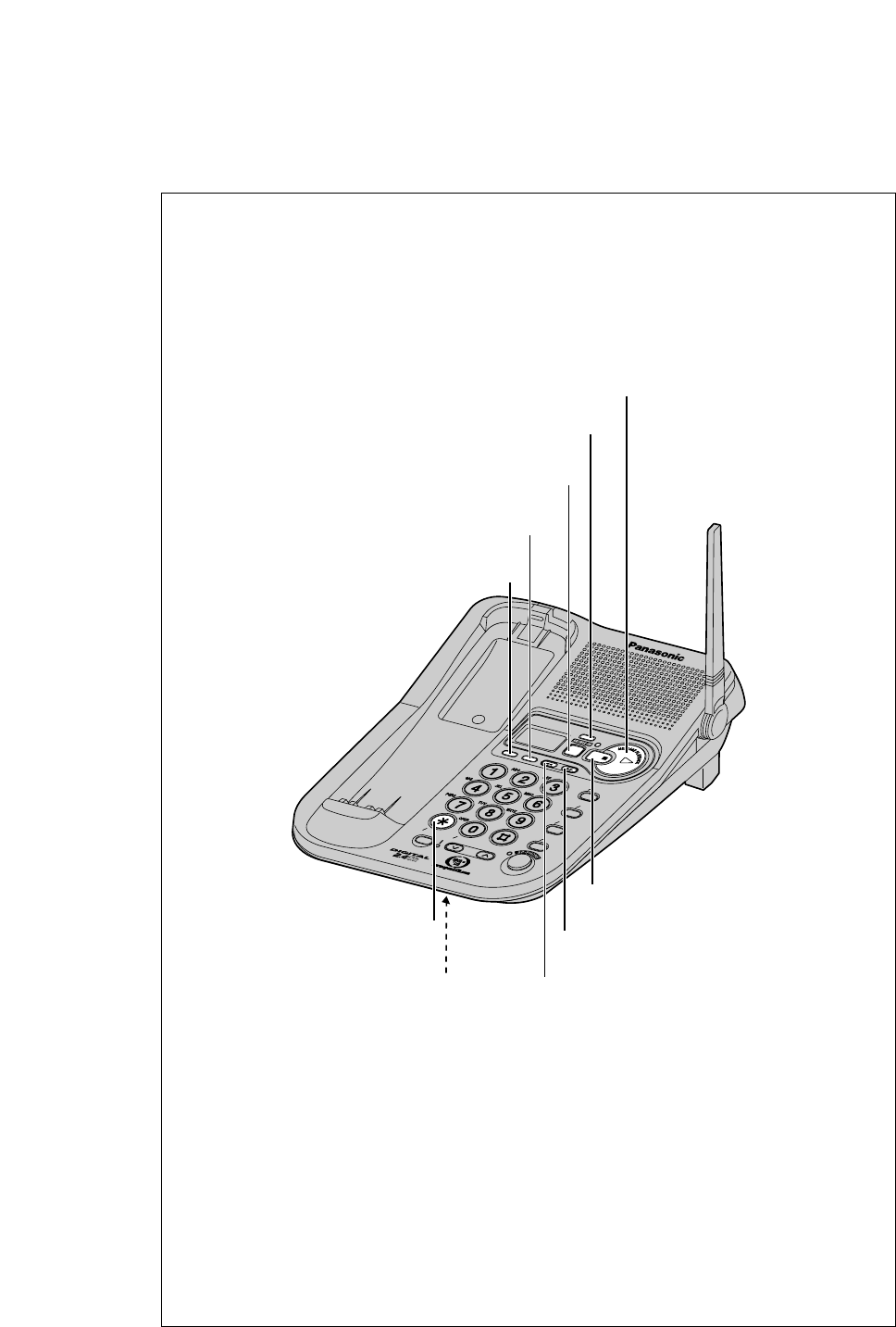

■Base unit
MUTE
TE
RINGER
HOLD
LD
INT
INTERCOM/
ERCOM/
LOCATOR
TOR
IN UN USE SE
CHCHARGE
VOL
VOLUME
UME
AUTO TO
PR
PROGRAM
AM
FL
FLASH
ASH
CA
CALL WAI
WAIT
MIC
SKIP
SKIPREPEAT
REPEAT
ERASE
MEMO
MEMO
REDIAL
AL
PAUSE
SE
SLOW
SLOW TALK
TALK
GREETING
STOP
TONE
KX-TGKX-TG
22572257
(REPEAT) Button
(SKIP) Button
(ERASE) Button
(MEMO) Button
(TONE) Button
(GREETING) Button
(ANSWERÒON) Button and Indicator
(STOP) Button
(MESSAGEÒPLAYBACK/SLOW!TALK) Button
MIC (Microphone)
–5–

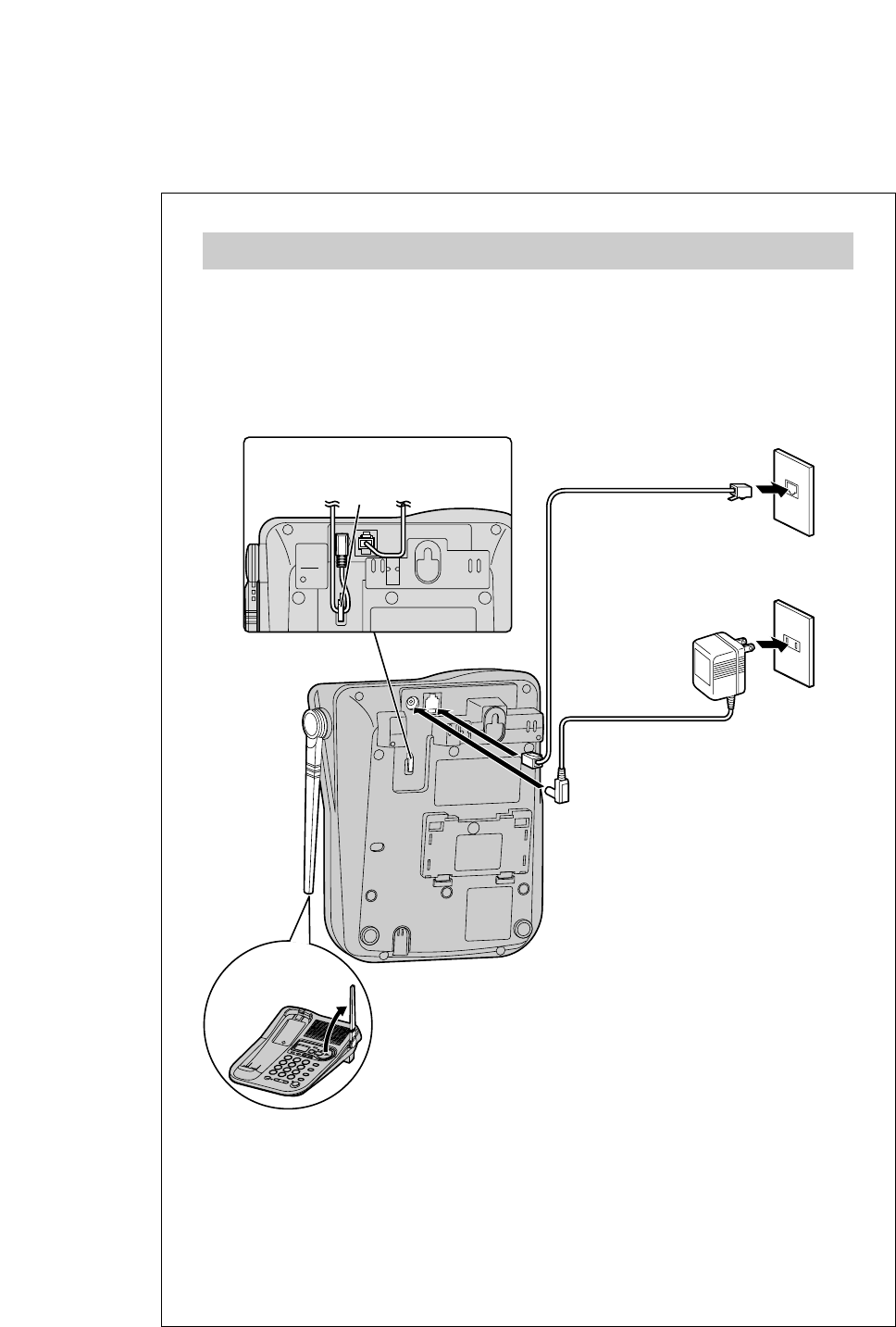

Connections
■Connect the AC adaptor
•USE ONLY WITH Panasonic AC ADAPTOR PQLV1.
•The AC adaptor must remain connected at all times. (It is normal for the
adaptor to feel warm during use.)
Single-Line
Telephone Jack
(RJ11C)
Telephone Line Cord
AC Adaptor
Raise the
antenna.
Fasten the cord to prevent them
from being disconnected.
Power Outlet
(AC 120 V, 60 Hz)
Hook
–6–
Battery Charge
■Recharge
Recharge the battery when:
–"Recharge" is displayed,
–" " flashes on the display, or
– the handset beeps every minute while it is in use.
•Clean the handset and the base unit charge contacts with a soft, dry
cloth once a month. Clean more often if the unit is subject to grease,
dust or high humidity. If not, the battery may not charge properly.
•If the battery is fully charged, you do not have to place the handset on the
base unit until "Recharge" is displayed and/or " " flashes. This will
maximize the battery life.
•The battery cannot be overcharged.
To power the handset, charge the battery.
Place the handset on the base unit for about 15 hours before initial use.
A nickel cadmium battery that is recyclable powers the product
you have purchased. At the end of its useful life, under various
state and local laws, it is illegal to dispose of this battery into
your municipal waste stream. Please call
1-800-8-BATTERY for information on how to recycle this
battery.
–7–
You can record a personal greeting message of up to 2 minutes. If a greeting
message is not recorded, one of two pre-recorded greetings will be played
when a call is received.
•All messages (greeting, incoming, etc.) are stored in digital memory. The
total recording time is about 15 minutes. We recommend you record a
brief greeting message in order to leave more time for recording new
messages.
1 Press and hold GREETING until a long beep is heard.
2 After the long beep, talk clearly, about 8 inches (20 cm) away from the MIC
(microphone).
3 When finished, press STOP or GREETING.
•To check the recorded greeting, press GREETING.
•If you do not record a greeting message, one of two messages will be played
when a call is received, depending on the caller’s recording time.
Recording a Greeting Message
–8–
■To make a call
1 Press or .
2 Dial a telephone number.
3 To hang up, press OFF or place the handset on the base unit.
•If "No link to base. Place on cradle and try again" is
displayed and an alarm tone sounds in step 1, move closer to the base unit
or place the handset on the base unit, and try again.
•To redial the last number, press or , then press REDIAL.
•To adjust the receiver volume/speaker volume:
To increase, press . To decrease, press .
■To answer a call
If the handset is off the base unit, press or .
Making/Answering Calls with the Handset
–9–
Making/Answering Calls with the Base Unit
■To make a call
Using the digital duplex speakerphone:
1 Press SP-PHONE.
2 Dial a telephone number.
3 Talk into the MIC (microphone).
4 To hang up, press SP-PHONE.
•To redial the last number, press SP-PHONE, then press REDIAL.
•To adjust the speaker volume:
To increase, press . To decrease, press .
•To put a call on hold, press HOLD.
•To release the hold, press SP-PHONE.
■To answer a call
Press SP-PHONE, then talk into the MIC (microphone).
Caller ID Service
This unit is compatible with a Caller ID service offered by your telephone
company.
After subscribing to a Caller ID service, the calling party’s information will be
shown on the handset display after the first ring.
The unit can record information of up to 30 different callers in the caller list.
The Caller List information is sorted from the most recent to the oldest call.
When the unit receives the 31st call, the oldest call is deleted.
If your unit is connected to a PBX system which does not support Caller ID
services, you cannot access those services. Please consult your equipment
supplier.
–10–
Automatic Answering Operation
When the unit answers a call, a greeting message is played and the caller’s
message is recorded.
■ Setting the unit to answer calls
Press ANSWER ON to turn on the answering system.
•The indicator lights and “Answer set” is heard.
Listening to Messages
You can see the total number of recorded messages on the base unit display.
If the MESSAGE PLAYBACK flashes, new messages have been recorded.
To listen to messages, press MESSAGE PLAYBACK.
■ When you have new messages
•The unit announces the number of new messages and plays them back.
■ When you have no new messages
•The unit plays back all recorded messages.
Recording your telephone conversation with the handset
1. During a conversation with the handset, press 2WAY REC.
•The MESSAGE PLAYBACK button lights.
2. Continue your conversation.
3. When finished recording the conversation, press 2WAY REC.
•The MESSAGE PLAYBACK button light goes out.
Many states have imposed regulations on the manner in which
2-way telephone conversations may be recorded, so you should inform the
other party that the conversation is being recorded. Consult your local
telephone company for further information.
–11–
Important Safety Instructions
When using this unit, basic safety precautions should always be followed
to reduce the risk of fire, electric shock, or personal injury.
11. Read and understand all instructions.
12. Follow all warnings and instructions marked on this unit.
13. Unplug this unit from AC outlets before cleaning. Do not use liquid or
aerosol cleaners. Use a damp cloth for cleaning.
14. Do not use this unit near water, for example, near a bathtub,
washbowl, kitchen sink, or the like.
15. Place this unit securely on a stable surface. Serious damage and/or
injury may result if the unit falls.
16. Do not cover slots and openings on the unit. They are provided for
ventilation and protection against overheating. Never place the unit
near radiators, or in a place where proper ventilation is not provided.
17. Use only the power source marked on the unit. If you are not sure of
the type of power supplied to your home, consult your dealer or local
power company.
18. Do not place objects on the power cord. Install the unit where no one
can step or trip on the cord.
19. Do not overload wall outlets and extension cords. This can result in
the risk of fire or electric shock.
10. Never push any objects through slots in this unit. This may result in
the risk of fire or electric shock. Never spill any liquid on the unit.
11. To reduce the risk of electric shock, do not disassemble this unit.
Take the unit to an authorized servicenter when service is required.
Opening or removing covers may expose you to dangerous voltages
or other risks. Incorrect reassembly can cause electric shock when
the unit is subsequently used.
12. Unplug this unit from the wall outlet and refer servicing to an
authorized servicenter when the following conditions occur:
A. When the power supply cord or plug is damaged or frayed.
B. If liquid has been spilled into the unit.
C. If the unit has been exposed to rain or water.
D. If the unit does not work normally by following the operating
instructions. Adjust only controls covered by the operating
instructions. Improper adjustment may require extensive work by
an authorized servicenter.
E. If the unit has been dropped or physically damaged.
F. If the unit exhibits a distinct change in performance.
13. During thunderstorms, avoid using telephones except cordless types.
There may be a remote risk of an electric shock from lightning.
14. Do not use this unit to report a gas leak, when in the vicinity of the
leak.
SAVE THESE INSTRUCTIONS
–12–
CAUTION:
To reduce the risk of fire or injury to persons, read and follow these
instructions.
1. Use only the battery(ies) specified.
2. Do not dispose of the battery(ies) in a fire. They may explode. Check
with local waste management codes for special disposal instructions.
3. Do not open or mutilate the battery(ies). Released electrolyte is
corrosive and may cause burns or injury to the eyes or skin. The
electrolyte may be toxic if swallowed.
4. Exercise care in handling batteries in order not to short the battery to
conductive materials such as rings, bracelets, and keys. The battery
and/or conductor may overheat and cause burns.
5. Charge the battery(ies) provided with or identified for use with this
product only in accordance with the instructions and limitations
specified in this manual.
WARNING:
TO PREVENT FIRE OR SHOCK HAZARD, DO NOT EXPOSE THIS
PRODUCT TO RAIN OR ANY TYPE OF MOISTURE.
•The AC adaptor is used as the main disconnect device, ensure that the
AC outlet is located/installed near the unit and is easily accessible.
–13–
FCC and other information
If requested by the telephone company, inform them as follows:
Registration No. .....................................................(found on the bottom of the unit)
Ringer Equivalence ............................................................................................0.1B
The particular telephone line to which the equipment is connected.
This unit must not be connected to a coin operated line.
If you are on a party line, check with your local telephone company.
Ringer Equivalence No. (REN):
The REN is useful in determining the quantity of devices you may connect to your
telephone line and still have all of those devices ring when your telephone number
is called. In most, but not all areas, the sum of the REN’s of all devices connected
to one line should not exceed five (5.0). To be certain of the number of devices
you may connect to your line, as determined by the REN, you should contact your
local telephone company to determine the maximum REN for your calling area.
In the event terminal equipment causes harm to the telephone network, the telephone
company should notify the customer, if possible, that service may be stopped.
However, where prior notice is impractical, the company may temporarily cease
service providing that they:
(a) Promptly notify the customer.
(b) Give the customer an opportunity to correct the problem with their equipment.
(c) Inform the customer of the right to bring a complaint to the Federal
Communication Commission pursuant to procedures set out in FCC Rules
and Regulations Subpart E of Part 68.
The Telephone Company may make changes in its communications facilities,
equipment, operations or procedures, where such action is reasonably required in
the operation of its business and is not inconsistent with the rules and regulations
in 47 CFR Part 68.
If such changes can be reasonably expected to render any customer terminal
equipment incompatible with telephone company communications facilities, or
require modification or alteration of such terminal equipment, or otherwise materially
affect its use or performance, the customer shall be given adequate notice in
writing, to allow the customer an opportunity to maintain uninterrupted service.
When programming emergency numbers and/or making test calls to emergency
numbers:
1. Remain on the line and briefly explain to the dispatcher the reason for the call
before hanging up.
2. Perform such activities in the off-peak hours, such as early morning hours or
late evenings.
This device complies with Part 15 of the FCC Rules. Operation is subject to the
following two conditions: (1) This device may not cause harmful interference, and
(2) this device must accept any interference received, including interference that
may cause undesired operation.
Privacy of communications may not be ensured when using this phone.
–14–
CAUTION:
Any changes or modifications not expressly approved by the party responsible for
compliance could void the user’s authority to operate this device.
Note:
This equipment has been tested and found to comply with the limits for a Class B
digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to
provide reasonable protection against harmful interference in a residential
installation. This equipment generates, uses, and can radiate radio frequency
energy and, if not installed and used in accordance with the instructions, may
cause harmful interference to radio communications. However, there is no
guarantee that interference will not occur in a particular installation. If this
equipment does cause harmful interference to radio or television reception, which
can be determined by turning the equipment off and on, the user is encouraged to
try to correct the interference by one or more of the following measures:
—Reorient or relocate the receiving antenna.
—Increase the separation between the equipment and receiver.
—Connect the equipment into an outlet on a circuit different from that to which the
receiver is connected.
—Consult the dealer or an experienced radio/TV technician for help.
Some cordless telephones operate at frequencies that may cause interference to
nearby TVs and VCRs. To minimize or prevent such interference, the base of the
cordless telephone should not be placed near or on top of a TV or VCR. If
interference is experienced, move the cordless telephone further away from the
TV or VCR. This will often reduce, or eliminate, interference.
Operating near 2.4GHz electrical appliances may cause interference. Move away
from the electrical appliances and/or press the CH (Channel) button.
–15–
CAUTION:
To comply with FCC RF exposure requirements, the base unit should be installed with
its antenna located at 20 cm or more from persons and handset should be carried with
the specific belt-clip provided for the handset to ensure compliance. Other non-tested
belt-clips or similar body-worn accessories may not comply, therefore, should be
avoided.
This equipment is hearing aid compatible.
A TIA/EIA-IS-968 compliant telephone cord and modular plug is provided with this
equipment. This equipment is designed to be connected to the telephone network
or premises wiring using a compatible modular jack that is also TIA/EIA-IS-968
compliant.
The software contained in (insert specific equipment type of features) to allow
user access to the network must be ungraded to recognize newly established
network area codes and exchange codes as they are placed into service.
Failure to upgrade the premises systems or peripheral equipment to recognize the
new codes as they are established will restrict the customer and the customer’s
employees from gaining access to the network and to these codes.
•Environment — do not place the unit in a room where the temperature is less than
5°C (41°F) or greater than 40°C (104°F). Allow 10 cm (4") clearance around the unit
for proper ventilation. Avoid excessive smoke, dust, mechanical vibration, shock, or
direct sunlight.
•
Medical —consult the manufacturer of any personal medical devices, such as
pacemakers, to determine if they are adequately shielded from external RF (radio
frequency) energy. (The unit operates in the frequency range of 2402MHz to
2480MHz, and the power output level can range 0.015 watts.) Do not use the unit in
health care facilities if any regulations posted in the area instruct you not to do so.
Hospitals or health care facilities may be using equipment that could be sensitive to
external RF (radio frequency) energy.
•Routine care — wipe the unit with a soft cloth. Do not use benzine, thinner, or any
abrasive powder. When you leave the unit unused for a long period of time, unplug
the AC adaptor from the outlet.
•
If there is any trouble — disconnect the unit from the telephone line and connect a
known working phone. If the known working phone operates properly, have your unit
repaired by one of the authorized Panasonic Factory Service Centers. If the known
working phone does not operate properly, consult your telephone company.
For product service
•Call 1-800-211-PANA(7262) for the location of an authorized servicenter.
•Panasonic’s e-mail address for customer inquiries:
consumerproducts@panasonic.com
for customers in the USA or Puerto Rico ONLY
When you ship the product
•Carefully pack your unit, preferably in the original carton.
•Attach a letter, detailing the symptom, to the outside of the carton.
Symptom
•Send the unit to an authorized servicenter, prepaid and adequately insured.
•Do not send your unit to the Panasonic Consumer Electronics Company
listed below or to executive or regional sales offices. These locations do not
repair consumer products.
Panasonic Consumer Electronics Company,
Division of Matsushita Electric Corporation of America
One Panasonic Way, Secaucus, New Jersey 07094
Panasonic Sales Company,
Division of Matsushita Electric of Puerto Rico, Inc.
Ave. 65 de Infantería, Km. 9.5, San Gabriel Industrial Park
Carolina, Puerto Rico 00985
