Panasonic of North America 96NKX-TG2730 FHSS cordless telephone system User Manual KX TG2730S Apply
Panasonic Corporation of North America FHSS cordless telephone system KX TG2730S Apply
operating instructions
2.4GHz Multi-Handset Cordless Phone System
Model No. KX-TG2730S
Pulse-or-tone-dialing capability
Operating Instructions
Charge the battery for about 15 hours before initial use.
PLEASE READ BEFORE USE AND SAVE.
Contents:
Location of Controls 2
Connections 5
Battery Installation/Battery Charge 6
Recording a Greeting Message 7
Making/Answering calls with the Handset 8
Making/Answering calls with the Base Unit 9
Caller ID Service 9
Automatic Answering Operation 10
Listening to Messages 10
Important Safety Instructions 11
FCC and Other Information 13
–2–
Please read IMPORTANT SAFETY
INSTRUCTIONS on page 11 before use.
Read and understand all instructions.

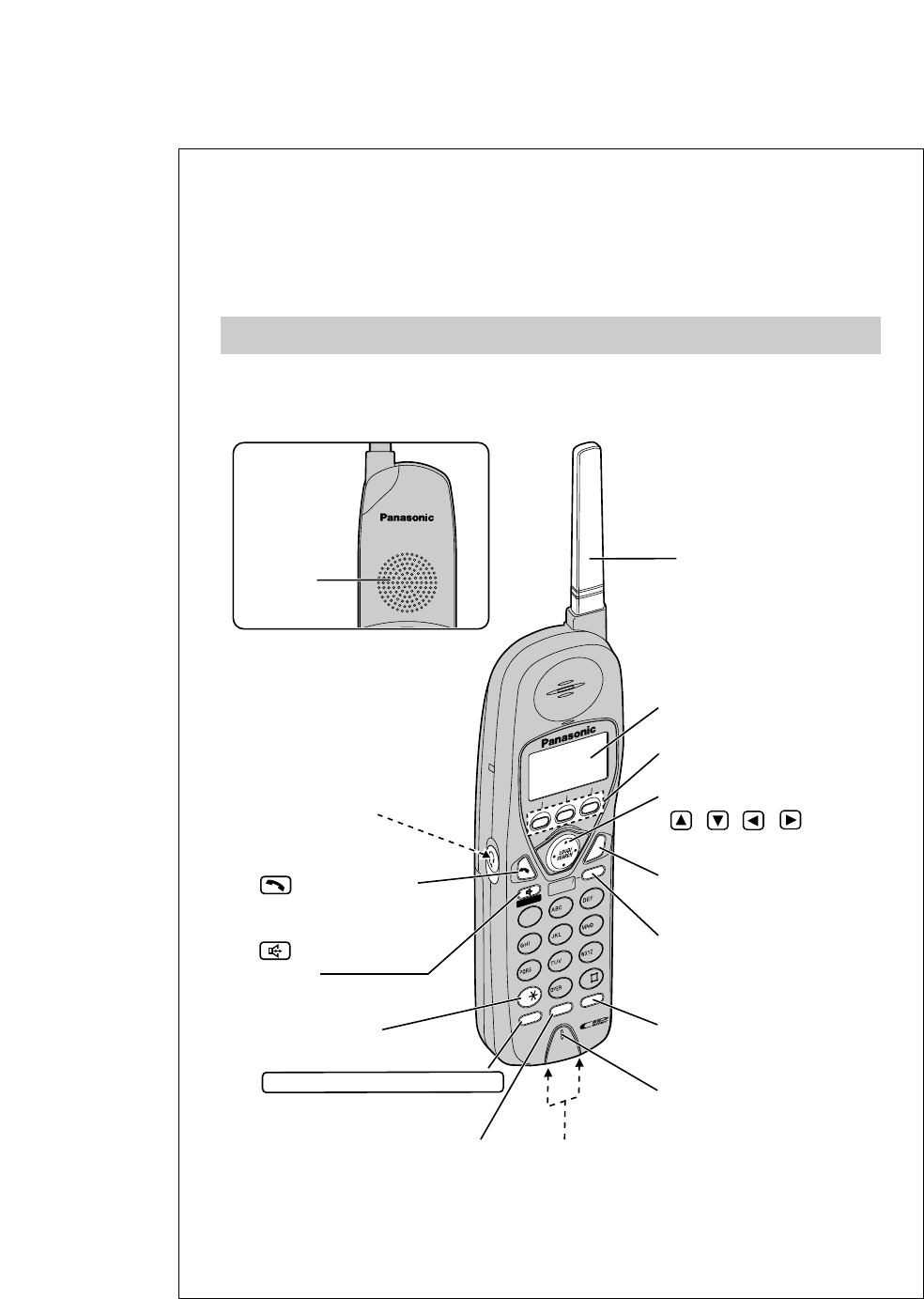

Location of Controls
■Handset
INTERCOM
TRANSFER
CLEAR
SP-PHONE
HOLD
FUNCTION
REDIAL
CALL WAIT
2
1
3
4
5
6
78
TONE
0
9
CONF
TALK
OFF
FLASH
PAUS E
Back side
Speaker
Headset Jack
(TONE) Button
(TALK) Button
(Speakerphone)
Button
Button
CONF (Conference)/FUNCTION
Microphone
Charge Contacts
Antenna
Display
(OFF) Button
(HOLD/CLEAR)/
(INTERCOM/TRANSFER)
Button
(PAUSE/REDIAL)
Button
Soft Keys
Navigator Key
( , , , )
(FLASH/CALL!WAIT)
Button
–3–
■Base unit
123
ERASE
STOP
HOLDCONF
NEW MESSAGE / SLOW TALK
MAILBOX
MIC
DIGITAL
SPREAD SPECTRUM
CHARGE
MULTI HANDSET
0
REDIAL
/
PAUSE
MUTE
TONE
DIGITAL SP PHONE
FLASH/
CALL WAIT
1
3
2
456
8
7
9
TRANSFER
INTERCOM
PRIVACY
MEMO
GREETING
PROGRAM RINGER/
AUTO
RINGER
LOUD/
ROOM
MONITOR
IN USE
Display
MIC (Microphone)
CHARGE Indicator
(PROGRAM) Button
(RINGER/AUTO) Button
(DIGITALÒSP-PHONE) Button and
Indicator
(MUTE) Button and Indicator
(FLASH/CALLÒWAIT) Button
(REDIAL/PAUSE) Button
IN USE Indicator
(INTERCOM/TRANSFER)
Button
(PRIVACY) Button and Indicator
(HOLD) Button
(CONF) (Conference)
Button
–4–

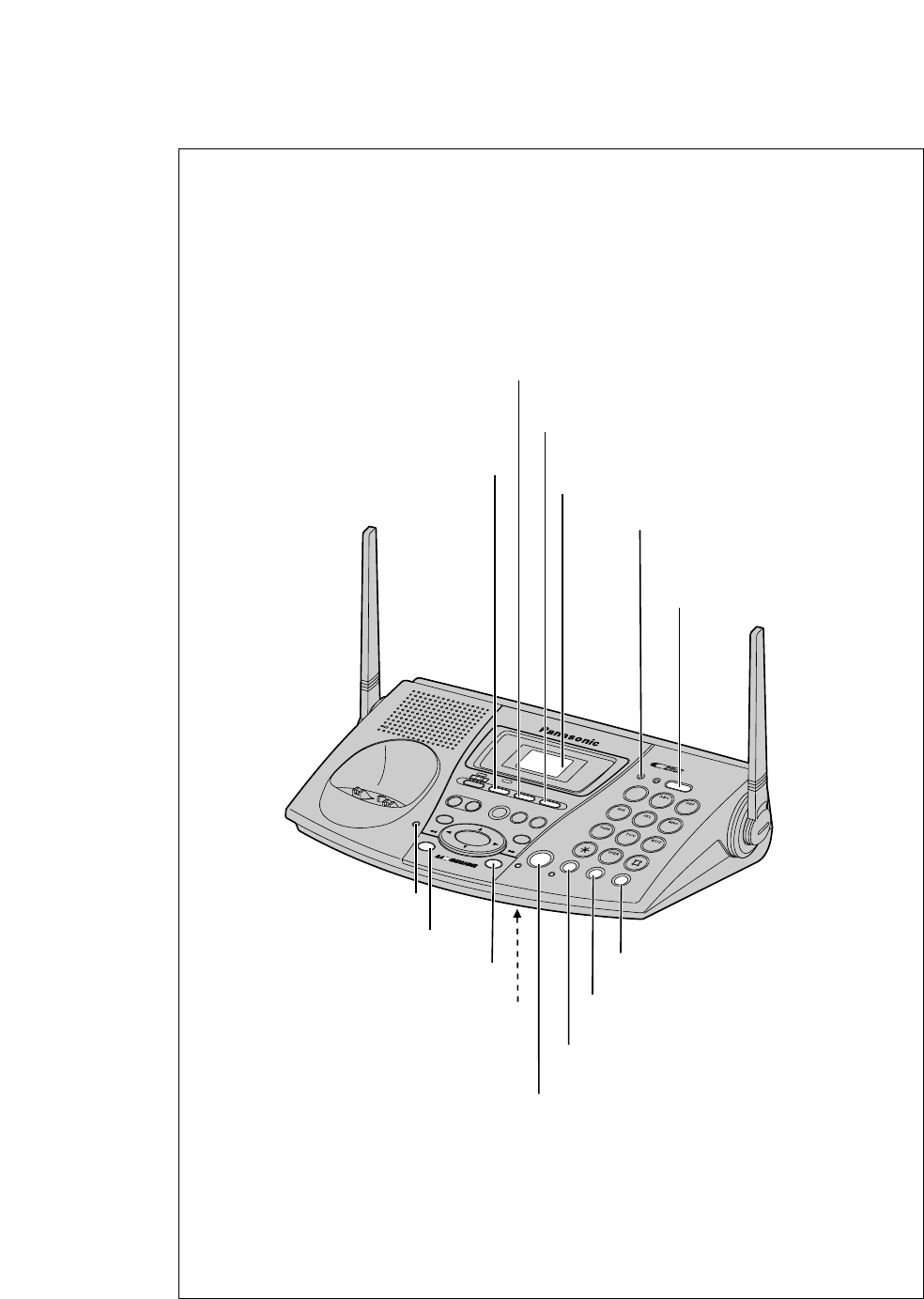

■Base unit
MIC
CHARGE
ERASE
STOP
MULTI HANDSET
123
NEW MESSAGE / SLOW TALK
MAILBOX
HOLDCONF
REDIAL
/
PAUSE
MUTE
TONE
DIGITAL SP PHONE
FLASH/
CALL WAIT
DIGITAL
SPREAD SPECTRUM
TRANSFER
INTERCOM
0
1
3
2
456
8
7
9
PRIVACY
RINGER
LOUD/
MEMO
GREETING
PROGRAMRINGER/
AUTO
ROOM
MONITOR
IN USE
(ERASE) Button (STOP) Button
(GREETING) Button
(ANSWERÒON) Button
and Indicator
(MEMO) Button ROOM MONITOR/INTERCOM
Indicator
Antenna
(TONE) Button
Antenna
Charge
Contacts
(MAILBOX) Buttons
Navigator Key
( , , , )
–5–

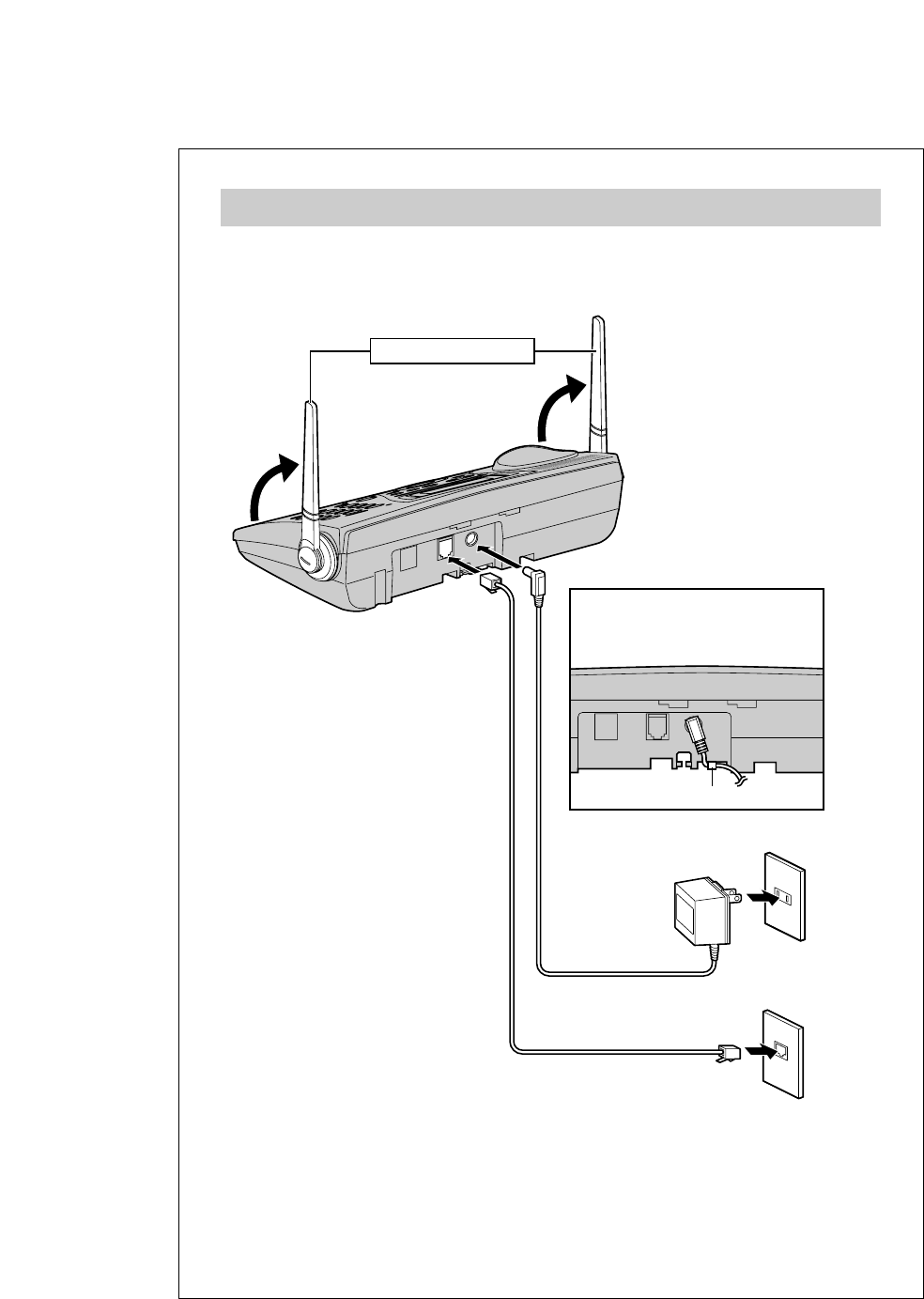

Connections
■Connect the AC adaptor and the telephone line cord.
•USE ONLY WITH Panasonic AC ADAPTOR PQLV10.
•The AC adaptor must remain connected at all times. (It is normal for the
adaptor to feel warm during use.)
Hook
Telephone Line Cord
AC Adaptor
Power Outlet (AC 120 V, 60 Hz)
Single-Line Telephone Jack (RJ11C)
Fasten the AC adaptor cord to
prevent it from being
disconnected.
Raise the antennas.
–6–
Battery Installation/Battery Charge
■Recharge
Recharge the battery when:
–"Recharge battery" is displayed,
–" " flashes on the display, or
– the handset beeps every minute while it is in use.
•Clean the handset and the base unit charge contacts with a soft, dry
cloth once a month. Clean more often if the unit is subject to grease,
dust or high humidity. If not, the battery may not charge properly.
•If the battery is fully charged, you do not have to place the handset on the
base unit until "Recharge battery" is displayed and/or " " flashes.
This will maximize the battery life.
•The battery cannot be overcharged.
■Battery installation
1 Install the battery in the handset.
2 Close the handset cover.
■Battery charge
To power the handset, charge the battery.
Place the handset on the base unit for about 15 hours before initial use.
A nickel cadmium battery that is recyclable powers the product
you have purchased. At the end of its useful life, under various
state and local laws, it is illegal to dispose of this battery into
your municipal waste stream. Please call
1-800-8-BATTERY for information on how to recycle this
battery.
–7–
You can record a personal greeting message of up to 2 minutes. If a greeting
message is not recorded, one of two pre-recorded greetings will be played
when a call is received.
•All messages (greeting, incoming, etc.) are stored in digital memory. The
total recording time is about 15 minutes. We recommend you record a
brief greeting message in order to leave more time for recording new
messages.
1 Press and hold (GREETING) until a long beep is heard.
2 After the long beep, talk clearly, about 8 inches (20 cm) away from the MIC
(microphone).
3 When finished, press (GREETING).
•If you do not record a greeting message, one of two messages will be played
when a call is received, depending on the caller’s recording time.
Recording a Greeting Message
–8–
■To make a call
1 Press or .
2 Dial a telephone number.
3 To hang up, press (OFF) or place the handset on the base unit.
•If "No link to base. Walk closer to base and try again" is
displayed and an alarm tone sounds in step 1, move closer to the base unit
or place the handset on the base unit, and try again.
•To redial the last number, press or , then press
(PAUSE/REDIAL).
•To adjust the receiver volume/speaker volume:
To increase, press . To decrease, press .
•To put a call on hold, press (HOLD/CLEAR).
•To release the hold, press (HOLD/CLEAR).
■To answer a call
Press or .
Making/Answering Calls with the Handset
–9–
Making/Answering Calls with the Base Unit
■To make a call
1 Press (DIGITAL!SP-PHONE).
2 Dial a telephone number.
3 Talk into the MIC (microphone).
4 To hang up, press (DIGITAL!SP-PHONE).
•To redial the last number, press (DIGITAL!SP-PHONE), then press
(REDIAL/PAUSE).
•To adjust the speaker volume:
To increase, press . To decrease, press .
•To put a call on hold, press (HOLD).
•To release the hold, press (DIGITAL!SP-PHONE).
■To answer a call
Press (DIGITAL!SP-PHONE), then talk into the MIC (microphone).
Caller ID Service
This unit is compatible with a Caller ID service offered by your telephone
company.
After subscribing to a Caller ID service, the calling party’s information will be
shown on the handset display after the first ring.
The unit can record information of up to 30 different callers in the caller list.
The Caller List information is sorted from the most recent to the oldest call.
When the unit receives the 31st call, the oldest call is deleted.
If your unit is connected to a PBX system which does not support Caller ID
services, you cannot access those services. Please consult your equipment
supplier.
–10–
Automatic Answering Operation
■ How to use the mailboxes
The unit accommodates three mailboxes (Mailbox 1, 2 and 3). A caller can
leave a message in a specified mailbox. If a mailbox is not specified,
messages are recorded in the mailbox 1.
■ When a caller calls
The caller can select a mailbox by pressing (#) and (1) (Mailbox 1), pressing
(#) and (2) (Mailbox 2) or pressing (#) and (3) (Mailbox 3), while the greeting is
played. The caller can then record a message in the mailbox after a beep.
OR
The caller waits until the greeting finishes, and records a message after a
beep. The message will be recorded in the Mailbox 1.
■ Setting the unit to answer calls
Press (ANSWER!ON) to turn on the answering system.
•The indicator lights and “Answer set” is heard.
Listening to Messages
You can see the total number of recorded messages on the base unit display.
If the ANSWER ON indicator flashes and the mailbox icon(s) ( ,
and ) flash(es) on the display, new messages have been recorded in
the mailbox(es).
To listen to the messages, press (MAILBOX!1), (MAILBOX!2) or (MAILBOX!3).
•When you have new messages, the unit announces the number of new
messages and plays them back.
•When you have no new messages, the unit plays back all recorded
messages.
BOX 3
BOX 2BOX 1
–11–
Important Safety Instructions
When using this unit, basic safety precautions should always be followed to
reduce the risk of fire, electric shock, or personal injury.
11. Read and understand all instructions.
12. Follow all warnings and instructions marked on this unit.
13. Unplug this unit from AC outlets before cleaning. Do not use liquid or
aerosol cleaners. Use a damp cloth for cleaning.
14. Do not use this unit near water, for example, near a bathtub, washbowl,
kitchen sink, or the like.
15. Place this unit securely on a stable surface. Serious damage and/or injury
may result if the unit falls.
16. Do not cover slots and openings on the unit. They are provided for
ventilation and protection against overheating. Never place the unit near
radiators, or in a place where proper ventilation is not provided.
17. Use only the power source marked on the unit. If you are not sure of the
type of power supplied to your home, consult your dealer or local power
company.
18. Do not place objects on the power cord. Install the unit where no one can
step or trip on the cord.
19. Do not overload wall outlets and extension cords. This can result in the
risk of fire or electric shock.
10. Never push any objects through slots in this unit. This may result in the
risk of fire or electric shock. Never spill any liquid on the unit.
11. To reduce the risk of electric shock, do not disassemble this unit. Take the
unit to an authorized servicenter when service is required. Opening or
removing covers may expose you to dangerous voltages or other risks.
Incorrect reassembly can cause electric shock when the unit is
subsequently used.
12. Unplug this unit from the wall outlet and refer servicing to an authorized
servicenter when the following conditions occur:
A. When the power supply cord or plug is damaged or frayed.
B. If liquid has been spilled into the unit.
C. If the unit has been exposed to rain or water.
D. If the unit does not work normally by following the operating
instructions. Adjust only controls covered by the operating instructions.
Improper adjustment may require extensive work by an authorized
servicenter.
E. If the unit has been dropped or physically damaged.
F. If the unit exhibits a distinct change in performance.
13. During thunderstorms, avoid using telephones except cordless types.
There may be a remote risk of an electric shock from lightning.
14. Do not use this unit to report a gas leak, when in the vicinity of the leak.
SAVE THESE INSTRUCTIONS
–12–
CAUTION:
To reduce the risk of fire or injury to persons, read and follow these
instructions.
1. Use only the battery(ies) specified.
2. Do not dispose of the battery(ies) in a fire. They may explode. Check with
local waste management codes for special disposal instructions.
3. Do not open or mutilate the battery(ies). Released electrolyte is corrosive
and may cause burns or injury to the eyes or skin. The electrolyte may be
toxic if swallowed.
4. Exercise care in handling batteries in order not to short the battery to
conductive materials such as rings, bracelets, and keys. The battery and/or
conductor may overheat and cause burns.
5. Charge the battery(ies) provided with or identified for use with this product
only in accordance with the instructions and limitations specified in this
manual.
WARNING:
TO PREVENT FIRE OR SHOCK HAZARD, DO NOT EXPOSE THIS
PRODUCT TO RAIN OR ANY TYPE OF MOISTURE.
•The AC adaptor is used as the main disconnect device, ensure that the AC
outlet is located/installed near the unit and is easily accessible.
–13–
FCC and Other Information
If requested by the telephone company, inform them as follows:
Registration No. .....................................................(found on the bottom of the unit)
Ringer Equivalence ............................................................................................0.1B
The particular telephone line to which the equipment is connected.
This unit must not be connected to a coin operated line.
If you are on a party line, check with your local telephone company.
Ringer Equivalence No. (REN):
The REN is useful in determining the quantity of devices you may connect to your
telephone line and still have all of those devices ring when your telephone number is
called. In most, but not all areas, the sum of the REN’s of all devices connected to one
line should not exceed five (5.0). To be certain of the number of devices you may
connect to your line, as determined by the REN, you should contact your local
telephone company to determine the maximum REN for your calling area.
In the event terminal equipment causes harm to the telephone network, the telephone
company should notify the customer, if possible, that service may be stopped.
However, where prior notice is impractical, the company may temporarily cease service
providing that they:
(a) Promptly notify the customer.
(b) Give the customer an opportunity to correct the problem with their equipment.
(c) Inform the customer of the right to bring a complaint to the Federal Communication
Commission pursuant to procedures set out in FCC Rules and Regulations Subpart
E of Part 68.
The Telephone Company may make changes in its communications facilities,
equipment, operations or procedures, where such action is reasonably required in the
operation of its business and is not inconsistent with the rules and regulations in 47
CFR Part 68.
If such changes can be reasonably expected to render any customer terminal equipment
incompatible with telephone company communications facilities, or require modification or
alteration of such terminal equipment, or otherwise materially affect its use or
performance, the customer shall be given adequate notice in writing, to allow the
customer an opportunity to maintain uninterrupted service.
When programming emergency numbers and/or making test calls to emergency
numbers:
1. Remain on the line and briefly explain to the dispatcher the reason for the call
before hanging up.
2. Perform such activities in the off-peak hours, such as early morning hours or late
evenings.
This device complies with Part 15 of the FCC Rules. Operation is subject to the
following two conditions: (1) This device may not cause harmful interference, and (2)
this device must accept any interference received, including interference that may
cause undesired operation.
Privacy of communications may not be ensured when using this phone.
–14–
CAUTION:
Any changes or modifications not expressly approved by the party responsible for
compliance could void the user’s authority to operate this device.
Note:
This equipment has been tested and found to comply with the limits for a Class B
digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to
provide reasonable protection against harmful interference in a residential installation.
This equipment generates, uses, and can radiate radio frequency energy and, if not
installed and used in accordance with the instructions, may cause harmful interference
to radio communications. However, there is no guarantee that interference will not
occur in a particular installation. If this equipment does cause harmful interference to
radio or television reception, which can be determined by turning the equipment off and
on, the user is encouraged to try to correct the interference by one or more of the
following measures:
—Reorient or relocate the receiving antenna.
—Increase the separation between the equipment and receiver.
—Connect the equipment into an outlet on a circuit different from that to which the
receiver is connected.
—Consult the dealer or an experienced radio/TV technician for help.
Some cordless telephones operate at frequencies that may cause interference to
nearby TVs and VCRs. To minimize or prevent such interference, the base of the
cordless telephone should not be placed near or on top of a TV or VCR. If interference
is experienced, move the cordless telephone further away from the TV or VCR. This
will often reduce, or eliminate, interference.
Operating near 2.4GHz electrical appliances may cause interference. Move away from
the electrical appliances.
–15–
CAUTION:
To comply with FCC RF exposure requirements, the base unit should be installed with
its antenna located at 20 cm or more from persons and handset should be carried with
the specific belt-clip provided for the handset to ensure compliance. Other non-tested
belt-clips or similar body-worn accessories may not comply, therefore, should be
avoided.
This equipment is hearing aid compatible.
A TIA/EIA-IS-968 compliant telephone cord and modular plug is provided with this
equipment. This equipment is designed to be connected to the telephone network
or premises wiring using a compatible modular jack that is also TIA/EIA-IS-968
compliant.
•Environment — do not place the unit in a room where the temperature is less than
5°C (41°F) or greater than 40°C (104°F). Allow 10 cm (4") clearance around the unit
for proper ventilation. Avoid excessive smoke, dust, mechanical vibration, shock, or
direct sunlight.
•
Medical —consult the manufacturer of any personal medical devices, such as
pacemakers, to determine if they are adequately shielded from external RF (radio
frequency) energy. (The unit operates in the frequency range of 2400MHz to
2480MHz, and the power output level can range 0.04 watts to 0.40 watts.) Do not use
the unit in health care facilities if any regulations posted in the area instruct you not to
do so. Hospitals or health care facilities may be using equipment that could be
sensitive to external RF (radio frequency) energy.
•Routine care — wipe the unit with a soft cloth. Do not use benzine, thinner, or any
abrasive powder. When you leave the unit unused for a long period of time, unplug
the AC adaptor from the outlet.
•
If there is any trouble — disconnect the unit from the telephone line and connect a
known working phone. If the known working phone operates properly, have your unit
repaired by one of the authorized Panasonic Factory Service Centers. If the known
working phone does not operate properly, consult your telephone company.
For product service
•Call 1-800-211-PANA(7262) for the location of an authorized servicenter.
•Panasonic’s e-mail address for customer inquiries:
consumerproducts@panasonic.com
for customers in the USA or Puerto Rico ONLY
When you ship the product
•Carefully pack your unit, preferably in the original carton.
•Attach a letter, detailing the symptom, to the outside of the carton.
Symptom
•Send the unit to an authorized servicenter, prepaid and adequately insured.
•Do not send your unit to the Panasonic Consumer Electronics Company
listed below or to executive or regional sales offices. These locations do not
repair consumer products.
Panasonic Consumer Electronics Company,
Division of Matsushita Electric Corporation of America
One Panasonic Way, Secaucus, New Jersey 07094
Panasonic Sales Company,
Division of Matsushita Electric of Puerto Rico, Inc.
Ave. 65 de Infantería, Km. 9.5, San Gabriel Industrial Park
Carolina, Puerto Rico 00985
