Panasonic of North America 96NKX-TGA930 Cordless Telephone Handset User Manual Draft
Panasonic Corporation of North America Cordless Telephone Handset Draft
User Manual
Temporary Confidential
This unit is compatible with Caller ID. You must subscribe to the appropriate
service offered by your service provider/telephone company.
Please read these operating instructions before using the unit and save
them for future reference.
For assistance, visit our website:
http://www.panasonic.com/help for customers in the U.S.A. or Puerto
Rico.
Charge the handset batteries for about 7 hours before initial use.
Operating Instructions
Expandable Digital Cordless
Answering System
Model No. KX-TG9331
TG933X(e).book Page 1 Wednesday, September 26, 2007 2:00 PM
Temporary Confidential
2
Expanding your phone system
You can expand your phone system by registering optional handsets to a single base
unit.
Handsets: max. 6
Additional digital
cordless handset
KX-TGA930
TG933X(e).book Page 5 Wednesday, September 26, 2007 2:00 PM
Temporary Confidential
3
Important safety
instructions
When using the product, basic safety
precautions should always be followed
to reduce the risk of fire, electric shock,
or personal injury.
1. Read all instructions carefully.
2. Follow all warnings and instructions
marked on the product.
3. Unplug the product from power
outlets before cleaning. Do not use
liquid or aerosol cleaners. Use a
moist cloth for cleaning.
4. Do not use the product near water, for
example near a bathtub, wash bowl,
kitchen sink, etc.
5. Place the product securely on a
stable surface. Serious damage
and/or injury may result if the product
falls.
6. Do not cover slots and openings on
the product. They are provided for
ventilation and protection against
overheating. Never place the product
near radiators, or in a place where
proper ventilation is not provided.
7. Use only the power source marked
on the product. If you are not sure of
the type of power supplied to your
home, consult your dealer or local
power company.
8. Do not place objects on the power
cord. Install the product where no one
can step or trip on the cord.
9. Do not overload power outlets and
extension cords. This can result in
the risk of fire or electric shock.
10.Never push any objects through slots
in the product. This may result in the
risk of fire or electric shock. Never
spill any liquid on the product.
11.To reduce the risk of electric shock,
do not disassemble the product. Take
the product to an authorized service
center when service is required.
Opening or removing covers may
expose you to dangerous voltages or
other risks. Incorrect reassembly can
cause electric shock when the
product is subsequently used.
12.Unplug the product from power
outlets and take to an authorized
service center when the following
conditions occur:
A. When the power cord is damaged
or frayed.
B. If liquid has been spilled into the
product.
C. If the product has been exposed
to rain or water.
D. If the product does not work
normally by following the
operating instructions. Adjust only
controls covered by the operating
instructions. Improper adjustment
may require extensive work by an
authorized service center.
E. If the product has been dropped
or physically damaged.
F. If the product exhibits a distinct
change in performance.
13.During thunderstorms, avoid using
telephones except cordless types.
There may be a remote risk of an
electric shock from lightning.
14.Do not use the product to report a gas
leak, when in the vicinity of the leak.
SAVE THESE INSTRUCTIONS
WARNING
LTo prevent the risk of fire or electrical
shock, do not expose the product to
rain or any type of moisture.
LUnplug the product from power outlets
if it emits smoke, an abnormal smell,
or makes an unusual noise. These
conditions can cause fire or electric
shock. Confirm that smoke has
TG933X(e).book Page 7 Wednesday, September 26, 2007 2:00 PM
Temporary Confidential
4
stopped emitting and contact the
Panasonic Call Center at 1-800-211-
PANA (1-800-211-7262).
LDo not spill liquids (detergents,
cleansers, etc.) onto the telephone
line cord plug, or allow it to become
wet at all. This may cause a fire. If the
telephone line cord plug becomes
wet, immediately pull it from the
telephone wall jack, and do not use.
LDo not place or use this product near
automatically controlled devices such
as automatic doors and fire alarms.
Radio waves emitted from this product
may cause such devices to
malfunction resulting in an accident.
LCompletely insert the AC
adaptor/power plug into the power
outlet. Failure to do so may cause
electric shock and/or excessive heat
resulting in a fire.
LRegularly remove any dust, etc. from
the AC adaptor/power plug by pulling
it from the power outlet, then wiping
with a dry cloth. Accumulated dust
may cause an insulation defect from
moisture, etc. resulting in a fire.
CAUTION
Installation
LNever install telephone wiring during a
lightning storm.
LNever install telephone line jacks in
wet locations unless the jack is
specifically designed for wet
locations.
LNever touch uninsulated telephone
wires or terminals unless the
telephone line has been disconnected
at the network interface.
LUse caution when installing or
modifying telephone lines.
LDo not touch the plug with wet hands.
LThe AC adaptor is used as the main
disconnect device. Ensure that the AC
outlet is installed near the product and
is easily accessible.
Battery
To reduce the risk of fire or injury to
persons, read and follow these
instructions.
LWe recommend using the batteries
Use only rechargeable battery(ies).
LDo not mix old and new batteries.
LDo not dispose of the batteries in a
fire, as they may explode. Check with
local waste management codes for
special disposal instructions.
LDo not open or mutilate the batteries.
Released electrolyte from the
batteries is corrosive and may cause
burns or injury to the eyes or skin. The
electrolyte may be toxic if swallowed.
LExercise care when handling the
batteries. Do not allow conductive
materials such as rings, bracelets or
keys to touch the batteries, otherwise
a short circuit may cause the batteries
and/or the conductive material to
overheat and cause burns.
LCharge the batteries provided with or
identified for use with this product only
in accordance with the instructions
and limitations specified in this
manual.
LOnly use a compatible base unit (or
charger) to charge the batteries. Do
not tamper with the base unit (or
charger). Failure to follow these
instructions may cause the batteries
to swell or explode.
LThis product is unable to make calls
when:
– the portable handset batteries need
recharging or have failed.
– there is a power failure.
TG933X(e).book Page 8 Wednesday, September 26, 2007 2:00 PM
Temporary Confidential
5
Medical
LConsult the manufacturer of any
personal medical devices, such as
pacemakers or hearing aids, to
determine if they are adequately
shielded from external RF (radio
frequency) energy. (The product
operates in the frequency range of
1.92 GHz to 1.93 GHz, and the power
output is 125 mW (max.).) Do not use
the product in health care facilities if
any regulations posted in the area
instruct you not to do so. Hospitals or
health care facilities may be using
equipment that could be sensitive to
external RF energy.
Notice for product disposal, transfer,
or return
LThis product can store your
private/confidential information. To
protect your privacy/confidentiality, we
recommend that you erase the
information such as phonebook or
caller list entries from the memory
before you dispose, transfer, or return
the product.
For best performance
Base unit location/avoiding noise
The base unit and other compatible
Panasonic units use radio waves to
communicate with each other.
LFor maximum coverage and noise-
free communications, place your base
unit:
– at a convenient, high, and central
location with no obstructions
between the handset and base unit
in an indoor environment.
– away from electronic appliances
such as TVs, radios, personal
computers, wireless devices or
other phones.
– avoid facing radio frequency
transmitters, such as external
antennas of mobile phone cell
stations (avoid putting the base unit
on a bay window or near a window).
LCoverage and voice quality depends
on the local environmental conditions.
LIf the reception for a base unit location
is not satisfactory, move the base unit
to another location for better
reception.
Environment
LKeep the product away from electrical
noise generating devices, such as
fluorescent lamps and motors.
LThe product should be kept free from
excessive smoke, dust, high
temperature, and vibration.
LThe product should not be exposed to
direct sunlight.
LDo not place heavy objects on top of
the product.
LWhen you leave the product unused
for a long period of time, unplug the
product from the power outlet.
LThe product should be kept away from
heat sources such as heaters, kitchen
stoves, etc. It should not be placed in
rooms where the temperature is less
than 5 °C(41°F) or greater than 40 °C
(104 °F). Damp basements should
also be avoided.
LThe maximum calling distance may be
shortened when the product is used in
the following places: Near obstacles
such as hills, tunnels, underground,
near metal objects such as wire
fences, etc.
LOperating the product near electrical
appliances may cause interference.
Move away from the electrical
appliances.
TG933X(e).book Page 9 Wednesday, September 26, 2007 2:00 PM
Temporary Confidential
6
Controls
Base unit
ACharge contacts
BSpeaker
C{Nn} (STOP)
D{ERASE}
E{GREETING REC} (Recording)
F{GREETING CHECK}
G{ANSWER ON}
H{LOCATOR}{INTERCOM}
I{6} (Play)
Message indicator
J{^} (VOL.: Volume up)
{V} (VOL.: Volume down)
{7} (Repeat)
{8} (Skip)
Handset
ASpeaker
B{MENU}
CSoft keys
DHeadset jack
E{C} (TALK)
F{s} (SP-PHONE: Speakerphone)
GDial keypad
({*}: TONE)
H{FLASH}{CALL WAIT}
ICharge indicator
Ringer indicator
Message indicator
JReceiver
KDisplay
L{OFF}
MNavigator key ({^}/{V}/{>}/{<})/
? (Receiver volume: {^}{V})
N{PAUSE}{REDIAL}
O{HOLD}{INTERCOM}
PMicrophone
ABCDE F
IJHG
A
J
K
M
N
C
L
I
O
P
Q
B
C
H
G
D
E
F
TG933X(e).book Page 11 Wednesday, September 26, 2007 2:00 PM
QCharge contacts
Routine care
LWipe the outer surface of the product
with a soft moist cloth.
LDo not use benzine, thinner, or any
abrasive powder.
Temporary Confidential
7

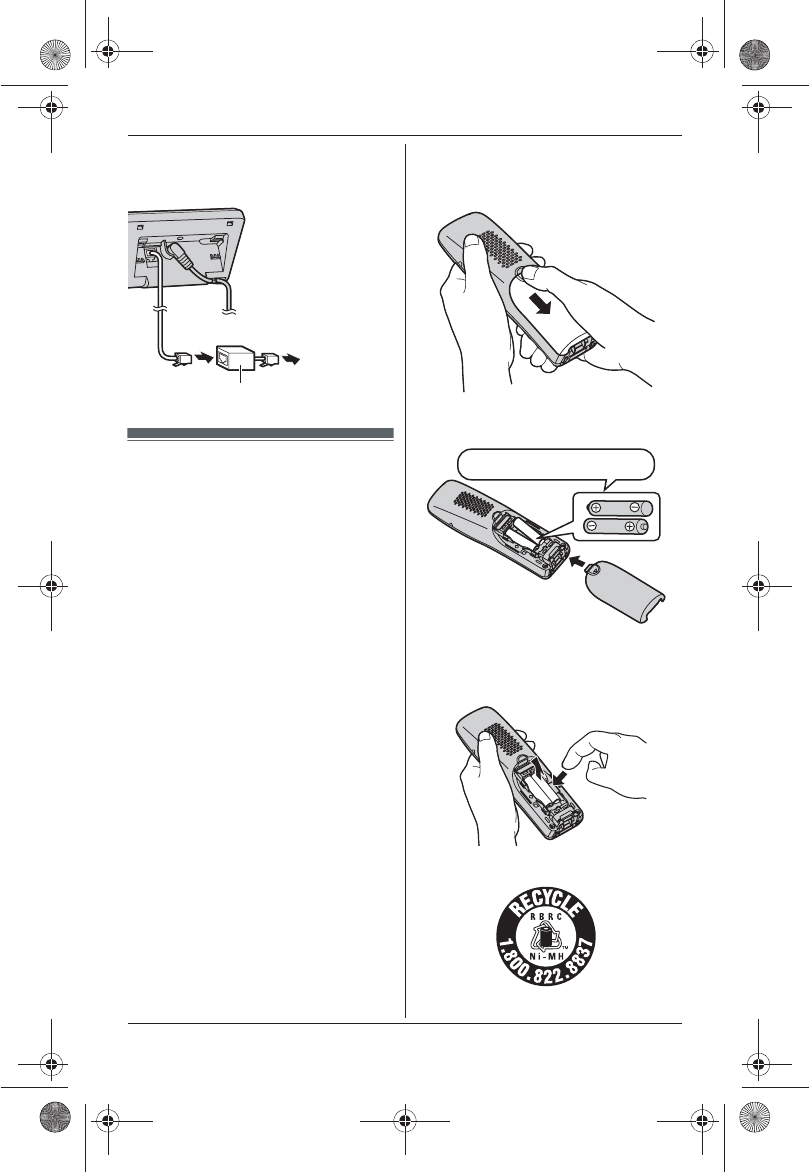

Connections
Connect the telephone line cord until it
clicks into the base unit and telephone
line jack (A). Connect the AC adaptor
cord (B) by pressing the plug firmly (C).
Base unit
LUse only the supplied Panasonic AC
adaptor PQLV207.
LUse only the supplied telephone line
cord. If you use a telephone line cord
which is not supplied, the unit may not
work properly.
(120 V AC,
60 Hz)
To single-line
telephone
jack (RJ11C)
Hook
TG933X(e).book Page 12 Wednesday, September 26, 2007 2:00 PM
Charger
LUse only the supplied Panasonic AC
adaptor PQLV209.
Note:
LThe AC adaptor must remain
connected at all times. (It is normal for
the adaptor to feel warm during use.)
LThe AC adaptor should be connected
to a vertically oriented or floor-
mounted AC outlet. Do not connect
the AC adaptor to a ceiling-mounted
AC outlet, as the weight of the adaptor
may cause it to become disconnected.
During a power failure
LThe unit will not work during a power
failure. We recommend connecting a
corded-type telephone (without AC
adaptor) to the same telephone line
using a Panasonic T-adaptor.
If you subscribe to a DSL service
Please attach a DSL filter (contact your
DSL provider) to the telephone line
between the base unit and the telephone
line jack in the event of the following:
– noise is heard during conversations.
B(120 V AC, 60 Hz)
Hooks
C
Temporary Confidential
8
– Caller ID features do not function
properly.
Battery installation and
replacement
Important:
LUse only the supplied rechargeable
batteries.
LUSE ONLY rechargeable Ni-MH
batteries AAA (R03) size.
LDo NOT use Alkaline/Manganese/Ni-
Cd batteries.
LEnsure correct polarities (S,T)
when installing the batteries.
LWipe the battery ends (S,T) with a
dry cloth.
LWhen installing the batteries, avoid
touching the battery ends (S,T) or
the unit contacts.
LWhen replacing batteries, we
recommend using the Panasonic
rechargeable batteies.
To single-line
telephone
jack (RJ11C)
DSL filter
TG933X(e).book Page 13 Wednesday, September 26, 2007 2:00 PM
1Press the notch on the handset
cover firmly, and slide it in the
direction of the arrow.
2Insert the batteries negative (T)
end first. Close the handset cover.
Note:
LWhen replacing batteries, remove the
old batteries.
Attention:
Rechargeable Ni-MH ONLY
Temporary Confidential
9
A nickel metal hydride battery that is
recyclable powers the product you have
purchased.
Please call 1-800-8-BATTERY (1-800-
822-8837) for information on how to
recycle this battery.

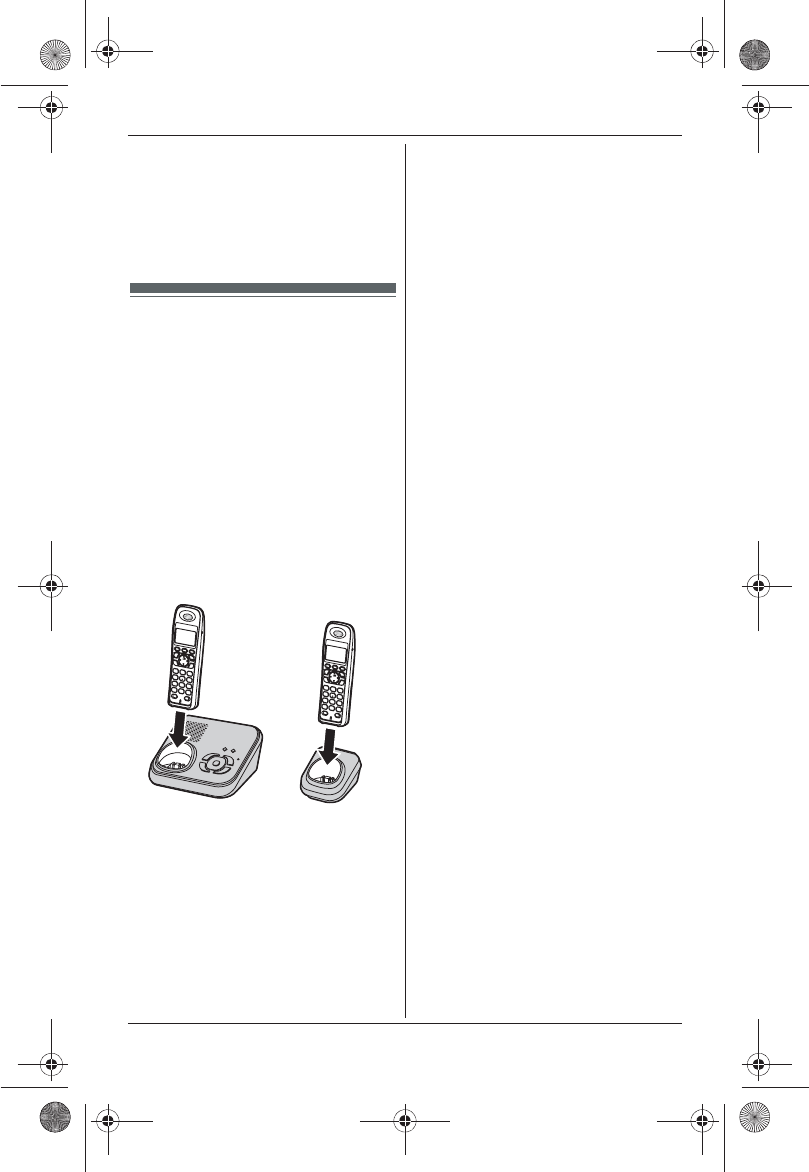

Battery charge
Place the handset on the base unit or
charger for 7 hours before initial use.
LWhile charging:
–“Charging” is displayed.
– the charge indicator on the handset
lights in amber.
LWhen the battery is fully charged:
–“Charge completed” is
displayed.
– the charge indicator on the handset
lights in amber.
Note:
LIt is normal for the handset to feel
warm during charging.
LIf you want to use the handset
immediately, charge the batteries for
at least 15 minutes.
LClean the charge contacts of the
handset, base unit, and charger with a
Base unit: Charger:
TG933X(e).book Page 14 Wednesday, September 26, 2007 2:00 PM
soft and dry cloth once a month. Clean
more often if the unit is subject to the
exposure of grease, dust, or high
humidity.
LWhen the battery is empty, “Charge
for 7h” is displayed and the charge
indicator does not light for about 5
minutes to concentrate on charging.
Temporary Confidential
10
Making calls
1Lift the handset and dial the phone
number.
LTo correct a digit, press {Clear}.
2Press {C} or {Call}.
3When you finish talking, press
{OFF}or place the handset on the
base unit or charger.
Note:
L“Line in use”is displayed when
someone is talking on the handset or
another phone.
Using the speakerphone
1Dial the phone number, and press
{s}.
LSpeak alternately with the other
party.
2When you finish talking, press
{OFF}.
Note:
LFor best performance, use the
speakerphone in a quiet environment.
LTo switch to the receiver, press {C}.
Adjusting the receiver or speaker
volume
Press {^} or {V} repeatedly while
talking.
Making a call using the redial
list
The last 5 phone numbers dialed are
stored in the redial list (each 48 digits
max.).
1{REDIAL}
2{V}/{^}: Select the desired phone
number.
3{C}
Answering calls
When a call is being received, the ringer
indicator flashes rapidly.
1Lift the handset and press {C} or
{s} when the unit rings.
2When you finish talking, press
{OFF}or place the handset on the
base unit or charger.
TG933X(e).book Page 17 Wednesday, September 26, 2007 2:00 PM
Shared phonebook
The shared phonebook allows you to
make calls without having to dial
manually. Any handset registered to the
base unit can use the shared
phonebook. You can add 50 names and
phone numbers to the shared
phonebook.
Important:
LOnly 1 person can access the shared
phonebook at a time.
Registering a unit
Operating additional
handsets
Additional handsets
Up to 6 handsets can be registered to
the base unit.
Important:
LAdditional handsets will give you the
freedom to, for example, have an
intercom call with another handset
while a third handset is on an outside
call.
Temporary Confidential
11
Registering a handset to a
base unit
The supplied handset and base unit are
pre-registered. When you purchase an
additional handset, refer to the additional
handset’s installation manual for
registration. If for some reason the
handset is not registered to the base
unit, register the handset.
1Handset:
{MENU}i{#}{1}{3}{0}
2Base unit:
Press and hold
{LOCATOR/INTERCOM} for about
5 seconds, until the registration tone
sounds.
LIf all registered handsets start
ringing, press
{LOCATOR/INTERCOM} to stop,
then repeat this step.
LAfter pressing
{LOCATOR/INTERCOM}, the
rest of this procedure must be
completed within 90 seconds.
3Handset:
Press {OK}, then wait until a long
beep sounds.
TG933X(e).book Page 29 Wednesday, September 26, 2007 2:00 PM
Using Caller ID service
Important:
LThis unit is Caller ID compatible. To
use Caller ID features, you must
subscribe to Caller ID service. Contact
your service provider/telephone
company for details.
Caller ID features
When an outside call is being received,
the name and phone number are
displayed.
Caller information for the last 50 callers
is logged in the caller list by the most
recent call to the oldest.
LGenerally caller information is
displayed from the 2nd ring.
LIf the unit cannot receive caller
information, the following is displayed:
–“Out of area”: The caller dialed
from an area which does not
provide Caller ID service.
–“Private caller”: The caller
requested not to send caller
information.
–“Long distance”: The caller
made a long distance call.
LIf the unit is connected to a PBX
system, caller information may not be
received properly. Contact your PBX
supplier.
Temporary Confidential
12
Answering system
The answering system can answer and
record calls for you when you are
unavailable to answer the phone.
Turning the answering
system on/off
Press {ANSWER ON} to turn on/off the
answering system.
LWhen the answering system is turned
on, the ANSWER ON indicator lights
up.
Greeting message
When the unit answers a call, callers are
greeted by a greeting message. You can
record your own greeting message or
use a pre-recorded greeting message.
Recording your greeting
message
You can record your own greeting
message (2 minutes max.).
TG933X(e).book Page 33 Wednesday, September 26, 2007 2:00 PM
1{GREETING REC}
2Within 10 seconds, press
{GREETING REC} again.
3Hold the handset about 20 cm (8
inches) away and speak clearly into
the microphone.
4Press {STOP}, to stop recording.
5{OFF}
Listening to messages
using the base unit
When new messages have been
recorded, the message indicator on the
base unit flashes.
Press {6} (Message).
LIf new messages have been recorded,
the base unit plays back new
messages.
LIf there are no new messages, the
base unit plays back all messages.
Temporary Confidential
13
FCC and other information
This equipment complies with Part 68
of the FCC rules and the requirements
adopted by the ACTA. On the bottom
of this equipment is a label that
contains, among other information, a
product identifier in the format
US:ACJ----------.
If requested, this number must be
provided to the telephone company.
L Registration No
............(found on the bottom of the
unit)
L Ringer Equivalence No.
(REN).......0.1B
A plug and jack used to connect this
equipment to the premises wiring and
telephone network must comply with
the applicable FCC Part 68 rules and
requirements adopted by the ACTA. A
compliant telephone cord and modular
plug is provided with the product. It is
designed to be connected to a
compatible modular jack that is also
compliant.
The REN is used to determine the
number of devices that may be
connected to a telephone line.
Excessive RENs on a telephone line
may result in the devices not ringing in
response to an incoming call. In most
but not all areas, the sum of RENs
should not exceed five (5.0). To be
certain of the number of devices that
may be connected to a line, as
determined by the total RENs, contact
the local telephone company. For
products approved after July 23, 2001,
the REN for the product is part of the
product identifier that has the format
US:AAAEQ##TXXXX. The digits
represented by ## are the REN
without a decimal point (e.g., 03 is a
REN of 0.3).
If this equipment causes harm to the
telephone network, the telephone
company will notify you in advance
that temporary discontinuance of
service may be required. But if
advance notice isn’t practical, the
telephone company will notify the
customer as soon as possible. Also,
you will be advised of your right to file
a complaint with the FCC if you
believe it is necessary.
The telephone company may make
changes in its facilities, equipment,
operations or procedures that could
affect the operation of the equipment.
If this happens the telephone company
will provide advance notice in order for
you to make necessary modifications
to maintain uninterrupted service.
If trouble is experienced with this
equipment, for repair or warranty
information, please contact a Factory
Service Center or other Authorized
Servicer. If the equipment is causing
harm to the telephone network, the
telephone company may request that
you disconnect the equipment until the
problem is resolved.
Connection to party line service is
subject to state tariffs. Contact the
state public utility commission, public
service commission or corporation
commission for information.
If your home has specially wired alarm
equipment connected to the telephone
line, ensure the installation of this
equipment does not disable your alarm
equipment. If you have questions
TG933X(e).book Page 53 Wednesday, September 26, 2007 2:00 PM
Temporary Confidential
14
about what will disable alarm
equipment, consult your telephone
company or a qualified installer.
This equipment is hearing aid
compatible as defined by the FCC in
47 CFR Section 68.316.
When you hold the phone to your ear,
noise might be heard in your Hearing
Aid. Some Hearing Aids are not
adequately shielded from external RF
(radio frequency) energy. If noise
occurs, use an optional headset
accessory or the speakerphone option
(if applicable) when using this phone.
Consult with your audiologist or
Hearing Aid manufacturer about the
availability of Hearing Aids which
provide adequate shielding to RF
energy commonly emitted by digital
devices.
WHEN PROGRAMMING
EMERGENCY NUMBERS AND(OR)
MAKING TEST CALLS TO
EMERGENCY NUMBERS:
1) Remain on the line and briefly
explain to the dispatcher the reason
for the call.
2) Perform such activities in the off-
peak hours, such as early morning
or late evenings.
This device complies with Part 15 of
the FCC Rules. Operation is subject to
the following two conditions:
(1) This device may not cause harmful
interference, and (2) this device must
accept any interference received,
including interference that may cause
undesired operation.
Privacy of communications may not
be ensured when using this phone.
CAUTION:
Any changes or modifications not
expressly approved by the party
responsible for compliance could void
the user’s authority to operate this
device.
NOTE:
This equipment has been tested and
found to comply with the limits for a
Class B digital device, pursuant to Part
15 of the FCC Rules. These limits are
designed to provide reasonable
protection against harmful interference
in a residential installation. This
equipment generates, uses, and can
radiate radio frequency energy and, if
not installed and used in accordance
with the instructions, may cause
harmful interference to radio
communications. However, there is no
guarantee that interference will not
occur in a particular installation. If this
equipment does cause harmful
interference to radio or television
reception, which can be determined by
turning the equipment off and on, the
user is encouraged to try to correct the
interference by one or more of the
following measures:
– Reorient or relocate the receiving
antenna.
– Increase the separation between the
equipment and receiver.
– Connect the equipment into an outlet
on a circuit different from that to
which the receiver is connected.
– Consult the dealer or an experienced
radio/TV technician for help.
Some cordless telephones operate at
frequencies that may cause
interference to nearby TVs and VCRs.
To minimize or prevent such
interference, the base of the cordless
telephone should not be placed near
or on top of a TV or VCR. If
TG933X(e).book Page 54 Wednesday, September 26, 2007 2:00 PM
Temporary Confidential
15
Notice
ENERGY STAR
As an ENERGY STAR® Participant,
Panasonic has determined that this
product meets the ENERGY STAR
guidelines for energy efficiency.
ENERGY STAR is a U.S. registered
mark.
interference is experienced, move the
cordless telephone further away from
the TV or VCR. This will often reduce,
or eliminate, interference.
FCC RF Exposure Warning:
LThis product complies with FCC
radiation exposure limits set forth for
an uncontrolled environment.
LTo comply with FCC RF exposure
requirements, the base unit must be
installed and operated 20 cm (8
inches) or more between the
product and all person’s body
(excluding extremities of hands,
wrist and feet).
LThis product may not be collocated
or operated in conjunction with any
other antenna or transmitter.
LThe handset may be carried and
operated with only the specific
provided belt-clip. Other non-tested
belt-clips or similar body-worn
accessories may not comply and
must be avoided.
Notice
L FCC ID can be found inside the
battery compartment or on the
bottom of the units.
TG933X(e).book Page 55 Wednesday, September 26, 2007 2:00 PM
Temporary Confidential
If you need assistance with setup or operation
1. Visit our website: http://www.panasonic.com/help
2. Contact us via the web at: http://www.panasonic.com/contactus
3. Call us at: 1-800-211-PANA (1-800-211-7262)
TTY users (hearing or speech impaired users) can call 1-877-833-8855.
When you ship the product
LCarefully pack your unit, preferably in the original carton.
LAttach a letter, detailing the symptom, to the outside of the carton.
LSend the unit to Panasonic Service and Technology Company, Exchange Center,
prepaid and adequately insured.
LDo not send your unit to Panasonic Consumer Electronics Company listed below
or to executive or regional sales offices. These locations do not repair consumer
products.
For your future reference
We recommend keeping a record of the following information to assist with any repair
under warranty.
Panasonic Consumer Electronics Company,
Division of Panasonic Corporation of North America
One Panasonic Way, Secaucus, New Jersey 07094
Panasonic Puerto Rico, Inc.
San Gabriel Industrial Park, Ave. 65 de Infantería, Km. 9.5,
Carolina, Puerto Rico 00985
Copyright:
This material is copyrighted by Panasonic Communications Co., Ltd., and may be
reproduced for internal use only. All other reproduction, in whole or in part, is
prohibited without the written consent of Panasonic Communications Co., Ltd.
© 2007 Panasonic Communications Co., Ltd. All Rights Reserved.
Serial No. Date of purchase
(found on the bottom of the base unit)
Name and address of dealer
Attach your purchase receipt here.
TG933X(e).book Page 64 Wednesday, September 26, 2007 2:00 PM
