Panasonic of North America 96NKX-TGP500 DECT System User Manual TGP500 550 04 QG E shinsei
Panasonic Corporation of North America DECT System TGP500 550 04 QG E shinsei
User Manual
Temporary Confidential
Thank you for purchasing a Panasonic product.
Please read these operating instructions before using the unit and save them for future
reference.
Charge the batteries for about 6 hours before initial use.
Quick Guide
SIP Cordless Phone
Model No. KX-TGP500
Model No. KX-TGP550
Model shown is KX-TGP500.
B04
Model shown is KX-TGP550.
TGP500_550_04_QG(E).book Page 1 Tuesday, February 17, 2009 4:59 PM
Temporary Confidential
Table of Contents
2
Introduction
About this guide . . . . . . . . . . . . . . . . . . . . . . . . . 3
Accessory information. . . . . . . . . . . . . . . . . . . . . 3
Important Information
For your safety . . . . . . . . . . . . . . . . . . . . . . . . . . 4
Important safety instructions . . . . . . . . . . . . . . . . 5
For best performance . . . . . . . . . . . . . . . . . . . . . 5
Other information . . . . . . . . . . . . . . . . . . . . . . . . 5
Controls
Handset. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7
Base unit . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7
Basic Operations
Making calls using the handset. . . . . . . . . . . . . . 9
Making calls using the base unit (KX-TGP550
only) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9
Answering calls using the handset . . . . . . . . . . 10
Answering calls using the base unit (KX-TGP550
only) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10
Setting Up
Setting up the base unit . . . . . . . . . . . . . . . . . . 11
Setting up the handset . . . . . . . . . . . . . . . . . . . 12
Note when setting up . . . . . . . . . . . . . . . . . . . . 12
Useful Information
FCC and other information . . . . . . . . . . . . . . . . 13
Index
Index . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 15
TGP500_550_04_QG(E).book Page 2 Tuesday, February 17, 2009 4:59 PM
Temporary Confidential
Introduction
3
About this guide
This guide explains how to use the basic features of KX-TGP500/KX-TGP550. For further information on
operations and customising your phone, please read the User Guide on the website at:
www.xxxxxxxxxx.xx
For more information, contact your system administrator or network administrator.
Accessory information
*1 The handset cover comes attached to the handset.
No. Accessory item/Part number Quantity
KX-TGP500 KX-TGP550
1AC adaptor for base unit/PQLV219 1 1
2Ethernet cable 1 1
3Corded handset – 1
4Corded handset cord – 1
5Rechargeable batteries 2 2
6Handset cover*1 11
7Belt clip 1 1
8Charger 1 1
9AC adaptor for charger/PQLV224 1 1
1234567
89
TGP500_550_04_QG(E).book Page 3 Tuesday, February 17, 2009 4:59 PM
Temporary Confidential
Important Information
4
For your safety
To prevent severe injury and loss of life/property, read this
section carefully before using the product to ensure
proper and safe operation of your product.
WARNING
Power connection
LUse only the power source marked on the product.
LDo not overload power outlets and extension cords.
This can result in the risk of fire or electric shock.
LCompletely insert the AC adaptor/power plug into the
power outlet. Failure to do so may cause electric shock
and/or excessive heat resulting in a fire.
LRegularly remove any dust, etc. from the AC
adaptor/power plug by pulling it from the power outlet,
then wiping with a dry cloth. Accumulated dust may
cause an insulation defect from moisture, etc. resulting
in a fire.
LUnplug the product from power outlets if it emits smoke,
an abnormal smell, or makes an unusual noise. These
conditions can cause fire or electric shock. Confirm that
smoke has stopped emitting and contact the Panasonic
Call Center at 1-800-211-PANA (1-800-211-7262).
LUnplug from power outlets and never touch the inside
of the product if its casing has been broken open.
LNever touch the plug with wet hands. Danger of electric
shock exists.
Installation
LTo prevent the risk of fire or electrical shock, do not
expose the product to rain or any type of moisture.
LDo not place or use this product near automatically
controlled devices such as automatic doors and fire
alarms. Radio waves emitted from this product may
cause such devices to malfunction resulting in an
accident.
LDo not allow the AC adaptor or LAN (Local Area
Network) cord to be excessively pulled, bent or placed
under heavy objects.
Operating safeguards
LUnplug the product from power outlets before cleaning.
Do not use liquid or aerosol cleaners.
LDo not disassemble the product.
LDo not spill liquids (detergents, cleansers, etc.) onto
the LAN (Local Area Network) cord plug, or allow it to
become wet at all. This may cause a fire. If the LAN
(Local Area Network) cord plug becomes wet,
immediately pull it from the LAN (Local Area Network)
wall jack, and do not use.
LKX-TGP550 only: Do not excessively pull the corded
handset cord from the base unit. This may cause the
base unit to fall, resulting in injury.
Medical
LConsult the manufacturer of any personal medical
devices, such as pacemakers or hearing aids, to
determine if they are adequately shielded from external
RF (radio frequency) energy. (The product operates in
the frequency range of 1.92 GHz to 1.93 GHz, and the
RF transmission power is 115 mW (max.).)
LDo not use the product in health care facilities if any
regulations posted in the area instruct you not to do so.
Hospitals or health care facilities may be using
equipment that could be sensitive to external RF
energy.
CAUTION
Installation and relocation
LNever install LAN (Local Area Network) during an
electrical storm.
LNever install LAN (Local Area Network) cord jacks in
wet locations unless the jack is specifically designed for
wet locations.
LNever touch uninsulated LAN (Local Area Network) or
terminals unless the LAN (Local Area Network) has
been disconnected at the network interface.
LUse caution when installing or modifying LAN (Local
Area Network).
LThe AC adaptor is used as the main disconnect device.
Ensure that the AC outlet is installed near the product
and is easily accessible.
LThis product is unable to make calls when there is a
power failure.
Battery
LWe recommend using the batteries noted on page 3.
USE ONLY rechargeable Ni-MH batteries AAA (R03)
size.
LDo not mix old and new batteries.
LDo not open or mutilate the batteries. Released
electrolyte from the batteries is corrosive and may
cause burns or injury to the eyes or skin. The
electrolyte is toxic and may be harmful if swallowed.
LExercise care when handling the batteries. Do not
allow conductive materials such as rings, bracelets, or
keys to touch the batteries, otherwise a short circuit
may cause the batteries and/or the conductive material
to overheat and cause burns.
LCharge the batteries provided with or identified for use
with this product only, in accordance with the
instructions and limitations specified in this manual.
LOnly use a compatible charger to charge the batteries.
Do not tamper with the charger. Failure to follow these
instructions may cause the batteries to swell or
explode.
TGP500_550_04QG(E).book Page 4 Monday, March 30, 2009 12:01 PM
Temporary Confidential
Important Information
5
Attention:
A nickel metal hydride battery that is recyclable powers
the product you have purchased.
Please call 1-800-8-BATTERY (1-800-822-8837) for
information on how to recycle this battery.
Important safety instructions
When using your product, basic safety precautions should
always be followed to reduce the risk of fire, electric
shock, and injury to persons, including the following:
1. Do not use this product near water for example, near a
bathtub, washbowl, kitchen sink, or laundry tub, in a
wet basement or near a swimming pool.
2. Avoid using a telephone (other than a cordless type)
during an electrical storm. There may be a remote risk
of electric shock from lightning.
3. Do not use the telephone to report a gas leak in the
vicinity of the leak.
4. Use only the power cord and batteries indicated in this
manual. Do not dispose of batteries in a fire. They may
explode. Check with local codes for possible special
disposal instructions.
SAVE THESE INSTRUCTIONS
For best performance
Base unit location/avoiding noise
The base unit and other compatible Panasonic units use
radio waves to communicate with each other.
LFor maximum coverage and noise-free
communications, place your base unit:
– at a convenient, high, and central location with no
obstructions between the cordless handset and
base unit in an indoor environment.
– away from electronic appliances such as TVs,
radios, personal computers, wireless devices, or
other phones.
– facing away from radio frequency transmitters, such
as external antennas of mobile phone cell stations.
(Avoid putting the base unit on a bay window or near
a window.)
LCoverage and voice quality depends on the local
environmental conditions.
LIf the reception for a base unit location is not
satisfactory, move the base unit to another location for
better reception.
Environment
LKeep the product away from electrical noise generating
devices, such as fluorescent lamps and motors.
LThe product should be kept free from excessive smoke,
dust, high temperature, and vibration.
LThe product should not be exposed to direct sunlight.
LDo not place heavy objects on top of the product.
LWhen you leave the product unused for a long period of
time, unplug the product from the power outlet.
LThe product should be kept away from heat sources
such as heaters, kitchen stoves, etc. It should not be
placed in rooms where the temperature is less than 0
°C (32 °F) or greater than 40 °C (104 °F). Damp
basements should also be avoided.
LThe maximum calling distance may be shortened when
the product is used in the following places: Near
obstacles such as hills, tunnels, underground, near
metal objects such as wire fences, etc.
LOperating the product near electrical appliances may
cause interference. Move away from the electrical
appliances.
Routine care
LWipe the outer surface of the product with a soft
moist cloth.
LDo not use benzine, thinner, or any abrasive powder.
Other information
CAUTION: Risk of explosion if battery is replaced by an
incorrect type. Dispose of used batteries according to the
instructions.
Notice for product disposal, transfer, or return
LThis product can store your private/confidential
information. To protect your privacy/confidentiality, we
recommend that you erase information such as
phonebook or caller list entries from the memory before
you dispose of, transfer, or return the product.
TGP500_550_04_QG(E).book Page 5 Tuesday, February 17, 2009 4:59 PM
Temporary Confidential
Important Information
6

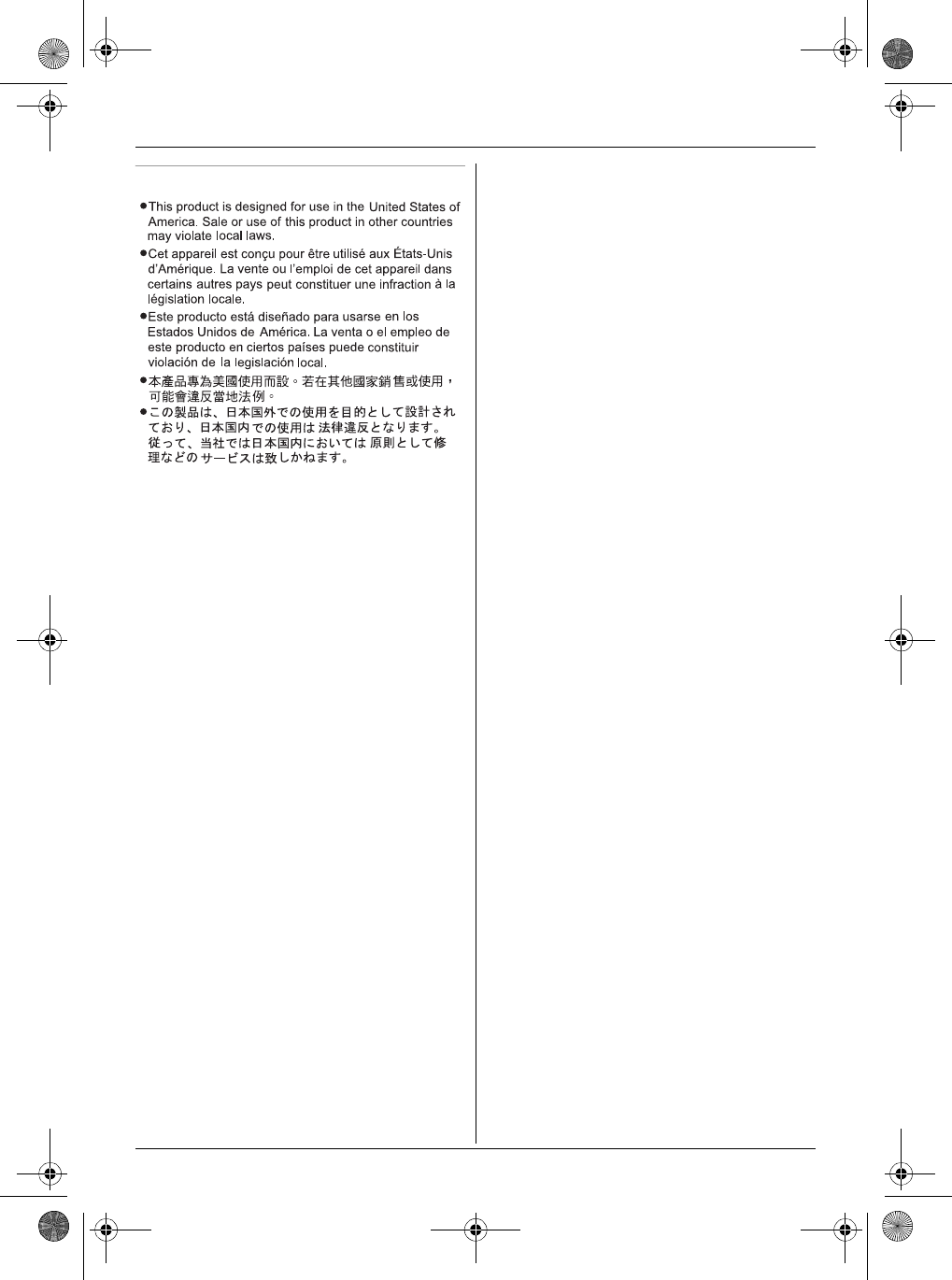

Notice
TGP500_550_04_QG(E).book Page 6 Tuesday, February 17, 2009 4:59 PM
Temporary Confidential
Controls
7
Handset
ACharge indicator
Ringer indicator
Message indicator
BSpeaker
C{C} (TALK)
LFor making calls
D{s} (SP-PHONE: Speakerphone)
LFor hands-free talk
EHeadset jack
FDial keypad
GReceiver
HDisplay
I{OFF}
LFor stop the operation
J{REDIAL} {PAUSE}
KMicrophone
LCharge contacts
■Control type
A Soft keys
The handset features 2 soft keys and a joystick.
By pressing a soft key, or by pressing the center
of the joystick, you can select the feature shown
directly above it on the display.
B Joystick
By pushing the joystick ({^}, {V}, {<}, or {>})
repeatedly, you can:
– scroll through (up, down, left, or right) various
lists or items
– adjust the receiver or speaker volume (up or
down) while talking
LAs all multiple items cannot be displayed on
screen at the same time, you can quickly
search the desired item to move screens by
pushing the joystick right or left, instead of
scrolling down or up line by line (page xx).
Base unit
KX-TGP500
ASTATUS indicator
LIndicates the status of the unit and network.
B{ALL} (Locator)
LAllows you to page all handsets.
B
G
A
H
I
J
K
C
D
F
E
A
B
L
A
B
TGP500_550_04_QG(E).book Page 7 Tuesday, February 17, 2009 4:59 PM
Temporary Confidential
Controls
8
KX-TGP550
ACorded handset
BReceiver
CSpeaker
DHandset buttons (j – k)
Handset status indicators
LAllows you to page each handset. Also they
show the status of each handset.
E{ALL} (All handsets)
LAllows you to page all handsets.
F{LINE STATUS}
LTells you the status of each line.
G{HOLD}
H{REDIAL} {PAUSE}
IDisplay
JSoft keys
KHeadset jack
LMicrophone
MDial keypad
N{SP-PHONE} {HEADSET}
SP-PHONE indicator
O{MUTE}
PSTATUS indicator
LIndicates the status of the unit and network.
QNavigator key ({^}/{V}/{<}/{>})
?: Volume ({^}/{V})
R{VOICE MAIL}
VOICE MAIL indicator
S{EXIT}
LFor stop the operation
Navigator key/volume key
■Scrolling through lists or items
By pressing this key ({^} or {V}) repeatedly, you
can scroll through (up or down) various lists or
items.
■Adjusting the volume
By pressing this key ({^} or {V}) repeatedly, you
can adjust the receiver or speaker volume (up or
down) while talking.
■Moving the cursor
By pressing this key ({^}, {V}, {<} or {>})
repeatedly, you can move the cursor to edit a
number or name.
Soft keys
The base unit features 3 soft keys. By pressing a
soft key, you can select the feature shown directly
above it on the display.
ABC DEFGHI
J
K
LM
NL OPQRS
{<}{>}
{^}
{V}
TGP500_550_04_QG(E).book Page 8 Tuesday, February 17, 2009 4:59 PM
Temporary Confidential
Basic Operations
9
Making calls using the
handset
1Lift the handset and dial the phone number.
LTo correct a digit, press {CLEAR}.
2{C}
LThe unit selects the default line set by your
administrator.
LYou can also select the line manually as
follows:
Press {LINE}. i {V}/{^}: Select the
desired line. i {CALL}
3When you finish talking, press {OFF} or place
the handset on the charger.
Using the speakerphone
1Dial the phone number and press {s}.
LThe unit selects the default line set by your
administrator.
LYou can also select the line manually as
follows:
Press {LINE}. i {V}/{^}: Select the
desired line. i {CALL}
LSpeak alternately with the other party.
2When you finish talking, press {OFF}.
Note:
LFor best performance, use the speakerphone in
a quiet environment.
LTo switch back to the receiver, press {C}.
Adjusting the receiver or speaker
volume
Push the joystick up or down repeatedly while
talking.
Making calls using the base
unit (KX-TGP550 only)
1Dial the phone number.
LTo correct a digit, press {CLEAR}.
2Lift the corded handset.
LThe unit selects the default line set by your
administrator.
LYou can also select the line manually as
follows:
Press {LINE}. i {V}/{^}: Select the
desired line. i Lift the corded handset.
3When you finish talking, place the corded
handset on the cradle.
Note:
LYou can also dial the phone number after lifting
the corded handset.
Using the speakerphone
1Dial the phone number and press {SP-
PHONE}.
LThe unit selects the default line set by your
administrator.
LYou can also select the line manually as
follows:
Press {LINE}. i {V}/{^}: Select the
desired line. i Press {CALL} or {SP-
PHONE}.
2When the other party answers, speak into the
base unit microphone.
LSpeak alternately with the other party.
3When you finish talking, press {SP-PHONE}.
Note:
LFor best performance, use the speakerphone in
a quiet environment.
LTo switch to the receiver, lift the corded handset.
Adjusting the receiver or speaker
volume
Press {^} or {V} repeatedly while talking.
TGP500_550_04_QG(E).book Page 9 Tuesday, February 17, 2009 4:59 PM
Temporary Confidential
Basic Operations
10
Answering calls using the
handset
When a call is being received, the ringer indicator
on the handset flashes rapidly.
1Lift the handset and press {C} or {s} when
the unit rings.
LYou can also answer the call by pressing
any dial key from {0} to {9}, {*}, or {#}.
(Any key answer feature)
2When you finish talking, press {OFF} or place
the handset on the charger.
Answering calls using the
base unit (KX-TGP550 only)
When a call is being received, the speakerphone
indicator flashes rapidly.
1Lift the corded handset or press {SP-PHONE}
when the unit rings.
2When you finish talking, place the corded
handset on the cradle. When the
speakerphone is used, press {SP-PHONE}.
TGP500_550_04_QG(E).book Page 10 Tuesday, February 17, 2009 4:59 PM
Temporary Confidential
Setting Up
11
Setting up the base unit
Connecting the base unit
Important:
LUse only the supplied Panasonic AC adaptor PQLV219.
LDo not connect the Ethernet cable connected to the PoE hub to the computer port of the unit. Doing so
may cause severe damage to the unit.
KX-TGP500
KX-TGP550
C
(120 V AC, 60 Hz)
AC adaptor
B
A
Hook
To a hub/router
Ethernet cable
(120 V AC, 60 Hz)
To a hub/router
To a computer
AC adaptor
Ethernet cable
Ethernet cable
Hook
D
PC LAN
C
BA
A
D
TGP500_550_04_QG(E).book Page 11 Tuesday, February 17, 2009 4:59 PM
Temporary Confidential
Setting Up
12
Setting up the handset
Connecting the charger
LUse only the supplied Panasonic AC adaptor
PQLV224.
Battery installation
LUSE ONLY Ni-MH batteries AAA (R03) size.
LDo NOT use Alkaline/Manganese/Ni-Cd
batteries.
LConfirm correct polarities (S, T).
Battery charge
Charge for about 6 hours.
LWhen the batteries are fully charged, the charge
indicator goes off.
Note when setting up
Note for connections
LThe AC adaptor must remain connected at all
times. (It is normal for the adaptor to feel warm
during use.)
LThe AC adaptor should be connected to a
vertically oriented or floor-mounted AC outlet.
Do not connect the AC adaptor to a ceiling-
mounted AC outlet, as the weight of the adaptor
may cause it to become disconnected.
LThe unit will not work during a power failure.
Note for battery installation
LUse the supplied rechargeable batteries. For
replacement, we recommend using the
Panasonic rechargeable batteries noted on
page 4.
LWipe the battery ends (S, T) with a dry cloth.
LAvoid touching the battery ends (S, T) or the
unit contacts.
Note for battery charge
LIt is normal for the handset to feel warm during
charging.
LClean the charge contacts of the handset and
charger with a soft and dry cloth once a month.
Clean more often if the unit is exposed to
grease, dust, or high humidity.
(120 V AC, 60 Hz)
Hooks
Rechargeable Ni-MH ONLY
Confirm “Charging”
is displayed.
TGP500_550_04_QG(E).book Page 12 Tuesday, February 17, 2009 4:59 PM
Temporary Confidential
Useful Information
13
FCC and other information
This equipment complies with Part 68 of the FCC rules
and the requirements adopted by the ACTA. On the
bottom of this equipment is a label that contains,
among other information, a product identifier in the
format US:ACJ----------.
If requested, this number must be provided to the
telephone company.
L Registration No.............
(found on the back of the unit/KX-TGP500)
(found on the bottom of the unit/KX-TGP550)
L Ringer Equivalence No. (REN).......0.1B
A plug and jack used to connect this equipment to the
premises wiring and telephone network must comply
with the applicable FCC Part 68 rules and requirements
adopted by the ACTA. A compliant telephone cord and
modular plug is provided with the product. It is
designed to be connected to a compatible modular jack
that is also compliant.
The REN is used to determine the number of devices
that may be connected to a telephone line. Excessive
RENs on a telephone line may result in the devices not
ringing in response to an incoming call. In most but not
all areas, the sum of RENs should not exceed five
(5.0). To be certain of the number of devices that may
be connected to a line, as determined by the total
RENs, contact the local telephone company. For
products approved after July 23, 2001, the REN for the
product is part of the product identifier that has the
format US:AAAEQ##TXXXX. The digits represented by
## are the REN without a decimal point (e.g., 03 is a
REN of 0.3).
If this equipment causes harm to the telephone
network, the telephone company will notify you in
advance that temporary discontinuance of service may
be required. But if advance notice isn't practical, the
telephone company will notify the customer as soon as
possible. Also, you will be advised of your right to file a
complaint with the FCC if you believe it is necessary.
The telephone company may make changes in its
facilities, equipment, operations or procedures that
could affect the operation of the equipment. If this
happens the telephone company will provide advance
notice in order for you to make necessary modifications
to maintain uninterrupted service.
If trouble is experienced with this equipment, for repair
or warranty information, please contact a Factory
Service Center or other Authorized Servicer. If the
equipment is causing harm to the telephone network,
the telephone company may request that you
disconnect the equipment until the problem is resolved.
Connection to party line service is subject to state
tariffs. Contact the state public utility commission,
public service commission or corporation commission
for information.
If your home has specially wired alarm equipment
connected to the telephone line, ensure the installation
of this equipment does not disable your alarm
equipment. If you have questions about what will
disable alarm equipment, consult your telephone
company or a qualified installer.
This equipment is hearing aid compatible as defined
by the FCC in 47 CFR Section 68.316.
When you hold the phone to your ear, noise might be
heard in your Hearing Aid. Some Hearing Aids are not
adequately shielded from external RF (radio
frequency) energy. If noise occurs, use an optional
headset accessory or the speakerphone option (if
applicable) when using this phone. Consult with your
audiologist or Hearing Aid manufacturer about the
availability of Hearing Aids which provide adequate
shielding to RF energy commonly emitted by digital
devices.
WHEN PROGRAMMING EMERGENCY NUMBERS
AND(OR) MAKING TEST CALLS TO EMERGENCY
NUMBERS:
1) Remain on the line and briefly explain to the
dispatcher the reason for the call.
2) Perform such activities in the off-peak hours, such
as early morning or late evenings.
This device complies with Part 15 of the FCC Rules.
Operation is subject to the following two conditions:
(1) This device may not cause harmful interference,
and (2) this device must accept any interference
received, including interference that may cause
undesired operation.
Privacy of communications may not be ensured when
using this phone.
CAUTION:
Any changes or modifications not expressly approved
by the party responsible for compliance could void the
user’s authority to operate this device.
NOTE:
This equipment has been tested and found to comply
with the limits for a Class B digital device, pursuant to
Part 15 of the FCC Rules. These limits are designed to
provide reasonable protection against harmful
interference in a residential installation. This
equipment generates, uses, and can radiate radio
TGP500_550_04_QG(E).book Page 13 Tuesday, February 17, 2009 4:59 PM
If the equipment is causing harm to the telephone
network, the telephone company may request that you
disconnect the equipment until the problem is resolved.
WHEN PROGRAMMING EMERGENCY NUMBERS
A
ND(OR) MAKING TEST CALLS TO EMERGENCY
NUMBERS:
1) Remain on the line and briefly explain to the
dispatcher the reason for the call.
2) Perform such activities in the off-peak hours, such
as early morning or late evenings.
This device complies with Part 15 of the FCC Rules.
Operation is subject to the following two conditions:
(1) This device may not cause harmful interference,
and (2) this device must accept any interference
received, including interference that may cause
undesired operation.
Privacy of communications may not be ensured when
using this phone.
CAUTION:
To assure continued compliance with FCC rules, do not
make any unauthorized changes or modifications to this
equipment would void the user's authority to operate this
device.
NOTE:
This equipment has been tested and found to comply
with the limits for a Class B digital device, pursuant to
Part 15 of the FCC Rules. These limits are designed to
provide reasonable protection against harmful
interference in a residential installation. This
equipment generates, uses, and can radiate radio
frequency energy and, if not installed and used in
accordance with the instructions, may cause harmful
interference to radio communications. However, there is
no guarantee that interference will not occur in a
particular installation. If this equipment does cause
harmful interference to radio or television reception,
which can be determined by turning the equipment off
and on, the user is encouraged to try to correct the
interference by one or more of the following measures:
–
Reorient or relocate the receiving antenna.
–
Increase the separation between the equipment and
receiver.
–
Connect the equipment into an outlet on a circuit
different from that to which the receiver is connected.
–
Consult the dealer or an experienced radio/TV
technician for help.
FCC RF Exposure Warning:
L This product complies with FCC radiation exposure
limits set forth for an uncontrolled environment.
L To comply with FCC RF exposure requirements, the
base unit must be installed and operated 20 cm (8
inches) or more between the product and all person’s
body (excluding extremities of hands, wrist and feet).
L This product may not be collocated or operated in
conjunction with any other antenna or transmitter.
L The handset may be carried and operated with only
the specific provided belt-clip. Other non-tested belt-
clips or similar body-worn accessories may not
comply and must be avoided.
Notice
L FCC ID can be found inside the battery compartment
or on the back/bottom of the units.
FCC Declaration of Conformity
Trade Name: Panasonic
Model Number: KX-TGP500/KX-TGP550
Responsible Party: Panasonic Corporation of North America
One Panasonic Way
Secaucus, NJ 07094 U.S.A.
Telephone No.: 1-800-211-PANA (7262)
This telephone provides magnetic coupling for hearing aids.
For body-worn operation, the handset must be used
only with a non-metallic accessory. Use of other
accessories may not ensure compliance with FCC
RF ex
p
osure re
q
uirements.
For body-worn operation, the handset must be used
only with a non-metallic accessory. Use of other
accessories may not ensure compliance with FCC
RF exposure requirements.
Temporary Confidential
PNQXxxxxZA CM0609SY0
For your future reference
We recommend keeping a record of the following information to assist with any repair under warranty.
Copyright:
This material is copyrighted by Panasonic Communications Co., Ltd., and may be reproduced for internal
use only. All other reproduction, in whole or in part, is prohibited without the written consent of Panasonic
Communications Co., Ltd.
© Panasonic Communications Co., Ltd. 2009
Serial No. Date of purchase
(found on the bottom of the base unit)
Name and address of dealer
Attach your purchase receipt here.
One Panasonic Way, Secaucus, New Jersey 07094
TGP500_550_04_QG(E).book Page 16 Tuesday, February 17, 2009 4:59 PM
