2.4 GHz Expandable Cordless Phone System
Model No. KX-TH102-A
Operating Instructions
KX-TH102-M
Model shown is KX-TH102-M.
TH102.book Page 1 Thursday, May 12, 2005 6:47 PM
Temporary Confidential
Introduction
2 For assistance, please visit http://www.panasonic.com/consumersupport
Expanding your phone

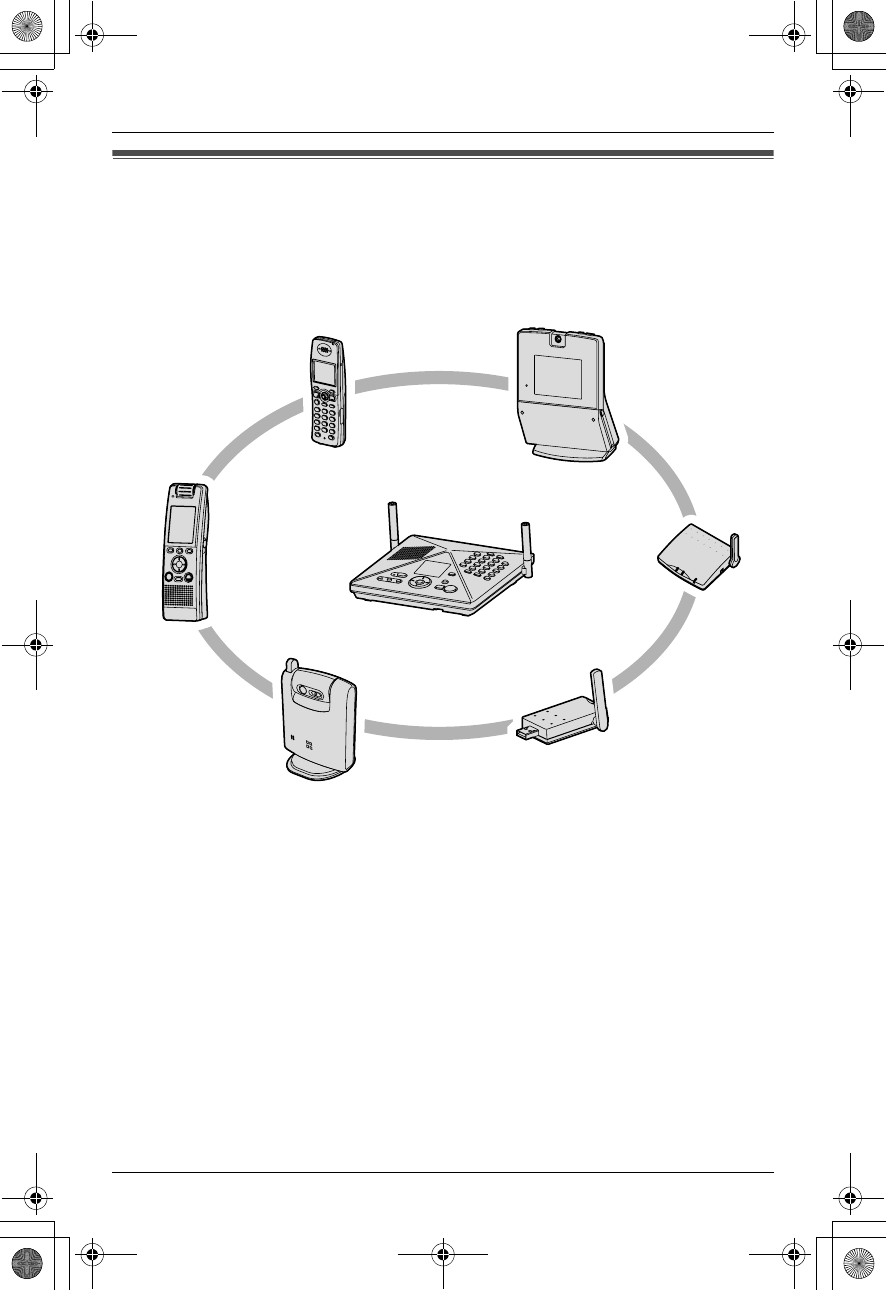

You can expand the system by adding handsets (monochrome display handsets and color
display handset), wireless camera unit, USB wireless adaptor, and repeater, sold
separately. Using these accessories, you can have a video call, monitor on a room where
the color display handset or wireless camera is located and taking pictures.
Note:
LUp to 8 handsets (KX-THA11/KX-THA12/KX-THA16) and up to 10 other Bluetooth
featured units (KX-THA13/KX-THA14 and a maximum of 5 cellular phones) can be
registered to a single base unit.
A
B
C
D
G
H
F
E
TH102.book Page 8 Thursday, May 12, 2005 6:47 PM
Temporary Confidential
Introduction
For assistance, please visit http://www.panasonic.com/consumersupport 3
Available accessory handsets
3 accessory handset models are available.
Operations and features of 3 different accessory handsets have certain differences as
indicated in the table below.
*1 USB-support allows you to connect the handset to your PC and send pictures and
songs from your PC to the handset, as well as create and edit phonebook entries using
your PC.
*2 For information on using this feature, refer to the help section of the GIGARANGE USB
Utility software. If you have not installed the GIGARANGE USB Utility software, refer to
the included “Installation Guide for GIGARANGE USB Utility” for details.
Feature KX-THA11 KX-THA12 KX-THA16 Page
Description Available as
accessory
handset only
Same handset
supplied with
KX-TH102-A/
KX-TH102-M
Available as
accessory
handset only
–
Display type Monochrome Color Color –
Display size 1.6 inch 2 inch 3.6 inch –
Control type Joystick Navigator key Navigator key
USB-support*1 rr r
*2
Picture ID – rr
Picture download feature – rr
*2
Song record feature rr r
Song download feature rr r
*2
Wallpaper – rr
Wallpaper download
feature – rr
*2
Memory status display – rr
Video call – rr
View monitor – rr
Camera – rr
Cellular feature rrr
TH102.book Page 9 Thursday, May 12, 2005 6:47 PM
Temporary Confidential
Introduction
4 For assistance, please visit http://www.panasonic.com/consumersupport
Important safety
instructions
When using this unit, basic safety
precautions should always be followed to
reduce the risk of fire, electric shock, or
personal injury.
1. Read and understand all instructions.
2. Follow all warnings and instructions
marked on this unit.
3. Unplug this unit from power outlets
before cleaning. Do not use liquid or
aerosol cleaners. Use a damp cloth for
cleaning.
4. Do not use this unit near water, for
example near a bathtub, wash bowl,
kitchen sink, etc.
5. Place the unit securely on a stable
surface. Serious damage and/or injury
may result if the unit falls.
6. Do not cover slots and openings on the
unit. They are provided for ventilation
and protection against overheating.
Never place the unit near radiators, or
in a place where proper ventilation is
not provided.
7. Use only the power source marked on
the unit. If you are not sure of the type
of power supplied to your home,
consult your dealer or local power
company.
8. Do not place objects on the power
cord. Install the unit where no one can
step or trip on the cord.
9. Do not overload power outlets and
extension cords. This can result in the
risk of fire or electric shock.
10. Never push any objects through slots
in this unit. This may result in the risk of
fire or electric shock. Never spill any
liquid on the unit.
11. To reduce the risk of electric shock, do
not disassemble this unit. Take the unit
to an authorized service center when
service is required. Opening or
removing covers may expose you to
dangerous voltages or other risks.
Incorrect reassembly can cause
electric shock when the unit is
subsequently used.
12. Unplug this unit from power outlets and
refer servicing to an authorized service
center when the following conditions
occur:
A. When the power cord is damaged
or frayed.
B. If liquid has been spilled into the
unit.
C. If the unit has been exposed to rain
or water.
D. If the unit does not work normally
by following the operating
instructions. Adjust only controls
covered by the operating
instructions. Improper adjustment
may require extensive work by an
authorized service center.
E. If the unit has been dropped or
physically damaged.
F. If the unit exhibits a distinct change
in performance.
13. During thunderstorms, avoid using
telephones except cordless types.
There may be a remote risk of an
electric shock from lightning.
14. Do not use this unit to report a gas
leak, when in the vicinity of the leak.
SAVE THESE
INSTRUCTIONS
CAUTION:
Installation
LNever install telephone wiring during a
lightning storm.
LNever install telephone jacks in wet
locations unless the jack is specifically
designed for wet locations.
LNever touch uninsulated telephone
wires or terminals unless the telephone
line has been disconnected at the
network interface.
LUse caution when installing or modifying
telephone lines.
TH102.book Page 10 Thursday, May 12, 2005 6:47 PM
Temporary Confidential
Introduction
For assistance, please visit http://www.panasonic.com/consumersupport 5
LDo not touch the plug with wet hands.
LThe AC adaptor is used as the main
disconnect device. Ensure that the AC
outlet is installed near the unit and is
easily accessible.
LTo prevent the electric shock, use only
the included audio cable with the
transformer when connecting the unit to
an audio device.
Battery
To reduce the risk of fire or injury to
persons, read and follow these
instructions.
LUse only the battery(ies) specified.
LDo not dispose of the battery(ies) in a
fire. They may explode. Check with local
waste management codes for special
disposal instructions.
LDo not open or mutilate the battery(ies).
Released electrolyte is corrosive and
may cause burns or injury to the eyes or
skin. The electrolyte may be toxic if
swallowed.
LExercise care when handling the
battery(ies). Do not allow conductive
materials such as rings, bracelets or
keys to touch the battery(ies), otherwise
a short circuit may cause the battery(ies)
and/or the conductive material to
overheat and cause burns.
LCharge the battery(ies) provided with or
identified for use with this product only in
accordance with the instructions and
limitations specified in this manual.
WARNING:
LTo prevent the risk of fire or electrical
shock, do not expose this product to rain
or any type of moisture.
LUnplug this unit from power outlets if it
emits smoke, an abnormal smell or
makes an unusual noise. These
conditions can cause fire or electric
shock. Confirm that smoke has stopped
and contact the Panasonic Call Center
at 1-800-211-PANA (7262).
Medical
LConsult the manufacturer of any
personal medical devices, such as
pacemakers or hearing aids, to
determine if they are adequately
shielded from external RF (radio
frequency) energy. (The unit operates in
the frequency range of 2.4 GHz to 2.48
GHz, and the power output level can
range from 0.04 to 0.25 watts.) Do not use
the unit in health care facilities if any
regulations posted in the area instruct
you not to do so. Hospitals or health care
facilities may be using equipment that
could be sensitive to external RF (radio
frequency) energy.
TH102.book Page 11 Thursday, May 12, 2005 6:47 PM
Temporary Confidential
Introduction
6 For assistance, please visit http://www.panasonic.com/consumersupport
For best performance
Base unit location/noise
The base unit and handset use radio
waves to communicate with each other.
For maximum distance and noise-free
operation, we recommend the following:
LPlacing the unit away from electrical
appliances such as a TV, personal
computer or another cordless phone.
LPlacing the base unit in a HIGH and
CENTRAL location with no obstructions
such as walls.
LRaising the antennas vertically.
LIf you use the handset near a microwave
oven which is being used, noise may be
heard. Move away from the microwave
oven and closer to the base unit.
LIf you use the handset near another
cordless phone’s base unit, noise may
be heard. Move away from the other
cordless phone’s base unit and closer to
your base unit.
Environment
LKeep the unit away from electrical noise
generating devices, such as fluorescent
lamps and motors.
LThe unit should be kept free from
excessive smoke, dust, high
temperature and vibration.
LThe unit should not be exposed to direct
sunlight.
LDo not place heavy objects on top of the
unit.
LWhen you leave the unit unused for a
long period of time, unplug this unit from
power outlet.
LThe unit should be kept away from heat
sources such as heaters, kitchen stoves,
etc. It should not be placed in rooms
where the temperature is less than 5 °C
(41 °F) or greater than 40 °C (104 °F).
Damp basements should also be
avoided.
LThe maximum calling distance may be
shortened when the unit is used in the
following places: Near obstacles such as
hills, tunnels, undergrounds, near metal
objects such as wire fences, etc.
LOperating near 2.4 GHz electrical
appliances may cause interference.
Move away from the electrical
appliances.
Routine care
LWipe the outer surface of the unit with a
soft cloth. Do not use benzine, thinner or
any abrasive powder.
TH102.book Page 12 Thursday, May 12, 2005 6:47 PM
Temporary Confidential
Preparation
For assistance, please visit http://www.panasonic.com/consumersupport 7
Connections

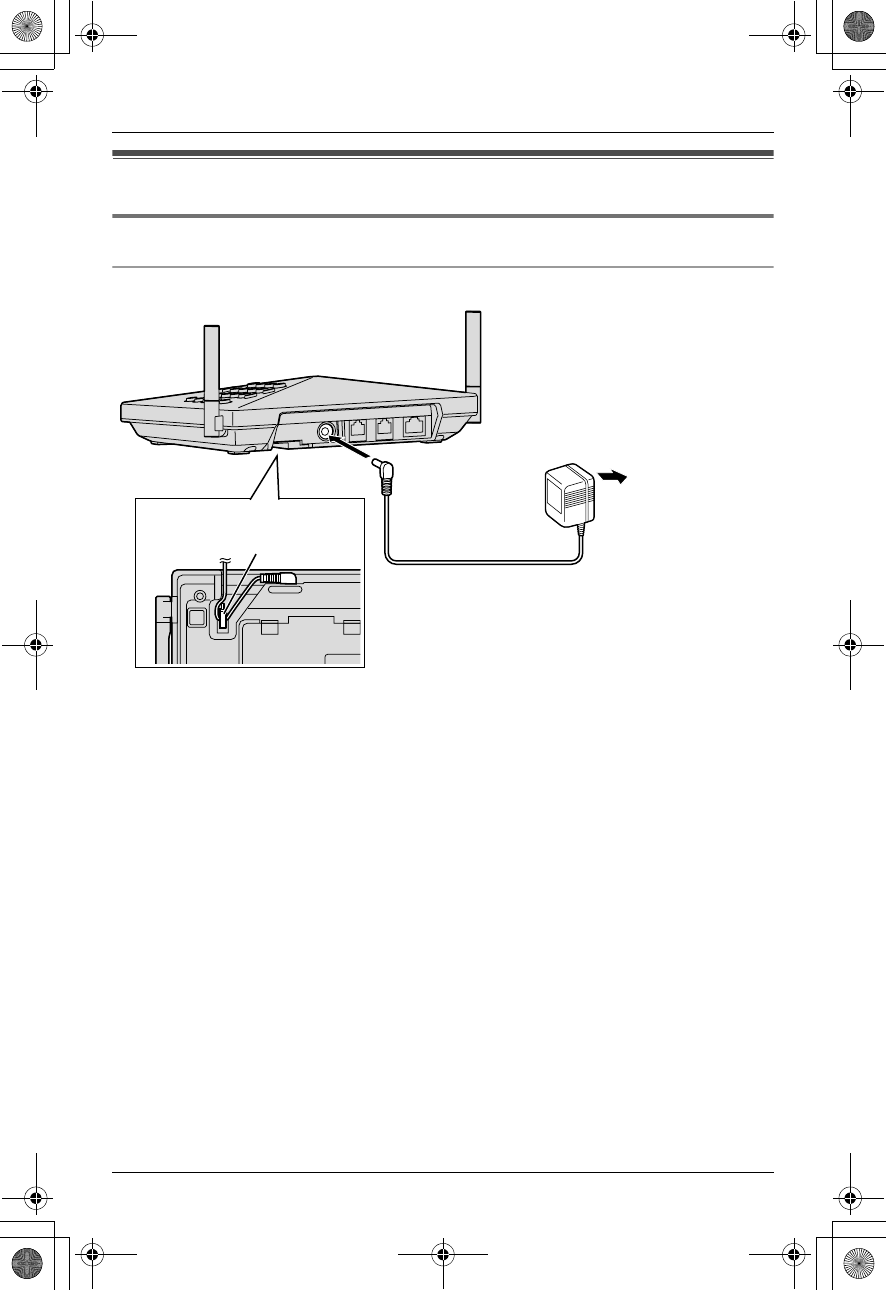

Connecting the AC adaptor
Base unit
Note:
LUse only the included Panasonic AC adaptor PQLV1.
LThe AC adaptor must remain connected at all times. (It is normal for the adaptor to feel
warm during use.)
LThe AC adaptor should be connected to a vertically oriented or floor-mounted AC outlet.
Do not connect the AC adaptor to a ceiling-mounted AC outlet, as the weight of the
adaptor may cause it to become disconnected.

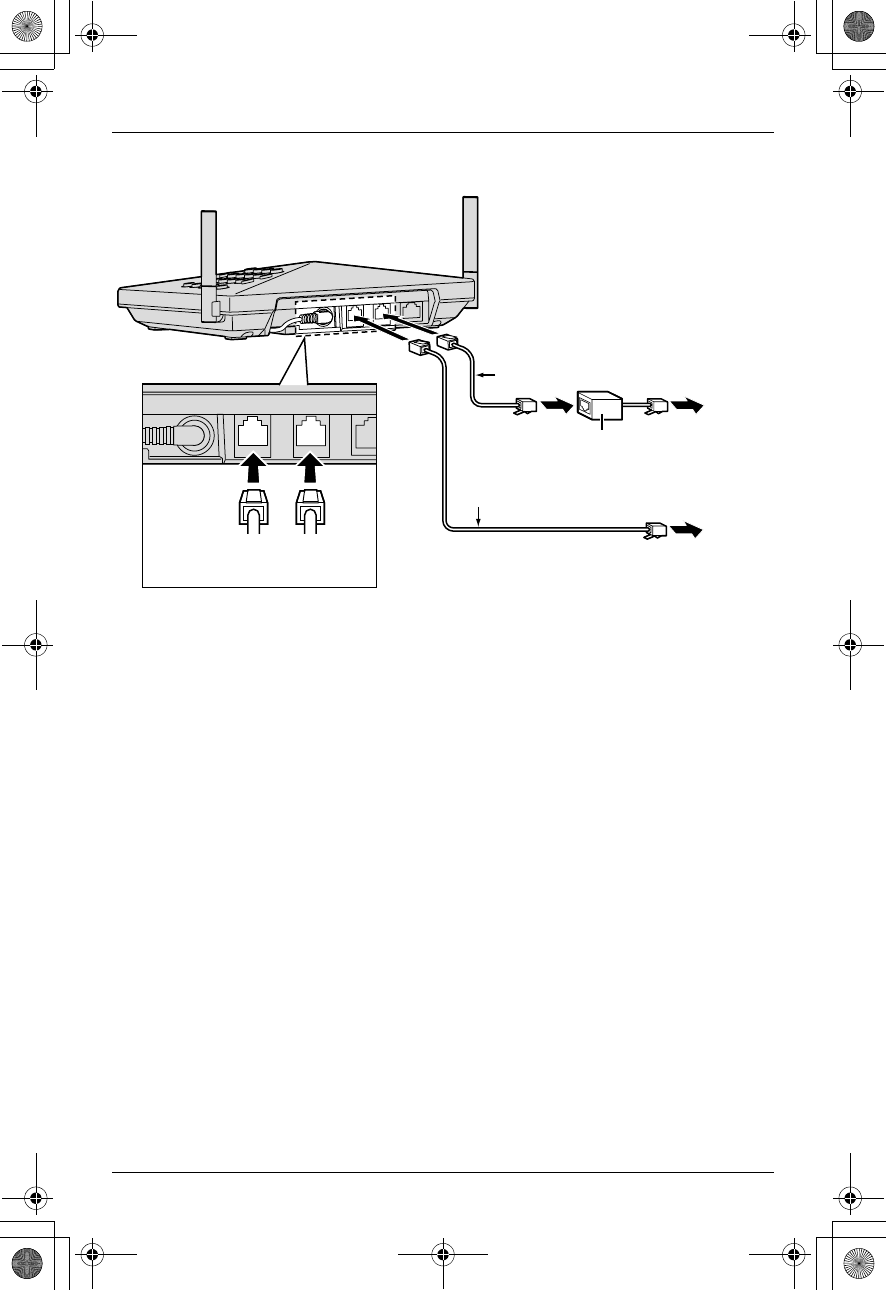

LThe unit will not work during a power failure. We recommend connecting a standard
telephone to the same telephone line or to the same telephone jack using the Panasonic
KX-J66 T-adaptor. Emergency power can be supplied to the unit by connecting a
Panasonic battery back-up power supply noted on page 7.
(AC 120 V, 60 Hz)
Fasten the AC adaptor cord.
Hook
TH102.book Page 13 Thursday, May 12, 2005 6:47 PM
Temporary Confidential
Preparation
8 For assistance, please visit http://www.panasonic.com/consumersupport

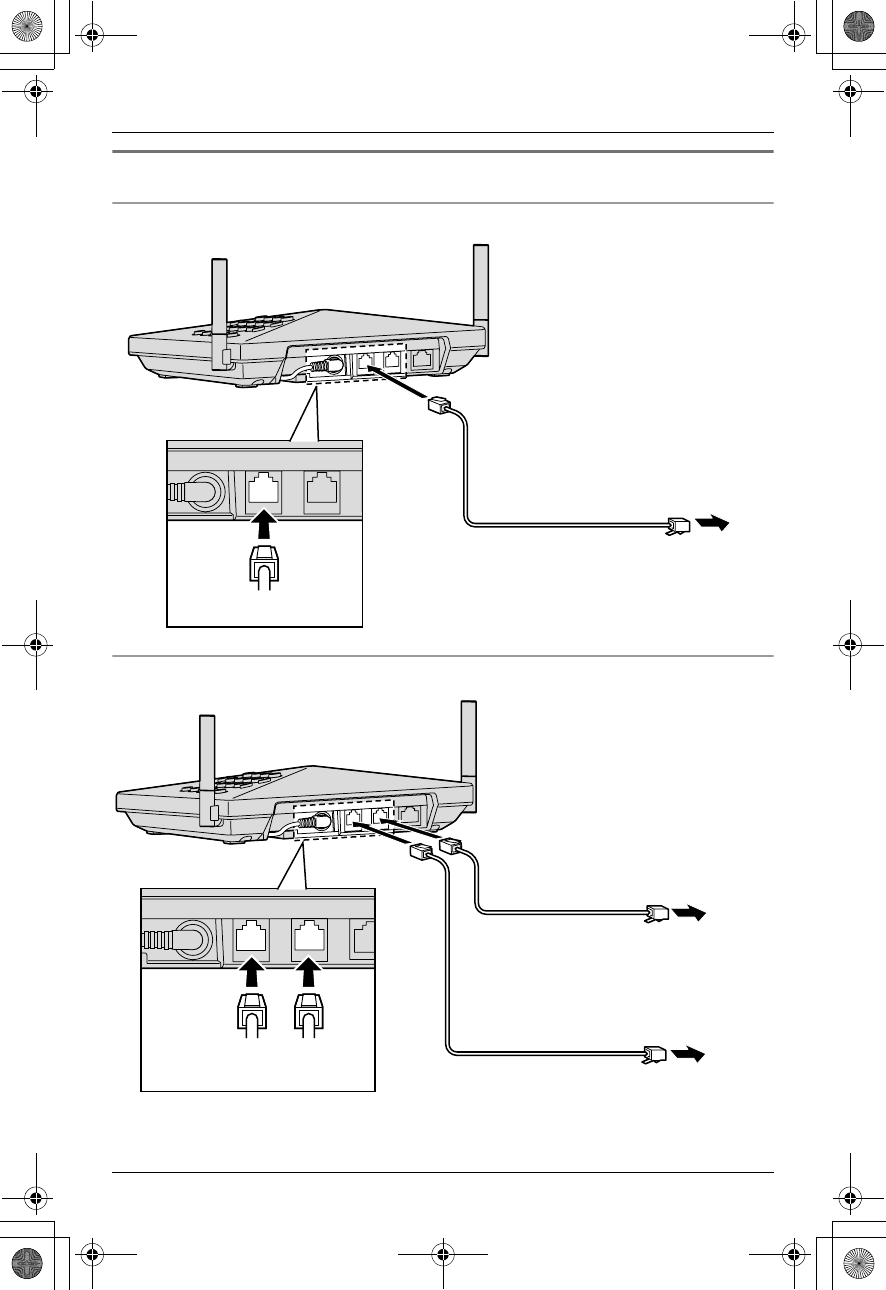

Connecting the telephone line cord
To connect to a 2-line telephone jack
To connect to 2 single-line telephone jacks
LINE1/2 LINE2
GREEN Plug
4-Wire Telephone
Line Cord
with GREEN Plugs
To 2-Line
Telephone Jack
(RJ14C)
LINE1/2 LINE2 L
A
GREEN
Plug
TRANSPARENT
Plug
LINE 1
LINE 2
To Single-Line
Telephone Jacks
(RJ11C)
4-Wire
Telephone
Line Cord
with GREEN
Plugs
2-Wire Telephone
Line Cord with
TRANSPARENT
Plugs
TH102.book Page 14 Thursday, May 12, 2005 6:47 PM
Temporary Confidential
Preparation
For assistance, please visit http://www.panasonic.com/consumersupport 9

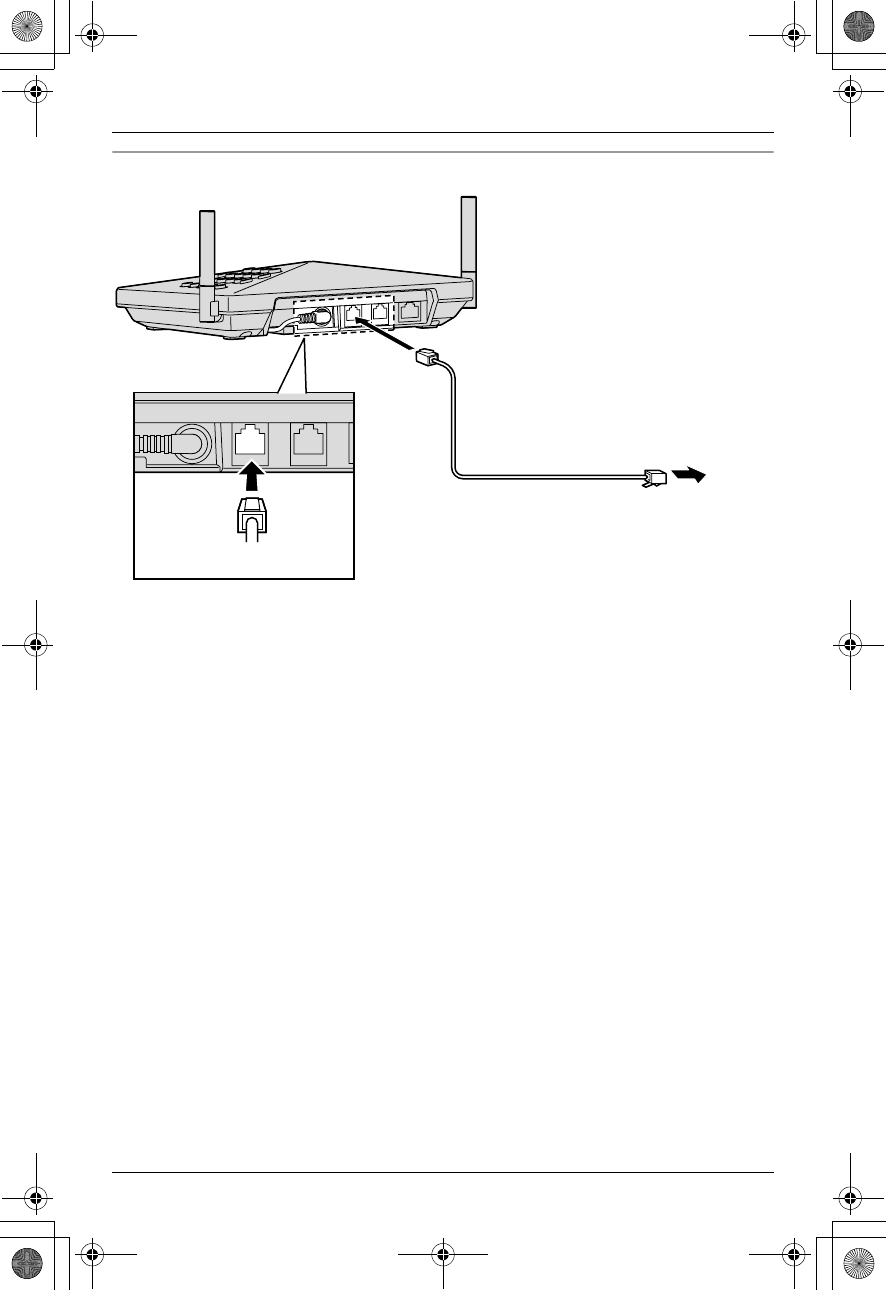

If you use the unit as a single-line telephone only
LINE1/2 LINE2
TRANSPARENT Plug
LINE 1
Single-Line
Telephone Jack
(RJ11C)
2-Wire Telephone
Line Cord with
TRANSPARENT
Plugs
TH102.book Page 15 Thursday, May 12, 2005 6:47 PM
Temporary Confidential
Preparation
10 For assistance, please visit http://www.panasonic.com/consumersupport
If you subscribe to a DSL service
LPlease attach a noise filter (contact your DSL provider) to the telephone line between
the base unit and the telephone line jack in the event of the following:
– Noise is heard during conversations.
– Caller ID features (page 38) do not function properly.
Connecting a 2 line telephone jack
For this connection, please purchase the Panasonic T-adaptor KX-J42. See page 5 for
ordering information.
Example: DSL line is LINE 2
12-wire telephone line cord with TRANSPARENT plugs
24-wire telephone line cord with GREEN plugs
LINE1/2 LINE2 L
A
GREEN
Plug
TRANSPARENT
Plug 2
1
2-LINE
PHONE
LINE 2
T-adaptor
KX-J24
TRANS-
PARENT
Plug
Noise
Filter Plug
*Noise Filter To 2-Line
Telephone
Jack (RJ14C)
TH102.book Page 16 Thursday, May 12, 2005 6:47 PM
Temporary Confidential
Preparation
For assistance, please visit http://www.panasonic.com/consumersupport 11
Connecting 2 single-line telephone jacks
Example: DSL line is LINE 2
12-wire telephone line cord with TRANSPARENT plugs
24-wire telephone line cord with GREEN plugs
LINE1/2 LINE2 L
A
GREEN
Plug
TRANSPARENT
Plug
LINE 1
2
1
LINE 2
Single-Line
Telephone Jacks
(RJ11C)
*Noise Filter
TH102.book Page 17 Thursday, May 12, 2005 6:47 PM
Temporary Confidential
Preparation
12 For assistance, please visit http://www.panasonic.com/consumersupport
Battery installation
Insert the battery (1), and press it down
until it snaps into the compartment (2).
Close the handset cover.
Battery charge
Place the handset on the charger for 6
hours before initial use.
Note:
LIf you want to use the unit immediately,
charge the batteries for at least 15
minutes.
LTo ensure the battery charges properly,
clean the charge contacts of the handset
and charger with a soft, dry cloth once a
month. Clean more often if the unit is
subject to grease, dust, or high humidity.
Battery strength
Note:
LWhen the battery needs to be charged,
the handset beeps intermittently while it
is in use.
Battery icon Battery strength
Fully charged
Medium
Low
When flashing: needs
to be recharged.
Discharged
TH102.book Page 18 Thursday, May 12, 2005 6:47 PM
Temporary Confidential
Preparation
For assistance, please visit http://www.panasonic.com/consumersupport 13
Panasonic battery performance
Note:
LBattery power is consumed whenever
the handset is off the charger, even
when the handset is not in use. The
longer you leave the handset off the
charger, the shorter you can actually talk
on the handset.
LOnce the battery is fully charged, you do
not have to charge it again until
“Recharge battery” is displayed or
3 flashes. This will maximize the
battery life.
Battery replacement
If battery performance diminishes, make
sure you have cleaned the charge
contacts and fully charged the battery. The
battery needs to be replaced if any of the
following are displayed after a few phone
calls even when you have fully charged the
battery.
LUse only the rechargeable Panasonic
battery noted on page 7.
1Press the notch on the cover firmly and
slide it as indicated by the arrow.
2Replace the old battery with a new one,
and close the cover (see page 18 for
battery installation).
Attention:
A nickel metal hydride battery that is
recyclable powers the product you have
purchased.
Please call 1-800-8-BATTERY for
information on how to recycle this battery.
Operation Operating time
While in use
(talking) Up to 5 hours
While not in use
(standby) Up to 11 days
While using the
clarity booster
feature (page 31)
Up to 3 hours
TH102.book Page 19 Thursday, May 12, 2005 6:47 PM
Temporary Confidential
Preparation
For assistance, please visit http://www.panasonic.com/consumersupport 14
Controls

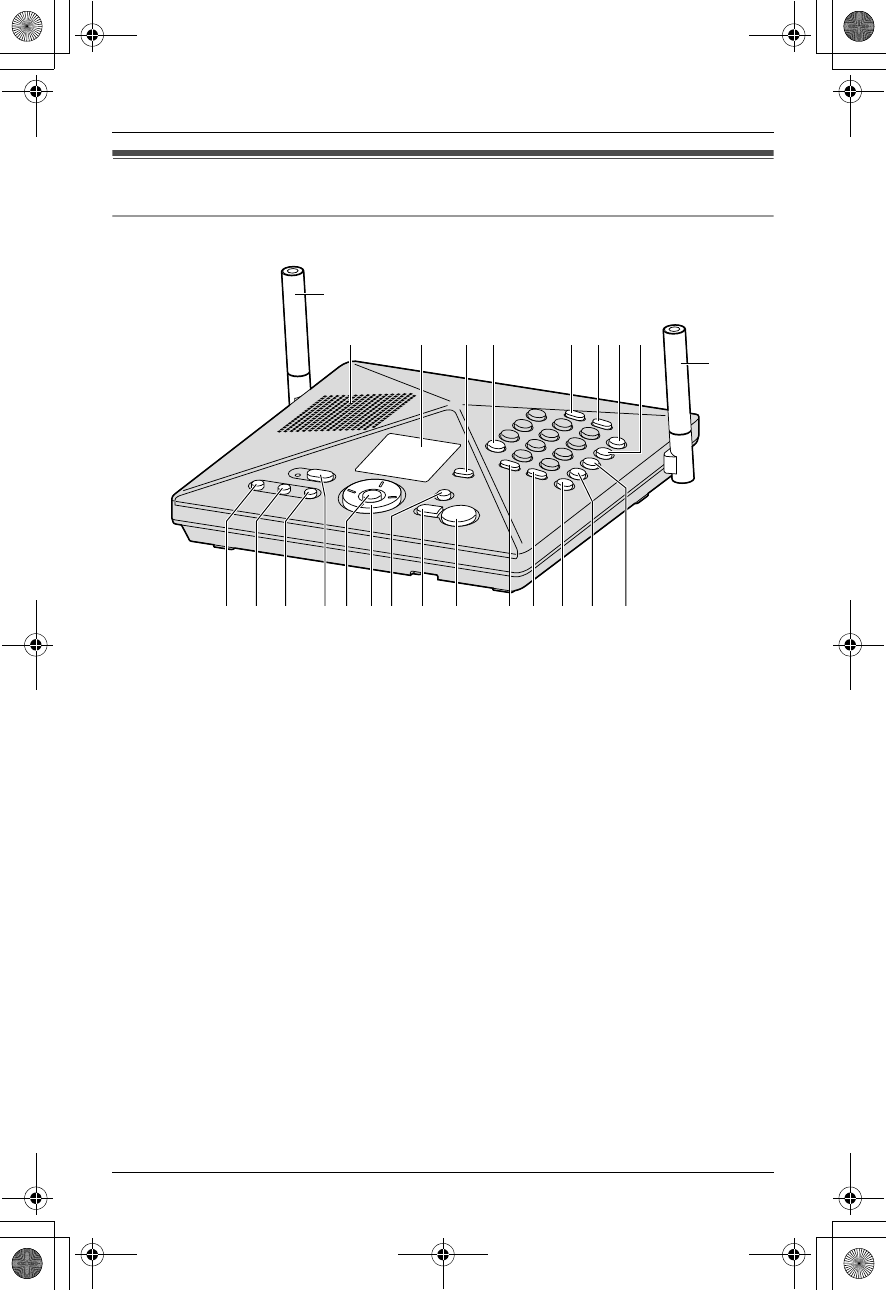

Base unit
AAntenna
BSpeaker
CDisplay
D{CELLULAR}
E{*} (TONE)
F{REDIAL} {PAUSE}
G{CALL WAIT} {FLASH}
H{LINE 1}
I{LINE 2}
J{ERASE}
K{EDIT}
L{MEMO}
M{ANSWER ON}
N{MENU} {SET}
ONavigator key
P{LINE SELECT}
Q{STOP}
R{MESSAGE}
S{TRANSFER} {INTERCOM}
T{MUTE}
U{SP-PHONE} (Speakerphone)
V{HOLD}
W{CONF} (Conference)
B
JKL MN POQRSTUVW
CDE FGHI
A
A
TH102.book Page 21 Thursday, May 12, 2005 6:47 PM
Temporary Confidential
Preparation
For assistance, please visit http://www.panasonic.com/consumersupport 15
Handset
ADisplay
BSoft keys
CNavigator key
D{s} (SP-PHONE)
ESpeaker
FHeadset jack/Audio jack
G{CLEAR} {MUTE}
H{OFF}
ICharge contacts
JCamera
KReceiver
L{C} (TALK)
M{*} (TONE)
N{REDIAL} {PAUSE}
OMicrophone
PUSB port
Q{HOLD} {INTERCOM}
R{CALL WAIT} {FLASH}
A
B
C
D
F
G
H
E
I
Q
R
P
H
J
L
M
N
O
K
TH102.book Page 22 Thursday, May 12, 2005 6:47 PM
Temporary Confidential
Preparation
For assistance, please visit http://www.panasonic.com/consumersupport 16

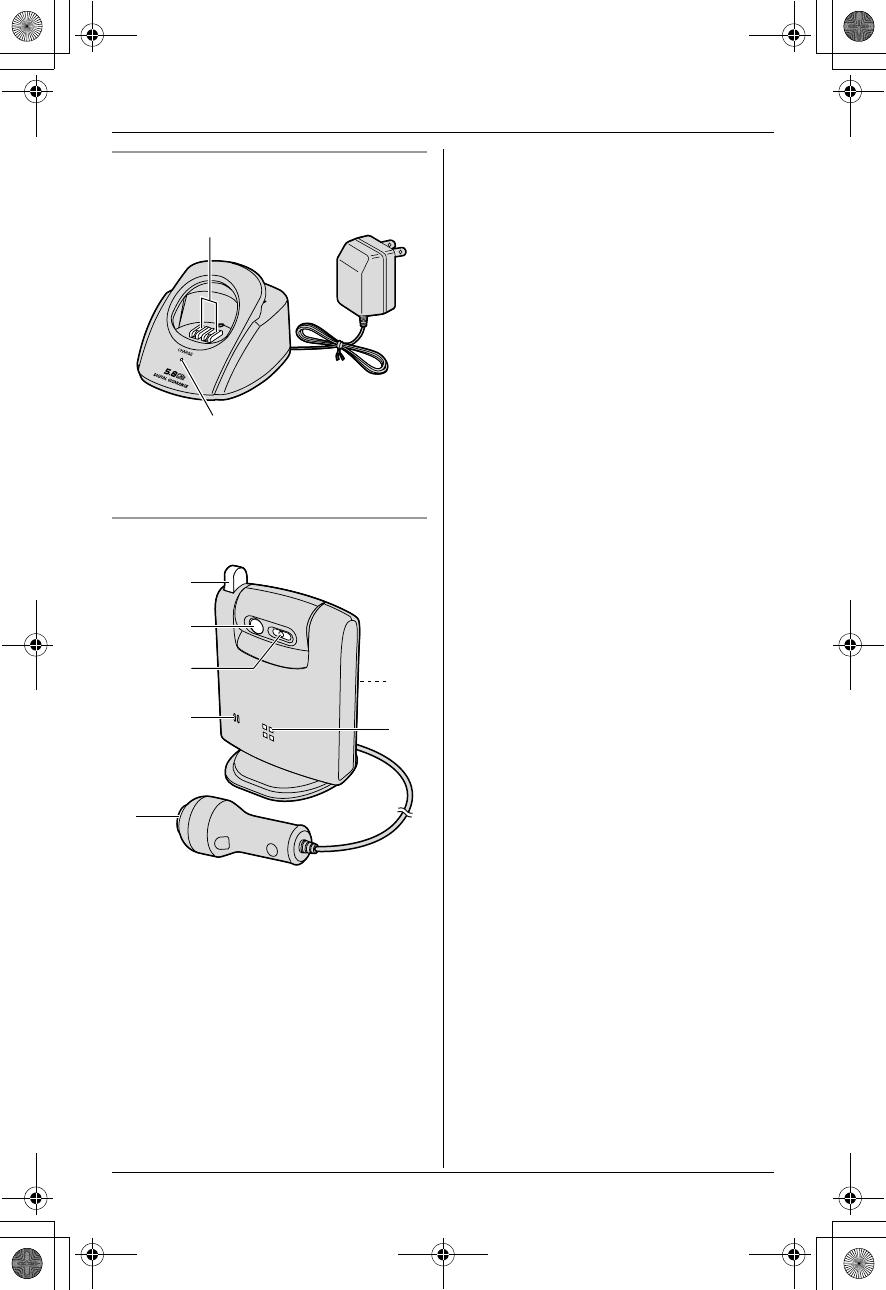

Charger
ACharge contacts
BCHARGE indicator
Wireless camera unit
AAntenna
BPhotoflash
CCamera
DMicrophone
E{Call}
FSpeaker
A
B
A
B
C
D
F
G
E
TH102.book Page 23 Thursday, May 12, 2005 6:47 PM
Temporary Confidential
Making/Answering Calls
For assistance, please visit http://www.panasonic.com/consumersupport 17
Making calls using the
handset
1Lift the handset and dial the phone
number.
LTo correct a digit, press {CLEAR}.
LTo cancel, press {OFF}.
2{C}
3When finished talking, press {OFF} or
place the handset on the charger.
Note:
LIf you change the line selection (page
xx), press the desired line button to call.
Using the speakerphone
1During a conversation, press {s} to
turn on the speakerphone.
LSpeak alternately with the caller.
2When finished talking, press {OFF}.
Note:
LFor best performance, please note the
following:
– Use the speakerphone in a quiet
environment.
– If you or the other party have difficulty
hearing each other, press the
navigator key up or down to adjust the
speaker volume as necessary.
LTo switch back to the receiver, press
{C}.
Adjusting the receiver/speaker volume
Press the navigator key up or down while
talking.
Making a call using the redial list
The last 10 phone numbers dialed are
stored in the redial list.
1{REDIAL}
2Select the desired number.
LTo delete the displayed number,
press {CLEAR}.
3{C}
TH102.book Page 27 Thursday, May 12, 2005 6:47 PM
Temporary Confidential
Making/Answering Calls
18 For assistance, please visit http://www.panasonic.com/consumersupport
Making calls using the
base unit
1Dial the phone number.
LTo correct a digit, press {ERASE}.
LTo cancel, press {STOP}.
2{SP-PHONE}
3When the other party answers, speak
into the MIC.
4When finished talking, press {SP-
PHONE}.
Note:
LIf you change the line selection (page
xx), press the desired line button to call.
LFor best performance, please note the
following:
– Use the speakerphone in a quiet
environment.
– If you or the other party have difficulty
hearing each other, push the joystick
up or down to adjust the speaker
volume as necessary.
LWhile on a call, you can switch from the
speaker phone to the handset:
– If the handset is off the charger, press
{C} or {s} on the handset, then
press {SP-PHONE} on the charger.
– If the handset is on the charger, simply
lift the handset.
Adjusting the speaker volume
Press the navigator key up or down while
talking.
Making a call using the redial list
The last 10 phone numbers dialed are
stored in the redial list.
1{REDIAL}
2Select the desired number.
LTo delete the displayed number,
press {ERASE}.
3{SP-PHONE}
TH102.book Page 28 Thursday, May 12, 2005 6:47 PM
Temporary Confidential
Making/Answering Calls
For assistance, please visit http://www.panasonic.com/consumersupport 19
Answering calls using
the handset
1Lift the handset and press {C} or {s}.
LYou can also answer a call by
pressing any button except the
navigator key or {OFF}. (Any key
talk feature)
2When finished talking, press {OFF}.
Note:
LIf you change the line selection (page
xx), press the flashing line button to
answer.
Auto talk
This feature allows you to answer a call by
simply lifting the handset off the charger.
You do not need to press {C}. To activate
this feature, see page 58.
Temporary ringer off
While the handset is ringing for an outside
call, you can turn the ringer off temporarily
by pressing {OFF}.
Answering calls using
the base unit
1{SP-PHONE}
2Speak into the MIC.
3When finished talking, press {SP-
PHONE}.
Note:
LIf you change the line selection (page
xx), press the flashing line button to
answer.
TH102.book Page 29 Thursday, May 12, 2005 6:47 PM
Temporary Confidential
Caller ID Service
20 For assistance, please visit http://www.panasonic.com/consumersupport
Using Caller ID service
This unit is Caller ID compatible. To use
Caller ID features, you must subscribe to
your telephone company’s Caller ID
service.
Caller ID features
When an outside call is being received, the
calling party’s name and telephone
number will be displayed.
Caller information for the last 50 different
callers will be logged in the caller list,
allowing you to return missed calls. Caller
information is stored by the most recent
call to the oldest.
LWhile listening to a message recorded
by the answering system, using the
handset, you can call back the caller
without having to dial the phone number
(page 65).
LIf the unit cannot receive caller
information, the following will be
displayed:
“Out of area”: The caller dialed from
an area which does not provide Caller ID
service.
“Private caller”: The caller
requested not to send caller information.
“Long distance”: The caller called
you long distance.
LIf the unit is connected to a PBX system,
caller information may not be received
properly. Consult your PBX supplier.
Call Waiting Caller ID display
If you subscribe to both Caller ID and Call
Waiting with Caller ID services, the 2nd
caller’s information will be displayed after
you hear a Call Waiting tone (page 30).
Note:
LPlease contact your telephone company
for details and availability of this service
in your area.
Talking Caller ID
This feature allows you to know who is
calling without looking at the display. When
a call comes in, the handset and base unit
will announce the caller’s name displayed
on the handset following every ring.
To use this feature, you must subscribe to
your telephone company’s Caller ID
service.
LName pronunciation may vary. This
feature may not pronounce all names
correctly.
LCaller ID supports names of up to 15
letters. If the caller’s name has more
than 15 letters, the name will not be
displayed or announced correctly.
LUsually the unit will announce the
caller’s name after the 2nd ring. If you
turn on the answering system, and set
the ring count to “2” (page 68), the unit
will not announce the caller’s name. If
“Toll saver” is selected, and there is
a new message, the unit will not
announce the caller’s name.
TH102.book Page 38 Thursday, May 12, 2005 6:47 PM
Temporary Confidential
Caller ID Service
For assistance, please visit http://www.panasonic.com/consumersupport 21
Caller list
Caller information for the last 50 different
callers will be logged in the caller list. You
can use this list to return missed calls.
Missed calls
If a call is not answered, the unit treats the
call as a missed call. The number of
missed calls is shown on the handset
display. This lets you know if you should
view the caller list to see who called while
you were out.
Viewing the caller list and
calling back o Y
1{MENU} i {#}{2}{1}{3}
2Press the navigator key down to search
from the most recent call, or up to
search from the oldest call.
3For handset: {C}/{s}
For base unit: {SP-PHONE}
LIf the line selection is “Auto” (page
XX) and you press {C} or {s}, the
indicated line will be selected. If the
indicated line is already being used or
you want to select the other line,
press {MENU}, {CALL}, and select
the other line by pressing {LINE 1} or
{LINE 2}.
Note:
LIn some cases, you may have to edit the
number before dialing. (For example,
you may have to delete “1” and the area
code.)
Displayed symbols
Lm and n indicate which line the caller
information was received from.
LIf the same caller calls more than once, it
will be displayed with the number (“×2”
to “×9”). Only the date and time of the
most recent call will be stored.
LA Q is displayed next to items which
have already been viewed or answered
on this handset.
TH102.book Page 39 Thursday, May 12, 2005 6:47 PM
Temporary Confidential
Answering System Features
22 For assistance, please visit http://www.panasonic.com/consumersupport
Answering system
Important:
LOnly 1 person can access the answering
system (listen to messages, record a
greeting message, etc.) at a time.
LWhen callers leave messages, the unit
records the day and time of each
message. Make sure the date and time
have been set (page 26).
Recording your greeting
message o
You can record your own greeting
message (max. 2 minutes) that will be
played when the answering system
answers a call. If you do not record a
greeting message, a pre-recorded
greeting message will be used.
1{MENU} i {#}{3}{0}{2}
2Press {LINE SELECT} to select the
desired line. i {SET}
3After the unit beeps, speak clearly
about 20 cm (8 inches) away from the
MIC.
4To stop recording, press {STOP}.
Playing back the greeting message
1{MENU} i {#}{3}{0}{3}
2Select the desired line.
Erasing your greeting message
1{MENU} i {#}{3}{0}{3}
2Select the desired line.
3Press {ERASE} while your greeting
message is playing.
Pre-recorded greeting message
If you erase or do not record your own
greeting message, the unit can play a
prerecorded greeting message for callers
and ask them to leave messages. If the
message recording time (page 69) is set to
“Greeting only”, caller messages will
not be recorded and the unit will play a
different prerecorded greeting message
asking callers to call again.
TH102.book Page 62 Thursday, May 12, 2005 6:47 PM
Temporary Confidential
Answering System Features
For assistance, please visit http://www.panasonic.com/consumersupport 23
Turning the answering
system on/off
Press {LINE SELECT} to select the
desired line(s). i {ANSWER ON}
LWhen the answering system is turned
on, the ANSWER ON indicator lights.
Listening to messages
When new messages have been
recorded:
– The MESSAGE indicator on the base
unit will flash.
The base unit display will show the number
of messages (old and new) recorded by
the answering system.
Listening to messages using
the base unit o
Press {MESSAGE}.
LWhen you have no new messages, the
unit will play back all messages.
LThe unit will play all new messages
including memo messages.
LTo play back messages for the desired
line(s), press {LINE SELECT} to select
the desired line(s) before pressing
{MESSAGE}. When a line is selected,
memo messages (page 65) will not be
played.
Adjusting the speaker volume
Press the navigator key up or down while
using the answering system.
LTo adjust the speaker volume for the
desired line, press {LINE SELECT}
before pressing the navigator key.
Repeating a message
Press the navigator key left while listening
to the message.
LIf pressed within the first 5 seconds of a
message, the previous message will be
played.
Skipping a message
Press the navigator key right to play the
next message.
Pausing message playback
Press {STOP}.
TH102.book Page 63 Thursday, May 12, 2005 6:47 PM
Temporary Confidential
Useful Information
24 For assistance, please visit http://www.panasonic.com/consumersupport
FCC and other information
This equipment complies with Part 68 of
the FCC rules and the requirements
adopted by the ACTA. On the bottom of
this equipment is a label that contains,
among other information, a product
identifier in the format US:ACJ----------.
If requested, this number must be
provided to the telephone company.
L Registration No
............(found on the bottom of the unit)
L Ringer Equivalence No.
(REN).......0.1B
A plug and jack used to connect this
equipment to the premises wiring and
telephone network must comply with the
applicable FCC Part 68 rules and
requirements adopted by the ACTA. A
compliant telephone cord and modular
plug is provided with this product. It is
designed to be connected to a
compatible modular jack that is also
compliant.
The REN is used to determine the
number of devices that may be
connected to a telephone line. Excessive
RENs on a telephone line may result in
the devices not ringing in response to an
incoming call. In most but not all areas,
the sum of RENs should not exceed five
(5.0). To be certain of the number of
devices that may be connected to a line,
as determined by the total RENs, contact
the local telephone company. For
products approved after July 23, 2001,
the REN for this product is part of the
product identifier that has the format
US:AAAEQ##TXXXX. The digits
represented by ## are the REN without a
decimal point (e.g., 03 is a REN of 0.3).
If this equipment causes harm to the
telephone network, the telephone
company will notify you in advance that
temporary discontinuance of service may
be required. But if advance notice isn’t
practical, the telephone company will
notify the customer as soon as possible.
Also, you will be advised of your right to
file a complaint with the FCC if you
believe it is necessary.
The telephone company may make
changes in its facilities, equipment,
operations or procedures that could
affect the operation of the equipment. If
this happens the telephone company will
provide advance notice in order for you
to make necessary modifications to
maintain uninterrupted service.
If trouble is experienced with this
equipment, for repair or warranty
information, please contact a Factory
Servicenter or other Authorized Servicer.
If the equipment is causing harm to the
telephone network, the telephone
company may request that you
disconnect the equipment until the
problem is resolved.
Connection to party line service is
subject to state tariffs. Contact the state
public utility commission, public service
commission or corporation commission
for information.
If your home has specially wired alarm
equipment connected to the telephone
line, ensure the installation of this
equipment does not disable your alarm
equipment. If you have questions about
what will disable alarm equipment,
consult your telephone company or a
qualified installer.
This equipment is hearing aid compatible
as defined by the FCC in 47 CFR
Section 68.316.
TH102.book Page 84 Thursday, May 12, 2005 6:47 PM
Temporary Confidential
Useful Information
For assistance, please visit http://www.panasonic.com/consumersupport 25
When you hold the phone to your ear,
noise might be heard in your Hearing Aid.
Some Hearing Aids are not adequately
shielded from external RF (radio
frequency) energy. If noise occurs, use
an optional headset accessory or the
speakerphone option (if applicable) when
using this phone. Consult with your
audiologist or Hearing Aid manufacturer
about the availability of Hearing Aids
which provide adequate shielding to RF
energy commonly emitted by digital
devices.
WHEN PROGRAMMING EMERGENCY
NUMBERS AND(OR) MAKING TEST
CALLS TO EMERGENCY NUMBERS:
1) Remain on the line and briefly explain
to the dispatcher the reason for the
call.
2) Perform such activities in the off-peak
hours, such as early morning or late
evenings.
The software contained in this equipment
to allow user access to the network must
be upgraded to recognize newly
established network area codes and
exchange codes as they are placed into
service.
Failure to upgrade the premises systems
or peripheral equipment to recognize the
new codes as they are established will
restrict the customer and the customer’s
employees from gaining access to the
network and to these codes.
This device complies with Part 15 of the
FCC Rules. Operation is subject to the
following two conditions:
(1) This device may not cause harmful
interference, and (2) this device must
accept any interference received,
including interference that may cause
undesired operation.
Privacy of communications may not be
ensured when using this phone.
CAUTION:
Any changes or modifications not
expressly approved by the party
responsible for compliance could void
the user’s authority to operate this
device.
NOTE:
This equipment has been tested and
found to comply with the limits for a
Class B digital device, pursuant to Part
15 of the FCC Rules. These limits are
designed to provide reasonable
protection against harmful interference in
a residential installation. This equipment
generates, uses, and can radiate radio
frequency energy and, if not installed and
used in accordance with the instructions,
may cause harmful interference to radio
communications. However, there is no
guarantee that interference will not occur
in a particular installation. If this
equipment does cause harmful
interference to radio or television
reception, which can be determined by
turning the equipment off and on, the
user is encouraged to try to correct the
interference by one or more of the
following measures:
− Reorient or relocate the receiving
antenna.
− Increase the separation between the
equipment and receiver.
− Connect the equipment into an outlet
on a circuit different from that to which
the receiver is connected.
− Consult the dealer or an experienced
radio/TV technician for help.
Some cordless telephones operate at
frequencies that may cause interference
to nearby TVs and VCRs. To minimize or
prevent such interference, the base of
the cordless telephone should not be
placed near or on top of a TV or VCR. If
interference is experienced, move the
cordless telephone further away from the
TV or VCR. This will often reduce, or
eliminate, interference.
TH102.book Page 85 Thursday, May 12, 2005 6:47 PM
Temporary Confidential
Useful Information
26 For assistance, please visit http://www.panasonic.com/consumersupport
FCC RF Exposure Warning:
This product complies with FCC radiation
exposure limits set forth for an
uncontrolled environment. To comply
with FCC RF exposure requirements the
base unit must be installed and operated
with its antenna located 20 cm or more
between antenna and all person’s body
(excluding extremities of hands, wrist
and feet). The handset unit may be
carried and operated with only the
specific provided belt-clip. Other non-
tested belt-clips or similar body-worn
accessories may not comply and must
be avoided. The base and handset units
must not be co-located or operated in
conjunction with any other antenna or
transmitter.
Responsible party:
Panasonic Corporation of North America
One Panasonic Way,
Secaucus, New Jersey 07094
Phone number: 1-800-211-PANA (7262)
FCC Warning:
To ensure compliance with FCC
emissions limits, use only the included
USB cable with the ferrite core when
connecting the unit to a computer.
TH102.book Page 86 Thursday, May 12, 2005 6:47 PM
Temporary Confidential
If you need assistance with setup or operation;
1Visit our website: http://www.panasonic.com/consumersupport
2Contact us via the web at: http://www.panasonic.com/contactinfo
3Call us at: 1-800-211-PANA (7262)
TTY users (hearing or speech impaired users) can call 1-877-833-8855.
When you ship the product;
LCarefully pack your unit, preferably in the original carton.
LAttach a letter, detailing the symptom, to the outside of the carton.
LSend the unit to Panasonic Services Company Customer Servicenter, prepaid and
adequately insured.
LDo not send your unit to Panasonic Consumer Electronics Company listed below or to
executive or regional sales offices. These locations do not repair consumer products.
Copyright:
This material is copyrighted by Panasonic Communications Co., Ltd., and may be
reproduced for internal use only. All other reproduction, in whole or in part, is prohibited
without the written consent of Panasonic Communications Co., Ltd.
© 2005 Panasonic Communications Co., Ltd. All Rights Reserved.
Panasonic Consumer Electronics Company,
Division of Panasonic Corporation of North America
One Panasonic Way, Secaucus, New Jersey 07094
Panasonic Puerto Rico, Inc.
San Gabriel Industrial Park, Ave. 65 de Infantería, Km. 9.5,
Carolina, Puerto Rico 00985
PQQX14673ZA DM0605MK0
TH102.book Page 96 Thursday, May 12, 2005 6:47 PM
