Amended User Manual for ACJ96NKX THA12

Please read these Operating Instructions before using the unit and save
for future reference.
For assistance, visit our website:
http://www.panasonic.com/phonehelp for customers in the U.S.A. or
Puerto Rico.
This handset is an accessory handset for use with the KX-TH102 base
unit. You must register this handset with your base unit before it can be
used.
Charge the handset battery for 6 hours before initial use.
Home Communication System
Cordless Video Camera Handset
Model No. KX-THA12
Home Communication System
Cordless Video Camera Handset with TV output
Model No. KX-THA17
Operating Instructions
THA12_THA17.book Page 1 Thursday, September 8, 2005 1:32 PM
Table of Contents
2For assistance, please visit http://www.panasonic.com/phonehelp
Introduction
Feature highlights. . . . . . . . . . . . . . . . . . 3
Accessory information . . . . . . . . . . . . . . 5
Expanding your phone system . . . . . . . . 6
Important safety instructions . . . . . . . . . 9
For best performance . . . . . . . . . . . . . . 11
Preparation
Setting up the handset . . . . . . . . . . . . . 12
Battery charge . . . . . . . . . . . . . . . . . . . 13
Battery replacement . . . . . . . . . . . . . . . 14

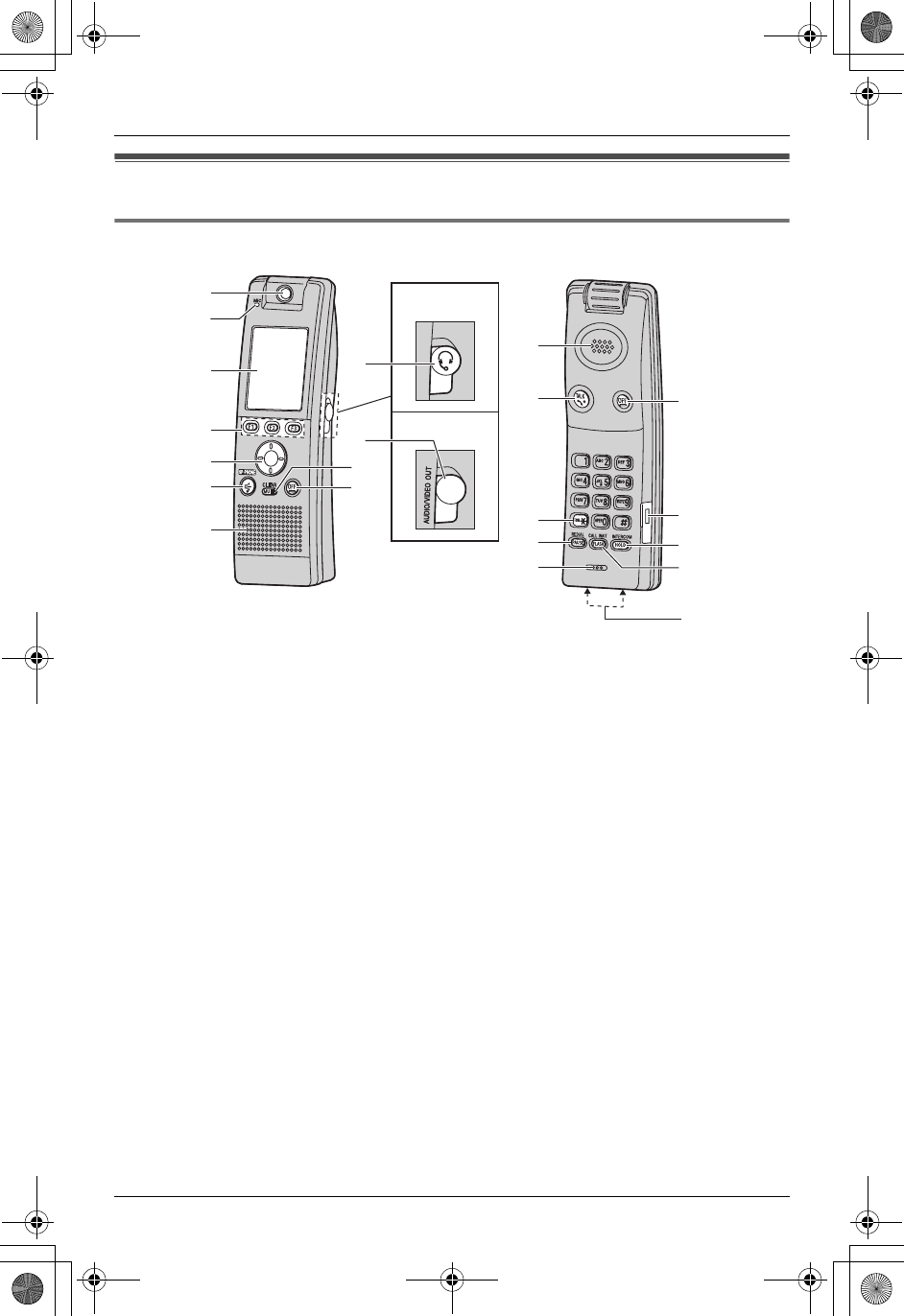

Controls . . . . . . . . . . . . . . . . . . . . . . . . 15
Display . . . . . . . . . . . . . . . . . . . . . . . . . 18
Symbols used in these operating
instructions . . . . . . . . . . . . . . . . . . . . . . 19
Registering the unit . . . . . . . . . . . . . . . 20
Setting the unit before use . . . . . . . . . . 21
C Making/Answering
Calls
Making calls . . . . . . . . . . . . . . . . . . . . . 22
Answering calls . . . . . . . . . . . . . . . . . . 23
Useful features during a call. . . . . . . . . 23
Using the other line during a call . . . . . 25
d Phonebook
Handset phonebook . . . . . . . . . . . . . . . 26
G Caller ID Service
Using Caller ID service. . . . . . . . . . . . . 29
Caller list. . . . . . . . . . . . . . . . . . . . . . . . 30
u Video Calls
Video call feature . . . . . . . . . . . . . . . . . 32
Video call settings . . . . . . . . . . . . . . . . 35
Intercom
Intercom feature . . . . . . . . . . . . . . . . . . 36
Transferring a call. . . . . . . . . . . . . . . . . 37
Conference calls. . . . . . . . . . . . . . . . . . 38
Call share . . . . . . . . . . . . . . . . . . . . . . . 39
F Monitoring
Monitoring feature . . . . . . . . . . . . . . . . 40
Audio monitor . . . . . . . . . . . . . . . . . . . . 40
View monitor. . . . . . . . . . . . . . . . . . . . . 41
v Handset Camera
Feature
Taking a picture . . . . . . . . . . . . . . . . . . 46
Picture gallery. . . . . . . . . . . . . . . . . . . . 46
h Programmable Settings
Ringer settings . . . . . . . . . . . . . . . . . . . 48
Display settings . . . . . . . . . . . . . . . . . . 50
Other settings . . . . . . . . . . . . . . . . . . . . 51
Registering the unit. . . . . . . . . . . . . . . . 54
i Answering System
Answering system feature . . . . . . . . . . 55
Listening to messages using the handset
55
Using a Cellular Phone
with this Unit
Configuring a cellular phone . . . . . . . . . 57
Making/answering calls using a cellular
line . . . . . . . . . . . . . . . . . . . . . . . . . . . . 57
Useful Information
Wall mounting. . . . . . . . . . . . . . . . . . . . 60
Headset (Optional) . . . . . . . . . . . . . . . . 61
Error messages . . . . . . . . . . . . . . . . . . 62
Troubleshooting . . . . . . . . . . . . . . . . . . 64
FCC and other information . . . . . . . . . . 68
Specifications . . . . . . . . . . . . . . . . . . . . 70
Warranty . . . . . . . . . . . . . . . . . . . . . . . . 71
Customer services . . . . . . . . . . . . . . . . 73
Direct commands chart/programming
index . . . . . . . . . . . . . . . . . . . . . . . . . . . 74
Index
Index. . . . . . . . . . . . . . . . . . . . . . . . . . . 77
THA12_THA17.book Page 2 Thursday, September 8, 2005 1:32 PM
Introduction
For assistance, please visit http://www.panasonic.com/phonehelp 3
Feature highlights
Thank you for purchasing the Panasonic Home Communication System
Cordless Video Camera Handset/Home Communication System Cordless
Video Camera with TV output.
Important:
LFor information about the other compatible Panasonic units, see page 5.
LIn these operating instructions, the cordless video camera handset and cordless video
camera handset with TV output are referred to as the “handset”.
Telephone features
N2 line telephone
While one line is in use, you can make or answer a call using the other line.
NVideo calls
The handset allows you and the person you are talking to to see each other in real time
during an outside call (page 32).
NAudio monitor (between handset and base unit/handsets)
You can listen to the audio in the room where the handset or base unit is located (page
40).
NView monitor (between cordless camera and handset)
The handset allows you to view the room where the cordless camera is located (page
41).

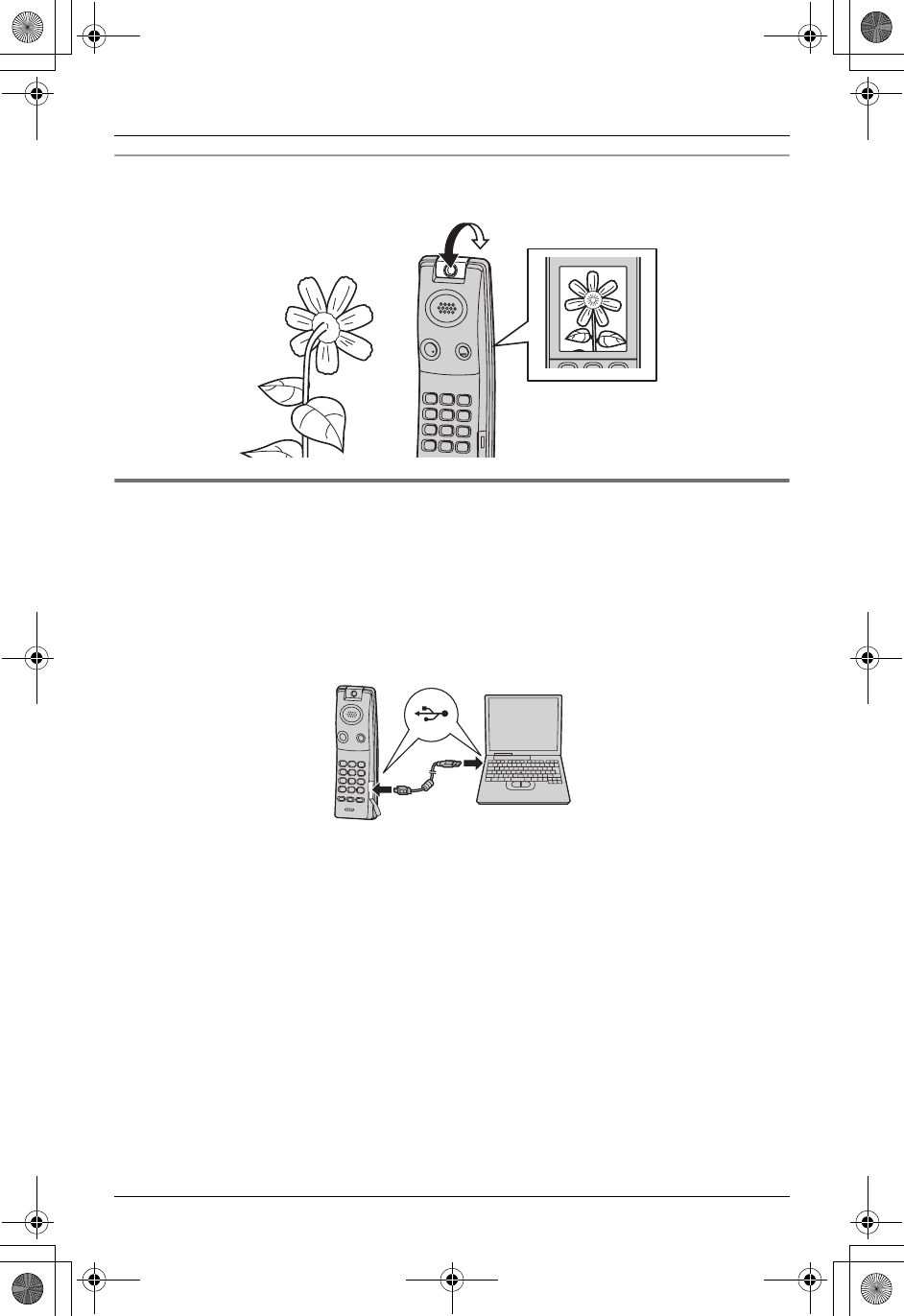

NHandset camera
You can use the handset’s built-in camera to take pictures (page 46). These pictures can
be used for the phonebook, as wallpaper, and as privacy images for the handset.
NCustomize ring
You can connect an audio device to the handset using the audio cable included with
your base unit and record songs to be used as the handset ringer tone (page 48).
NCellular convergence
This feature allows you to save on phone charges by using the handset and base unit
to make or answer calls using the cellular line of a connected Bluetooth-compatible
cellular phone (page 57).
THA12_THA17.book Page 3 Thursday, September 8, 2005 1:32 PM
Introduction
4For assistance, please visit http://www.panasonic.com/phonehelp
MULTI TALK V software
The CD-ROM included with your base unit contains the MULTI TALK V Utility suite. The
suite consists of the following utilities. Refer to the included “Installation Guide for MULTI
TALK V Software” for installation details.
NMULTI TALK V USB Utility
Allows you to use your computer to:
– Add, edit, erase, and backup phonebook entries
– Send images and melodies stored in your computer to your phone
– Play, erase, and save answering system messages
– Change phone settings
– Connect to the Internet or to another computer using a MULTI TALK V phone
NMULTI TALK V Camera Utility
Allows you to use your computer to register a cordless camera in order to view cordless
camera images with a web browser.
NMULTI TALK V Printing Utility
Allows you to use your computer to register a KX-THA16 (sold separately) in order to
print images from the KX-THA16 to your computer’s printer.
THA12_THA17.book Page 4 Thursday, September 8, 2005 1:32 PM
Introduction
For assistance, please visit http://www.panasonic.com/phonehelp 5

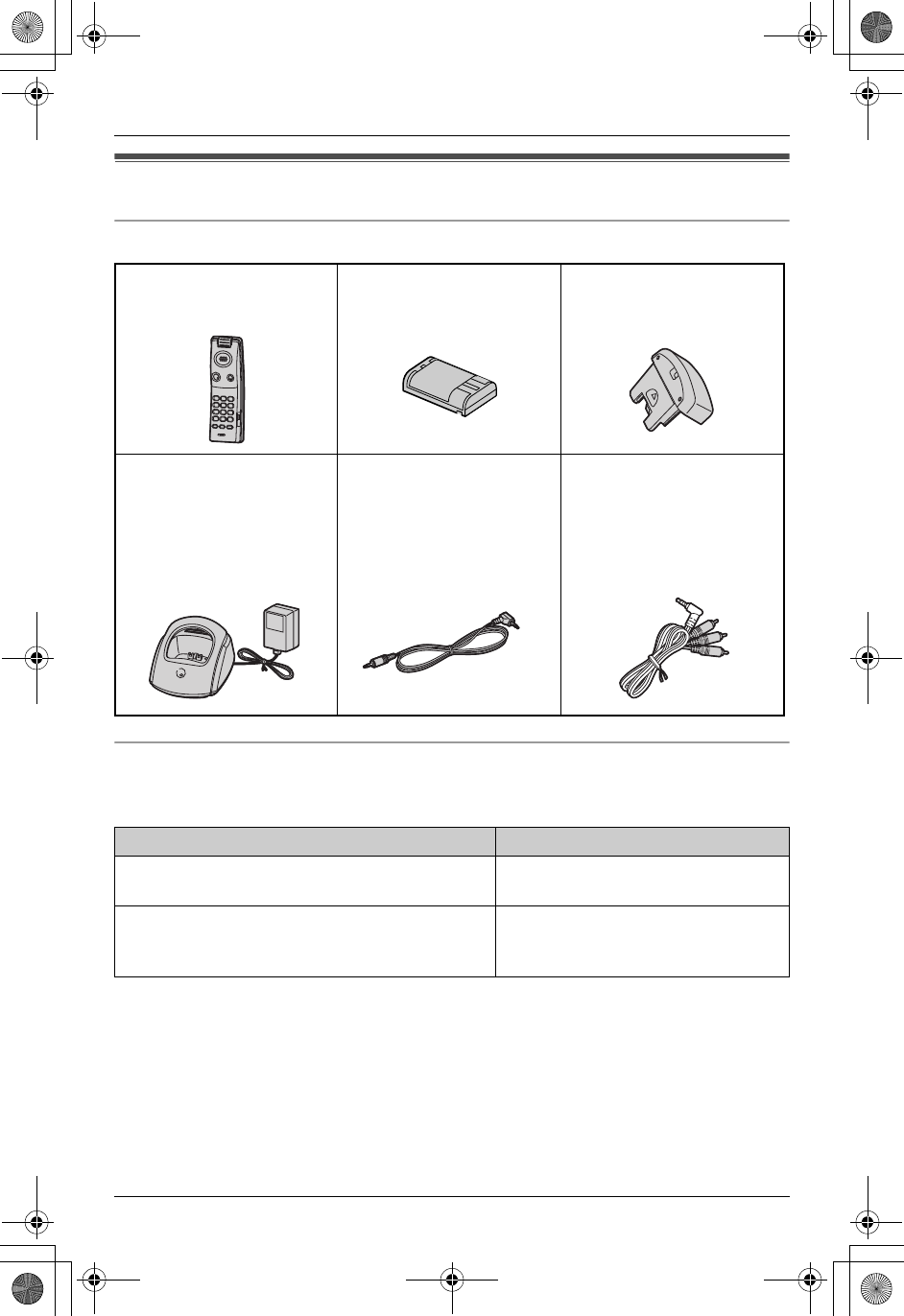

Accessory information
Included parts
Other additional/replacement accessories
LTo order these accessories, call 1-800-332-5368.
TTY users (hearing or speech impaired users) can call 1-866-605-1277.
Note:
LYou can expand your phone system by registering additional compatible Panasonic
units (page 6).
AHandset ABattery
(Order No. HHR-P104)
AHandset cover
(Order No. PQKK10593Z1)
ACharger for handset
– Charger:
(Order No. PQLV30039ZS)
– AC adaptor:
(Order No. PQLV203Z)
AAudio cable
(Order No. PQJA10172Z)
ATV-out cable
(Order No. XXXXXXXXXX)
Accessory item Order number
Rechargeable nickel metal hydride (Ni-MH)
battery
HHR-P104
Headset KX-TCA60, KX-TCA86,
KX-TCA88HA, KX-TCA91,
KX-TCA92, KX-TCA98
THA12_THA17.book Page 5 Thursday, September 8, 2005 1:32 PM
Introduction
6For assistance, please visit http://www.panasonic.com/phonehelp

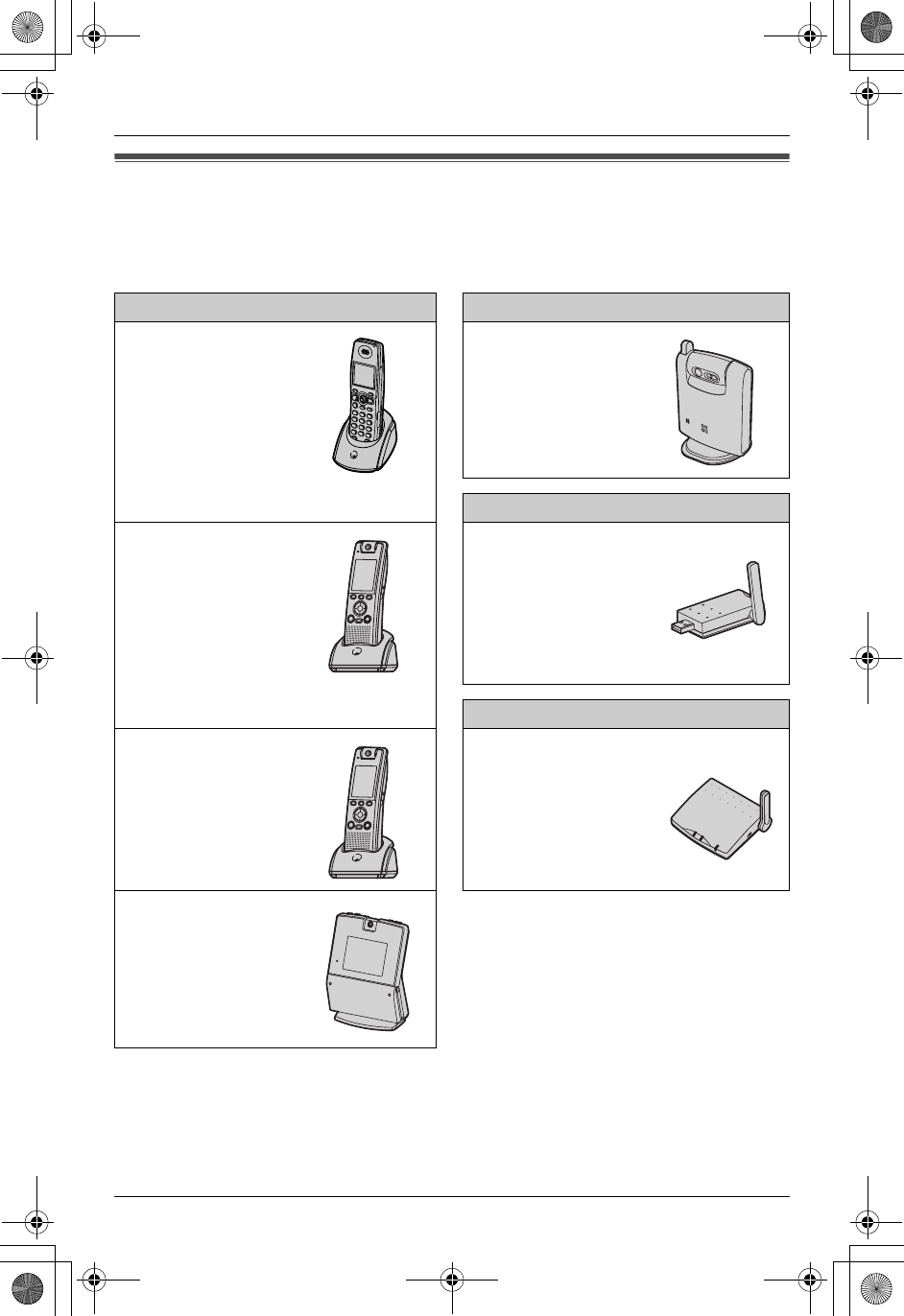

Expanding your phone system
You can expand the phone system by adding the following units.
LTo order these units, call 1-800-332-5368.
TTY users (hearing or speech impaired users) can call 1-866-605-1277.
Note:
LThe following units can be registered to a single base unit:
– Handsets (KX-THA11/KX-THA12/KX-THA16/KX-THA17): max. 8
– Other units (KX-THA13/KX-THA14/KX-THA15 and a maximum of 5 Bluetooth
featured cellular phones and headsets): max. 10
Additional handset For monitoring
Cordless handset:
KX-THA11
(Monochrome display
type)
Cordless camera:
KX-THA13
For data link
Cordless video camera
handset:
KX-THA12
(Color display type)
USB adaptor:
KX-THA14
Expanding your range
Cordless video camera
handset with TV
output:
KX-THA17
(Color display type with
audio/video outlet jack)
Range extender:
KX-THA15
Cordless video camera
station:
KX-THA16
(Large color display
type)
THA12_THA17.book Page 6 Thursday, September 8, 2005 1:32 PM
Introduction
For assistance, please visit http://www.panasonic.com/phonehelp 7

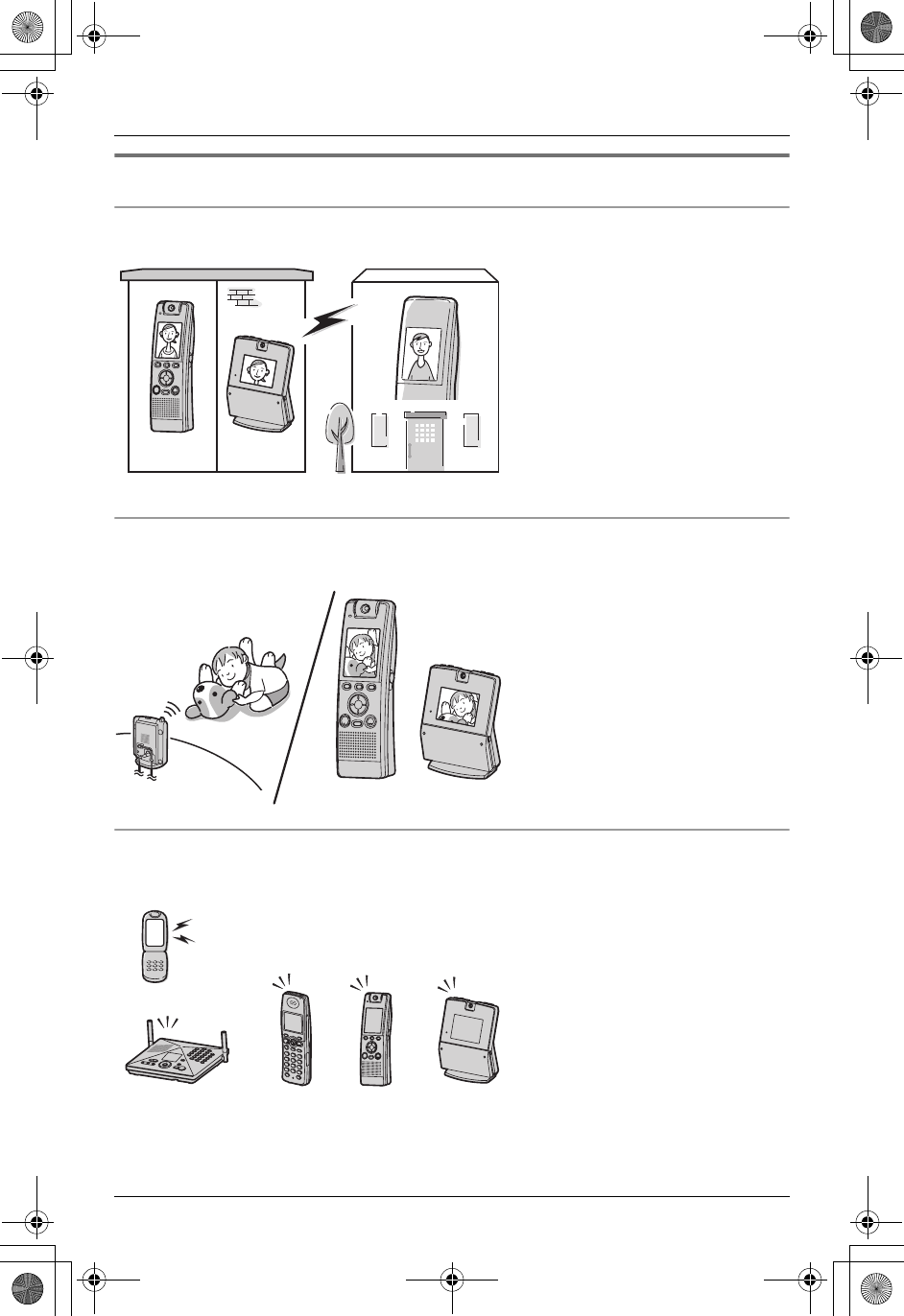

Various features using the optional units
Video call
View monitor
Cellular convergence (compatible with Bluetooth)
This feature allows you and the
person you are talking to to see
each other in real time for an
outside call using the handsets.
If you have additional units (A,
B), you can also make a video
call during an intercom call.
AKX-THA12/KX-THA17
BKX-THA16
This feature allows you to view
the room where the cordless
camera (A) is located from the
units (B, C).
You can also view the room
between the units (B, C).
AKX-THA13
BKX-THA12/KX-THA17
CKX-THA16
This feature allows you to save
on phone charges by using your
unit (A, B, C and the base unit)
to make or answer calls using the
cellular line of a connected
Bluetooth-compatible cellular
phone.
AKX-THA11
BKX-THA12/KX-THA17
CKX-THA16
Your home
AB
CA B
Your cellular phone
BAC
THA12_THA17.book Page 7 Thursday, September 8, 2005 1:32 PM
Introduction
8For assistance, please visit http://www.panasonic.com/phonehelp

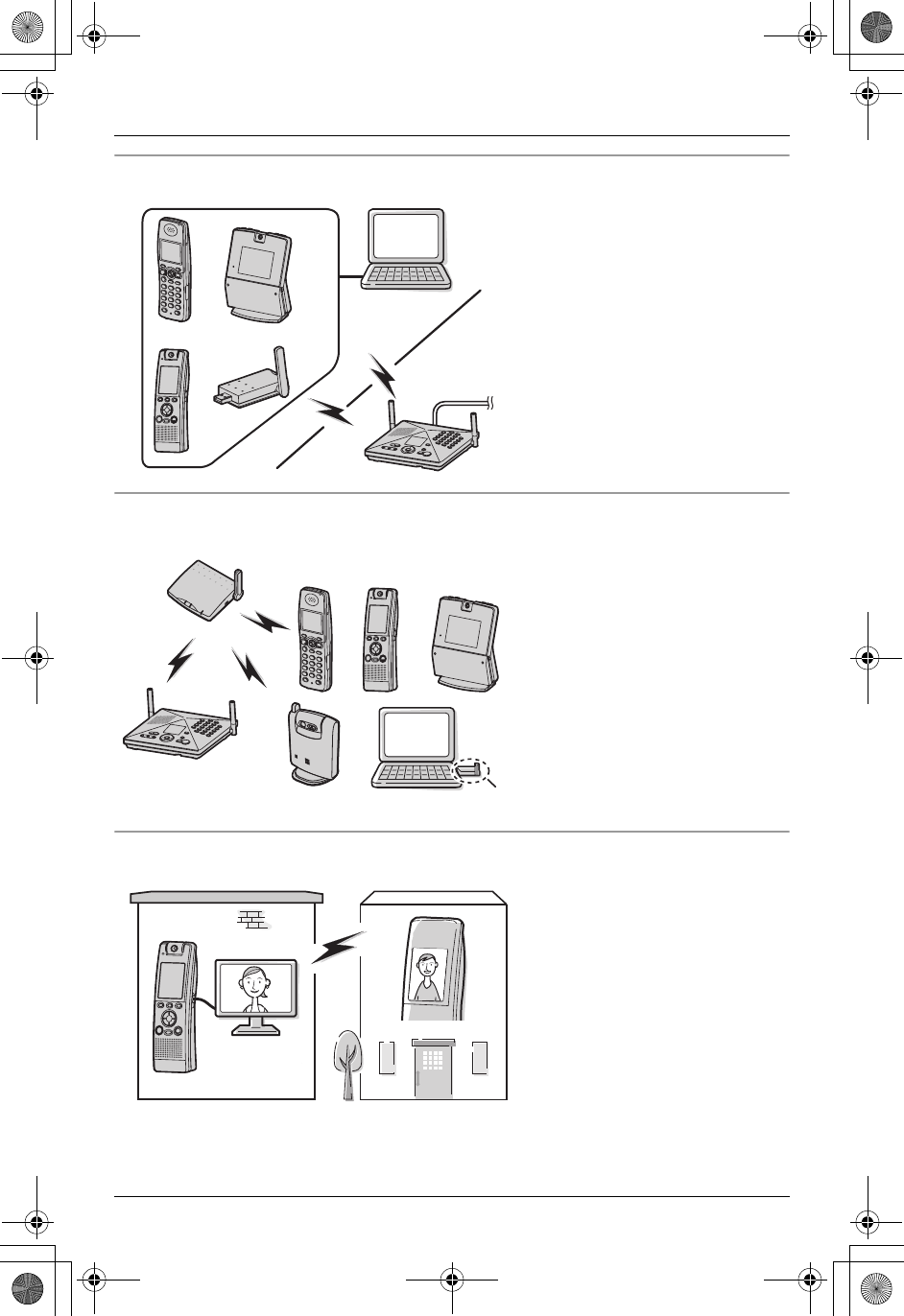

Data link feature
Range extension
Video call using TV
This feature allows you to access
the Internet or another computer
by connecting the units (A, B,
C) or a USB adaptor (D) to your
computer.
AKX-THA11
BKX-THA12/KX-THA17
CKX-THA16
DKX-THA14
By using a range extender (A),
you can extend the usage area of
the units (B, C, D, E, F).
AKX-THA15
BKX-THA11
CKX-THA12/KX-THA17
DKX-THA16
EKX-THA13
FKX-THA14
This feature allows you to use
your TV to see the other person
during a video call.
AKX-THA17
A
B
C
D
E
CDBA
F
Your home
A
TV
THA12_THA17.book Page 8 Thursday, September 8, 2005 1:32 PM
Introduction
For assistance, please visit http://www.panasonic.com/phonehelp 9
Important safety
instructions
When using the product, basic safety
precautions should always be followed to
reduce the risk of fire, electric shock, or
personal injury.
1. Read and understand all instructions.
2. Follow all warnings and instructions
marked on the product.
3. Unplug the product from power outlets
before cleaning. Do not use liquid or
aerosol cleaners. Use a moist cloth for
cleaning.
4. Do not use the product near water, for
example near a bathtub, wash bowl,
kitchen sink, etc.
5. Place the product securely on a stable
surface. Serious damage and/or injury
may result if the product falls.
6. Do not cover slots and openings on the
product. They are provided for
ventilation and protection against
overheating. Never place the product
near radiators, or in a place where
proper ventilation is not provided.
7. Use only the power source marked on
the product. If you are not sure of the
type of power supplied to your home,
consult your dealer or local power
company.
8. Do not place objects on the power
cord. Install the product where no one
can step or trip on the cord.
9. Do not overload power outlets and
extension cords. This can result in the
risk of fire or electric shock.
10. Never push any objects through slots
in the product. This may result in the
risk of fire or electric shock. Never spill
any liquid on the product.
11. To reduce the risk of electric shock, do
not disassemble the product. Take the
product to an authorized service center
when service is required. Opening or
removing covers may expose you to
dangerous voltages or other risks.
Incorrect reassembly can cause
electric shock when the product is
subsequently used.
12. Unplug the product from power outlets
and refer servicing to an authorized
service center when the following
conditions occur:
A. When the power cord is damaged
or frayed.
B. If liquid has been spilled into the
product.
C. If the product has been exposed to
rain or water.
D. If the product does not work
normally by following the operating
instructions. Adjust only controls
covered by the operating
instructions. Improper adjustment
may require extensive work by an
authorized service center.
E. If the product has been dropped or
physically damaged.
F. If the product exhibits a distinct
change in performance.
13. During thunderstorms, avoid using
telephones except cordless types.
There may be a remote risk of an
electric shock from lightning.
14. Do not use the product to report a gas
leak, when in the vicinity of the leak.
SAVE THESE
INSTRUCTIONS
CAUTION:
Installation
LDo not touch the plug with wet hands.
LThe AC adaptor is used as the main
disconnect device. Ensure that the AC
outlet is installed near the product and is
easily accessible.
Battery
To reduce the risk of fire or injury to
persons, read and follow these
instructions.
LUse only the battery(ies) specified.
THA12_THA17.book Page 9 Thursday, September 8, 2005 1:32 PM
Introduction
10 For assistance, please visit http://www.panasonic.com/phonehelp
LDo not dispose of the battery(ies) in a
fire. They may explode. Check with local
waste management codes for special
disposal instructions.
LDo not open or mutilate the battery(ies).
Released electrolyte is corrosive and
may cause burns or injury to the eyes or
skin. The electrolyte may be toxic if
swallowed.
LExercise care when handling the
battery(ies). Do not allow conductive
materials such as rings, bracelets or
keys to touch the battery(ies), otherwise
a short circuit may cause the battery(ies)
and/or the conductive material to
overheat and cause burns.
LCharge the battery(ies) provided, or
identified for use with the product only, in
accordance with the instructions and
limitations specified in this manual.
WARNING:
LTo prevent the risk of fire or electrical
shock, do not expose the product to rain
or any type of moisture.
LUnplug the product from power outlets if
it emits smoke, an abnormal smell, or
makes an unusual noise. These
conditions can cause fire or electric
shock. Confirm that smoke has stopped
and contact the Panasonic Call Center
at 1-800-211-PANA (7262).
Medical
LConsult the manufacturer of any
personal medical devices, such as
pacemakers or hearing aids, to
determine if they are adequately
shielded from external RF (radio
frequency) energy. (The product
operates in the frequency range of 2.4
GHz to 2.48 GHz, and the power output
is 125 mW (max.).) Do not use the
product in health care facilities if any
regulations posted in the area instruct
you not to do so. Hospitals or health care
facilities may be using equipment that
could be sensitive to external RF (radio
frequency) energy.
THA12_THA17.book Page 10 Thursday, September 8, 2005 1:32 PM
Introduction
For assistance, please visit http://www.panasonic.com/phonehelp 11
For best performance
Noise
This unit communicates using radio
waves.
For maximum distance and noise-free
operation, we recommend the following:
LPlacing the product away from electrical
appliances.
LIf you use the handset near a microwave
oven which is being used, noise may be
heard. Move away from the microwave
oven and closer to the base unit.
LIf you use the handset near another
cordless phone’s base unit, noise may
be heard. Move away from the other
cordless phone’s base unit and closer to
your base unit.
Environment
LKeep the product away from electrical
noise generating devices, such as
fluorescent lamps and motors.
LThe product should be kept free from
excessive smoke, dust, high
temperature, and vibration.
LThe product should not be exposed to
direct sunlight.
LDo not place heavy objects on top of the
product.
LWhen you leave the product unused for
a long period of time, unplug the product
from the power outlet.
LThe product should be kept away from
heat sources such as heaters, kitchen
stoves, etc. It should not be placed in
rooms where the temperature is less
than 5 °C (41 °F) or greater than 40 °C
(104 °F). Damp basements should also
be avoided.
LThe maximum calling distance may be
shortened when the product is used in
the following places: Near obstacles
such as hills, tunnels, underground, near
metal objects such as wire fences, etc.
LOperating near 2.4 GHz electrical
appliances may cause interference.
Move away from the electrical
appliances.
Routine care
LWipe the outer surface of the product
with a soft moist cloth. Do not use
benzine, thinner, or any abrasive
powder.
THA12_THA17.book Page 11 Thursday, September 8, 2005 1:32 PM
Preparation
For assistance, please visit http://www.panasonic.com/phonehelp 15
Controls
Handset
ACamera lens
BMIC (Microphone)
CDisplay
DSoft keys (F1, F2, F3)
ENavigator key
F{s} (SP-PHONE)
GSpeaker
HHeadset jack/Audio jack
IHeadset jack/AUDIO OUT/VIDEO
OUT jack
J{MUTE} {CLEAR}
K{OFF}
LReceiver
M{C} (TALK)
N{*} (TONE)
O{PAUSE} {REDIAL}
PUSB port
Q{HOLD} {INTERCOM}
R{FLASH} {CALL WAIT}
SCharge contacts
C
A
D
E
F
J
K
G
S
Q
R
P
K
M
N
O
B
L
B
KX-THA17
KX-THA12
H
I
THA12_THA17.book Page 15 Thursday, September 8, 2005 1:32 PM
Preparation
16 For assistance, please visit http://www.panasonic.com/phonehelp
Adjusting the camera lens angle
Aim the camera lens by rotating the lens forward or backward.
Connecting the USB cable to the handset
By connecting the USB cable to the USB port, you can:
– use MULTI TALK V USB Utility with your computer.
– access to the Internet (broadband or dial up) with your computer.
– view the images through the cordless camera with your computer.
– update your phone’s firmware.
THA12_THA17.book Page 16 Thursday, September 8, 2005 1:32 PM
Preparation
For assistance, please visit http://www.panasonic.com/phonehelp 17

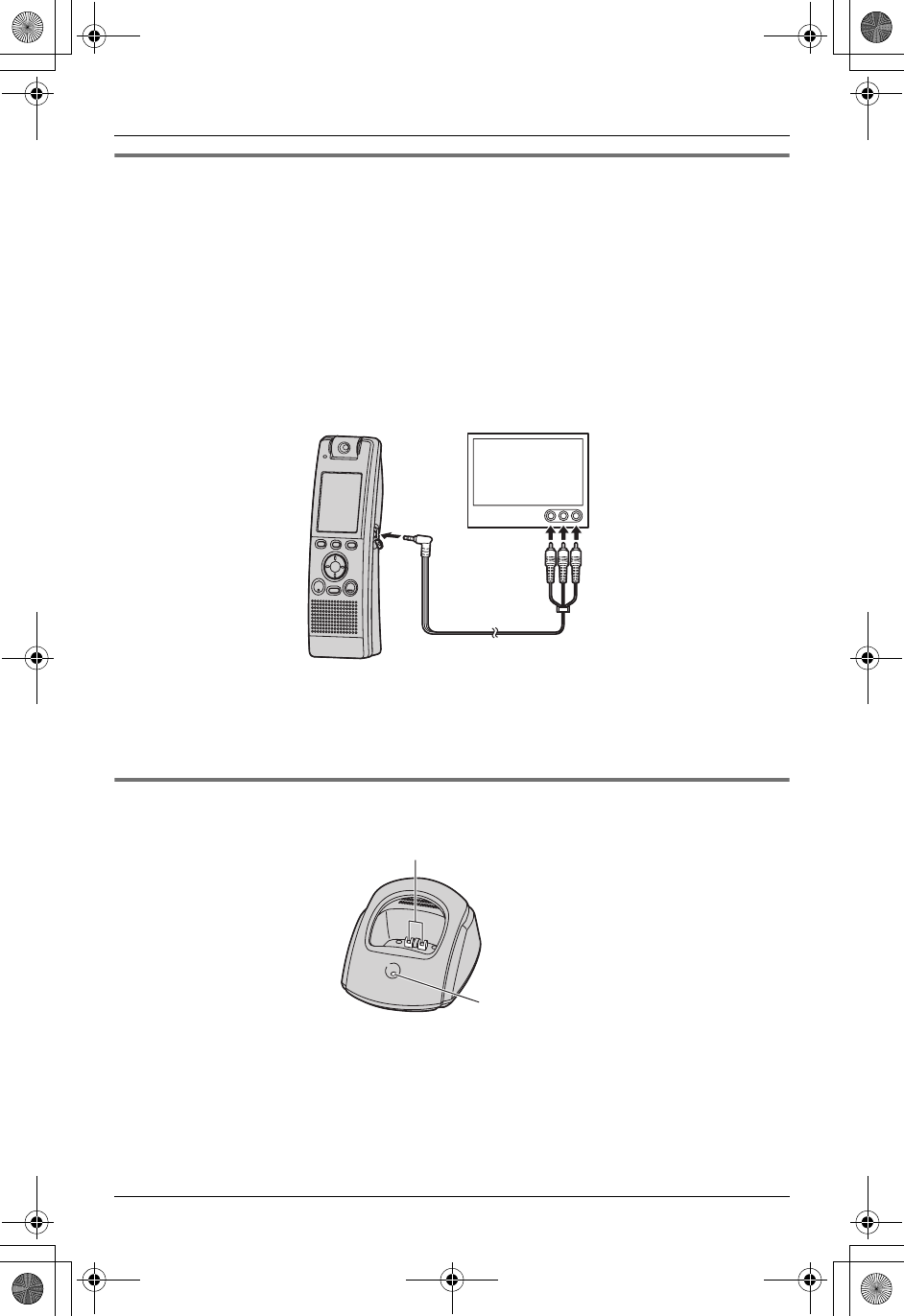

Connecting the handset to your TV (KX-THA17 only)
By connecting the handset to your TV using the included TV-out cable, you can use your
TV to view images that are displayed on the handset. Using this feature, video calls, view
monitor sessions, and images in the picture gallery can be displayed on your TV.
Important:
LIn order to use this feature, you must connect the handset to your TV with the included
TV-out cable before you start a video call, view monitor session, or enter the picture
gallery.
Connect the handset to your TV using included TV-out cable.
LMake sure that the TV-out cable is connected to the same color of the TV jack.
– To start a video call, see page 32.
– To start a view monitor session, see page 41.
– To view the images in the picture gallery, see page 46.
Charger
ACharge contacts
BCHARGE indicator
TV out cable
TV
A
B
THA12_THA17.book Page 17 Thursday, September 8, 2005 1:32 PM
Useful Information
68 For assistance, please visit http://www.panasonic.com/phonehelp
FCC and other information
WHEN PROGRAMMING EMERGENCY
NUMBERS AND(OR) MAKING TEST
CALLS TO EMERGENCY NUMBERS:
1) Remain on the line and briefly explain
to the dispatcher the reason for the
call.
2) Perform such activities in the off-peak
hours, such as early morning or late
evenings.
This device complies with Part 15 of the
FCC Rules. Operation is subject to the
following two conditions:
(1) This device may not cause harmful
interference, and (2) this device must
accept any interference received,
including interference that may cause
undesired operation.
Privacy of communications may not be
ensured when using this phone.
CAUTION:
A
ny changes or modifications not
expressly approved by the party
responsible for compliance could void the
user’s authority to operate this device.
NOTE:
This equipment has been tested and
found to comply with the limits for a Class
B digital device, pursuant to Part 15 of
the FCC Rules. These limits are
designed to provide reasonable
protection against harmful interference in
a residential installation. This equipment
generates, uses, and can radiate radio
frequency energy and, if not installed and
used in accordance with the instructions,
may cause harmful interference to radio
communications. However, there is no
guarantee that interference will not occur
in a particular installation. If this
equipment does cause harmful
interference to radio or television
reception, which can be determined by
turning the equipment off and on, the
user is encoura
g
ed to tr
y
to correct the
interference by one or more of the
following measures:
– Reorient or relocate the receiving
antenna.
– Increase the separation between the
equipment and receiver.
– Connect the equipment into an outlet
on a circuit different from that to which
the receiver is connected.
– Consult the dealer or an experienced
radio/TV technician for help.
Some cordless telephones operate at
frequencies that may cause interference
to nearby TVs and VCRs. To minimize or
prevent such interference, the base of
the cordless telephone should not be
placed near or on top of a TV or VCR. If
interference is experienced, move the
cordless telephone further away from the
TV or VCR. This will often reduce, or
eliminate, interference.
FCC RF Exposure Warning:
The product complies with FCC radiation
exposure limits set forth for an
uncontrolled environment. The handset
must not be colocated or operated in
conjunction with any other antenna or
transmitter.
Responsible party:
Panasonic Corporation of North America
One Panasonic Way,
Secaucus, New Jersey 07094
Phone number: 1-800-211-PANA (7262)
FCC Warning:
To ensure compliance with FCC
emissions limits, use only the included
USB cable with the ferrite core when
connecting the unit to a computer.
THA12_THA17.book Page 68 Thursday, September 8, 2005 1:32 PM
Useful Information
For assistance, please visit http://www.panasonic.com/phonehelp 69
Notice
THA12_THA17.book Page 69 Thursday, September 8, 2005 1:32 PM
Useful Information
70 For assistance, please visit http://www.panasonic.com/phonehelp
Specifications
General
KX-THA12/KX-THA17
Charger
Note:
LDesign and specifications are subject to change without notice.
LThe illustrations in these instructions may vary slightly from the actual product.
Trademarks
LBluetooth is a registered trademark of Bluetooth SIG, Inc.
Operating environment 5 °C – 40 °C (41 °F – 104 °F)
Frequency 2.4 GHz – 2.48 GHz
Bluetooth compliance Bluetooth specification 1.1 and 1.2
Dimensions Approx. height 171 mm x width 51 mm x depth 51 mm
(611/16 inches x 2 inches x 2 inches)
Mass (Weight) Approx. 220 g (0.49 lb.)
Power consumption Standby: Approx. 2.6 W
Maximum: Approx. 5.5 W
Power output 125 mW (max.)
Power supply Ni-MH battery (3.6 V, 830 mAh)
Built-in
camera
Number of
pixels
300,000 pixel (1/5 inch CMOS sensor)
Illuminance 10 lux
Focus Fixed 0.1 m (315/16 inches) – Infinity
Viewing angle Horizontal angle: Approx. 38°
Vertical angle: Approx. 30°
Video system ITU-T Standard H.324
Resolution Image size (QCIF) 176 x 144 pixels
Dimensions Approx. height 64 mm x width 88 mm x depth 99 mm
(217/32 inches x 315/32 inches x 329/32 inches)
Mass (Weight) Approx. 120 g (0.26 lb.)
Power consumption Standby: Approx. 1.0 W
Maximum: Approx. 4.0 W
Power supply AC adaptor (120 V AC, 60 Hz)
THA12_THA17.book Page 70 Thursday, September 8, 2005 1:32 PM
Useful Information
For assistance, please visit http://www.panasonic.com/phonehelp 73
Customer services
Customer Services Directory
Obtain Product Information and Operating Assistance; locate your nearest
Dealer or Servicenter; purchase Parts and Accessories; or make Customer
Service and Literature requests by visiting our Web Site at:
http://www.panasonic.com/consumersupport
or, contact us via the web at:
http://www.panasonic.com/contactinfo
You may also contact us directly at: 1-800-211-PANA (7262),
Monday-Friday 9 am-9 pm; Saturday-Sunday 10 am-7 pm, EST.
TTY users (hearing or speech impaired users) can call 1-877-833-8855.
TTY users (hearing or speech impaired users) can call 1-866-605-1277.
Purchase Parts, Accessories and Instruction Books online for all
Panasonic Products by visiting our Web Site at:
http://www.pasc.panasonic.com
or, send your request by E-mail to:
npcparts@us.panasonic.com
You may also contact us directly at:
1-800-332-5368 (Phone) 1-800-237-9080 (Fax Only)
(Monday - Friday 9 am to 8 pm, EST.)
Panasonic Services Company
20421 84th Avenue South, Kent, WA 98032
(We Accept Visa, MasterCard, Discover Card, American Express, and
Personal Checks)
Accessory Purchases
Service in Puerto Rico
Panasonic Puerto Rico, Inc.
San Gabriel Industrial Park, Ave. 65 de Infantería, Km. 9.5,
Carolina, Puerto Rico 00985
Phone (787)750-4300, Fax (787)768-2910
THA12_THA17.book Page 73 Thursday, September 8, 2005 1:32 PM

Navigation menu
