User manual
VL-CM851A VL-DM200A VL-MDM200A
Operating Instructions
Model No. VL-SDM200A
Including:
VL-DM200A
VL-MDM200A
VL-CM851A
Wireless Door Camera
Thank you for purchasing a Panasonic product.
Please read this manual before using the unit and save for future reference.
Introduction
Product descriptions ...........................................3
Accessory information ........................................4
Important Information
For your safety ....................................................5
Important safety instructions ...............................7
For best performance .........................................8
Other information ................................................9
Getting Started
Location of controls ...........................................11
Monitor display ..................................................13
Charging the Wireless Monitor .........................15
Setting the date and time ..................................16
Attaching the Wireless Camera ........................17
How to use
Monitoring the outside ......................................23
Recording displayed images .............................24
Viewing recorded images .................................25
Programming function settings .........................27
Useful Information
Adding extra Wireless Monitors
(Pairing) ............................................................29
Canceling unused Wireless Monitors ...............30
Replacing batteries or battery packs ................30
Cleaning ............................................................30
Help
Troubleshooting ................................................32
Error messages ................................................35
General Information
Specifications ....................................................37
For users in the United States Only (FCC and other
information) .......................................................40
For users in Canada Only (Industry Canada
Notices and other information) ..........................41
Quick Reference Guide (in Spanish)
Quick Reference Guide (in Spanish) ................42
Appendix
Customer services (For United States) .............45
Warranty (For United States) ............................46
Warranty (For Canada) .....................................48
Index
Index..................................................................50
2
Table of Contents
Product descriptions
Product figure
VL-CM851A*1 VL-MDM200A*2 VL-DM200A*3
Description in this
manual Wireless Camera Base Unit Wireless Monitor
*1 The Wireless Camera is used by attaching it to the front door of a house or apartment (page 17).
*2 The Base Unit is needed in order to view images from the Wireless Camera on the Wireless Monitor.
Always use the Base Unit with it connected to a power supply.
*3 The Wireless Monitor is portable, allowing you to easily check your front door with images from the
Wireless Camera. Including the included Wireless Monitor, a total of 4 Wireless Monitors can be
used with a single Wireless Camera. For information on additional accessories, see page 4.

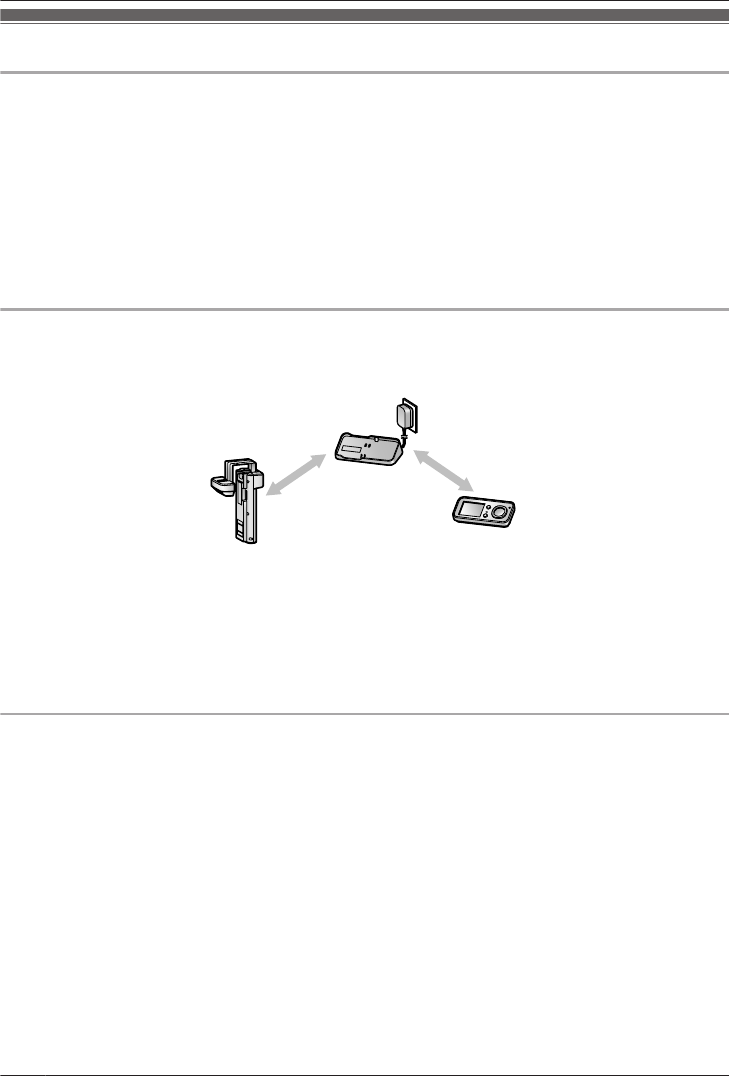

Flow of images and audio
images
audio
images
audio
Wireless Camera Wireless MonitorBase Unit
Important:
RImages cannot be viewed on the Wireless Monitor if the Base Unit is not connected to a power supply.
3
Introduction
Accessory information
Supplied accessories

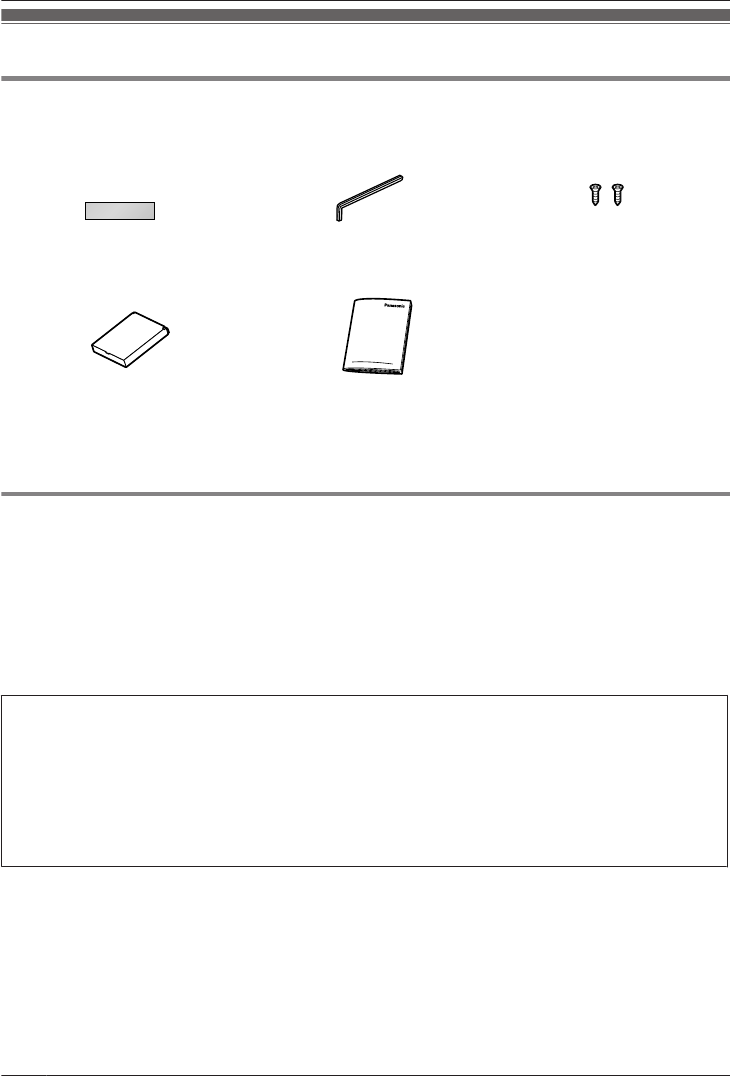

ADouble-sided tape*1 … ´ 1
Order No. PNHX1536ZA
BHex key*1 … ´ 1 CScrews*1 … ´ 2
DBattery pack*2 … ´ 1 EOperating Instructions*3 … ´ 1
*1 Used for the Wireless Camera and for installation.
*2 Used for the Wireless Monitor.
*3 Containing English Operating Instructions, French Operating Instructions, and Spanish Quick
Reference Guide.
Additional/replacement accessories
– Wireless Monitor: VL-DM200A*1
– Battery pack for Wireless Monitor: CGA-LB102*1
*1 As of August, 2012.
Note:
RDesign and specifications are subject to change without notice.
RThe illustrations in these instructions may vary slightly from the actual product.
License:
RPortions of this software are based in part on the work of the Independent JPEG Group.
Trademarks:
RAll other trademarks identified herein are property of their respective owners.
This product is not designed to be used to prevent theft or intrusions. Panasonic assumes no
liability for any accidents or damages occurring in such cases.
4
Introduction
For your safety
To prevent severe injury and loss of life/property, read this section carefully before using the product to
ensure proper and safe operation of your product.
WARNING
Power connection
RUse only the power source marked on the unit. If you are not sure of the type of power supplied to your
home, consult your dealer or local power company.
RDo not overload power outlets and extension cords. This can result in the risk of fire or electric shock.
RCompletely insert the power plug into the power outlet. Failure to do so may cause electric shock and/
or excessive heat resulting in a fire.
RRegularly remove any dust, etc. from the power plug by pulling it from the power outlet, then wiping
with a dry cloth. Accumulated dust may cause an insulation defect from moisture, etc. resulting in a fire.
RIf the unit emits smoke or an abnormal smell, or makes an unusual noise, immediately unplug the
power plug from the power outlet and remove the battery pack. These conditions can cause fire or
electric shock. Confirm that smoke has stopped and contact an authorized service center.
RNever touch the plug with wet hands. Danger of electric shock exists.
Installation
RDo not use the unit in areas that are exposed to rain, moisture, steam, or oily smoke, or areas that
have excessive dust. This may cause fire or electric shock.
RDo not install or use this product near automatically controlled devices such as automatic doors and
fire alarms. Radio waves emitted from this product may cause such devices to malfunction resulting in
an accident.
RDo not perform any actions (such as damaging, altering, exposing to heat sources, or placing heavy
objects on the electrical parts and the power plug) that may damage the electrical parts and the power
plug. Using the unit with damaged electrical parts or a damaged power plug may cause electric shock,
short circuits, or fire. Contact an authorized service center for repairs.
Operating safeguards
RTo reduce the risk of electric shock, do not disassemble this unit. Refer servicing to an authorized
service center when service is required. Opening covers may expose you to dangerous voltages or
other risks. Incorrect reassembly can cause electric shock when the unit is subsequently used.
RDo not touch the Base Unit, electrical parts, or the power plug during an electrical storm. There may be
a remote risk of electric shock from lightning.
RNever put metal objects inside the unit. This may cause fire or electric shock. If metal objects enter the
unit, immediately unplug the power plug from the power outlet and refer servicing to an authorized
service center.
RNever spill any liquids on the unit or get the unit wet in any way. This may cause fire, electric shock, or
injury. If the unit becomes wet, immediately unplug the power plug from the power outlet and refer
servicing to an authorized service center.
RNever spill any liquids on the electrical parts or power plug, or get the electrical parts or power plug wet
in any way. This may cause fire, electric shock, or injury. If the electrical parts or power plug becomes
wet, immediately unplug the power plug from the power outlet and refer servicing to an authorized
service center.
RUnplug this unit from power outlets and refer servicing to an authorized service center when the
following conditions occur:
– If the power cord is damaged or frayed.
– If metal objects have been dropped inside the Base Unit.
5
Important Information
– If the Base Unit or the Wireless Monitor has been exposed to rain or water, or liquid has been spilled
into the unit, do not use a microwave oven to speed up the drying process of any parts of the unit to
avoid permanent damage.
– If the unit has been dropped or physically damaged.
RDo not place the unit in a microwave oven or other devices such as electromagnetic cookers. This may
cause heat or smoke to be generated, fire, or an explosion.
Medical
RConsult the manufacturer of any personal medical devices, such as pacemakers or hearing aids, to
determine if they are adequately shielded from external RF (radio frequency) energy. (The unit
operates in the frequency range of 1.92 GHz to 1.93 GHz, and the RF transmission power is 115 mW
(max.).)
RDo not use the unit in health care facilities if any regulations posted in the area instruct you not to do
so. Hospitals or health care facilities may be using equipment that could be sensitive to external RF
(radio frequency) energy.
Installation and relocation
RThe power plug is used as the main disconnect device. Ensure that the power outlet is installed near
the product and is easily accessible.
RMake sure to have sure footing when attaching or taking off the unit. Tripping over or falling down may
cause injury.
Battery pack (Wireless Monitor)
RCharge the battery provided, or identified for use with the product only, in accordance with the
instructions and limitations specified in this manual.
RIn order to prevent the risk of heat generation, fire, an explosion, or leaking liquids, do not do the
following.
– Use a battery other than the specified battery.
– Disassemble or reconstruct the battery.
– Carry or store the battery together with rings, bracelets, keys, or similar objects.
– Use the included battery pack with other devices.
– Use a charger other than the specified charger (Base Unit), or tamper with the charger (Base Unit).
– Dispose of the unit in a fire, heat up the unit, or get the unit wet with any type of liquid.
– Use, charge, or leave the battery near a fire or stove, or in places with high temperatures such as
places that receive direct sunlight.
– Connect metal objects to battery terminals.
– Heat the battery in a microwave oven.
RExercise care when handling the battery. Do not allow conductive materials such as rings, bracelets,
keys, or similar objects to touch the battery, otherwise a short circuit may cause the battery and/or the
conductive material to overheat and cause burns.
RDo not open, puncture, crush, or drop the battery. A damaged battery must not be used. This can
result in the risk of fire, explosion, overheating, and leaking of the electrolyte.
RDo not come into contact with the electrolyte from the battery or let it get in your eyes if liquid is leaking
from the battery. This may cause damage to your eyes. Should the electrolyte from the battery get into
your eyes, do not rub your eyes. Immediately flush your eyes with clean water and see a doctor for
medical treatment as soon as possible.
Dry-cell battery (Wireless Camera)
RDo not come into contact with the electrolyte from the batteries or let it get in your eyes if liquid is
leaking from the batteries. This may cause loss of sight. Should the electrolyte from the batteries get
into your eyes, do not rub your eyes. Immediately flush your eyes with clean water and see a doctor for
medical treatment as soon as possible.
6
Important Information
RIn order to prevent the risk of heat generation, fire, an explosion, or leaking liquids, do not do the
following.
– Charge, heat up, or disassemble batteries, or dispose of batteries in the fire.
– Connect metal objects to batteries’ terminals.
– Carry or store the batteries together with rings, bracelets, keys, or similar objects.
– Use old and new batteries or batteries of different types together.
RDo not place the batteries within reach of children. There is a risk that children may swallow batteries.
If you suspect that a child has swallowed a batteries immediately seek consultation with a medical
practitioner.
RIn order to prevent the risk of heat generation, an explosion, or leaking liquids, immediately remove
batteries that cannot be used, remove batteries when not using the unit for extended periods, and do
not insert batteries with incorrect polarities.
CAUTION
Installation and relocation
RIn order to prevent the risk of injury from the unit falling, do the following.
– Always follow the attachment procedures listed in this manual.
– Attach the Wireless Camera securely to the door.
– Make sure that the battery case does not fall when exchanging batteries.
– Do not use excessive force when closing the door.
– Never use the unit in an unstable place or a place that is exposed to strong vibrations.
Battery (Wireless Monitor)
Attention:
A lithium ion/polymer battery that is recyclable powers the product you have
purchased. Please call 1-800-8-BATTERY for information on how to recycle this
battery.
Dry-cell battery (Wireless Camera)
ROnly use specified batteries. Using unspecified batteries may cause leaking fluids, heat generation, or
an explosion.
Important safety instructions
When using this unit, basic safety precautions should always be followed to reduce the risk of fire,
electric shock, or personal injury.
RDo not use this unit near water. For example, near a bathtub, wash bowl, kitchen sink, or laundry tub,
in a wet basement, or near a swimming pool, and the like.
RUse only the battery pack indicated in this manual.
RDo not dispose of the battery(ies) in a fire. They may explode. Check with local waste management
codes for special disposal instructions.
SAVE THESE INSTRUCTIONS
7
Important Information
For best performance
Before using
RIt is prohibited to disassemble or modify this unit. Contact the dealer where you purchased this unit for
repair.
RWhen power fails, this unit cannot be used.
RFor the recorded images:
The recorded images may be lost when:
– The unit is mishandled.
– Electric shock or radio wave interference occurs.
– The power is turned off during use.
(We might not be liable for the damage.)
RPanasonic may not be liable for damages due to external factors such as power failures.
Location/avoiding noise (Base Unit/Wireless Camera/Wireless Monitor)
The Base Unit (A), Wireless Camera (B), and Wireless Monitor (C) use radio waves to communicate
with each other.
use within 70 m
(229 ft 8 in.)
(with no obstructions)
A
C
B
use within 70 m
(229 ft 8 in.)
(with no obstructions)
RFor maximum distance and noise-free operation, we recommend the following:
Placing the Base Unit and Wireless Monitor away from electrical appliances such as:
– TVs
– Radios
– Personal computers
– Air conditioners
RCoverage and voice quality depends on the local environmental conditions.
Environment
RKeep the unit away from electrical noise generating devices, such as fluorescent lamps and motors.
RThe unit should be kept away from excessive smoke, dust, high temperature and vibration.
RThe unit should not be exposed to direct sunlight.
RDo not install the Wireless Camera in areas where there is a backlight (the visitors’ faces appear dark
and are hard to recognize), or areas that create hydrogen sulfide (this may cause a malfunction).
RDo not install the Wireless Camera in areas where it can be directly exposed to the elements (this may
cause a malfunction).
RDo not place heavy objects on top of the unit.
RWhen you leave the unit unused for a long period of time, unplug it from the power outlet. In this
situation, we recommend that you turn the power for the Wireless Camera off in order to conserve the
batteries’ energy.
RThe unit should be kept away from heat sources such as heaters, kitchen stoves, etc. It should not be
placed in rooms where the temperature is less than 5 °C (41 °F) or greater than 40 °C (104 °F). Damp
basements should also be avoided. To avoid damage, charge the battery only in temperatures ranging
from 5 °C (41 °F) to 40 °C (104 °F).
8
Important Information
REven when the Wireless Monitor and Wireless Camera are within 70 m (229 ft 8 in.) and not used too
close together, if there obstructions such as the ones below, problems such as signals becoming
weak, noise, interrupted transmissions, distorted images, and slow image refresh rates may occur,
causing the Wireless Monitor and Wireless Camera to not be able to be used together. (See page 14
for information about the signal display.)
– walls with an insulation material that contains aluminum foil
– walls made of concrete or galvanized iron
– when each device (Base Unit, Wireless Camera, and Wireless Monitor) is used on a different floor
– double insulating glass or metallic shutters
– places where several walls are separated by open space
RSome types of hearing aids may receive noise from wireless communications between the Base Unit,
Wireless Camera, and Wireless Monitor.
RWhen the Wireless Monitor and Wireless Camera are too close together, feedback may occur.
ROperating the product near electrical appliances may cause interference. Move away from the
electrical appliances.
Other information
Caution
RRisk of explosion if battery is replaced by an incorrect type. Dispose of used batteries according to the
instructions.
Privacy and rights of portrait
When installing or using the Wireless Camera, please take into consideration the rights of others with
regard to privacy.
RIt is generally said that “Privacy” means the ability of an individual or group to stop information about
themselves from becoming known to people other than those whom they choose to give the
information. “Rights of portrait” means the right to be safe from having your own image taken and used
indiscriminately without consent.
Others
RPanasonic assumes no liability for injuries or property damage resulting from failures arising out of
improper installation or operation inconsistent with the Operating Instructions.
RIf you stop using the Wireless Camera, remove the Wireless Camera from the door to prevent them
from falling off.
Personal information
RThe unit records the following personal information. Panasonic assumes no liability for any unforeseen
damages arising from the exposure of the recorded information.
– Data recorded on the Base Unit:
Recorded data containing images of visitors, or other images.
RDisclaimer
Recorded data may be altered or deleted as a result of incorrect operations, exposure to static
electricity, accidents, malfunction, repairs or other operations. Panasonic assumes no liability for any
direct or indirect damages resulting from the loss or alteration of recorded images.
Requesting repairs for the unit
RThe data recorded on the Base Unit cannot be exported. Before requesting repairs, check the currently
recorded images as necessary.
RAfter checking the recorded data, delete the data recorded on the Base Unit by performing “RESET +
DEL ALL PICS” with the Wireless Monitor (page 28).
9
Important Information
– Even if the unit is sent for repairs without performing “RESET + DEL ALL PICS”, the memory
(including recorded data and contents of the settings) of the Base Unit may be cleared and set to
factory default after repair.
RIf operations cannot be performed with the Wireless Monitor because of damage to the unit, consult
with the place of purchase for the appropriate action.
Note for product disposal, transfer, or return
RThis product can store your private/confidential information. To protect your privacy/confidentiality, we
recommend that you erase the information (recorded images) from the memory before you dispose of,
transfer or return the product.
RDelete the data recorded to the Base Unit by performing “RESET + DEL ALL PICS” with the
Wireless Monitor (page 28).
Notice (for users in the United States Only)
10
Important Information
Location of controls
Wireless Camera
B
J
K
C
D
E
H
F
G
I
L
A
RBottom view
M
Fixing screw
Camera unit
Microphone
Camera lens
Speaker
Cable protection sheet
RDo not remove this sheet.
Magnet/rubber
RThe magnet and rubber are used to stop the Wireless Camera from moving.
Wireless unit
Battery case
Power slide switch (ON/OFF)
RThe batteries run out of power faster in the following situations. Turn the power slide switch OFF in
these situations.
– In situations such as when you are away from home for extended periods of time and you
disconnect the power to the Base Unit.
– During electrical power failures.
Pair button (Not normally used.)
ROnly used when pairing must be performed again for repairs or product exchanges (page 35).
11
Getting Started
Pair indicator
RFlashes/lights when pairing (not normally performed).
RWhen you turn the Wireless Camera’s power ON, you can check the pair indicator to check if the
power is actually turned on (page 19).
Slide lever
RUse the slide lever when removing the battery case.

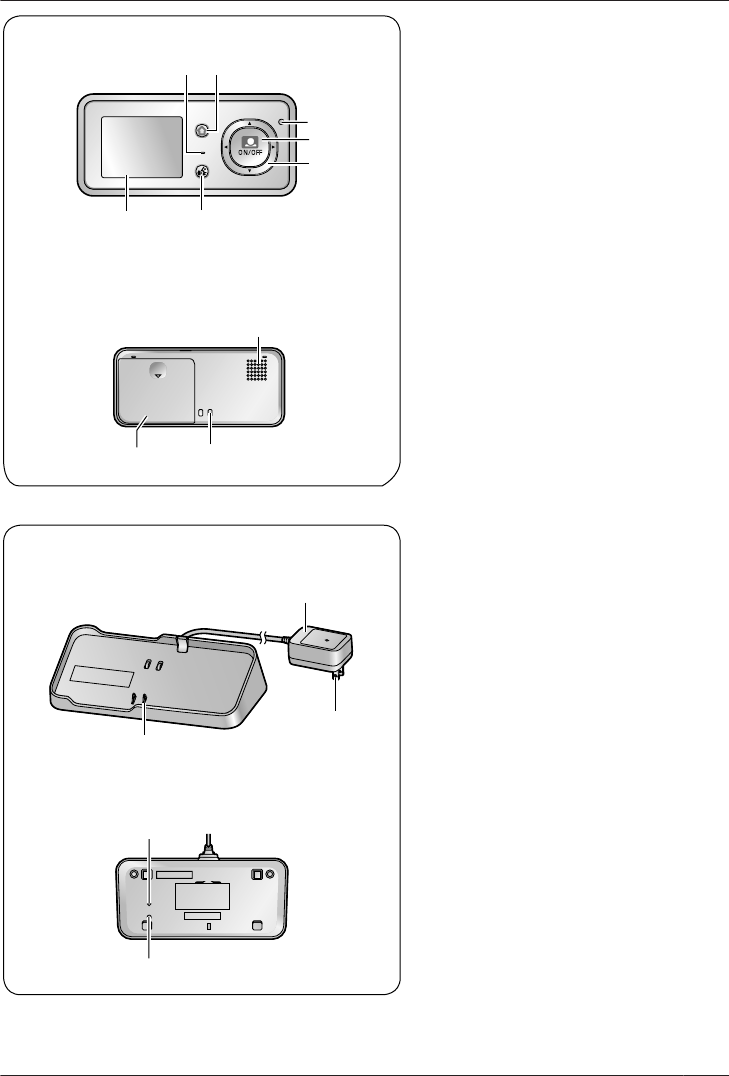

Wireless Monitor
AB
FG
MENU
PRESS TALK
D
C
E
RBottom view
H
I
J
Microphone
Menu button
Charge indicator
Monitor button
RUsed to monitor the area outside the door (page 23).
RUsed to perform operations displayed by the operation guidance.
Navigator key
Used to select items or perform operations displayed by the operation guidance.
MDN/MCNPress MDN (up) or MCN (down).
MFN/MENPress MFN (left) or MEN (right).
Talk button
Monitor display
Speaker
Charge contacts (metal parts)
Battery cover
ROpen the battery cover when inserting the battery pack or exchanging the battery pack (page 15,
30).
12
Getting Started
Base Unit
(Shown on the Base Unit as: MAIN UNIT)
C
A
B
RBottom view
D
E
Electrical parts
Power plug
Charge contacts (metal parts)
Pair indicator (page 29, 35)
Pair button (page 29, 35)
Monitor display

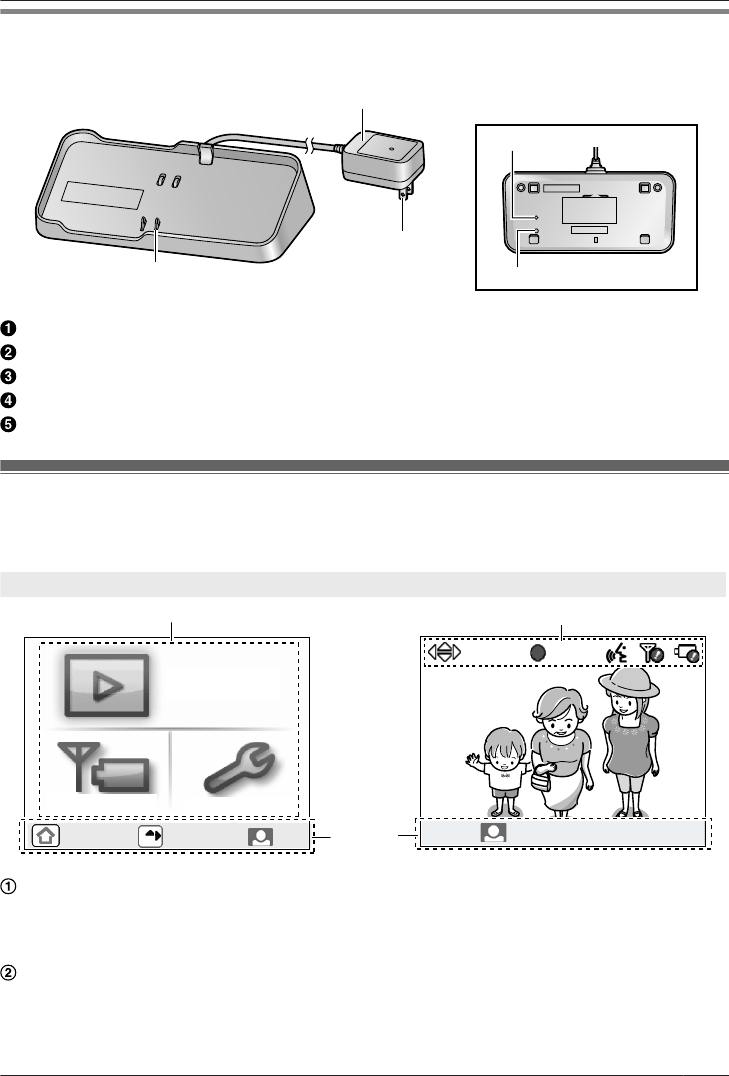

RThe following display is an example for description purposes, and it may differ from the actual display.
RTo display the top menu when it is off (not displayed), press MMENUN.
Top menu When displaying images
All SETTINGS
PLAY IMAGES
SIGNAL/BAT
OFF OK 2
1
2
3
PRESS 3 SEC TO GO TO ZOOM
PRESS 3 SEC TO GO TO ZOOM
REC
Displays the menu names for items that can be operated.
“PLAY IMAGES”: Use this menu to view recorded images (page 25).
“SIGNAL/BAT”: Use this menu to display the status of the wireless signal and batteries (page 14).
“ALL SETTINGS”: Use this menu to change settings (page 27).
Operation guidance
Displays what actions the buttons can be used for and guidance for operations.
RThe operation guidance can be configured not to be displayed when monitoring or viewing
recorded images (page 27).
13
Getting Started

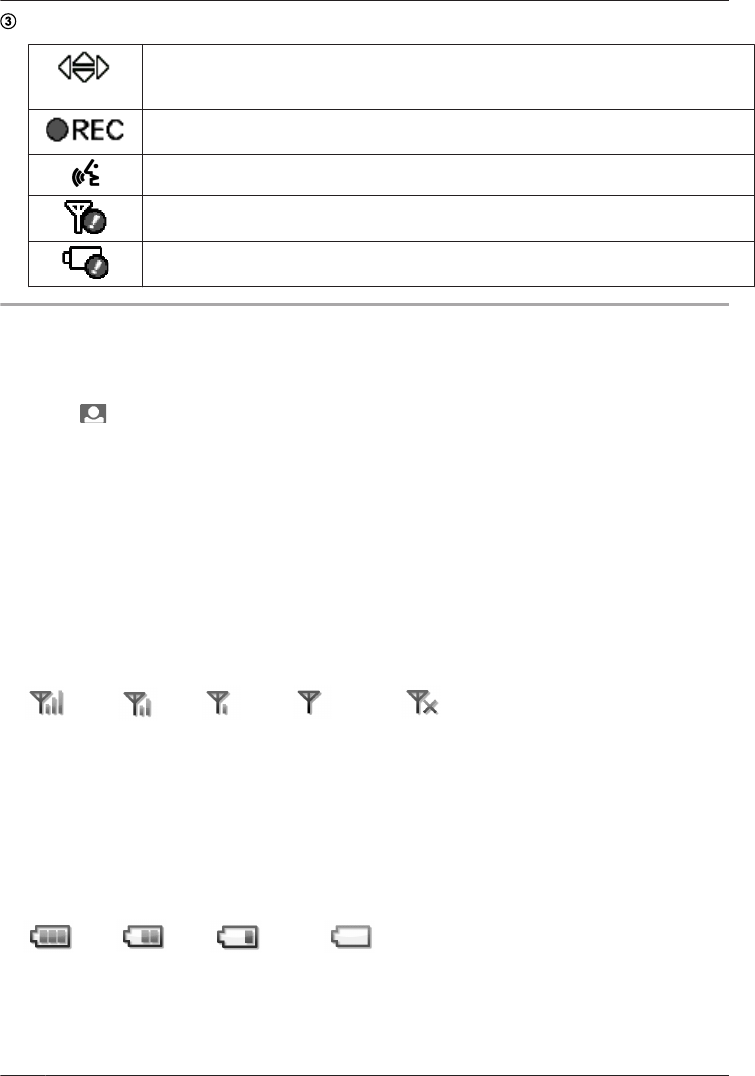

Displays the current status with symbols.
Displayed when displaying the Zoom display (page 23).
The displayed arrows indicate which direction the Zoom position can be moved when
displaying the Zoom display.
REC
Displayed when recording images (page 24).
Displayed when MPRESS TALKN is pressed while talking (page 23).
Displayed when the signal between the Base Unit and Wireless Camera/Wireless
Monitor is weak.
Displayed when there is not much power remaining in the batteries of the Wireless
Camera or Wireless Monitor.
Signal/battery information
You can display and check the signal and remaining battery power of the Wireless Camera and Wireless
Monitor with the following operations.
1Press MMENUN, then select “SIGNAL/BAT” by pressing MDN, MCN, MFN, or MEN.
2Press M N (Monitor button) (“OK”).
3Press MEN (“RENEW”) to display the latest signal status and remaining battery power information.
4To finish the operation, press MMENUN 2 times.
Note:
RThe MMENUN button will light in red to inform you when the signal is weak or if the remaining battery
power is running low. If the MMENUN button is pressed at this time, the light goes out and the signal/
battery information screen is displayed. Take the appropriate action, such as exchanging the batteries,
after checking the information displayed.
Signal status symbols
Good Bad Out of range
*1
*1
*1 Use within this range.
Note:
RWhen the signal is bad or out of range, move the devices to an area with a good signal.
– When the Wireless Camera is out of range, move the Base Unit to an area with a good signal.
– When the Wireless Monitor is out of range, move the Wireless Monitor or Base Unit to an area with
a good signal.
Remaining battery power symbols
Lots Little Out of power
*1
*1
*1 Use within this range.
Note:
RWhen the batteries of the Wireless Camera run out of power, exchange them with new batteries
(page 19, 30).
RWhen the Wireless Monitor runs out of power, charge it with the Base Unit (page 15).
14
Getting Started
RWhen the Wireless Camera is (Out of range), the remaining battery power symbol of the Wireless
Camera is not displayed.
Charging the Wireless Monitor
Charge the Wireless Monitor before using it.
1Insert the battery pack.
ROpen the cover (A), insert the battery pack (B), and then close the battery cover (A).
Battery cover
A
B
2Plug the power plug into the power outlet (120 V AC, 60 Hz) (A).
C
2
A
Pin
Charge contacts
(metal parts)
Charge indicator
Power plug
3Place the Wireless Monitor on the lower part of the Base Unit (B), and then firmly push it into the
Base Unit until it clicks into place (C). Check that the charge indicator lights up.
RWhile charging: the charge indicator lights up.
When charging is completed: the charge indicator turns off.
(It takes about 6 hours to complete charging.)
REven after the Wireless Monitor is fully charged, the Wireless Monitor can be left on the Base Unit
without causing it to overcharge.
RWhen the battery pack is completely out of power, it may take some time until the charge indicator
lights up (about 5 minutes) when charging the Wireless Monitor. This is not a malfunction.
RWhen removing the Wireless Monitor from the Base Unit, remove the upper part of the Wireless
Monitor first.
Do not unplug the power plug from the power outlet when recharging is completed. (Images
from the Wireless Camera cannot be monitored when the power plug is unplugged from the
power outlet.)
15
Getting Started
Note:
RIn order to maintain battery pack performance and prevent the battery pack from discharging,
remove the battery pack when the Wireless Monitor is off the Base Unit or the power plug is
unplugged from the power outlet for a week or longer.
– Recharge the battery pack before using the Wireless Monitor again.
Setting the date and time
This unit has a recording function. The date and time will not be recorded when recording unless they are
set (page 25). You can set the date and time using the Wireless Monitor.
RThe date and time registered to the Base Unit can also be changed on additional Wireless Monitors.
MENU
PRESS TALK
1Press MMENUN, then select “ALL SETTINGS” by pressing MDN, MCN, MFN, or MEN.
2Press M N (Monitor button) (“OK”), then select “START-UP SETTINGS” by pressing MDN or MCN.
3Press MN (Monitor button) (“OK”), then select “TIME AND DATE SETTINGS” by pressing MDN or
MCN.
4Press MN (Monitor button) (“OK”), then set the current date and time.
Select the year/month/date/hour/minute by pressing MFN or MEN.
Select numbers by pressing MDN or MCN.
RYou can scroll numbers by pressing and holding MDN or MCN.
Example:
2012-11-23 11: 45
OK
5Press M N (Monitor button) (“OK”) after finishing the settings.
RA beep will sound when the settings are changed.
6To finish the operation, press MMENUN 2 times.
Note:
RTime may get out of sync by about 60 seconds per month.
16
Getting Started
Attaching the Wireless Camera
Before attaching the Wireless Camera (Installation preparation)

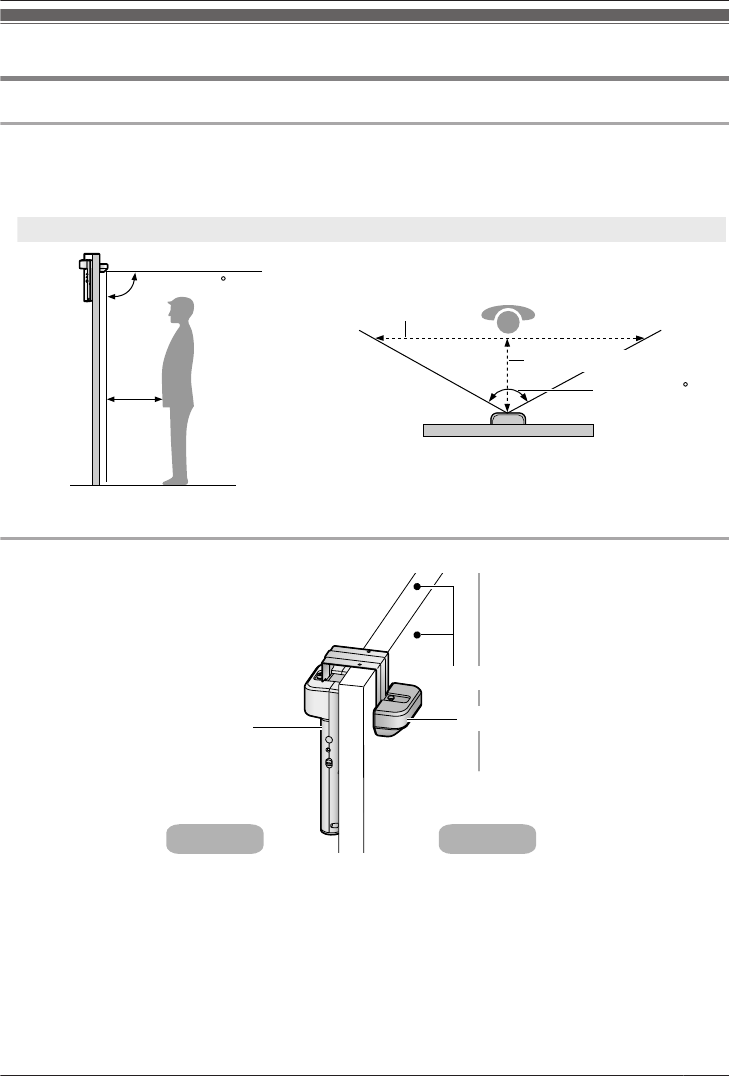

Wireless Camera range
RViews when the camera is set “WIDE” (default).
When using with a door with a height of 2 m (6 ft 7 in.)
Side view Top view
approx.
90
approx.
50 cm
(1 ft 8 in.)
approx.
120
approx. 180 cm
(5 ft 11 in.)
approx.
50 cm (1 ft 8 in.)
Attaching the Wireless Camera to a door
Inner side of the door
Inside Outside
Wireless unit Camera unit
Surface of the door
RAttach the Wireless Camera to a door in a protected area that is not directly exposed to the elements,
such as under a roof or eave.
RConnect the Base Unit to the power outlet and turn it on.
RAttach the Wireless Camera to a flat area on the surface on the door.
RWipe dirt and moisture from the surface of the door where the Wireless Camera will be attached.
RRemove the protection film from rear side of the wireless unit.
17
Getting Started

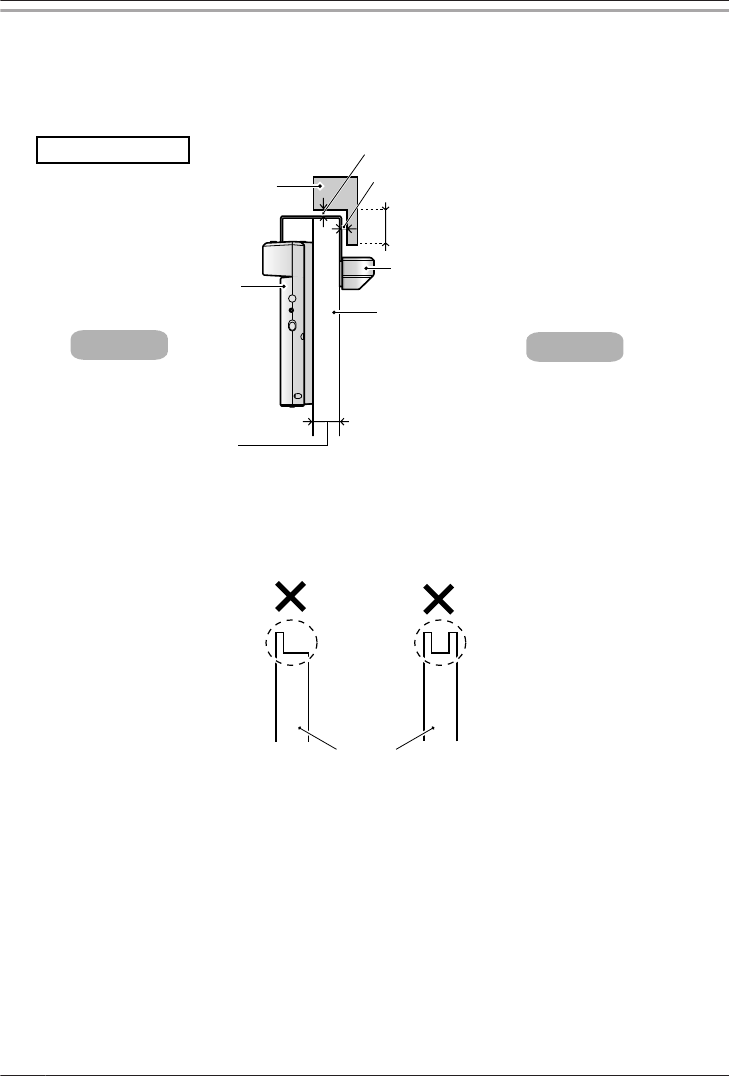

Doors the Wireless Camera can be attached to
RSteel doors that open to the inside that meet the following requirements.
– A gap of 2.5 mm (3/32 in.) or more for A and 3 mm (1/8 in.) or more for B between the door and
door frame.
– A door with a thickness of between 32 mm - 63 mm (1 1/4 in. - 2 1/2 in.) (C).
45 mm (1 3/4 in.) or less
Camera unit
Side of the door
Door thickness between
32 mm - 63 mm
(1 1/4 in. - 2 1/2 in.)
C
Wireless unit
A gap of 2.5 mm (3/32 in.) or more
A
A gap of 3 mm (1/8 in.) or more
B
Outside
Inside
Door frame
View from the side
Note:
RThe Wireless Camera cannot be attached to the following doors.
– Sliding doors
– Doors that open to the outside
– A door with a protrusion such as a guard plate, or a cavity
Side of the door
18
Getting Started
Inserting batteries into the wireless unit
Before attaching the Wireless Camera to the door, insert the batteries by performing the following
procedure.
1Slide the slide lever (A) across and take out the battery case (B) from the wireless unit.
RBe careful not to drop the battery case when taking it out.
A
B
2Insert the batteries.
R4 Alkaline AA batteries
RDo not mix old and new batteries, or batteries of different types.
RMake sure that the polarity ( , ) of the batteries is correct.
3Insert the battery case into the wireless unit.
RFirmly push the battery case into the wireless unit until the red label (A) cannot be seen.
B
C
A
4Slide the power slide switch (B) to ON.
RYou can check if the power is actually on by confirming that the pair indicator (C) changes from
flashing to not lit.
Note:
RBatteries have a shelf-life. Check the shelf-life listed on the batteries before using them.
19
Getting Started
RUse Alkaline AA (LR6) batteries. The batteries’ lifetime will be reduced if different types of batteries are
used together.
RTo prevent the Wireless Camera from falling down when replacing the batteries, make sure to close
the door and turn off the power of the Wireless Camera before replacing batteries.
Attaching the Wireless Camera to a door
Note:
RBe careful not to get your fingers caught in the door when attaching the Wireless Camera.

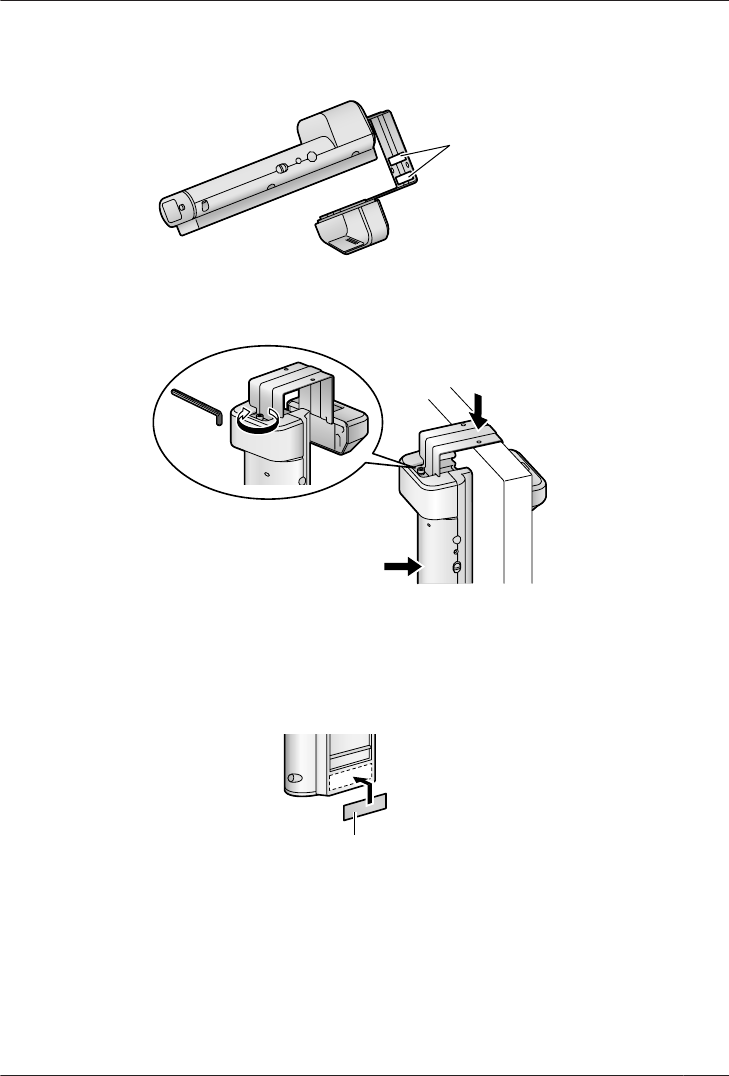

1Loosen the wireless unit’s fixing screw (A) with the included hex key (B), and then hang the
Wireless Camera from the door.
RDo not take the fixing screw (A) off, just loosen it.
RPosition the Wireless Camera so that visitors can be centrally viewed when monitoring.
C
D
E
A
B
2Holding the camera unit (C), adjust the position of the metal plate (D) so that the distance between
the wireless unit (E) and camera unit (C) matches the width of the door, then temporarily fix the
Wireless Camera into position by gently tightening the fixing screw (A).
3Check that the metal plate (D) of the Wireless Camera does not hit against the door frame when
opening or closing the door.
4Check that the Wireless Camera is in a suitable position.
RCheck images from the Wireless Camera on the Wireless Monitor, and adjust the position of the
Wireless Camera as necessary.
20
Getting Started
5Carefully take the Wireless Camera off the door without loosening the fixing screw, and then remove
the silicon paper from the double-sided tape on the back of the metal plate.
RWipe dirt and moisture from the surface of the door, then attach the Wireless Camera to a flat area
on the surface of the door.
Double-sided tape
6Hang the Wireless Camera from the position confirmed in step 4, then press the Wireless Camera
into the door so that the double-sided tape on the back of the metal plate and wireless unit sticks to
the door (A). Make sure that there are no gaps between the top of the door and the metal plate.
A
BPRESS
PRESS
A
RCheck that the wireless unit does not easily move around when the door is closed.
RPerform the following when the double-sided tape does not stick well to the door and the Wireless
Camera moves around easily.
(1) Remove the Wireless Camera from the door.
(2) Loosen the fixing screw, widen the distance between camera unit and wireless unit, and then
stick the additional double-sided tape to the back of the wireless unit.
Double-sided tape (included)
(3) Remove the silicon paper from the double-sided tape, then hang the Wireless Camera from
where it was positioned before.
(4) After pressing the wireless unit into the door to so that it sticks to the door, adjust the position
of the metal plate so that the distance between the wireless unit and camera unit matches the
width of the door while holding the camera unit.
7Close the door, then firmly tighten the fixing screw (B) while holding the wireless unit to stop it from
moving.
RHold the long part of the hex key and firmly tighten the fixing screw.
RCheck that the fixing screw has not become loose at regular intervals.
21
Getting Started
RIf the door is made of wood, make sure to use the included screws to fix the metal plate to the top
side of the door. Make sure to get permission from the owner before fixing screws to the door.
Important:
RBecause the Wireless Camera uses double-sided tape with strong adhesion to prevent it from falling
down, care is needed when removing the Wireless Camera from the door. (Forcibly removing the
double-sided tape may damage the surface of the door.)
22
Getting Started
Monitoring the outside
You can monitor the sounds and images from outside taken by the Wireless Camera.
RThe sound from your end will not be heard at the Wireless Camera.
You can perform the following operations during monitoring:
RSwitching between Wide/Zoom (page 23)
RRecording images (page 24)
RAdjusting brightness (display)/Audio output volume/Audio input volume (page 23)
MENU
PRESS TALK
1Press M N (Monitor button).
RThe outside image will be shown on the display, and you will hear the sound from outside.
RTo speak to the other party at the Wireless Camera, press MPRESS TALKN.
You can speak to the other party by pressing and holding MPRESS TALKN.
R appears on the display.
RYou cannot hear the sound from the other party when MPRESS TALKN is pressed.
You can hear the sound from other party by releasing MPRESS TALKN.
R disappears from the display.
RThe sound from your end will not be heard at the Wireless Camera.
2To end operations, press M N (Monitor button).
Note:
RMonitoring lasts for about 20 seconds after M N (Monitor button) is pressed.
However, if operations are performed during monitoring, monitoring can be extended to a maximum of
3 minutes.
RAt night or at other times when the area around the Wireless Camera becomes dark, the following
occur:
– The image quality is reduced.
– Images are automatically brightened to make it easier to see the face of the other party. Although
images may appear to be washed out, this is not a malfunction.
Adjusting brightness (display)/Audio output volume/Audio input volume
1Press MMENUN while monitoring.
2Press MDN or MCN to select the desired item (such as brightness).
3Press MFN or MEN to adjust it.
Manipulating displayed images with Wide/Zoom and Pan/Tilt
During monitoring, the display can be temporarily switched between Wide/Zoom, and the Zoom position
can be changed with pan/tilt operations.
23
How to use
Wide display
(default setting) Zoom display
1Press and hold M N (Monitor button) for about 3 seconds when in the Wide display.
RThe display is switched to the Zoom display.
RTo switch back to the Wide display, press and hold MN (Monitor button) for about 3 seconds
again.
2To change the Zoom position with Pan/Tilt, press MDN, MCN, MFN, or MEN when in the Zoom display.
RThe Zoom position changes each time MDN, MCN, MFN, or MEN is pressed.
Example:
B
A
In the illustration above, the Zoom position is shown in gray.
– Press MFN 1 time: the Zoom position is moved to (A).
– Press MCN 1 time: the Zoom position is moved to (B).
RThe Zoom position can be moved in the direction of the symbols shown on the screen.
Note:
RPerforming the above operations only temporarily switches between Wide/Zoom displays. Therefore,
images will be displayed according to the default settings the next time images are monitored. To
change the default settings, change “WIDE/ZOOM SETTINGS” (page 27).
RWhen the Zoom position is changed, it is retained and used the next time images are monitored.
Recording displayed images
Images being monitored can be recorded.
REach recorded picture records 1 still image picture. (A maximum of 10 recorded pictures can be
recorded.)
24
How to use
RRecorded images are saved to the Base Unit.
RImages recorded by additional Wireless Monitors are also saved to the Base Unit.
1Press MMENUN while monitoring images.
2Press MEN (“RECORD”).
R
REC
is displayed on the screen.
Note:
RImages are recorded according to the current display setting. When in Wide display, Wide display
images are recorded, and when in Zoom display, images of the zoomed in area are recorded. (When
viewing recorded images, the display setting (Wide or Zoom) and the Zoom position cannot be
changed.)
RThere may be a delay from when recording operations are performed to when recording starts.
Accordingly, the actual recorded images may differ from the images monitored when recording
operations were performed.
When the recording memory is full (automatic overwriting):
RIn order to record new images when the recording memory is full, existing recorded images are
automatically deleted in order from the oldest image. In this way recorded images do not have to
be manually deleted, and recording can be performed at anytime. You can use the picture protection
setting to protect images that you do not want to be deleted from being deleted (page 25).
Viewing recorded images
Images recorded during monitoring can be viewed with the following operations.
RWhile viewing images, you can protect images that you do not want to be deleted, and delete
unnecessary images (page 25). (A maximum of 5 images can be protected.)
1Press MMENUN, then select “PLAY IMAGES” by pressing MDN or MCN.
2Press M N (Monitor button) (“OK”).
RThe image with the most recent date and time is displayed.
RWhen there is more than 1 image, press MFN to view the next image. Each time you press MFN,
images are displayed in chronological order starting from the most recently recorded image to the
oldest recorded image.
RYou can hide the guidance (date and time, and the operation guidance) by pressing MCN. The
guidance is temporarily hidden, but it is displayed again when an operation is performed.
3To finish the operation, press MN (Monitor button) (“OFF”).
Protecting and deleting pictures
How to protect images (or remove protection)
1Press MMENUN while viewing images.
2Select “SET/REMOVE PROTECTION” by pressing MDN or MCN, then press M N (Monitor button)
(“OK”).
RWhen an image is configured to be protected, a protection symbol “ ” is displayed for the
image. When the protection setting is removed, the symbol disappears.
How to delete images
1Press MMENUN while viewing images.
2Select “DELETE 1 PICTURE” by pressing MDN or MCN, then press MN (monitor button) (“OK”).
3Select “YES” by pressing MDN or MCN, then press MN (monitor button) (“OK”).
25
How to use
Note:
RA maximum of 5 images can be protected. If you want to protected an image when 5 images are
already protected, you must remove protection from 1 of the images.
RProtected images cannot be deleted. Remove the protection in order to delete protected images.
26
How to use
Programming function settings
You can change the function settings to suit your needs.
How to change the function settings
1Press MMENUN, then select the “ALL SETTINGS” by pressing MDN, MCN, MFN, or MEN.
2Press MN (monitor button) (“OK”), then select the desired item by pressing MDN or MCN.
3Press M N (monitor button) (“OK”).
4Press MDN or MCN to select the desired setting, then press M N (monitor button) (“OK”).
RThis step may vary depending on the feature being programmed.
5Press MDN or MCN to select the desired setting, then press MN (monitor button) (“OK”).
6To finish the operation, press MMENUN 2 times.
Note:
RWhen no operation is performed for about 60 seconds during settings, the setting function quits.
Function list
In the following list, < > indicates the default settings.
Item Function Setting
START-UP
SETTINGS
MOTTLED COLOR
PREVENT*1
<POWER FREQUENCY (60Hz)> / POWER FREQUENCY
(50Hz)
RTo prevent mottled or uneven color from being
displayed, set the power frequency to match the area in
which you use the unit.
TIME AND DATE
SETTINGS*1
You can set the current date and time (page 16).
LANGUAGE
SELECTION
<ENGLISH> / FRENCH / SPANISH / ARABIC
DISPLAY/SOUND
SETTINGS
WIDE/ZOOM
SETTINGS*1
<WIDE> / ZOOM
RSelect how images are initially displayed: Wide or Zoom.
CONTRAST When it is difficult to see the monitor display, you can
adjust the display contrast. 5 levels are available.
OPERATION
GUIDANCE
<YES> / NO
RSelect NO if you do not want the operation guidance
(page 13, 25) to be displayed when viewing Wireless
Camera images or recorded images.
CONFIRMATION
SOUND
<ON> / OFF
RWhen OFF is selected, all sounds (apart from audio
from talking) are turned off.
SAVE CAMERA
BATTERIES*1
–
<OFF> / ON
RSelect ON to lengthen the time that the batteries can be
used for. (However, by selecting ON, the time it takes to
display images when monitoring may increase.)
27
How to use
Item Function Setting
RESET + DEL
ALL PICS
ONLY DELETE
ALL PICS*1
DELETE ALL PICTURES / DEL NON-PROTECTED PICS
RImages saved on the Base Unit are deleted.
RESET + DEL
ALL PICS*1*2
YES / NO
RIf YES is selected, all images recorded to the Base Unit
(including protected images) are deleted, and the entire
Wireless Door Camera system settings, including the
Wireless Monitor settings, are reset.
ONLY RESET
SETTINGS*1*2
YES / NO
RIf YES is selected, the entire Wireless Door Camera
system settings, including the Wireless Monitor settings,
are reset.
PAIRING/CANCEL PAIRING Pairs the Wireless Monitor to the Base Unit (page 29).
CANCELATION Removes the pairing of the Wireless Monitor from the
Base Unit (page 30).
*1 These settings are related to the entire Wireless Door Camera system. If these settings are changed
in the Wireless Monitor, the settings for all the additional Wireless Monitors are also changed.
*2 Pairing for the Wireless Monitor paired to Base Unit is not changed when the unit is reset.
– Even when the Wireless Monitor is within signal range, if the Wireless Camera is out of signal
range, the unit cannot be reset. Only reset the unit when all devices are within signal range.
28
How to use
Adding extra Wireless Monitors (Pairing)
RBy adding separately sold Wireless Monitors (page 4), a total of 4 Wireless Monitors (including the
included Wireless Monitor) can be used with a single Wireless Camera.
RPair additional Wireless Monitors to the Base Unit.

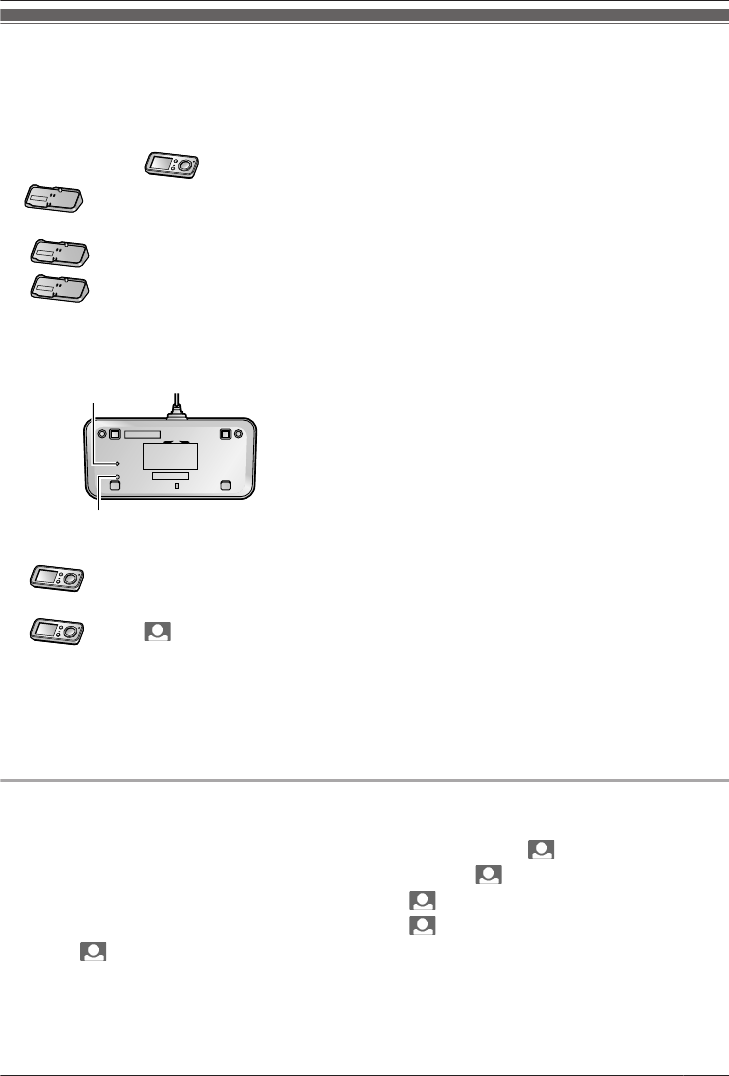

RPlace the additional Wireless Monitor near the Base Unit and then perform operations on the additional
Wireless Monitor ( ) within about 2 minutes of performing operations on the Base Unit
().
1: Plug the power plug of the Base Unit into the power outlet.
2: Press and hold the pair button (B) located on the bottom side of the Base Unit for about 3
seconds with a pointed object.
RStop pressing the pair button (B) when the pair indicator (A) starts to slowly flash.
<Bottom view>
A
B
3: Press MMENUN.
RPerform the operation for step 3 within about 2 minutes after performing step 2.
4: Press M N (monitor button) to start pairing.
RWhen pairing is completed, “PAIRING COMPLETED” is displayed.
Note:
RPairing cannot be performed when another Wireless Monitor is accessing the Base Unit (for monitoring
or other purposes).
RThe monitor number of the Wireless Monitor to be paired cannot be specified.
Pairing canceled Wireless Monitors again
1Press MMENUN.
2Select “ALL SETTINGS” by pressing MDN, MCN, MFN, or MEN, then press MN (monitor button) (“OK”).
3Select “PAIRING/CANCEL” by pressing MDN or MCN, then press M N (monitor button) (“OK”).
4Select “PAIRING” by pressing MDN or MCN, then press M N (monitor button) (“OK”).
5Select “MONITOR” by pressing MDN or MCN, then press MN (monitor button) (“OK”).
6Press M N (monitor button).
7To finish the operation, press MMENUN 2 times.
29
Useful Information
Canceling unused Wireless Monitors
RThese operations are performed on the included Wireless Monitor, and can also be performed on the
additionally paired Wireless Monitor.
RThe pairing of the Wireless Monitor performing operations cannot be canceled.
1Press MMENUN.
2Select “ALL SETTINGS” by pressing MDN, MCN, MFN, or MEN, then press MN (monitor button) (“OK”).
3Select “PAIRING/CANCEL” by pressing MDN or MCN, then press M N (monitor button) (“OK”).
4Select “CANCELATION” by pressing MDN or MCN, then press MN (monitor button) (“OK”).
5Select “MONITOR” by pressing MDN or MCN, then press M N (monitor button) (“OK”).
6Select the Wireless Monitor to cancel by pressing MDN or MCN, then press M N (monitor button)
(“OK”).
RIn the following situations, Wireless Monitors are displayed in gray and cannot be canceled.
– when trying to cancel the pairing of a Wireless Monitor that is performing operations.
– when there is a Wireless Monitor that has not been paired.
7To finish the operation, press MMENUN 2 times.
Important:
RIn order to prevent false operations, remove the battery packs from canceled Wireless Monitors.
Replacing batteries or battery packs
n Batteries used in the Wireless Camera
When the batteries of the Wireless Camera run out of power ( ), exchange them with new batteries.
RONLY USE Alkaline AA batteries.
RRefer to page 19 for information on how to insert batteries.
RTo prevent the Wireless Camera from falling down, make sure to close the door and turn off the
power of the Wireless Camera before replacing batteries.
n Battery pack used in the Wireless Monitor
When the Wireless Monitor’s battery pack runs out of power soon after being charged, exchange it with a
new battery pack.
RUse the separately sold CGA-LB102 for a replacement battery pack (page 4).
– Battery specifications: lithium ion battery, DC 3.7 V, 940 mAh.
RRefer to page 15 for information on how to insert battery packs.
Cleaning
RClean the unit with a soft, dry cloth. For excessive dirt, wipe the unit with a slightly damp cloth.
RWhen cleaning the Base Unit, electrical parts, and power plug, make sure to unplug the power plug
from the power outlet.
30
Useful Information

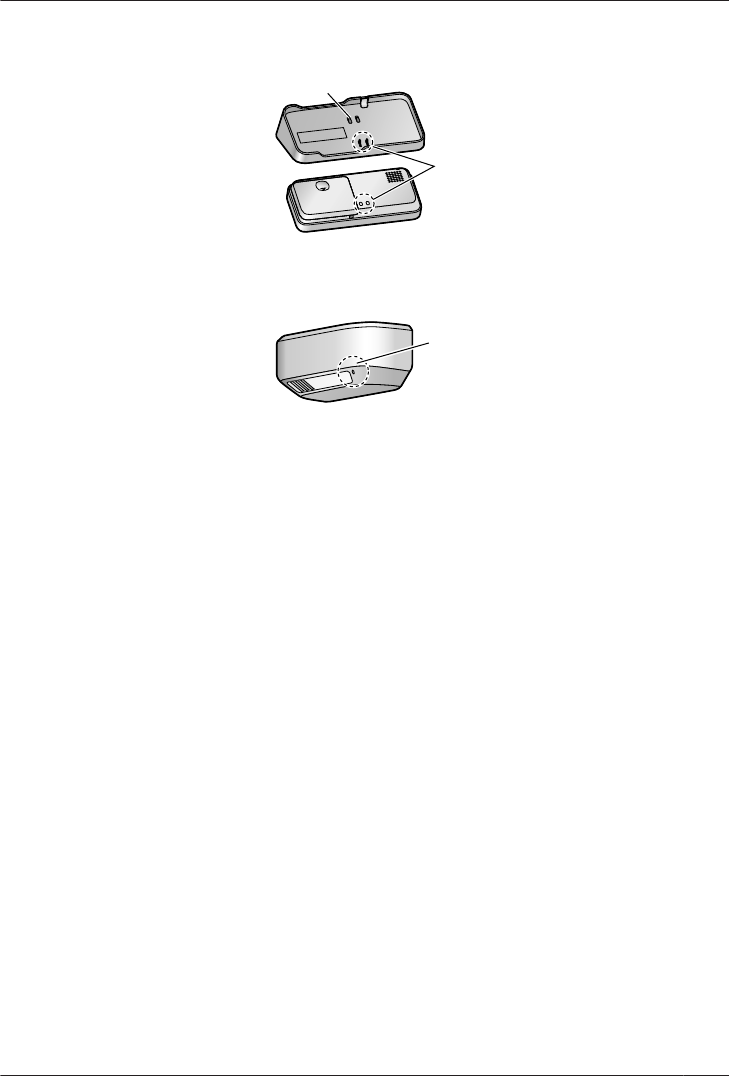

RWipe the charge contacts (A) about once a month with a dry cloth. (If the charge contacts become
dirty, it may take longer to charge, or charging may not be possible.)
– Press B so that the charge contacts (A) come out from Base Unit.
A
B
RRemove any moisture from the Wireless Camera’s microphone (C) with a cotton bud or similar
product.
– Audio may not be heard clearly when there is moisture in the microphone.
C
Important:
RDo not use anything containing alcohol, polish powder, powder soap, benzine, thinner, wax, petroleum,
or boiling water. Also do not spray with insecticide, glass cleaner, or hair spray. This could cause a
change in color or quality.
31
Useful Information
Troubleshooting
Display issues
Problem Cause & Solution Page
Images appear slightly
distorted.
RThis is a characteristic of camera lenses and is not a
malfunction. –
The image of a person’s
face is dark.
RWhen there is a backlight in the place where the Wireless
Camera is located, the person’s face becomes dark.
– Adjust the brightness of the display while monitoring.
23
The image is not clear or
is blurry.
RThe surface of the lens of the Wireless Camera is dirty.
– Clean it with a soft dry cloth. 30
RThe surface of the lens of the Wireless Camera is wet with
dew. Wait for the condensation to evaporate. –
The image of the subject
is washed out when it is
dark.
RWhen it is dark, the image brightness is automatically
adjusted in order to make the person’s face easier to see.
Although images may appear washed out, this is not a
malfunction.
–
The image is white or
black.
RThe brightness of the display is not properly adjusted.
Adjust the brightness while monitoring. 23
The image is white, or
white lines or circles are
shown on the display.
RStrong light such as sunlight is shining into the lens of the
Wireless Camera. Though this may cause the display
image to become difficult to see, this is not a malfunction.
– Locate the Wireless Camera away from direct sunlight.
–
The image is flickering. RThe MOTTLED COLOR PREVENT setting does not match
the power frequency for the region that you are using the
unit in.
– Matching the power frequency for the region that you are
using the unit in can improve the quality of the colors
displayed. When using the unit in a different region (after
moving, etc.), match the settings to that region.
27
RAC (alternating current) lights such as fluorescent lights
may cause flickering. This is not a malfunction. –
The image displayed on
the Wireless Monitor
distorts or is displayed
slowly. (It takes about 5
seconds or more to be
displayed.)
RThe distance between the Base Unit and Wireless
Camera, or Base Unit and Wireless Monitor is too far, or
there is a concrete wall or other obstruction between the
Base Unit and Wireless Camera, or Base Unit and
Wireless Monitor.
– Move the Base Unit to a location closer to the Wireless
Camera that has no obstructions, or move the Wireless
Monitor to a location closer to the Base Unit that has no
obstructions.
8
The recording date and
time are not displayed
while viewing images.
RThe date and time are not set. The date and time may be
reset to the default setting after a long periods with the
power plug unplugged or when a power failure occurs.
– Set the current date and time using the Wireless Monitor.
16
32
Help
Base Unit/Wireless Monitor
Problem Cause & Solution Page
Even when the Wireless
Monitor is placed on the
Base Unit (or the charger
of additional Wireless
Monitors), the charge
indicator does not light up.
RThe power plug is unplugged from the power outlet.
– Plug the power plug into the power outlet firmly. 15
RThe Wireless Monitor is not placed on the Base Unit
correctly.
– Replace it securely. (The charge indicator lights in red.)
15
RThe charge contacts are dirty.
– Wipe them with a soft dry cloth. 31
If there is no change after performing the above actions,
contact our service personnel. –
Even if the Wireless
Monitor has been
charged, flashes
after using it a few times.
RThe battery pack is at the end of its life.
– Replace the battery pack with a new one. 30
The Wireless Monitor or
the Base Unit (or the
charger of additional
Wireless Monitors) is
warm.
RThis is normal. (It may feel a little warmer in summer than
in winter.)
– If it feels very hot, unplug the power plug from the power
outlet and remove the battery pack, then contact our
service personnel.
–
Others
Problem Cause & Solution Page
The Wireless Camera’s
batteries run out of power
quickly.
RThe Wireless Camera is out of range of the Base Unit.
– When the Wireless Camera is out of range of the Base
Unit, it repeatedly searches for the Base Unit which
causes the batteries’ power to be consumed faster.
Move the Base Unit so that it is within range of the
Wireless Camera.
14
RThe power plug is unplugged from the power outlet.
– When the Base Unit is disconnected from the power
outlet it causes the Wireless Camera to become out of
range from the Base Unit. This causes the Wireless
Camera to repeatedly search for the Base Unit which
results in the batteries’ power being consumed faster.
When unplugging the power plug of the Base Unit, turn
the slide switch of the Wireless Camera to OFF.
–
RYou are using rechargeable batteries.
– Depending on the capacity of the rechargeable batteries,
their life span may become shorter. This is not a
malfunction.
–
There is a power failure. RThe unit does not work during a power failure. The date
and time may be reset to the default setting after a power
failure.
– In this case, set the date and time again using the
Wireless Monitor.
16
33
Help
Problem Cause & Solution Page
The unit does not work
with correct operations.
(The unit does not work
properly.)
RPerform the following operations.
Wireless Camera:
Replace the batteries. 30
Wireless Monitor:
Remove the battery pack and insert it again.
– Program settings are not affected.
15
Base Unit:
Disconnect it from the power outlet and then reconnect it
again.
34
Help
Error messages
Problem Cause & Solution Page
CANNOT CONNECT TO
CAMERA
The following may be causing the problem.
RThe Wireless Camera is turned off.
– Turn the Wireless Camera on. 11
RThe batteries of the Wireless Camera have run out of
power.
– Replace the batteries.
30
RThe Wireless Camera is turned on, but the Wireless
Camera is out of range from the Base Unit.
– Move the Base Unit to an area close to the Wireless
Camera that has no obstructions between the Wireless
Camera and Base Unit. (When the Wireless Camera is
in range of the Base Unit it can connect to the Base Unit.)
– Turn the power for the Wireless Camera off then on.
(When the Wireless Camera is in range of the Base Unit
it can connect to the Base Unit.)
– When using a replacement Wireless Camera when
servicing your original Wireless Camera, the
replacement Wireless Camera must be paired to the
Base Unit. Refer to the following for instructions on how
to pair the Wireless Camera.
8
11
n How to pair Wireless Cameras
After performing operations on the Base Unit, perform
operations on the Wireless Camera within about 2 minutes.
Base Unit operations:
A Press and hold the pair button located on the rear bottom
side of the Base Unit for about 13 seconds (until the pair
indicator flashes quickly) with a pointed object.
RThe pair indicator will start to slowly flash after about 3
seconds of pressing the pair button, after about an
additional 10 seconds the pair indicator starts flashing
quickly (enters CAMERA PAIRING MODE).
Wireless Camera operations:
B Insert the batteries (page 19).
C Turn the power for the Wireless Camera on while pressing
the pair button with a pointed object (keep pressing the pair
button until the pair indicator starts flashing).
RThe pair indicator starts flashing quickly.
–The pair indicator changes in the following manner
when pairing is successfully completed:
flash quickly ® light for about 10 seconds ® go out
–The pair indicator changes in the following manner
when pairing fails (Pairing must be performed
again.):
flash quickly ® go out
Protected pic.
Remove protection.
RThe images are protected and therefore cannot be deleted.
– Remove the protection to delete protected images. 25
35
Help
Problem Cause & Solution Page
Protected pics
full.
Can’t protect pics.
RThe maximum number of protected images (5 images) has
already been reached.
– Remove the protection from other images before setting
protection for the current image. Images that had their
protection removed will be deleted in order as new
images are recorded.
25
25
IN USE RAnother Wireless Monitor is being used.
– Try again when the other Wireless Monitor is not being
used.
–
CANNOT PAIR RPairing failed because pairing operations were not
performed on the Wireless Monitor within the specified time
(about 2 minutes).
– Perform pairing again from the start after checking the
power and connections for the Wireless Monitor to be
paired.
29
CANNOT CONNECT TO
BASE
RThe Wireless Monitor is too far from the Base Unit, or there
is a concrete wall or other obstruction between the
Wireless Monitor and Base Unit.
– Move the Wireless Monitor to an area close to the Base
Unit that has no obstructions between the Wireless
Monitor and Base Unit.
8
36
Help
Specifications
Wireless Monitor (VL-DM200A)
n Power supply:
Lithium ion battery (part number: CGA-LB102), @DC 3.7 V, 940 mAh@
n Dimensions (Height ´ Width ´ Depth):
Approx. 21 mm (13/16 in.) ´ 126 mm (4 15/16 in.) ´ 59 mm (2 5/16 in.) @(excluding protruding sections)@
– When using the Base Unit: approx. @51 mm (2 in.) ´ @132 mm (5 3/16 in.) ´ @79.5 mm (3 1/8 in.)
@(excluding protruding sections)@
n Weight:
@Approx. 200 g (0.44 lb) @(including the battery pack)
n Operating temperature:
5 °C to 40 °C (41 °F to 104 °F)
n Operating humidity:
Up to 90 % RH (Relative Humidity) non condensing
n Display:
2.2" color TFT LCD monitor
n Wireless transmission method:
1.9 GHz TDMA-WB
n Talking method
Half-duplex transmission (Press-talk)
n Usage time (with continuous use)*1:
Monitor: approx. 2.5 hours
Standby: approx. 100 hours
*1 @When the battery pack is fully charged and the temperature is 20 °C (68 °F).
n Charging time:
Approx. 6 hours
n Transmission frequency:
1921.536 MHz - 1928.448 MHz
n Transmitting range:
Approx. 70 m (229 ft 8 in.) (line-of-sight distance)
Base Unit (VL-MDM200A)
n Power supply:
120 V AC, 60 Hz
n Power consumption:
@During standby: approx. 1 W
@During operations: approx. 2 W (when used with the Wireless Monitor disconnected from the Base Unit)
@During charging: approx. 5 W
n Dimensions (Height ´ Width ´ Depth):
Approx. 41 mm (1 5/8 in.) ´ 132 mm (5 3/16 in.) ´ 75 mm (2 15/16 in.) @(excluding protruding sections)@
n Weight:
Approx. 175 g (0.39 lb)
37
General Information
n Operating temperature:
5 °C to 40 °C (41 °F to 104 °F)
n Operating humidity:
Up to 90 % RH (Relative Humidity) non condensing
n Wireless transmission method:
1.9 GHz TDMA-WB
n Transmission frequency:
1921.536 MHz - 1928.448 MHz
n Transmitting range:
Approx. 70 m (229 ft 8 in.) (line-of-sight distance)
Wireless Camera (VL-CM851A)
n Power supply:
Alkaline AA battery ´ 4
n Battery life:
Maximum 6 months*1
*1 When used 5 times a day (displaying images for about 20 seconds each time) with a temperature of
20 °C (68 °F).
n Dimensions (Height ´ Width ´ Depth):
RWireless unit:
Approx. 190 mm (7 1/2 in.) ´ 78 mm (3 1/16 in.) ´ 58 mm (2 5/16 in.) @(excluding protruding sections)
RCamera unit:
Approx. 37 mm (1 7/16 in.) ´ 87.5 mm (3 7/16 in.) ´ 40 mm (1 9/16 in.) @(excluding protruding sections)
n Weight:
Approx. 390 g (0.86 lb) (excluding batteries)
n Operating temperature:
RWireless unit (used indoors):
0°C to 40 °C (32 °F to 104 °F)
RCamera unit (used outdoors):
-20°C to 50 °C (-4 °F to 122 °F)
n Operating humidity:
Up to 90 % RH (Relative Humidity) non condensing
n Installation method:
Attached to a door
n Wireless transmission method:
1.9 GHz TDMA-WB
n Minimum illuminance:
3 lx
n Water resistant proprieties:
IPx3 equivalent (Camera unit)*1
*1 IPX-3 specifies protection against spraying water and water spraying up to 60° from vertical.@
n Viewing angle:
RHorizontal: approx. 120°
RVertical: approx. 90°
38
General Information
n Transmission frequency:
1921.536 MHz - 1928.448 MHz
n Transmitting range:
Approx. 70 m (229 ft 8 in.) (line-of-sight distance)
39
General Information
For users in the United States Only (FCC and other
information)
This device complies with Part 15 of the FCC Rules.
Operation is subject to the following two conditions:
(1) This device may not cause harmful interference, and
(2) this device must accept any interference received, including interference that may cause undesired
operation.
CAUTION:
Any changes or modifications not expressly approved by the party responsible for compliance could void
the user’s authority to operate this device.
NOTE:
This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant
to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful
interference in a residential installation. This equipment generates, uses, and can radiate radio frequency
energy and, if not installed and used in accordance with the instructions, may cause harmful interference
to radio communications. However, there is no guarantee that interference will not occur in a particular
installation. If this equipment does cause harmful interference to radio or television reception, which can
be determined by turning the equipment off and on, the user is encouraged to try to correct the
interference by one or more of the following measures:
– Reorient or relocate the receiving antenna.
– Increase the separation between the equipment and receiver.
– Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.
– Consult the dealer or an experienced radio/TV technician for help.
FCC RF Exposure Warning
RThis product complies with FCC radiation exposure limits set forth for an uncontrolled environment.
RTo comply with FCC RF exposure requirements, the unit must be installed and operated 20 cm (8
inches) or more between the product and all person’s body (excluding extremities of hands, wrist and
feet).
RThis product may not be collocated or operated in conjunction with any other antenna or transmitter.
Notice:
FCC ID can be found on the bottom of the Wireless Camera and Wireless Monitor, and on the electrical
parts of the Base Unit.
40
General Information
For users in Canada Only (Industry Canada Notices and
other information)
NOTICE:
This product meets the applicable Industry Canada technical specifications.
RF Exposure Warning:
RThis product complies with IC radiation exposure limits set forth for an uncontrolled environment.
RTo comply with IC RF exposure requirements, the unit must be installed and operated 20 cm (8
inches) or more between the product and all person’s body (excluding extremities of hands, wrist and
feet).
RThis product may not be collocated or operated in conjunction with any other antenna or transmitter.
This Class B digital apparatus complies with Canadian ICES-003.
41
General Information
Quick Reference Guide (in Spanish)
AFixing screw
BCamera unit
CMicrophone
DCamera lens
ESpeaker
F
Wireless unit
GMagnet/rubber
H
Power slide switch
(ON / OFF)
I
Pair button
J
Pair indicator
K
Slide lever
VL-CM851A
Quick Reference Guide
Location of controls
Bottom view
B
K
C
D
E
H
F
G
I
L
M
L
M
Battery case
Cable protection sheet
A
J
42
Quick Reference Guide (in Spanish)
Bottom view
O
N
VL-DM200A
A
Monitor display
BMenu button
CCharger indicator
DMonitor button
ENavigator key
FTalk button
G
H
Battery cover
I
J
Charge contacts
(metal parts)
K
Charge contacts
(metal parts)
L
M
Power plug
NPair indicator
VL-MDM200A
K
L
MOPair button
AB
MENU
PRESS TALK
D
C
E
F
G
H
I
J
Microphone
Speaker
Electrical parts
Bottom view
43
Quick Reference Guide (in Spanish)
To monitor
(Monitor button) (D). to finish.
To switch the displayed image between Wide display and Zoom display
(The default is wide.)
(
D) for about 3 seconds to switch between
To talk
Press and hold MPRESS TALKNwhile monitoring.
(You cannot hear the sound from the other party while pressing MPRESS TALKN.)
To record the displayed image
Press MMENUNwhile monitoring. Press (E).
To view recorded images
Press MMENUN (B). Select “PLAY IMAGES” using or (E).
The number after the button shows the location of the button described in the
previous page.
Basic Operations
Press MN
Wide display and Zoom display.
(Monitor button)Press MN
(Monitor button)Press MN
E
MN
MN
DMN
C
(Monitor button) (D). to finish.
Press MN(Monitor button)Press MN
(F)
(B)
44
Quick Reference Guide (in Spanish)
Customer services (For United States)
45
Appendix
Warranty (For United States)
46
Appendix
47
Appendix
Warranty (For Canada)
48
Appendix
49
Appendix
Index
AAdjusting the display brightness: 23
Adjusting the volume
Listening volume: 23
Talking volume: 23
BBatteries (Alkaline batteries/battery
pack): 4, 19, 30
Battery case: 11, 19
Battery cover: 12, 15
Battery pack: 4, 15, 30
CCamera lens: 11
Camera unit: 11, 17, 18, 20
Canceling Wireless Monitors: 30
Changing the zoom position (pan/tilt): 24
Charge contacts (metal parts): 13, 15, 31
Charge indicator: 12, 15
Charging: 33
Cleaning: 30
Contrast: 27
DDate and time settings: 16
Deleting all pictures: 28
Deleting images
Deleting 1 picture: 25
Deleting all pictures: 28
Display: 12, 13
EElectrical parts: 13
GGuidance: 13, 25, 27
IImages
Deleting images: 25
Protecting images (removing
protection): 25
Recording images: 24
Viewing images: 25
LListening volume: 23
MMenu button: 12
When lit in red: 14
Microphone: 11, 12, 31
Monitoring (the outside): 23
Adjusting the display brightness: 23
Adjusting the listening volume: 23
Adjusting the talking volume: 23
Recording an image: 24
Switching between Wide/Zoom view: 24
Switching zoom position (Pan/Tilt): 24
Talking to visitors: 23
NNavigator key: 12
OOperation guidance: 13, 25, 27
PPair button
Base Unit: 13, 29, 35
Wireless Camera: 11, 35
Pair indicator: 12, 13, 19, 29, 35
Pairing (Wireless Monitor): 29
Pan/Tilt (switching zoom position): 24
Power slide switch: 11, 19
Protecting images (removing protection): 25
QQuick Reference Guide: 42
RRecording: 24
Recording an image: 24
Remaining battery power (Alkaline batteries/
battery pack): 13, 14
Resetting function settings: 28
SSignal status display (Wireless Monitor/
Wireless Camera): 13, 14
Slide lever: 12, 19
Slide switch: 11, 19
Speaker: 11, 12
Specifications: 37
Switching between Wide/Zoom view: 24
Changing the default display settings: 27
Switching while monitoring: 23
Symbols: 14, 25
TTalk button: 12, 23
Talking volume: 23
VViewing images: 25
WWide display: 23
Wireless Monitors (Additional/replacement
accessories): 4, 29
Wireless unit: 11, 19
ZZoom display: 23
50
Index
51
Notes
For your future reference
Date of purchase
Serial number (found on the bottom of the Base Unit)
Dealer’s name and address
Dealer’s telephone number
Attach your sales receipt here.
For customers in Canada:
5770 Ambler Drive, Mississauga, Ontario L4W 2T3
For customers in the U.S.A:
One Panasonic Way, Secaucus, New Jersey 07094
For assistance, visit our website:
http://www.panasonic.com
for customers in the U.S.A. and Puerto Rico.
© Panasonic System Networks Co., Ltd. 2012
Printed in Vietnam
*SDM200A*
*SDM200A*
PNQX5704ZA CC0812MM0
