User Manual
Bluetooth Module: BT11B
User Manual
1 GENERAL
1-1 Purpose and Scope of this document
This document contains the specifications pertinent to the module for
Bluetooth™ system, which comply with BLUETOOTH™ Specifications Version
2.1 + EDR.
This document describes General, Mechanical, Electrical, Software and
Reliability specifications and aspects for Panasonic Bluetooth Module BT11B.
The radio module is manufactured by Alps Electric Co., Ltd. The Alps’s original
model name of this radio module is UGNZ4.

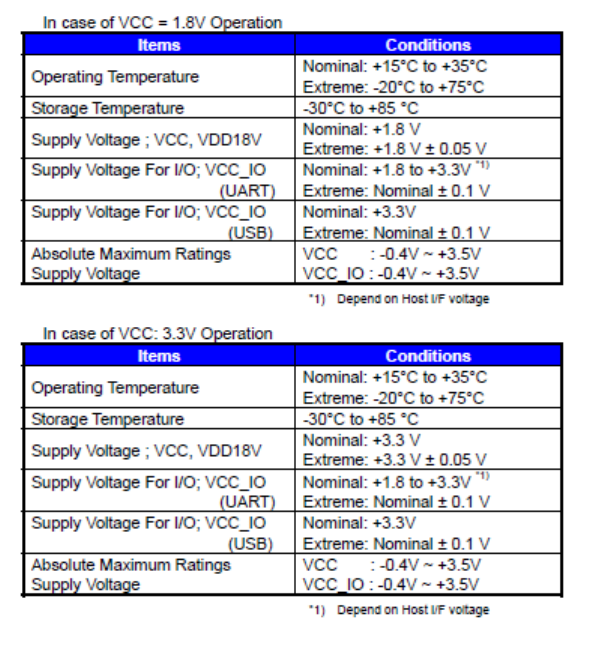

1-2 Standard Operating Condition

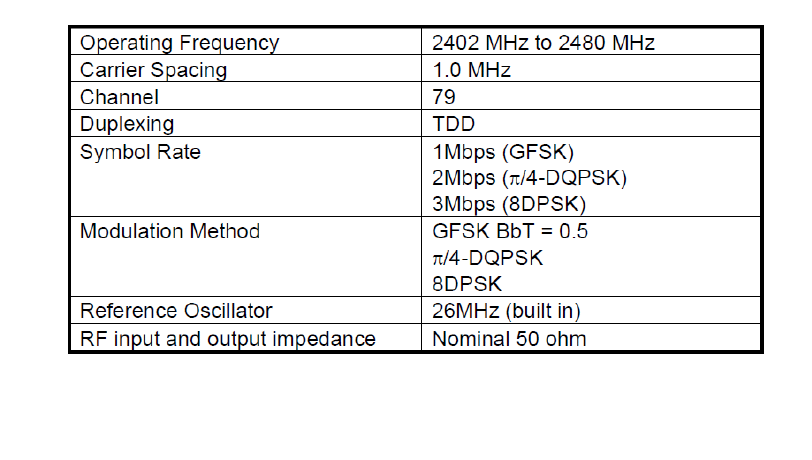

1-3 Specification
Regulatory Information
USA-Federal Communications Commission (FCC)
This device complies with Part 15 of the FCC Rules.
Operation is subject to the following two conditions:
(1) This device may not cause harmful interference, and
(2) This device must accept any interference received, including interference
that may cause undesired operation.
Caution
Any changes or modifications not expressly approved by the party responsible
for compliance could void the user’s authority to operate the equipment.
Labeling
System integrators must include the FCC ID on the end product.
Caution: Exposure to Radio Frequency Radiation.
To comply with FCC/IC RF exposure compliance requirements, a separation
distance of at least 20 cm must be maintained between the antenna of this
device and all persons. This device must not be co-located or operating in
conjunction with any other antenna or transmitter.
Canada-Industry Canada (IC)
This device complies with RSS 210 of Industry Canada.
Operation is subject to the following two conditions:
(1) This device may not cause interference, and
(2) This device must accept any interference, including interference that may
cause undesired operation of this device.
L ‘ utilisation de ce dispositif est autorisée seulement aux conditions suivantes :
(1) il ne doit pas produire de brouillage et
(2) l’ utilisateur du dispositif doit étre prêt à accepter tout brouillage
radioélectrique reçu, même si ce brouillage est susceptible de compromettre le
fonctionnement du dispositif.
Caution: Exposure to Radio Frequency Radiation.
To comply with RSS 102 RF exposure compliance requirements, for mobile
configurations, a separation distance of at least 20 cm must be maintained
between the antenna of this device and all persons. This device must not be
co-located or operating in conjunction with any other antenna or transmitter.
Labeling
System integrators must include the IC ID on the end product.
Instructions to System integrators
A User manual provided to the end user must indicate the operating
requirements and conditions that must be observed to ensure compliance with
the above-mentioned FCC /IC RF Exposure guideline.
If this module is intended for use in a portable device, integrators are responsible
for separate evaluation and/or approval to satisfy FCC/IC RF Exposure
requirements.
If other radio devices are to be integrated with this module, an additional
evaluation and FCC/IC submission may be required. Integrators are responsible
for such additional evaluation and FCC/IC submission.
