Read Me First

Please read these instructions carefully before using this product and save this

manual for future use.

Wireless Display

Model No. CF-08

Read Me First ..................................................................................2

ENGLISH OPERATING INSTRUCTIONS

Contents ........................................................................................13

DEUTSCH BEDIENUNGSANLEITUNG

Inhalt ..............................................................................................61

FRANÇAIS INSTRUCTIONS D’UTILISATION

Sommaire.....................................................................................110

Read Me First

Federal Communications Commis-

sion Radio Frequency Interference

Statement

Note: This equipment has been tested

and found to comply with the limits for a

Class B digital device, pursuant to Part

15 of the FCC Rules. These limits are

designed to provide reasonable protec-

tion against harmful interference in a

residential installation. This equipment

generates, uses and can radiate radio

frequency energy and, if not installed

and used in accordance with the

instructions, may cause harmful interfer-

ence to radio communications. How-

ever, there is no guarantee that

interference will not occur in a particular

installation. If this equipment does

cause harmful interference to radio or

television reception, which can be deter-

mined by turning the equipment off and

on, the user is encouraged to try to cor-

rect the interference by one or more of

the following measures:

zReorient or relocate the receiving

antenna.

zIncrease the separation between the

equipment and receiver.

zConnect the equipment into an outlet

on a circuit different from that to

which the receiver is connected.

zConsult the Panasonic Service Cen-

ter or an experienced radio/TV tech-

nician for help.

Warning

To assure continued compliance, use

only shielded interface cables when

connecting to a wireless display or

peripheral. Also, any changes or modi-

fications not expressly approved by the

party responsible for compliance could

void the user’s authority to operate this

equipment.

This device complies with Part 15 of the

FCC Rules. Operation is subject to the

following two conditions:

(1) This device may not cause harmful

interference, and

(2) This device must accept any interfer-

ence received,

including interference

that may cause undesired operation.

Responsible Party:

Panasonic Corporation of North America

One Panasonic Way

Secaucus, NJ 07094

Tel No:

1-800-LAPTOP5 (1-800-527-8675)

FCC RF Exposure Warning:

zThis equipment complies with FCC

radiation exposure limits set forth for

an uncontrolled environment.

zThis equipment must be installed

and operated in accordance with

provided instructions and minimum

1.5 cm spacing must be provided

between antenna and all person’s

body (excluding extremities of

hands, wrist and feet) during wire-

less modes of operation.

This transmitter must not be co-

located or operated in conjunction

with any other antenna or transmitter.

Models for U.S.A.

Read Me First

Notice for the products using LCD

This product uses one or more fluores-

cent lamps containing a small amount of

mercury. It also contains lead in some

components. Disposal of these materi-

als may be regulated in your community

due to environmental considerations.

For disposal or recycling information

please contact your local authorities, or

the Electronics Industries Alliance:

<http://www.eiae.org/>

For Use in Motor Vehicle

Warning: Wireless display may be

installed in a motor vehicle and visible to

the driver only if used to support vehicle

related functions such as vehicle infor-

mation, system control, rear or side

observation and navigation. If used for

entertainment purpose, such as televi-

sion reception or video play, it must be

installed to the rear of the driver’s seat

where it will not be visible, directly or

indirectly, to the operator of the motor

vehicle.

Check with individual state/provincial

laws to determine lawful use of this

product while operating within a motor

vehicle.

Pour L’utilisation Dans Un Véhicule

Motorisé

Avertissement : L’ordinateur bloc-notes

peut être installé dans un véhicule

motorisé et dans le champ de vision du

conducteur uniquement en tant que dis-

positif d’aide aux fonctions du véhicule,

comme par exemple pour fournir des

informations sur le véhicule, comme dis-

positif de contrôle de système, pour

l’observation à l’arrière ou sur les côtés

du véhicule, ainsi que pour fournir de

l’information routière. Pour toute utilisa-

tion à fin de divertissement, comme par

exemple pour regarder la télévision ou

jouer à des jeux vidéo, il doit être

installé à l’arrière du siège du conduc-

teur, en un emplacement où il ne sera

pas visible, ni directement ni indirecte-

ment, pour le conducteur du véhicule

motorisé. Vérifiez les lois fédérales et

nationales qui régissent l’utilisation

légale de cet appareil à l’intérieur d’un

véhicule motorisé.

Models for U.S.A./Canada

Models for Canada

Industry Canada

This product complies with RSS210 Industry Canada.

Operation is subject to the following two conditions;

(1) this device may not cause interference, and

(2) this device must accept any interference, including interference that may

cause undesired operation of the device.

Read Me First

Warning

This apparatus must be earthed for

your safety.

To ensure safe operation the three-pin

plug must be inserted only into a stan-

dard three-pin power point which is

effectively earthed through the normal

household wiring.

Extension cords used with the equip-

ment must be threecore and be cor-

rectly wired to provide connection to

earth. Wrongly wired extension cords

are a major cause of fatalities.

The fact that the equipment operates

satisfactorily does not imply that the

power point is earthed and that the

installation is completely safe.

For your safety, if you have any doubt

about the effective earthing of the power

point, consult a qualified electrician.

FOR YOUR SAFETY PLEASE READ

THE FOLLOWING TEXT CAREFULLY

This appliance is supplied with a moul-

ded three pin mains plug for your safety

and convenience.

A 3 amp fuse is fitted in this plug.

Should the fuse need to be replaced

please ensure that the replacement fuse

has a rating of 3 amps and that it is

approved by ASTA or BSI to BS 1362.

Check for the ASTA mark or the BSI

mark on the body of the fuse.

If the plug contains a removable fuse

cover you must ensure that it is refitted

when the fuse is replaced.

If you lose the fuse cover the plug must

not be used until a replacement cover is

obtained.

A replacement fuse cover can be pur-

chased from your local Panasonic

Dealer.

IF THE FITTED MOULDED PLUG IS

UNSUITABLE FOR THE SOCKET

OUTLET IN YOUR HOME THEN THE

FUSE SHOULD BE REMOVED AND

THE PLUG CUT OFF AND DISPOSED

OF SAFELY.

THERE IS A DANGER OF SEVERE

ELECTRICAL SHOCK IF THE CUT

OFF PLUG IS INSERTED INTO ANY

13 AMP SOCKET.

If a new plug is to be fitted please

observe the wiring code as shown

below.

If in any doubt please consult a qualified

electrician.

Warning: THIS APPLIANCE MUST BE

EARTHED.

Important

The wires in this mains lead are

coloured in accordance with the follow-

ing code:

Green-and-yellow: Earth

Blue: Neutral

Brown: Live

As the colours of the wires in the mains

lead of this apparatus may not corre-

spond with the coloured markings iden-

tifying the terminals in your plug,

proceed as follows:

The wire which is coloured GREEN-

and-YELLOW must be connected to the

Models for U.K.

A S A

Read Me First

terminal in the plug which is marked by

the letter E or by the safety earth sym-

bol coloured GREEN or GREEN-

and-YELLOW.

The wire which is coloured Blue must be

connected to the terminal which is

marked with the letter N or coloured

BLACK.

The wire which is coloured Brown must

be connected to the terminal which is

marked with the letter L or coloured

RED.

The mains plug on this equipment must

be used to disconnect the mains power.

Please ensure that a socket outlet is

available near the equipment and shall

be easily accessible.

How to replace the fuse

Open the fuse compart-

ment with a screwdriver

and replace the fuse.

Warnings

zThis equipment is not designed for

connection to an IT power system.

(An IT system is a system having no

direct connections between live parts

and Earth; the exposed-conducive-

parts of the electrical installation are

earthed. An IT system is not permit-

ted where the wireless display is

directly connected to public supply

systems in the U.K.)

zDisconnect the mains plug from the

supply socket when the wireless dis-

play is not in use.

This equipment is produced to BS800/

1983.

For Use in Motor Vehicle

Warning: Check the following Commis-

sion Recommendation to determine

proper installation and usage of this

product while operating within a motor

vehicle. "Commission Recommenda-

tion on safe and efficient in-vehicle infor-

mation and communication systems: A

European statement of principles on

human machine interface."

Commission Recommendation is avail-

able from Official Journal of the Euro-

pean Communities.

Read Me First

Zur Verwendung in Fahrzeugen

Warnung: Überprüfen Sie die folgende Empfehlung der EUKommission, um die

richtige Installation und Verwendung dieses Produktes zu ermitteln, wenn Sie das

Gerät in einem Fahrzeug betreiben möchten.

“Empfehlung der Kommission an die Mitgliedsstaaten und die Industrie über

sichere und effiziente On-board-Informations- und -Kommunikationssysteme:

Europäischer Grundsatzkatalog zur Mensch-Maschine-Schnittstelle.”

Die Empfehlung der EU-Kommission steht im offiziellen Journal der EU zur Verfü-

gung.

Bande de fréquences restreinte: Lors de l’utilisation de cet appareil sur le territoire

français, vous ne pouvez le faire qu’en utilisant les bandes de fréquences 10 et 11

(respectivement 2.457 MHz et 2.462 MHz). L’utilisation de cet appareil sur une

autre bande prise en charge par celui-ci est interdite. Une utilisation à l’extérieur

n’est pas autorisée.

L’utilisation de Bluetooth est interdite pour les communications extérieures.

N’utilisez pas la technologie Bluetooth à l’extérieur.

Utilisation dans un véhicule automobile

Danger: Vérifiez les recommandations de la Commission Européenne suivantes

pour une installation et une utilisation adéquates de ce produit dans un véhicule

automobile.

“Recommandation de la Commission sur les systèmes efficaces d’information et

de communication embarqués dans les véhicules et garantissant une séurité opti-

male: délaration de principes européenne concernant l’interface homme/machine.”

Les recommandations de la Commission Européenne sont disponibles dans le

Journal Officiel des Communautés Européennes.

A S A

This product and your Health

This product, like other radio devices, emits radio frequency electromagnetic

energy. The level of energy emitted by this product however is far much less than

the electromagnetic energy emitted by wireless devices like for example mobile

phones.

Für Deutschland

Pour la France

Information to the User

Read Me First

Because this product operates within the guidelines found in radio frequency

safety standards and recommendations, we believe this product is safe for use by

consumers. These standards and recommendations reflect the consensus of the

scientific community and result from deliberations of panels and committees of sci-

entists who continually review and interpret the extensive research literature.

In some situations or environments, the use of this product may be restricted by

the proprietor of the building or responsible representatives of the organization.

These situations may for example include:

zUsing this product on board of airplanes, or

zIn any other environment where the risk of interference to other devices or ser-

vices is perceived or identified as harmful.

If you are uncertain of the policy that applies on the use of wireless devices in a

specific organization or environment (e.g. airports), you are encouraged to ask for

authorization to use this product prior to turning on the product.

Regulatory Information

We are not responsible for any radio or television interference caused by unautho-

rized modification of this product. The correction of interference caused by such

unauthorized modification will be the responsibility of the user. We and its autho-

rized resellers or distributors are not liable for damage or violation of government

regulations that may arise from failing to comply with these guidelines.

Declaration of Conformity (DoC)

“Hereby, we declare that this wireless display is in compliance with

the essential requirements and other relevant provisions of the

Directive 1999/5/EC.”

Hint:

If you want to get a copy of the original DoC of our products which relates to the

R&TTE, please contact to our web address: http://www.doc.panasonic.de

Contact:

Panasonic Services Europe

A Division of Panasonic Marketing Europe GmbH

Panasonic Testing Centre

-------------------------------------------------------------------------------------------------------------

Compliance Notice - CE Mark

This equipment is in conformance with the requirements of the European Council

Directive listed below:

73/23/EEC Low Voltage Directive with amendment 93/68/EEC

89/336/EEC EMC Directive with amendments 92/31/EEC and 93/68/EEC

1999/5/EC R&TTE

-------------------------------------------------------------------------------------------------------------

Read Me First

Information on Disposal for Users of Waste Electrical & Electronic Equip-

ment (private households)

This symbol on the products and/or accompanying documents

means that used electrical and electronic products should not be

mixed with general household waste.

Please dispose of this item only in designated national waste elec-

tronic collection schemes, and not in the ordinary dust bin.

For business users in the European Union

If you wish to discard electrical and electronic equipment, please contact your

dealer or supplier for further information.

Information on Disposal in other Countries outside the European Union

This symbol is only valid in the European Union.

If you wish to discard this product, please contact your local authorities or dealer

and ask for the correct method of disposal.

Read Me First

Dieses Produkt und Ihre Gesundheit

Wie andere Funkgeräte strahlt auch dieses Produkt elektromagnetische Funkfre-

quenzenergie ab. Die Strahlung ist allerdings weit weniger stark als bei drahtlosen

Geräten wie beispielsweise einem Handy.

Da sich dieses Produkt im Rahmen der Richtlinien bewegt, die für Funkfrequenz-

Sicherheitsstandards und Empfehlungen Geltung haben, gehen wir davon aus,

dass es gefahrlos von Verbrauchern eingesetzt werden kann.

Diese Standards und Empfehlungen spiegeln den Konsensus der wissenschaftli-

chen Gemeinschaft wider und sind das Ergebnis der Arbeit von Sachverständigen

und wissenschaftlichen Ausschüssen, welche sich laufend mit der einschlägigen

Fachliteratur und den Forschungsresultaten auseinandersetzen.

Es kann Fälle geben, in denen der Eigentümer eines Gebäudes oder der Zustän-

dige einer Organisation den Einsatz dieses Produkts in einer bestimmten Situation

oder Umgebung einschränkt oder untersagt. Dazu können zählen:

zBenutzung dieses Produktes in Flugzeugen oder

zIn jeder anderen Umgebung, in der die Gefahr von Störungen anderer Geräte

oder Dienste vermutet oder erkannt wurde.

Sollten Sie nicht sicher sein, welche Richtlinien und Vorschriften für den Gebrauch von

drahtlosen Geräten innerhalb einer bestimmten Organisation oder Umgebung (z. B. in

Flughäfen) gelten, empfehlen wir Ihnen, sich vor dem Einschalten des Gerätes

entsprechend zu informieren und gegebenenfalls eine Genehmigung einzuholen.

Regulierungsinformation

Wir sind in keiner Weise verantwortlich für Störungen des Funkverkehrs oder von

Fernsehgeräten, die durch eigenmächtige Änderungen an diesem Produkt

verursacht werden. Die Beseitigung solcher, durch unbefugte Änderungen

verursachten, Störungen obliegt der alleinigen Verantwortlichkeit des Benutzers.

Weder wir noch unsere autorisierten Händler und Verkäufer können für Schäden

oder für die Verletzung von gesetzlichen Vorschriften haftbar gemacht werden, die

durch die Zuwiderhandlung gegen diese Richtlinien entstehen.

Herstellererklärungen (DoC)

“Wir erklären hiermit, daß dieser Personalcomputer mit den not-

wendigen Anforderungen und anderen relevanten Bedingungen

der Direktive 1999/5/EC übereinstimmt.”

Hinweis:

Falls Sie einen Kopie der ursprünglichen Herstellererklärungen unserer Produkte

erhalten möchten, die sich auf R&TTE bezieht, besuchen Sie bitte unsere Web-

Adresse: http://www.doc.panasonic.de

Kontakt:

Anwenderinformation

Read Me First

Panasonic Services Europe

A Division of Panasonic Marketing Europe GmbH

Panasonic Testing Centre

-------------------------------------------------------------------------------------------------------------

Übereinstimmungserklärung - CE-Marke

Diese Ausrüstung erfüllt die Anforderungen der unten angegebenen EC-Direktive:

73/23/EEC Niederspannungsdirektive mit Abänderung 93/68/EEC

89/336/EEC EMC-Direktive mit Abänderungen 92/31/EEC und 93/68/EEC

1999/5/EC R&TTE

-------------------------------------------------------------------------------------------------------------

Benutzerinformationen zur Entsorgung von elektrischen und elektronischen

Geräten (private Haushalte)

Entsprechend der grundlegenden Firmengrundsätzen der Pana-

sonic-Gruppe wurde ihr Produkt aus hochwertigen Materialien und

Komponenten entwickelt und hergestellt, die recycelbar und wieder

verwendbar sind.

Dieses Symbol auf Produkten und/oder begleitenden Dokumenten

bedeutet, dass elektrische und elektronische Produkte am Ende ihrer

Lebensdauer vom Hausmüll getrennt entsorgt werden müssen.

Bringen Sie bitte diese Produkte für die Behandlung, Rohstoffrückgewinnung und

Recycling zu den eingerichteten kommunalen Sammelstellen bzw.

Wertstoffsammelhöfen, die diese Geräte kostenlos entgegennehmen.

Die ordnungsgemäße Entsorgung dieses Produkts dient dem Umweltschutz und

verhindert mögliche schädliche Auswirkungen auf Mensch und Umwelt, die sich

aus einer unsachgemäßen Handhabung der Geräte am Ende Ihrer Lebensdauer

ergeben könnten.

Genauere Informationen zur nächstgelegenen Sammelstelle bzw. Recyclinghof

erhalten Sie bei Ihrer Gemeindeverwaltung.

Für Geschäftskunden in der Europäischen Union

Bitte treten Sie mit Ihrem Händler oder Lieferanten in Kontakt, wenn Sie elek-

trische und elektronische Geräte entsorgen möchten. Er hält weitere Informa-

tionen für sie bereit.

Informationen zur Entsorgung in Ländern außerhalb der Europäischen

Union

Dieses Symbol ist nur in der Europäischen Union gültig.

Read Me First

Ce produit et votre santé

Ce produit, comme tout autre appareil radio, émet de l’énergie radioélectrique.

Toutefois, la quantité d’énergie émise par ce produit est beaucoup moins impor-

tante que l’énergie radioélectrique émise par des appareils sans fil tels que les

téléphones portables.

L’utilisation de ce produit ne comporte aucun risque pour le consommateur du fait

que cet appareil opère dans les limites des directives concernant les normes et les

recommandations de sécurité sur les fréquences radio. Ces normes et recomman-

dations reflètent le consensus de la communauté scientifique et résultent de

délibérations de jurys et comités de scientifiques qui examinent et interprètent con-

tinuellement les nouveautés de la vaste littérature sur les recherches effectuées.

Dans certaines situations ou environnements, l’utilisation de ce produit peut être

restreinte par le propriétaire du bâtiment ou par les représentants responsables de

l’organisation. Ces situations peuvent être les suivantes par exemple :

zÀ bord d’un avion, ou

zDans tout autre environnement où les risques d’interférence sur d’autres appa-

reils ou services sont perçus ou identifiables comme dangereux.

Si vous n’êtes pas sûr de la réglementation applicable à l’utilisation d’appareils

sans fil dans une organisation ou un environnement spécifiques (par exemple

dans un aéroport), nous vous invitons à demander l’autorisation d’utiliser ce pro-

duit avant sa mise en marche.

Informations concernant la réglementation

Nous déclinons toute responsabilité pour toute interférence radio ou télévision

causée par des modifications non autorisées apportées à ce produit. La correction

d’interférences causées par de telles modifications non autorisées sera la seule

responsabilité de son utilisateur. Nous-mêmes, les revendeurs officiels et les dis-

tributeurs ne sommes pas responsable de tout dégât ou de toute violation des

règlements de l’État pouvant découler du non-respect de ces directives.

Déclaration de conformité (DoC)

Par présent document nous déclarons que cet ordinateur est con-

forme aux conditions fondamentales et aux autres dispositions

applicables de la Directive 1999/5/EC.

Suggestion:

Si vous voulez obtenir une copie de la DoC d’origine de nos produits qui concerne

le R&TTE, veuillez contacter notre site Internet à l’adresse:

http://www.doc.panasonic.de

Informations destinées aux utilisateurs

Read Me First

Contact:

Panasonic Services Europe

A Division of Panasonic Marketing Europe GmbH

Panasonic Testing Centre

-------------------------------------------------------------------------------------------------------------

Avis de comformité - Marque CE

Cet équipement est conforme aux conditions des Directives de la Commission

européenne mentionnées ci-dessous:

73/23/EEC Directive sur la basse tension y compris la modification 93/68/EEC

89/336/EEC Directive CEM y compris les modifications 92/31/EEC et 93/68/EEC

1999/5/EC R&TTE

-------------------------------------------------------------------------------------------------------------

Informations relatives à l’évacuation des déchets, destinées aux utilisateurs

d’appareils électriques et électroniques (appareils ménagers domestiques)

Lorsque ce symbole figure sur les produits et/ou les documents qui

les accompagnent, cela signifie que les appareils électriques et

électroniques ne doivent pas être jetés avec les ordures

ménagères.

Pour que ces produits subissent un traitement, une récupération et

un recyclage appropriés, envoyez-les dans les points de collecte

désignés, où ils peuvent être déposés gratuitement.

Dans certains pays, il est possible de renvoyer les produits au revendeur local en

cas d’achat d’un produit équivalent.

En éliminant correctement ce produit, vous contribuerez à la conservation des res-

sources vitales et à la prévention des éventuels effets négatifs sur l’environnement

et la santé humaine qui pourraient survenir dans le cas contraire.

Afin de connaître le point de collecte le plus proche, veuillez contacter vos

autorités locales.

Des sanctions peuvent être appliquées en cas d’élimination incorrecte de ces

déchets, conformément à la législation nationale.

Utilisateurs professionnels de l’Union européenne

Pour en savoir plus sur l’élimination des appareils électriques et électroniques,

contactez votre revendeur ou fournisseur.

Informations sur l’évacuation des déchets dans les pays ne faisant pas par-

tie de l’Union européenne

Ce symbole n’est reconnu que dans l’Union européenne.

Pour supprimer ce produit, contactez les autorités locales ou votre revendeur afin

de connaître la procédure d’élimination à suivre.

Contents

Introduction .....................................................................................14

Precautions.....................................................................................15

Description of Parts.........................................................................19

First-time Operation ........................................................................21

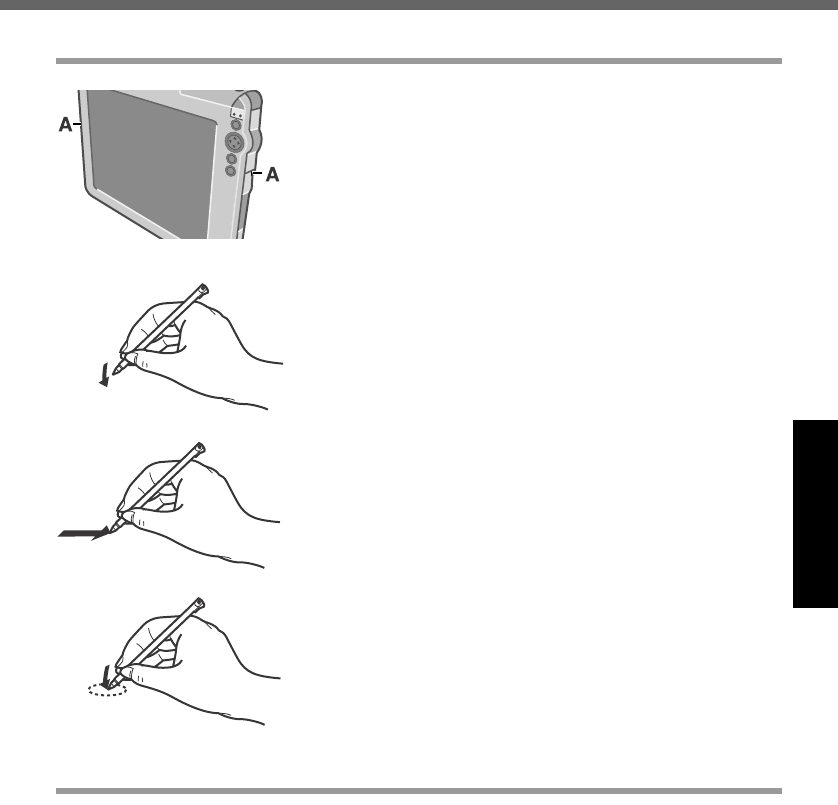

LCD (Touchscreen) .........................................................................25

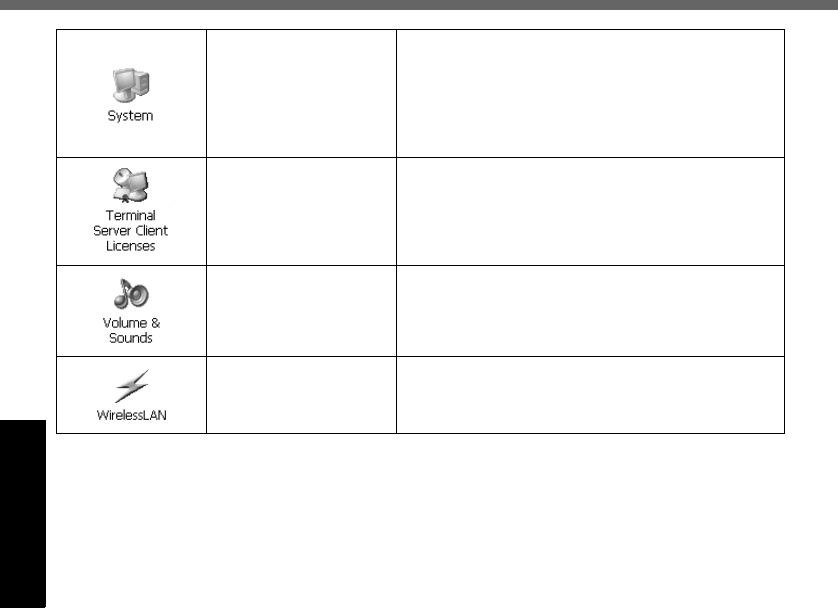

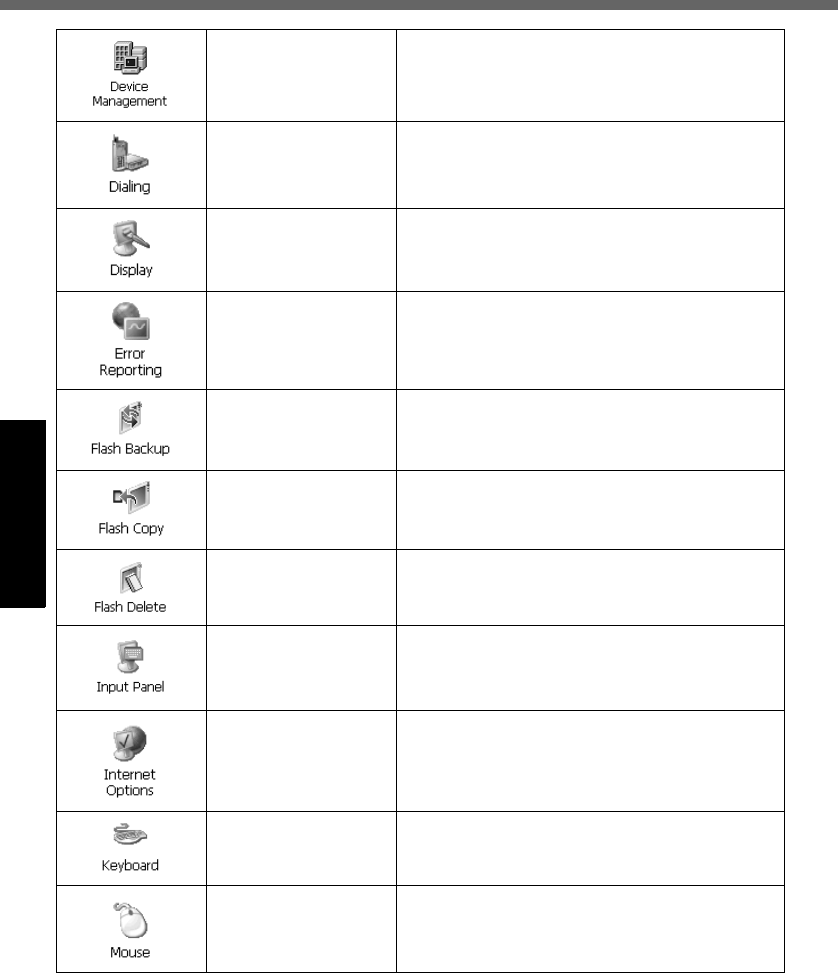

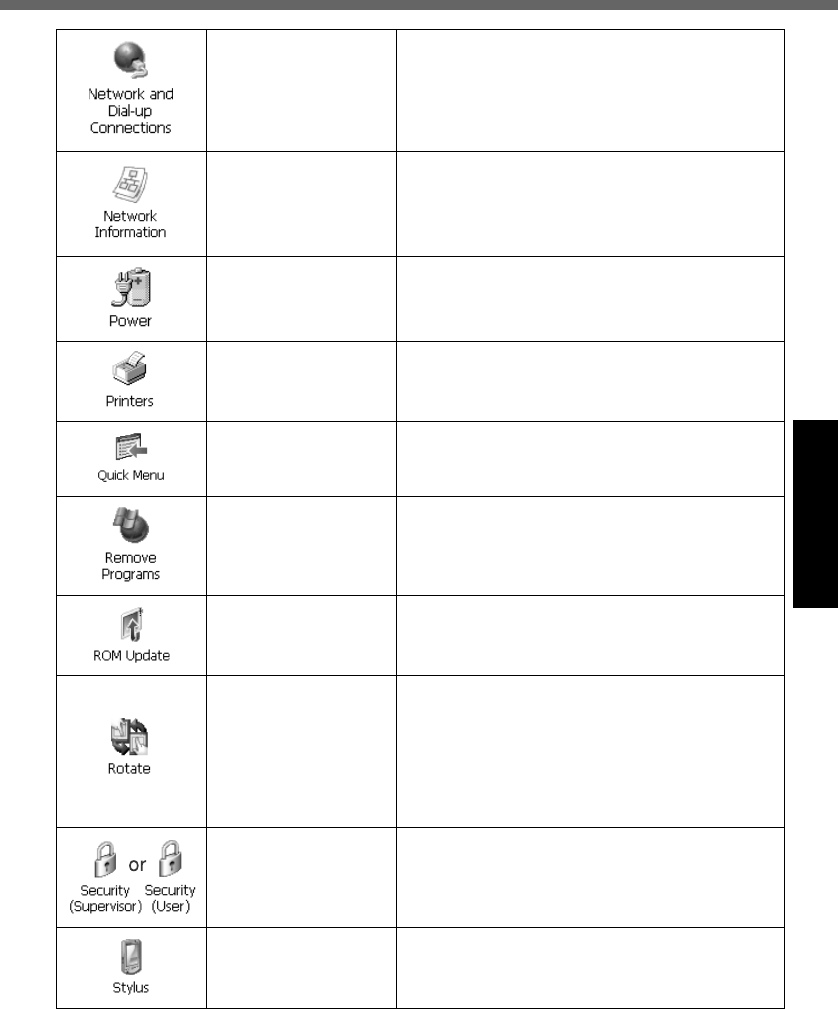

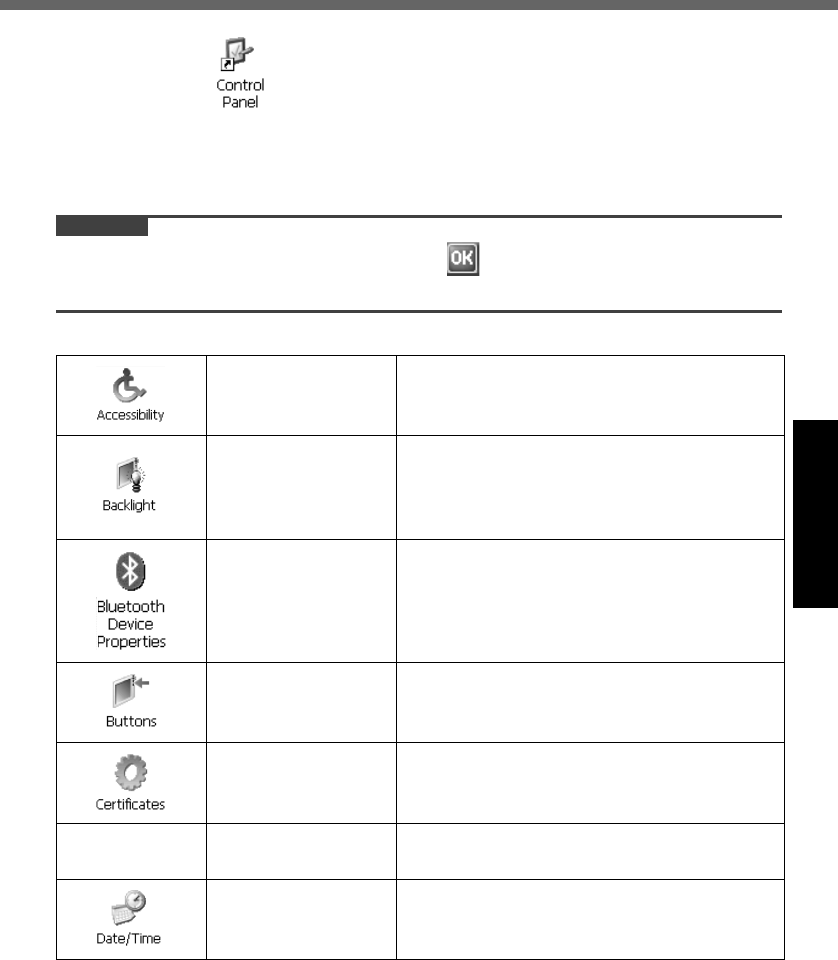

Control Panel ..................................................................................27

Backing Up/Deleting/Copying Data.................................................31

ROM Update ...................................................................................33

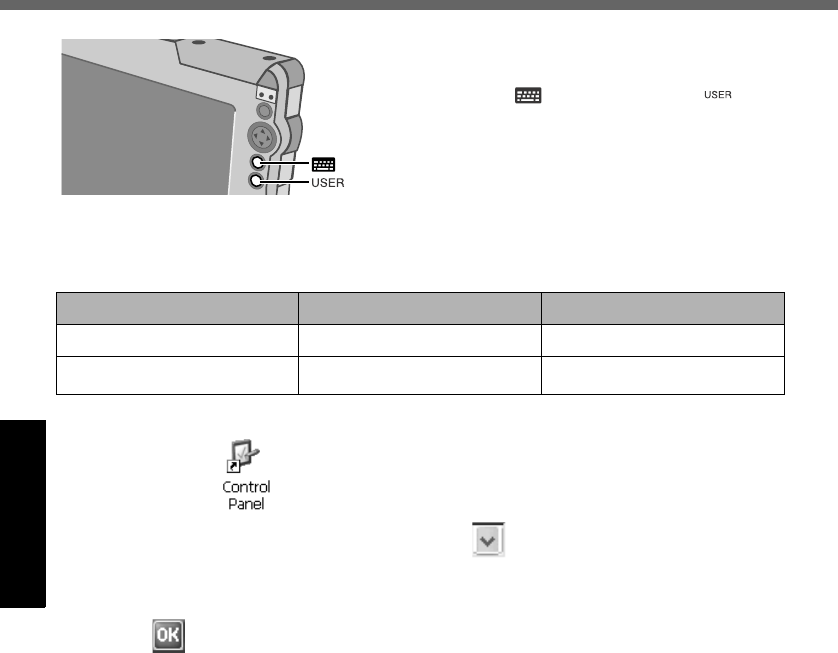

Buttons............................................................................................34

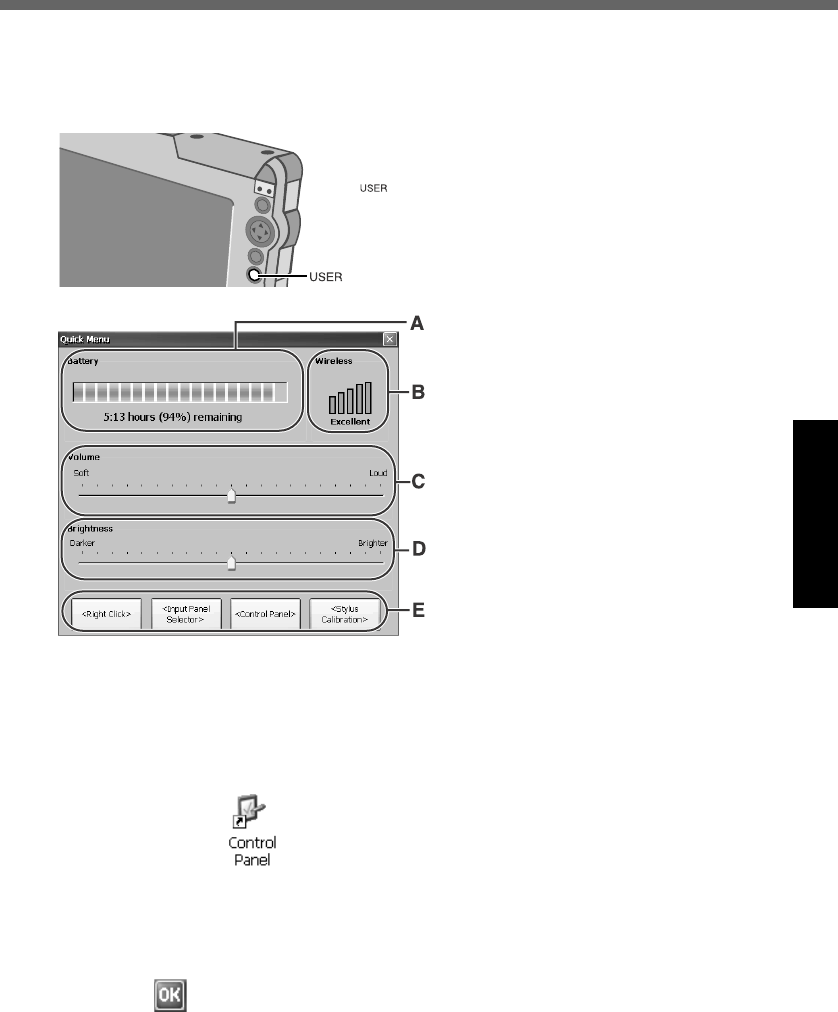

Quick Menu.....................................................................................35

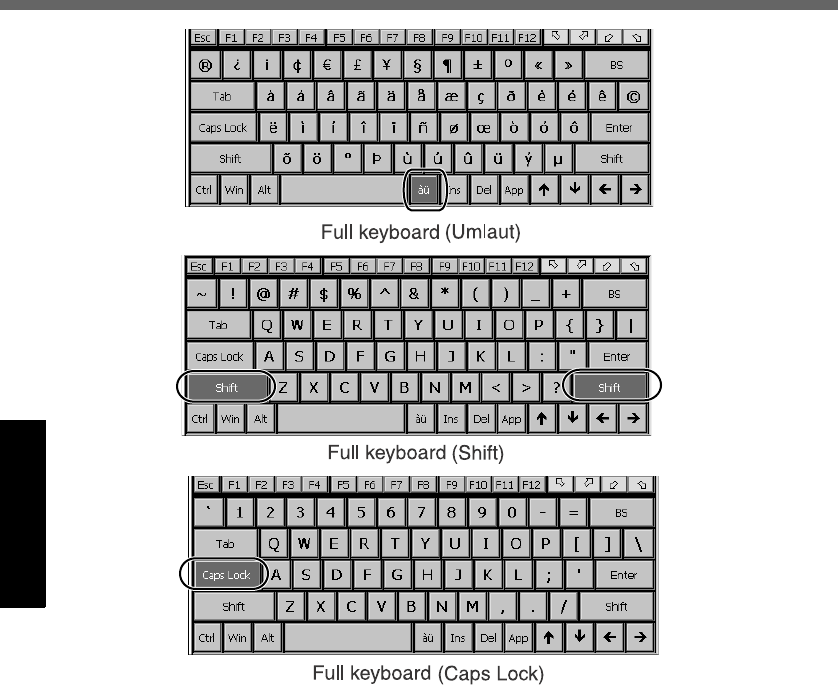

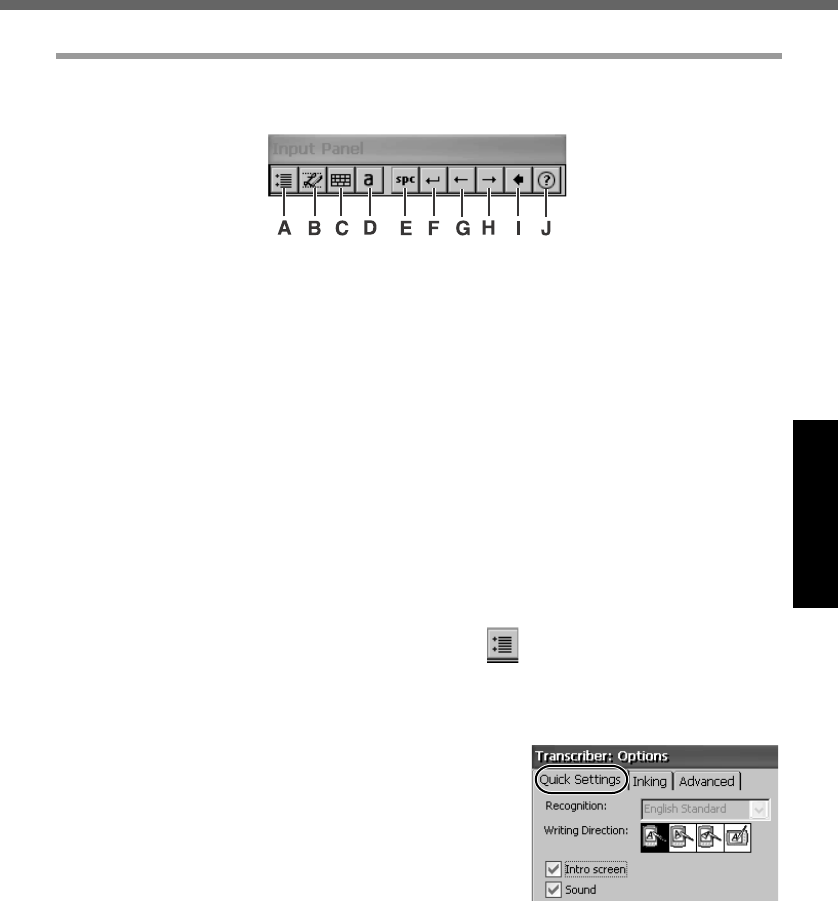

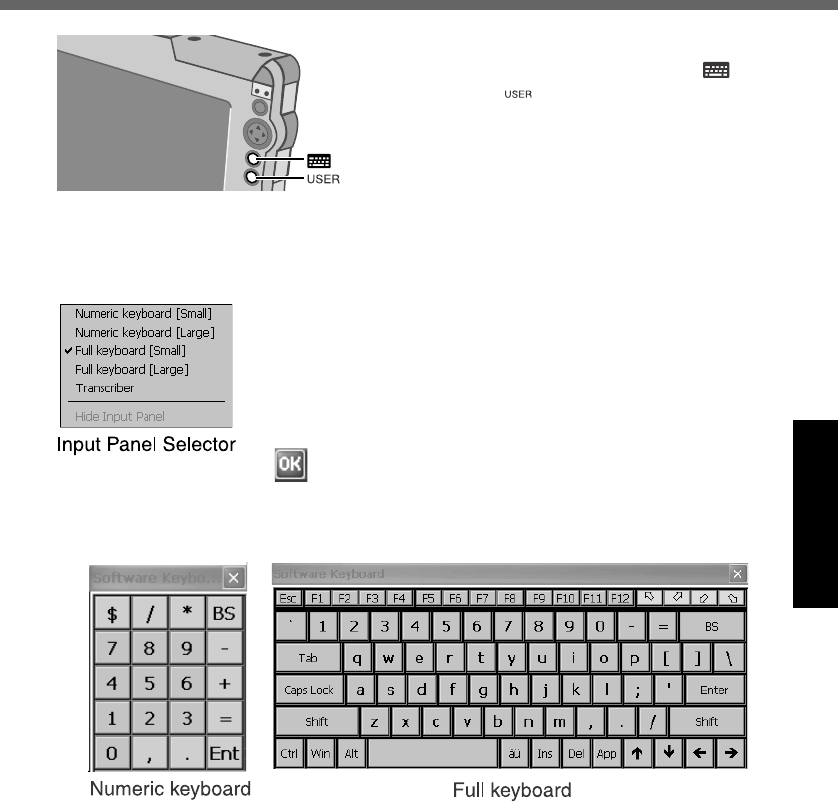

Software Keyboard .........................................................................37

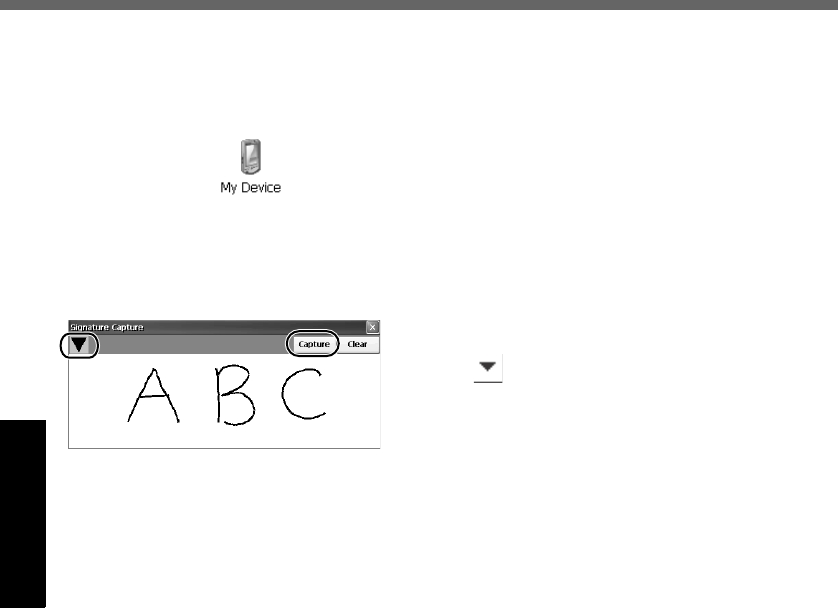

Signature Capture...........................................................................42

Security Measures ..........................................................................43

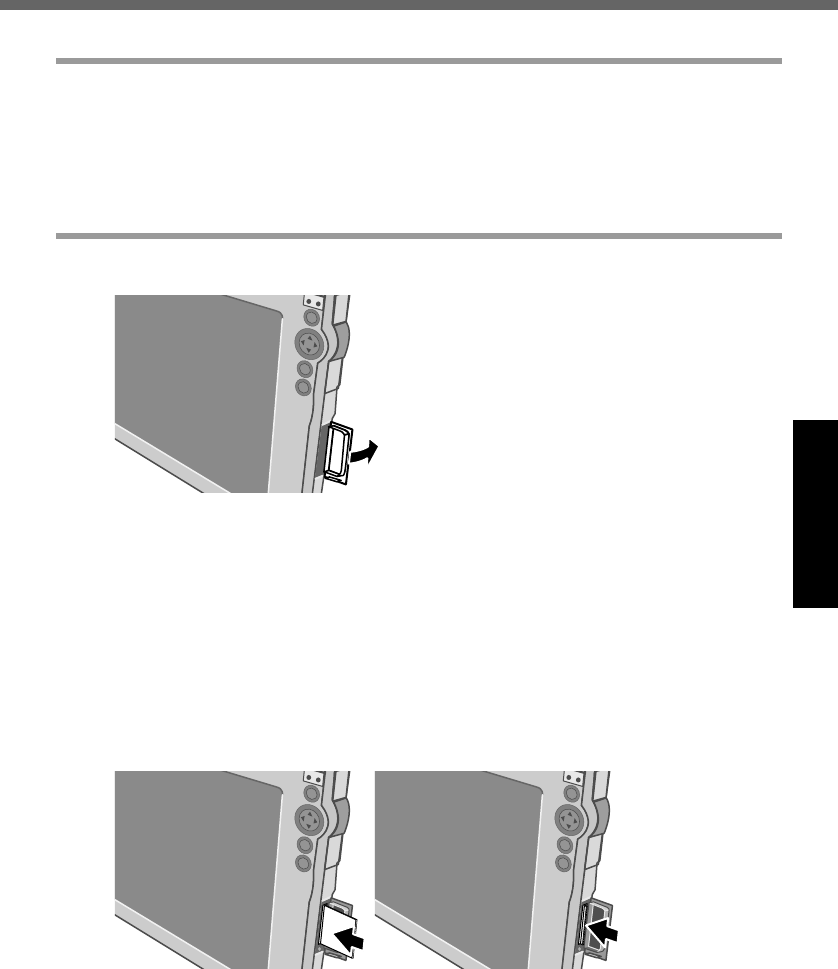

SD Memory Card ............................................................................47

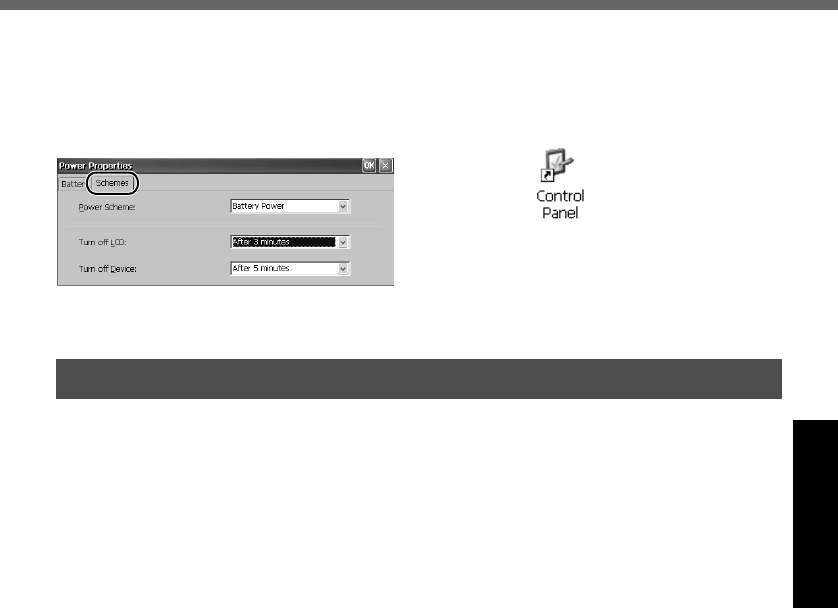

Battery Power .................................................................................48

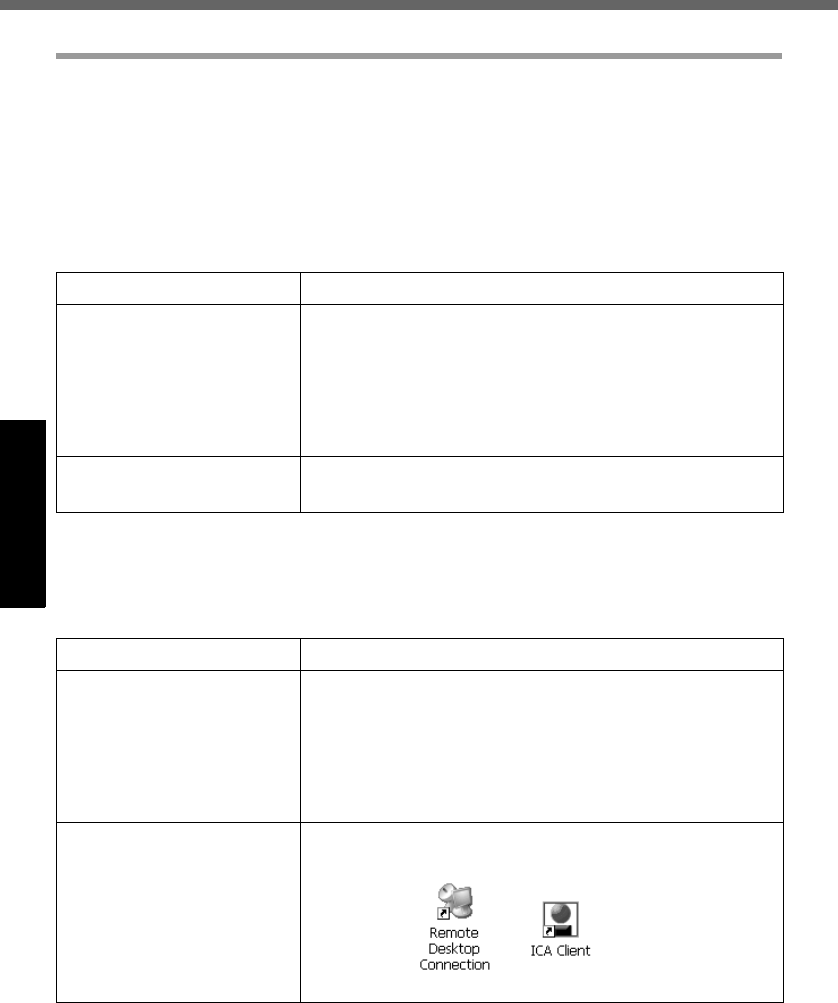

Connecting to a Computer/Server ..................................................50

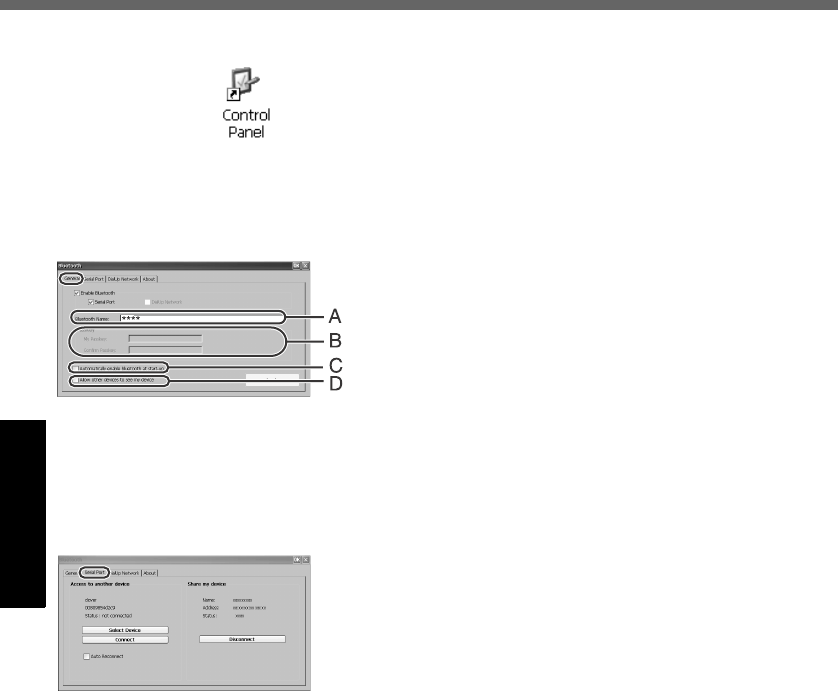

Bluetooth.........................................................................................54

For Effective Use ............................................................................55

LIMITED USE LICENSE AGREEMENT .........................................56

Troubleshooting ..............................................................................58

Specifications..................................................................................59

Introduction

Thank you for purchasing this Panasonic wireless display. For optimum perfor-

mance and safety, please read these instructions carefully.

Terms and illustrations in these instructions

zSome illustrations are simplified to help your understanding and may look dif-

ferent from the actual unit.

zRefer to the catalogs, etc. for the latest information about optional products.

Copyright

This manual is copyrighted by Matsushita Electric Industrial Co., Ltd. with all rights

reserved. No part of this manual may be reproduced in any form without the prior

written permission of Matsushita Electric Industrial Co., Ltd.

No patent liability is assumed with respect to the use of the information contained

herein.

Disclaimer

Wireless display specifications and manuals are subject to change without notice.

Matsushita Electric Industrial Co., Ltd. assumes no liability for damage incurred

directly or indirectly from errors, omissions or discrepancies between the wireless

display and the manuals.

Trademarks

Microsoft®, Windows® and the Windows logo are registered trademarks of

Microsoft Corporation of the United States and/or other countries.

SD Logo is a trademark.

Citrix® and ICA® protocol are registered trademarks of Citrix Systems, Inc.

Bluetooth™ is a trademark owned by Bluetooth SIG, Inc., U.S.A. and licensed to

Matsushita Electric Industrial Co., Ltd.

Panasonic® is a registered trademark of Matsushita Electric Industrial Co., Ltd.

Names of products, brands, etc., appearing in this manual are trademarks or regis-

tered trademarks of their respective own companies.

: Conditions that may result in minor or moderate injury.

: Useful and helpful information.

Î : Page in these Operating Instructions.

CAUTION

NOTE

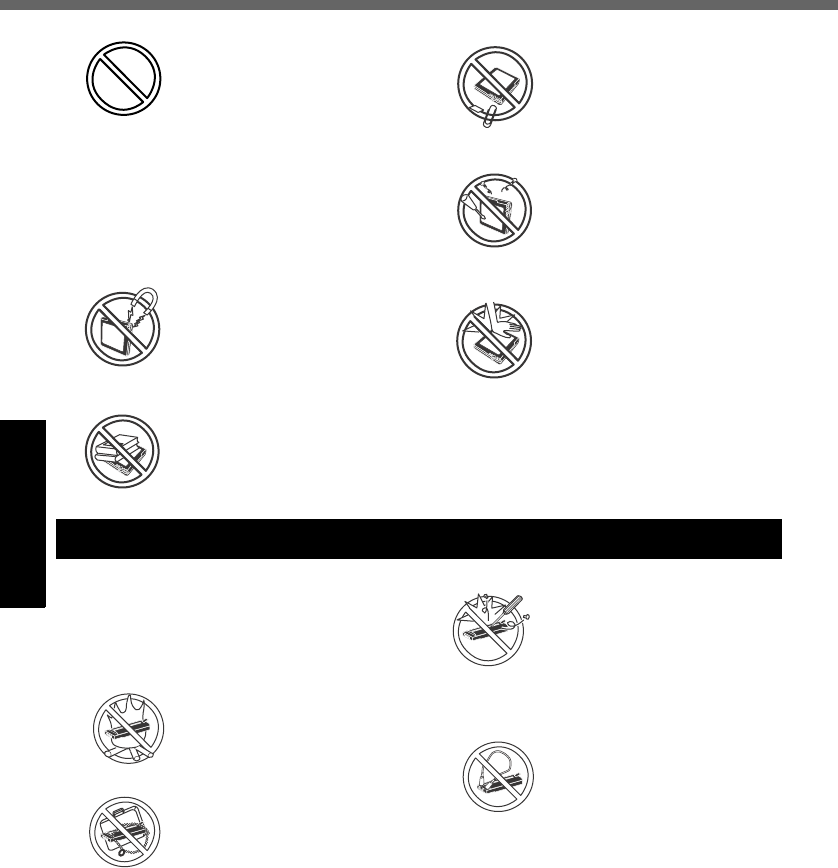

Precautions

Usage

Wireless Display

Avoid Extreme Heat

and Cold

Do not store or use the

wireless display in loca-

tions exposed to heat,

direct sunlight, or

extreme cold.

Avoid moving the wire-

less display between

locations with large tem-

perature difference.

Operation: 5 °C to 35 °C

{41 °F to 95 °F}

Storage: -20 °C to 60 °C

{-4 °F to 140 °F}

Avoid Direct Sunlight

on the LCD Panel

The LCD panel should

not be exposed to direct

sunlight or ultraviolet

light.

Avoid Humidity, Liquids

and Dust

Do not store or use the

wireless display in loca-

tions exposed to high

humidity, liquids (includ-

ing rain) or dust.

Prevent Shock

Avoid subjecting the wire-

less display to severe

vibrations or impact. Do

not place the wireless

display inside a car trunk.

Avoid Radio Fre-

quency Interference

Do not place the wireless

display near a television

or radio receiver.

Avoiding Low-tempera-

ture Burns

Avoid more than casual

contact with any heat

producing area of the

wireless display, AC

adaptor, and any option

or accessory you use

with it. Even low heat, if

warmer than body tem-

perature, can cause a

burn, if the skin is

exposed to the heat

source for a long enough

period of time.

If the LAN port is con-

nected to a network such

as the ones listed below,

a fire or electric shock

may result.

• Networks other than

100BASE-TX or

10BASE-T.

• Phone lines [Tele-

phone lines, inter-

nal phone lines (on-

premise switches),

digital public

phones, etc.]

Precautions

Handling

zCare should be exercised with

regard to the following in order to

avoid the possibility of overheating,

fire or damage.

Keep SD Memory Cards

Away From Infants and

Small Children

Accidental swallowing

will result in bodily injury.

In the event of accidental

swallowing, see a doctor

immediately.

Avoid Magnetic Fields

Keep the wireless dis-

play away from magnets.

Data stored on the hard

disk may be lost.

Avoid Stacking

Do not place heavy

objects on top of the wire-

less display.

Keep Small Objects

Away

Do not insert paper clips

or other small objects into

the wireless display.

Do Not Disassemble the

Wireless Display

Do not attempt to disas-

semble your wireless dis-

play.

Avoid Excessive Force

on the Display

Do not apply excessive

downward force on the

display, especially when

plugs and/or cables are

connected to the rear of

the wireless display.

Battery Pack

Avoid Heat

Do not throw the battery

pack into a fire or expose

it to excessive heat.

Keep Articles Away

Do not place the battery

pack together with arti-

cles such as necklaces

or hairpins when carry-

ing or storing.

Do Not Disassemble

Do not insert sharp

objects into the battery

pack, expose it to bumps

or shocks, deform, disas-

semble, or modify it.

Do Not Short

Do not short the positive

(+) and negative (-) con-

tacts.

zDo not touch the terminals on the

battery pack. The battery pack may

no longer function properly if the

contacts are dirty or damaged.

zDo not expose the battery pack to

water, or allow it to become wet.

zIf the battery pack will not be used

for a long period of time (a month or

more), charge or discharge (use) the

battery pack until the remaining bat-

tery level becomes 30% to 40% and

store it in a cool, dry place.

zThis wireless display prevents over-

charging of the battery by recharging

only when the remaining power is

less than approx. 95% of capacity.

zThe battery pack is not charged

when the wireless display is first pur-

chased. Be sure to charge it before

using it for the first time. When the

AC adaptor is connected to the wire-

less display, charging begins auto-

matically.

zShould the battery leak and the fluid

get into your eyes, do not rub your

eyes. Immediately flush your eyes

with clear water and see a doctor for

medical treatment as soon as possi-

ble.

Avoid Extreme Heat,

Cold and Direct Sun-

light

Do not charge, use or

leave the battery pack for

extended periods where

it will be exposed to

direct sunlight, in a hot

place (in a car on a

sunny day, for example),

or in a cold place.

Do Not Use With Any

Other Equipment

The battery pack is

rechargeable and was

intended for the speci-

fied equipment. Do not

use it with any equipment

other than the one for

which it was designed.

Do Not Use This Wire-

less Display with a Bat-

tery Pack Other Than

the One Specified

Use only the specified

Panasonic battery pack

(CF-VZSU44/CF-VZSU44U)

with your CF-08. Use of

batteries other than those

manufactured and sup-

plied by Panasonic may

represent a safety haz-

ard.

Do Not Put into a Micro-

wave

Do not put the battery

pack into a microwave

oven or a pressurized

chamber.

Stop Using

Should the battery emit

an abnormal odor,

become hot to the touch,

become discolored,

change shape, or

become in any way dif-

ferent from normal,

remove it from the wire-

less display and stop

using it.

Precautions

NOTENOTE

zThe battery pack may become warm

during recharging or normal use.

This is completely normal.

zRecharging will not commence if

internal temperature of the battery

pack is outside of the allowable tem-

perature range (0 °C to 45 °C {32°F

to 122°F}). Once the allowable range

requirement is satisfied, charging

begins automatically. Note that the

recharging time varies based on the

usage conditions. (Recharging takes

longer than usual when the tempera-

ture is 10 °C {50°F} or below.)

zIf the temperature is low, the operat-

ing time is shortened. Only use the

equipment within the allowable tem-

perature range.

zThe battery pack is a consumable

item. If the amount of time the equip-

ment can be run by using a particular

battery pack becomes dramatically

shorter and repeated recharging

does not restore its performance, the

battery pack should be replaced with

a new one.

zWhen transporting a spare battery

inside a package, briefcase, etc., it is

recommended that it be placed in a

plastic bag so that its contacts are

protected.

zAlways power off the equipment

when it is not in use. Leaving the

equipment on when the AC adaptor

is not connected will exhaust the

remaining battery capacity.

Description of Parts

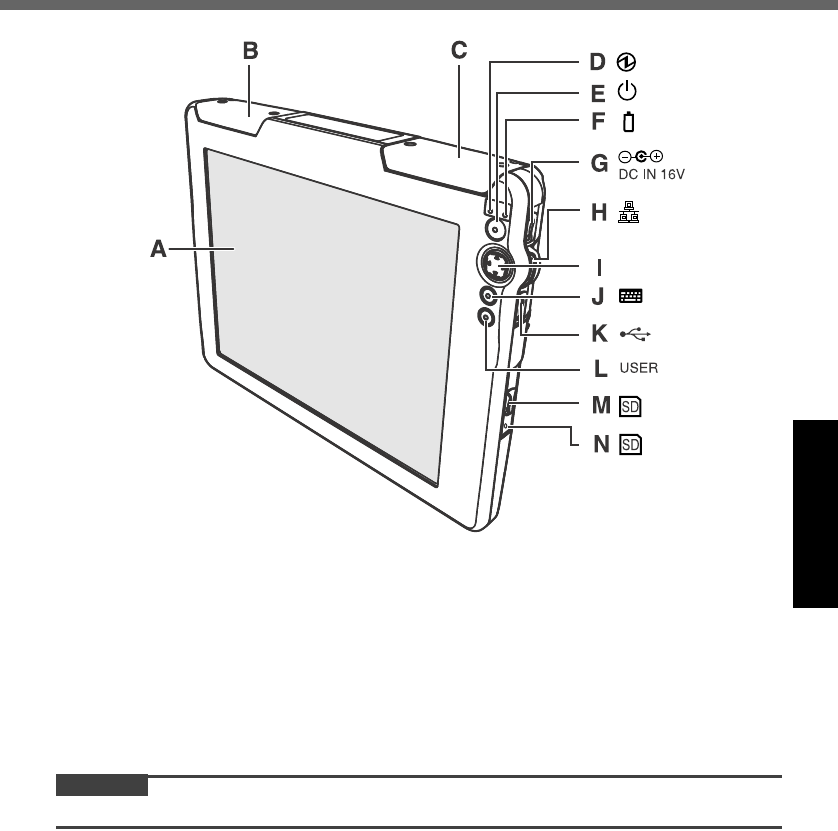

A. LCD (Touchscreen)

B. Wireless LAN antenna

C. Bluetooth antenna

D. Power status

E. Power button

F. Battery status

G. DC-IN jack

H. LAN port

I. Cursor key

J. Keyboard button

K. USB port

L. USER button

M. SD Card slot

N. SD memory card status

CAUTION

zDuring a thunderstorm, disconnect the AC plug.

Description of Parts

<Models for U.S.A/

Canada>

A lithium ion battery

that is recyclable

powers the product

you have pur-

chased.

Please call 1-800-8-

BATTERY for infor-

mation on how to

recycle this battery.

L’appareil que vous

vous êtes procuré est

alimenté par une bat-

terie au lithium-ion.

Pour des renseigne-

ments sur le recy-

clage de la batterie,

veuillez composer le

1-800-8-BATTERY.

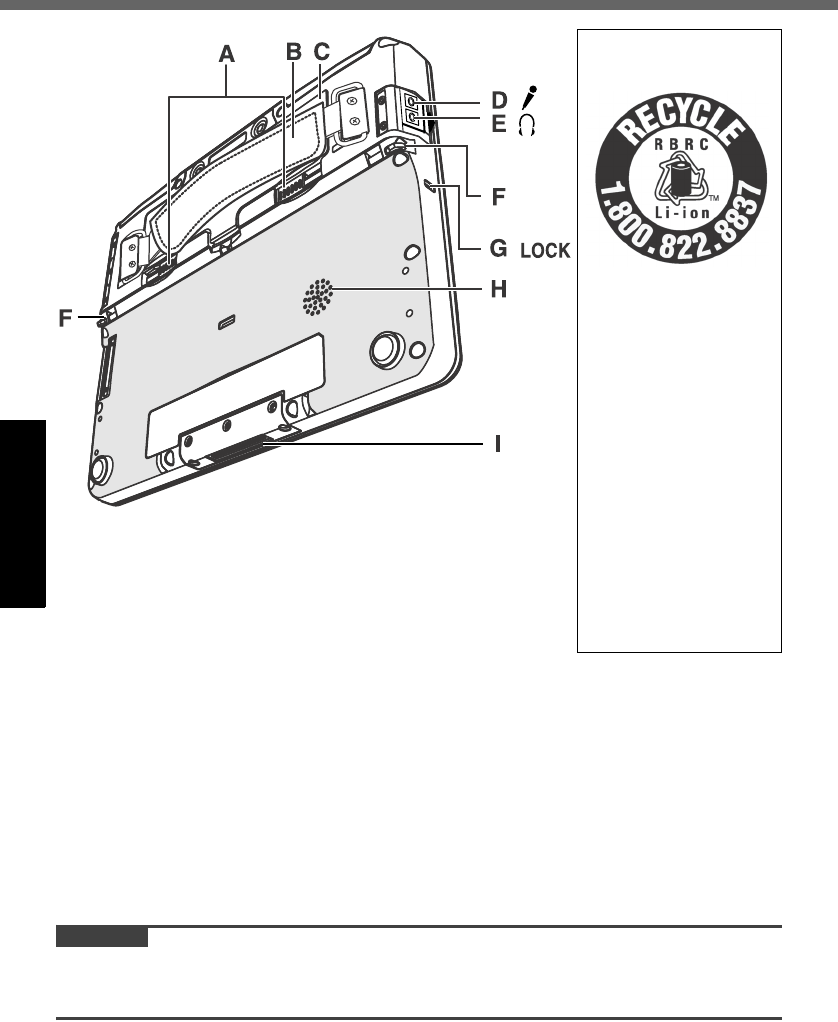

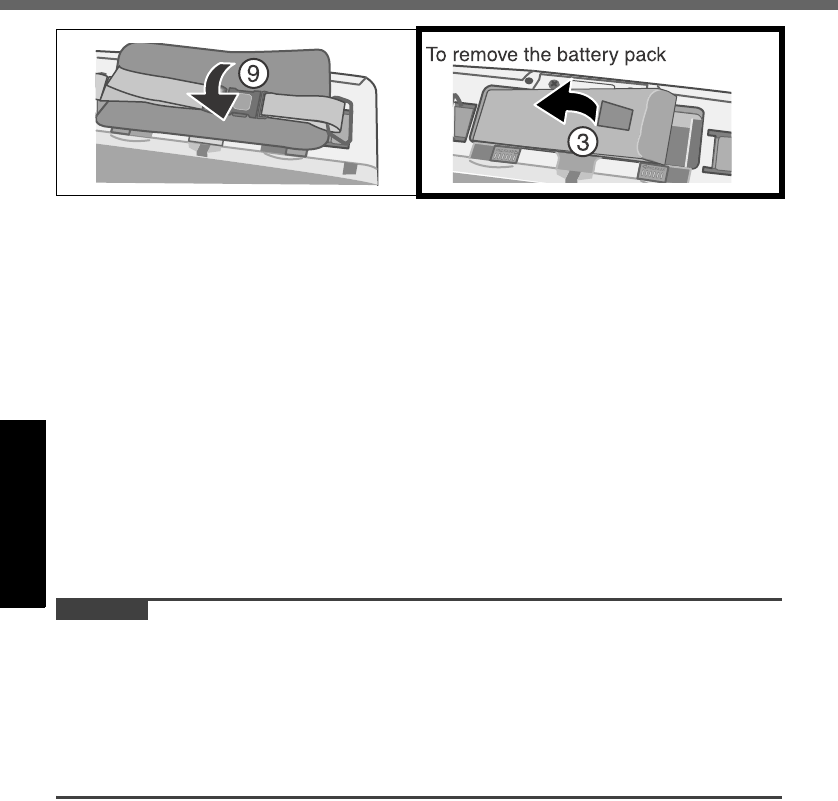

A. Battery cover latch

B. Hand strap

Adjust the length of the belt so that

the wireless display does not fall

by mistake, and firmly hold the

wireless display when using it.

C. Battery pack

D. Microphone jack

You can use a stereo condenser

microphone. Connecting another

type of microphone may interrupt

audio input or may cause a mal-

function.

E. Headphone jack

You can connect headphones or

amplified speakers. When they are

connected, audio from the internal

speakers is not heard.

F. Stylus pen holder

G. Security lock

H. Speaker

I. Expansion bus connector

CAUTION

zDo not put metallic objects or magnetic media close to the speakers.

zDo not touch the expansion bus connector. The wireless display may no longer

function properly if the connector is dirty or damaged.

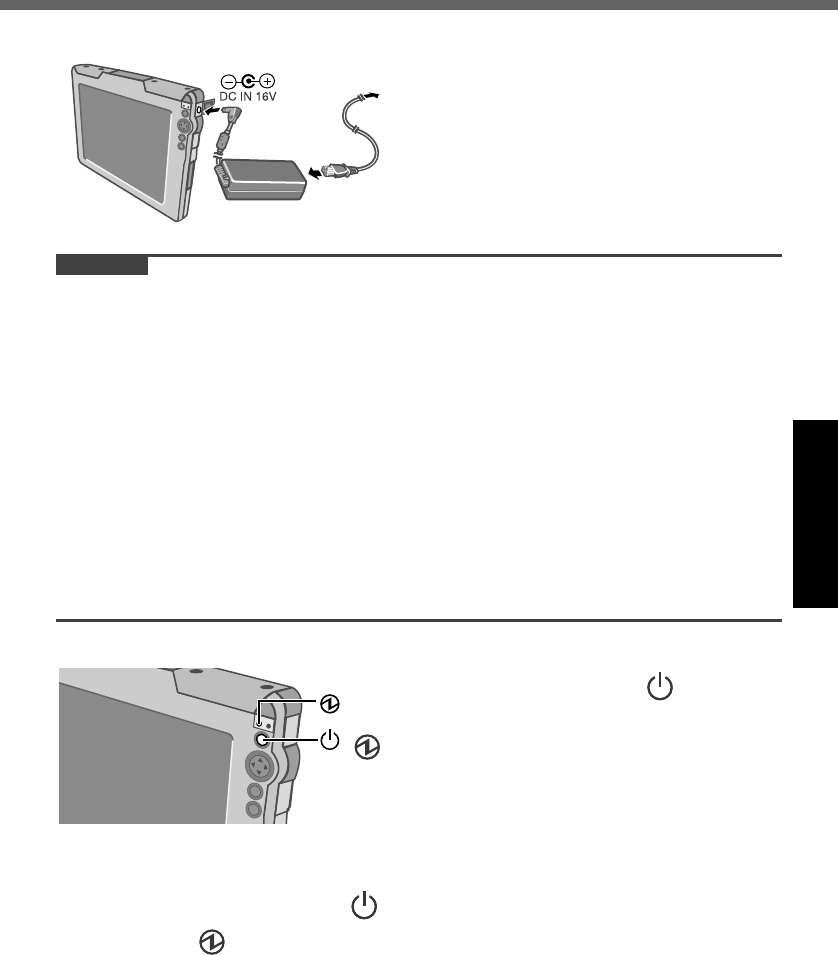

First-time Operation

Preparation

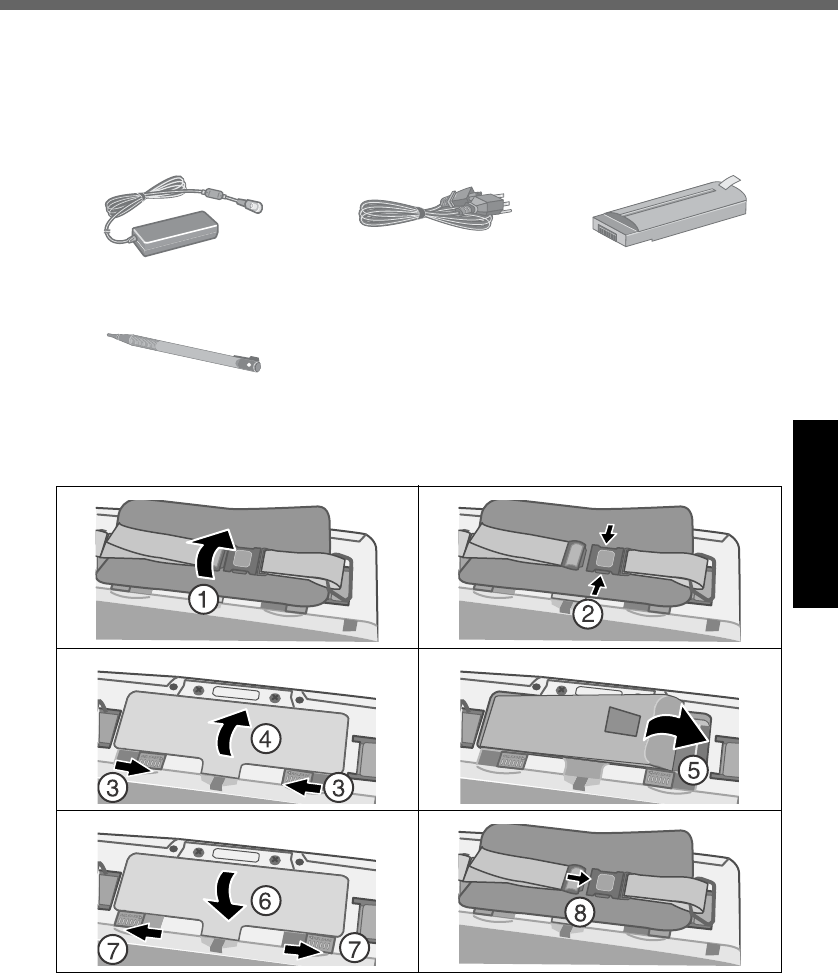

ACheck and identify the supplied accessories.

If you do not find the described accessories, contact Panasonic Technical

Support.

BRead the LIMITED USE LICENSE AGREEMENT before breaking the seal

on the wireless display’s packaging (Îpage 56).

1 Insert the battery pack.

• AC adaptor..................... 1

Model No.: CF-AA1623AM

• AC Cord .......................1• Battery Pack..............1

Model No.: CF-VZSU44U

• Stylus.............................. 1• Operating Instructions (This book)....................1

First-time Operation

ATurn the wireless display over, and open the hand strap cover.

BRemove the hand strap.

CSlide the battery latch.

DOpen the battery cover.

EFirmly attach the battery pack to the connector.

FClose the battery cover.

GSlide the battery latch.

HAttach the hand strap.

IAttach the hand strap cover.

To remove the battery pack

ASlide the battery latch as in step C.

BOpen the battery cover as in step D.

CPull the tab of the battery pack and remove it from the wireless display.

CAUTION

zBe careful not to catch the tab when you close the battery cover.

zMake sure the cover is securely attached. Otherwise the battery pack may fall

when you carry the wireless display.

zDo not touch the terminals of the battery pack and the wireless display. Doing

so can make the terminals dirty or damaged, and may cause malfunction of the

battery pack and the wireless display.

zUse only the specified battery pack (CF-VZSU44) with your wireless display.

2 Connect your wireless display to a power outlet.

The battery charging starts automatically.

CAUTION

zWhen using the wireless display for the first time, do not connect any peripheral

device except the battery pack and AC adaptor.

zHandling the AC adaptor

• Do not twist or pull the AC power cord forcefully. Doing so may damage the

connections.

• Use only the specified AC adaptor with your wireless display. Using an AC

adaptor other than the one supplied might damage the battery and/or the

wireless display.

• When the DC plug is not connected to the wireless display, disconnect the AC

cord from your AC wall outlet.

• Problems such as sudden voltage drops may arise during periods of thunder

and lightning. Since this could adversely affect your wireless display, an unin-

terruptible power source (UPS) is highly recommended unless running from

the battery pack alone.

3 Turn on the wireless display.

Press and hold the power button for approxi-

mately 1 - 2 seconds until the power indicator

lights.

To turn off the wireless display

Press and hold the power button for approximately 1 - 2 seconds until the

power indicator disappears.

The message “Preparing to Power off…” will be displayed.

First-time Operation

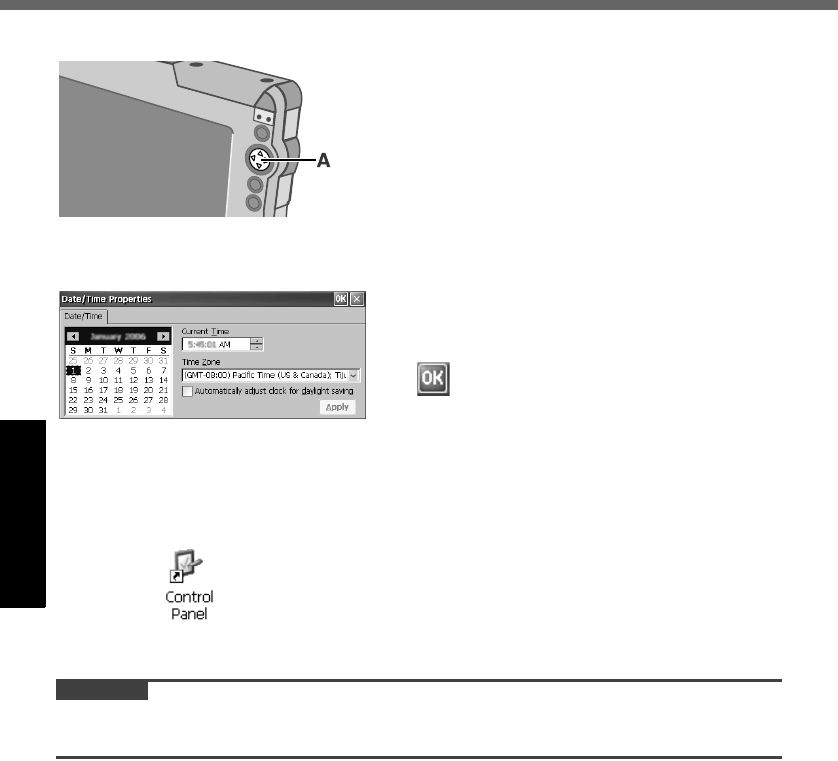

4 Calibrate the touchscreen.

Touch the “+” mark on the calibration screen with

the stylus (included) for about one second.

After the calibration procedure is executed (e.g.,

after the twelve “+” marks are touched), the pro-

cedure ends when the center of the cursor key

(A) is pressed.

5 Make the date and time setting.

The [Date/Time Properties] screen will

appear automatically.

Set the current time and time zone, and then

tap .

zYou can use the software keyboard when you set the time.

For information about how to use the Software Keyboard: Îpage 37

If the [Date/Time Properties] screen does not appear automatically

Double-tap on the desktop, and double-tap [Date/Time].

The [Date/Time Properties] screen will appear.

CAUTION

zTo take effect this setting when you start the wireless display next time, you

have to perform Flash Backup to save this setting. (Îpage 31)

LCD (Touchscreen)

Using the Stylus

Use the stylus provided to perform operations on the

touchscreen. The stylus is located in the stylus holder

(A), and can be held like a pen or pencil. The following

operations are possible on the touchscreen.

Tapping

You can select an item on the screen by tapping it with

the stylus. This operation is called a “tap”.

Dragging

You can drag on item on the screen by holding the sty-

lus down over the item and then moving the stylus. This

operation is called a “drag”.

Tapping and Holding

You can tap and hold the stylus on an item to see a list

of actions available for that item. On the pop-up menu

that appears, tap the action you want to perform.

Handling the Stylus

zClean the stylus tip and screen prior to operation. Foreign particles can scratch

the screen and impede the operation of the stylus.

zUse the provided stylus only on the screen. Using it for any other purpose may

damage the stylus and scratch the screen.

LCD (Touchscreen)

Handling the Touchscreen

zUse the provided stylus with CF-08. Do not use an implement other than the

stylus that comes with the wireless display.

zDo not place any object on the surface or press down forcefully with sharp-

pointed objects (e.g., nails), or hard objects that can leave marks (e.g., pencils

and ball point pens).

zDo not operate the wireless display when such things as dust are on the LCD.

Do not allow substances such as oil to contact the LCD. The cursor may not

work properly in such cases.

Aligning the touchscreen

Align the touchscreen if the cursor does not correctly move to the position where

the stylus touches the touchscreen of the wireless display.

ADouble-tap on the desktop, and double-tap [Stylus].

BTap [Calibration] tab, and tap [Recalibrate].

Control Panel

If you double-tap on the desktop, you can see much of the list of functions

that can be used on this wireless display. If you double-tap the icon (or the name),

the screen will start up.

Here, we will introduce the name of the function and provide a brief explanation of

each.

CAUTION

zAfter changing settings, if you do not tap , some settings after the changes

will take effect.

Accessibility Allows you to change settings to make

the keyboard, sound, screen, mouse, and

other devices easier to use.

Backlight Allows you to change the brightness of

the screen’s backlight. Move the slider to

the left to make the backlight darker, and

to the right to make it brighter.

Bluetooth Device

Properties

Controls Bluetooth connections. (Îpage

54)

Buttons Assigns applications to be launched

when the keyboard button and USER

button are pressed. (Îpage 34)

Certificates Allows you to see a list of certificates

installed in the wireless display.

CF-08 Manage-

ment

Controls the start/termination of the CF-

08 device management function.

Date/Time Sets the current date, time, and time

zone.

Control Panel

Device Manage-

ment

Sets the connection to the device man-

agement server.

Dialing Sets dialing properties.

Display Sets the wallpaper and window color

schemes.

Error Reporting Reports software errors to Microsoft.

Flash Backup Îpage 31

Flash Copy Îpage 31

Flash Delete Îpage 31

Input Panel Sets Input Panel properties for the soft-

ware keyboard, etc.

Internet Options Sets Internet Explorer properties.

Keyboard Sets the key repeat intervals when a USB

keyboard is connected.

Mouse Sets the double click interval when an

external mouse is connected.

Network and Dial-

up Connections

Sets properties for installed network

adaptors (LAN, wireless LAN).

Network Informa-

tion

Confirms network status when the wire-

less display is connected to a server.

Power Displays remaining power in the main

battery, and sets power conservation

properties.

Printers Sets properties for the local printer con-

nected to the wireless display.

Quick Menu Sets the applications allocated to Quick

Menu. (Îpage 35)

Remove Programs Allows you to uninstall programs that

were installed earlier.

ROM Update Îpage 33

Rotate Allows you to rotate the screen. Using [0

degrees (landscape)] as the standard,

you can rotate the screen [90 degrees],

[180 degrees] or [270 degrees] either

clockwise or counterclockwise. To take

effect the screen rotation, tap [Rotate].

Security (Supervi-

sor/User)

Îpage 43

Stylus Sets the intervals for double taps and cal-

ibrates the stylus pad.

Control Panel

System Sets device names and displays the Win-

dows CE version, memory usage vol-

ume, copyrights for internal software, and

information unique to this wireless dis-

play.

Terminal Service

Client Licenses

Displays Terminal Service Client

Licenses that have been acquired.

Volume & Sounds Adjusts volume, sets system sounds, and

adjusts microphone gain.

Wireless LAN Controls Wireless LAN connections.

Backing up / Deleting / Copying Data

To back up data from CF-08 RAM to Flash ROM, perform Flash Backup by follow-

ing the instructions below.

ADouble-tap on the desktop and double-tap [Flash Backup].

BConnect your wireless display to a power outlet. (Îpage 23)

CTap [Start Backup].

Backing up data will start.

DWhen the message “Backup successful.” appears, tap .

To delete backup data, perform Flash Delete by following the instructions below.

ADouble-tap on the desktop and double-tap [Flash Delete].

BConnect your wireless display to a power outlet. (Îpage 23)

CTap [Delete Backup].

When the confirmation message appears, tap [Yes].

Deleting data will start.

DWhen the message “Backup data has been deleted.” appears, tap .

CAUTION

zWhen you turn on the wireless display for the first time after deleting data, cali-

brate the touchscreen (Îpage 24).

To copy data from CF-08 RAM to the media (SD Memory Card, etc.), perform

Flash Copy by following the instructions below.

ADouble-tap on the desktop and double-tap [Flash Copy].

BConnect your wireless display to a power outlet. (Îpage 23)

CInsert the copy destination media, and select the media in “Copy To.”

Backing up data

Deleting data

Copying data

Backing up / Deleting / Copying Data

DEnter the file name and tap [Copy Backup].

Copying data will start.

zThe file that has already existed cannot be overwritten.

In this case, tap , change the file name, and tap [Copy Backup].

EWhen the message “Copy successful.” appears, tap .

How to update data: Îpage 33

To return the wireless display to the default condition

Perform the following procedure.

zWhen turning on the wireless display, turn it off.

AConnect your wireless display to a power outlet. (Îpage 23)

BTurn on the wireless display. (Îpage 23)

CPress and hold the keyboard button and USER button (Îpage 34) until the

message “Reset to device to factory default...” appears.

DSelect [Yes].

ROM Update

To update the copied data, perform “ROM Update” by following the instructions

below.

ADouble-tap on the desktop and then double-tap [ROM Update].

BConnect your wireless display to a power outlet. (Îpage 23)

CInsert the media with “.pkg” file copied, and then tap [Brouse].

DSelect the file and tap .

ETap [Next].

FTap [Update Start].

GWhen the confirmation message appears, tap [Yes].

ROM Update will start.

When ROM Update terminates, the wireless display will restart and the

[Date/Time Properties] screen will appear automatically. (Îpage 24)

Buttons

You can display screens for frequently used

functions and applications by pressing specified

keyboard button or USER button on

this wireless display.

Two functions can be assigned to each button;

one that starts up with a short push (less than 2

seconds) and one that starts up with a long

push (more than 2 seconds).

At the time of purchase, this wireless display is set so that the screens for the fol-

lowing functions are displayed.

Settings can be changed using the following procedure.

ADouble-tap on the desktop and then double-tap [Buttons].

BWhen the [Buttons] screen appears, tap and select the function name

in accordance with the button positions and short/long push that you want to

set.

CTap .

*1 To execute the right click operation:

ATap [Buttons] in [Control Panel], and set [Right Click] according to the position and

push length (long/short) for the button that you want to use.

BPress the button that you set in A.

You can use the right click once.

Each time after this, before using the right click once, execute operation B above.

You can also execute the right click operation using Quick Menu (Îpage 35).

Button short push long push

Keyboard button Input Panel Input Panel Selector

USER button Quick Menu (Îpage 35)Right Click*1

Quick Menu

Quick Menu is used to display information about the wireless display, or to enable

frequently used applications and functions to be launched quickly without going

through Control Panel.

At the time of purchase, Quick Menu can be

launched with a short push of the USER button

How to change Quick Menu launching method:

Îpage 34

A.Display remaining battery level

([Power] in Control Panel Îpage

29)

B.Display status of wireless LAN

C.Set and change sound volumes

([Volume & Sounds] in Control

Panel Îpage 30)

D.Set and change display backlight

brightness ([Backlight] in Control

Panel Îpage 27)

E.Start up frequently used applica-

tions and functions

At the time of purchase, [Right

Click]*1, [Input Panel Selector],

[Control Panel] and [Stylus Calibla-

tion] are set in Quick Menu.

You can change these settings

using the following procedure.

ADouble-tap on the desktop and double-tap [Quick Menu].

The [QuickMenu Application Assignment] screen will appear.

BTap the button for the application/function you want to change, and

then tap the application/function you want to assign to that button

location.

CTap .

Quick Menu

*1 To execute the right click operation:

ASet [Right Click] in the [QuickMenu Application Assignment] screen.

BLaunch Quick Menu and tap [Right Click].

You can use the right click once.

Each time after this, before using the right click once, execute operation B above.

You can also execute the right click operation by pressing the keyboard button or USER

button. (Îpage 34)

Software Keyboard

To show or hide the Software Keyboard

zPress and hold the keyboard button or

USER button . (Îpage 34)

There are five input methods. “Numeric keyboard” and “Full keyboard” can be

selected as either large or small panels.

To change the input method, use any of the following methods.

zPress and hold the keyboard button or USER button

(Îpage 34) or tap [Input Panel Selector] in the [Quick

Menu] screen (Îpage 35), and select the input method

that you want to use on the [Input Panel Selector] screen.

zDouble-tap [Input Panel] in [Control Panel], select [Key-

board] or [Transcriber] in “Current Input Method” and tap

• If you select [Keyboard], tap [Options] to change the

input method or panel size.

• To use Transcriber Îpage 39

Software Keyboard

Transcriber

Transcriber is a function that enables you to input letters, characters or symbols by

writing directly on the touchscreen using the stylus.

To display the [Transcriber: Options] screen, tap .

Tap on the various tabs to set the following functions.

[Quick Settings] Tab

Recognition: Change the language of the

recognition engine.

Writing Direction: Change the handwriting

input direction.

Intro screen: If the check mark is added,

the Help screen will be displayed when the

Transcriber starts up.

Sound: If the check mark is added, you will hear a

sound when the Transcriber starts up. The volume of this sound will be the same

as the volume set in Quick Menu (Îpage 35) or in [Volume & Sounds] (Îpage

30).

A. Option settings

Displays the [Transcriber: Options]

screen of Transcriber option set-

tings. (Î below)

B. Change recognition mode

Running hand/block letter (charac-

ter (Alphabet/symbol/numeric)).

C. Display symbol input panel

Displays the screen for symbol

input.

D. Change Upper/Lower/symbol mode

Changes input mode to Upper/Lower/

symbol mode.

E. Space

Inputs space.

F. Re turn

Inputs return code.

G. Left move

Moves cursor to left.

H. Right move

Moves cursor to right.

I. BS

Backspace (delete one character)

J. Help

Displays help screen.

Software Keyboard

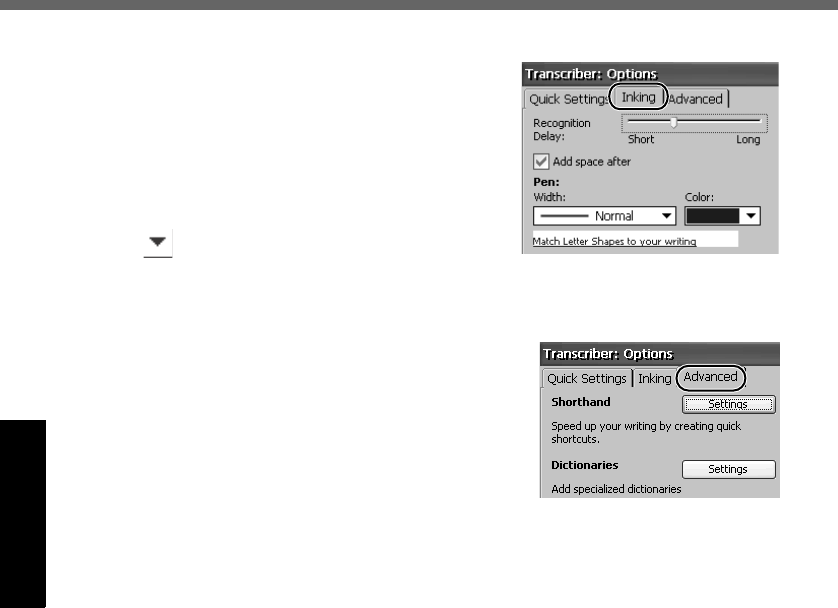

[Inking] Tab

Recognition Delay: Slide the bar to set the time

for recognition of handwritten characters.

Add space after: If the check mark is added,

when handwritten characters are recognized

and displayed on the screen, a single space

will also be displayed at the end of each

character.

Pen: Tap to set the width and color of the ink.

[Advanced] Tab

Shorthand: Register shorthand

The following functions can be assigned

for handwriting input.

zText expansion

Allows you to display words, phrases, or

sentences by inputting handwritten

abbreviations.

e.g.: Input “xyz” in handwriting J Displays “I am a

student.”

zFunction

Allows you to display dates, names, or other information by inputting handwrit-

ten abbreviations.

e.g.: Input “ABC” in handwriting J Displays company name.

zRun program

Allows you to start up a program by inputting handwritten characters.

e.g.: Input “abc” in handwriting J Starts up [Control Panel].

Functions can be registered using the following procedure.

1Tap [Settings] to the right of “Shorthand.”

2 Tap [Add].

After you tap [Finish] in step 4, the screen will return to step 2. To register

two or more functions in succession, repeat step 2 and 3.

3 Select the function that you want to register ([Text expan-

sion], [Function] or [Run program]) and tap [Next].

4 To register shorthand in [Text expansion]:

AInput “xyz” in handwriting on the screen.

“xyz" will be displayed in the “Shorthand” box.

BTap the “Text expansion” box once, and then input “I am a student”

in handwriting on the screen.

“I am a student” will be displayed in the “Text expansion” box.

CTap [Finish].

The screen will automatically return to step 2.

To register shorthand in [Function]:

AInput “ABC” in handwriting on the screen.

“ABC” will be displayed in the “Shorthand” box.

BTap in the “Function” box, and a list of information will appear;

select one of these, and tap [Finish].

The screen will automatically return to step 2.

To register shorthand in [Run program]:

AInput “abc” in handwriting on the screen.

“abc” will be displayed in the “Shorthand” box.

BTap in the “Run program” box, and a list of bootable programs

will appear; select one of these, and tap [Finish].

The screen will automatically return to step 2.

5Tap .

Dictionaries: Select a dictionary.

Signature Capture

Signature Capture operates on CF-08, supporting input of signatures in applica-

tions running on the connection destination server.

How to launch Signature capture:

ADouble-tap , and double-tap [Windows].

BDouble-tap [Programs], and tap [Signature Capture].

You can set the wireless display to launch Signature Capture using the Quick

Menu (Îpage 35), keyboard button or USER button (Îpage 34).

You can set the thickness of the writing or

the size of the bitmap data to be saved by

tapping and then tapping [Setting].

Tap [Capture] to temporarily save the

handwritten image on the server computer

clipboard.

To view the handwritten image while connected to the server:

ATap [start] - [Run].

BInput [Clipbrd.exe] and tap [OK].

The [CLIP BOOK] screen will appear.

Security Measures

You can set the password and/or enable/disable some functions for security pur-

pose.

You can set two types of users with different operating authorities.

Supervisor: Changes settings related to the wireless display operations, and con-

trols the operations of regular users. Set the Supervisor Password in advance

using the [Supervisor] tab in Security Settings (Supervisor) (Î below).

User: Executes only operations that have been limited by the Supervisor.

ADouble-tap on the desktop.

BDouble-tap [Security (Supervisor)].

CTap the [Supervisor], [User] or [Device Permission] tab.

zFor information on the tab:

[Supervisor] tab Îpage 44

[User] tab Îpage 44

[Device Permission] tab Îpage 45

DEnter your password in [New Password].

zWhen the password has been set, you need to enter your password in

[Current Password].

zTo disable the password, leave the input field empty.

EEnter your password again in [Confirm Password] and tap .

FAt the confirmation message, tap [Yes].

When the message that recommends executing Flash Backup appears, tap

CAUTION

zDo not forget your password. If you forget your Supervisor Password, you will

not be able to use your wireless display. Contact Panasonic Technical Support.

zSoon after you create or change the setting, perform Flash Backup (Îpage

31). If you do not do so, the setting will not be reflected next time when you turn

on the power for the wireless display.

NOTENOTE

zThe password will not be displayed on the screen.

zYou can use up to 40 alphanumeric characters (excluding spaces).

zDisabling the Supervisor Password also disables the User Password.

Security Measures

Security Settings (Supervisor)

The Supervisor can make security settings using the following procedure after log-

ging on with the Supervisor Password, or when no password has been set.

zWhen you log on as a Supervisor, press and hold the power button with the

USER button pressed, and enter the password when the [Enter Password]

screen appears. If you do not do so, even when you enter the Supervisor Pass-

word, the wireless display will run in the User operating environment.

[Supervisor] tab

[User] tab

(Set when Supervisor and User log on separately. Supervisor can make settings

for Users after the Supervisor password is set in the [Supervisor] tab.)

Item After the check mark is added

Auto Launch When you select an application, that application will

automatically start up when the wireless display is

started. For example, if the connection settings for

Remote Desktop Connection or ICA Client have

been made in advance (Îpage 50), you can set

these applications to start up automatically.

Wait Network Connec-

tion

An application set in [Auto Launch] will launch after

the network connection is built up.

Item After the check mark is added

Skip Password Dialog Allows Users to log on without entering a password.

The password input screen is not displayed.

(If you press and hold the power button with the

USER button pressed, the [Enter Password] screen

will be displayed, and the User can log on with the

User Password.)

Allow Connection Con-

figuration

Allows creation and changes of connection settings

after logging on.

Double-tap or on the desktop to

display the connection setting screen.

[Device Permission] tab

(Same settings for Supervisor and User.)

Allow Application

Assignment

Allocates applications to the keyboard button or

USER button (Îpage 34) or Quick Menu (Îpage

35).

File Explorer Enables viewing of files via Windows Explorer after

logging on.

Double-tap on the desktop.

Internet Explorer Allows access to the Web browser, and enables cre-

ation of/changes to connection settings after logging

on.

Double-tap on the desktop.

Control Panel When the User is using the wireless display, items

displayed in the Control Panel can be selected

using the following procedure.

ATap [Permission] to display the [Permission]

screen.

BAdd the check mark for only the items to be

displayed in the [Control Panel] screen, and

tap .

Allow Change Auto

Launch

Allows users to change Auto Launch setting.

Allow Launch Îpage 44

Wait Network Connec-

tion

Îpage 44

Explanation

Of the following devices, only those with a check mark can be used.

•Ethernet • Wireless LAN • Bluetooth • SD Memory • USB Memory

Security Measures

Security Settings (User)

Users can make security settings in the following cases.

zAfter logging on with a User Password.

zWhen you add the check mark for [Skip Password Dialog].

zWhen the User Password has not been set, and the User has logged on with-

out entering a password.

How to start up the [Security Setting] screen:

ADouble-tap on the desktop.

BDouble-tap [Security (User)].

The following screen will be displayed.

[User] tab

zIf a User Password has not been set in the [User] tab of Security Settings

(Supervisor) (Îpage 44), a password cannot be changed, deleted or newly

created here.

Item After the check mark is added

Auto Launch Îpage 44

Wait Network Connec-

tion

Îpage 44

SD Memory Card

About SD Memory Card

An SD Memory Card can be used for the following purposes.

zThe exchange of data with various devices equipped with an SD Memory Card

slot, audio storage, and so on.

zUse as a memory card (e.g., use as a storage unit on which files can be written).

Inserting/Removing a Card

1 Open the SD Memory Card slot cover.

2 Insert/Remove a Card.

To insert the card

Insert the SD Memory Card with the label side facing up and with the cut corner in

front.

To remove the card

APress the card so it comes out of the slot.

BDraw it straight out.

3 Close the SD card slot cover.

To insert the card To remove the card

Battery Power

NOTENOTE

zOnce the battery is fully charged, the wireless display performs recharging only

when the battery level becomes less than approximately 95%, so overcharging is

avoided.

You can check the remaining battery charge using any of the following methods.

zDouble-tap on the desktop, double-tap [Power] and tap [Battery] tab.

zPress and hold the keyboard button or USER button (Îpage 34) and run

Quick Menu (Îpage 35).

Battery Indicator

Battery indicator Battery status

Not lit The battery pack is not inserted or not being charged.

Pulsing orange Charging is in progress.

Green The battery is fully-charged.

Red The remaining battery is approximately 9% or less.

Blinking red The battery pack or the charging circuit is not operating

normally.

Blinking orange The battery cannot be charged temporarily due to the fol-

lowing reasons:

zIts internal temperature is out of the acceptable range.

zThe power supply is not enough because software

applications or peripheral devices are consuming a

large amount of power.

Checking the Remaining Battery Charge

You can reduce power consumption using the following method.

When using the battery, the wireless display can be used for a longer period of

time.

Power conservation effects can be achieved even when the AC adaptor is connected.

zDouble-tap on the desktop, dou-

ble-tap [Power] and tap [Schemes] tab.

Power consumption can also be mini-

mized with detailed settings; for exam-

ple, by reducing the time setting for

[Turn off LCD].

The battery pack is a consumable item so the replacement (CF-VZSU44) will be

necessary. If the battery operation time becomes noticeably short, replace with a

new battery.

How to remove/insert the battery pack:Îpage 21

Replacing the Battery Pack

Connecting to a Computer / Server

Either a LAN or wireless LAN can be used for connection.

Before making connection settings, perform the following procedure.

zAfter completing the computer/server settings (IP address, subnet mask, etc.),

perform wireless display settings.

ADouble-tap on the desktop, and then double-tap [Network and Dial-

up Connections].

B<When making connection with a LAN>

Double-tap [ETHERNET1].

Double-tap [WIRELESS LAN1].

CTap the [IP Address] tab, select [Specify an IP address], and enter the IP

Address, Subnet Mask, and Default Gateway to match with the computer/

server connected.

DTap .

1-1 Connections

When connecting to Microsoft® Windows® XP Professional

Follow the instructions below to connect using Remote Desktop Connection.

zAfter completing the computer settings (IP address, subnet mask, etc.), per-

form wireless display settings.

1 Connect the necessary devices, and turn the power on for

the computer.

2 Turn on the power for the wireless display.

(Perform step A-C only when making connections with a wireless LAN.)

ADouble-tap on the desktop, and then tap [Wireless LAN].

BTap the [Wireless Information] tab, and then tap the access point from the list.

Now, select settings as follows according to your own network environment.

CTap [Connect].

3 Double-tap on the desktop.

4 Tap [Options].

Enter the Computer (IP address or computer/server name for the connec-

tion destination), User name (account name for the computer/server to be

connected), and Password (the password required to log on to the com-

puter/server to be connected).

zTap [Save As], enter the file name, select the save destination, and tap

. An “rdp.” file will be created, and the data entered in the above pro-

cedure will be saved. In this way, the next time you want to use the

Remote Desktop (and any time after that), you can display the server

desktop screen by double-tapping the “rdp.” file.

5 Tap [Connect].

The server desktop screen will be displayed.

Connecting multiple clients

When connecting to a Microsoft® Windows® 2000 Server / Microsoft®

Windows® 2003 Server

For information on how to connect using Remote Desktop Connection, refer to

step 1-5 of “1-1 Connections” (Îpage 50).

When connecting to a server computer running Citrix® MetaFrame® Pre-

sentation Server

Follow the instructions below to connect using Citrix® ICA® Client.

zFor information on Citrix® server, refer to the manual of the server.

1 Turn on the power for the wireless display.

2 Double-tap on the desktop, and tap [Accept].

3 Connect the necessary devices, and turn the power on for

the server.

(Perform step A-C only when making connections with a wireless LAN.)

Connecting to a Computer / Server

ADouble-tap on the desktop, and then double-tap [Wireless LAN].

BTap the [Wireless Information] tab, and then tap the access point from the

list.

Now, select settings as follows according to your own network environment.

CTap [Connect].

4 Double-tap on the desktop, and tap [Create New

Connection].

5 Enter the IP address or server name for the connection

destination in “Server or Published Application”, and tap

[Save].

The name entered above will be displayed in the Main screen of the ICA Cli-

ent.

6 Select the name entered in step 5, and tap [Edit].

7 Tap [Edit Logon Information], enter Username and Pass-

word (and Domain, if required), and tap [Save].

8 Tap [Main] at the top of the screen.

9 Select the name entered in step 5 and tap [Edit].

10 Tap [Edit Title], add the check mark for [Create a Desktop

shortcut], and tap [Save], then tap .

will appear on the desktop.

11 Double-tap *1 the desktop.

The server desktop screen will be displayed.

*1 The name entered in step 5 will be displayed.

Perform the following operations.

zTap [start] - [Log Off] - [log Off].

Terminating the connection

z<Only when using Remote Desktop Connection>

Tap , then tap .

If you tap [start] - [Shut Down], the power for the server itself will be turned off.

Bluetooth

To launch the [Bluetooth] screen

ADouble-tap on the desktop.

BDouble-tap [Bluetooth Device Properties].

To turn the power on/off Bluetooth

Tap [General] tab, and add the check mark for [Enable Bluetooth].

A. Set the device name for Bluetooth

B. Set the passkey used when connecting to

the opposing Bluetooth device.

C. Set the Bluetooth power status when the

CF-08 starts up.

D. Set whether the opposing Bluetooth

device is able to detect the CF-08 when

the Bluetooth device is detected.

To set operations in Serial Port Profile

Tap [Serial Port] tab.

To set operations in DialUp Network Profile

Tap [DialUp Network] tab.

To show information about Bluetooth

Tap [About] tab.

For Effective Use

Maintenance

LCD

Do not use water when cleaning the panel. Ingredients included in water may

leave residue and reduce readability of the screen.

Avoid rubbing off dust/dirt with cloth since it may leave scratch on the screen.

Sweep dust/dirt with fine brush, then wipe it with "dry" soft cloth used for cleaning

glasses.

Apply camera lens cleaner on a soft gauze and clean it with gentle force. Then,

wipe with dry soft cloth used for cleaning glasses.

Areas excluding the LCD

Wipe these areas with a soft cloth, after applying water or detergent diluted with

water to the soft cloth and firmly wringing out excess water.

CAUTION

zDo not use benzene, thinner, or rubbing alcohol. Doing so may adversely affect

the surface, e.g., discoloration. In addition, do not use commercially-available

household cleaners and cosmetics, as they may contain components harmful

to the surface.

zDo not directly add or spray water or detergent. If liquid enters the inside of the

computer, it may cause the computer to work improperly or be damaged.

LIMITED USE LICENSE AGREEMENT

THE SOFTWARE PROGRAM(S) (“PROGRAMS”) FURNISHED WITH THIS

PANASONIC® PRODUCT (“PRODUCT”) ARE LICENSED ONLY TO THE END-

USER (“YOU”), AND MAY BE USED BY YOU ONLY IN ACCORDANCE WITH

THE LICENSE TERMS DESCRIBED BELOW. YOUR USE OF THE PROGRAMS

SHALL BE CONCLUSIVELY DEEMED TO CONSTITUTE YOUR ACCEPTANCE

OF THE TERMS OF THIS LICENSE.

Matsushita Electric Industrial Co., Ltd. (“MEI”) has developed or otherwise

obtained the Programs and hereby licenses their use to you. You assume sole

responsibility for the selection of the Product (including the associated Programs)

to achieve your intended results, and for the installation, use and results obtained

therefrom.

LICENSE

A. MEI hereby grants you a personal, non-transferable and non-exclusive right

and license to use the Programs in accordance with the terms and conditions

stated in this Agreement. You acknowledge that you are receiving only a LIM-

ITED LICENSE TO USE the Programs and related documentation and that you

shall obtain no title, ownership nor any other rights in or to the Programs and

related documentation nor in or to the algorithms, concepts, designs and ideas

represented by or incorporated in the Programs and related documentation, all

of which title, ownership and rights shall remain with MEI or its suppliers.

B. You may use the Programs only on the single Product which was accompanied

by the Programs.

C. You and your employees and agents are required to protect the confidentiality

of the Programs. You may not distribute or otherwise make the Programs or

related documentation available to any third party, by time-sharing or otherwise,

without the prior written consent of MEI.

D. You may not copy or reproduce, or permit to be copied or reproduced, the Pro-

grams or related documentation for any purpose, except that you may make

one (1) copy of the Programs for backup purposes only in support of your use

of the Programs on the single Product which was accompanied by the Pro-

grams. You shall not modify, or attempt to modify, the Programs.

E. You may transfer the Programs and license them to another party only in con-

nection with your transfer of the single Product which was accompanied by the

Programs to such other party. At the time of such a transfer, you must also

transfer all copies, whether in printed or machine readable form, of every Pro-

gram, and the related documentation, to the same party or destroy any such

copies not so transferred.

F. You may not remove any copyright, trademark or other notice or product identi-

fication from the Programs and you must reproduce and include any such

notice or product identification on any copy of any Program.

YOU MAY NOT REVERSE ASSEMBLE, REVERSE COMPILE, OR MECHANI-

CALLY OR ELECTRONICALLY TRACE THE PROGRAMS, OR ANY COPY

THEREOF, IN WHOLE OR IN PART.

YOU MAY NOT USE, COPY, MODIFY, ALTER, OR TRANSFER THE PRO-

GRAMS OR ANY COPY THEREOF, IN WHOLE OR IN PART, EXCEPT AS

EXPRESSLY PROVIDED IN THE LICENSE.

IF YOU TRANSFER POSSESSION OF ANY COPY OF ANY PROGRAM TO

ANOTHER PARTY, EXCEPT AS PERMITTED IN PARAGRAPH E ABOVE, YOUR

LICENSE IS AUTOMATICALLY TERMINATED.

TERM

This license is effective only for so long as you own or lease the Product, unless

earlier terminated. You may terminate this license at any time by destroying, at

your expense, the Programs and related documentation together with all copies

thereof in any form. This license will also terminate effective immediately upon

occurrence of the conditions thereof set forth elsewhere in this Agreement, or if

you fail to comply with any term or condition contained herein. Upon any such ter-

mination, you agree to destroy, at your expense, the Programs and related docu-

mentation together with all copies thereof in any form.

YOU ACKNOWLEDGE THAT YOU HAVE READ THIS AGREEMENT, UNDER-

STAND IT AND AGREE TO BE BOUND BY ITS TERMS AND CONDITIONS.

YOU FURTHER AGREE THAT IT IS THE COMPLETE AND EXCLUSIVE STATE-

MENT OF THE AGREEMENT BETWEEN US, WHICH SUPERSEDES ANY PRO-

POSAL OR PRIOR AGREEMENT, ORAL OR WRITTEN, AND ANY OTHER

COMMUNICATIONS BETWEEN US, RELATING TO THE SUBJECT MATTER OF

THIS AGREEMENT.

About Intel® software products

The enclosed software products and documentation were developed at private

expense, and are provided with “RESTRICTED RIGHTS.” Use, duplication or

disclosure by the government is subject to restrictions as set forth in FAR

52.227-14 and DFARS 252.227-7013 et. seq. or its successor. The use of this

product by the government constitutes acknowledgment of Intel’s proprietary

rights in the product.

Troubleshooting

Follow the instructions below when a problem has occurred. For a software prob-

lem, refer to the software’s instruction manual. If the problem persists, contact

Panasonic Technical Support.

No display after

powering on

zHas the computer or wireless display been set to the

power-saving mode?

To resume operation of your computer from the condition

where the power of the display is off (for energy conser-

vation purposes), touch the screen.

An afterimage

appears (i.e.,

green, red, and blue

dots remain on the

display) or there are

dots not displaying

the correct colors

zHigh-precision and advanced technologies are neces-

sary in the production of color liquid crystal displays

(color LCDs). Therefore, if 0.002% or less of the picture

elements either fail to light or remain constantly lit (that

is, more than 99.998% of elements are functioning prop-

erly), no defect is considered to exist.

Specifications

Model No. CF-08TX1A1M

CPU Intel® PXA270 Processor 312 MHz

Memory (ROM/RAM) 32 MB/64 MB

Display Method 10.4 XGA type

Internal LCD Display 65,536 colors (1024 × 768 pixels)

Wireless LAN IEEE 802.11b

Bluetooth Ver 1.2

LAN IEEE 802.3 10Base-T, IEEE 802.3u 100Base-TX

Sound WAVE playback, Monaural Speaker (built in)

Card Slot SD Memory Card

Slot × 1

Interface USB Port × 1 (USB1.1), LAN Port (RJ-45), Expan-

sion Bus Connector (Dedicated 16-pin), Microphone

Jack (Miniature jack, 3.5 DIA, Stereo), Headphone

Jack (Miniature jack, 3.5 DIA, Impedance 32Ω, Out-

put Power 4 mW × 2)

Pointing Device Touchscreen (Anti-Reflection, Stylus (included)

touch capable)

Power Supply AC adaptor or Battery pack

AC Adaptor*1 Input: 100 V to 240 V AC, 50 Hz/60 Hz

Output: 16.0 V DC, 2.5 A

Battery Pack Li-ion 7.4 V, 5.2 Ah

Operating Time*2 Approx. 4 hours to 10 hours

Charging Time*2 Approx. 4 hours

Power Consumption*3 Approx. 9 W *4/ Approx. 40 W (Maximum when

recharging in the ON state)

Physical Dimensions (W × H × D) 275 mm × 214 mm × 36 mm {10.8 ’’ × 8.4 ’’ × 1.4 ’’}

Weight Approx. 1.2 kg {Approx. 2.6 lb.}

Operation Environment Temperature: 5 °C to 35 °C {41 °F to 95 °F}

Humidity: 30% to 80% RH (No condensation)

Storage Environment Temperature: -20 °C to 60 °C {-4 °F to 140 °F}

Humidity: 30% to 90% RH (No condensation)

Operating System Microsoft® Windows® CE 5.0 Professional

Software Microsoft® RDP Client, Citrix® ICA® Client,

Microsoft® Internet Explorer 6.0

Specifications

*1 <Only for North America>

The AC adaptor is compatible with power sources up to 240 V AC adaptor. The wireless

display is supplied with a 125 V AC compatible AC cord.

*2 Varies depending on the usage conditions.

*3 Approx. 0.9 W when the battery pack is fully charged (or not being charged) and the

wireless display is OFF.

*4 Rated power consumption

Printed in Japan FJ0306-0

DFQX5591ZA

Panasonic of North America 9TGCF-081 Panasonic Handheld Display with WLAN & Bluetooth User Manual CF 08
