9TGCF 482 User Manual

Users Manual

OPERATING INSTRUCTIONS

Personal Computer

Troubleshooting

List of Error Codes ......................................... 19

Dealing with Problems (Summary).......................21

Reinstalling Software .................................... 25

Operation

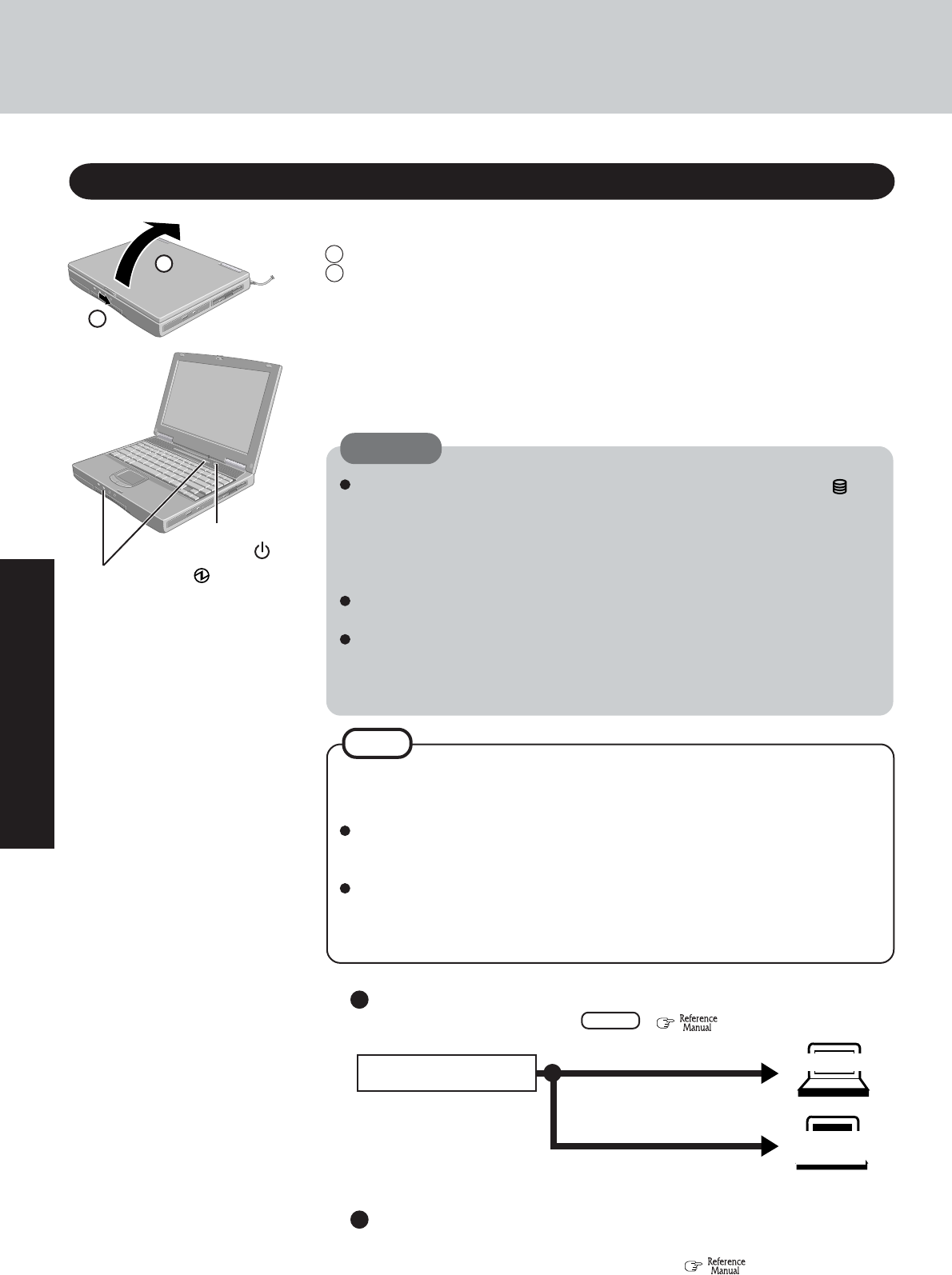

Starting Up/Shutting Down ............................ 14

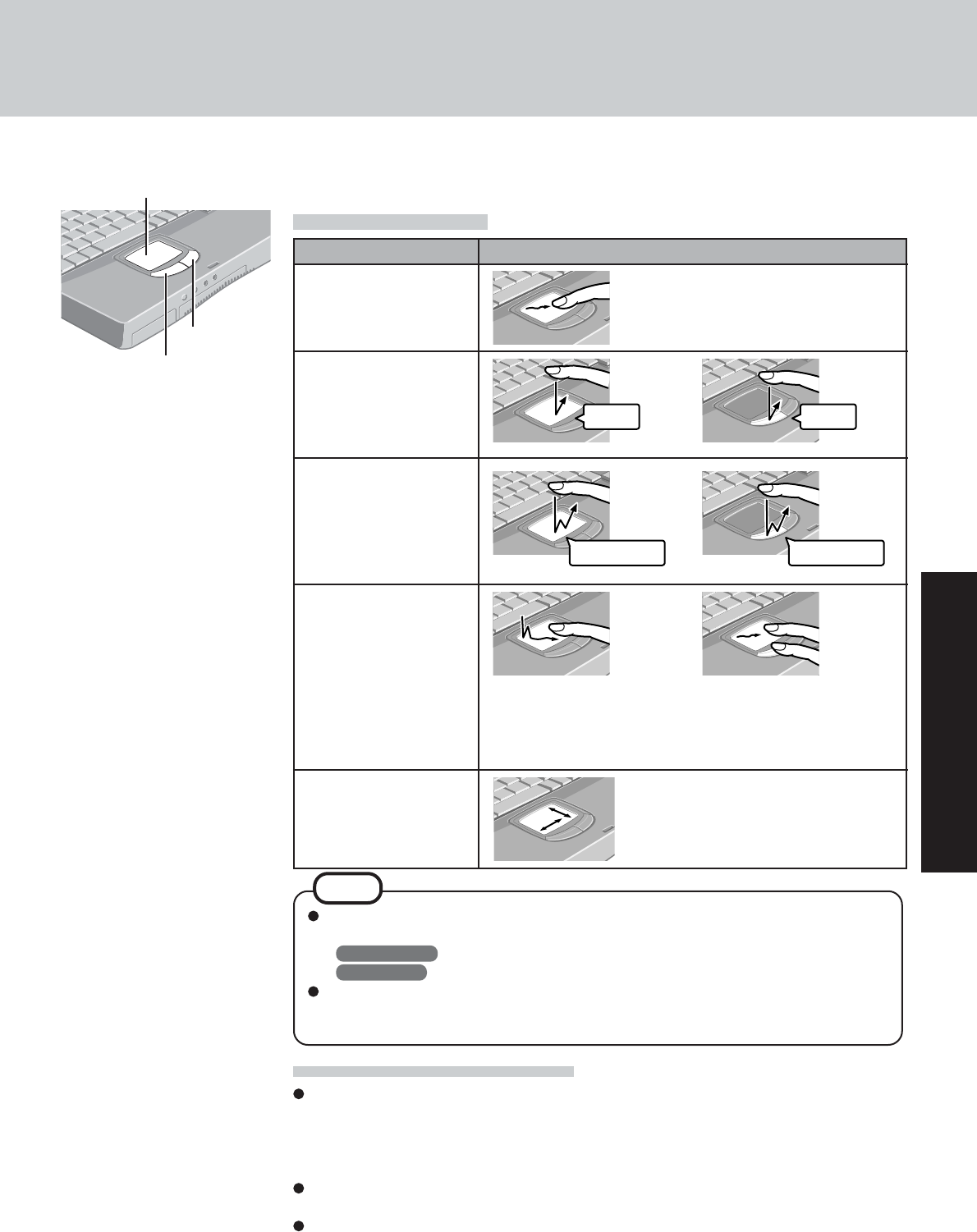

Touch Pad (Basic Operation) ...................................17

Reference Manual ......................................... 18

Getting Started

Read Me First.................................................. 3

First-time Operation ........................................ 9

Contents

[Additional Manual]

Reference Manual

This manual can be accessed on your computer.

Refer to page 20 on how to access the Reference Manual.

Reference Manual

•Read Me First

•Key Combinations

Reference Manual

•Touch Pad (Advanced)

•Standby/Hibernation

Functions

•Security Measures

•

Computing on the Road

•Battery Power

•CD Drive

•PC Cards

•RAM Module

•Port Replicator

•Printer

•External Display

•USB Devices

•Modem

•LAN

•Wireless LAN

•Hard Disk Drive

•Setup Utility

•LED Indicators

Reference Manual

•Technical Information

•DMI Viewer •List of Error Codes

•Dealing with Problems

(Advanced)

Appendix Getting Started

Operation

Troubleshooting

Model No. CF-48 Series

2000

Please read these instructions carefully before using this product and save this manual for future use.

Appendix

LIMITED USE LICENSE AGREEMENT........ 27

Hard Disk Data Erase Utility.......................... 28

Win DVD™ .................................................... 29

B’s Recorder/B’s CLiP ................................... 31

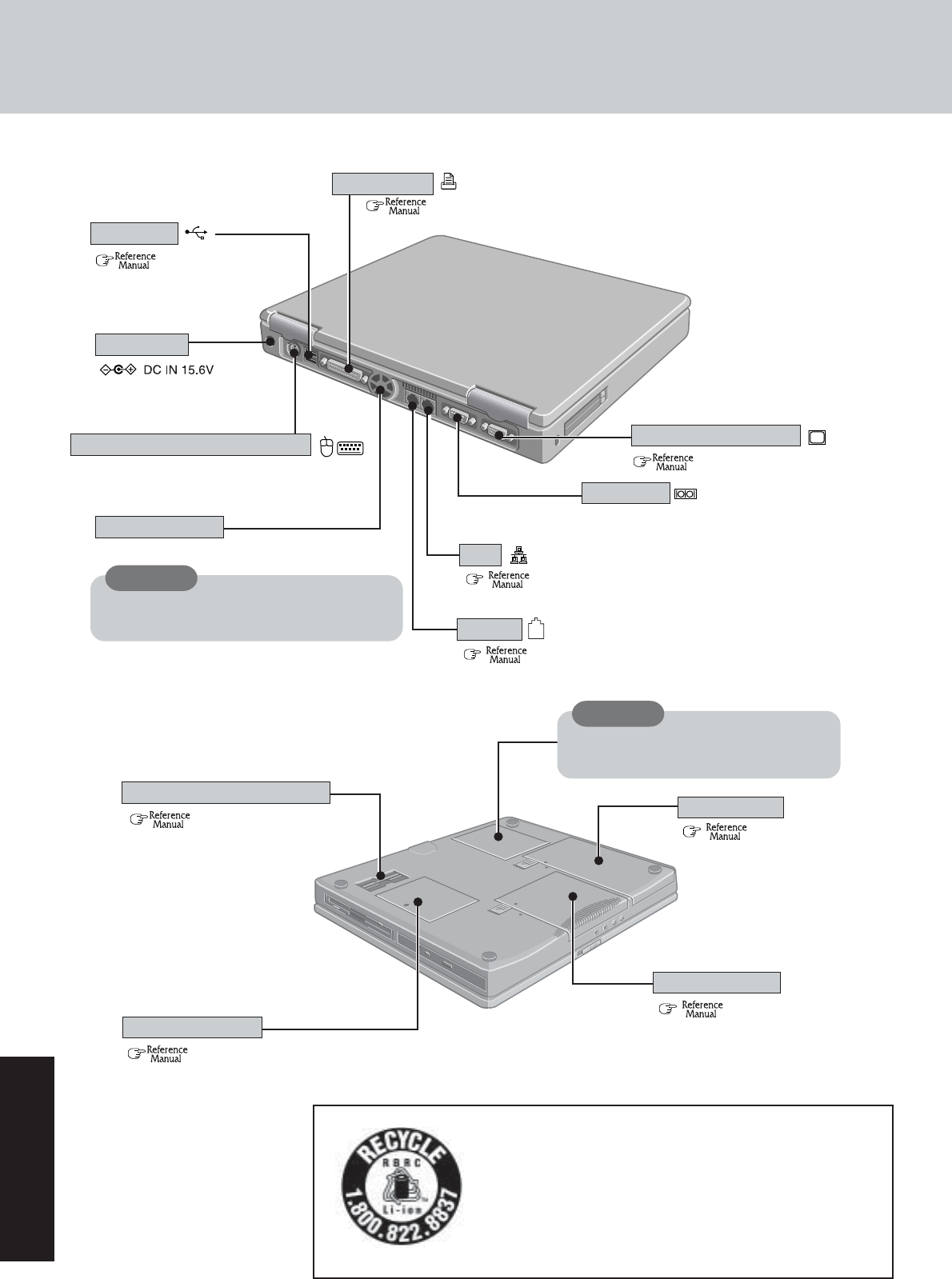

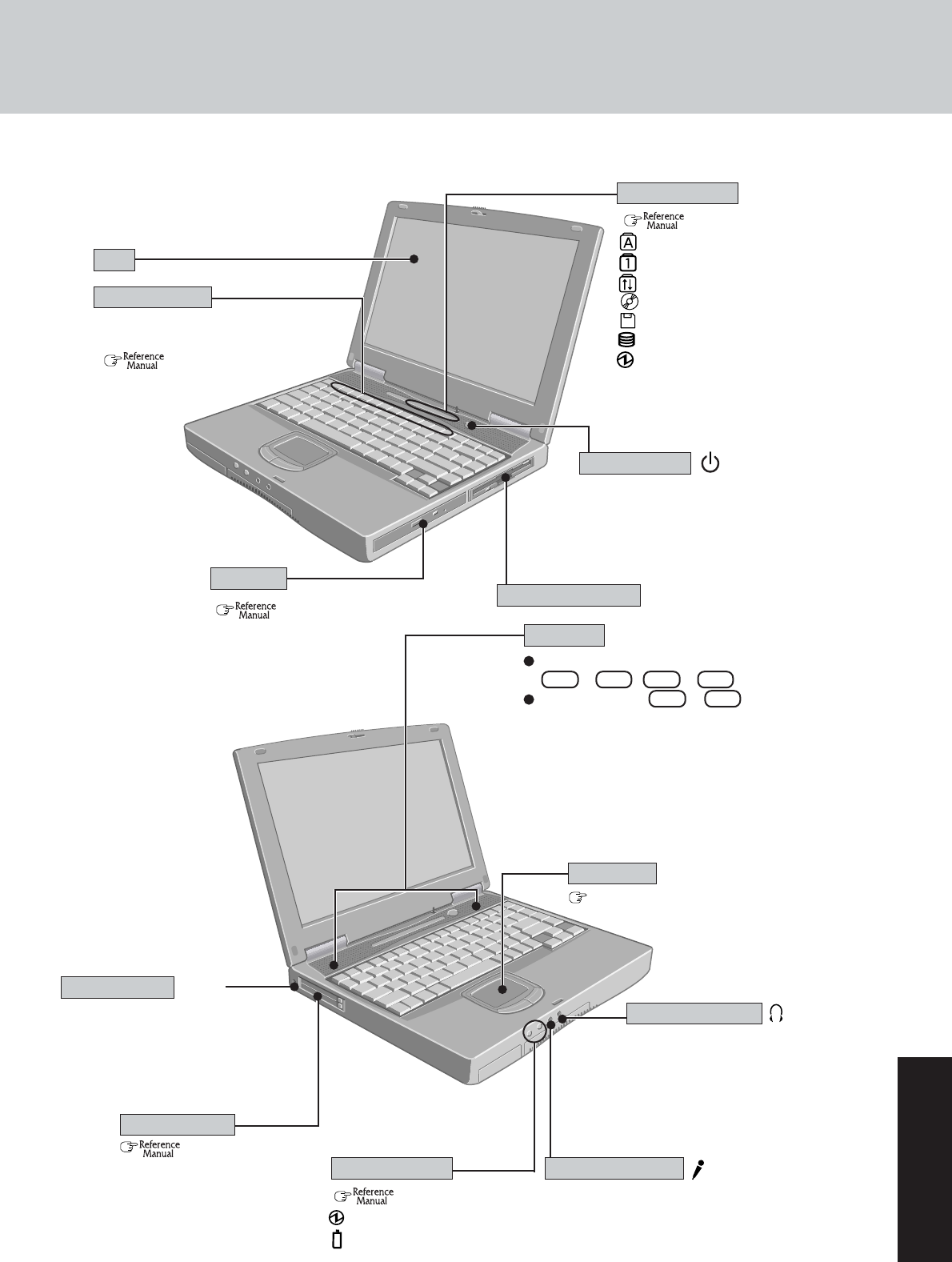

Names and Functions of Parts ...................... 33

Specifications ................................................ 35

LIMITED WARRANTY ................................... 37

Introduction

Thank you for purchasing the Panasonic computer. Read the operating instructions thoroughly for proper operation of your new

computer.

Illustrations and Terminology in this Manual

reproduced in any form without the prior written permission of Matsushita Electric Industrial Co., Ltd.

No patent liability is assumed with respect to the use of the information contained herein.

Disclaimer

Computer specifications and manuals are subject to change without notice. Matsushita Electric Industrial Co., Ltd. assumes no

liability for damage incurred directly or indirectly from errors, omissions or discrepancies between the computer and the manuals.

Trademarks

Microsoft®, Windows® and the Windows logo are registered trademarks of Microsoft Corporation of the United States and/or other

countries.

PS/2® is a trademark of International Business Machines Corporation.

Intel, Pentium, SpeedStep and PROSet are either registered trademarks or trademarks of Intel Corporation.

Adobe® and Acrobat® are either registered trademarks or trademarks of Adobe Systems Incorporated in the United States and/or

other countries.

WinDVD™ is a trademark of InterVideo, Inc.

Panasonic® is a registered trademark of Matsushita Electric Industrial Co., Ltd.

* For the Model No., insert the 12 digit number (for example, CF-48E4KFUDM) located on the

bottom of the computer.

NOTE:NOTE provides a useful fact or helpful information.

CAUTION:CAUTION indicates a condition that may result in minor or moderate injury.

WARNING:WARNING indicates a hazard that may result in moderate or serious injury.

[Start] - [Run]: This illustration means to click [Start], then to click [Run].

(For some applications, you may need to double-click.)

In Windows XP, [Start] is displayed as [start].

Enter : This illustration means to press the [Enter] key.

Fn + F5 : This illustration means to press and hold the [Fn] key, then press the [F5] key.

Windows 2000 : Information for Microsoft® Windows® 2000 Professional users.

Windows XP : Information for Microsoft® Windows® XP Professional users.

: Where to go for referred information.

: This illustration means to refer to the Reference Manual, which is available on your computer.

Refer to page 20 on how to access this manual.

Windows 2000 screens are used in this manual when no specific OS notes are required.

Some of the illustrations in this manual may differ slightly in shape from the actual items in order to make the explanation

easier to understand.

Circular media such as CD-ROM and DVD-ROM are described as “discs”.

The following drives are described as “CD drive”.

DVD-ROM drive, DVD-ROM & CD-R/RW drive, DVD Multi drive

If the user has logged on without the administrator authority, some functions may not be executable, and some screens may

be not displayed as shown in this manual. If this happens, log on with the administrator authority to enable these functions.

Customer's Record

Serial No.

Date of Purchase

Model No.*

Code No.

Dealer's Name

Dealer's Address

Getting Started

Read Me First

FCC RF Exposure Warning:

This equipment complies with FCC radiation exposure limits

set forth for an uncontrolled environment.

This equipment must be installed and operated in accordance

with provided instructions and minimum 2.5 cm spacing must

be provided between antenna and all person’s body (excluding

extremities of hands, wrist and feet) during wireless modes of

operation.

This transmitter must not be co-located or operated in conjunc-

tion with any other antenna or transmitter. This computer is

provided with a PC Card slot that could be used with wireless

transmitter(s), which will be specifically recommended, when

they become available. Other third-party wireless transmitter(s)

have not been RF exposure evaluated for use with this com-

puter and may not comply with FCC RF exposure requirements.

Federal Communications Commission Radio

Frequency Interference Statement

Note: This equipment has been tested and found to comply with

the limits for a Class B digital device, pursuant to Part 15 of the

FCC Rules. These limits are designed to provide reasonable

protection against harmful interference in a residential

installation. This equipment generates, uses and can radiate

radio frequency energy and, if not installed and used in

accordance with the instructions, may cause harmful interference

to radio communications. However, there is no guarantee that

interference will not occur in a particular installation. If this

equipment does cause harmful interference to radio or television

reception, which can be determined by turning the equipment

off and on, the user is encouraged to try to correct the interference

by one or more of the following measures:

Reorient or relocate the receiving antenna.

Increase the separation between the equipment and receiver.

Connect the equipment into an outlet on a circuit different

from that to which the receiver is connected.

Consult the Panasonic Service Center or an experienced ra-

dio/TV technician for help.

Warning

To assure continued compliance, use only shielded interface

cables when connecting to a computer or peripheral. Also, any

changes or modifications not expressly approved by the party

responsible for compliance could void the user’s authority to

operate this equipment.

FCC RF Exposure Warning: This computer is provided with

PC Card slots that could be used with wireless transmitter(s),

which will be specifically recommended, when they become

available. Other third-party wireless transmitter(s) have not been

RF exposure evaluated for use with this computer and may not

comply with FCC RF exposure requirements.

This device complies with Part 15 of the FCC Rules. Operation

is subject to the following two conditions:

(1) This device may not cause harmful interference, and

(2) This device must accept any interference received, including

interference that may cause undesired operation.

Responsible Party: Matsushita Electric Corporation of America

One Panasonic Way

Secaucus, NJ 07094

Tel No:1-800-LAPTOP-5 (1-800-527-8675)

For U.S.A.

FCC Regulation Notice for modem

This equipment contains a FCC approved modem.

Manufacturer of modem: PC TEL Inc.

Model No. PCT2304WT

FOR HOME OR OFFICE USE

Tested To Comply

With FCC Standards

1. This equipment complies with CFR47 Part 68 rules. On the

computer is a label that contains, among other information,

the FCC registration number and ringer equivalence number

(REN) for this equipment. If required, this information must

be provided to the telephone company.

2. An FCC compliant telephone cord and modular plug is pro-

vided with this equipment. This equipment is designed to be

connected to the telephone network or premises wiring us-

ing a compatible modular jack which is Part 68 compliant.

See Installation Instructions for details.

3. The REN is used to determine the quantity of devices which

may be connected to the telephone line. Excessive RENs on

the telephone line may result in the devices not ringing in

response to an incoming call. In most, but not all area, the

sum of RENs should not exceed five (5.0). To be certain of

the number of devices that may be connected to a line, as

determined by the total RENs, contact the local telephone

company.

4. If your telephone equipment cause harm to the telephone

network, the telephone company will notify you in advice

that temporary discontinuance of service may be required.

But if advice notice isn’t practical, the telephone company

will notify the customer as soon as possible. Also, you will

be advised of your right to file a complaint with the FCC if

you believe it is necessary.

5. The telephone company may take changes in it’s facilities,

equipment, operations or procedures that could affect the op-

eration of the equipment. If this happens the telephone com-

pany will provide advance notice in order for you to make

necessary modifications to maintain uninterrupted service.

6. If trouble is experienced with this equipment, for repair or

warranty information, please contact Matsushita Electric

Corporation of America at DIAL TOLL FREE 1-800-LAP-

TOP5 (1-800-527-8675). If the equipment is causing harm to

the telephone network, the telephone company may request

that you disconnect the equipment until the problem is resolved.

7. There are no user serviceable parts contained in this equip-

ment.

8. This equipment may not be used on coin service provided

by the telephone company. Connection to party lines is sub-

ject to state tariffs.

9. The Telephone Consumer Protection Act of 1991 makes it

unlawful for any person to use a computer or other electronic

device to send any message via a telephone fax machine un-

less such message clearly contains in a margin at the top or

bottom of each transmitted page or on the first page of the

transmission, the date and time it is sent and an identification

of the business or other entry, or other individual sending the

message and the telephone number of the sending machine or

such business, other entity, or individual. In order to program

this information into your fax software, you should refer to

the manual of the Fax software being used.

Getting Started

Important Safety Instructions

When using your telephone equipment, basic safety precautions should always be followed to reduce the risk of fire, electric

shock and injury to persons, including the following:

1.Do not use this product near water, for example, near a bath tub, wash bowl, kitchen sink or laundry tub, in a wet basement

or near a swimming pool.

2.Avoid using a telephone (other than a cordless type) during an electrical storm. There may be a remote risk of electric shock

from lightning.

3.Do not use the telephone to report a gas leak in the vicinity of the leak.

4.Use only the power cord and batteries indicated in this manual. Do not dispose of batteries in a fire. They may explode.

Check with local codes for possible special disposal instructions.

SAVE THESE INSTRUCTIONS

Read Me First

Information to the User

This product and your Health

This product, like other radio devices, emits radio frequency electromagnetic energy. The level of energy emitted by this product

however is far much less than the electromagnetic energy emitted by wireless devices like for example mobile phones.

Because this product operates within the guidelines found in radio frequency safety standards and recommendations, we believe this

product is safe for use by consumers. These standards and recommendations reflect the consensus of the scientific community and result

from deliberations of panels and committees of scientists who continually review and interpret the extensive research literature.

In some situations or environments, the use of this product may be restricted by the proprietor of the building or responsible

representatives of the organization. These situations may for example include:

Using this product on board of airplanes, or

In any other environment where the risk of interference to other devices or services is perceived or identified as harmful.

If you are uncertain of the policy that applies on the use of wireless devices in a specific organization or environment (e.g. airports),

you are encouraged to ask for authorization to use this product prior to turning on the product.

Regulatory Information

We are not responsible for any radio or television interference caused by unauthorized modification of this product. The correction

of interference caused by such unauthorized modification will be the responsibility of the user. We and its authorized resellers or

distributors are not liable for damage or violation of government regulations that may arise from failing to comply with these

guidelines.

10.According to the FCC’s electrical safety advisory, we recom-

mend that you may install an AC surge arrestor in the AC out-

let to which this equipment is connected. Telephone compa-

nies report that electrical surges, typically lightning transients,

are very destructive to customer terminal equipment connected

to AC power sources and that this is a major nationwide prob-

lem.

“Caution: To reduce the risk of fire, use only No.26 AWG or larger telecom-

munication line cord.”

“ATTENTION: Pour réduire le risque d’incendie, utiliser uniquement des

conducteurs de télécommunications 26 AWG ou de section supérieure.”

Notice for the products using LCD

This product uses one or more fluorescent lamps containing a

small amount of mercury. It also contains lead in some compo-

nents. Disposal of these materials may be regulated in your com-

munity due to environmental considerations. For disposal or

recycling information please contact your local authorities, or

the Electronics Industries Alliance: <http://www.eiae.org/>

Getting Started

Lithium Battery!

This computer contains a lithium battery to enable the date, time,

and other data to be stored. The battery should only be exchanged

by authorized service personnel.

Warning! A risk of explosion from incorrect installation or mis-

application may possibly occur.

Lithium Battery CD Drive Caution

CAUTION!

THIS PRODUCT UTILIZES A LASER.

USE OF CONTROLS, ADJUSTMENTS OR PERFORMANCE OF

PROCEDURES OTHER THAN THOSE SPECIFIED HEREIN MAY

RESULT IN HAZARDOUS RADIATION EXPOSURE.

DO NOT OPEN COVERS AND DO NOT REPAIR YOURSELF.

REFER SERVICING TO QUALIFIED PERSONNEL

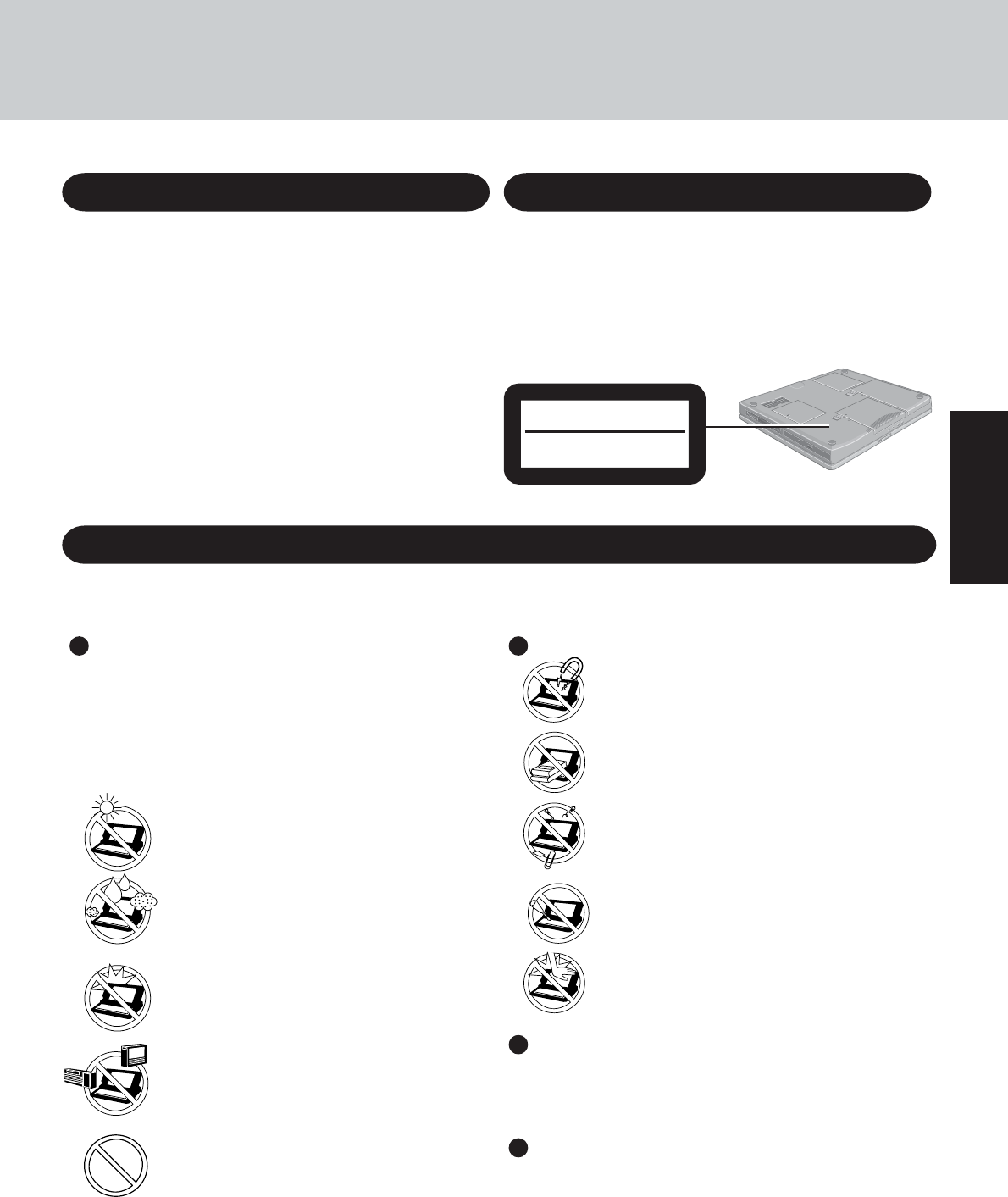

Bottom

CLASS 1 LASER PRODUCT

LASER KLASSE1

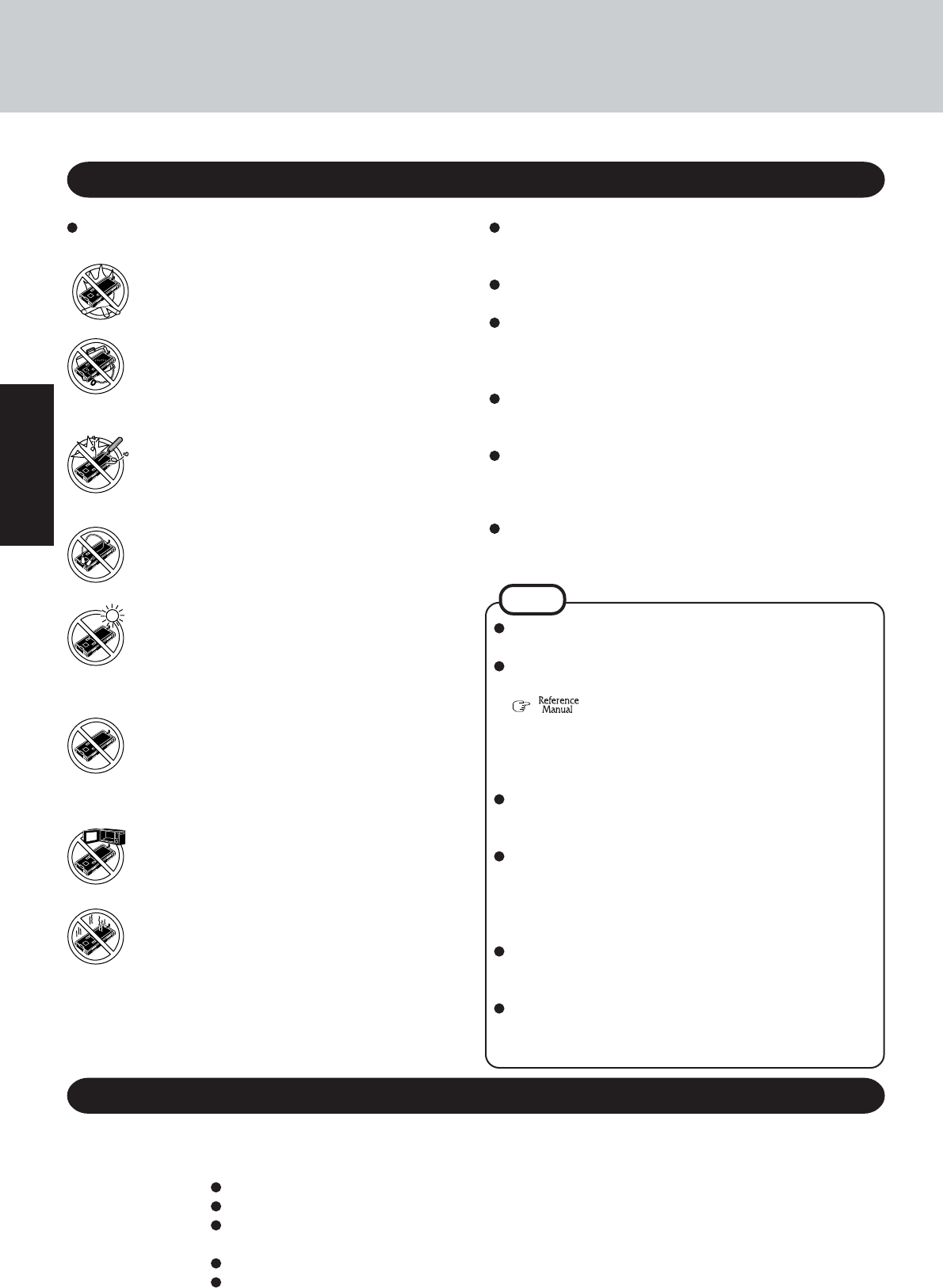

Precautions

This computer has been designed so as to minimize shock to the LCD and hard disk drive, etc., but no warranty is

provided against such trouble. Therefore, as a precision instrument, be extremely careful in the handling.

Avoid Extreme Heat and Cold

Do not store or use the computer in locations

exposed to heat, direct sunlight, or extreme cold.

Avoid moving the computer between locations

with large temperature difference.

Operation: 5 oC to 35 oC {41 oF to 95 oF}

Storage: -20 oC to 60 oC {-4 oF to 140 oF}

Avoid Direct Sunlight on the LCD Panel

The LCD panel should not be exposed to direct

sunlight or ultraviolet light.

Avoid Humidity, Liquids and Dust

Do not store or use the computer in locations ex-

posed to high humidity, liquids (including rain) or

dust.

Prevent Shock

Avoid subjecting the computer to severe

vibrations or impact. Do not place the computer

inside a car trunk.

Avoid Radio Frequency Interference

Do not place the computer near a television or

radio receiver.

Avoiding low-temperature burns

Avoid more than casual contact with any heat pro-

ducing area of the notebook computer, AC adap-

tor, and any option or accessory you use with it.

Even low heat, if warmer than body temperature,

can cause a burn, if the skin is exposed to the heat

source for a long enough period of time.

Usage Handling

Avoid Magnetic Fields

Keep the computer away from magnets.

Data stored on the hard disk may be lost.

Avoid Stacking

Do not place heavy objects on top of the computer.

Keep Small Objects Away

Do not insert paper clips or other small objects into

the computer.

Do Not Disassemble the Computer

Do not attempt to disassemble your computer.

Avoid Excessive Force on the Display

Do not apply excessive downward force on the display

when it is completely opened, especially when plugs

and/or cables are connected to the rear of the computer.

Peripherals

Incorrectly using peripheral devices may lead to a decrease in

performance, an increase in temperature and/or damage your

computer. For more information on peripheral devices, refer to

the Reference Manual.

Cables

Use of an interface cable longer than 3 m (9.84 feet) is not rec-

ommended.

Getting Started

When using peripheral devices

Pay strict attention to the following points to avoid damage to the computer, peripheral devices, cables, etc.

Also, in addition to following this manual, carefully read the instruction manuals for the peripheral devices

being used.

Use only peripheral devices that conform to the computer’s specifications.

Connect the devices properly, paying close attention to the condition and position of the connectors.

If a connection cannot be made easily, do not apply undue force; check once more to confirm the condi-

tion and position of the connector (alignment of pins, etc.) .

If the connector has holding screws, fasten the screws firmly.

Do not carry the computer with cables attached, and do not pull on the cables forcefully.

Care should be exercised with regard to the following in or-

der to avoid the possibility of overheating, fire or damage.

Avoid Heat

Do not throw the battery pack into a fire or ex-

pose it to excessive heat.

Keep Articles Away

Do not place the battery pack together with articles

such as necklaces or hairpins when carrying or stor-

ing.

Do Not Disassemble

Do not insert sharp objects into the battery pack,

expose it to bumps or shocks, deform, disassemble,

or modify it.

Do Not Short

Do not short the positive (+) and negative (-) con-

tacts.

Avoid Extreme Heat, Cold and Direct Sunlight

Do not charge, use or leave the battery pack for ex-

tended periods where it will be exposed to direct

sunlight, in a hot place (in an automobile on a sunny

day, for example), or in a cold place.

Do Not Use With Any Other Computer

The battery pack is rechargeable and was intended

for the specified computer or charger. Do not use it

with a computer other than the one for which it was

designed.

Do Not Put into a Microwave

Do not put the battery pack into a microwave oven

or a pressurized chamber.

Stop Using

Should the battery emit an abnormal odor, become

hot to the touch, become discolored, change shape,

or become in any way different from normal, re-

move it from the computer and stop using it.

Precautions (Battery Pack)

NOTE

The battery pack may become warm during recharging or

normal use. This is completely normal.

Recharging will not commence outside of the allowable

temperature range (0 °C to 45 °C {32°F to 113 °F})

“Battery Power”. Once the allowable range

requirement is satisfied, charging begins automatically.

Note that the recharging time varies based on the usage

conditions. (Recharging takes longer than usual when the

temperature is 10 °C {50 °F} or less.)

If the temperature is low, the operating time is shortened.

Only use the computer within the allowable temperature

range.

The battery pack is a consumable item. If the amount of

time the computer can be run off a particular battery pack

becomes dramatically shorter and repeated recharging do

not restore its performance, the battery pack should be

replaced with a new one.

When a spare battery pack is to be carried in a pocket or

bag, it is recommended that it be placed in a plastic bag so

that its contacts are protected.

Always power off the computer when it is not in use. Leav-

ing the computer on when the AC adaptor is not connected

will exhaust the remaining battery capacity.

Do not touch the terminals on the battery pack. The battery

pack may no longer function properly if the contacts are dirty

or damaged.

Do not expose the battery pack to water, or allow it to be-

come wet.

If the battery pack will not be used for a long period of time

(a month or more), charge or discharge (use) the battery pack

until the remaining battery level becomes 30% to 40% and

store it in a cool, dry place.

This computer prevents overcharging of the battery by re-

charging only when the remaining power is less than approx.

95% of capacity.

The battery pack is not charged when the computer is first

purchased. Be sure to charge it before using it for the first

time. When the AC adaptor is connected to the computer,

charging begins automatically.

Should the battery leak and the fluid get into your eyes, do not

rub your eyes. Immediately flush your eyes with clear water

and see a doctor for medical treatment as soon as possible.

Read Me First

Getting Started

Do not power down your computer or press the floppy disk drive eject button while the floppy disk

drive indicator ( ) is on.

Doing so may damage the data on the floppy disk and render the floppy disk useless.

Use care when handling floppy disks.

To protect the data on your floppy disks or to prevent a floppy disk from becoming stuck in your com-

puter, avoid the following:

• Sliding the shutter on the floppy disk manually.

• Exposing the floppy disk to a magnetic field.

• Storing the floppy disk in locations prone to high temperatures, low pitched noise, dampness, or dust.

• Applying more than one label on the floppy disk.

Confirm the contents of a floppy disk before formatting it.

Confirm that no important data is on the floppy disk, because all data on the floppy disk will be erased.

Use the write-protect tab.

This is a must for preserving important data.

This prevents your data from being erased or over-

written.

Saving Data on the Hard Disk

Write Enable Write Disable

Write-protect Tab

Saving Data on Floppy Disks

Users are advised to purchase the latest versions of virus protection software and use them regularly.

We recommend you run the software:

• When booting your computer.

• After receiving data.

We recommend that you check data received on disks or from external sources, such as data downloaded

from the Internet, e-mail, etc. (For compressed files, uncompress them before running a check).

Computer Viruses

Do not expose your computer to shock.

Use care when handling your computer, shock may damage your hard disk or make your software appli-

cations and data unusable.

Do not power down your computer while software applications are running or hard disk drive indicator ( )

is on.

Properly shut Windows* down to avoid problems.

Save all valuable data to disks.

Backing up data to disks will limit damage should trouble occur to your computer or should you inad-

vertently change or erase data.

Use the security function for all important data. ( “Security Measures”)

*Windows 2000 : This computer uses Microsoft® Windows® 2000 Professional.

Windows XP : This computer uses Microsoft® Windows® XP Professional.

Hard Disk Lock

When the Hard Disk Lock is set to [Enable], it is impossible to read/write data from/to the hard disk when the

hard disk is installed in a different computer, since a password is also set for the hard disk. When the hard disk

is returned to the original computer, you can read/write data as before. In this case, however, make the settings

in the Setup Utility exactly the same as they were before the hard disk was removed. (Note that this Hard Disk

Lock does not guarantee the complete protection of data.) ( “Security Measures”)

When Disposing of or Transferring Ownership of This Device

When disposing of or transferring ownership of this device, erase all data on the hard disk in order to prevent the

theft of hard disk data. Even if you delete data or initialize the hard disk through normal Windows commands, data

can still be read using special software. In order to erase all data, either have the data erased by a specialist (at a

charge) or use the hard disk data erase utility (included) ( page 31). (Note that this hard disk data erase utility

does not guarantee that data will be completely erased.)

Also, note that if you transfer ownership of this device without deleting commercial software that you have

installed to the hard disk, you may be in violation of the licensing agreement for that software.

Getting Started

Read Me First

Environment

Place the computer on a flat stable surface. Do not place the computer upright or allow it

to tip over. When the computer receives extremely strong shock after falling, the hard

disk or floppy disk drive, etc., may become inoperable.

In use: Temperature: 5 °C to 35 °C {41 °F to 95 °F}

Humidity: 30% to 80% RH (No condensation)

Not in use: Temperature: -20 °C to 60 °C {-4 °F to 140 °F}

Humidity: 30% to 90% RH (No condensation)

Usage Environment

Such areas may result in damage to the computer.

Areas with electronic equipment

These areas may interfere with your display or cause your computer to produce strange

sounds.

Areas with extremely high/low temperatures

Do not leave things near the computer that are sensitive to heat. During operation, the

computer may become warm.

Places not to use your computer

Handling

Maintenance

Areas excluding the display

Wipe these areas with a soft cloth, after applying water or detergent diluted with water to the

soft cloth and firmly wringing out excess water.

Display

Avoid using water when cleaning the panel. Ingredients included in water may leave scratches

and reduce readability of the screen.

Avoid rubbing off dust/dirt with cloth since it may leave scratch on the screen.

Sweep dust/dirt with fine brush, then wipe it with a dry soft cloth used for cleaning glasses.

Apply camera lens cleaner on a soft gauze and clean it with gentle force. Then, wipe with

dry soft cloth used for cleaning glasses.

Touch Pad

page 17

Do not use benzene, thinner, or rubbing alcohol. Doing so may adversely affect the surface, e.g., discoloration. In addition, do

not use commercially-available household cleaners and cosmetics, as they may contain components harmful to the surface.

Do not directly add or spray water or detergent. If liquid enters the inside of the computer, it may cause it to work improperly

or be damaged.

CAUTION

Do not drop or hit your computer against solid objects.

Do not carry your computer when it is on.

Remove all external devices, cables, and PC Cards sticking out of the computer (see the

figure on the left) before transporting the computer.

We recommend preparing a fully charged battery.

When transporting a spare battery inside a package, briefcase, etc., it is recommended that it

be placed in a plastic bag so that its contacts are protected.

Do not carry the computer while the display is open, or carry it by gripping the display.

Do not put anything (e.g., a piece of paper) between the display and keyboard.

Always carry your computer with you. Never check it in with luggage. For use of the com-

puter inside an aircraft, we recommend asking the airlines regarding their policy on this issue.

It is a good idea to make backup copies on disks and carry them with you.

Do not leave a disk in the drive while transporting your computer.

Wireless LAN

To prevent theft of data or unauthorized access to the hard disk via a wireless LAN

If you plan to use wireless LAN functions, we recommend that you do so only after making the

appropriate security settings, such as for data encryption.

Getting Started

2Read the LIMITED USE LICENSE AGREEMENT ( page 27)

Before removing the seal covering the power switch, read the LIMITED USE LI-

CENSE AGREEMENT.

3Insert the battery pack

1Turn your computer over.

2Slide the latch, and then without releasing it, slide and remove the cover.

3Put the battery pack into the computer and firmly attach the pack to the connector.

First-time Operation

Read the steps below to help you learn what parts are included, and to gain an understanding of

some basic computer-related operations.

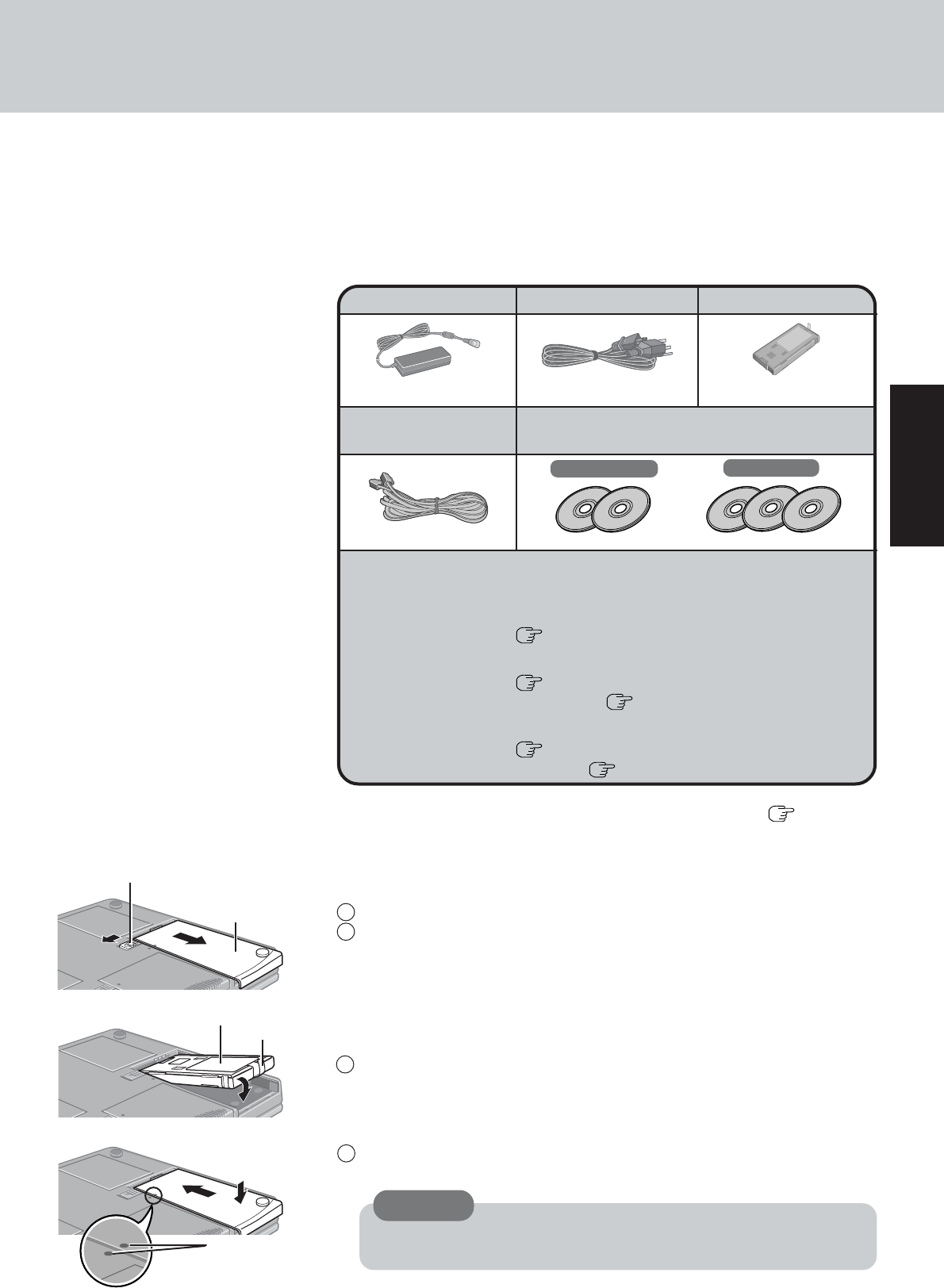

1Confirm the inclusion of all parts

Make sure the parts shown in the figure have been supplied. If any of these items are

missing or is not working properly, contact Panasonic Technical Support.

Battery Pack

Cover

Tab

Model No : CF-AA1653

AC adaptor ..........1

Model No :CF-VZSU18A

If the cover is not attached properly, the battery may fall out while the com-

puter is being carried.

AC Cord ...............1 Battery Pack........1

Modem Telephone

Cable ...................1 Product Recovery CD-ROM

CAUTION

4Match the mark on the cover to the body of the computer and slide the cover back

into place. Be sure the tab does not get caught when closing the cover.

Latch

Mark

Operating Instructions (This book) .........................................................1

Windows® Book ...................................................................................1

WinDVD™ CD-ROM ( page 29) ......................................................1

WinDVD™ CD-ROM ( page 29) ......................................................1

B’s Recorder/B’s CLiP CD-ROM ( page 31) ..................................1

WinDVD™ CD-ROM ( page 29) ......................................................1

B’s Recorder/B’s CLiP CD-ROM ( B’s Recorder/B’s CLiP Booklet)

......1

Windows 2000 Windows XP

Getting Started

6Turn your computer on

Press the power switch and hold it for approximately one second until the power indicator

turns on before releasing it.

Power

Switch

Do not press the power switch and hold it for more than four seconds; this will

cause the power to be turned off forcibly.

Do not press the power switch repeatedly.

Once the computer is powered off, you must wait at least ten seconds before pow-

ering it on again.

4Connect your computer to a power outlet

Be sure the AC adaptor is connected until completing Step 7 on page 11.

When using the computer for the first time, do not connect any peripheral device

except the battery pack and AC adaptor to the computer.

Handling the AC adaptor

Do not twist or pull the AC power cord forcefully. Doing so may damage the

connections.

Use only the specified AC adaptor with your computer. Using an AC adaptor other

than the one supplied might damage the battery and/or the computer.

When the DC plug is not connected to the computer, disconnect the AC cord from

your AC wall outlet.

Problems such as sudden voltage drops may arise during periods of thunder and

lightning. Since this could adversely affect your computer, an uninterruptible power

source (UPS) is highly recommended unless running from the battery pack alone.

Power Indicator

5Open the display

1Slide the latch located at the front.

2Lift open the display.

First-time Operation

CAUTION

The battery pack will be charged automatically.

Charging Time: Approx. 3 hours

(Varies depending on the usage conditions.)

DC-IN Jack

Getting Started

7Setup Windows

Moving the cursor ( ) or clicking buttons can be performed with the touch pad (

page 17).

1At the [Welcome to the Windows 2000 Setup Wizard], select [Next].

2After reading the agreement, select [I accept this agreement] or [I don't accept this

agreement], then select [Next].

3Select settings for your region, then select [Next].

4Enter your name and organization and then select [Next].

5Enter your computer name and administrator password and then select [Next].

Windows 2000

NOTE

If [I don’t accept this agreement] is selected, the Windows setup will be aborted.

Do not press any key or touch the touch pad until [Windows 2000 Professional Setup]

is displayed.

CAUTION

Remember this password! If the password is forgotten, Windows cannot be oper-

ated.

6Enter the correct date, time and the time zone, then select [Next].

7At [Networking Settings], select [Typical settings], then select [Next].

8At [Workgroup or Computer Domain], select [No, this computer is not on a network,

or is on a network without a domain], then select [Next].

The computer will restart.

9At [Welcome to the Network Identification Wizard], select [Next].

At [Users of This Computer], select [Users must enter a user name and password to

use this computer], then select [Next].

Select [Finish].

Enter your administrator password and select [OK].

Getting Started

First-time Operation

This concludes the first-time use operation guidelines.

Before using the DVD-ROM & CD-R/RW drive for the first time, remove the protective

sheet from the lens area. The protective sheet inside the drive delays the opening of the

drive by about ten seconds. This delay is not a problem.

NOTE

1At the [Welcome to the Windows XP Setup Wizard], select [Next].

2After reading the agreement, select [I accept this agreement] or [I don't accept this

agreement], then select [Next].

3Select settings for your region, then select [Next].

4Enter your name and organization and then select [Next].

5Enter your computer name and administrator password and then select [Next].

6Enter the correct date and time, then select [Next].

7At the [Networking Settings], select [Typical settings], then select [Next].

8At the [Workgroup or Computer Domain], select [No, this computer is not on a net-

work, or is on a network without a domain], then select [Next].

The computer will restart.

9Enter your administrator password and select .

Windows XP

NOTE

If [I don’t accept this agreement] is selected, the Windows setup will be aborted.

Do not press any key or touch the touch pad until [Windows XP Professional Setup] is

displayed.

CAUTION

Remember this password! If the password is forgotten, Windows cannot be oper-

ated.

NOTE

When creating a new user account:

Create an account and restart the computer before making mail settings, creating

password reset disks ( page 13), or conducting other related operations. Note

that after creating this user account, you will be unable to use any previous mail

history or settings.

When you create the first new account, you can only select [Computer administra-

tor].

Create a “Computer Administrator” account before creating additional user ac-

counts with restrictions. Once this has been created, you can create additional re-

stricted user accounts.

Note also that only the added user account will be displayed in the Welcome screen.

The account for the administrator created during Windows setup (when the com-

puter is started up for the first time) will not be displayed.

NOTE

It may take two to three minutes until the next screen is displayed. Wait, and do

not press any keys, or touch the touch pad, etc.

Getting Started

Depending on the Windows settings, installed applications, and drivers, menus and

other displays may differ, or some functions (such as use of the password reset disk)

may be inoperable. Check with your system administrator for details.

You can select Classic view for the Control Panel or select the Classic Start menu. You

can also change the way a user logs on or off.

The procedure in this manual uses the method or view of the Windows XP default

setting (not Classic view or Classic Start menu etc.).

Resetting the password

Windows XP has a function to reset a forgotten password.

To use this function, you need to create a password reset disk beforehand following the

steps below.

1Select [start] - [Control Panel] - [User Accounts] and select the account you used to

logon.

2Select [Prevent a forgotten password] from [Related Tasks] menu and create a pass-

word reset disk following the on-screen instructions.

Store the password reset disk in a safe place.

· Only the logon password for each account can be reset.

The password set in the Setup Utility cannot be reset.

Information for Windows XP

Operation

Starting Up/Shutting Down

Starting Up

2Turn your computer on

Press the power switch and hold it for approximately one second until the power indicator

turns on before releasing it.

While booting, avoid the following until the hard disk drive indicator ( ) has

turned off.

• Connecting or disconnecting the AC adaptor.

• Touching the power switch.

• Performing any keyboard or touch pad (or external mouse) operations.

• Closing the display.

Once the computer is powered off, you must wait at least ten seconds before pow-

ering it on again.

When the CPU temperature rises, the computer may not power on to prevent the

CPU from overheating. Should this happen, allow the computer to cool down then

switch the power on again.

If the computer still does not power on, contact Panasonic Technical Support.

Power

Switch

Power Indicator

CAUTION

1Open the display

1Slide the latch as shown.

2Lift open the display.

You may encounter the following situations when the computer is turned on at very

low temperatures. These functions are designed to prevent hard disk drive malfunc-

tions that may occur at low temperatures.

The message “Warming up the system” is displayed, and start-up takes longer than

usual (a few minutes or more).

In this case, wait for the computer to start up.

The power indicator will blink quickly (in green); in this case, the power does not

turn on, or the computer does not resume from standby or hibernation mode.

To start the computer, leave it in an environment with a temperature of 5°C {41°F}

or more for about an hour, and try turning the power on once more.

NOTE

Three incorrect attempts

No password for about a minute

The correct password Will Start

Will Not Start

(Power off)

If [Enter Password] is displayed

Enter your password* and press Enter . ( “Security Measures”)

*Supervisor Password or User Password set in the Setup Utility (not

the Windows password).

When an application or file that was previously displayed

appears on your screen

The standby or hibernation mode has been set ( “Standby/Hibernation

Functions”).

Enter Password [ ]

Operation

The power saving function is factory set, so if there is no input from a key, the touch pad or

an external mouse (when one is connected) for a certain interval of time, the power to the

LCD and hard disk may be turned off. The LCD will resume operation when the touch pad

or an external mouse (when one is connected) is used or a key is pressed.

The power to the LCD may be turned off even when an application software is being

installed. In this case, because it is conceivable that a selection dialog box will be shown,

do not press Space or Enter to attempt to resume from this condition as doing so

may trigger a selection, but instead, press a key unrelated to the direct triggering of a

selection, like Ctrl .

In addition, when the computer is left alone, it automatically enters the standby or hiberna-

tion mode ( “Standby/Hibernation Functions”). The computer will resume by

pressing the power switch.

Windows XP

When switching to a different user with the Fast User Switching function, it may not be

possible to set the settings of the display. In this case, log on with the administrator author-

ity again, not using the Fast User Switching function, and try the operation once more.

NOTE

3Log on to Windows

Windows 2000

After confirming that the hard disk drive indicator ( ) has turned off, input the user

name and password, then select [OK]. Until the correct user name and password are

entered, the computer will not operate.

Windows XP

After confirming that the hard disk drive indicator ( ) has turned off, select the user

and input the password, then select . Until the correct password is entered, the

computer will not operate.

4Select your application

You are able to start working on your computer.

Operation

Starting Up/Shutting Down

Shutting Down (power off your computer)

To shut down using the keyboard,

Windows 2000

Press , U , and select [Shut down] with , then press Enter .

Windows XP

Press , U , and select [Turn Off] with , then press Enter .

To quickly resume computer operation after shutting down,

The standby or hibernation function is available ( “Standby/Hibernation

Functions”).

NOTE

This procedure is for shutting down the computer without using the standby or hibernation

function ( “Standby/Hibernation Functions”).

1Save important data and close each application

2 Windows 2000

Select [Start] - [Shut Down]

Windows XP

Select [start] - [Turn Off Computer]

3 Windows 2000

Select [Shut down], then select [OK]

Windows XP

Select [Turn Off]

Your computer will power off automatically.

Restarting your computer (without shutting down)

Windows 2000

Select [Restart], then select [OK].

Windows XP

Select [Restart].

CAUTION

Do not do the following during the shutdown/restart procedure.

• Connecting or disconnecting the AC adaptor.

• Touching the power switch.

• Performing any keyboard, touch pad or external mouse operations.

• Closing the display.

Operation

Function

Touch Pad (Basic Operation)

Use the touch pad to move the cursor on the display and perform normal computer operations.

Left Button

Right Button

Work Surface

Basic Operation

Two quick taps, but on the sec-

ond tap leaving your finger

down (applying pressure) and

moving it on the work surface.

While holding down the but-

ton, moving your finger on

the work surface.

Operation

Moving the Cursor

Tapping/Clicking

Double-Tapping/

Double-Clicking

Dragging

Scroll

Scroll a document

(The movements will differ de-

pending on the application.)

Move the tip of your finger

lightly over the surface.

tapping clicking

double-tapping double-clicking

Besides the above operations, operations such as Zoom and Pan are possible by allocating

these functions to the buttons and/or pad. For more details, refer to [Mouse Properties]*.

*Windows 2000 :

Select [Start] - [Settings] - [Control Panel] - [Mouse].

Windows XP

: Select [start] - [Control Panel] - [Printers and Other Hardware] - [Mouse].

The operations of Scroll, Pan or Zoom will differ depending on the application. There are

cases the touch pad will not support these operations even with an application that sup-

ports the functions.

Handling the Touch Pad

The touch pad is designed to be used with a fingertip only. Therefore, avoid the following

actions, which may cause damage to the work surface.

•Placing any object on the work surface

•Pressing down forcefully with sharp-pointed objects (e.g., nails) or hard objects that can

leave marks (e.g., pencils and ball point pens)

Try to avoid having any harmful substances such as oil, come in contact with the touch pad.

The cursor may not work properly in such cases.

When the touch pad becomes dirty:

Wipe to dirt by using a dry soft cloth such as gauze or a soft cloth first applied with deter-

gent diluted with water and then thoroughly wrung.

Do not use benzene, thinner, or rubbing alcohol.

Doing so may adversely affect the surface,

e.g., discoloration. In addition, do not use commercially-available household cleaners and

cosmetics, as they may contain components harmful to the surface.

NOTE

Operation

Reference Manual

The Reference Manual and the Important Tips can be accessed on your computer. When a printer is connected, these manuals can

also be printed.

The Reference Manual explains functions for you to make greater use of the computer, such as how to add peripheral devices,

how the Setup Utility works, and other useful information. (Refer to the cover of this manual for a list of the main contents

included.)

Important Tips provides information on how to maximize use of the battery pack, which is necessary for computing away from

your home or office.

Illustrations may be difficult to view depending on the magnification. If the illustration is too small, magnify the display.

The characters in PDF files (such as the Reference Manual) may be difficult to read depending on the Acrobat Reader settings

and the Windows Desktop settings. In such cases, change the Acrobat Reader settings with the following procedure.

1Start up Acrobat Reader.

2Select [Edit] - [Preferences] - [Accessibility], and then set [Color Scheme] to [Use colors specified in document].

When the taskbar is hidden at the bottom portion of Acrobat Reader, set the maximum display window size.

If a printer is connected, we recommend printing pages. The illustrations and display samples may not print with a high

quality.

Windows XP

When switching to a different user with the Fast User Switching function, PDF files may not be printed properly. In this case,

log on with the administrator authority again, not using the Fast User Switching function, and try the operation once more.

NOTE

Running the Reference Manual or Important Tips

Reference Manual

Windows 2000

Select [Reference Manual] in [Start] - [Programs] - [Panasonic] - [On-Line Manuals]

Windows XP

Select [Reference Manual] in [start]

Important Tips

Select on the desktop

Important Tips can also be accessed from the following menu.

Windows 2000

Select [Important Tips] in [Start] - [Programs] - [Panasonic] - [On-Line Manuals].

Windows XP

Select [Important Tips] in [start] - [All Programs] - [Panasonic] - [On-Line Manuals].

When the Reference Manual or Important Tips is started up for the first time, the License Agreement of the Acrobat Reader may be

displayed. If it is displayed, after reading the agreement, select [Accept] to access the Reference Manual or Important Tips.

Troubleshooting

List of Error Codes

The following is a list of the messages that BIOS can display. Most of them occur during POST. Some of them display informa-

tion about a hardware device, e.g., the amount of memory installed. Others may indicate a problem with a device, such as the way

it has been configured. Following the list are explanations of the messages and remedies for reported problems.

If your system displays any of the below error messages other that the ones marked with an asterisk (*), write down the message

and contact Panasonic Technical Support. If your system fails after you make changes in the Setup menus, reset the computer,

enter Setup and install Setup defaults or correct the error.

0200 Failure Fixed Disk

Fixed disk in not working or not configured properly. Check to see if fixed disk is attached properly. Run Setup. Find out

if the fixed-disk type is correctly identified.

0210 Stuck key

Stuck key on keyboard.

0211 Keyboard error

Keyboard not working.

0212 Keyboard Controller Failed

Keyboard controller failed test. May require replacing keyboard controller.

0213 Keyboard locked - Unlock key switch

Unlock the system to proceed.

0230 System RAM Failed at offset : nnnn

System RAM failed at offset nnnn of in the 64k block at which the error was detected.

0231 Shadow RAM Failed at offset : nnnn

Shadow RAM failed at offset nnnn of the 64k block at which the error was detected.

0232 Extended RAM Failed at offset : nnnn

Extended RAM Failed at address line : nnnn

Extended memory not working or not configured properly at offset or address line nnnn.

0250 System battery is dead - Replace and run SETUP

The CMOS clock battery indicator shows the battery is dead. Replace the battery and run Setup to reconfigure the system.

*0251 System CMOS checksum bad - Default configuration used

System CMOS has been corrupted or modified incorrectly, perhaps by an application program that changes data

stored in CMOS. The BIOS installed Default SETUP Values. If you do not want these values, enter Setup and enter your

own values. If the error persists, check the system battery or contact Panasonic Technical Support.

0260 System timer error

The timer test failed. Requires repair of system board.

0270 Real time clock error

Real-time clock fails BIOS test. May require board repair.

*0280 Previous boot incomplete - Default configuration used

Previous POST did not complete successfully. POST loads default values and offers to run Setup. If the failure was caused

by incorrect values and they are not corrected, the next boot will likely fail. On systems with control of wait states, improper

Setup settings can also terminate POST and cause this error on the next boot. Run Setup and verify that the wait-state

configuration is correct. This error is cleared the next time the system is booted.

0281 Memory Size found by POST differed from EISA CMOS

Memory size found by POST differed from EISA CMOS.

02B0 Diskette drive A error

02B1 Diskette drive B error

Drive A: or B: is present but fails the BIOS POST diskette tests. Check to see that the drive is defined with the proper

diskette type in Setup and that the diskette drive is attached correctly.

02B2 Incorrect Drive A type - run SETUP

Type of floppy drive A: not correctly identified in Setup.

02B3 Incorrect Drive B type - run SETUP

Type of floppy drive B: not correctly identified in Setup.

02D0 System cache error - Cache disabled

Contact Panasonic Technical Support.

02F0: CPU ID:

CPU socket number for Multi-Processor error.

02F4: EISA CMOS not writable

ServerBIOS2 test error: Cannot write to EISA CMOS.

Troubleshooting

02F5: DMA Test Failed

ServerBIOS2 test error: Cannot write to extended DMA (Direct Memory Access) registers.

02F6: Software NMI Failed

ServerBIOS2 test error: Cannot generate software NMI (Non-Maskable Interrupt).

02F7: Fail - Safe Timer NMI Failed

ServerBIOS2 test error: Fail-Safe Timer takes too long.

device address Conflict

Address conflict for specified device.

Allocation Error for: device

Run ISA or EISA Configuration Utility to resolve resource conflict for the specified device.

Failing Bits : nnnn

The hex number nnnn is a map of the bits at the RAM address which failed the memory test. Each 1 (one) in the map

indicates a failed bit. See error 230,231 or 232 for offset address of the failure in System, Extended or Shadow memory.

Invalid System Configuration Data

Problem with NVRAM (CMOS) data.

I/O device IRQ conflict

I/O device IRQ conflict error.

Operating System not found

Operating system cannot be located on either drive A: or drive C:. Enter Setup and see if fixed disk and drive A: are properly

identified.

Parity Check 1 nnnn

Parity error found in the system bus. BIOS attempts to locate the address and display it on the screen. If it cannot locate the

address, it displays ????. Parity is a method for checking errors in binary data. A parity error indicates that some data has

been corrupted.

Parity Check 2 nnnn

Parity error found in the I/O bus. BIOS attempts to locate the address and display it on the screen. If it cannot locate the

address, it displays ????.

Press <F1> to resume, <F2> to Setup

Displayed after any recoverable error message. Press <F1> to start the boot process or <F2> to enter a Setup and change the

settings. Write down and follow the information shown on the screen.

List of Error Codes

Troubleshooting

The power indicator or bat-

tery indicator is not lit

[

Enter Password

] is displayed

POST Startup Error(s) is

displayed

Windows startup, or an op-

eration is extremely slow

The date and time are incor-

rect

When resuming from the

standby or hibernation

mode, [Enter Password]

does not appear even if a

password has been set in the

Setup Utility

When “Invalid system disk.

Replace the disk, and then

press any key.” (or a simi-

lar message) is displayed

When the administrator

password is forgotten

Check the cable connection for the AC adaptor.

Check to see if a fully charged battery is properly installed.

Remove the battery pack and disconnect the AC adaptor, then connect them again.

Input your password. If you have forgotten it, contact Panasonic Technical Support.

page 19

Press F9 in the Setup Utility ( “Setup Utility”). This will restore the Setup

Utility’s settings to their default values (except the password settings). Then, the Setup

Utility must be run once again for you to input the appropriate operating environment set-

tings. (The processing speed depends on the application software used, so this operation

may not cause the processing speed to increase.)

You can set the date and time using the following procedure.

Windows 2000 : [Control Panel] - [Date/Time]

Windows XP : [Control Panel] - [Date, Time, Language, and Regional Options] -

[Date and Time]

When the computer is connected to a LAN, confirm the date and time of the server.

If you continue to experience problems, the internal battery maintaining the clock may

need to be replaced. Contact Panasonic Technical Support.

This computer will not correctly recognize the date and time starting from the year 2100

A.D.

Even when a password has been set in the Setup Utility, [Enter Password] does not appear

when the computer resumes from the standby or hibernation mode.

If you want to use the security function when using the standby or hibernation mode, use the

Windows password as follows:

Windows 2000

Set the password in [Control Panel] - [Users and Passwords], then add the check mark for

[Prompt for password when computer goes off standby] in [Control Panel] - [Power Op-

tions] - [Advanced].

Windows XP

Select the account to change in [Control Panel] - [User Account] and set the password, then

add the check mark for [Prompt for password when computer resumes from standby] in

[Control Panel] - [Performance and Maintenance] - [Power Options].

This means a floppy disk that does not contain system startup information has been left in

the floppy disk drive. Remove the floppy disk, and press any key.

If the message still appears even after trying the above measure, this may be an indication

that some type of hard disk failure has occurred. Contact Panasonic Technical Support.

Windows 2000

After reinstalling, setup Windows and then set the password again.

Windows XP

If you have created a password reset disk ( page 13), a message is displayed when you

fail to correctly enter the password. Follow the message’s instructions and set the password

again by using the password reset disk.

If you have not created a password reset disk, after reinstalling, setup Windows and then set

the password again.

When a problem occurs, refer to this page. The “Reference Manual” also contains detailed information. If a problem appears to be

related to a software application, read the software related manual. If you still cannot troubleshoot the problem, contact Panasonic

Technical Support.

Dealing with Problems (Summary)

Starting Up

Troubleshooting

Dealing with Problems (Summary)

No display after powering on

The power has not been

turned off, but after a cer-

tain period of time, there is

no display

When the battery pack is

used, the screen is darker

than when the AC adaptor

is connected

The cursor cannot be con-

trolled properly

An afterimage appears (e.g.,

green, red, and blue dots

remain on the display) or

there are dots not display-

ing the correct colors

The screen becomes disor-

dered

When there is no display to an external display,

• Check your cable connection to the external display.

• Confirm your display is powered on.

• Check the settings for your external display.

Try changing the display by pressing Fn + F3 .

If you want to switch the display destination repeatedly by pressing Fn + F3 ,

make sure that the display destination has switched completely each time before

pressing Fn + F3 again.

When displaying only through an external display, if the computer is shut down by using

the standby or hibernation function, there will be no display on the LCD unless the exter-

nal display is connected when operations are resumed. In this case, connect the external

display or press Fn + F3 .

Has the computer been set to the power-saving mode?

To resume operation of your computer from the condition the power of the display is off

(for energy conservation purposes), press any key unrelated to the direct triggering of a

selection, like Ctrl .

To save power, your computer may have automatically entered the standby or hiberna-

tion mode. ( “Computing On the Road”) Press the power switch.

Press Fn + F2 and adjust the brightness. Note, however, that when the brightness is

increased, the battery running time will become shorter.

Brightness can be set to separate levels for when the AC adaptor is connected and when it is

disconnected.

If you are using an external mouse, ensure that the external mouse has been connected

correctly.

Restart the computer by using the keyboard (Press , U , and select [Restart] with

, then press Enter ).

If the computer does not respond to keyboard commands, read “Computer hangs”

( page 24).

If an image is displayed for a prolonged period of time, an afterimage may appear. This

is not a malfunction. The afterimage will disappear when a different screen is displayed.

High-precision and advanced technologies are necessary in the production of color liquid

crystal displays (color LCDs). Therefore, if 0.002% or less of the picture elements either

fail to light or remain constantly lit (that is, more than 99.998% of elements are function-

ing properly), no defect is considered to exist.

Changing the number of colors of the display may affect the screen. Restart the computer.

Windows XP

When using Dualview, use the same display colors for the external display as those used

by the LCD.

Display

When the previous item is

not the cause Press F9 in the Setup Utility ( “Setup Utility”). This will restore the Setup

Utility’s settings to their default values (except the password settings).

Try removing all peripheral devices.

Check a disk error using the following procedure.

Windows 2000

1Select [Local Disk(C:)] with the right button in [My Computer], and select [Properties].

2Select [Tools] - [Check Now].

3Select [Start] after selecting required items in [Check disk options].

Windows XP

1Select [Local Disk(C:)] with the right button in [start] - [My Computer], and select [Properties].

2Select [Tools] - [Check Now].

3Select [Start] after selecting required items in [Check disk options].

At start-up, press F8 to operate the computer in the Safe mode.

Starting Up (continued)

Troubleshooting

Is Acrobat Reader installed?

If Acrobat Reader is not installed, run [c:\util\reader\ar505enu.exe] in [start] - [Run] to rein-

stall the program. When installing the program, do not change the installation destination

folder. If the destination folder is changed, the Reference Manual cannot be opened from

the [start] menu.

Reference Manual

The Reference Manual is

not displayed

Battery Indicator

Some applications may not

work properly When switching to a different user with the Fast User Switching function, the following

problems may occur.

• Some applications may not work properly (for example, PDF files may not be printed

properly).

• It may not be possible to set the settings of the display.

• A serial mouse may not work.

•Fn + F3 may not work.

If any of the above occur, log on with the administrator authority again, not using the Fast

User Switching function, and try the operation once more.

Fast User Switching function Windows XP

The external display no

longer displays properly

When the screensaver is set,

an error will occur during a

resume operation

Windows XP

An error occurs or the com-

puter freezes while using

Dualview

When an external display not compatible with the power saving mode is used with the

computer, the external display may no longer display properly when the computer enters the

condition the power of the display is OFF (for energy conservation purposes). In such

cases, turn off the power to the external display.

When the computer automatically enters the standby or hibernation mode while the

screensaver is running, an error may occur during a resume operation. In such cases, turn off

the screensaver or try changing the pattern of the screensaver.

If you use a 3D screen saver while in Dualview mode at a high resolution, an error may

occur or the computer may freeze. Under these conditions, do not use a 3D screen saver.

Display

The red indicator lights

The red indicator blinks

The orange indicator blinks

The battery level is very low (the charge is less than approx. 9% capacity).

Connect the AC adaptor. You can use the computer when the indicator light is orange. If you

do not have an AC adaptor, save your data and power off your computer. After replacing the

battery pack with a fully charged one, turn your computer on.

Quickly save your data and power off your computer. Remove the battery pack and discon-

nect the AC adaptor, then connect them again.

If the problem persists, contact Panasonic Technical Support. The battery pack or recharg-

ing function may be defective.

Battery cannot be recharged temporarily because the internal temperature of the battery pack

is outside of the acceptable temperature range for recharging. Once the allowable range re-

quirement is satisfied, charging begins automatically. Your computer can be used normally.

Troubleshooting

Windows cannot be shut

down or restarted

“This program is not re-

sponding” is displayed

when shutting down or log-

ging off

Shutting down

If a USB device is connected, try removing it.

This message appears periodically; for example, when using a Wireless LAN. If the mes-

sage appears, select [End Now]. Delete the check mark for [Show the tray icon] in the

following menu.

Windows 2000

[Start] - [Programs] - [Intel Network Adapters] - [Intel(R) PROSet]

Windows XP

[start] - [All Programs] - [Intel Network Adapters] - [Intel(R) PROSet]

Others

Press Ctrl + Shift + Esc to open Task Manager and close the software application

which is not responding.

After shutting down by pressing the power switch for more than four seconds, press the

power switch to power on and open the application again.

If the program no longer works normally, delete the program using the following menu.

Then reinstall the program.

Windows 2000 : [Control Panel] - [Add/Remove Programs]

Windows XP : [Control Panel] - [Add or Remove Programs]

Computer hangs

Dealing with Problems (Summary)

Troubleshooting

Reinstalling Software

Before Reinstallation

Preparing

You will need the Product Recovery CD-ROM.

Important

Before the reinstallation procedure, remove all peripherals.

Be sure the AC adaptor is connected until the reinstallation procedure is completed.

When reinstall procedure is performed, the contents of the hard disk will be erased. Be sure to back up any critical data that is

on your hard disk before running the reinstall procedure.

The reinstall procedure will return the computer to its original condition.

• If you have created partitions for data, the data may be erased or become corrupt as a result of the reinstall procedure.

1Turn the computer off and set the CD drive in the multi-

media pocket.

2Turn the computer on, and immediately hold down F2 .

Release the key when the Setup Utility starts up.

If the password has been set, enter the Supervisor Pass-

word.

3Write down all of the contents of the Setup Utility and

then press F9 .

At the confirmation message, select [Yes] and then press

Enter .

4Select [Boot] menu, then select [CD Drive] and press F6

until [CD Drive] is at the top of the [Boot] menu.

5Place the disc number one of the recovery CDs into the

CD drive.

6Press F10 .

At the confirmation message, select [Yes] and press

Enter .

The computer will restart, and this screen should appear.

Reinstalling

---------------------------------------------------------------------

Select a number

---------------------------------------------------------------------

1. Start restoring the operating system.

2. Erase the whole data on HDD for security.

3. End

---------------------------------------------------------------------

8Select [1. Yes, I agree to the provisions above and wish to

continue!].

This screen should appear.

Windows 2000

---------------------------------------------------------------------

Select a number

---------------------------------------------------------------------

1. Restore Windows(R) 2000 Professional to the whole HDD.

2. Make two partitions, for the operating system and data. And restore

Windows(R) 2000 Professional to the operating system partition.

(All existing partitions on HDD will be lost.)

3. Restore Windows(R) 2000 Professional to the first partition.

4. End

---------------------------------------------------------------------

Select a number

---------------------------------------------------------------------

1. Restore Windows(R) XP Professional to the whole HDD.

2. Make two partitions, for the operating system and data. And restore

Windows(R) XP Professional to the operating system partition.

(All existing partitions on HDD will be lost.)

3. Restore Windows(R) XP Professional to the first partition.

4. End

---------------------------------------------------------------------

Windows XP

9Make a selection from the menu.

When selecting [2], enter the basic partition size for

the operating system installation and press Enter .

(The data partition size is the remainder after subtract-

ing the basic partition size.)

To select [3], the initial partition size must be 6 GB or

more of the hard disk size. Reinstallation cannot be per-

formed with a small partition size.

7Select [1. Start restoring the operating system.].

The License Agreement screen should appear.

Troubleshooting

12 Restart the computer by pressing

Del and immediately hold down F2 . Release the

key when the Setup Utility starts up.

If the password has been set, enter the Supervisor Pass-

word.

13 Press F9 .

At the confirmation message, select [Yes] and then press

Enter . (The Setup Utility settings will return to their

default values. Even the security settings with the excep-

tion of the password(s) will return to their default values.)

14 Press F10 .

At the confirmation message, select [Yes] and press

Enter .

15 Perform the setup procedure for Windows by following

the instructions on the screen.

Windows 2000 Page 11

Windows XP Page 12

16 Run the Setup Utility and change the settings where nec-

essary.

10 At the confirmation message, press Y .

The operation of reinstallation for the hard disk starts au-

tomatically. (The operations take about 15 minutes.)

11 After the reinstallation procedure completes, the follow-

ing message will appear on the display.

Remove the recovery CD.

Ctrl + Alt +

Windows(R) 2000 Professional install wizard will start after reboot.

Remove the Product Recovery CD-ROM, then restart the computer by pressing

Ctrl + Alt + Del (Delete).

Windows 2000

Windows(R) XP Professional install wizard will start after reboot.

Remove the Product Recovery CD-ROM, then restart the computer by pressing

Ctrl + Alt + Del (Delete).

Windows XP

You can change the drive letter for the CD drive or hard disk

drive by the following steps.

Drive letters can only be changed when two or more parti-

tions have been created on the hard disk drive. The name

of the C: drive cannot be changed.

We recommend that you make these changes before in-

stalling applications.

Windows 2000

1Select [Start] - [Settings] - [Control Panel] - [Administra-

tive Tools] - [Computer Management].

2Select [Disk Management] from [Storage].

3Right click on the partition of the hard disk or the name of

the CD drive and select [Change Drive Letter and Path...].

4Select [Edit].

5Select [Assign a drive letter] and select the new drive let-

ter, and then select [OK].

6At the confirmation message, select [Yes].

Windows XP

1Select [Start] - [Control Panel] - [Performance and Mainte-

nance] - [Administrative Tools] - [Computer Management].

2Select [Disk Management] from [Storage].

3Right click on the partition of the hard disk or the name of

the CD drive and select [Change Drive Letter and Paths...].

4Select [Change].

5Select [Assign the following drive letter] and select the

new drive letter, and then select [OK].

6At the confirmation message, select [Yes].

Do not cancel the reinstall procedure before it is

completed.

When a message appears instructing you to insert

the next CD, insert the recovery CD showing the

next number in the sequence, and then select [OK].

If the message “The media does not contain the cor-

rect file” appears, select [OK]. A message will ap-

pear instructing you to insert the next CD.

Confirm that the proper recovery CD has been in-

serted by opening the tray of the CD drive and then

close the tray, then select [OK].

CAUTION

Reinstalling Software

Appendix

LIMITED USE LICENSE AGREEMENT

THE SOFTWARE PROGRAM(S) (“PROGRAMS”) FURNISHED WITH THIS PANASONIC® PRODUCT (“PRODUCT”)

ARE LICENSED ONLY TO THE END-USER (“YOU”), AND MAY BE USED BY YOU ONLY IN ACCORDANCE WITH

THE LICENSE TERMS DESCRIBED BELOW. YOUR USE OF THE PROGRAMS SHALL BE CONCLUSIVELY DEEMED

TO CONSTITUTE YOUR ACCEPTANCE OF THE TERMS OF THIS LICENSE.

Matsushita Electric Industrial Co., Ltd. (“MEI”) has developed or otherwise obtained the Programs and hereby licenses

their use to you. You assume sole responsibility for the selection of the Product (including the associated Programs) to

achieve your intended results, and for the installation, use and results obtained therefrom.

LICENSE

A. MEI hereby grants you a personal, non-transferable and non-exclusive right and license to use the Programs in

accordance with the terms and conditions stated in this Agreement. You acknowledge that you are receiving only

a LIMITED LICENSE TO USE the Programs and related documentation and that you shall obtain no title,

ownership nor any other rights in or to the Programs and related documentation nor in or to the algorithms,

concepts, designs and ideas represented by or incorporated in the Programs and related documentation, all of

which title, ownership and rights shall remain with MEI or its suppliers.

B. You may use the Programs only on the single Product which was accompanied by the Programs.

C. You and your employees and agents are required to protect the confidentiality of the Programs. You may not

distribute or otherwise make the Programs or related documentation available to any third party, by time-sharing

or otherwise, without the prior written consent of MEI.

D. You may not copy or reproduce, or permit to be copied or reproduced, the Programs or related documentation

for any purpose, except that you may make one (1) copy of the Programs for backup purposes only in support of

your use of the Programs on the single Product which was accompanied by the Programs. You shall not modify,

or attempt to modify, the Programs.

E. You may transfer the Programs and license them to another party only in connection with your transfer of the

single Product which was accompanied by the Programs to such other party. At the time of such a transfer, you

must also transfer all copies, whether in printed or machine readable form, of every Program, and the related

documentation, to the same party or destroy any such copies not so transferred.

F. You may not remove any copyright, trademark or other notice or product identification from the Programs and

you must reproduce and include any such notice or product identification on any copy of any Program.

YOU MAY NOT REVERSE ASSEMBLE, REVERSE COMPILE, OR MECHANICALLY OR ELECTRONICALLY TRACE

THE PROGRAMS, OR ANY COPY THEREOF, IN WHOLE OR IN PART.

YOU MAY NOT USE, COPY, MODIFY, ALTER, OR TRANSFER THE PROGRAMS OR ANY COPY THEREOF, IN

WHOLE OR IN PART, EXCEPT AS EXPRESSLY PROVIDED IN THE LICENSE.

IF YOU TRANSFER POSSESSION OF ANY COPY OF ANY PROGRAM TO ANOTHER PARTY, EXCEPT AS PERMIT-

TED IN PARAGRAPH E ABOVE, YOUR LICENSE IS AUTOMATICALLY TERMINATED.

TERM

This license is effective only for so long as you own or lease the Product, unless earlier terminated. You may terminate

this license at any time by destroying, at your expense, the Programs and related documentation together with all

copies thereof in any form. This license will also terminate effective immediately upon occurrence of the conditions

therefor set forth elsewhere in this Agreement, or if you fail to comply with any term or condition contained herein. Upon

any such termination, you agree to destroy, at your expense, the Programs and related documentation together with all

copies thereof in any form.

YOU ACKNOWLEDGE THAT YOU HAVE READ THIS AGREEMENT, UNDERSTAND IT AND AGREE TO BE BOUND

BY ITS TERMS AND CONDITIONS. YOU FURTHER AGREE THAT IT IS THE COMPLETE AND EXCLUSIVE STATE-

MENT OF THE AGREEMENT BETWEEN US, WHICH SUPERSEDES ANY PROPOSAL OR PRIOR AGREEMENT,

ORAL OR WRITTEN, AND ANY OTHER COMMUNICATIONS BETWEEN US, RELATING TO THE SUBJECT MAT-

TER OF THIS AGREEMENT.

About Intel® software products

The enclosed software products and documentation were developed at private expense, and are provided with “RESTRICTED

RIGHTS.” Use, duplication or disclosure by the government is subject to restrictions as set forth in FAR 52.227-14 and

DFARS 252.227-7013 et. seq. or its successor. The use of this product by the government constitutes acknowledgment of

Intel's proprietary rights in the product.

Appendix

1Turn the computer on, and immediately hold down F2 . Release the key when the Setup Utility starts up.

If the password has been set, enter the Supervisor Password.

2Select [Boot] menu, then select [CD Drive] and press F6 until [CD Drive] is at the top of [Boot] menu.

3Place the disc one of the recovery CDs into the CD drive.

4Press F10 .

At the confirmation message, select [Yes] and press Enter .

The computer will restart, and this screen should appear.

5Select [2. Erase the whole data on HDD for security.].

6At the confirmation message, press Y .

7At the start menu, press Enter .

8The time required for erasing data will be displayed.

Press Space .

9At the confirmation message, press Enter .

The operation of erasing the hard disk starts.

10 After the operation is complete:

Under normal conditions, the message [Hard disk data has been deleted.] will be displayed.

If a problem occurred during the operation, an error message will be displayed.

11 Remove the Product Recovery CD-ROM, then turn off the computer by using the power switch.

This computer is equipped with a utility for completely erasing hard disk data.

When disposing of or transferring ownership of this device, erase all data on the hard disk in order to prevent the theft of hard disk

data following the steps below.

The hard disk data erase utility erases data using an “overwriting” method, but there is a possibility that due to malfunctions or

other operational errors, data may not be completely erased. There are also specialized devices that may be able to read data

that has been erased using this method. If you need to erase highly confidential data, we recommend that you contact a

company that specializes in this process. Matsushita Electric Industrial Co., Ltd. will bear no responsibility for losses or

damages suffered as a result of the use of this utility.

Preparing

You will need the Product Recovery CD-ROM.

---------------------------------------------------------------------

Select a number

---------------------------------------------------------------------

1. Start restoring the operating system.

2. Erase the whole data on HDD for security.

3. End

---------------------------------------------------------------------

NOTE

Be sure the AC adaptor is connected until the procedure is completed.

This utility can only be used for internal hard disk. It cannot be used to erase data from external hard disks.

This utility cannot erase data from damaged disk.

This utility cannot erase data for specific partitions.

After executing this utility, the computer cannot be booted from the hard disk.

Hard Disk Data Erase Utility

Procedure

Appendix

WinDVD™ (hereafter, WinDVD) is a software application for DVD playback.

Here, you will find explanations and general information on the installation procedure and how to access the online manual.

WinDVD™

Installing WinDVD

CAUTION

Close all other software application before running the Setup program for WinDVD for added safety.

Log on as the administrator.

1Set the WinDVD CD-ROM in the CD drive.

The WinDVD setup program will run automatically (allow some time for disc recognition). When the setup program will

not run automatically, input [x:\setup] in [Start] - [Run] and select [OK]. (“x”is the drive letter. You can change the letter to

suit your preference.)

2Select [Next] at the Welcome Message.

3After reading the “License Agreement”*, select [Yes] if you agree to the terms.

*Refer to the “LIMITED USE LICENSE AGREEMENT” ( page 27)

4Follow the on-screen instructions and install WinDVD.

To run WinDVD, it is necessary to make the following settings.

1Windows 2000 Select [Start] - [Settings] - [Control Panel] - [System] - [Hardware] - [Device Manager].

Windows XP Select [start] - [Control Panel] - [Performance and Maintenance] - [System] - [Hardware] - [Device Man-

ager].

2Double-click [Primary IDE Channel] for [IDE ATA/ATAPI controllers].

3Select [Advanced Settings], and confirm that [Transfer Mode] is set to [DMA if available] for [Device 0].

4Double-click [Secondary IDE Channel] for [IDE ATA/ATAPI controllers] and perform as the step .

Do not enter the standby or hibernation mode while WinDVD is running.

Do not start WinDVD while the hard disk drive indicator is blinking immediately after the computer was started up.

If you maximize the video display window, you can return to the original window size by double-clicking over the

images.

During video playback (while the access lamp is on), do not eject the disc.

Do not use other applications or the Command Prompt, and do not change the settings of the screen properties.

In some cases, when the number of colors for the display is increased, a message appears and the DVD cannot be played.

If this happens, reduce the number of display colors.

Immediately after resuming from a pause, frame dropping may occur depending on the operating environment or DVD

video (images or sounds are disrupted).

In the Extended Desktop (Dualview) or simultaneous (internal/external) display mode, there are times when images or

video are not displayed correctly.

During a prolonged period of rapid advance, the pause mode may be established at some point. If this happens, exit

WinDVD, and restart.

NOTE

Running WinDVD

Windows 2000

Select [Start] - [Programs] - [InterVideo WinDVD] - [InterVideo WinDVD] or select on the desktop.

Windows XP

Select [start] - [All Programs] - [InterVideo WinDVD] - [InterVideo WinDVD] or select on the desktop.

Select “?” of the WinDVD control panel.

Appendix

Information

Inquires about WinDVD should be made to InterVideo, Inc.

InterVideo, Inc.

URL: http://www.intervideo.com/

E-mail: support@intervideo.com

WinDVD™

About Regions Setting

The DVD-Video has a region code that is fixed according to the region where it is sold. In order to play a DVD-Video, the

region code of the player software and of the drive must match that of the DVD-Video.

For U.S.A. and Canada: “1”

For Europe: “2”

The region code is not set prior to the shipment of this drive. Therefore, operations will differ depending on the first DVD-

Video played.

In the case of a DVD-Video with a specific region code:

The drive will automatically be set with the same region code as the DVD-Video.

In the case of any other DVD-Video:

[Confirm Region] appears. Select region code and select [OK]. Play now begins.

([Confirm Region] may not be displayed for some DVD-Videos. To confirm the current region code and the number of

settings remaining, right-click on the WinDVD screen and select [Setup]-[Region].)

CAUTION

The region code can be set a total of five times, including the initial setting. Proceed very carefully, because after the fourth

change has been made, the region code set last is fixed and no further changes can be made.

The user must take responsibility for any trouble that results from illegally changing or altering the region code.

NOTE

[Confirm Region] will also be displayed if a DVD-Video with one region code is inserted into a drive for which another

region code has already been set.

Appendix

“B’s Recorder GOLD5” (hereafter, B’s Recorder) and “B’s CLiP” are CD and DVD recording software applications developed by

B.H.A Corporation.

Here, explanations are given on general information about B’s Recorder and B’s CLiP, the installation procedure, and how to

access the online manual. Refer to the online manual concerning the detailed use of the software application ( page 32).

Applicable Media

CD-R* (one-time recordable CD media)

CD-RW (rewritable CD media)

* Applicable only for B's Recorder. It cannot be used for B's CLiP.

Windows 2000

Uninstall Adaptec CD-Burning Plug-in.

1Select [Start] - [Settings] - [Control Panel] - [Add/Remove Programs].

2Select [Windows Media Player 7] - [Change/Remove].

3Select [Remove Windows Media components] and select [Next].

4Select [Adaptec CD-Burning Plug-in] from the components list, and select [Next].

5If the [Windows Media setup is now ready to uninstall] message appears, select [Next].

6Select [Finish] and restart the computer.

Windows XP

Select [(X:)]* in [start] - [My Computer] with the right button, select [Properties] - [Recording], then delete the check mark for [Enable

CD recording on this drive].

(Delete the check mark for [Enable CD recording on this drive] every time a new user is added.)

* “X” is the drive letter. You can change the letter to suit your preference.

Before Installing the Software

Installing the Software

1Set “B’s Recorder GOLD/B’s CLiP” disc in the drive.

[B.H.A setup launcher] screen will appear (allow some time for disc recognition). When the setup program will not run auto-

matically, input [X:\Setuputil.exe]*1 in [Start]*2 - [Run] and select [OK].

Windows 2000

At the message, select [OK].

2Select [B’s Recorder GOLD5] and follow the on-screen instructions.

During the course of the installation process, you will be asked to input a serial number. Input the serial number marked on the

sticker and the disc.

3Upon completion of the installation, select [Yes, I want to restart my computer now], then select [Finish]. The computer will

restart.

4Input [X:\Setuputil.exe]*1 in [Start]*2 - [Run] and select [OK].

[B.H.A setup launcher] screen will appear.

Windows 2000

At the message, select [OK].

5Select [B’s CLiP] and follow the on-screen instructions.

During the course of the installation process, you will be asked to input a serial number. Input the serial number marked on the

sticker and the disc.

6Upon completion of the installation, select [Yes, I want to restart my computer now], then select [Finish]. The computer will

restart.

*1 “X” is the drive letter. You can change the letter to suit your preference.

*2Windows XP : [start]

Close all other software application before running the Setup program for B’s Recorder and B’s CLiP for added safety.

Log on with the administrator authority.

Take care not to lose the serial number.

CAUTION

B’s Recorder/B’s CLiP

Appendix

How to access the Online Manual

B’s Recorder

Windows 2000 : Select [Start] - [Programs] - [B.H.A] - [B’s Recorder GOLD5] - [User’s Manual].

Windows XP : Select [start] - [All Programs] - [B.H.A] - [B’s Recorder GOLD5] - [User’s Manual].

B’s CLiP

Windows 2000 : Select [Start] - [Programs] - [B.H.A] - [B’s CLiP] - [User’s Manual].

Windows XP : Select [start] - [All Programs] - [B.H.A] - [B’s CLiP] - [User’s Manual].

CAUTION

You cannot eject the disc by using the eject button on the drive while the indicator ( ) is displayed on the taskbar. To eject

the disc in this case, move the cursor to the indicator and right-click it to select [Eject].

Do not eject discs in any other way except the one described above.

When formatting a disc with B’s CLiP, right-click or to select [Format]. Do not select [My computer].

After formatting the disc, eject it then re-insert before using it.

When settings are changed using the following method, only a user with administrator authority can make the settings:

Select the CD drive icon or the B’s CLiP icon on the Taskbar with the right button, and select [Properties] - [B’s CLiP Page

Settings].

Windows 2000

If CD/DVD media with B’s CLiP format is removed while the content of that media is displayed in Explorer, the contents

of the media may remain displayed in Explorer even after the media is removed. This will not affect the computer’s

operation. When another CD/DVD media is inserted, the Explorer display will be updated.

Windows XP

Do not use the Fast User Switching function.

If this function is used, the icon ( ) will no longer be shown on the user taskbar after the switching is complete. (If this

happens, log off of Windows, and return to the original user.)

Information

If B’s Recorder and B’s CLiP do not operate properly, we recommend carefully reading the online help file first for problems

with the operating environment or operations.

If you still cannot troubleshoot the problem, contact B.H.A ( described below).

About Copies

When writing to discs, make sure that you are not infringing any copyrights.

It is illegal to copy audio CDs for non-personal use.

When backing up software, make sure that you are not infringing any software copyrights for that product.

SUPPORT INFOMATION

Inquires about B’s Recorder and B’s CLiP should be made to B.H.A.

URL: http://www.bhacorp.com/support/

http://www.bha.co.jp/support/ (Japanese)

area

U.S./Canada/Australia

Europe

Asia

language

English, French (Canada)

English, German, French

Chinese

e-mail

winntsupport@bhacorp.com

eurosupport@bhacorp.com

asiasupport@bhacorp.com

B’s Recorder/B’s CLiP

Appendix

Names and Functions of Parts

For information on the key combi-

nations available.

( “Key Combinations”).

( “LED Indicators”)

LED Indicators

Before using the computer for the first time,

carefully read the [Limited Use License

Agreement]. If you agree to the conditions,

remove the seal.

CD Drive

( “CD Drive”)

Security Lock

A Kensington cable can be con-

nected to prevent theft of your

computer. For more informa-

tion, please read the manual that

comes with the cable.

To adjust the volume:

Fn + F5 / Fn + F6

Speaker on/off : Fn + F4

Speakers

( page 17)

Touch Pad

LED Indicators

( “LED Indicators”)

Power status

Battery pack status

Use this connector to connect

headphones or amplifier-equipped

speakers. Audio output from the

internal speaker is disabled when

headphones or external speakers

are connected.

Headphone Jack

Use only a monaural condenser microphone.

Using an input source other than a monaural

condenser microphone may not allow audio to

be input or may damage the equipment.

The illustrations shown may differ from the actual physical appearances.

( “PC Cards”)

PC Card Slots

Caps Lock

Numeric key (NumLk)

Scroll lock (ScrLk)

CD drive status*

Floppy disk drive status

Hard disk drive status

Power status

LOCK

Function Keys

LCD

Floppy Disk Drive

Microphone Jack

Power Switch

*The access lamp on the CD drive lights at

the same time as this indicator. (In some cases,

only one of them may light.)

Appendix

External Display Port

( “Printer”)

External Keyboard/Mouse Port

USB Ports

( “USB Devices”)

These holes allow heat to exit.

CAUTION

Do not block or place the computer in a loca-

tion that may prevent proper ventilation.

Serial Port

Ventilation Hole

This cover is not to be opened by anyone

except authorized service personnel.

CAUTION

RAM Module Slot

( “RAM Module”)

( “Port Replicator”)

Expansion Bus Connector

( “External Display”)

Battery Pack

( “LAN”)

DC-IN Jack

( “Battery Power”)

Hard Disk Drive

( “Hard Disk Drive”)

A lithium ion battery that is recyclable powers the product you

have purchased. Please call 1-800-8-BATTERY for information

on how to recycle this battery.

L’appareil que vous vous êtes procuré est alimenté par une batterie

au lithium-ion. Pour des renseignements sur le recyclage de la

batterie, veuillez composer le 1-800-8-BATTERY.

LAN

Parallel Port

( “Modem”)

Modem

Names and Functions of Parts

Appendix

Specifications

Main Specifications

*1A 16 M color display is achieved by using the dithering function.

Windows XP : 256 color depth and the resolution of 640 × 480 are not supported.

Windows 2000 : Setting 256 color depth or the resolution of 640 × 480 is not recommended.

*2Maximum resolution depends on the specifications of the external display.

Windows XP : 256 color depth and the resolution of 640 × 480 are not supported.

Windows 2000 : Setting 256 color depth or the resolution of 640 × 480 is not recommended.

*31GB = 109 bytes

This page provides the specifications for the basic model CF-48E4KFUDM/CF-48E4KFUKM. The model number will change

depending on the configuration of the unit, such as, CPU speed, memory size, HDD size, Operating System, LCD type, and

whether a DVD-ROM drive, a DVD-ROM&CD-R/RW drive or DVD Multi drive is included or not.

To check the model number:

Check the bottom of the computer or the box the computer came in at the time of purchase.

To check CPU speed, memory size and the hard disk drive (HDD) size:

Run the Setup Utility ( “Setup Utility”) and select [Information] menu.

Confirm the required information by checking the following items.

CPU speed: [CPU Speed]

Memory size: [System Memory]

Hard disk drive size: [Primary Master]

CF-48E4KFUDM CF-48E4KFUKM

Intel

Pentium

M Processor 1.4 GHz

L2 (Second) Cache Memory: 1 MB

256 MB (768 MB Max. )

64 MB

14.1 type (TFT)

256/65536/16M colors (640 x 480 dots/800 x 600 dots/1024x768 dots)

256/65536/16M colors (640 x 480 dots/800 x 600 dots/1024x768 dots/1280 x 1024

dots/1600 x 1200 dots/2048x1536 dots)*2

40 GB*3

Microsoft® Windows® 2000 professional Microsoft® Windows® XP professional

with Service Pack 3 with Service Pack 1

Model No.

CPU

Memory (Expandable to)

Video Memory

LCD Type

Displayed Colors*1

External Display

Hard Disk Drive

Operating System

Keyboard

Slots PC Card Slots

RAM Module Slot*4

Interface Parallel Port

External Display Port

Serial Port

Microphone Jack*5

Headphone Jack

External Keyboard/

Mouse Port

Expansion Bus

Connector

USB Port

Modem

LAN

Wireless LAN

Other Specifications

87 keys

Two Type I or Type II, or one Type III

Allowable current 3.3 V: 400 mA, 5 V: 400 mA (total for two slots)

200-pin, SO-DIMM, DDR-SDRAM, PC2100 Compliant

Dsub 25-pin female

Mini Dsub 15-pin female

Dsub 9-pin male

Miniature jack, 3.5 DIA

Impedance 32 Ω, Output Power 4 mW x 2

Mini DIN 6-pin female

Dedicated 100-pin female

4-pin x 2, USB 2.0

RJ-11 Data: 56 kbps (V.92 & K56flex) FAX:14.4 kbps

RJ-45 IEEE 802.3 10Base-T

IEEE 802.3u 100Base-TX

802.11b

*4Only a RAM card designed for PC2100 can be added.

*5Use only a monaural condenser microphone.

Appendix

Specifications

Supports DVD-ROM

CD-ROM

DVD-ROM read*4

CD-ROM read*4

Supports DVD-ROM

CD-ROM

DVD-ROM read*4

CD-ROM read*4

CD-R write*5

CD-RW write

Supports DVD-ROM

CD-ROM

CD-ROM read*4

DVD-ROM read*4

CD-R write*5

CD-RW write

DVD-R write

DVD-RW write

DVD-RAM write

Pointing Device

Speaker

Utility Programs

Sound

Floppy Disk Drive

Optical Disc DVD-ROM Drive

DVD-ROM &

CD-R/RW Drive

DVD Multi Drive

Battery Battery Pack

Clock Battery

AC adaptor*7

Power Consumption*8

Environment

Physical Dimensions (W X H X D)

Weight

Other Specifications

Touch Pad

Stereo Speaker

Setup Utility, DMI Viewer, Adobe® Acrobat® Reader, Hard Disk Data Erase Utility*1

WAVE and MIDI playback

720 KB/1.44 MB (two-mode)

DVD-5, DVD-9, DVD-10, DVD-18, DVD-R*2(3.95 GB, 4.7

GB), DVD-RW*2 (4.7 GB), DVD-RAM*2*3 (2.6 GB, 4.7 GB)

CD-Audio, CD-ROM, CD-R*2, Photo CD, VideoCD, En-

hanced Music CD, CD-RW*2, CD-TEXT

8x speed (Max.)

24x speed (Max.)

DVD-5, DVD-9, DVD-10, DVD-18, DVD-R*2(3.95 GB, 4.7

GB), DVD-RW*2 (4.7 GB), DVD-RAM*2*3 (2.6 GB, 4.7 GB),

DVD+R*2, DVD+RW*2

CD-Audio, CD-ROM, CD-R, Photo CD, VideoCD, Enhanced

Music CD, CD-RW, CD-TEXT

8x speed (Max.)

24x speed (Max.)

4x speed, 8x speed, 16x speed (Max.), 24x speed (Max.)

4x speed, 8x speed, 10x speed

DVD-5, DVD-9, DVD-10, DVD-18, DVD-R*2(3.95 GB, 4.7

GB), DVD-RW*2 (4.7 GB), DVD-RAM*2*3 (2.6 GB, 4.7 GB)

CD-Audio, CD-ROM, CD-R, Photo CD, VideoCD, Enhanced

Music CD, CD-RW, CD-TEXT

24X speed (Max.)

8X speed (Max.)

4X speed, 8X speed, 16X speed (Max.)

4X speed, 8X speed

1X speed

2X speed

Li-ion 11.1 V, 6.3 Ah

Operating Time*6Approx. 1.5 hours - 3.2 hours

Charging Time*6Power On Approx. 3.0 hours

Power Off Approx. 3.0 hours

Coin type lithium battery 3.0 V

Input 100 V - 240 V AC, 50 Hz/60 Hz Output 15.6 V DC, 5.0 A

Approx. 70 W*9 / Approx. 90 W (maximum when recharging in the ON state)

In use Temperature 5 °C to 35 °C {41 °F to 95 °F}

Humidity 30% to 80% RH (No condensation)

Not in use Temperature -20 °C to 60 °C {-4 °F to 140 °F}

Humidity 30% to 90% RH (No condensation)

307 mm X 45 mm X 260 mm {12.1 " X1.8 " X 10.2 "}

Approx. 3.4 kg {Approx. 7.6 lb.}

*1The Product Recovery CD-ROM is required.

*2Read only.

*3In the case of DVD-RAM, only non-cartridge discs or removable cartridge discs can be used.

*4If an unbalanced disc (e.g., a disc with which the balance has been displaced from the center) is inserted, the speed may become slower if

there are large vibrations while the disc is rotating.

*5Depending on the disc, the writing speed may become slower.

*6Varies depending on the usage conditions.

*7The AC adaptor is compatible with power sources up to 240 V AC adaptor.

This computer is supplied with a 125 V AC compatible AC cord.

*8Approx. 0.9 W when the battery pack is fully charged (or not being charged) and the computer is OFF.

Approx. 1.5 W when the [Wake up from LAN] has been enabled.

*9Rated power consumption.

Appendix

LIMITED WARRANTY

PANASONIC PERSONAL COMPUTER AND PERIPHERALS LIMITED WARRANTY

Panasonic Computer Solution Company (referred to as “Panasonic”) will repair this product (other than software, which is covered by a separate

warranty) with new or rebuilt parts, free of charge in the U.S.A. for three (3) years from the date of original purchase in the event of a defect in materials

or workmanship. This warranty includes the AC adaptor but excludes the batteries and all other options and accessories which are covered for a

period of one (1) year from the date of purchase.

This warranty is extended solely to the original purchaser. A purchase receipt or other proof of date of original purchase will be required before

warranty performance is rendered.

This warranty only covers failures due to defects in materials or workmanship which occur during normal use. It does not cover damage which occurs

in shipment or failures which are caused by products not supplied by Panasonic, or failures which result from alteration, accident, misuse, introduction

of liquid or other foreign matter into the unit, abuse, neglect, installation, maladjustment of consumer controls, improper maintenance, modification or

service by anyone other than a Factory Service Center or authorized Panasonic Service Dealer, or damage that is attributable to acts of God.

Limits and Exclusions:

There are no other express warranties except as listed below.

PANASONIC SHALL NOT BE LIABLE FOR LOSS OF DATA OR OTHER INCIDENTAL OR CONSEQUENTIAL DAMAGES RESULTING FROM THE

USE OF THIS PRODUCT, OR ARISING OUT OF ANY BREACH OF THIS WARRANTY. ALL EXPRESS AND IMPLIED WARRANTIES, INCLUDING

THE WARRANTIES OF MERCHANTABILITY AND FITNESS FOR A PARTICULAR PURPOSE ARE LIMITED TO THE APPLICABLE WARRANTY

PERIOD SET FORTH ABOVE. Some states do not allow the exclusion or limitation of incidental or consequential damages, or limitations on how long

an implied warranty lasts, so the above limitations or exclusions may not apply to you.

This limited warranty gives you specific legal rights, and you may also have other rights which vary from state to state. If a problem with your product

develops during or after the warranty period, you may contact our representatives at 1-800-LAPTOP5. If the problem is not handled to your satisfac-

tion, then write to the Consumer Affairs Division at the address indicated below.

SOFTWARE LIMITED WARRANTY

Panasonic Computer Solution Company (referred to as “Panasonic”) warrants to you only that the disk(s) or other media on which the Programs are

furnished will be free from defects in materials and workmanship under normal use for a period of sixty (60) days from the date of delivery thereof to

you, as evidenced by your purchase receipt.

This is the only warranty Panasonic makes to you. Panasonic does not warrant that the functions contained in the Programs will meet your require-

ments or that the operation of the Programs will be uninterrupted or error free.

Panasonic’s entire liability, and your exclusive remedy under this warranty shall be limited to the replacement, in the United States, of any defective

disk or other media which is returned to Panasonic’s Authorized Service Center, together with a copy of the purchase receipt, within the aforesaid

warranty period.

Anything in the foregoing to the contrary notwithstanding, Panasonic shall have no obligation for any defects in the disk(s) or other media on which the

Programs are furnished resulting from your storage thereof, or for defects that have been caused by operation of the disk(s) or other media otherwise

than on the Product or in environmental conditions other than those specified by Panasonic by alteration, accident, misuse, abuse, neglect, mishan-

dling, misapplication, installation, maladjustment of consumer controls, improper maintenance, modification of damage that is attributable to acts of

God. In addition, Panasonic shall have no obligation for any defects in the disk(s) or other media if you have modified, or attempted to modify any

Program.

DURATION OF IMPLIED WARRANTIES, IF ANY, IS LIMITED TO SIXTY (60) DAYS.

PANASONIC ASSUMES NO RISK OF AND SHALL NOT IN ANY CASE BE LIABLE FOR ANY DAMAGES, INCLUDING, WITHOUT LIMITATION,

ANY SPECIAL, INCIDENTAL, CONSEQUENTIAL, OR PUNITIVE DAMAGES ARISING FROM BREACH OF WARRANTY OR CONTRACT, NEGLI-

GENCE OR ANY OTHER LEGAL THEORY, INCLUDING, WITHOUT LIMITATION LOSS OF GOODWILL, PROFITS OR REVENUE, LOSS OF USE

OF THE PROGRAMS OR PRODUCTS OR ANY ASSOCIATED EQUIPMENT, COST OF CAPITAL, COST OF ANY SUBSTITUTE EQUIPMENT,

FACILITIES, SERVICES, DOWNTIME COSTS, OR CLAIMS OF ANY PARTY DEALING WITH YOU FOR SUCH DAMAGES.

Some states do not allow the exclusion or limitation of incidental or consequential damages, or limitations on how long an implied warranty lasts, so

the above limitations or exclusions may not apply to you.

This limited warranty gives you specific legal rights, and you may also have other rights which vary from state to state.

This Limited Warranty will be governed by the laws the State of New York, without regard to its conflict-of-laws rules.

* * *

To obtain service or technical assistance within the continental U.S.A. and Alaska.

DIAL TOLL FREE: 1-800-LAPTOP5

Correspondence requesting product information should be sent to:

Panasonic Computer Solution Company

50 Meadowlands Parkway, Panazip 2F-5, Secaucus, NJ 07094

For U.S.A.

Memo

Outline of the International ENERGY STAR® Office Equipment Program

The international ENERGY STAR® Office Equipment Program is an international program

that promotes energy saving through the use of computers and other office equipment.

The program backs the development and dissemination of products with functions that

effectively reduce energy consumption. It is an open system in which business proprietors

can participate voluntarily. The targeted products are office equipment such as computers,

displays, printers, facsimiles, and copiers. Their standards and logos are uniform among

participating nations.

As an ENERGY STAR® Partner, Matsushita Electric Industrial Co., Ltd. has

determined that this product meets the ENERGY STAR® guidelines for energy

efficiency.

Panasonic Computer Solution Company

50 Meadowlands Parkway, Panazip 2F-5,

Secaucus, NJ 07094

Panasonic Canada Inc.

5770 Ambler Drive Mississauga,

Ontario L4W 2T3

Printed in Taiwan

TA0403-0

DFQX5401ZAT
