User Manual CF W5 HTML Version

User Manual CF W5

Contents

Preparations Page

Getting Started (Basic Operations)

Troubleshooting

Useful Information

Important Information

Preparations

Getting Started

Useful Information

Troubleshooting

Important Information

OPERATING INSTRUCTIONS

Personal Computer

Model No. CF-W5 Series

Read Me First .............................................................. 3

Usage Precautions/About Notations..........................11

How to Use this Manual............................................ 12

Names and Functions of Parts.................................. 13

Confirm the Status Using the LEDs .......................... 15

First-time Operation.................................................. 16

Starting Up/Shutting Down........................................ 23

Using the Touch Pad................................................. 25

Using the Fn Key ...................................................... 26

Expanding Memory................................................... 27

Setup Utility............................................................... 29

Usage/Handling/Maintenance................................... 35

Wireless LAN<Only for models with wireless LAN>...37

Windows/Antivirus Protection ................................... 38

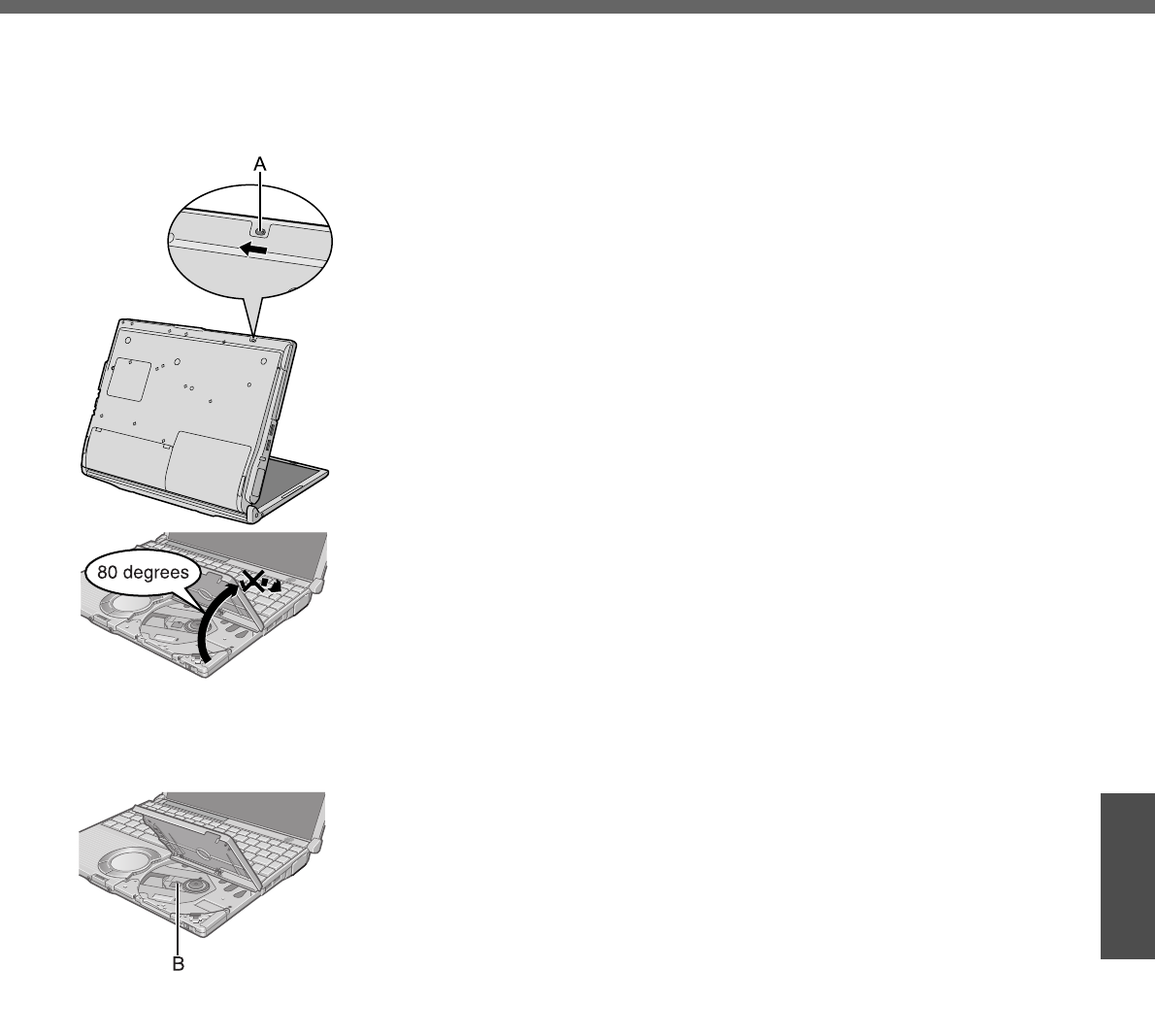

Using CD/DVD.......................................................... 41

Use of Peripheral Devices/Internal Hard Disk .......... 42

List of Error Codes.................................................... 43

Dealing with Problems (Summary) ........................... 44

Reinstalling Software ................................................ 50

LIMITED USE LICENSE AGREEMENT ................... 54

Hard Disk Backup Function ...................................... 56

When Disposing of This Computer .......................... 60

Specifications............................................................ 62

Index......................................................................... 65

For first-time and basic opera-

tion, refer to the Operating

Instructions (this manual).

For more information on how

to use this computer, refer to

the onscreen Reference Man-

ual.

Î page 12

For your technical support

office, refer to “LIMITED

WARRANTY.”

*1 For the Model No., insert the 12 digit number (for example, CF-W4GWCZZBM) located on the bottom of the computer.

Introduction

Thank you for purchasing the Panasonic computer. Read this manual thoroughly for proper operation of your new computer.

duced in any form without the prior written permission of Matsushita Electric Industrial Co., Ltd.

No patent liability is assumed with respect to the use of the information contained herein.

Disclaimer

Computer specifications and manuals are subject to change without notice. Matsushita Electric Industrial Co., Ltd. assumes no liabil-

ity for damage incurred directly or indirectly from errors, omissions or discrepancies between the computer and the manuals.

Trademarks

Microsoft, Windows and the Windows logo are registered trademarks of Microsoft Corporation of the United States and/or other

countries.

Intel, Pentium and PROSet are either registered trademarks or trademarks of Intel Corporation.

SD Logo is a trademark.

Adobe, the Adobe logo and Adobe Reader are either registered trademarks or trademarks of Adobe Systems Incorporated in the

United States and/or other countries.

WinDVD™ is a trademark of InterVideo, Inc.

PhoenixBIOS is a common law trademark of Phoenix Technologies Ltd.

Panasonic is a registered trademark of Matsushita Electric Industrial Co., Ltd.

Names of products, brands, etc., appearing in this manual are trademarks or registered trademarks of their respective owner compa-

nies.

Customer’s Record

Model No.*1

Serial No.

Code No.

Date of Purchase

Dealer’s Name

Dealer’s Address

Preparations

Read Me First

For U.S.A.

Federal Communications Commission Radio Fre-

quency Interference Statement

Note: This equipment has been tested and found to com-

ply with the limits for a Class B digital device, pursuant to

Part 15 of the FCC Rules. These limits are designed to

provide reasonable protection against harmful interfer-

ence in a residential installation. This equipment gener-

ates, uses and can radiate radio frequency energy and, if

not installed and used in accordance with the instructions,

may cause harmful interference to radio communications.

However, there is no guarantee that interference will not

occur in a particular installation. If this equipment does

cause harmful interference to radio or television recep-

tion, which can be determined by turning the equipment

off and on, the user is encouraged to try to correct the

interference by one or more of the following measures:

zReorient or relocate the receiving antenna.

zIncrease the separation between the equipment and

receiver.

zConnect the equipment into an outlet on a circuit differ-

ent from that to which the receiver is connected.

zConsult the Panasonic Service Center or an experi-

enced radio/TV technician for help.

Warning

To assure continued compliance, use only shielded inter-

face cables when connecting to a computer or peripheral.

Also, any changes or modifications not expressly

approved by the party responsible for compliance could

void the user’s authority to operate this equipment.

FCC RF Exposure Warning:

zThis computer is provided with a PC Card slot that

could be used with wireless transmitter(s), which will

be specifically recommended, when they become

available. Other third-party wireless transmitter(s)

have not been RF exposure evaluated for use with this

computer and may not comply with FCC RF exposure

requirements.

zThis equipment complies with FCC radiation exposure

limits set forth for an uncontrolled environment.

zThis equipment must be installed and operated in

accordance with provided instructions and minimum

1.5 cm spacing must be provided between antenna

and all person’s body (excluding extremities of hands,

wrist and feet) during wireless modes of operation.

zThis transmitter must not be co-located or operated in

conjunction with any other antenna or transmitter.

This product is restricted to indoor use due to its operation

in the 5.15 to 5.25 GHz frequency range.

FCC requires this product to be used indoors for the fre-

quency range 5.15 to 5.25 GHz to reduce the potential for

harmful interference to co-channel Mobile Satellite sys-

tems.

High power radars are allocated as primary users of the

5.25 to 5.35 GHz and 5.65 to 5.85 GHz bands. These

radar stations can cause interference with and /or dam-

age this product.

This device complies with Part 15 of the FCC Rules.

Operation is subject to the following two conditions:

(1) This device may not cause harmful interference, and

(2) This device must accept any interference received,

including interference that may cause undesired oper-

ation.

Responsible Party: Panasonic Corporation of North America

One Panasonic Way

Secaucus, NJ 07094

Tel No:1-800-LAPTOP5 (1-800-527-8675)

FCC Regulation Notice for modem

This equipment contains a FCC approved modem.

1. This equipment complies with CFR47 Part 68 rules.

On the computer is a label that contains, among other

information, the FCC registration number and ringer

equivalence number (REN) for this equipment. If

required, this information must be provided to the tele-

phone company.

2. An FCC compliant telephone cord and modular plug is

provided with this equipment. This equipment is

designed to be connected to the telephone network or

premises wiring using a compatible modular jack

which is Part 68 compliant. See Installation Instruc-

tions for details.

3. The REN is used to determine the quantity of devices

which may be connected to the telephone line. Exces-

sive RENs on the telephone line may result in the

devices not ringing in response to an incoming call. In

most, but not all area, the sum of RENs should not

exceed five (5.0). To be certain of the number of

devices that may be connected to a line, as deter-

mined by the total RENs, contact the local telephone

company.

4. If your telephone equipment cause harm to the tele-

phone network, the telephone company will notify you

in advice that temporary discontinuance of service

may be required. But if advice notice isn’t practical, the

telephone company will notify the customer as soon as

possible. Also, you will be advised of your right to file a

complaint with the FCC if you believe it is necessary.

5. The telephone company may take changes in its facili-

ties, equipment, operations or procedures that could

affect the operation of the equipment. If this happens

the telephone company will provide advance notice in

order for you to make necessary modifications to

maintain uninterrupted service.

Read Me First

Getting Started

Preparations

6. If trouble is experienced with this equipment, for repair

or warranty information, please contact Panasonic

Corporation of North America at DIAL TOLL FREE 1-

800-LAPTOP5 (1-800-527-8675). If the equipment is

causing harm to the telephone network, the telephone

company may request that you disconnect the equip-

ment until the problem is resolved.

7. There are no user serviceable parts contained in this

equipment.

8. This equipment may not be used on coin service pro-

vided by the telephone company. Connection to party

lines is subject to state tariffs.

9. The Telephone Consumer Protection Act of 1991

makes it unlawful for any person to use a computer or

other electronic device to send any message via a

telephone fax machine unless such message clearly

contains in a margin at the top or bottom of each trans-

mitted page or on the first page of the transmission,

the date and time it is sent and an identification of the

business or other entry, or other individual sending the

message and the telephone number of the sending

machine or such business, other entity, or individual. In

order to program this information into your fax soft-

ware, you should refer to the manual of the Fax soft-

ware being used.

10.According to the FCC’s electrical safety advisory, we recom-

mend that you may install an AC surge arrestor in the AC

outlet to which this equipment is connected. Telephone com-

panies report that electrical surges, typically lightning tran-

sients, are very destructive to customer terminal equipment

connected to AC power sources and that this is a major

nationwide problem.

“Caution: To reduce the risk of fire, use only No.26 AWG or

larger telecommunication line cord.”

“ATTENTION: Pour réduire le risque d’incendie, utiliser

uniquement des conducteurs de télécommunications 26

AWG ou de section supérieure.”

Notice for the products using LCD

This product uses one or more fluorescent lamps containing a

small amount of mercury. It also contains lead in some compo-

nents. Disposal of these materials may be regulated in your

community due to environmental considerations. For disposal or

recycling information please contact your local authorities, or the

Electronics Industries Alliance: http://www.eiae.org/

This product contains a CR Coin Cell Lithium Battery which con-

tains Perchlorate Material - special handling may apply.

See http://www.dtsc.ca.gov/hazardouswaste/perchlorate/

For Canada

Industry Canada (IC) Notice for modem

This equipment contains an Industry Canada approved

modem unit.

The Industry Canada label is affixed on the modem unit.

EQUIPMENT ATTACHMENT LIMITATIONS

“NOTICE: The Industry Canada label identifies certified

equipment. This certification means that the equipment

meets telecommunications network protective, opera-

tional and safety requirements as prescribed in the appro-

priate Terminal Equipment Technical Requirements

document(s). The Department does not guarantee the

equipment will operate to the user’s satisfaction.

Before installing this equipment, users should ensure that

it is permissible to be connected to the facilities of the

local telecommunications company. The equipment must

also be installed using an acceptable method of connec-

tion. The customer should be aware that compliance with

the above conditions may not prevent degradation of ser-

vice in some situations.

Repairs to certified equipment should be coordinated by a

representative designated by the supplier. Any repairs or

alterations made by the user to this equipment, or equip-

ment malfunctions, may give the telecommunications

company cause to request the user to disconnect the

equipment.

Users should ensure for their own protection that the elec-

trical ground connections of the power utility, telephone

lines and internal metallic water pipe system, if present,

are connected together. This precaution may be particu-

larly important in rural areas. Caution: Users should not

attempt to make such connections themselves, but should

contact the appropriate electric inspection authority, or

electrician, as appropriate.” “NOTICE: The Ringer Equiva-

lence Number (REN) assigned to each terminal device

provides an indication of the maximum number of termi-

nals allowed to be connected to a telephone interface.

The termination on an interface may consist of any combi-

nation of devices subject only to the requirement that the

sum of the Ringer Equivalence Numbers of all the devices

does not exceed 5.”

REN: See bottom of the computer

RESTRICTIONS CONCERNANT LE RACCORDEMENT

DE MATÉRIEL

"AVIS: L'étiquette d'Industrie Canada identifie le matériel

homologué. Cette étiquette certifie que le matériel est

conforme aux normes de protection, d'exploitation et de

sécurité des réseaux de télécommunications, comme le

prescrivent les documents concernant les exigences tech-

niques relatives au matériel terminal. Le Ministère

n'assure toutefois pas que le matériel fonctionnera à la

satisfaction de l'utilisateur.

Avant d'installer ce matériel, l'utilisateur doit s'assurer qu'il

est permis de le raccorder aux installations de l'entreprise

locale de télécommunication. Le matériel doit également

être installé en suivant une méthode acceptée de raccord-

ement. L'abonné ne doit pas oublier qu'il est possible que

la conformité aux conditions énoncées ci-dessus

n'empêche pas la dégradation du service dans certaines

situations.

Les réparations de matériel homologué doivent être coor-

données par un représentant désigné par le fournisseur.

Preparations

L'entreprise de télécommunications peut demander à

l'utilisateur de débrancher un appareil à la suite de répa-

rations ou de modifications effectuées par l'utilisateur ou à

cause de mauvais fonctionnement.

Pour sa propre protection, l'utilisateur doit s'assurer que

tous les fils de mise à la terre de la source d'énergie

électrique, des lignes téléphoniques et des canalisations

d'eau métalliques, s'il y en a, sont raccordés ensemble.

Cette précaution est particulièrement importante dans les

régions rurales. Avertissement: L'utilisateur ne doit pas

tenter de faire ces raccordements lui-même; il doit avoir

recours à un service d'inspection des installations élec-

triques, ou à un électricien, selon le cas."

"AVIS: L'indice d'équivalence de la sonnerie (IES) assigné

à chaque dispositif terminal indique le nombre maximal de

terminaux qui peuvent être raccordés à une interface. La

terminaison d'une interface téléphonique peut consister

en une combinaison de quelques dispositifs, à la seule

condition que la somme d'indices d'équivalence de la son-

nerie de touts les dispositifs n'excède pas 5."

IES: Voir sous le fond de l'ordinateur

Industry Canada

This product complies with RSS210 Industry Canada.

Operation is subject to the following two conditions;

(1) this device may not cause interference, and

(2) this device must accept any interference, including

interference that may cause undesired operation of the

device.

This product (local network devices) for the band 5150-

5250 MHz is only indoor usage to reduce potential for

harmful interference to co-channel Mobile Satellite sys-

tems.

High power radars are allocated as primary users (mean-

ing they have priority) of 5250-5350 MHz and 5650-5850

MHz and these radars could cause interference and/or

damage to LELAN devices.

Important Safety Instructions / Importantes Mesures De Sécurité

When using your telephone equipment, basic safety pre-

cautions should always be followed to reduce the risk of

fire, electric shock and injury to persons, including the fol-

lowing:

1. Do not use this product near water, for example, near

a bath tub, washbowl, kitchen sink or laundry tub, in a

wet basement or near a swimming pool.

2. Avoid using a telephone (other than a cordless type)

during an electrical storm. There may be a remote risk

of electric shock from lightning.

3. Do not use the telephone to report a gas leak in the

vicinity of the leak.

4. Use only the power cord and batteries indicated in this

manual. Do not dispose of batteries in a fire. They may

explode. Check with local codes for possible special

disposal instructions.

SAVE THESE INSTRUCTIONS

Certaines mesures de sécurité doivent être prises pen-

dant l’utilisation de matérial téléphonique afin de réduire

les risques d’incendie, de choc électrique et de blessures.

En voici quelquesunes:

1. Ne pas utiliser l’appareil près de l’eau, p.ex., près

d’une baignoire, d’un lavabo, d’un évier de cuisine,

d’un bac à laver, dans un sous-sol humide ou près

d’une piscine.

2. Éviter d’utiliser le téléphone (sauf s’il s’agit d’un appar-

eil sans fil) pendant un orage électrique. Ceci peut

présenter un risque de choc électrique causé par la

foudre.

3. Ne pas utiliser l’appareil téléphonique pour signaler

une fuite de gaz s’il est situé près de la fuite.

4. Utiliser seulement le cordon d’alimentation et le type

de piles indiqués dans ce manual. Ne pas jeter les

piles dans le feu: elles peuvent exploser. Se conformer

aux règlements pertinents quant à l’élimination des

piles.

CONSERVER CES INSTRUCTIONS

Read Me First

Getting Started

Preparations

Information to the User <Only for models with wireless LAN>

This product and your Health

This product, like other radio devices, emits radio frequency electromagnetic energy. The level of energy emitted by this

product however is far much less than the electromagnetic energy emitted by wireless devices like for example mobile

phones.

Because this product operates within the guidelines found in radio frequency safety standards and recommendations,

we believe this product is safe for use by consumers. These standards and recommendations reflect the consensus of

the scientific community and result from deliberations of panels and committees of scientists who continually review and

interpret the extensive research literature.

In some situations or environments, the use of this product may be restricted by the proprietor of the building or respon-

sible representatives of the organization. These situations may for example include:

zUsing this product on board of airplanes, or

zIn any other environment where the risk of interference to other devices or services is perceived or identified as

harmful.

If you are uncertain of the policy that applies on the use of wireless devices in a specific organization or environment

(e.g. airports), you are encouraged to ask for authorization to use this product prior to turning on the product.

Regulatory Information

We are not responsible for any radio or television interference caused by unauthorized modification of this product. The

correction of interference caused by such unauthorized modification will be the responsibility of the user. We and its

authorized resellers or distributors are not liable for damage or violation of government regulations that may arise from

failing to comply with these guidelines.

Lithium Battery!

This computer contains a lithium battery to enable the date, time, and other data to be stored. The battery should only

be exchanged by authorized service personnel.

Warning! A risk of explosion from incorrect installation or misapplication may possibly occur.

Pile au lithium!

Le micro-ordinateur renferme une pile au lithium qui permet de sauvegarder certaines données, notamment la date et

l’heure. La pile ne doit être remplacée que par un technicien qualifié.

Danger! Risque d’explosion en cas de non respect de cette mise en garde!

CAUTION!

THIS PRODUCT UTILIZES A LASER.

USE OF CONTROLS, ADJUSTMENTS OR PERFOR-

MANCE OF PROCEDURES OTHER THAN THOSE SPECI-

FIED HEREIN MAY RESULT IN HAZARDOUS RADIATION

EXPOSURE.

DO NOT OPEN COVERS AND DO NOT REPAIR YOUR-

SELF.

REFER SERVICING TO QUALIFIED PERSONNEL.

AVERTISSEMENT!

CET APPAREIL UTILISE UN LASER.

L’UTILISATION DE COMMANDES OU DE RÉGLAGES OU

L’EXÉCUTION DE PROCÉDURES AUTRES QUE CELLES

SPÉCIFIÉES ICI PEUVENT PROVOQUER UNE EXPOSI-

TION À DES RADIATIONS DANGEREUSES.

NE PAS OUVRIR LES COUVERCLES NI ESSAYER DE

RÉPARER SOI-MÊME.

CONFIER TOUT TRAVAIL D’ENTRETIEN À UN PERSON-

NEL QUALIFIÉ.

Lithium Battery

DVD-ROM & CD-R/RW Drive Caution

Preparations

(For models with a “CE” mark on the bottom of the computer)

Declaration of Conformity (DoC)

“Hereby, we declare, that this Personal Computer is in compliance with the essential requirements

and other relevant provisions of the Directive 1999/5/EC.”

Hint:

If you want to get a copy of the original DoC of our products which relates to the R&TTE, please con-

tact to our web address: http://www.doc.panasonic.de

Contact:

Panasonic Services Europe

A Division of Panasonic Marketing Europe GmbH

Panasonic Testing Centre

Network connection.

The terminal equipment is intended for connection to the following public network;

In all the countries of European Economical Area;

- Public Switched Telephony Networks

Technical Features.

The terminal equipment includes the following features;

- DTMF dialing

- Maximum bitrate receiving mode: 56 kbit/s

- Maximum bitrate sending mode: 33.6 kbit/s

This product is designed to interwork with the Public Switched Telecommunication Networks in UK, Ireland, Nether-

lands, Sweden, Denmark, Finland, Switzerland, Luxembourg, Belgium, France, Germany, Spain, Portugal, Iceland,

Greece, Italy, Norway and Austria.

-------------------------------------------------------------------------------------------------------------------------------------------

Compliance Notice - CE Mark

This equipment is in conformance with the requirements of the European Council Directive listed below:

73/23/EEC Low Voltage Directive with amendment 93/68/EEC

89/336/EEC EMC Directive with amendments 92/31/EEC and 93/68/EEC

1999/5/EC R&TTE

-------------------------------------------------------------------------------------------------------------------------------------------

For Europe

Getting Started

Preparations

Usage Avoid Extreme Heat and Cold

Do not store or use the computer in loca-

tions exposed to heat, direct sunlight, or

extreme cold.

Avoid moving the computer between

locations with large temperature differ-

ence.

Operation: 5 °C to 35 °C {41 °F to 95 °F}

Storage: -20 °C to 60 °C {- 4 °F to 140 °F}

Avoid Direct Sunlight on the LCD Panel

The LCD panel should not be exposed to

direct sunlight or ultraviolet light.

Avoid Humidity, Liquids and Dust

Do not store or use the computer in loca-

tions exposed to high humidity, liquids

(including rain) or dust.

Prevent Shock

Avoid subjecting the computer to severe

vibrations or impact. Do not place the

computer inside a car trunk.

Avoid Radio Frequency Interference

Do not place the computer near a televi-

sion or radio receiver.

Avoiding Low-temperature Burns*1

Avoid more than casual contact with any

heat producing area of the notebook

computer, AC adaptor, and any option or

accessory you use with it. Even low heat,

if warmer than body temperature, can

cause a burn, if the skin is exposed to the

heat source for a long period of time.

Do not touch the computer and cable

when it starts thundering

Keep SD memory cards (sold sepa-

rately) away from infants and small

children

Accidental swallowing will result in bodily

injury. In the event of accidental swallow-

ing, see a doctor immediately.

Do not connect a telephone line, or a

network cable other than the one

specified, into the LAN port

If the LAN port is connected to a network

such as the ones listed below, a fire or

electric shock may result.

• Networks other than 100BASE-TX or

10BASE-T

• Phone lines (Telephone lines, internal

phone lines (on-premise switches), dig-

ital public phones, etc.)

Handling

Avoid Magnetic Fields

Keep the computer away from magnets.

Data stored on the hard disk may be lost.

Avoid Stacking

Do not place heavy objects on top of the

computer.

Do Not Disassemble the Computer

Do not disassemble the computer using

methods other than those shown in this

manual.

This computer contains high-voltage

parts, contact with which may result in

electrical shock. Modification or incorrect

disassembly may result in fire.

Avoid Excessive Force on the Display

Do not apply excessive downward force

on the display.

If a malfunction occurs, immediately

unplug the AC cord and the battery pack

• Computer is damaged

• Foreign object inside computer

• Smoke emitted

• Unusual smell emitted

• Unusually hot

Continuing to use the computer while any

of the above conditions are present may

result in fire or electrical shock.

zIf a malfunction occurs, immediately

turn the power off and unplug the AC

cord and the battery pack.

Do not do anything that may damage

the AC cord, the DC plug, or the AC

adaptor

Do not damage or modify the cord, place

it near hot tools, bend, twist, or pull it

forcefully, place heavy objects on it, or

bundle it tightly.

Continuing to use a damaged cord may

result in fire, short circuit, or electrical

shock.

*1 About low-temperature burns

Allowing one area of the skin to be in direct

contact with an object that is even slightly

warmer than body temperature for long

periods of time may result in a "low-tem-

perature burn."

Precautions

Read Me First

Preparations

Precautions (Wireless LAN) <Only for models with wireless LAN>

Clean the DC plug of dust and other

debris regularly

If dust or other debris accumulates on the

plug, humidity, etc. may cause a defect in

the insulation, which may result in a fire.

zPull the plug, and wipe it with a dry

cloth.

Pull the plug if the computer is not

being used for a long period of time.

Do not pull or insert the DC plug if

your hands are wet

May result in electrical shock.

Insert the AC plug completely

If the plug is not inserted completely, fire

due to overheating or electrical shock

may result.

zDo not use a damaged plug or loose

electrical socket.

Do not place metal objects or contain-

ers of liquid on top of the computer

zIf water or other liquid spills, or if paper

clips, coins, or other metal objects get

inside the computer, fire or electrical

shock may result.

Do not place the computer on unstable

surfaces

If balance is lost, the computer may fall

over or drop, resulting in an injury.

Do not move the computer while the

DC plug is connected

The AC cord may be damaged, resulting

in fire or electrical shock.

zIf the AC cord is damaged, remove the

DC plug immediately.

Hold the plug when unplugging the AC

cord

Pulling on the cord may damage the cord,

resulting in a fire or electrical shock.

Do not turn the volume up to loud

when using headphones

Listening at high volumes that overstimu-

late the ear for long periods of time may

result in loss of hearing.

Take a break of 10-15 minutes every

hour

Using the computer for long periods of

time may have detrimental health effects

on the eyes or hands.

Do not look into the DVD-ROM & CD-R/

RW drive

Looking directly at the internal laser light

source may result in damage to eyesight.

Do not use disks that are cracked or

deformed

Because the disks rotate at high speeds,

damaged disks may break apart causing

injury.

zDisks that are not round and disks that

have been repaired using adhesives

are similarly dangerous, and so should

not be used.

Do not cover the computer with a thick

cloth, such as a blanket

Turn off*1 inside of airplanes

Radio waves may obstruct the safe oper-

ations of the aircraft. Follow the instruc-

tions of the airline with regard to use on

airplanes.

Do not use near automatic doors, fire

alarms, and other automatic control

devices

Radio waves from this computer may

affect automatic control devices, resulting

in damage due to malfunctions.

Turn off*1 in hospitals and other loca-

tions with electrical medical devices

(do not bring into operating rooms,

intensive care units, CCUs*2, etc.)

Radio waves from this computer may

affect electrical medical devices, resulting

in damage due to malfunctions.

Turn off*1 in hospitals and other loca-

tions with electrical medical devices

(do not bring into operating rooms,

intensive care units, CCUs*2, etc.)

Radio waves from this computer may

affect electrical medical devices, resulting

in damage due to malfunctions.

Turn off*1 in crowded areas, as per-

sons wearing heart pacemakers may

be nearby

Pacemaker operations may be affected

by radio waves.

*1 If it is necessary to use the computer in

these types of environments, turn the wire-

less LAN power off using the wireless LAN

switch. Note, however, that use of comput-

ers even while the wireless LAN is off may

be prohibited during takeoff and landings,

and at other times.

*2 CCU: Coronary Care Unit

Getting Started

Preparations

Precautions (Battery Pack)

zCare should be exercised with regard to the following

in order to avoid the possibility of overheating, fire or

damage.

Avoid Heat

Do not throw the battery pack into a fire or

expose it to excessive heat.

Keep Articles Away

Do not place the battery pack together

with articles such as necklaces or hair-

pins when carrying or storing.

Do Not Disassemble

Do not insert sharp objects into the battery

pack, expose it to bumps or shocks,

deform, disassemble, or modify it.

Do Not Short

Do not short the positive (+) and negative

(-) contacts.

Avoid Extreme Heat, Cold and Direct

Sunlight

Do not charge, use or leave the battery

pack for extended periods where it will be

exposed to direct sunlight, in a hot place

(in a car on a sunny day, for example), or

in a cold place.

Do not charge the battery using the

methods other than indicated in this

manual

Do not use this computer with a bat-

tery pack other than the one specified

(the one included with the computer or

the specified battery pack sold sepa-

rately)

Do Not Use With Any Other Computer

The battery pack is rechargeable and

was intended for the specified computer.

Do not use it with a computer other than

the one for which it was designed.

Do Not Put into a Microwave

Do not put the battery pack into a micro-

wave oven or a pressurized chamber.

Stop Using

Should the battery emit an abnormal

odor, become hot to the touch, become

discolored, change shape, or become in

any way different from normal, remove it

from the computer and stop using it.

zDo not touch the terminals on the battery pack. The

battery pack may no longer function properly if the

contacts are dirty or damaged.

zDo not expose the battery pack to water, or allow it to

become wet.

zIf the battery pack will not be used for a long period of

time (a month or more), charge or discharge (use) the

battery pack until the remaining battery level becomes

30% to 40% and store it in a cool, dry place.

zThis computer prevents overcharging of the battery by

recharging only when the remaining power is less than

approx. 95% (when Economy Mode (ECO) is enabled:

75%) of capacity.

zThe battery pack is not charged when the computer is

first purchased. Be sure to charge it before using it for

the first time. When the AC adaptor is connected to

the computer, charging begins automatically.

zShould the battery leak and the fluid get into your

eyes, do not rub your eyes. Immediately flush your

eyes with clear water and see a doctor for medical

treatment as soon as possible.

NOTE

zThe battery pack may become warm during

recharging or normal use. This is completely nor-

mal.

zRecharging will not commence if internal tempera-

ture of the battery pack is outside of the allowable

temperature range (0 °C to 55 °C {32 °F to 131

°F}). (Î "Battery Power" in onscreen Reference

Manual) Once the allowable range requirement is

satisfied, charging begins automatically. Note that

the recharging time varies based on the usage

conditions. (Recharging takes longer than usual

when the temperature is 10 °C {50 °F} or below.)

zIf the temperature is low, the operating time is

shortened. Only use the computer within the

allowable temperature range.

zThe battery pack is a consumable item. If the

amount of time the computer can be run by using a

particular battery pack becomes dramatically

shorter and repeated recharging does not restore

its performance, the battery pack should be

replaced with a new one.

zWhen transporting a spare battery inside a pack-

age, briefcase, etc., it is recommended that it be

placed in a plastic bag so that its contacts are pro-

tected.

zAlways power off the computer when it is not in

use. Leaving the computer on when the AC adap-

tor is not connected will exhaust the remaining bat-

tery capacity.

Read Me First

Preparations

Getting Started

Usage Precautions / About Notations

When closing the disk cover

zPress down near the drive power/open switch (position of the arrow) to ensure that

the cover is locked.

zSome of the illustrations in this manual may differ slightly in shape from the actual

items on your computer. This should make the explanation easier to understand.

zIf a user has logged on to Windows without the Administrator Authority, some func-

tions may not be executable, and some screens may not be displayed as shown in

this manual.

If this happens, log-on to Windows with the Administrator Authority to enable these

functions.

zIn this manual, “Microsoft® Windows® XP Professional Service Pack 2 with

Advanced Security Technologies” is indicated as “Windows” or “Windows XP.”

zIn this manual, the following software packages are described as follows:

• "WinDVD™ 5 (OEM Version)" as "WinDVD"

• "B's Recorder GOLD8 BASIC" as "B's Recorder"

• "B's CLiP 6" as "B's CLiP"

zOptional Products or Accessories

Confirm the latest information on optional products or accessories from other

sources.

Usage Precautions

About Notations

Notations Meanings

NOTE NOTE provides a useful fact or helpful information.

CAUTION CAUTION indicates a condition that may result in minor or a moderate degree of

injury.

Enter

This illustration means pressing the

Enter

key.

This illustration refers to pressing and holding the Fn key, then pressing the F5 key.

When using with the

and

Ctrl

functions interchanged (Îpage 31), read with

and

Ctrl

reversed.

[start] - [Run] This illustration tells you to click [start], then to click [Run].

Î This symbol indicates related pages.

PreparationsGetting Started

How to Use this Manual

The manual is saved in the computer's hard disk. To view the manual, start up the

computer after completing the settings for "First-time Operation" (Îpage 16).

zWhen the manuals in PDF format (see above) are accessed for the first time, the

License Agreement of the Adobe Reader may be displayed. If it is displayed, after

reading the agreement, click [Accept].

zRefer to Acrobat Reader Help to use the Acrobat Reader.

How to access the Reference Manual

1Click [start] then click [Reference Manual].

How to access the Important Tips

1Double-click the icon on the desktop.

Important Tips can also be accessed from [start] - [All Programs] - [Pana-

sonic] - [On-Line Manuals] - [Important Tips].

How to access Windows Help

1Log on to Windows with the administrator authority and

click [start] - [Help and Support].

NOTE

zIf a user has logged on to Windows without the administrator authority, some

parts in [Help and Support] cannot be displayed.

Manual Types and Contents

Using the

hard copy Operating Instructions

(This manual) This manual explains startup methods and basic operations required

when using the computer for the first time.

Using the

onscreen

manual

Reference Manual

(PDF format)

The Reference Manual explains functions for you to make greater

use of the computer, such as how to add peripheral devices, how the

Setup Utility works, and other useful information.

Important Tips

(PDF format)

Important Tips provides information on how to maximize use of the

battery pack, which is necessary for computing away from your home

or office.

Windows Help Windows Help explains operations and functions about Windows.

How to Use the Onscreen Manual

Contents of the

Reference Manual

Preparations

Getting Started

Names and Functions of Parts

Names Functions/Reference

AFunction Keys Press a key in combination with the

key to execute the function allocated to that

key. Îpage 26

BKeyboard —

CLEDs Îpage 15

DTouch Pad Îpage 25

EPower Switch/

Power Indicator Slide the switch for about one second to turn the power on.

(Power switch Îpage 17 / Power indicator Îpage 15)

FWireless LAN

Switch

Slide the wireless LAN switch to turn the wireless LAN power on or off.

Îpage 37

GEconomy Mode

(ECO) Indicator Îpage 15

HBattery Indicator Îpage 15

WIRELESS LAN

ECO

IDisplay (Internal LCD) To adjust the LCD brightness:

(down) /

(up)

zYou can select a different brightness level setting for when the AC adaptor is con-

nected and for when it is not connected.

JSpeaker zTo adjust the volume:

(down) /

(up)

zSpeaker on/off:

KLAN Port

Connect LAN cable.

If the mini port replicator is connected to the computer, connect the LAN cable to the

LAN port on the mini port replicator. You cannot use the LAN port on the computer.

Î “LAN” in onscreen Reference Manual

LModem Port Connect modem telephone cable.

Î “Modem” in onscreen Reference Manual

MSecurity Lock A Kensington cable can be connected.

For more information, read the manual that comes with cable.

NUSB Ports Connect the USB cable.

Î “USB Devices (External Mouse etc.)” in onscreen Reference Manual

OWireless LAN Antenna

(built-in)<Only for models

with wireless LAN>

This computer has a built-in antenna for wireless LAN communications.

Î “Wireless LAN” in onscreen Reference Manual

PDVD-ROM & CD-R/RW

Drive Îpage 41, “DVD-ROM & CD-R/RW Drive” in onscreen Reference Manual

Names and Functions of Parts

Getting Started Preparations

Names Functions/Reference

ADC-IN Jack Connect the AC adaptor. Îpage 17

BExternal Display Port

Connect the external display cable.

If the mini port replicator is connected to the computer, connect the external display to

the external display port on the mini port replicator. You cannot use the external display

port on the computer.

Î “External Display” in onscreen Reference Manual

CMini Port Replicator

Connector Connect the Mini Port Replicator (optional)

DSD Memory Card Slot Î “SD Memory Card” in onscreen Reference Manual

EPC Card Slot Î “PC Cards” in onscreen Reference Manual

FSD Memory Card

Indicator Îpage 15

GDrive Power/Open Switch

zSlide the switch to the right to open the disk cover. This works only when the power

is on.

zEach time you slide the switch to the left, the drive power will turn on or off.

This works only when Windows has started up.

HLatch

When the display is closed and the latch is locked, the computer goes into standby or

hibernation mode. (Î “Standby/Hibernation Functions” in onscreen Reference Manual)

zWhen the computer is in standby or hibernation mode, open the display to restart

operations.

IMicrophone Jack Use only a monaural condenser microphone (miniature jack). Using an input source

other than a monaural condenser microphone may not allow audio to be input or may

damage the equipment.

JHeadphone Jack Use this jack to connect headphones or amplifier-equipped speakers. Audio output from

the internal speaker is disabled when headphones or external speakers are connected.

EXT.

A lithium ion battery that

is recyclable powers the

product you have pur-

chased. Please call 1-

800-8-BATTERY for infor-

mation on how to recycle

this battery.

L’appareil que vous vous

êtes procuré est alimenté

par une batterie au

lithium-ion. Pour des

renseignements sur le

recyclage de la batterie,

veuillez composer le 1-

800-8-BATTERY.

KEmergency Hole Îpage 41, “DVD-ROM & CD-R/RW Drive” in onscreen Reference Manual

LRAM Module Slot Îpage 27

MLatch This latch is locked automatically when inserting the battery pack properly.

NLatch This latch is locked manually when inserting/removing the battery pack. Îpage 16

OBattery Pack Îpage 16, “Battery Power” in onscreen Reference Manual

Preparations

Getting Started

Confirm the Status Using the LEDs

Indicators Indicator Name/Status

Caps Lock indicator

zThis indicator lights green when the

CapsLock

key is pressed: Subse-

quent non-shifted input is capitalized.

NumLk indicator (Ten-key mode)

zThis indicator lights green when the

NumLk

key is pressed: Part of the

keyboard (see figure below) will function

as a ten-key numeric input.

When the green light is on, if the

key

is pressed along with keys on certain

other segments of the keyboard, then

those keys will operate as numeric keys.

The [Enter] key functions differently

depending on the application. To dis-

able, press the

NumLk

key once more

(the indicator will turn off).

zWhen the NumLk indicator is on: the fol-

lowing functions will operate:

ScrLk indicator (Scroll lock)

zThis indicator lights green when the

NumLk

(ScrLk) key are pressed:

Scroll lock functions differently depend-

ing on the application.

Hard disk drive indicator

zLighted: This indicator lights when the

hard disk drive is accessed.

Indicators Indicator Name/Status

Power indicator

zNot lit: Power off / Hibernation mode

zGreen: Power on

zBlinking green: Standby mode

ECO Economy Mode (ECO) indicator

zNot lit: Economy Mode (ECO) disabled

zGreen: Economy Mode (ECO) enabled

zBlinking green: Economy Mode (ECO)

enabled (Discharging until the remaining

battery power is 80 % or less)

Battery indicator

zNot lit: Battery pack is not connected or

no charging.

zOrange*1: Charging in progress. (If [Bat-

tery Charging Indicator] in the [Main]

menu of the Setup Utility is set to [Flash-

ing], the indicator will alternately

become lighter and darker (Flashing)).

zGreen: Fully charged.

zRed: The battery level is very low (the

charge is approx. 9% or less).

zBlinking red: Battery pack or charging

circuit may not be working properly.

zBlinking orange*1: The battery cannot

be recharged temporarily when the

internal temperature of the battery pack

is outside the acceptable temperature

range for recharging or when software

applications and peripheral devices

(USB devices, etc.) are consuming too

much power.

*1 The orange display light has three modes:

on, flashing and blinking. Note the difference

between flashing and blinking.

(above)

DVD-ROM & CD-R/RW drive indicator

zNot lit: Drive power is off.

zGreen: Drive power is on, but the DVD-

ROM & CD-R/RW drive is not accessed.

zBlinking green: Drive power is on, and

the DVD-ROM & CDR/RW drive is being

accessed.

How to switch the drive power on/off:

Î“DVD-ROM & CD-R/RW Drive” in

onscreen Reference Manual

SD memory card indicator

zLighted: This indicator lights when the

SD memory card is accessed.

Preparations

First-time Operation

Explains operating procedures from the time of purchase to the start of first Windows

operations.

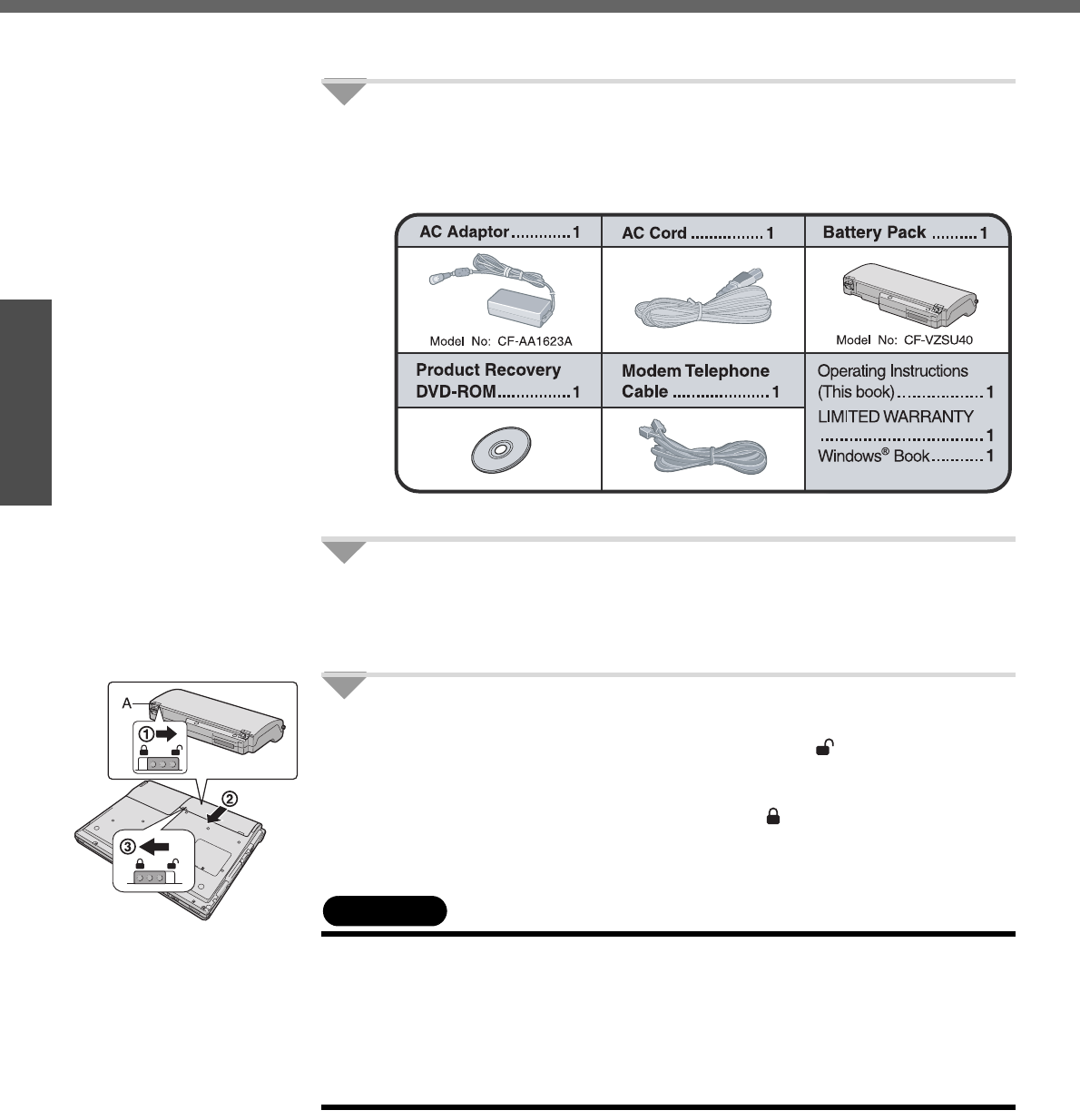

1Confirm the inclusion of all parts.

Make sure the parts shown in the figure have been supplied. If any of these

items are missing or is not working properly, contact your technical support

office.

2Read the LIMITED USE LICENSE AGREEMENT (Îpage 54).

Be sure to read the LIMITED USE LICENSE AGREEMENT before breaking

the seal on the computer’s packaging.

3Turn the computer over and insert the battery pack.

ASlide the left-side latch (A) to the unlock position .

BMake sure the battery pack is facing the correct direction, slide it in the

direction of the arrow.

CSlide the left-side latch to the lock position , and then check to ensure

that the battery pack is held firmly.

(Right-side latch is locked automatically.)

CAUTION

zConfirm that the latch is properly locked. If it is not, the battery pack may come

off while you are carrying the computer.

zDo not touch the terminals on the battery pack and the computer. The battery

pack may no longer function properly if the contacts are dirty or damaged. Also,

the computer may not operate properly.

zBefore using the battery pack, carefully read “Precautions (Battery Pack)”

(Îpage 10).

Preparations

4Open the display.

APress and hold the latch (B) located at the front.

BLift open the display.

zDo not open the display wider than necessary (140° or more), and do

not apply excessive pressure to the LCD. Do not open or close the

computer holding the edge of the LCD segment. Hold the C (below)

segment to open or close the computer.

5Connect your computer to a power outlet.

zBe sure the AC adaptor is connected until completing the first-time use

operation.

zThe battery pack will be charged automatically.

Charging Time: Approx. 5 hours (Power off), Approx. 6.5 hours (Power on)

(Varies depending on the usage conditions.)

zWhen using the computer for the first time, do not connect any peripheral

device except the battery pack and AC adaptor to the computer.

CAUTION

Handling the AC adaptor

zDo not subject the AC adaptor to any strong impact.

Using the AC adaptor after a strong impact such as being dropped may result in

electrocution, short circuit, or fire.

zUse only the specified AC adaptor with your computer. Using an AC adaptor

other than the one supplied might damage the battery and/or the computer.

zProblems such as sudden voltage drops may arise during periods of thunder

and lightning. Since this could adversely affect your computer, an uninterrupt-

ible power source (UPS) is highly recommended unless running from the battery

pack alone.

6Turn your computer on.

zSlide the power switch and hold it for approximately one second until

the power indicator turns on before releasing it.

CAUTION

zDo not slide the power switch and hold it for more than four seconds; this will

cause the power to be turned off forcibly.

zDo not slide the power switch repeatedly.

zDo not press any keys or touch the touch pad, until [Windows XP Professional

Setup] is displayed.

zDo not change the Setup Utility until completing step 7. If you do so, Windows

setup may not operate properly.

First-time Operation

Getting Started

Preparations

7Setup Windows.

Moving the cursor or clicking buttons can be performed with the touch pad

(A) and left button (B).

zDuring operations, it may take some time before the next screen is dis-

played.

Wait, and do not press any keys, or touch the touch pad, etc.

AAt [Welcome to the Windows XP Setup Wizard], click [Next].

BAfter reading the agreement, click [I accept this agreement], then click

[Next].

zIf [I don’t accept this agreement] is selected, the Windows setup will be

aborted.

CSelect settings for your region, then click [Next].

DEnter your name and then click [Next]. (You do not need to enter your

organization.)

Enter your computer name and administrator password and then click [Next].

z"Computer name" is for recognizing this computer when multiple com-

puters are connected via the network.

zRemember this password! This password may be needed to manage

the computer.

zEven if you go on to the next step without setting the password, you

can set the password in the [Control Panel] after Windows setup is

completed.

FEnter the correct date, time and the time zone, then click [Next].

zClick or to set.

zIf set properly, click [Next].

GEnter your password set in step E and click .

zWhen inputting the password, confirm that character input is not set to

“Caps Lock” or “NumLk.” (Îpage 15)

NOTE

zWhen Windows setup is completed

• The following message will be displayed at the bottom right of the screen:

"Your computer might be at risk." Continue to the next step.

The message is generated by the [Security Center] function in [Control Panel],

and does not indicate an error or malfunction. For more information about

[Security Center]: Îpage 39

zIt may take some time before the computer restarts. Wait, and do not

press any keys, or touch the touch pad, etc.

zAfter being set automatically, the computer will restart automatically,

and Windows will start.

Preparations

8Create "User Accounts" to recognize this computer's user.

zIf you make mail settings or execute other operations (password reset disk

(Îpage 21) etc.) before creating the user account, you will be unable to

use mail history or settings. Create the user account at this time.

AClick [start]*1 - [Control Panel] - [User Accounts] - [Create a new

account].

*1 Immediately after Windows setup, the screen may show a display as though [start]

has been clicked (i.e., [All Programs] and other menus may be shown above

[start]).

BEnter a new name for the new account, then click [Next].

(For example: Matsushita)

zThe following character strings cannot be used as an account name

because they are already being used by the computer system.

CON, PRN, AUX, CLOCK$, NUL, COM1 - COM9, LPT1 - LPT9

CClick [Create Account].

zWhen you create the first new account, you can only select [Computer

administrator].

Once a “Computer Administrator” account has been created, you can

create additional limited user accounts.

DSet the password.

zWhen sharing this computer with multiple users, we recommend set-

ting a password for your own account.

zWhen setting password, click the account for which you will set the

password, click [Create a password], and the password following the

onscreen instructions, and click [Create Password].

• Remember the password you have set. It is useful to input a hint in

[password hint] in case you forget your password. In addition, we rec-

ommend that you create a password reset disk beforehand (Îpage

21).

Refer to “When the administrator password is forgotten” (Îpage 46)

in “Dealing with Problems (Summary).”

EClick [start] - [Turn Off Computer] - [Restart] to restart the computer.

FAt the Welcome screen, click the created user (user icon) to log-on.

zIf the password has been set, enter the password and click . You

cannot operate the computer until the proper password is entered.

Confirm that character input is not set to "Caps Lock" or "NumLk."

(Îpage 15)

zNote also that only the added user account will be displayed in the

Welcome screen. The account for the administrator created during

Windows setup will not be displayed.

First-time Operation

Getting Started

Preparations

9Change the drive letter*1 for the internal DVD-ROM & CD-R/

RW drive.

In some cases, the drive letters for the DVD-ROM & CD-R/RW drive or con-

nected devices (SD memory cards, external drives, etc.) may change when

the DVD-ROM & CD-R/RW drive power is turned on or off. To prevent these

letters from changing, we recommend that you allocate the drive letter for the

DVD-ROM & CD-R/RW drive from the latter half of the alphabet (e.g., "L

drive").

zAt the time of purchase, the DVD-ROM & CD-R/RW drive is allocated D

drive.

zChange the drive letter before installing the application.

The procedure shown below is an example for allocating the L drive to the

DVD-ROM & CD-R/RW drive.

ALog on to Windows with the administrator authority.

BClick [start] - [Control Panel] - [Performance and Maintenance] - [Adminis-

trative Tools], and then double-click [Computer Management].

CClick [Disk Management] on [Storage].

DRight-click [CD-ROM 0]*2, and then click [Change Drive Letter and

Paths...].

If the name of the DVD-ROM & CD-R/RW drive is not displayed, the drive

power may be turned off. Turn on the drive power.

EClick [Change] at [Change Drive Letter and Paths...].

You cannot set this as the C drive. If you want to set a drive letter that is

allocated to an SD memory card or external drive which is currently in use,

disconnect the card or external drive.

FClick [Assign the following drive letter] and select [L], then click [OK].

GAt the confirmation message, click [Yes].

NOTE

zThe drive letter for the SD memory card cannot be changed or fixed.

*1 The drive letter is a single character A to Z allocated to storage devices (drives) by Windows.

You cannot change this to the A drive, B drive, or C drive. You also cannot use a drive letter

that is currently being used by another device, or a drive letter that has already been allo-

cated to a network drive.

*2 Numbers may differ if an SD memory card or external drive is connected. When changing

drive letters, we recommend that you disconnect any SD memory cards or external drives.

This concludes the first-time use operation guidelines.

NOTE

zAbout the Icon Enlarger:

• If the characters or icons on the screen are too small and difficult to see, after

completing step 9, click [start] - [All Programs] - [Panasonic] - [Icon Enlarger].

This will allow you to magnify the display of characters and icons on the

screen. (Î“Icon Enlarger” in onscreen Reference Manual)

• The [Icon Enlarger] can be set separately for each account.

zYou can also use [Loupe Utility], which enlarges a part of the screen. (Î“Loupe

Utility” in onscreen Reference Manual)

zTo improve the security of the computer, be sure to refer to "Windows Security

Center" (Îpage 39) and "Windows Update" (Îpage 40).

zIf you use the wireless LAN, be sure to refer to "Wireless LAN" (Îpage 37).

zAt the time of purchase, the power saving function on the USB2.0 USB Root

Hub is set to off. To extend battery operation time, turn the power saving func-

tion on using the following procedure:

Preparations

AClick [start] - [Control Panel] - [Performance and Maintenance] - [System] -

[Hardware] - [Device Manager].

BClick [View] - [Devices by connection].

CClick for the following items in order.

[ACPI Uniprocessor PC] Î [Microsoft ACPI-Compliant System] Î [PCI bus]

Î [Intel(R) 82801FB/FBM USB2 Enhanced Host Controller - 265C]

DRight-click [USB Root Hub] (displayed below [Intel(R) 82801FB/FBM USB2

Enhanced Host Controller - 265C], and click [Properties].

EClick [Power Management] and add a checkmark to [Allow the computer to

turn off this device to save power].

FClick [OK].

• If a mini port replicator is connected, remove the checkmark from this item. If

the checkmark is added, it may be impossible to use the USB ports (2a, 2b,

2c) on the mini port replicator. If this occurs, remove the checkmark, then

restart the computer.

When you have forgotten a Windows log-on password

Windows XP has a function to reset a current password and to set a new password.

To use this function, you need to create a password reset disk beforehand following the

steps below.

AConnect the USB floppy disk drive (optional: CF-VFDU03) to your com-

puter. Or insert the SD memory card into the computer's SD memory

card slot.

BClick [start] - [Control Panel] - [User Accounts].

CClick the account you have logged on, and click [Prevent a forgotten pass-

word] from [Related Tasks] menu.

Create a password reset disk following the onscreen instructions, and

store the password reset disk in a safe place.

zOnly the log-on password for each account can be reset. The pass-

word set in the Setup Utility cannot be reset.

The screen displayed first when powering on the computer and logging on to Windows,

is called the “desktop.” (These screens and icons are only examples.)

Icons on the desktop

When you double-click icons, the software application will run and the window will

open.

[start] menu

When you click [start], the menu will be displayed.

Select the software application, etc. that you want to use from the menu, and click it.

Notification area (see the bottom right on the screen)

zIf the icon on the notification area being explained in this manual is hidden and not

displayed, click the icon to display all icons.

zThe notification area icons used in this manual are only examples. The actual dis-

play of the order and types of icons may differ depending on your computer environ-

ment (various function settings, devices connected, etc.).

Password Reset Function

Screen Display

etc.

Getting Started

Preparations

Roles of Icons on the Notification Area

The notification area icons below are only examples.

Icons Names and roles Reference

Intel® Graphics Media Accelerator Driver for Mobile icon

(Use for screen settings) －

Intel® PROSet/Wireless Software icon

(Turn wireless LAN on/off and use to set wireless LAN

connections)

Îpage 37

Wireless LAN icon

(Use to confirm the status of the wireless LAN power

and to switch IEEE802.11a between enable/disable.)

Îpage 37

Pointing device icon

(Use to make various touch pad settings) －

Scroll icon

(Use to make settings and confirm status for the Touch

Pad utility)

Î"Using the Touch Pad" in onscreen

Reference Manual

Volume icon

(Set volume) ÎWindows help

Wireless LAN network connection icon

(Use to set wireless LAN connections)

Î"Wireless LAN" in onscreen

Reference Manual

or LAN network connection icon

(Use to set LAN connections) Î"LAN" in onscreen Reference

Manual

B's CLiP icon

(Use to make various B's CLiP settings)

Î"Writing to CDs (B’s Recorder/B’s

CLiP)" in onscreen Reference

Manual

or Drive power icon

(Turn the DVD-ROM & CD-R/RW drive power on/off)

Î"DVD-ROM & CD-R/RW Drive" in

onscreen Reference Manual

Economy Mode (ECO) icon

(Use to confirm the status of the Economy Mode (ECO)

and to switch the mode between enable/disable.)

Î"Battery Power" in onscreen

Reference Manual

Battery meter icon

It is displayed when disconnecting the AC adaptor. (Use

to make various battery settings)

Î"Battery Power" in onscreen

Reference Manual

or Windows security icon

(Use to make or confirm security settings) Îpage 39

Fn key icon

It is only displayed when adding the checkmark for

[Show status on screen] on the [Hotkey Settings]

screen. (Use to confirm whether the Fn key is locked)

Î"Using the Fn Key" in onscreen

Reference Manual

Loupe icon

If the characters, images, or other items are too small

and difficult to see on the screen, enlarge the part of the

screen you want to see as if using a loupe.

Î"Loupe Utility" in onscreen

Reference Manual

First-time Operation

Getting Started

Starting Up/Shutting Down

1Open the display.

APress and hold the latch (A) located at the front.

BLift open the display.

zDo not open the display wider than necessary (140° or more), and do

not apply excessive pressure to the LCD. Do not open or close the

computer holding the edge of the LCD segment.

2Turn your computer on.

Slide the power switch and hold it for approximately one second until the

power indicator turns on before releasing it.

zDo not slide the power switch and hold it for more than four seconds; this

will cause the power to be turned off forcibly.

zWhile booting, avoid the following until the hard disk drive indicator has

turned off.

• Connecting or disconnecting the AC adaptor.

• Touching the power switch.

• Performing any keyboard, touch pad, or external mouse operations.

• Closing the display.

• Sliding the drive power/open switch.

zDo not slide the power switch repeatedly.

zOnce the computer is powered off, you must wait at least ten seconds

before powering it on again.

3Log-on to Windows.

After confirming that the hard disk drive indicator has turned off, click the

user (user's icon).

zInput the password, then click . Until the correct password is entered,

the computer will not operate. Confirm that character input is not set to

“Caps Lock” or “NumLK.” (Îpage 15)

zThis operation may differ according to [Use the Welcome screen] setting

(Îpage 38).

zWhen only one user has been created and no password has been set, the

screen for selecting the user will not be displayed (automatic log-on).

4Select your application.

Run various software applications, etc. and operate them.

NOTE

zThe power saving function is factory set, so if no key is pressed or if no device

has been accessed for a certain interval of time:

• The power to the LCD and hard disk may be turned off. The LCD will resume

operation when the touch pad or an external mouse (when one is connected)

is used or a key is pressed.

The power to the LCD may be turned off even when an application software is

being installed. In this case, because it is conceivable that a selection dialog

box will be shown, do not press the

Space

key or the

Enter

key to attempt

to resume from this condition as doing so may trigger a selection, but instead,

press a key unrelated to the direct triggering of a selection, like the

Ctrl

key.

In addition, when the computer is left alone, it automatically enters the

standby or hibernation mode. The computer will resume by sliding the power

switch. (Î “Standby/Hibernation Functions” in onscreen Reference Manual)

Starting Up

Starting Up/Shutting Down

Getting Started

• If there is no disk set in the DVD-ROM & CD-R/RW drive, the drive power will be

turned off. (Î “DVD-ROM & CD-R/RW Drive” in onscreen Reference Manual)

zWhen the CPU temperature rises, the computer may not power on to prevent

the CPU from overheating. Should this happen, allow the computer to cool

down then switch the power on again.

If the computer still does not power on, contact your technical support office.

If the screen on the left is displayed immediately after

you turn on the power...

A password has been set to ensure the computer's security.

Enter your password*1 and press the

Enter

key.

zWhen the correct password is input, the computer will start.

zWhen three incorrect password attempts or nothing is input for one minute, the com-

puter will power off.

*1 Supervisor Password or User Password set in the Setup Utility (not the Windows password).

1Save necessary data and close each application.

2Display the shutdown screen.

Click [start] - [Turn Off Computer].

3Click [Turn Off].

Your computer will power off automatically.

zRestarting your computer (without shutting down): click [Restart].

To shut down using the keyboard:

APress the key, the

key, and select [Turn Off] with the Î Í Ï Ð key.

BPress the

Enter

key.

CAUTION

zDo not do the following during the shutdown/restart procedure.

• Connecting or disconnecting the AC adaptor.

• Touching the power switch.

• Performing any keyboard, touch pad or external mouse operations.

• Closing the display.

• Sliding the drive power/open switch.

NOTE

zWhen the DC plug is not connected to the computer, disconnect the AC cord

from your AC wall outlet. About 1.5 W of power is consumed simply by having

the AC adaptor plugged into an electrical outlet.

zNote that the computer consumes electricity even when the computer power is

off. If the battery pack is fully charged, the battery will fully discharge in Approx.

3 weeks.

When you leave the computer or interrupt your work...

If you use the “Standby” or “Hibernation” function, then when you turn on the power

next time, the application software and files you were using before will be displayed,

and you can restart the same operations. (Î “Standby/Hibernation Functions” in

onscreen Reference Manual)

Shutting Down (power off your computer)

Getting Started

Using the Touch Pad

Use the touch pad to move the cursor on the screen and perform computer operations.

A. Work Surface (touch pad) B. Left Button C. Right Button

NOTE

zYou can change the speed of the double-click or the operations of mouse but-

tons using [Mouse Properties] screen.

• To display [Mouse Properties]:

Click [start] - [Control Panel] - [Printers and Other Hardware] - [Mouse].

zWhen using the touch pad, keep the following in mind.

• By design the touch pad is to be used with a finger tip only. Do not place any

object or press down forcefully with sharp-pointed objects, i.e. finger nails,

pencils, or pens on the work surface.

• Try to avoid having any harmful substances, such as oil, come in contact with

the touch pad. The cursor may not work properly in such cases.

When the cursor doesn’t move the way you want it to

zSensitivity when touching the touch pad can be adjusted.

(Î “Using the Touch Pad” in onscreen Reference Manual)

zWhen an external mouse is connected and the cursor does not operate properly:

In the [Main] menu of the Setup Utility, set [Touch Pad] to [Disable]. When you

want to use the touch pad again, return the setting to [Enable]. (Îpage 31)

Function Operation

Moving the Cursor Move the tip of your finger lightly over the work

surface.

Tapping/Clicking

tapping or clicking

zA right-click: Can only be performed by clicking the right but-

ton.

Double-Tapping/

Double-Clicking

double-tapping or double-clicking

Dragging

Two quick taps, but on the second tap leave your finger down

(applying pressure) and move it on the work surface.

While holding down the button, move your finger on the work sur-

face.

Vertical Scroll /

Horizontal Scroll

Trace a circle around the touch pad. A setting is required before

using the horizontal scrolling function. (Î “Using the Touch Pad”

in onscreen Reference Manual)

Getting Started

Using the Fn Key

If you press a key for a character or symbol contained in a key while

pressing the

key, the function for the character or the symbol con-

tained in that key will be executed.

zDetails of various functions Î “Using the Fn Key” in onscreen Refer-

ence Manual

zWhen using with the

key and the

Ctrl

key functions inter-

changed. (Îpage 31)

Press the

Ctrl

key instead of the

key for the desired Fn func-

tion.

(It is not possible to replace the markings on the keys, or the keys

themselves)

Key Functions Pop-up Window

(Displayed after logging on to

Windows)

LCD brightness control

(down) /

(up)

You can select a different brightness level setting for when the

AC adaptor is connected and for when it is not connected.

(At the time of purchase, the LCD brightness is set to be

darker when the AC adaptor is not connected.)

Display change (When the external display is connected) —

Speaker on/off switch

OFF

(MUTE)

Volume control

(down) /

(up)

Forcing the standby function —

Remaining capacity of the battery pack

When the battery

pack is inserted in the

computer

(example: when

Economy Mode

(ECO) is disabled)

(example: when

Economy Mode

(ECO) is enabled)

When the battery

pack is not inserted in

the computer

F10

Forcing the hibernation function —

NumLk

Run the ScrLk (Scroll Lock) function

The functions differ depending on the application software

being used.

—

Home

Lead to the last page or moves the cursor to the end of the

current line (End) —

Move the previous page (PgUp) —

Move the next page (PgDn) —

Getting Started

Expanding Memory

Depending on the computer, you can expand the RAM module (sold separately). The

increase in memory will improve the processing speed of Windows and other applica-

tion software. (Effects may differ depending on your usage conditions.)

zUse recommended RAM module products. Do not use non-recommended RAM

modules. Non-recommended RAM modules may not operate properly, and may

cause damage to your computer. Some non-recommended RAM modules may

overheat, causing the cover to warp. Refer to "Specifications" (Îpage 62) for rec-

ommended RAM module specifications. Refer to various sources for recommended

RAM module.

zMatsushita Electric Industrial Co., Ltd. will bear no responsibility whatsoever for fail-

ures or damage caused by the use of non-recommended RAM modules, or by

incorrect installation or removal of such RAM modules. Before installing a RAM

module, confirm the product type and the correct installation method.

CAUTION

zRAM modules are extremely sensitive to static electricity. There are cases

where static electricity generated by the human body has adversely affected

such RAM modules. When inserting or removing a RAM module, do not touch

the terminals or internal components, insert objects other than the module, or

allow foreign particles to enter. Doing so has been known to cause damage, fire

or electric shock.

Inserting

1Power off your computer. (Îpage 24)

zDo not shut down using the standby or hibernation function.

zDisconnect the AC adaptor.

2A Turn the computer over and remove the battery pack.

B Remove the screw (A), then hold up the cover (B).

C Pull the cover out.

zUse the proper size screw driver to insure that the screw does not get

stripped.

3Insert the RAM module.

ACheck direction of a RAM module (C).

Hold the RAM module in the direction that the notch (E) of the RAM

module suits to the protrusion (D) of the slot.

BPlace the RAM module lightly in parallel with a slot.

(The gold terminals (F) are visible)

Inserting / Removing the RAM Module

Expanding Memory

Getting Started

CInsert the module parallel to the slot and press firmly until the gold termi-

nals are no longer visible.

zIf the RAM module is difficult to insert, do not force it. Check once more

to ensure that the module is positioned correctly.

zThe slot may be damaged if the following procedure is performed with-

out inserting the module firmly.

DPress the RAM module down until the right and left hooks (G) lock into

place.

zWhen pressing down the module, the right and left hooks will open

slightly and will return after locking.

zIf the RAM module is difficult to press down, do not force it. Check

once more to ensure that the module is positioned correctly.

4Put the cover and battery pack back in place.

AInsert the cover at an angle, then fit it into place.

BFasten the screw.

CPut the battery pack back in place.

NOTE

zIf the RAM module has not been inserted properly, or if a RAM module other

than one matching the specifications has been inserted, a beep will sound and

the message “Extended RAM Module Failed” will be displayed when turning the

power on. In this case, turn the power off, confirm that the RAM module meets

the specifications, and reinsert it.

zWhether the RAM module is properly recognized or not can be confirmed in

[Information] menu of the Setup Utility (Îpage 31).

Removing

After making the settings in step 1 to 2 of “Inserting,” remove the RAM module as fol-

lows.

AGently open the left and right hooks (H).

The RAM module will be raised at an angle.

BGently remove the RAM module from the slot.

CPut the cover back in place.

Refer to step 4 of “Inserting.”

Getting Started

Setup Utility

The Setup Utility sets the computer's boot-up operating environment, i.e. passwords,

startup drive, etc. The following six menu items are available:

[Information], [Main], [Advanced], [Security], [Boot], [Exit]

1Turn on or restart the computer.

2Press the

key while [Panasonic] boot screen is displayed

soon after the computer begins the startup procedure.

When the password is set, the screen shown at left will be displayed. Enter

your password, and press the

Enter

key.

When inputting the Supervisor Password

zYou can register all items of the Setup Utility.

When inputting the User Password

zOn the [Advanced] and the [Boot] menu:

• You can view the settings, but cannot change it.

zOn the [Security] menu:

• The following will not be displayed: [Clear registered SD card], [Set

Supervisor Password] and [Hard Disk Lock].

• The following will be displayed, but cannot be set: [Execute-Disable

Bit Capability], [Password on boot], [SD Startup], [SD Setting

Method], [Setup Utility Prompt], [Boot First Menu], and [User Pass-

word Protection].

• The User Password can be changed only when [User Password Pro-

tection] has been set to [No Protection]. The User Password cannot

be deleted.

zOn the [Exit] menu:

• [Get Default Values] option will not be displayed.

zThe

key does not work.

NOTE

zCannot display the Setup Utility screen in simultaneous display.

By pressing the

key, display destinations can be changed either exter-

nal display or the internal LCD.

zWhen [Password on boot] in the Setup Utility is set to [Disable]:

• When the computer is started up, entering a password is not necessary.

• When the Setup Utility is started up:

The password becomes necessary. This alternative can prevent the contents

of the Setup Utility from being changed.

zIf you fail to press the

key at the right moment, the Setup Utility will not start

up. In this case, let the computer fully boot up, and then perform a shutdown or

restart from Windows.

zTo close the Setup Utility:

APress the

Esc

key.

BSelect the exiting method from the [Exit] menu and press the

Enter

key.

CSelect [Yes] and then press the

Enter

key.

Running the Setup Utility

Setup Utility

Getting Started

How to use the screen

A. You can select menu items by moving the cursor with the Í key and the Î

key.

B. If there are several selectable items, you can choose the desired item by

pressing the Ï key and the Ð key. The color of the selected item will

change.

C. You can display the submenu by pressing the

Enter

key on the item

shown in reverse display.

D. When the submenu is displayed, you can select items by pressing the Ï

key and the Ð key.

E. The keys that can be used for settings are displayed in the Setup Utility

screen.

Key Operations

To display the corresponding "help" file (Press the Ï key or the Ð key to scroll the

help screen one line at a time. Press the

key to return to the original screen.)

Esc

To display the [Exit] menu

zÏ

To move among the items (Use these keys when selecting the item.)

zÍ

To move among the menus (Use these keys when the [Information], [Main],

[Advanced], [Security], [Boot], or [Exit] menu is selected.)

Select previous item (Use this key when changing setting values.)

Select next item (Use this key when changing setting values.)

Enter

To display submenu of each item (Use this key after selecting the item by using the

Ï key or the Ð key. Close the submenu by using the

Esc

key.)

To set default settings (except the password, System Time and System Date.)

F10

To save the settings and exit

Getting Started

Information Menu

(An underline indicates the factory default settings)

Language

• Select the language for displaying the Setup Utility. English

Japanese

Model No.

Serial No.

CPU Type

CPU Speed

BIOS

Embedded Controller

System Memory

Primary Master

To display and con-

firm information.

These items cannot

be selected or

changed.

Optical Drive

• When [CD/DVD Drive Power] has been set to [Off] in [Main] menu, [Power Off] is dis-

played.

Accumulative Operating Time

Main Menu

(An underline indicates the factory default settings)

System Time

• Time is shown in 24-hr. style.

•The

Tab

key can be used to move hour/minute/second. Numerical values can be

adjusted using the

key and the

key.

[xx:xx:xx]

System Date

• Date is shown in order of Month/Day/Year.

•The

Tab

key can be used to move Month/Day/Year. Numerical values can be adjusted

using the

key and the

key.

[xx/xx/xxxx]

Touch Pad

• Select whether to use the touch pad ([Enable]) or not ([Disable]). Disable

Enable

Fn/Ctrl Key

• Select whether to switch the

key with the

Ctrl

key functions, and vice versa on the

internal keyboard.

• Do not attempt to replace the markings on the keys, or the keys themselves.

Normal

Replace

Display

• The display destination in cases where Windows is not running is set here.

• If an external display is not connected, all information will appear on the internal LCD

even if [External Monitor] is selected.

After Windows starts up, the screen is displayed on the display destination set in the fol-

lowing menu.

[start] - [Control Panel] - [Other Control Panel Options] - [Intel(R) GMA Driver for Mobile] -

[Devices]

External Monitor

Internal LCD

Display Expansion

• Select whether to have the display expanded when not using the native screen resolution. Disable

Enable

Setup Utility

Getting Started

NOTE

zThe [Advanced] menu cannot be changed when the Setup Utility is started up with the User Password.

NOTE

zWhen the Setup Utility is started up with the User Password, only a limited number of items can be displayed

and set. (Îpage 29)

z[SD Startup], [SD Setting Method] and [Clear registered SD card] will be displayed only when an SD memory

card has been registered.

zWhen starting up the computer, if the message [Hard disk access is prohibited “Hard Disk Lock”] appears, start

up the Setup Utility, and reset the details to match the settings when [Hard Disk Lock] was set.

CD/DVD Drive Power

• You can set the drive power to [On] or [Off] when the computer is started up.

• When set to [Off]:

• From the next time you start the computer, you will be unable to start up from

DVD-ROM & CD-R/RW drive. The disk cover cannot be opened until Win-

dows has started. To start up from the DVD-ROM & CD-R/RW drive (give

preference to [USB CDD] (internal DVD-ROM & CD-R/RW drive) in the

[Boot] menu), set this to [On].

• If operations are resumed from hibernation mode while a disk is set, it may

take about 20 seconds for operations to resume.

• The drive power cannot be turned on/off with the drive power/open switch until Windows

starts, regardless of the current on/off status.

Off

Battery Charging Indicator

• Set the battery indicator to turn on or flash while the battery pack is recharging. On Continuous

Flashing

(An underline indicates the factory default settings)

Advanced Menu

(An underline indicates the factory default settings)

Modem

• Select whether to use the internal modem function ([Enable]) or not ([Disable]).

(This does not work for the external modem.)

Disable

Enable

LAN

• Select whether to use the internal LAN function ([Enable]) or not ([Disable]).

(This does not work for the external LAN card.)

Disable

Enable

Wireless LAN

• Select whether to use the internal wireless LAN function ([Enable]) or not ([Disable]).

(This does not work for the external wireless LAN card.)

Disable

Enable

Legacy USB Support

• Select whether to use the function that makes the computer recognize internal DVD-ROM

& CD-R/RW drive, USB keyboard and USB floppy disk ([Enable]) or not ([Disable]) before

starting Windows.

Disable

Enable

Security Menu

(An underline indicates the factory default settings)

Execute-Disable Bit Capability

• When [Execute-Disable Bit Capability] is set to [Enable], it means that this computer sup-

ports hardware-based Data Execution Prevention (DEP). It should usually be set to

[Enable]. DEP is a set of hardware and software technologies that perform additional

checks on memory to help prevent malicious code from running on a system.

Disable

Enable

Getting Started

In the [Boot] menu, the names of the connected devices (including internal devices) will be displayed.

"USB CDD: MATSHITA UJDA7XX" is the internal DVD-ROM & CD-R/RW drive.

To move a device up by one, select the device in [Boot priority order] using the Ï or Ð key, and press the

key.

To move a device down by one, select the device in [Boot priority order] using the Ï or Ð key, and press the

key.

zPanasonic USB floppy disk drive (CF-VFDU03 (optional)) can be used for startup (recommended).

zTo return the startup order to the default settings, press the

key.

(The order of default settings is: USB FDD->IDE HDD->USB CDD->PCI LAN)

Password on boot

• Select whether you will need to input ([Enable]) or not ([Disable]) the Supervisor Password

or the User Password on booting.

Disable

Enable

SD Startup

• Select whether to use an SD memory card instead of entering the password on booting

([Enable]) or not ([Disable]).

• When registered SD memory card, this is set to [Enable].

• Cannot be set when [Password on boot] is set to [Disable].

Disable

Enable

SD Setting Method

• Select whether to set an SD memory card to [Leave Set] or [Set and Eject] when an SD

memory card is used instead of entering the password.

• This can be set only if [SD Startup] has been set to [Enable].

• Cannot be set when [Password on boot] is set to [Disable].

Leave Set

Set and Eject

Clear registered SD card

• Clear the registration from all registered SD memory cards not to be used instead of enter-

ing the password on booting.

To the sub-menu

Set Supervisor Password

• Set a Supervisor Password if you wish to prevent any unauthorized changes to the Setup

Utility settings, also if you require a password on boot, set [Password on boot] to [Enable]

after you set Supervisor Password.

To the sub-menu

Setup Utility Prompt

• Select whether to display ([Enable]) or not to display ([Disable]) the message “Press F2 for

Setup/F12 for LAN” shown on the bottom of the [Panasonic] boot screen that is displayed

after starting this computer.

Disable

Enable

Boot First Menu

• Select whether to display “Boot Menu” ([Enable]) or not ([Disable]). (Îpage 34). Disable

Enable

Hard Disk Lock

• Select whether to enable ([Enable]) or not disable ([Disable]) the [Hard Disk Lock].

• This function will not work without the Supervisor Password being set.

Disable

Enable

User Password Protection

• Select whether to permit changing the User Password ([Protected]) or not ([No Protec-

tion]).

No Protection

Protected

Set User Password

• Set User Password when multiple users use this computer, etc.

For example, when the system administrator sets Supervisor Password and User Pass-

word and lets other users know only the User Password, other users cannot change some

of the settings in Setup Utility.

• This function will not work without the Supervisor Password being set.

To the sub-menu

Boot Menu

(An underline indicates the factory default settings)

Setup Utility

Getting Started

NOTE

zWhen starting up from the internal DVD-ROM & CD-R/RW drive, confirm the following settings.

• [CD/DVD Drive Power] is [On] in the [Main] menu.

• [Legacy USB Support] is [Enable] in the [Advanced] menu.

The computer cannot be booted from the DVD-ROM & CD-R/RW drive if the above settings are [Off] or [Disable].

zWhen starting up from a device connected by a USB port

• Check to make sure that [Legacy USB Support] is [Enable] in the [Advanced] menu.

zThe [Boot] menu cannot be changed when the Setup Utility is started up with the User Password.

zIf more than one of the same device is connected, only one device name will be displayed.

zBoot Menu

The device for starting up the operating system can also be selected during computer start-up. After the computer

is turned on and the

Esc

key is pressed at [Panasonic] boot screen, [Boot Menu] (the device selection screen) will

appear. When the [Boot Menu] setting is changed, the selection screen display will also change. [Boot Menu] is

displayed only when [Boot First Menu] in the [Security] menu is set to [Enable].

zThe computer cannot be booted from devices listed in [Excluded from boot order]. For this reason, the order of pri-

ority cannot be changed in this list.

zBootable CD created using the B’s Recorder in the CF-W2 and CF-Y2 series cannot be used on this computer. If

you want to share bootable CD with those series, create a new bootable CD.

zThis computer does not support startup operations from CD/DVD drives other than the internal DVD-ROM & CD-

R/RW drive.

zTo move a device from [Excluded from

boot order] to [Boot priority order] (or vice

versa):

Select the device using the Ï or Ð key,

and press the

key. The device you have

moved will appear at the end of the list

when moving a device from [Excluded

from boot order] to [Boot priority order].

Set the boot order as required.

Exit Menu

Save Values & Exit Exit the Setup Utility and save your changes to CMOS.

Exit Without Saving Changes Exit the Setup Utility without saving your changes to CMOS.

Get Default Values Set the Setup Utility to the default settings.

• This item is not displayed when starting up the Setup Utility with the User Password.

Load Previous Values Load previous values from CMOS for all Setup items.

Save Current Values Save your changes to CMOS.

Operation

Useful Information

Usage/Handling/Maintenance

zPlace the computer on a flat stable surface.

Do not place the computer to tip over. When the computer receives extremely

strong shock after disk may become inoperable.

zOperation: Temperature: 5°C to 35°C {41°F to 95°F}

Humidity: 30% to 80% RH (No condensation)

zStorage: Temperature: -20°C to 60°C {-4°F to 140°F}

Humidity: 30% to 90% RH (No condensation)

• Even within the temperature and humidity ranges noted above, using the com-

puter for long periods of time in an environment with exceptionally low or high

temperatures or high humidity may result in deterioration of the product, which

can lead to a reduction in product life.

zKeep the computer clear of electromagnetic cards and objects that emit electromagnetic

waves.

• Do not place the computer near magnets, electromagnetic bracelets, or other mag-

netic fields.

• This computer uses a magnet in the position marked with a circle in the diagram

on the left. Do not place a magnetic card or other magnetic field in contact with

the computer.

We recommend the following:

zPreparing a spare battery pack (sold separately).

zMaking backup copies on SD memory cards, etc.

When Carrying the computer, be sure to keep to the fol-

lowing:

zTurn off the computer.

zRemove all external devices, cables, PC Cards protruding from the computer (see

figure A), and SD memory cards before transporting the computer.

zClose the display, and ensure that the latch (Îpage 14) is positioned correctly in

the slot.

Do not carry the computer by gripping the display or the cabinet around the display

(see figure B).

zDo not drop or hit the computer against solid objects.

zWhen taking an airplane

• Always carry your computer and disks, etc with you. Never check it in with lug-

gage.

• Before using the computer inside an airplane, we recommend asking the airlines

regarding their policy on this issue.

zWhen transporting a spare battery pack (sold separately) inside a package, brief-

case, etc., it is recommended that it be placed in a plastic bag in order to protect its

contacts.

zIf the computer is being carried in a soft bag when the battery pack has been

removed, be careful to avoid undue pressure on the body of the computer in a

crowded place, etc., as this may result in damage to the LCD.

zCare of the display / touch pad:

Wipe lightly with a gauze or other dry, soft cloth.

zWhen the touch pad or other area other than the screen becomes dirty: wet a soft

cloth with water or a diluted kitchen cleanser (neutral), wring the cloth out thor-

oughly, and wipe the dirty area gently. Using a detergent other than a neutral

kitchen cleanser (e.g., a weak alkali cleanser) may adversely affect painted sur-

faces.

Usage Environment

Handling

Maintenance

Usage/Handling/Maintenance

Operation

Useful Information

CAUTION

zDo not use benzene, thinner, or rubbing alcohol. Doing so may adversely affect

the surface, e.g., discoloration. In addition, do not use commercially-available

household cleaners and cosmetics, as they may contain components harmful to

the surface.

zDo not directly add or spray water or detergent onto the computer. If liquid

enters the inside of the computer, it may cause it to work improperly or be dam-

aged.

Operation

Useful Information

Wireless LAN <Only for models with wireless LAN>

Do not use wireless LAN on airplanes, in hospitals, or

in other locations where wireless LAN signals may

affect the operation of devices in the vicinity

zAbide by instructions regarding use in airplanes and hospitals.

zIf you intend to use the computer in the environments described above, turn off the

wireless LAN power. (below)

Prevent theft of data or unauthorized access to the hard

disk via a wireless LAN

zWhen using the wireless LAN function, there is a danger that data may be stolen

from the hard disk, or that shared files may be accessed. If you plan to use wireless

LAN functions, we recommend that you do so only after making the appropriate

security settings, such as for encryption.

zBefore using a wireless LAN, turn it on using the wireless LAN switch.

zAfter turning the wireless LAN power on or off, it may take some time before the

[Available Networks] screen is renewed.

1Slide the wireless LAN switch (A) to turn the wireless LAN

power on or off.

zTo turn the power on, slide the switch to the right.

The wireless LAN icon will show.

zTo turn the power off, slide the switch to the left.

The wireless LAN icon will show.

Enable/Disable Wireless LAN Standard IEEE802.11a

In some countries, communication using IEEE802.11a (5 GHz wireless LAN) standard

is restricted by law. Comply with the laws in the country concerned. (Îpage 3)

1Click the icon (when the wireless LAN is on) or the

icon (when the wireless LAN is off) on the notification area.

2To disable IEEE802.11a:

zClick [802.11a Disabled].

To enable IEEE802.11a:

zClick [802.11a Enabled].

Even when IEEE802.11a is enabled or disabled, or will not

change.

Precautions

Turning on/off the Wireless LAN Power

Operation

Useful Information

Windows/Antivirus Protection

Depending on the settings in Windows, installed applications, drivers, menus and other

displays may be inoperable.

In some cases, certain functions, such as the password reset disk (Îpage 21), may

not operate. In this case, refer to the items below, and the applied items from the prob-

lem-solving section of this manual and onscreen Reference Manual, Windows Help

(Îpage 12), and the software application and driver’s operating instructions, etc.

Change the Way Users Log on or off

If the checkmark is added for [Use the Welcome screen] or [Use Fast User Switching]

in [start] - [Control Panel] - [User Accounts] - [Change the way users log on or off], the

operation differs as follows.

Use the Welcome screen

The operations when starting up or shutting down Windows differ depending on

whether this item has a checkmark or not.

• At the time of purchase, it is set with the checkmark added.

• When [Use when logging on to Windows] is set in [SD Card Setup] (Î “SD Mem-

ory Card Security Function” in the onscreen Reference Manual), the Welcome

screen cannot be used.

Use Fast User Switching

When adding the checkmark for this setting, you can change to another user without

logging on again when multiple users use the computer.

This manual explains the procedure for cases where the checkmark is added.

In the following case, Fast User Switching cannot be used.

zWhen the checkmark is not added for [Use the Welcome screen]

zWhen joining the network domain

zWhen the [Use when logging on to Windows] is set in [SD Card Setup] (Î “SD

Memory Card Security Function” in the onscreen Reference Manual)

Depending on the software application, the computer may not work properly if this func-

tion is used.

When switching to a different user with the Fast User Switching function, it may not be

possible to set the display settings. In this case, log-off all users, and retry the opera-

tion.

Windows

Operation

Useful Information

Use the Windows Security Center function to protect Windows from damage by com-

puter viruses, etc.

Windows Security Center

zWhat is Windows Security Center?

The Windows Security Center allows centralized management of Windows security

information, and monitors antivirus measures and other Windows security settings

to ensure optimum safety.

Use the Windows Security Center function to protect your computer from damage

by viruses, etc.

Click [start] - [Control Panel] - [Security Center] to display the current settings for the

following security functions.

• Windows Firewall

A security system for protecting the computer from unauthorized access via the

Internet or other external networks.

The firewall regulates the data exchanged between the computer and the net-

work, so that only approved data can pass through.

At the time of purchase, the Windows Firewall is set to be enabled.

• Automatic Updates

If your computer is connected to the Internet, this function regularly checks

whether security updates and other important updates for Windows have been

made available, and automatically installs these updates in their latest conditions.

• Virus Protection

This function regularly checks whether antivirus software has been installed in the

computer, and whether the version of that software is the latest version available.

NOTE

zSome network-related software and some online network games do not operate

normally if the Windows Firewall is enabled. Ask the software manufacturer

about the Windows Firewall in the case of using such software.

zFor further details on the Windows Firewall, see the help displayed by the fol-

lowing methods:

AClick [start] - [Help and Support] and input [Windows Firewall] into [Search].

BClick [Windows Firewall overview].

If the message "Your computer might be at risk" is displayed

Read the message, click the (red) on the notification area, and make the appropri-

ate settings.

This message, which the Windows Security Center displays to confirm the security-

related settings regularly, will be displayed until the settings are made more properly.

NOTE

zThis message does not indicate an error. You can use the computer while the

message is displayed. However, in order to operate the computer more safely,

we recommend making the appropriate measures to reduce damage from virus

and other attacks, thus avoiding the appearance of this message.

Security Center/Antivirus Protection

Windows/Antivirus Protection

Operation

Useful Information

The Pop-up Blocker

In Windows XP, security functions have been strengthened with regard to Web con-

tents.

One of these is the "Pop-up Blocker," which may prevent some Web pages from being

displayed.

Computer Viruses

Users are advised to purchase the latest versions of virus protection software

and use them regularly.

We recommend you run the software:

zWhen booting your computer.

zAfter receiving data.

We recommend that you check data received on disks or from external sources, such

as data downloaded from the Internet, e-mail, etc. (For compressed files, uncompress

them before running a check).

For Data Execution Prevention (DEP), you can make one of the settings in the follow-

ing menu.

[start] - [Control Panel] - [Performance and Maintenance] - [System] - [Advanced] -

[Settings] (in [Performance]) - [Data Execution Prevention].

For more information, refer to Windows help.

Windows Update

You can use the latest patches and service packs for Windows with the following

menus.

Do not apply “Driver Updates” even if a message to update a driver appears. If a

driver update is required, contact your technical support office.

[start] - [All Programs] - [Windows Update].

Operation

Useful Information

Using CD/DVD

Before using the drive

zDo not expose the DVD-ROM & CD-R/RW drive to excessive smoke that may leave

a residue, e.g. oil smoke, or tobacco smoke. Doing so could shorten the life of the

drive lens.

About opening or closing the disk cover/cleaning the

drive lens

zWhen the computer is on, be sure to use the drive power/open switch on the front

right of the computer or perform the ejecting operation through Windows.

When using B’s Recorder or B’s CLiP, you cannot open the cover using the drive

power/open switch. Refer to “Writing to CDs (B’s Recorder/B’s CLiP)” in onscreen

Reference Manual.

zTo remove a disk when the disk cover cannot be opened or when the computer is

powered off, insert a pointed object (e.g., the bent-out tip of a paper clip, or the tip of

a ballpoint pen) into the emergency hole (A), and move in the direction of the arrow.

zBe careful not to do any of the following when the disk cover is open:

• Do not close the display.

Be sure to close the display only after confirming the disk cover is closed. If the

disk cover is open, the LCD may become damaged.

• Never insert foreign objects such as paper clips into the DVD-ROM & CD-R/RW

drive.

This could cause it to malfunction.

zThe disk cover can be opened up to an angle of 80 degrees. Do not force the cover

open any further.

If a hand or other object touches the disk cover and accidentally opens it wider than

80 degrees, pull it forward slowly until the stopper holds the cover in its proper posi-

tion.

zDo not leave the disk cover in the open position or touch the lens.

Over time, dust may build up on the lens, or on a disk. This may result in a read or

write malfunction.

zInsert the disk securely. If the disk cover is closed without inserting the disk securely,

it may become damaged.

zDo not access the drive until after the disk cover is closed and the DVD-ROM & CD-

R/RW drive indicator is off.

zWe recommend cleaning the drive lens (B) with an air puffer used for camera lenses

(Do not use any spray lens cleaning products.)

Internal DVD-ROM & CD-R/RW drive connection inter-

face

zThe internal DVD-ROM & CD-R/RW drive uses a USB connection. When removing

PC Cards, SD memory cards, or other USB devices, the internal DVD-ROM & CD-

R/RW drive is displayed as one of the [USB Mass Storage Device]. The internal

DVD-ROM & CD-R/RW drive cannot be removed, so do not select [Stop].

While the DVD-ROM & CD-R/RW drive is being

accessed

zDo not open the DVD-ROM & CD-R/RW drive or move the computer while the DVD-

ROM & CD-R/RW drive is being accessed.

Doing so could cause the disk to shift position, which may damage the disk, or

cause the DVD-ROM & CD-R/RW drive to malfunction.

After running an application involving access to a disk, do not open the DVD-ROM &

CD-R/RW drive until after the application has been closed.

zDo not apply excessive force on the disk cover.

zDo not operate the drive power/open switch.

zDo not shock the computer by removing or inserting cables and cards, etc. This may

result in a read or write malfunction.

About recognition of media

zIt may take about 30 - 40 seconds for an image recorded to a rewritable media to be

played back.

Operation

Useful Information

Use of Peripheral Devices/Internal Hard Disk

Pay strict attention to the following points to avoid damage to the computer, peripheral

devices, cables, etc.

Also, in addition to following this manual and the onscreen Reference Manual, carefully

read the instruction manuals for the peripheral devices being used.

zUse only peripheral devices that conform to the computer’s specifications.

zConnect the devices properly, paying close attention to the condition and position of

the connectors.

zIf a connection cannot be made easily, do not apply undue force; check once more

to confirm the condition and position of the connector (alignment of pins, etc.).

zIf the connector has holding screws, fasten the screws firmly.

zDo not carry the computer with cables attached, and do not pull on the cables force-

fully.

To Protect Data

Keep the following.

zDo not expose your computer to shock.

Use care when handling your computer, shock may damage your hard disk or make

your software applications, and data unusable.

zDo not power off your computer while software applications are running or

hard disk drive indicator is on.

Properly shut Windows down from the [start] menu to avoid problems. (Îpage 24)

zDo not place the computer close to objects that emit electromagnetic waves

(magnets, electromagnetic bracelets, etc.).

The data saved on the hard disk may be erased.

zImportant data in the hard disk should be backed up regularly (e.g., in case of

failures, unexpected data updates, erasure, etc.).

Regular backups are recommended as a means of minimizing damages in the

event of trouble.

zUse the security function for all important data.

(Î “Security Measures” and “SD Memory Card Security Function” in onscreen Ref-

erence Manual)

NOTE

zYou may hear a mechanical “click” shortly after the hard disk indicator has

turned off when there has been no input from a key or device operation, when

the computer enters the standby or hibernation mode, or when Windows is shut

down. This is the sound of the head shifting positions, to reduce power con-

sumption or to protect the hard disk from shocks. This sound does not indicate a

malfunction.

When Changing Hard Disk Partitions

zDuring reinstallation, you can divide the hard disk space into two partitions by exe-

cuting: [Make two partitions, for the operating system and data, and reinstall Win-

dows to the operating system partition].

Confirm the minimum partition size required for the OS by checking the screen dur-

ing the reinstallation.

If you want to create three or more partitions, after creating an OS partition and a

data partition during the reinstallation, start up Windows, erase the second partition

once using [Disk Management], and then create the partitions in the open space.

zWhen using the hard disk backup function, divide the hard disk into partitions when

backup area is created (Îpage 56). If you divide the hard disk into partitions before

creating the backup area, the backup area cannot be created.

When Using Peripheral Devices

Internal Hard Disk

Troubleshooting

List of Error Codes

When turning on the computer, if one of the following error codes or messages is displayed, follow the instructions

shown below.

If the problem persists, or if the error code or message displayed is not shown here, contact your technical support

office.

Error Code/Message Action

0211: Keyboard error zIf an external keyboard is connected, disconnect these devices.

0251: System CMOS checksum

bad - Default configuration used An error has occurred in the memory that stores the Setup Utility settings. This

error occurs when the memory content is changed through some inadvertent

operation by a program or other function.

zRun the Setup Utility and load the default values, then change the settings to

the appropriate values as needed. (Îpage 29)

zIf the problem persists, the internal clock battery may need to be replaced.

Contact your technical support office.

0271: Check date and time set-

tings The date and time setting are incorrect.

zSet the date and time correctly in the [Main] menu of the Setup Utility.

(Îpage 31)

zIf the problem persists, the internal clock battery may need to be replaced.

Contact your technical support office.

0280: Previous boot incomplete -

Default configuration used Startup has failed repeatedly, so the Setup Utility settings have been returned to

their default values, and the computer has been booted.

zRun the Setup Utility and load the default values, then change the settings to

the appropriate values as needed. (Îpage 29)

Press <F2> to Setup zWrite down the error details and press the

key to run the Setup Utility. Con-

firm the settings, and change the settings to the appropriate values as

needed. (Îpage 29)

Operating System not found The OS is not properly installed on the floppy disk or the hard disk that you are

trying to boot from.

zIf the computer cannot be booted from the floppy disk, check the floppy disk

drive to ensure that the disk is in fact bootable, and change it to another if not.

zIf the computer cannot be booted from the hard disk, confirm whether the hard

disk is properly recognized in the [Information] menu of the Setup Utility.

(Îpage 31)

• If the hard disk is recognized (“xx GB” is displayed), perform the reinstal-

lation procedure.

• If the hard disk is not recognized (“none” is displayed), contact your

technical support office.

zIf a device is connected to the USB port, disconnect the device, or run the

Setup Utility and set [Legacy USB Support] in the [Advanced] menu to [Dis-

able]. (Îpage 32)

Troubleshooting

Dealing with Problems (Summary)

When a problem occurs, refer to this page. The “Reference Manual” also contains detailed information. If a problem

appears to be related to a software application, read the software related manual. If you still cannot troubleshoot the

problem, contact Panasonic technical support office. You can use the PC Information Viewer to check the computer’s

usage status. (Î “Dealing with Problems” in onscreen Reference Manual)

Problems with Starting Up, Shutting Down, and Standby and Hibernation Mode

The computer does not power on/

The battery indicator is not lit

zCheck that the AC adaptor or a fully-charged battery pack is correctly con-

nected.

zReconnect the AC adaptor or battery pack.

zCheck that the battery pack latch (the manually operated latch for locking or

unlocking) is in the locked position ( ), and is firmly locked in position.

zIf an additional RAM module has been inserted, remove the RAM module

and turn on the computer again. If the computer turns on when the RAM

module is removed, there may be a problem with the RAM module.

• Power off your computer, check that the RAM module is the recom-

mended module, and insert it correctly.

• Confirm the specifications for the RAM module.

For details regarding the RAM module, refer to "Expanding Memory"

(Îpage 27) or "Specifications" (Îpage 62).

The computer does not start up zIf there is a peripheral connected, remove the peripheral.

• If there are USB devices connected, set [Legacy USB Support] to [Dis-

able] in the [Advanced] menu of the Setup Utility.

• If the computer starts when the peripheral is removed, there may be a

problem with the peripheral. Consult the peripheral manufacturer.

zUsing the following procedure, start up in Safe Mode, and check the error

details.

ATurn on the computer, and when the [Panasonic] boot screen

disappears (after entering the password*1 if one is set) hold

down the

key.

BRelease the key when the Windows Advanced Options Menu

appears, and with the Ï key or the Ð key, select [Safe Mode],

then press the

Enter

key.

Follow the onscreen instructions.

*1 Supervisor Password or User Password set with the Setup Utility

zWhen the power indicator is lit, after sliding the power switch for at least

four seconds to turn off, turn on again.

zRestore the Setup Utility's settings to their default values.

zIf an additional RAM module has been inserted, remove the RAM module

and turn on the computer again. Refer to item 4 in "The computer does not

power on/The battery indicator is not lit" above.

There is a beep sound, and either

"Extended RAM Module Failed" or

"Standard RAM Failed" appears

zIf "Extended RAM Module Failed" appears, the RAM module is not correctly

inserted. Turn off the computer, check that the RAM module is a recom-

mended module, then insert it correctly.

zIf "Standard RAM Failed" appears, contact your technical support office.

Cannot log on to Windows with the

SD memory card

zSince the Windows user name and password are not set correctly on the

SD memory card, log on from the SD memory card is not possible.

Enter the Windows user name and password without using the SD memory

card.

After logging on to Windows, set the same user name and the password on

the SD memory card and Windows, using the following operation:

• Change the setting of the SD memory card side by [SD Card Setup]

For how to make the change, refer to "SD Memory Card Security Function"

(Î "SD Memory Card Security Function" in onscreen Reference Manual).

[Executing Battery Recalibration]

screen is displayed

zWhen Windows is shut down during the Battery Recalibration procedure, if

you select [Cancel] in the [End Program] screen, Windows shutdown is

aborted. In this case, Battery Recalibration will begin the next time the com-

puter is started. To start up Windows, turn off the computer by sliding the

power switch, and then turn it back on again.

Troubleshooting

Cannot boot from internal DVD-

ROM & CD-R/RW drive

zCheck to make sure that the bootable CD is set properly.

zRun the Setup Utility, and confirm the following settings.

• [Legacy USB Support] is set to [Enable] in the [Advanced] menu.

• [CD/DVD Drive Power] is set to [On] in the [Main] menu.

• [USB CDD] is the first device shown in [Boot priority order] in the [Boot]

menu.

zBootable CD created using B’s Recorder in the CF-W2 and CF-Y2 series

cannot be used on this computer. If you want to share bootable CD with

those series, create a new bootable CD.

zWhen an external CD/DVD drive is connected, you cannot boot from the

internal DVD-ROM & CD-R/RW drive.

"Remove disks or other media.

Press any key to restart" is displayed

zCheck whether a floppy disk not allowing system booting is inserted in the

floppy disk drive. If it is inserted, remove, then press any key.

zIf a USB device is connected, remove the USB device, or set [Legacy USB

Support] to [Disable] in the [Advanced] menu of the Setup Utility.

zIf after all the checks, the same message still appears, there may be a prob-

lem with the hard disk.

Perform the reinstallation procedure and return the hard disk to its condition

at the time of purchase. (Îpage 50)

Windows startup is slow zRestore the Setup Utility's settings to their default values.*1

zIf you install resident software after purchasing this computer, disable the

resident software.

zThis problem may be eliminated by adding more memory.*1

*1 The processing speed depends on the application software used, so this operation

may not cause the processing speed to increase.

The computer does not enter

standby or hibernation mode

zIf a peripheral is connected, first remove the peripheral, then enter the

standby or hibernation mode. If this still fails to enter standby or hibernation

mode, restart the computer.

zIt may take a minute or two to enter standby or hibernation mode. Wait for a

moment.

zThe computer may not enter standby mode properly and seems to be fro-

zen in the mode that the computer is communicating via the modem. When

you cannot execute operations, slide the power switch for four seconds or

more to forcibly turn your computer off.

zWhen the internal LCD is closed, the computer may not enter system

standby or system hibernation mode.*2

In order to activate standby or hibernation, set [Touch Pad] to [Disable] in

the [Main] menu of the Setup Utility.

*2 Functions that cause the computer to automatically enter standby or hibernation

mode after a certain time interval has passed.

zAt the time of purchase, the computer is set so that the computer cannot

enter standby or hibernation mode if a disk formatted with B’s CLiP is

inserted into the DVD-ROM & CD-R/RW drive (while the icon is dis-

played on the notification area).

Right-click the icon and click [Eject] to remove the disk.

The computer does not resume from

standby or hibernation mode

zOne of the following operations may have been carried out.

• In standby mode, the AC adaptor or battery pack was disconnected, or a

peripheral was connected or disconnected.

• The power switch was slid for four seconds or more to forcibly turn off the

computer.

Slide the power switch to turn on the computer. Data not saved is lost.

zIf the [CD/DVD Drive Power] is set to [Off] in the [Main] menu of the Setup

Utility, it may take about few seconds to resume from hibernation mode

while a disk is set in the DVD-ROM & CD-R/RW drive. Wait for a moment.

Problems with Starting Up, Shutting Down, and Standby and Hibernation Mode

Dealing with Problems (Summary)

Troubleshooting

The computer does not power off

(Windows does not shut down)

zIf a peripheral is connected, disconnect it, and then shut down.

If it is possible to shut down when the peripheral is disconnected, then there

may be a problem with the peripheral. Consult the peripheral manufacturer.

zAlso check the items in "No response". (Îpage 48)

zIf it is no longer possible to shut down Windows after installing application

software, click [start] - [Control Panel] - [Add or Remove Programs], and

remove the installed application.

If it is possible to shut down when the application is removed, then consult

the application software manufacturer.

zCheck a disk error using the following procedure:

AClick [start] - [My Computer], right-click [Local Disk(C:)] and

click [Properties].

BClick [Tools] - [Check Now].

CIn [Check disk options], add the checkmark for [Automatically fix

file system errors] and [Scan for and attempt recovery of bad sec-

tors], and click [Start].

The time taken to check the disk depends on the settings in

[Check disk options].

If the disk check does not solve the problem, perform the reinstalla-

tion procedure and return the hard disk to its condition at the time of

purchase. (Îpage 50)

Problems with Passwords and Messages

Even after entering the password,

[Type your password] is displayed

again

zThe computer may be in “ten-key” mode.

If lights up, press the

NumLk

key to disable the ten-key mode, and then

input (Îpage 15).

zThe computer may be in Caps Lock mode.

If lights up, press the

CapsLock

key to disable the Caps Lock mode,

and then input (Îpage 15).

[Enter Password] is displayed zInput your Supervisor Password or User Password. If you have forgotten it,

contact your technical support office.

When resuming from the standby or

hibernation mode, [Enter Password]

does not appear

zEven when a password has been set in the [Security] menu of the Setup

Utility, and [Password on boot] is set to [Enable], [Enter Password] does not

appear when the computer resumes from the standby or hibernation mode.

Set the Windows password with the following procedure, and make input of

the Windows password required.

AClick the account to change in [start] - [Control Panel] - [User

Accounts] and set the password.

BAdd the checkmark for [Prompt for password when computer

resumes from standby] in [Control Panel] - [Performance and

Maintenance] - [Power Options] - [Advanced].

When the administrator password is

forgotten

zCheck whether you have created a password reset disk.

• If you have:

A message is displayed when you fail to correctly enter the password.

Follow the message's instructions and set the password again.

• If you have not:

Perform the reinstallation procedure and return the hard disk to its condi-

tion at the time of purchase, then set up Windows and reset the pass-

word.

Windows does not start up and num-

bers or messages appear

zThis is a system startup error. Refer to "List of Error Codes" (Îpage 43)

zIf “Remove disks or other media. Press any key to restart” is displayed:

Îpage 45

Problems with Starting Up, Shutting Down, and Standby and Hibernation Mode

Troubleshooting

Problems with Display

Screen is too dark or becomes

darker

zPress the

key. This makes the screen lighter.

zIf the screen becomes darker after disconnecting the AC adaptor:

The computer has different set brightness levels for when the AC adaptor is

connected and for when it is not connected. If you press the

key to

increase the brightness when the AC adaptor is not connected, this bright-

ness is maintained, and determines the brightness next time the AC adap-

tor is disconnected.

(Making the display brighter shortens the battery operating time.)

An afterimage appears (e.g., the key

green, red, and blue dots remain on

the display) or there are dots not dis-

playing the correct colors

zIf an image is displayed for a prolonged period of time, an afterimage may

appear. This is not a malfunction. The afterimage will disappear when a dif-

ferent screen is displayed.

zHigh-precision and advanced technologies are used in the production of

color liquid crystal displays (color LCDs). Therefore, if 0.002% or less of the

picture’s elements either fail to light or remain constantly lit (that means that

more than 99.998% of the elements are functioning properly), this is not

considered a defect.

Nothing is displayed on the screen zCheck if the power-saving mode is active.

• If the power indicator is lit:

The display is turned off. Press a key with no independent effect, such as

the

Ctrl

key or the

Shift

key.

Do not use a key that may make a selection (

Enter

Space

Esc

, numeric keys, and so on).

• If the power indicator is blinking or is not lit:

The standby mode or hibernation mode is entered. Slide the power

switch.

zThe display destination may be set to the external display.

Try changing the display destination by pressing the

key.

If you want to switch the display destination repeatedly by pressing the

key, make sure that the display destination has switched com-

pletely each time before pressing the

key again.

zThe screen may become darker. Press the

key to make the screen

brighter.

There is an afterimage zDisplay a different screen.

If the same screen is displayed for a long time, this may leave an afterim-

age.

The screen becomes disordered zThe screen display may become distorted if the resolution or number of col-

ors is changed, or if an external display is connected or disconnected while

the computer is operating. Restart the computer.

Switching between internal and

external displays does not work

zThe display destination cannot be switched while a video such as an MPEG

file and a DVD video are playing. Stop playing the video before switching

the display destination.

A blue background appears on the

screen with the MPEG image or

DVD Video

zDid you open the DVD-ROM & CD-R/RW drive or remove the disk while it

was operating?

Insert the removed disk, and close the disk cover.

The LCD brightness changes a few

times when the AC adaptor is dis-

connected

zIf [Intel(R) Display Power Saving Technology] is active, the LCD brightness

changes automatically. (Î "Computing on the Road" in onscreen Refer-

ence Manual).

Image colors are not reproduced as

expected when displaying photo-

graphs or other images

zWe recommend removing the checkmark from [Intel(R) Display Power Sav-

ing Technology]. (Î "Computing on the Road" in onscreen Reference Man-

ual).

Dealing with Problems (Summary)

Troubleshooting

Nothing appears on the external dis-

play, or the display is not correct

zCheck that the external display cables are correctly connected.

zCheck that the external display is turned on.

zCheck that the external display settings are correct.

zWhen an external display not compatible with the power-saving mode is

used with the computer, the display may not function correctly when the

computer enters the power-saving mode. In this case, turn on the external

display again.

However, in the case of some external displays, the screen display may be

distorted or the mouse cursor may not be properly displayed depending on

the settings. In this case, try setting the number of colors, screen area (res-

olution), and refresh rate to smaller values.

To use both the external display and

the internal LCD

zConnect the external display, then press the

key to switch the dis-

play.

If this does not switch the display, use the following procedure.

AClick [start] - [Control Panel], from the [See Also] area click

[Other Control Panel Options], then click [Intel(R) GMA Driver

for Mobile] - [Devices].

BClick the display destination, and click [OK].

• When the screen is displayed to a simultaneous display:

[Intel(R) Dual Display Clone]

• When Extended Desktop mode is set: [Extended Desktop]

zWhen [Command Prompt] is set to "Full Screen" by pressing the

Alt

Enter

key, the screen is displayed on one of the displays only. Press the

Alt

Enter

key to return to the window display.

zSimultaneous display cannot be used until Windows startup is complete

(during Setup Utility, etc.).

Problems with Operation during Use

Some applications may not work

properly

zWhen switching to a different user with the Fast User Switching function,

the following problems may occur:

• Some applications may not work properly.

• Key combination with the

key may not work.

• It may not be possible to set the settings of the display.

• The wireless LAN cannot be used. <Only for models with wireless LAN

function>

• The B’s CLiP icon will no longer be shown on the notification area and

CD-RW disk cannot be written.

In this case, log off all users without using Fast User Switching function,

and try the operation once more. If the problem persists, restart the com-

puter.

zSome software applications installed after the time of purchase are not

compatible with Windows XP Service Pack 2. Refer to software maker’s

homepage or other sources.

No response zIs there an input screen (e.g., password input screen at startup) hidden

behind another window? Use the

Alt

Tab

key to check for other windows

being displayed.

zPress the

Ctrl

Shift

Esc

key to open Task Manager and close the soft-

ware application which is not responding.

zAfter sliding the power switch for at least four seconds to turn off the com-

puter, turn on again.

If Windows runs correctly, but the application software does not start, click

[start] - [Control Panel] - [Add or Remove Programs] and remove the failing

application software, then reinstall the application software.

Problems with Display

Troubleshooting

Problems with Battery

The battery indicator is lights red zThe battery level is very low (the charge is approx. 9% or less).

zConnect the AC adaptor. You can use the computer when the indicator light

is orange. If you do not have an AC adaptor, save your data and power off

your computer. After replacing the battery pack with a fully charged one,

turn your computer on again.

The battery indicator is blinking zIf blinking red:

Quickly save your data and power off your computer. Remove the battery

pack and disconnect the AC adaptor, then connect them again. If the prob-

lem persists, contact your technical support office. The battery pack or

charging circuit may be defective.

zIf blinking orange:

• Battery cannot be recharged temporarily because the internal tempera-

ture of the battery pack is outside the acceptable temperature range for

recharging. Your computer can be used normally in this state. Once the

range requirement is satisfied, charging begins automatically.

• Software applications and peripheral devices (USB devices, etc.) are con-

suming too much power. Exit the software applications currently running.

Once the range requirement is satisfied, charging begins automatically.

The battery indicator is flashing zThe battery is recharging.

If [Battery Charging Indicator] in [Main] menu of the Setup Utility is set to

[Flashing], the indicator will alternately become lighter and darker.

Problems with Onscreen Reference Manual

The Reference Manual is not dis-

played

zIs Adobe Reader installed?

If you have uninstalled Adobe Reader, install using the following proce-

dures.

ALog on to Windows with the administrator authority.

BClick [start] - [Run], input [c:\util\reader\AdbeRdr70_enu_full.exe],

then click [OK].

Install Adobe Reader by following the instructions on the screen.

CUpdate Adobe Reader to its latest version.

If your computer is connected to the Internet, start up Adobe

Reader and click [Help] - [Check for updates now...].

Reinstalling B’s Recorder/B’s CLiP

When reinstalling, you will be asked

for a serial number

zInput the following serial number.

B’s Recorder:

B’s CLiP:

Problems with Expanding Memory

You do not know the available RAM

module

Îpage 62

To check if the additional RAM mod-

ule has been installed successfully

zIf the installation is successful, the main memory and total RAM module

size appears in the [Information] menu of the Setup Utility.

zIf the RAM module is not confirmed:

• Turn the computer off and reinsert the RAM module.

• Confirm the recommended specifications.

Regarding the RAM module, refer to “Expanding Memory" or "Specifica-

tions."

Troubleshooting

Reinstalling Software

What is “Reinstallation”?

Reinstallation refers to formatting the hard disk, and reinstalling Windows.

When is “Reinstallation” necessary?

zWhen Windows does not start up, or when Windows operation is unstable and can-

not be recovered.

zWhen using the hard disk with two partitions.

Preparing

zYou will need the Product Recovery DVD-ROM (included).

Confirm the following

zRemove all peripherals (including a mini port replicator) and SD memory cards.

Especially, when a USB floppy disk drive or a USB CD/DVD drive is connected, the

reinstallation does not operate properly. Remove them.

Reinstallation Procedure

When reinstallation procedure is performed, the contents of the hard disk will be erased. Be sure to back up data on

your hard disk to another media or to an external hard disk before running the reinstallation procedure.

The reinstallation procedure will return the computer to its original condition.

zIf you have created partitions for data, the data may be erased or become corrupt as a result of the reinstallation

procedure.

zEven if reinstallation is executed, the number of times that the DVD video region code can be set will not be

returned to the state set at the time of factory shipment.

Before Reinstallation

Change the settings in the Setup Utility.

Use the Product Recovery DVD-ROM to execute reinstallation. (About 20 minutes)

Return the Setup Utility settings to their default values.

Setup Windows.

Change the settings in the Setup Utility. (Only when necessary)

If you can connect to the Internet, perform Windows Update.

(Î “To Update this Computer to its Latest Version” in onscreen Reference Manual)

Troubleshooting

1Connect the AC adaptor.

Do not interrupt the reinstallation procedure before completion, for example

by turning off the computer or pressing the

Ctrl

Alt

Del

key, as this

may prevent Windows from starting up, or may cause data to be lost so that

the reinstallation procedure cannot be executed.

2Change the settings in the Setup Utility.

Make the following settings.

zReturn settings to the status at the time of purchase.

zChange settings to enable startup from DVD-ROM & CD-R/RW drive.

If you change the settings from that at the time of purchase, we recommend

that you make a note of the settings that are changed.

ATurn on the computer, and press the

key while [Panasonic] boot

screen is displayed.

The Setup Utility will start up.

zIf the password has been set, enter the Supervisor Password, and

press the

Enter

key.

BPress the

key.

At the confirmation message, select [Yes] and press the

Enter

key.

CSelect the [Boot] menu, then select [USB CDD] and press the

key until

[USB CDD] is at the top of [Boot priority order].

DPlace the Product Recovery DVD-ROM into the DVD-ROM & CD-R/RW

drive.

zWhen the disk cover does not open:

[CD/DVD Drive Power] has been set to [Off] in the [Main] menu. Per-

form the following procedure.

Press the

F10

key. At the confirmation message, select [Yes] and

press the

Enter

key. (The computer will restart)

Press the

key while [Panasonic] boot screen is displayed.

Place the Product Recovery DVD-ROM, and execute step E.

EPress the

F10

key.

At the confirmation message, select [Yes] and press the

Enter

key.

The Setup Utility will close, and the computer will restart.

zIf the password has been set, enter the Supervisor Password, and

press the

Enter

key.

3Use the Product Recovery DVD-ROM to execute reinstalla-

tion.

APress the

key to execute [1. [Recovery]].

(All of the screens below are only examples.)

Reinstalling

Reinstalling Software

Troubleshooting

When the message [The Backup function has been enabled. If [Recovery] or

[Erase HDD] is executed, the Backup function will be disabled, and your

Backup data will be lost.] appears, press the

key.

BIf you agree, press the

key.

If you do not agree, press the

key.

zIf you press the

key the menu will be displayed.

zIf you press the

key the reinstallation will be canceled.

CMake a selection from the menu.

zTo return the computer to its status at the time of purchase

Press the

key.

zTo divide the hard disk into two partitions (for OS and data)

Press the

key.

Enter the basic partition size (GB) for the operating system installation

and press the

Enter

key.

• You can cancel this operation by pressing the

key.

• The data partition size is the remainder after subtracting the basic

partition size. (Data partition: 1 GB or more)

Maximum settable size differs depending on the model.

zTo reinstall Windows in the first partition without changing the partition

configuration

Press the

key.

• The first partition size must be 6 GB or more of the hard disk size.

Reinstallation cannot be performed with a small partition size.

If you select [1] or [2], the message [The Backup function has been enabled.

If [Recovery] is executed, the Backup function will be disabled, and your

Backup data will be lost.] appears. In this case, press the

key.

If the message [Computer must be rebooted in order to execute [Recovery]]

appears, press the

key.

DAt the confirmation message, press the

key.

zThe operation of reinstallation for the hard disk starts automatically.

(The operations take about 20 minutes.)

zDo not interrupt the reinstallation procedure before completion, for

example by turning off the computer or pressing the

Ctrl

Alt

Del

key, as this may prevent Windows from starting up, or may cause data

to be lost so that the reinstallation procedure cannot be executed.

Troubleshooting

EThe message "[Recovery] is complete" will be displayed. Remove the Prod-

uct Recovery DVD-ROM, and press any key to shut down the computer.

4Return the Setup Utility settings to their default values.

Return the Setup Utility to its settings at the time of purchase to ensure

proper setup of Windows.

ATurn on the computer, and press the

key while [Panasonic] boot

screen is displayed.

The Setup Utility will start up.

If the password has been set, enter the Supervisor Password, and press

the

Enter

key.

BPress the

key.

At the confirmation message, select [Yes] and press the

Enter

key.

CPress the

F10

key.

At the confirmation message, select [Yes] and press the

Enter

key.

The Setup Utility will close, and the computer will restart.

5Setup Windows. (Îpage 18)

6Run the Setup Utility and change the settings where neces-

sary.

(The Setup Utility settings will return to their default values. Even the security

settings with the exception of the password(s), date and time will return to

their default values.)

7If you can connect to the Internet, perform Windows Update.

(Î “To Update this Computer to its Latest Version” in onscreen Reference

Manual)

Changing the drive letter

You can change the drive letter for the DVD-ROM & CD-R/RW drive or hard disk drive

by the following steps.

zThe C drive cannot be changed.

zDVD-ROM & CD-R/RW drive is the D drive at the time of purchase.

zWe recommend that you make these changes before installing applications.

AClick [start] - [Control Panel] - [Performance and Maintenance] - [Admin-

istrative Tools] and double-click [Computer Management].

BClick [Disk Management] on [Storage].

CRight-click the partition of the hard disk or the name of the DVD-ROM &

CD-R/RW drive and click [Change Drive Letter and Paths...].

DClick [Change].

EClick [Assign the following drive letter] and select the new drive letter, and

then click [OK].

FAt the confirmation message, click [Yes].

Important Information

LIMITED USE LICENSE AGREEMENT

THE SOFTWARE PROGRAM(S) (“PROGRAMS”) FURNISHED WITH THIS PANASONIC® PRODUCT (“PRODUCT”)

ARE LICENSED ONLY TO THE END-USER (“YOU”), AND MAY BE USED BY YOU ONLY IN ACCORDANCE WITH

THE LICENSE TERMS DESCRIBED BELOW. YOUR USE OF THE PROGRAMS SHALL BE CONCLUSIVELY

DEEMED TO CONSTITUTE YOUR ACCEPTANCE OF THE TERMS OF THIS LICENSE.

Matsushita Electric Industrial Co., Ltd. (“MEI”) has developed or otherwise obtained the Programs and hereby licenses

their use to you. You assume sole responsibility for the selection of the Product (including the associated Programs) to

achieve your intended results, and for the installation, use and results obtained therefrom.

LICENSE

A. MEI hereby grants you a personal, non-transferable and non-exclusive right and license to use the Pro-

grams in accordance with the terms and conditions stated in this Agreement. You acknowledge that you are

receiving only a LIMITED LICENSE TO USE the Programs and related documentation and that you shall

obtain no title, ownership nor any other rights in or to the Programs and related documentation nor in or to

the algorithms, concepts, designs and ideas represented by or incorporated in the Programs and related

documentation, all of which title, ownership and rights shall remain with MEI or its suppliers.

B. You may use the Programs only on the single Product which was accompanied by the Programs.

C. You and your employees and agents are required to protect the confidentiality of the Programs. You may not

distribute or otherwise make the Programs or related documentation available to any third party, by time-

sharing or otherwise, without the prior written consent of MEI.

D. You may not copy or reproduce, or permit to be copied or reproduced, the Programs or related documenta-

tion for any purpose, except that you may make one (1) copy of the Programs for backup purposes only in

support of your use of the Programs on the single Product which was accompanied by the Programs. You

shall not modify, or attempt to modify, the Programs.

E. You may transfer the Programs and license them to another party only in connection with your transfer of

the single Product which was accompanied by the Programs to such other party. At the time of such a trans-

fer, you must also transfer all copies, whether in printed or machine readable form, of every Program, and

the related documentation, to the same party or destroy any such copies not so transferred.

F. You may not remove any copyright, trademark or other notice or product identification from the Programs

and you must reproduce and include any such notice or product identification on any copy of any Program.

YOU MAY NOT REVERSE ASSEMBLE, REVERSE COMPILE, OR MECHANICALLY OR ELECTRONICALLY TRACE

THE PROGRAMS, OR ANY COPY THEREOF, IN WHOLE OR IN PART.

YOU MAY NOT USE, COPY, MODIFY, ALTER, OR TRANSFER THE PROGRAMS OR ANY COPY THEREOF, IN

WHOLE OR IN PART, EXCEPT AS EXPRESSLY PROVIDED IN THE LICENSE.

IF YOU TRANSFER POSSESSION OF ANY COPY OF ANY PROGRAM TO ANOTHER PARTY, EXCEPT AS PER-

MITTED IN PARAGRAPH E ABOVE, YOUR LICENSE IS AUTOMATICALLY TERMINATED.

TERM

This license is effective only for so long as you own or lease the Product, unless earlier terminated. You may terminate

this license at any time by destroying, at your expense, the Programs and related documentation together with all cop-

ies thereof in any form. This license will also terminate effective immediately upon occurrence of the conditions therefor

set forth elsewhere in this Agreement, or if you fail to comply with any term or condition contained herein. Upon any

such termination, you agree to destroy, at your expense, the Programs and related documentation together with all cop-

ies thereof in any form.

YOU ACKNOWLEDGE THAT YOU HAVE READ THIS AGREEMENT, UNDERSTAND IT AND AGREE TO BE BOUND

BY ITS TERMS AND CONDITIONS. YOU FURTHER AGREE THAT IT IS THE COMPLETE AND EXCLUSIVE STATE-

MENT OF THE AGREEMENT BETWEEN US, WHICH SUPERSEDES ANY PROPOSAL OR PRIOR AGREEMENT,

ORAL OR WRITTEN, AND ANY OTHER COMMUNICATIONS BETWEEN US, RELATING TO THE SUBJECT MAT-

TER OF THIS AGREEMENT.

About Intel® software products

The enclosed software products and documentation were developed at private expense, and are provided with

“RESTRICTED RIGHTS.” Use, duplication or disclosure by the government is subject to restrictions as set forth in

FAR 52.227-14 and DFARS 252.227-7013 et. seq. or its successor. The use of this product by the government con-

stitutes acknowledgment of Intel's proprietary rights in the product.

Important Information

Contrat de licence d'usage limité

Le(s) logiciel(s) (les “Logiciels”) fournis avec ce produit Panasonic® (le “Produit”) sont exclusivement concédés en

licence à l'utilisateur ultime (“vous”), et ils ne peuvent être utilisés que conformément aux clauses contractuelles cides-

sous. En utilisant les logiciels, vous vous engagez de manière définitive à respecter les termes, clauses et conditions

des présentes.

Matsushita Electric Industrial Co., Ltd. (“MEI”) a mis au point ou obtenu les Logiciels et vous en concède l'utilisation par

les présentes. Vous assumez l'entière responsabilité du choix de ce Produit (y compris des Logiciels associés) pour

obtenir les résultats escomptés, ainsi que de l'installation, de l'utilisation et des résultats obtenus.

License

A. MEI vous octroie par les présentes le droit et la licence personnels, non cessibles et non exclusifs d'utiliser

les Logiciels conformément aux termes, clauses et conditions de ce Contrat. Vous reconnaissez ne recevoir

qu'un droit limité d'utiliser les Logiciels et la documentation les accompagnant et vous vous engagez à

n'obtenir aucun droit de titre, propriété ni aucun autre droit vis-à-vis des Logiciels et de la documentation les

accompagnant ni visà-vis des algorithmes, concepts, dessins, configurations et idées représentés par ou

incorporés dans les Logiciels et la documentation les accompagnant, dont les titres, propriété et droits rest-

eront tous à MEI ou à leurs propriétaires.

B. Vous ne pouvez utiliser les Logiciels que sur le Produit unique qui est accompagné par les Logiciels.

C. Vous et vos employés ou agents êtes requis de protéger la confidentialité des Logiciels. Vous ne pouvez ni

distribuer ni mettre les Logiciels et la documentation les accompagnant à la disposition d'un tiers, par part-

age de temps ou de quelque autre manière que ce soit, sans l'autorisation écrite préalable de MEI.

D. Vous ne pouvez ni copier ni reproduire ni permettre la copie ni la reproduction des Logiciels ni de la docu-

mentation les accompagnant pour quelque fin que ce soit, à l'exception d'une (1) copie des Logiciels à des

fins de sauvegarde uniquement pour soutenir votre utilisation des Logiciels sur le Produit unique qui est

accompagné par les Logiciels. Vous ne pouvez ni modifier ni tenter de modifier les Logiciels.

E. Vous ne pouvez céder les Logiciels et en octroyer la licence à une autre partie qu'en rapport avec votre ces-

sion du Produit unique qui est accompagné par les Logiciels à cette autre partie. Au moment de cette ces-

sion, vous devez céder également toutes les copies, que ce soit sous forme imprimée ou lisible par la

machine, de tous les Logiciels ainsi que de la documentation les accompagnant, à la même partie ou détru-

ire les copies non cédées.

F. Vous ne pouvez retirer aucune marque de droits d'auteur, marque ou autre ni aucune identification de pro-

duit des Logiciels et vous devez reproduire et inclure toutes ces notices ou identifications de produit sur

toutes les copies des Logiciels.

Vous ne pouvez assembler en sens inverse, compiler en sens inverse ni retracer les Logiciels ni aucune de leurs cop-

ies, de façon électronique ou mécanique, en tout ou en partie.

Vous ne pouvez utiliser, copier, modifier, altérer ni céder les Logiciels ni aucune de leurs copies, en tout ou en partie, à

l'exception de ce qui est expressément stipulé dans ce contrat.

Si vous cédez la possession de toute copie ou de tout Logiciel à une autre partie, à l'exception de ce qui est autorisé au

paragraphe E ci-dessus, votre licence est automatiquement résiliée.

Termes, clauses et conditions

Cette licence n'est effective que pour la durée de possession ou de crédit-bail du Produit, à moins d'une résiliation

antérieure. Vous pouvez résilier cette licence à tout moment en détruisant, à vos frais, les Logiciels et la documentation

les accompagnant avec toutes leurs copies, sous quelque forme que ce soit. Cette licence sera également résiliée,

avec application immédiate, si les conditions de résiliation définies ailleurs dans ce contrat se sont réalisées ou si vous

ne respectez pas les termes, clauses et conditions qui y sont contenues. Au moment de la résiliation, vous acceptez de

détruire, à vos frais, les Logiciels et la documentation les accompagnant avec toutes leurs copies, sous quelque forme

que ce soit.

Vous reconnaissez avoir lu ce contrat, en avoir compris toute la substance et avoir accepté de respecter ses termes,

clauses et conditions. Vous reconnaissez en outre qu'ils sont la description complète et exclusive du contrat conclu

entre nous, contrat qui remplace et annule toute proposition ou contrat précédent, écrit ou oral, et toute autre communi-

cation entre nous, relativement à l'objet du présent contrat.

Important Information

Hard Disk Backup Function

The hard disk backup function creates a backup area (storage area) on the hard disk. This area is to back up (store)

hard disk contents or restore backed up contents to their original locations.

By backing up the data on your hard disk to a backup area, you can protect your data from loss or damage resulting

from operational errors or other factors. Also, you can back up or restore hard disk contents using this computer alone,

without having to use other media or peripheral devices.

At the time of purchase, the hard disk backup function is disabled. If you follow the procedure below to create a backup

area, the hard disk backup function will be enabled, and you will be able to back up your data. Note, that once the

backup function has been enabled, you will have to perform the reinstallation procedure to disable it again.

Preparing

zYou will need the Product Recovery DVD-ROM (included).

zDisconnect or remove all peripheral devices (including a mini port replicator), SD

memory cards. Take care to disconnect the USB floppy disk drive, as the backup

area may not be created properly while these devices are connected.

zBe sure the AC adaptor is connected to the computer.

zIf the hard disk malfunctions, it will be impossible to read the data stored on it. We

recommend that you also back up important data to a location other than the hard

disk (an external hard disk or other media).

zExecute a disk error check using the following procedure.

ADisplay [Local Disk(C:) Properties].

Right-click [Local Disk(C:)] in [start] - [My Computer], and click [Proper-

ties].

BClick [Check Now] from [Tools].

CIn [Check Disk Local Disk], click [Start] without adding a checkmark beside

any of the items.

If a message is displayed indicating that there is an error in the disk, dis-

play [Check Disk Local Disk], and add a checkmark for [Automatically fix

file system errors] and [Scan for and attempt recovery of bad sectors],

click [Start], and check for disk errors again.

Precautions

zTo divide the partition, make the selection when the backup area is created (Îpage

57 step G).

zA backup area cannot be created if the hard disk is already divided into several par-

titions. Return the computer to its condition at the time of purchase (one partition

only), and create the backup area.

zIf the partition configuration is changed (partitions created, size changed, etc.) after

the backup area has been created, it will no longer be possible to execute the

backup function. To change the configuration, it is necessary to return the computer

to its condition at the time of purchase, and then create the backup area again.

zThe hard disk backup function will only work for the internal hard disk. This function

does not work with an external hard disk.

zBackup and restore functions will not operate if the hard disk has been damaged.

zDo not use the NTFS file system compression function, as this may result in insuffi-

cient capacity of the backup area.

zThe hard disk backup function does not accommodate dynamic disks. Do not con-

vert the hard disk to a dynamic disk.

NOTE

zRegarding backup area

The hard disk backup function cannot back up or restore data properly if there is a problem with the hard disk when

the data is backed up or restored. Note that if an error occurs while data is being restored, whether as a result of an

unexpected malfunction, incorrect operation, or other reason, the data in the hard disk (data before restoration) may

be lost.

Matsushita Electric Industrial Co., Ltd. will bear no responsibility for any damages suffered by the user (including loss

of data) as a result of the use of this function.

Before Using a Hard Disk Backup Function

Important Information

• Requires availability of at least half of the entire hard disk. Without sufficient

space available, the backup area cannot be created.

• When the backup area is created, the usable hard disk capacity will be

reduced to less than half.

• The backup area cannot be accessed from Windows. For this reason, backed

up data cannot be copied to CD-R or other removable disk media.

• When the hard disk backup function is executed, data in the backup area will

be overwritten. If newly created or edited data is backed up later, data stored

previously in the backup area will be lost.

ATurn the computer on, and press the

key while [Panasonic] boot

screen is displayed.

The Setup Utility will start up.

If a password has been set, enter the Supervisor Password.

You cannot register [Boot] menu with a User Password.

BSelect the [Boot] menu, then select [USB CDD] and press the

key until

[USB CDD] is at the top of [Boot priority order].

CPlace the Product Recovery DVD-ROM into the DVD-ROM & CD-R/RW

drive.

• When the disk cover does not open:

[CD/DVD Drive Power] has been set to [Off] in the [Main] menu. Perform

the following procedure.

Set [CD/DVD Drive Power] to [On].

Press the

F10

key.

At the confirmation message, select [Yes] and press the

Enter

key.

The computer will restart.

Press the

key while [Panasonic] boot screen is displayed.

Place the Product Recovery DVD-ROM, and execute step D.

DPress the

F10

key.

At the confirmation message, select [Yes] and press the

Enter

key.

The computer will restart. If [Enter Password] is displayed during the fol-

lowing procedures, input the Supervisor Password or the User Password.

This screen should appear.

EPress the

key to execute [3. [Backup]].

CAUTION

zWhen dividing the hard disk into partitions

Do not execute [1. [Recovery]] to divide the hard disk into partitions. The hard

disk backup function cannot be enabled after the hard disk has been partitioned.

Use step G to divide the hard disk.

FAt the confirmation message, press the

key.

GSelect how to divide the hard disk from the menu.

<To create a backup area and enable the backup function without dividing

the hard disk>

Select [1].

Create a Backup Area

Hard Disk Backup Function

Important Information

<To create a backup area and divide hard disk into two partitions, for OS

and data>

Select [2], enter the partition size (GB), and press the

Enter

key.

• You can cancel this operation by pressing the

key.

• The data partition size will be the maximum settable size less the

number entered above.

The maximum settable size will differ depending on models.

HAt the confirmation message, press the

key.

The backup area is then created.

IWhen the message [You must reboot in order to enable the Backup func-

tion.] appears, remove the Product Recovery DVD-ROM, and press any

key to restart the computer. The computer is restarted, then the backup

process will begin.

JWhen the message [[Backup] is complete] appears, press the

Ctrl

Alt

Del

key to restart the computer.

zDo not press the

Ctrl

Alt

Del

key until the message is displayed.

KAfter logging on to Windows, a message will appear advising that a new

device has been installed and that the computer must be restarted to

enable the settings. Select [Yes] to restart the computer.

NOTE

zThe [Boot] menu in the Setup Utility is set to start up from the DVD-ROM & CD-

R/RW drive. Change this setting if necessary.

zThe next time the backup or restore functions are executed, follow the proce-

dure for [Backing Up and Restoring Data].

CAUTION

zBefore executing the backup function, execute a disk error check (Îpage 56).

zDo not interrupt the backup or restore functions before completion, for example

by turning off the power or pressing the

Ctrl

Alt

Del

key, as this may pre-

vent Windows from starting up, or may cause data to be lost so that the backup

and restore functions cannot be executed.

ATurn the computer on, and press the

key while [Panasonic] boot

screen is displayed.

The Setup Utility will start up.

If a password has been set, enter the Supervisor Password or the User

Password.

Backing Up and Restoring Data

Important Information

BSelect [Exit] menu, then select [Hard Disk Backup / Restore] and press

the

Enter

key.

At the confirmation message, select [Yes], and press the

Enter

key.

CSelect the operation to be executed from the menu.

(1) Press the

key to execute [1. [Backup]].

(When dividing the hard disk into two partitions, select the backup

method at next screen.)

(2) At the confirmation message, press the

key.

The backup process will begin.

(1) Press the

key to execute [2. [Restore]].

(When data is backed up in two partitions, select the restore

method at next screen.)

(2) At the confirmation message, press the

key.

The restore process will begin.

NOTE

zThe time required to complete the backup or restore process differs depending

on the data volume.

DWhen the message [[Backup] is complete] or [[Restore] is complete] is

displayed, press the

Ctrl

Alt

Del

key to restart the computer.

• If the backup or restore process was interrupted before completion,

for example if the power was turned off, execute the process again.

• When a new device is installed and a message appears advising that

the computer must be restarted to enable the settings, select [Yes] to

restart the computer.

CAUTION

zWhen the hard disk backup function has been enabled, the backed up data will

not be erased even if a commercial data erasing utility or similar software is

used to erase all data from user-accessible area. You can use the hard disk

data erase utility included in this computer (Îpage 60) to erase all data on the

hard disk, including backed up data. Use this hard disk data erase utility before

disposing of or transferring ownership of this computer.

zOccasionally, the message [#1805 cannot write image file] will be displayed,

and the backup function will be interrupted. If this error occurs, execute the

backup function again. After this, if the backup function is completed properly,

then there is no problem in the hard disk.

zTo disable the hard disk backup function

Perform the reinstallation procedure. All data in the backup area and the hard disk

will be erased.

Conduct steps 1-3 C for [Reinstalling Software] (Îpage 51). Select [1] or [2] to

execute the reinstallation at the screen for executing the reinstallation.

• When [1] is selected, the hard disk backup function can be disabled.

• When [2] is selected, the hard disk backup function can be disabled, but in this

case, because the hard disk has been divided into partitions, the hard disk backup

function cannot be re-enabled (Îpage 42).

• When [3] is selected, the hard disk backup function cannot be disabled.

Important Information

When Disposing of This Computer

When disposing of or transferring ownership of this computer, erase all data on the hard disk in order to prevent the

theft of hard disk data. Even if you delete data or initialize the hard disk through normal Windows commands, data can

still be read using special software. In order to erase all data, either have the data erased by a specialist (at a charge) or

use the hard disk data erase utility (included). (Note that this hard disk data erase utility does not guarantee that data

will be completely erased.)

Also, note that if you transfer ownership of this computer without deleting commercial software that you have installed to

the hard disk, you may be in violation of the licensing agreement for that software.

This computer is equipped with a utility for erasing hard disk data.

When disposing of or transferring ownership of this computer, erase all data on the hard disk in order to prevent the

theft of hard disk data following the steps below.

Before Erasing Data

Preparing

zYou will need the Product Recovery DVD-ROM (included).

Confirm the followings

zBe sure the AC adaptor is connected until the procedure is completed.

zThis utility can only be used for internal hard disk. It cannot be used to erase data

from external hard disks.

zThis utility cannot erase data from damaged disk.

zThis utility cannot erase data for specific partitions.

zAfter executing this utility, the computer cannot be booted from the hard disk.

zThe backup area and the data in the backup area will be erased.

Completely Erasing Data

ATurn the computer on, and press the

key while [Panasonic] boot

screen is displayed.

The Setup Utility will start up.

If the password has been set, enter the Supervisor Password, and press

the

Enter

key. The [Boot] menu cannot be changed with User Pass-

word.

BSelect the [Boot] menu, then select [USB CDD] and press the

key until

[USB CDD] is at the top of [Boot priority order].

CPlace the Product Recovery DVD-ROM into the DVD-ROM & CD-R/RW

drive.

zWhen the disk cover does not open:

[CD/DVD Drive Power] has been set to [Off] in the [Main] menu. Per-

form the following procedure.

Set [CD/DVD Drive Power] to [On].

Press the

F10

key.

At the confirmation message, select [Yes] and press the

Enter

key.

The computer will restart.

Press the

key while [Panasonic] boot screen is displayed.

The Setup Utility will start up.

Hard Disk Data Erase Utility

The hard disk data erase utility erases data using an overwriting method, but there is a possibility that due to malfunc-

tions or other operational errors, data may not be completely erased. There are also specialized devices that may be

able to read data that has been erased using this method. If you need to erase highly confidential data, we recom-

mend that you contact a company that specializes in this process. Matsushita Electric Industrial Co., Ltd. will bear no

responsibility for losses or damages suffered as a result of the use of this utility.

Important Information

Set the Product Recovery DVD-ROM, and execute step D.

DPress the

F10

key.

At the confirmation message, select [Yes] and press the

Enter

key.

The Setup Utility will close, and the computer will restart.

If [Enter Password] is displayed during the following procedure, enter the

Supervisor Password or User Password.

When the message [The Backup function has been enabled...] appears,

press the

key.

EWhen the message "Select a number" is displayed, press the

key and

perform [2. [Erase HDD]].

(You can cancel this operation by pressing the

key.)

The confirmation message will be displayed.

When the message [The Backup function has been enabled...] appears,

press the

key.

When the message [Computer must be rebooted in order to execute

[Erase HDD]] appears, press the

key.

FPress the

key.

Hard Disk Data Erase Utility will start.

GWhen [<<<Start menu>>>] is displayed, press the

Enter

key.

HThe approximate time required for erasing data will be displayed.

Press the

Space

key.

IAt the confirmation message, press the

Enter

key.

The operation of erasing the hard disk starts.

zIf necessary, the “hard disk data erase” operation can be cancelled

after it has begun by pressing the

Ctrl

key.

If the operation is cancelled before being completed, a part of data will

not be erased.

JThe message "Hard disk data has been deleted" will be displayed.

Remove the Product Recovery DVD-ROM, and press any key to shut

down the computer.

zIf a problem occurred during the operation, an error message will be

displayed.

Specifications

zMain Specifications

Model No. CF-W5KWEZZBM

CPU/

Secondary cache memory Intel® Core Solo Processor U1300(1.06GHz) FSB 533MHz

Chip Set Mobile Intel® 945 GMS Express Chipsets (945GMS + ICH7M)

Main Memory 512 MB*1, DDR2 SDRAM (1024 MB*1 Max.)

Video Memory UMA (128 MB*1 Max.)*2

Hard Disk Drive 40 GB*3

DVD-ROM & CD-R/RW Drive USB 2.0 connection interface, Buffer underrun error prevention function: Supported

Continuous Data Transfer Speed*4*5/

Playback

zDVD-RAM*6: 2X speed (4.7 GB*3)/1X speed (2.6 GB*3) zDVD-R*7: 4X speed (Max.)

zDVD-RW: 4X speed (Max.) zDVD-ROM*8: 8X speed (Max.) zCD-ROM*8: 24X speed

(Max.) zCD-R*8: 24X speed (Max.) zCD-RW*8: 24X speed (Max.) z+R: 4X speed

(Max.) z+R DL: 4X speed (Max.) z+RW: 4X speed (Max.)

Continuous Data Transfer Speed*4*5/

Recording

zCD-R write*9: 4X speed, 8X speed, 10-16X speed, 10-24X speed zCD-RW write: 4X

speed zHigh-Speed CD-RW write: 4X speed, 8X speed,10X speed zUltra-Speed CD-

RW write: 10X speed, 10-16X speed, 10-24X speed

Compatible Disk and Compatible For-

mats*5/Playback

zDVD-ROM (Single Layer, Dual Layer) zDVD-Video zDVD-R*7(1.4 GB, 3.95 GB, 4.7

GB)*3 zDVD-RW (Ver.1.1/1.2 1.4 GB, 4.7 GB, 9.4 GB)*3 zDVD-RAM*6 (1.4 GB, 2.8 GB,

2.6 GB, 5.2 GB, 4.7 GB, 9.4 GB)*3 z+R (4.7 GB)*3 z+R DL (8.5 GB)*3 z+RW (4.7 GB)*3

zCD-Audio zCD-ROM (XA compatible) zCD-R zPhoto CD (multiple session compati-

ble) zVideoCD zCD-EXTRA zCD-RW zCD-TEXT

Compatible Disks and Compatible For-

mats*5/Recording zCD-R zCD-RW

Display Method 12.1 XGA type (TFT) (1024 × 768 dots)

Internal LCD Display 65,536/16,777,216 colors (1024 × 768 dots)*10

External Display*11 65,536/16,777,216 colors (800 × 600 dots/1024 × 768 dots/1280 × 768 dots/1280 ×

1024 dots/1600 × 1200 dots/2048 × 1536 dots)

Simultaneous Display on LCD + Exter-

nal Display*11 65,536/16,777,216 colors (800 × 600 dots, 1024 × 768 dots)*10

Wireless LAN Intel® PRO/Wireless 3945 ABG PCIe minicard (Golan) (Îpage 64)

LAN*12 IEEE 802.3 10Base-T, IEEE 802.3u 100Base-TX

Modem Data: 56 kbps (V.92) FAX: 14.4 kbps

Sound WAVE and MIDI playback, Monaural Speaker (built in)

Card Slots PC Card Slot × 1: (One Type I or Type II, Allowable current 3.3 V: 400 mA, 5 V: 400 mA)

SD Memory Card Slot*13 × 1

RAM Module Slot DDR2 SDRAM, 172-pin, 1.8 V, Micro DIMM, PC2-3200 Compliant*14

Interface

USB Ports × 2（USB2.0 × 2）*15 / Modem Port（RJ-11）/ LAN Port（RJ-45）*12 /

External Display Port: Mini Dsub 15-pin female / Microphone Jack: Miniature jack, 3.5

DIA / Headphone Jack: Miniature jack, 3.5 DIA / Mini Port Replicator connector : Dedi-

cated 50-pin male

Keyboard/Pointing Device 83 keys/Touch Pad

Power AC adaptor or Battery pack

AC Adaptor*16 Input: 100 V - 240 V AC, 50 Hz/60 Hz

Output: 16 V DC, 2.5 A

Battery Pack Li-ion 7.4 V, 7.8 Ah

Operating Time*17 Approx. 4 hours - 7.5 hours*18 (Approx. 5.5 hours*19) (Disable Economy Mode (ECO))

Charging Time*20 Approx. 5 hours (Power off)/Approx. 6.5 hours (Power on)

tant In

mation

*1 1 MB = 1,048,576 bytes

*2 A segment of the main memory is allotted automatically depending on the computer’s operating status. The size of the Video

Memory cannot be set by the user.

*3 1 GB = 1,000,000,000 bytes. Operating system or some application software will report as fewer GB.

*4 Data transfer speeds indicate values measured by Matsushita Electric Industrial Co., Ltd. The data transfer rate of DVD per 1X

speed is 1,350 KB/s. The data transfer rate of CD per 1X speed is 150 KB/s.

*5 Performance of CD-R, CD-RW, DVD-RAM, DVD-R, DVD-RW, +R, +R DL, and +RW cannot be guaranteed depending on writing

status and recording format. Also, some data cannot be played back depending on the disk, settings, and environment being

used.

*6 In the case of DVD-RAM, only non-cartridge disks or removable cartridge disks can be used.

*7 DVD-R is compatible with 4.7 GB (for General) playback. DVD-R (for Authoring) playback is compatible with disks recorded

using Disk-at-Once recording.

*8 If an unbalanced disk (e.g., a disk with which the balance has been displaced from the center) is inserted, the speed may become

slower if there are large vibrations while the disk is rotating.

*9 Depending on the disk, the writing speed may become slower.

*10 A 16,777,216 color display is achieved by using the dithering function.

*11 Display may be impossible using some connected external displays.

*12 Some devices cannot be used depending on the port type.

*13 Operation has been confirmed for Panasonic SD memory cards with up to 2 GB capacity. The transfer rate using the SD memory

card slot on this computer is 8 MB per second (this is a theoretical value, and differs from actual speeds). The transfer rate is 8

MB per second even if you use an SD memory card that supports high-speed transfer rates. Does not guarantee connection/

operation of all SD devices. Does not support MultiMedia card. Do not insert MultiMedia card.

*14 Only a RAM module designed for DDR2 (PC2-3200) can be added (Panasonic : CF-BAV0256U / CF-BAV0512U).

JEDEC standard 214 pin Micro DIMM cannot be used. PC2100 / PC2700 172 pin Micro DIMM cannot be used.

*15 Does not guarantee operation of all USB-compatible peripherals.

*16 <Only for North America>

The AC adaptor is compatible with power sources up to 240

AC adaptor. This computer is supplied with a 125

AC compatible AC cord.

*17 Varies depending on the usage conditions, CPU speed, etc. Measured value when the power saving function on the USB2.0 USB

Root Hub is set to on. (At the time of purchase, the power saving function is set to off. Îpage 18)

When Economy Mode (ECO) is enabled, the operating time becomes approximately 20% shorter than when it is disabled.

*18 Measured using BatteryMark™ Version 4.0.1 (LCD brightness : Maximum - Minimum).

*19 Measured using MobileMark™ 2002 (LCD brightness : 60 cd/m2).

*20 Varies depending on the usage conditions, CPU speed, etc.

It may take a long time to charge a fully discharged battery.

*21 Approx. 1.5 W when the battery pack is fully charged (or not being charged) and the computer is off.

Power Consumption*21 Approx. 35 W*22 / Approx. 40 W (maximum when recharging in the ON state)

Physical Dimensions (W × H × D) 268 mm × 24.9 mm (at the front)/44.3 mm (at the rear) × 210.4 mm (excluding

protrusion) {10.6 " × 1.0 " / 1.8 " × 8.3 "}

Weight*23 Approx. 1290 g {2.8 lb.}

Environment

Operation Temperature 5°C to 35°C {41°F to 95°F}

Humidity 30% to 80% RH (No condensation)

Storage Temperature -20°C to 60°C {-4°F to 140°F}

Humidity 30% to 90% RH (No condensation)

OS*24 Microsoft® Windows® XP Professional with Service Pack 2 with Advanced Security

Technologies (NTFS File system)

Pre-installed Software*24

Microsoft® Internet Explorer 6 Service Pack 2 / DirectX 9.0 c /

Microsoft® Windows® Media Player 10 / Microsoft® Windows® Movie Maker 2.1 /

Microsoft® .NET Framework 1.1 / Adobe Reader / Intel® PROSet/Wireless Software

<Only for models with wireless LAN> / SD Utility / Icon Enlarger / Loupe Utility / Touch

Pad Utility / DMI Viewer / PC Information Viewer / WinDVD™5 (OEM Version) / B’s

Recorder GOLD8 BASIC / B’s CLiP 6*25 / Hotkey Settings / Optical Disc Drive Power-

Saving Utility / Wireless LAN Switch Utility <Only for models with wireless LAN> / Econ-

omy Mode (ECO) Setting Utility / Battery Recalibration Utility

Setup Utility / Hard Disk Data Erase Utility*26 / Hard Disk Backup Utility*26

zMain Specifications

Model No. CF-W5KWEZZBM

Specifications

Important Information

*22 Rated power consumption.

*23 Average value. May differ depending on models.

*24 Operations of this computer are not guaranteed except for the pre-installed OS.

*25 Preinstalled B’s CLiP does not support CD-R.

*26 The Product Recovery DVD-ROM is required.

*27 These are speeds specified in IEEE802.11a+b+g standards. Actual speeds may differ.

zWireless LAN <Only for models with wireless LAN>

Data Transfer Rates

IEEE802.11a: 54/48/36/24/18/12/9/6 Mbps (automatically switched)*27

IEEE802.11b: 11/5.5/2/1 Mbps (automatically switched)*27

IEEE802.11g: 54/48/36/24/18/12/9/6 Mbps (automatically switched)*27

Standard Supported IEEE802.11a/IEEE802.11b/IEEE802.11g

Transmission Method OFDM system, DS-SS system

Wireless Channels Used IEEE802.11a: Channels 36/40/44/48/52/56/60/64/149/153/157/161/165

IEEE802.11b/ IEEE802.11g: Channels 1 to 11

RF Frequency Band IEEE802.11a: 5.18 - 5.32 GHz, 5.745 - 5.825 GHz

IEEE802.11b/ IEEE802.11g: 2412 - 2462 MHz

Index

Also, refer to onscreen Reference Manual. Some explanations that are not described in this manual may be described

in onscreen Reference Manual. (Îpage 12)

Antivirus Measures ........... 39

Battery Indicator................ 15

Dealing with Problems

.................................... 49

Caps Lock ........................ 15

Clicking ............................ 25

Display

Dealing with Problems

.................................... 47

Display Change ...........26

LCD Brightness Control

.................................... 26

Double-Clicking ................ 25

Double-Tapping ............... 25

Dragging .......................... 25

DVD-ROM & CD-R/RW Drive

.......................................... 41

Indicator.......................15

Usage Precautions ......11

Emergency Hole .............. 41

Hard Disk Drive Indicator . 15

Important Tips .................. 12

Maintenance .................... 35

Notification Area .............. 22

NumLk ............................. 15

Password (Dealing with Prob-

lems) ................................ 46

Peripheral Devices .......... 42

Popup Window ................ 26

Power Indicator ................ 15

RAM Module (Dealing with

Problems) ........................ 49

Reference Manual ........... 12

Dealing with Problems

.................................... 49

Reinstalling B’s Recorder/B’s

CLiP (Dealing with Problems)

.......................................... 49

Right-Click ....................... 25

ScrLk Indicator .................15

Scroll ................................25

SD Memory Card Indicator

......................................... 15

Setup Utility ...................... 29

Speaker On/Off Switch

..........................................26

Starting Up (Dealing with

Problems) .........................44

Tapping ............................25

Volume Control .................26

Windows Update ..............40

Memo

Matsushita Electric Industrial Co., Ltd.

Web Site : http://www.panasonic.co.jp/global

Printed in Japan

SS0905-1046

DFQX5574ZB

Outline of the International

NERGY

TAR® Office Equipment Program

The international

NERGY

TAR® Office Equipment Program is an international program

that promotes energy saving through the use of computers and other office equipment.

The program backs the development and dissemination of products with functions that

effectively reduce energy consumption. It is an open system in which business proprietors

can participate voluntarily. The targeted products are office equipment such as computers,

displays, printers, facsimiles, and copiers. Their standards and logos are uniform among

participating nations.

As an

NERGY

TAR® Partner, Matsushita Electric Industrial Co., Ltd. has

determined that this product meets the

NERGY

TAR® guidelines for energy

efficiency.

Index.fm 68 ページ２００６年４月５日水曜日午後１時５１分

Panasonic of North America 9TGCF-W52 CF-W5 Notebook Computer with WLAN(a+b+g) and HSDPA User Manual Operating Instructions

Panasonic Corporation of North America CF-W5 Notebook Computer with WLAN(a+b+g) and HSDPA Operating Instructions

Contents

User Manual CF W5

Navigation menu

Namespaces

Views

Navigation
