Panasonic of North America HX-A1M Wearable Camera User Manual
Panasonic Corporation of North America Wearable Camera
Users Manual.pdf
Basic Owner’s Manual
Wearable Camera
Model No. HX-A1M
More detailed operating instructions are available in “Owner’s Manual (PDF format)”. To read it,
download it from the website.
https://eww.pavc.panasonic.co.jp/hdw/oi/A1/
≥Click the desired language.
* You will need Adobe Reader to browse or print the Owner’s Manual (PDF format).
You can download and install a version of Adobe Reader that you can use with your OS from
the following website. (As of March 2015)
http://www.adobe.com/products/acrobat/readstep2.html
SQT0885
until
2015/4/20
Please read these instructions carefully before using
this product, and save this manual for future use.
Register online at www.panasonic.com/register (U.S. customers only)
If you have any questions, visit :
U.S.A. : www.panasonic.com/support
Canada : www.panasonic.ca/english/support
HX-A1M-SQT0885_mst.book 1 ページ ２０１５年３月６日 金曜日 午後８時１２分
2
SQT0885 (ENG)
Dear Customer,
Thank you for choosing Panasonic!
You have purchased one of the most
sophisticated and reliable products on the
market today. Used properly, we’re sure it
will bring you and your family years of
enjoyment. Please take time to fill in the
information on the right.
The serial number is on the tag located on
the side of the terminal section of your
camera. Be sure to retain this manual as
your convenient camera information
source.
Safety Precautions
WARNING:
To reduce the risk of fire, electric shock or product damage,
≥Do not let water or other liquids drip or splash inside the unit.
≥Do not expose accessories (battery pack, battery charger, AC adaptor, SD memory card and
etc.) to rain, moisture, dripping or splashing.
≥Do not place objects filled with liquids, such as vases, on accessories.
≥Use only the recommended accessories.
≥Do not remove covers.
≥Do not repair this unit by yourself. Refer servicing to qualified service personnel.
CAUTION!
To reduce the risk of fire, electric shock or product damage,
≥Do not install or place this unit in a bookcase, built-in cabinet or in another confined space.
Ensure this unit is well ventilated.
≥Do not obstruct this unit’s ventilation openings with newspapers, tablecloths, curtains, and
similar items.
≥Do not place sources of naked flames, such as lighted candles, on this unit.
Date of Purchase
Dealer Purchased From
Dealer Address
Dealer Phone No.
Model No.
Serial No.
HX-A1M-SQT0885_mst.book 2 ページ ２０１５年３月６日 金曜日 午後８時１２分
3
(ENG) SQT0885
THE FOLLOWING APPLIES ONLY IN THE U.S.A.
THE FOLLOWING APPLIES ONLY IN CANADA.
FCC Note:
This equipment has been tested and found to comply with the limits for a Class B digital device,
pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection
against harmful interference in a residential installation. This equipment generates, uses, and can
radiate radio frequency energy and, if not installed and used in accordance with the instructions,
may cause harmful interference to radio communications. However, there is no guarantee that
interference will not occur in a particular installation. If this equipment does cause harmful
interference to radio or television reception, which can be determined by turning the equipment off
and on, the user is encouraged to try to correct the interference by one or more of the following
measures:
≥Reorient or relocate the receiving antenna.
≥Increase the separation between the equipment and receiver.
≥Connect the equipment into an outlet on a circuit different from that to which the receiver is
connected.
≥Consult the dealer or an experienced radio/TV technician for help.
FCC Caution: To assure continued compliance, follow the attached installation
instructions and use only shielded interface cables with ferrite
core when connecting to computer or peripheral devices.
Any changes or modifications not expressly approved by the party responsible for compliance
could void the user’s authority to operate this equipment.
Declaration of Conformity
Trade Name: Panasonic
Model No.: HX-A1M
Responsible Party: Panasonic Corporation of North America
Two Riverfront Plaza, Newark, NJ 07102-5490
Support Contact: http://www.panasonic.com/contactinfo
This device complies with Part 15 of the FCC Rules. Operation is subject to the following two
conditions: (1) This device may not cause harmful interference, and (2) this device must accept
any interference received, including interference that may cause undesired operation.
CAN ICES-3(B)/NMB-3(B)
HX-A1M
HX-A1M-SQT0885_mst.book 3 ページ ２０１５年３月６日 金曜日 午後８時１２分
4
SQT0885 (ENG)
THE FOLLOWING APPLIES ONLY IN THE U.S.A.
THE FOLLOWING APPLIES ONLY IN CANADA.
FCC ID : ACJ-HX-A1M
FCC CAUTION
Changes or modifications not expressly approved by the party responsible for compliance could
void the user's authority to operate the equipment.
This transmitter must not be co-located or operated in conjunction with any other antenna or
transmitter.
The available scientific evidence does not show that any healthproblems are associated with
using low power wireless devices. There is no proof, however, that these low power wireless
devices are absolutely safe. Low power Wireless devices emit low levels of radio frequency
energy (RF) in the microwave range while being used. Whereas high levels of RF can produce
health effects (by heating tissue), exposure of low-level RF that does not produce heating effects
causes no known adverse health effects. Many studies of low-level RF exposures have not
found any biological effects. Some studies have suggested that some biological effects might
occur, but such findings have not been confirmed by additional research. HX-A1M has been
tested and found to comply with FCC radiation exposure limits set forth for an uncontrolled
environment and meets the FCC radio frequency(RF) Exposure Guidelines.
IC : 216A-HXA1M
This device complies with RSS-210 of the IC Rules.
Operation is subject to the following two conditions:
(1)This device may not cause harmful interference,
(2)This device must accept any interference received,
including interference that may cause undesired operation of the device.
The available scientific evidence does not show that any healthproblems are associated with
using low power wireless devices. There is no proof, however, that these low power wireless
devices are absolutely safe. Low power Wireless devices emit low levels of radio frequency
energy (RF) in the microwave range while being used. Whereas high levels of RF can produce
health effects (by heating tissue), exposure of low-level RF that does not produce heating
effects causes no known adverse health effects. Many studies of low-level RF exposures have
not found any biological effects. Some studies have suggested that some biological effects
might occur, but such findings have not been confirmed by additional research. HX-A1M has
been tested and found to comply with IC radiation exposure limits set forth for an uncontrolled
environment and meets RSS-102 of the IC radio frequency (RF) Exposure rules.
U.S.A./CANADA CONSUMERS: ATTENTION:
A lithium ion battery that is recyclable powers the product
you have purchased. Please call 1-800-8-BATTERY for
information on how to recycle this battery.
HX-A1M-SQT0885_mst.book 4 ページ ２０１５年３月６日 金曜日 午後８時１２分
5
(ENG) SQT0885
∫Cautions for use
Keep this unit as far away as possible from
electromagnetic equipment (such as
microwave ovens, TVs, video games etc.).
≥If you use this unit on top of or near a TV, the
pictures and/or sound on this unit may be
disrupted by electromagnetic wave radiation.
≥Do not use this unit near cell phones because
doing so may result in noise adversely
affecting the pictures and/or sound.
≥Recorded data may be damaged, or pictures
may be distorted, by strong magnetic fields
created by speakers or large motors.
≥Electromagnetic wave radiation generated by
microprocessors may adversely affect this
unit, disturbing the pictures and/or sound.
≥If this unit is adversely affected by
electromagnetic equipment and stops
functioning properly, press the reset button.
Do not use this unit near radio transmitters
or high-voltage lines.
≥If you record near radio transmitters or
high-voltage lines, the recorded pictures and/
or sound may be adversely affected.

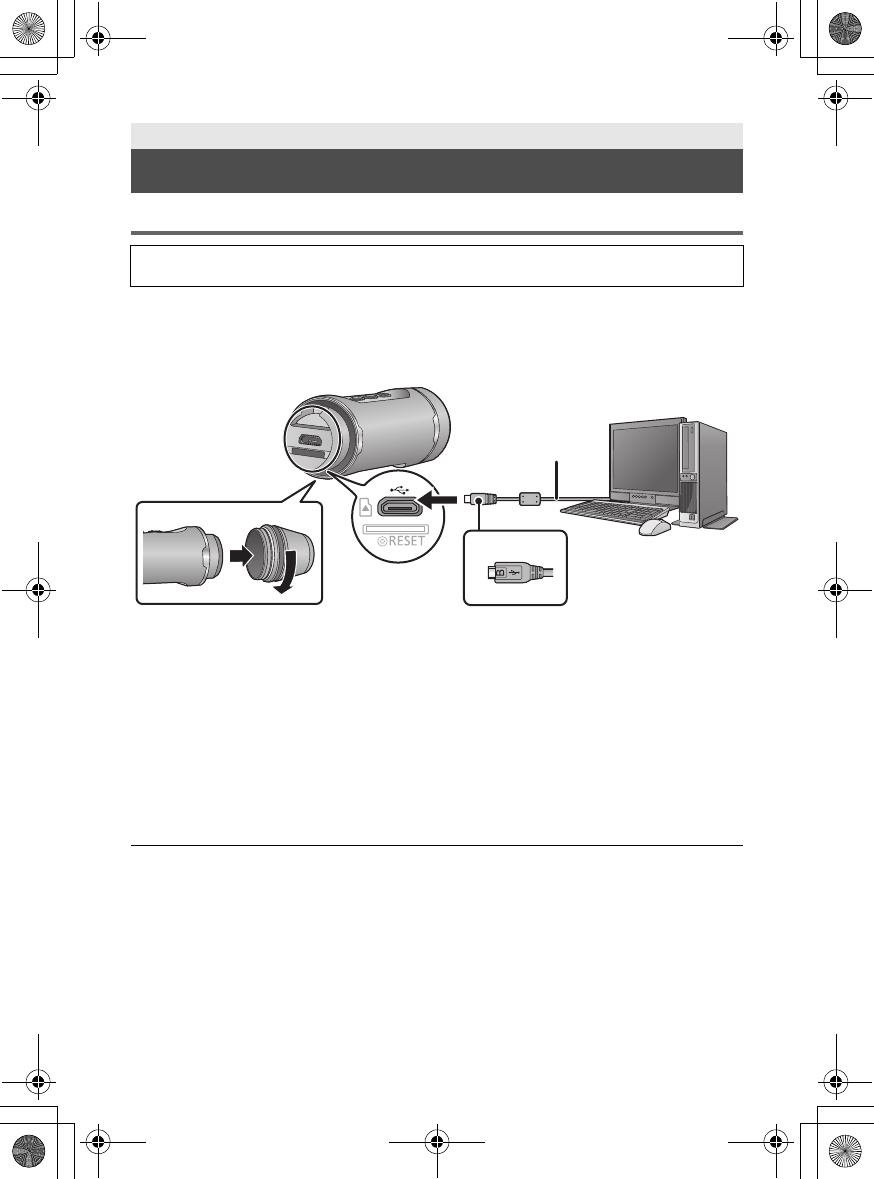

About connecting to a PC
≥Do not use any other USB cables except the
supplied one.
Make sure to use the supplied cable.
Do not extend the cable.
Do not spray insecticides or volatile
chemicals onto this unit.
≥If this unit is sprayed with such chemicals, its
body may be marred and the surface finish
may peel off.
≥Do not leave rubber or plastic products in
contact with this unit for a long time.
Cleaning
≥Before cleaning, pull the USB cable from the
PC, and then wipe this unit with a soft, dry
cloth.
≥If this unit is very dirty, dip a cloth in water and
squeeze firmly, and then wipe this unit with
the damp cloth. Next, dry this unit with a dry
cloth.
≥Use of benzine, paint thinner, alcohol, or
dishwashing liquid may alter the camera body
or peel the surface finish. Do not use these
solvents.
≥When using a chemical dust cloth, follow the
instructions that came with the cloth.
When you are not going to use this unit for
an extended time
≥Store this unit in a cool place with minimal
humidity, and with a constant temperature
where possible (recommended temperature:
15 oC to 25 oC (59 oF to 77 oF), recommended
humidity: 40%RH to 60%RH).
≥Always remove the card from this unit.
≥When storing this unit for an extended time, it
is recommended that you charge it once
every year.
≥The battery discharges slowly even if this unit
is not used. The remaining battery level will
decrease when this unit is not used for an
extended time.
≥When storing this unit in a cupboard or
cabinet, it is recommended that you place a
desiccant (silica gel) in with it.
About the battery
The battery used in this unit is a
rechargeable lithium-ion battery. It is
susceptible to humidity and temperature
and the effect increases the more the
temperature rises or falls.
If the operating time is very short even after
the battery has been recharged, the battery
has worn out.

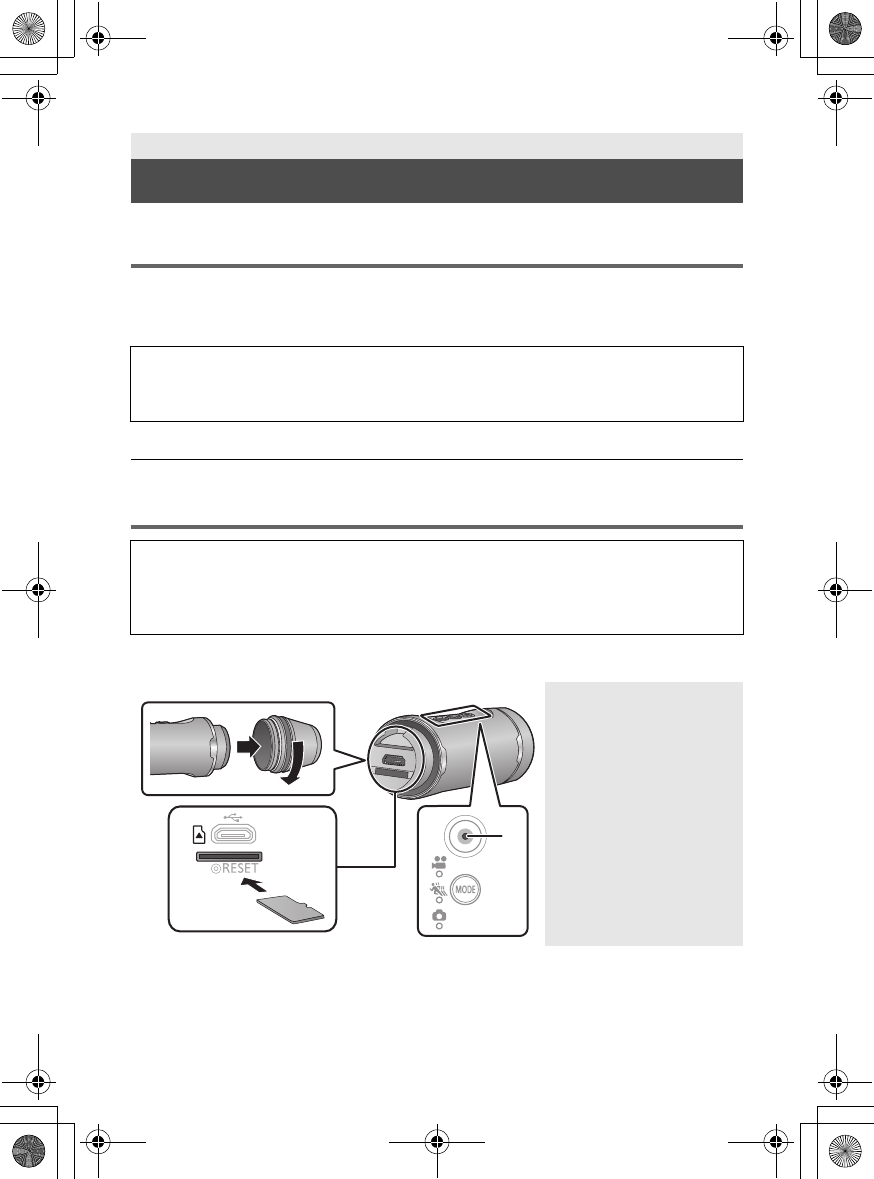

About the microSD card
When the microSD card is being accessed
(when the access lamp is lit), do not perform
the following:
jRemove the microSD card
jTurn the unit off
jInsert and remove the USB cable
jExpose the unit to vibrations or shock
≥Keep the glasscover, terminal cover
(waterproof) and terminal cover (USB
connect) out of reach of children to prevent
swallowing
This unit and the microSD card become
warm during use. This is not a
malfunction.
HX-A1M-SQT0885_mst.book 5 ページ ２０１５年３月６日 金曜日 午後８時１２分
6
(ENG) SQT0885
Preparation
(Important) About the Waterproof/
Dustproof and Anti-shock Performance
of this unit.................................................. 7
When using in a cold climate or at low
temperatures ........................................... 10
Read this first .......................................... 11

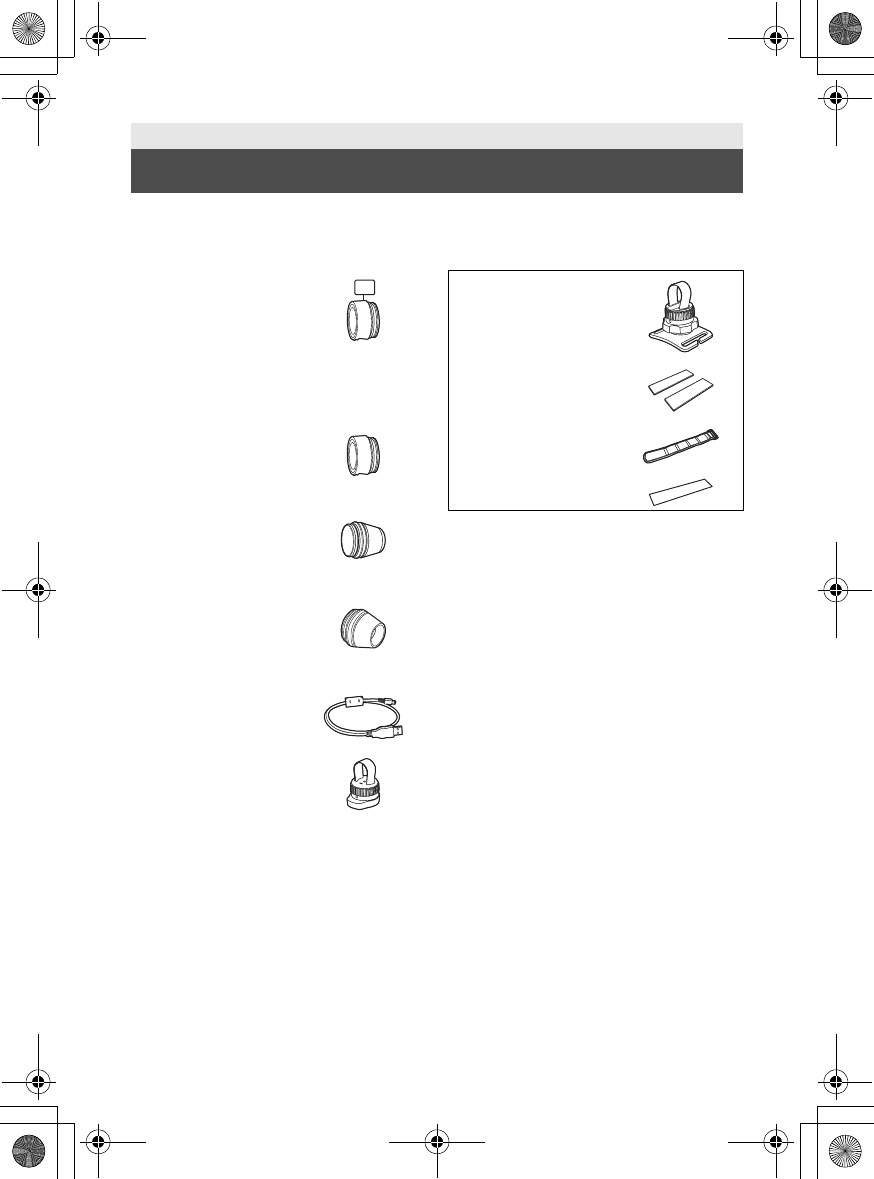

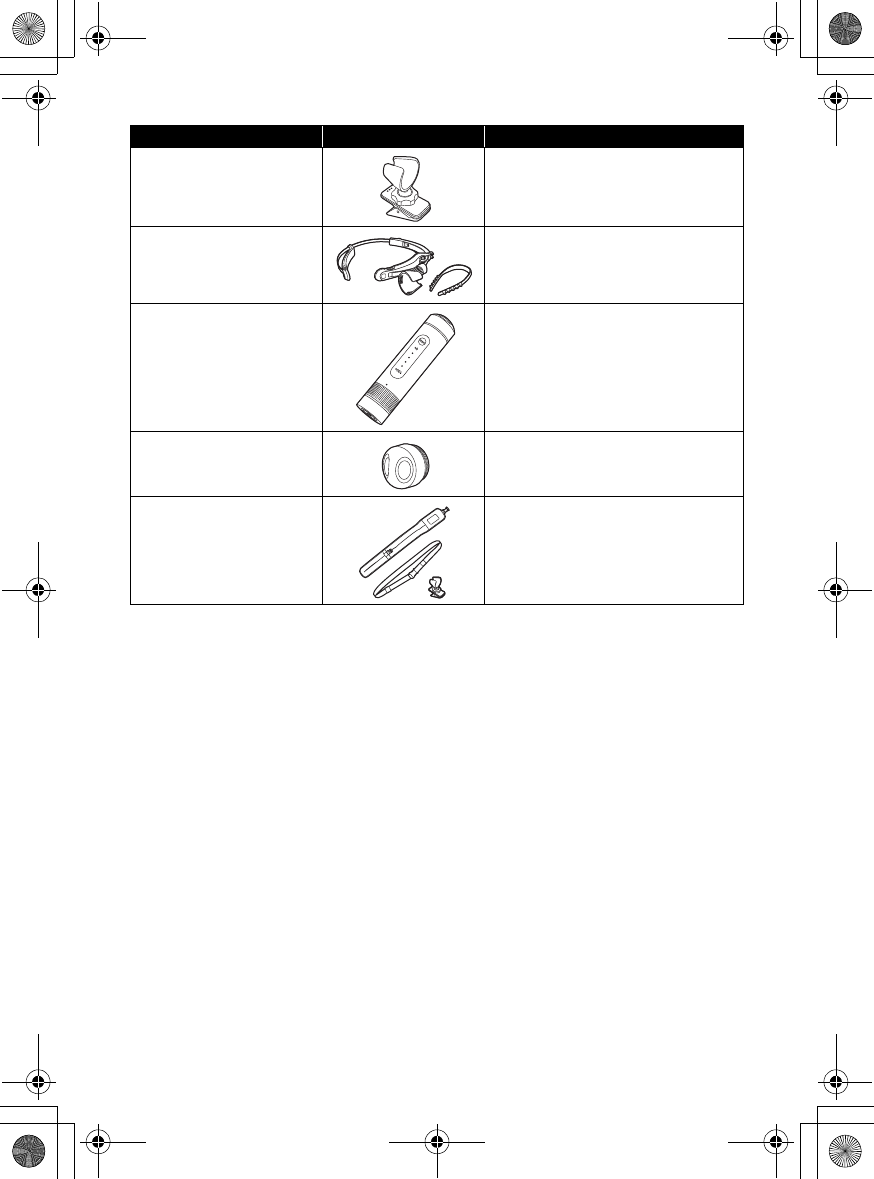

Accessories.............................................12
Power supply........................................... 13
Charging the battery ......................... 13
Charging and recording time............. 14
Recording to a card ................................ 15
Cards that you can use with this unit
. 15
Inserting/removing a microSD card... 15
Turning this unit on/off........................... 16
About overheat detection .................. 16
About battery level indications .......... 16
Wi-Fi® function ........................................ 17
Install the “Image App” ...................... 18
Connecting to a smartphone .................19
Setting up a Wi-Fi connection to a
smartphone ....................................... 19
Setting up this unit ................................. 19
Setting date and time ........................ 20
Initialising the network settings ......... 20

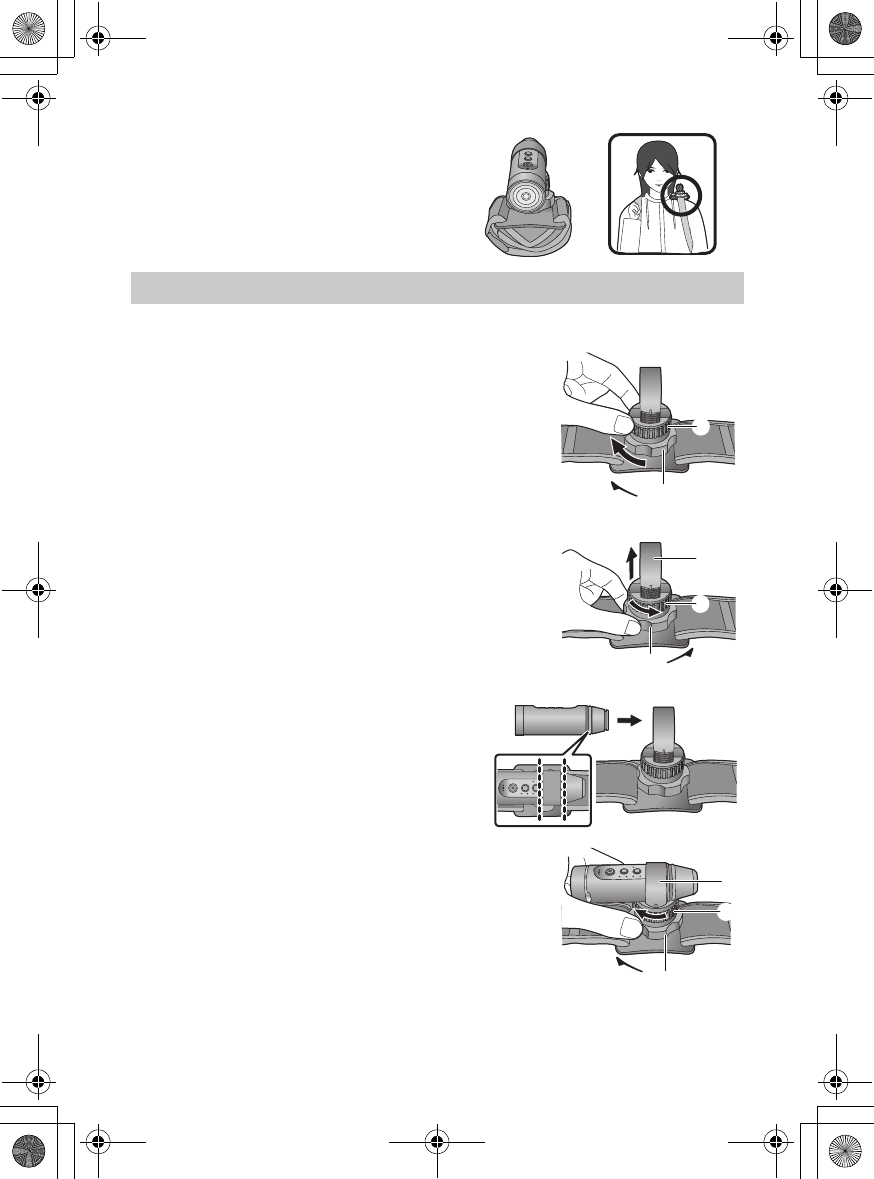

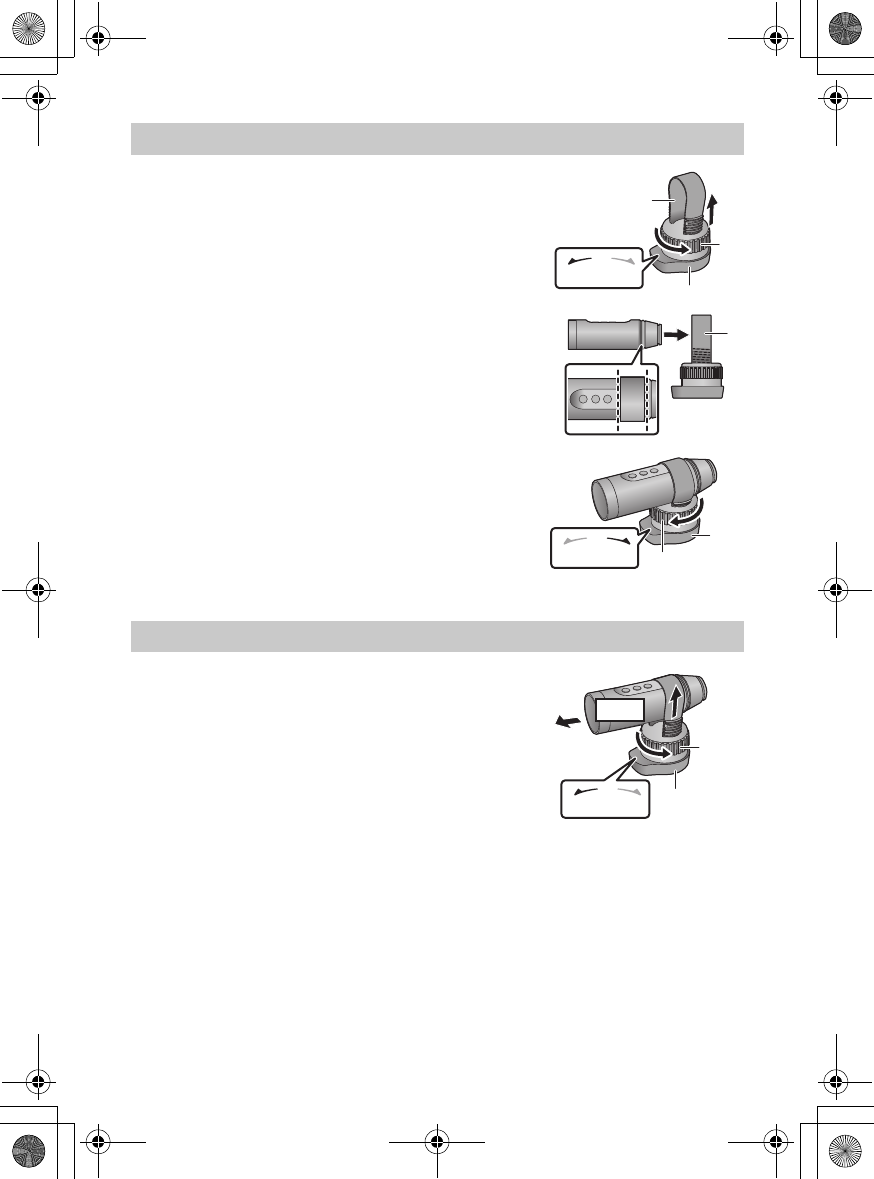

Attaching this unit to a Multi Mount or
Tripod Mount ........................................... 21

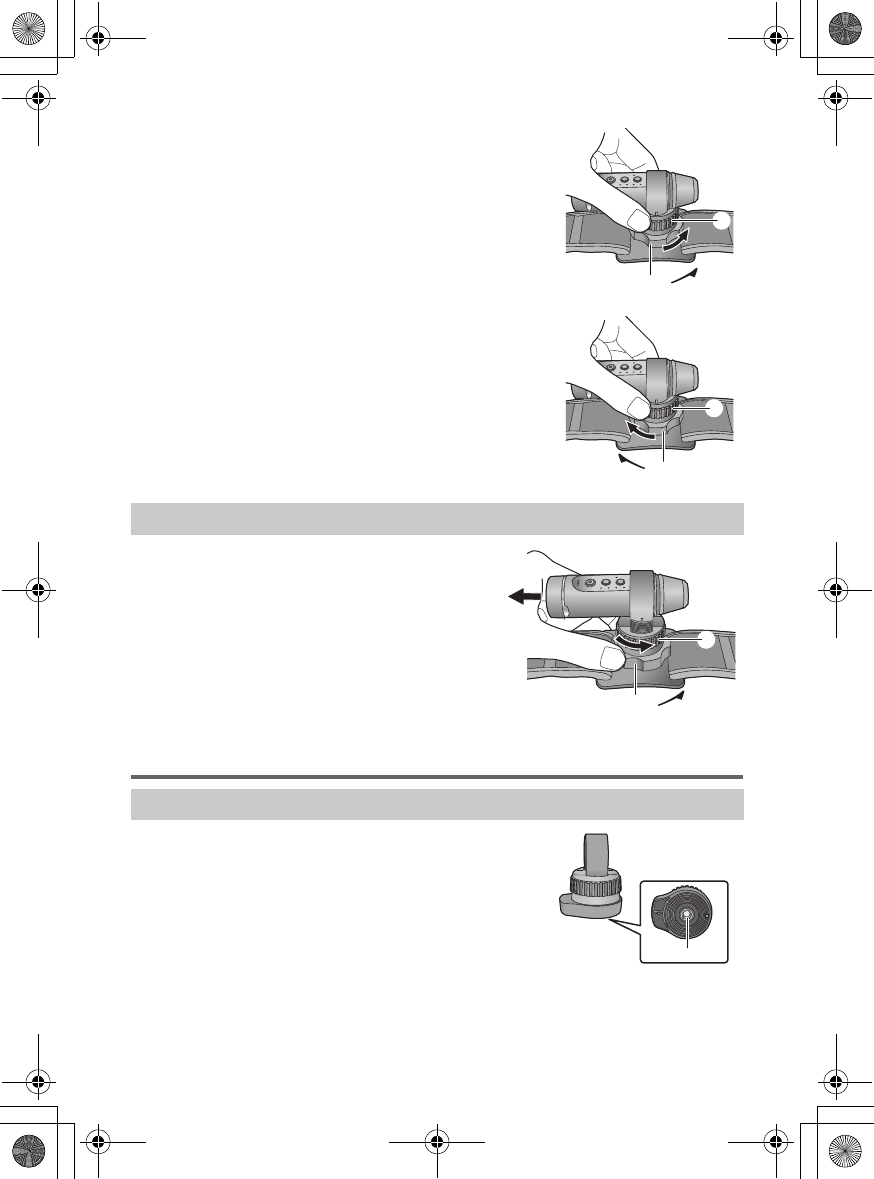

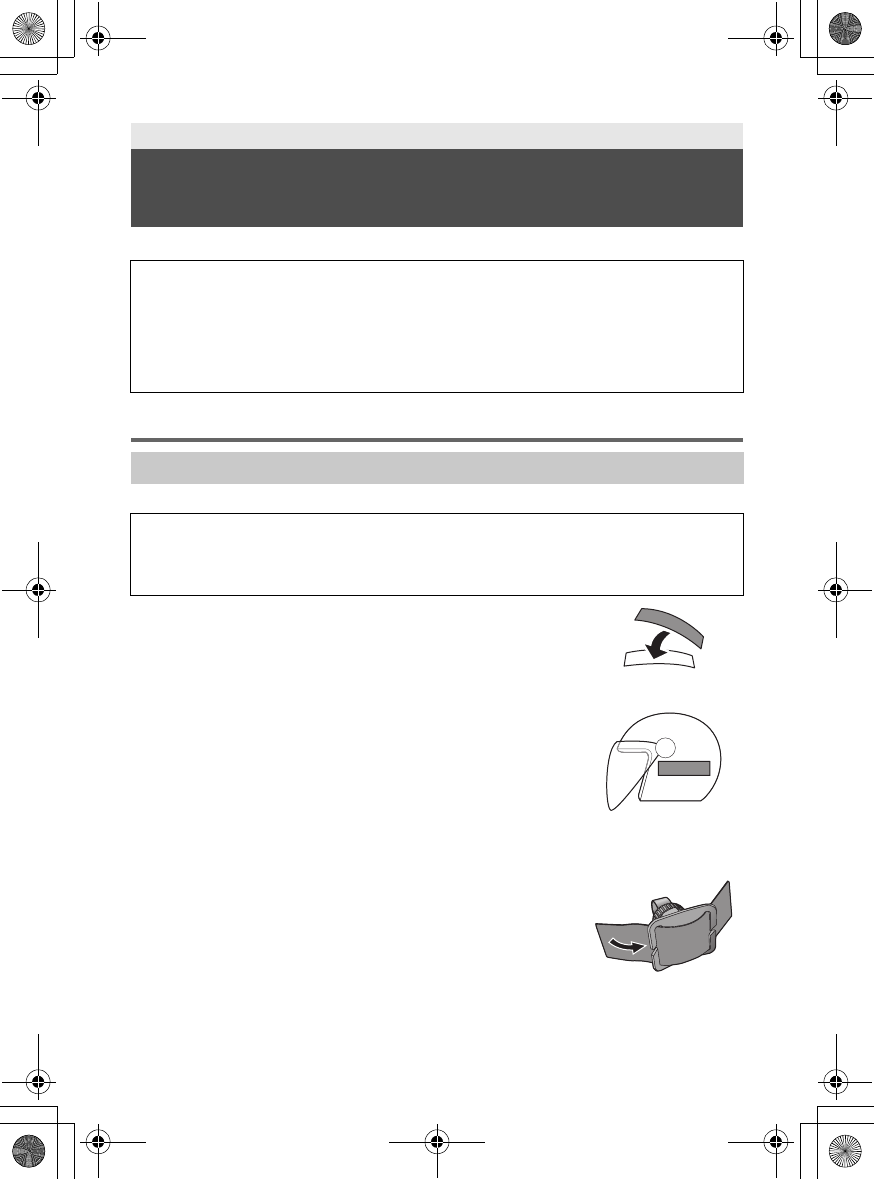

Using a Multi Mount .......................... 21
Using a Tripod Mount ........................ 24
Basic
Recording ................................................26
Check before recording..................... 26

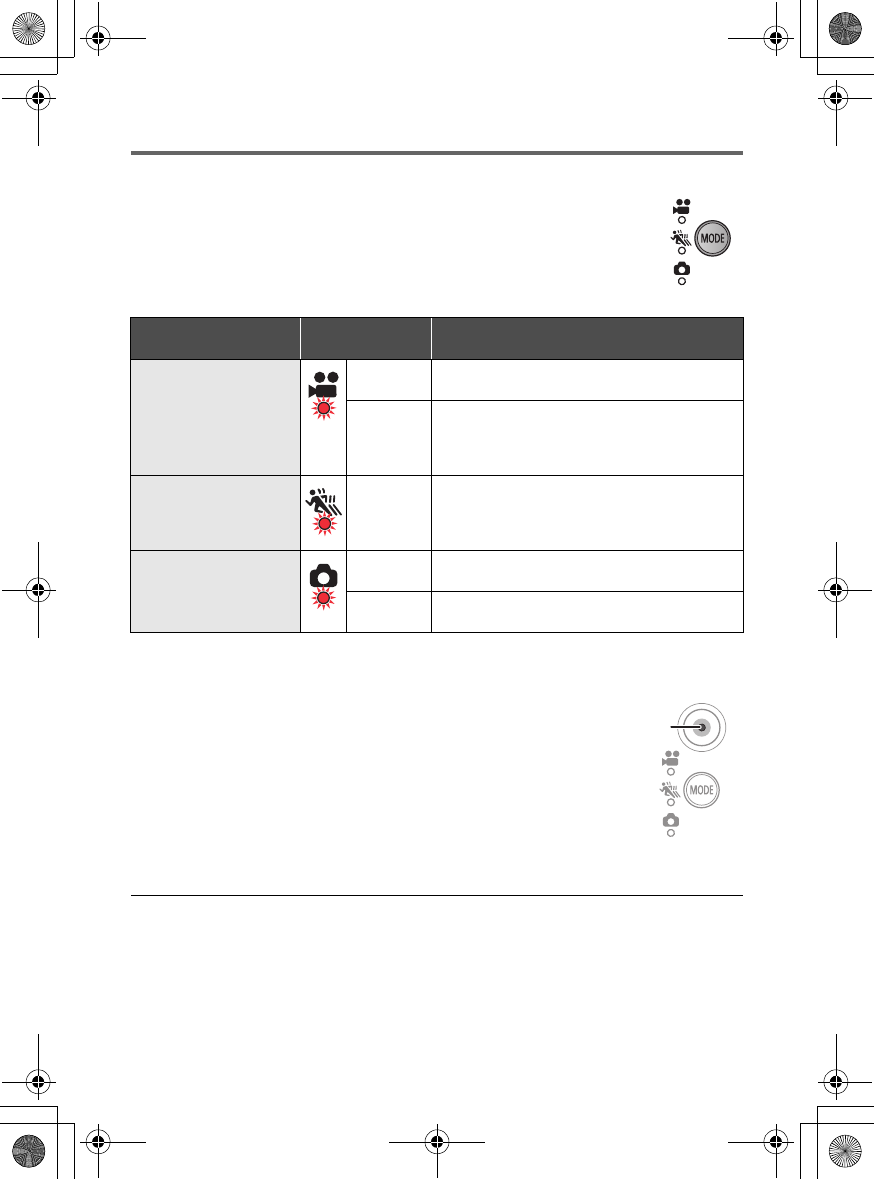

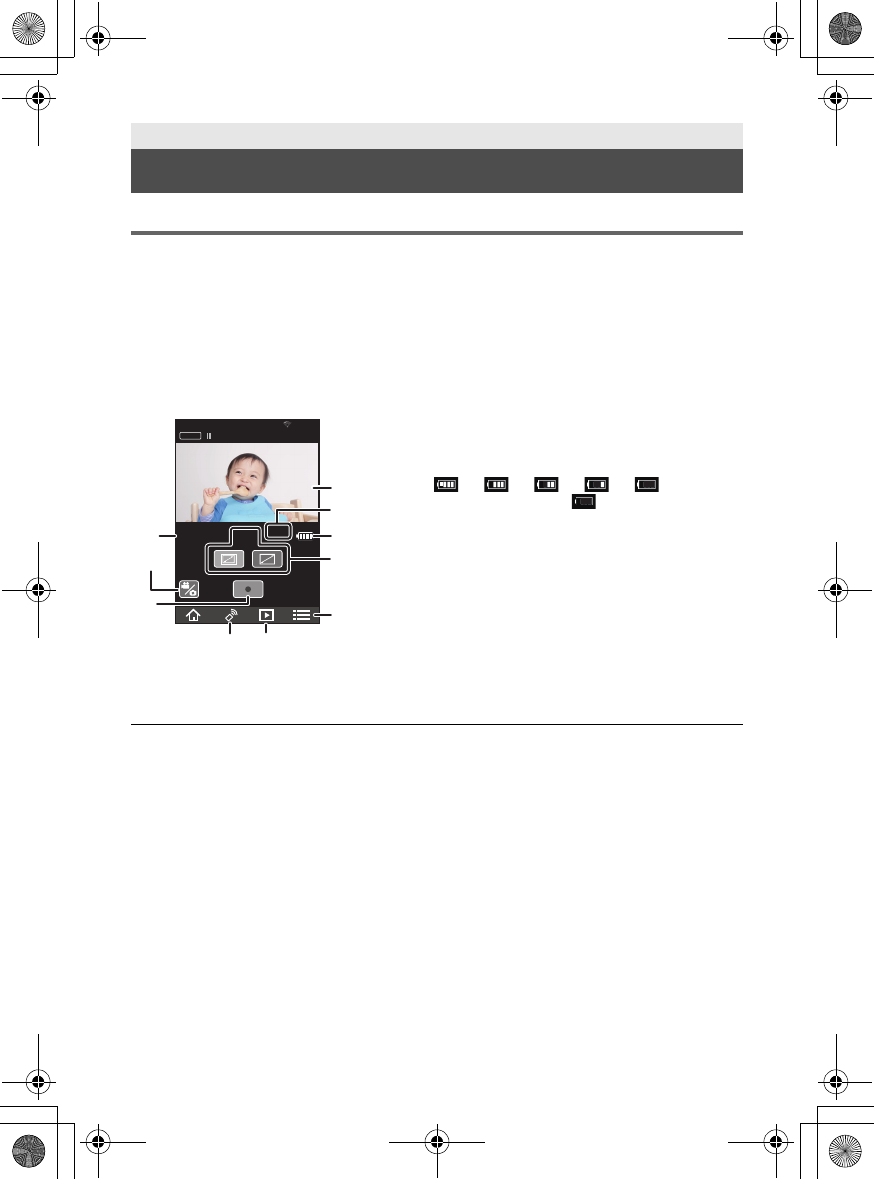

Recording with this unit ..................... 27

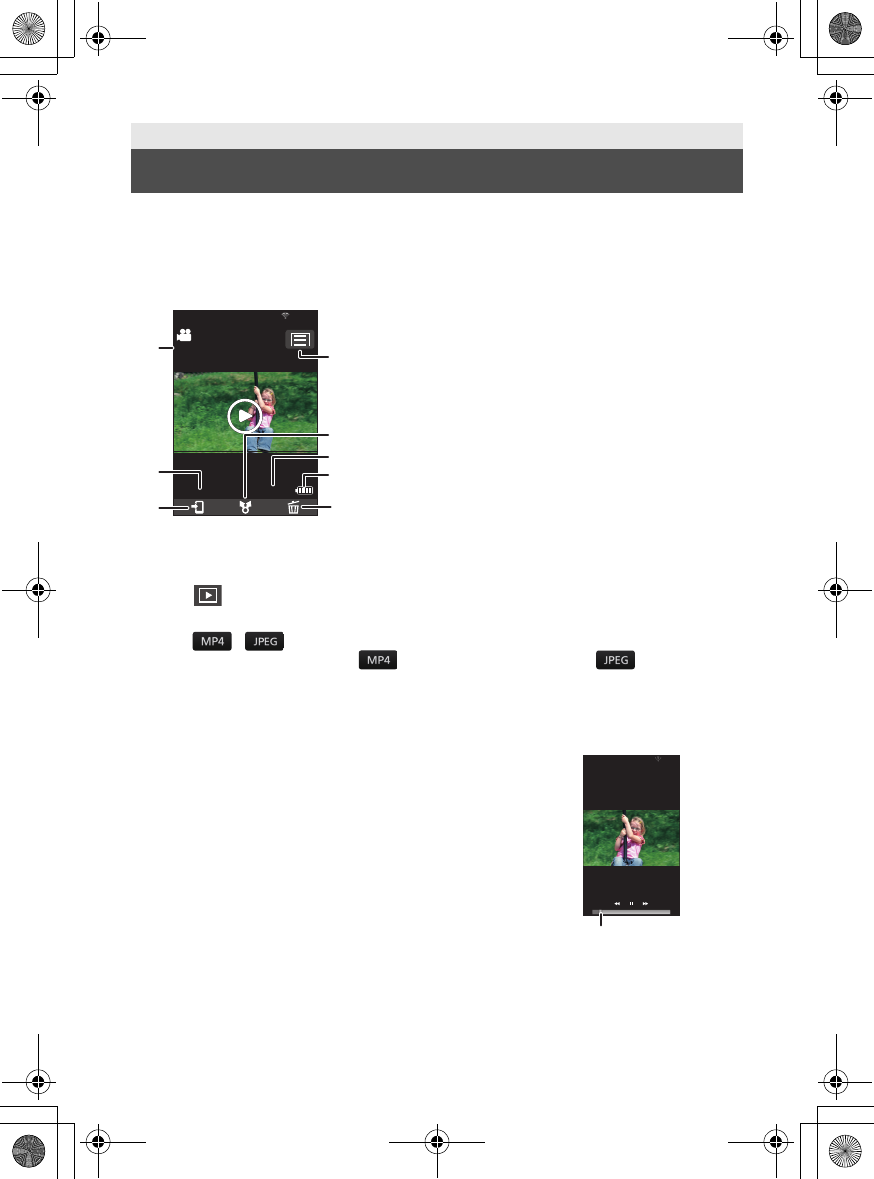

Playback ..................................................28
Others
Troubleshooting ..................................... 29
Requests when disposing of this unit .. 30
Specifications ......................................... 32
About copyright ...................................... 34

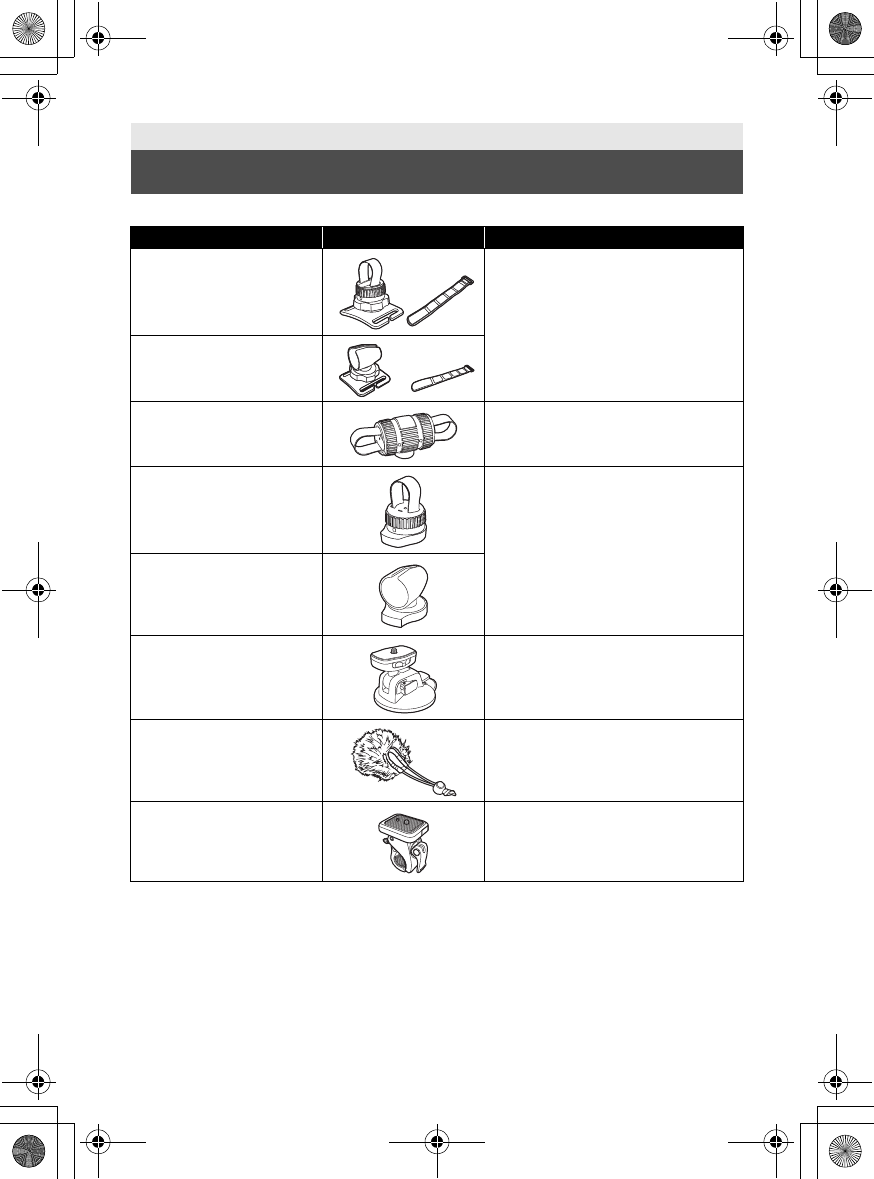

Optional accessories ............................. 36
Accessory Order Form
(For USA Customers) ....................... 38
Limited Warranty (ONLY FOR U.S.A.) ... 39
Warranty (For Canadian Customers) .... 41
Contents
HX-A1M-SQT0885_mst.book 6 ページ ２０１５年３月６日 金曜日 午後８時１２分
7
(ENG) SQT0885
This does not guarantee no destruction, no malfunction, or waterproofing in all conditions.
*1 This means that this unit can be used underwater for specified time in specified pressure in
accordance with the handling method established by Panasonic.
*2 “MIL-STD 810F Method 516.5-Shock” is the test method standard of the U.S. Defense
Department, which specifies performing drop tests from a height of 122 cm, at 26 orientations
(8 corners, 12 ridges, 6 faces) using 5 sets of devices, and passing the 26 orientation drops
within 5 devices. (If failure occurs during the test, a new set is used to pass the drop orientation
test within a total of 5 devices.)
Panasonic’s test method is based on the above “MIL-STD 810F Method 516.5-Shock”.
However, the drop height was changed from 122 cm to 150 cm dropping onto 3 cm (1.2 q) thick
plyboard. This drop test was passed.
(Disregarding appearance change such as loss of paint or distortion of the part where drop
impact is applied.)
∫Handling of this unit
≥The waterproof performance may be degraded due to the strong water pressure when this unit is
used deeper than 1.5 m (5 feet) underwater.
≥When this unit is splashed with detergent, soap, hot spring, bath additive, sun oil, sun screen,
chemical, etc., wipe it off immediately.
≥Do not rinse with running water, such as tap water.
≥Waterproof function of this unit is for sea water and fresh water only.
≥Any malfunction caused by customer misuse, or mishandling will not be covered by the warranty.
≥
Cards are not waterproof. Do not handle with a wet hand. Also, do not insert wet card into this unit.
≥Do not attach/remove the terminal cover (waterproof) or glasscover when your hands are wet or
water droplets are present on this unit. If water droplets get inside this unit, the terminals may rust
and cause malfunctions. Other types of damage may also result.
≥If you attach/remove the terminal cover (waterproof) or glasscover in a sandy or dusty
place, sand or other foreign objects may adhere to the internal components, threaded
portions (portions of the main unit, terminal cover (waterproof) and glasscover with helical
threads), rubber seals or other parts of this unit. Be extra careful when attaching parts to
Preparation
(Important) About the Waterproof/
Dustproof and Anti-shock
Performance of this unit
Waterproof/Dustproof Performance
This unit’s waterproof/dustproof rating complies with the “IP68” rating. Provided the care
and maintenance guidelines described in this document are strictly followed, this unit
can operate underwater, to a depth not exceeding 1.5 m (5 feet) for a time not exceeding
30 minutes. *1
Anti-shock Performance
This unit has cleared a test conducted by Panasonic, which complies with MIL-STD 810F
Method 516.5-Shock (a drop test performed from a height of 1.5 m (5 feet) onto 3 cm
(1.2 q) thick plywood). *2
Waterproofing is not guaranteed if the unit is subject to an impact as a result of being hit or
dropped etc. If an impact to this unit occurs, it should be inspected (subject to a fee) by a
Panasonic’s Service Centre to verify that the waterproofing is still effective.
HX-A1M-SQT0885_mst.book 7 ページ ２０１５年３月６日 金曜日 午後８時１２分
8
SQT0885 (ENG)
this unit. If foreign objects are caught in it, water may leak in and cause malfunctions and
other problems.
≥Do not leave this unit for a long period of time in places where temperature is very low (at high
altitude etc.) or very high (inside a car under strong sunlight, close to a heater, on the beach, etc.)
waterproof performance may be degraded.
≥The inside of this unit is not waterproof. Water leakage will cause malfunction.
≥If any foreign objects are found on the internal components, threaded portions, rubber
seals or other parts of this unit, remove them with a soft dry cloth.
≥If any liquid such as water droplets are found on the internal components, threaded
portions, rubber seals or other parts of this unit, wipe it off with a soft dry cloth. Do not
attach/remove the terminal cover (waterproof) or glasscover near water, underwater, with
wet hands or when this unit is wet. Doing so may cause water to leak in.
≥The alert sound and shutter sound may be lowered when using this unit. This is for ensuring the
waterproof performance of this unit, and not a malfunction. Attaching/removing the terminal cover
(waterproof) or glasscover will restore the original volume.
≥This unit is not waterproof when the terminal cover (USB connection) is in use. In this case, do
not use this unit underwater or touch it with wet hands.
∫About Condensation (When the lens is fogged up)
Condensation occurs when there is a change in temperature or humidity, such as when the unit is
taken from outside or a cold room to a warm room. Please be careful, as it may cause the lens to
become soiled, moldy, or damaged.
When taking the unit to a place which has a different temperature, if the unit is accustomed to the
room temperature of the destination for about one hour, condensation can be prevented. (When the
difference in temperature is severe, place the unit in a plastic bag or the like, remove air from the
bag, and seal the bag.)
When condensation occurs, turn off this unit, remove the terminal cover (waterproof) and
glasscover, and leave this unit for approximately 2 hours. Once this unit adjusts to the ambient
temperature, the condensation will disappear naturally.

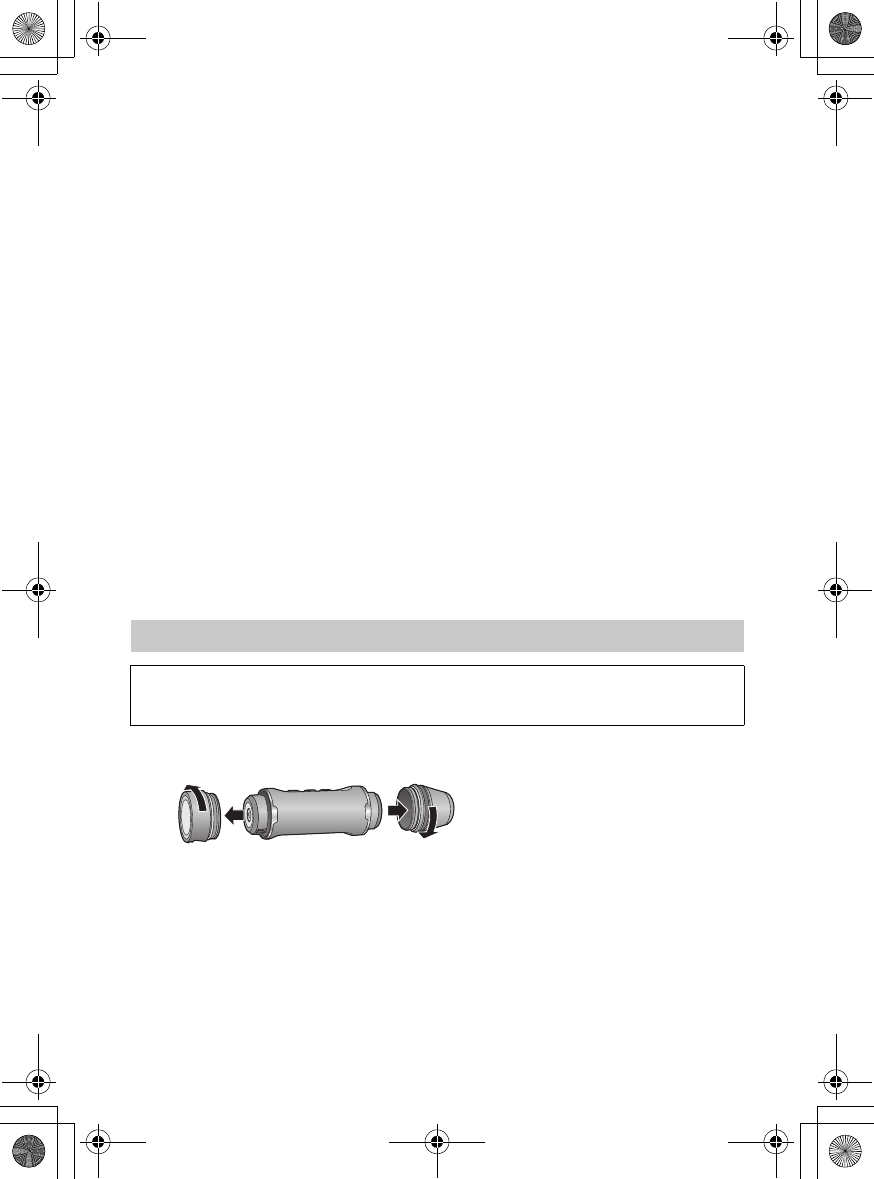

1 Rotate the terminal cover (waterproof) and glasscover in the directions of the
arrows to remove them.
2 Check that no foreign objects are found on the internal components,
threaded portions and rubber seals of this unit.
≥If there are any foreign objects, such as lint, hair, sand, etc., water will leak within a few seconds
causing malfunction.
3 If there is foreign matter adhering to the unit, remove it with a soft dry cloth.
≥Check to see if any foreign matter such as lint is adhering to this unit.
≥Wipe it off with a dry soft cloth if there is any liquid. It may cause water leaks and malfunction if
you use this unit with liquid adhered.
≥Use a blower (commercially available) to remove foreign matter that cannot be removed with a
dry soft cloth.
Check before using underwater
Do not attach/remove the terminal cover (waterproof) or glasscover in sandy or dusty
locations, near water or with wet hands. If sand or dust adheres to this unit, water may leak
in.
HX-A1M-SQT0885_mst.book 8 ページ ２０１５年３月６日 金曜日 午後８時１２分
9
(ENG) SQT0885
4 Check that the terminal cover (waterproof), glasscover and rubber seals are
neither cracked nor deformed.
≥The integrity of the rubber seals may decrease after about 1 year, with use and age. To avoid
permanently damaging this unit the seals should be replaced once every two years. Please
contact Panasonic’s Service Centre for related costs and other information.
5 Rotate the terminal cover (waterproof) and glasscover until they are attached
firmly.
≥Rotate them in the opposite directions of Step 1.
≥Tighten them firmly to ensure that they are not loose.
≥To prevent water seeping into this unit, be careful not to trap foreign objects such as liquids, sand,
hair or dust etc.
≥Use this unit underwater at a depth of down to 1.5 m (5 feet) with the water temperature between
0oC and 35 oC (32 oF and 95 oF).
≥Do not use this unit at a depth of over 1.5 m (5 feet).
≥Do not use it in hot water over 35 oC (95 oF) (in a bath or hot spring).
≥Do not use this unit underwater not longer than 30 minutes continuously.
≥Do not attach/remove the terminal cover (waterproof) or glasscover.
≥Do not apply shock to this unit underwater. (Waterproof performance may not be maintained, and
there is a chance of water leak.)
≥Do not dive into the water holding this unit. Do not use this unit in a location where the water will
splash strongly, such as rapid flow or waterfall. (Strong water pressure may be applied, and it may
cause malfunction.)
≥This unit will sink in the water. Take care not to drop this unit.
1 Rinse this unit without removing the terminal cover (waterproof) and
glasscover.
≥After use at the seaside or underwater, soak the unit in fresh water pooled in a shallow container
for about 10 minutes.
2 Drain water by holding this unit and shaking it lightly a few times.
≥After using this unit at the seaside or underwater, or after washing it, water will remain at the
speaker site or mic site of this unit for a while and it may cause lower sound or sound distortion.
≥Pay careful attention to prevent this unit from dropping.
3 Wipe off water drops on this unit with a soft dry cloth and dry this unit in a
shaded area that is well ventilated.
≥Dry this unit 1 hour or more.
≥Dry this unit on a dry cloth.
≥Do not dry this unit with hot air from dryer or similar. It will deteriorate the waterproof performance
or cause failure due to deformation.
≥Do not use chemicals such as benzine, thinner, alcohol or cleanser, soap or detergents.
Using this unit underwater
Caring for this unit after using it underwater
Do not attach/remove the terminal cover (waterproof) or glasscover until you remove the
sand and dust by rinsing this unit.
Make sure to clean the camera after using it.
≥Thoroughly wipe off any water droplets, sand, and saline matter on your hands, body, hair, etc.
≥
It is recommended to clean the camera indoors, avoiding places where water spray or sand may fall.
Do not leave this unit uncared for longer than 60 minutes after using it underwater.
≥Leaving this unit with foreign objects or saline matter on it may cause damage, discolouration,
corrosion, unusual odour, or deterioration of the waterproof performance.
HX-A1M-SQT0885_mst.book 9 ページ ２０１５年３月６日 金曜日 午後８時１２分
10
SQT0885 (ENG)
4 After checking that there are no water droplets, remove the terminal cover
(waterproof) and glasscover, and wipe off any water droplets or sand left
inside with a soft, dry cloth.
≥If you remove the terminal cover (waterproof) or glasscover without thoroughly drying this unit,
water droplets may form on the card or other parts. Also, water may accumulate in the gap
around the card slot or the terminal connector. Be sure to wipe any water off with a soft, dry cloth.
≥If you attach the terminal cover (waterproof) or glasscover while still wet, water droplets may seep
into this unit and cause condensation or malfunctions.
≥If the Multi Mount or Tripod Mount are exposed to seawater, rinse off the salt water with fresh
water. When the Multi Mount or Tripod Mount are exposed to water, wipe them off with a dry towel
or something similar, and dry them thoroughly in the shade.
≥It may cause injury to the skin if you directly touch the metal parts of the unit in places
where temperature is very low (environments under 0 oC, such as ski resorts or places at
high altitude) for a long period of time.
Keep this point in mind when using this unit for a long period of time.
≥The performance of the battery (recording time/operating time) may decrease temporarily when
using in a temperature between j10 oC and 0 oC (cold places such as ski resorts or places at
high altitude).
≥The battery cannot be recharged at temperatures lower than 0 oC. (The power lamp flashes fast
when the battery cannot be recharged.) Charge the battery sufficiently in a place where the
ambient temperature is between 10 oC and 30 oC (50 oF and 86 oF).
≥If the unit is used in cold places such as ski resorts or places at high altitude with snow or water
droplets adhered to the unit, some parts of the unit may become hard to move or the sound may
become dim with snow or water droplets freezing in the gap of the buttons and microphone. This
is not a malfunction.
≥If the Wi-Fi® function is used in cold places such as ski resorts or places at high altitude, playback
may not be performed correctly.
In case water enters this unit, stop the use and consult your dealer.
Malfunctions resulting from water leakage due to wrong handling by customers are not subject to
compensation.
Preparation
When using in a cold climate or at low
temperatures
HX-A1M-SQT0885_mst.book 10 ページ ２０１５年３月６日 金曜日 午後８時１２分
11
(ENG) SQT0885
∫About recording formats and compatibility of this unit
≥This unit is an MP4 format (MPEG-4 AVC file standard) Wearable Camera for recording high-
definition motion pictures.
≥AVCHD and MPEG2 motion pictures are different formats, and are not therefore supported by
this unit.
∫About the portrait rights
Be sure to pay special attention to the privacy, the portrait rights, etc. of the subject when you use
this unit. Use it at your own risk.
∫About the “Image App”
Install the smartphone application “Image App” on your smartphone.
You can change this unit’s settings and record and play back images by setting up a Wi-Fi
connection between this unit and a smartphone.
≥For information about the installation of the “Image App”, refer to page 18.
∫About the clock setting
Make sure to set date and time before recording. (l20)
∫For the purposes of these operating instructions
≥Pictures may be slightly different from the original.
≥Depending on the firmware version you are using, captured screens described in these operating
instructions may differ from the actual screens.
≥Names, icons, contents and services of applications may be changed with no prior notice. Please
note that they may differ from the descriptions of these operating instructions.
≥microSD card, microSDHC card and microSDXC card are referred to as the “microSD card”.
≥Smartphone and tablet computer are referred to as the “smartphone”.
≥Pages for reference are indicated by an arrow, for example: l00

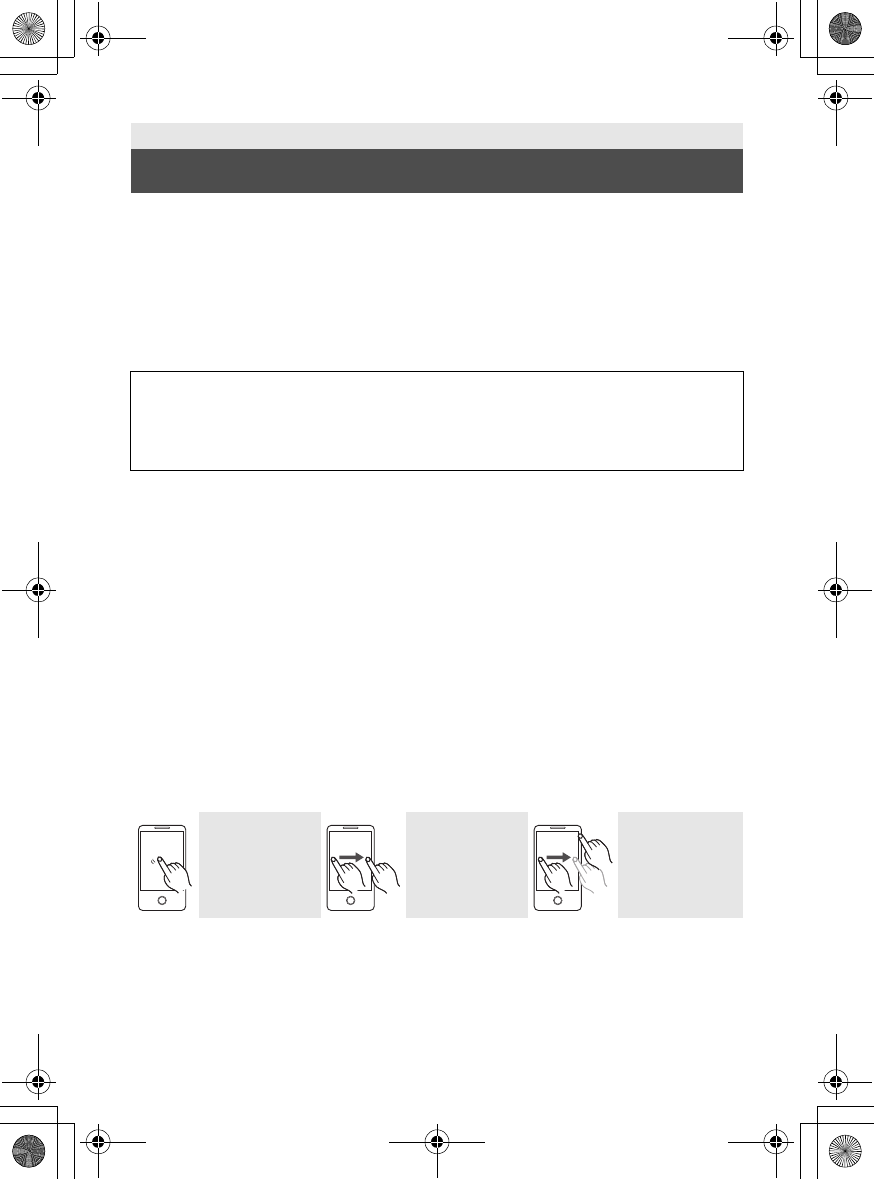

≥Smartphone operations are described as follows:
∫Cards that you can use with this unit
microSD Memory Card and microSDHC Memory Card
Preparation
Read this first
∫Indemnity about recorded content
Panasonic does not accept any responsibility for damages directly or indirectly due to any type
of problems that result in loss of recording or edited content, and does not guarantee any
content if recording or editing does not work properly. Likewise, the above also applies in a case
where any type of repair is made to this unit.
Tap
Touch the screen
lightly and release
your finger.
Drag
Move your finger
while still touching
the screen.
Drag and Drop
Move your finger
while still touching
the screen, and
release the finger.
HX-A1M-SQT0885_mst.book 11 ページ ２０１５年３月６日 金曜日 午後８時１２分
12
SQT0885 (ENG)
Check the accessories before using this unit.
Keep the accessories out of reach of children to prevent swallowing.
Product numbers correct as of March 2015. These may be subject to change.
*1 This is attached to this unit at the time of purchase.
*2 This unit is not waterproof when the terminal cover (USB connection) is in use. When using this
unit in wet locations or underwater, use the terminal cover (waterproof).
*3 For information on how to use the Multi Mount and Tripod Mount, refer to page 21.
*4 These accessories come standard with the Multi Mount.
*5 This is attached to the Multi Mount at the time of purchase.
Preparation
Accessories
Glasscover (night
mode)
SFC0315 (Orange)
SFC0316 (Black)
≥The glasscover (night mode) allows you to
perform Night mode recording. For details,
refer to the operating instructions (PDF
format).
Glasscover (normal
shooting) *1
SFC0313 (Orange)
SFC0314 (Black)
Terminal cover
(waterproof) *1, 2
SFC0317 (Orange)
SFC0318 (Black)
Terminal cover (USB
connection) *2
SFC0320 (Orange)
SFC0321 (Black)
USB cable
SJA0003
Tripod Mount
IR Multi Mount
Hook and Loop
Fastener (1 set) *4, 5
Band *4, 5
Double Sided Tape *4
HX-A1M-SQT0885_mst.book 12 ページ ２０１５年３月６日 金曜日 午後８時１２分
13
(ENG) SQT0885
Charging the battery
≥This unit has a built-in rechargeable lithium-ion battery. Do not remove except when
disposing of this unit. (l30)
≥It is recommended to charge the battery in a temperature between 10 oC and 30 oC (50 oF
and 86 oF).
≥When this unit is turned on, it takes longer than usual to charge the battery.
AUSB cable (supplied)
BTurn the side with the symbol up to connect the micro B end of the USB cable to the USB
terminal of this unit.
1
Rotate the terminal cover (waterproof) in the direction of the arrow to remove it.
≥
It is not necessary to remove the terminal cover when using the terminal cover (USB connection) (supplied).
2Connect the USB terminal of this unit to a PC with the USB cable (supplied).
≥Insert the USB cable securely all the way.
≥The Power lamp will flash red at an interval of 2 seconds (approximately 1 second on, 1 second
off), indicating that charging has begun.
It will turn off when the charging is completed.
≥
When the charging is complete, disconnect the USB cable from this unit and rotate the terminal cover
(waterproof) in the opposite direction of Step 1 to attach it. Tighten it firmly to ensure that it is not loose.
≥Do not use any other USB cables except the supplied one. (Operation is not guaranteed with any
other USB cables.)
≥Do not heat or expose to flame.
≥Do not leave the unit (including built-in battery) in a car exposed to direct sunlight for a long
period of time with doors and windows closed.
≥If operating time is short even after fully charging the battery, the battery is worn out and needs to
be replaced. Please contact your dealer.
≥When the PC is in a power saving mode such as a standby state, the battery may not be charged.
Cancel the power saving mode, and connect this unit again.
≥Operation is not guaranteed when devices are connected through USB hubs or by using
extension cables.
≥Operation cannot be guaranteed on all devices having a USB terminal.
Preparation
Power supply
When this unit is purchased, the battery is not charged. Charge the battery fully before
using this unit for the first time.
HX-A1M-SQT0885_mst.book 13 ページ ２０１５年３月６日 金曜日 午後８時１２分
14
SQT0885 (ENG)
Charging and recording time
∫Charging/Recording time
≥Temperature: 25 oC (77 oF)/humidity: 60%RH
≥“h” is an abbreviation for hour, “min” for minute and “s” for second.
≥These times are approximations.
≥The indicated charging time is for when the battery has been discharged completely.
Charging time and recordable time vary depending on the usage conditions such as high/
low temperature.
≥The actual recordable time refers to the recordable time when repeatedly starting/stopping
recording, turning this unit on/off, etc.
≥The power lamp flashes (Flashing with approx. 0.5 second period (off for approx. 0.25 second, on
for approx. 0.25 second)) when the remaining battery time becomes low.
You can check the battery level by looking at the “Image App” screen (l26) or the recording
mode lamps (l16).
≥This unit heats up after use or charging. This is not a malfunction.
≥For information about charging with a mobile USB charger or an AC adaptor, check the support
site.
http://panasonic.jp/support/global/cs/e_cam/index.html
(This site is English only.)
Flashing with approx. 0.5 second period (off for approx. 0.25 second, on for approx. 0.25 second):
≥Check that the USB terminals of this unit or the connecting device, such as PC are not dirty or
covered with a foreign object, and reconnect correctly. If a foreign object or dirt is present, turn off
this unit before removing.
≥The environment is at an extremely high or low temperature. Wait until the temperature has
returned to an appropriate level and try charging again. If you are still unable to charge, there may
be a fault in this unit or the connecting device.
Flashing with approx. 4 second period (off for approx. 2 seconds, on for approx. 2 seconds):
≥When the battery is over discharged or the temperature of the battery is too high or low. It can be
charged, but it may take a few hours to complete the charging normally.
≥It will flash in approx. 2 second intervals when normal charging resumes. Even in such cases, it
may start flashing in approx. 4 second intervals until charging is completed depending on the
conditions of use.
Off:
≥Charging has finished.
Charging time Picture size/Frame rate Maximum continuous
recordable time
Actual recordable
time
4h30min
[1920k1080/30p]
[1280k720/60p]
[1280k720/30p]
[848k480/30p]
[1280k720/60fps]
[848k480/120fps]
The socket outlet shall be installed near the equipment and shall be easily accessible.
When the Power lamp is flashing during charging
HX-A1M-SQT0885_mst.book 14 ページ ２０１５年３月６日 金曜日 午後８時１２分
15
(ENG) SQT0885
This unit can record motion pictures or still pictures to a microSD card.
Cards that you can use with this unit
≥To record motion pictures, use a microSD card conforming to an SD Speed Class Rating*
of Class 4 or higher.
If you use a microSD card with an SD Speed Class Rating that does not support the
current recording setting, recording may stop suddenly.
≥Operation is not guaranteed for all microSD cards.
≥Keep the Memory Card out of reach of children to prevent swallowing.
Inserting/removing a microSD card
Caution:
Check that the access lamp has gone off.
1Rotate the terminal cover in the direction of the arrow to remove it.
Preparation
Recording to a card
≥Check the corresponding manufacturer, capacity and other latest compatibility information
from the following support site.
http://panasonic.jp/support/global/cs/e_cam/index.html
(This website is in English only.)
When using a microSD card not from Panasonic, or one previously used on other equipment, for
the first time on this unit, format the microSD card. (l16) When the microSD card is formatted,
all of the recorded data is deleted. Once the data is deleted, it cannot be restored.
≥Do not format a microSD card using any other equipment such as a PC. The card may
not be used on this unit.
AAccess lamp
≥When this unit is accessing
the microSD card (e.g.,
detecting the card or
recording, playing back or
deleting files on it), the
access lamp will light/flash
red. (The area surrounding
the button will light/flash.)
HX-A1M-SQT0885_mst.book 15 ページ ２０１５年３月６日 金曜日 午後８時１２分
16
SQT0885 (ENG)
2Insert (remove) the microSD card into (from) the card slot.
≥Insert the microSD card with its terminal side facing down. Push it straight in until it clicks into
place as shown in the figure.
≥Press the centre of the microSD card and then pull it straight out.
3Rotate the terminal cover in the opposite direction of Step 1 to attach it.
≥Tighten it firmly to ensure that it is not loose.

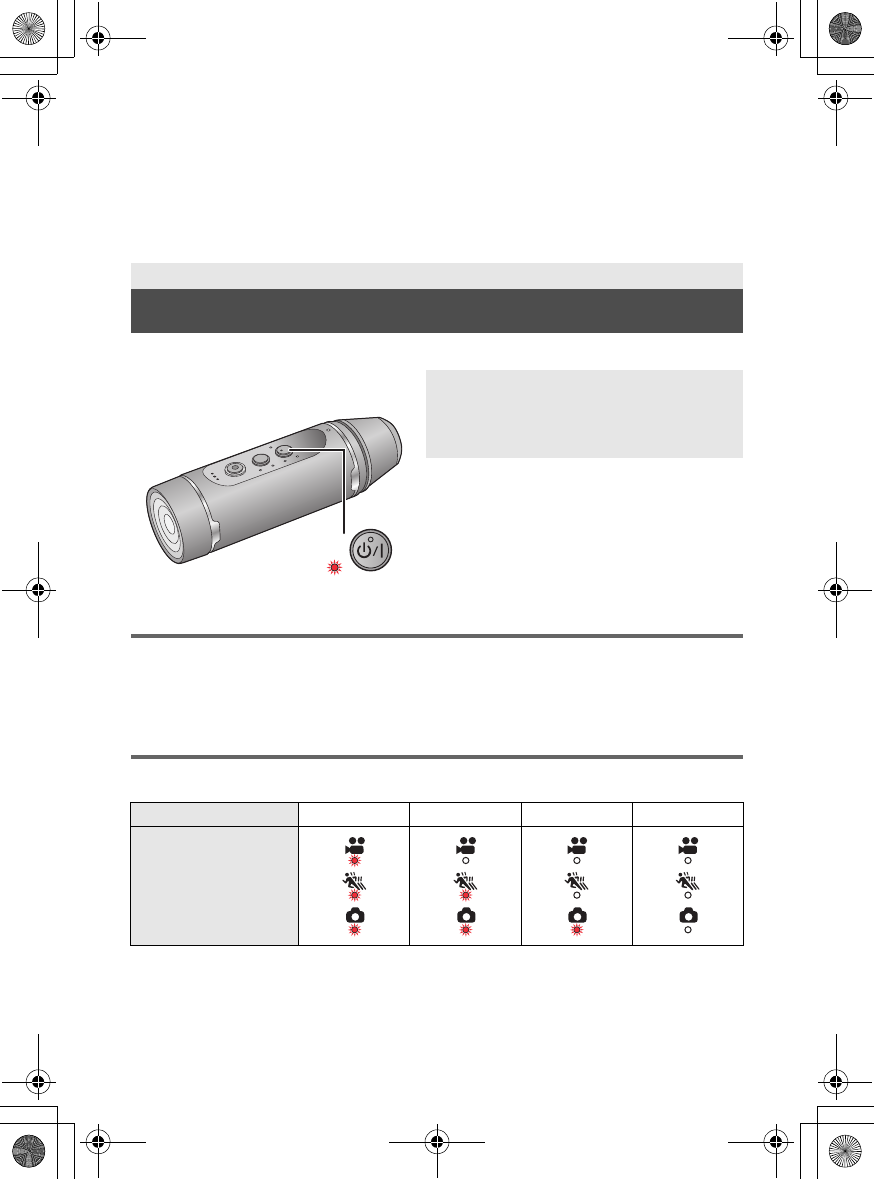

Press the power button to turn on this unit.
About overheat detection
If the internal temperature of this unit rises during use, warning beeps will be heard and the power
lamp will flash fast. This unit will then turn off automatically. To use this unit again, wait until it cools
down.
≥This unit cannot be used until it cools down.
About battery level indications
You can check the battery level by looking at the recording mode lamps when you have turned on
this unit.
≥The recording mode lamps will go off approximately 5 seconds later.
Preparation
Turning this unit on/off
The power lamp is turned on. To turn off this unit
Press and hold the power button until the power
lamp goes off.
Battery level 100% to 76% 75% to 41% 40% to 21% 20% or less
Recording mode lamps
HX-A1M-SQT0885_mst.book 16 ページ ２０１５年３月６日 金曜日 午後８時１２分
17
(ENG) SQT0885
∫Use this unit as a wireless LAN device
When using equipment or computer systems that require more reliable security than wireless LAN
devices, ensure that the appropriate measures are taken for safety designs and defects for the
systems used. Panasonic will not take any responsibility for any damage that arises when using this
unit for any purpose other than as a wireless LAN device.
∫Use of the Wi-Fi function of this unit is presumed to be in countries
where this unit is sold
There is the risk that this unit violates the radiowave regulations if used in countries other than those
where this unit is sold, and Panasonic takes no responsibility for any violations.
∫There is the risk that data sent and received via radio waves may be
intercepted
Please note that there is the risk that data sent and received via radio waves may be intercepted by
a third party.
∫Do not use this unit in areas with magnetic fields, static electricity or
interference
≥Do not use this unit in areas with magnetic fields, static electricity or interference, such as near
microwave ovens. Radio waves may not reach this unit.
≥Using this unit near devices such as cordless telephones or any other wireless LAN device that
use the 2.4 GHz radio wave band may cause a decrease in performance in both devices.
∫Before use
To use a Wi-Fi function with this unit, you need a device equipped with a wireless LAN function.
≥For the operations and settings of your device such as the smartphone, please read the
operating instructions of the device.
Preparation
Wi-Fi® function
HX-A1M-SQT0885_mst.book 17 ページ ２０１５年３月６日 金曜日 午後８時１２分
18
SQT0885 (ENG)
Install the “Image App”
The “Image App” allows you to change this unit’s settings and record and play back images.
* The supported OS versions are current as of March 2015 and subject to change.
≥Use the latest version.
≥Refer to [Help] in the “Image App” menu about how to operate.
≥The service may not be able to be used properly depending on the type of smartphone being
used. For information on the “Image App”, check the support website below.
http://panasonic.jp/support/global/cs/e_cam/index.html
(This Site is English only.)
≥When downloading the app on a mobile network, high packet communication fees may be
incurred depending on the details of your contract.
About the “Image App”
The “Image App” is an application provided by Panasonic.
For Android apps For iOS apps
OS Android 4.0 or later*iOS 6.0 or later*
(iPhone 3GS is not supported.)
Installation
procedure
1 Connect your Android
device to a network.
2 Select “Google Play™
Store”.
3 Enter “Panasonic Image
App” into the search
box.
4 Select “Panasonic
Image App” and install
it.
≥The icon will be added
to the menu.
1 Connect your iOS
device to a network.
2 Select “App StoreSM”.
3 Enter “Panasonic Image
App” into the search
box.
4 Select “Panasonic
Image App” and install
it.
≥The icon will be added
to the menu.
HX-A1M-SQT0885_mst.book 18 ページ ２０１５年３月６日 金曜日 午後８時１２分
19
(ENG) SQT0885
∫Preparations before connection
1 Install the smartphone application “Image App” on your smartphone. (l18)
2 Turn on the Wi-Fi function of your smartphone.
≥For further details, please read the operating instructions for the smartphone.
Setting up a Wi-Fi connection to a smartphone
≥Check that the Wi-Fi lamp is off.
1Press and hold the recording mode/Wi-Fi button until the
Wi-Fi lamp of this unit flashes red.
2Tap the SSID of this unit (below) on the Wi-Fi network
screen of the smartphone.
≥Password entry screen is displayed.
3Enter password (below).
≥When the connection is complete, the Wi-Fi lamp of this unit will light red.
Use your smartphone to set up this unit.
Preparation:
1 Set up a Wi-Fi connection between this unit and the smartphone. (l19)
2 Start up the smartphone application “Image App”.
≥If a connection attempt to this unit fails, turn off and on the Wi-Fi function using the setup
menu of the smartphone, and then retry the connection.
≥For more information, refer to the [Help] in the “Image App” menu.
Preparation
Connecting to a smartphone
Default setting
SSID:
Password:
A1-wearable
paR9We58n
Preparation
Setting up this unit
≥When you start “Image App” connecting with this unit for the first time, a message
asking you to set the date and time will appear. (This message will also be displayed if
this unit remains unused for a long period of time.)
Follow the message to set the date and time.
≥When you turn on this unit for the first time, a message asking you to change the SSID/
Password will appear. Be sure to change them. Otherwise, third parties may intercept
your information or use it for malicious purposes.
HX-A1M-SQT0885_mst.book 19 ページ ２０１５年３月６日 金曜日 午後８時１２分
20
SQT0885 (ENG)
Setting date and time
The date and time setting of this unit is synchronised with that of the smartphone.
Synchronise to adjust the clock, etc.
1Tap # [Camera setup].
2Tap [Date & time].
≥When you want to adjust the clock, change the time of the smartphone first, and then synchronise
the time with this unit.
≥It may take approximately 60 seconds to synchronise the time of the smartphone with that of this
unit.
≥When the built-in battery of this unit runs down, the date and time setting returns to the default
state. Leave the built-in battery of this unit in a charged state for approximately 24 hours and the
date and time setting will be stored for approximately 4 months.
≥The setting range from 1 January 2015 through 31 December 2039 is available for time
synchronisation with the smartphone.
Initialising the network settings
To reset the network settings to the default, after turning off this unit, press the power button (l16)
and recording start/stop button (l27) simultaneously to turn it on again and continue to hold them
down for approximately 3 seconds. When the Wi-Fi lamp flashes alternately in red and green, the
network settings are initialised.
≥After initialising the settings, turn off and on this unit.
≥The following settings will be reset to the default:
jAn SSID/password for this unit set after the purchase
([Camera Wi-Fi settings] # [Camera SSID settings] in the “Image App”)
jSSID/Password of Main Camera that was connected to this unit
HX-A1M-SQT0885_mst.book 20 ページ ２０１５年３月６日 金曜日 午後８時１２分
21
(ENG) SQT0885
You can attach this unit to a Multi Mount or Tripod Mount and perform recording.
Using a Multi Mount
Attach the Multi Mount to a smooth surface, such as a helmet.
≥Before attaching the multi mount, remove the hook and loop fastener
and the band from the multi mount.
1Peel off one side of the double sided tape, and attach it
to the smoother side of the fastener that has a harder
texture (hook fastener).
2Peel off the other side of the double sided tape, and
attach the hook fastener to a location where the Multi
Mount will be attached to.
≥Dust, etc. adhering to the contact surface will weaken the adhesion.
Before attaching the double sided tape, remove the dust, etc., and
wipe with a dry cloth.
≥The double sided tape is not peelable. Taking account of the height,
width, etc. of the Multi Mount attached to this unit, attach the tape to a location where it will not
come in contact with a helmet shield, etc.
3Pass the fastener that has a softer texture (loop
fastener) through the Multi Mount so that the soft
fabric side will face down.
Preparation
Attaching this unit to a Multi Mount or
Tripod Mount
≥When this unit is attached to a tripod or similar support, do not hold the adjustment belt to carry
this unit.
≥
It may not be possible to attach a Multi Mount to a helmet or other object, depending on its shape.
≥When the adjustment belt becomes too loose to hold this unit in position, stop the use of the
Multi Mount or Tripod Mount.
≥Do not touch the lens while attaching or removing parts.
≥Do not hold the adjustment belt to carry this unit.
Attaching to a helmet, etc.
Note the following points so that the Multi Mount will achieve an optimal adhesion strength:
≥Avoid high or low temperatures and high humidity, and do the attachment work indoors.
≥Attach the Multi Mount at least 24 hours before use. (Adhesion is optimized after a period of at
least 24 hours in the environment above.)
HX-A1M-SQT0885_mst.book 21 ページ ２０１５年３月６日 金曜日 午後８時１２分
22
SQT0885 (ENG)
4Fasten the Multi Mount securely by aligning the two
fasteners to one another.
≥Fasten securely to prevent the Multi Mount from falling off.
≥Dust, etc. adhering to the hook and loop fastener will weaken the
adhesion. Before attaching it, check if dust, lint, etc. is adhering.
5Attach this unit to the Multi Mount as shown in the
figure. (l23)
≥When removing the Multi Mount, do not pull the Multi Mount. Remove it by peeling off the hook
and loop fastener from the edge.
≥Do not peel off the double sided tape attached to the hook and loop fastener. Once the tape is
peeled off, the adhesion weakens, making the tape unusable.
≥When attaching the Multi Mount, check if the hook and loop fastener is fastened securely and the
adhesion of the double sided tape has weakened.
≥Before attaching the multi mount, remove the hook and loop fastener from the multi mount.
1Tuck a shoulder strap of a backpack or
similar item between the Multi Mount
and the band, and pass the band
through the portion A to hold the Multi
Mount in position.
≥
Before attaching the Multi Mount, check that the
hook and loop fastener side of the band is facing up.
≥Move the Multi Mount to the position where you
want to attach it.
2Pass the band through the ring B as shown in the
figure.
3Fold the band inwards as shown in the figure, and
fasten it with the hook and loop fastener C of the
band.
Attaching to the shoulder strap of a backpack, etc.
HX-A1M-SQT0885_mst.book 22 ページ ２０１５年３月６日 金曜日 午後８時１２分
23
(ENG) SQT0885

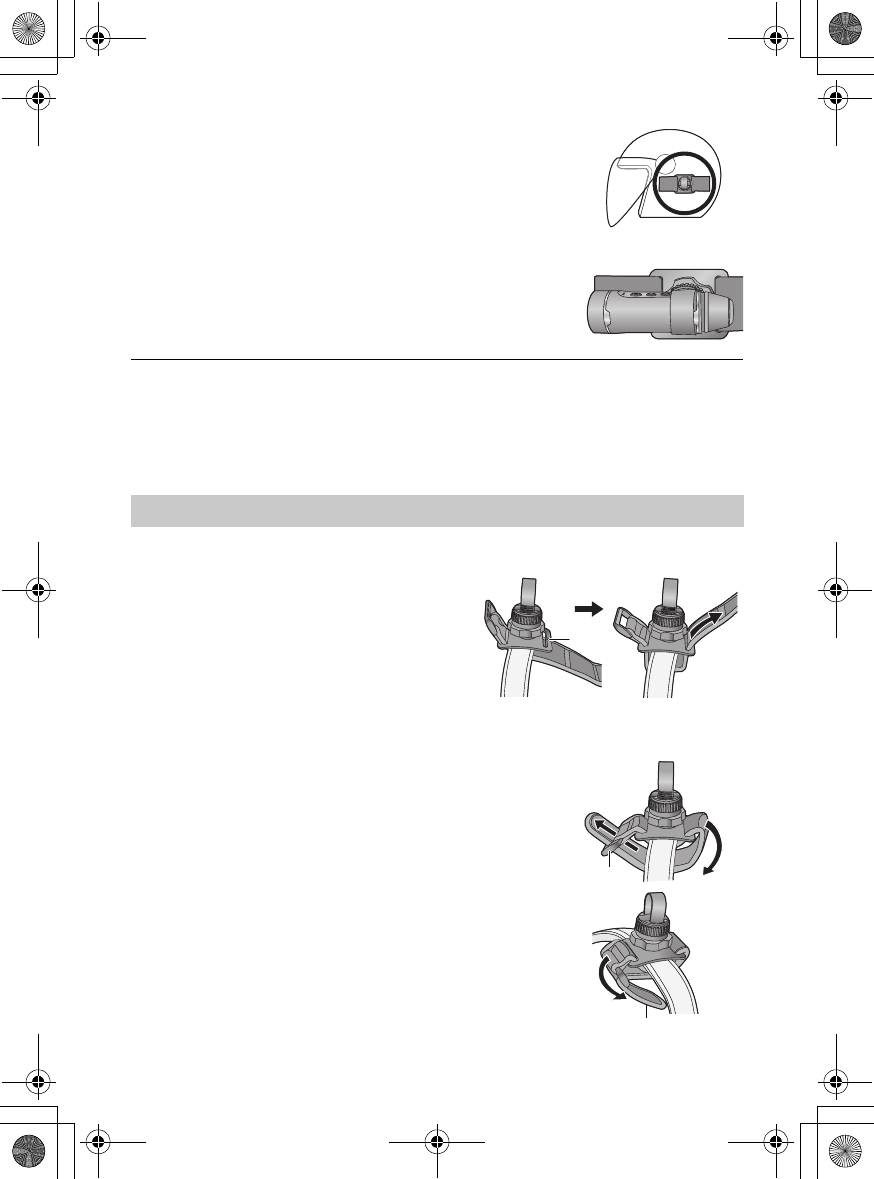

4Attach this unit to the Multi Mount as
shown in the figure. (l23)
≥Before attaching this unit, fasten the Multi Mount securely with the band and the hook and loop
fastener.
1While holding the tightening nut A, tighten the
adjustment knob B by rotating it towards LOCK.
2While holding the adjustment knob B, loosen the
the adjustment belt C until this unit can be passed
through it by rotating the tightening nut A
towards UNLOCK.
3Pass this unit through the adjustment
belt C so that this unit is in the position
shown in the figure.
4
While holding the adjustment knob
B
, tighten the
adjustment belt
C
by rotating the tightening nut
A
towards LOCK until this unit is fastened securely.
≥Adjust the adjustment belt with hands. Do not apply too much
force.
≥Do not rotate the tightening nut more than necessary after
fastening this unit.
≥Check the left/right tilt of this unit after fastening it.
≥To correct the left/right tilt of this unit, loosen the adjustment belt.
Attaching this unit to the Multi Mount
LOCK
UNLOCK
LOCK
HX-A1M-SQT0885_mst.book 23 ページ ２０１５年３月６日 金曜日 午後８時１２分
24
SQT0885 (ENG)
5While holding the tightening nut A, loosen the
adjustment knob B by rotating it towards
UNLOCK to adjust the direction of this unit.
6While holding the tightening nut A, rotate the
adjustment knob B by rotating it towards LOCK
until this unit is fastened securely.
While holding the adjustment knob B, loosen
the tightening nut A by rotating it towards
UNLOCK, and pull out this unit.
Using a Tripod Mount
The tripod mounting hole 1 of the tripod mount is compatible
with the screw (1/4-20 UNC) of a tripod, etc.
≥If you attach a screw with a length of 6 mm (0.24 q) or more to a
Tripod Mount, it may wobble.
Removing this unit from the Multi Mount
Attaching the tripod mount to a tripod, etc.
UNLOCK
LOCK
UNLOCK
HX-A1M-SQT0885_mst.book 24 ページ ２０１５年３月６日 金曜日 午後８時１２分
25
(ENG) SQT0885
1Loosen the tightening nut C by rotating it
towards UNLOCK until this unit can be passed
through the adjustment belt B.
2Pass this unit through the adjustment belt B so
that this unit is in the position shown in the
figure.
3Tighten the adjustment belt B by rotating the
tightening nut C towards LOCK until this unit is
fastened securely.
≥Adjust the adjustment belt with hands. Do not apply too much
force.
≥Do not rotate the tightening nut more than necessary after
fastening this unit.
≥Check the direction of this unit after attaching it.
≥To correct the left/right tilt of this unit, loosen the adjustment belt.
Loosen the tightening nut C by rotating it towards
UNLOCK, and pull out this unit.
Attaching this unit to the Tripod Mount
Removing this unit from the Tripod Mount
UNLOCK LOCK
UNLOCK LOCK
UNLOCK LOCK
TBD
HX-A1M-SQT0885_mst.book 25 ページ ２０１５年３月６日 金曜日 午後８時１２分
26
SQT0885 (ENG)
Check before recording
When you connect this unit and a smartphone and start up the “Image App”, you can check the
image from this unit on the live view screen.
≥We recommend that you make a test recording to check the angle of view mode, [White Balance]
setting and other settings before recording.
≥Attach this unit to the Multi Mount or Tripod Mount (l21) and check the image on the live view
screen.
≥You can use [Shooting guidelines] as a guide for checking the balance of a composition.
≥Depending on your OS or the version of the smartphone application “Image App”, the screen may
differ from the one above.
≥The live view screen disappears approximately 30 seconds after you start recording a motion
picture. If you tap the screen while recording, the screen will be displayed again for approximately
30 seconds.
≥Also outputs sound from the microphone of this unit.
≥Still pictures will be recorded with a picture size of 2.1 M (standard) or 2.7 M (wide).
≥Refer to [Help] in the “Image App” menu about how to operate.
Basic
Recording
Example of the screen display: 1Live view
≥Displays an image from this unit.
2Remaining number of recordable pictures/remaining
recordable time of the microSD card in this unit
3Remaining battery power of this unit
≥As the battery level decreases, the display changes as
follows: # # # #
If the battery discharges, then will flash red.
4Angle of view mode
≥It can be switched between standard and wide views.
5Menu display
6Playback mode selector
7Recording mode selector (Remote view)
8Recording start/stop
9Motion Picture/Still Picture toggle button
:Name of the connected device
xxxxxxxxxx WIDE 10:30
1080/30p
HX-A1M-SQT0885_mst.book 26 ページ ２０１５年３月６日 金曜日 午後８時１２分
27
(ENG) SQT0885
Recording with this unit
Record images with this unit.
≥You can record images even when this unit is not connected to a smartphone.
1Press the recording mode/Wi-Fi button to switch to the desired
recording mode.
≥The recording mode changes each time you press the button. The recording
mode lamps will light (or flash).
Motion Picture Recording Mode # Slow Motion Recording Mode # Still Picture
Recording Mode
*1 You need to set [Recording Mode] of the “Image App” to [Loop Recording].
*2 You need to select a setting other than [OFF] for [Interval rec mode] of the “Image App”.
2Press the recording start/stop button.
In Motion Picture Recording Mode/Slow Motion Recording Mode:
The access lamp will light red and recording will start.
≥If you press the recording start/stop button again, the recording will stop. While
data is being recorded, the access lamp will flash. Do not remove the microSD
card until the access lamp goes off.
In Still Picture Recording Mode:
Recording still pictures.
≥In [Interval rec mode], the access lamp will light red and recording will start. If
you press the recording start/stop button again, the recording will stop.
Please refer to the operating instructions (PDF format) for details.
Recording Mode Recording mode
lamp Recording method
Motion Picture
Recording Mode
Lit [Normal Shooting]:
Recording motion pictures.
Flashing
[Loop Recording]*1:
No matter how long you record, you can only
record motion pictures for the last 1 hour to
microSD card.
Slow Motion Recording
Mode Lit
[Slow Motion]:
This records motion pictures in slow motion by
setting a high frame rate (increasing the number
of frames).
Still Picture Recording
Mode
Lit Normal still picture recording:
Recording a still picture.
Flashing [Interval rec mode]*2:
This is for recording still pictures at a set interval.
HX-A1M-SQT0885_mst.book 27 ページ ２０１５年３月６日 金曜日 午後８時１２分
28
SQT0885 (ENG)
Motion pictures or still pictures stored in this unit are played back with the smartphone.
≥For more information, refer to the [Help] in the “Image App” menu.
≥Depending on your OS or the version of the smartphone application “Image App”, the screen may
differ from the one above.
1Tap .
≥The thumbnails of motion pictures or still pictures recorded on this unit will be displayed.
2Tap ( ).
≥To play back a motion picture, tap ; to play back a still picture, tap .
3Tap the thumbnail of motion picture or still picture you want to play back.
≥The playback screen will be displayed.
≥If you have tapped a still picture, you can play back the previous or next picture by dragging
(swiping) the screen left or right.
4(For playing back motion pictures)
Tap the playback icon on the screen to play back
motion pictures.
≥Tapping or dragging the slide bar will start playback from the
desired position of a motion picture file.
Basic
Playback
Preparation: Connect this unit with the smartphone and start Image App. (l19)
Example of the motion picture
playback screen display:
1Camera function
2Upload
3Number of motion picture/still picture scenes
4Remaining battery power of this unit
5Delete
6Copy
7Name of the connected device
8Information display for the motion picture/still picture
XXXXXXXXX 1/16
MP4_0001 2014/12/15 15:30:50
00:20 03:10
ASlide bar
HX-A1M-SQT0885_mst.book 28 ページ ２０１５年３月６日 金曜日 午後８時１２分
29
(ENG) SQT0885
∫It is not a malfunction in following cases
Please refer to the operating instructions (PDF format) for details.
Others
Troubleshooting
The lens fogs up. ≥This is due to condensation. It is not a malfunction. Please
refer to page 8.
Problem Check points
This unit cannot be turned
on.
This unit does not stay on
long enough.
Battery runs down quickly.
≥Charge the battery again to ensure it is sufficiently charged.
(l13)
≥In cold places, the battery using time becomes shorter.
≥If the operating time is very short even after the battery has
been recharged sufficiently, the battery has worn out.
Colour balance of images
is strange when recording
in a place such as a
gymnasium.
≥In a place with multiple light sources, such as a gymnasium or
a hall, set the [White Balance] setting to [Indoor 2]. If you
cannot record clearly with the [Indoor 2], set it with [Custom].
Recorded motion pictures
flicker.
Horizontal lines appear in
recorded images.
≥If you record an image with [1280k720/60fps] or [848k480/
120fps] in [Slow Motion], flickering or horizontal lines may
appear under fluorescent lighting.
The Wi-Fi connection is
not possible between this
unit and a smartphone.
≥Make sure the smartphone is properly connected to this unit
by checking the Wi-Fi settings of the smartphone.
≥Make sure the SSID and Password have been correctly input.
≥Make sure the smartphone is not connected to the wireless
access point. If it is connected to the wireless access point,
change the Wi-Fi access point using the smartphone’s Wi-Fi
set up.
The Wi-Fi connection is
disconnected immediately.
≥If there is a setting for avoiding unnecessary connections in
the Wi-Fi setting menu of the Android device, turn it off.
HX-A1M-SQT0885_mst.book 29 ページ ２０１５年３月６日 金曜日 午後８時１２分
30
SQT0885 (ENG)
When disposing of the used product, initialise the network settings (l20) first and remove
the built-in battery from this unit. Please refer to page 31 about how to remove the battery.
Thank you for supporting our battery recycling efforts.
≥Please make sure that the battery is disposed of at an officially assigned location, if there is one in
your country.
This is the rechargeable battery for this unit.
Do not use other than with this unit.
Do not charge the rechargeable battery
when it has been removed.
≥Do not place in fire or heat it.
≥Do not puncture with nails, subject it to
impact, disassemble or modify it.
≥Do not touch metal to the r and s terminals.
≥Do not store or carry together with necklaces
or hairpins, etc.
≥Do not heat in microwaves or ovens, etc.
≥Do not charge, use or leave in hot places
such as next to fires or in extremely hot
weather.
≥Do not put into water.
This may cause leaking, overheating, fire or
rupture.
≥If a leak should occur, by no means touch the
liquid with bare hands.
If the liquid gets on the body or clothes, wash
well with water. If the liquid gets into your
eyes, there is a danger of blindness. Do not
rub the eyes; after washing immediately with
clean water, consult your physician.
Keep removed screws etc. out of the reach
of small children.
If accidentally ingested there will be adverse
physical effects.
≥Should you suspect that such an object has
been ingested, consult your physician
immediately.
Battery used for this unit
Others
Requests when disposing of this unit
Do not disassemble this unit other than when disposing of this unit.
Name: Lithium ion (Li-ion)
rechargeable battery
Nominal voltage: DC 3.7 V
HX-A1M-SQT0885_mst.book 30 ページ ２０１５年３月６日 金曜日 午後８時１２分
31
(ENG) SQT0885
When disposing of the used product, initialise the network settings and erase all data on this unit.
≥Disassemble after the battery runs out.
≥If it cannot be removed smoothly, contact Panasonic’s Service Centre.
≥Keep disassembled parts out of reach of children.

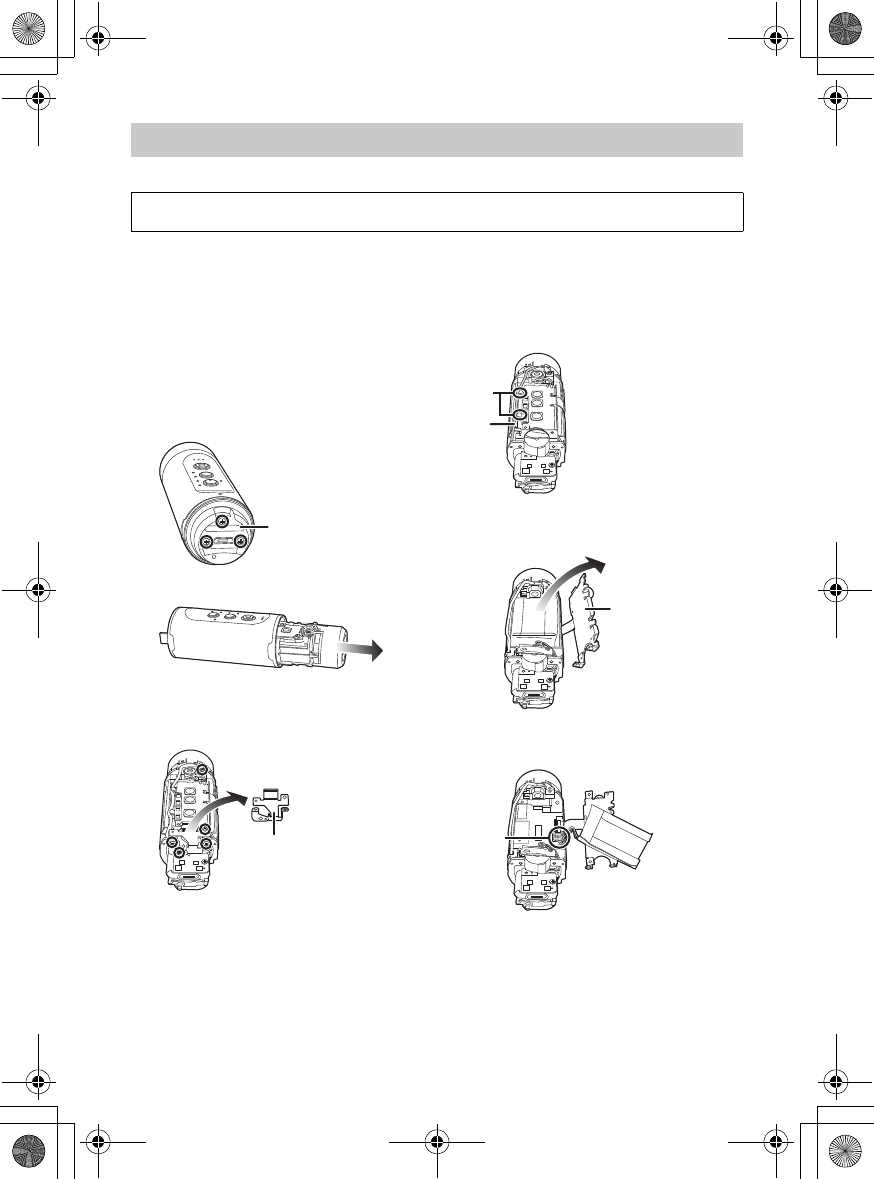

1 Remove the terminal cover and
glasscover. (l8)
2 Remove the three screws shown in
the figure below, and remove the
cover A.
≥Use a cross-slot screwdriver (commercially
available).
3 Pull out the inner unit.
4 Remove the five screws shown in
the figure below, and remove the
frame B.
5 Remove the lead C from the
holders D.
6 Open the control board E, and lift
up the battery.
7 Pull out the battery connector F
upwards, and remove the battery.
Regarding the handling of used batteries
≥Insulate the terminals with cellophane tape or
similar.
≥Do not disassemble.
How to remove the battery
This figure describes the disposal of this unit, it is not instruction for repair. If
disassembled, repair is not possible.
HX-A1M-SQT0885_mst.book 31 ページ ２０１５年３月６日 金曜日 午後８時１２分
32
SQT0885 (ENG)
Wearable camera
Information for your safety
Others
Specifications
Power source: INPUT: DC 5.0 V, 1 A
Rechargeable Li-ion Battery Pack:
DC 3.7 V, 480 mAh (1.78 Wh)
Power consumption: Recording; 4.3 W
Charging; 2.3 W
Motion picture recording format:
MPEG-4 AVC file format compliant (.MP4)
≥For picture size, recordable time and transfer
rate of a motion picture, refer to the
operating instructions (PDF format).
Motion picture compression:
MPEG-4 AVC/H.264
Audio compression:
AAC
Still picture recording format:
JPEG (Design rule for Camera File system,
based on Exif 2.2 standard)
≥For picture size of a still picture and number
of recordable pictures, refer to the operating
instructions (PDF format).
Recording media:
microSD card (512 MB/1 GB/2 GB),
microSDHC card (4 GB/8 GB/16 GB/32 GB)
microSDXC card (48 GB/64 GB)
Image sensor:
1/2.3z 1MOS image sensor
Total; Approx. 12760 K
Effective pixels;
Motion picture; Approx. 9030 K (16:9)*1
Still picture; Approx. 8340 K (16:9)*2
Lens:
F2.8
Focal length; 3.4 mm
Angle of view; Up to approx.160 o *1
Minimum focus distance; Approx. 50 cm
*1
*2
Shutter speed:
Motion picture; 1/30 to 1/12000
Still picture; 1/8 to 1/12000
Microphone:
Monaural
Minimum required illumination:
Approx. 6 lx
Approx. 1 lx with the Night Mode function
USB:
Reader function
microSD card; Read only (No copyright
protection support)
Web camera function
Hi-Speed USB (USB 2.0), USB terminal Type
micro-B
Battery charging function (Charges from USB
terminal when the main unit is off)
Dimensions:
26.5 mm (W)k26.5 mm (H)k68.5 mm (D)
[1.04 q (W)k1.04 q (H)k2.70 q (D)]
Mass (Weight):
Approx.31 g (Approx. 0.069 lbs.)
Mass (Weight) in operation:
Approx. 185 g (Approx. 0.408 lbs.)
[with a microSD card (optional)]
Operating temperature:
0°Cto40°C (32°Fto104°F)
Operating humidity:
10%RH to 80%RH
Waterproof/Dustproof performance:
Equivalent to IEC 60529 “IP68”
Anti-shock performance:
Compliant with MIL-STD 810F Method 516.5-
Shock. (l7)
This is not a guarantee of protection against
damage and malfunction under all conditions.
Battery operation time:
See page 14
HX-A1M-SQT0885_mst.book 32 ページ ２０１５年３月６日 金曜日 午後８時１２分
33
(ENG) SQT0885
Wireless transmitter:
Compliance standard; IEEE802.11b/g/n
Frequency range used;
Central frequency 2412 MHz to 2462 MHz [11ch]
Encryption method; Wi-Fi compliant WPA™/
WPA2™/WEP
Access method; Infrastructure mode
HX-A1M-SQT0885_mst.book 33 ページ ２０１５年３月６日 金曜日 午後８時１２分
34
SQT0885 (ENG)
∫Carefully observe copyright
laws
Whatever you have recorded and created
can be used for your personal entertainment
only. Under copyright laws, other materials
cannot be used without obtaining
permission from the holders of the
copyrights.
∫Licenses
≥microSDXC Logo is a trademark of SD-3C,
LLC.
≥iPhone is a trademark of Apple Inc.,
registered in the U.S. and other countries.
≥App Store is a service mark of Apple Inc.
≥Android and Google Play are trademarks or
registered trademarks of Google Inc.
≥The Wi-Fi CERTIFIED Logo is a certification
mark of the Wi-Fi Alliance.
≥“Wi-Fi®” is a registered trademark of Wi-Fi
Alliance®.
≥“WPA™”, and “WPA2™” are trademarks of
Wi-Fi Alliance®.
≥Other names of systems and products
mentioned in these instructions are usually
the registered trademarks or trademarks of
the manufacturers who developed the system
or product concerned.
This product is licensed under the AVC patent
portfolio license for the personal and
non-commercial use of a consumer to (i)
encode video in compliance with the AVC
Standard (“AVC Video”) and/or (ii) decode AVC
Video that was encoded by a consumer
engaged in a personal and non-commercial
activity and/or was obtained from a video
provider licensed to provide AVC Video. No
license is granted or shall be implied for any
other use. Additional information may be
obtained from MPEG LA, LLC.
See http://www.mpegla.com.
Others
About copyright
HX-A1M-SQT0885_mst.book 34 ページ ２０１５年３月６日 金曜日 午後８時１２分
35
(ENG) SQT0885
This product incorporates the following software:
(1) the software developed independently by or for Panasonic Corporation,
(2) the software owned by third party and licensed to Panasonic Corporation,
(3) the software licensed under the GNU General Public License, Version 2.0 (GPL V2.0),
(4) open source software other than the software licensed under the GPL V2.0.
The software categorized as (3) - (4) are distributed in the hope that it will be useful, but WITHOUT
ANY WARRANTY, without even the implied warranty of MERCHANTABILITY or FITNESS FOR A
PARTICULAR PURPOSE. Refer to the detailed terms and conditions thereof, which appear when
this unit is connected to a computer within the applicable operating procedures for this product.
At least three (3) years from delivery of this product, Panasonic will give to any third party who
contacts us at the contact information provided below, for a charge no more than our cost of
physically performing source code distribution, a complete machine-readable copy of the
corresponding source code covered under GPL V2.0 or LGPL V2.1, as well as the respective
copyright notice thereof.
For at least three (3) years from delivery of this product, Panasonic will give to any third party who
contacts us at the contact information provided below, for a charge no more than our cost of
physically performing source code distribution, a complete machine-readable copy of the
corresponding source code covered under GPL V2.0 or other conditions that impose an obligation
to disclose the source code, as well as the respective copyright notice thereof.
Contact Information: oss-cd-request@gg.jp.panasonic.com
The source code and the copyright notice are also available for free in our website below.
http://panasonic.net/avc/oss/index.html
HX-A1M-SQT0885_mst.book 35 ページ ２０１５年３月６日 金曜日 午後８時１２分
36
SQT0885 (ENG)
Some optional accessories may not be available in some countries.
* To use the Suction Cup Mount/VW-SCA100 and Video Camera Mount (For Handlebar)/
RP-CMC10, the Tripod Mount/VW-CTA1 or VW-CTA100 is required.
Others
Optional accessories
Accessory No. Figure Description
VW-MKA1 Multi Mount
VW-MKA100
VW-TMA1 Twin Mount
VW-CTA1 Tripod Mount*
VW-CTA100
VW-SCA100 Suction Cup Mount*
VW-WJA100 Wind Jammer
RP-CMC10 Video Camera Mount (For Handlebar)*
HX-A1M-SQT0885_mst.book 36 ページ ２０１５年３月６日 金曜日 午後８時１２分
37
(ENG) SQT0885
NOTE:
Accessories and/or model numbers may vary by country. Please consult your local dealer.
Product numbers correct as of March. 2015. These may be subject to change.
Accessory No. Figure Description
VW-CLA100 Clip Mount
VW-HMA1 Head Mount
VW-BTA1 Extended Battery
VW-SAA1 Strap Adaptor
VW-MBA100 Multi Belt
HX-A1M-SQT0885_mst.book 37 ページ ２０１５年３月６日 金曜日 午後８時１２分
38
SQT0885 (ENG)
Accessory Order Form (For USA Customers)
In CANADA, please contact your local Panasonic dealer for more information on
Accessories.
TO OBTAIN ANY OF OUR ACCESSORIES YOU CAN DO ANY OF
THE FOLLOWING:
VISIT YOUR LOCAL PANASONIC DEALER
OR
YOU MAY CONTACT US DIRECTLY AT: 1-800-237-9080 (FAX ONLY)
OR
MAIL THIS ORDER TO: PANASONIC NATIONAL PARTS CENTER
20421 84th Avenue South, Kent, WA 98032
Ship To:
Mr.
Mrs.
Ms.
First Last
Street Address
City State Zip
Phone#:
Day ( )
Night ( )
4. Shipping information (UPS delivery requires complete street address)
Please photocopy this form when placing an order.
3. Method of payment (check one)
American Express
VISA
MasterCard
(Please do not send cash)
2. Items Ordered
QuantityAccessory # Price Each Description Total Price
$6.95
Subtotal
Your State & Local Sales Tax
Shipping & Handling
Tota l
1. Model #
Discover
Expiration Date
Credit Card #
Customer Signature
HX-A1M-SQT0885_mst.book 38 ページ ２０１５年３月６日 金曜日 午後８時１２分
39
(ENG) SQT0885
Others
Limited Warranty
(ONLY FOR U.S.A.)
Panasonic Products Limited Warranty
Limited Warranty Coverage (For USA Only)
If your product does not work properly because of a defect in materials or workmanship,
Panasonic Corporation of North America (referred to as “the warrantor”) will, for the length of the
period indicated on the chart below, which starts with the date of original purchase
(“warranty period”), at its option either (a) repair your product with new or refurbished parts,
(b) replace it with a new or a refurbished equivalent value product, or (c) refund your purchase price.
The decision to repair, replace or refund will be made by the warrantor.
Product or Part Name Parts Labor
1 Year 1 YearWearable Camera
All included Accessories
(Except Non-Rechargeable Batteries) 90 Days
10 Days
Not Applicable
Only Non-Rechargeable Batteries Not Applicable
During the “Labor” warranty period there will be no charge for labor. During the “Parts” warranty
period, there will be no charge for parts. This Limited Warranty excludes both parts and labor for
non-rechargeable batteries, antennas, and cosmetic parts (cabinet). This warranty only applies
to products purchased and serviced in the United States. This warranty is extended only to
the original purchaser of a new product which was not sold “as is”.
Mail-In Service--Online Repair Request
Online Repair Request
To submit a new repair request and for quick repair status visit our Web Site at
www.panasonic.com/support.
When shipping the unit, carefully pack, include all supplied accessories listed in the Owner’s
Manual, and send it prepaid, adequately insured and packed well in a carton box. When shipping
Lithium Ion batteries please visit our Web Site at www.panasonic.com/BatteryHandling as
Panasonic is committed to providing the most up to date information. Include a letter detailing the
complaint, a return address and provide a daytime phone number where you can be reached.
A valid registered receipt is required under the Limited Warranty.
IF REPAIR IS NEEDED DURING THE WARRANTY PERIOD, THE PURCHASER WILL BE
REQUIRED TO FURNISH A SALES RECEIPT/PROOF OF PURCHASE INDICATING DATE
OF PURCHASE, AMOUNT PAID AND PLACE OF PURCHASE. CUSTOMER WILL BE
CHARGED FOR THE REPAIR OF ANY UNIT RECEIVED WITHOUT SUCH PROOF OF
PURCHASE.
Limited Warranty Limits And Exclusions
This warranty ONLY COVERS failures due to defects in materials or workmanship, and DOES NOT COVER
normal wear and tear or cosmetic damage. The warranty ALSO DOES NOT COVER damages which
occurred in shipment, or failures which are caused by products not supplied by the warrantor, or failures which
result from accidents, misuse, abuse, neglect, mishandling, misapplication, alteration, faulty installation,
set-up adjustments, misadjustment of consumer controls, improper maintenance, power line surge, lightning
damage, modification, introduction of sand, humidity or liquids, commercial use such as hotel, office,
restaurant, or other business or rental use of the product, or service by anyone other than a Factory Service
Center or other Authorized Servicer, or damage that is attributable to acts of God.
HX-A1M-SQT0885_mst.book 39 ページ ２０１５年３月６日 金曜日 午後８時１２分
40
SQT0885 (ENG)
THERE ARE NO EXPRESS WARRANTIES EXCEPT AS LISTED UNDER “LIMITED WARRANTY
COVERAGE”.
THE WARRANTOR IS NOT LIABLE FOR INCIDENTAL OR CONSEQUENTIAL DAMAGES RESULTING
FROM THE USE OF THIS PRODUCT, OR ARISING OUT OF ANY BREACH OF THIS WARRANTY.
(As examples, this excludes damages for lost time, travel to and from the servicer, loss of or damage to media
or images, data or other memory or recorded content. The items listed are not exclusive, but for illustration only.)
ALL EXPRESS AND IMPLIED WARRANTIES, INCLUDING THE WARRANTY OF
MERCHANTABILITY, ARE LIMITED TO THE PERIOD OF THE LIMITED WARRANTY.
Some states do not allow the exclusion or limitation of incidental or consequential damages, or
limitations on how long an implied warranty lasts, so the exclusions may not apply to you.
This warranty gives you specific legal rights and you may also have other rights which vary from state
to state. If a problem with this product develops during or after the warranty period, you may contact
your dealer or Service Center. If the problem is not handled to your satisfaction, then write to:
Consumer Affairs Department
Panasonic Corporation of North America
661 Independence Pkwy
Chesapeake, VA 23320
PARTS AND SERVICE, WHICH ARE NOT COVERED BY THIS LIMITED WARRANTY, ARE
YOUR RESPONSIBILITY.
As of October 2014
HX-A1M-SQT0885_mst.book 40 ページ ２０１５年３月６日 金曜日 午後８時１２分
41
(ENG) SQT0885
Others
Warranty (For Canadian Customers)
Panasonic Canada Inc.
5770 Ambler Drive, Mississauga, Ontario L4W 2T3
PANASONIC PRODUCT – LIMITED WARRANTY
Panasonic Canada Inc. warrants this product to be free from defects in material and workmanship under
normal use and for a period as stated below from the date of original purchase agrees to, at its option
either (a) repair your product with new or refurbished parts, (b) replace it with a new or a refurbished
equivalent value product, or (c) refund your purchase price. The decision to repair, replace or refund will
be made by Panasonic Canada Inc.
Camcorder Products - One (1) year, parts and labour
This warranty is given only to the original purchaser, or the person for whom it was purchased as a gift, of a Panasonic brand product
mentioned above sold by an authorized Panasonic dealer in Canada and purchased and used in Canada, which product was not sold
“as is”, and which product was delivered to you in new condition in the original packaging.
IN ORDER TO BE ELIGIBLE TO RECEIVE WARRANTY SERVICE HEREUNDER, A PURCHASE
RECEIPT OR OTHER PROOF OF DATE OF ORIGINAL PURCHASE, SHOWING AMOUNT PAID AND
PLACE OF PURCHASE IS REQUIRED
LIMITATIONS AND EXCLUSIONS
This warranty ONLY COVERS failures due to defects in materials or workmanship, and DOES NOT COVER
normal wear and tear or cosmetic damage. The warranty ALSO DOES NOT COVER damages which occurred in
shipment, or failures which are caused by products not supplied by Panasonic Canada Inc., or failures which result
