Owner’s Manual
Wireless Speaker System
Model No. SC-NE1
Thank you for purchasing this product.
Please read these instructions carefully before using this product, and save this manual for future
use.
If you have any questions, contact:
U.S.A. and Puerto Rico: 1-800-211-PANA (7262)
Canada: 1-800-561-5505
Register online at www.panasonic.com/register (U.S. customers only)
Included Installation Instructions (l2, 3 and 10, 11)
The installation work should be done by a qualified installation specialist.
Before commencing work, carefully read these installation instructions and the operating
instructions to ensure that installation is performed correctly.
(Please keep these instructions. You may need them when maintaining or moving this unit.)
La referencia rápida en español se puede encontrar en la página 13.
P
PC
SC-NE1_PPC~VQT4T91.book 1 ページ ２０１２年１２月１９日 水曜日 午後４時４３分
2
VQT4T91
IMPORTANT SAFETY INSTRUCTIONS
Read these operating instructions carefully before using the unit. Follow the safety instructions on the unit and the applicable safety
instructions listed below. Keep these operating instructions handy for future reference.
1 Read these instructions.
2 Keep these instructions.
3 Heed all warnings.
4 Follow all instructions.
5 Do not use this apparatus near water.
6 Clean only with dry cloth.
7 Do not block any ventilation openings. Install in
accordance with the manufacturer’s instructions.
8 Do not install near any heat sources such as radiators,
heat registers, stoves, or other apparatus (including
amplifiers) that produce heat.
9 Do not defeat the safety purpose of the polarized or
grounding-type plug. A polarized plug has two blades with
one wider than the other. A grounding-type plug has two
blades and a third grounding prong. The wide blade or the
third prong are provided for your safety. If the provided
plug does not fit into your outlet, consult an electrician for
replacement of the obsolete outlet.
10 Protect the power cord from being walked on or pinched
particularly at plugs, convenience receptacles, and the
point where they exit from the apparatus.
11 Only use attachments/accessories specified by the
manufacturer.
12 Use only with the cart, stand, tripod,
bracket, or table specified by the
manufacturer, or sold with the
apparatus. When a cart is used, use
caution when moving the cart/apparatus
combination to avoid injury from
tip-over.
13 Unplug this apparatus during lightning storms or when
unused for long periods of time.
14 Refer all servicing to qualified service personnel. Servicing
is required when the apparatus has been damaged in any
way, such as power-supply cord or plug is damaged, liquid
has been spilled or objects have fallen into the apparatus,
the apparatus has been exposed to rain or moisture, does
not operate normally, or has been dropped.
Unit
≥To reduce the risk of fire, electric shock or product damage,
– Do not expose this unit to rain, moisture, dripping or
splashing.
– Do not place objects filled with liquids, such as vases, on
this unit.
– Use only the recommended accessories.
– Do not remove covers.
– Do not repair this unit by yourself. Refer servicing to
qualified service personnel.
AC power supply cord
≥The power plug is the disconnecting device.
Install this unit so that the power plug can be unplugged from
the socket outlet immediately.
Button-type battery (Lithium battery)
≥Risk of fire, explosion and burns. Do not disassemble, heat
above 60 oC (140 oF) or incinerate.
Unit
≥Do not place sources of naked flames, such as lighted
candles, on this unit.
Placement
≥To reduce the risk of fire, electric shock or product damage,
– Do not install or place this unit in a bookcase, built-in
cabinet or in another confined space. Ensure this unit is
well ventilated.
– Do not obstruct this unit’s ventilation openings with
newspapers, tablecloths, curtains, and similar items.
Button-type battery (Lithium battery)
≥Danger of explosion if battery is incorrectly replaced.
Replace only with the type recommended by the
manufacturer.
≥Keep out of reach of children.
≥Insert with poles aligned.
≥Mishandling of batteries can cause electrolyte leakage and
may cause a fire.
– Remove batteries if you do not intend to use the remote
control for a long period of time. Store in a cool, dark
place.
– Do not heat or expose to flame.
– Do not leave the battery(ies) in a car exposed to direct
sunlight for a long period of time with doors and windows
closed.
– Do not touch the terminals (i and j) with metal objects.
– Do not recharge, disassemble, remodel, heat or throw into fire.
≥When disposing the batteries, please contact your local
authorities or dealer and ask for the correct method of
disposal.
WARNING
DO NOT INGEST BATTERY,
CHEMICAL BURN HAZARD
This product contains a coin/button cell battery. If the coin/
button cell battery is swallowed, it can cause severe
internal burns in just 2 hours and can lead to death.
Keep new and used batteries away from children. If the
battery compartment does not close securely, stop using
the product and keep it away from children.
If you think batteries might have been swallowed or placed
inside any part of the body, seek immediate medical attention.
If any electrolyte should come into contact with your hands
or clothes, wash it off thoroughly with water.
If any electrolyte should come into contact with your eyes,
never rub the eyes. Rinse eyes thoroughly with water, and
then consult a doctor.
<For USA-California only>
This product contains a CR Coin Cell Lithium Battery which
contains Perchlorate Material
s
special handling may apply.
See www.dtsc.ca.gov/hazardouswaste/perchlorate.
CAUTION
IMPORTANT SAFETY INSTRUCTIONS
Read these operating instructions carefully before using the unit. Follow the safety instructions on the unit and the applicable safety
instructions listed below. Keep these operating instructions handy for future reference.
1 Read these instructions.
2 Keep these instructions.
3 Heed all warnings.
4 Follow all instructions.
5 Do not use this apparatus near water.
6 Clean only with dry cloth.
7 Do not block any ventilation openings. Install in
accordance with the manufacturer’s instructions.
8 Do not install near any heat sources such as radiators,
heat registers, stoves, or other apparatus (including
amplifiers) that produce heat.
9 Do not defeat the safety purpose of the polarized or
grounding-type plug. A polarized plug has two blades with
one wider than the other. A grounding-type plug has two
blades and a third grounding prong. The wide blade or the
third prong are provided for your safety. If the provided
plug does not fit into your outlet, consult an electrician for
replacement of the obsolete outlet.
10 Protect the power cord from being walked on or pinched
particularly at plugs, convenience receptacles, and the
point where they exit from the apparatus.
11 Only use attachments/accessories specified by the
manufacturer.
12 Use only with the cart, stand, tripod,
bracket, or table specified by the
manufacturer, or sold with the
apparatus. When a cart is used, use
caution when moving the cart/apparatus
combination to avoid injury from
tip-over.
13 Unplug this apparatus during lightning storms or when
unused for long periods of time.
14 Refer all servicing to qualified service personnel. Servicing
is required when the apparatus has been damaged in any
way, such as power-supply cord or plug is damaged, liquid
has been spilled or objects have fallen into the apparatus,
the apparatus has been exposed to rain or moisture, does
not operate normally, or has been dropped.
Unit
≥To reduce the risk of fire, electric shock or product damage,
– Do not expose this unit to rain, moisture, dripping or
splashing.
– Do not place objects filled with liquids, such as vases, on
this unit.
– Use only the recommended accessories.
– Do not remove covers.
– Do not repair this unit by yourself. Refer servicing to
qualified service personnel.
AC power supply cord
≥The power plug is the disconnecting device.
Install this unit so that the power plug can be unplugged from
the socket outlet immediately.
Button-type battery (Lithium battery)
≥Risk of fire, explosion and burns. Do not disassemble, heat
above 60 oC (140 oF) or incinerate.
Unit
≥Do not place sources of naked flames, such as lighted
candles, on this unit.
Placement
≥To reduce the risk of fire, electric shock or product damage,
– Do not install or place this unit in a bookcase, built-in
cabinet or in another confined space. Ensure this unit is
well ventilated.
– Do not obstruct this unit’s ventilation openings with
newspapers, tablecloths, curtains, and similar items.
Button-type battery (Lithium battery)
≥Danger of explosion if battery is incorrectly replaced.
Replace only with the type recommended by the
manufacturer.
≥Keep out of reach of children.
≥Insert with poles aligned.
≥Mishandling of batteries can cause electrolyte leakage and
may cause a fire.
– Remove batteries if you do not intend to use the remote
control for a long period of time. Store in a cool, dark
place.
– Do not heat or expose to flame.
– Do not leave the battery(ies) in a car exposed to direct
sunlight for a long period of time with doors and windows
closed.
– Do not touch the terminals (i and j) with metal objects.
– Do not recharge, disassemble, remodel, heat or throw into fire.
≥When disposing the batteries, please contact your local
authorities or dealer and ask for the correct method of
disposal.
WARNING
DO NOT INGEST BATTERY,
CHEMICAL BURN HAZARD
This product contains a coin/button cell battery. If the coin/
button cell battery is swallowed, it can cause severe
internal burns in just 2 hours and can lead to death.
Keep new and used batteries away from children. If the
battery compartment does not close securely, stop using
the product and keep it away from children.
If you think batteries might have been swallowed or placed
inside any part of the body, seek immediate medical attention.
If any electrolyte should come into contact with your hands
or clothes, wash it off thoroughly with water.
If any electrolyte should come into contact with your eyes,
never rub the eyes. Rinse eyes thoroughly with water, and
then consult a doctor.
<For USA-California only>
This product contains a CR Coin Cell Lithium Battery which
contains Perchlorate Material
s
special handling may apply.
See www.dtsc.ca.gov/hazardouswaste/perchlorate.
CAUTION
SC-NE1_PPC~VQT4T91.book 2 ページ ２０１２年１２月１９日 水曜日 午後４時４３分
3
VQT4T91
-If you see this symbol-
Table of contents
IMPORTANT SAFETY INSTRUCTIONS............2
Accessories.......................................................4
About Bluetooth®..............................................4

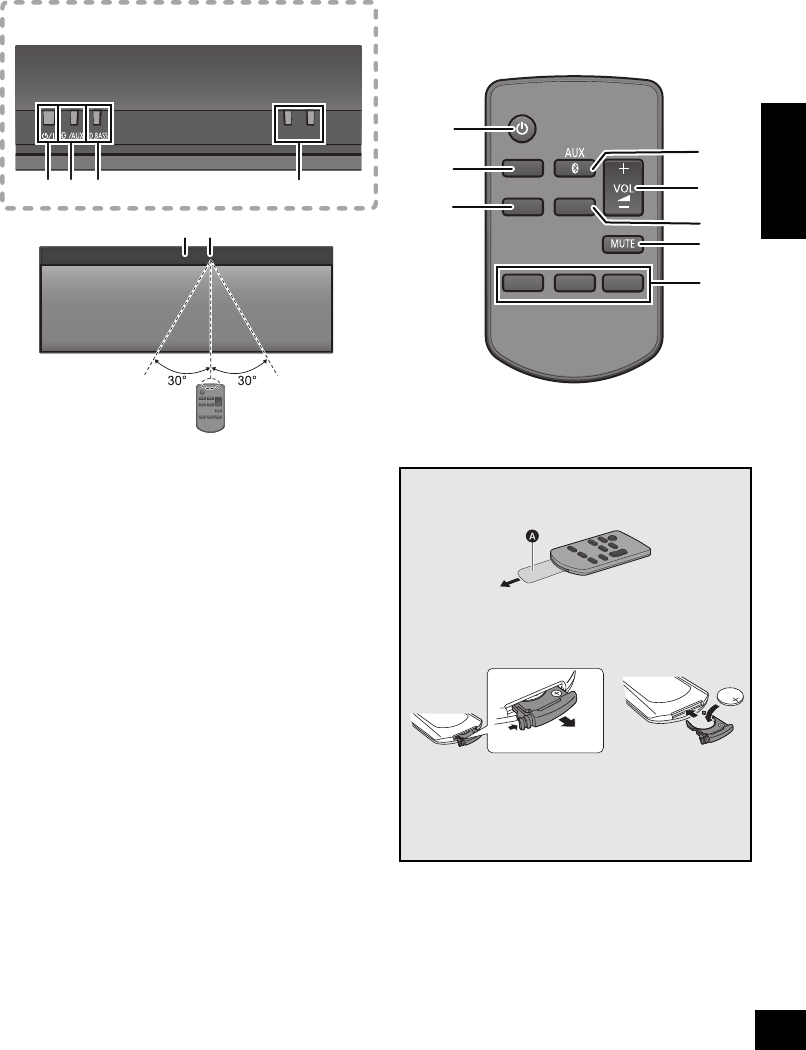

Control reference guide....................................5

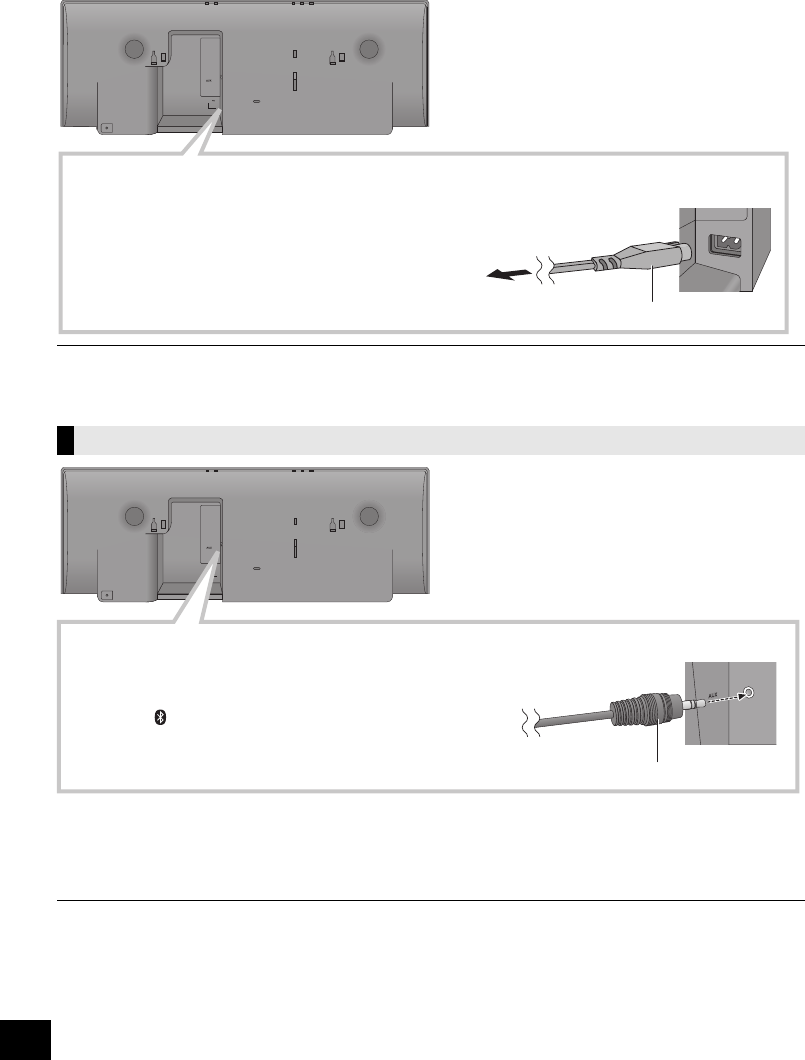

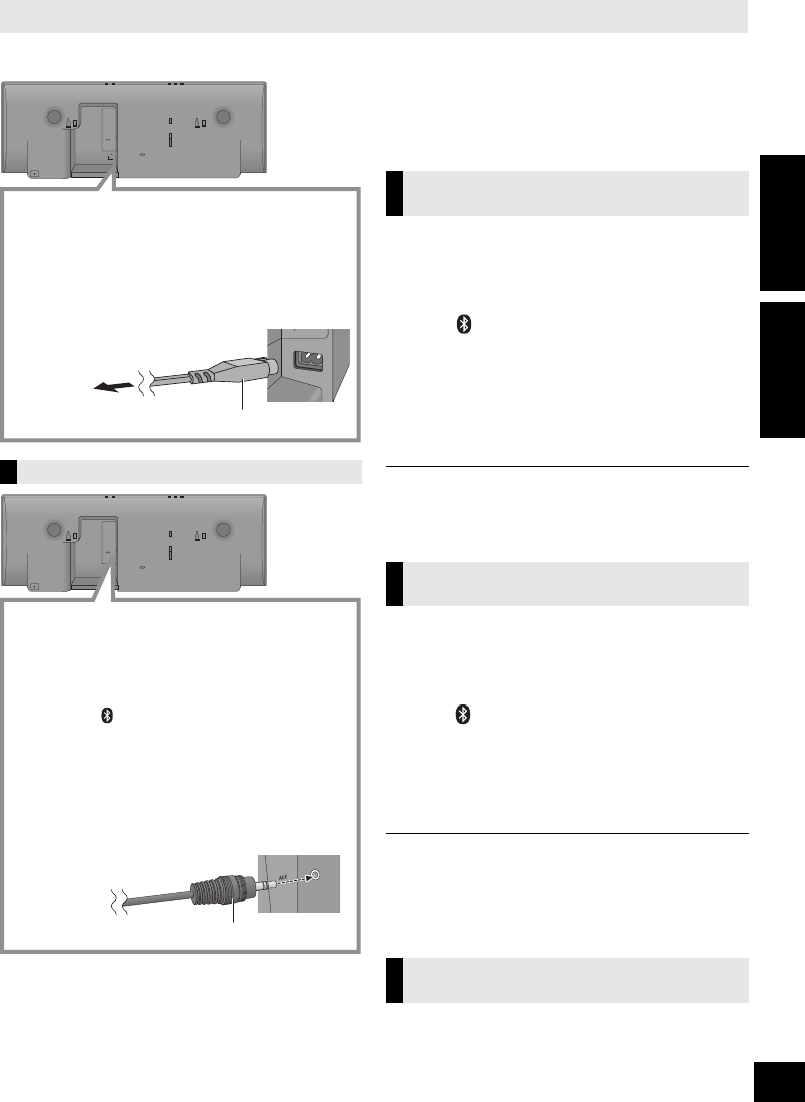

Connections ......................................................6
Bluetooth® operations ...................................... 7
Sound adjustment.............................................8
Others.................................................................8
Troubleshooting ................................................ 9

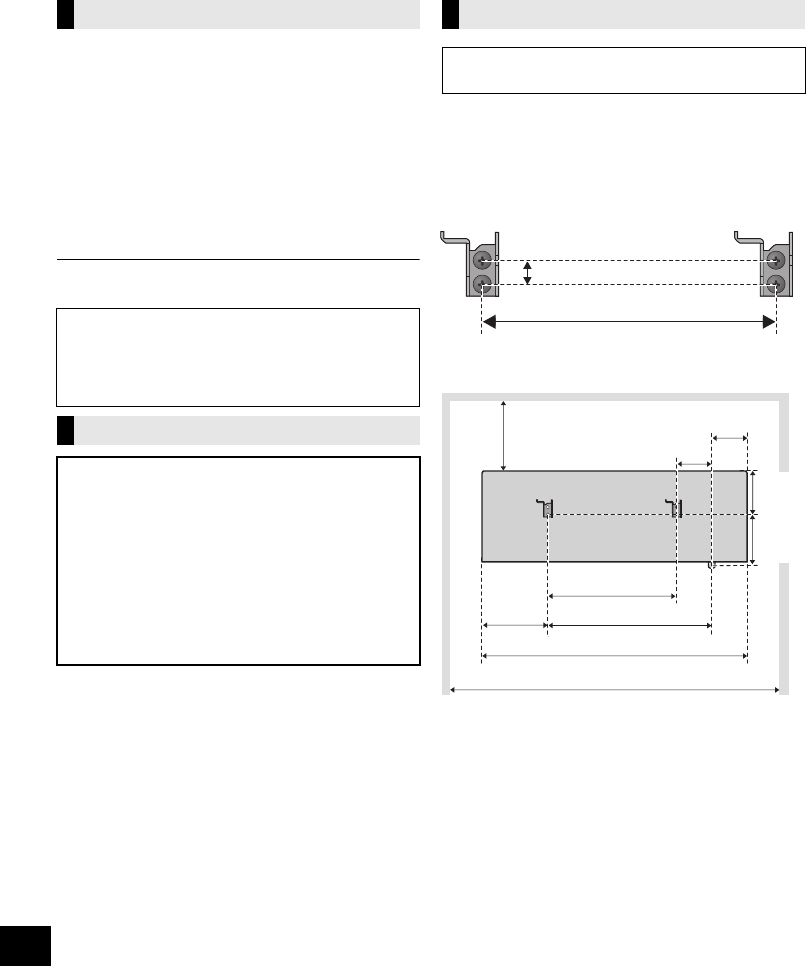

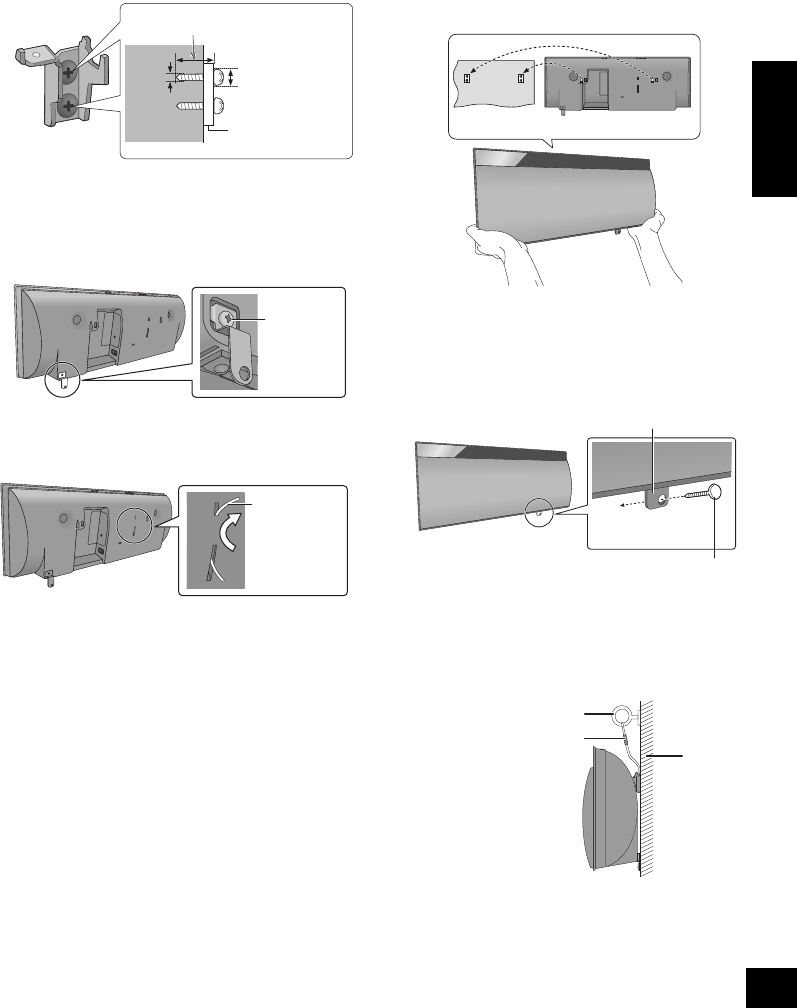

Attaching the unit to a wall (optional) ........... 10
Specifications..................................................12
Unit care...........................................................12
License.............................................................12
Spanish Quick Reference /
Referencia rápida en español ........................ 13
Limited Warranty (ONLY FOR U.S.A. AND
PUERTO RICO) ................................................ 14
Limited Warranty (ONLY FOR CANADA).......15
Product Identification Marking is located on the bottom of
the unit.
Information on Disposal in other Countries
outside the European Union
This symbol is only valid in the
European Union.
If you wish to discard this
product, please contact your local
authorities or dealer and ask for
the correct method of disposal.
The lightning flash with arrowhead symbol, within an
equilateral triangle, is intended to alert the user to the
presence of uninsulated “dangerous voltage” within
the product’s enclosure that may be of sufficient
magnitude to constitute a risk of electric shock to persons.
CAUTION
CAUTION : TO REDUCE THE RISK OF ELECTRIC
SHOCK, DO NOT REMOVE SCREWS.
NO USER-SERVICEABLE PARTS
INSIDE.
REFER SERVICING TO QUALIFIED
SERVICE PERSONNEL.
The exclamation point within an equilateral triangle is
intended to alert the user to the presence of important
operating and maintenance (servicing) instructions in
the literature accompanying the appliance.
RISK
OF
ELECTRIC
SHOCK
DO
NOT
OPEN
About descriptions in this Owner’s Manual
≥
Pages to be referred to are indicated as “
l
OO”.
≥Unless otherwise indicated, operations are
described using the remote control.
SC-NE1_PPC~VQT4T91.book 3 ページ ２０１２年１２月１９日 水曜日 午後４時４３分
4
VQT4T91
Accessories About Bluetooth®
∫Frequency band used
≥This unit uses the 2.4 GHz frequency band.
∫Certification of this device
≥This system conforms to frequency restrictions
and has received certification based on
frequency laws. Thus, a wireless permit is not
necessary.
≥The actions below are punishable by law in some
countries:
– Taking apart or modifying the unit.
– Removing specification indications.
∫Restrictions of use
≥Wireless transmission and/or usage with all
Bluetooth® equipped devices is not guaranteed.
≥All devices must conform to standards set by
Bluetooth SIG, Inc.
≥Depending on the specifications and settings of a
device, it can fail to connect or some operations
can be different.
≥This system supports Bluetooth® security
features. But depending on the operating
environment and/or settings, this security is
possibly not sufficient. Transmit data wirelessly to
this system with caution.
≥This system cannot transmit data to a Bluetooth®
device.
∫Range of use
≥Use this device at a maximum range of 10 m
(33 ft). The range can decrease depending on
the environment, obstacles or interference.
∫Interference from other devices
≥This unit may not function properly and troubles
such as noise and sound jumps may arise due to
radio wave interference if this unit is located too
close to other Bluetooth® devices or the devices
that use the 2.4 GHz band.
≥This unit may not function properly if radio waves
from a nearby broadcasting station, etc. is too
strong.
∫Intended usage
≥This unit is for normal, general use only.
≥Do not use this system near an equipment or in
an environment that is sensitive to radio
frequency interference (example: airports,
hospitals, laboratories, etc).
Check the supplied accessories before using this
unit.
∏1 Remote control (with a battery)
(N2QAYC000091)
∏1 AC power supply cord
(K2CB2CB00022)
Wall mounting accessories
∏1 Screw
(XTB3+8JFJK-J)
∏1 Safety holder
(RGQ0660-K)
∏2 Wall mount brackets
(RMQX1082-S)
(ONLY FOR CANADA)
The enclosed Canadian French label sheet corresponds to the
English display on the top of the unit.
≥Do not use AC power supply cord with other equipment.
≥Product numbers provided in this Owner’s Manual are
correct as of December 2012. These may be subject to
change.
Panasonic bears no responsibility for data
and/or information that is compromised
during a wireless transmission.
SC-NE1_PPC~VQT4T91.book 4 ページ ２０１２年１２月１９日 水曜日 午後４時４３分
5
VQT4T91
ENGLISH
Control reference guide
1 Standby/on switch [Í/I] ([Í])
Press to switch the unit from on to standby mode or vice
versa.
In standby mode, the unit is still consuming a small amount
of power.
2 Enter sound menu
3 Enter setup menu
4 Select Bluetooth®/AUX
5 Adjust the volume (0 (min) to 50 (max))
6 Enter the Bluetooth® menu/
Change the sound input level of the external
device (l6)
7 Mute the sound
Mutes the sound. Press again to cancel.
“MUTE” is also canceled when the volume is adjusted or the
unit is turned off.
8 Selection/OK
9 Dynamic Bass sound effect selector
10 Display
11 Remote control signal sensor
Distance: Within approx. 7 m (23 ft) directly in front.
≥To avoid interference, please do not put any objects in
front of signal sensor.
∫Before using for the first time
Remove the insulation sheet A .
∫To replace a button-type battery
Battery type: CR2025 (Lithium battery)
1 2
≥Set the button-type battery with its (i) mark
facing upward.
≥Keep the button-type battery out of reach of
children to prevent swallowing.
−
VOLUME
＋
1495
10 11
Top view
SOUND
SETUP
PLAY MENU
OK
1
4
2
5
6
7
8
3
SC-NE1_PPC~VQT4T91.book 5 ページ ２０１２年１２月１９日 水曜日 午後４時４３分
6
VQT4T91
Connections
≥These speakers do not have magnetic shielding. Do not place them near a television, personal computer or other devices easily
influenced by magnetism.
∫To select the sound input level of the external device
1While in “AUX” mode, press [PLAY MENU] repeatedly to select “INPUT LEVEL” and then press [OK].
2Press [3,4] to select “NORMAL” or “HIGH”.
≥The default setting is “NORMAL”.
≥Switch the equalizer off or turn the volume of the external device down to reduce the input signal. High level of input signal will
distort the sound.
≥For details, refer to the instruction manual of the other equipment.
≥The cables and the devices are not supplied.
Additional Connection
モヤチリワ
Connect the AC power supply cord.
To a household AC outlet
AC Power supply cord (supplied)
This unit consumes a small amount of AC power (l12) even when turned off.
≥In the interest of power conservation, if you will not be using this unit for an extended period of
time, unplug it from the household AC outlet.
モヤチリワ
Connect an external music device (for AUX mode).
1Plug the audio cable (not supplied) into the AUX jack.
Plug type: ‰3.5 mm (1/8q) stereo
2Press [ , AUX] to select “AUX” and start playback on
the connected device.
Audio cable (not supplied)
SC-NE1_PPC~VQT4T91.book 6 ページ ２０１２年１２月１９日 水曜日 午後４時４３分
7
VQT4T91
ENGLISH
Bluetooth® operations
By using the Bluetooth® connection, you can listen to the sound from the Bluetooth® audio device from this
unit wirelessly.
≥Refer to the operating instructions of the Bluetooth® device for details.
Preparation
≥Turn on the Bluetooth® feature of the device and
place the device near this unit.
≥If this unit is already connected to a Bluetooth®
device, disconnect it.
1Press [ , AUX] to select “BLUETOOTH”.
≥If “PAIRING” is indicated on the display, go to step 3.
2Press [PLAY MENU] to select “NEW DEV.” and
then press [OK].
{. “PAIRING” is indicated on the display.
3Select “SC-NE1” from the Bluetooth® device’s
Bluetooth® menu.
4Start play on the Bluetooth® device.
≥If prompted for the passkey, input “0000”.
≥You can register up to 8 devices with this unit. If a 9th device
is paired, the device that has not been used for the longest
time will be replaced.
Preparation
≥Turn on the Bluetooth® feature of the device and
place the device near this unit.
≥If this unit is already connected to a Bluetooth®
device, disconnect it.
1Press [ , AUX] to select “BLUETOOTH”.
{. “READY” is indicated on the display.
2Select “SC-NE1” from the Bluetooth® device’s
Bluetooth® menu.
{. The name of the connected device is indicated on the
display for 2 seconds.
3Start play on the Bluetooth® device.
≥This unit can only be connected to one device at a time.
≥When “BLUETOOTH” is selected as the source, this unit will
automatically try and connect to the last connected
Bluetooth® device.
≥The Bluetooth® device will be disconnected if “AUX” is
selected as an audio source.
You can change the transmission speed to prioritize
transmission quality or sound quality.
Preparation
≥Press [ , AUX] to select “BLUETOOTH”.
≥If a Bluetooth® device is already connected,
disconnect it.
1Press [PLAY MENU] repeatedly to select
“LINK MODE”.
2Press [3,4] to select the mode and then
press [OK].
MODE 1: Emphasis on connectivity
MODE 2: Emphasis on sound quality
≥The default setting is “MODE 1”.
If the sound input level of the Bluetooth
®
transmission
is too low, change the input level setting.
Preparation
≥Connect a Bluetooth® device.
1Press [PLAY MENU] repeatedly to select
“INPUT LEVEL”.
2Press [3,4] to select the level and then press
[OK].
“LEVEL 0” ,. “LEVEL +1” ,. “LEVEL +2”
^----------------------------------------------------J
≥Select “LEVEL 0” if the sound is distorted.
≥The default setting is “LEVEL 0”.
1While a Bluetooth® device is connected:
Press [PLAY MENU] to select
“DISCONNECT?”.
2Press [3,4] to select “OK? YES” and then
press [OK].
Pairing Bluetooth® devices
Connecting a paired Bluetooth®
device
Bluetooth® transmission mode
Bluetooth® input level
Disconnecting a Bluetooth®
device
SC-NE1_PPC~VQT4T91.book 7 ページ ２０１２年１２月１９日 水曜日 午後４時４３分
8
VQT4T91
Sound adjustment
The following sound effects can be added to the
audio output.
1Press [SOUND] repeatedly to select the effect.
2Press [3,4] to select the setting and then
press [OK].
* This function can also be selected with the [D.BASS] button
on the unit.
≥You may experience a reduction in sound quality when these
effects are used with some sources. If this occurs, turn the
sound effects off.
Others
The sleep timer can turn the unit off after a set time.
1Press [SETUP] to select “SLEEP”.
2Press [3,4] to set the time (in minutes) and
then press [OK].
“SLEEP 30” ,. “SLEEP 60” ,. “SLEEP 90” ,. “SLEEP 120”
^--------------------. “OFF” (Cancel) (--------------------J
≥The remaining time is indicated on the unit’s display
except when other operations are performed.
The brightness of this unit’s display can be
changed.
1Press [SETUP] repeatedly to select “DIMMER”.
2Press [3,4] to select “ON” and then press
[OK].
≥To cancel the dimmer, select “OFF” in step 2.
As a factory preset, this unit will always turn off
automatically if there is no sound output and no
operation for approx. 30 minutes.
To cancel this function
1Press [SETUP] repeatedly to select
“AUTO OFF”.
2Press [3,4] to select “OFF” and then press
[OK].
≥To turn automatic standby on, select “ON” in step 2.
When other Panasonic equipment responds to the
supplied remote control, change the remote control
code.
1Press [ , AUX] to select “AUX”.
2While pressing and holding [ / AUX] on the
unit, press and hold [SOUND] on the remote
control until the unit’s display shows
“REMOTE 2”.
3Press and hold [OK] and [SOUND] on the
remote control for at least 4 seconds.
≥To change the mode back to “REMOTE 1”, repeat the steps
above but replace the button pressed on the remote control
from [SOUND] to [ , AUX].
Direct-Vocal
Surround
(D.SURROUND)
“LEVEL 1”, “LEVEL 2” or
“OFF”.
≥The factory preset is “OFF”.
Preset EQ
(PRESET EQ)
“HEAVY” (heavy), “SOFT”
(soft), “CLEAR” (clear),
“VOCAL” (vocal) or “FLAT”
(flat/off).
≥The factory preset is “HEAVY”.
Bass (BASS) or
Treble (TREBLE)
Adjust the level (j4 to i4).
Dynamic Bass*
(D.BASS)
“ON D.BASS” or
“OFF D.BASS”.
≥The factory preset is
“ON D.BASS”.
Sleep timer
Display brightness
Automatic standby
Changing the unit and remote
control code
SC-NE1_PPC~VQT4T91.book 8 ページ ２０１２年１２月１９日 水曜日 午後４時４３分
9
VQT4T91
ENGLISH
Troubleshooting
Before requesting service, make the following
checks. If you are in doubt about some of the check
points, or if the solutions indicated in the following
guide do not solve the problem, refer to “Customer
Services Directory (United States and Puerto Rico)”
on page 14 if you reside in the U.S.A. or Puerto
Rico, or refer to “Limited Warranty (ONLY FOR
CANADA)” on page 15 if you reside in Canada.
Humming heard during play.
≥An AC power supply cord or fluorescent light is near the
cords. Keep other appliances and cords away from this unit’s
cables.
Pairing cannot be done.
≥Check the Bluetooth® device condition.
The device cannot be connected.
≥The pairing of the device was unsuccessful or the registration
has been replaced. Try pairing the device again.
≥This unit might be connected to a different device.
Disconnect the other device and try pairing the device again.
The device is connected but audio cannot be
heard through this unit.
≥For some built-in Bluetooth® devices, you have to set the
audio output to “SC-NE1” manually. Read the operating
instructions for the device for details.
The sound is interrupted.
≥The device is out of the 10 m (33 ft) communication range.
Bring the Bluetooth® device closer to this unit.
≥Remove any obstacle between this unit and the device.
≥Other devices that use the 2.4 GHz frequency band (wireless
router, microwaves, cordless phones, etc.) are interfering.
Bring the Bluetooth® device closer to this unit and distance it
from the other devices.
≥Select “MODE 1” for stable communication. (l7).
The remote control doesn't work properly.
≥The remote control and this unit are using a different code.
(lbelow, “REMOTE ”)
≥Is the battery depleted or is the battery inserted incorrectly?
(l5)
The following messages or service numbers
may appear on the unit's display.
“AUTO OFF”
≥The unit has been left unused for about 30 minutes and will
shut down within a minute. Press any button to cancel it.
“DIMMER”
≥Appears 10 seconds after the volume is turned to “0”.
“ERROR”
≥Incorrect operation is performed. Read the instructions and
try again.
“F ” (“ ” stands for a number.)
≥There is a problem with this unit.
Note down the displayed number, disconnect the AC power
supply cord and consult your dealer.
“REMOTE ” (“ ” stands for a number.)
≥The remote control and this unit are using different codes.
Change the code on the remote control.
– When “REMOTE 1” is displayed, press and hold [OK] and
[ , AUX] for more than 4 seconds.
– When “REMOTE 2” is displayed, press and hold [OK] and
[SOUND] for more than 4 seconds.
To return all settings to the factory preset
When the following situations occur, reset the
memory:
≥There is no response when buttons are pressed.
≥You want to clear and reset the memory contents.
1Disconnect the AC power supply cord. (Wait
for at least 3 minutes before proceeding to
step 2.)
2While pressing and holding down [Í/I] on the
unit, reconnect the AC power supply cord.
≥Keep holding down [Í/I] until “--------”
appears on the display.
3Release [Í/I].
≥All the settings are returned to the factory preset. You will
need to reset the memory items.
Common problems
Bluetooth®
Remote control
Messages
SC-NE1_PPC~VQT4T91.book 9 ページ ２０１２年１２月１９日 水曜日 午後４時４３分
10
VQT4T91
Attaching the unit to a wall (optional)
This unit can be wall mounted using the supplied wall mount brackets, etc. Make sure that the screw used
and the wall are strong enough to support the weight of at least 33 kg (72.8 lbs).
The screws and other items are not supplied as the type and size will vary with each installation.
≥Refer to step 2 of “Wall mount instructions” for details about the required screws.
≥Be sure to attach the fall prevention cord as a secondary safety measure.
∫Supplied accessories
≥1 Safety holder
≥1 Screw
≥2 Wall mount brackets
∫Additionally required accessories
(commercially available)
≥4 Wall mount bracket fixing screws
≥1 Safety holder fixing screw
≥1 Fall prevention cord*
≥1 Screw eye
* Use a cord that is capable of supporting over 33 kg (72.8 lbs)
(with a diameter of about 1.5 mm (1/16q)).
1Measure and mark the position of the wall
mount brackets (Both sides).
{. Use figures below to identify the screwing positions.
The position to attach the wall mount brackets
Space required
Installation accessories
≥Keep the safety holder out of reach of children to
prevent swallowing.
≥Keep the screws out of reach of children to prevent
swallowing.
≥Keep the wall mount brackets out of reach of children
to prevent swallowing.
Safety precautions
Professional installation is required.
The installation should never be done by any
other than a qualified installation specialist.
PANASONIC DISCLAIMS ANY PROPERTY
DAMAGE AND/OR SERIOUS INJURY,
INCLUDING DEATH RESULTING FROM
IMPROPER INSTALLATION OR INCORRECT
HANDLING.
≥Be sure to install this unit as indicated
within this Owner’s Manual.
Wall mount instructions
Before installation, turn the unit off and disconnect the
AC power supply cord from the AC outlet.
252 mm (9 29/32q)
12.5 mm (1/2q)
300 mm (11 13/16q)
319 mm (12 9/16q)
770 mm (30 5/16q)
83 mm
(3 9/32q)
252 mm (9 29/32q)
82 mm (3 7/32q)
169 mm
(6 21/32q)
570 mm (22 7/16q)
67 mm (2 5/8q)
122 mm
(4 13/16q)
SC-NE1_PPC~VQT4T91.book 10 ページ ２０１２年１２月１９日 水曜日 午後４時４３分
11
VQT4T91
ENGLISH
2Attach the wall mount bracket to the wall with
2 screws (not supplied). (Both sides)
≥Use a level to ensure both wall mount brackets are
level.
3Fix the safety holder onto the unit with the
screw (supplied).
{. Screw tightening torque: 50 N0cm (0.4 lbf0ft) to
70 N0cm (0.5 lbf0ft).
4Attach the fall prevention cord (not supplied) to
this unit.
5Hook the unit securely onto the wall mount
brackets with both hands.
≥Connect the AC power supply cord to the unit before
hanging the unit onto the wall. (l6)
≥After hanging the unit, release your hands carefully to
confirm the unit sits securely on the wall.
6Drive the safety holder fixing screw
(not supplied) to secure the safety holder onto
the wall.
≥Refer to step 2 for requirements before screwing.
7Attach the fall prevention cord (not supplied) to
the wall.
≥Make sure that the slack of the cord is minimal.
At least 30 mm (1 3/16q)
‰7.5 mm (19/64q) to
‰9.4 mm (3/8q)
‰4 mm
(5/32q)
Wall mount bracket
Screw
(supplied)
Cord
(not supplied)
Wall
Safety holder fixing screw
(not supplied)
Safety holder
Fixed to the wall
Cord (not supplied)
Screw eye (not supplied)
Wall
SC-NE1_PPC~VQT4T91.book 11 ページ ２０１２年１２月１９日 水曜日 午後４時４３分
12
VQT4T91
Specifications
∫GENERAL
∫AMPLIFIER SECTION
∫SPEAKER SECTION
∫BLUETOOTH SECTION
* Prospective communication distance
Measurement environment:
Temperature 25 oC (77 oF) / Height 1 m (3.3 ft)
Measure in “MODE 1”
∫TERMINALS SECTION
≥Specifications are subject to change without notice.
Mass and dimensions are approximate.
≥Total harmonic distortion is measured by a digital spectrum
analyzer.
Unit care
Pull out the AC power plug from the outlet before
maintenance.
∫Clean this unit with a soft, dry cloth
≥When dirt is heavy, wring a cloth moistened in
water tightly to wipe the dirt, and then wipe it with
a dry cloth.
≥Never use alcohol, paint thinner or benzine to
clean this unit.
≥Before using chemically treated cloth, carefully
read the instructions that came with the cloth.
∫To dispose or transfer this unit
The unit may keep the user settings information in
the unit. If you discard this unit either by disposal or
transfer, then follow the procedure to return all the
settings to the factory presets to delete the user
settings. (l9, “To return all settings to the factory
preset”)
≥The operation history may be recorded in the
memory of this unit.
License
Power consumption 11 W
Power consumption in standby mode
Approx. 0.1 W
Power supply AC 120 V, 60 Hz
Dimensions (WkHkD)
570 mm
k
206 mm
k
100 mm
(22
7
/
16
qk
8
1
/
8
qk
3
15
/
16
q
)
Mass (Weight) Approx. 2.7 kg(5.95 lbs)
Operating temperature range
0oCtor40 oC(r32 oF to r104 oF)
Operating humidity range
35 % to 80 % RH (no condensation)
RMS Output Power Stereo mode
Front Ch (both ch driven)
20 W per channel (6 ≠),
1kHz,10%THD
Total RMS Stereo mode power 40 W
FTC Output Power Stereo mode
Front Ch (both ch driven)
15 W per channel (6 ≠),
20 Hz to 20 kHz, 1 % THD
Total FTC Stereo mode power 30 W
Type 2 way, 2 speaker system (Bass reflex)
Speaker unit(s)
1. Woofer 8cm(31/8q)k1 per channel
2. Tweeter 2.5 cm (1q)k1 per channel
Impedance 6≠
Output sound pressure
83.5 dB/W (1 m (3.3 ft))
Frequency range 52 Hz to 25 kHz (s16 dB),
75 Hz to 22 kHz (s10 dB)
Version Bluetooth®Ver.2.1 +EDR
Output Class 2 (2.5 mW)
Communication distance About 10 m (33 ft)*
Communication method 2.4 GHz band FH-SS
Correspondence profile A2DP
AUX Terminal Stereo, ‰3.5 mm (1/8q) jack
The Bluetooth® word mark and logos are owned by the
Bluetooth SIG, Inc. and any use of such marks by
Panasonic Corporation is under license. Other trademarks
and trade names are those of their respective owners.
SC-NE1_PPC~VQT4T91.book 12 ページ ２０１２年１２月１９日 水曜日 午後４時４３分
13
VQT4T91
ENGLISHESPAÑOL
Conexiones
∫Para seleccionar el nivel de entrada de
sonido del dispositivo externo
1Mientras está en modalidad “AUX”, pulse
[PLAY MENU] repetidamente para seleccionar
“INPUT LEVEL” y luego pulse [OK].
2Presione [3,4] para seleccionar “NORMAL” o
“HIGH”.
Operaciones Bluetooth®
Al usar la conexión Bluetooth®, puede escuchar el
sonido desde el dispositivo de audio Bluetooth® desde
este aparato, de forma inalámbrica.
≥Consulte las instrucciones de funcionamiento del
dispositivo Bluetooth® para obtener más detalles.
Preparación
≥Encienda la función Bluetooth® del dispositivo y
coloque el dispositivo cerca de este aparato.
≥Si este aparato ya está conectado a un dispositivo
Bluetooth®, desconéctelo.
1
Pulse [ , AUX] para seleccionar “BLUETOOTH”.
≥Si se indica “PAIRING” en la pantalla, vaya al paso 3.
2Presione [PLAY MENU] para seleccionar
“NEW DEV.” y luego presione [OK].
{. “PAIRING” se indica en la pantalla.
3Seleccione “SC-NE1” desde el menú Bluetooth®
del dispositivo Bluetooth®.
4Inicie la reproducción en el dispositivo Bluetooth®.
≥Si se le solicita la contraseña, ingrese “0000”.
≥Puede registrar hasta 8 dispositivos con este aparato. Si se
sincroniza un 9no dispositivo, se reemplazará el dispositivo
que no se usó por más tiempo.
Preparación
≥Encienda la función Bluetooth® del dispositivo y
coloque el dispositivo cerca de este aparato.
≥Si este aparato ya está conectado a un dispositivo
Bluetooth®, desconéctelo.
1Pulse [, AUX] para seleccionar “BLUETOOTH”.
{. “READY” se indica en la pantalla.
2Seleccione “SC-NE1” desde el menú Bluetooth®
del dispositivo Bluetooth®.
{. El nombre del dispositivo conectado se indica en la
pantalla durante 2 segundos.
3
Inicie la reproducción en el dispositivo Bluetooth
®
.
≥
Esta unidad se puede conectar solamente a un dispositivo por vez.
≥Cuando se selecciona “BLUETOOTH” como fuente, este
aparato intentará conectarse automáticamente con el último
dispositivo conectado Bluetooth®.
≥El dispositivo Bluetooth® se desconectará si se selecciona
“AUX” como fuente de audio.
1Mientras se conecta un dispositivo Bluetooth®:
Pulse [PLAY MENU] para seleccionar
“DISCONNECT?”.
2Presione [3,4] para seleccionar “OK? YES” y
luego presione [OK].
Spanish Quick Reference / Referencia rápida en español
Conexión Adicional
モヤチリワ
Conecte el cable de alimentación de CA.
A la toma doméstica de CA
Cable de suministro de energía CA (suministrado)
Esta unidad consume poca corriente CA incluso
cuando se encuentra apagada.
≥Para ahorrar energía, si no va a usar esta unidad
durante un período prolongado de tiempo, puede
desconectarla.
≥Consumo de energía en Standby (modo de espera):
Aprox. 0,1 W
モヤチリワ
Conecte un dispositivo externo de
música (para el modo AUX).
1Enchufe el cable de audio (no suministrado)
en el AUX conector.
≥Tipo de enchufe: ‰3,5 mm (1/8q) estéreo
2
Presione
[ , AUX] to
para seleccionar “AUX” y
comenzar a reproducir en el dispositivo conectado.
≥Desconecte el ecualizador o baje el volumen de
sonido del dispositivo externo para reducir la señal
de entrada. Un nivel alto de la señal de entrada
distorsionará el sonido.
≥Para mayores detalles, consulte el manual de
instrucciones del otro equipo.
≥No se proporcionan cables ni dispositivos.
Cable de audio (no suministrado)
Dispositivos Bluetooth® de
sincronización
Conexión de un dispositivo
Bluetooth® sincronizado
Desconexión del dispositivo
Bluetooth®
SC-NE1_PPC~VQT4T91.book 13 ページ ２０１２年１２月１９日 水曜日 午後４時４３分
14
VQT4T91
Limited Warranty
(ONLY FOR U.S.A. AND PUERTO RICO)
Panasonic Consumer Marketing Company of North America,
Division of Panasonic Corporation of North America
One Panasonic Way, Secaucus, New Jersey 07094
Panasonic Products Limited Warranty
Limited Warranty Coverage
(For USA and Puerto Rico Only)
