Transistors
1
Publication date: February 2003 SJC00097BED

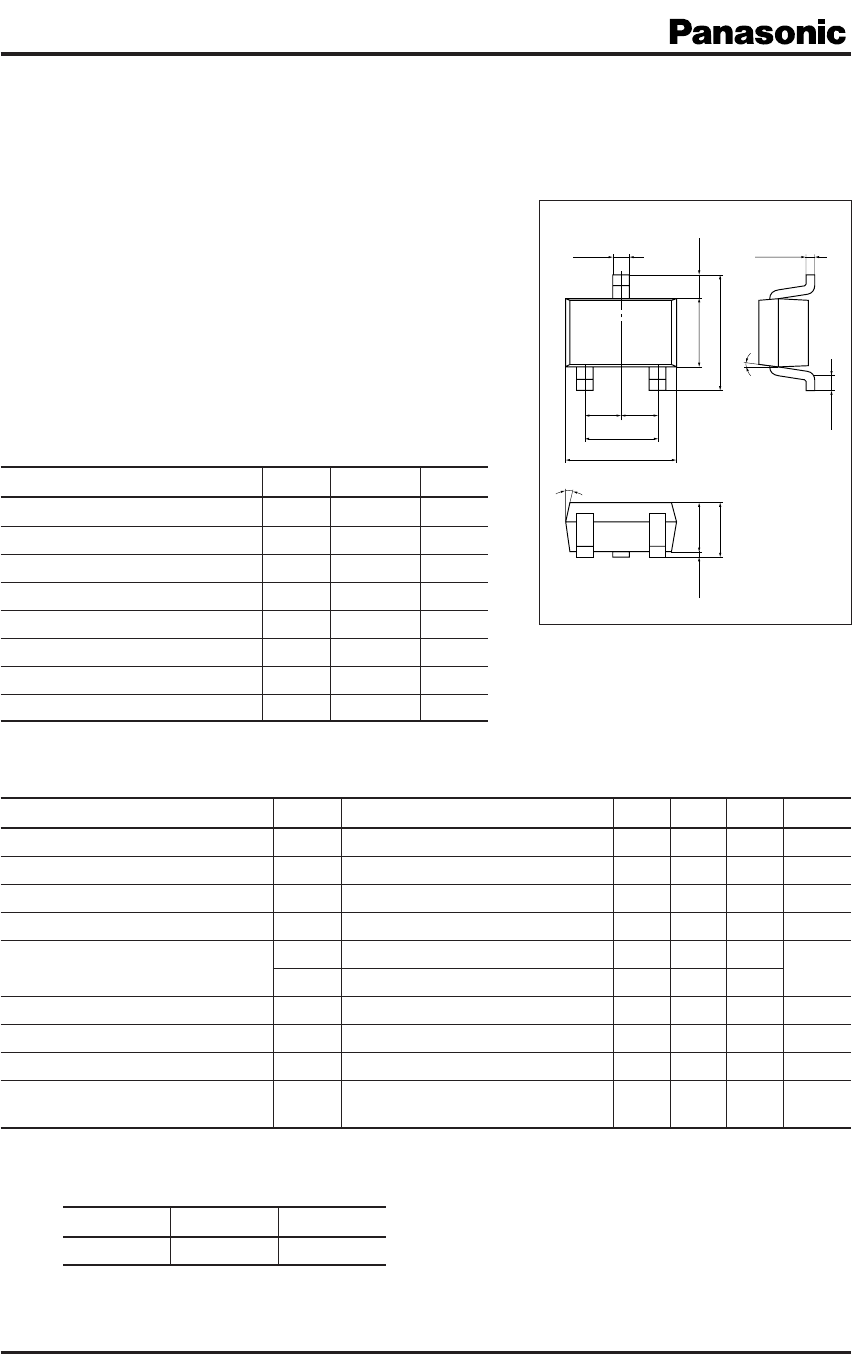

2SB1679
Silicon PNP epitaxial planar type
For low-frequency amplification
■Features
•Large collector output capacitance (Common base, input open cir-
cuited) Cob
•Low collector-emitter saturation voltage VCE(sat)
•S-Mini type package, allowing downsizing of the equipment and
automatic insertion through the tape packing
■Absolute Maximum Ratings Ta = 25°C
Parameter Symbol Rating Unit
Collector-base voltage (Emitter open) VCBO −15 V
Collector-emitter voltage (Base open) VCEO −10 V
Emitter-base voltage (Collector open) VEBO −7V
Collector current IC− 0.5 A
Peak collector current ICP −1A
Collector power dissipation PC150 mW
Junction temperature Tj150 °C
Storage temperature Tstg −55 to +150 °C
■Electrical Characteristics Ta = 25°C ± 3°C
Note) 1. Measuring methods are based on JAPANESE INDUSTRIAL STANDARD JIS C 7030 measuring methods for transistors.
2. *1: Pulse measurement
*2: Rank classification
Rank R S
hFE1 130 to 220 180 to 350
Marking Symbol: 3V
2.1
±0.1
1.3
±0.1
0.3
+0.1
–0.0
2.0
±0.2
1.25
±0.10
(0.425)
1
3
2
(0.65) (0.65)
0.2
±0.1
0.9
±0.1
0 to 0.1
0.9
+0.2
–0.1
0.15
+0.10
–0.05
5°
10°
Unit: mm
1: Base
2: Emitter
3: Collector
EIAJ: SC-70
SMini3-G1 Package
Parameter Symbol Conditions Min Typ Max Unit
Collector-base voltage (Emitter open) VCBO IC = −10 µA, IE = 0 −15 V
Collector-emitter voltage (Base open) VCEO IC = −1 mA, IB = 0 −10 V
Emitter-base voltage (Collector open) VEBO IE = −10 µA, IC = 0 −7V
Collector-base cutoff current (Emitter open)
ICBO VCB = −10 V, IE = 0 −100 nA
Forward current transfer ratio *1hFE1 *2VCE = −2 V, IC = − 0.5 A 130 350
hFE2 VCE = −2 V, IC = −1 A 60
Collector-emitter saturation voltage *1VCE(sat) IC = − 0.4 A, IB = −8 mA − 0.16 − 0.30 V
Base-emitter saturation voltage *1VBE(sat) IC = − 0.4 A, IB = −8 mA − 0.8 −1.2 V
Transition frequency fTVCB = −10 V, IE = 50 mA, f = 200 MHz 130 MHz
Collector output capacitance Cob VCB = −10 V, IE = 0, f = 1 MHz 22 pF
(Common base, input open circuited)
This product complies with the RoHS Directive (EU 2002/95/EC).
Request for your special attention and precautions in using the technical information and
semiconductors described in this book
(1)If any of the products or technical information described in this book is to be exported or provided to non-residents, the laws and
regulations of the exporting country, especially, those with regard to security export control, must be observed.
(2)The technical information described in this book is intended only to show the main characteristics and application circuit examples
of the products, and no license is granted under any intellectual property right or other right owned by our company or any other
company. Therefore, no responsibility is assumed by our company as to the infringement upon any such right owned by any other
company which may arise as a result of the use of technical information described in this book.
(3)The products described in this book are intended to be used for standard applications or general electronic equipment (such as office
equipment, communications equipment, measuring instruments and household appliances).
Consult our sales staff in advance for information on the following applications:
– Special applications (such as for airplanes, aerospace, automobiles, traffic control equipment, combustion equipment, life support
systems and safety devices) in which exceptional quality and reliability are required, or if the failure or malfunction of the prod-
ucts may directly jeopardize life or harm the human body.
– Any applications other than the standard applications intended.
(4)The products and product specifications described in this book are subject to change without notice for modification and/or im-
provement. At the final stage of your design, purchasing, or use of the products, therefore, ask for the most up-to-date Product
Standards in advance to make sure that the latest specifications satisfy your requirements.
(5)When designing your equipment, comply with the range of absolute maximum rating and the guaranteed operating conditions
(operating power supply voltage and operating environment etc.). Especially, please be careful not to exceed the range of absolute
maximum rating on the transient state, such as power-on, power-off and mode-switching. Otherwise, we will not be liable for any
defect which may arise later in your equipment.
Even when the products are used within the guaranteed values, take into the consideration of incidence of break down and failure
mode, possible to occur to semiconductor products. Measures on the systems such as redundant design, arresting the spread of fire
or preventing glitch are recommended in order to prevent physical injury, fire, social damages, for example, by using the products.
(6)Comply with the instructions for use in order to prevent breakdown and characteristics change due to external factors (ESD, EOS,
thermal stress and mechanical stress) at the time of handling, mounting or at customer's process. When using products for which
damp-proof packing is required, satisfy the conditions, such as shelf life and the elapsed time since first opening the packages.
(7)This book may be not reprinted or reproduced whether wholly or partially, without the prior written permission of Matsushita
Electric Industrial Co., Ltd.
